# Low-Energy Electron Inelastic Mean Free Path of Graphene Measured by a Time-of-Flight Spectrometer

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. SLEEM/ToF Device

#### 2.2. Data Processing

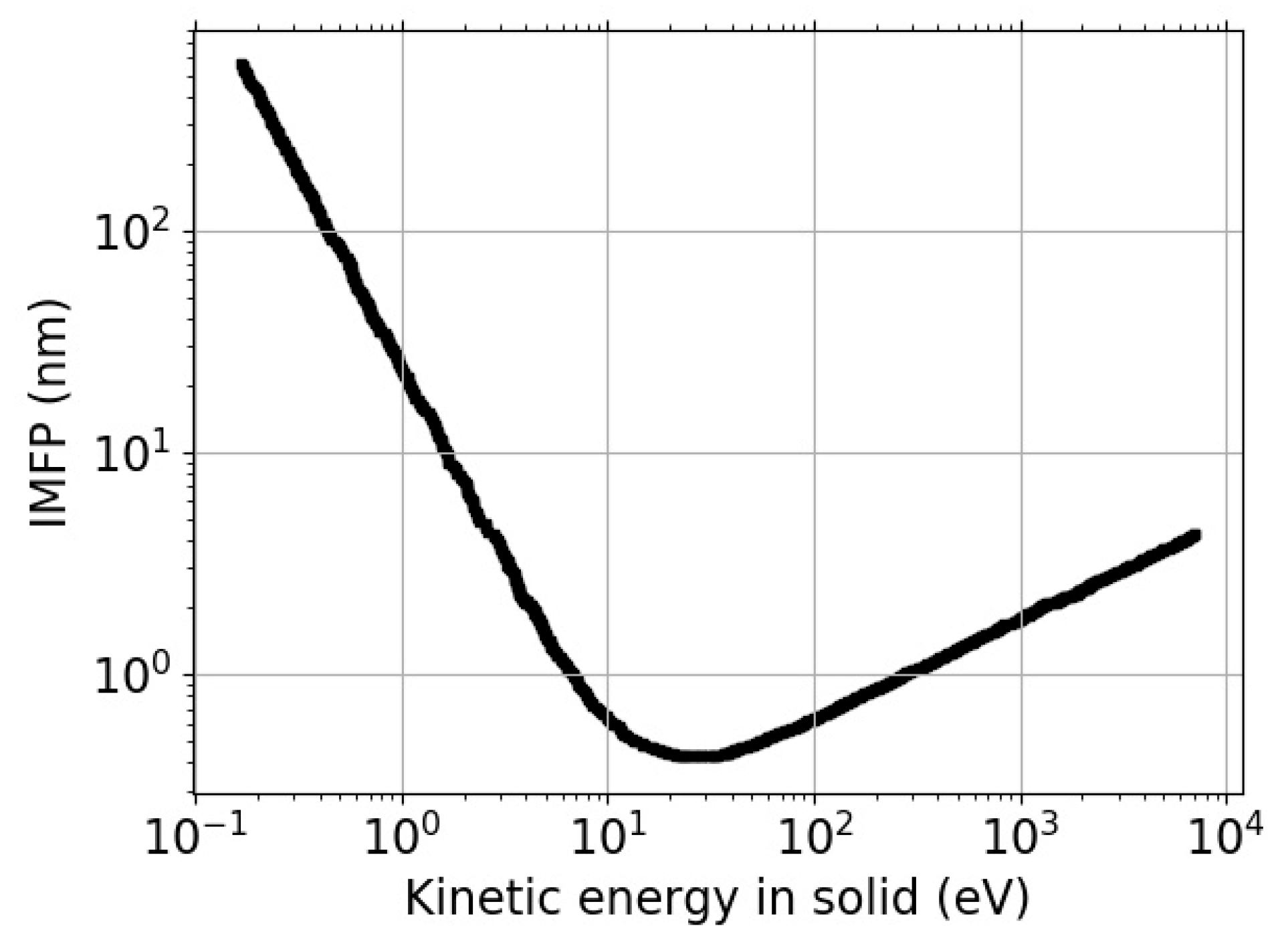

_{L}, and provide the conversion table, i.e., theoretical dependence, t(E), of the ToF on energy, E, of the system with these specific settings. These scripts help to find an optimum setup for each measurement.

_{switch}, trigger pulse sent t

_{pulse}and detection event t

_{detect}. These raw data are converted in true hyper-spectral imaging data of ToF “times” (t

_{detect}− t

_{pulse}). Line and frame switches are identified from regular patterns in the pixel switch signals, which allows one to assign a position to each pixel. Thence, we acquire a collection of ToF values corresponding to a given pixel in a given scan of the selected window, i.e., an image frame. In other words, ToF spectra for each set of the three coordinates—scan/frame no. and two pixel coordinates. We visualize the hyper-spectral data in Figure 4a, displaying density of counts in the time-domain histogram for each pixel collected over all frames. Consider a slice corresponding to a given time bin. We see that the pixels in the slice may contain areas of significantly different densities of detections (higher values are lighter in the image), i.e., the transmissivity, as recorded by the MCP.

_{IMFP}value from energy-loss spectra measured at a given landing energy E

_{L},

#### 2.3. DFT Calculations

## 3. Results

^{6}m/s (experimental value is 1.1 × 10

^{6}m/s [61]). DFT-LDA is known to underestimate the experimental value of Fermi velocity, while the many-body GW simulations often provide better agreement with the experiment [60].

^{−1}, are displayed in Figure 10b. Let us note that positions of both dominant loss-peaks from upon the simple interband transitions estimated from the DFT band structure, Figure 9b, correspond well to the more accurate RPA calculations close to the Г-point (Figure 10b, data for the lowest MT). The positions of maxima of the two main loss features are 4.1 eV and 14.3 eV for q = 0.055 Å

^{−1}in the DFT-EELS spectra. The multiple simulation data-sets displayed in Figure 10b clearly show the dispersion relation of the two loss-peaks.

^{2}+ q

_{E}

^{2}) → dq/q” for q ≠ 0 and 0 if q = 0 ≠ q

_{E}, not including the kinematic restrictions on q. The energy-loss T dependence is contained in q

_{E}that is defined as q

_{E}(T, E

_{L}) = T/(ħ v(E

_{L})), with the velocity v determined from the landing energy E

_{L}. Let us compare the MBPT-EELS intensity from the two segments, collected up to the maximum MT using a weighted sum, with the experimental data (both ZLP and baseline subtracted). Figure 10 shows that both positions of the simulated peaks and their intensity are in a good agreement with the processed experimental spectra. The slight discrepancy is due to the approximations used in the data processing and simulations. Moreover, these simulations support the idea that the splitting of the (π + σ)-plasmon is given by the weighted sum of the momentum-resolved (π + σ)-plasmon intensity over different MTs. This agreement gives us more confidence in the processed experimental data, and we regard them to be ready for the following processing to obtain IMFP.

^{−1}Å

^{−1}, γ = 0.042 eV

^{−1}compare well with the results in Ref. [74], β = 0.0098 eV

^{−1}Å

^{−1}, γ = 0.053 eV

^{−1}. The free-electron plasmon energy of carbon is fixed to E

_{P}= 22.3 eV.

## 4. Discussion

_{plasmon}or energy-loss T

_{plasmon}) and width vary with momentum transfer q, due to the dispersion relation T

_{plasmon}(q), and number of layers n. The π-plasmon range is [4,12] eV and the (π + σ)-plasmon range is [13,30] eV, as shown in Table 1. Furthermore, existing experiments reveal that sample tilt affects the dispersion relation (Figure 4a in Ref. [67]).

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Standard E 673, Annual Book of the ASTM Standards, American Society for Testing and Materials; ASTM: West Conshohocken, PA, USA, 1998; Volume 3.06.
- Koralek, J.D.; Douglas, J.F.; Plumb, N.C.; Griffith, J.D.; Cundiff, S.T.; Kapteyn, H.C.; Murnane, M.M.; Dessau, D.S. Experimental setup for low-energy laser-based angle resolved photoemission spectroscopy. Rev. Sci. Instrum.
**2007**, 78, 053905. [Google Scholar] [CrossRef] [Green Version] - Seah, M.P.; Dench, W.A. Quantitative electron spectroscopy of surfaces: A standard data base for electron inelastic mean free paths in solids. Surf. Interface Anal.
**1979**, 1, 0142–2421. [Google Scholar] [CrossRef] - Zdyb, R.; Menteş, T.O.; Locatelli, A.; Niño, M.A.; Bauer, E. Inelastic mean free path from reflectivity of slow electrons. Phys. Rev. B
**2013**, 87, 075436. [Google Scholar] [CrossRef] - Werner, W.S.M. Questioning a Universal Law for Electron Attenuation. Physics
**2019**, 12, 93. [Google Scholar] [CrossRef] [Green Version] - Frank, L.; Mikmeková, E.; Müllerová, I.; Lejeune, M. Counting graphene layers with very slow electrons. Appl. Phys. Lett.
**2015**, 106, 013117. [Google Scholar] [CrossRef] - Vos, M.; Grande, P.L. How the choice of model dielectric function affects the calculated observables. Nucl. Instrum. Meth. B
**2017**, 407, 97–109. [Google Scholar] [CrossRef] - Emfietzoglou, D.; Kyriakou, I.; Garcia-Molina, R.; Abril, I. Inelastic mean free path of low-energy electrons in condensed media: Beyond the standard models. Surf. Interface Anal.
**2017**, 49, 4–10. [Google Scholar] [CrossRef] - Chanther, C.T.; Bourke, J.D. Low-energy electron properties: Electron inelastic mean free path, energy loss function and the dielectric function. Recent measurements, applications, and the plasmon-coupling theory. Ultramicroscopy
**2019**, 201, 38–48. [Google Scholar] [CrossRef] - Bauer, E. Surface microscopy with low energy electrons: LEEM. J. Electron. Spectrosc. Relat. Phenom.
**2020**, 241, 146806. [Google Scholar] [CrossRef] - Bauer, E. Basic Interactions. In Surface Microscopy with Low Energy Electrons, 1st ed.; Springer: New York, NY, USA, 2014; pp. 21–88. [Google Scholar] [CrossRef]
- Geelen, D.; Jobst, J.; Krasovskii, E.E.; van der Molen, S.J.; Tromp, R.M. Nonuniversal Transverse Electron Mean Free Path through Few-layer Graphene. Phys. Rev. Lett.
**2019**, 123, 086802. [Google Scholar] [CrossRef] [Green Version] - Werner, W.S.M.; Smekal, W.; Tomastik, C.; Störi, H. Surface excitation probability of medium energy electrons in metals and semiconductors. Surf. Sci.
**2001**, 486, L461–L466. [Google Scholar] [CrossRef] - Pauly, N.; Tougaard, S. Surface and core hole effects in X-ray photoelectron spectroscopy. Surf. Sci.
**2010**, 604, 1193–1196. [Google Scholar] [CrossRef] - Zemek, J.; Houdkova, J.; Jiricek, P.; Izak, T.; Kalbac, M. Non-destructive depth profile reconstruction of single-layer graphene using angle-resolved X-ray photoelectron spectroscopy. Appl. Surf. Sci.
**2019**, 491, 16–23. [Google Scholar] [CrossRef] - Xu, M.; Fujita, D.; Chen, H.; Hanagata, N. Formation of monolayer and few-layer hexagonal boron nitride nanosheets via surface segregation. Nonoscale
**2011**, 3, 2854–2858. [Google Scholar] [CrossRef] [PubMed] - Sugimoto, T.; Kimura, K. Stability of Graphene Oxide Film to Electron Beam Irradiation and Possible Thickness Dependence of Electron Attenuation. Bull. Chem. Soc. Jpn.
**2013**, 86, 333–338. [Google Scholar] [CrossRef] [Green Version] - Graber, T.; Foster, F.; Schöll, A.; Reinert, F. Experimental determination of the attenuation length of electrons in organic molecular solids: The example of PTCDA. Surf. Sci.
**2011**, 605, 878–882. [Google Scholar] [CrossRef] - Locatelli, A.; Zamborlini, G.; Mentes, T.O. Growth of single and multi-layer graphene on Ir(100). Carbon
**2014**, 74, 237–248. [Google Scholar] [CrossRef] - Iacobucci, S.; Offi, F.; Torelli, P.; Petaccia, L. Effective attenuation lengths of low energy electrons in MgO thin films. J. Electron. Spectrosc. Relat. Phenom.
**2019**, 233, 1–4. [Google Scholar] [CrossRef] - Werner, W.S.M.; Bellissimo, A.; Leber, R.; Ashraf, A.; Segui, S. Reflection electron energy loss spectrum of single layer graphene measured on a graphite substrate. Surf. Sci.
**2015**, 635, L1–L3. [Google Scholar] [CrossRef] - Zdyb, R.; Bauer, E. Spin-resolved inelastic mean free path of slow electrons in Fe. J. Phys. Condens. Matter.
**2013**, 25, 272201. [Google Scholar] [CrossRef] - Romanyuk, O.; Bartoš, I. Electron attenuation anisotropy at crystal surfaces from LEED. Surf. Sci.
**2009**, 603, 2789–2792. [Google Scholar] [CrossRef] - Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths. V. Data for 14 organic compounds over the 50–2000 eV range. Surf. Interface Anal.
**1994**, 21, 165–176. [Google Scholar] [CrossRef] - Gries, W.H. A Universal Predictive Equation for the Inelastic Mean Free Pathlengths of X-ray Photoelectrons and Auger Electrons. Surf. Interface Anal.
**1996**, 24, 38–50. [Google Scholar] [CrossRef] - Bethe, H. Zur Theorie des Durchgangs schneller Korpuskularstrahlen durch Materie. Ann. Phys.
**1930**, 397, 325–400. [Google Scholar] [CrossRef] - Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths. II. Data for 27 elements over the 50–2000 eV range. Surf. Interface Anal.
**1991**, 17, 911–926. [Google Scholar] [CrossRef] - Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths. VIII. Data for 15 elemental solids over the 50–2000 eV range. Surf. Interface Anal.
**2005**, 37, 1–14. [Google Scholar] [CrossRef] - Tanuma, S.; Powell, C.J.; Penn, D.R. Calculations of electron inelastic mean free paths. III. Data for 15 inorganic compounds over the 50–2000 eV range. Surf. Interface Anal.
**1991**, 17, 927–939. [Google Scholar] [CrossRef] - Reimer, L. Electron Spectroscopic Imaging. In Energy-Filtering Transmission Electron Microscopy. Springer Series in Optical Sciences; Reimer, L., Ed.; Springer: Berlin/Heidelberg, Germany, 1995; Volume 71. [Google Scholar] [CrossRef]
- Hofmann, S. Electron Energy Analyzer. In Auger- and X-ray Photoelectron Spectroscopy in Materials Science, 49th ed.; Springer Series in Surface Science, Ertl, G., Lüth, H., Mills, D.G., Eds.; Springer: Berlin/Heidelberg, Germany, 2013; Volume 49, pp. 29–39. [Google Scholar]
- Müllerová, I.; Frank, L. Scanning low energy electron microscopy. In Advances in Imaging and Electron Physics; Hawkes, P.W., Ed.; Elsevier: San Diego, CA, USA, 2003; Volume 128, pp. 309–443. [Google Scholar]
- Cai, Y.H.; Lai, Y.H.; Wang, Y.S. Coupled Space- and Velocity-Focusing in Time-of-Flight Mass Spectrometry—A Comprehensive Theoretical Investigation. J. Am. Soc. Mass Spectrom.
**2015**, 26, 1722–1731. [Google Scholar] [CrossRef] [PubMed] - Amjadipour, M.; MacLeod, J.; Lipton-Duffin, J.; Tadich, A.; Boeckl, J.J.; Iacopi, F.; Motta, N. Electron effective attenuation length in epitaxial graphene on SiC. Nanotechnology
**2019**, 30, 025704. [Google Scholar] [CrossRef] [PubMed] - Calliari, L.; Dapor, M.; Garberoglio, G.; Fanchenko, S. Momentum transfer dependence of reflection electron energy loss spectra: Theory and experiment. Surf. Interface Anal.
**2014**, 46, 340–349. [Google Scholar] [CrossRef] - Calliari, L.; Fanchenko, S. The spatial extent of surface effects on electron inelastic scattering. Surf. Interface Anal.
**2016**, 48, 580–583. [Google Scholar] [CrossRef] - Konvalina, I.; Daniel, B.; Zouhar, M.; Piňos, J.; Radlička, T.; Frank, L.; Müllerová, I.; Mikmeková, E.M. Studying 2D Materials by Means of Microscopy and Spectroscopy with Low Energy Electrons. Microsc. Microanal.
**2019**, 25, 482–483. [Google Scholar] [CrossRef] [Green Version] - DIGUN—Schottky Electron Gun. DIGUN. Available online: https://www.delong.cz/products/electron-guns/ (accessed on 18 August 2021).
- Konvalina, I.; Müllerová, I. Properties of the cathode lens combined with a focusing magnetic/immersion-magnetic lens. Nucl. Instrum. Methods Phys. Res. Sect. A
**2011**, 645, 55–59. [Google Scholar] [CrossRef] - Cameron, A.E.; Eggers, D.F. An Ion “Velocitron”. Rev. Sci. Instrum.
**1948**, 19, 605. [Google Scholar] [CrossRef] - RoentDek Delayline Detectors. Available online: www.roentdek.com/detectors/ (accessed on 18 August 2021).
- Verhoeven, W.; van Rens, J.F.; Van Ninhuijs, M.A.; Toonen, W.F.; Kieft, E.R.; Mutsaers, P.H.; Luiten, O.J. Time-of-flight electron energy loss spectroscopy using TM110 deflection cavities. Struct. Dyn.
**2016**, 3, 054303. [Google Scholar] [CrossRef] [Green Version] - Richardson, W.H. Bayesian-Based Iterative Method of Image Restoration. J. Opt. Soc. Am.
**1972**, 62, 55–59. [Google Scholar] [CrossRef] - Lucy, L.B. An iterative technique for the rectification of observed distributions. Astron. J.
**1974**, 79, 745. [Google Scholar] [CrossRef] [Green Version] - Eilers, P.H.C. A Perfect Smoother. Anal. Chem.
**2003**, 75, 3631–3636. [Google Scholar] [CrossRef] [PubMed] - Boelens, H.F.M.; Dijkstra, R.J.; Eilers, P.H.C.; Fitzpatrick, F.; Westerhuis, J.A. New background correction method for liquid chromatography with diode array detection, infrared spectroscopic detection and Raman spectroscopic detection. J. Chroma. A
**2004**, 1057, 21–30. [Google Scholar] [CrossRef] - Egerton, R.F. Electron. Energy-Loss Spectroscopy in the Electron. Microscope, 2nd ed.; Springer Science & Business Media: New York, NY, USA, 1996; ISBN 0-306-45223-5. [Google Scholar]
- Harris, C.R.; Millman, K.J.; van der Walt, S.J.; Gommers, R.; Virtanen, P.; Cournapeau, D.; Wieser, E.; Taylor, J.; Berg, S.; Smith, N.J.; et al. Array programming with NumPy. Nature
**2020**, 585, 357–362. [Google Scholar] [CrossRef] [PubMed] - Virtanen, P.; Gommers, R.; Oliphant, T.E.; Haberland, M.; Reddy, T.; Cournapeau, D.; Burovski, E.; Peterson, P.; Weckesser, W.; Bright, J.; et al. SciPy 1.0: Fundamental algorithms for scientific computing in Python. Nat. Methods
**2020**, 17, 261. [Google Scholar] [CrossRef] [Green Version] - Hunter, J.D. Matplotlib: A 2D Graphics Environment, Comput. Sci. Eng.
**2007**, 9, 90–95. [Google Scholar] [CrossRef] - De La Peña, F.; Prestat, E.; Tonaas Fauske, V.; Burdet, P.; Furnival, T.; Jokubauskas, P.; Nord, M.; Ostasevicius, T.; MacArthur, K.E.; Johnstone, D.N.; et al. Hyperspy/hyperspy: Release v1.6.1. Zenodo 2021. [CrossRef]
- Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. QUANTUM ESPRESSO: A modular and open-source software project for quantum simulations of materials. J. Phys. Condens. Matter
**2009**, 21, 395502. [Google Scholar] [CrossRef] - Hamann, D.R. Optimized norm-conserving Vanderbilt pseudopotentials. Phys. Rev. B
**2013**, 88, 085117. [Google Scholar] [CrossRef] [Green Version] - N’Diaye, A.T.; Coraux, J.; Plasa, T.N.; Busse, C.; Michely, T. Structure of epitaxial graphene on Ir(111). New J. Phys.
**2008**, 10, 043033. [Google Scholar] [CrossRef] - Baskin, Y.; Meyer, L. Lattice Constants of Graphite at Low Temperatures. Phys. Rev.
**1955**, 100, 544. [Google Scholar] [CrossRef] - Marini, A.; Hogan, C.; Grüning, M.; Varsano, D. yambo: An ab initio tool for excited state calculations. Comput. Phys. Commun.
**2009**, 180, 1392–1403. [Google Scholar] [CrossRef] [Green Version] - PELCO® Graphene & Graphene Oxide Films. Available online: https://www.tedpella.com/Support_Films_html/Graphene-TEM-Support-Film.htm (accessed on 18 August 2021).
- Sunaoshi, T.; Kaji, K.; Orai, Y.; Schamp, C.T.; Voelkl, E. STEM/SEM, Chemical Analysis, Atomic Resolution and Surface Imaging At ≤30 kV with No Aberration Correction for Nanomaterials on Graphene Support. Microsc. Microanal.
**2016**, 22 (Suppl. 3), 604–605. [Google Scholar] [CrossRef] [Green Version] - Trickey, S.B.; Müller-Plathe, F.; Diercksen, G.H.F.; Boettger, J.C. Interplanar binding and lattice relaxation in a graphite delayer. Phys. Rev. B
**1992**, 45, 4460–4468. [Google Scholar] [CrossRef] - Trevisanutto, P.E.; Giorgetti, C.; Reining, L.; Ladisa, M.; Olevano, V. Ab Initio GW Many-Body Effects in Graphene. Phys. Rev. Lett.
**2008**, 101, 226405. [Google Scholar] [CrossRef] [Green Version] - Zhang, Y.; Tan, Y.W.; Stormer, H.L.; Kim, P. Experimental observation of the quantum Hall effect and Berry’s phase in graphene. Nature
**2005**, 438, 201. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Cryst.
**2011**, 44, 1272–1276. [Google Scholar] [CrossRef] - Waschmuth, P.; Hambach, R.; Kinyanjui, M.K.; Guzzo, M.; Benner, G.; Kaiser, U. High-energy collective electronic excitations in free-standing single-layer graphene. Phys. Rev. B
**2013**, 88, 075433. [Google Scholar] [CrossRef] [Green Version] - Werner, W.S.; Astašauskas, V.; Ziegler, P.; Bellissimo, A.; Stefani, G.; Linhart, L.; Libisch, F. Secondary Electron Emission by Plasmon-Induced Symmetry Breaking in Highly Oriented Pyrolytic Graphite. Phys. Rev. Lett.
**2020**, 125, 196603. [Google Scholar] [CrossRef] [PubMed] - Lu, J.; Loh, K.P.; Huang, H.; Chen, W.; Wee, A.T.S. Plasmon dispersion on epitaxial graphene studied using high-resolution electron energy-loss spectroscopy. Phys. Rev. B
**2009**, 80, 113410. [Google Scholar] [CrossRef] [Green Version] - Wachsmuth, P.; Hambach, R.; Benner, G.; Kaiser, U. Plasmon bands in multilayer graphene. Phys. Rev. B
**2014**, 90, 235434. [Google Scholar] [CrossRef] [Green Version] - Liou, S.C.; Shie, C.S.; Chen, C.H.; Breitwieser, R.; Pai, W.W.; Guo, G.Y.; Chu, M.W. π-plasmon dispersion in free-standing graphene by momentum-resolved electron energy-loss spectroscopy. Phys. Rev. B
**2015**, 91, 045418. [Google Scholar] [CrossRef] - Gao, Y.; Yuan, Z. Anisotropic low-energy plasmon excitations in doped graphene: An ab initio study. Solid State Commun.
**2011**, 151, 1009–1013. [Google Scholar] [CrossRef] - Mowbray, D.J. Theoretical electron energy loss spectroscopy of isolated graphene. Phys. Status Solidi B
**2014**, 251, 2509–2514. [Google Scholar] [CrossRef] [Green Version] - Warmbier, R.; Quandt, A. Plasmonic and dielectric properties of ideal graphene. Comput. Mater. Sci.
**2016**, 114, 18–22. [Google Scholar] [CrossRef] - Hambach, R. Theory and Ab-Initio Calculations of Collective Excitations in Nanostructures: Towards Spatially-Resolved EELS. Ph.D. Thesis, Ecole Polytechnique X, Ecole Polytechnique, Palaiseau, France, 2020. [Google Scholar]
- Nazarov, V.U. Electronic excitations in quasi-2D crystals: What theoretical quantities are relevant to experiment? New. J. Phys.
**2015**, 17, 073018. [Google Scholar] - Despoja, V.; Novko, D.; Dekanić, K.; Šunjić, M.; Marušić, L. Two-dimensional and π plasmon spectra in pristine and doped graphene. Phys. Rev. B
**2013**, 87, 075447. [Google Scholar] [CrossRef] [Green Version] - Da, B.; Sun, Y.; Hou, Z.; Liu, J.; Cuong, N.T.; Tsukagoshi, K.; Yoshikawa, H.; Tanuma, S.; Hu, J.; Gao, Z.; et al. Measurement of the Low-Energy Electron Inelastic Mean Free Path in Monolayer Graphene. Phys. Rev. Appl.
**2020**, 13, 044055. [Google Scholar] [CrossRef] - Horing, N.J.M.; Iurov, A.; Gumbs, G.; Politano, A.; Chiarello, G. Recent Progress on Nonlocal Graphene/Surface Plasmons. In Low-Dimensional and Nanostructured Materials and Devices. NanoScience and Technology; Ünlü, H., Horing, N.J.M., Dabowski, J., Eds.; Springer: Cham, Switzerland, 2016; pp. 205–237. [Google Scholar] [CrossRef]
- Werner, W.S.M. Electron transport in solids for quantitative surface analysis. Surf. Interface Anal.
**2001**, 31, 141–176. [Google Scholar] [CrossRef]

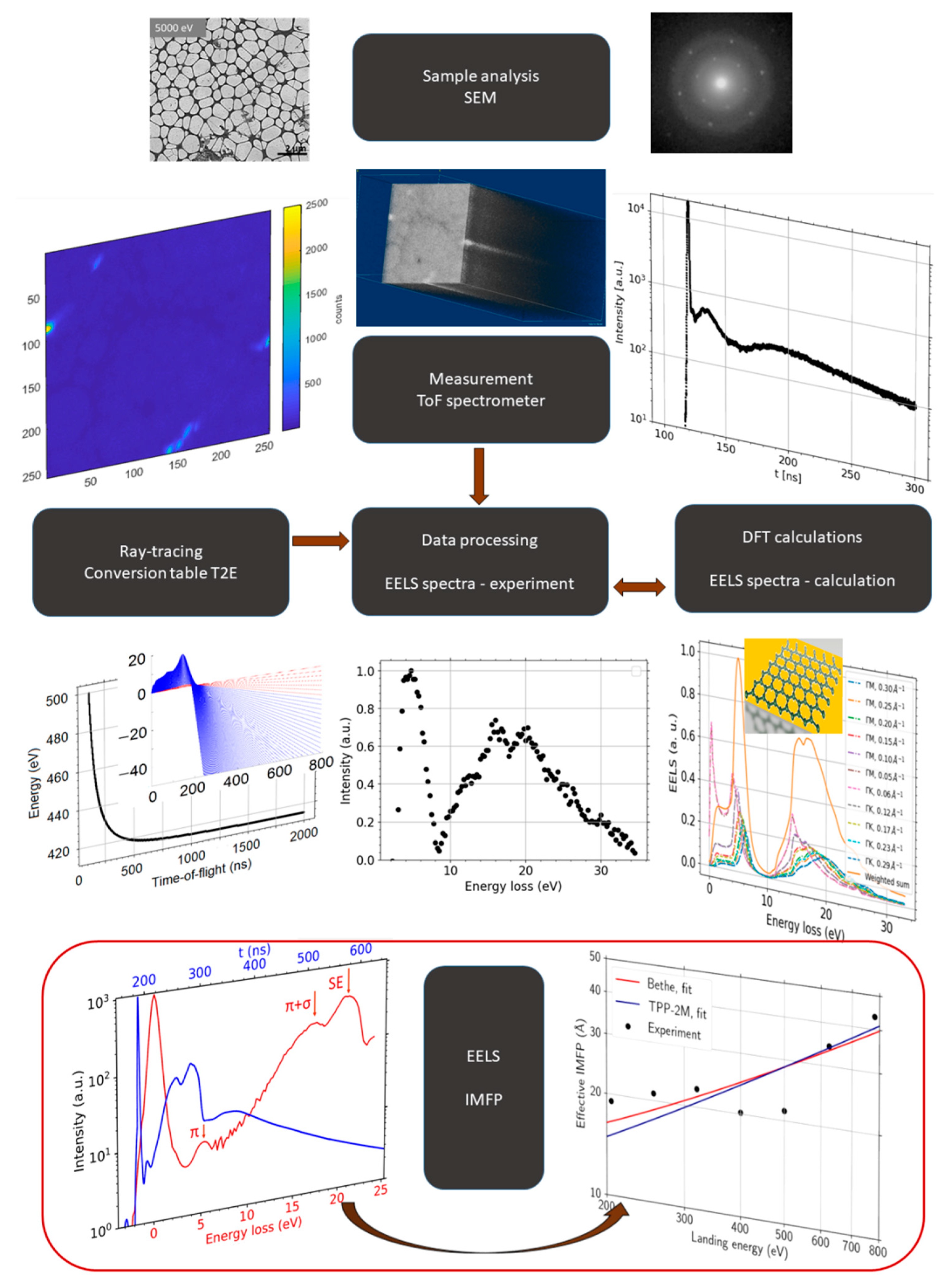

**Figure 2.**An overview diagram showing the individual steps of the sample analysis, starting with the sample analysis (

**top**), followed by ToF measurement and processing based on theoretical ray-tracing up to the both ZLP and baseline corrected spectra. Ab initio simulations provide an alternative data input to confirm the measured results. Finally, the ToF measurements at different landing energies allow to determine the energy dependence of the IMFP (

**bottom**).

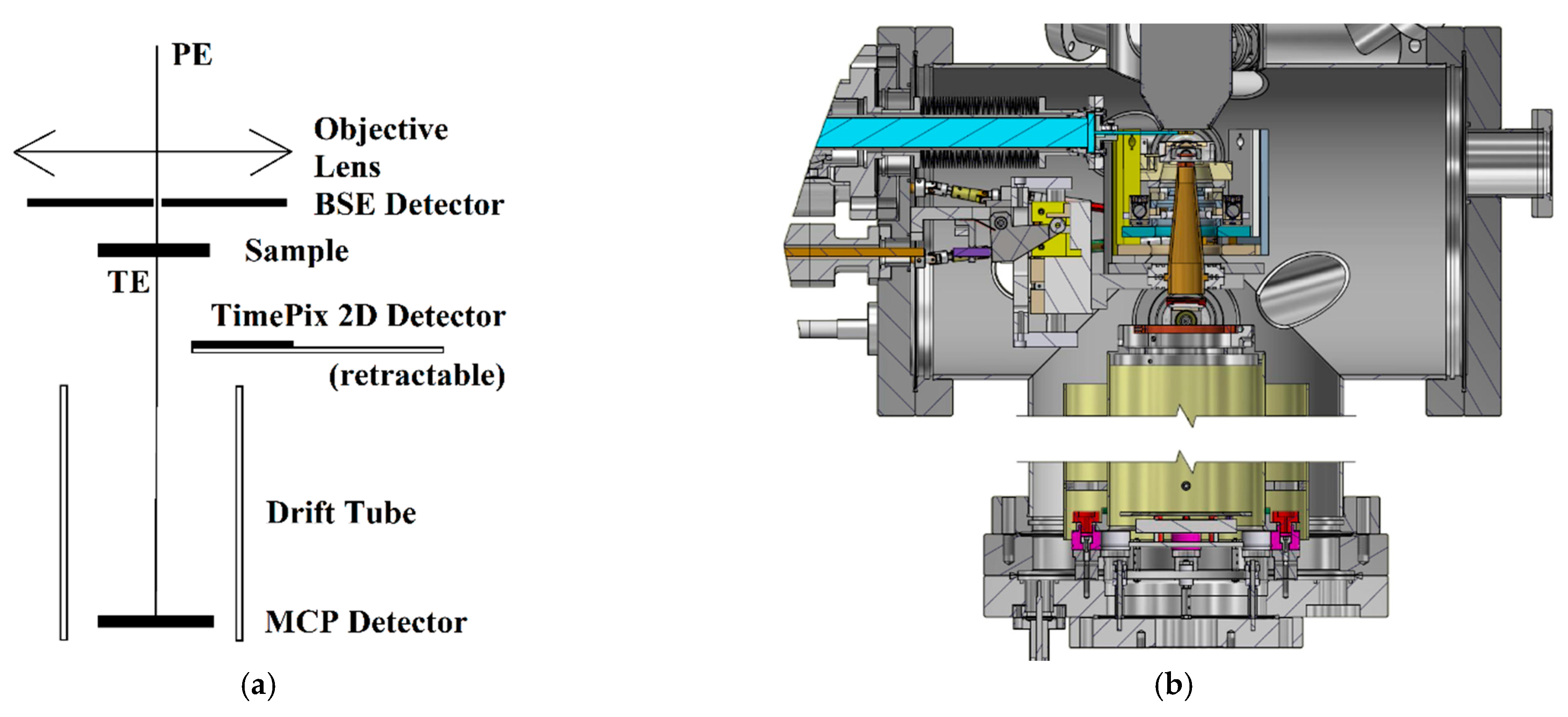

**Figure 3.**Schematic of the UHV SLEEM/ToF system with the ToF spectrometer installed under the sample for TEs detection (

**a**). Section of a 3D model of sample chamber and ToF spectrometer (

**b**).

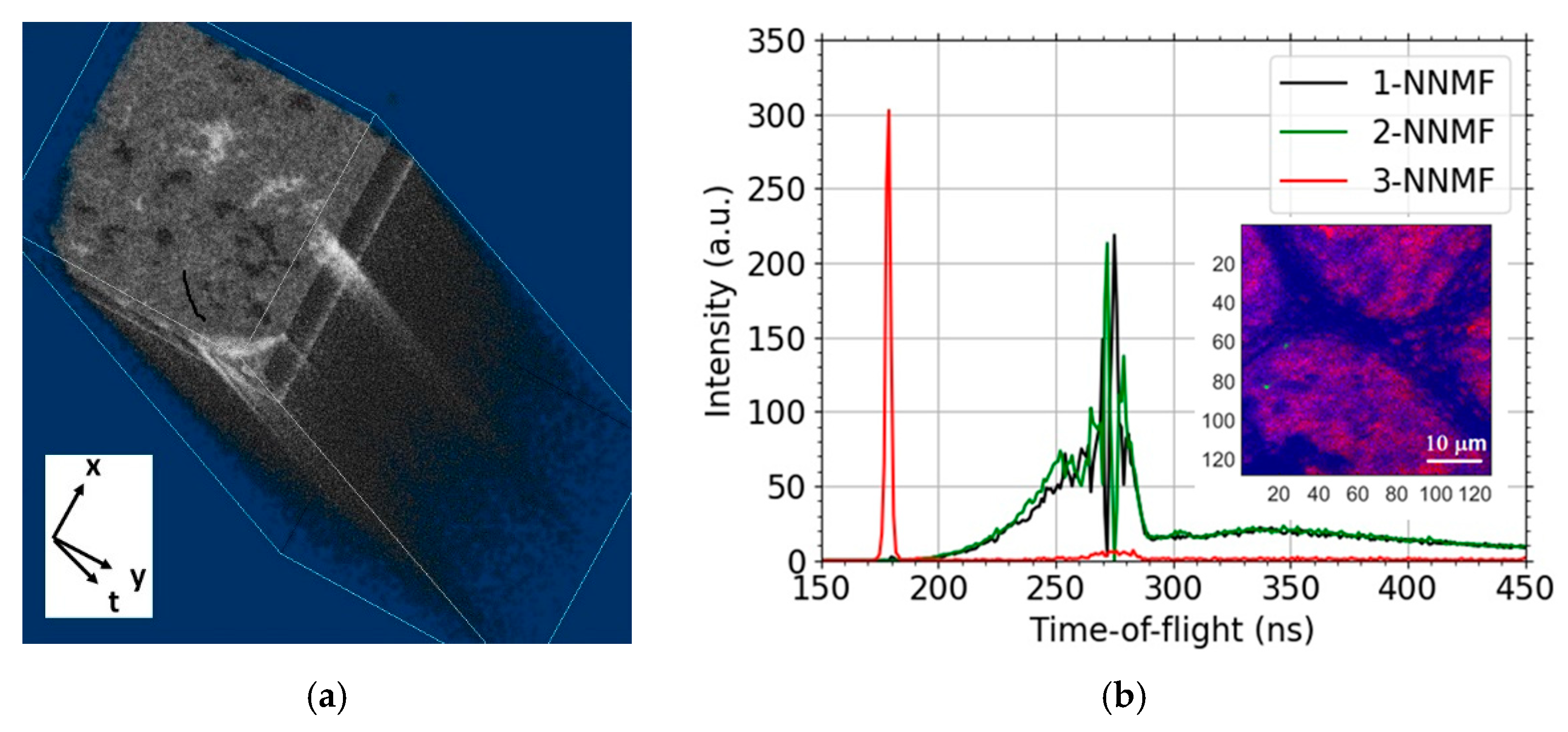

**Figure 4.**Transmission image of the graphene sample taken by the MCP detector and the measured ToF spectra. Visualization of the 3D hyperspectral data, the pixel sliced time-domain histogram collected over all frames (

**a**). The non-negative matrix factorization (NNMF) of spectra corresponding to another field of view (

**b**).

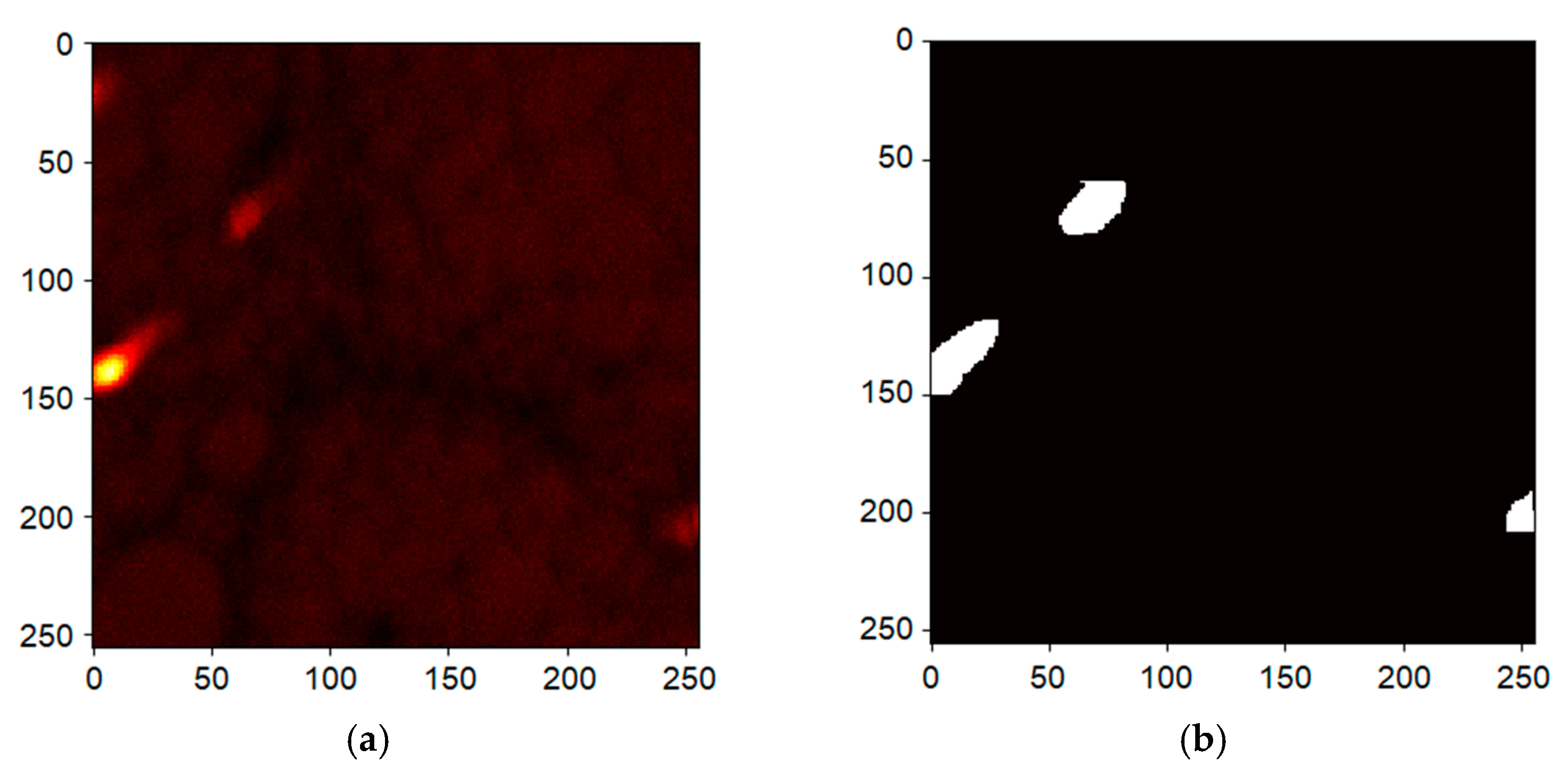

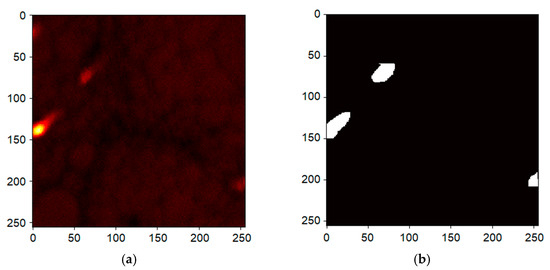

**Figure 5.**Heat-map of counts of a 500 eV landing energy measurement (sum over all frames). The high intensity regions are interpreted as holes (

**a**) providing a mask (

**b**); pixels in the white regions are excluded from the cumulative data used to provide the energy-domain histogram.

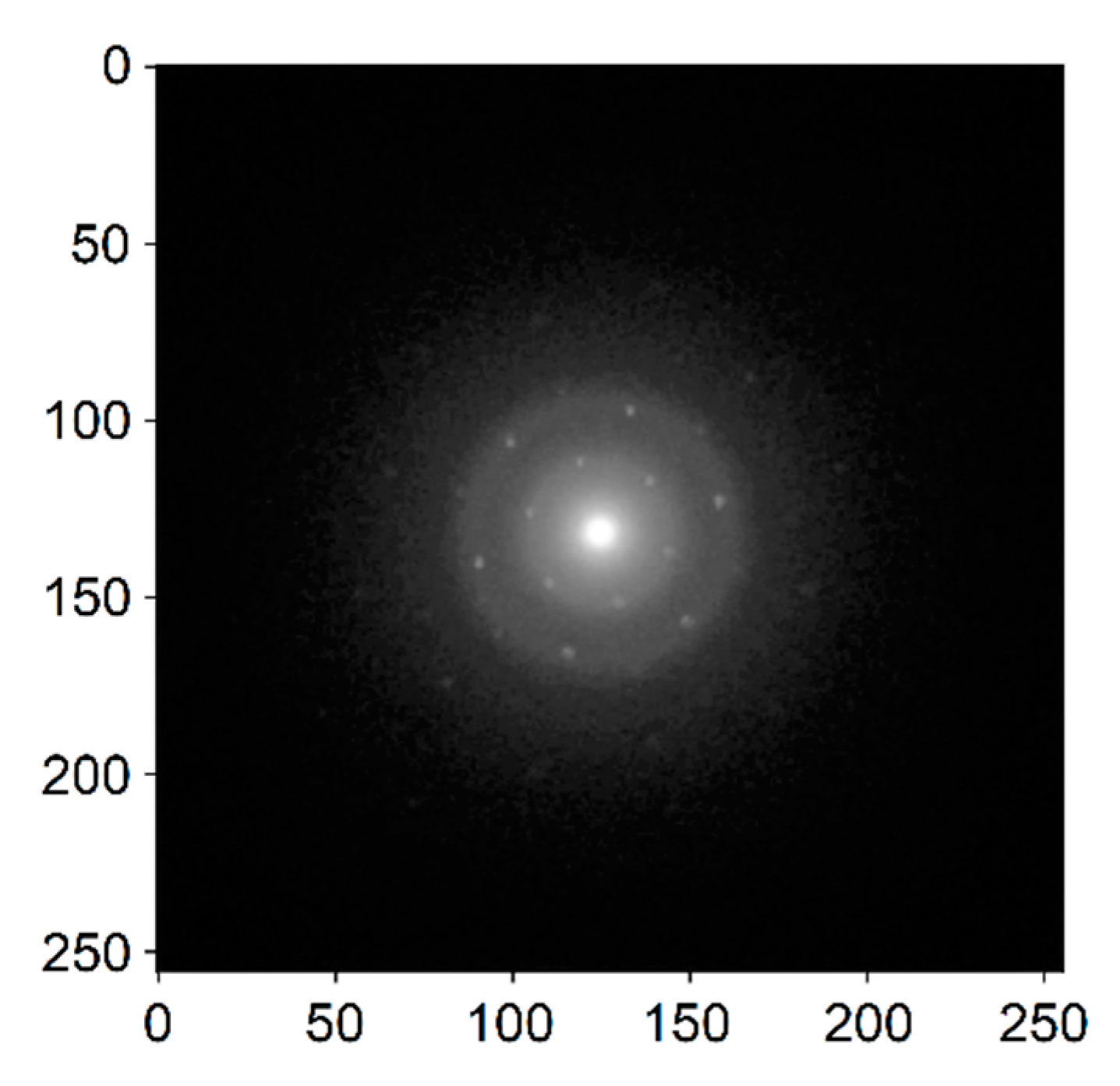

**Figure 6.**Diffraction patterns of a monolayer graphene obtained with a pixelated detector in Helios SEM; E

_{P}= 30 keV, I

_{P}= 13 pA, 256 × 256 px, camera length = 36.7 mm.

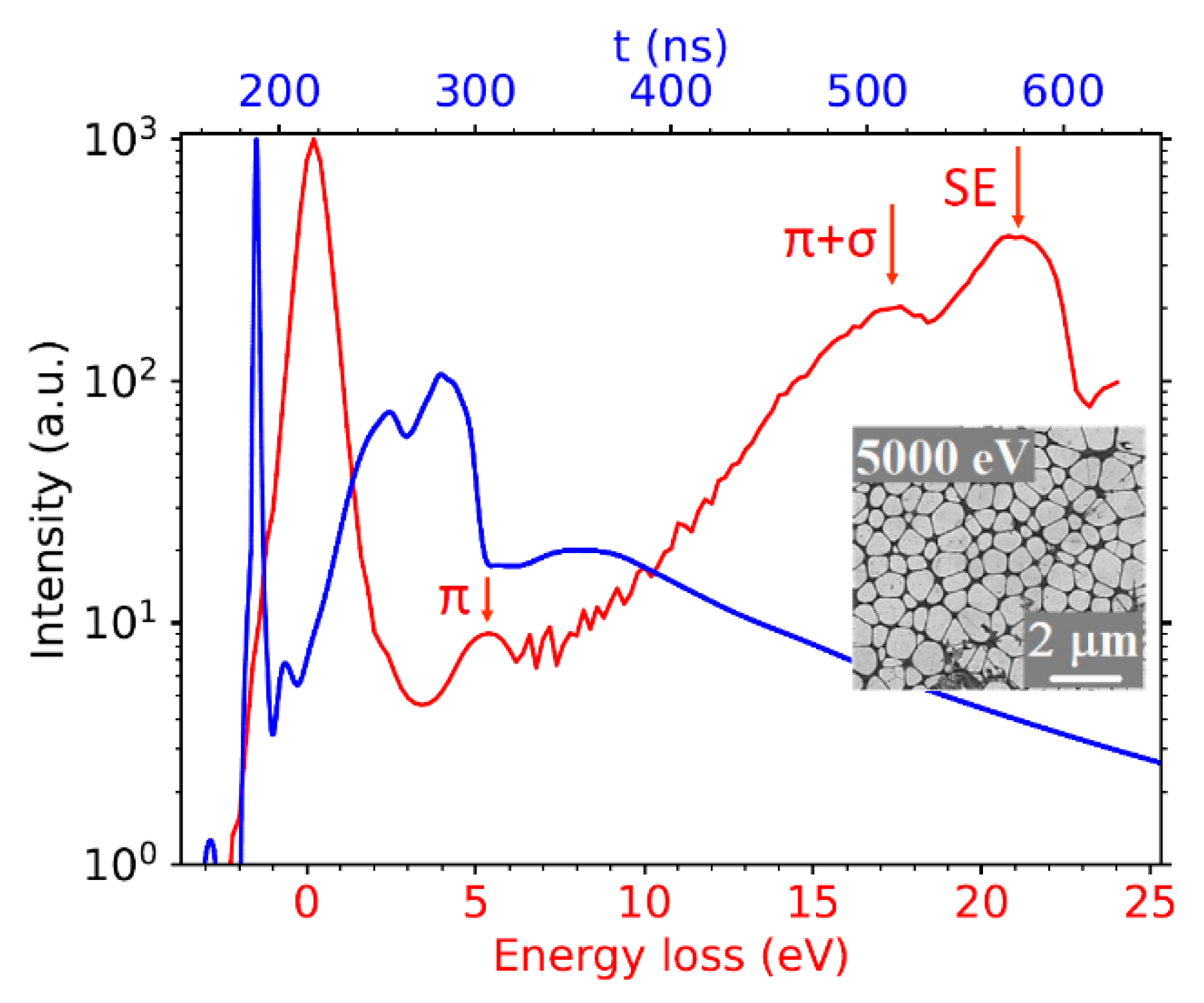

**Figure 7.**As-measured ToF spectrum (blue) of 1 ML graphene layer. Converted energy-loss spectrum (red) contains graphene-related plasmons. Inset: SLEEM image of graphene sheets.

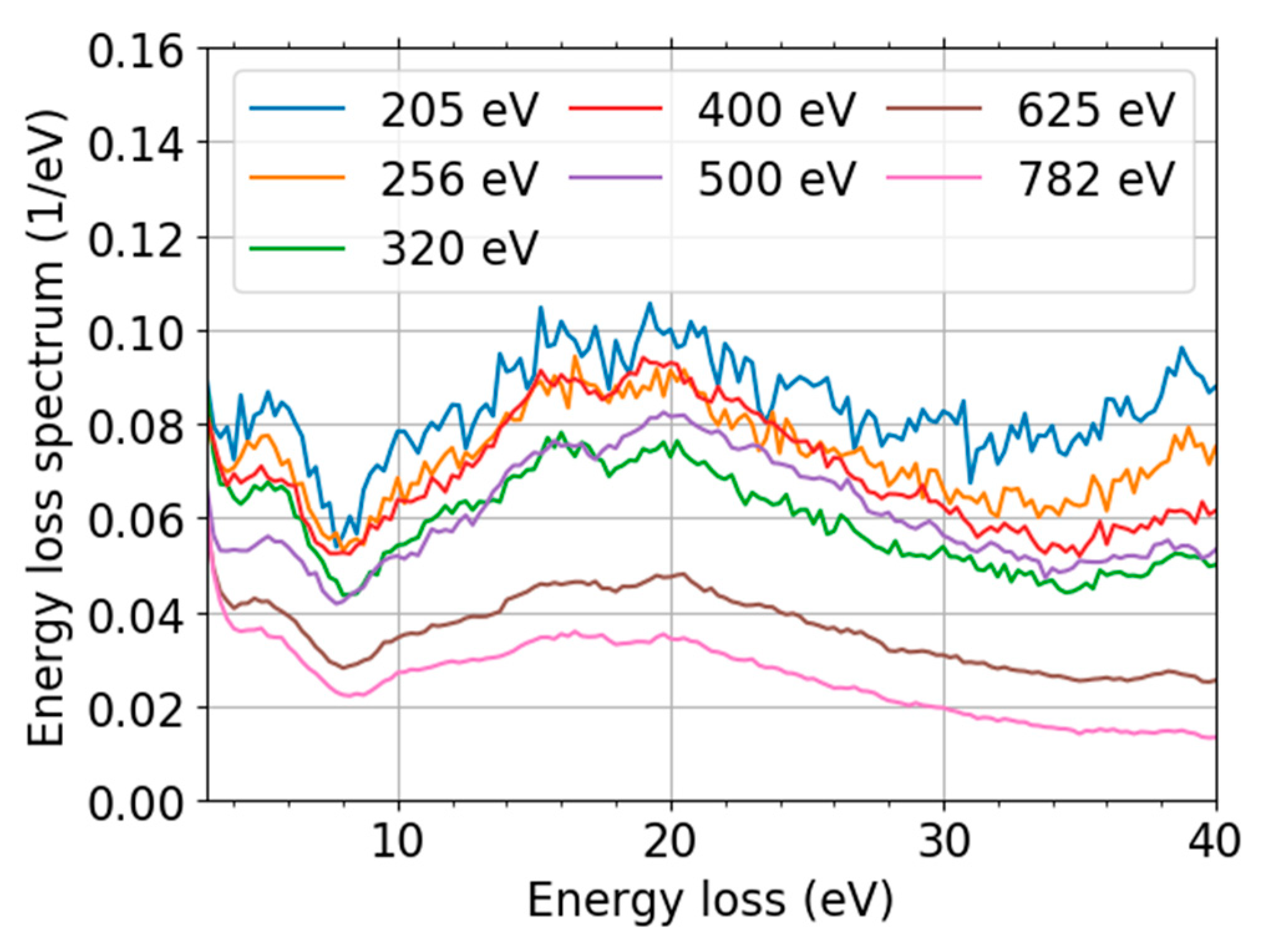

**Figure 8.**ToF energy-domain spectra with similar values of momentum transfer for selected landing energies. The data are divided by both area of the ZLP and width of energy bin.

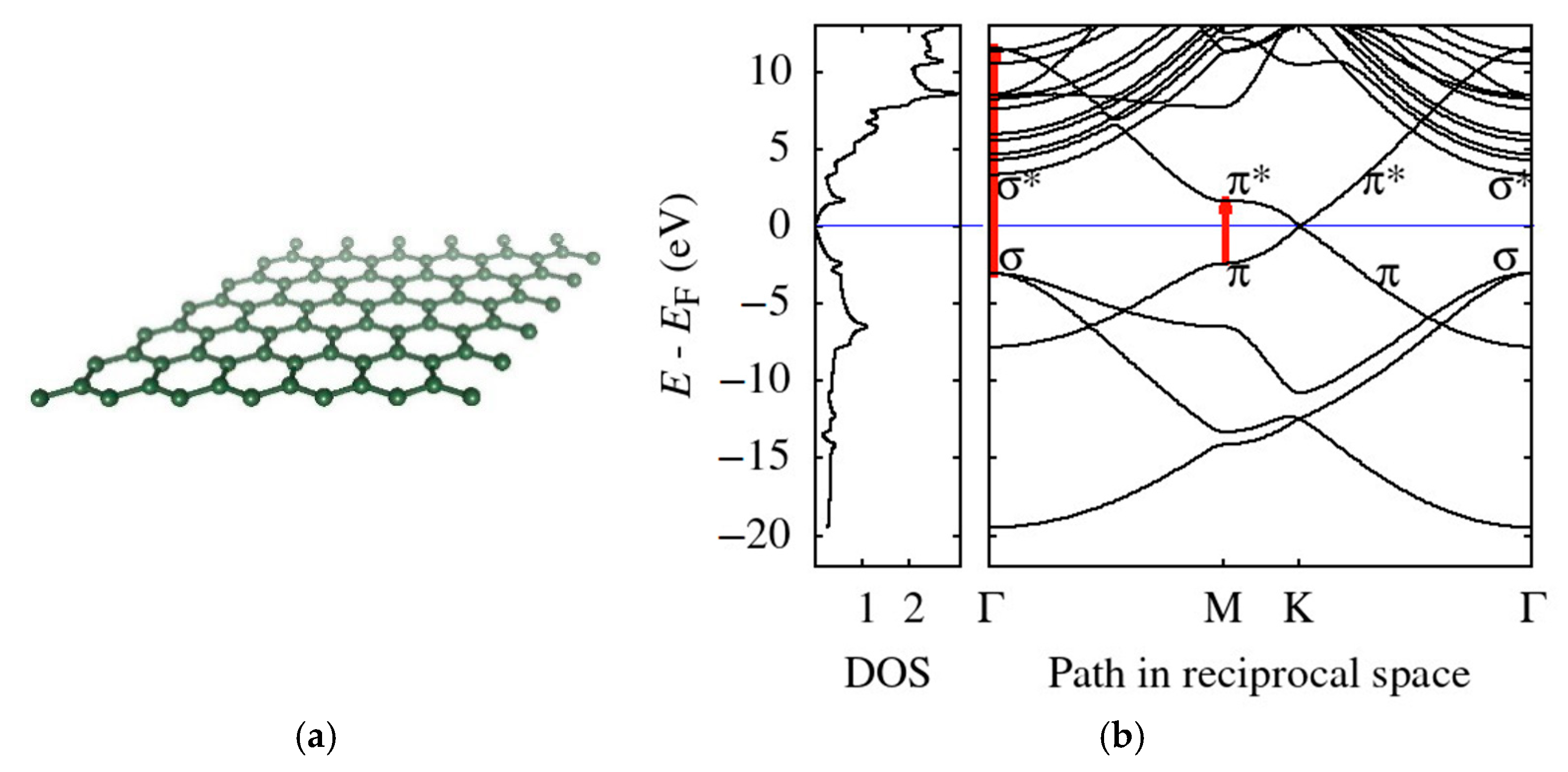

**Figure 9.**(

**a**) The free-standing monolayer graphene structure produced by VESTA [62] and (

**b**) theoretical DFT results for the total density of states (in states/eV atom) and energy-momentum dispersion relations for the electron bands with some of the important bands labeled accordingly. Vertical arrows (red) indicate transitions that correspond to energy losses of the plasmons. Both DOS and bands are referred to the Fermi energy E

_{F}.

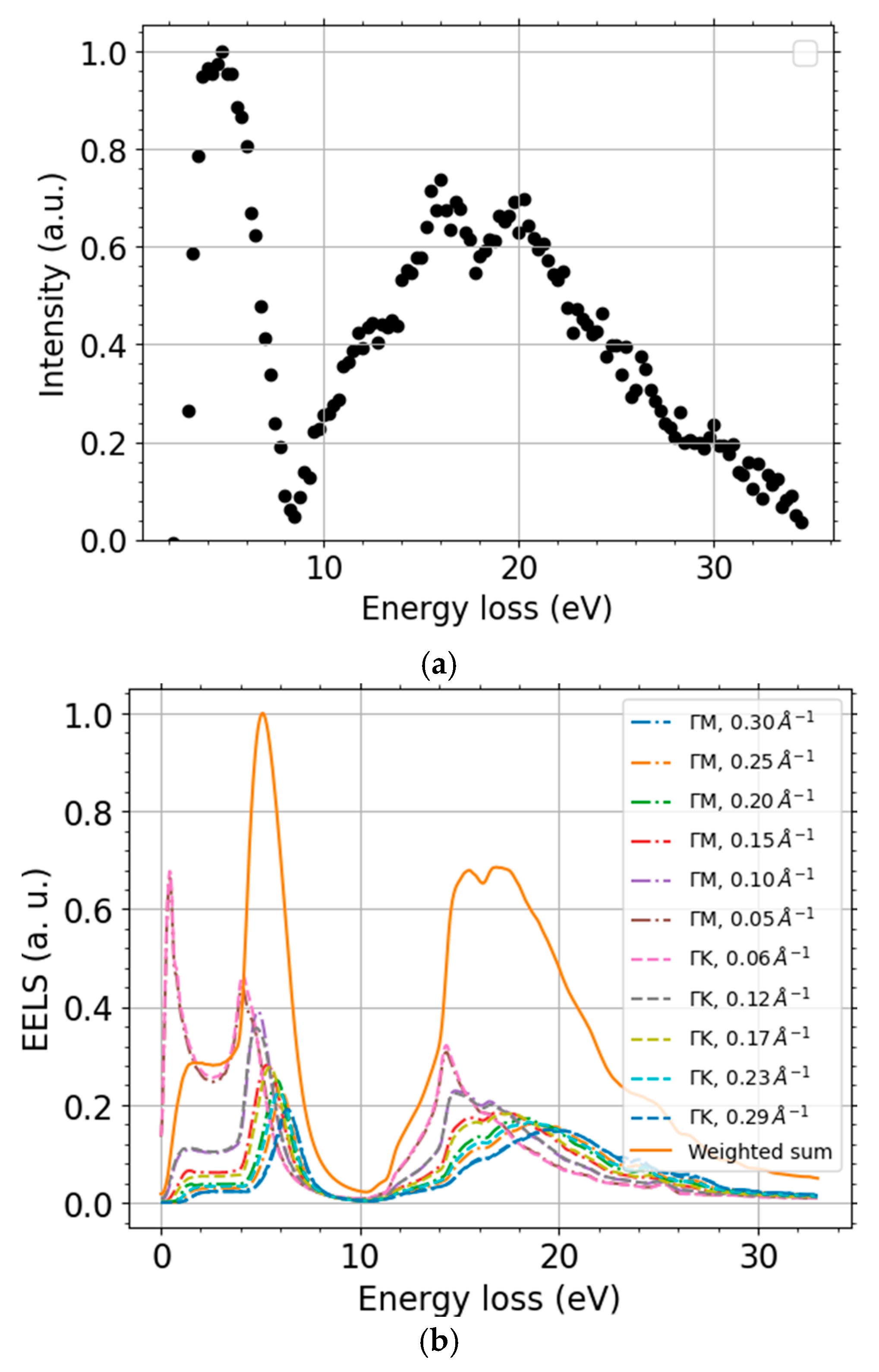

**Figure 10.**Scaled EELS spectra: the processed measurement data at landing energy 320 eV (

**a**) and DFT-calculations (

**b**). The DFT data calculated along the two paths ГM (dash-dotted line) and ГK (dashed line), both segments summed up to momentum transfer q = 0.3 Å

^{−1}(solid line).

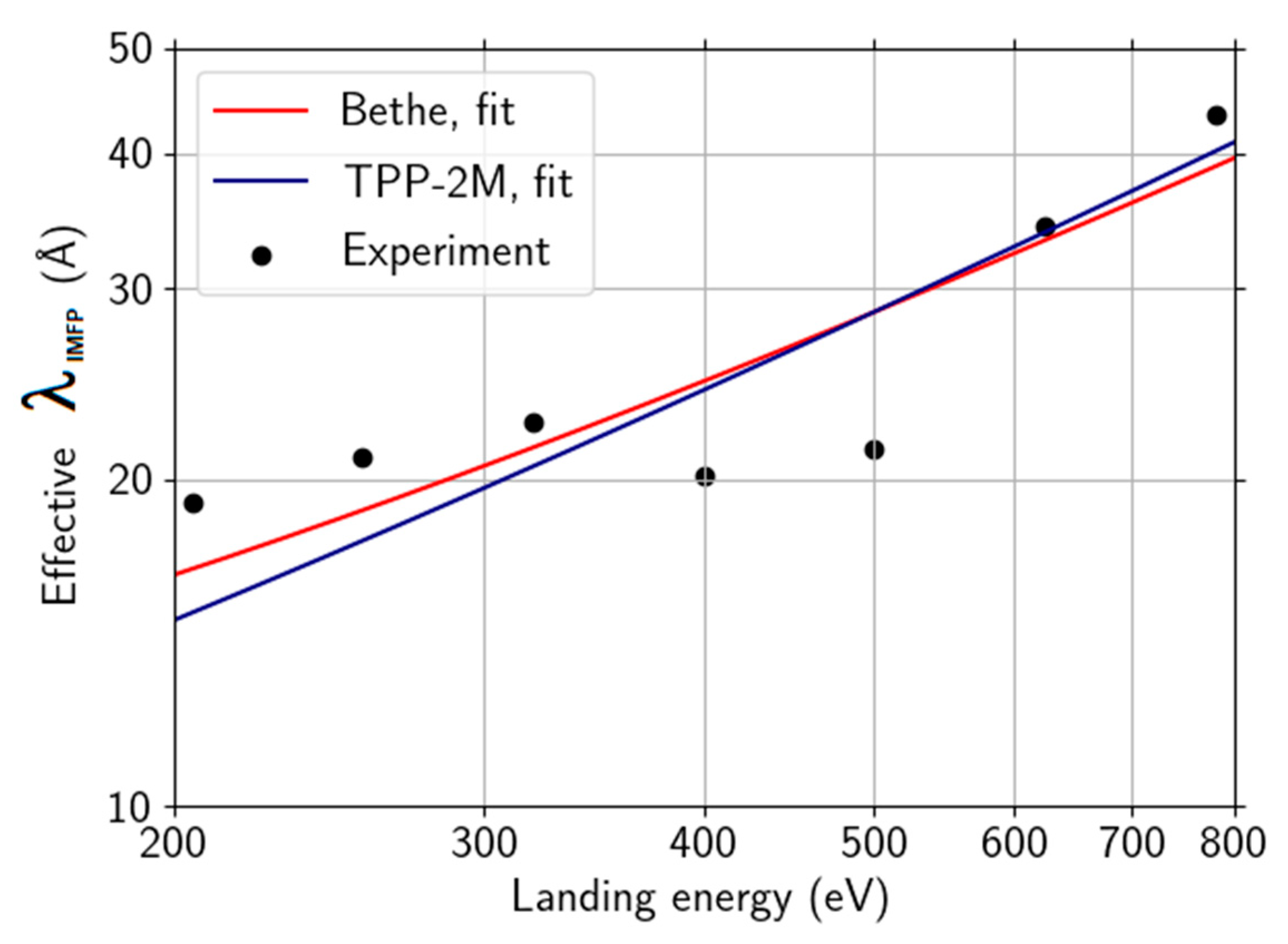

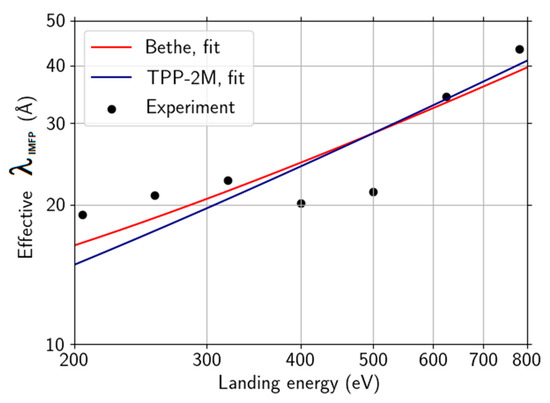

**Figure 11.**Effective IMFP calculated from the ToF energy-domain spectra in Figure 10 compared to effective IMFP derived according to TPP-2M and Bethe formulae.

**Table 1.**An overview of various plasmon dispersion relation T(q) (eV) data in the literature, experimental (Exp.) and simulated (Sim). Positions of the plasmon features T(q) (eV) and range of their variations with the measured momentum transfer q (Å

^{−1}), 2nd interval. Dash indicates a value impossible to obtain from the energy-loss range provided in the data.

Reference (Exp.) or (Sim.) | π-Plasmon T(q) (eV), q (Å ^{−1}) | (π + σ)-Plasmon T(q) (eV), q (Å ^{−1}) |
---|---|---|

[65] (Exp.) | [4.9, 6.6], [0.05, 0.38] | -,- |

[66] (Exp.) | [4.9, 8.6], [0.0, 0.7] | -,- |

[67] (Exp.) | [4.0, 12.3], [0.0, 1.56] | [13.5, 30], [0.0, 1.21] |

[63] (Exp.) | [4.8, ≈10], [0.0, 1.4] | [15.3, ≈30], [0.0, 1.4] |

[68] (Sim.) | [4.8, 7.3], [0.03, 1.7] | -,- |

[69] (Sim.) | [≈4, ≈12.5], [≈0.0, 1.4] | [≈14.5, -], [≈0.0, 1.4] |

[63] (Sim.) | [≈4, ≈10], [0.0, 1.3] | [≈14, ≈33], [0.0, 1.3] |

[70] (Sim.) | [4.3, ≈13], [≈0.0, 1.7] | [≈13.9, -], [≈0.0, 1.7] |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Konvalina, I.; Daniel, B.; Zouhar, M.; Paták, A.; Müllerová, I.; Frank, L.; Piňos, J.; Průcha, L.; Radlička, T.; Werner, W.S.M.;
et al. Low-Energy Electron Inelastic Mean Free Path of Graphene Measured by a Time-of-Flight Spectrometer. *Nanomaterials* **2021**, *11*, 2435.
https://doi.org/10.3390/nano11092435

**AMA Style**

Konvalina I, Daniel B, Zouhar M, Paták A, Müllerová I, Frank L, Piňos J, Průcha L, Radlička T, Werner WSM,
et al. Low-Energy Electron Inelastic Mean Free Path of Graphene Measured by a Time-of-Flight Spectrometer. *Nanomaterials*. 2021; 11(9):2435.
https://doi.org/10.3390/nano11092435

**Chicago/Turabian Style**

Konvalina, Ivo, Benjamin Daniel, Martin Zouhar, Aleš Paták, Ilona Müllerová, Luděk Frank, Jakub Piňos, Lukáš Průcha, Tomáš Radlička, Wolfgang S. M. Werner,
and et al. 2021. "Low-Energy Electron Inelastic Mean Free Path of Graphene Measured by a Time-of-Flight Spectrometer" *Nanomaterials* 11, no. 9: 2435.
https://doi.org/10.3390/nano11092435
