Magnetic Nanoparticle-Containing Supports as Carriers of Immobilized Enzymes: Key Factors Influencing the Biocatalyst Performance

by
Valentina G. Matveeva
1,2 and
Lyudmila M. Bronstein
1,3,4,*
1
Department of Biotechnology and Chemistry, Tver State Technical University, 22 A. Nikitina St, 170026 Tver, Russia
2
Regional Technological Centre, Tver State University, Zhelyabova Str., 33, 170100 Tver, Russia
3
Department of Chemistry, Indiana University, 800 E. Kirkwood Av., Bloomington, IN 47405, USA
4
Department of Physics, Faculty of Science, King Abdulaziz University, P.O. Box 80303, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomaterials 2021, 11(9), 2257; https://doi.org/10.3390/nano11092257
Submission received: 30 July 2021 / Revised: 27 August 2021 / Accepted: 28 August 2021 / Published: 31 August 2021
(This article belongs to the Special Issue Metallic and Metal Oxide Nanoparticles and Their Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this short review (Perspective), we identify key features of the performance of biocatalysts developed by the immobilization of enzymes on the supports containing magnetic nanoparticles (NPs), analyzing the scientific literature for the last five years. A clear advantage of magnetic supports is their easy separation due to the magnetic attraction between magnetic NPs and an external magnetic field, facilitating the biocatalyst reuse. This allows for savings of materials and energy in the biocatalytic process. Commonly, magnetic NPs are isolated from enzymes either by polymers, silica, or some other protective layer. However, in those cases when iron oxide NPs are in close proximity to the enzyme, the biocatalyst may display a fascinating behavior, allowing for synergy of the performance due to the enzyme-like properties shown in iron oxides. Another important parameter which is discussed in this review is the magnetic support porosity, especially in hierarchical porous supports. In the case of comparatively large pores, which can freely accommodate enzyme molecules without jeopardizing their conformation, the enzyme surface ordering may create an optimal crowding on the support, enhancing the biocatalytic performance. Other factors such as surface-modifying agents or special enzyme reactor designs can be also influential in the performance of magnetic NP based immobilized enzymes.

1. Introduction

Magnetic nanoparticle (NP)-containing supports for catalytic and biocatalytic systems have received considerable attention as they allow for significant improvements in process intensification, as well as savings in both energy and materials due to magnetic recovery [1,2,3,4,5,6,7,8,9,10,11,12,13]. In batch processes, magnetic separation affords easy separation of the catalyst and further reuse. In flow processes, a magnetic catalyst can be fixed in the reactor with an applied magnetic field, or can be washed off when the magnetic field is turned off [14,15]. In this review, we are focusing on biocatalysts, i.e., immobilized enzymes, supported on magnetic carriers, although the relationship between the catalyst properties and the characteristics of the magnetic support could be quite general for both conventional catalysts and biocatalysts. The first reviews on immobilized enzymes were published by several groups in the early and late seventies [16,17,18,19], with Chibata giving definition to immobilized enzymes as biocatalysts [16]. Since then, numerous studies have been reported on the applications of immobilized enzymes in the catalysis of organic reactions as biosensors, for wastewater treatment, for enzyme essays, etc. [20,21,22,23]. To the best of our knowledge, the first enzyme immobilization on magnetic NPs was reported by de Cuyper in 1992 [24]. From 2003, magnetic NP supports for the immobilization of enzymes have been widely utilized [25,26,27], with a growing sophistication of biocatalytic systems [28,29,30].
Clearly, for all these systems, magnetic recovery is a straightforward advantage which is commonly discussed in literature due to the facilitated biocatalyst reuse. Two major design features of magnetic biocatalysts are reported. In one case, magnetic NPs are isolated from the biocatalytic species. In the other case, they are in the vicinity of enzyme molecules. The latter design feature could become a crucial factor if the bioactivity of immobilized enzymes is influenced by the presence of magnetic NPs, normally consisting of metal oxide or ferrite. In this case, however, attention needs to be paid to the pH of the reaction solution because metal oxide or ferrite NPs are digested by acids, so the biocatalyst will lose its magnetic character. Finally, we will discuss other important parameters which could significantly influence the biocatalytic performance, whether magnetic NPs are isolated from enzymes (by a silica shell, polymer, etc.), or exposed to the reactants. One of the most influential parameters is hierarchical porosity, where pore sizes can vary from micropores to macropores, providing both efficient mass transfer in the biocatalytic reaction, and a proper positioning of enzymes inside the pore for maximized activity. The parameters, such as an addition of surface-modifying agents or utilizing special enzyme reactor designs, can be also crucial for the performance of magnetic NP-based immobilized enzymes.
Due to the above advantages, studies of magnetic NP-based biocatalytic systems have enjoyed an intense growth in the last decade. From 2016 to date, 523 papers have been published which show the publication profile displayed in Figure 1; although the number of publications in 2020, and even in 2021, could be misleading because of the COVID-19 pandemic, accompanied by a slowing of scientific research.
In this review, we will discuss magnetic NP-containing supports for immobilized enzymes from the viewpoint of magnetic separation, and an enhancement of the biocatalytic activity due to the presence of oxide or ferrite NPs, surface modifiers, etc., following these trends from 2016 through to July of 2021.

2. Magnetic Recovery as a Major Advantage

The magnetic recovery of immobilized enzymes is normally realized by tethering enzymes to magnetic NPs via some linkers such as polymers, difunctional molecules, etc. [31,32,33,34,35,36,37]. To create an appreciable magnetic moment for a successful separation, magnetic NPs are often organized into clusters [34,38], imbedded in gels [36], other polymer or inorganic matrices [13,39,40,41], or self-assembled into larger structures [42,43]. This creates interparticle interactions and increases magnetic attraction between magnetic NPs and an external magnetic field. In the case of polymers utilized in the biocatalyst development, NPs can be formed separately and then mixed with the polymers, as is most frequently done for cellulose, because of its limited solubility [33]. The other avenue in the magnetic NP-polymer composites is realized when macromolecules form a brush tethered to the NP surface [34] or a polymer shell using in situ polymerization [44]. For a thermoresponsive polymer brush [34], the terminal functionality of macromolecules has been employed to attach an enzyme, while the responsive character of the brush allowed for control of enzymatic activity (Figure 2). Clustering of the NPs surrounded by the thermoresponsive polymer allows for easy magnetic separation.
Finally, the formation of magnetic NPs in the presence of polymers is often preferred because it simplifies the biocatalyst preparation process [30,45].

3. Enhancement of Enzymatic Activity

The enhancement of enzymatic activity in magnetic biocatalysts can be achieved in several ways, including due to magnetic NPs or organic modifiers [15,46]. An especially fascinating enhancement of the enzyme activity was observed when both enzyme and iron oxide NPs were located in the vicinity of each other. The comparison of the activities of glucose oxidase (GOx) immobilized in porous silica (SiO2), alumina (Al2O3), and zirconia (ZrO2), or in the same supports but containing magnetite NPs in the support pores (Fe3O4-SiO2, Fe3O4-Al2O3, Fe3O4-ZrO2), revealed that biocatalysts based on magnetic supports are noticeably more active than those based on non-magnetic supports [13,41]. Figure 3 shows a trend for ZrO2 and Fe3O4-ZrO2 supports [41]. This effect was assigned to the inherent enzyme-like activity of iron oxide NPs [47,48,49], which leads to an enhancement of the activity of immobilized GOx due to a synergetic effect. In this case, Fe3O4 serves as a co-catalyst for the enzyme, increasing its activity [50].
Suo et al. reported a considerable increase of the activity of the lipase based magnetic biocatalyst due to ionic liquids, whose presence improved the microenvironment of the immobilized lipase by decreasing the support hydrophobicity [37]. Furthermore, it modified the secondary lipase structure and allowed for the exposure of the enzyme active site. Crosslinking of the chitosan-magnetic NP support with immobilized xylanase and filter paper-ase using genipin allowed for a significant enhancement of activity compared to a non-crosslinked biocatalyst [31]. This was attributed to a higher local concentration of the substrate in the confined space, resulting in a boosted number of interactions between the substrates and immobilized enzymes.

4. Porosity Influence on the Biocatalyst Performance

Magnetic porous supports were prepared by combining magnetic NPs and inorganic [13,41,51], polymeric [51,52] or carbon [53] porous materials. Magnetite NPs combined with reduced graphene oxide (rGO) plates were utilized as precursors for spray pyrolysis fabrication of nearly spherical porous magnetic supports for high efficiency enzyme immobilization [53]. Among porous polymers, thermoresponsive polymers received considerable attention [52,54]. Shen et al. designed a controllable thermoresponsive membrane formed by a block copolymer with imbedded magnetite NPs and immobilized enzymes, whose performance was tested at varying temperatures between 25 and 39 °C [52]. A swollen hydrophilic state at the high temperature allowed for better interactions of the substrate with the enzyme, thus allowing high biocatalytic activity of the enzyme reactor (Figure 4).
In many cases, magnetic porous supports are created by placing a porous shell on a magnetic core [55,56,57,58,59], allowing for the isolation of magnetic NPs from the part of the porous shell where enzymes are immobilized. This is also a traditional path to prevent magnetic NP aggregation, or their influence, on the enzymatic behavior. An original approach was realized in creating pod-like 1D structures by self-assembly of core-shell Fe3O4-SiO2 NPs under an applied magnetic field followed by the formation of mesoporous silica in the presence of a surfactant—cetyltrimethylammonium bromide (CTAB) (Figure 5) [60]. The material is characterized by a tunable hollow space and vertical pores of 8.2 nm, exceeding the size (4 nm) of the immobilized lipase. This design allowed a high loading capacity and enhanced catalytic activity.
Across numerous studies, hierarchical porosity of biocatalyst supports has been shown to be crucial in influencing the biocatalyst performance [57,58,61,62,63,64,65,66]. The advantages of hierarchical porosity are threefold: (i) small pores (micropores) provide structural integrity of the support, (ii) large pores (large meso- and macropores) allow an improved mass transfer of the substrate, (iii) while the medium-sized pores (mesopores, which are larger than the enzyme size) can result in optimal self-assembly of enzyme molecules inside the pores, resembling the degree of crowding realized in cells. This factor could profoundly increase the activity of immobilized enzymes [67]. Below we discuss a few examples of magnetic biocatalysts with hierarchical porosity.
Magnetic microspheres with hierarchical porosity (PFMMs) were fabricated using a non-conventional precursor—a novel rigid-flexible dendrimer synthesized by interfacial polymerization of trimesoyl chloride (TMC) and 1,6-hexanediamine (HDA) (Figure 6) [66].
PFMMs possess pore sizes in the range of 5–75 nm and excellent loading capacity for covalent immobilization of Pseudomonas fluorescens lipase (PFL). The increased rigidity of this support compared to that of the support based on fully flexible dendrimers also allowed an improved reusability of the immobilized PFL.
Magnetic metal-organic frameworks (MOFs) containing micro-, meso-, or even macropores demonstrated a promise as supports for enzyme immobilization due to a combination of porosity, magnetic separation, and pore ordering, thus allowing for more ordering in the enzyme positioning [68,69]. Usually in hierarchical MOFs, mesopores are formed in microporous frameworks and, thus, larger pores are connected by micropore channels, impeding accessibility for large substrates. Lu et al. used a different approach, i.e., forming microporous MOFs in continuous mesoporous tunnels [70]. In the case of the magnetic imidazolate framework (ZIF-8) containing a highly ordered macroporous structure, catalase molecules were immobilized both outside and inside of macropores (due to an average pore size of 69 nm), and allowed a three-fold increase of the enzyme loading capacity compared to conventional ZIF-8 (consisting of solely micropores) as well as a much higher stability [68]. Hierarchically porous Fe-MOFs were grown on the surface of Fe3O4 NPs using a solvothermal method, and employed for immobilization of chloroperoxidase or horseradish peroxidase [57]. The behavior of these biocatalysts in the degradation of organic toxins revealed that decreased diffusion resistance of substrates (due to their concentration on the hierarchically porous support near enzymes) enhances the biocatalyst efficiency.
Another novel magnetic hierarchically porous MOF was prepared via a modulator-induced defect-formation strategy (Figure 7) [63]. Polydopamine (PDA) was utilized as a source of amino groups to coordinate Zr4+, followed by the removal of dodecanoic acid (DA, a competitive ligand) using HCl, to form comparatively large mesopores. The resultant material exhibits a well-defined core-shell structure, hierarchical porosity (micropores and mesopores), and strong magnetic responsiveness. After immobilization of amidase with a high loading on this magnetic carrier, the biocatalyst showed higher efficiency, thermal stability, stability upon storage, reusability, etc. compared to the native enzyme or the analogous catalyst without hierarchical porosity.

5. Surface Modifying Agents

The surface modification depends on the method of the magnetic support preparation and on the components of the biocatalyst [30]. There are two major objectives in modifying the surface of magnetic supports. One is focused on the functionalization of the supports with such groups as aldehyde, amine, diimide, carboxyl, hydroxyl, etc., for further attachment of enzymes and other modifying molecules [71,72,73,74,75,76,77,78,79]. Functional groups can be provided via the attachment of difunctional molecules, polymers, dendrimers, or oligomers (aptamers) [80,81,82,83]. An interesting strategy has been proposed by Song et al. using toehold-mediated DNA strand displacement for the immobilization of enzymes on the magnetic support [84]. To accomplish this, the enzyme was conjugated with a target DNA to replace the captured DNA, modifying the magnetic support. This results in the protection of the enzyme from denaturation and leakage after multiple uses. A combination of the polyamidoamine dendrimer and DNA directed immobilization of the trypsin and created a biocatalyst with high reusability and stability [80].

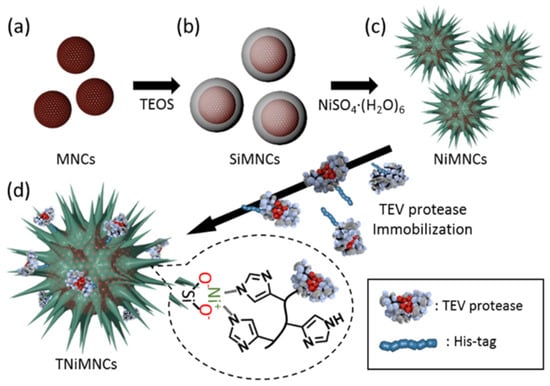

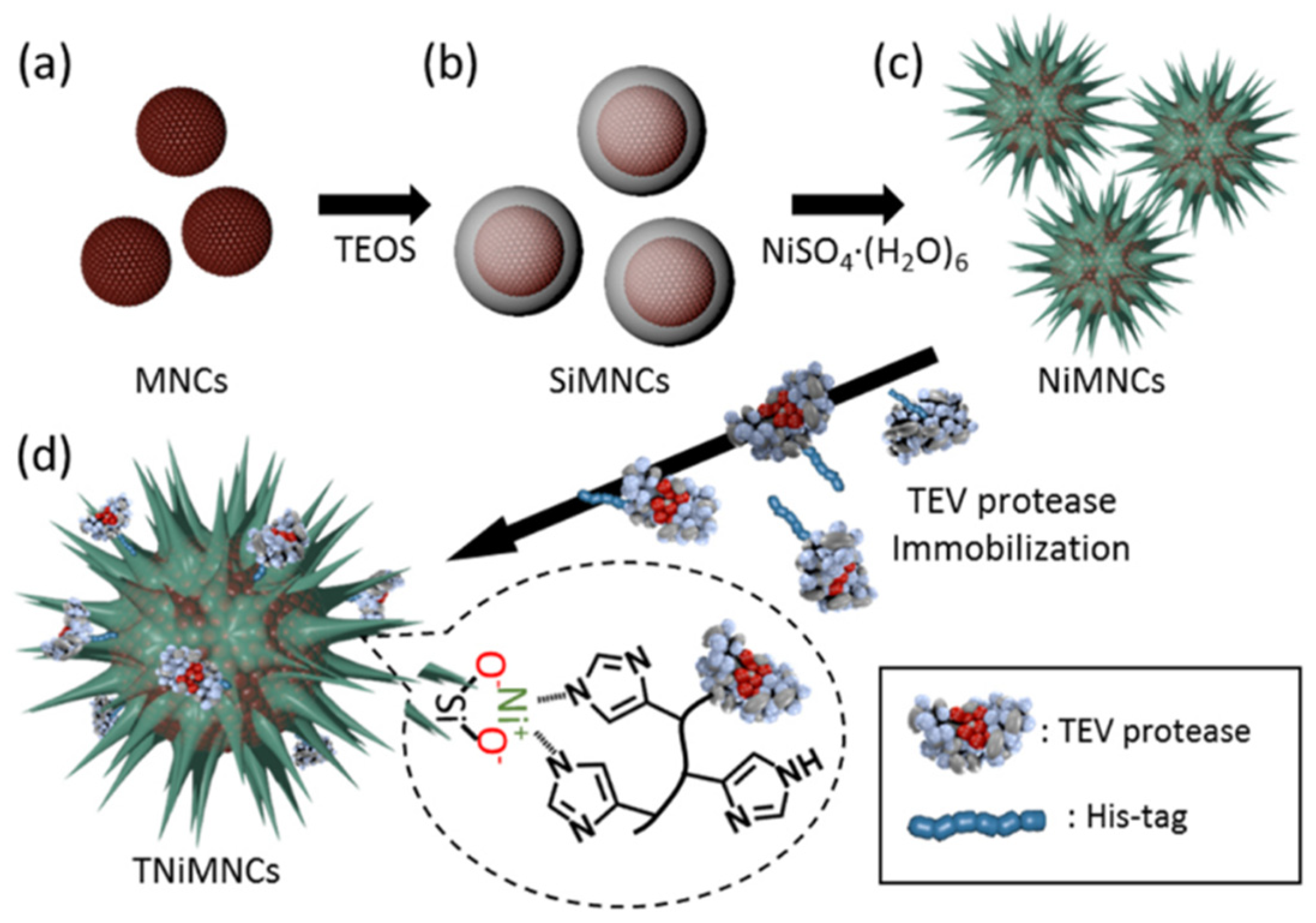

A polyhistidine-tag (His-tag) has been utilized for modifying the surface of “sea-urchin” shaped NPs composed of the Ni silicate shell and the magnetite core [59]. Such a modification was possible due to the high affinity of His-tag to Ni ions. At the same time, His-tag easily attached tobacco etch virus (TEV) protease, enhancing compatibility between the support and the enzyme (Figure 8).
The other objective of the surface modification deals with tuning the hydrophobicity–hydrophilicity balance for better compatibility of the enzyme, support, and the substrate [73,76,77,83,85,86]. Lipase is a typical enzyme requiring surface modification due to its high affinity to hydrophobic molecules. In some cases, an enzyme (not a support) is modified, as has been reported for porcine pancreas lipase (PPL) [76]. PPL was functionalized with dodecyl aldehyde and combined with a magnetic support, resulting in the enzyme immobilization loading of about 100% and the biocatalyst efficiency of ~80%. In a reverse strategy, magnetic NPs coated with polymers containing long alkyl chains (octyl or hexadecyl) have been utilized for immobilization of Candida rugosa lipase (CRL) [82]. Hexadecyl tails allowed for higher loading of the enzyme and its binding in the open conformation, promoting enzyme performance. On the other hand, very hydrophobic multiwall carbon nanotubes containing magnetic Co NPs required an additional functionalization with aminated polydopamine for immobilization of CRL via a covalent attachment with glutaraldehyde [75]. This biocatalyst displayed high efficiency, stability in a wide pH and temperature range, and enhanced reusability. Here, mere hydrophobicity without functionality was not sufficient for CRL immobilization.

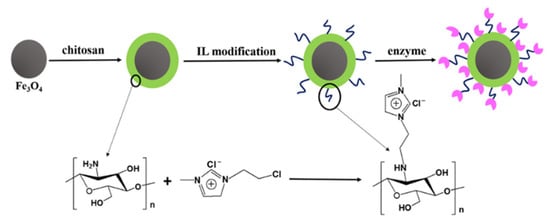

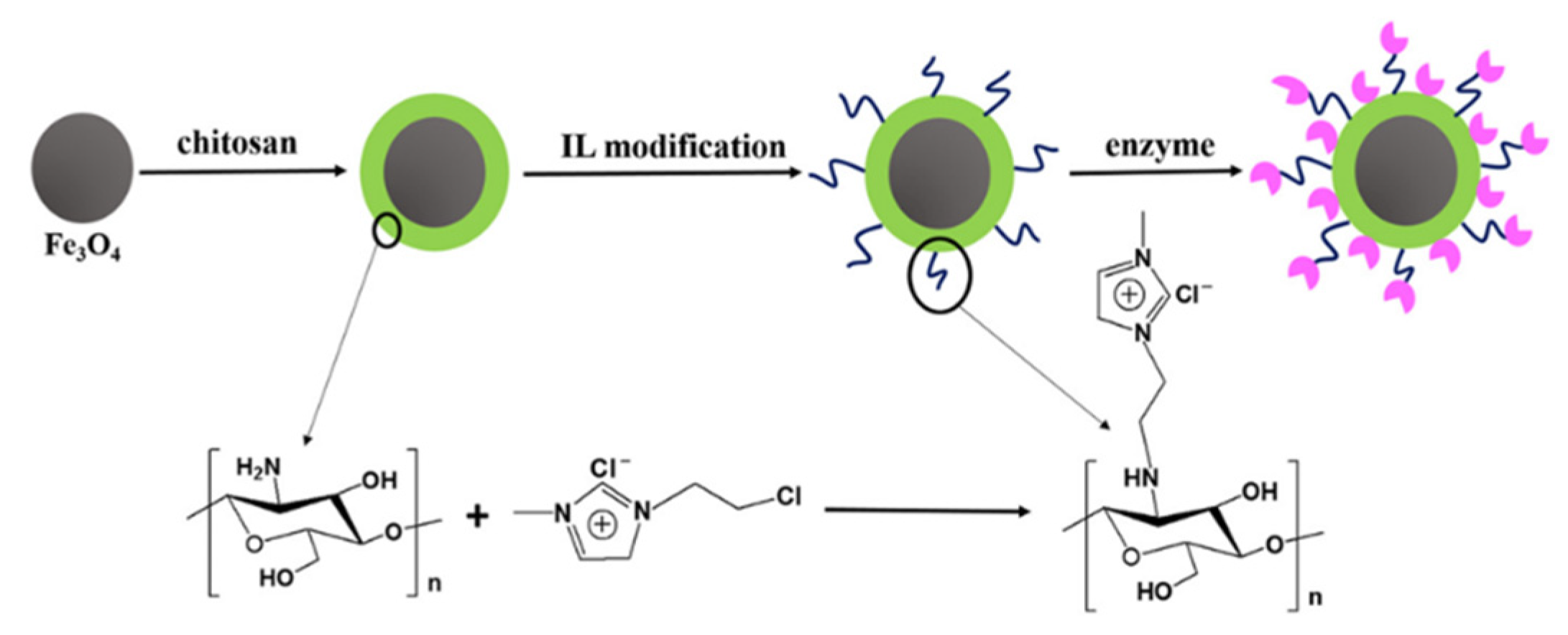

Functional ionic liquids have been reported as modifying agents for lipase immobilization on a magnetic support [85,86]. The authors coated magnetite NPs with chitosan (CS), attached an imidazole-containing ionic liquid (IL), and then immobilized PPL (Figure 9) [85]. The enhanced immobilization degree, biocatalyst efficiency, as well as higher tolerance to pH and temperature changes were assigned to improved biocompatibility due to CS and the effect of the IL ion, protecting the PPL native conformation.

6. Conclusions

In this short review, we analyzed the major advantages of magnetic supports for enzyme immobilization, and the influence of their structural features on the biocatalytic properties. The most straightforward advantage of magnetic biocatalysts is the easy separation due to magnetic forces between magnetic NPs and an external magnetic field, facilitating the biocatalyst reuse. It allows for savings of energy, materials, and time, facilitates reuse, and results in less expensive processes, paving the way for future industrial applications. Another remarkable benefit is realized when enzymes are attached in close proximity to iron oxide NPs, thus allowing for synergy between the enzyme and iron oxide NPs due to the inherent enzyme-like activity of the latter. We believe this enhancement is underutilized because, very frequently, iron oxide NPs are isolated from enzymes by silica or polymer shells with the assumption that magnetic NPs could be detrimental for biocatalyst performance. Indeed, this could be the case if the media is acidic (very rarely for biocatalytic reactions) or if iron oxide promotes a side reaction. We believe that for all other cases, co-existence of immobilized enzymes and iron oxide NPs in proximity to each other is highly beneficial.
The other major benefit of magnetic biocatalysts is the skillfully developed hierarchical porosity of the supports, allowing a controlled enzyme immobilization for the design of efficient biocatalysts. The advantages of hierarchical porosity include easy mass transport of reacting molecules in large pores, optimal self-assembly of enzyme molecules inside the medium size pores (resulting in an enhancement of the enzyme activity), and preservation of structural integrity of the biocatalyst due to small pores. Magnetic MOFs grant an additional advantage of pore ordering.
Finally, surface modifying agents play an important role in the enhancement of the biocatalytic performance, for example, in the case of hydrophobic lipases, allowing one to adjust the support or lipase hydrophobicity, and to improve compatibility between the magnetic support, enzyme, and reacting molecules. We believe a combination of the advantages of magnetic nanoparticles (magnetic separation and enzyme-like properties) with well-designed porosity and targeted surface modification is a promising avenue for the successful development of efficient magnetic biocatalysts.

Author Contributions

The authors contributed equally to this work. Both authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation (project 21-19-00192).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, Y.; Peng, S.C.; Emi, A.; Su, Z.; Monalisa; Kemp, R.A. Supported Ultra Small Palladium on Magnetic Nanoparticles Used as Catalysts for Suzuki Cross-Coupling and Heck Reactions. Adv. Synth. Catal. 2007, 349, 1917–1922. [Google Scholar]
  2. Polshettiwar, V.; Luque, R.; Fihri, A.; Zhu, H.; Bouhrara, M.; Basset, J.-M. Magnetically Recoverable Nanocatalysts. Chem. Rev. 2011, 111, 3036–3075. [Google Scholar] [CrossRef]
  3. Rossi, L.M.; Silva, F.P.; Vono, L.L.R.; Kiyohara, P.K.; Duarte, E.L.; Itri, R.; Landers, R.; Machado, G. Superparamagnetic Nanoparticle-Supported Palladium: A Highly Stable Magnetically Recoverable and Reusable Catalyst for Hydrogenation Reactions. Green Chem. 2007, 9, 379–385. [Google Scholar] [CrossRef]
  4. Saha, A.; Leazer, J.; Varma, R.S. O-Allylation of Phenols with Allylic Acetates in Aqueous Media Using a Magnetically Separable Catalytic System. Green Chem. 2012, 14, 67–71. [Google Scholar] [CrossRef]
  5. Vaddula, B.R.; Saha, A.; Leazer, J.; Varma, R.S. A Simple and Facile Heck-type Arylation of Alkenes with Diaryliodonium Salts Using Magnetically Recoverable Pd-Catalyst. Green Chem. 2012, 14, 2133–2136. [Google Scholar] [CrossRef]
  6. Wang, D.; Astruc, D. Fast-Growing Field of Magnetically Recyclable Nanocatalysts. Chem. Rev. 2014, 114, 6949–6985. [Google Scholar] [CrossRef]
  7. Lu, A.-H.; Salabas, E.L.; Schueth, F. Magnetic Nanoparticles: Synthesis, Protection, Functionalization, and Application. Angew. Chem. Int. Ed. 2007, 46, 1222–1244. [Google Scholar] [CrossRef]
  8. Bazgir, A.; Hosseini, G.; Ghahremanzadeh, R. Copper Ferrite Nanoparticles: An Efficient and Reusable Nanocatalyst for a Green One-Pot, Three-component Synthesis of Spirooxindoles in Water. ACS Comb. Sci. 2013, 15, 530–534. [Google Scholar] [CrossRef]
  9. Kundu, D.; Chatterjee, T.; Ranu, B.C. Magnetically Separable CuFe2O4 Nanoparticles Catalyzed Ligand-Free C-S Coupling in Water: Access to (E)- and (Z)-Styrenyl-, Heteroaryl and Sterically Hindered Aryl Sulfides. Adv. Synth. Catal. 2013, 355, 2285–2296. [Google Scholar] [CrossRef]
  10. Asmat, S.; Husain, Q. A robust nanobiocatalyst based on high performance lipase immobilized to novel synthesised poly(o-toluidine) functionalized magnetic nanocomposite: Sterling stability and application. Mater. Sci. Eng. C 2019, 99, 25–36. [Google Scholar] [CrossRef]
  11. Vahidi, A.K.; Yang, Y.; Ngo, T.P.N.; Li, Z. Simple and Efficient Immobilization of Extracellular His-Tagged Enzyme Directly from Cell Culture Supernatant as Active and Recyclable Nanobiocatalyst: High-Performance Production of Biodiesel from Waste Grease. ACS Catal. 2015, 5, 3157–3161. [Google Scholar] [CrossRef]
  12. Lawson, B.P.; Golikova, E.; Sulman, A.M.; Stein, B.D.; Morgan, D.G.; Lakina, N.V.; Karpenkov, A.Y.; Sulman, E.M.; Matveeva, V.G.; Bronstein, L.M. Insights into Sustainable Glucose Oxidation Using Magnetically Recoverable Biocatalysts. ACS Sustain. Chem. Eng. 2018, 6, 9845–9853. [Google Scholar] [CrossRef]
  13. Jaquish, R.; Reilly, A.K.; Lawson, B.P.; Golikova, E.; Sulman, A.M.; Stein, B.D.; Lakina, N.V.; Tkachenko, O.P.; Sulman, E.M.; Matveeva, V.G.; et al. Immobilized glucose oxidase on magnetic silica and alumina: Beyond magnetic separation. Int. J. Biol. Macromol. 2018, 120, 896–905. [Google Scholar] [CrossRef] [PubMed]
  14. Rehm, T.H.; Bogdan, A.; Hofmann, C.; Loeb, P.; Shifrina, Z.B.; Morgan, D.G.; Bronstein, L.M. Proof of Concept: Magnetic Fixation of Dendron-Functionalized Iron Oxide Nanoparticles Containing Palladium Nanoparticles for Continuous-Flow Suzuki Coupling Reactions. ACS Appl. Mater. Interfaces 2015, 7, 27254–27261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gkantzou, E.; Patila, M.; Stamatis, H. Magnetic microreactors with immobilized enzymes-from assemblage to contemporary applications. Catalysts 2018, 8, 282. [Google Scholar] [CrossRef] [Green Version]
  16. Chibata, I. Industrial application of immobilized enzyme systems. Pure Appl. Chem. 1978, 50, 667–675. [Google Scholar] [CrossRef]
  17. Bartoli, F.; Giovenco, S.; Lostia, O.; Marconi, W.; Morisi, F.; Pittalis, F.; Prosperi, G.; Spotorno, G.; Balsano, F.; Cordova, C.; et al. Biomedical applications of fibre-entrapped enzymes. Pharmacol. Res. Commun. 1977, 9, 521–546. [Google Scholar] [CrossRef]
  18. Giacin, J.R.; Gilbert, S.G. Chemical modificiation of collagen and the effects on enzyme-binding: Mechanistic considerations. Adv. Exp. Med. Biol. 1977, 86A, 441–471. [Google Scholar]
  19. Smiley, K.L.; Strandberg, G.W. Immobilized enzymes. Adv. Appl. Microbiol. 1972, 15, 13–38. [Google Scholar]
  20. Dzionek, A.; Wojcieszynska, D.; Hupert-Kocurek, K.; Adamczyk-Habrajska, M.; Guzik, U. Immobilization of Planococcus sp. S5 strain on the loofah sponge and its application in naproxen removal. Catalysts 2018, 8, 176. [Google Scholar] [CrossRef] [Green Version]
  21. Samoylova, Y.V.; Sorokina, K.N.; Piligaev, A.V.; Parmon, V.N. Preparation of stable crosslinked enzyme aggregates (CLEAs) of a Ureibacillus thermosphaericus esterase for application in Malathion removal from wastewater. Catalysts 2018, 8, 154. [Google Scholar] [CrossRef] [Green Version]
  22. Allertz, P.J.; Berger, S.; Sellenk, G.; Dittmer, C.; Dietze, M.; Stahmann, K.-P.; Salchert, K. Approaching immobilization of enzymes onto open porous basotect. Catalysts 2017, 7, 359. [Google Scholar] [CrossRef] [Green Version]
  23. Wong, L.S.; Khan, F.; Micklefield, J. Selective Covalent Protein Immobilization: Strategies and Applications. Chem. Rev. 2009, 109, 4025–4053. [Google Scholar] [CrossRef] [PubMed]
  24. de Cuyper, M.; Joniau, M. Binding characteristics and thermal behaviour of cytochrome-C oxidase, inserted into phospholipid-coated, magnetic nanoparticles. Biotechnol. Appl. Biochem. 1992, 16, 201–210. [Google Scholar] [PubMed]
  25. Dyal, A.; Loos, K.; Noto, M.; Chang, S.W.; Spagnoli, C.; Shafi, K.V.P.M.; Ulman, A.; Cowman, M.; Gross, R.A. Activity of Candida rugosa lipase immobilized on gamma-Fe2O3 magnetic nanoparticles. J. Am. Chem. Soc. 2003, 125, 1684–1685. [Google Scholar] [CrossRef]
  26. Huang, J.; Xiao, H.; Li, B.; Wang, J.; Jiang, D. Immobilization of Pycnoporus sanguineus laccase on copper tetra-aminophthalocyanine-Fe(3)O(4) nanoparticle composite. Biotechnol. Appl. Biochem. 2006, 44, 93–100. [Google Scholar] [PubMed]
  27. Huang, S.-H.; Liao, M.-H.; Chen, D.-H. Direct binding and characterization of lipase onto magnetic nanoparticles. Biotechnol. Prog. 2003, 19, 1095–1100. [Google Scholar] [CrossRef] [PubMed]
  28. Ansari, S.A.; Husain, Q. Potential applications of enzymes immobilized on/in nano materials: A review. Biotechnol. Adv. 2012, 30, 512–523. [Google Scholar] [CrossRef]
  29. Hola, K.; Markova, Z.; Zoppellaro, G.; Tucek, J.; Zboril, R. Tailored functionalization of iron oxide nanoparticles for MRI, drug delivery, magnetic separation and immobilization of biosubstances. Biotechnol. Adv. 2015, 33, 1162–1176. [Google Scholar] [CrossRef]
  30. Bilal, M.; Zhao, Y.; Rasheed, T.; Iqbal, H.M.N. Magnetic nanoparticles as versatile carriers for enzymes immobilization: A review. Int. J. Biol. Macromol. 2018, 120, 2530–2544. [Google Scholar] [CrossRef]
  31. Amaro-Reyes, A.; Diaz-Hernandez, A.; Gracida, J.; Garcia-Almendarez, B.E.; Escamilla-Garcia, M.; Arredondo-Ochoa, T.; Regalado, C. Enhanced performance of immobilized xylanase/filter paper-ase on a magnetic chitosan support. Catalysts 2019, 9, 966. [Google Scholar] [CrossRef] [Green Version]
  32. Carvalho, T.; Pereira, A.; Finotelli, P.V.; Amaral, P.F.F. Palm oil fatty acids and carotenoids extraction with lipase immobilized in magnetic nanoparticles. Adv. Mater. Lett. 2018, 9, 643–646. [Google Scholar] [CrossRef]
  33. Gennari, A.; Mobayed, F.H.; Da Rolt Nervis, B.; Benvenutti, E.V.; Nicolodi, S.; da Silveira, N.P.; Volpato, G.; Volken de Souza, C.F. Immobilization of β-Galactosidases on Magnetic Nanocellulose: Textural, Morphological, Magnetic, and Catalytic Properties. Biomacromolecules 2019, 20, 2315–2326. [Google Scholar] [CrossRef] [PubMed]
  34. Krishnan, B.P.; Prieto-Lopez, L.O.; Hoefgen, S.; Xue, L.; Wang, S.; Valiante, V.; Cui, J. Thermomagneto-Responsive Smart Biocatalysts for Malonyl-Coenzyme A Synthesis. ACS Appl. Mater. Interfaces 2020, 12, 20982–20990. [Google Scholar] [CrossRef]
  35. Murugappan, G.; Zakir, M.J.A.; Jayakumar, G.C.; Khambhaty, Y.; Sreeram, K.J.; Rao, J.R. A Novel Approach to Enzymatic Unhairing and Fiber Opening of Skin Using Enzymes Immobilized on Magnetite Nanoparticles. ACS Sustain. Chem. Eng. 2016, 4, 828–834. [Google Scholar] [CrossRef]
  36. Pylypchuk, I.V.; Daniel, G.; Kessler, V.G.; Seisenbaeva, G.A. Removal of diclofenac, paracetamol, and carbamazepine from model aqueous solutions by magnetic sol-gel encapsulated horseradish peroxidase and lignin peroxidase composites. Nanomaterials 2020, 10, 282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Suo, H.; Xu, L.; Xue, Y.; Qiu, X.; Huang, H.; Hu, Y. Ionic liquids-modified cellulose coated magnetic nanoparticles for enzyme immobilization: Improvement of catalytic performance. Carbohydr. Polym. 2020, 234, 115914. [Google Scholar] [CrossRef] [PubMed]
  38. Esmaeilnejad-Ahranjani, P.; Kazemeini, M.; Singh, G.; Arpanaei, A. Study of Molecular Conformation and Activity-Related Properties of Lipase Immobilized onto Core-Shell Structured Polyacrylic Acid-Coated Magnetic Silica Nanocomposite Particles. Langmuir 2016, 32, 3242–3252. [Google Scholar] [CrossRef] [PubMed]
  39. Ozalp, V.C.; Bayramoglu, G.; Arica, M.Y. Fibrous polymer functionalized magnetic biocatalysts for improved performance. Methods Enzymol. 2020, 630, 111–132. [Google Scholar] [CrossRef]
  40. Qi, H.; Du, Y.; Hu, G.; Zhang, L. Poly(carboxybetaine methacrylate)-functionalized magnetic composite particles: A biofriendly support for lipase immobilization. Int. J. Biol. Macromol. 2018, 107, 2660–2666. [Google Scholar] [CrossRef]
  41. Haskell, A.K.; Sulman, A.M.; Golikova, E.P.; Stein, B.D.; Pink, M.; Morgan, D.G.; Lakina, N.V.; Karpenkov, A.Y.; Tkachenko, O.P.; Sulman, E.M.; et al. Glucose Oxidase Immobilized on Magnetic Zirconia: Controlling Catalytic Performance and Stability. ACS Omega 2020, 5, 12329–12338. [Google Scholar] [CrossRef]
  42. Conte, M.P.; Sahoo, J.K.; Abul-Haija, Y.M.; Lau, K.H.A.; Ulijn, R.V. Biocatalytic Self-Assembly on Magnetic Nanoparticles. ACS Appl. Mater. Interfaces 2018, 10, 3069–3075. [Google Scholar] [CrossRef] [Green Version]
  43. Xia, G.-H.; Cao, S.-L.; Xu, P.; Li, X.-H.; Zhou, J.; Zong, M.-H.; Lou, W.-Y. Preparation of a Nanobiocatalyst by Efficiently Immobilizing Aspergillus niger Lipase onto Magnetic Metal-Biomolecule Frameworks (BioMOF). ChemCatChem 2017, 9, 1794–1800. [Google Scholar] [CrossRef]
  44. Fan, L.; Zhang, B.; Zhang, H.; Jia, X.; Chen, X.; Zhang, Q. Preparation of light core/shell magnetic composite microspheres and their application for lipase immobilization. RSC Adv. 2016, 6, 65911–65920. [Google Scholar] [CrossRef]
  45. Cipolatti, E.P.; Valerio, A.; Henriques, R.O.; Moritz, D.E.; Ninow, J.L.; Freire, D.M.G.; Manoel, E.A.; Fernandez-Lafuente, R.; de Oliveira, D. Nanomaterials for biocatalyst immobilization—State of the art and future trends. RSC Adv. 2016, 6, 104675–104692. [Google Scholar] [CrossRef]
  46. Rehm, F.B.H.; Chen, S.; Rehm, B.H.A. Enzyme engineering for in situ immobilization. Molecules 2016, 21, 1370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Gao, L.; Fan, K.; Yan, X. Iron Oxide Nanozyme: A Multifunctional Enzyme Mimetic for Biomedical Applications. Theranostics 2017, 7, 3207–3227. [Google Scholar] [CrossRef] [PubMed]
  48. Uc-Cayetano, E.G.; Ordóñez, L.C.; Cauich-Rodríguez, J.V.; Avilés, F. Enhancement of Electrochemical Glucose Sensing by Using Multiwall Carbon Nanotubes decorated with Iron Oxide Nanoparticles. Int. J. Electrochem. Sci. 2016, 11, 6356–6369. [Google Scholar] [CrossRef]
  49. Wen, J.; Yun, Z.; Cheng, Z.; Yang, Y. Peroxidase-like activity of Fe3O4@fatty acid-nanoparticles and their application for the detection of uric acid. New J. Chem. 2020, 44, 18608–18615. [Google Scholar] [CrossRef]
  50. Yang, Z.; Si, S.; Zhang, C. Magnetic single-enzyme nanoparticles with high activity and stability. Biochem. Biophys. Res. Commun. 2008, 367, 169–175. [Google Scholar] [CrossRef]
  51. Wang, X.; Cheng, H.; Gao, F.; Wang, J.; Zhai, Q.; Hu, M.; Li, S.; Jiang, Y. CPO-Fe3O4@mTiO2 nanocomposite with integrated magnetic separation and enzymatic and photocatalytic activities in efficient degradation of organic contaminants in wastewater. J. Chem. Technol. Biotechnol. 2021, 96, 1437–1446. [Google Scholar] [CrossRef]
  52. Del Arco, J.; Perez, E.; Naitow, H.; Matsuura, Y.; Kunishima, N.; Fernandez-Lucas, J. Structural and functional characterization of thermostable biocatalysts for the synthesis of 6-aminopurine nucleoside-5’-monophospate analogues. Bioresour. Technol. 2019, 276, 244–252. [Google Scholar] [CrossRef] [PubMed]
  53. Shen, J.; Qiao, J.; Qi, L. Thermoresponsive Porous Polymer Membrane as a Switchable Enzyme Reactor for D-Amino Acid Oxidase Kinetics Study. ACS Appl. Bio Mater. 2021, 4, 966–973. [Google Scholar] [CrossRef]
  54. Patel, S.K.S.; Choi, S.H.; Kang, Y.C.; Lee, J.-K. Eco-Friendly Composite of Fe3O4-Reduced Graphene Oxide Particles for Efficient Enzyme Immobilization. ACS Appl. Mater. Interfaces 2017, 9, 2213–2222. [Google Scholar] [CrossRef] [PubMed]
  55. Zhao, L.; Qiao, J.; Qi, L.; Zhao, L.; Qiao, J.; Qi, L.; Moon, M.H. Construction of a thermoresponsive magnetic porous polymer membrane enzyme reactor for glutaminase kinetics study. Anal. Bioanal. Chem. 2018, 410, 5211–5218. [Google Scholar] [CrossRef]
  56. Ali, Z.; Tian, L.; Zhang, B.; Ali, N.; Khan, M.; Zhang, Q. Synthesis of fibrous and non-fibrous mesoporous silica magnetic yolk-shell microspheres as recyclable supports for immobilization of Candida rugosa lipase. Enzym. Microb. Technol. 2017, 103, 42–52. [Google Scholar] [CrossRef]
  57. Gao, X.; Zhai, Q.; Hu, M.; Li, S.; Jiang, Y. Hierarchically porous magnetic Fe3O4/Fe-MOF used as an effective platform for enzyme immobilization: A kinetic and thermodynamic study of structure-activity. Catal. Sci. Technol. 2021, 11, 2446–2455. [Google Scholar] [CrossRef]
  58. Li, D.; Yi, R.; Tian, J.; Li, J.; Yu, B.; Qi, J. Rational synthesis of hierarchical magnetic mesoporous silica microspheres with tunable mesochannels for enhanced enzyme immobilization. Chem. Commun. 2017, 53, 8902–8905. [Google Scholar] [CrossRef]
  59. Shin, M.-K.; Kang, B.; Yoon, N.-K.; Kim, M.-H.; Ki, J.; Han, S.; Ahn, J.-O.; Haam, S. Synthesis of Fe3O4@nickel-silicate core-shell nanoparticles for His-tagged enzyme immobilizing agents. Nanotechnology 2016, 27, 495705. [Google Scholar] [CrossRef]
  60. Zhang, T.; Huang, B.; Elzatahry, A.A.; Alghamdi, A.; Yue, Q.; Deng, Y. Synthesis of podlike magnetic mesoporous silica nanochains for use as enzyme support and nanostirrer in biocatalysis. ACS Appl. Mater. Interfaces 2020, 12, 17901–17908. [Google Scholar] [CrossRef] [PubMed]
  61. Perez-Anguiano, O.; Wenger, B.; Pugin, R.; Scolan, E.; Hofmann, H. Transparent and Robust Silica Coatings with Dual Range Porosity for Enzyme-Based Optical Biosensing. Adv. Funct. Mater. 2017, 27, 1606385. [Google Scholar] [CrossRef]
  62. Francic, N.; Kosak, A.; Lobnik, A. Immobilisation of organophosphate hydrolase on mesoporous and Stober particles. J. Sol. Gel. Sci. Technol. 2016, 79, 497–509. [Google Scholar] [CrossRef]
  63. Lin, C.; Xu, K.; Zheng, R.; Zheng, Y. Immobilization of amidase into a magnetic hierarchically porous metal-organic framework for efficient biocatalysis. Chem. Commun. 2019, 55, 5697–5700. [Google Scholar] [CrossRef]
  64. Marthala, V.R.R.; Urmoneit, L.; Zhou, Z.; Hartmann, M.; Machoke, A.G.F.; Schwieger, W.; Schmiele, M.; Unruh, T. Boron-containing MFI-type zeolites with a hierarchical nanosheet assembly for lipase immobilization. Dalton Trans. 2017, 46, 4165–4169. [Google Scholar] [CrossRef] [PubMed]
  65. Papadopoulou, A.; Zarafeta, D.; Galanopoulou, A.P.; Stamatis, H. Enhanced Catalytic Performance of Trichoderma reesei Cellulase Immobilized on Magnetic Hierarchical Porous Carbon Nanoparticles. Protein J. 2019, 38, 640–648. [Google Scholar] [CrossRef] [PubMed]
  66. Wang, J.; Li, K.; He, Y.; Wang, Y.; Yan, J.; Xu, L.; Han, X.; Yan, Y. Lipase Immobilized on a Novel Rigid-Flexible Dendrimer-Grafted Hierarchically Porous Magnetic Microspheres for Effective Resolution of (R, S)-1-Phenylethanol. ACS Appl. Mater. Interfaces 2020, 12, 4906–4916. [Google Scholar] [CrossRef] [PubMed]
  67. Chapanian, R.; Kwan, D.H.; Constantinescu, I.; Shaikh, F.A.; Rossi, N.A.A.; Withers, S.G.; Kizhakkedathu, J.N. Enhancement of biological reactions on cell surfaces via macromolecular crowding. Nat. Commun. 2014, 5, 4683. [Google Scholar] [CrossRef] [Green Version]
  68. Feng, Y.; Hu, H.; Wang, Z.; Du, Y.; Zhong, L.; Zhang, C.; Jiang, Y.; Jia, S.; Cui, J. Three-dimensional ordered magnetic macroporous metal-organic frameworks for enzyme immobilization. J. Colloid Interface Sci. 2021, 590, 436–445. [Google Scholar] [CrossRef]
  69. Nadar, S.S.; Rathod, V.K. Magnetic-metal organic framework (magnetic-MOF): A novel platform for enzyme immobilization and nanozyme applications. Int. J. Biol. Macromol. 2018, 120, 2293–2302. [Google Scholar] [CrossRef] [PubMed]
  70. Lu, J.; Wu, J.-K.; Jiang, Y.; Tan, P.; Zhang, L.; Lei, Y.; Liu, X.-Q.; Sun, L.-B. Fabrication of Microporous Metal-Organic Frameworks in Uninterrupted Mesoporous Tunnels: Hierarchical Structure for Efficient Trypsin Immobilization and Stabilization. Angew. Chem. Int. Ed. Engl. 2020, 59, 6428–6434. [Google Scholar] [CrossRef]
  71. Das, A.; Singh, J.; Yogalakshmi, K.N. Laccase immobilized magnetic iron nanoparticles: Fabrication and its performance evaluation in chlorpyrifos degradation. Int. Biodeterior. Biodegrad. 2017, 117, 183–189. [Google Scholar] [CrossRef]
  72. Xia, G.-H.; Liu, W.; Jiang, X.-P.; Wang, X.-Y.; Zhang, Y.-W.; Guo, J. Surface Modification of Fe(3)O(4)@SiO(2) Magnetic Nanoparticles for Immobilization of Lipase. J. Nanosci. Nanotechnol. 2017, 17, 370–376. [Google Scholar] [CrossRef]
  73. Abdollahi, K.; Yazdani, F.; Panahi, R.; Abdollahi, K. Fabrication of the robust and recyclable tyrosinase-harboring biocatalyst using ethylenediamine functionalized superparamagnetic nanoparticles: Nanocarrier characterization and immobilized enzyme properties. J. Biol. Inorg. Chem. 2019, 24, 943–959. [Google Scholar] [CrossRef]
  74. de Lima, J.M.; Furlani, I.L.; da Silva, L.R.G.; Valverde, A.L.; Cass, Q.B. Micro- and nano-sized amine-terminated magnetic beads in a ligand fishing assay. Anal. Methods 2020, 12, 4116–4122. [Google Scholar] [CrossRef] [PubMed]
  75. Asmat, S.; Anwer, A.H.; Husain, Q. Immobilization of lipase onto novel constructed polydopamine grafted multiwalled carbon nanotube impregnated with magnetic cobalt and its application in synthesis of fruit flavours. Int. J. Biol. Macromol. 2019, 140, 484–495. [Google Scholar] [CrossRef]
  76. Guimaraes, J.R.; Giordano, R.d.L.C.; Tardioli, P.W.; Fernandez-Lafuente, R. Evaluation of Strategies to Produce Highly Porous Cross-Linked Aggregates of Porcine Pancreas Lipase with Magnetic Properties. Molecules 2018, 23, 2993. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Park, H.J.; Driscoll, A.J.; Johnson, P.A. The development and evaluation of β-glucosidase immobilized magnetic nanoparticles as recoverable biocatalysts. Biochem. Eng. J. 2018, 133, 66–73. [Google Scholar] [CrossRef]
  78. Zhu, X.; Li, Y.; Lv, M.; Zhang, L.; Yang, G. Covalent immobilization of alkaline proteinase on amino-functionalized magnetic nanoparticles and application in soy protein hydrolysis. Biotechnol. Prog. 2019, 35, e2756. [Google Scholar] [CrossRef]
  79. Xue, F.; Chen, Q.; Li, Y.; Liu, E.; Li, D. Immobilized lysozyme onto 1,2,3,4-butanetetracarboxylic (BTCA)-modified magnetic cellulose microsphere for improving bio-catalytic stability and activities. Enzym. Microb. Technol. 2019, 131, 109425. [Google Scholar] [CrossRef]
  80. Song, J.; Su, P.; Yang, Y.; Wang, T.; Yang, Y. DNA directed immobilization enzyme on polyamidoamine tethered magnetic composites with high reusability and stability. J. Mater. Chem. B 2016, 4, 5873–5882. [Google Scholar] [CrossRef]
  81. Zhao, L.; Yang, G.; Li, L.; Zhu, C.; Ma, Y.; Qu, F. Aptamer-functionalized magnetic nanoparticles conjugated organic framework for immobilization of acetylcholinesterase and its application in inhibitors screening. Anal. Chim. Acta 2020, 1140, 228–235. [Google Scholar] [CrossRef] [PubMed]
  82. Francolini, I.; Taresco, V.; Martinelli, A.; Piozzi, A. Enhanced performance of Candida rugosa lipase immobilized onto alkyl chain modified-magnetic nanocomposites. Enzym. Microb. Technol. 2020, 132, 109439. [Google Scholar] [CrossRef]
  83. Xiao, Q.; Liu, C.; Ni, H.; Zhu, Y.; Jiang, Z.; Xiao, A. β-Agarase immobilized on tannic acid-modified Fe3O4 nanoparticles for efficient preparation of bioactive neoagaro-oligosaccharide. Food Chem. 2019, 272, 586–595. [Google Scholar] [CrossRef] [PubMed]
  84. Song, J.; Su, P.; Yang, Y.; Yang, Y. Efficient immobilization of enzymes onto magnetic nanoparticles by DNA strand displacement: A stable and high-performance biocatalyst. New J. Chem. 2017, 41, 6089–6097. [Google Scholar] [CrossRef]
  85. Suo, H.; Gao, Z.; Xu, C.; Yu, D.; Xiang, X.; Xu, L.; Huang, H.; Hu, Y. Synthesis of functional ionic liquid modified magnetic chitosan nanoparticles for porcine pancreatic lipase immobilization. Mater. Sci. Eng. C Mater. Biol. Appl. 2019, 96, 356–364. [Google Scholar] [CrossRef]
  86. Suo, H.; Xu, L.; Xu, C.; Chen, H.; Yu, D.; Gao, Z.; Huang, H.; Hu, Y. Enhancement of catalytic performance of porcine pancreatic lipase immobilized on functional ionic liquid modified Fe3O4-Chitosan nanocomposites. Int. J. Biol. Macromol. 2018, 119, 624–632. [Google Scholar] [CrossRef]
Nanomaterials 11 02257 g001 550

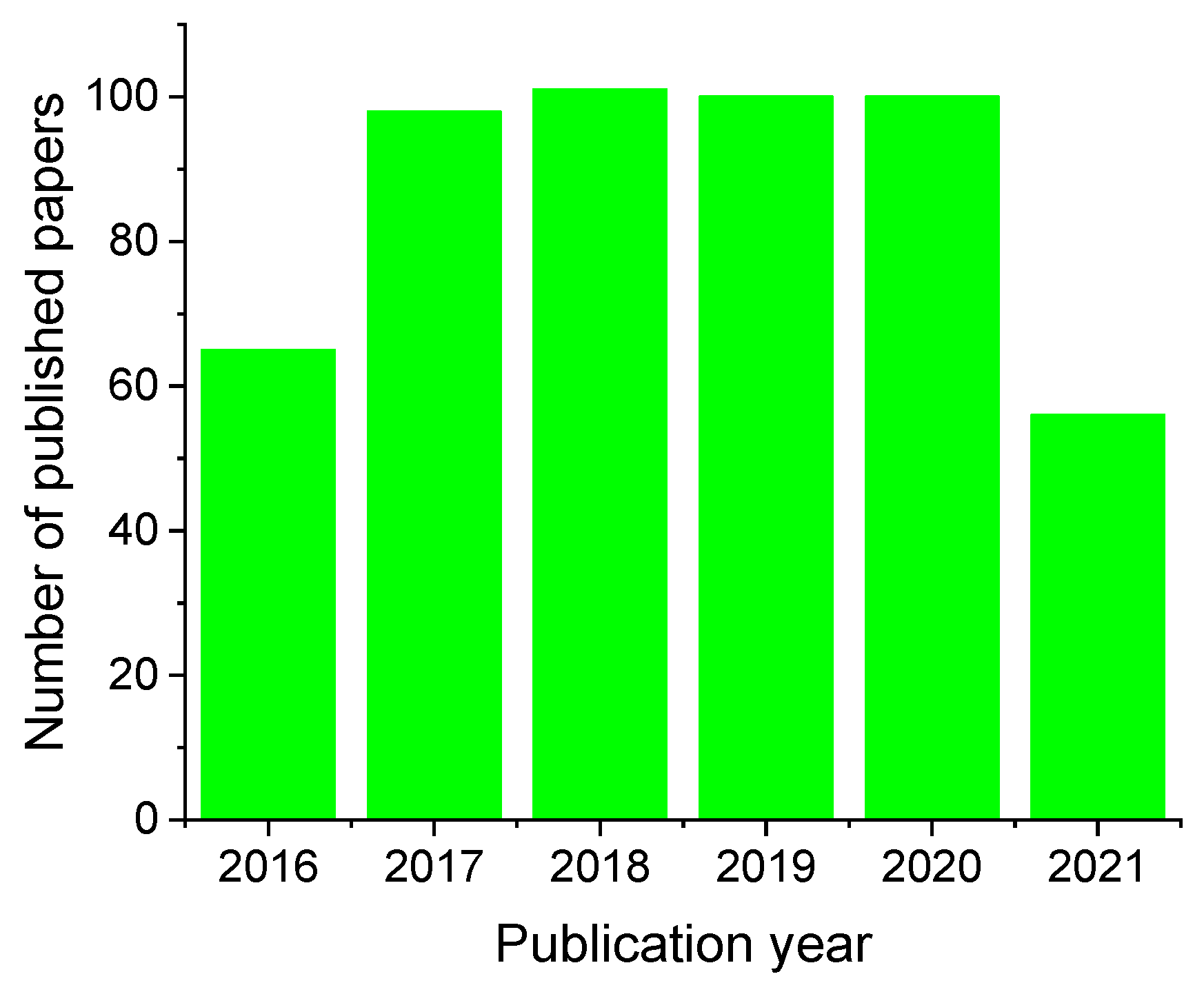

Figure 1. Number of publications per year in the English language. (SciFinder Search with keywords: immobilized enzymes + magnetic nanoparticles on 28 July 2021).
Figure 1. Number of publications per year in the English language. (SciFinder Search with keywords: immobilized enzymes + magnetic nanoparticles on 28 July 2021).
Nanomaterials 11 02257 g001
Nanomaterials 11 02257 g002 550

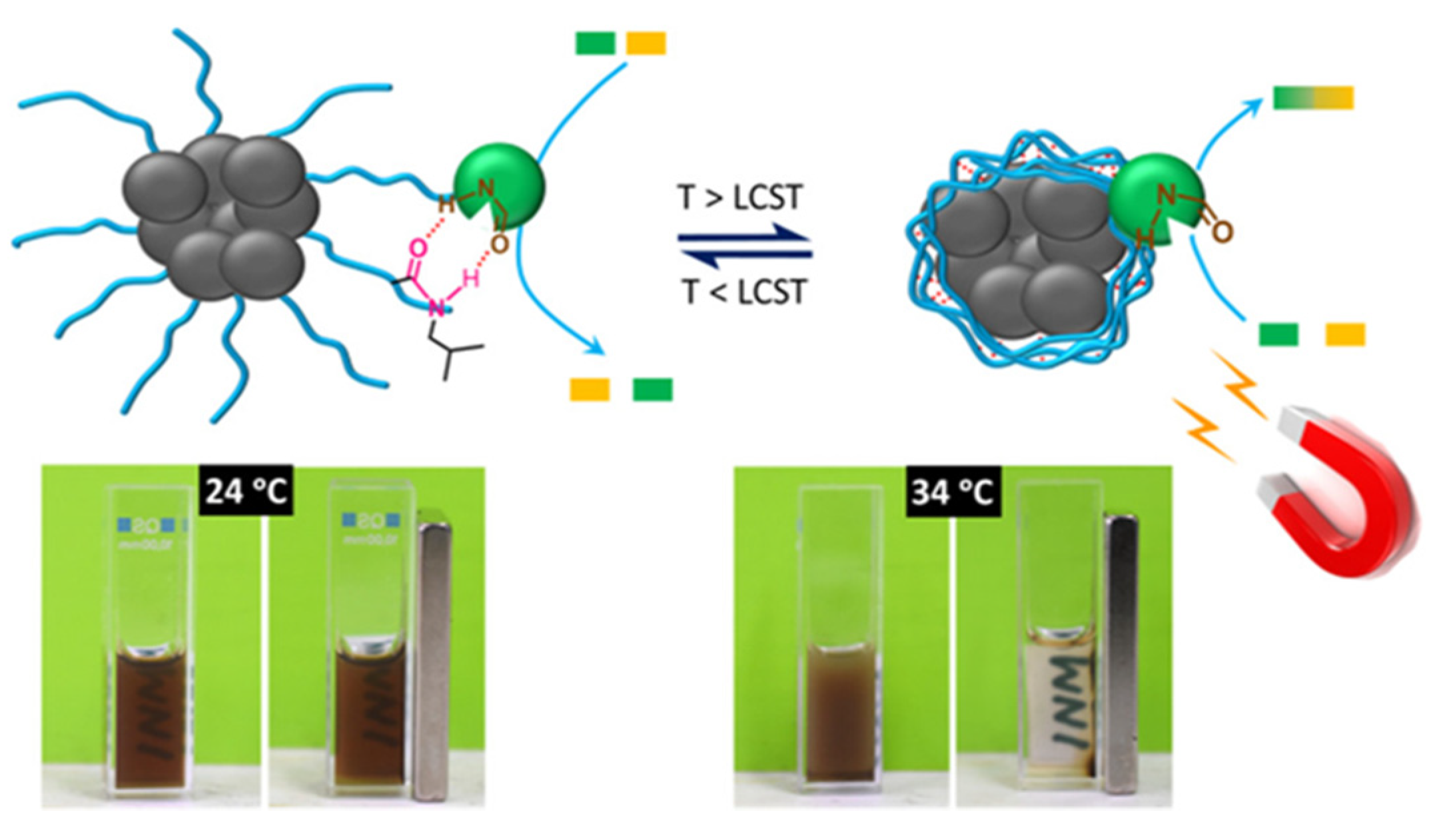

Figure 2. Schematic representation of the biocatalyst formed from magnetic NP clusters coated with a thermally responsive brush with attached enzyme. LCST stands for the lower critical solution temperature, while INM is the abbreviation of the Institute for New Materials (authors’ affiliation). Reproduced with permission from [34], the American Chemical Society, 2020.
Figure 2. Schematic representation of the biocatalyst formed from magnetic NP clusters coated with a thermally responsive brush with attached enzyme. LCST stands for the lower critical solution temperature, while INM is the abbreviation of the Institute for New Materials (authors’ affiliation). Reproduced with permission from [34], the American Chemical Society, 2020.
Nanomaterials 11 02257 g002
Nanomaterials 11 02257 g003 550

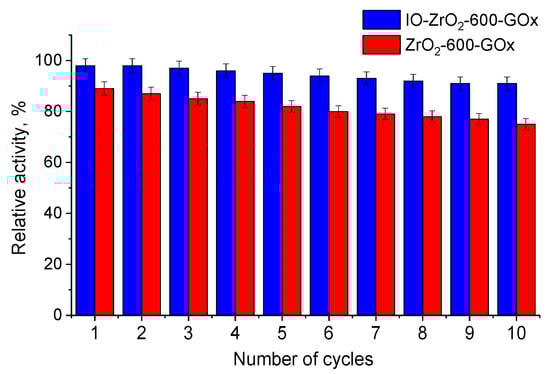

Figure 3. Relative activity of GOx immobilized on ZrO2 or Fe3O4-ZrO2 in reuse. IO stands for Fe3O4 NPs, while 600 indicates the temperature at which ZrO2 was treated. Reproduced with permission from [41], the American Chemical Society, 2020.
Figure 3. Relative activity of GOx immobilized on ZrO2 or Fe3O4-ZrO2 in reuse. IO stands for Fe3O4 NPs, while 600 indicates the temperature at which ZrO2 was treated. Reproduced with permission from [41], the American Chemical Society, 2020.
Nanomaterials 11 02257 g003
Nanomaterials 11 02257 g004 550

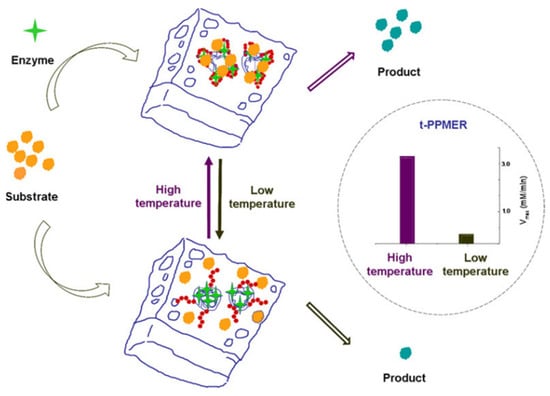

Figure 4. Schematic representation of thermoresponsive behavior of the biocatalyst. T-PPMER stands for thermoresponsive porous polymer membrane enzyme reactor. Reproduced with permission from [52], the American Chemical Society, 2021.
Figure 4. Schematic representation of thermoresponsive behavior of the biocatalyst. T-PPMER stands for thermoresponsive porous polymer membrane enzyme reactor. Reproduced with permission from [52], the American Chemical Society, 2021.
Nanomaterials 11 02257 g004
Nanomaterials 11 02257 g005 550

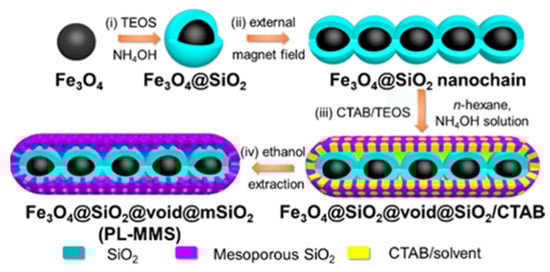

Figure 5. Synthesis Procedures of PL-MMS Nanochain: (i) Sol–Gel Coating of Silica; (ii) Magnetic-Field-Guided Assembly; (iii) Mesostructured CTAB/Silica Interface Assembly onto the Nanochain; (iv) Surfactant Removal. Reproduced with permission from [60], the American Chemical Society, 2020.
Figure 5. Synthesis Procedures of PL-MMS Nanochain: (i) Sol–Gel Coating of Silica; (ii) Magnetic-Field-Guided Assembly; (iii) Mesostructured CTAB/Silica Interface Assembly onto the Nanochain; (iv) Surfactant Removal. Reproduced with permission from [60], the American Chemical Society, 2020.
Nanomaterials 11 02257 g005
Nanomaterials 11 02257 g006 550

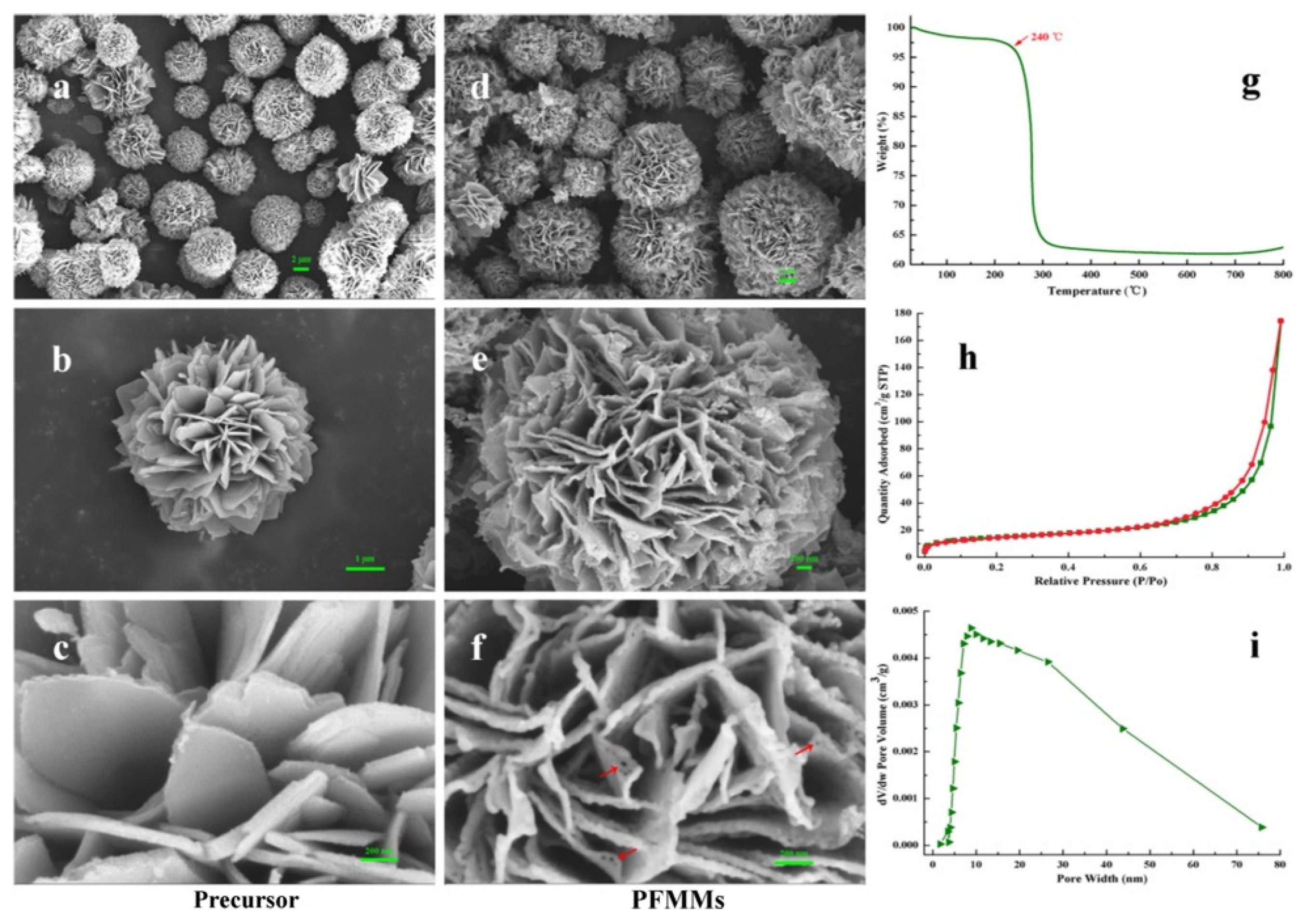

Figure 6. SEM micrographs and properties of PFMMs and its precursor. (a–c) PFMMs precursor. Their scale bars are 2 μm, 1 μm, and 200 nm, respectively. (d–f) PFMMs. Their scale bars are 1 μm, 1 μm, and 200 nm, respectively. (g) TGA curve of PFMMs precursor. (h) N2 adsorption–desorption isotherm. (i) Pore size distribution of PFMMs. Reproduced with permission from [66], the American Chemical Society, 2020.
Figure 6. SEM micrographs and properties of PFMMs and its precursor. (a–c) PFMMs precursor. Their scale bars are 2 μm, 1 μm, and 200 nm, respectively. (d–f) PFMMs. Their scale bars are 1 μm, 1 μm, and 200 nm, respectively. (g) TGA curve of PFMMs precursor. (h) N2 adsorption–desorption isotherm. (i) Pore size distribution of PFMMs. Reproduced with permission from [66], the American Chemical Society, 2020.
Nanomaterials 11 02257 g006
Nanomaterials 11 02257 g007 550

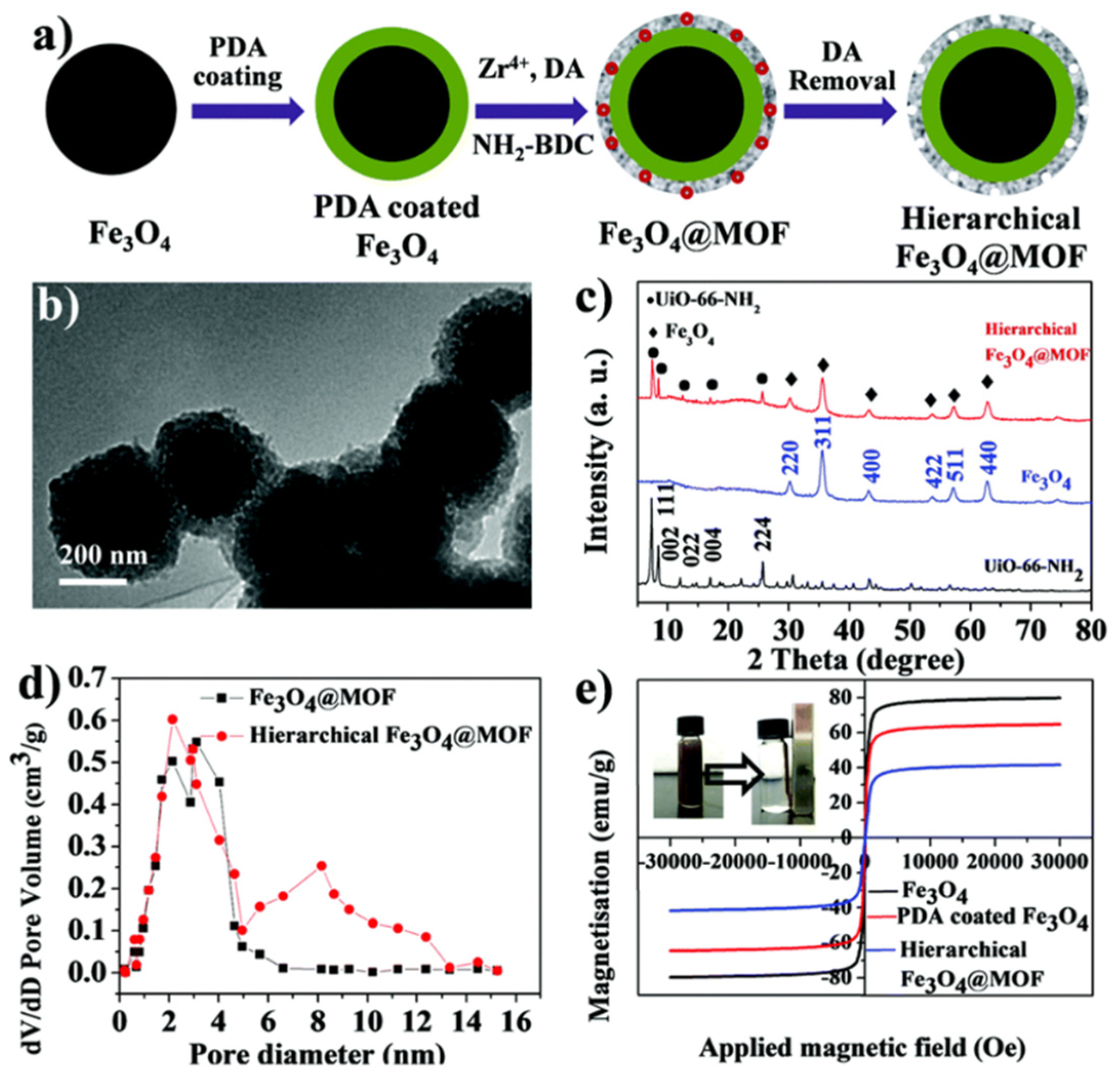

Figure 7. Synthesis and characterization of the magnetic hierarchically porous MOF (hierarchical F3O4@MOF). (a) Schematic illustration for the three-step preparation; (b) TEM image of the hierarchical F3O4@MOF; (c) XRD profiles of UiO-66-NH2 (MOF, bottom), F3O4 (middle), and hierarchical F3O4@MOF (top); (d) pore size distribution curves of F3O4@MOF (black) and hierarchical F3O4@MOF (red); and (e) magnetic hysteresis loops of F3O4, PDA coated F3O4 and hierarchical F3O4@MOF, inset is the photographs of the magnetic responsiveness. Reproduced with permission from [63], the Royal Society of Chemistry, 2019.
Figure 7. Synthesis and characterization of the magnetic hierarchically porous MOF (hierarchical F3O4@MOF). (a) Schematic illustration for the three-step preparation; (b) TEM image of the hierarchical F3O4@MOF; (c) XRD profiles of UiO-66-NH2 (MOF, bottom), F3O4 (middle), and hierarchical F3O4@MOF (top); (d) pore size distribution curves of F3O4@MOF (black) and hierarchical F3O4@MOF (red); and (e) magnetic hysteresis loops of F3O4, PDA coated F3O4 and hierarchical F3O4@MOF, inset is the photographs of the magnetic responsiveness. Reproduced with permission from [63], the Royal Society of Chemistry, 2019.
Nanomaterials 11 02257 g007
Nanomaterials 11 02257 g008 550
Figure 8. Synthesis of the NiMNCs and TEV protease immobilization. (a) Superparamagnetic iron oxide magnetic nanocluster (MNCs) was prepared by thermal decomposition method; Formation of (b) silica shell on the surface of MNCs (SiMNCs) (TEOS stands for tetraethoxysilane); (c) Silica shell transferred to nickel silicate (NiMNCs); and (d) His-tagged TEV protease immobilized on the surface of NiMNCs (TNiMNCs). Reproduced with permission from [59], IOP Publishing, 2016.
Figure 8. Synthesis of the NiMNCs and TEV protease immobilization. (a) Superparamagnetic iron oxide magnetic nanocluster (MNCs) was prepared by thermal decomposition method; Formation of (b) silica shell on the surface of MNCs (SiMNCs) (TEOS stands for tetraethoxysilane); (c) Silica shell transferred to nickel silicate (NiMNCs); and (d) His-tagged TEV protease immobilized on the surface of NiMNCs (TNiMNCs). Reproduced with permission from [59], IOP Publishing, 2016.
Nanomaterials 11 02257 g008
Nanomaterials 11 02257 g009 550
Figure 9. Synthetic scheme of IL-CS-Fe3O4 and its application in PPL immobilization. Reproduced with permission from [85], Elsevier, 2019.
Figure 9. Synthetic scheme of IL-CS-Fe3O4 and its application in PPL immobilization. Reproduced with permission from [85], Elsevier, 2019.
Nanomaterials 11 02257 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Matveeva, V.G.; Bronstein, L.M. Magnetic Nanoparticle-Containing Supports as Carriers of Immobilized Enzymes: Key Factors Influencing the Biocatalyst Performance. Nanomaterials 2021, 11, 2257. https://doi.org/10.3390/nano11092257

AMA Style

Matveeva VG, Bronstein LM. Magnetic Nanoparticle-Containing Supports as Carriers of Immobilized Enzymes: Key Factors Influencing the Biocatalyst Performance. Nanomaterials. 2021; 11(9):2257. https://doi.org/10.3390/nano11092257

Chicago/Turabian Style

Matveeva, Valentina G., and Lyudmila M. Bronstein. 2021. "Magnetic Nanoparticle-Containing Supports as Carriers of Immobilized Enzymes: Key Factors Influencing the Biocatalyst Performance" Nanomaterials 11, no. 9: 2257. https://doi.org/10.3390/nano11092257

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
