Comprehensive Thermal Analysis of Diamond in a High-Power Raman Cavity Based on FVM-FEM Coupled Method
Abstract
:1. Introduction
2. Physical Model and FVM-FEM Coupled Numerical Method

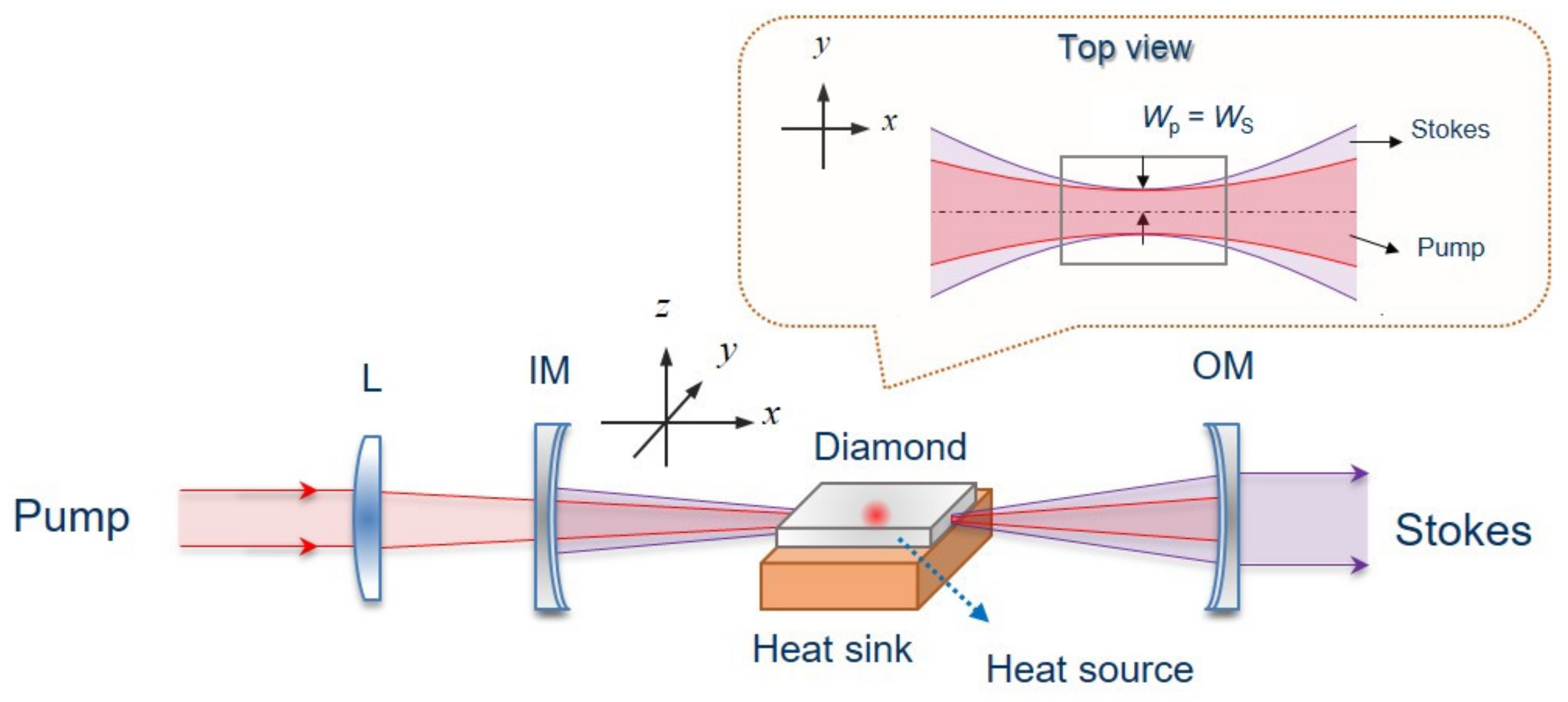

2.1. Diamond Raman Laser (DRL) Setup for the Simulation
2.2. Thermal Model
2.3. Thermo-Elasticity Model
3. Results and Discussion

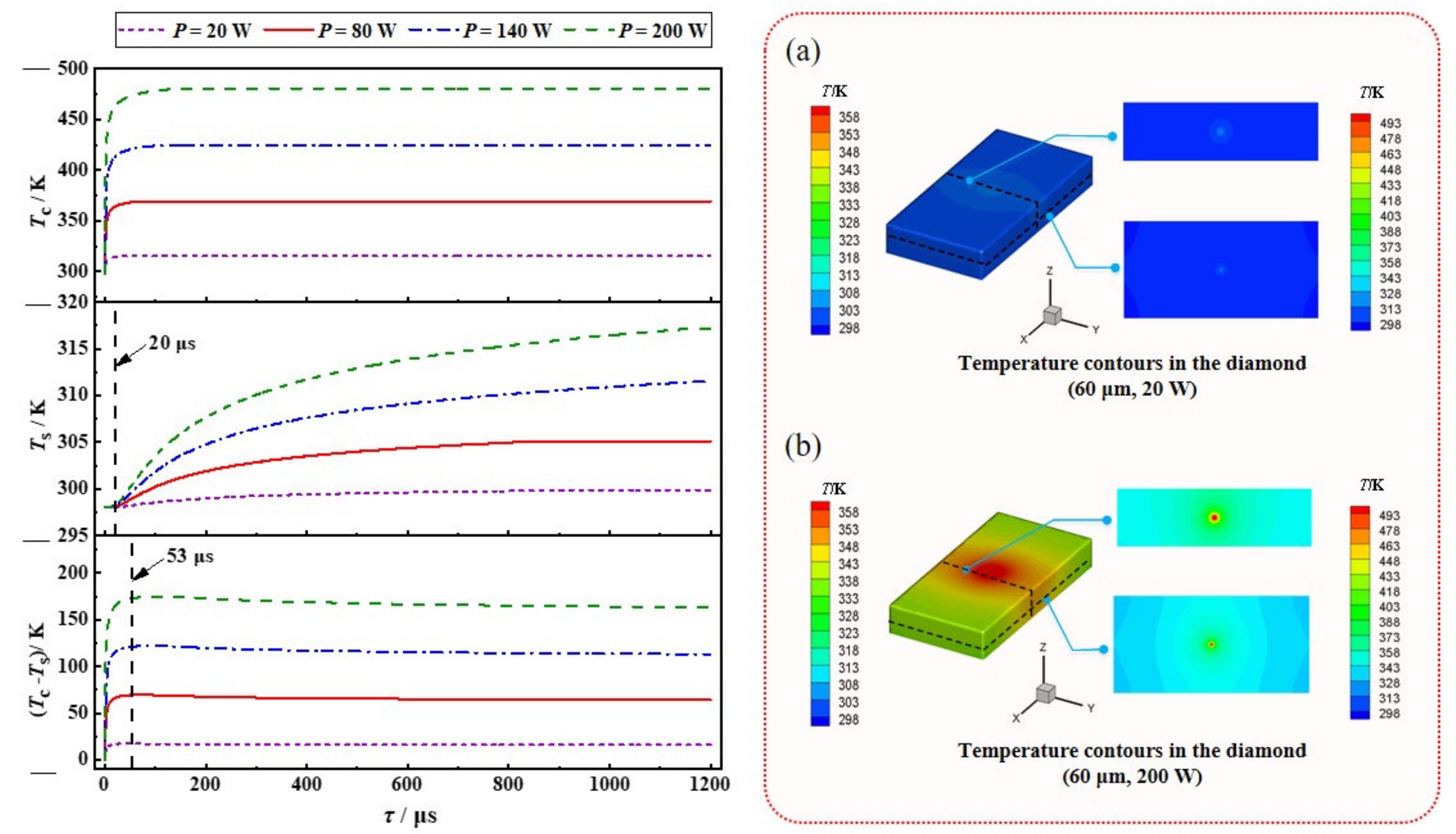

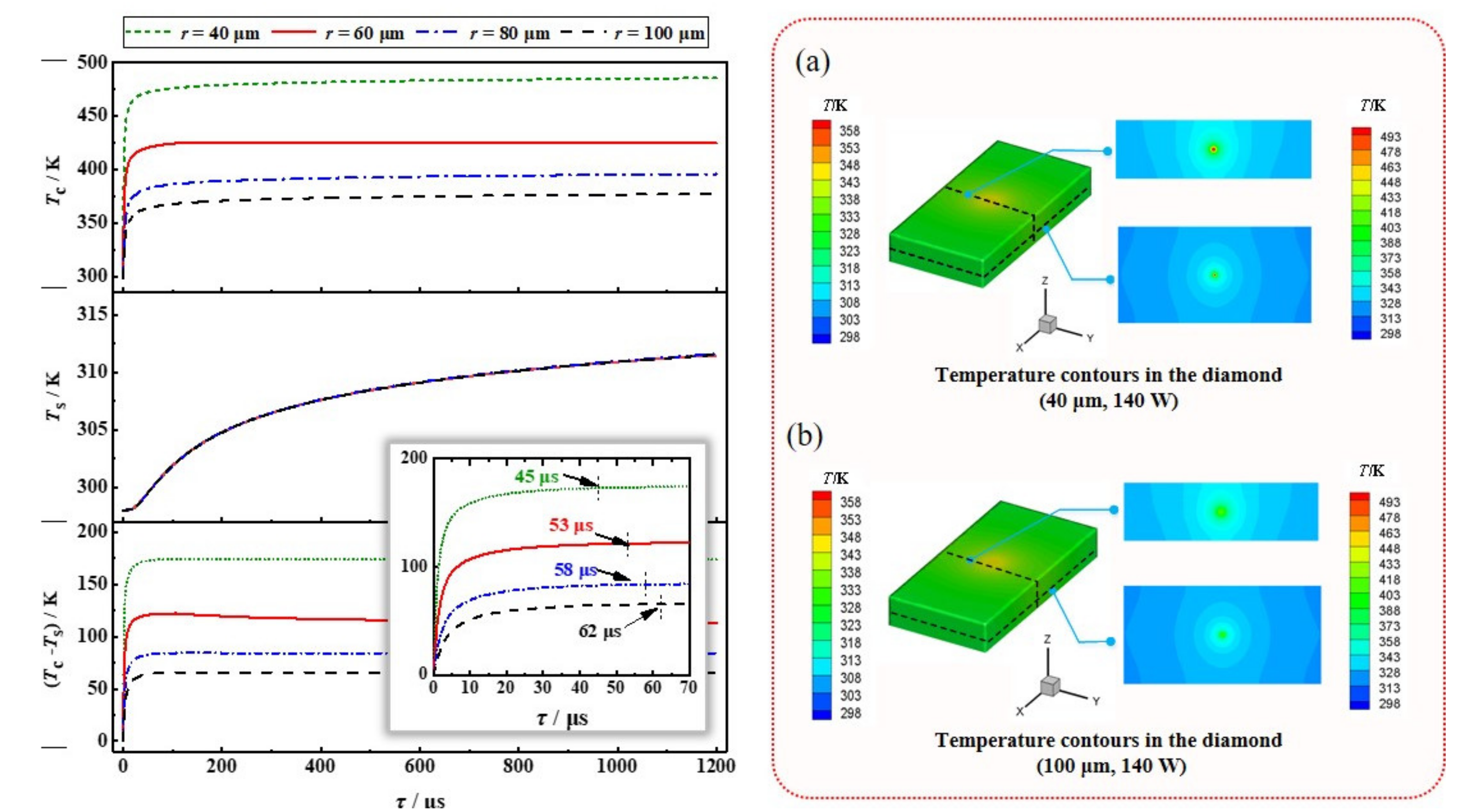

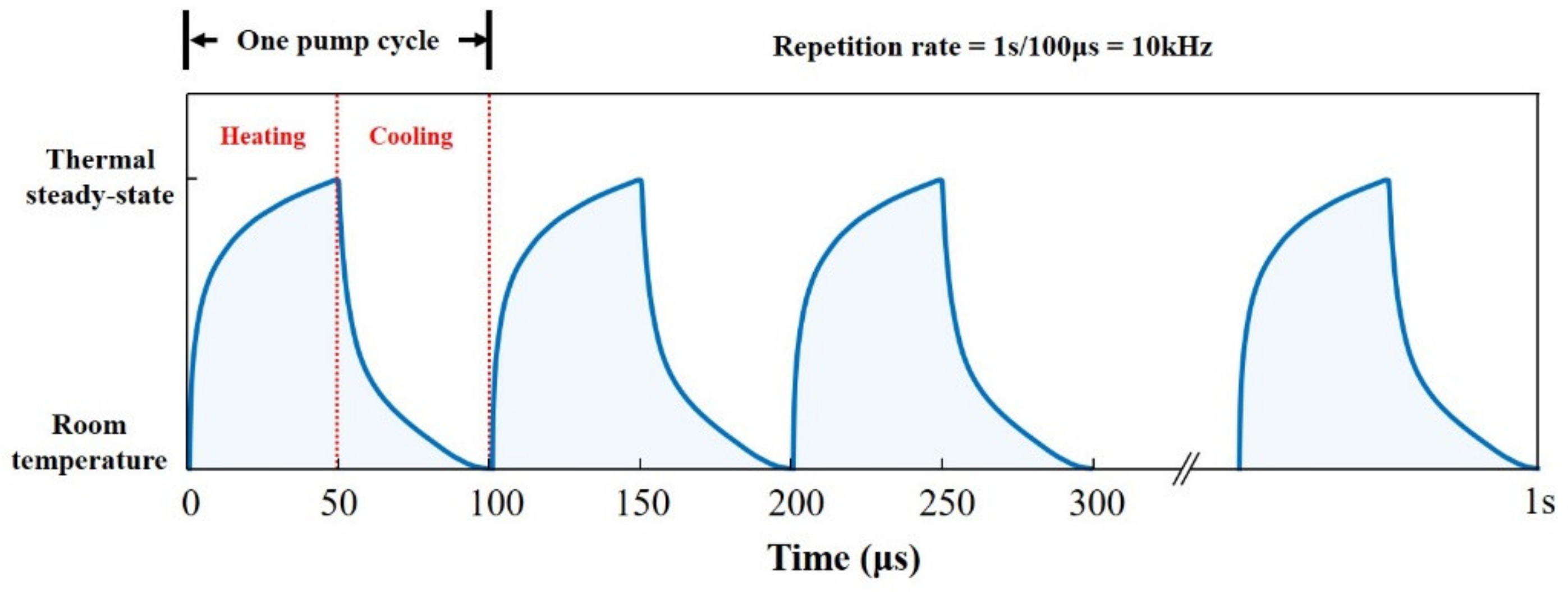

3.1. Transient Response and Temperature Distribution

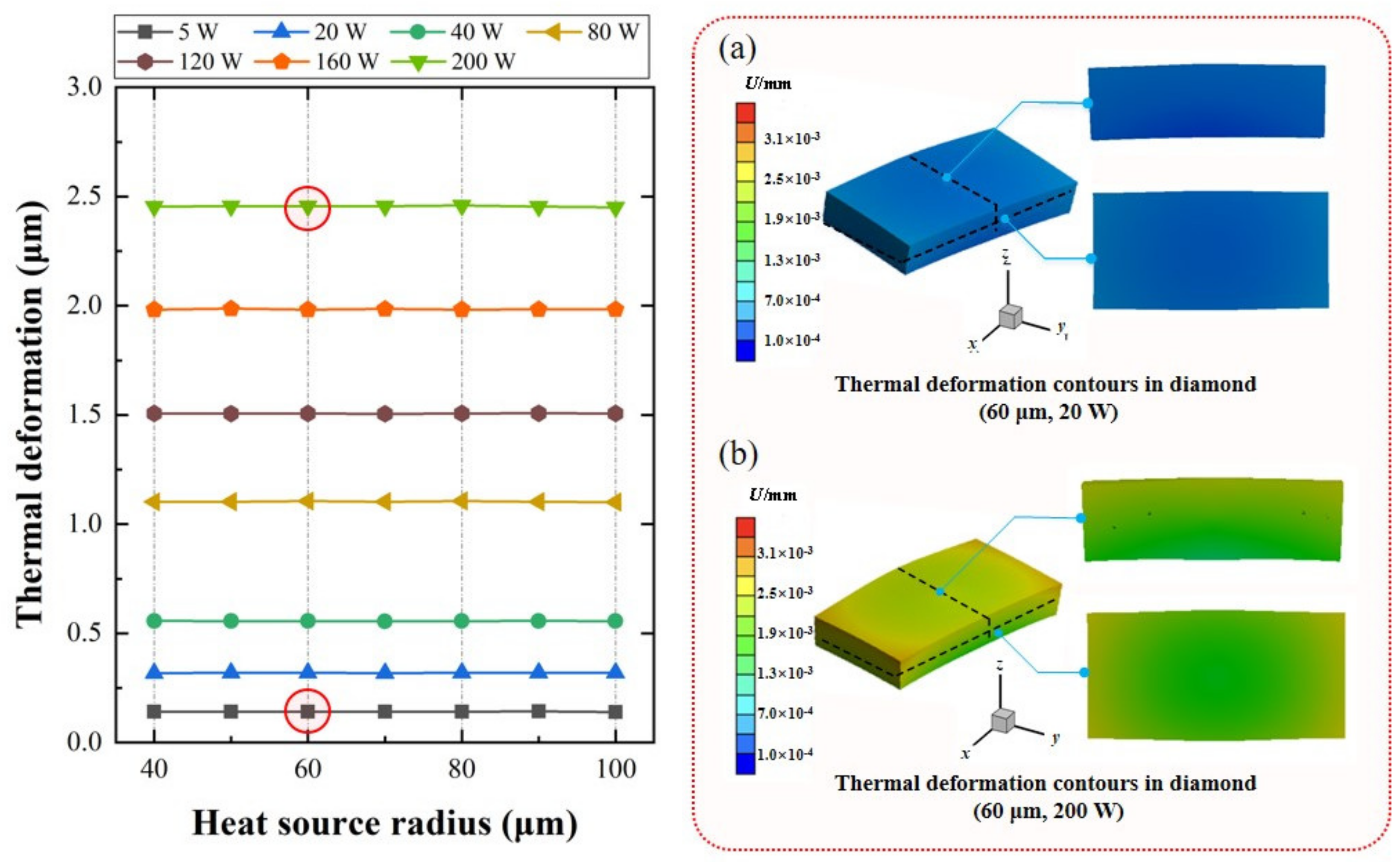

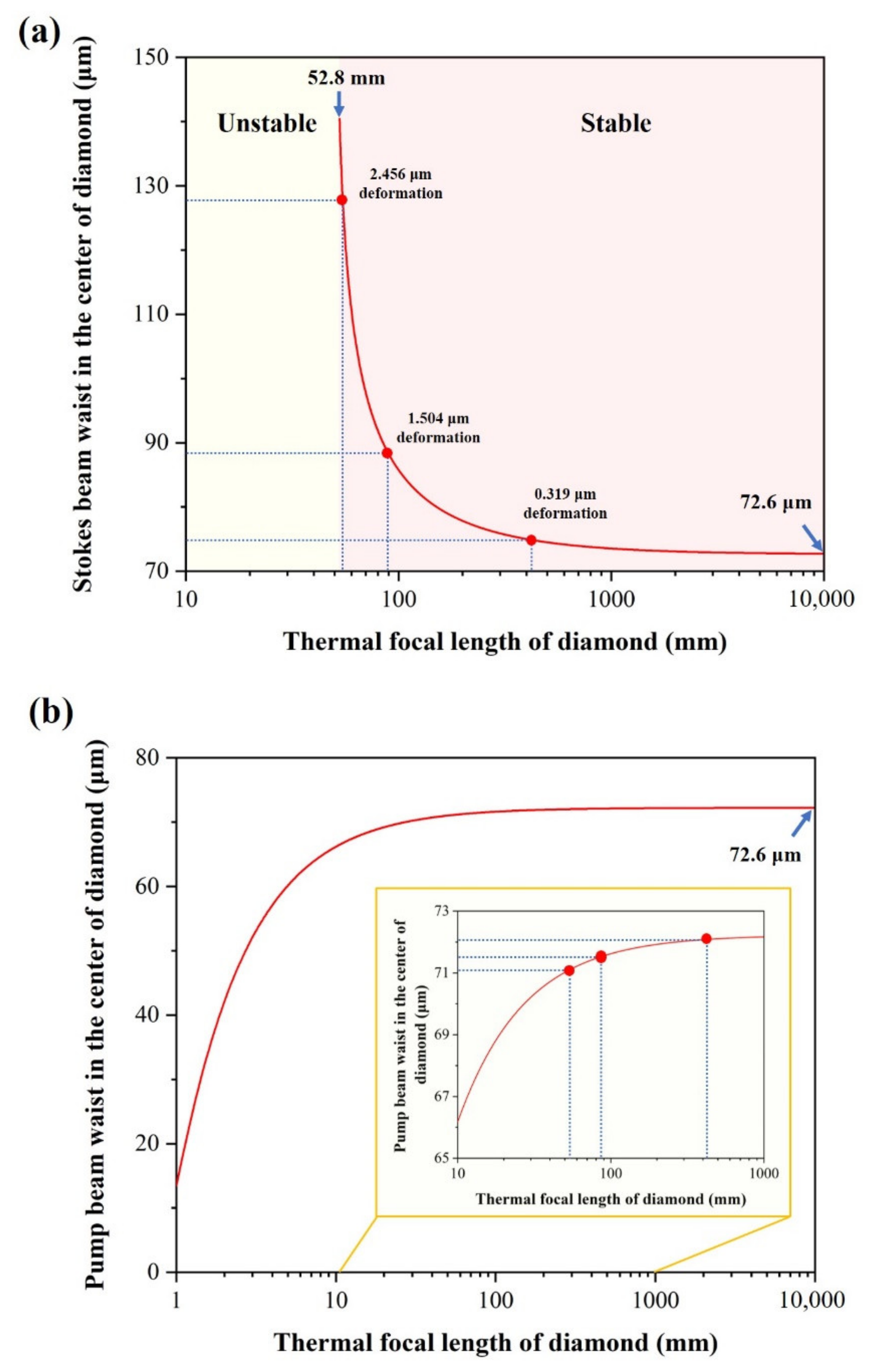

3.2. Thermal Deformation Model
4. Conclusions and Outlook
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Conflicts of Interest
References
