The Role of the Molecular Hydrogen Formation in the Process of Metal-Ion Reduction on Multicrystalline Silicon in a Hydrofluoric Acid Matrix

Department of Physical Chemistry, Faculty of Environment and Natural Sciences, Brandenburg University of Technology Cottbus-Senftenberg, Universitätsplatz 1, 01968 Senftenberg, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Martin Wilkening
Nanomaterials 2021, 11(4), 982; https://doi.org/10.3390/nano11040982
Received: 10 March 2021 / Revised: 8 April 2021 / Accepted: 9 April 2021 / Published: 11 April 2021

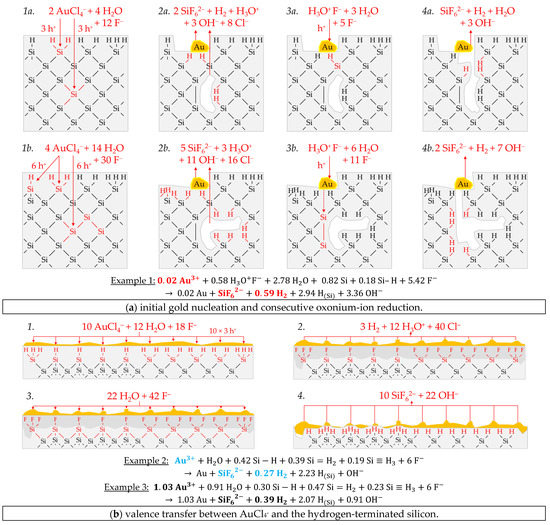

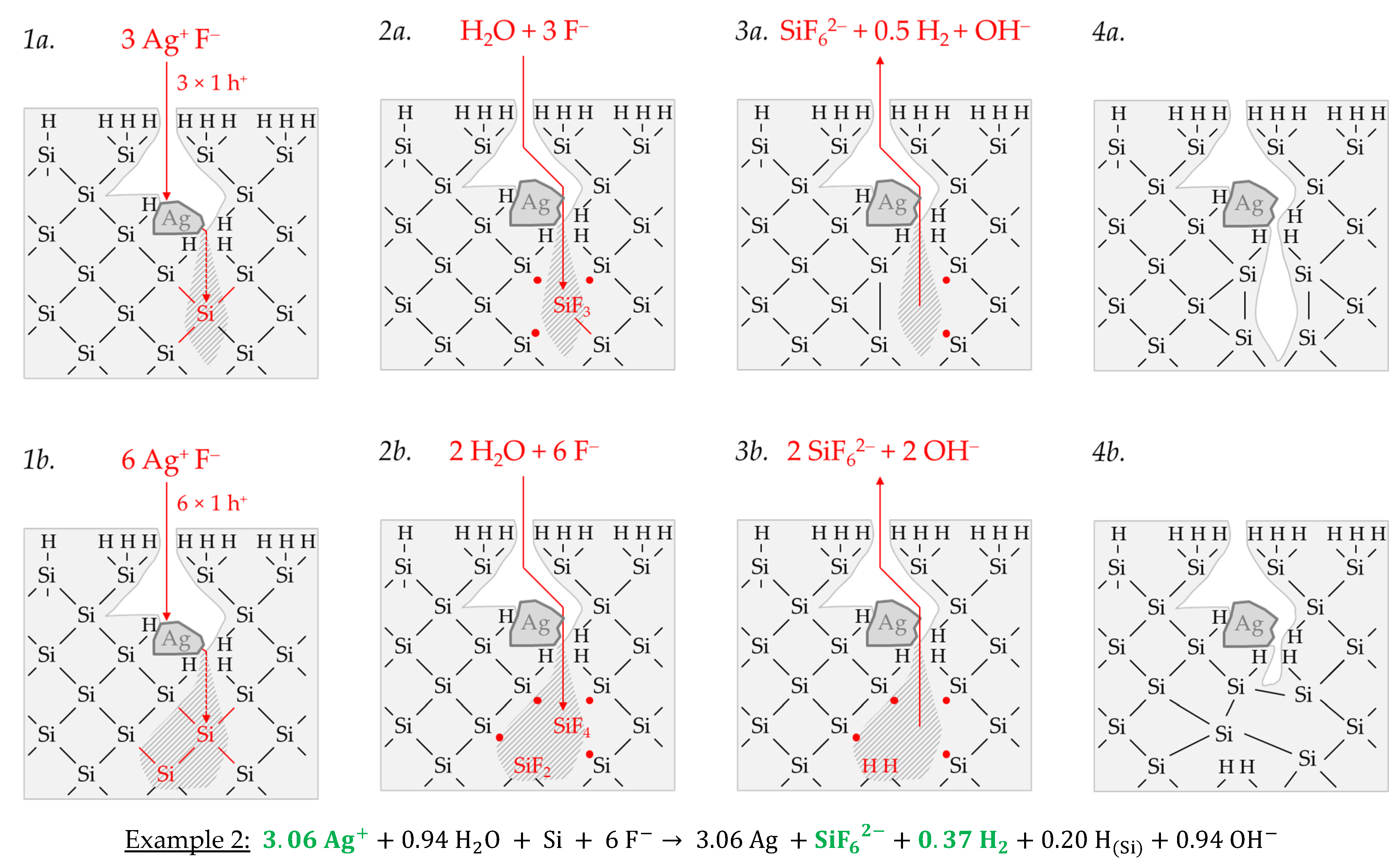

Metal deposition on silicon in hydrofluoric acid (HF) solutions is a well-established process for the surface patterning of silicon. The reactions behind this process, especially the formation or the absence of molecular hydrogen (H2), are controversially discussed in the literature. In this study, several batch experiments with Ag+, Cu2+, AuCl4 and PtCl62− in HF matrix and multicrystalline silicon were performed. The stoichiometric amounts of the metal depositions, the silicon dissolution and the molecular hydrogen formation were determined analytically. Based on these data and theoretical considerations of the valence transfer, four reasons for the formation of H2 could be identified. First, H2 is generated in a consecutive reaction after a monovalent hole transfer (h+) to a Si–Si bond. Second, H2 is produced due to a monovalent hole transfer to the Si–H bonds. Third, H2 occurs if Si–Si back bonds of the hydrogen-terminated silicon are attacked by Cu2+ reduction resulting in the intermediate species HSiF3, which is further degraded to H2 and SiF62−. The fourth H2-forming reaction reduces oxonium ions (H3O+) on the silver/, copper/ and gold/silicon contacts via monovalent hole transfer to silicon. In the case of (cumulative) even-numbered valence transfers to silicon, no H2 is produced. The formation of H2 also fails to appear if the equilibrium potential of the 2H3O+/H2 half-cell does not reach the energetic level of the valence bands of the bulk or hydrogen-terminated silicon. Non-hydrogen-forming reactions in silver, copper and gold deposition always occur with at least one H2-forming process. The PtCl62− reduction to Pt proceeds exclusively via even-numbered valence transfers to silicon. This also applies to the reaction of H3O+ at the platinum/silicon contact. Consequently, no H2 is formed during platinum deposition. View Full-Text
Keywords: molecular hydrogen; metal deposition; silicon dissolution; hydrofluoric acid; reaction process; valence transfer molecular hydrogen; metal deposition; silicon dissolution; hydrofluoric acid; reaction process; valence transfer
