High-Performance Wearable Strain Sensor Based on MXene@Cotton Fabric with Network Structure

Abstract

Flexible and comfortable wearable electronics are as a second skin for humans as they can collect the physiology of humans and show great application in health and fitness monitoring. MXene Ti₃C₂T_x have been used in flexible electronic devices for their unique properties such as high conductivity, excellent mechanical performance, flexibility, and good hydrophilicity, but less research has focused on MXene-based cotton fabric strain sensors. In this work, a high-performance wearable strain sensor composed of two-dimensional (2D) MXene d-Ti₃C₂T_x nanomaterials and cotton fabric is reported. Cotton fabrics were selected as substrate as they are comfortable textiles. As the active material in the sensor, MXene d-Ti₃C₂T_x exhibited an excellent conductivity and hydrophilicity and adhered well to the fabric fibers by electrostatic adsorption. The gauge factor of the MXene@cotton fabric strain sensor reached up to 4.11 within the strain range of 15%. Meanwhile, the sensor possessed high durability (>500 cycles) and a low strain detection limit of 0.3%. Finally, the encapsulated strain sensor was used to detect subtle or large body movements and exhibited a rapid response. This study shows that the MXene@cotton fabric strain sensor reported here have great potential for use in flexible, comfortable, and wearable devices for health monitoring and motion detection.

1. Introduction

Compared to traditional electronic devices, flexible electronic devices have good flexibility, ductility, and can be easily bent, twisted, or folded [1]. Therefore, these flexible devices can meet the deformation requirements of equipment under different working conditions and have broad applications in flexible electronic displays [2], thin-film solar cells [3], flexible sensors [4], and wearable devices [5]. Among these, flexible wearable electronic devices have attracted considerable attention due to their enormous potential applications in personal health monitoring, biomedical research, and artificial intelligence [6,7,8]. Moreover, due to their simple structure and operating principles, superior sensing properties to various types of deformations, and good expansibility, resistance-type flexible stress/strain sensors have very broad application prospects in many fields [9,10]. Wearable stress/strain sensors are in great demand with the rapid development of intelligent electronic devices. However, obtaining high-performance pressure sensors that simultaneously have a high sensitivity, wide response range, and low detection limit is still a considerable challenge. Thus, considerable research into the processing, structures, and materials of different sensors has been conducted in recent years to meet the demands for intelligent wearable devices and the manufacture of wearable electronic sensors with high sensitivity, high resolution, and fast responses.

The choice of the underlying comfortable and flexible substrate has an important impact on the ultimate performance of the flexible stress/strain sensor. According to the material dimensions, flexible substrates can be divided into three types: One-dimensional fibers or yarn [11,12], two-dimensional films [13] and fabrics [14], and three-dimensional sponges/foams [15], gels [16] and other architectures [17]. Fabric-based flexible stress/strain sensors have obvious advantages in flexible electronic devices as they can withstand complicated deformations, such as bending, stretching, and twisting, and are made from simple and low-cost materials [18,19]. Compared with other intelligent electronic devices such as membranes and foams, textile-based flexible mechanical sensors also can achieve a seamless connection with clothing, home textiles and other fabric products, and realize an integrated design. On the other hand, the active layer and the morphologies and microstructures of the sensing materials have also been widely recognized as important factors for improving the sensitivity of sensors. Carbon nanotubes [20,21], graphene [22], metal nanowires [23], and other nanomaterials often are used in the active layer due to their excellent properties. However, it is still difficult and complicated to fabricate highly sensitive fabric-based flexible sensors due to low signal responses. Therefore, more research efforts should focus on developing of sensing materials and the fabrication processes of sensors.

2D materials are very suitable for use as flexible piezoresistive sensor materials that can meet the performance requirements of high sensitivity over a wide sensing range in flexible strain/stress sensors due to their large specific surface area, strong mechanical properties, and adjustable electrical properties [24]. As a new type of 2D materials, early transition metal carbides and/or nitrides, MXene, have attracted great attention [25,26,27]. Due to its unique 2D structure, MXene has displayed excellent performance in many fields, such as catalysis [28], energy storage [29,30], electromagnetic shielding [31], reinforced materials [32,33], and other fields [34,35,36]. For example, Guo et al. [37] fabricated a highly sensitive, flexible, and degradable pressure sensor by sandwiching porous MXene-impregnated tissue paper, which exhibited high sensitivity with a low detection limit (10.2 Pa), broad range (up to 30 kPa), fast response (11 ms), low power consumption (10–8 W), great reproducibility over 10,000 cycles, and excellent degradability. Li et al. [38] prepared a 2D MXene/(0D-1D) silver nanocomposite-based strain sensor, which when incorporated into fabric, could act as an electrothermal device. Their composite yarn strain sensor had a remarkably high strain sensitivity, effectively monitoring both the large and small deformations of various parts of the human body. Li et al. [39] proposed a flexible piezoresistive pressure sensor based on MXene-textiles prepared by a facile dip-coating process. The resulting pressure sensor exhibited high sensitivity with a rapid response time of 26 ms and excellent cycling stability. Liu et al. [40] fabricated a MXene-coated cotton fabric pressure sensor that showed a high gauge factor (7.67 kPa⁻¹), a rapid response and relaxation speed (<35 ms), excellent stability (>2000 cycles), and good durability after washing. However, the theoretical research of fabric sensors and industrially applicable research still needs to be improved in many ways and studied in more depth.

Herein, a highly sensitive MXene-based flexible strain sensor was fabricated. An immersion method was employed to uniformly deposit a layer of Ti₃C₂T_x MXene nanosheets onto comfortable cotton fabric through electrostatic interactions. The applied strain was increased on the MXene-based sensor, and the network structure of the fabric effectively increased the contact area between the conductive MXene channels, which led to an improved sensing performance of the strain sensor. The obtained strain sensor exhibited outstanding sensitivity (GF = 4.11), a subtle strain detection limit (0.3%), and excellent stability over 500 cycles.

2. Experimental

2.1. Preparation of MXene Ti₃C₂T_X and Exfoliated d-Ti₃C₂T_X Nanosheets

MAX phase Ti₃AlC₂, the precursor of MXene Ti₃C₂T_x, was synthetized by pressless sintering technology and passed 500 mesh sieves in the previous report [41]. MXene Ti₃C₂T_x was synthesized by selectively exfoliated “Al” atoms from Ti₃AlC₂ in a hydrochloric acid solution of sodium fluoride [42]. Subsequently, Ti₃C₂T_x powders were added to dimethyl sulphoxide (DMSO) and magnetically stirred at room temperature for 18 h. Then, the mixture was centrifuged at 8000 rpm for 10 min to obtain the precipitate, which was redispersed in 500 mL DI water, and ultrasonicated for 6 h under Ar flow. After that, the suspension was centrifuged at 3500 rpm for 1 h. The supernatant was collected to obtain the delaminated MXene suspension and labelled as “d-Ti₃C₂T_x”.

2.2. Fabrication of MXene@Cotton Fabric Pressure/Strain Sensors

Typically, cotton fabric was wrapped by MXene sheets by immersion process. First, the cotton fabric was cut into rectangular shape with proper dimensions, which were washed with deionized water and ethanol several times to remove the impurities, and dried in a vacuum oven. Then, cotton fabric was immersed in the polyethyleneimine (PEI) aqueous solution (0.5 mg mL⁻¹) for 24 h. The PEI was adsorbed on the surface of the cotton fabric, and forming positively charged cotton fabric@PEI, and drying in vacuum at 60 °C for 2 h. Second, cotton fabric@PEI was immersed into the delaminated d-Ti₃C₂T_x dispersions for 1 h. Due to the strong electrostatic interaction between MXene sheets and PEI, the negatively charged d-Ti₃C₂T_x nanosheets were wrapped on the cotton fabric. Finally, the samples were dried in a vacuum at 50 °C for 5 h, and MXene@Cotton Fabric strain sensors were obtained, labelled as a “MCF” strain sensor.

2.3. Characterization

The morphologies and microstructures of the MXene, Cotton Fabric, and MCF strain sensors were observed by field emission scanning electron microscope (FESEM) (S4800, Hitachi, Tokyo, Japan) with integrated energy-dispersive X-ray spectroscopy (EDS) for element analysis. The crystal structure of the samples was determined by X-ray diffractometer (XRD) (D8 Advance, Bruker, Billerica, MA, USA) equipment with Cu Kα1 radiation (λ = 0.154 nm) with a scanning rate of 15°/min and a step size of 0.02° from 5° to 80°. Thickness of d-Ti₃C₂T_x was characterized by the atomic force microscopy (AFM) (FM-Nanoview6800, Suzhou, China,). The FTIR spectra were recorded on a FT-IR spectrometer (PerkinElmer, Waltham, MA, USA), which operated within 4000–500 cm⁻¹ to characterize the surface structure of the samples. Thermogravimetric analysis (TGA) (Evolution 2400, Setaram Instruments, Lyon, France) experiments were performed under an argon atmosphere between 30 and 550 °C at a heating rate of 10 °C/min. The mechanical performances of the sensor were characterized with a Shandong Liangong CMT-20 universal testing machine (Jinan, China). The electrical signals of the MCF strain sensor were recorded with a source meter (8845A, Fluke, Everett, WA, USA). The experiment was performed at room temperature (~19 °C) and ~40% relative humidity (RH).

3. Results and Discussions

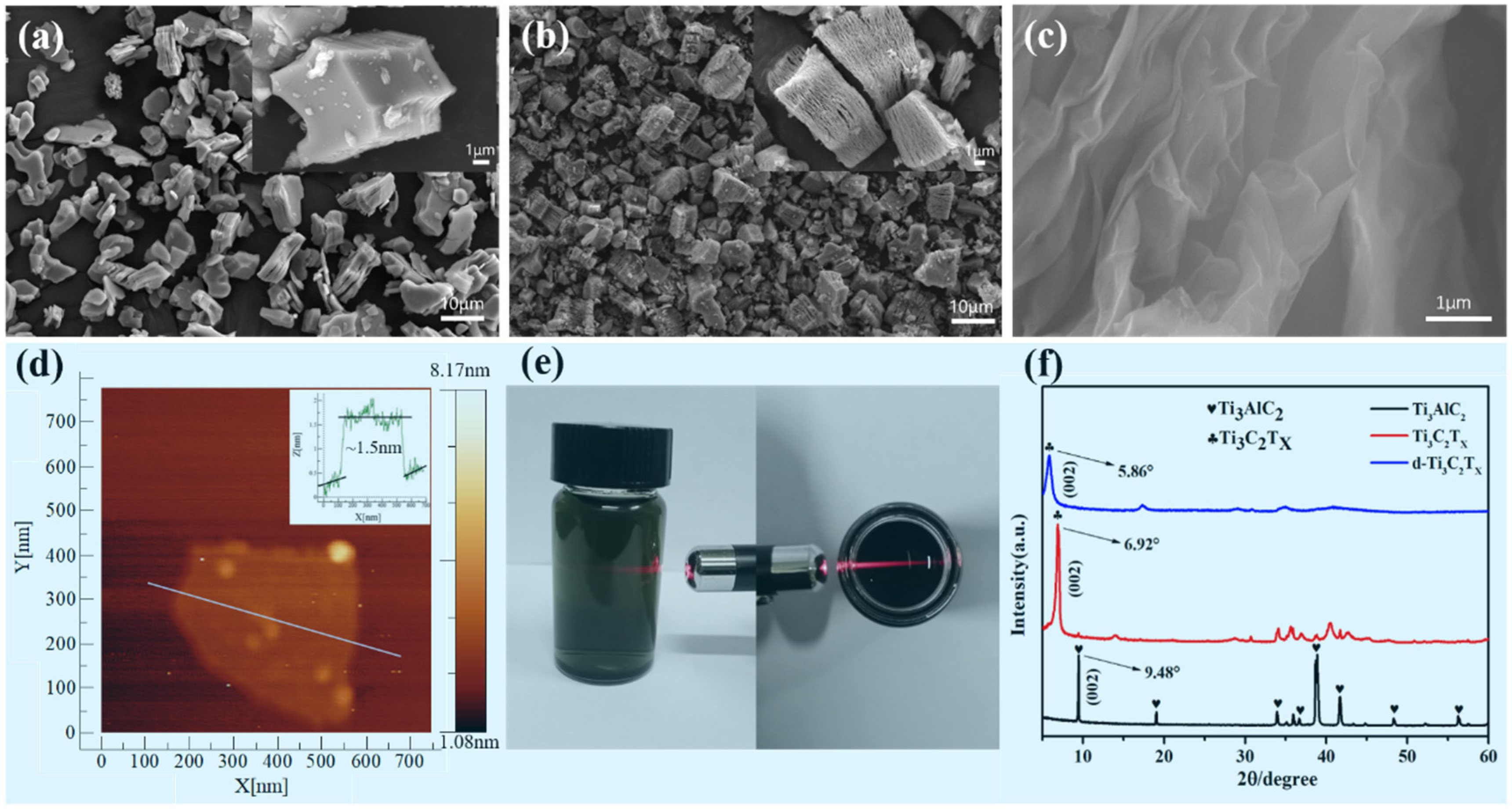

SEM images of the Ti₃AlC₂ and MXenes Ti₃C₂T_x powder are shown in Figure 1a,b. The Ti₃AlC₂ raw material had the typical structure of a layered MAX phase (Figure 1a). After removing the Al atomic layers from the Ti₃AlC₂, the resulting MXene, Ti₃C₂T_x, had an accordion-like multi-layered structure (Figure 1b). As seen in the SEM image of the d-Ti₃C₂T_x (as shown in Figure 1c), the MXene (Ti₃C₂T_x) was delaminated into single- or few-layered d-Ti₃C₂T_x nanosheets. The thickness of the exfoliated MXene nanosheets was characterized by atomic force microscopy (AFM) (Figure 1d). AFM analysis indicated that the nanosheets had a thickness of about 1.5 nm (Figure 1d inset), confirming the d-Ti₃C₂T_x was composed of a single or a few layers of sheets. Moreover, the obtained dark green MXene nanosheet solution was a stable dispersion in water (Figure 1e) and exhibited an obvious Tyndall effect. The XRD patterns of the MAX phase, MXene, and exfoliated MXene nanosheets are shown in Figure 1f. Compared with the MAX phase, the characteristic peak of Ti₃AlC₂ disappeared in the MXene pattern and a new diffraction peak appeared at 6.9°, which belonged to the (002) orientation of MXene Ti₃C₂T_x [42]. After exfoliation, the (002) diffraction peak significantly shifted from 6.9° to a smaller angle of 5.86°, indicating that Ti₃C₂ was effectively delaminated into a single- or few-layered nanosheets.

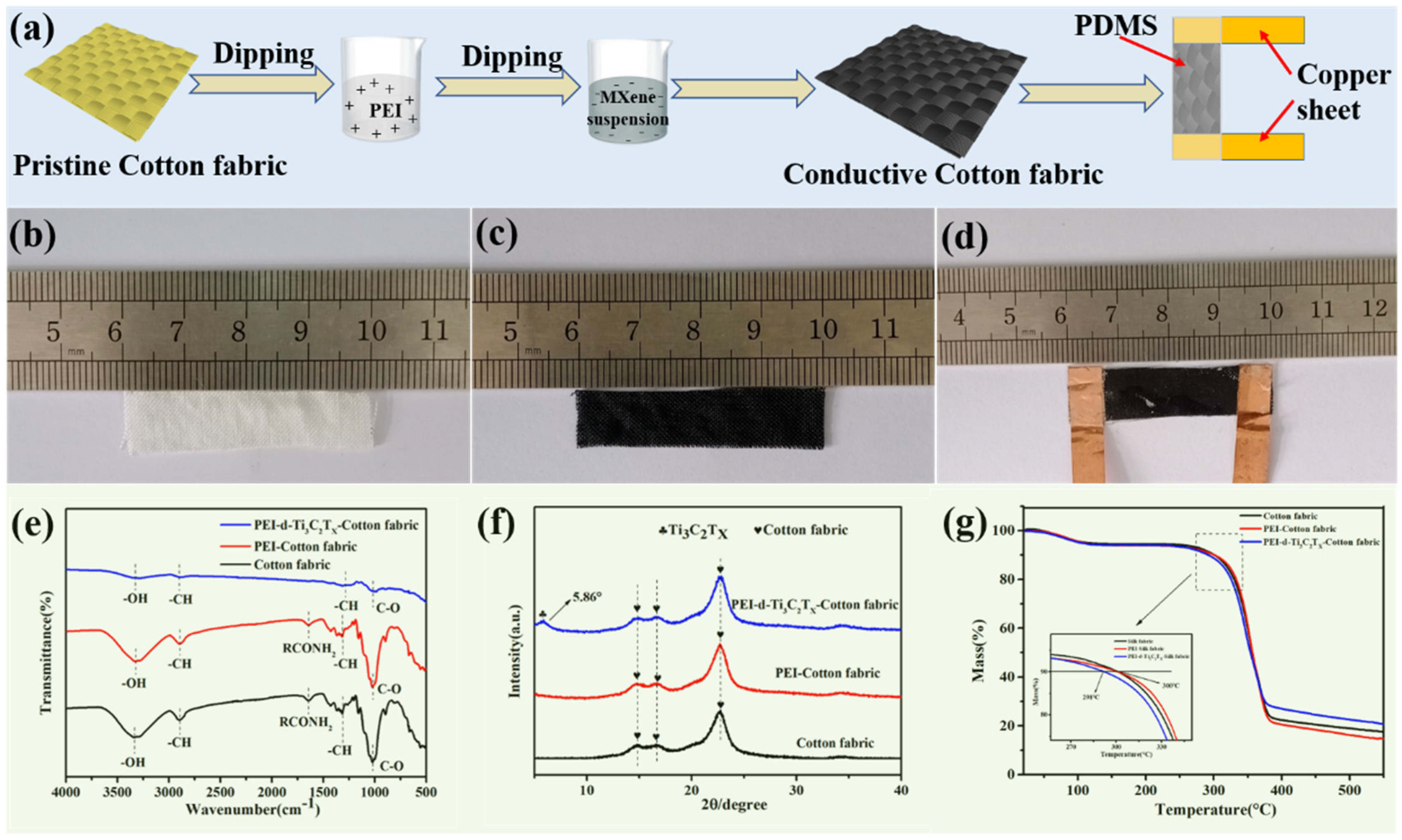

Figure 2a shows a schematic of the highly sensitive MXene/Cotton fabric strain sensor fabrication process. First, surface-modified cotton fabric was obtained by immersing clean fabric into a PEI solution for 24 h, followed by drying the fabric in an oven at 60 °C (Figure 2b). Then, the PEI-modified fabric was dipped into the MXene solution for 60 min. The MXene was adsorbed onto the fabric fiber due to the electrostatic attraction between the MXene and the positively charged PEI on the fabric (Figure 2c) during impregnation. Finally, the ends of the obtained MCF were coated with silver paste and attached to copper tape electrodes, and the material packaged within polydimethylsiloxane (PDMS) silicone rubber (Figure 2d).

Figure 2e shows the FTIR spectra of the fabric, fabric@PEI, and MCF, which gave insights into the functional groups present in the materials. As seen in Figure 2f, the broad peak around 3200~3500 cm⁻¹ was attributed to the O–H/N–H stretching from the PEI and cotton cellulose of the fabric. The peak near 2910 cm⁻¹ was assigned to the C–H stretching vibration band. The characteristic peaks at 1652, 1430~1310, and 1017 cm⁻¹ were assigned to C=O stretching, C–H bending, and C–O stretching [43], respectively. These characteristic absorption peaks obviously weakened after the adsorption of the MXene. Therefore, it could be inferred that the fabric was wrapped in MXene nanosheets. To verify this, the sample also was characterized by XRD (Figure 2f). It can be found that in addition to the characteristic diffraction peak of the cotton fabric, a new peak appeared at 5.86° which was attributed to d-Ti₃C₂T_x. In summary, the analytical results provided good evidence that the fabric surface was successfully capped with MXene d-Ti₃C₂T_x nanosheets. As can be seen from the TGA curves in Figure 2g, all samples completely evaporated at temperatures higher than 400 °C, and the MCF had the most ash residue. However, the thermal decomposition temperature was slightly lower due to the surface effect of nanomaterials.

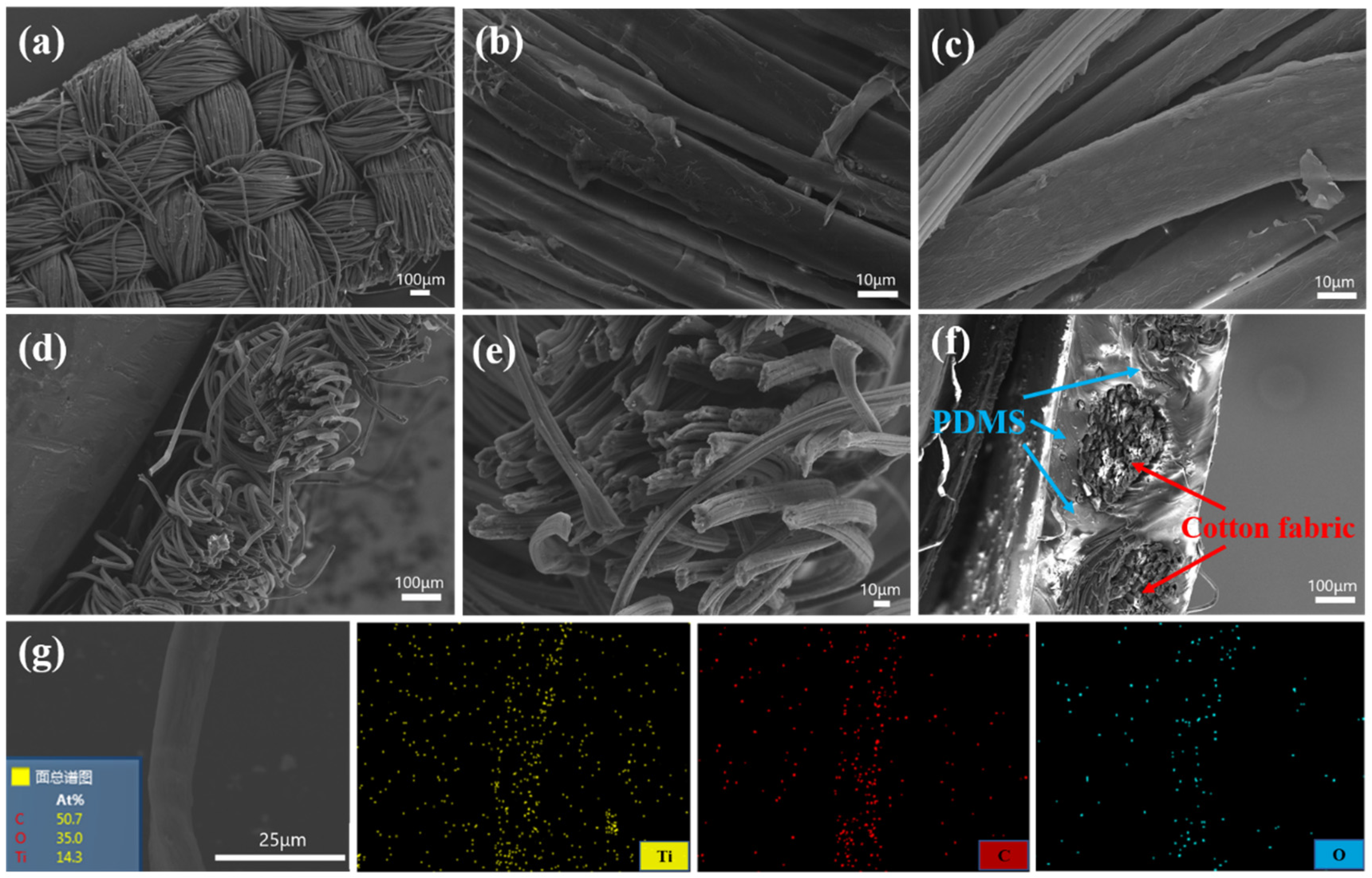

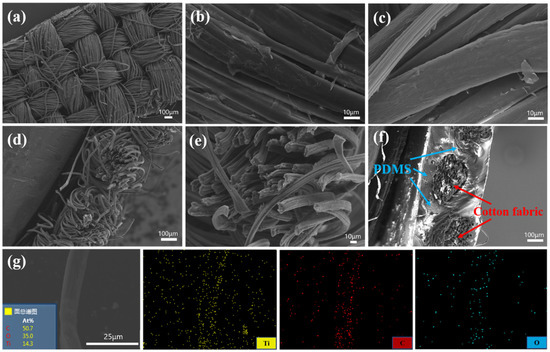

SEM images of the clean, conductive cotton fabric and the MCF strain sensor are shown in Figure 3. Figure 3a shows the morphology of the clean cotton fabric at different magnifications. The cotton fabric consisting of woven fiber bundles and the surface of fibers were relatively smooth. Figure 3c–e show the SEM images of the conductive MCF from different angles after dipping the fabric in the MXene suspension and drying. The smooth cotton fiber surface became rough after the flexible 2D MXene nanosheets decorated the fiber surface, and the assembled MXene nanosheets were observed on the cotton fibers. Hence, MXene decorated cotton fibers with a core–shell structure were obtained. Figure 3g is an SEM image of a MXene wrapped fiber and the corresponding elemental mapping. It was observed that Ti, C, and O were uniformly distributed on the cotton fiber surface, indicating that the fiber was tightly wrapped by a layer of MXene nanosheets. Figure 3f shows that the conductive cotton fibers were well encapsulated by the PDMS layers that play a protective and restrictive role for the inner conductive cotton fibers, and the fabric structure was maintained after the encapsulation process.

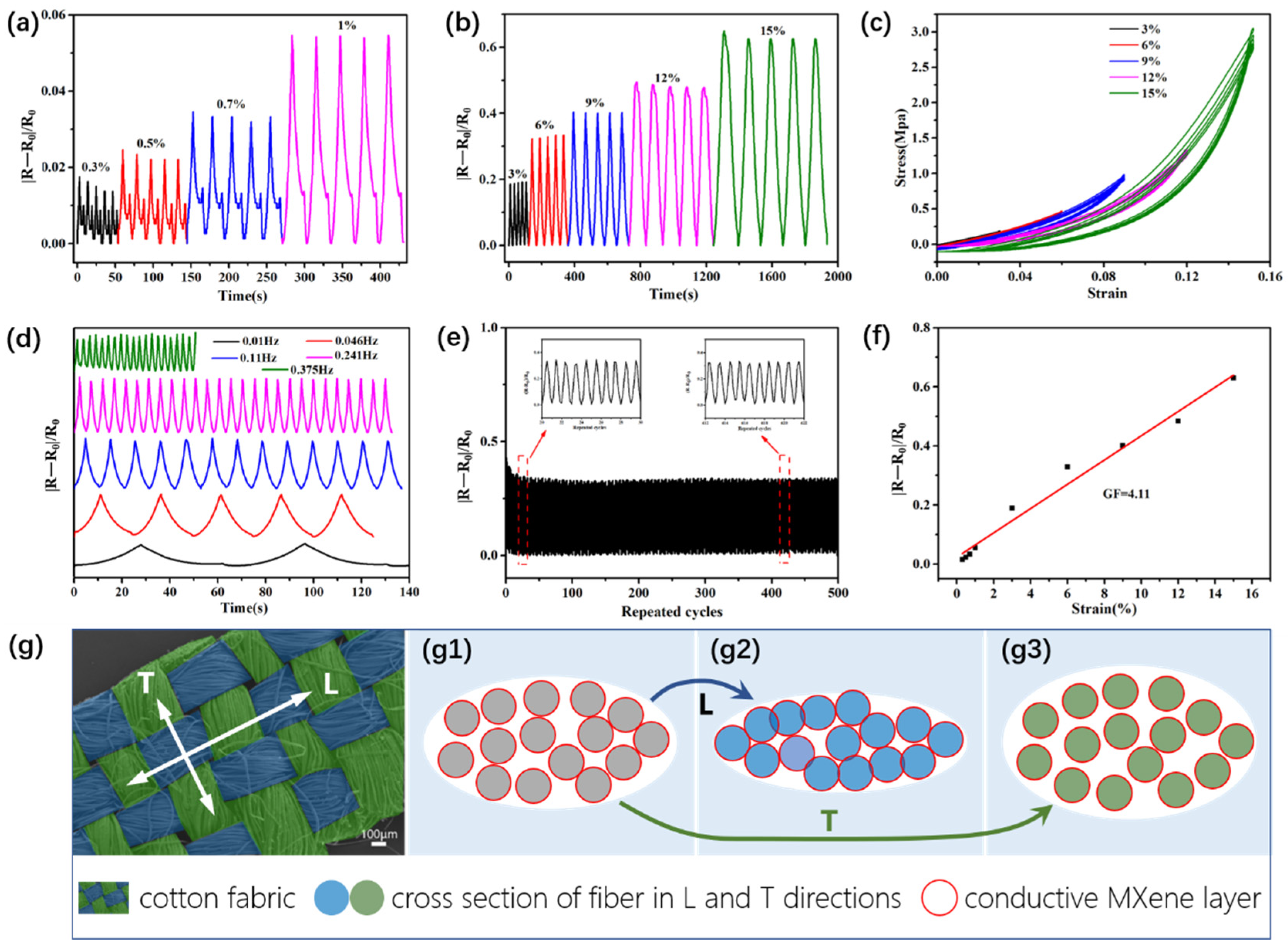

Figure 4a,b show the resistance change rates (ΔR/R₀) at different strains with repeated loading–unloading cycles under a tensile speed of 4 mm/min. During the stretching process, the tension led to a decrease in the yarn spacing, which resulted in the formation of conductive networks and a decrease in the resistance. The results showed that the greater the applied tension, the greater the measured change in the resistance rates. In addition, the corresponding ΔR/R₀ values were almost constant after different loading–unloading cycles, which indicated the high cyclic stability of the MCF strain sensor material. Figure 4c shows the tensile stress–strain curves at different strains with repeated loading–unloading cycles. It could be found that the strain of the sensor returned to the initial value after five cycles under different strains. These results indicated that the MCF strain sensor exhibited excellent cyclic stability performance in mechanics. Figure 4d gives the ΔR/R₀ of MCF strain sensor at different stretching frequencies under the same strain of 9%. These data suggested that the sensor also had a steady dynamic response to frequency changes from 0.01 to 0.375 Hz. The durability of the strain sensor under a tensile strain of 6% at a 150 mm/min strain rate is shown in Figure 4e. The strain sensor had a very stable signal output after 500 cycles of loading–unloading tests, showing excellent repeatability, which revealed that the different components in the MCF strain sensor were highly compatible, structurally stable, and are able to stretch and recover these properties during loading and unloading cycles.

Figure 4g is the schematic diagram of the formation of the conductive pathways via the adsorption of conductive MXene on the surface of the fiber in the stretching direction (L direction) and vertical direction (T direction). Figure 4(g1) is the cross section of fiber bundle in an unstretched state, g2 is a stretched state in the L direction, and g3 is a stretched state in the T direction. The red circle represents the conductive MXene layer adsorbed on the surface of fiber, which will form a conductive network under certain conditions. Stretching the fabric in the L direction decreased the yarn spacing and made more contacts on the conductive MXene on the surface of parallel fiber, which led to the formation of a conductive network between the conductive strands of yarn (g2) in the L direction and the measured decrease in resistance. However, stretching the fabric in the L direction also led to an increase in the yarn spacing and the reconstruction of the conductive networks in the T direction, which will break down the conductive path and increase the resistance (g3). In both cases, the formation of conductive networks in the L direction played a major role in the resistance variation.

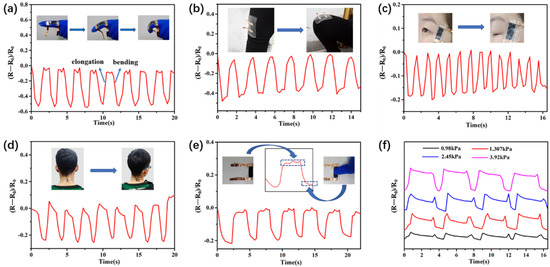

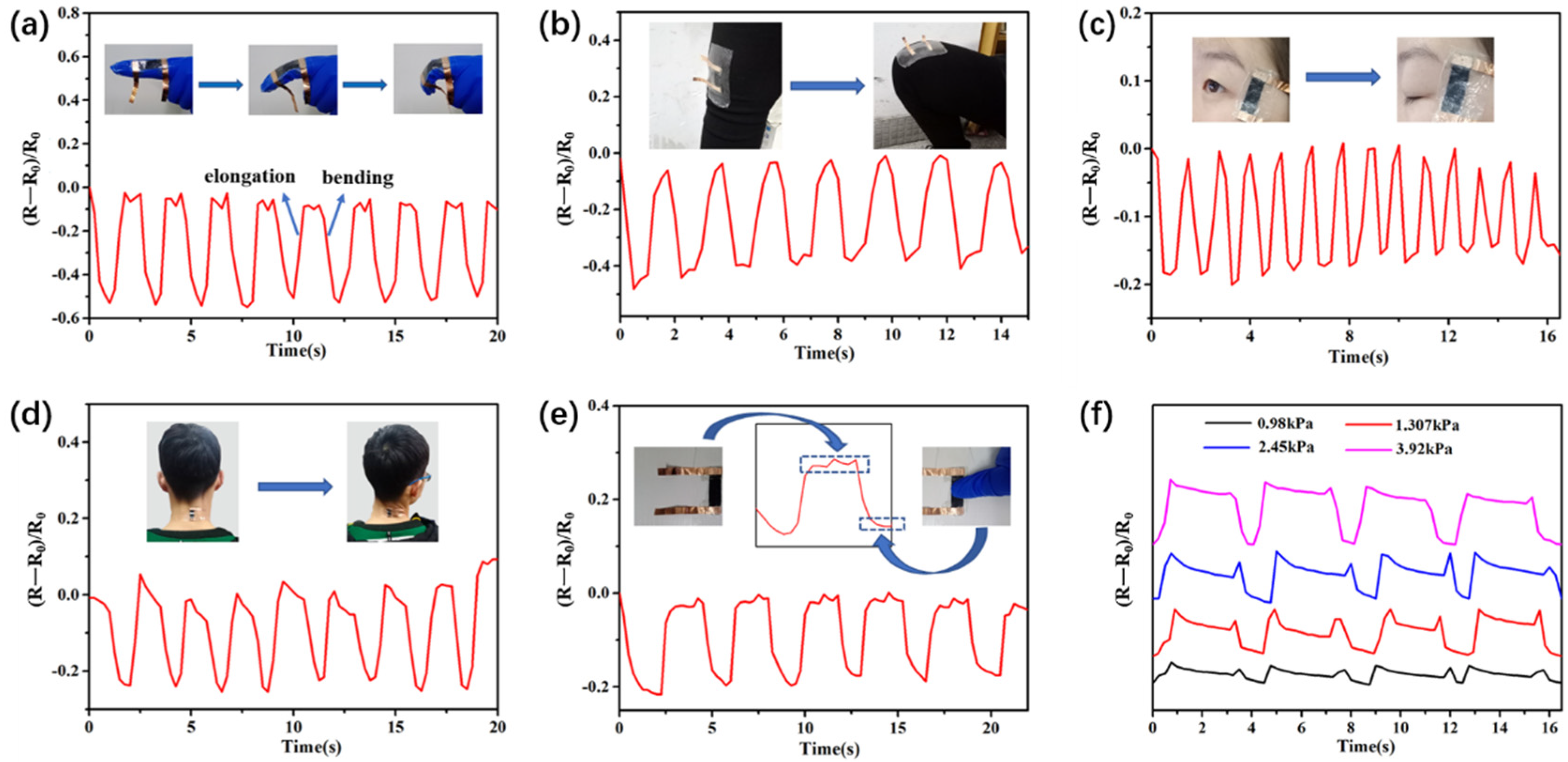

As mentioned above, the MCF strain sensor possessed high sensitivity under different strains. A series of tests were carried out to detect different human motions to verify the feasibility of using this strain sensor as a wearable electronic device. As a result, the ΔR/R₀ value of MCF strain sensor increased and then returned to its initial state when the wearer tautologically bent their finger and leg (Figure 5a,b, respectively), achieving detection from small to large human body movements. Figure 5c demonstrates the detection of eye movements by attaching the MCF strain sensor to the corner of eye. The MCF sensor accurately recorded strain changes and showed regular variations in the resistance due to the repeated eye motions during blinking. When the sensor was attached to the neck, it showed a repeatable electrical signal instantaneously for twisting motions of the neck joint, as shown in Figure 5d. Furthermore, Figure 5e,f showed the stable response of the strain sensor under different pressures ranging from 0.98 to 3.92 kPa. Therefore, the MCF strain sensor may have potential application in wearable devices to monitor joint movements during human motion and health monitoring.

4. Conclusions
