Article

Biodistribution of Mesoporous Carbon Nanoparticles via Technetium-99m Radiolabelling after Oral Administration to Mice

by
Maria Mamai
1,2,
Dimitra Giasafaki
2,
Evangelia-Alexandra Salvanou
1,
Georgia Charalambopoulou
1,*,
Theodore Steriotis
2 and
Penelope Bouziotis
1,*
1
Institute of Nuclear & Radiological Sciences and Technology, Energy & Safety, National Centre for Scientific Research “Demokritos”, 15341 Athens, Greece
2
Institute of Nanoscience & Nanotechnology, National Centre for Scientific Research “Demokritos”, 15341 Athens, Greece
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(12), 3260; https://doi.org/10.3390/nano11123260
Submission received: 29 October 2021 / Revised: 25 November 2021 / Accepted: 26 November 2021 / Published: 30 November 2021
(This article belongs to the Special Issue Nanoparticles for Bio-Medical Applications)
Browse Figures
Versions Notes

Abstract

:
The use of ordered mesoporous matrices, and in particular carbon-based mesoporous nanoparticles has shown great potential towards enhancing the bioavailability of orally administered drugs. Nevertheless, elucidation of the in vivo absorption, distribution, and excretion of such carriers is essential for understanding their behaviour, and radiolabelling provides a very useful way to track their occurrence inside the body. In this work, uniform spherical CMK-1-type ordered mesoporous carbon nanoparticles have been radiolabelled with Technetium-99m (99mTc) and traced after oral administration to mice. Ex vivo biodistribution studies showed that the radiolabelled nanoparticles accumulated almost exclusively in the gastrointestinal tract; complete elimination of the radiotracer was observed within 24 h after administration, with practically no uptake into other main organs. These findings along with the results from in vitro stability studies indicate that the spherical carbon nanoparticles examined could be safely used as drug carriers with minimal side effects, but also support the great value of radiolabelling methods for monitoring the particles’ behaviour in vivo.

Graphical Abstract

1. Introduction

Oral drug delivery [1] constitutes the most widely used, cost-effective, non-invasive administration strategy for treating patients with comfort and simplicity [2]. However, the majority of commonly used medicines demonstrate a defective oral absorption profile, resulting from either their low aqueous solubility (that is essential for oral bioavailability [3]), or their poor stability in the harsh gastric environment [4]. Such limitations highlight the need for moving towards more efficient oral dosage forms for poorly water-soluble compounds [5,6,7]. At the same time, there has been a steadily growing interest in new multifunctional nanoparticles that could incorporate active agents for both therapeutic and diagnostic applications. A great variety of such nanomaterials has been explored so far (e.g., silicas and bioactive glasses, metals and metal oxides, polymers and lipids, quantum dots and carbon-based nanoparticles) [8,9]. In particular, mesoporous materials (pore widths between 2–50 nm) with tailorable pore properties have emerged as one of the most promising and advantageous biomolecule hosts that could also bear different functionalities useful not only for drug delivery, but also for targeting purposes [10]. Most of these mesoporous drug carriers, apart from the advantages of nano-confinement (drug amorphisation, stabilisation, and protection), have additional useful properties including (a) tunable texture (suitable pore size, surface area, pore volume) that allows significantly higher drug loadings [11], (b) chemical inertness, and (c) ease of functionalisation that may facilitate the encapsulation of several bioactive agents [12], but also impart specific responsive function upon endogenous and external stimuli (e.g., pH, redox, temperature changes and light) [13,14,15]. The most widely studied porous nanomatrices are silica-based materials [16,17,18,19], which however possess some important disadvantages (e.g., hydrothermal instability [20], potential toxicity [21] etc.), raising concerns about their safe and effective use as drug nanocarriers [22].
Mesoporous carbon nanoparticles (MCNs) [23], on the other hand, offer a non-toxic (as shown by several in vitro studies [14,24,25,26]) and structurally robust alternative with high thermal and mechanical stability [27]. Nevertheless, the potential of MCNs as drug delivery systems has not been fully explored yet, and in contrast to the massive work on mesoporous silica nanoparticles (MSNs) [28] they have only recently started to gain attention as components of therapeutic formulations [29]. Indeed over the past few years, a number of reports [30] have confirmed that mesoporous carbon materials can effectively encapsulate various poorly water-soluble drugs (e.g., ibuprofen [11,31,32], indomethacin [24], fenofibrate [33], simvastatin [34], carvedilol [35,36], itraconazole [37] etc.) but also enhance their dissolution and bioavailability. In addition to their great efficiency in terms of drug loading and controlled release, some MCNs also exhibit significant optoelectronic, photothermal-conversion and photoacoustic-generation properties, due to sp2 hybridization, while their surface can carry stimuli-responsive, fluorescent or targeting agents also through π-π stacking [38,39,40,41,42,43,44,45]. All these advantages make MCNs a promising, adjustable nanomedicine platform for real-time imaging, targeting and therapy.
Absorption of orally administered drugs is by itself a complex procedure [7] and a strong effort has been devoted to elucidating the interactions between drug formulations and the gastrointestinal track (GIT) [46]. The use of nano-vehicles complicates the process even further. A first step towards understanding the respective pharmacokinetics and a critical point for the development of effective drug delivery systems is monitoring the transport and biodistribution of the carriers in animal models [47,48,49]; however, biodistribution studies for MCNs are still lacking. Relevant investigations are so far limited to (0D) quantum dots [50,51,52] or to carbon nanostructures such as (1D) carbon nanotubes [53,54] and (2D) graphene [55]; 3D carbon particles (e.g., hollow core–mesoporous shell nanocapsules and CMK-type nanospheres) have been seldom studied, although they have shown high loading capacities and controlled release capabilities [11,14,27,32].
Radiolabelling represents an ideal tool for investigating the biodistribution of drug vehicles after their oral administration, while in vitro studies in the presence of simulated gastric and intestinal fluids, can provide information on both the degradation of the carriers and the release of the radiolabel [48,49]. A broad variety of radionuclides with half-lives ranging from a few minutes to several days are at the disposal of the radiochemist wishing to investigate the initial biodistribution and pharmacokinetics of a novel nanoconstruct/drug carrier. One of the radionuclides of choice for short-term assessment of the biokinetics of nanomaterials is the gamma-emitter Technetium-99m (99mTc), due to its low energy gamma-photon emission (140 keV), suitable half-life (6 h), and availability from 99Mo/99mTc generators [56,57,58]. 99mTc is suitable for direct (chelator-free) radiolabelling of many nanoparticles (NPs), among which MCNs, as it bonds to surface groups at a neutral pH [59,60,61,62]. Padmanabhan et al. were the first to present a study of mouse gastrointestinal (GI) transit time, by using technetium-labelled activated charcoal diethylenetriainepentaacetic acid ([99mTc]Tc-Ch-DTPA), which demonstrated that the total GI transit time is about 6 h in mice [47].
The present work aspires to provide significant insights into the transit, in vivo distribution, and excretion of spherical MCNs of CMK-1-type, after their oral administration. This is based on the effective radiolabelling of the MCNs, using radionuclides the decay of which can address several time-scales, as well as the assessment of the MCNs biodistribution at different time-points after their oral administration to healthy mice. To the best of our knowledge, this is the first study providing information on the in vivo kinetics and fate of MCNs with radiolabelling techniques using 99mTc [63]. The obtained results combined with the in vitro stability studies are of high importance for the validation of the respective drug delivery systems, thus helping showcase their suitability for real therapeutic applications.

2. Materials and Methods

2.1. Materials

Warning! The 99mTc isotope emits gamma radiation and presents serious health threats, thus it requires special radioprotective precautions during handling to reduce the risk of harm. Part of this research was conducted in a licensed radiochemical facility, which has all the necessary infrastructure and expertise to safely conduct experiments with radionuclides.
All reagents and solvents were purchased from Sigma-Aldrich (St. Louis, MO, USA) and used as received in the analytical grade. For preparation of the silica hard template (required for developing the ordered mesoporous carbon by nanocasting) cetyltrimethylammonium bromide (CTAB), triblock copolymer EO106PO70EO106 (Pluronic F127) and tetraethyl orthosilicate (TEOS 98%) were used, while sucrose (≥99.5%) was utilized as the carbon source. Technetium-99m, as Na[99mTc]TcO4, was eluted from a commercial 99Mo/99mTc generator (Mallinckrodt Medical B.V.). Radioactivity of the Na[99mTc]TcO4 eluent and of all the radiolabelled species, was measured using a dose calibrator (Capintec, Ramsey, NJ). Thin-layer chromatography (TLC) silica gel 60 sheets (5 cm × 10 cm) were purchased from Merck (Darmstadt, Germany) and along with a Radio-TLC Scanner (Scan-Ram, LabLogic, Sheffield, UK) were used for the determination of radiolabelling yield/purity. Water was deionized to 18 MΩ·cm using an EASYpure® water purification system (Barnstead International, Dubuque, Iowa). A gamma scintillation counter (Packard Cobra II, Canberra, Packard, Downers Grove, IL, USA), was used to measure the radioactivity of each organ and blood samples in the ex vivo biodistribution studies.

Synthesis of Ordered Mesoporous CMK-1 Carbon Spheres

The cubic periodic MCM-48 silica spheres were prepared via a modified Stöber method [64] by employing two different surfactants (cationic CTAB as the pore forming agent and nonionic Pluronic F127 as the grain size modulator) in a mixture of ethanol–aqueous ammonia solution and TEOS, as described elsewhere [14,16,32,65].
CMK-1 carbon spheres were obtained after double infiltration of the calcined MCM-48 template with acidic sucrose solution, followed by a two-step thermopolymerisation procedure, carbonisation at elevated temperature under inert atmosphere and finally dissolution of the silica “mould” with HF [14,32,65].

2.2. Characterisation

The morphology of the CMK-1 carbon spheres was investigated through Scanning Electron Microscopy (SEM) using a JEOL, JSM 7401F Field Emission (JEOL Ltd., Tokyo, Japan) Microscope equipped with a Gentle Beam mode. Dynamic Light Scattering (DLS) measurements were performed using an AXIOS-150/EX (Triton Hellas, Thessaloniki, Greece) (Triton Hellas) apparatus with a 30 mW laser source, and an Avalanche photodiode detector at a 90° angle, after dispersing the samples in aqueous medium. The pore structure periodicity of the mesoporous carbon was studied using Small Angle X-ray Scattering (SAXS) in transmission mode on a Rigaku, SmartLab X-ray diffraction system equipped with SAXS optics (λ = 1.54 Å). The scans were obtained from 0.06 to 8 degrees, with a speed of 20 s/step and a step of 0.02 degrees. The pore properties of the CMK-1 particles were evaluated by N2 adsorption–desorption measurements at 77 K performed on an Autosorb-1-MP, Quantachrome volumetric gas adsorption analyser. Prior to analysis, approximately 30 mg of the sample were appropriately outgassed for 24 h under high vacuum (10−6 mbar). The Brunauer–Emmett–Teller (BET) area value was calculated following the BET consistency criteria (ISO 9277:2010). The micropore volume was assumed to be the QSDFT (Quenched Solid Density Functional Theory) derived cumulative volume for pores smaller than 2 nm. The total (micro- and meso-) pore volume (TPV) was estimated at p/p0 = 0.90 (for pores with diameters <~20 nm), whereas the pore size distribution was deduced by using the N2-carbon QSDFT kernel for slit–cylindrical pores on the adsorption branch of the isotherm.

2.3. Radiolabeling of Carbon Nanoparticles

The radiolabelling procedure of CMK-1 was performed with 99mTc via a direct method using SnCl2 as the reducing agent. Briefly, 200 μL of a phosphate buffer saline (PBS, pH = 10) was added in an Eppendorf and then 20 μL of CMK-1 (8 mg/mL dispersed in water) were also added to it. After the addition of 50 μL of a SnCl2 solution (8 mg in 250 μL HCl 30%, diluted to 5 mL after the addition of Millipore H2O) the pH of the mixture reached 2. The pH was thereafter adjusted to 6.5 by the addition of 300 μL PBS pH 10. Freshly-eluted Na[99mTc]TcO4 was added (100 μL, ~1 mCi) and the reaction mixture was incubated at 60 °C for 60 min. The total radioactivity of the prepared sample was measured using a dose calibrator, while quality control of the radiolabelled CMK-1 (designated as [99mTc]Tc-CMK-1) was performed with ascending ITLC-SG analysis using two different mobile phases, acetone and sodium citrate 0.1M, pH 5. A drop of the reaction solution (~5 μL) was applied at 1 cm from the bottom of a strip of ITLC-SG paper (1 cm × 12 cm) and allowed to dry. The strip was then placed in a beaker, which contained the mobile phase and was allowed to develop to 10 cm from the point of application. The strip was then removed from the beaker, allowed to dry, and was scanned on a Radio-TLC detector. Using acetone as the mobile phase, free [99mTc]TcO4- migrates to the front, while the radiolabelled CMK-1 and the potentially formed hydrolysed 99mTc in the form of colloids ([99mTc]TcO2) remain at the origin of the chromatogram. When developing the chromatogram in sodium citrate, [99mTc]Tc-CMK-1 and free [99mTc]TcO4- are expected to move with the solvent front (Rf = 0.8–1.0), whereas [99mTc]TcO2 remained at the origin (Rf = 0.0–0.2) [56,59,66]. By combining the results derived from the two developing systems (estimation of %[99mTc]TcO4- and %[99mTc]TcO2), radiochemical purity (RCP) of [99mTc]Tc-CMK-1 was calculated according to the following formula:
%RCP [99mTc]Tc-CMK-1 = 100 − (%[99mTc]TcO4− + %[99mTc]TcO2)

2.4. In Vitro Stability Studies

Stability of [99mTc]Tc-CMK-1 was assessed in the presence of Simulated Gastric Fluid (SGF) and Simulated Intestinal Fluid (SIF) at 37 °C and Phosphate Buffered Saline (PBS, pH = 7.4) at room temperature. SGF was made by adding 3 g of NaCl in 1450 mL deionised H20, while adjusting the pH to 1.2 with diluted HCl. For SIF (0.05 M, pH = 6.8), 0.34 g of Potassium Phosphate monobasic were diluted in 50 mL Millipore H20 and the pH was adjusted with diluted NaOH. PBS (0.01 M, pH = 7.4) was prepared from PBS Tablets (Fisher BioReagents) diluted in Millipore H20. For all stability tests, a sample of 10 μL of [99mTc]Tc-CMK-1 was incubated with 40 μL of either SGF, SIF or PBS. Aliquots were taken from the mixtures at 1, 3 and 24 h and analysed by ITLC-SG analysis, as described above. All experiments were performed in triplicate, from three independent radiolabelling procedures. In order to investigate the non-labelled particle stability in the acidic gastric fluid, 50 mg of pristine CMK-1 were immersed into 200 mL of SGF and incubated under stirring at 37 °C for 24 h. The sample (CMK-1_SGF) was thoroughly washed and dried at 40 °C and characterized with SEM, SAXS and N2 sorption measurements.

2.5. Biodistribution Studies

Animals used for the biodistribution studies were obtained from the breeding facilities of the Institute of Biosciences and Applications, NCSR “Demokritos”. Our experimental animal facility is registered according to the Greek Presidential Decree 56/2013 (Reg. Number: EL 25 BIO 022) in accordance with the European Directive 2010/63, which is harmonized with national legislation, on the protection of animals used for scientific purposes. All applicable national guidelines for the care and use of animals were followed. The study protocol was approved by the Department of Agriculture and Veterinary Service of the Prefecture of Athens (Protocol Number: 1607/11-04-2018). The animals were housed in air-conditioned rooms in an IVC unit (Tecniplast S.p.A., Buguggiate, Italy), under a 12 h light/dark cycle and allowed free access to food and water.
The in vivo behaviour of the radiolabelled CMK-1 was studied in normal Carworth Farms White (CFW) Swiss Webster mice (n = 3 mice per time-point, average animal weight 35 g). [99mTc]Tc-CMK-1 was administered orally via a plastic gavage microapparatus (200 μL, ~70 μCi). For the ex vivo biodistribution experiment, the animals were euthanized at 1, 3, 6 and 24 h post-administration, and the organs and tissues of interest (blood, liver, heart, kidneys, stomach, intestines, spleen, muscle, lung, bone, pancreas, brain) were removed, weighed, and measured in an automatic gamma counter. The radioactivity remaining in the tail, as well as the background counts, were subtracted, while the radioactivity decay was auto corrected by the counter. A standard dose of the injected solution was used in all calculations. The uptake of the radiolabelled carbon NPs in each organ/tissue was expressed as the mean percentage of injected dose per gram of tissue ± standard deviation (%ID/gr ± SD).

3. Results and Discussion

3.1. Morphological Properties

As revealed from the SEM images in Figure 1 (top), the pristine CMK-1 sample comprises uniform spherical mono-dispersed nanoparticles, with an average size of 100–120 nm. No morphological variation was observed after treatment with the acidic SGF (pH = 1.2), as shown in Figure 1 (bottom). DLS (intensity weighted) measurements revealed a mean hydrodynamic diameter of ~240 nm for both pristine and SGF treated samples.

3.2. Structural Properties

The SAXS diffractogram of the as-produced carbon particles exhibited the typical structure of the CMK-1-type ordered mesoporous carbon, thus confirming its successful synthesis. More specifically, as presented in Figure 2, the pattern of CMK-1 particles, shows two clear peaks attributed to the (110) and (211) reflections of the 3D tetragonal structure with I41/a symmetry [65,67,68,69]. As also shown in Figure 2, there was no practical difference in the structure of the pristine particles (black line) after incubation with the acidic SGF (red line).

3.3. Pore Properties

The pore properties of CMK-1 and CMK-1_SGF particles were assessed by N2 adsorption–desorption measurements at 77 K. Figure 3 shows the obtained isotherms along with the corresponding pore size distributions (inset). In accordance with SEM and SAXS results, both samples showed practically identical results, confirming the stability of the carbon particles in SGF. The isotherms are of type IVb, based on the International Union of Pure and Applied Chemistry (IUPAC) classification [70,71], i.e., typical of ordered mesoporous materials with pore sizes smaller than ~4 nm. In addition to the stepwise behaviour with no hysteresis loop (indicative of uniform narrow mesopores), the increased nitrogen adsorption at low relative pressures (p/p0 < 0.01) also suggests the presence of a significant amount of microporosity. A large external surface area and a considerable secondary pore volume (i.e., >0.5 cm3/g for pores with diameters between 20–160 nm) are also evident at high relative pressures due to the carbon spheres’ packing.
The pore properties of the CMK-1 and CMK-1_SGF samples are summarised in Table 1. It can be seen that they exhibit a high BET area of about 1500 m2/g, a large total pore volume of 1.0 cm3/g (at p/p0 = 0.90) for pores smaller than 20 nm (diameter) and uniform mesopores with a mean size of approximately 3.2 nm, (Figure 3, inset). The total pore volume (at p/p0 = 0.99) including meso- to macro- pore volume (20–160 nm) was estimated to be around 1.55 cm3/g, thus indicating considerable additional volume due to the interparticle voids formed by the agglomerated carbon spheres.

3.4. Radiolabeling of CMK-1 and In Vitro Stability Assessment

In order to develop an efficient drug delivery system, the respective pharmacokinetic and biodistribution profiles need to be thoroughly investigated. The radiolabelling of CMK-1 nanoparticles with 99mTc provided us with the means to assess their in vivo behaviour at pre-determined time-points after their oral administration to healthy CFW mice. To our knowledge, this is the first time that mesoporous carbon NPs were radiolabelled and investigated as described above. Quantification of radiolabelled nanoparticles relies on the fact that the tracer is always associated with the NPs. In our study, we need to investigate whether or not the radionuclide remains bound to the NPs during its transit through the GI tract. Then, we can accurately reach a conclusion with regard to the in vivo kinetics of the CMK-1 nanoparticles.
Technetium-99m is eluted from a 99Mo/99mTc generator as a pertechnetate anion ([99mTc]TcO4-), the chemical reactivity of which is negligible, thus synthesis of 99mTc-radiolabeled compounds requires its reduction to lower oxidation states, with reducing agents such as stannous chloride. Excess amounts of stannous chloride lead to undesirable radiocolloid formation and subsequent accumulation in the organs of the reticuloendothelial system (RES) due to macrophage uptake. On the other hand, concentration of stannous chloride below the optimum level for reducing pertechnetate leads to its incomplete reduction from the heptavalent state. After meticulous investigation of radiolabelling conditions, we have achieved excellent radiolabelling yields (>95%) with negligible colloid formation, confirming that stannous chloride concentration used was appropriate.
Direct radiolabelling of CMK-1 with 99mTc relies on the interaction between deprotonated hydroxyl groups present on the carbon surface and the Tc(V) ions [56,72,73]. Stable labelling is thus achieved without the use of chelators, which may be detached from CMK-1 in vivo. Various labelling conditions were tested, with respect to time and temperature. The highest radiolabelling yields were achieved after 60 min incubation at 60 °C (pH ~7). The radiochemical purity was evaluated by ITLC-SG and was found to be ~96%. Further assessment of [99mTc]Tc-CMK-1 at 3 h and 24 h post-preparation showed that there was only a slight release of the radioisotope (<2% free 99mTc at 24 h). Nanoparticles radiolabelled with 99mTc via the direct labelling approach have demonstrated high stability, as shown by the low degree of transchelation of the isotope in the presence of PBS [59,74,75]. The in vitro stability of [99mTc]Tc-CMK-1 was assessed by incubation in PBS for 1, 3 and 24 h, at RT, and showed that the 99mTc-MCNs were stably labelled, exhibiting a low degree of 99mTc release up to 24 h post-incubation (~90% intact [99mTc]Tc-CMK-1) (Figure 4).
When evaluating an orally administered formulation, its stability must be assessed in the presence of gastric and intestinal fluids. These stability studies are mandatory, as they demonstrate the degree of attachment of the radiolabel to the nanoconstruct. Incubation of [99mTc]Tc-CMK-1 in SGF (pH 1.2) showed a release of ~30% of the radiolabel in the forms of pertechnetate and [99mTc]TcO2·nH2O at 1 h post-incubation. This may be due to the fact that a certain number of surface functional (hydroxyl) donor groups are in protonated form, leading to partial desorption of the 99mTc species and hydrolysis to insoluble [99mTc]TcO2 [76]. Further release of the radiolabel (~40% intact [99mTc]Tc-CMK-1) was observed at 24 h post-incubation. On the contrary, [99mTc]Tc-CMK-1 is quite stable up to 24 h post-incubation in the presence of SIF (~84% intact [99mTc]Tc-CMK-1 at 24 h post-incubation) (Figure 5). The observed radiolabel release in SGF could not be attributed to in vivo degradation of the CMK NPs, as these were found to be unaltered in acidic media (Figure 1, Figure 2 and Figure 3). In the presence of SGF, radiolabelling integrity is affected and 99mTc is released from the nanostructure. The radioactivity uptake in the stomach can thus be attributed to both the radiolabelled CMK-1 as well as the pertechnetate and [99mTc]TcO2 species formed at low pH.

3.5. Biodistribution Studies

Ex vivo biodistribution studies for the determination of the in vivo characteristics of the radiolabelled CMK-1 were carried out in healthy female CFW mice, after their oral administration. After oral administration of [99mTc]Tc-CMK-1, the mice were euthanized by isoflurane inhalation at 1, 3, 6 and 24 h post-administration and their blood, major organs and tissues were studied simultaneously (in order to refer to the same degree of radioactive decay); in all cases no sign of toxicity was observed. As shown in Figure 6 and Table 2, [99mTc]Tc-CMK-1 was almost exclusively distributed in the stomach and intestines. At 1 h post-administration, the radiotracer was mainly found in the stomach (39.49 ± 2.97% ID/g), while intestinal uptake slowly increased in time (0.42 ± 0.24% ID/g vs. 8.34 ± 3.01% ID/g at 1 and 6 h post-administration, respectively). By 24 h post-administration, complete elimination of the radiotracer was observed. Throughout the duration of the biodistribution study, practically no uptake was observed in the other major organs, thus we expect any possible side effects from drug administration via loading of the developed MCNs to be minimal. Similar results were shown by other groups investigating the in vivo kinetics of drug nanocarriers with radiolabelling or fluorescent-labelling techniques [47,77]. As mentioned previously, in the presence of SGF radiolabelling, integrity is affected and 99mTc is released from the nanostructure, but not distributed in vivo (no radioactivity has been detected in other organs or tissues). The radioactivity uptake in the stomach and consequently intestines can thus be attributed to the radiolabelled CMK-1, as well as the pertechnetate and colloids formed at low pH.

4. Conclusions

Investigation of the biodistribution of MCNs is a necessary step for their use as effective drug delivery carriers. The in vivo tracking of MCNs has been investigated by radiolabelling with 99mTc, which proved to be a simple and straightforward procedure. The radiolabelled [99mTc]Tc-CMK-1 was monitored by ex vivo biodistribution studies up to 24 h post-oral administration, which determined its almost exclusive presence in the gastrointestinal tract, with complete absence from all other organs investigated for radiotracer uptake. At 24 h post-administration, [99mTc]Tc-CMK-1 was completely washed out of the organism, with <1% ID/g remaining in the GI tract. In the case of stomach uptake, the radioactive label corresponds to the intact radiolabelled CMK-1, as well as to free pertechnetate and [99mTc]TcO2, which are formed at the low pH of the stomach environment (as shown by stability studies in SGF). On the other hand, almost all of the radioactivity present in the intestines can be attributed to the intact [99mTc]Tc-CMK-1. It should be noted that CMK-1 particles do not degrade in the stomach as the SGF incubation experiments revealed. In this respect, although part of the surface-attached 99mTc was released in the stomach, burst drug release caused by nanoparticle dissolution is highly improbable. This study has shed light on the biodistribution of MCNs, and thus their suitability as an orally administered drug delivery vehicle, proving also the important role of radiolabelling techniques in the elucidation of the in vivo behaviour of such nanostructures.

Author Contributions

Conceptualization and methodology, G.C., T.S. and P.B.; validation, G.C., T.S. and P.B.; formal analysis and investigation, M.M., D.G. and E.-A.S.; resources, G.C., T.S. and P.B.; writing—original draft preparation, M.M., D.G. and P.B.; writing—review and editing, G.C., T.S. and P.B.; supervision, G.C., T.S. and P.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Department of Agriculture and Veterinary Service of the Prefecture of Athens (Protocol Number: 1607/11-04-2018) and the Ethics Committee of the NCSR “Demokritos”.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

Stavros Xanthopoulos is gratefully acknowledged for excellent technical assistance. Lamprini Boutsika is gratefully acknowledged for performing the SEM experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Homayun, B.; Lin, X.; Choi, H.-J. Challenges and recent progress in oral drug delivery systems for biopharmaceuticals. Pharmaceutics 2019, 11, 129. [Google Scholar] [CrossRef] [Green Version]
  2. Sastry, S.V.; Nyshadham, J.R.; Fix, J.A. Recent technological advances in oral drug delivery—A review. Pharm. Sci. Technol. Today 2000, 3, 138–145. [Google Scholar] [CrossRef]
  3. Ting, J.; Tale, S.; Purchel, A.A.; Jones, S.D.; Widanapathirana, L.; Tolstyka, Z.P.; Guo, L.; Guillaudeu, S.; Bates, F.S.; Reineke, T.M. High-throughput excipient discovery enables oral delivery of poorly soluble pharmaceuticals. ACS Cent. Sci. 2016, 2, 748–755. [Google Scholar] [CrossRef]
  4. Goldberg, M.; Gomez-Orellana, I. Challenges for the oral delivery of macromolecules. Nat. Rev. Drug Discov. 2003, 2, 289–295. [Google Scholar] [CrossRef] [PubMed]
  5. Kim, D.; Kim, Y.; Tin, Y.-Y.; Soe, M.-T.; Ko, B.; Park, S.; Lee, J. Recent technologies for amorphization of poorly water-soluble drugs. Pharmaceutics 2021, 13, 1318. [Google Scholar] [CrossRef]
  6. Wang, T.; Zhao, P.; Zhao, Q.; Wang, B.; Wang, S. The mechanism for increasing the oral bioavailability of poorly water-soluble drugs using uniform mesoporous carbon spheres as a carrier. Drug Deliv. 2014, 23, 420–428. [Google Scholar] [CrossRef]
  7. Boyd, B.J.; Bergström, C.A.; Vinarov, Z.; Kuentz, M.; Brouwers, J.; Augustijns, P.; Brandl, M.; Bernkop-Schnürch, A.; Shrestha, N.; Préat, V.; et al. Successful oral delivery of poorly water-soluble drugs both depends on the intraluminal behavior of drugs and of appropriate advanced drug delivery systems. Eur. J. Pharm. Sci. 2019, 137, 104967. [Google Scholar] [CrossRef]
  8. Kandasamy, G.; Maity, D. Multifunctional theranostic nanoparticles for biomedical cancer treatments—A comprehensive review. Mater. Sci. Eng. C 2021, 127, 112199. [Google Scholar] [CrossRef] [PubMed]
  9. Hassan, S.; Prakash, G.; Öztürk, A.B.; Saghazadeh, S.; Sohail, M.F.; Seo, J.; Dokmeci, M.R.; Zhang, Y.S.; Khademhosseini, A. Evolution and clinical translation of drug delivery nanomaterials. Nano Today 2017, 15, 91–106. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, J.; Zhang, B.; Sun, J.; Hu, W.; Wang, H. Recent advances in porous nanostructures for cancer theranostics. Nano Today 2021, 38, 101146. [Google Scholar] [CrossRef] [PubMed]
  11. Ávila, M.I.; Alonso-Morales, N.; Baeza, J.A.; Rodríguez, J.J.; Gilarranz, M.A. High load drug release systems based on carbon porous nanocapsule carriers. Ibuprofen case study. J. Mater. Chem. B 2020, 8, 5293–5304. [Google Scholar] [CrossRef]
  12. Lu, H.; Yang, G.; Ran, F.; Gao, T.; Sun, C.; Zhao, Q.; Wang, S. Polymer-functionalized mesoporous carbon nanoparticles on overcoming multiple barriers and improving oral bioavailability of Probucol. Carbohydr. Polym. 2019, 229, 115508. [Google Scholar] [CrossRef] [PubMed]
  13. Manzano, M.; Vallet-Regí, M. New developments in ordered mesoporous materials for drug delivery. J. Mater. Chem. 2010, 20, 5593–5604. [Google Scholar] [CrossRef]
  14. Gisbert-Garzarán, M.; Berkmann, J.C.; Giasafaki, D.; Lozano, D.; Spyrou, K.; Manzano, M.; Steriotis, T.A.; Duda, G.N.; Schmidt-Bleek, K.; Charalambopoulou, G.; et al. Engineered pH-responsive mesoporous carbon nanoparticles for drug delivery. ACS Appl. Mater. Interfaces 2020, 12, 14946–14957. [Google Scholar] [CrossRef] [PubMed]
  15. Pan, P.; Yue, Q.; Li, J.; Gao, M.; Yang, X.; Ren, Y.; Cheng, X.; Cui, P.; Deng, Y. Smart cargo delivery system based on mesoporous nanoparticles for bone disease diagnosis and treatment. Adv. Sci. 2021, 8, 2004586. [Google Scholar] [CrossRef]
  16. Christoforidou, T.; Giasafaki, D.; Andriotis, E.; Bouropoulos, N.; Theodoroula, N.; Vizirianakis, I.; Steriotis, T.; Charalambopoulou, G.; Fatouros, D. Oral drug delivery systems based on ordered mesoporous silica nanoparticles for modulating the release of aprepitant. Int. J. Mol. Sci. 2021, 22, 1896. [Google Scholar] [CrossRef]
  17. Sayed, E.; Karavasili, C.; Ruparelia, K.; Haj-Ahmad, R.; Charalambopoulou, G.; Steriotis, T.; Giasafaki, D.; Cox, P.; Singh, N.; Giassafaki, L.-P.N.; et al. Electrosprayed mesoporous particles for improved aqueous solubility of a poorly water soluble anticancer agent: In vitro and ex vivo evaluation. J. Control Release 2018, 278, 142–155. [Google Scholar] [CrossRef] [PubMed]
  18. Zhu, H.; Zheng, K.; Boccaccini, A.R. Multi-functional silica-based mesoporous materials for simultaneous delivery of biologically active ions and therapeutic biomolecules. Acta Biomater. 2021, 129, 1–17. [Google Scholar] [CrossRef]
  19. Galabova, B.B. Mesoporous silica nanoparticles: Synthesis, functionalization, drug loading and release—A review. Trop. J. Pharm. Res. 2021, 20, 1091–1100. [Google Scholar] [CrossRef]
  20. Björk, E.M.; Atakan, A.; Wu, P.-H.; Bari, A.; Pontremoli, C.; Zheng, K.; Giasafaki, D.; Iviglia, G.; Torre, E.; Cassinelli, C.; et al. A shelf-life study of silica- and carbon-based mesoporous materials. J. Ind. Eng. Chem. 2021, 101, 205–213. [Google Scholar] [CrossRef]
  21. Hudson, S.P.; Padera, R.F.; Langer, R.; Kohane, D.S. The biocompatibility of mesoporous silicates. Biomaterials 2008, 29, 4045–4055. [Google Scholar] [CrossRef] [Green Version]
  22. Saha, D.; Warren, K.E.; Naskar, A.K. Soft-templated mesoporous carbons as potential materials for oral drug delivery. Carbon 2014, 71, 47–57. [Google Scholar] [CrossRef]
  23. Xin, W.; Song, Y. Mesoporous carbons: Recent advances in synthesis and typical applications. RSC Adv. 2015, 5, 83239–83285. [Google Scholar] [CrossRef]
  24. Karavasili, C.; Amanatiadou, E.P.; Sygellou, L.; Giasafaki, D.K.; Steriotis, T.A.; Charalambopoulou, G.C.; Vizirianakis, I.S.; Fatouros, D.G. Development of new drug delivery system based on ordered mesoporous carbons: Characterisation and cytocompatibility studies. J. Mater. Chem. B 2013, 1, 3167–3174. [Google Scholar] [CrossRef]
  25. Zhao, P.; Wang, L.; Sun, C.; Jiang, T.; Zhang, J.; Zhang, Q.; Sun, J.; Deng, Y.; Wang, S. Uniform mesoporous carbon as a carrier for poorly water soluble drug and its cytotoxicity study. Eur. J. Pharm. Biopharm. 2012, 80, 535–543. [Google Scholar] [CrossRef]
  26. Torre, E.; Giasafaki, D.; Steriotis, T.; Cassinelli, C.; Morra, M.; Fiorilli, S.; Vitale-Brovarone, C.; Charalambopoulou, G.; Iviglia, G. Silver decorated mesoporous carbons for the treatment of acute and chronic wounds, in a tissue regeneration context. Int. J. Nanomed. 2019, 14, 10147–10164. [Google Scholar] [CrossRef] [Green Version]
  27. Rahman, M.; Ara, M.; Alim, M.; Uddin, S.; Najda, A.; Albadrani, G.; Sayed, A.; Mousa, S.; Abdel-Daim, M. Mesoporous carbon: A versatile material for scientific applications. Int. J. Mol. Sci. 2021, 22, 4498. [Google Scholar] [CrossRef]
  28. Li, L.; Liu, T.; Fu, C.; Tan, L.; Meng, X.; Liu, H. Biodistribution, excretion, and toxicity of mesoporous silica nanoparticles after oral administration depend on their shape. Nanomed. Nanotechnol. Biol. Med. 2015, 11, 1915–1924. [Google Scholar] [CrossRef]
  29. Zhang, L.; Gui, S.; Xu, Y.; Zeng, J.; Wang, J.; Chen, Q.; Su, L.; Wang, Z.; Deng, R.; Chu, F.; et al. Colon tissue-accumulating mesoporous carbon nanoparticles loaded with Musca domestica cecropin for ulcerative colitis therapy. Theranostics 2021, 11, 3417–3438. [Google Scholar] [CrossRef]
  30. Zhao, Q.; Lin, Y.; Han, N.; Li, X.; Geng, H.; Wang, X.; Cui, Y.; Wang, S. Mesoporous carbon nanomaterials in drug delivery and biomedical application. Drug Deliv. 2017, 24, 94–107. [Google Scholar] [CrossRef]
  31. Eleftheriadis, G.; Filippousi, M.; Tsachouridou, V.; Darda, M.-A.; Sygellou, L.; Kontopoulou, I.; Bouropoulos, N.; Steriotis, T.; Charalambopoulou, G.; Vizirianakis, I.; et al. Evaluation of mesoporous carbon aerogels as carriers of the non-steroidal anti-inflammatory drug ibuprofen. Int. J. Pharm. 2016, 515, 262–270. [Google Scholar] [CrossRef]
  32. Boffito, M.; Laurano, R.; Giasafaki, D.; Steriotis, T.; Papadopoulos, A.; Tonda-Turo, C.; Cassino, C.; Charalambopoulou, G.; Ciardelli, G. Embedding ordered mesoporous carbons into thermosensitive hydrogels: A cutting-edge strategy to vehiculate a cargo and control its release profile. Nanomaterials 2020, 10, 2165. [Google Scholar] [CrossRef]
  33. Niu, X.; Wan, L.; Hou, Z.; Wang, T.; Sun, C.; Sun, J.; Zhao, P.; Jiang, T.; Wang, S. Mesoporous carbon as a novel drug carrier of fenofibrate for enhancement of the dissolution and oral bioavailability. Int. J. Pharm. 2013, 452, 382–389. [Google Scholar] [CrossRef]
  34. Zhang, Y.; Wang, H.; Gao, C.; Li, X.; Li, L. Highly ordered mesoporous carbon nanomatrix as a new approach to improve the oral absorption of the water-insoluble drug, simvastatin. Eur. J. Pharm. Sci. 2013, 49, 864–872. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, Y.; Zhi, Z.; Li, X.; Gao, J.; Song, Y. Carboxylated mesoporous carbon microparticles as new approach to improve the oral bioavailability of poorly water-soluble carvedilol. Int. J. Pharm. 2013, 454, 403–411. [Google Scholar] [CrossRef]
  36. Han, C.; Huang, H.; Dong, Y.; Sui, X.; Jian, B.; Zhu, W. A comparative study of the use of mesoporous carbon and mesoporous silica as drug carriers for oral delivery of the water-insoluble drug carvedilol. Molecules 2019, 24, 1770. [Google Scholar] [CrossRef] [Green Version]
  37. Xu, L.; Zhao, Y.; Zhao, C.; Hu, T.; Wang, J.; Liu, Y.; Tian, Y.; Wang, X. Controlled fabrication of orchid-like nitrogen-doped hierarchical porous carbon and hollow carbon nanospheres. J. Mater. Sci. 2020, 55, 16143–16157. [Google Scholar] [CrossRef]
  38. Li, Y.; Lu, J.; Zhang, J.; Zhu, X.; Liu, J.; Zhang, Y. Phase-change nanotherapeutic agents based on mesoporous carbon for multimodal imaging and tumor therapy. ACS Appl. Bio Mater. 2020, 3, 8705–8713. [Google Scholar] [CrossRef]
  39. Sun, J.; Li, Y.; Teng, Y.; Wang, S.; Guo, J.; Wang, C. NIR-controlled HSP90 inhibitor release from hollow mesoporous nanocarbon for synergistic tumor photothermal therapy guided by photoacoustic imaging. Nanoscale 2020, 12, 14775–14787. [Google Scholar] [CrossRef]
  40. Zhao, Q.; Wang, X.; Yang, M.; Li, X.; Mao, Y.; Guan, X.; Di, D.; Wang, S. Multi-stimuli responsive mesoporous carbon nano-platform gated by human serum albumin for cancer thermo-chemotherapy. Colloids Surf. B Biointerfaces 2019, 184, 110532. [Google Scholar] [CrossRef]
  41. Qiu, Y.; Ding, D.; Sun, W.; Feng, Y.; Huang, D.; Li, S.; Meng, S.; Zhao, Q.; Xue, L.-J.; Chen, H. Hollow mesoporous carbon nanospheres for imaging-guided light-activated synergistic thermo-chemotherapy. Nanoscale 2019, 11, 16351–16361. [Google Scholar] [CrossRef]
  42. Zhou, L.; Jing, Y.; Liu, Y.; Liu, Z.; Gao, D.; Chen, H.; Song, W.; Wang, T.; Fang, X.; Qin, W.; et al. Mesoporous carbon nanospheres as a multifunctional carrier for cancer theranostics. Theranostics 2018, 8, 663–675. [Google Scholar] [CrossRef]
  43. Li, C.; Qian, M.; Wang, S.; Jiang, H.; Du, Y.; Wang, J.; Lu, W.; Murthy, N.; Huang, R. Aptavalve-gated mesoporous carbon nanospheres image cellular mucin and provide on-demand targeted drug delivery. Theranostics 2017, 7, 3319–3325. [Google Scholar] [CrossRef]
  44. Li, C.; Meng, Y.; Wang, S.; Qian, M.; Wang, J.; Lu, W.; Huang, R. Mesoporous carbon nanospheres featured fluorescent aptasensor for multiple diagnosis of cancer in vitro and in vivo. ACS Nano 2015, 9, 12096–12103. [Google Scholar] [CrossRef]
  45. Zhang, Y.; Wu, M.; Wu, M.; Zhu, J.; Zhang, X. Multifunctional carbon-based nanomaterials: Applications in biomolecular imaging and therapy. ACS Omega 2018, 3, 9126–9145. [Google Scholar] [CrossRef] [Green Version]
  46. Xu, Y.; Shrestha, N.; Préat, V.; Beloqui, A. An overview of in vitro, ex vivo and in vivo models for studying the transport of drugs across intestinal barriers. Adv. Drug Deliv. Rev. 2021, 175, 113795. [Google Scholar] [CrossRef]
  47. Padmanabhan, P.; Grosse, J.; Asad, A.B.M.A.; Radda, G.K.; Golay, X. Gastrointestinal transit measurements in mice with 99mTc-DTPA-labeled activated charcoal using NanoSPECT-CT. EJNMMI Res. 2013, 3, 60. [Google Scholar] [CrossRef] [Green Version]
  48. Ansar, F.H.Z.; Latifah, S.Y.; Kamal, W.H.B.W.; Khong, K.C.; Ng, Y.; Foong, J.N.; Gopalsamy, B.; Ng, W.K.; How, C.W.; Ong, Y.S.; et al. Pharmacokinetics and biodistribution of thymoquinone-loaded nanostructured lipid carrier after oral and intravenous administration into rats. Int. J. Nanomed. 2020, 15, 7703–7717. [Google Scholar] [CrossRef]
  49. Priyadarshani, A.; Chuttani, K.; Mittal, G.; Bhatnagar, A. Radiolabeling, biodistribution and gamma scintigraphy of noscapine hydrochloride in normal and polycystic ovary induced rats. J. Ovarian Res. 2010, 3, 10–18. [Google Scholar] [CrossRef] [Green Version]
  50. Marouzi, S.; Darroudi, M.; Hekmat, A.; Sadri, K.; Oskuee, R.K. One-pot hydrothermal synthesis of carbon quantum dots from Salvia hispanica L. seeds and investigation of their biodistribution, and cytotoxicity effects. J. Environ. Chem. Eng. 2021, 9, 105461. [Google Scholar] [CrossRef]
  51. Bayoumi, N.A.; Emam, A.N. 99mTc radiolabeling of polyethylenimine capped carbon dots for tumor targeting: Synthesis, characterization and biodistribution. Int. J. Radiat. Biol. 2021, 97, 977–985. [Google Scholar] [CrossRef]
  52. Gharepapagh, E.; Fakhari, A.; Firuzyar, T.; Shomali, A.; Azimi, F. Preparation, biodistribution and dosimetry study of Tc-99m labeled N-doped graphene quantum dot nanoparticles as a multimodular radiolabeling agent. New J. Chem. 2021, 45, 3909–3919. [Google Scholar] [CrossRef]
  53. Zhang, M.; Xu, Y.; Yang, M.; Yudasaka, M.; Okazaki, T. Comparative assessments of the biodistribution and toxicity of oxidized single-walled carbon nanotubes dispersed with two different reagents after intravenous injection. Nanotoxicology 2021, 15, 798–811. [Google Scholar] [CrossRef]
  54. Genady, A.R.; Fong, D.; Slikboer, S.R.; El-Zaria, M.E.; Swann, R.; Janzen, N.; Faraday, A.; McNelles, S.A.; Rezvani, M.; Sadeghi, S.; et al. 99mTc-functionalized single-walled carbon nanotubes for bone targeting. ACS Appl. Nano Mater. 2020, 3, 11819–11824. [Google Scholar] [CrossRef]
  55. Rodrigues, A.F.; Newman, L.; Jasim, D.; Mukherjee, S.P.; Wang, J.; Vacchi, I.A.; Ménard-Moyon, C.; Bianco, A.; Fadeel, B.; Kostarelos, K.; et al. Size-dependent pulmonary impact of thin graphene oxide sheets in mice: Toward safe-by-design. Adv. Sci. 2020, 7, 1903200. [Google Scholar] [CrossRef]
  56. Psimadas, D.; Bouziotis, P.; Georgoulias, P.; Valotassiou, V.; Tsotakos, T.; Loudos, G. Radiolabeling approaches of nanoparticles with 99mTc. Contrast Media Mol. Imaging 2013, 8, 333–339. [Google Scholar] [CrossRef]
  57. Fragogeorgi, E.A.; Savina, I.; Tsotakos, T.; Efthimiadou, E.; Xanthopoulos, S.; Palamaris, L.; Psimadas, D.; Bouziotis, P.; Kordas, G.; Mikhalovsky, S.; et al. Comparative in vitro stability and scintigraphic imaging for trafficking and tumor targeting of a directly and a novel 99mTc(I)(CO)3 labeled liposome. Int. J. Pharm. 2014, 465, 333–346. [Google Scholar] [CrossRef]
  58. Tsoukalas, C.; Psimadas, D.; Kastis, G.A.; Koutoulidis, V.; Harris, A.L.; Paravatou-Petsotas, M.; Karageorgou, M.; Furenlid, L.R.; Moulopoulos, L.; Stamopoulos, D.; et al. A novel metal-based imaging probe for targeted dual-modality SPECT/MR imaging of angiogenesis. Front. Chem. 2018, 6, 224. [Google Scholar] [CrossRef] [Green Version]
  59. Psimadas, D.; Baldi, G.; Ravagli, C.; Bouziotis, P.; Xanthopoulos, S.; Franchini, M.C.; Georgoulias, P.; Loudos, G. Preliminary evaluation of a 99mTc labeled hybrid nanoparticle bearing a cobalt ferrite core: In vivo biodistribution. J. Biomed. Nanotechnol. 2012, 8, 575–585. [Google Scholar] [CrossRef]
  60. Orocio-Rodríguez, E.; Ferro-Flores, G.; Santos-Cuevas, C.; Ramírez, F.D.M.; Ocampo-García, B.E.; Azorin-Vega, E.P.; Sánchez-García, F.M. Two novel nanosized radiolabeled analogues of somatostatin for neuroendocrine tumor imaging. J. Nanosci. Nanotechnol. 2015, 15, 4159–4169. [Google Scholar] [CrossRef]
  61. Ghoreishi, S.M.; Khalaj, A.; Sabzevari, O.; Badrzadeh, L.; Mohammadzadeh, P.; Motlagh, S.S.M.; Bitarafan-Rajabi, A.; Ardestani, M.S. Technetium-99m chelator-free radiolabeling of specific glutamine tumor imaging nanoprobe: In vitro and in vivo evaluations. Int. J. Nanomed. 2018, 13, 4671–4683. [Google Scholar] [CrossRef] [Green Version]
  62. Ardestani, M.S.; Bitarafan-Rajabi, A.; Mohammadzadeh, P.; Mortazavi, S.; Sabzevari, O.; Azar, A.D.; Kazemi, S.; Hosseini, S.R.; Ghoreishi, S.M. Synthesis and characterization of novel 99mTc-DGC nano-complexes for improvement of heart diagnostic. Bioorg. Chem. 2020, 96, 103572. [Google Scholar] [CrossRef]
  63. Ge, J.; Zhang, Q.; Zeng, J.; Gu, Z.; Gao, M. Radiolabeling nanomaterials for multimodality imaging: New insights into nuclear medicine and cancer diagnosis. Biomaterials 2019, 228, 119553. [Google Scholar] [CrossRef]
  64. Stöber, W.; Fink, A.; Bohn, E. Controlled growth of monodisperse silica spheres in the micron size range. J. Colloid Interface Sci. 1968, 26, 62–69. [Google Scholar] [CrossRef]
  65. Kim, T.-W.; Chung, P.-W.; Slowing, I.; Tsunoda, M.; Yeung, E.S.; Lin, V.S.-Y. Structurally ordered mesoporous carbon nanoparticles as transmembrane delivery vehicle in human cancer cells. Nano Lett. 2008, 8, 3724–3727. [Google Scholar] [CrossRef] [Green Version]
  66. Lee, I.J.; Park, J.Y.; Kim, Y.-I.; Lee, Y.-S.; Jeong, J.M.; Kim, J.; Kim, E.E.; Kang, K.W.; Lee, D.S.; Jeong, S.; et al. Image-based analysis of tumor localization after intra-arterial delivery of technetium-99m-labeled SPIO using SPECT/CT and MRI. Mol. Imaging 2017, 16, 1536012116689001. [Google Scholar] [CrossRef] [Green Version]
  67. Kim, T.-W.; Solovyov, L.A. Synthesis and characterization of large-pore ordered mesoporous carbons using gyroidal silica template. J. Mater. Chem. 2006, 16, 1445–1455. [Google Scholar] [CrossRef]
  68. Kaneda, M.; Tsubakiyama, T.; Carlsson, A.; Sakamoto, Y.; Ohsuna, A.T.; Terasaki, O.; Joo, S.H.; Ryoo, R. Structural study of mesoporous MCM-48 and carbon networks synthesized in the spaces of MCM-48 by electron crystallography. J. Phys. Chem. B 2002, 106, 1256–1266. [Google Scholar] [CrossRef]
  69. Ryoo, R.; Joo, S.H.; Jun, S. Synthesis of highly ordered carbon molecular sieves via template-mediated structural transformation. J. Phys. Chem. B 1999, 103, 7743–7746. [Google Scholar] [CrossRef]
  70. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC technical report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef] [Green Version]
  71. Cychosz, K.A.; Thommes, M. Progress in the physisorption characterization of nanoporous gas storage materials. Engineering 2018, 4, 559–566. [Google Scholar] [CrossRef]
  72. Pellico, J.; Gawne, P.J.; de Rosales, R.T.M. Radiolabelling of nanomaterials for medical imaging and therapy. Chem. Soc. Rev. 2021, 50, 3355–3423. [Google Scholar] [CrossRef]
  73. Das, M.; Datir, S.R.; Singh, R.P.; Jain, S. Augmented anticancer activity of a targeted, intracellularly activatable, theranostic nanomedicine based on fluorescent and radiolabeled, methotrexate-folic acid-multiwalled carbon nanotube conjugate. Mol. Pharm. 2013, 10, 2543–2557. [Google Scholar] [CrossRef]
  74. Reddy, L.H.; Sharma, R.K.; Chuttani, K.; Mishra, A.K.; Murthy, R.R. Etoposide-incorporated tripalmitin nanoparticles with different surface charge: Formulation, characterization, radiolabeling, and biodistribution studies. AAPS J. 2004, 6, 55–64. [Google Scholar] [CrossRef] [Green Version]
  75. Reddy, L.H.; Sharma, R.K.; Murthy, R.S.R. Enhanced tumour uptake of doxorubicin loaded poly(butyl cyanoacrylate) nanoparticles in mice bearing Dalton’s lymphoma tumour. J. Drug Target. 2004, 12, 443–451. [Google Scholar] [CrossRef] [PubMed]
  76. Jones, A.G.; Davison, A. The chemistry of technetium I, II, III and IV. Int. J. Appl. Radiat. Isot. 1982, 33, 867–874. [Google Scholar] [CrossRef]
  77. Liu, J.; Zhao, Y.; Cui, Y.; Yue, Y.; Gao, Y.; Zhao, Q.; Liu, J.; Wang, S. A Eu3+/Gd3+-EDTA-doped structurally controllable hollow mesoporous carbon for improving the oral bioavailability of insoluble drugs and in vivo tracing. Nanotechnology 2016, 27, 315101. [Google Scholar] [CrossRef]
Nanomaterials 11 03260 g001 550

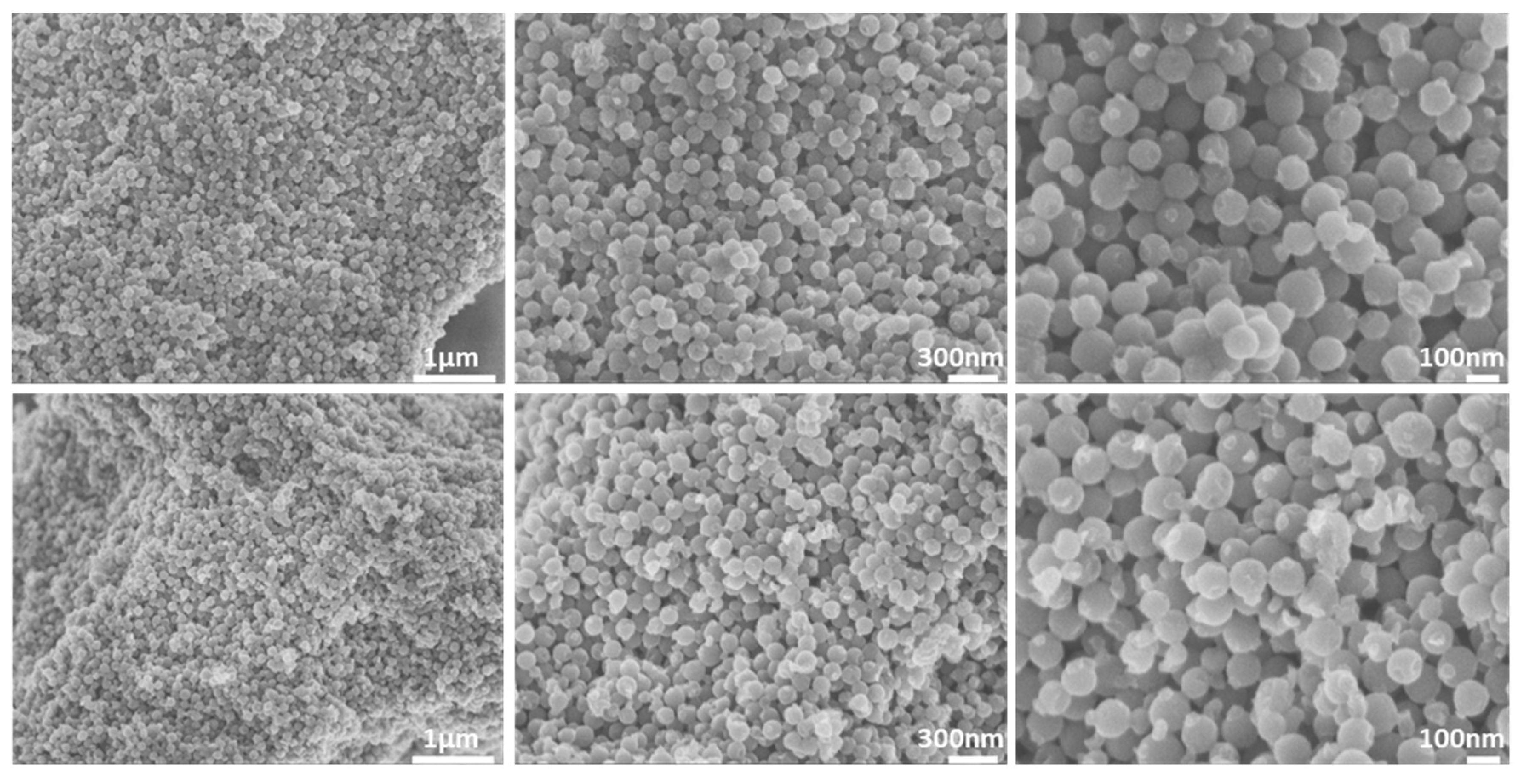

Figure 1. SEM images of the CMK-1 carbon spheres before (top) and after incubation with SGF (bottom).
Figure 1. SEM images of the CMK-1 carbon spheres before (top) and after incubation with SGF (bottom).
Nanomaterials 11 03260 g001
Nanomaterials 11 03260 g002 550

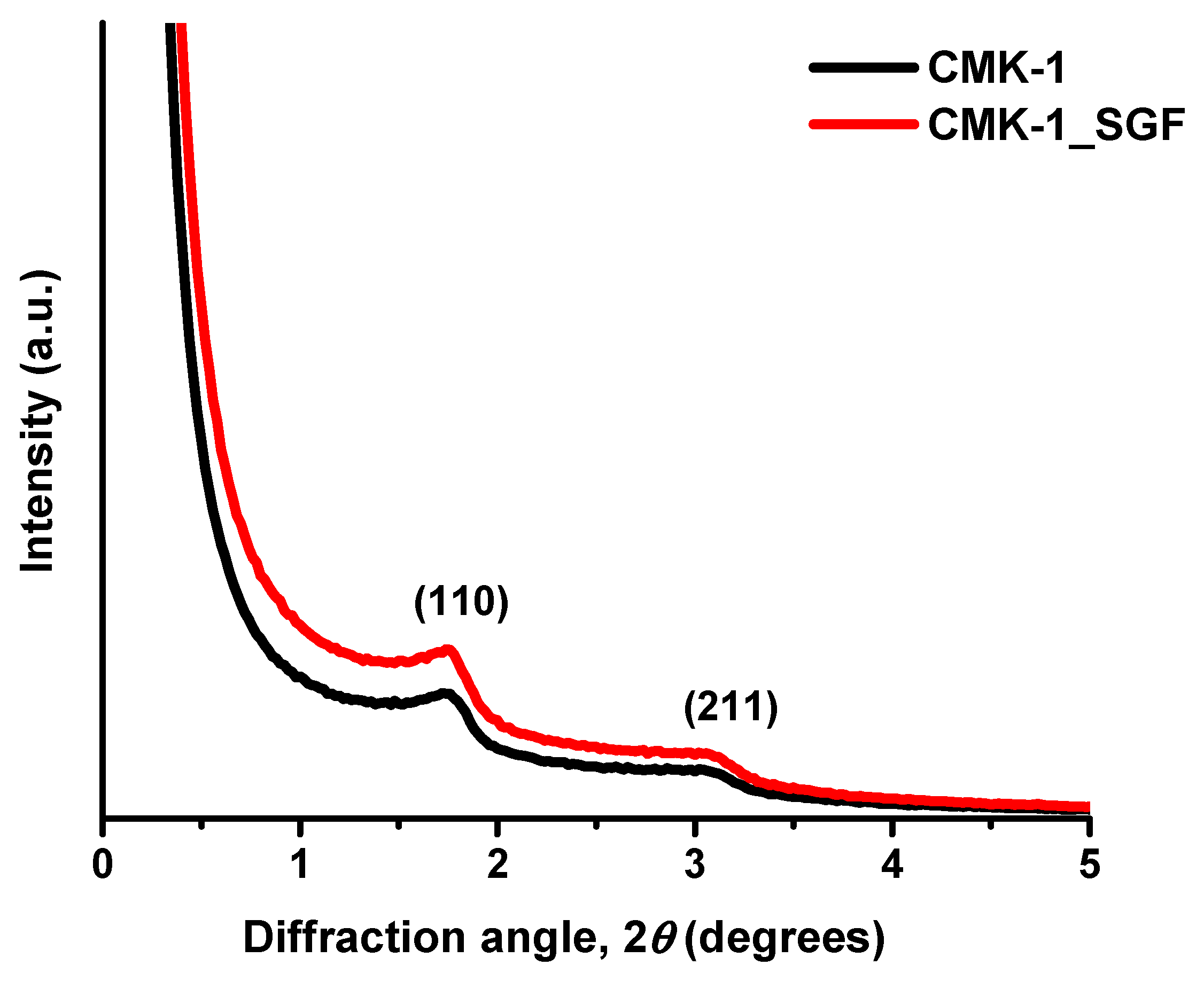

Figure 2. SAXS pattern of the CMK-1 carbon spheres before and after incubation with SGF.
Figure 2. SAXS pattern of the CMK-1 carbon spheres before and after incubation with SGF.
Nanomaterials 11 03260 g002
Nanomaterials 11 03260 g003 550

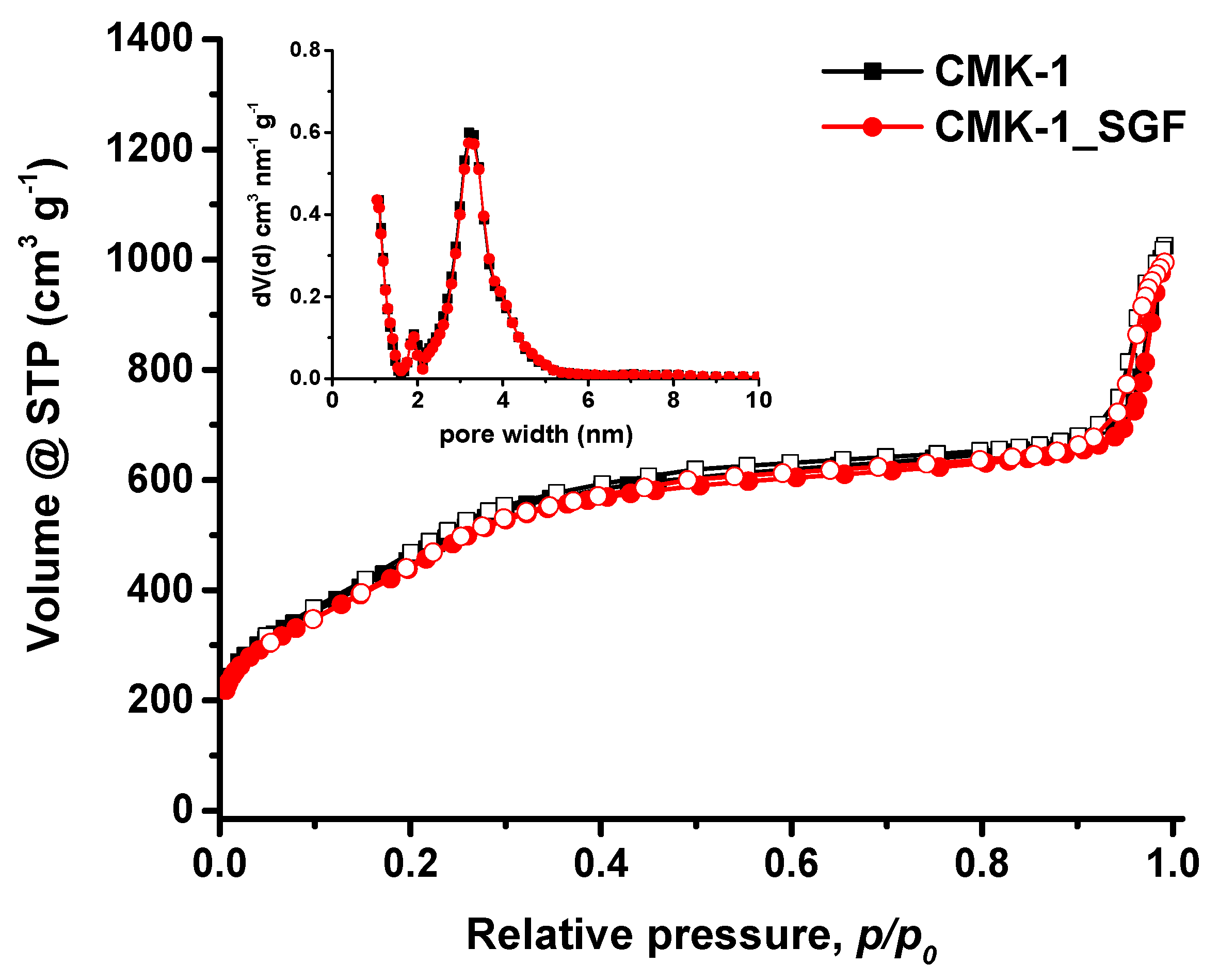

Figure 3. N2 adsorption (full symbols)-desorption (open symbols) isotherm and pore size distribution (PSD) (inset) of the CMK-1 carbon spheres before and after incubation with SGF.
Figure 3. N2 adsorption (full symbols)-desorption (open symbols) isotherm and pore size distribution (PSD) (inset) of the CMK-1 carbon spheres before and after incubation with SGF.
Nanomaterials 11 03260 g003
Nanomaterials 11 03260 g004 550

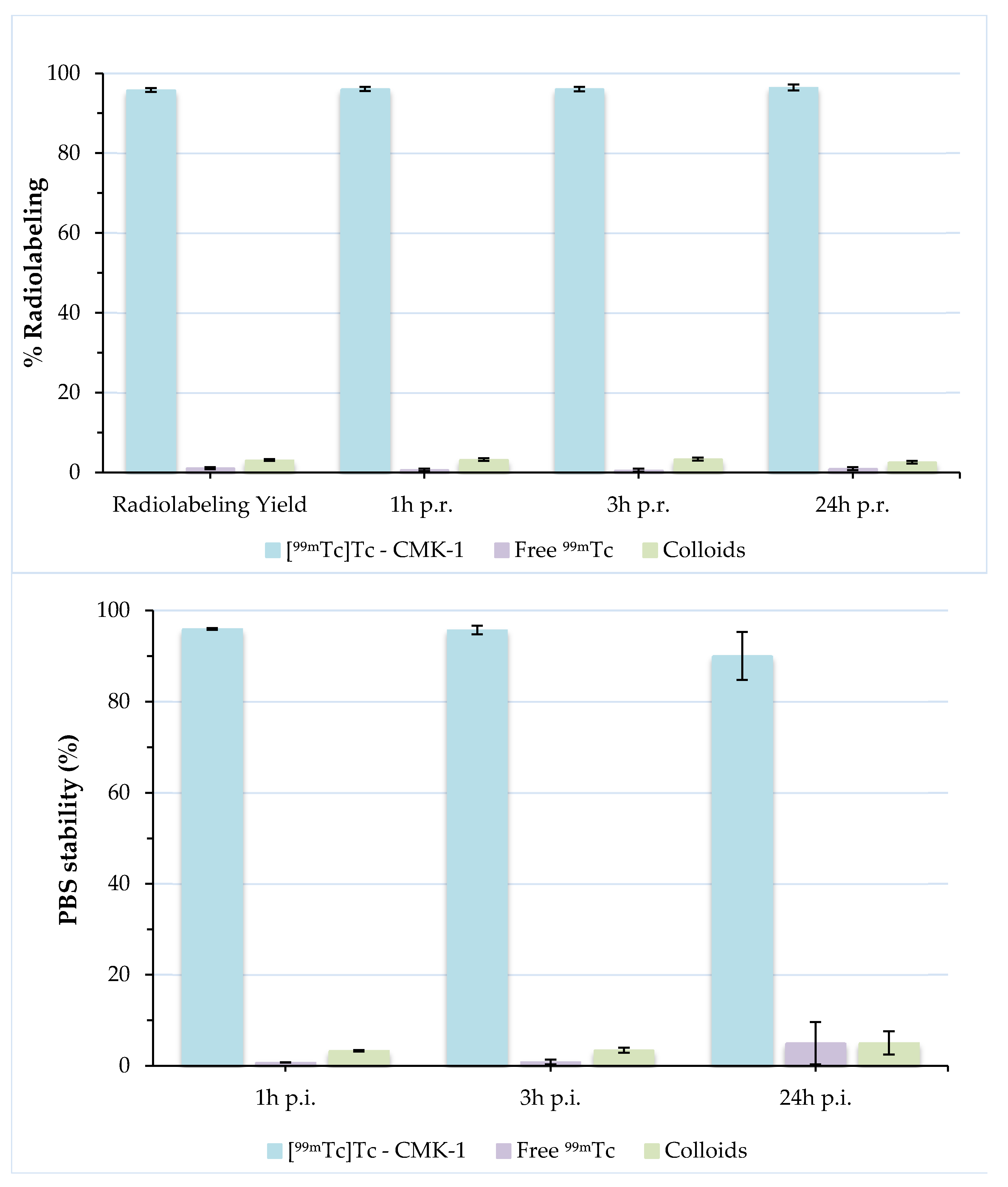

Figure 4. Radiochemical stability of [99mTc]Tc-CMK-1 in the presence of PBS pH 7.4 up to 24 h post-incubation (p.i.).
Figure 4. Radiochemical stability of [99mTc]Tc-CMK-1 in the presence of PBS pH 7.4 up to 24 h post-incubation (p.i.).
Nanomaterials 11 03260 g004
Nanomaterials 11 03260 g005 550

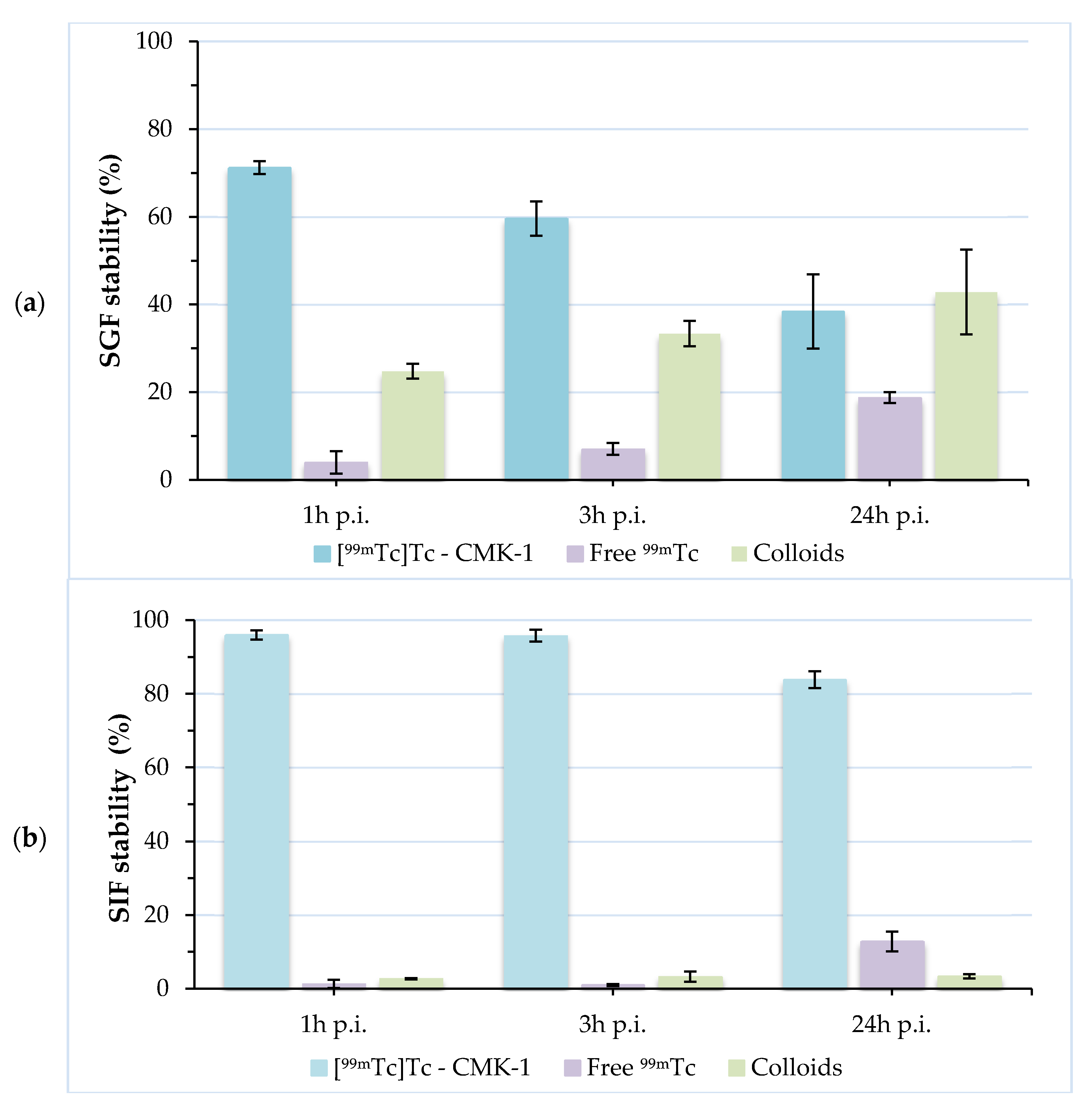

Figure 5. Radiochemical stability of [99mTc]Tc-CMK-1 in the presence of: (a) simulated gastric fluid and (b) simulated intestinal fluid at 1, 3 and 24 h post-incubation (p.i.).
Figure 5. Radiochemical stability of [99mTc]Tc-CMK-1 in the presence of: (a) simulated gastric fluid and (b) simulated intestinal fluid at 1, 3 and 24 h post-incubation (p.i.).
Nanomaterials 11 03260 g005
Nanomaterials 11 03260 g006 550

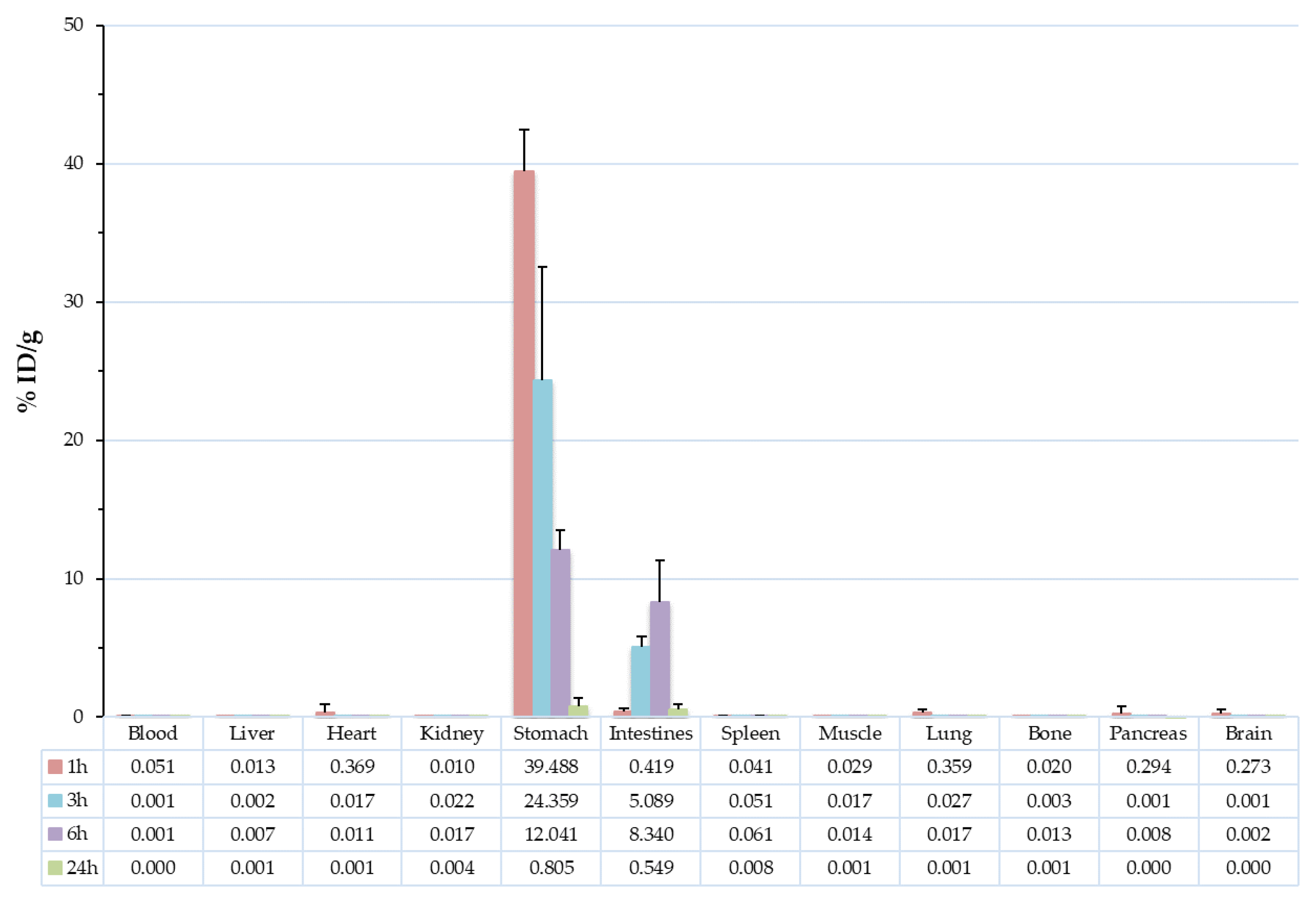

Figure 6. Biodistribution of [99mTc]Tc-CMK-1 in CFW mice at 1, 3, 6 and 24 h post-administration.
Figure 6. Biodistribution of [99mTc]Tc-CMK-1 in CFW mice at 1, 3, 6 and 24 h post-administration.
Nanomaterials 11 03260 g006
Table
Table 1. Pore properties of the CMK-1 carbon spheres before and after incubation with SGF (pH = 1.2).
Table 1. Pore properties of the CMK-1 carbon spheres before and after incubation with SGF (pH = 1.2).
SampleSBET (m2/g)TPV (cm3/g)
at p/p0 = 0.90		Vmicro (cm3/g)Vmeso (cm3/g)Pore Width (nm)
CMK-115131.030.220.813.20
CMK-1_SGF15061.010.210.803.20
SBET: BET area, TPV: total pore volume (pores < 20nm), Vmicro: micropore volume, Vmeso: mesopore volume (=TPV − Vmicro) and Pore Width: mean pore diameter obtained by QSDFT analysis.
Table
Table 2. Biodistribution data of [99mTc]Tc-CMK-1 in CFW mice at 1, 3, 6 and 24 h post-administration.
Table 2. Biodistribution data of [99mTc]Tc-CMK-1 in CFW mice at 1, 3, 6 and 24 h post-administration.
60 min3 h6 h24 h
%ID/gSTDV%ID/gSTDV%ID/gSTDV%ID/gSTDV
Blood0.050.040.000.000.000.000.000.00
Liver0.010.010.000.000.010.010.000.00
Heart0.370.580.020.000.010.010.000.00
Kidney0.010.000.020.010.020.010.000.00
Stomach39.492.9724.368.1712.041.490.810.60
Intestines0.420.245.090.748.343.010.550.42
Spleen0.040.060.050.010.060.010.010.01
Muscle0.030.020.020.000.010.000.000.00
Lung0.360.200.030.040.020.020.000.00
Bone0.020.020.000.000.010.020.000.00
Pancreas0.290.470.000.000.010.000.000.00
Brain0.270.290.000.000.000.000.000.00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mamai, M.; Giasafaki, D.; Salvanou, E.-A.; Charalambopoulou, G.; Steriotis, T.; Bouziotis, P. Biodistribution of Mesoporous Carbon Nanoparticles via Technetium-99m Radiolabelling after Oral Administration to Mice. Nanomaterials 2021, 11, 3260. https://doi.org/10.3390/nano11123260

AMA Style

Mamai M, Giasafaki D, Salvanou E-A, Charalambopoulou G, Steriotis T, Bouziotis P. Biodistribution of Mesoporous Carbon Nanoparticles via Technetium-99m Radiolabelling after Oral Administration to Mice. Nanomaterials. 2021; 11(12):3260. https://doi.org/10.3390/nano11123260

Chicago/Turabian Style

Mamai, Maria, Dimitra Giasafaki, Evangelia-Alexandra Salvanou, Georgia Charalambopoulou, Theodore Steriotis, and Penelope Bouziotis. 2021. "Biodistribution of Mesoporous Carbon Nanoparticles via Technetium-99m Radiolabelling after Oral Administration to Mice" Nanomaterials 11, no. 12: 3260. https://doi.org/10.3390/nano11123260

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
