Whitlockite, being the second most abundant bio-mineral in living bone, finds huge applications in tissue regeneration and implants and its synthesis into its pure form has remained a challenge. Although precipitation of whitlockite phase has been reported recently in many publications, effects of various parameters to control such phase as well as conditions for the bulk preparation of this extremely important bio-mineral have not been investigated so far. In this work, we report the precipitation of pure whitlockite phase using common precursors. As reported in the literature, whitlockite is stable in a narrow pH range, therefore; optimization of pH for the stabilization of whitlockite phase has been investigated. Additionally, in order to narrow down the optimum conditions for the whitlockite precipitation, effect of temperature and heating conditions has also been studied. The obtained solids were characterized using powder X-ray diffraction (PXRD), Fourier transform infrared spectroscopy (FTIR), Raman spectroscopy, scanning electron microscopy (SEM) and thermogravimetric analysis (TGA). From PXRD analysis, it was observed that heating the precursor’s mixture at 100 °C with subsequent aging at the optimized pH resulted in the precipitation of pure whitlockite phase. These results were further confirmed by TGA, SEM and Raman spectroscopy analysis and it was confirmed that the conditions reported here favor whitlockite precipitation without formation of any secondary phase. These reaction conditions were further confirmed by changing all the parameters like aging, heating time, feed rate of precursors one by one. From PXRD analysis of these samples, it was concluded that not only pH but temperature, heating time, aging time and feed rate effect simultaneously on the precipitation of pure whitlockite phase and a subtle change in any of these parameters could lead to the formation of undesired stable secondary calcium phosphate phases.

1. Introduction

Bone is a composite of collagen fibers reinforced with nano-sized apatites i.e., hydroxyapatite (HA) and whitlockite (WH) [1,2]. Hydroxyapatite is the major component of inorganic phase of bone [3], has a hexagonal crystalline structure and maintains bone strength. It was previously considered as the best bone alloplast but its poor solubility and fast degradation under the body’s acidic environment has limited its use. Some recent studies have shown that WH could be the best substitute for hydroxyapatite alloplast. WH has a rhombohedral crystalline structure [4,5], with R3C space group of alkali and alkaline earth metals that exist naturally in the form of Merrillite (Ca9MgNa (PO4)7) [6], β-tricalcium magnesium phosphate (β-TCMP, Ca2.86Mg0.14 (PO4)2) Stanfieldite (Ca, Mg)3(PO4)2 [7], β-tricalcium Phosphate (β-TCP, Ca3 (PO4)2) and magnesium or biological WH (Ca18Mg2H2 (PO4)14/Ca9Mg(HPO4)(PO4)6) [8]. Among various forms of WH, β-TCP and WH have been explored biologically since they are highly biocompatible with excellent osteogenic properties. β-TCP was once considered as bone WH due to its close structural resemblance with WH. However, recent powder X-ray diffraction (PXRD) and SEM analysis of bone have revealed that it is WH that exists naturally in the bone while β-TCP is merely a synthetic analog with similar structure [9,10,11]. Due to biological importance, presence of hydrogen and magnesium makes WH different from β-TCP. Magnesium maintains bone metabolism, stimulates growth during earlier stages of bone development and controls the biological functions of the body [12,13]. It exists in the form of octahedral chains of MgO6 and PO4H in the threefold axis of rhombohedral geometry [14,15] and its deficiency in the body can lead to osteoporosis along with malfunctions of other body parts such as cardiovascular failure. On the other hand, hydrogen helps magnesium in bone growth by camouflaging the immune system as well as gives stability to WH rhombohedral structure [7,16,17,18,19].
Synthesis of biological WH is not easy due to its poor thermodynamic stability and synthesis over a narrow pH and temperature range. For a long time, WH was considered as an intermediate of hydroxyapatite, magnesium brushite and monetite which converts into stable calcium phosphates (CaPs) under ambient conditions and to hydroxyapatite above pH 4.5 [20,21]. Thus, the ability to obtain WH with ideal chemical composition has remained a challenge. Previously, some researchers tried to synthesize WH by incorporating magnesium in hydroxyapatite and in β-TCP crystal lattice but ended up in mixed phases of WH and CaPs [22,23,24,25]. On the other hand, a lot of works have been reported to explore the exact Ca:Mg:P ratios for the synthesis of pure WH phase, however; resulting in mixed phases [26,27,28,29]. Similarly, different CaPs intermediates like monetite, brushite and calcium deficient apatites have also been used as precursors to synthesize pure WH [30,31]. Recently, Magalhaes et al., in 2018, reported that whitlockite phase is stable between narrow pH range of 5 and 6 [8] while in other works acid pH 5.6 and pH 6–7 allows precipitation of β-TCMP and other magnesium containing whitlockite using common precursors [32,33,34] as well as under high-temperature hydrothermal conditions [35] to synthesize pure WH phase. Shah et al., in 2017, did the crystallographic analysis of bone and reported that whitlockite formation in natural system occur in acidic conditions [36] while in another work done by Abdelkader et al. in 2001, basic pH 10 and large magnesium concentration were reported for biological whitlockite precipitation [32]. However, none of these works have reported the exact pH along with all relevant parameters such as heating and aging time for the synthesis of pure biological WH phase resulting in a big question mark on the reproducibility of pure WH phase. Therefore, due to huge potential of this material for biomedical applications, it was extremely essential to explore and report exact conditions for the formation of pure WH phase. Additionally, it was also essential to explore whether the synthesis process is reproducible and can it be optimized for the synthesis of WH at mass scale.
Three batches of reactions were carried out to synthesize homogenous WH i.e., effect of heating conditions and temperature at pH 4 (batch one), effect of temperature and heating time at pH 5 (batch two) and effect of different parameters like aging time, heating time and feed rate on WH precipitation (batch three). Finally, the optimized parameters were checked for the reproducibility of the WH phase as well synthesis of material in grams scale quantity. To the best of our knowledge, we believe, this is the first detailed study on the synthesis of WH phase with comprehensive optimization of various parameters and extending the same for the mass production of this bio-mineral and demonstrates huge commercial value.

2. Materials and Method

Orthophosphoric acid was purchased from Honeywell (Fluka, NC, USA), calcium hydroxide from GPR Rectapur and magnesium hydroxide from Duksan (Daejeon, SouthKorea). All the chemicals were used as received without any further processing.

2.1. Synthesis of WH

Here in, we have reported on the optimization of conditions for the precipitation of WH phase and demonstrated the scale-up capability of our synthesis method. In our method, a wet homogenous chemical precipitation procedure was employed and the effect of different pH conditions on the precipitant dissolution was also examined, starting from pH 13 to pH 1. As more data on acidic pH precipitation were reported therefore, first we added phosphoric acid till pH 1. The precipitates did not form at this pH and already formed precipitates dissolved in reaction mixture. Then we stopped acid addition at pH 2, but the same results as that of pH 1 were obtained. In next reaction, pH 3 was selected as final and it resulted in the formation of turbid liquid. All these samples were kept on aging at room temperature without any agitation for one month but none of the product was obtained. Therefore, we decided to check the stability of precipitates at pH 4 which resulted in formation of stable precipitates of magnesian whitlockite and β-TCMP. As the reported (Ca + Mg/P) ratios were used therefore, we decided to first to check the effect of pH 5 on biological whitlockite formation before changing other parameters. At pH 5, we obtained some precipitation of biological whitlockite in all the three batches while exact conditions were optimized in batch 2. It was observed that below pH 4, the precursor’s precipitates started dissolving with complete dissolution at pH ≤ 2.5 with no reappearance of precipitates even after aging for one month. For the synthesis of WH, Ca:Mg:P ratios were used as reported earlier [20]. Briefly, a 0.37 M solution of Ca(OH)2, 0.13 M solution of Mg(OH)2 and 0.5 M solution of H3PO4 were prepared. All the products obtained were filtered, washed thrice with deionized water and dried overnight at 50 °C. All the samples were aged at room temperature without any agitation. Table 1 below shows the overall reaction conditions and formed products besides precipitation of WH phase. The overall approach used for the synthesis of WH is shown in Figure 1.

2.1.1. Synthesis of WH at pH 4-Effect of Heating Conditions

In the first batch, effect of heating conditions/temperature on the synthesis of WH phase at a constant pH of 4 was investigated. Precursor’s solutions were mixed and the mixture was stirred for 30 min at 45 °C followed by the addition of 0.5 M H3PO4 at 10 mL/5min to the reaction mixture to achieve pH 4. This mixture was divided into three parts as WH-1, WH-2 and WH-3. The WH-1 reaction mixture was kept stirring for 5 h at 80 °C, the WH-2 mixture was autoclaved at 120 °C for 5 h, while WH-3 mixture was refluxed at 100 °C for 5 h. All reaction mixtures were aged for 14 h to achieve the final products.

2.1.2. Synthesis of WH at pH 5-Effect of Heating Conditions

In the second batch, effect of heating conditions/temperature on the synthesis of WH phase at a constant pH of 5 was investigated. In all such cases, addition of phosphate solution was stopped at pH 5. This mixture was divided into three parts as WH-4, WH-5 and WH-6. The WH-4 reaction mixture was kept on stirring for 10 h at 80 °C, the WH-5 mixture was autoclaved at 120 °C for 10 h, while WH-6 mixture was refluxed at 100 °C for 10 h. All reaction mixtures were aged for 14 h to achieve the final products.

2.1.3. Synthesis of WH-Effect of Heating Time, Aging and Annealing

In the third batch, effect of different parameters like heating time, aging, feed rate and annealing on the synthesis of WH phase was studied. In the case of WH-7, heating time was increased to 12 h while in the case of WH-8 aging time was increased to 18 h. In addition, in the case of WH-9, precipitants were separated without aging while in the case of WH-10, feed rate of phosphoric acid addition was changed. A total of 10 mL of phosphoric acid was added without any constant time difference. Finally, the effect of annealing on WH-6 precipitants was studied, and for this purpose the product obtained (WH-6) was annealed at 750 °C for 6 h to achieve WH-11.

2.2. Characterization of Materials

For the crystallographic characterization of all prepared solids, Powder X-ray diffractometer of STOE (Darmstadt, Germany) and DRON-8 Bourevestnik (Saint-Petersburg, Russia) were used. FTIR analysis was done using the PerkinElmer, SpectrumTM100 spectrophotometer where KBr pellets containing samples were prepared for the analysis. Raman spectroscopic analysis was done using BWS415-532S-iRaman manufactured by BW TEK INC (Newark, NJ, USA). TGA was done using TGA-5500 Discovery series(TA instruments, New Castle, DE, USA) under a nitrogen environment in the range of 100–1100 °C at a rate of 10 °C/min. The size and shape of the prepared nanoparticles were observed using scanning electron microscopy (SEM), NOVA FEISEM-450(New York, NY, USA).

3. Results and Discussion

PXRD analysis of the first batch of products (WH-1, WH-2 and WH-3) is shown in Figure 2. Mixed phases of calcium phosphates appeared in XRD diffractogram of WH-1 i.e., calcium pyrophosphate (JCDPS 00-009-0345) [37], magnesium phosphate hydroxide (JCDPS 00-047-0955) [38] and Stanfieldite (magnesian WH) JCDPS 00-013-0404 [39]. The XRD diffractogram of WH-2 shows maximum peaks of Monetite (JCDPS 00-009-0080, 01-070-0360) [40] with some peaks of farringtonite (JCDPS 00-033-0876) and 3rd calcium phosphate oxide (JCDPS 01-070-1379). While, the XRD spectrum of WH-3 does not show any WH phase but peaks of magnesium phosphate (JCDPS 00-0025-1373), Monetite (JCDPS 01-070-1425) [40] and calcium magnesium mixed phosphates (JCDPS 01-082-0503, 00-009-0396). Therefore, PXRD reflections for this group demonstrate that probably pH 4 does not favor the precipitation of WH phase. Although, after the appearance of Stanfieldite peaks in WH-1, we were encouraged to fine tune parameters such as temperature and/or heating conditions to obtain relatively pure WH phase. However, such modifications did not result into a pure WH phase confirming the pH 4 as not desired one to crystallize the required phase.
XRD analysis of the second batch of products (WH-4, WH-5 and WH-6) is shown in Figure 3. XRD diffractogram of WH-4 shows the maximum peaks of hydroxyapatite (JCDPS 00-009-0432), β-TCP WH (JCDPS 00-009-0169) [19,41] and some of TCMP (JCDPS 01-077-6692) [26,30]. However, in the XRD diffractogram of WH-5, two peaks of biological WH at 25.9° and 31.4° (JCDPS 01-070-2064) are shown. The other peaks at 46.7° and 49.4°, 42.2° are of TCMP (JCDPS 01-083-1888) while peaks at 51.2° and 56.6° are due to the presence of the Stanfieldite phase (JCDPS 00-013-0404) [8,26]. Additionally, presence of few other peaks represents, calcium and magnesium phosphates mixed phases. In the case of WH-6, precipitation of pure biological WH (C18H2Mg2(PO4)14) matched with literature [20,30,42,43] as well as JCDPS (01-070-2064 and 00-042-0578). The XRD reflections of WH-4 and WH-5 demonstrated the precipitation of mixed WH phases of Stanfieldite, TCMP and β-TCP which gave evidence that WH precipitation could be possible at pH 5 while a slight change in heating conditions could give pure WH phase. The XRD reflections of WH-6 confirmed this assumption. However, the PXRD analysis of WH-5 also demonstrated that temperature above 100 °C did not favor the formation of pure WH phase. Since magnesium replaces calcium ions completely in the WH crystal lattice, it could lead to the formation of slightly distorted structure which is unstable under high pressure and temperature conditions (120 °C). Moreover, in order to further check the purity of WH-6, high-temperature treatment was carried out where PXRD results confirmed WH-6 as pure biological WH phase. If WH-6 has any secondary amorphous phases, it would be converted to other more stable crystalline phases upon heat treatment [20]. Another evidence of the formation of pure WH phase could be associated with the presence of 0210 peak in WH-6 and WH-11 (discussed later), a characteristic peak of WH. The reduction in d-spacing values (from 2.60 to 2.58 at 34.7°) of WH-6 and WH-11 also confirmed the precipitation of pure WH phase [1,44,45,46]. Moreover, the absence of peaks at the 001 face and at 31.2° and 31.8° of β-TCP and hydroxyapatite have demonstrated another evidence of the purity of WH-6 phase [47].
PXRD analysis of the third batch of products (WH-7, WH-8 and WH-9, WH-10) is shown in Figure 4. This batch of experiments was carried out to confirm whether the synthesis conditions of WH-6 are ideal for the precipitation of pure WH phase. In the case of XRD diffractogram of WH-7, mixed phases of Mg WH i.e., Stanfieldite, β-TCMP (JCDPS 00-042-0578, 01-077-0692 and 01-070-2064) are shown. Similarly, the XRD spectrum of WH-8 showed minor peaks of WH at 26.3°, 36.0° and 41.0° while other peaks are a mixture of Stanfieldite [48] as well as of Monetite (JCDPS 01-077-0692, 01-070-1425 and 00-042-0578). However, XRD diffractogram of WH-9 did not show any peak of WH phase, but instead peaks of Newberyite [49] (JCDPS -00-035-0780) and calcium phosphate (JCDPS 01-082-0807, 00-009-0169) could be seen, confirming aging as one of the important factors for the precipitation of WH phase along with pH. Furthermore, XRD diffractogram of WH-10 showed peaks of WH at 22.4°, 36.1°, 37.4° (JCDP 00-042-0578) while the rest of the peaks corresponded to Stanfieldite, β-TCP and calcium magnesium phosphate (JCDPS 01-072-2042, 00-012-0404, 00-09-0169, 00-020-0348). These results have also demonstrated the precipitation of pure WH phase which was favored by the slow addition of phosphate precursor.
Finally, in order to confirm the phase purity of WH-6 sample, it was further annealed to obtain WH-11 (Figure 5). XRD diffractogram of WH-11 showed no significant change in peak position and appearance of no new peak further confirmed WH-6 phase for pure biological WH. Presence of the 0210 peak as the characteristic peak of pure WH phase in WH-6 and WH-11 has also demonstrated the phase purity under given conditions. Therefore, XRD analysis of the third batch of products has demonstrated that pure WH phase can only be precipitated out in a narrow range of temperature and pH while aging can also be considered as one of the essential limiting factors for the precipitation of pure WH phase.
XRD results have clearly demonstrated the formation of pure WH phase in the case of WH-6. Therefore, this product was further characterized for chemical composition as well as morphological investigation.
The FTIR analysis (Figure 6) of WH-6 showed a peak at 1029 cm−1 which is the peak of υ3 phosphate group (PO43−). Peaks at 963 and 606 cm−1 could be associated with the stretching vibration (υ1) of the O-P-O bond and the bending vibration (υ4) of the O-P-O bond of phosphate (PO43−) group. The asymmetric stretching band of (PO43−) group can be observed at 1120 cm−1. The peak at 872 cm−1 is the characteristic for HPO42− group [20,50]. The XRD results were verified by the FTIR analysis of the WH-6 product. The presence of a peak at 872 cm−1 confirms the presence of HPO42− which is the only peak that differs in biological WH from the rest of the WH [20,45]. Moreover, the absence of peaks at 650 cm−1 and 3570 cm−1 confirmed that our samples were free from the secondary phase [7,31,43]. The peaks below 500 cm−1 are also present in the literature and are unidentified [35,51]. The main FTIR region used for whitlockite and other CaPs is between 800 cm−1 to 1100 cm−1 wavelength. Therefore, only this region is more focused. Researchers have not considered this region [20,43].
FTIR results were also verified by Raman spectroscopic analysis as it gives more insight about magnesium addition into the WH phase as compared to the XRD.
The Raman spectroscopic analysis of the WH-6 product (Figure 7) showed specific peaks at 962 cm−1 and 586 cm−1 which are the characteristic peaks of υ1 and υ4 PO43− ion while the peak at 432 cm−1 is a characteristic peak of υ2 PO43− [29]. Therefore, both Raman as well as FTIR results have clearly demonstrated the presence of WH phase in WH-6. The Raman spectrum of bone apatite showed characteristic peaks in 959–975 cm−1 range and at 432 and 578cm−1 for υ2 and υ4 PO43−. It also showed peak broadening in the 959–975 cm−1 region due to a shift in PO43− modes which occur as a result of the deformation of PO43− ionic structure by surrounding magnesium ions. The Raman spectrum of hydroxy apatite and β-TCP showed sharp peaks in this region and a broadened peak at 960 cm−1, confirming the biological WH [29,36,52].
In order to study the degradation behavior/phase purity of WH-6, its TGA was carried out. The TGA of WH-6 product (Figure 8) showed a continuous weight loss till 550 °C which could be due to the adsorbed water in crystal lattice of solid. Furthermore, a slight transition is also observed after 550 °C which could be due to breakage of Mg-HPO42− bond. A sudden weight loss has been observed after 700 °C to 1000 °C which represents the conversion of WH into β-TCP and other magnesium phosphates. Previous research work showed that TCP becomes stable up to 1400 °C by the addition of magnesium in the crystal lattice and results in the formation of TCMP and highly stable β-TCP [22,25]. However, our synthesized WH-6 sample degraded at 1000 °C which confirms that magnesium is subsumed completely into the CaP crystal lattice at C5 and C4 position, forming (Ca18Mg2(HPO4)2(PO4)12) rhombohedral structure. Since ionic radii of magnesium ions are smaller than calcium, crystalline stability at a higher temperature is decreased. Moreover, the weight loss after 700 °C could be attributed to the change of HPO42− into P2O7 and PO4 and a rapid weight loss after 900 °C could be associated with a unique phenomenon of WH since it converts into TCMP and β-TCP after 700 °C [20,53,54]. The TGA results of WH-6 matches exactly with the previous literature [18,45,46].
Finally, in order to visualize the surface morphology as well as particle size of the WH phase, scanning electron microscopic images of the prepared WH-6 product were obtained. Figure 9 shows the growth of rhombohedral microspheres with nanoparticles grown on their surfaces, similar to the bone nodules reported in the literature [11,18,36,42].
Finally, in order to investigate the reproducibility of the precipitation process to produce pure WH under the optimized conditions, reaction was repeated with larger quantities of the precursors. In this case, initially mixed phases of WH and CaPs appeared, which after annealing for 6 h at 750 °C resulted into pure WH phase, confirmed again through the characterization techniques available. Moreover, in a single reaction with a final reaction volume of 500 mL, we could achieve 25 g of the pure WH. Obtained product have clearly demonstrated the proof of concept for the bulk preparation of pure WH under the optimized conditions. Preparation of pure WH in grams quantities have clearly demonstrated its potential for commercial applications where HA is currently being explored.

4. Conclusions

The optimum conditions for precipitation of pure biological WH phase are reported. WH is second abundant inorganic phase of bone having properties superior then that of hydroxyapatite (HA) and β-tricalcium phosphate (TCP). Synthesis of WH phase is not much explored and WH synthesis remained a challenge due to narrow range of parameters for WH stability. From our given data, it is concluded that there are several parameters which influence simultaneously on pure WH phase precipitation. pH is the most important parameter along with temperature and aging. Without aging no WH phase appears making it second most important parameter for WH precipitation. Other parameters such as feed rate, temperature and heating time also influence on the separation of pure phase. Slow addition and short time heating are favorable since magnesium replaces calcium in WH phase and the crystal structure produced is slightly distorted which probably could not maintain stability over long heating periods as well as slow addition favors magnesium to substitute calcium site completely. This work has great scientific importance since grams quantities of the pure WH phase can be produced under the optimized conditions and such material could help to imitate the exact inorganic phase of the bone containing all the essential minerals.

Author Contributions

Conceptualization, Z.H. and U.L.; methodology, S.B.; investigation, S.B.; data curation, S.B. and M.S.; resources, Z.H., U.L. and M.S.; visualization, Z.H. and U.L.; writing,—original draft preparation, S.B.; writing—review and editing, M.S.; supervision and project administration, Z.H. and U.L.; All authors have read and agreed to the published version of the manuscript.


This research received no external funding.


This research was conducted at the School of Chemical and Materials Engineering (SCME), National University of Sciences and Technology, Sector H-12, Islamabad. ZH acknowledges the financial and administrative support from the SCME, NUST. ZH also acknowledges the support for SEM analysis of one of the samples provided by Irshad Hussain, Department of Chemistry and Chemical Engineering, LUMS, Lahore, Pakistan as well as for the Raman spectroscopic analysis of one sample by M. Aftab Akram, SCME-NUST, Pakistan.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Scotchford, C.A.; Vickers, M.; Yousuf Ali, S. The isolation and characterization of magnesium whitlockite crystals from human articular cartilage. Osteoarthr. Cartil. 1995, 3, 79–94. [Google Scholar] [CrossRef] [Green Version]
  2. Ates, B.; Koytepe, S.; Ulu, A.; Gurses, C.; Thakur, V.K. Chemistry, Structures, and Advanced Applications of Nanocomposites from Biorenewable Resources. Chem. Rev. 2020. [Google Scholar] [CrossRef] [PubMed]
  3. Halloran, D.; Vrathasha, V.; Durbano, H.W.; Nohe, A. Bone Morphogenetic Protein-2 Conjugated to Quantum Dot®s is Biologically Functional. Nanomaterials 2020, 10, 1208. [Google Scholar] [CrossRef] [PubMed]
  4. Lagier, R.; Baud, C.A. Magnesium whitlockite, a calcium phosphate crystal of special interest in pathology. Pathol. Res. Pract. 2003, 199, 329–335. [Google Scholar] [CrossRef]
  5. Hughes, J.M.; Jolliff, B.L.; Rakovan, J. The crystal chemistry of whitlockite and merrillite and the dehydrogenation of whitlockite to merrillite. Am. Mineral. 2008, 93, 1300–1305. [Google Scholar] [CrossRef]
  6. Adcock, C.T.; Tschauner, O.; Hausrath, E.M.; Udry, A.; Luo, S.N.; Cai, Y.; Ren, M.; Lanzirotti, A.; Newville, M.; Kunz, M.; et al. Shock-transformation of whitlockite to merrillite and the implications for meteoritic phosphate. Nat. Commun. 2017, 8, 1–8. [Google Scholar] [CrossRef] [Green Version]
  7. Saleh, A.T.; Ling, L.S.; Hussain, R. Injectable magnesium-doped brushite cement for controlled drug release application. J. Mater. Sci. 2016, 51, 7427–7439. [Google Scholar] [CrossRef]
  8. Magalhães, M.C.F.; Costa, M.O.G. On the solubility of whitlockite, Ca9Mg(HPO4)(PO4)6, in aqueous solution at 298.15 K. Monatshefte fur Chemie 2018, 149, 253–260. [Google Scholar] [CrossRef]
  9. Grünewald, T.A.; Rennhofer, H.; Hesse, B.; Burghammer, M.; Stanzl-tschegg, S.E. Biomaterials Magnesium from bioresorbable implants: Distribution and impact on the nano- and mineral structure of bone. Biomaterials 2016, 76, 250–260. [Google Scholar] [CrossRef]
  10. Yegappan, R.; Selvaprithiviraj, V.; Amirthalingam, S.; Mohandas, A.; Hwang, N.S.; Jayakumar, R. Injectable angiogenic and osteogenic carrageenan nanocomposite hydrogel for bone tissue engineering. Int. J. Biol. Macromol. 2019, 122, 320–328. [Google Scholar] [CrossRef]
  11. Cheng, H.; Chabok, R.; Guan, X.; Chawla, A.; Li, Y.; Khademhosseini, A.; Jang, H.L. Synergistic interplay between the two major bone minerals, hydroxyapatite and whitlockite nanoparticles, for osteogenic differentiation of mesenchymal stem cells. Acta Biomater. 2018, 69, 342–351. [Google Scholar] [CrossRef] [PubMed]
  12. Jeong, J.; Kim, J.H.; Shim, J.H.; Hwang, N.S.; Heo, C.Y. Bioactive calcium phosphate materials and applications in bone regeneration. Biomater. Res. 2019, 23, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Craciunescu, O.; Tardei, C.; Moldovan, L.; Zarnescu, O. Magnesium substitution effect on porous scaffolds for bone repair. Cent. Eur. J. Biol. 2011, 6, 301–311. [Google Scholar] [CrossRef]
  14. Sabine, W.K. Crystal Structure of Synthetic Mg-Whitlockite, Ca18Mg2H2(PO4)14. Can. J. Chem. 1973, 52, 1155–1165. [Google Scholar] [CrossRef] [Green Version]
  15. Lazoryak, B.I.; Strunenkova, T.V.; Golubev, V.N.; Vovk, E.A.; Ivanov, L.N. Triple phosphates of calcium, sodium and trivalent elements with whitlockite-like structure. Mater. Res. Bull. 1996, 31, 207–216. [Google Scholar] [CrossRef]
  16. Salma-Ancane, K.; Stipniece, L.; Putnins, A.; Berzina-Cimdina, L. Development of Mg-containing porous β-tricalcium phosphate scaffolds for bone repair. Ceram. Int. 2015, 41, 4996–5004. [Google Scholar] [CrossRef]
  17. O’Neill, E.; Awale, G.; Daneshmandi, L.; Umerah, O.; Lo, K.W.H. The roles of ions on bone regeneration. Drug Discov. Today 2018, 23, 879–890. [Google Scholar] [CrossRef]
  18. Muthiah Pillai, N.S.; Eswar, K.; Amirthalingam, S.; Mony, U.; Kerala Varma, P.; Jayakumar, R. Injectable Nano Whitlockite Incorporated Chitosan Hydrogel for Effective Hemostasis. ACS Appl. Bio Mater. 2019, 2, 865–873. [Google Scholar] [CrossRef]
  19. Kannan, S.; Lemos, I.A.F.; Rocha, J.H.G.; Ferreira, J.M.F. Synthesis and characterization of magnesium substituted biphasic mixtures of controlled hydroxyapatite/β-tricalcium phosphate ratios. J. Solid State Chem. 2005, 178, 3190–3196. [Google Scholar] [CrossRef]
  20. Jang, H.L.; Jin, K.; Lee, J.; Kim, Y.; Nahm, S.H.; Hong, K.S.; Nam, K.T. Revisiting whitlockite, the second most abundant biomineral in bone: Nanocrystal synthesis in physiologically relevant conditions and biocompatibility evaluation. ACS Nano 2014, 8, 634–641. [Google Scholar] [CrossRef]
  21. Araújo, J.C.; Sader, M.S.; Moreira, E.L.; Moraes, V.C.A.; LeGeros, R.Z.; Soares, G.A. Maximum substitution of magnesium for calcium sites in Mg-β-TCP structure determined by X-ray powder diffraction with the Rietveld refinement. Mater. Chem. Phys. 2009, 118, 337–340. [Google Scholar] [CrossRef]
  22. Cacciotti, I.; Bianco, A.; Lombardi, M.; Montanaro, L. Mg-substituted hydroxyapatite nanopowders: Synthesis, thermal stability and sintering behaviour. J. Eur. Ceram. Soc. 2009, 29, 2969–2978. [Google Scholar] [CrossRef]
  23. Stipniece, L.; Salma-Ancane, K.; Jakovlevs, D.; Borodajenko, N.; Berzina-Cimdina, L. The Study of Magnesium Substitution Effect on Physicochemical Properties of Hydroxyapatite. Mater. Sci. Appl. Chem. 2013, 28, 51. [Google Scholar] [CrossRef] [Green Version]
  24. Kim, S.R.; Lee, J.H.; Kim, Y.T.; Riu, D.H.; Jung, S.J.; Lee, Y.J.; Chung, S.C.; Kim, Y.H. Synthesis of Si, Mg substituted hydroxyapatites and their sintering behaviors. Biomaterials 2003, 24, 1389–1398. [Google Scholar] [CrossRef]
  25. Frasnelli, M.; Sglavo, V.M. Effect of Mg2+ doping on beta-alpha phase transition in tricalcium phosphate (TCP) bioceramics. Acta Biomater. 2016, 33, 283–289. [Google Scholar] [CrossRef] [PubMed]
  26. Li, X.; Ito, A.; Sogo, Y.; Wang, X.; LeGeros, R.Z. Solubility of Mg-containing β-tricalcium phosphate at 25 °C. Acta Biomater. 2009, 5, 508–517. [Google Scholar] [CrossRef] [Green Version]
  27. Gomes, S.; Renaudin, G.; Jallot, E.; Nedelec, J.M. Structural characterization and biological fluid interaction of sol-gel-derived Mg-substituted biphasic calcium phosphate ceramics. ACS Appl. Mater. Interfaces 2009, 1, 505–513. [Google Scholar] [CrossRef]
  28. Kannan, S.; Lemos, A.F.; Rocha, J.H.G.; Ferreira, J.M.F. Characterization, and mechanical performance of the Mg-stabilized β-Ca3(PO4)2 prepared from Mg-substituted Ca-deficient apatite. J. Am. Ceram. Soc. 2006, 89, 2757–2761. [Google Scholar] [CrossRef]
  29. Diallo-Garcia, S.; Laurencin, D.; Krafft, J.M.; Casale, S.; Smith, M.E.; Lauron-Pernot, H.; Costentin, G. Influence of magnesium substitution on the basic properties of hydroxyapatites. J. Phys. Chem. C 2011, 115, 24317–24327. [Google Scholar] [CrossRef]
  30. Tas, A.C. Transformation of Brushite (CaHPO4·2H2O) to Whitlockite (Ca9Mg(HPO4)(PO4)6) or Other CaPs in Physiologically Relevant Solutions. J. Am. Ceram. Soc. 2016, 99, 1200–1206. [Google Scholar] [CrossRef]
  31. Stähli, C.; Thüring, J.; Galea, L.; Tadier, S.; Bohner, M.; Döbelin, N. Hydrogen-substituted $β$-tricalcium phosphate synthesized in organic media. Acta Crystallogr. Sect. B Struct. Sci. Cryst. Eng. Mater. 2016, 72, 875–884. [Google Scholar] [CrossRef] [PubMed]
  32. Ben Abdelkader, S.; Khattech, I.; Rey, C.; Jemal, M. Synthése, caractérisation et thermochimie d’apatites calco-magnésiennes hydroxylées et fluorées. Thermochim. Acta 2001, 376, 25–36. [Google Scholar] [CrossRef]
  33. Li, G.C.; Wang, P.; Liu, C.B. Hydrothermal Synthesis of Whitlockite. Wuji Cailiao Xuebao/Journal Inorg. Mater. 2017, 32, 1128–1132. [Google Scholar] [CrossRef]
  34. Jin, Y.Z.; Zheng, G.B.; Jang, H.L.; Lee, K.M.; Lee, J.H. Whitlockite Promotes Bone Healing in Rabbit Ilium Defect Model. J. Med. Biol. Eng. 2019, 39, 944–951. [Google Scholar] [CrossRef]
  35. Lin, C.C.; Wang, Y.; Zhou, Y.; Zeng, Y. A rapid way to synthesize magnesium whitlockite microspheres for high efficiency removing heavy metals. Desalin. Water Treat. 2019, 162, 220–227. [Google Scholar] [CrossRef]
  36. Shah, F.A.; Lee, B.E.J.; Tedesco, J.; Larsson Wexell, C.; Persson, C.; Thomsen, P.; Grandfield, K.; Palmquist, A. Micrometer-Sized Magnesium Whitlockite Crystals in Micropetrosis of Bisphosphonate-Exposed Human Alveolar Bone. Nano Lett. 2017, 17, 6210–6216. [Google Scholar] [CrossRef]
  37. Wang, X.; Shi, J.; Li, Z.; Zhang, S.; Wu, H.; Jiang, Z.; Yang, C.; Tian, C. Facile one-pot preparation of chitosan/calcium pyrophosphate hybrid microflowers. ACS Appl. Mater. Interfaces 2014, 6, 14522–14532. [Google Scholar] [CrossRef]
  38. Hussin, R.; Hamdan, S.; Halim, D.N.F.A.; Husin, M.S. The origin of emission in strontium magnesium pyrophosphate doped with Dy2O3. Mater. Chem. Phys. 2010, 121, 37–41. [Google Scholar] [CrossRef]
  39. Goldberg, M.A.; Smirnov, V.V.; Antonova, O.S.; Smirnov, S.V.; Shvorneva, L.I.; Kutsev, S.V.; Barinov, S.M. Magnesium-substituted calcium phosphate cements with (Ca + Mg)/P = 2. Dokl. Chem. 2016, 467, 100–104. [Google Scholar] [CrossRef]
  40. Prado Da Silva, M.H.; Lima, J.H.C.; Soares, G.A.; Elias, C.N.; De Andrade, M.C.; Best, S.M.; Gibson, I.R. Transformation of monetite to hydroxyapatite in bioactive coatings on titanium. Surf. Coatings Technol. 2001, 137, 270–276. [Google Scholar] [CrossRef]
  41. Kostov-Kytin, V.V.; Dyulgerova, E.; Ilieva, R.; Petkova, V. Powder X-ray diffraction studies of hydroxyapatite and β-TCP mixtures processed by high energy dry milling. Ceram. Int. 2018, 44, 8664–8671. [Google Scholar] [CrossRef]
  42. Kim, H.D.; Jang, H.L.; Ahn, H.Y.; Lee, H.K.; Park, J.; Lee, E.-S.; Lee, E.A.; Jeong, Y.H.; Kim, D.G.; Nam, K.T.; et al. Biomimetic whitlockite inorganic nanoparticles-mediated in situ remodeling and rapid bone regeneration. Biomaterials 2017, 112, 31–43. [Google Scholar] [CrossRef] [PubMed]
  43. Qi, C.; Chen, F.; Wu, J.; Zhu, Y.J.; Hao, C.N.; Duan, J.L. Magnesium whitlockite hollow microspheres: A comparison of microwave-hydrothermal and conventional hydrothermal syntheses using fructose 1,6-bisphosphate, and application in protein adsorption. RSC Adv. 2016, 6, 33393–33402. [Google Scholar] [CrossRef]
  44. Marahat, M.H.; Zahari, M.A.A.; Mohamad, H.; Kasim, S.R. Effect of magnesium ion (Mg2+) substitution and calcination to the properties of biphasic calcium phosphate (BCP). AIP Conf. Proc. 2019, 2068, 1–6. [Google Scholar] [CrossRef]
  45. Kannan, S.; Ventura, J.M.; Ferreira, J.M.F. Aqueous precipitation method for the formation of Mg-stabilized β-tricalcium phosphate: An X-ray diffraction study. Ceram. Int. 2007, 33, 637–641. [Google Scholar] [CrossRef]
  46. Mayer, I.; Featherstone, J.D.B. The Thermal Decomposition of Mg-Containing Carbonate Apatites. J. Solid State Chem. 1985, 56, 230–235. [Google Scholar] [CrossRef]
  47. Suchanek, W.L.; Byrappa, K.; Shuk, P.; Riman, R.E.; Janas, V.F.; Tenhuisen, K.S. Preparation of magnesium-substituted hydroxyapatite powders by the mechanochemical-hydrothermal method. Biomaterials 2004, 25, 4647–4657. [Google Scholar] [CrossRef]
  48. Sader, M.S.; Legeros, R.Z.; Soares, G.A. Human osteoblasts adhesion and proliferation on magnesium-substituted tricalcium phosphate dense tablets. J. Mater. Sci. Mater. Med. 2009, 20, 521–527. [Google Scholar] [CrossRef]
  49. Sikder, P.; Bhaduri, S.B. Microwave assisted synthesis and characterization of single-phase tabular hexagonal newberyite, an important bioceramic. J. Am. Ceram. Soc. 2018, 101, 2537–2544. [Google Scholar] [CrossRef]
  50. Hu, M.; Xiao, F.; Ke, Q.F.; Li, Y.; Chen, X.D.; Guo, Y.P. Cerium-doped whitlockite nanohybrid scaffolds promote new bone regeneration via SMAD signaling pathway. Chem. Eng. J. 2019, 359, 1–12. [Google Scholar] [CrossRef]
  51. Nouri-Felekori, M.; Khakbiz, M.; Nezafati, N. Synthesis and characterization of Mg, Zn and Sr-incorporated hydroxyapatite whiskers by hydrothermal method. Mater. Lett. 2019, 243, 120–124. [Google Scholar] [CrossRef]
  52. Khan, A.F.; Awais, M.; Khan, A.S.; Tabassum, S.; Chaudhry, A.A.; Rehman, I.U. Raman spectroscopy of natural bone and synthetic apatites. Appl. Spectrosc. Rev. 2013, 48, 329–355. [Google Scholar] [CrossRef]
  53. Liao, J.; Hamada, K.; Senna, M. Synthesis of Ca–Mg Apatite via a Mechanochemical Hydrothermal Process. J. Mater. Synth. Process. 2000, 8, 305–306. [Google Scholar] [CrossRef]
  54. Ren, F.; Leng, Y.; Xin, R.; Ge, X. Synthesis, characterization, and ab initio simulation of magnesium-substituted hydroxyapatite. Acta Biomater. 2010, 6, 2787–2796. [Google Scholar] [CrossRef]

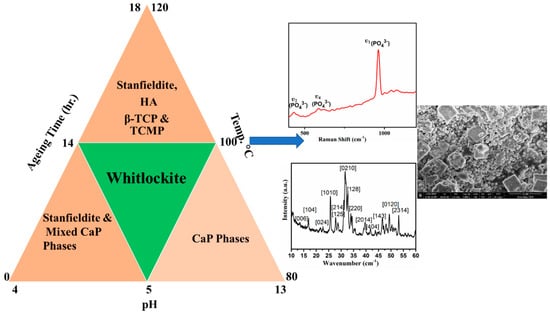

Figure 1. Schematics of approach used for WH synthesis.
Figure 1. Schematics of approach used for WH synthesis.
Nanomaterials 10 01856 g001

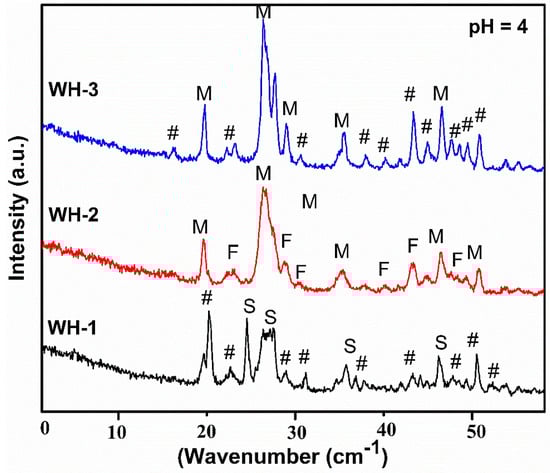

Figure 2. Powder X-ray diffraction (PXRD) diffractograms of the first batch of products (WH-1, WH-2, WH-3) (S for Stanfieldite, F for Farringtonite, M for Monetite and # for mixed CaP phases).
Figure 2. Powder X-ray diffraction (PXRD) diffractograms of the first batch of products (WH-1, WH-2, WH-3) (S for Stanfieldite, F for Farringtonite, M for Monetite and # for mixed CaP phases).
Nanomaterials 10 01856 g002

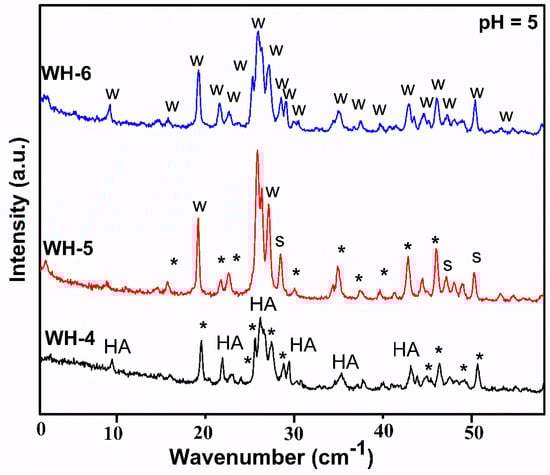

Figure 3. PXRD diffractograms of second batch of products (WH-4, Wh-5, Wh-6) (S for Stanfieldite, W = Biological WH, HA for hydroxyapatite and * for β-TCMP/TCP).
Figure 3. PXRD diffractograms of second batch of products (WH-4, Wh-5, Wh-6) (S for Stanfieldite, W = Biological WH, HA for hydroxyapatite and * for β-TCMP/TCP).
Nanomaterials 10 01856 g003

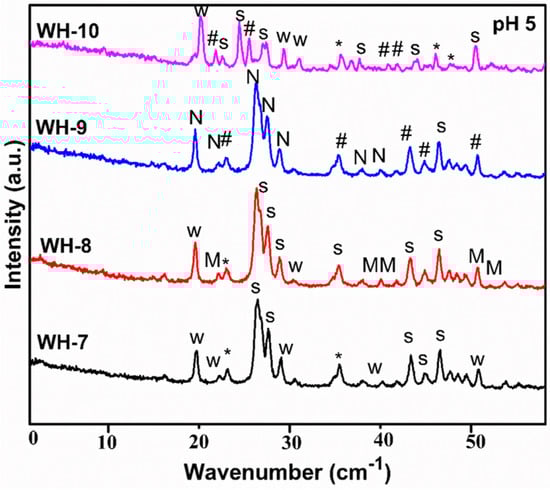

Figure 4. PXRD diffractograms of third batch of products (WH-7, WH-8, WH-9, WH-10) (S for Stanfieldite, W = Biological WH, M for Monetite, N for Newberyite, # for mixed CaP phases and * for β-TCMP/TCP).
Figure 4. PXRD diffractograms of third batch of products (WH-7, WH-8, WH-9, WH-10) (S for Stanfieldite, W = Biological WH, M for Monetite, N for Newberyite, # for mixed CaP phases and * for β-TCMP/TCP).
Nanomaterials 10 01856 g004

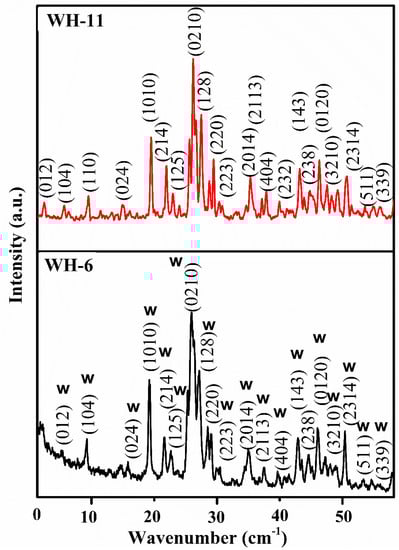

Figure 5. PXRD diffractograms of third batch of product (WH-11) through annealing of WH-6.
Figure 5. PXRD diffractograms of third batch of product (WH-11) through annealing of WH-6.
Nanomaterials 10 01856 g005

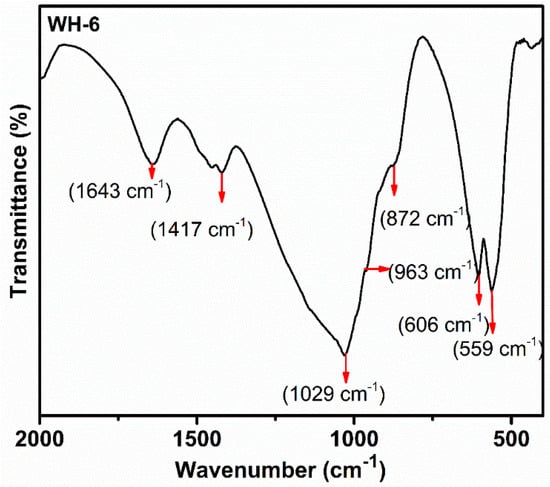

Figure 6. FTIR spectrum of WH-6 product (pure WH phase).
Figure 6. FTIR spectrum of WH-6 product (pure WH phase).
Nanomaterials 10 01856 g006

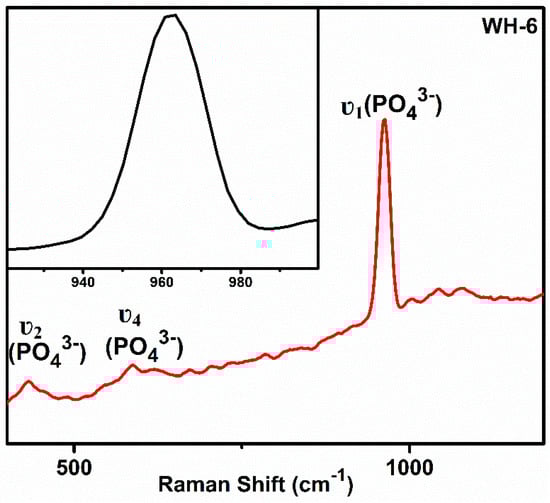

Figure 7. Raman spectrum of WH-6 product.
Figure 7. Raman spectrum of WH-6 product.
Nanomaterials 10 01856 g007

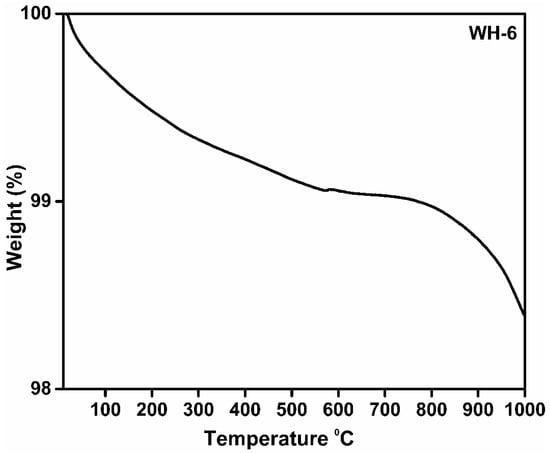

Figure 8. TGA graph of WH-6 product.
Figure 8. TGA graph of WH-6 product.
Nanomaterials 10 01856 g008

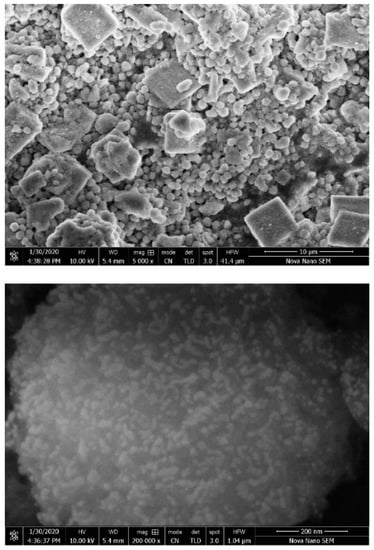

Figure 9. SEM images of WH-6 product with rhombohedral crystals.
