SERS-Active Pattern in Silver-Ion-Exchanged Glass Drawn by Infrared Nanosecond Laser

Institute of physics, nanotechnology and telecommunications, Peter the Great St. Petersburg Polytechnic University, Polytechnicheskaya 29, 195251 St. Petersburg, Russia
Sector of optics of heterogeneous nanostructures and optical materials, Alferov University, Khlopina 8/3, 194021 St. Petersburg, Russia
Laboratory of structural and phase transformations in condensed media, Institute of Problems of Mechanical Engineering RAS, Bolshoy pr. V. O. 61, 199178 St. Petersburg, Russia
Light, Nanomaterials, Nanotechnologies (L2n), Université de Technologie de Troyes & CNRS ERL 7004, rue Marie Curie 12, CS 42060, 10004 Troyes CEDEX, France
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(9), 1849;
Received: 24 August 2020 / Revised: 11 September 2020 / Accepted: 14 September 2020 / Published: 16 September 2020
(This article belongs to the Special Issue SERS/SERRS-Active Nanostructures and Nanocomposites)


The irradiation of silver-to-sodium ion-exchanged glass with 1.06-μm nanosecond laser pulses of mJ-range energy results in the formation of silver nanoparticles under the glass surface. Following chemical removal of ~25-nm glass layer reveals a pattern of nanoparticles capable of surface enhancement of Raman scattering (SERS). The pattern formed when laser pulses are more than half-overlapped provides up to ~105 enhancement and uniform SERS signal distribution, while the decrease of the pulse overlap results in an order of magnitude higher but less uniform enhancement.

Graphical Abstract

1. Introduction

It is recognized, glasses with silver nanoparticles (SNPs) on their surface are beneficial in surface-enhanced Raman spectroscopy (SERS) employed in chemo- and bio-sensors and in microfluidic platforms for screening, monitoring, and quantitative analysis of a molecular probe [1,2]. Moreover, their biomedicine-related implementation includes antibacterial, antifungal, and antiviral applications [3,4]. The attractiveness of multicomponent glasses as substrate material is their well-developed technology and low price, while the main advantages of SNPs are selective toxicity and the highest among other noble metals quality factor of surface plasmon resonance (SPR) from visible to infrared spectral range [5]. Mentioned applications require SNPs to be placed on the glass surface, which can be implemented by various methods. The latter includes depositing thin silver films either followed by their annealing [6] or combined with different lithographic techniques [7,8]; depositing nanoparticles using laser ablation of silver targets [9]; sedimentation of SNPs from solutions [10], e.g., resulting from the laser irradiation [11]; thermal [12] or reactive reduction [13] of silver ions in silver-ion-exchanged glasses followed by SNPs precipitation on their surface by out-diffusion. One more developing approach to the formation of SNPs is the irradiation of silver-ion-exchanged glasses by ultra-short laser pulses of different wavelengths in the visible [14,15], IR [16,17], and UV [18,19] spectral ranges or by continuous short-wavelength lasers [20,21]. Contrary to others, this technique allows direct formation of SNPs and “drawing” of a given 2D pattern filled with SNPs. Note, only in the case of irradiation by either continuous [22] or femtosecond [23] laser it was demonstrated that SNPs form on the glass surface, while there are no studies, to our knowledge, related to SNPs distribution in other cases.
Overall, in the listed methods, SNPs are formed directly on the surface and while it is beneficial for, e.g., SERS-activity, fabricated substrates are one-use and suffer from silver sulfidation and oxidation while stored, if non-protected [24].
In this paper, we studied formation and distribution of SNPs in a silver-ion-exchanged glass after its nanosecond IR laser irradiation. We demonstrated that pattern from SNPs repeats laser beam trajectory while SNPs formation happens in the subsurface glass layer. Finally, SERS-activity of SNPs in the laser-irradiated regions subjected to chemical etching was confirmed. Thus, the study demonstrates the route to fabricate SERS substrates of a given design, which have potential for multiple usages: sequential etching of different parts of the substrate uncovers SNPs which are not affected by interaction with the environment.

2. Experimental

We used a soda-lime glass (Agar Scientific Ltd., Stansted, UK) containing 14.3 wt.% of sodium oxide. A 1-mm thick slide was silver-ion-exchanged for 20 min in the melt of (AgNO3)5wt.%(NaNO3)95wt.% (LenReactiv, Saint Petersburg, Russia) at 325 °C. The maximal depth of silver ions penetration (zero concentration level) and the maximal silver oxide concentration at the glass surface were evaluated following the method of Ref. [25] as ~8 μm and ~10.5 wt.%, respectively. Thus, more than 70% of sodium in the glass was replaced by silver. Generally, higher content of silver ions in the glass results in higher number of SNPs. However, following increase of AgNO3 content in the melt demonstrated only a weak increase in silver ions concentration in the glass, while using of highly concentrated or pure AgNO3 melt is restricted because of its decomposition.
We irradiated the silver-ion-exchanged glass with a Nano L Nd:YAG laser (wavelength of 1.06 μm, Litron Lasers Ltd., Warwickshire, UK) to form SNPs. The laser provided 6-nanosecond long pulses with the maximal energy of 14 mJ, whose frequency could be varied from 0.1 to 30 Hz. Particularly, the laser beam was focused on the glass surface to a spot size of ~250 μm in diameter and some regions (“lines”) were irradiated using the computer-driven platform MT3/M-Z8 3D (Thorlabs Inc., Newton, NJ, USA) that moved the glass slide in the plane perpendicular to the laser beam at the speed of 200 μm/s. Thus, a line was a row of either individual irradiated spots (0.1–1 Hz) or overlapped spots. In experiments, starting from 5.6 mJ pulse energy, intense flashes of light were observed under the irradiation of the silver-ion-exchanged glass. This pulse energy also corresponded to yellowish coloration of the sample. Further increase in pulse energy resulted in darkening of the sample and finally destruction of the surface at 7.5 mJ. Therefore, we studied lines irradiated at 6.3 mJ and 2 Hz, and 5.6 mJ and 3.5 Hz, the overlap being ~50% and ~70% of a single irradiated spot area, respectively.
We measured optical absorption in the laser-irradiated regions using a homemade setup with QE65 Pro spectrometer (OceanOptics Inc., Dunedin, FL, USA), 50 μm collecting optical fiber and 20×/0.4 objective (~50 μm collection spot). The surface of the irradiated lines was also characterized with optical profilometer Wyko NT9300 (Veeco Instruments Inc., Plainview, NY, USA) and scanning electron microscope JSM 7001F (JEOL, Tokyo, Japan) with energy-dispersive X-ray spectroscopy (EDS) system INCA PentalFETx (Oxford Instruments, Abingdon, UK).
Formed structures were tested as SERS substrates using Raman spectrometer Alpha 300R (WITec, Ulm, Germany) equipped with 532 nm laser and 10×/0.25 objective (~3 μm collection spot). We chose 1,2-di(4-pyridyl)ethylene (BPE, Sigma-Aldrich Co., St. Louis, MO, USA) as a probe molecule, which is commonly used in case of 532 nm excitation because of its non-resonant behavior [26,27]. The spectra were collected in the center of the dried droplet (4 μL) of BPE water solution (10−4 M) along the laser-irradiated lines on the glass. We mapped the regions 100 × 3 μm2 with 5 μm step, the integration time was 3 s per point, the laser power ≈0.4 mW. To evaluate the enhancement factor (EF), we collected Raman spectrum from BPE crystallites, which were placed on the non-irradiated and non-ion-exchanged glass surface. The spectrum was averaged over 20 measurements across different crystallites, the integration time was 3 s per measurement and laser power ≈0.4 mW. The average size of the crystallites was ~25 μm. The background in all of the measured spectra was subtracted using MathLAB function [28] (MathLAB 9.7, The MathWorks Inc, Natick, MA, USA) based on the algorithm described in Ref. [29].
Additionally, we performed chemical etching of the laser-irradiated samples in HF(5 μL):NH4F(5 g):H2O(40 g) (LenReactiv, Saint Petersburg, Russia) solution (polishing etchant) at room temperature. This etchant properly removes silicates [30], does not leave toxic reactants capable of interaction with BPE [31] and does not etch or oxidize silver [32]. The absence of a dielectric layer on the surface of SNPs is critical for SERS, for its presence diminishes or suppresses SERS and results in SNPs’ SPR spectral shift [33]. However it is worth mentioning that the latter phenomenon, in spite of decreasing SERS signal, is in use to tune the SPR wavelength [34], and covers allow protection of SNPs from contaminations [35].

3. Results and Discussion

In the performed experiments, the IR ns-laser irradiation of the silver-ion-exchanged glass led to the formation of craters with elevated rims on the glass surface. The optical image of the sample surface with schematically outlined irradiation spots and the profile of the crater formed under the maximal pulse energy (6.3 mJ) are presented in Figure 1a,b, respectively. As seen, the depth of the crater is several tens of nanometers, and the diameter corresponds to the full width at half maximum (FWHM) of the irradiation beam, ~150 μm (outlined with solid lines in Figure 1a). The crater is surrounded by a broad, ~90 μm, elevated, <10 nm, rim placed along the perimeter of the irradiation spot. As one can see in Figure 1, in the regions where the FWHMs of the neighboring laser pulses overlap, a local increase in the crater depth is observed. The origin of the crater formation and deformation is in the pulse energy absorption by electrons, the energy being transferred to the glass network. This heating induces melting and partial sputtering (ablation) of the glass with the formation of a crater [36]. The thermocapillary and hydrodynamic forces act on the melt during its lifetime and induce the formation of an elevated rim and shock wave ripples around the crater [37].
The sample coloration indicates SNPs formation under the laser irradiation. As it was demonstrated [38], ns-laser interaction with soda-lime glass except heating results in the generation of non-bridging oxygen holes in the glass network, and in the case of silver-containing glasses this leads to reduction of silver ions and aggregation of silver atoms into NPs [3,14,17]. However, related studies provided no information neither about location of SNPs on or beneath the surface of the glasses nor SNPs distribution over the area affected by laser irradiation. To study the SNPs formation and distributions we characterized the laser-irradiated glass using absorption and Raman spectroscopy and scanning electron microscopy (SEM).
First, we studied the sample irradiated at 6.3 mJ and 2 Hz, the irradiation spots overlap being 50%, as-prepared. The local absorption spectra measured in colored (1) and transparent (2) regions of the sample are presented in Figure 1c. Note, that the colored region corresponds to the rim formed at the perimeter of the irradiation spot (see Figure 1a,b). The absorption peak appears at 450 nm, which corresponds to SPR wavelength in SNPs and indicates their formation, the maximal number of SNPs being at the perimeter of the irradiation spot. The drop of optical density and increase of the peak width in the transparent region (2) comparatively to the region (1) evidence not only a decrease in the number of SNPs, but also an increase in SNPs size dispersion in the region (2). One can assume uneven distribution of SNPs given by mutual position of the laser pulses. However, there are barely any SNPs in SEM images of the glass surface, see Figure 1d.
An attempt to register Raman scattering enhancement (see Section 2) in the irradiated regions also gave no results. This allowed us to assumes that SNPs are buried under a dielectric (glass) layer. To remove this cover, the sample was etched in the polishing hydrofluoric etchant (see Section 2). The etching rate of the glass measured by the method of Ref. [39] was ~6 nm/min. The identical height difference between rims and craters before and after the etching allowed concluding that the etching rates of these regions coincided. The sample under study was etched for 4 min, i.e., ~25 nm of the glass was removed, and corresponding SEM image is presented in Figure 2a.
Comparing Figure 1d and Figure 2a, one can see that the contrast of the SEM images of the sample is improved after the etching. This improvement corresponds to less sample charging, i.e., higher surface conductivity, and, along with the surface topography modification, evidences the removal of SNPs’ cover by the etching. EDS measurements also demonstrated higher content of silver in laser-affected areas comparatively to non-irradiated regions on the sample after the etching (see Figure 2b). It should be noted, the coloring of the rim and the SPR absorption definitely indicate the input of metal nanoparticles in the EDS signal from the laser-irradiated area, while the EDS signal from the non-irradiated area, where no SPR was registered, should correspond to ionic silver content in the ion-exchanged glass. Observed SNPs are about 50 nm in size and aggregated into clusters. Notably, they are mainly at the periphery of the laser-affected area, where distinctly colored rim is (see dashed outline in Figure 2a). This confirms that SNPs participate in a mass flow induced by thermocapillary and hydrodynamic forces acting on a glass melt during its cooling after the irradiation as was reported for nanosecond pulses earlier [40]. In accordance with the Appendix A, the cooling time is significantly less than the pulse repetition interval, and the same way the growth of SNPs stops before the next pulse exposes the glass and it prolongs under the next pulse. Therefore, an increase in irradiation spots overlap should result in more uniform SNPs distribution in the laser-irradiated region.
To obtain uniformly distributed SNPs we decreased energy of the pulses down to 5.6 mJ, decreasing materials’ sputtering, and increased their frequency up to 3.5 Hz, increasing the irradiation spots overlap up to 70%. The formed clusters, indeed, covered almost 90% of the laser-affected area, however, average size of SNPs in the clusters reduced down to 20 nm. Corresponding SEM images are presented in Figure 3a. We believe, this is because of secondary irradiation. The secondary irradiation of SNPs, as demonstrated in Ref. [41] for 532 nm ns-laser, leads to their fragmentation and partial removal from the surface. It is worth noting that the irradiation with both pulsed and continuous lasers can also result in the fragmentation and even dissolution of SNPs formed in ion-exchanged glasses [42,43].
Finally, after the etching, an intense SERS signal from deposited BPE was recorded. The Raman peaks in the measured spectra corresponded to vibrational modes of BPE [44]: 1010 cm−1 and 1600 cm−1 for pyridine rings breathing and stretching, 1200 cm−1 and 1640 cm−1 for C=C stretching. To compare sample topography with a SERS signal distribution we mapped the samples (see Section 2). As expected, the sample irradiated at the pulse frequency of 2 Hz provided Raman enhancement only at the periphery of the laser-affected area, where SNPs clusters were observed (the SERS map is not shown). The increase in the pulse frequency resulted in more uniform SERS signal distribution: the color map of the integral intensity of the 1200 cm−1 BPE peak distribution along the sample surface irradiated at 3.5 Hz imposed on the corresponding SEM image is in Figure 3a. The observed signal irregularities (see Figure 3b), however, may be attributed to SNPs aggregation.
The enhancement factor of the sample irradiated at the pulse frequency of 3.5 Hz was estimated using equation [45]:
E F   = I S E R S I R s N R S N S E R S ,
where I S E R S and I R S are intensities of a Raman peak measured from molecules absorbed on SERS-active and non-SERS-active substrates, respectively, and N S E R S and N R S are numbers of molecules contributed to a corresponding signal. The 1200 cm−1 BPE Raman peak was used for quantification because of its insensitivity to BPE orientation on silver surface [46]. The ratio I S E R S I R s of the intensities integrated over FWHMs of the corresponding peak was ~1.5 for the spectra averaged over 20 measurements. The N R S was estimated by commonly used equation N R S = ρ B P E h [47] with the known average thickness, h = 25 μm, and density, ρ B P E = 6.3 µmol/mm3, of BPE crystallites [48]. The accurate estimate of the N S E R S in the center of the dried droplet, where SERS signal was collected, should account the mass flow of molecules toward the periphery of the droplet during its evaporation, so-called “coffee-ring” effect [49]. Therefore, we calculated the lower and upper estimates assuming the monolayer and the film of BPE molecules uniformly distributed over the area of the dried droplet, respectively. The surface concentration corresponding to the monolayer was established to be ~2 pmol/mm2, as the specific cell containing 2 BPE molecules in the case of the dense packing in the monolayer occupies ~1.6 nm2 [50]. The uniform BPE film was evaluated to be about 8 monolayers. Therefore, one can expect EF in the range ~104–105. We should note that the sample, irradiated at the pulse frequency of 2 Hz demonstrated an order of magnitude higher enhancement, the upper estimate to be ~106. The obtained EF values are comparable with ones reported for SNPs prepared, for example, by laser ablation and thermal annealing of silver targets [51,52], fs-laser induced reduction from AgNO3 solution [53] and ns-laser modification of [email protected] nanorods [54].

4. Conclusions

It is shown that IR nanosecond pulsed laser irradiation of silver-to-sodium ion-exchanged glasses results in the formation of glass-covered silver nanoparticles. ~25-nm deep etching removes the cover, and allows one to use uncovered nanoparticles to enhance Raman scattering from probed molecules. Surface distribution of nanoparticles and Raman enhancement depend on the overlapping percentage of the spots consecutively irradiated with laser pulses, e.g., 70% of the overlapping provides uniform distribution and up to ~105 enhancement. The technique allows formation of given 2D SERS-active structures on the surface of the glass substrate and suitable for sensing applications.

Author Contributions

Investigation, E.B., V.K., and A.R.; writing—original draft preparation, E.B.; supervision, T.M. and A.L. All authors have read and agreed to the published version of the manuscript.


E.B., V.K., and A.L. appreciate the support by the Russian Science Foundation, grant number 16-12-10044. T.M. acknowledges financial support of NanoMat by the “Ministère de l’enseignement supérieur et de la recherche”, the “Conseil régional Champagne-Ardenne,” the “Fonds Européen de Développement Régional fund,” and the “Conseil général de l’Aube.” T.M. also appreciates financial support from the Agence Nationale de la Recherche, grant number ANR-18-CE09-0003, jointly funded with the “Fonds Européen de Développement Régional fund.”


The experimental results were obtained using unique scientific facility “Physics, chemistry and mechanics of crystals and thin films” (IPME RAS, St. Petersburg). The authors thank P.N. Brunkov and A.V. Nashchekin for SEM and EDS measurements

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

With the increase in the laser pulse energy at the fixed pulse frequency (3 Hz) from 5 to 6.3 mJ, we observed an increase in the crater depth, up to two times, as well as a slight (~1.4 times) increase in the crater diameter. In accordance with the obtained data, using the methodology [55], the sputtering (ablation) threshold was calculated, which amounted to ~3.2 mJ (7 J/cm2). Note that this threshold is several times less than the threshold for non-ion-exchanged glass [56]. We believe, it is because silver ions and clusters formed in the ion-exchanged glass behave as the source of seed electrons for avalanche ionization process and reduce the ablation threshold for nanosecond irradiation the same way as tin impurities in glasses do [56].
An upper estimate of the fraction of laser energy absorbed by soda-lime glass, the lifetime, and the thickness of glass layer melted because of the absorption of this energy without the account of lateral heat fluxes can be made using the following relations.
Equation (A1) for the ablation efficiency (fraction of absorbed energy) θ [57]:
θ = ρ C ρ ( T v   25 ) I / V 10 3 ,
where ρ = 2.5   g / cm 3 density, C ρ = 0.87   J g specific heat capacity, and Tv = 2500–3500 °C evaporation temperature of the glass [58], I = 6.3 mJ the maximal laser pulse energy and V = 9 × 10−10 cm3 the volume of the crater formed as a result of the ablation at this energy.
Equation (A2) for the thickness of molten glass layer (Tm = 720 °C the softening temperature of the glass [59]) at the average surface density of the maximal pulse energy F = 12 J cm 2 [60]:
h = θ F T m   ρ C ρ 80   nm .
Equation (A3) for the melt lifetime (before hardening):
t = h 2 D 13   ns ,
where D = 0.49 × 10−6 m2/s thermal conductivity of the glass [58].
The estimated lifetime of the melt is much shorter than the interval between the laser pulses, which allows us to state that the glass solidifies between consecutive pulses.


  1. Tang, J.; Chen, W.; Ju, H. Rapid detection of pesticide residues using a silver nanoparticles coated glass bead as nonplanar substrate for SERS sensing. Sens. Actuators. 2019, 287, 576–583. [Google Scholar] [CrossRef]
  2. Plaud, A.; Sarrazin, A.; Béal, J.; Proust, J.; Royer, P.; Bijeon, J.-L.; Plain, J.; Adam, P.-M.; Maurer, T. Copolymer template control of gold nanoparticle synthesis via thermal annealing. J. Nanopart. Res. 2013, 15, 2109. [Google Scholar] [CrossRef][Green Version]
  3. Menazea, A.A.; Abdelghany, A.M. Precipitation of silver nanoparticle within silicate glassy matrix via Nd:YAG laser for biomedical applications. Radiat. Phys. Chem. 2020, 174, 108958. [Google Scholar] [CrossRef]
  4. Mori, Y.; Ono, T.; Miyahira, Y.; Nguyen, V.Q.; Matsui, T.; Ishihara, M. Antiviral activity of silver nanoparticle/chitosan composites against H1N1 influenza A virus. Nanoscale Res. Lett. 2013, 8, 93. [Google Scholar] [CrossRef][Green Version]
  5. Wang, F.; Shen, Y.R. General Properties of Local Plasmons in Metal Nanostructures. Phys. Rev. Lett. 2006, 97, 206806. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Araújo, A.; Mendes, M.J.; Mateus, T.; Vicente, A.; Nunes, D.; Calmeiro, T.; Fortunato, E.; Águas, H.; Martins, R. Influence of the Substrate on the Morphology of Self-Assembled Silver Nanoparticles by Rapid Thermal Annealing. J. Phys. Chem. C 2016, 120, 18235–18242. [Google Scholar] [CrossRef]
  7. Lee, S.K.; Hwang, S.; Kim, Y.K.; Oh, Y.J. Assembly of metallic nanoparticle arrays on glass via nanoimprinting and thin-film dewetting. Beilstein J. Nanotechnol. 2017, 8, 1049–1055. [Google Scholar] [CrossRef][Green Version]
  8. Ingram, W.; He, Y.; Stone, K.; Dennis, W.M.; Ye, D.; Zhao, Y. Tuning the plasmonic properties of silver nanopatterns fabricated by shadow nanosphere lithography. Nanotechnology 2016, 27, 385301. [Google Scholar] [CrossRef] [PubMed]
  9. Agarwal, N.R.; Fazio, E.; Neri, F.; Trusso, S.; Castiglioni, C.; Lucotti, A.; Santo, N.; Ossi, P.M. Ag and Au nanoparticles for SERS substrates produced by pulsed laser ablation. Cryst. Res. Technol. 2011, 46, 836–840. [Google Scholar] [CrossRef]
  10. Chumanov, G.; Sokolov, K.; Gregory, B.W.; Cotton, T.M. Colloidal metal films as a substrate for surface-enhanced spectroscopy. J. Phys. Chem. 1995, 99, 9466–9471. [Google Scholar] [CrossRef]
  11. MacKenzie, M.; Chi, H.; Varma, M.; Pal, P.; Kar, A.; Paterson, L. Femtosecond laser fabrication of silver nanostructures on glass for surface enhanced Raman spectroscopy. Sci. Rep. 2019, 9, 17058. [Google Scholar] [CrossRef][Green Version]
  12. Babich, E.S.; Redkov, A.V.; Reduto, I.V.; Scherbak, S.A.; Kamenskii, A.N.; Lipovskii, A.A. Raman enhancement by individual silver hemispheroids. Appl. Surf. Sci. 2017, 397, 119–124. [Google Scholar] [CrossRef]
  13. Farah, K.; Hosni, F.; Hamzaoui, A.H. Synthesis and Control of Silver Aggregates in Ion-Exchanged Silicate Glass by Thermal Annealing and Gamma Irradiation. In Applications of Ion Exchange Materials in Chemical and Food Industries; Springer International Publishing: Cham, The Netherlands, 2019; pp. 99–124. ISBN 9783030060855. [Google Scholar]
  14. Blondeau, J.P.; Pellerin, S.; Vial, V.; Dzierzȩga, K.; Pellerin, N.; Andreazza-Vignolle, C. Influence of pulsed laser irradiation on precipitation of silver nanoparticles in glass. J. Cryst. Growth 2008, 311, 172–184. [Google Scholar] [CrossRef]
  15. Véron, O.; Blondeau, J.-P.; Grabiec, M.; Wolak, A.; Dzierżęga, K.; Ollier, N.; Goutaland, F.; Sow, M.C.; Pellerin, S.; Pellerin, N. On-Line Optical and Morphological Studies of Silver Nanoparticles Growth Formed by Nanosecond Laser Irradiation of Silver-Exchanged Silicate Glass. Plasmonics 2013, 8, 93–103. [Google Scholar] [CrossRef]
  16. Menazea, A.A.; Abdelghany, A.M.; Osman, W.H.; Hakeem, N.A.; El-Kader, F.H.A. Precipitation of silver nanoparticles in silicate glasses via Nd:YAG nanosecond laser and its characterization. J. Non-Cryst. Solids 2019, 513, 49–54. [Google Scholar] [CrossRef]
  17. Egorov, V.I.; Zvyagin, I.V.; Klyukin, D.A.; Sidorov, A.I. The formation of silver nanoparticles on the surface of silver-containing glasses when they are irradiated with nanosecond laser pulses. J. Opt. Technol. 2014, 81, 270–274. [Google Scholar] [CrossRef]
  18. Wackerow, S.; Abdolvand, A. Generation of silver nanoparticles with controlled size and spatial distribution by pulsed laser irradiation of silver ion-doped glass. Opt. Express 2014, 22, 5076–5085. [Google Scholar] [CrossRef]
  19. Reduto, I.; Wackerow, S.; Zolotovskaya, S.; Abdolvand, A.; Lipovskii, A.; Svirko, Y. Nanosecond Laser Surface Silver Metallization of Wet Ion Exchanged Glasses. J. Phys. Conf. Ser. 2020, 1461, 012136. [Google Scholar] [CrossRef][Green Version]
  20. Goutaland, F.; Sow, M.; Ollier, N.; Vocanson, F. Growth of highly concentrated silver nanoparticles and nanoholes in silver-exchanged glass by ultraviolet continuous wave laser exposure. Opt. Mater. Express 2012, 2, 350–357. [Google Scholar] [CrossRef]
  21. Niry, M.D.; Mostafavi-Amjad, J.; Khalesifard, H.R.; Ahangary, A.; Azizian-Kalandaragh, Y. Formation of silver nanoparticles inside a soda-lime glass matrix in the presence of a high intensity Ar+ laser beam. J. Appl. Phys. 2012, 111, 033111. [Google Scholar] [CrossRef]
  22. Tite, T.; Ollier, N.; Sow, M.C.; Vocanson, F.; Goutaland, F. Ag nanoparticles in soda-lime glass grown by continuous wave laser irradiation as an efficient SERS platform for pesticides detection. Sens. Actuators B Chem. 2017, 242, 127–131. [Google Scholar] [CrossRef]
  23. Zhou, Z.; Xu, J.; Cheng, Y.; Xu, Z.; Sugioka, K.; Midorikawa, K. Surface-Enhanced Raman Scattering Substrate Fabricated by Femtosecond Laser Direct Writing. Jpn. J. Appl. Phys. 2008, 47, 189–192. [Google Scholar] [CrossRef]
  24. Matikainen, A.; Nuutinen, T.; Itkonen, T.; Heinilehto, S.; Puustinen, J.; Hiltunen, J.; Lappalainen, J.; Karioja, P.; Vahimaa, P. Atmospheric oxidation and carbon contamination of silver and its effect on surface-enhanced Raman spectroscopy (SERS). Sci. Rep. 2016, 6, 37192. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Zhurikhina, V.V.; Petrov, M.I.; Sokolov, K.S.; Shustova, O.V. Ion-exchange characteristics of sodium-calcium-silicate glass: Calculation from mode spectra. Tech. Phys. 2010, 55, 1447–1452. [Google Scholar] [CrossRef]
  26. Blackie, E.J.; Le Ru, E.C.; Etchegoin, P.G. Single-molecule surface-enhanced raman spectroscopy of nonresonant molecules. J. Am. Chem. Soc. 2009, 131, 14466–14472. [Google Scholar] [CrossRef]
  27. Liu, Y.; Zhang, Y.; Tardivel, M.; Lequeux, M.; Chen, X.; Liu, W.; Huang, J.; Tian, H.; Liu, Q.; Huang, G.; et al. Evaluation of the Reliability of Six Commercial SERS Substrates. Plasmonics 2020, 15, 743–752. [Google Scholar] [CrossRef]
  28. Al-Rumaithi, A. Raman Spectrum Baseline Removal. MATLAB Central File Exchange. Available online: (accessed on 15 September 2020).
  29. Schulze, H.G.; Foist, R.B.; Okuda, K.; Ivanov, A.; Turner, R.F.B. A Small-Window Moving Average-Based Fully Automated Baseline Estimation Method for Raman Spectra. Appl. Spectrosc. 2012, 66, 757–764. [Google Scholar] [CrossRef]
  30. Verhaverbeke, S.; Teerlinck, I.; Vinckier, C.; Stevens, G.; Cartuyvels, R.; Heyns, M.M. The Etching Mechanisms of SiO2 in Hydrofluoric Acid. J. Electrochem. Soc. 1994, 141, 2852. [Google Scholar] [CrossRef]
  31. Blass, J.; Köhler, O.; Fingerle, M.; Müller, C.; Ziegler, C. Properties and characteristics of wet (HF) and dry (RIE) etched borosilicate glass. Phys. Status Solidi 2013, 210, 988–993. [Google Scholar] [CrossRef]
  32. Craig, B.D.; Anderson, D.B. Handbook of Corrosion Data; ASM International: Russell Township, OH, USA, 1995; ISBN 0-87170-518-4. [Google Scholar]
  33. Chervinskii, S.; Matikainen, A.; Dergachev, A.; Lipovskii, A.; Honkanen, S. Out-diffused silver island films for surface-enhanced Raman scattering protected with TiO2 films using atomic layer deposition. Nanoscale Res. Lett. 2014, 9, 398. [Google Scholar] [CrossRef][Green Version]
  34. Xu, G.; Tazawa, M.; Jin, P.; Nakao, S.; Yoshimura, K. Wavelength tuning of surface plasmon resonance using dielectric layers on silver island films. Appl. Phys. Lett. 2003, 82, 3811. [Google Scholar] [CrossRef]
  35. Maurer, T.; Abdellaoui, N.; Gwiazda, A.; Adam, P.M.; Vial, A.; Bijeon, J.L.; Chaumont, D.; Bourezzou, M. Optical determination and identification of organic shells around nanoparticles: Application to silver nanoparticles. Nano 2013, 8, 1350016. [Google Scholar] [CrossRef]
  36. Stuart, B.C.; Feit, M.D.; Rubenchik, A.M.; Shore, B.W.; Perry, M.D. Laser-induced damage in dielectrics with nanosecond to subpicosecond pulses. Phys. Rev. Lett. 1995, 74, 2248–2251. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Delgado, T.; Nieto, D.; Flores-Arias, M.T. Soda-lime glass microlens arrays fabricated by laser: Comparison between a nanosecond and a femtosecond IR pulsed laser. Opt. Lasers Eng. 2016, 86, 29–37. [Google Scholar] [CrossRef]
  38. Rehman, Z.U.; Suk, H.; Janulewicz, K.A. Optical breakdown-driven mesostructure in bulk of soda-lime glass. J. Non-Cryst. Solids 2016, 448, 68–73. [Google Scholar] [CrossRef]
  39. Kamenskii, A.N.; Reduto, I.V.; Petrikov, V.D.; Lipovskii, A.A. Effective diffraction gratings via acidic etching of thermally poled glass. Opt. Mater. 2016, 62, 250–254. [Google Scholar] [CrossRef]
  40. Kaganovsky, Y.S.; Antonov, I.; Ianetz, D.; Rosenbluh, M.; Ihlemann, J.; Müller, S.G.; Marowsky, G.; Lipovskii, A.A. Mass Transfer in Optical Nanocomposites Induced by Pulsed Laser Irradiation. Solid State Phenom. 2003, 94, 105–114. [Google Scholar] [CrossRef]
  41. Grabiec, M.; Wolak, A.; Véron, O.; Blondeau, J.P.; Pellerin, N.; Allix, M.; Pellerin, S.; Dzierzega, K. Laser-Driven Precipitation and Modification of Silver Nanoparticles in Soda Lime Glass Matrix Monitored by On-line Extinction Measurements. Plasmonics 2012, 7, 279–286. [Google Scholar] [CrossRef]
  42. Antonov, I.; Bass, F.; Kaganovskii, Y.; Rosenbluh, M.; Lipovskii, A. Fabrication of microlenses in Ag-doped glasses by a focused continuous wave laser beam. J. Appl. Phys. 2003, 93, 2343–2348. [Google Scholar] [CrossRef]
  43. Cattaruzza, E.; Mardegan, M.; Trave, E.; Battaglin, G.; Calvelli, P.; Enrichi, F.; Gonella, F. Modifications in silver-doped silicate glasses induced by ns laser beams. Appl. Surf. Sci. 2011, 257, 5434–5438. [Google Scholar] [CrossRef]
  44. Yang, W.H.; Hulteen, J.; Schatz, G.C.; Van Duyne, R.P. A surface-enhanced hyper-Raman and surface-enhanced Raman scattering study of frans-1,2-bis(4-pyridyl)ethylene adsorbed onto silver film over nanosphere electrodes. Vibrational assignments: Experiment and theory. J. Chem. Phys. 1996, 104, 4313–4323. [Google Scholar] [CrossRef]
  45. Le Ru, E.C.; Blackie, E.; Meyer, M.; Etchegoint, P.G. Surface enhanced raman scattering enhancement factors: A comprehensive study. J. Phys. Chem. C 2007, 111, 13794–13803. [Google Scholar] [CrossRef]
  46. Chen, T.; Pal, A.; Gao, J.; Han, Y.; Chen, H.; Sukhishvili, S.; Du, H.; Podkolzin, S.G. Identification of Vertical and Horizontal Configurations for BPE Adsorption on Silver Surfaces. J. Phys. Chem. C 2015, 119, 24475–24488. [Google Scholar] [CrossRef]
  47. Pérez-Jiménez, A.I.; Lyu, D.; Lu, Z.; Liu, G.; Ren, B. Surface-enhanced Raman spectroscopy: Benefits, trade-offs and future developments. Chem. Sci. 2020, 11, 4563–4577. [Google Scholar] [CrossRef][Green Version]
  48. ChemBK Trans-1,2-Bis(4-pyridyl)ethylene. Available online:,2-Bis(4-pyridyl)ethylene (accessed on 20 July 2020).
  49. Yunker, P.J.; Still, T.; Lohr, M.A.; Yodh, A.G. Suppression of the coffee-ring effect by shape-dependent capillary interactions. Nature 2011, 476, 308–311. [Google Scholar] [CrossRef] [PubMed]
  50. Brewer, A.Y.; Friscic, T.; Day, G.M.; Overvoorde, L.M.; Parker, J.E.; Richardson, C.N.; Clarke, S.M. The monolayer structure of 1,2-bis(4-pyridyl)ethylene physisorbed on a graphite surface. Mol. Phys. 2013, 111, 73–79. [Google Scholar] [CrossRef]
  51. Cañamares, M.V.; Garcia-Ramos, J.V.; Sanchez-Cortes, S.; Castillejo, M.; Oujja, M. Comparative SERS effectiveness of silver nanoparticles prepared by different methods: A study of the enhancement factor and the interfacial properties. J. Colloid Interface Sci. 2008, 326, 103–109. [Google Scholar] [CrossRef]
  52. Gao, J.; Zhang, N.; Ji, D.; Song, H.; Liu, Y.; Zhou, L.; Sun, Z.; Jornet, J.M.; Thompson, A.C.; Collins, R.L.; et al. Superabsorbing Metasurfaces with Hybrid Ag-Au Nanostructures for Surface-Enhanced Raman Spectroscopy Sensing of Drugs and Chemicals. Small Methods 2018, 2, 1800045. [Google Scholar] [CrossRef]
  53. Xu, Y.; Geng, Y.; Wang, L.; Kumar, A.G.; Fang, L.; Du, Y.; Li, X. Femtosecond laser ablated pyramidal fiber taper-SERS probe with laser-induced silver nanostructures. J. Phys. D Appl. Phys. 2018, 51, 285104. [Google Scholar] [CrossRef]
  54. Macias-Montero, M.; Peláez, R.J.; Rico, V.J.; Saghi, Z.; Midgley, P.; Afonso, C.N.; González-Elipe, A.R.; Borras, A. Laser Treatment of [email protected] Nanorods as Long-Life-Span SERS Surfaces. ACS Appl. Mater. Interfaces 2015, 7, 2331–2339. [Google Scholar] [CrossRef][Green Version]
  55. Liu, J.M. Simple technique for measurements of pulsed Gaussian-beam spot sizes. Opt. Lett. 1982, 7, 196–198. [Google Scholar] [CrossRef] [PubMed]
  56. Nieto, D.; Arines, J.; O’Connor, G.M.; Flores-Arias, M.T. Single-pulse laser ablation threshold of borosilicate, fused silica, sapphire, and soda-lime glass for pulse widths of 500 fs, 10 ps, 20 ns. Appl. Opt. 2015, 54, 8596–8601. [Google Scholar] [CrossRef] [PubMed]
  57. Lopez, J.; Mincuzzi, G.; Devillard, R.; Zaouter, Y.; Hönninger, C.; Mottay, E.; Kling, R. Ablation efficiency of high average power ultrafast laser. J. Laser Appl. 2015, 27, S28008. [Google Scholar] [CrossRef]
  58. Karazi, S.M.; Ahad, I.U.; Benyounis, K.Y. Laser Micromachining for Transparent Materials. In Reference Module in Materials Science and Materials Engineering; Elsevier: San Diego, CA, USA, 2017; ISBN 9780128035818. [Google Scholar]
  59. Agar Scientific Microscope Slides. Available online: (accessed on 12 May 2020).
  60. Ben-Yakar, A.; Byer, R.L.; Harkin, A.; Ashmore, J.; Stone, H.A.; Shen, M.; Mazur, E. Morphology of femtosecond-laser-ablated borosilicate glass surfaces. Appl. Phys. Lett. 2003, 83, 3030–3032. [Google Scholar] [CrossRef][Green Version]

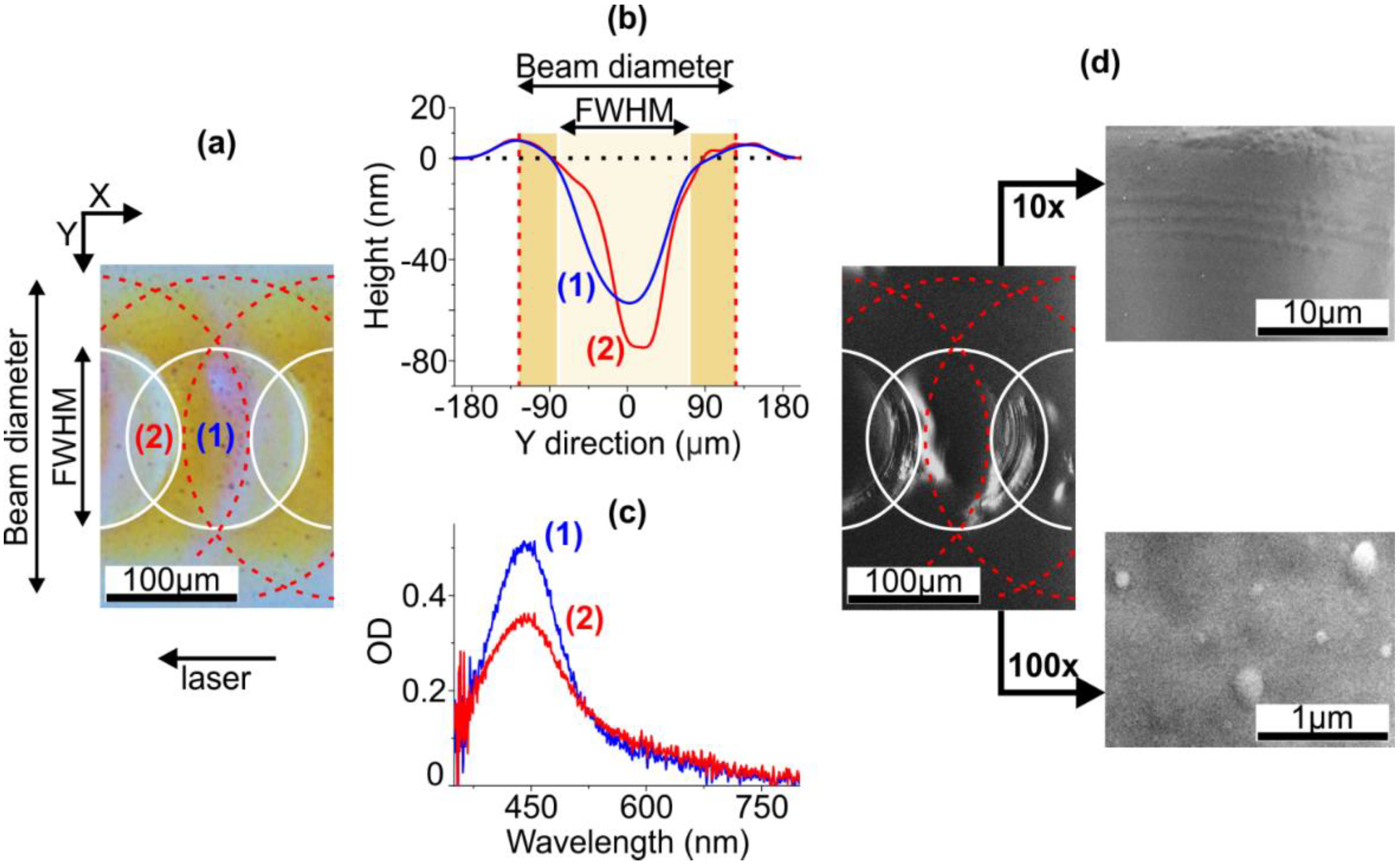

Figure 1. (a) Micrograph of the ion-exchanged glass irradiated with IR ns-laser, pulse energy 6.3 mJ, pulse frequency 2 Hz, the outlines corresponding to the laser beam diameter (dashed) and FWHM (solid) schematically show mutual position of the irradiation spots. The arrow shows the direction of the laser beam moving. (b) The profiles of the glass surface in regions (1) and (2) in the micrograph. (c) Local absorption spectra measured in the regions (1) and (2). (d) SEM images of the glass. Right panels: SEM images of higher resolution.
Figure 1. (a) Micrograph of the ion-exchanged glass irradiated with IR ns-laser, pulse energy 6.3 mJ, pulse frequency 2 Hz, the outlines corresponding to the laser beam diameter (dashed) and FWHM (solid) schematically show mutual position of the irradiation spots. The arrow shows the direction of the laser beam moving. (b) The profiles of the glass surface in regions (1) and (2) in the micrograph. (c) Local absorption spectra measured in the regions (1) and (2). (d) SEM images of the glass. Right panels: SEM images of higher resolution.
Nanomaterials 10 01849 g001

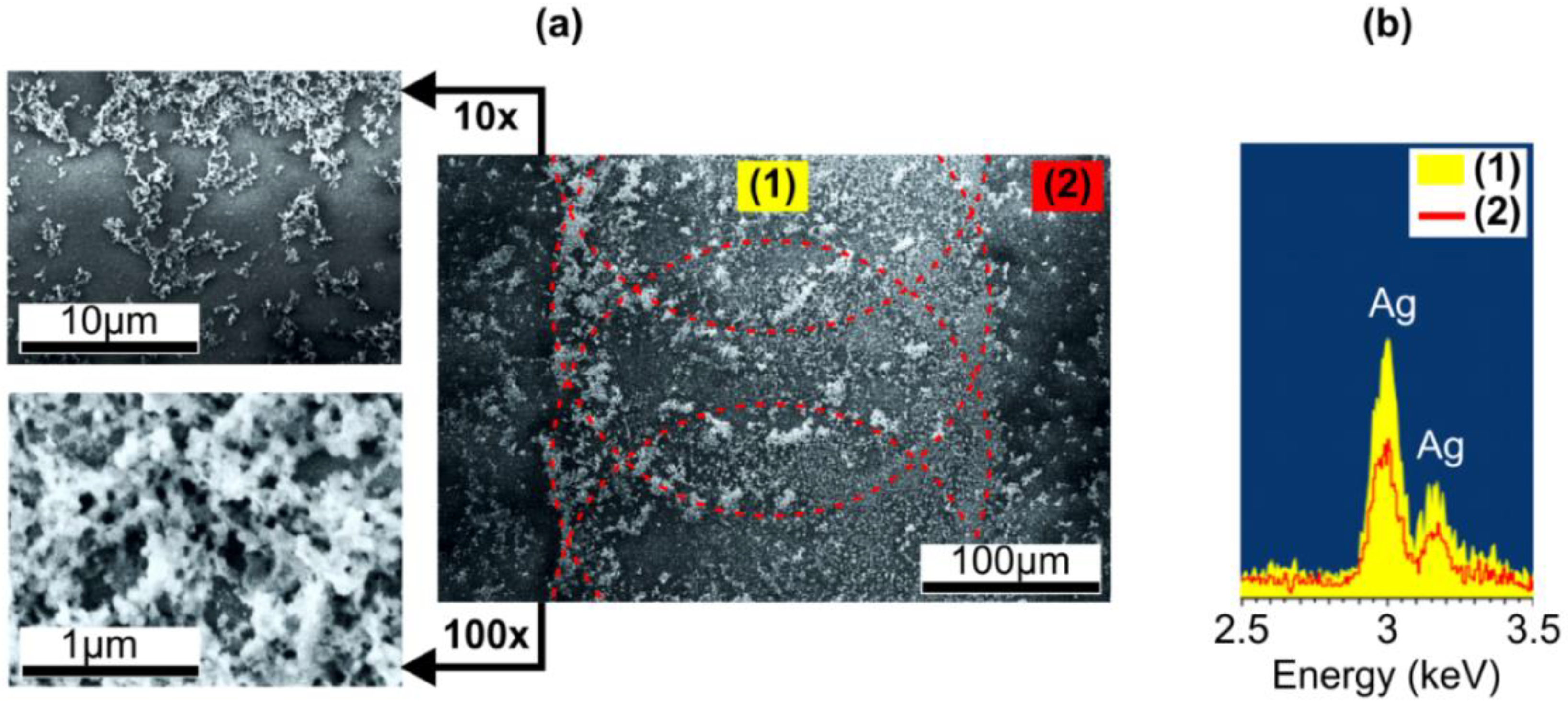

Figure 2. (a) SEM images of the ion-exchanged glass surface irradiated with IR ns-laser at 6.3 mJ and 2 Hz pulses after removal of ~25-nm glass layer via chemical etching. The outlines schematically show mutual position of the irradiation spots. Left panels: SEM images of higher resolution. (b) EDS spectra in (1) laser-irradiated and (2) non-irradiated regions on the glass surface after chemical etching.
Figure 2. (a) SEM images of the ion-exchanged glass surface irradiated with IR ns-laser at 6.3 mJ and 2 Hz pulses after removal of ~25-nm glass layer via chemical etching. The outlines schematically show mutual position of the irradiation spots. Left panels: SEM images of higher resolution. (b) EDS spectra in (1) laser-irradiated and (2) non-irradiated regions on the glass surface after chemical etching.
Nanomaterials 10 01849 g002

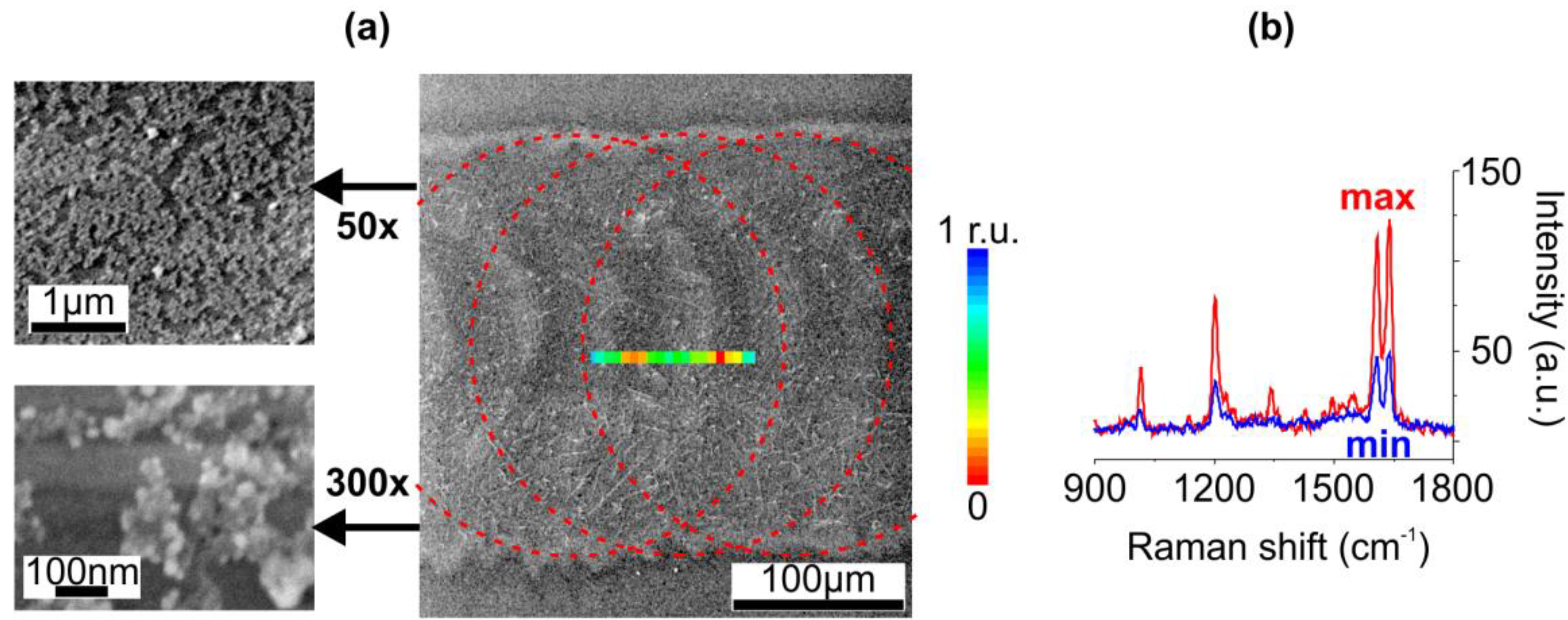

Figure 3. (a) SEM images of the ion-exchnaged glass surface irradiated with IR ns-laser at 5.6 mJ and 3.5 Hz pulses after removal of ~25-nm glass layer via chemical etching. The outlines schematically show mutual position of the irradiation spots. Inset: the map of the integral intensity of the 1200 cm−1 BPE Raman peak distribution. (b) Raman spectra in the areas of maximal and minimal enhancement in the map.
Figure 3. (a) SEM images of the ion-exchnaged glass surface irradiated with IR ns-laser at 5.6 mJ and 3.5 Hz pulses after removal of ~25-nm glass layer via chemical etching. The outlines schematically show mutual position of the irradiation spots. Inset: the map of the integral intensity of the 1200 cm−1 BPE Raman peak distribution. (b) Raman spectra in the areas of maximal and minimal enhancement in the map.
Nanomaterials 10 01849 g003
