# On Nonlinear Bending Study of a Piezo-Flexomagnetic Nanobeam Based on an Analytical-Numerical Solution

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Model

_{1}and u

_{3}, respectively, for axial and transverse directions. However, such displacements for neutral plane are, respectively, regarded with u and w. Thus, one can give accordingly

## 3. Solution Approach

## 4. Numerical Results and Discussion

#### 4.1. Results’ Validity

_{0}a/L = 0. From the Table, it is found that the nondimensional maximum deflection increased as the value of the nonlocal parameter increased.

#### 4.2. Discussion of the Problem

_{31}= 10

^{−9}N/Ampere, f

_{31}= 10

^{−10}N/Ampere as [13,14]. These two values were also theoretically obtained based on some simple assumptions and cannot be the exact numeric values of the flexomagnetic parameter of the aforesaid material presented in Table 3.

_{0}a < 0.8 nm [46], and 0 < e

_{0}a ≤ 2 nm [47,48], unless otherwise stated. The amount of strain gradient parameter was obtained in a similar size to the lattice parameter of the crystalline structure [49]. This factor for the aforementioned material in Table 3 was obtained in an experiment to change between 0.8 and 0.9 nanometers at a set temperature [50]. Hence, the averaged value of the strain gradient parameter is selected as l = 1 nm.

#### 4.2.1. Effect of Nonlinearity

#### 4.2.2. Effect of Small Scale

#### 4.2.3. Effect of Magnetic Field

#### 4.2.4. Effect of Slenderness Ratio

#### 4.2.5. Effect of FM

_{31}= 10

^{−10}N/Ampere can affect to some extent the behavior of the PF-NB.

## 5. Conclusions

- In hinged–hinged nanobeams, linear deflections for a NB can be used in the range w ≤ 0.1 h, and for a PF-NB, about w ≤ 0.08 h. This value in a double-fixed NB and PF-NB is in the range w < 0.15 h. However, for a cantilever case in NB, it is w ≤ 0.2 h and in PF-NB, it is w ≤ 0.1 h.
- The difference between the nonlinear analysis and the linear one will be more pronounced in the boundary condition with higher degrees of freedom.
- Increasing the numerical value of the nonlocal parameter leads to a softening effect on the material, and in contrast, increasing the numerical value of the strain gradient parameter leads to the appearance of stiffness in the material.
- The effect of nonlinear analysis is greater in large values of nonlocal parameters and small values of strain gradient parameters.
- The effect of nonlinear analysis on a nonlocal study is greater than a local one.
- The effect of nonlinear analysis in the positive magnetic field decreases. However, the opposite is true in the case of a negative magnetic field.
- For nanobeams with very large lengths, linear analysis gives entirely erroneous results even if the values of lateral loads are not large.
- The flexomagnetic effect leads to more material stiffness, and thus reduces the numerical values of deflections in static analysis.
- The less flexible the boundary condition, the higher the flexomagneticity effect.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Fahrner, W. Nanotechnology and Nanoelectronics, 1st ed.; Springer: Berlin, Germany, 2005; p. 269. [Google Scholar]
- Kabychenkov, A.F.; Lisovskii, F.V. Flexomagnetic and flexoantiferromagnetic effects in centrosymmetric antiferromagnetic materials. Tech. Phys.
**2019**, 64, 980–983. [Google Scholar] [CrossRef] - Eliseev, E.A.; Morozovska, A.N.; Glinchuk, M.D.; Blinc, R. Spontaneous flexoelectric/flexomagnetic effect in nanoferroics. Phys. Rev. B
**2009**, 79, 165433. [Google Scholar] [CrossRef] - Lukashev, P.; Sabirianov, R.F. Flexomagnetic effect in frustrated triangular magnetic structures. Phys. Rev. B
**2010**, 82, 094417. [Google Scholar] [CrossRef] - Eliseev, E.A.; Morozovska, A.N.; Khist, V.V.; Polinger, V. Effective flexoelectric and flexomagnetic response of ferroics. In Recent Advances in Topological Ferroics and their Dynamics, Solid State Physics; Stamps, R.L., Schultheis, H., Eds.; Elsevier: London, UK, 2019; Volume 70, pp. 237–289. [Google Scholar]
- Zhang, J.X.; Zeches, R.J.; He, Q.; Chu, Y.H.; Ramesh, R. Nanoscale phase boundaries: A new twist to novel functionalities. Nanoscale
**2012**, 4, 6196–6204. [Google Scholar] [CrossRef] [PubMed] - Zhou, H.; Pei, Y.; Fang, D. Magnetic field tunable small-scale mechanical properties of nickel single crystals measured by nanoindentation technique. Sci. Rep.
**2014**, 4, 1–6. [Google Scholar] [CrossRef] - Ebrahimi, F.; Barati, M.R. Porosity-dependent vibration analysis of piezo-magnetically actuated heterogeneous nanobeams. Mech. Syst. Signal. Pr.
**2017**, 93, 445–459. [Google Scholar] [CrossRef] - Zenkour, A.M.; Arefi, M.; Alshehri, N.A. Size-dependent analysis of a sandwich curved nanobeam integrated with piezomagnetic face-sheets. Results Phys.
**2017**, 7, 2172–2182. [Google Scholar] [CrossRef] - Alibeigi, B.; Beni, Y.T. On the size-dependent magneto/electromechanical buckling of nanobeams. Eur. Phys. J. Plus
**2018**, 133, 398. [Google Scholar] [CrossRef] - Malikan, M. Electro-mechanical shear buckling of piezoelectric nanoplate using modified couple stress theory based on simplified first order shear deformation theory. Appl. Math. Model.
**2017**, 48, 196–207. [Google Scholar] [CrossRef] - Malikan, M.; Krasheninnikov, M.; Eremeyev, V.A. Torsional stability capacity of a nano-composite shell based on a nonlocal strain gradient shell model under a three-dimensional magnetic field. Int. J. Eng. Sci.
**2020**, 148, 103210. [Google Scholar] [CrossRef] - Sidhardh, S.; Ray, M.C. Flexomagnetic response of nanostructures. J. Appl. Phys.
**2018**, 124, 244101. [Google Scholar] [CrossRef] - Zhang, N.; Zheng, S.; Chen, D. Size-dependent static bending of flexomagnetic nanobeams. J. Appl. Phys.
**2019**, 126, 223901. [Google Scholar] [CrossRef] - Malikan, M.; Eremeyev, V.A. Free Vibration of Flexomagnetic Nanostructured Tubes Based on Stress-driven Nonlocal Elasticity. In Analysis of Shells, Plates, and Beams, 1st ed.; Altenbach, H., Chinchaladze, N., Kienzler, R., Müller, W.H., Eds.; Springer Nature: Basel, Switzerland, 2020; Volume 134, pp. 215–226. [Google Scholar]
- Song, X.; Li, S.-R. Thermal buckling and post-buckling of pinned–fixed Euler–Bernoulli beams on an elastic foundation. Mech. Res. Commun.
**2007**, 34, 164–171. [Google Scholar] [CrossRef] - Reddy, J.N. Nonlocal nonlinear formulations for bending of classical and shear deformation theories of beams and plates. Int. J. Eng. Sci.
**2010**, 48, 1507–1518. [Google Scholar] [CrossRef] - Fernández-Sáez, J.; Zaera, R.; Loya, J.A.; Reddy, J.N. Bending of Euler–Bernoulli beams using Eringen’s integral formulation: A paradox resolved. Int. J. Eng. Sci.
**2016**, 99, 107–116. [Google Scholar] [CrossRef][Green Version] - Feo, L.; Penna, R. On Bending of Bernoulli-Euler Nanobeams for Nonlocal Composite Materials. Model. Simul. Eng.
**2016**. [Google Scholar] [CrossRef][Green Version] - Ghannadpour, S. Ritz Method Application to Bending, Buckling and Vibration Analyses of Timoshenko Beams via Nonlocal Elasticity. J. Appl. Comput. Mech.
**2018**, 4, 16–26. [Google Scholar] - Demir, C.; Mercan, K.; Numanoglu, H.; Civalek, O. Bending Response of Nanobeams Resting on Elastic Foundation. J. Appl. Comput. Mech.
**2018**, 4, 105–114. [Google Scholar] - Jia, N.; Yao, Y.; Yang, Y.; Chen, S. Size effect in the bending of a Timoshenko nanobeam. Acta Mech.
**2017**, 228, 2363–2375. [Google Scholar] [CrossRef][Green Version] - Marotti de Sciarra, F.; Barretta, R. A new nonlocal bending model for Euler–Bernoulli nanobeams. Mech Res. Commun.
**2014**, 62, 25–30. [Google Scholar] [CrossRef] - Zenkour, A.M.; Sobhy, M. A simplified shear and normal deformations nonlocal theory for bending of nanobeams in thermal environment. Phys. E
**2015**, 70, 121–128. [Google Scholar] [CrossRef] - Yang, L.; Fan, T.; Yang, L.; Han, X.; Chen, Z. Bending of functionally graded nanobeams incorporating surface effects based on Timoshenko beam model. Theor. Appl. Mech. Lett.
**2017**, 7, 152–158. [Google Scholar] [CrossRef] - Lim, C.W.; Zhang, G.; Reddy, J.N. A Higher-order nonlocal elasticity and strain gradient theory and Its Applications in wave propagation. J. Mech. Phys. Solids
**2015**, 78, 298–313. [Google Scholar] [CrossRef] - Şimşek, M. Some closed-form solutions for static, buckling, free and forced vibration of functionally graded (FG) nanobeams using nonlocal strain gradient theory. Compos. Struct.
**2019**, 224, 111041. [Google Scholar] [CrossRef] - Karami, B.; Janghorban, M. On the dynamics of porous nanotubes with variable material properties and variable thickness. Int. J. Eng. Sci.
**2019**, 136, 53–66. [Google Scholar] [CrossRef] - Sahmani, S.; Safaei, B. Nonlinear free vibrations of bi-directional functionally graded micro/nano-beams including nonlocal stress and microstructural strain gradient size effects. Thin Wall. Struct.
**2019**, 140, 342–356. [Google Scholar] [CrossRef] - Karami, B.; Janghorban, M.; Rabczuk, T. Dynamics of two-dimensional functionally graded tapered Timoshenko nanobeam in thermal environment using nonlocal strain gradient theory. Compos. Part B-Eng.
**2020**, 182, 107622. [Google Scholar] [CrossRef] - Malikan, M.; Dimitri, R.; Tornabene, F. Transient response of oscillated carbon nanotubes with an internal and external damping. Compos. Part B-Eng.
**2019**, 158, 198–205. [Google Scholar] [CrossRef] - Malikan, M.; Eremeyev, V.A. On the dynamics of a visco-piezo-flexoelectric nanobeam. Symmetry
**2020**, 12, 643. [Google Scholar] [CrossRef][Green Version] - Malikan, M.; Eremeyev, V.A. Post-critical buckling of truncated conical carbon nanotubes considering surface effects embedding in a nonlinear Winkler substrate using the Rayleigh-Ritz method. Mater. Res. Express
**2020**, 7, 025005. [Google Scholar] [CrossRef] - Norouzzadeh, A.; Ansari, R.; Rouhi, H. Nonlinear Bending Analysis of Nanobeams Based on the Nonlocal Strain Gradient Model Using an Isogeometric Finite Element Approach. IJST-T Civ. Eng.
**2019**, 43, 533–547. [Google Scholar] [CrossRef] - Hashemian, M.; Foroutan, S.; Toghraie, D. Comprehensive beam models for buckling and bending behavior of simple nanobeam based on nonlocal strain gradient theory and surface effects. Mech. Mater.
**2019**, 139, 103209. [Google Scholar] [CrossRef] - Malikan, M.; Nguyen, V.B.; Tornabene, F. Damped forced vibration analysis of single-walled carbon nanotubes resting on viscoelastic foundation in thermal environment using nonlocal strain gradient theory. Eng. Sci. Technol. Int. J.
**2018**, 21, 778–786. [Google Scholar] [CrossRef] - Ebrahimi, F.; Dabbagh, A.; Tornabene, F.; Civalek, O. Hygro-thermal effects on wave dispersion responses of magnetostrictive sandwich nanoplates. Adv. Nano Res.
**2019**, 7, 157–167. [Google Scholar] - She, G.L.; Liu, H.B.; Karami, B. On resonance behavior of porous FG curved nanobeams. Steel Compos. Struct.
**2020**, 36, 179–186. [Google Scholar] - Ansari, R.; Sahmani, S.; Arash, B. Nonlocal plate model for free vibrations of single-layered graphene sheets. Phys. Lett. A
**2010**, 375, 53–62. [Google Scholar] [CrossRef] - Akbarzadeh Khorshidi, M. The material length scale parameter used in couple stress theories is not a material constant. Int. J. Eng. Sci.
**2018**, 133, 15–25. [Google Scholar] [CrossRef] - Malikan, M.; Eremeyev, V.A. A new hyperbolic-polynomial higher-order elasticity theory for mechanics of thick FGM beams with imperfection in the material composition. Compos. Struct.
**2020**, 249, 112486. [Google Scholar] [CrossRef] - Berrabah, H.M.; Tounsi, A.; Semmah, A.; Adda Bedia, E.A. Comparison of various refined nonlocal beam theories for bending, vibration and buckling analysis of nanobeams. Struct. Eng. Mech.
**2013**, 48, 351–365. [Google Scholar] [CrossRef] - Ansari, R.; Sahmani, S. Bending behavior and buckling of nanobeams including surface stress effects corresponding to different beam theories. Int. J. Eng. Sci.
**2011**, 49, 1244–1255. [Google Scholar] [CrossRef] - Dastjerdi, S.; Jabbarzadeh, M. Nonlinear bending analysis of bilayer orthotropic graphene sheets resting on Winkler–Pasternak elastic foundation based on non-local continuum mechanics. Compos. Part B-Eng.
**2016**, 87, 161–175. [Google Scholar] [CrossRef] - Reddy, J.N.; Pang, S.D. Nonlocal continuum theories of beams for the analysis of carbon nanotubes. J. Appl. Phys.
**2008**, 103, 023511. [Google Scholar] [CrossRef] - Ansari, R.; Sahmani, S.; Rouhi, H. Rayleigh–Ritz axial buckling analysis of single-walled carbon nanotubes with different boundary conditions. Phys. Lett. A
**2011**, 375, 1255–1263. [Google Scholar] [CrossRef] - Duan, W.H.; Wang, C.M. Exact solutions for axisymmetric bending of micro/nanoscale circular plates based on nonlocal plate theory. Nanotechnology
**2007**, 18, 385704. [Google Scholar] [CrossRef] - Duan, W.H.; Wang, C.M.; Zhang, Y.Y. Calibration of nonlocal scaling effect parameter for free vibration of carbon nanotubes by molecular dynamics. J. Appl. Phys.
**2007**, 101, 24305. [Google Scholar] [CrossRef] - Maranganti, R.; Sharma, P. Length scales at which classical elasticity breaks down for various materials. Phys. Rev. Lett.
**2007**, 98, 195504. [Google Scholar] [CrossRef][Green Version] - Stein, C.R.; Bezerra, M.T.S.; Holanda, G.H.A.; André-Filho, J.; Morais, P.C. Structural and magnetic properties of cobalt ferrite nanoparticles synthesized by co-precipitation at increasing temperatures. AIP Advan.
**2018**, 8, 056303. [Google Scholar] [CrossRef]

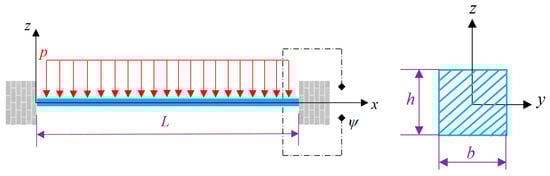

**Figure 1.**A square (b = h) PF-NB clamped at both ends and exposed to a lateral uniform static loading beside an external magnetic potential.

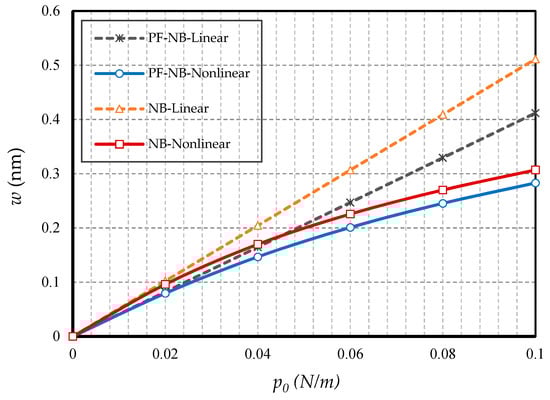

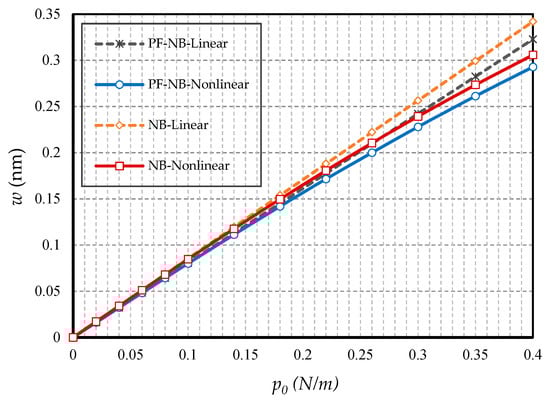

**Figure 2.**Transverse load vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, C-C).

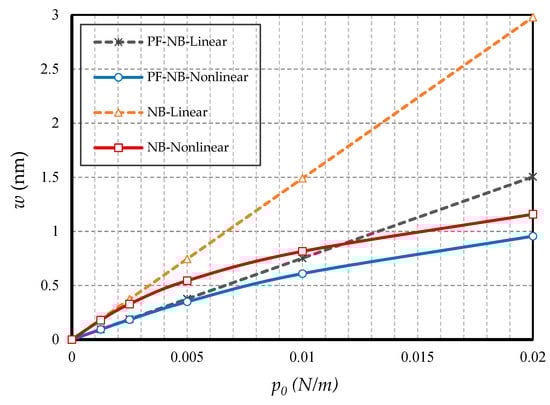

**Figure 3.**Transverse load vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, S-S).

**Figure 4.**Transverse load vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, C-F).

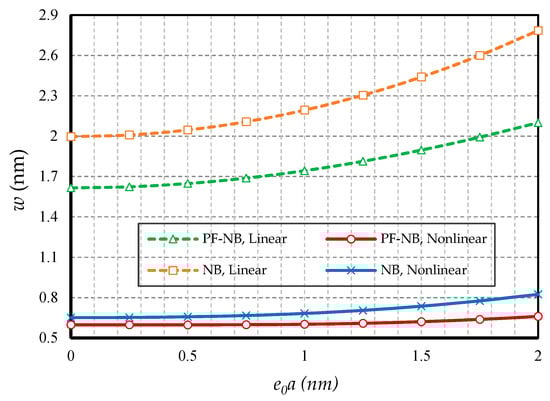

**Figure 5.**Nonlocal parameter vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, p

_{0}= 0.4 N/m, S-S).

**Figure 6.**Nonlocal parameter vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, p

_{0}= 0.02 N/m, C-F).

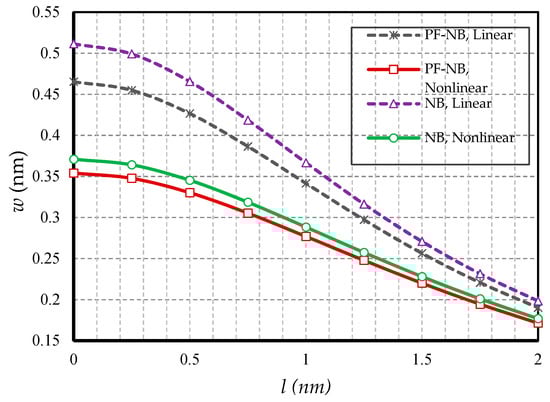

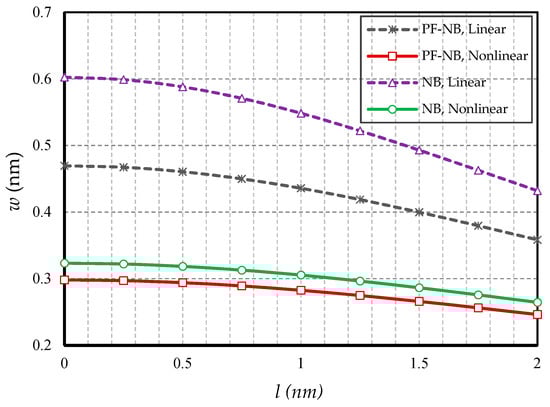

**Figure 7.**Strain gradient parameter vs. different cases of nanobeams (Ψ = 1 mA, e

_{0}a = 1 nm, p

_{0}= 0.4 N/m, C-C).

**Figure 8.**Strain gradient parameter vs. different cases of nanobeams (Ψ = 1 mA, e

_{0}a = 1 nm, p

_{0}= 0.1 N/m, S-S).

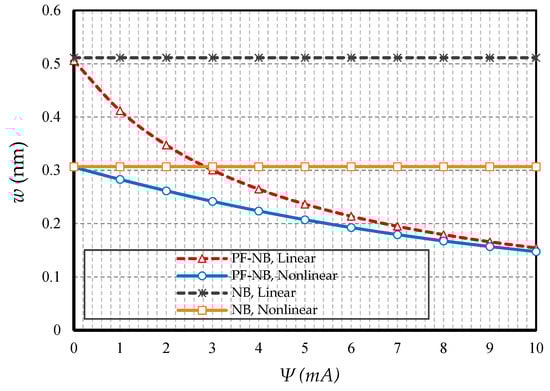

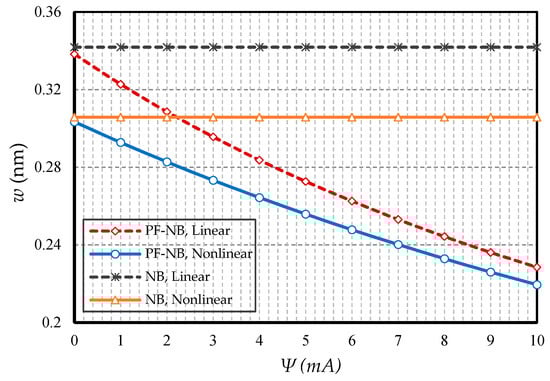

**Figure 9.**Magnetic potential parameter vs. different cases of nanobeams (l = 1 nm, e

_{0}a = 0.5 nm, p

_{0}= 0.4 N/m, C-C).

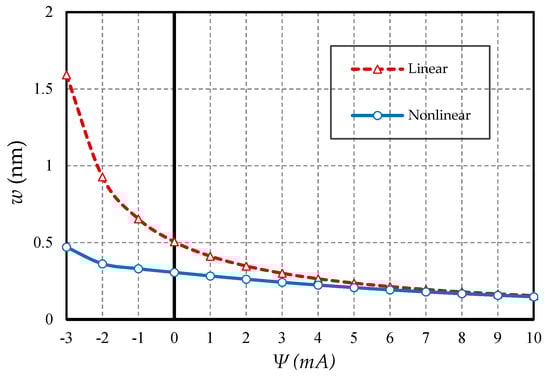

**Figure 10.**Magnetic potential parameter vs. different cases of nanobeams (l = 1 nm, e

_{0}a = 0.5 nm, p

_{0}= 0.1 N/m, S-S).

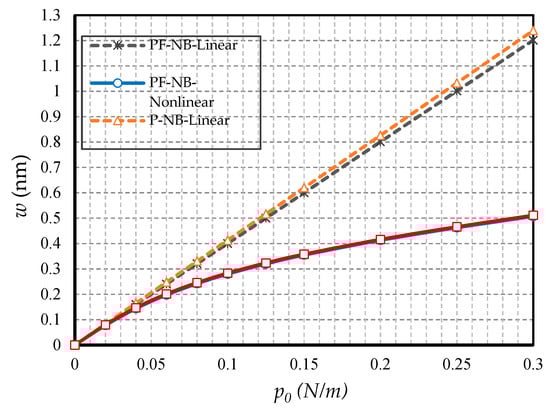

**Figure 11.**Magnetic potential parameter vs. PF nanobeams (l = 1 nm, e

_{0}a = 0.5 nm, p

_{0}= 0.1 N/m, S-S).

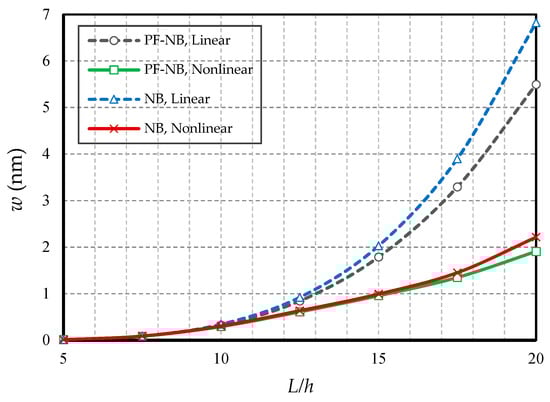

**Figure 12.**Slenderness ratio vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, p

_{0}= 0.4 N/m, C-C).

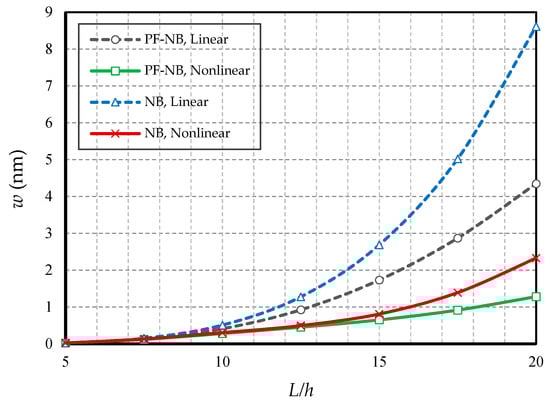

**Figure 13.**Slenderness ratio vs. different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, p

_{0}= 0.1 N/m, S-S).

**Figure 14.**Transverse load vs. deflection for different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, C-C).

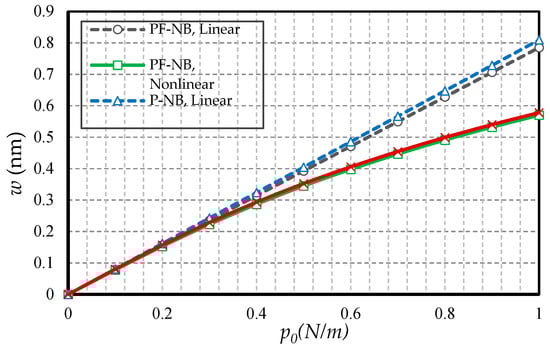

**Figure 15.**Transverse load vs. deflection for different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, S-S).

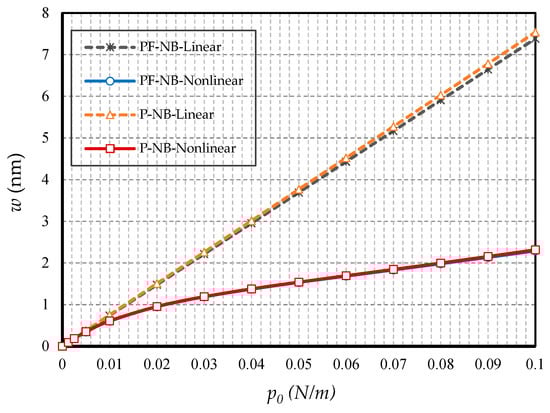

**Figure 16.**Transverse load vs. deflection for different cases of nanobeams (Ψ = 1 mA, l = 1 nm, e

_{0}a = 0.5 nm, C-F).

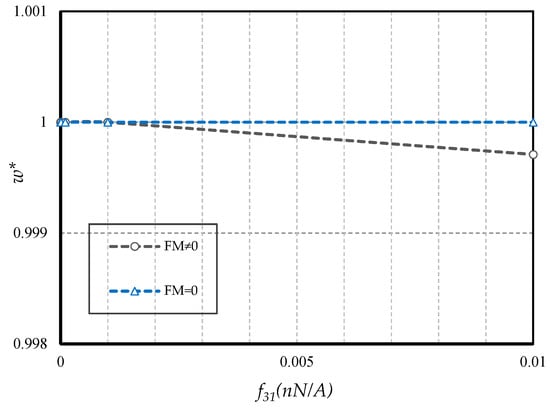

**Figure 17.**Presence and absence of flexomagnetic modulus for linear bending of a PF-NB (Ψ = 1 mA, l = 1 nm, e
