Ultra-Stable Polycrystalline CsPbBr3 Perovskite–Polymer Composite Thin Disk for Light-Emitting Applications

by
Saif M. H. Qaid
1,2,*,
Hamid M. Ghaithan
1,
Bandar Ali Al-Asbahi
1,3 and
Abdullah S. Aldwayyan
1,4,5
1
Physics and Astronomy Department, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
2
Department of Physics, Faculty of Science, Ibb University, Ibb 70270, Yemen
3
Department of Physics, Faculty of Science, Sana’a University, Sana’a 12544, Yemen
4
King Abdullah Institute for Nanotechnology, King Saud University, Riyadh 11451, Saudi Arabia
5
K.A. CARE Energy Research and Innovation Center at Riyadh, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(12), 2382; https://doi.org/10.3390/nano10122382
Submission received: 9 November 2020 / Revised: 24 November 2020 / Accepted: 27 November 2020 / Published: 29 November 2020
(This article belongs to the Section Inorganic Materials and Metal-Organic Frameworks)
Browse Figures
Versions Notes

Abstract

:
Organic–inorganic halide organometal perovskites have demonstrated very promising performance in optoelectronic applications, but their relatively poor chemical and colloidal stability hampers the further improvement of devices based on these materials. Perovskite material engineering is crucial for achieving high photoluminescence quantum yields (PLQYs) and long stability. Herein, these goals are attained by incorporating bulk-structure CsPbBr3, which prevents colloidal degradation, into polymethyl methacrylate (PMMA) polymer in thin-disk form. This technology can potentially realize future disk lasers with no optical and structural contributions from the polymer. The polycrystalline CsPbBr3 perovskite particles were simply obtained by using a mechanical processing technique. The CsPbBr3 was then incorporated into the PMMA polymer using a solution blending method. The polymer enhanced the PLQYs by removing the surface trap states and increasing the water resistance and stability under ambient conditions. In our experimental investigation, the CsPbBr3/PMMA composites were extraordinarily stable and remained strongly luminescent after water immersion for three months and air exposure for over one year, maintaining 80% of their initial photoluminescence intensity. The CsPbBr3/PMMA thin disk produced amplified spontaneous emission for a long time in air and for more than two weeks in water.

Graphical Abstract

1. Introduction

Organic–inorganic (hybrid) and inorganic lead halide perovskite materials have significant potential in optoelectronic applications, including solar cells, photodetectors, and light-emitting devices. Inorganic cations (CsPbX3, where X is a halide) are incorporated as the active materials in perovskite, mainly in light-emitting diodes but sometimes in photodetectors and solar cells. In light-emitting applications, inorganic perovskites show more promise than organic perovskites. In particular, CsPbX3 provides a short exciton radiative lifetime, long carrier diffusion length, excellent charge transport properties, narrow emission linewidth, and high photoluminescence (PL) quantum yields (PLQYs), and is more thermally stable than organic perovskites such as methylammonium PbX3 or formamidinium PbX3 [1,2,3,4,5,6]. However, owing to their ionic nature, perovskite crystals are sensitive to moisture and air, and have a low melting temperature. This instability hinders their applications in general [7,8,9], and impedes the further development of CsPbX3 in optoelectronics applications. To improve the stability of perovskite in the ambient atmosphere, we must research and develop some protective strategies such as surface passivation and encapsulation of perovskite in organic polymer matrices or polymer blends, and in mesoporous inorganic dielectric materials [1,8,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. The protective materials should be compatible with perovskite, and transparent to preserve the optical properties [28,29,30,31]. These requirements can be met by using PMMA polymers. Although bulk-structure perovskites offer some advantages, nanoscale perovskite provides additional advantages by virtue of its high crystallinity, itself conferred by reduced trap density and enhanced mechanical stability. Nevertheless, bulk perovskites as optical amplifiers remain promising, with some developmental growth.
Next-generation displays and lighting technologies require efficient optical sources that combine brightness, color purity, stability, and substrate flexibility.
In light-amplification applications, population inversion requires a very strong optical pumping regime of the active layers. Moreover, to reduce the cost of optically or electrically pumped devices, long excitation pulses (at least at the nanosecond scale) are required. Continuous-wave excitation, requiring thermally stable materials, is desired. A powerful strategy that improves the active-layer stability is thus demanded.
Material engineering of perovskites is crucial for achieving highly luminescent PL properties. The optical properties of a material depend on the crystal structure, composition, domain size, and surface chemistry of the material.
In this work, we investigate the feasibility of CsPbBr3 thin disks in light-emitting applications and as a gain medium. The CsPbBr3 was incorporated into the polymer PMMA by the solution blending method. Polycrystalline CsPbBr3 perovskite particles were simply synthesized using a mechanical processing technique. The resulting composition will help in developing a new class of thin-disk composites for ultrastable efficient light emission, without requiring nanoparticles. The structural and optical properties of the thin disks were determined by using various characterization techniques. The perovskite incorporation improved the active material of the thin disk, and hence the maintenance of their optical properties. The thin disk exhibited a low amplified spontaneous emission (ASE) threshold, and remained stable for more than one year in air. It was also strongly resistant to water. Therefore, CsPbBr3/PMMA thin disks are a potential route to thin-disk lasers.

2. Materials and Methods

2.1. Materials

Lead(II) bromide (PbBr2, 99.999% trace metals basis) and cesium bromide (CsBr, 99.999% trace metals basis) were purchased from Sigma Aldrich (Saint Louis, MO, USA). Polymethyl methacrylate (PMMA) was purchased from Sigma-Aldrich (Saint Louis, MO, USA) and was used as received. All materials were dissolved in toluene solution with a purity of 99.8% (Fluka, Buchs, Switzerland). All chemicals were used without further purification.

2.2. Synthesis of PMMA Polymer and CsPbBr3 Perovskite Thin Disk

Polycrystalline CsPbBr3 perovskite particles were obtained by a mechanical processing technique. In this method, a 1:1 molar ratio of the CsPbBr3 primary components—PbBr2 (367.01 mg; 1 mmol) and CsBr (212.81 mg; 1 mmol)—were mixed by grinding both components in a mortar for over one hour, yielding a polycrystalline material. The synthesis was conducted in air.
Next, the PMMA polymer (which is compatible with CsPbBr3) was diluted in a nonpolar solvent (toluene). After mixing the polymer in solvent with CsPbBr3 (10 mg/mL), the mixture was poured into a flat petri dish. The dish was covered with a cap (this step was mandatory) with a small opening for slow drying at room temperature. After a few days, the thin disk was dried and ready for use. When 1.8 g of PMMA polymer, 15 mL of solvent, and 1 mL of CsPbBr3 (10 mg/mL) were mixed and poured into a standard petri dish with an approximate diameter of 9 cm, the resulting film was 0.25–0.35 mm thick. The quantity of the mixture can be increased to form a 1 mm-thick disk.

2.3. Characterization of the Thin Disk

Structural Characterization: The crystal phases of the thin disk were characterized by using X-ray diffraction (XRD) on an X-ray diffraction system (Miniflex 600, Rigaku, Japan) with copper Kα radiation (λ = 1.5418 Å). The scanning angle (2θ) was ranged from 10° to 80° at a scanning rate (step size) of 0.02° at 3°/min−1.
Optical Characterization: For optical characterization, the absorption spectra of the samples were recorded by an ultraviolet–visible (UV–vis) spectrophotometer (V-670, JASCO, Tokyo, Japan), and the PL spectra were measured under a continuous wave (CW) 471-nm laser.
ASE Measurements: To investigate the ASE and lasing properties of the thin disk, the power-dependent ASE spectra were collected at the sample edges near the ends of the excitation strips. For this propose, the pumping laser beam was focused to a radius of ~2 mm through a reflective microscope objective lens with a focal length of 10 cm, to reduce the divergence loss of the laser signal. The excitation beam from the laser unit has a beam diameter of ~1 cm. The sample was placed on a 6-degree-of-freedom adjustable stage.
Next, the laser beam was focused on the sample surface by using a cylindrical lens to form a rectangular stripe. The emission is collected at an angle of 90 degrees with respect to the optical axis set by the excitation laser beam. This geometry of the measurement maximizes the efficiency of the emission collection from the sample and reduces the background due to the excitation light. The amplification degree in the edge emission was much larger than that in the surface emission due to the much longer optical pass in the edge emission configuration, even though their optical gains were identical. Then, the signals emitted by the samples were directed through an optical fiber optic-coupled compact unit (Ocean Optics QE65 Pro, Dunedin, FL, USA). The energy density of the pumping laser was adjusted using a variable neutral-density filter wheel. The energy of the laser was measured using an LM-P-209 coherent thermal sensor head. By attenuating the laser energy density, we could study the effect of laser energy on the detection threshold.
Excitation was elicited by the third harmonic generation of a LOTUS II Q-switched Nd: YAG picosecond laser (LOTIS, Minsk, Belarus), with a pulse duration of 70–80 ps at a repetition rate of 15 Hz. The signals emitted by the samples were directed through an optical fiber and a collimating lens. In the lasing and ASE measurements, the detector was a QE65 Pro spectrograph (Ocean Optics QE65 Pro, Dunedin, FL, USA) with a spectral resolution of 0.78 nm. All measurements were performed in air at room temperature (293 K).
Time-Resolved PL Measurements: The time-resolved PL measurements were performed under excitation by the third harmonic (355 nm) of a pulsed laser. Special filters were used to cut the laser excitation pulse from the detector and to select the wavelength emitted from the sample. The emission light was collected through a lens and focused on a sufficiently sensitive fast photodiode (APD110). The time-scale decays were measured by a fast Tektronix TDS 380 two-channel digital real-time oscilloscope (bandwidth 400 MHz, sample rate 2 GS/s) operating in singles hot mode, which also provided the data output. The time base was 1ns to 5s/div with ±0.01% accuracy and 2000 sample/second.
Data Analysis: The large amount of data collected in the study were analyzed by a customized Python-based program developed by our research group. This program rapidly provided the Gaussian fits of dual PL emission peaks in multiple data files.

3. Results

3.1. Structural Characterization

The CsPbBr3 perovskite was prepared by a mechanical route that yielded perovskite particles in powder form. The X-ray diffraction (XRD) spectra of the synthesized perovskite particles are presented in Figure 1. This figure compares the X-ray diffraction patterns of CsPbBr3 simulated by density functional theory (DFT), the CsPbBr3 thin film formed in the thermal evaporation system, grounded CsPbBr3 powder, and the CsPbBr3/PMMA thin disk. The simulated XRD patterns were calculated in VESTA software using the lattice parameters with a Pnma space group, which describes the orthorhombic structure of CsPbBr3 perovskite at room temperature with a size of several hundred nanometers [32,33,34,35,36,37,38,39,40,41]. The XRD peaks of the perovskite particles prepared by the mechanical route closely matched those of CsPbBr3 perovskite thin-film material formed by a different synthesis method (namely, by thermal evaporation).
In the XRD patterns of the sample prepared by the mechanical route of perovskite and the CsPbBr3/PMMA thin disk, the peaks at 16.62°, 20.92°, and 43.14° ideally matched those of the simulated XRD pattern (Figure 1), which identifies the CsPbBr3 phase of perovskite as the majority constituent with no evidence to formed the Cs4PbBr6 phase [42,43,44], which is in very good agreement with the values reported in the literature [42,43,44]. The dominant phase of 3D CsPbBr3 perovskite can be confirmed by the present of the pervious XRD patterns. The absence of a peak at 2θ = 12.80° gives additional evidence for that the 0D phase (Cs4PbBr6) was not formed. The slight differences in the relative intensities of the XRD peaks of the perovskite materials made by different procedures can be explained by changes in the crystal orientations of the samples. No detectable amounts of the starting CsBr and PbBr2 materials were observed. Also, minor displacements in the peak positions can be attributed to the formation of additional crystal structures, indicating the coexistence of two closely spaced lattice planes, rather than to the formation of additional phases. This confirmed that the single crystalline phase was formed. The peaks can also be displaced by the high quantity of non-crystalline PMMA in the composite (CsPbBr3/PMMA = 0.56 wt.%). Interestingly, the XRD peaks clearly differed in their sharpness. These differences are associated with the particle sizes, which were deduced from the full width at half maximum (FWHM) of the peaks using the Scherrer equation. The calculated CsPbBr3 particle sizes are listed in Table 1. More grain-sized particles appeared in the CsPbBr3/PMMA state than in the powder form. Despite this, these findings reveal that PMMA has a very minor effect on the crystallization of CsPbBr3 which is attributed to the fact that the grain size in both states was comparable and in the range of experimental errors.
As demonstrated by the powder X-ray diffraction measurements, the mechanical synthesis strategy yielded high-quality crystalline CsPbBr3 material.

3.2. Optical Characterization

The optical properties of the synthesized perovskite CsPbBr3/PMMA thin disk were characterized by steady-state absorption and PL spectroscopy. The optical absorbance spectra of the thin disk were recorded in the 300–650 nm region of the electromagnetic spectrum (see Figure 2). The absorption curve exhibited three broad features: A sub-bandgap absorption tail at low energy, followed by a strong exciton peak, followed by band-to-band transitions [45,46]. A broad absorption band with an exciton peak position at 2.30 eV was observed, and analysis of the UV-Visible absorption spectra confirmed a direct band gap of 2.30 eV (as discussed later). This finding also confirmed the presence of the 3D CsPbBr3 perovskite with dominant single crystalline phase, due to the absence peak at 324 nm, which related to the band–band excitation of 0D Cs4PbBr6 crystal [42,47]. This observation is in a good agreement with the pervious XRD results. Green fluorescence was observed by the naked eye (see the photographs of the thin disk taken under natural and UV lights in Figure 2, insets).
The absorption coefficient α can be investigated through the Tauc relation. The direct and indirect transitions in the band gap of the material are then obtained by analyzing the optical absorption spectrum and applying the following formula [48]:
αhν = C(hν − Eg)n with α = 2.303A/d,
where A and d are the absorbance and thickness of the film, respectively, h is Planck’s constant, ν is the incident radiation frequency, C is a constant that depends on the transition probability, Eg is the energy band gap, and n = 1/2 and 2 for direct and indirect band gaps, respectively. The α spectrum thus derived from the absorption spectra is shown in Figure 3a. The low value of α (103 cm–1) is attributable to the disk thickness. Assuming a direct bandgap, the band gap energy Eg of the perovskite thin disk was estimated from the intercept of the obtained straight lines at zero absorption, as shown in Figure 3b. The absorption of the sample corresponded to a direct energy band gap of 2.30 eV. The absorption and PL parameters are summarized in Table 2.

Steady-State and Time-Resolved Photoluminescence (PL) Analysis

Figure 4 displays the steady-state PL spectra (black curve), the ASE spectrum (green curve), and the time-resolved PL of the CsPbBr3 thin disk. From these data, we can investigate the radiative recombination behavior, PL dynamics, and the defect healing effect in the sample. Figure 4a shows the normalized PL spectra in the low and high injection cases. The FWHM of the emissions decreased from 16.37 nm at low injection (spontaneous emission) to 7.88 nm at high injection (stimulated emission). The PL peak of the CsPbBr3/polymer thin disk (at 534 nm) was slightly redshifted from that of pure CsPbBr3 (at 520 nm). The redshift can be attributed to the aggregation of perovskite particles, which facilitates non-radiative recombination.
The difference between the peak energy of the PL before ASE threshold (spontaneous emission) and the ASE peak energy at the ASE threshold was 30 meV, indicating a high binding energy. Such an energy shift of the ASE relative to the spontaneous emission is usually considered to indicate the type of the transition mechanism from spontaneous emission to ASE. In our recent report [49], we referred to the fact that there are many factors that could have been responsible for the ASE red shifts, such as a re-absorbance effect, thermal effects, defect transitions, and bandgap renormalization.
The time-resolved PL studies were conducted under a low-fluence laser excitation pulse to avoid saturation effects. Representative time-resolved PL data are shown in Figure 4b. Each PL lifetime τi and its fractional amplitudes ai were analyzed using the tri-exponential model. The PL decay profile was fitted at the peak position to the tri-exponential decay formula I (t) = a1 exp(−t/τ1) + a2 exp(−t/τ2) + a3 exp(−t/τ3), and the average lifetime was calculated as τavg = ∑aiτi2/∑aiτi. By utilizing fractional intensities (aiτi), this method diminishes the influence of the fastest decay dynamics and increases the reliably of analysis. In the decay formula, τ1 and τ2 are the short-lived lifetime attributed to trap-assisted and contributed by surface-state non-radiative recombination, τ3 is the long-lived lifetime radiative recombination, and a1, a2, and a3 are the fractions of the three contributions [50,51,52]. The multiple lifetime components correspond to different conformations. The model fitting parameters are listed in Table 3.
The fast-decay components (short-lived lifetime) τ1, a1 and τ2, a2 are related to the trap-assisted non-radiative recombination at the grain boundaries, whereas the slow-decay components (long-lived lifetime) τ3 and a3 are related to radiative recombination inside the grains [50,51,52]. The fastest decay has very large fractional amplitude, and its dynamics provide little contribution to the total PL intensity, but it does markedly influence the fractional amplitudes of longer lifetimes, which is in a good agreement with literature [52]. The time-resolved single-photon counting measurements revealed that 58% of the charges recombined with a lifetime of 2.26 ns. The average PL decay time was around 35 ns. These data clearly indicate that under high injection conditions, increases in the steady-state PL signal do not necessarily correlate with decreased surface recombination rates.

3.3. Amplified Spontaneous Emission (ASE)

By analyzing the ASEs properties, we could examine the suitability of the CsPbBr3/PMMA thin disk as a gain medium when pumped to produce a population inversion. A cavity-free configuration allows the identification of behavioral variations induced by the material, rather than by the resonant cavity. To determine the ASE properties of the CsPbBr3 thin disk, we increased the pump fluence of the ASE measurements (Figure 5). At low pump energy, the PL spectrum was broad and featureless, but when the pump energy exceeded a critical point called the ASE threshold, a sharp and narrow peak appeared, indicating the occurrence of the transition from spontaneous emission to stimulated emission (ASE state), with the absence of standing longitudinal modes assessed using a laser resonator. The energy density threshold of ASE pumping was determined by the simultaneous occurrence of three phenomena: spectral narrowing of the emission, a nonlinear increase in emission intensity versus pump energy density, and an ASE peak near the long-wavelength region of the spontaneous emission, which grew very rapidly. The ASE parameters are listed in Table 4.
The onset of stimulated emission in the CsPbBr3/PMMA thin disk manifested as an immediate increase in the ASE intensity and a narrowing of the emission spectrum (FWHM ≈ 10 nm) over the threshold pumping range. The ASE generated at 537 nm shifted to 541 nm. The ASE peak (4 nm) was redshifted from the PL peak, as shown in Figure 6. However, when the pump energy increases above the ASE threshold, a redshifted peak has multiple causes, such as thermal effects, defect transitions [53], and band gap renormalization in the highly excited perovskite crystal [54], whereby the band gap is redshifted by hole–electron interactions under high population conditions. Moreover, as suggested by the re-absorption effect arising from the overlap of the absorption band edge with the PL emission (spontaneous emission spectrum) (Figure 2), the self-absorption effect should contribute to the ASE state [55].

Stability Studies

To examine the water resistance and UV degradation of the CsPbBr3/PMMA thin disk, the disk was immersed in a water bath and exposed to UV-lamp excitation for five hours. Figure 7a plots the PL intensity as a function of immersion time. The PL intensities dropped to 50% after 4 months. Meanwhile, Figure 7b displays the time-dependent PL intensity of the CsPbBr3/PMMA thin disk under UV excitation for five hours in air. The PL of the perovskites degraded under the UV illumination due to reactions with air, causing photo-oxidation.
The thermal stability, another crucial index of the CsPbBr3/PMMA composite, was examined by monitoring the PL spectra under thermal effects. The experimental was carried out in Liquid Helium Cooled Cryostat (~10–300 K). To determine the thermal response of the sample, we plotted the temperature-dependent PL intensity of the composite during heating and cooling (Figure 7c). In this analysis, the composite disk was heated to 120 °C, and then cooled to room temperature (20 °C). The thermal stability was reflected in the PL spectra. The PL intensity of the composite decreased and increased as the temperature was raised and lowered, respectively. After cooling from 120 °C to 20 °C, the PL intensity was less than 40% of its initial value. Through repetition of the thermal cycle, the PL intensity exhibited a similar trend and the PL peak became stronger with increasing the cycles. By noting that the PL lost 30% of its original intensity compared to 40% in the first cycle. This decrease in the PL intensity is expected due to the reduction in the weight ratio of CsPbBr3/PMMA (<1 wt.%) and for heating over of the Tg. The polymer-dependent thermal stability is correlated with the glass transition temperature Tg of the polymer (Tg = 105 °C for PMMA polymer) [50]. The Tg is an important determiner of structural integrity and geometry. Below the Tg of the polymer, the composite is nearly rigid because the polymer chains are frozen, whereas at the Tg, the polymer was deformed. This phenomenon explains the low decay rate of the PL intensity upon heating and the high reversibility below 120 °C. The Tg of the CsPbBr3/PMMA composite was determined at 115 °C, where the plastic deformation was started. The Tg of the CsPbBr3/PMMA composite was lower than in previous reports [50] because the weight ratio (0.56 wt.%) differed in our study.
Finally, the CsPbBr3/PMMA thin disk achieved continuous ASE operational stability against photo-degradation and high optical gain characteristics. In general, photo-stability is evaluated by recording the time course of the total ASE intensity emitted under a constant pump intensity just above the threshold. Photo-degradation is detected as a decrease in the total ASE output. Figure 7d shows the ASE results of the thin disk. After 68,700 shots, the ASE intensity of the CsPbBr3/PMMA thin disk decreased to 73% of its initial value. Therefore, we can expect a long ASE lifetime (1/e) when the CsPbBr3/PMMA composite operates in air, which demonstrates the remarkable photo-stability of the composite.

4. Conclusions

We investigated the feasibility of the CsPbBr3 thin disk in light-emitting applications and as a gain medium. The polycrystalline CsPbBr3 perovskite particles were obtained by a simple mechanical processing technique. The CsPbBr3 was then incorporated into the polymer PMMA using a solution blending method, and the composite was formed into a thin disk. The structural and optical properties of the CsPbBr3/PMMA composite were investigated by different characterization techniques. Next, the role of CsPbBr3 perovskite incorporated into PMMA was investigated by examining the ASE properties and optical response of bulk-phase perovskite CsPbBr3. Judging from the ASE of the CsPbBr3 disk, efficient light emission can be achieved not only by using CsPbBr3 perovskite nanoparticles, but also by using bulk CsPbBr3 perovskite. We found that incorporating perovskite into the polymer improves the properties of the active material; consequently, the optical properties of the CsPbBr3/PMMA thin disk were well maintained. The ASE threshold was low and the ASE output remained stable for over one year in air. Furthermore, the thin disk was water resistant. The resulting composition promises a new class of thin-disk composites (alternative to nanoparticles) with ultrastable efficient light emission. This work demonstrates a potential approach for fabricating thin-disk lasers.

Author Contributions

Conceptualization, S.M.H.Q. and A.S.A.; methodology, S.M.H.Q. and A.S.A.; software, S.M.H.Q. and H.M.G.; validation, S.M.H.Q. and A.S.A.; formal analysis, S.M.H.Q. and H.M.G.; investigation, S.M.H.Q., H.M.G., B.A.A.-A., and A.S.A.; resources, S.M.H.Q. and A.S.A.; data curation, S.M.H.Q. and H.M.G.; writing—original draft preparation, S.M.H.Q.; writing—review and editing, H.M.G., A.S.A., S.M.H.Q., and B.A.A.-A.; visualization, S.M.H.Q.; supervision, S.M.H.Q. and A.S.A.; project administration, S.M.H.Q. and A.S.A.; funding acquisition, S.M.H.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

The authors extend their appreciation to the Deputyship for Research and Innovation, “Ministry of Education” in Saudi Arabia for funding this research work through the project number IFKSURG-1440-038.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qaid, S.M.H.; Al-Asbahi, B.A.; Ghaithan, H.M.; AlSalhi, M.S.; Al dwayyan, A.S. Optical and structural properties of CsPbBr3 perovskite quantum dots/PFO polymer composite thin films. J. Colloid Interface Sci. 2020, 563, 426–434. [Google Scholar] [CrossRef] [PubMed]
  2. Al-Asbahi, B.A.; Qaid, S.M.H.; Hezam, M.; Bedja, I.; Ghaithan, H.M.; Aldwayyan, A.S. Effect of deposition method on the structural and optical properties of CH3NH3PbI3 perovskite thin films. Opt. Mater. 2020, 103, 109836. [Google Scholar] [CrossRef]
  3. Kojima, A.; Teshima, K.; Shirai, Y.; Miyasaka, T. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J. Am. Chem. Soc. 2009, 131, 6050–6051. [Google Scholar] [CrossRef] [PubMed]
  4. Kumawat, N.K.; Gupta, D.; Kabra, D. Recent Advances in Metal Halide-Based Perovskite Light-Emitting Diodes. Energy Technol. 2017, 5, 1734–1749. [Google Scholar] [CrossRef] [Green Version]
  5. Dou, L.; Yang, Y.M.; You, J.; Hong, Z.; Chang, W.-H.; Li, G.; Yang, Y. Solution-processed hybrid perovskite photodetectors with high detectivity. Nat. Commun. 2014, 5, 5404. [Google Scholar] [CrossRef]
  6. Qaid, S.M.H.; Khan, M.N.; Alqasem, A.; Hezam, M.; Aldwayyan, A. Restraining effect of film thickness on the behaviour of amplified spontaneous emission from methylammonium lead iodide perovskite. IET Optoelectron. 2018, 13, 2–6. [Google Scholar] [CrossRef]
  7. Wei, Z.; Perumal, A.; Su, R.; Sushant, S.; Xing, J.; Zhang, Q.; Tan, S.T.; Demir, H.V.; Xiong, Q. Solution-processed highly bright and durable cesium lead halide perovskite light-emitting diodes. Nanoscale 2016, 8, 18021–18026. [Google Scholar] [CrossRef]
  8. Liu, Z.; Zhang, Y.; Fan, Y.; Chen, Z.; Tang, Z.; Zhao, J.; Lv, Y.; Lin, J.; Guo, X.; Zhang, J.; et al. Toward Highly Luminescent and Stabilized Silica-Coated Perovskite Quantum Dots through Simply Mixing and Stirring under Room Temperature in Air. ACS Appl. Mater. Interfaces 2018, 10, 13053–13061. [Google Scholar] [CrossRef]
  9. Xin, Y.; Zhao, H.; Zhang, J. Highly Stable and Luminescent Perovskite-Polymer Composites from a Convenient and Universal Strategy. ACS Appl. Mater. Interfaces 2018, 10, 4971–4980. [Google Scholar] [CrossRef]
  10. Yassitepe, E.; Yang, Z.; Voznyy, O.; Kim, Y.; Walters, G.; Castañeda, J.A.; Kanjanaboos, P.; Yuan, M.; Gong, X.; Fan, F.; et al. Amine-Free Synthesis of Cesium Lead Halide Perovskite Quantum Dots for Efficient Light-Emitting Diodes. Adv. Funct. Mater 2016, 26, 8757–8763. [Google Scholar] [CrossRef]
  11. Cai, Y.; Wang, L.; Zhou, T.; Zheng, P.; Li, Y.; Xie, R.J. Improved stability of CsPbBr3 perovskite quantum dots achieved by suppressing interligand proton transfer and applying a polystyrene coating. Nanoscale 2018, 10, 21441–21450. [Google Scholar] [CrossRef] [PubMed]
  12. Li, Z.; Kong, L.; Huang, S.; Li, L. Highly Luminescent and Ultrastable CsPbBr 3 Perovskite Quantum Dots Incorporated into a Silica/Alumina Monolith. Angew. Chemie 2017, 129, 8246–8250. [Google Scholar] [CrossRef]
  13. Yoon, H.C.; Lee, S.; Song, J.K.; Yang, H.; Do, Y.R. Efficient and Stable CsPbBr 3 Quantum-Dot Powders Passivated and Encapsulated with a Mixed Silicon Nitride and Silicon Oxide Inorganic Polymer Matrix. ACS Appl. Mater. Interfaces 2018, 10, 11756–11767. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, H.-C.; Lin, S.-Y.; Tang, A.-C.; Singh, B.P.; Tong, H.-C.; Chen, C.-Y.; Lee, Y.-C.; Tsai, T.-L.; Liu, R.-S. Mesoporous Silica Particles Integrated with All-Inorganic CsPbBr 3 Perovskite Quantum-Dot Nanocomposites (MP-PQDs) with High Stability and Wide Color Gamut Used for Backlight Display. Angew. Chemie 2016, 128, 8056–8061. [Google Scholar] [CrossRef]
  15. Li, Z.J.; Hofman, E.; Li, J.; Davis, A.H.; Tung, C.H.; Wu, L.Z.; Zheng, W. Photoelectrochemically active and environmentally stable cspbbr3/tio2 core/shell nanocrystals. Adv. Funct. Mater. 2018, 28, 1704288. [Google Scholar] [CrossRef]
  16. Leijtens, T.; Lauber, B.; Eperon, G.E.; Stranks, S.D.; Snaith, H.J. The importance of perovskite pore filling in organometal mixed halide sensitized TiO2-based solar cells. J. Phys. Chem. Lett. 2014, 5, 1096–1102. [Google Scholar] [CrossRef]
  17. Chen, X.; Li, D.; Pan, G.; Zhou, D.; Xu, W.; Zhu, J.; Wang, H.; Chen, C.; Song, H. All-inorganic perovskite quantum dot/TiO2 inverse opal electrode platform: Stable and efficient photoelectrochemical sensing of dopamine under visible irradiation. Nanoscale 2018, 10, 10505–10513. [Google Scholar] [CrossRef]
  18. Qaid, S.M.H.; Alharbi, F.H.; Bedja, I.; Nazeeruddin, M.K.; Aldwayyan, A.S. Reducing amplified spontaneous emission threshold in CsPbBr3 quantum dot films by controlling TiO2 compact layer. Nanomaterials 2020, 10, 1605. [Google Scholar] [CrossRef]
  19. Meyns, M.; Perálvarez, M.; Heuer-Jungemann, A.; Hertog, W.; Ibáñez, M.; Nafria, R.; Genç, A.; Arbiol, J.; Kovalenko, M.V.; Carreras, J.; et al. Polymer-Enhanced Stability of Inorganic Perovskite Nanocrystals and Their Application in Color Conversion LEDs. ACS Appl. Mater. Interfaces 2016, 8, 19579–19586. [Google Scholar] [CrossRef] [Green Version]
  20. Nishida, M. Energy Distribution of Dangling-Orbital Surface States on the (110) Surface of III-V Compounds. Phys. Status Solidi 1980, 99, K39–K43. [Google Scholar] [CrossRef]
  21. Wang, L.; Wu, K.; Dong, Q.M.; Li, X.Y.; Xiong, S.Y.; Xu, L.T.; Liang, P. Effect of surface passivation on optical and electronic properties of ultrathin silicon nanosheets. Sci. China Inf. Sci. 2012, 55, 1469–1474. [Google Scholar] [CrossRef]
  22. Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Krieg, F.; Caputo, R.; Hendon, C.H.; Yang, R.X.; Walsh, A.; Kovalenko, M.V. Nanocrystals of Cesium Lead Halide Perovskites (CsPbX3, X = Cl, Br, and I): Novel Optoelectronic Materials Showing Bright Emission with Wide Color Gamut. Nano Lett. 2015, 15, 3692–3696. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wang, Y.; He, J.; Chen, H.; Chen, J.; Zhu, R.; Ma, P.; Towers, A.; Lin, Y.; Gesquiere, A.J.; Wu, S.T.; et al. Ultrastable, Highly Luminescent Organic–Inorganic Perovskite–Polymer Composite Films. Adv. Mater. 2016, 28, 10710–10717. [Google Scholar] [CrossRef] [PubMed]
  24. Zhou, Q.; Bai, Z.; Lu, W.G.; Wang, Y.; Zou, B.; Zhong, H. In Situ Fabrication of Halide Perovskite Nanocrystal-Embedded Polymer Composite Films with Enhanced Photoluminescence for Display Backlights. Adv. Mater. 2016, 28, 9163–9168. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Y.; Lv, Y.; Guo, Z.; Dong, L.; Zheng, J.; Chai, C.; Chen, N.; Lu, Y.; Chen, C. One-Step Preparation of Long-Term Stable and Flexible CsPbBr3 Perovskite Quantum Dots/Ethylene Vinyl Acetate Copolymer Composite Films for White Light-Emitting Diodes. ACS Appl. Mater. Interfaces 2018, 10, 15888–15894. [Google Scholar] [CrossRef] [PubMed]
  26. Shen, X.; Sun, C.; Bai, X.; Zhang, X.; Wang, Y.; Wang, Y.; Song, H.; Yu, W.W. Efficient and Stable CsPb(Br/I)3@Anthracene Composites for White Light-Emitting Devices. ACS Appl. Mater. Interfaces 2018, 10, 16768–16775. [Google Scholar] [CrossRef] [PubMed]
  27. Liao, H.; Guo, S.; Cao, S.; Wang, L.; Gao, F.; Yang, Z.; Zheng, J.; Yang, W. A General Strategy for In Situ Growth of All-Inorganic CsPbX3 (X = Br, I, and Cl) Perovskite Nanocrystals in Polymer Fibers toward Significantly Enhanced Water/Thermal Stabilities. Adv. Opt. Mater. 2018, 6, 1800346. [Google Scholar] [CrossRef]
  28. Gao, Y.; Guo, N.; Gauvreau, B.; Rajabian, M.; Skorobogata, O.; Pone, E.; Zabeida, O.; Martinu, L.; Dubois, C.; Skorobogatiy, M. Consecutive solvent evaporation and co-rolling techniques for polymer multilayer hollow fiber preform fabrication. J. Mater. Res. 2006, 21, 2246–2254. [Google Scholar] [CrossRef]
  29. Skorobogatiy, M. Efficient antiguiding of TE and TM polarizations in low-index core waveguides without the need for an omnidirectional reflector. Opt. Lett. 2005, 30, 2991. [Google Scholar] [CrossRef]
  30. Ramnath, L.; DaCosta, S.; Akong, S.; Hassanali, H.; Omonze, D.; Powers, J.T. Fiber optics profiles real-time temperature across horizontal lateral. Oil Gas J. 2003, 101, 33–40. [Google Scholar]
  31. Henry, A.C.; Tutt, T.J.; Galloway, M.; Davidson, Y.Y.; McWhorter, C.S.; Soper, S.A.; McCarley, R.L. Surface modification of poly(methyl methacrylate) used in the fabrication of microanalytical devices. Anal. Chem. 2000, 72, 5331–5337. [Google Scholar] [CrossRef] [PubMed]
  32. Sandor, E.; Wooster, W.A. Crystal Structure and Photoconductivity of Cæsium Plumbohalides. Nature 1958, 182, 1436. [Google Scholar]
  33. Rodova, M.; Brozek, J.; Knizek, K.; Nitsch, K. Phase transitions in ternary caesium lead bromide. J. Therm. Anal. Calorim. 2003, 71, 667–673. [Google Scholar] [CrossRef]
  34. Kirschner, M.S.; Diroll, B.T.; Guo, P.; Harvey, S.M.; Helweh, W.; Flanders, N.C.; Brumberg, A.; Watkins, N.E.; Leonard, A.A.; Evans, A.M.; et al. Photoinduced, reversible phase transitions in all-inorganic perovskite nanocrystals. Nat. Commun. 2019, 10, 504. [Google Scholar] [CrossRef]
  35. Dos Reis, R.; Yang, H.; Ophus, C.; Ercius, P.; Bizarri, G.; Perrodin, D.; Shalapska, T.; Bourret, E.; Ciston, J.; Dahmen, U. Determination of the structural phase and octahedral rotation angle in halide perovskites. Appl. Phys. Lett. 2018, 112, 071901. [Google Scholar] [CrossRef] [Green Version]
  36. Møller, C.K. The structure of perovskite-like cesium plumbo trihalides. Mat. Fys. Medd. Dan. Vid. Selsk 1959, 32, 1–27. [Google Scholar]
  37. Stoumpos, C.C.; Malliakas, C.D.; Peters, J.A.; Liu, Z.; Sebastian, M.; Im, J.; Chasapis, T.C.; Wibowo, A.C.; Chung, D.Y.; Freeman, A.J.; et al. Crystal growth of the perovskite semiconductor CsPbBr3: A new material for high-energy radiation detection. Cryst. Growth Des. 2013, 13, 2722–2727. [Google Scholar] [CrossRef]
  38. Moore, D.T.; Kamino, B.A.; Patel, J.B.; Miranda, L.; Johnston, M.B.; Parrott, E.S.; Haghighirad, A.A.; Hörantner, M.T.; Sutton, R.J.; Snaith, H.J.; et al. Bandgap-Tunable Cesium Lead Halide Perovskites with High Thermal Stability for Efficient Solar Cells. Adv. Energy Mater. 2016, 6, 1502458. [Google Scholar]
  39. Zhang, M.; Zheng, Z.; Fu, Q.; Chen, Z.; He, J.; Zhang, S.; Chen, C.; Luo, W. Synthesis and single crystal growth of perovskite semiconductor CsPbBr3. J. Cryst. Growth 2018, 484, 37–42. [Google Scholar] [CrossRef]
  40. Bertolotti, F.; Protesescu, L.; Kovalenko, M.V.; Yakunin, S.; Cervellino, A.; Billinge, S.J.L.; Terban, M.W.; Pedersen, J.S.; Masciocchi, N.; Guagliardi, A. Coherent Nanotwins and Dynamic Disorder in Cesium Lead Halide Perovskite Nanocrystals. ACS Nano 2017, 11, 3819–3831. [Google Scholar] [CrossRef]
  41. Momma, K.; Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272–1276. [Google Scholar] [CrossRef]
  42. De Matteis, F.; Vitale, F.; Privitera, S.; Ciotta, E.; Pizzoferrato, R.; Generosi, A.; Paci, B.; Di Mario, L.; Cresi, J.S.P.; Martelli, F.; et al. Optical characterization of cesium lead bromide perovskites. Crystals 2019, 9, 280. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, X.; Zhang, F.; Ge, Y.; Shi, L.; Huang, S.; Tang, J.; Lv, Z.; Zhang, L.; Zou, B.; Zhong, H. Centimeter-Sized Cs4PbBr6 Crystals with Embedded CsPbBr3 Nanocrystals Showing Superior Photoluminescence: Nonstoichiometry Induced Transformation and Light-Emitting Applications. Adv. Funct. Mater. 2018, 28, 1–7. [Google Scholar] [CrossRef]
  44. Xu, J.; Huang, W.; Li, P.; Onken, D.R.; Dun, C.; Guo, Y.; Ucer, K.B.; Lu, C.; Wang, H.; Geyer, S.M.; et al. Imbedded Nanocrystals of CsPbBr3 in Cs4PbBr6: Kinetics, Enhanced Oscillator Strength, and Application in Light-Emitting Diodes. Adv. Mater. 2017, 29, 1–10. [Google Scholar] [CrossRef] [PubMed]
  45. Kumawat, N.K.; Dey, A.; Kumar, A.; Gopinathan, S.P.; Narasimhan, K.L.; Kabra, D. Band Gap Tuning of CH3NH3Pb(Br1-xClx)3 Hybrid Perovskite for Blue Electroluminescence. ACS Appl. Mater. Interfaces 2015, 7, 13119–13124. [Google Scholar] [CrossRef] [PubMed]
  46. Kumawat, N.K.; Tripathi, M.N.; Waghmare, U.; Kabra, D. Structural, optical, and electronic properties of wide bandgap perovskites: Experimental and theoretical investigations. J. Phys. Chem. A 2016, 120, 3917–3923. [Google Scholar] [CrossRef]
  47. Akkerman, Q.A.; Park, S.; Radicchi, E.; Nunzi, F.; Mosconi, E.; De Angelis, F.; Brescia, R.; Rastogi, P.; Prato, M.; Manna, L. Nearly Monodisperse Insulator Cs4PbX6 (X = Cl, Br, I) Nanocrystals, Their Mixed Halide Compositions, and Their Transformation into CsPbX3 Nanocrystals. Nano Lett. 2017, 17, 1924–1930. [Google Scholar] [CrossRef]
  48. Yakuphanoglu, F.; Sekerci, M.; Ozturk, O.F. The determination of the optical constants of cu(ii) compound having 1-chloro-2,3-o-cyclohexylidinepropane thin film. Opt. Commun. 2004, 239, 275–280. [Google Scholar] [CrossRef]
  49. Saif, M.H.; Qaid, S.; Ghaithan, M.H.; Al-Asbahi, B.A.; Alqasem, A.; Aldwayyan, A.S. Fabrication of Thin Films from Powdered Cesium Lead Bromide (CsPbBr3) Perovskite Quantum Dots for Coherent Green Light Emission. ACS Omega 2020, 5, 30111–30122. [Google Scholar]
  50. Jiang, D.H.; Tsai, Y.H.; Veeramuthu, L.; Liang, F.C.; Chen, L.C.; Lin, C.C.; Satoh, T.; Tung, S.H.; Kuo, C.C. Novel ultra-stable and highly luminescent white light-emitting diodes from perovskite quantum dots—Polymer nanofibers through biaxial electrospinning. APL Mater. 2019, 7, 111105. [Google Scholar] [CrossRef]
  51. Park, M.H.; Park, J.; Lee, J.; So, H.S.; Kim, H.; Jeong, S.H.; Han, T.H.; Wolf, C.; Lee, H.; Yoo, S.; et al. Efficient Perovskite Light-Emitting Diodes Using Polycrystalline Core–Shell-Mimicked Nanograins. Adv. Funct. Mater. 2019, 29, 1–9. [Google Scholar] [CrossRef]
  52. Chang, M.; Li, L.; Hu, H.; Hu, Q.; Wang, A.; Cao, X.; Yu, X.; Zhang, S.; Zhao, Y.; Chen, J.; et al. Using Fractional Intensities of Time-resolved Fluorescence to Sensitively Quantify NADH/NAD+ with Genetically Encoded Fluorescent Biosensors. Sci. Rep. 2017, 7, 4209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Veldhuis, S.A.; Boix, P.P.; Yantara, N.; Li, M.; Sum, T.C.; Mathews, N.; Mhaisalkar, S.G. Perovskite Materials for Light-Emitting Diodes and Lasers. Adv. Mater. 2016, 28, 6804–6834. [Google Scholar] [CrossRef] [PubMed]
  54. Yang, Y.; Ostrowski, D.P.; France, R.M.; Zhu, K.; Van De Lagemaat, J.; Luther, J.M.; Beard, M.C. Observation of a hot-phonon bottleneck in lead-iodide perovskites. Nat. Photonics 2016, 10, 53–59. [Google Scholar] [CrossRef]
  55. Olbright, G.R.; Klem, J.; Owyoung, A.; Brennan, T.M.; State, S.; Directorate, S.; Laboratories, S.N.; Binder, R.; Koch, S.W. Many-body effects in the luminescence of highly excited indirect superlattices. J. Opt. Soc. Am. B 1990, 7, 1473–1480. [Google Scholar] [CrossRef]
Nanomaterials 10 02382 g001 550

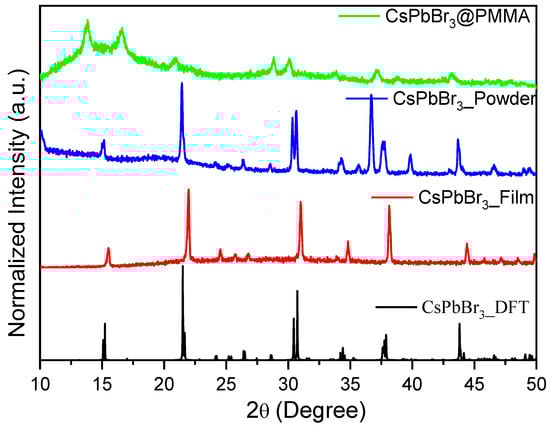

Figure 1. X-ray diffraction (XRD) patterns of a CsPbBr3 perovskite thin disk, as-ground CsPbBr3, thin film prepared in a thermal evaporation system, and density functional theory (DFT)-simulated CsPbBr3.
Figure 1. X-ray diffraction (XRD) patterns of a CsPbBr3 perovskite thin disk, as-ground CsPbBr3, thin film prepared in a thermal evaporation system, and density functional theory (DFT)-simulated CsPbBr3.
Nanomaterials 10 02382 g001
Nanomaterials 10 02382 g002 550

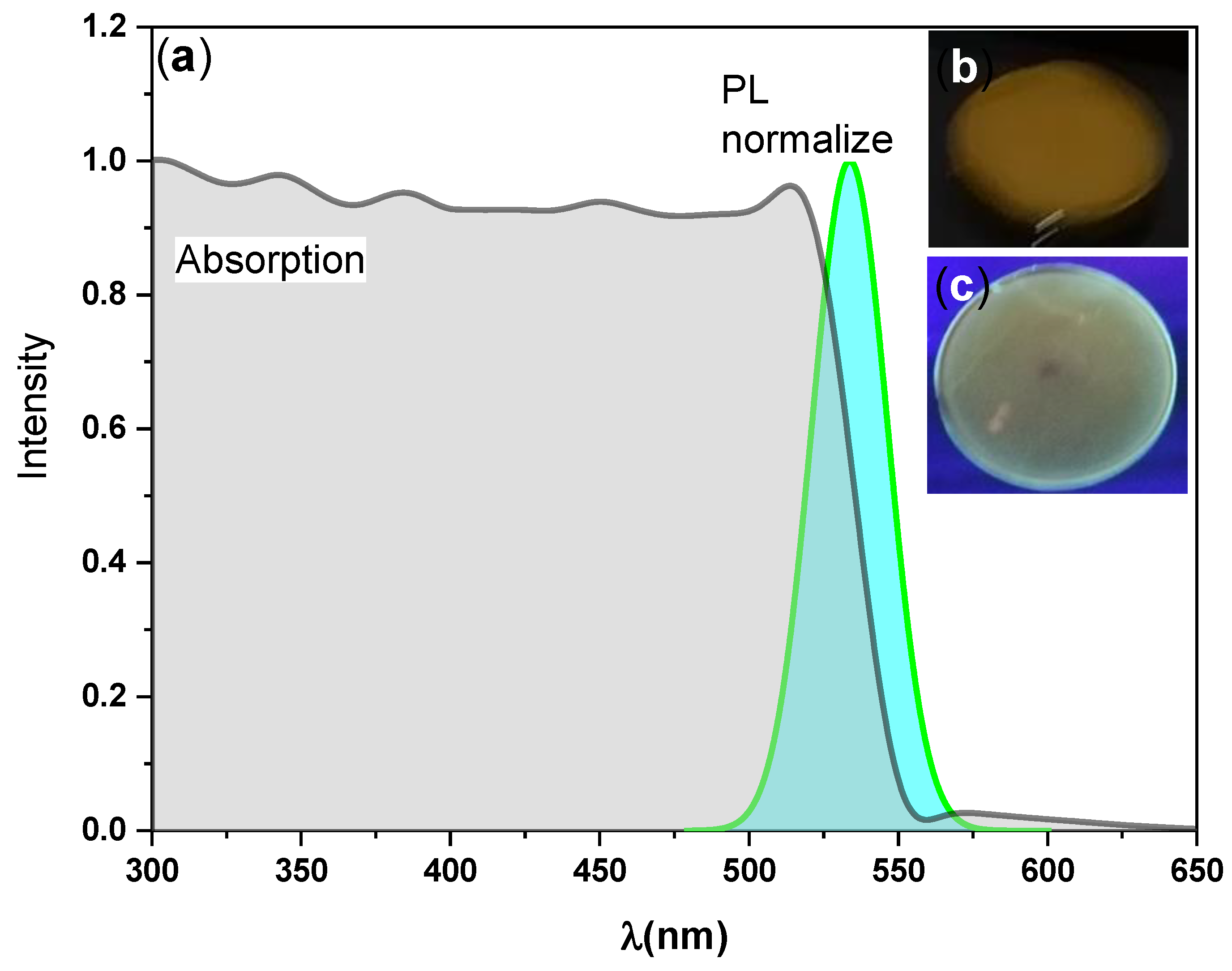

Figure 2. (a) UV-Visible absorption spectra and steady-state photoluminescence (PL) spectra of the CsPbBr3/PMMA thin disk. Insets (b) and (c) are photographs of the prepared thin-disk taken under natural and UV light, respectively, observed through an optical microscope.
Figure 2. (a) UV-Visible absorption spectra and steady-state photoluminescence (PL) spectra of the CsPbBr3/PMMA thin disk. Insets (b) and (c) are photographs of the prepared thin-disk taken under natural and UV light, respectively, observed through an optical microscope.
Nanomaterials 10 02382 g002
Nanomaterials 10 02382 g003 550
Figure 3. (a) Absorption coefficient spectra and (b) PL spectra of the CsPbBr3/PMMA thin disk.
Figure 3. (a) Absorption coefficient spectra and (b) PL spectra of the CsPbBr3/PMMA thin disk.
Nanomaterials 10 02382 g003
Nanomaterials 10 02382 g004 550

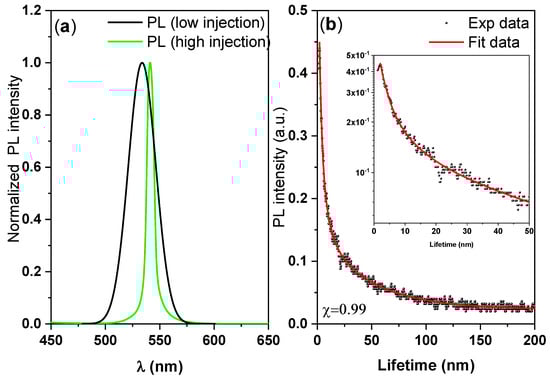

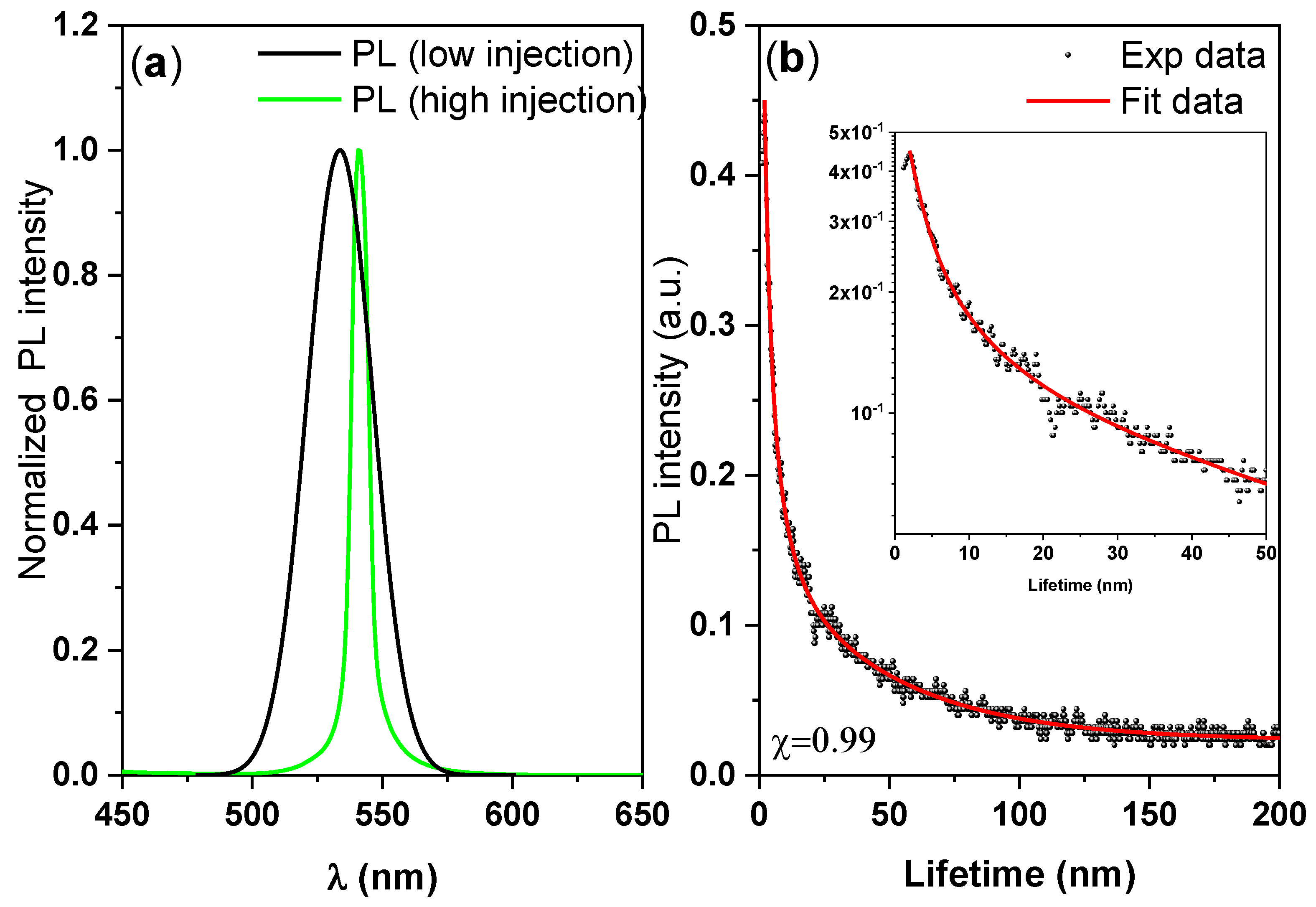

Figure 4. PL measurements: (a) Steady-state PL spectra and (b) time-resolved PL of the CsPbBr3/PMMA thin disk.
Figure 4. PL measurements: (a) Steady-state PL spectra and (b) time-resolved PL of the CsPbBr3/PMMA thin disk.
Nanomaterials 10 02382 g004
Nanomaterials 10 02382 g005 550

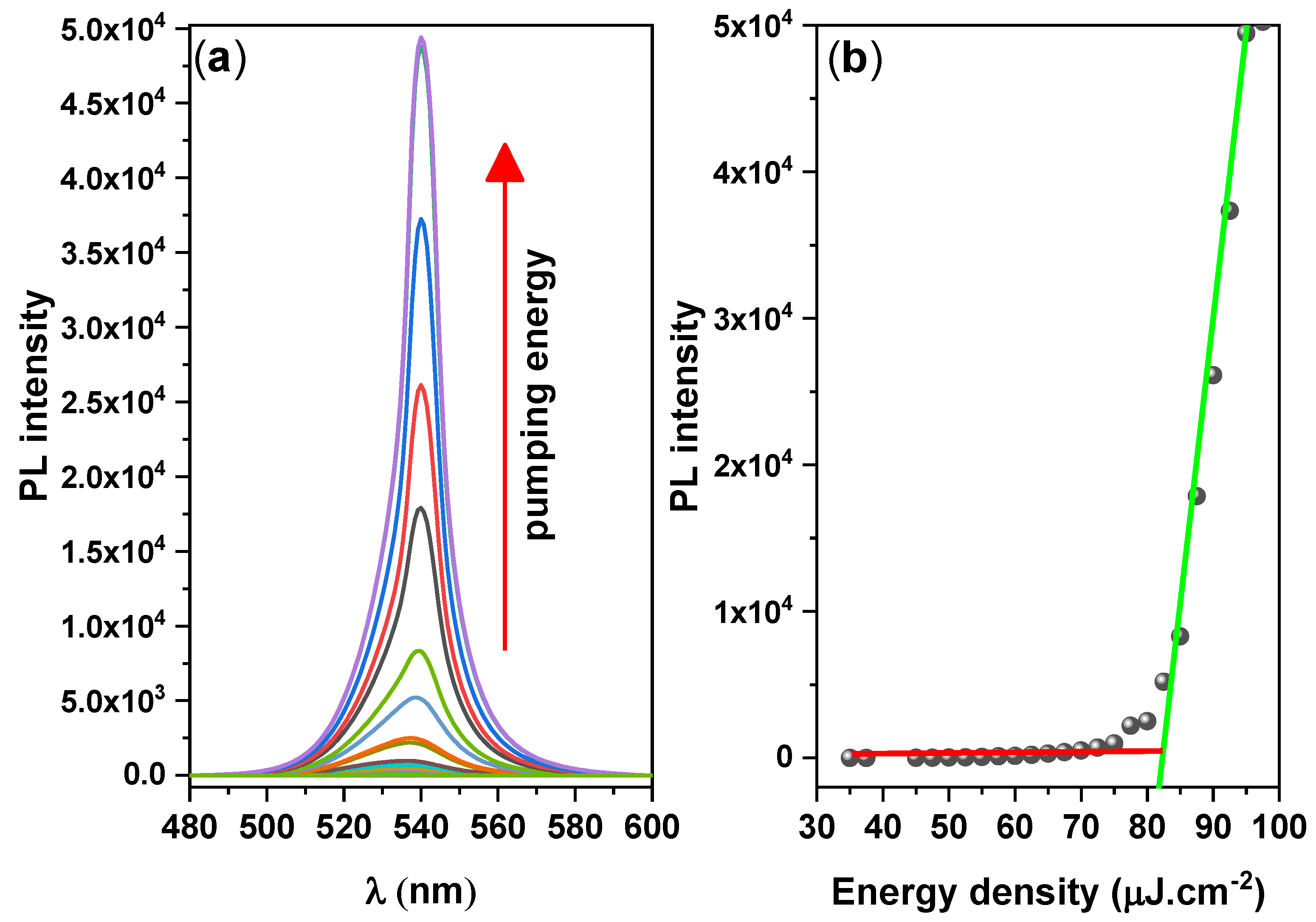

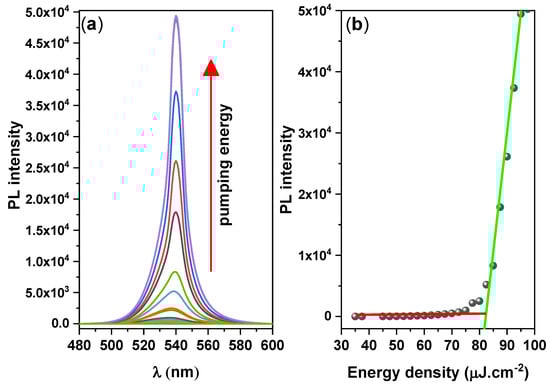

Figure 5. (a) Pump–fluence relationship and (b) Integrated PL intensity vs. pulse energy density, for the CsPbBr3/PMMA thin disk.
Figure 5. (a) Pump–fluence relationship and (b) Integrated PL intensity vs. pulse energy density, for the CsPbBr3/PMMA thin disk.
Nanomaterials 10 02382 g005
Nanomaterials 10 02382 g006 550

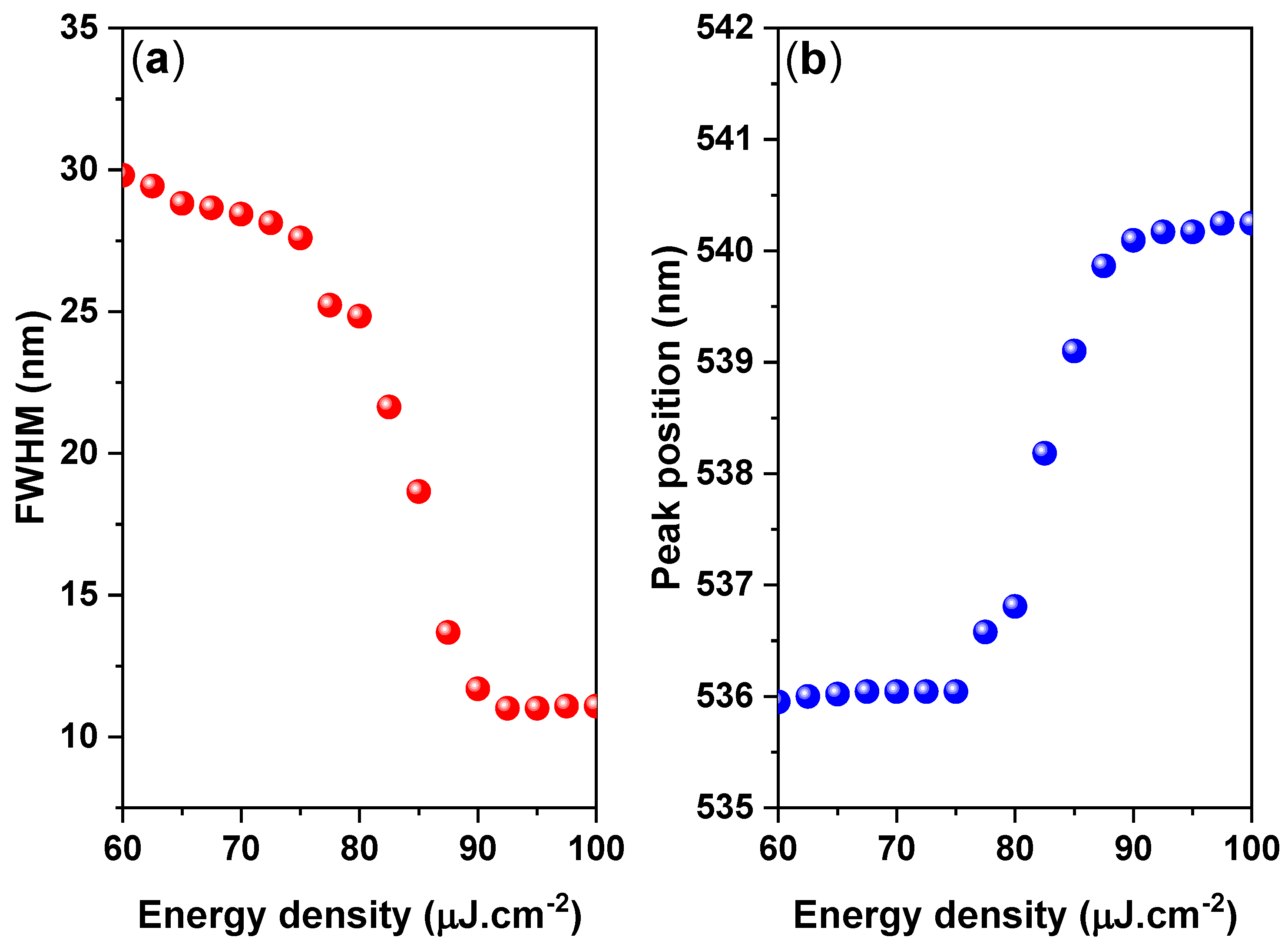

Figure 6. (a) FWHM and (b) ASE peak position versus energy density plot of the CsPbBr3/PMMA thin disk.
Figure 6. (a) FWHM and (b) ASE peak position versus energy density plot of the CsPbBr3/PMMA thin disk.
Nanomaterials 10 02382 g006
Nanomaterials 10 02382 g007 550

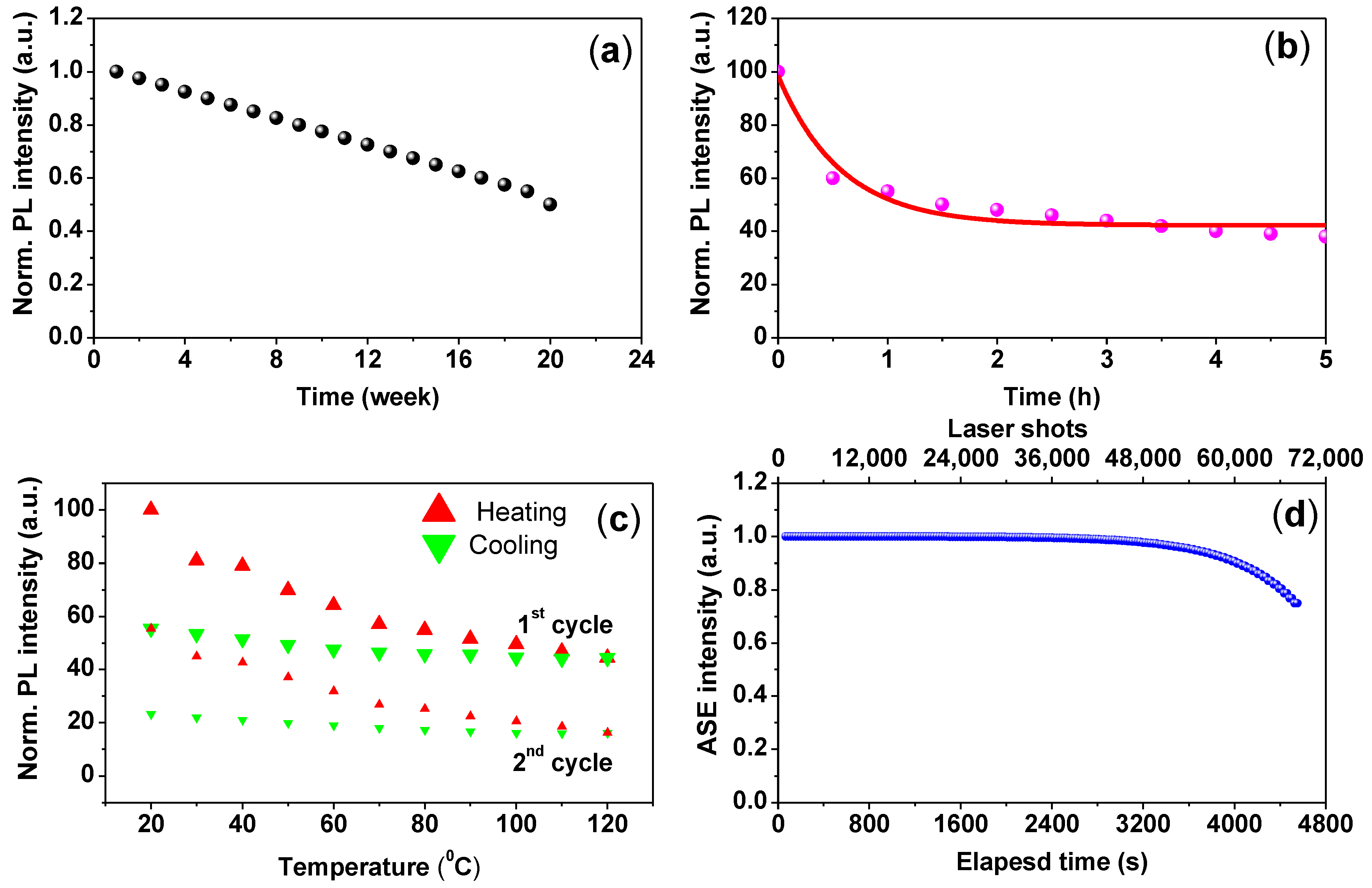

Figure 7. (a) PL intensity versus immersion time in water; (b) time-dependent PL intensity under UV lamp excitation; (c) temperature-dependent PL intensity of the composite in both stage heated and cooled; (d) shot-dependent ASE intensity of the CsPbBr3/PMMA thin disk.
Figure 7. (a) PL intensity versus immersion time in water; (b) time-dependent PL intensity under UV lamp excitation; (c) temperature-dependent PL intensity of the composite in both stage heated and cooled; (d) shot-dependent ASE intensity of the CsPbBr3/PMMA thin disk.
Nanomaterials 10 02382 g007
Table
Table 1. Sizes of the CsPbBr3 thin disk, calculated from the XRD patterns using the Scherrer equation.
Table 1. Sizes of the CsPbBr3 thin disk, calculated from the XRD patterns using the Scherrer equation.
SampleFWHM (Degrees) Diameter (nm)
CsPbBr3-powder0.31433.00
CsPbBr3@PMMA0.41757.00
Table
Table 2. Absorption and PL parameters of the CsPbBr3/PMMA thin disk.
Table 2. Absorption and PL parameters of the CsPbBr3/PMMA thin disk.
Bandgap Energy
Eg (eV)		PL Peak
(eV)		Stokes Shift
(meV)		FWHM of PL Peak
(meV)
2.302.3245.03131
Table
Table 3. Summarized PL lifetimes and their fractions in the CsPbBr3 thin disk, calculated by the tri-exponential decay model.
Table 3. Summarized PL lifetimes and their fractions in the CsPbBr3 thin disk, calculated by the tri-exponential decay model.
τ 1 ( n s )
a 1 ( % )
τ 2 ( n s )
a 2 ( % )
τ 3 ( n s )
a 3 ( % )
τ a v g ( n s )
2.2657.757.1223.9446.0218.3135.23
Table
Table 4. ASE parameters of the CsPbBr3/PMMA thin disk.
Table 4. ASE parameters of the CsPbBr3/PMMA thin disk.
ASE Peak
(nm)		FWHM of ASEth Peak
(nm)		Threshold
(µJ cm−2)
537–5411082
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qaid, S.M.H.; Ghaithan, H.M.; Al-Asbahi, B.A.; Aldwayyan, A.S. Ultra-Stable Polycrystalline CsPbBr3 Perovskite–Polymer Composite Thin Disk for Light-Emitting Applications. Nanomaterials 2020, 10, 2382. https://doi.org/10.3390/nano10122382

AMA Style

Qaid SMH, Ghaithan HM, Al-Asbahi BA, Aldwayyan AS. Ultra-Stable Polycrystalline CsPbBr3 Perovskite–Polymer Composite Thin Disk for Light-Emitting Applications. Nanomaterials. 2020; 10(12):2382. https://doi.org/10.3390/nano10122382

Chicago/Turabian Style

Qaid, Saif M. H., Hamid M. Ghaithan, Bandar Ali Al-Asbahi, and Abdullah S. Aldwayyan. 2020. "Ultra-Stable Polycrystalline CsPbBr3 Perovskite–Polymer Composite Thin Disk for Light-Emitting Applications" Nanomaterials 10, no. 12: 2382. https://doi.org/10.3390/nano10122382

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
