Synthesis, Characterization, and Photocatalytic Evaluation of Manganese (III) Phthalocyanine Sensitized ZnWO4 (ZnWO4MnPc) for Bisphenol A Degradation under UV Irradiation

Department of Chemistry, Faculty of Science, Karadeniz Technical University, 61080 Trabzon, Turkey
Department of Physics, Faculty of Science, Karadeniz Technical University, 61080 Trabzon, Turkey
Department of Energy Systems, Faculty of Technology, Karadeniz Technical University, 61080 Trabzon, Turkey
Laboratory of Chemistry and Materials Technology, General (Core) Department, National and Kapodistrian University of Athens, Psachna Campus, 34400 Evia, Greece
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(11), 2139;
Received: 5 October 2020 / Revised: 19 October 2020 / Accepted: 21 October 2020 / Published: 27 October 2020
(This article belongs to the Special Issue Photocatalytic Nanomaterials for Pollutant Remediation)


ZnWO4MnPc was synthesized via a hydrothermal autoclave method with 1 wt.% manganese (iii) phthalocyanine content. The material was characterized for its structural and morphological features via X-ray diffraction (XRD) spectroscopy, Fourier transform infrared (FTIR) spectroscopy, transmission emission microscopy (TEM), scanning electron microscopy-Energy dispersive X-ray spectroscopy (SEM-EDX), N2 adsorption–desorption at 77K, X-ray photoelectron spectroscopy (XPS), and UV-visible/diffuse reflectance spectroscopy(UV-vis/DRS). ZnWO4MnPc photocatalytic performance was tested on the degradation of bisphenol A (BPA). The ZnWO4MnPc material removed 60% of BPA after 4 h of 365 nm UV irradiation. Degradation process improved significantly to about 80% removal in the presence of added 5 mM H2O2 after 4 h irradiation. Almost 100% removal was achieved after 30 min under 450 nm visible light irradiation in the presence of same concentration of H2O2. The effect of ions and humic acid (HA) towards BPA removal was also investigated.

1. Introduction

Economic advancement and improved quality of life at the turn of the 20th century has come with a price as many produced and spent synthetic molecules make their way into the environment posing a risk to life in water and on land [1,2]. Majority of these compounds being persistent in nature and with a high tendency to bioaccumulate cuts across a wide spectrum of classes with respect to their applications such as pharmaceuticals and personal care products (PPCPs), pesticides, organic solvents, and industrial chemicals [2]. Bisphenol A (2,2-bis (4-hydroxyphenyl) propane, an industrial chemical extensively used as starting material for epoxy and polycarbonate plastics have been identified as endocrine disrupting substance with reported estrogenic and androgenic potencies leading to hormonal malfunctions in various organisms [3,4,5,6,7,8,9,10,11,12]. Bisphenol A (BPA) identified as a contaminant of emerging concern (CEC) by Network of Reference Laboratories, Research Centers and Related Organization for the Monitoring of Emerging Environmental Substances (NORMAN) network [13], elude conventional wastewater treatment plant (WWTP) strategies due to its refractoriness. Therefore, to reduce the human and environmental potential risks associated with end of pipe biorecalcitrants such as the likes of BPA and other related CEC compounds, further improvement of WWTP performance is needed [14]. Amongst several techniques that have been developed to tackle the challenge of detoxification of organic compound contaminated wastewaters, and at least bring down their pollution parameters to a satisfactory level, advanced oxidation process (AOPs) have been the most studied [7]. At the center point of advanced oxidation processes (AOPs) is TiO2 semiconductor-based heterogeneous photocatalysis [7]. TiO2 (Titania) has played a crucial role in the development of semiconductor photocatalysis over the last decades, thanks to its unmatching characteristic properties of long-term stability, chemical inertness, corrosion resistance, and non-toxicity [15]. The numerous benefits notwithstanding, titania application is still limited to high intensity solar radiation absorption region due to high energy band gap of 3.2 eV [16]. To extend the absorption spectrum range and cultivate more solar radiation energy in the applicability of titania photocatalysis, certain strategies like doping, semiconductor coupling and, dye sensitization have been adopted [16]. Although titanium dioxide (TiO2, titania) has been well known and established in semiconductor photocatalysis, other materials aimed at band gap reduction and overall performance improvement have equally being sought and investigated [17,18]. Zinc-based materials, especially ZnO remains one of the best material for photocatalysis; however, large energy band gap (3.37 eV) and ease of charge carrier recombination limits its application leading to low degradation efficiency of organic compounds [18,19]. As a solution to this limitation, other multifunctional oxide systems have been considered where ZnO has been coupled to additional small band gap semiconductors like Fe2O3, Cu2O, CuO, CdS, and WO3 for performance improvement [19]. As other materials continue to be studied as photocatalysts for organic compound degradation, multiple bimetallic tungstate (MWO4, M = Mn, Fe, Co, Ni, Cu, Zn) have equally attracted huge interest due to their chemical stability, moderate photocatalytic ability, and post glow photoluminescence properties [20]. Activity efficiency of ZnWO4 nanomaterial photocatalysts has been reported. Zhou and et al. reported that applying solvothermal method tuned the morphology of ZnWO4 to different sizes and shapes ranging from about ~20 nm nanocrystals to ~35 nm nanorods through the adjustment of ethylene glycol to water solvent ratio with improved resultant effect on the photocatalytic degradation of rhodamine B [21]. Recently, Bi2WO6/ZnWO4 composite fabricated by He et al.; outperformed the unmodified ZnWO4 in the photocatalytic degradation of rhodamine dye under UV irradiation [22]. Osotsi et al. reported that 20 mg/L tetracycline was efficiently degraded in the UV and UV-vis-NIR region with over 80% removal employing their fabricated oxygen deficient zinc tungstate nanorods (ZnWO4−x) [17]. Bai et al. prepared hybridized graphene modified ZnWO4 photocatalyst for the degradation of methylene blue under both UV and visible light irradiation [23]. Ag/AgBr decorated ZnWO4 nanorods improved the degradation of AR18 dye by about 91% in comparison to undecorated forms of ZnWO4, TiO2, and AgBr as reported by Li et al. [24]. Tian et al. prepared Bi2WO6 nanosheets with oxygen vacancies using hydrothermal precipitation, demonstrating their high photocatalytic efficiency both in the UV and near infrared (NIR) wavelength for the degradation of methylene orange dye as compared to the pure form [25]. In other study, Sun et al. highlighted by first principle density functional theory (DFT) calculations, upgraded photocatalytic activity of ZnWO4 via pairwise co-doping with C, N and F [26]. From studies reported so far, metal/nonmetal doping as a means of improving the photocatalytic activity of ZnWO4 has been the focus notwithstanding the possible adoption of photosensitization as modification option as well.
To the best of our knowledge, phthalocyanine based sensitization of ZnWO4 as a means of improving photocatalytic ability of the material, has not been documented.
We report for the first-time manganese (III) phthalocyanine (MnPc) sensitized ZnWO4 that is (ZnWO4MnPc) photocatalyst material for the degradation of bisphenol A (BPA) under 365 nm UV and its extended potential application to the visible light region of 450 nm.

2. Materials and Methods

2.1. Chemicals

Zn(NO3)2.6H2O, Na2WO4.2H2O were used as precursors of zinc and tungstate oxide, respectively. Manganese (III) phthalocyanine, 1,3-propanesultone (>99%), Dimethylformamide (DMF) (>99%), Dichloro methane (CH2Cl2) (>99%), bisphenol A (2,2-bis (4-hydroxyphenyl) propane salt (>99%), NaNO3, Na2CO3, NaCl, AlCl3, CaCl2, KCl, and sodium humic acid, all of high purity (>99%) and p-benzoquinone (BQ) (≥98%), isopropyl alcohol (IPA) (≥99%), Ethylenediamine tetraacetic acid disodium salt dehydrate (EDTA) (≥99%), hydrogen peroxide (H2O2) (30% v/v), hydrochloric acid (HCl) (37% wt./v), sodium hydroxide (NaOH) (≥99%) were used as purchased from Sigma Aldrich (Darmstadt, Germany) without any further treatment. Mili-Q water has been used for the entire photocatalytic experimental studies.

2.2. Instruments

IR spectra were recorded on a Perkin Elmer 1600 FT-IR Spectrophotometer, using KBr pellets. MALDI-MS of the phthalocyanine complexes were obtained in dihydroxybenzoic acid as MALDI matrix using nitrogen laser accumulating 50 laser shots using Bruker Microflex LT MALDI-TOF mass spectrometer (Bremen, Germany). Optical spectra in the UV-vis region were recorded with a Perkin Elmer Lambda 25 spectrophotometer.
X-ray diffraction (XRD) measurement (RIGAKU Corp., Tokyo, Japan) was carried out using a Rigaku D/Max-IIIC diffractometer with CuKα radiation (λ = 0.1541 nm) over the range 2θ = 10°–70° at room temperature, operated at 35 kV and 25 mA at the rate of 3°/min scan speed.
Morphology and microstructure of the synthesized materials was determined with transmission electron microscopy (TEM) employing FEITecnaiG2 Spirit (FEI, Hillsboro, OR, USA), and scanning electron microscopy (SEM) ZEISS EVO LS10 (Carl Zeiss Microscopy, Hamburg, Germany), of 0.2–30 kV acceleration voltage and 0.5 pA–5 µA probe current, coupled to energy dispersive spectroscopy (EDX) detector (Carl Zeiss SmartEDX, Hamburg, Germany), with samples attached to sample holder and coated with gold using sputter-coating (SEM Coating System Machine), while specific surface area was measured with Brunauer–Emmett–Teller (BET) technique recorded on a Micromeritics ASAP 2010 System (Micromeritics, Norcross, GA, USA), with all samples outgassed under vacuum (residual pressure 10−2 mbar) in order to eliminate gaseous contaminants. Pore size analysis was obtained by applying the Barrett, Joyner, and Halenda (BJH) method on the adsorption branch of the isotherms to ascertain the type IV mesoporousity of the materials.
X-ray photoelectron spectroscopy (XPS) data for the chemical environment revelation of the materials was obtained using a PHI 5000 VersaProbe Spectrometer (ULVAC-PHI, Inc.; Kanagawa, Japan), with an AlKα radiation source.

2.3. Preparation and Characterization of Photocatalyst Materials

2.3.1. ZnWO4

ZnWO4 was prepared by hydrothermal method according to literature [27].
Namely, equimolar (0.1 M) amounts of Zn (NO3)2. 6H2O and Na2WO4. 2H2O were dissolved in 25 mL of water. Mixture solution was magnetically agitated and vigorously for 15 min during which time obtained white solution mixture was subsequently transferred to an autoclave heated at a temperature of 150 °C for 5 h and cooled to room temperature, settled for 2 h; after which the supernatant liquid phase was decanted. The precipitate dried off on hot plate at 85 °C for a day and grounded into powder as ZnWO4 and used throughout the experiment.

2.3.2. ZnWO4MnPc

  • Synthesis and Characterization of Zwitter-Ionic Water-Soluble Manganese (III) Phthalocyanine (BZ-Mn-PS)
The benzene ring zwitterionic water-soluble manganese (III) phthalocyanine molecule complex herein referred as (BZ-Mn-PS) was synthesized according to literature [28] as shown in Scheme 1.
Manganese (III) phthalocyanine (60 mg, 0.052 mmol) and excess 1,3-propanesultone were dissolved in DMF (5 mL) and the reaction mixture was stirred at 70 °C for 24 h under nitrogen atmosphere. Then, the reaction mixture was cooled to room temperature and the product was precipitated by the addition of CH2Cl2. The precipitate was filtered off and washed with acetone to remove unreacted 1,3-propanesultone. Yield: 75 mg (91%) with m.p. >300 °C. Elemental Analysis: IR (ATR), ν/cm−1 found: 3058 (Aromatic-CH), 2940–2860 (Aliphatic C-H), 1603, 1503, 1487, 1461, 1395, 1340, 1288, 1177, 1133, 1076, 1054, 1030, 963, 877, 821, 790, 747, 687. MALDI-TOF-MS m/z calc. 1632.17; found: 408.05 [M]+4. UV-Vis (DMSO) λmax nm (log ε): 732 (5.02), 658 (4.39), 501 (4.37), 369 (4.73).
1 wt.% of BZ-Mn-PS was loaded in ZnWO4 powder material in situ via hydrothermal autoclaving to obtain what is from hence forward referred to as manganese phthalocyanine sensitized ZnWO4 material (ZnWO4MnPc) and employed throughout the experimental studies with ZnWO4 material designated as control.

2.4. Determination of pHpzc of ZnWO4MnPc Catalyst Material

To determine pH point of zero charge (pHpzc), drift method was employed [29]. Namely, 50 mL of 0.01 M NaCl solution was measured out in conical flasks. The initial pH values of these solutions were adjusted and stabilized at room temperature to values between 2 and 12 using either HCl or NaOH of 1M concentration each. Upon stability of the initial pH values, 0.05 g powder of the synthesized catalyst (ZnWO4MnPc) was added to each of the measured flask solutions, stirred for 48 h and final pH value of each flask solution measured using HANNA edge digital pH meter (model HI2020).

2.5. Photocatalytic Experiments

The photocatalytic performance of the synthesized materials was evaluated towards the degradation of BPA under 365 nm irradiation and also tested in the perspective of future work under visible light source of 450 nm wavelength. An internal 200 degree reflector for optimal efficiency (99.9%), UV-A and visible blue wavelength in the range of 300 nm to 475 nm spectral power distribution was fabricated inhouse with 5 Philips Mecury (Hg) lamps–TL-K 40W/10R ACTINIC BL REFLECTOR, (Germany) and employed for the photocatalytic tests of the synthesized materials. The intensity of the light source measured with solar power meter Lafayette SPM-7, (Italy) was 1.2 mW/cm2 and 2.3 mW/cm2 for the UV 365 nm and extended visible 450 nm cut off filter light source wavelengths respectively
Forty milliliters of working suspension containing 1g/L catalyst and 10 mg/L of BPA was introduced into 50 mL cylindrically shaped quartz glass sleeve reactor cells and kept under mechanical agitation during the irradiation. Prior to irradiation, suspension was stirred in the dark for 30 min to establish adsorption–desorption equilibrium while irradiation stability was achieved. Outside the natural pH values of the catalysts working suspensions, pH values of 3, 5, 9, and 11 were tested and finally all other experimental tests carried out at optimum pH 11. A distance of 30 cm between the sample and the light source was set. At chosen time intervals, about 1 mL sample aliquots were drawn from reactor cells, cooled and filtered through 0.45 µm CA filter for HPLC analysis for monitoring of BPA degradation on Kinetex 5 µm EVO C18, column 150 mm × 4.6 mm Phenomenex (USA). Runtime was 15 min and eluents were acidic 40% MilliQ water (H3PO4, pH ~3) and 60% acetonitrile with a flow rate of 0.2 mL.min−1. BPA quantification was performed at 230 nm wavelength with a retention time of ~10 min.
The photocatalytic degradation process of BPA follows a pseudo first order reaction kinetic, reaction rate of BPA was estimated as a linear regression slope according to expressed Equation (1):
−ln C/C0 = kappt
where, kapp, C0, and C are apparent degradation rate constant, initial concentration, and concentration after time t, respectively. All photocatalytic degradation experimental data were average value of triplicate measurements.

3. Results and Discussion

3.1. Material Characterizations

3.1.1. Synthesis and Characterization of BZ-Mn-PS

The synthetic route of the zwitterionic water-soluble manganese (III) phthalocyanine BZ-Mn-PS was given in Scheme 1. Zwitterionic water-soluble manganese (III) phthalocyanine BZ-Mn-PS was synthesized from BZ-Mn phthalocyanine by the ring opening reaction of 1,3-propanesultone (i) in DMF at 70 °C. The FT-IR spectrum of BZ-Mn-PS, Figure S1 of supp. Section, indicated stretching of aromatic C-H at 3058 cm−1, aliphatic C-H at 2940–2860 cm−1, respectively. The vibration peaks observed at 1340 cm−1 (asymmetric S=O vibration for sulfobetaine) and 1160 cm−1 (symmetric S=O vibration for sulfobetaine) were indicative for the conversion of the starting BZ-Mn phthalocyanine to sulfobetaine derivative BZ-Mn-PS. In the MALDI-TOF mass spectra, supp. info of Figure S2, BZ-Mn-PS molecular ion peak was observed at m/z: 408.05 as (M + 4)/4 because of multiple charged positive ion for [M]+4 [30]. The UV-Vis absorption spectrum of BZ-Mn-PS in DMSO was shown in Figure 1. UV-Vis spectra of BZ-Mn-PS exhibited intense single Q band absorption of π/π* transition at 732 nm with the B band observed in the UV region at 369 nm. These two peaks of B and Q bands are in general agreement with reported literature values of phthalocyanine derivative absorption at 350 nm and 670 nm respectively. The Q band represents π→π* transition between highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) as well as the transition from deeper level π orbital to LUMO by the B band [31]. Near the Q band, similar vibrational band peaks to the peaks observed at 658 nm and at 501 nm (Figure 1), have been reported and attributed to metal to ligand charge transfers in manganese phthalocyanines [32].

3.1.2. Characterization of ZnWO4 and ZnWO4MnPc

Crystalline phase structure of the materials was determined by XRD and as can be observed from Figure 2, the loading of the ZnWO4 with MnPc did not make any significant change in the crystallinity of the material. The pure phase monoclinic sanmartinite ZnWO4 structure with a P2/c space group according to the standard reference data (JCPDS # 00-015-0774) is identified in both synthesized materials. As can be seen from Figure 2, the diffraction pattern of ZnWO4MnPc material obtained after Pc addition in ZnWO4 showed a slightly increased FWHM, i.e., improved crystallinity of the (111) plane of ZnWO4MnPc at 2θ of 30.45° over that of ZnWO4 [20,33,34]. In addition, an unidentified small peak (X) is found at the base of the (111) plane peak of ZnWO4MnPc. This peak is less intense in undoped ZnWO4. The calculated crystallite sizes of synthesized materials are reported in Table 1. Values were obtained using the Debye Scherrer relationship as expressed in Equation (2).
Dhkl = Kλ/βhklcosθ
where, λ = 1.54059 Å is the wavelength of the CuKα source, β is the integral breadth of the XRD peaks depending on the width of the particular hkl plane and taken at full width at half height maximum (FWHM) in degrees, θ is the diffraction angle obtained from the XRD data of the strongest reflection and K is the shape factor kept at constant value of 0.9.
The crystallite size of Pc doped ZnWO4 material was a bit larger at 15.1 nm as compared to the undoped ZnWO4 sample material of crystallite size 13.1 nm and very much in agreement with reported literature data of 13 nm [34]. The slight increase in crystallite size in ZnWO4 phase of ZnWO4MnPc at 15.1 nm (Table 1) over ZnWO4 material was not only due to the additional hydrothermal treatment for the incorporation of Pc, but also the large nature of the Pc molecules.
In the FT-IR spectroscopy results, the recorded peaks in the range 750 to 3450 cm−1 are in agreement with literature data for ZnWO4 [34] (Figure 3). FTIR spectra of Figure 3 display associated absorption peaks of ZnWO4 and ZnWO4MnPc materials around 706 cm−1, which have been reported and attributed to the bending and stretching absorption bands of Zn–O and W–O bonds. Peaks at around 806 cm−1 and 872 cm−1 have been due to bending and stretching of vibrational bonds of Zn-W–O bonds present in the synthesized materials [20,23,31,33,34,35,36]. The intense peak observed at around 1350 cm−1 is due to typical surface hydroxyl groups [35,37,38,39]. Peak at approximately 2200 cm−1 is attributed to –CH2 functional group vibrations, the ones at around 1600 cm−1 and 3400 cm−1 are characteristic of bending and stretching of the hydrogen bond of surface absorbed physical water (H–O–H ) and its corresponding O–H bond stretching, respectively [40].
TEM images of the synthesized samples (Figure 4), show the interesting nano particle morphology of both ZnWO4MnPc and ZnWO4 materials. The TEM image morphology and microstructures of the prepared photocatalysts materials show, that ZnWO4 and ZnWO4MnPc nanoparticles were similar in shape and approximately hexagonal shaped rods or elongated polyhedral (Figure 4A–D) A rather uniform size distribution is observed in the case of ZnWO4 (Figure 4A,B). Similar shape but slightly larger and rather aggregated nanoparticles are found for ZnWO4MnPc most probably due to the surface functionalization of ZnWO4 by the MnPc molecules (Figure 4C,D). The obtained average particle size values from TEM measurements are displayed in Table 1, as 13.4 nm for ZnWO4 and 20.3 nm for ZnWO4MnPc material. These results are very close with the primary crystallite size calculated by the XRD data with a value of 13.1 nm for ZnWO4 (Table 2) and 15.1 nm for ZnWO4MnPc. Considering the polycrystalline nature of the prepared materials, there is a good agreement among the XRD and TEM derived data (Table 1, Figure 2, and Figure 4A–D) [18].
In order to visualize the surface structural morphology and identify associated material elemental compositions of the synthesized materials, scanning electron microscopy (SEM) in connection with energy dispersive x-ray spectroscopy measurement (EDX), was carried out. As can be seen from Figure 5, ZnWO4 and ZnWO4MnPc consist of irregularly shaped particulates. However, a more agglomerated nature is revealed for ZnWO4MnPc material. Again, this can be attributed to the added phthalocyanine molecule (MnPc), (Figure 5B). On the other hand, EDX analysis confirmed the elemental composition and indicated the existence of MnPc doping (Figure 5). Lack of N, S, Cl, and Mn is recorded for ZnWO4. In contrary such elements exist in low concentration in ZnWO4MnPc confirming the successful MnPc doping on ZnWO4.

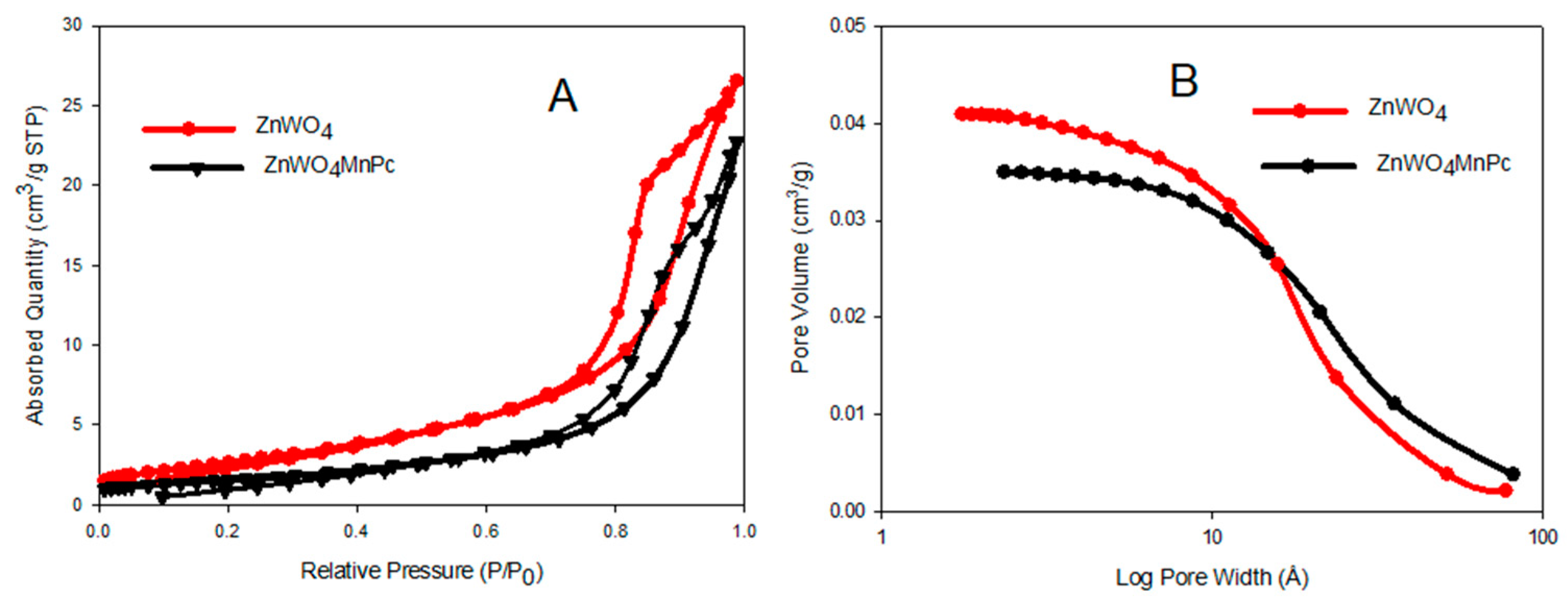

N2 adsorption–desorption isotherms of the materials are shown in Figure 6A. Isotherms are type IV with H3 hysteresis loop indicating the mesoporous nature of the materials [41,42]. BET surface area as measured (Table 1) for ZnWO4MnPc in comparison to ZnWO4 material at a value of 11.4 m2/g was lower than that of the undoped ZnWO4 material with 15.1 m2/g. This small reduction in BET surface area after the Pc sensitization of ZnWO4 is due to surface coverage of the latter by Pc molecules towards improved interaction for the desired improved photoactivity [35]. The values of total pore volume (Vp) of ZnWO4 and ZnWO4MnPc materials follow the same trend with respective values of 0.04 cm3/g and 0.035 cm3/g, while average pore size have respective values of 14 nm and 19 nm.

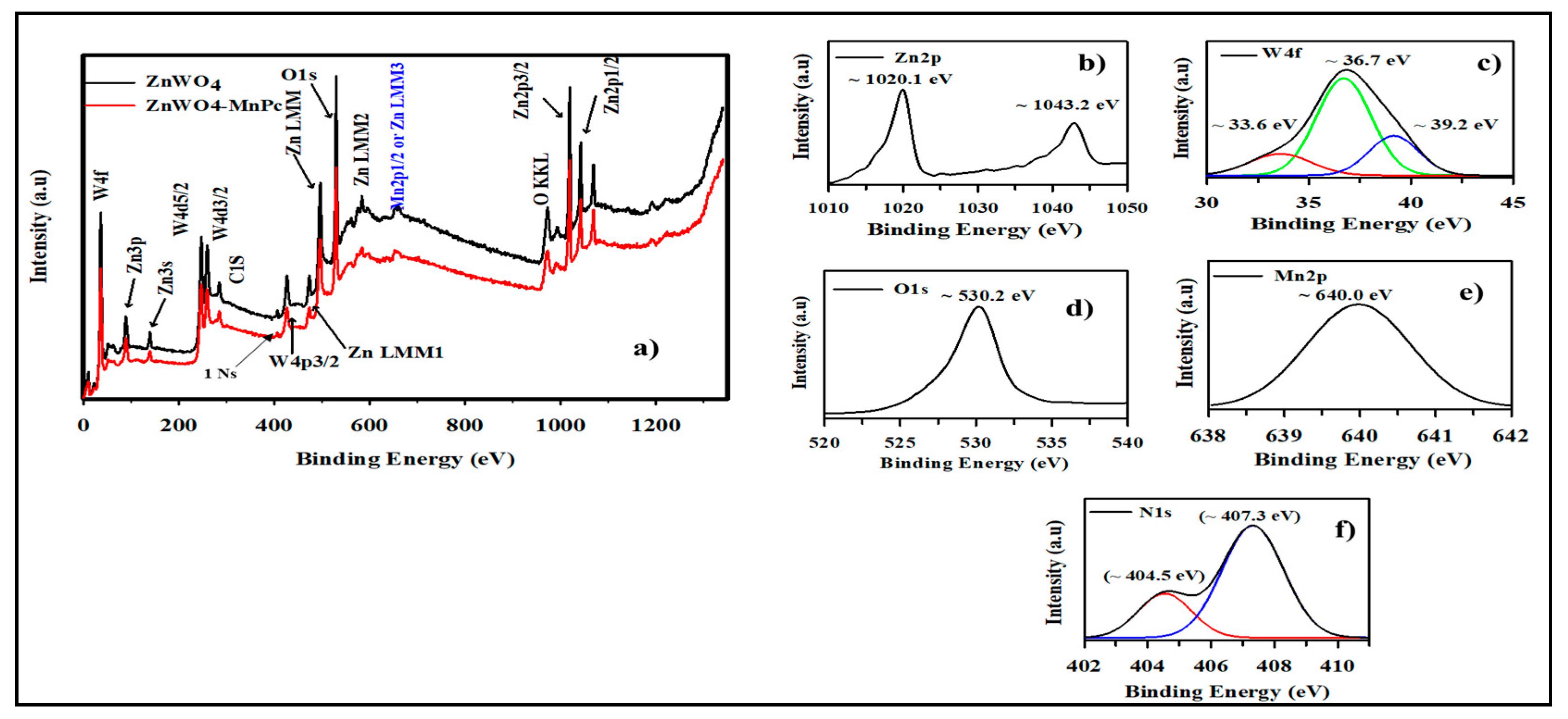

XPS measurement depicts the chemical environments of synthesized materials as be seen from Figure 7. The XPS survey and elemental spectra of ZnWO4 sample and its MnPc sensitized analogue is given in Figure 7a. Surface elemental chemical components of both sample materials were identified with Zn, W, O, and Mn being predominant. Nitrogen of the phthalocyanine component of ZnWO4MnPc material was detected though a small peak. XPS results (Figure 7b) showed Zn 2p3/2 and Zn 2p1/2 peaks resolved at high resolution scan of binding energy ~1020.1 eV and ~1043.2 eV, respectively and were in agreement with literature [43,44,45,46,47]. Spectrum in Figure 7c revealed high resolution peak of W 4f with 4f7/2 and 4f5/2 peaks appearing at 33.6 eV and 36.7 eV respectively; and attributed to W–O bond. The small shift of a peak to the higher binding energy of 39.2 eV, is attributed also to part of the W5+/W+6 valence states of W 4f5/2 and W 4f7/2 spin–orbit doublets. This value is approximately the same with previously reported (Figure 7c) [48]. As can be seen in Figure 7d, XPS spectrum indicated peak of O 1s at a typical binding energy of 530.2 eV [43,44,45,46,47]. In Figure 7e, f XPS spectra, the binding energy of Mn2p3/2 was found at 640 eV and matches the binding energy of Mn2+ in MnO. This is a further indication of the divalent state of manganese in the Pc, prone for redox reactions and successful substitution confirmation of same at the tetrahedral sites of the ZnWO4 material surrounded by the O2- ions [49]. N 1s was recorded at 404. 5 eV accompanied by a sharper higher BE peak at 407. 3 eV further confirming Pc presence. Though, the resolved peaks of Zn 2p3/2, Zn 2p1/2, W 4f7/2, and W 4f5/2 were all registered at binding energy values in good agreement with values reported in literature. They differ with respect to host ZnWO4 material due to their shift to lower binding energy. Observed peak show a shift of Zn 2p3/2, Zn 2p1/2, W 4f7/2, and W 4f5/2 that can be attributed to a distortion or variation in their physical or chemical environment. Zn, O and W element of the host ZnWO4 material are found of modified chemical state and/or local bonding after Pc modification [43,44,45,46,47].
Optical energy band gaps of the photocatalyst materials were estimated by UV-vis diffuse reflectance spectroscopy (DRS). Figure 8 shows the Tauc plot from Kubelka–Munk function (Equation (3)) used to transform the reflectance spectra into absorption spectra [50]. Band gap energies of the materials as estimated from constructed Tauc plots of hν vs. [F(R)hν)]2 and extrapolating the linear part to [F(R)hν)]2 equal to zero as can be seen from Figure 8 was 4 eV for ZnWO4 and 4.1 eV for ZnWO4MnPc (see Table 1). The related UV-vis/DRS measurement for the two materials, also showed similar reflectance as depicted in Figure S3 of the supp. section, hence their approximate energy band gap (Eg) values.
F(R) = S(1 − R)2/2R
where F(R), R and S are absorbance, reflectivity, and scattering factor, respectively. In our case, we have assumed our S factor to be a unit since our materials are in powder form rather than film. Although a variation within the range 3.9–4.4 eV is observed in literature results regarding the energy band gaps of bivalent metal tungstates, our values are well within this range [51]. For the band gap energy (4.1 eV) of ZnWO4MnPc, there is a slight red shift of 0.1 eV to higher energy level. A slight shift to higher band gap energies in the case of semiconductor oxide type materials, i.e., ZnO, CeO2, etc. is related to particle size features and has been attributed to quantum size effects [52]. Energy band shifts in various oxide nanocrystals, is also related to factors like bulk or surface doping effects and lattice structural modifications [44,52,53]. However, no such an effect is expected by the loading of Pc to ZnWO4. Connecting all these information, with respect to the energy band gaps of the synthesized materials; their insignificant red shift in binding energy points to the fact that the surface Pc sensitization of ZnWO4 did not to a noticeable extent interfere with sample in the introduction of defects and subsequent modification of sample local lattice symmetry which could have pulled off changes in band structural properties. Hence, a red shift in energy band gap of our samples compared to band gap energy already investigated for bulk ZnWO4 in the range 3.9–4.4 eV [51] was not possible.

3.2. Photocatalytic Activity

3.2.1. Effect of pH

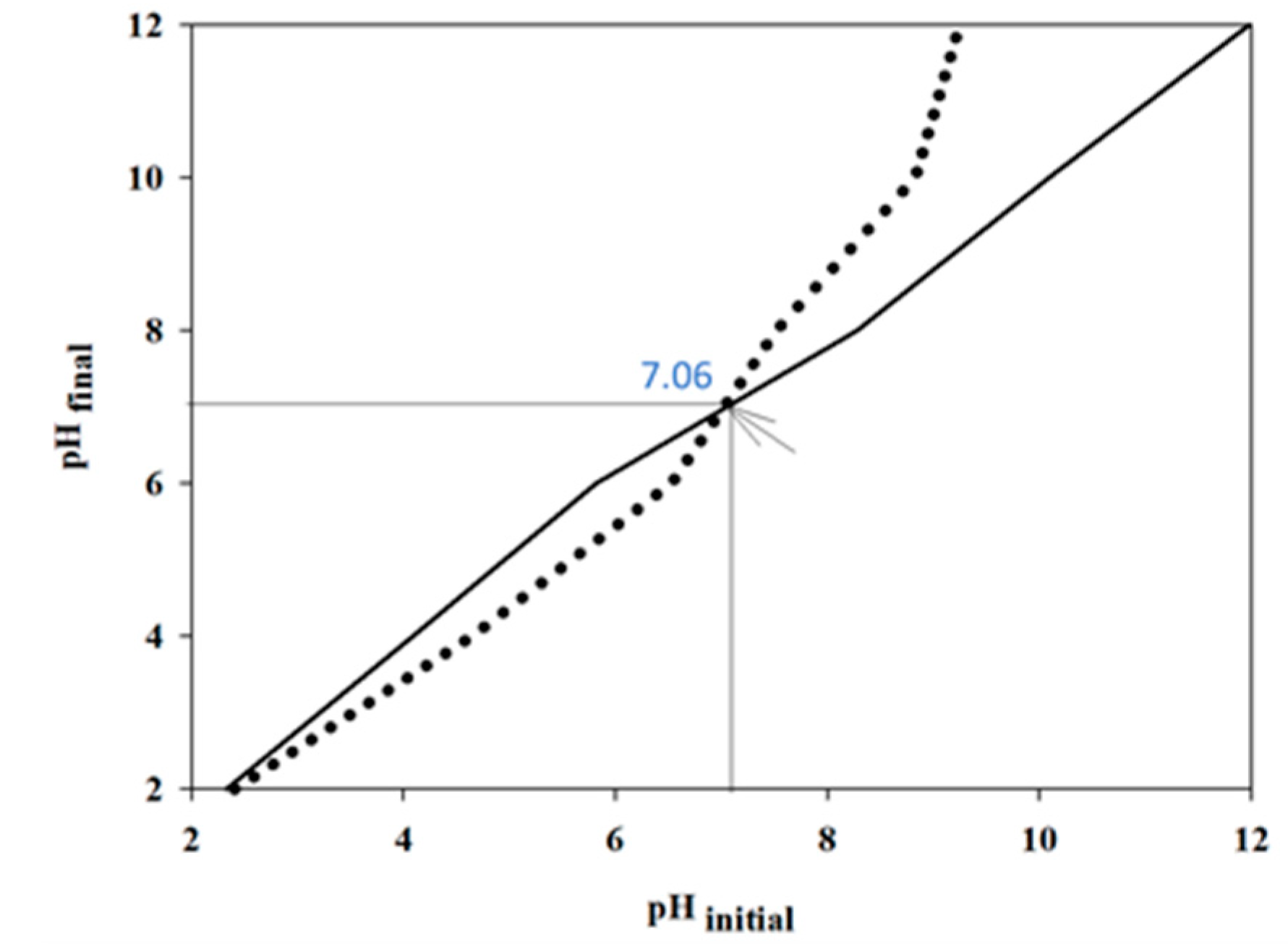

  • pHpzc Value

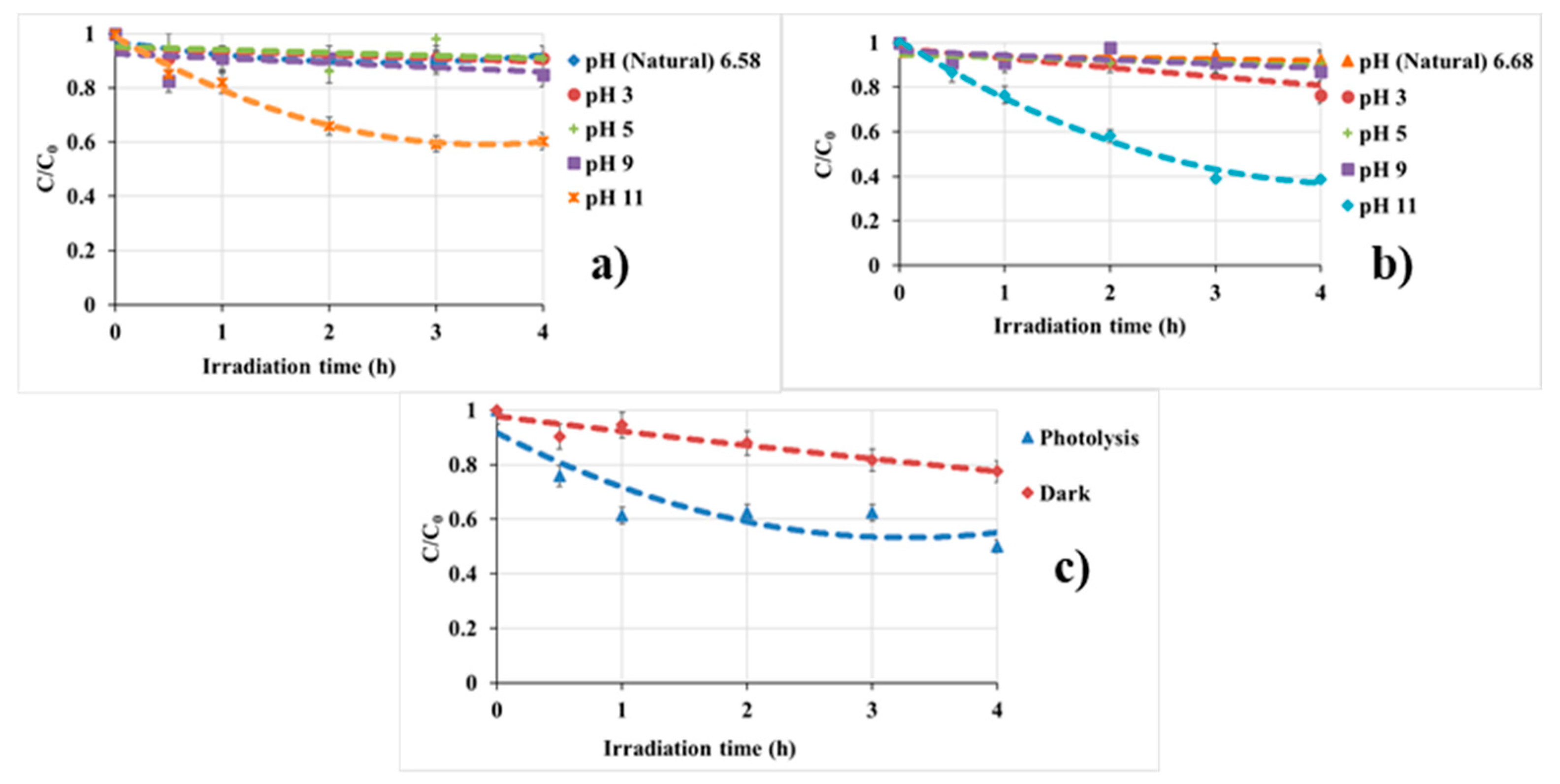

pH is an important parameter in the degradation process of organic chemical compounds. Thus, in order to investigate pH effect on the photodegradation efficiency of ZnWO4MnPc, its pHpzc was determined and found 7.06 (Figure 9). This shift to high pHpzc of ZnWO4MnPc might be attributed to the presence of the electron rich Pc molecule in the composite material. Initially, at a system, non-modified pH values of 6.58 and 6.68 were measured for ZnWO4 and ZnWO4MnPc aqueous suspensions, respectively. A 1 g/L catalyst was used for each experiment against 10 mg/L of initial BPA concentration. These conditions showed no significant BPA degradation after 4 h of 365 nm UV irradiation as displayed in Figure 10. Thereafter, pH values of 3, 5, 9, and 11 were also tested (Figure 11) At a highly alkaline pH 11 and under same conditions of catalyst and initial BPA concentration, ZnWO4MnPc achieved about 60% of BPA degradation after 4 h irradiation while ZnWO4 degraded only 40% in the same time. It has been reported that enhanced BPA degradation is observed in high pH values [54]. The observed trend in the initial pH effect on the photocatalytic efficiency of ZnWO4MnPc towards BPA removal can be correlated with the ionization of BPA molecule which within its pKa1 and pKa2 reported respective range values of about 9.59 and 11.30 dissociate and exist in aqueous systems as mono BPA or divalent BPA2 anions [53,55,56]. At tested pH 9 and pH 11, BPA molecule will be deprotonated based on reported pKa value [53,57]. Therefore, at high alkaline pH 11, with respect to the pKa value and in connection with pHpzc of ZnWO4MnPc, there will be no predominance of electrostatic force of attraction to attract BPA deprotonated anions onto the active sites of the negatively charged catalyst surface; however, reported surface adsorption mechanism of BPA molecule at increased pH above 7 as well as the dominance of BPA2 dianion reported highest at pH 11within the pH range of 8–12, will be primarily responsible for the enhanced adsorption of BPA onto the catalyst surface for subsequent degradation [53,57]. On the contrary, at pH 9, the catalyst surface will remain negatively charged based also on the pHpzc. However, at pH 9, within the range of reported BPA pKa value, BPA exits but, majority of the molecule remain undissociated and its neutral form still dominant [53,57]. Hence, the reason why at pH 9, there was no significant BPA removal as basically there was little or lack of electrostatic attraction and surface adsorption mechanism made little impact [53,57]. Similarly, at initial pH 3, (the unmodified natural pH 6.68 for ZnWO4MnPc catalyst suspension), and pH 5, the surface of the catalyst based on the 7.06 pHpzc will be positively charged as well as protonated BPA molecules based on the pKa value 9.59–11.30 [53,57]. Hence, the observed negligible or even non-BPA removal at these pH values due to like charge force repulsions (Figure 11). Also, the reported low octanol-water partition coefficient (log Kow) range of BPA (2.20–3.82) predicted its undissociation at acidic pH and low solubility especially at typical ambient pH values of 6–8 [56]. All these information, highlight further why in our system, there was little or no BPA removal under the investigated initial pH values of 3–9. Outside attributing the possible BPA disappearance at pH 11 for reason of change of surface properties of the investigated photocatalyst material, BPA removal from heavy BPA laden water has been reported achieved with TAML/peroxide catalyst which showed outstanding efficacy with greater than 99% BPA reduction in 15 min [57]. Going further, all other experiments were carried out at pH 11 with results for tested parameters.
For control experiments, Photolysis tests without any catalyst were performed as control experiments to check the degradation of BPA. BPA degradation was also followed in the presence of catalyst under dark conditions. No BPA degradation was achieved during 4 h of the dark test (Figure 11c). Photolysis experiment showed almost 40% of BPA removed after 4 h of irradiation under 365 nm. It has been reported that BPA exhibits strong absorption of UV light wavelengths of more than 290 nm of sunlight in basic solution conditions [56]. However, extent of removal depends on pH, turbidity, turbulence as well as light intensity [56].

3.2.2. Effect of Catalyst Dosage and Initial BPA Concentration

To investigate the effect of catalyst dose, experiments were performed with different amounts of the ZnWO4MnPc photocatalyst. In addition to 1 g/L catalyst dose, 0.5 g/L, 1.5 g/L, and 2 g/L doses of ZnWO4MnPc were investigated of their photoactivity at pH 11 towards 10 mg/L BPA degradation. As observed from Figure 12, at 0.5 g catalyst dose, only about 34% was removed. This was about half of what removed at the same time (4 h) of irradiation at 365 nm with 1 g/L, 1.5 g/L, and 2 g/L. However, among larger catalyst doses the optimum was 1 g/L as any further increase i.e.,1.5 g/L and 2 g/L did not reflect any additional significance in BPA removal (Figure 12a).
The effect of initial BPA concentration on the catalyst performance was also investigated. As can be seen from Figure 12b, in addition to 10 mg/L BPA, other concentrations of 5 mg/L, 15 mg/L, and 20 mg/L were tested. After 4 h irradiation the removal rate diminishes at higher BPA concentration. BPA or its degradation products are expected to saturate the catalyst surface in a non-reversible way reducing the overall activity of the catalyst [58]. The best response was for 1 g/L ZnWO4MnPc exposed to 5 mg/L BPA (Figure 12b). However, to ensure that minimum amount of catalyst was used for a considerate BPA concentration, 10 mg/L BPA was deployed for an amount of 1 g/L catalyst dose in this study.

3.2.3. Reactive Oxygen Species (ROS) Probe

Photocatalytic process has been reported to depend on various reactive species like super oxide radicals (O2), hydroxyl radicals (HO·) and hydrogen peroxide (H2O2) which drive the reaction system [59]. Investigation of these reactive oxygen species (ROS) responsible for the photoxidation of BPA was carried out. In this test, benzoquinone (BQ), isopropyl alcohol (IPA), and ethylenediamine acetic acid (EDTA) each of 1 mM concentration were introduced into the photocatalytic reaction system as quenchers to scavenge super oxide radical (O2), hydroxyl radical (HO·) and holes (h+), respectively. As can be seen in Figure 13, all three quenchers exerted influence on the photodegradation rate of the catalyst during the 4 h irradiation time. Upon the addition of BQ, over 60% of BPA removed after 4 h irradiation time with a photodegradation rate of 0.2661 h−1, (Table 2) in the absence of scavenger dropped to 0.1942 h−1 for just 40% of BPA removed. In the case of IPA, a similar effect to that of BQ was recorded. Photodegradation rate of the catalyst reduced to 0.1820 h−1. On the other hand, a more enhanced influence was obtained by EDTA. In the latter case photodegradation rate reduced to 0.1474 h−1. This is about half the rate measured without any scavenger (Table 2), to just 30% of BPA removed. Thus, superoxide anion (O2), hydroxyl radical (HO·), and holes (h+) reactive species were all involved in the degradation of BPA, and with significant contribution coming from generated hole carriers (h+). Therefore, based on these findings a reaction mechanism for the degradation of BPA in this study may follow such a pathway where the conventional (O2), (HO·), and holes (h+) reactive oxygen species (ROS) are expected to participate.

3.2.4. Effect of Hydrogen Peroxide (H2O2)

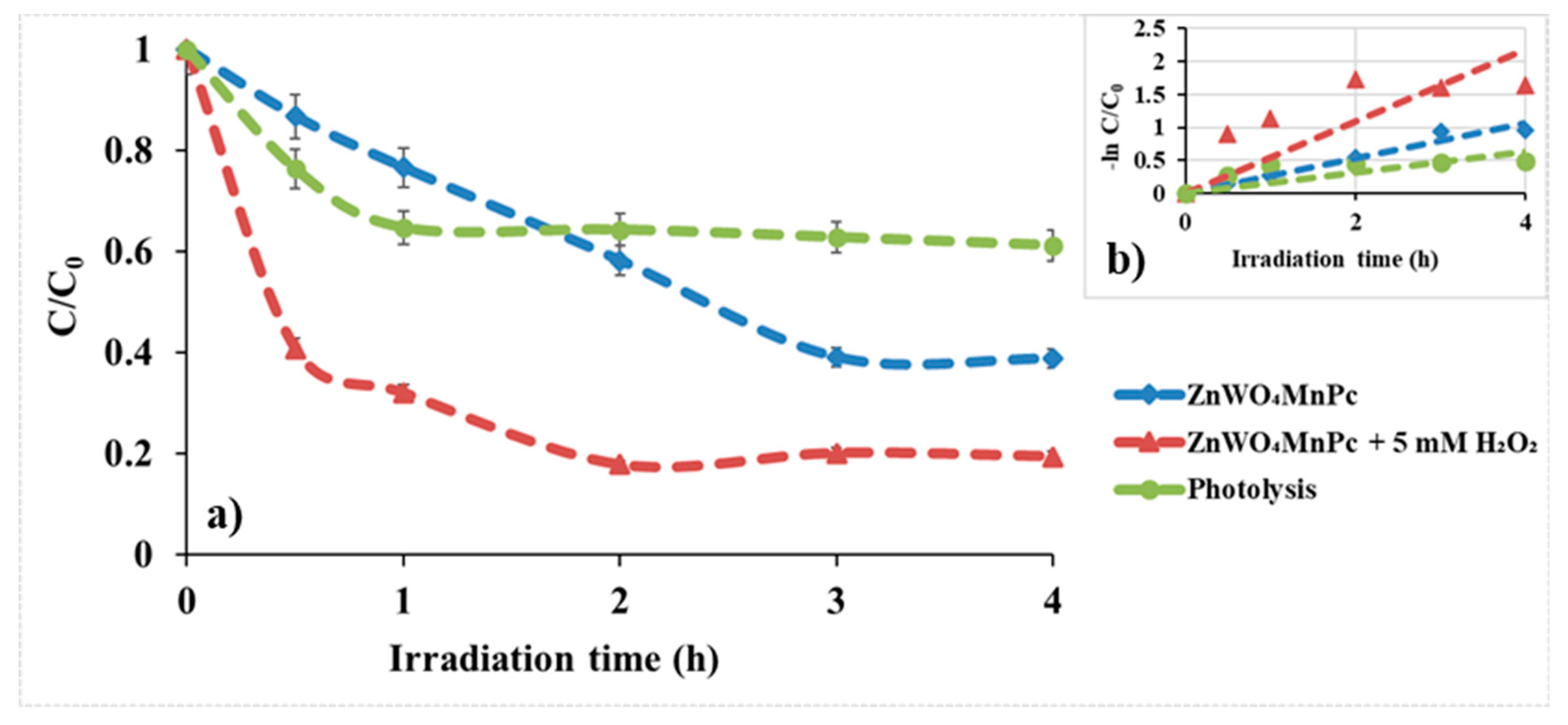

The influence of H2O2 on the degradation of BPA during the UV/ZnWO4MnPc process was investigated. A quantity of 5 mM H2O2 was selected to be added to the photocatalytic reaction system as a suitable dose in order to avoid excessive scavenge of electron (e) and hydroxyl (HO·) radical and consequently decrease in the degradation rate [54,60]. The addition of 5 mM H2O2 resulted in about 80% of BPA removed after 4 h irradiation. This is higher compared to 60% of BPA removal in the absence of H2O2 (Figure 14). The respective degradation rate constant of the catalyst in the presence of H2O2 (0.5442 h−1) is more than double of that without H2O2 at (0.2661 h−1) (Figure 14b). The improvement of the photocatalytic degradation performance can be attributed to the formation of additional reactive species with subsequent suppression of the recombination of electron–hole charge carriers [54]. On the other hand, influence of photolysis on the degradation rate of BPA where at 4 h irradiation about 40% was removed can be seen from (Figure 14a) displaying a predominant driving force for about 1 h irradiation. At this time, photolysis was on par performance with catalyst, stabilizing thereafter to achieve a degradation rate of 0.1595 h−1 in comparison to that of 0.2661 h−1 for the catalyst (Table 2) at 4 h irradiation. This scenario, points to the active role of photolysis in driving the photocatalytic process degradation of BPA over the 4 h irradiation [56].

3.2.5. Water Matrix Effects

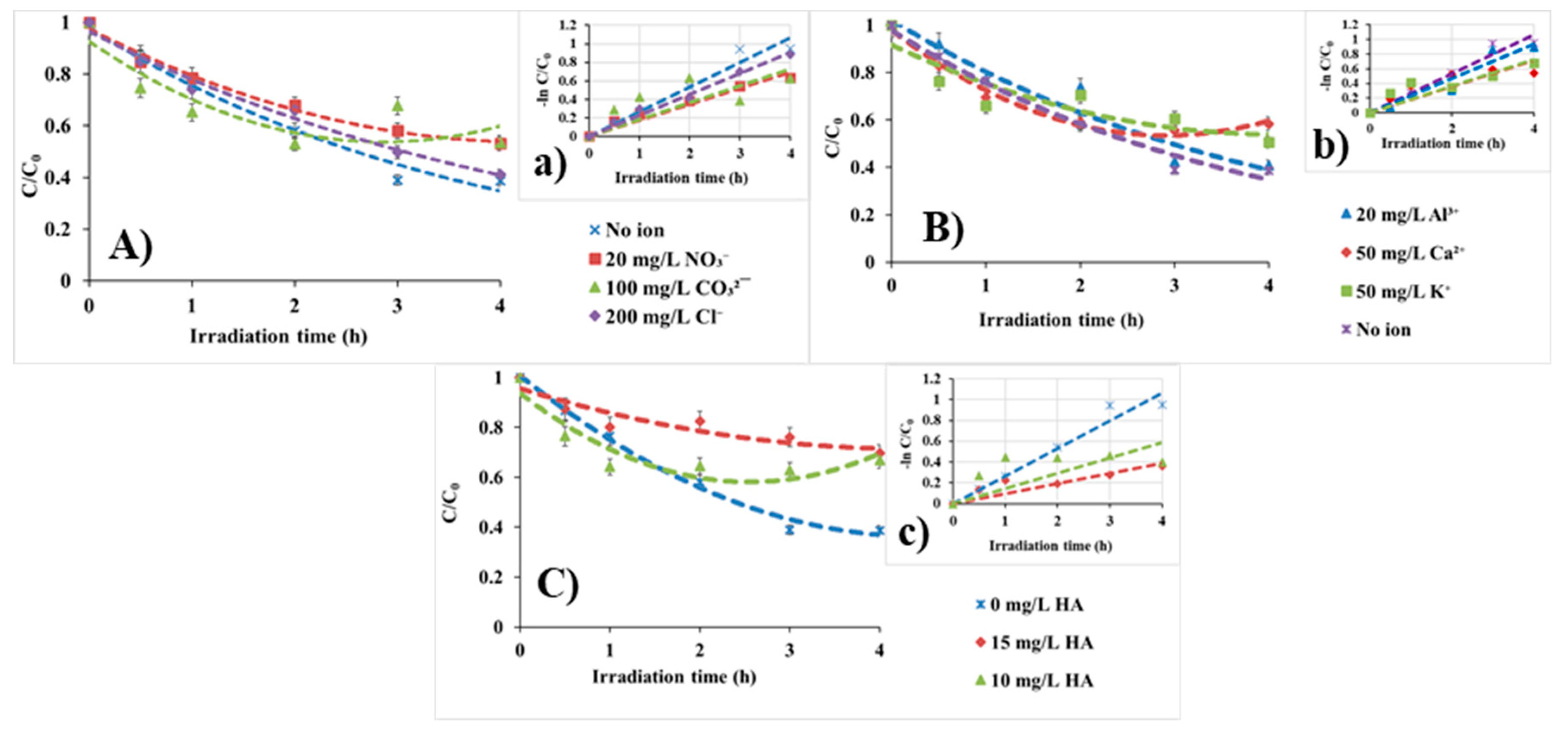

Inorganic species are known to influence photocatalytic degradation of organic contaminants [61]. Therefore, to simulate the effect of water matrix on the degradation efficiency of the catalyst, the presence of ions and humic acid effect were investigated. As can be seen from Figure 15a, the addition of 20 mg/L NO3, 100 mg/L CO32−, and 200 mg/L CI, had significant effect on the degradation process of BPA. 20 mg/L NO3, suppressed most BPA removal with a degradation rate constant of 0.1735 h−1 and around 40% of BPA removed in comparison to degradation rate constant of 0.2661 h−1 with slightly over 60% of BPA removed in same irradiation time when no anion was added. With 100 mg/L CO32− ion added to the reaction system, there was initially a slight improvement in the amount of BPA removed in comparison to no added anion up to 2 h of irradiation. However, no significant difference was observed at these irradiation conditions when compared to no anion addition. However, soon after the first hour a decline in BPA degradation is observed. This behavior is attributed to a mixed role of carbonates under certain conditions of concentrations, pH, pKa, etc. that may act in favor of a pollutant degradation or even suppress it while acting as a scavenger for hydroxyl (HO·) reactive species [62].
In the case of 200 mg/L Cl, into the reaction system, chloride ions interfered with a minimal effect compared to the nitrates or carbonates. Degradation rate constant was found 0.227 h−1 with 200 mg/L Cl¯ in comparison to 0.2661 h−1 without any added anion (Figure 15a). Overall, the anions suppression effect in the photocatalytic degradation follows the order: 20 mg/L NO3 > 100 mg/L CO32− >200 mg/L Cl. Such a suppression effects is possibly a result of a competitive absorbance of the inorganic ions on the surface of the catalyst whereby rate of photodegradation process is reduced [63].
On the other hand, upon the addition of cations (Figure 15b) both of Ca2+ and K+, ions at 50 mg/L each caused no significant difference. The same degradation rate of 0.1795 h−1 was measured while for no cation addition the degradation rate constant was 0.2661 h−1 (Table 1). In contrast, 20 mg/L Al3+ ion made the least impact in response to the degradation process in comparison to Ca2+ and K+. A 0.2336 h−1 degradation rate constant was obtained on the addition of 20 mg/L Al3+ ion after 4 h irradiation (inset Figure 15b). The photocatalytic process degradation reduction effects upon the addition of the cations was as follows: 50 mg/L Ca2+ = 50 mg/L K+ >20 mg/L Al3+. Generally, all added ions have caused photocatalytic process decline. This finding can be attributed to reported phenomenon of hydroxyl radical scavenging, pH change of reaction solution and blockage of catalyst active sites by adsorption of cationic species [61] (Figure 15a,b, Table 2).
The role of humic acid (HA) on the degradation process, was investigated under 10 mg/L and 15 mg/L HA, respectively (Figure 15c). Both concentrations of HA responded with a decline in photocatalytic process. In the case of 15 mg/L HA, the degradation process reduced more significantly with approximately only 30% of BPA removed after 4 h irradiation. With 10 mg/L HA, the rate of BPA removal was reduced with a degradation rate constant of 0.1473 h−1 (Table 2), but not to the extent witnessed with 15 mg/L HA. The negative effect of increasing HA concentration in photocatalytic degradation is reported [61]. This is due to a possible competitive coverage of the surface active sites of the catalyst by the pollutant and HA. In addition, blockage of light penetration due to suspension turbidity by the HA addition can limit the performance. In some cases, induction of indirect alternative photodegradation pathways, and inner filtering capacity of HA that scavenges radicals and possibly act as reactive species precursors cannot be excluded [64,65]. Some mixed behavior is also observed for HA (case of 10 mg/L).
Table 2 depicts degradation process rate of reaction constant (K, h−1) and the corresponding correlation coefficient constant (R2) for each of the tested photocatalytic experimental parameters.

3.2.6. Evaluation of Visible Light Photocatalytic Activity

Employing the same light source used for the near UV-vis range photocatalytic studies of the ZnWO4MnPc material described in Section 2.5, extension of its performance under visible light was studied. The maximum wavelength was centered at 450 nm cut off filter of the emission spectrum 300–475 (nm) spectrum. As can be observed from Figure 16, ZnWO4MnPc material after 4 h of irradiation removed about 60% of BPA in comparison to ZnWO4 material which was only able to remove about 20% BPA. In order to enhance the photocatalytic activity of ZnWO4MnPc material, about 5 mM H2O2 deemed right in concentration to shoulder potential H2O2 scavenging ability of electron (e) and hydroxyl (HO·) radical reactive species [54,60]. ZnWO4MnPc material removed almost 100% of BPA after 30 min of irradiation in the presence of 5 Mm H2O2. This implies that the introduced 5 mM H2O2 in this concentration, generated more hydroxyl radical (HO·) reactive species and possibly could have scavenged generated electrons to prevent charge recombination, hence the degradation reaction rate was highly improved with respect to ZnWO4 material without phthalocyanine (Pc) sensitizer [54]. From Table 2, the degradation rate constant of ZnWO4MnPc +5 mM H2O2 is approx. 12 h−1 in comparison to 0.2411 h−1 for ZnWO4MnPc, showing the former performed 50 times better than the later with no added H2O2. In contrast to photolysis effect towards BPA removal under UV light, just about a little over 20% BPA removed at 4 h irradiation (Figure 16) under the visible light. The non-significant BPA removal under visible light agrees with the almost double value of about 40% obtained under UV where BPA exhibited strong absorption [56]. On the other hand, with the addition of 5 mM H2O2, an impressive performance was recorded over bare photolysis and catalyst without PC sensitizer and or H2O2 pointing to its almost non significance under this light condition (Figure 16, Table 2).
Considering the performance of ZnWO4MnPc towards BPA degradation in the present study and matching it with previously studied heterogeneous photocatalytic degradation systems for BPA or some other organic pollutants with respect to investigated conditions of irradiation time, wavelength of light source, pH, initial concentration of pollutant, nature of catalyst and dosage, reactor designs, water matrix effects, amongst several other operation parameters; indeed, these array of factors do to a large extent influence organic pollutant photodegradation and removal efficiency. In similar studies like the present one, various researchers have investigated different photocatalysts materials ranging from titanium dioxide to zinc, silver, bismuth, and carbon based for the photodegradation of BPA while employing different light sources, wavelength of irradiation, time of irradiation, initial BPA concentrations, pH, reactor designs achieving diverse array of BPA removal efficiency [66]. On the other hand, investigated TiO2 sensitized aluminum phthalocyanine for the degradation of chlorophenol in water under visible irradiation achieved almost 100% degradation after 5 h, while for catechol, it took 6 h to degrade about 40% with the same catalyst [67]. In the same vein, Souza et al.; employed nitrogen doped and copper (ii) phthalocyanine tetracarboxylate sensitized titanate and titania dioxide nanotubes for the degradation of rhodamine B (RhB) dye and observed different behavior of the tested catalysts towards RhB degradation efficiency with and without H2O2, and in the presence and absence of light after 8 h visible irradiation [68]. Connoting all these information with obtained results in the present study, sheds more light on the dynamism inherent in the behavior of different photocatalyst materials in diverse heterogeneous photocatalytic systems running on various operational parameters; hence the discrepancies in removal efficiency of a particular catalyst towards a particular substrate under different irradiation times of exposure measurements.

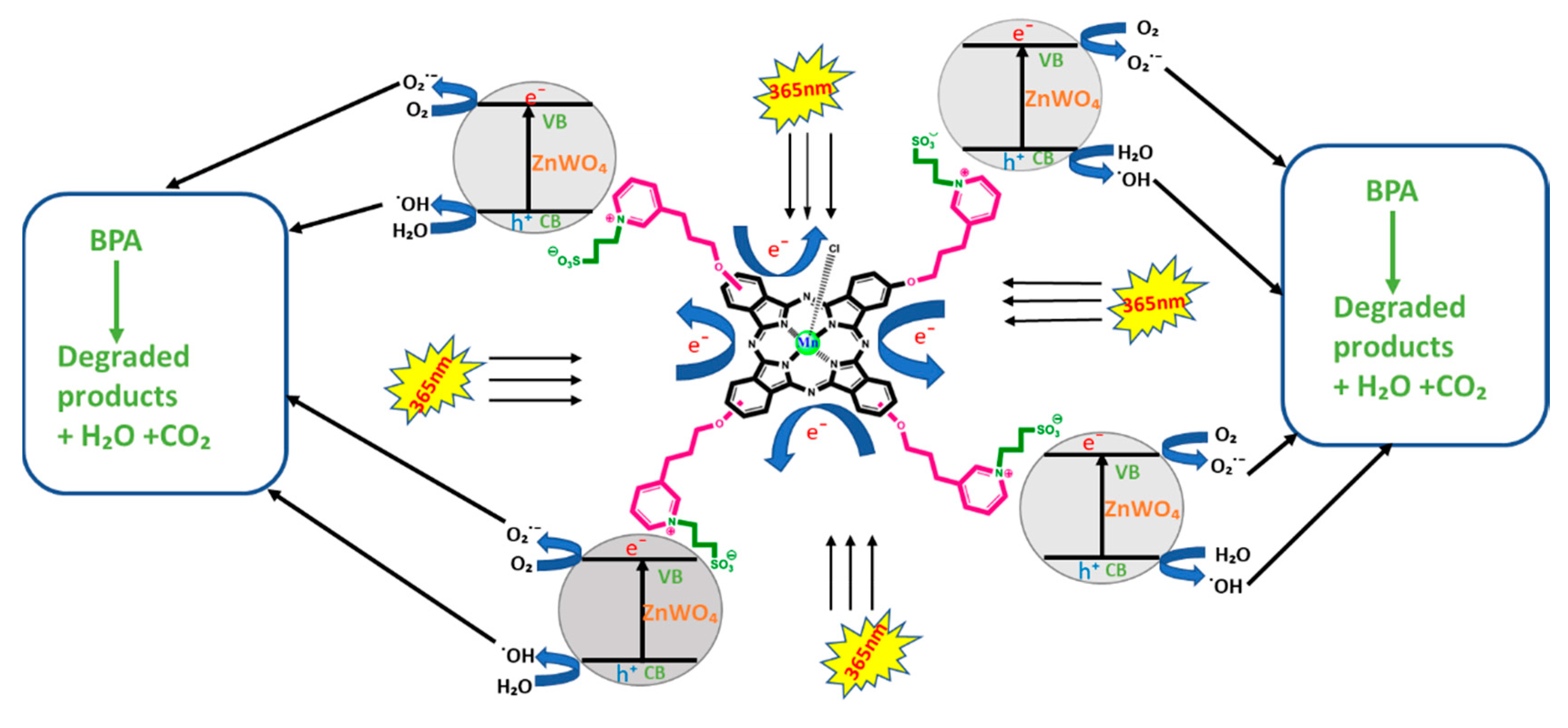

3.3. Proposed Reaction Mechanism

Based on the test for the detection of responsible reactive species assumed to have driven the studied photocatalytic degradation process, surface charge reaction mechanism was proposed. With the assumption, that photocatalytic degradation of organic compounds proceeds via charge carriers like electrons (e), holes (h+), and reactive oxygen species like superoxide anions (O2), hydroxyl radicals (HO·), singlet oxygen (1O2), the surface reaction mechanism involved in the degradation process of BPA by ZnWO4MnPc catalyst was proposed to have followed conventional mechanism with involvement of the most common reactive species [69]. From Figure 13, it was observed that probed reactive species (O2, HO·, and h+) were all involved in the photodegradation process of BPA, hence there were no outright BPA removal inhibition upon the addition of the chemical scavengers except for the hole (h) scavenger probe which after all, did not show so much significant effect from the rest tested two species of superoxide anion (O2), and hydroxyl radical (HO·). Upon irradiation the ZnWO4MnPc catalyst, generates electrons (e) from the Pc molecule which are transferred to the conduction band (CB) energy level as the valence band (VB) holes (h+) are simultaneously formed. The hole charge carriers (h+) combine with adsorbed surface water molecules to yield hydroxyl radical (HO·) while valence band electrons (e) combine with surface O2 molecule to yield superoxide anion (O2). From the obtained findings of the ROS investigation, the mechanism for ROS generation of the synthesized ZnWO4MnPc photocatalyst under UV light is inferred to have proceeded mainly via the generation of hydroxyl radicals (HO·) by hole (h+) oxidation and accompanied electron (e) reduction and associated superoxide anion (O2). These charges are then readily available to attack BPA molecule as it subsequently mineralizes. There may be the possibility of the formation of H2O2 (Scheme 2). Corroborating at this point, the proposed surface reaction mechanism with other studies already performed with Z-scheme charge transfer mechanisms involving manganese phthalocyanine (MnPc) and other transition metal phthalocyanine complexes for the degradation of organic pollutants, our findings were well supported as hydroxyl radical (HO·) reactive oxygen species were also demonstrated to have dominated those oxidation processes [70,71].

4. Conclusions

After a successful synthesis and characterization of ZnWO4MnPc, the photocatalytic activity of 1 g/L dose of the material under UV 365 nm radiation was evaluated over 10 mg/L of BPA. A 60% degradation at 4 h irradiation time in comparison to the pure ZnWO4 which for the same time of irradiation degraded 40% of BPA was achieved. Based on the reactive oxygen species (ROS) probe using scavengers, hole charge carrier (h+) was suggested the most responsible for the photooxidation of BPA with a removal mechanism proposed accordingly. Addition of 5 mM H2O2, on the degradation process caused a significant improvement of BPA removal to above 80% in comparison to about 60% of BPA degraded in the absence of H2O2 enhancer. Effects of cations and anions were also investigated and 50 mg/L each of Ca2+ and K+ ions made the biggest impact in slowing down the overall reaction rate during the 4 h irradiation time window. However, 20 mg/L Al3+ did not impose a significant inhibitory effect compared to Ca2+ and K+ ions. Similarly, like in the case of tested Ca2+ and K+ cations, 20 mg/L NO3 and 100 mg/L CO32− ions; suppressed the reaction degradation rate while 200 mg/L Cl like Al3+ showed negligible effect on the overall reaction rate. HA concentrations of 10 mg/L and 15 mg/L affected the reaction rates considerably. The higher content 15 mg/L HA imposed a much significant inhibitory effect than the 10 mg/L HA. In summary, the overall effects of the investigated added ions as well humic acid (HA) made no significant difference amongst themselves in comparison. However, at the concentrations tested and under the experimental conditions applied, they all had a distinct negative effect in the degradation of BPA. With the photocatalytic studies taken over a wide range of pH values, influence of bare photolysis with respect to the ZnWO4MnPc catalyst for BPA removal at pH 11 was highlighted and showed considerate and not so significant BPA removal under 365 nm and 450 nm irradiation light sources respectively.
In the near future the full potential of photocatalytic performance of ZnWO4MnPc material under visible light conditions will be studied. It has shown activity under 365 nm and potential activity under extended 450 nm visible light irradiation in the presence of 5 mM H2O2 as an enhancer. The catalyst will be studied towards the improvement of its activity in the visible light range as a standalone phthalocyanine sensitized photocatalyst. The investigation of the charge transfer mechanism more as a novel Z-scheme photocatalyst with some time resolved experiments involving flash photolysis studies will be in focus. Additionally, TiO2 (commercial P25) based Pc catalysts will also be studied alongside, and in comparison, while ensuring that pH condition is limited to preferable neutral points.

Supplementary Materials

The following are available online at, Figure S1: FT-IR spectrum of BZ-Mn-PS compound, Figure S2: MALD-TOF MS spectrum of BZ-Mn-PS compound, and Figure S3: UV-vis DRS spectra of synthesized materials.

Author Contributions

C.B.A. assisted with material synthesis and characterization, performed the experiments, analyzed the data, and drafted the original manuscript. I.A. supervised the work and performed in-house manuscript review. Z.B. synthesized the manganese phthalocyanine (MnPc) molecule, characterized them, and was involved with in-house manuscript review. E.B. synthesized the photocatalytic materials, characterized them, supervised, and was involved in manuscript review. I.P. was involved in photocatalytic material synthesis, characterization, and in-house manuscript review. V.N.S. supervised part of the work and reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.


This research was funded by the EUROPEAN UNION’S HORIZON 2020 RESEARCH AND INNOVATION PROGRAMME under the MARIE SKLOWDOWSKA -CURIE grant No: 765860 (AQUAlity).

Conflicts of Interest

Among the authors, there has not been any conflict of interest.


  1. Rosenfeld, P.E.; Feng, L.G.H. Emerging Contaminants. Risks Haz. Wastes 2011, 1, 215–222. [Google Scholar]
  2. Jimenez-Holgado, C.; Chrimatopoulos, C.; Stathopoulos, V.N.; Sakkasv, V. Investigating the Utility of Fabric Phase Sorptive Extraction and HPLC-UV-Vis/DAD to Determine Antidepressant Drugs in Environmental Aqueous Samples. Separations 2020, 7, 39. [Google Scholar] [CrossRef]
  3. Lee, J.-M.; Kim, M.-S.; Kim, B.-W. Photodegradation of Bisphenol A with TiO2 Immobilized on the Glass Tubes Including UV Light Lamps. Water Res. 2004, 38, 3605–3613. [Google Scholar] [CrossRef] [PubMed]
  4. Tsai, W.T.; Lee, M.K.; Su, T.Y.; Chang, Y.M. Photodegradation of Bisphenol A in a Batch TiO2 Suspension Reactor. J. Hazd. Mat. 2009, 168, 269–275. [Google Scholar] [CrossRef]
  5. Lu, N.; Lu, Y.; Liu, F.; Zhao, K.; Yuan, X.; Zhao, Y.; Li, Y.; Qin, H.; Zhu, J. H3PW12O40/TiO2 Catalyst Induced Photodegradation of Bisphenol A (BPA): Kinetics, Toxicity and Degradation Pathways. Chemosphere 2013, 91, 1266–1272. [Google Scholar] [CrossRef] [PubMed]
  6. Vandenberg, L.N.; Hauser, R.; Marcus, M.; Olea, N.; Welshons, W.V. Human exposure to bisphenol A (BPA). Reprod. Toxicol. 2007, 24, 139–177. [Google Scholar] [CrossRef]
  7. Garg, A.; Singhania, T.; Singh, A.; Sharma, S.; Rani, S.; Neogy, A.; Yadav, S.R.; Sangal, V.K.; Garg, N. Photocatalytic Degradation of Bisphenol-A using N, Co Codoped TiO2 Catalyst under Solar Light. Sci. Rep. 2019, 9, 765. [Google Scholar] [CrossRef] [PubMed]
  8. Chung, E.; Genco, M.C.; Megrelis, L.; Ruderman, J.V. Effects of bisphenol A and triclocarban on brain-specific expression of aromatase in early zebrafish embryos. Proc. Natl. Acad. Sci. USA 2011, 108, 17732–17737. [Google Scholar] [CrossRef][Green Version]
  9. Gong, R.; Jiang, Y.; Cai, W.; Zhang, K.; Yuan, B.; Jiang, J. Enhanced Sorption of Bisphenol A on Alpha- Ketoglutaric Acid -Modified Chitosan Resins by Hydrophobic Sorption Hemimicelles. Desalination 2010, 258, 54–58. [Google Scholar] [CrossRef]
  10. Huang, R.-P.; Liu, Z.-H.; Yuan, S.-F.; Yin, H.; Dang, Z.; Wu, P. Worldwide human daily intakes of bisphenol A (BPA) estimated from global urinary concentration data (2000–2016) and its risk analysis. Environ. Pollut. 2017, 230, 143–152. [Google Scholar] [CrossRef]
  11. Kundakovic, M.; Gudsnuk, K.; Franks, B.; Madrid, J.; Miller, R.L.; Perera, F.P.; Champagne, F.A. Sex-Specific Epigenetic Disruption and Behavioural Changes Following Low Dose in Utero Bisphenol A Exposure. Proc. Natl. Acad. Sci. USA 2013, 110, 9956–9961. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Wetherill, Y.B.; Petre, C.E.; Monk, K.R.; Puga, A.; Knudsen, K.E. The xenoestrogen bisphenol A induces inappropriate androgen receptor activation and mitogenesis in prostatic adenocarcinoma cells. Mol. Cancer Ther. 2002, 1, 515–524. [Google Scholar]
  13. NORMAN—Network of Reference Laboratories, Research Centres and Related Organisations for Monitoring of Emerging Environmental Substances 2016. Available online: (accessed on 28 February 2020).
  14. Wang, H.; Liu, Z.-H.; Zhang, J.; Huang, R.-P.; Yin, H.; Dang, Z.; Wu, P.-X.; Liu, Y. Insights into removal mechanisms of bisphenol A and its analogues in municipal wastewater treatment plants. Sci. Total. Environ. 2019, 692, 107–116. [Google Scholar] [CrossRef]
  15. Schneider, J.; Matsuoka, M.; Takeuchi, M.; Zhang, J.; Horiuchi, Y.; Anpo, M.; Bahnemann, D.W. Understanding TiO2 photocatalysis: Mechanisms and materials. Chem. Rev. 2014, 114, 9919–9986. [Google Scholar] [CrossRef] [PubMed]
  16. Janczarek, M.; Kowalska, E. On the Origin of Enhanced Photocatalytic Activity of Copper-Modified Titania in the Oxidative Reaction Systems. Catalysts 2017, 7, 317. [Google Scholar] [CrossRef][Green Version]
  17. Osotsi, M.I.; Macharia, D.K.; Zhu, B.; Wang, Z.; Shen, X.; Liu, Z.; Zhang, L.; Chen, Z. Synthesis of ZnWO4-x nanorods with oxygen vacancy for efficient photocatalytic degradation of tetracycline. Prog. Nat. Sci. Mat. Int. 2018, 28, 408–415. [Google Scholar] [CrossRef]
  18. Mavrič, T.; Valant, M.; Forster, M.; Cowan, A.J.; Lavrenčič, U.; Emin, S. Design of a highly photocatalytically active ZnO/CuWO4 nanocomposite. J. Colloid Interface Sci. 2016, 483, 93–101. [Google Scholar] [CrossRef]
  19. Gavade, N.L.; Babar, S.B.; Kadam, A.N.; Gophane, A.D.; Garadkar, K. Fabrication of [email protected]xO/ZnO (M = Ag, Au) Heterostructured Nanocomposite with Enhanced Photocatalytic Performance under Sunlight. Ind. Eng. Chem. Res. 2017, 56, 14489–14501. [Google Scholar] [CrossRef]
  20. Amouzegar, Z.; NaghiZadeh, R.; Rezaie, H.; Ghahari, M.; Aminzare, M. Microwave engineering of ZnWO4 nanostructures: Towards morphologically favorable structures for photocatalytic activity. Ceram. Int. 2015, 41, 8352–8359. [Google Scholar] [CrossRef]
  21. Zhou, Y.-X.; Tong, L.; Chen, X.-B.; Zeng, X.-H. Ethylene glycol-assisted solvothermal fabrication of ZnWO4 nanostructures with tunable size, optical properties, and photocatalytic activities. Appl. Phys. A 2014, 117, 673–679. [Google Scholar] [CrossRef]
  22. He, D.; Wang, L.; Xu, D.; Zhai, J.; Wang, D.; Xie, T. Investigation of Photocatalytic Activities over Bi2WO6/ZnWO4 Composite under UV Light and Its Photoinduced Charge Transfer Properties. ACS Appl. Mater. Interfaces 2011, 3, 3167–3171. [Google Scholar] [CrossRef] [PubMed]
  23. Bai, X.; Wang, L.; Zhu, Y. Visible Photocatalytic Activity Enhancement of ZnWO4 by Graphene Hybridization. ACS Catal. 2012, 2, 2769–2778. [Google Scholar] [CrossRef]
  24. Li, K.; Xue, J.; Zhang, Y.; Wei, H.; Liu, Y.; Dong, C. ZnWO4 nanorods decorated with Ag/AgBr nanoparticles as highly efficient visible-light-responsive photocatalyst for dye AR18 photodegradation. Appl. Surf. Sci. 2014, 320, 1–9. [Google Scholar] [CrossRef]
  25. Tian, J.; Sang, Y.; Yu, G.; Jiang, H.; Mu, X.; Liu, H. A Bi2WO6-Based Hybrid Photocatalyst with Broad Spectrum Photocatalytic Properties under UV, Visible, and Near-Infrared Irradiation. Adv. Mater. 2013, 25, 5075–5080. [Google Scholar] [CrossRef]
  26. Sun, L.; Zhao, X.; Cheng, X.; Sun, H.; Li, Y.; Li, P.; Fan, W. Evaluating the C, N, and F Pairwise Codoping Effect on the Enhanced Photoactivity of ZnWO4: The Charge Compensation Mechanism in Donor–Acceptor Pairs. J. Phys. Chem. C 2011, 115, 15516–15524. [Google Scholar] [CrossRef]
  27. Fu, H.; Lin, J.; Zhang, L.; Li, D. Photocatalytic activities of a novel ZnWO4 catalyst prepared by a hydrothermal process. Appl. Catal. A Gen. 2006, 306, 58–67. [Google Scholar] [CrossRef]
  28. Keleş, T.; Barut, B.; Bıyıklıoğlu, Z.; Özel, A. A comparative study on DNA/BSA binding, DNA photocleavage and antioxidant activities of water soluble peripherally and non-peripherally tetra-3-pyridin-3-ylpropoxy-substituted Mn(III), Cu(II) phthalocyanines. Dyes Pigm. 2017, 139, 575–586. [Google Scholar] [CrossRef]
  29. Wang, H.-L.; Li, Y.; Pang, L.; Zhang, W.-Z.; Jiang, W.-F. Preparation and application of thermosensitive poly(NIPAM-co-MAH-β-CD)/(TiO2-MWCNTs) composites for photocatalytic degradation of dinitro butyl phenol (DNBP) under visible light irradiation. Appl. Catal. B Environ. 2013, 130, 132–142. [Google Scholar] [CrossRef]
  30. Çakır, D.; Çakır, V.; Bıyıklıoğlu, Z.; Durmuş, M.; Kantekin, H. New water-soluble cationic zinc phthalocyanines as potential for photodynamic therapy of cancer. J. Organomet. Chem. 2013, 745, 423–431. [Google Scholar] [CrossRef]
  31. Bayrak, R.; Akçay, H.T.; Beris, F.S.; Sahin, E.; Bayrak, H.; Demirbaş, Ü. Synthesis, aggregation and spectroscopic studies of novel water soluble metal free, zinc, copper and magnesium phthalocyanines and investigation of their anti-bacterial properties. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2014, 133, 272–280. [Google Scholar] [CrossRef]
  32. Akinbulu, A.I.; Nyokong, T. The effects of point of substitution on the electrochemical behavior of new manganese phthalocyanines, tetra-substituted with Diethylaminoethanethiol. Inorganica Chim. Acta 2010, 363, 3229–3237. [Google Scholar] [CrossRef]
  33. Li, X.; Wang, L.; Xu, D.; Lin, J.; Li, P.; Lin, S.; Shi, W.; Dongbo, X. Enhanced photocatalytic degradation activity for tetracycline under visible light irradiation of Ag/Bi3.84W0.16O6.24 nanooctahedrons. CrystEngComm 2015, 17, 2421–2428. [Google Scholar] [CrossRef]
  34. Amouzegar, Z.; NaghiZadeh, R.; Rezaie, H.; Ghahari, M.; Aminzare, M. Cubic ZnWO4 nano-photocatalysts synthesized by the microwave-assisted precipitation technique. Ceram. Int. 2015, 41, 1743–1747. [Google Scholar] [CrossRef]
  35. You, H.; Zhao, Y. Synthesis, Characterization and Visible Light Photocatalytic Performance of Iron (III) Tetracarboxyphthalocyanine-Sensitized TiO2 Photocatalyst. J. Phys. Chem. Biophys. 2016, 6, 1. [Google Scholar] [CrossRef][Green Version]
  36. Mancheva, M.; Iordanova, R.; Dimitriev, Y. Mechanochemical synthesis of nanocrystalline ZnWO4 at room temperature. J. Alloys Compd. 2011, 509, 15–20. [Google Scholar] [CrossRef]
  37. Singh, N.P.; Devi, Y.R.; Singh, N.R.; Singh, N.M. Synthesis of Tb3+ Ion Doped ZnWO4 Phosphors and Investigation of Their Photoluminescence Properties: Concentration Effect. Bull. Mater. Sci. 2019, 42, 96. [Google Scholar] [CrossRef][Green Version]
  38. Li, Z.; Yu, T.; Zou, Z.; Ye, J. Degradation in Photocatalytic Activity Induced by Hydrogen Related Defects in Nano-LiNbO3. Appl. Phys. Lett. 2006, 88, 917–923. [Google Scholar] [CrossRef]
  39. Pan, C.; Xu, J.; Chen, Y.; Zhu, Y. Influence of -OH Related Defects on the Performances of BiPO4 Photocatalyst for the Degradation of Rhodamine B. Appl. Catal. B Environ. 2012, 115–116, 314–315. [Google Scholar] [CrossRef]
  40. Kanan, S.M.; Lu, Z.; Cox, J.K.; Bernhardt, G.; Tripp, C.P. Identification of Surface Sites on Monoclinic WO3Powders by Infrared Spectroscopy. Langmuir 2002, 18, 1707–1712. [Google Scholar] [CrossRef]
  41. Kim, S.J.; A’Hearn, M.; Wellnitz, D.; Meier, R.; Lee, Y. The rotational structure of the B–X system of sulfur dimers in the spectra of Comet Hyakutake (C/1996 B2). Icarus 2003, 166, 157–166. [Google Scholar] [CrossRef]
  42. Li, F.; Li, X.; Ao, C.; Lee, S.; Hou, M. Enhanced photocatalytic degradation of VOCs using Ln3+–TiO2 catalysts for indoor air purification. Chemosphere 2005, 59, 787–800. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Ede, S.R.; Ramadoss, A.; Nithiyanantham, U.; Anantharaj, S.; Kundu, S. Bio-molecule Assisted Aggregation of ZnWO4 Nanoparticles (NPs) into Chain-like Assemblies: Material for High Performance Supercapacitor and as Catalyst for Benzyl Alcohol Oxidation. Inorg. Chem. 2015, 54, 3851–3863. [Google Scholar] [CrossRef]
  44. Chu, J.; Peng, X.; Dasari, K.; Palai, R.; Feng, P. The shift of optical band gap in W-doped ZnO with oxygen pressure and doping level. Mater. Res. Bull. 2014, 54, 73–77. [Google Scholar] [CrossRef]
  45. Chen, S.; Sun, S.; Sun, H.; Fan, W.; Zhao, X.; Sun, X. Experimental and Theoretical Studies on the Enhanced Photocatalytic Activity of ZnWO4 Nanorods by Fluorine Doping. J. Phys. Chem. C 2010, 114, 7680–7688. [Google Scholar] [CrossRef]
  46. Zhai, B.-G.; Yang, L.; Zhou, F.-F.; Shi, J.-S.; Huang, Y.M. Strong Photo-Oxidative Capability of ZnWO4 Nanoplates with Highly Exposed {0 1 1} Facets. Catalysts 2019, 9, 178. [Google Scholar] [CrossRef][Green Version]
  47. Mohamed, M.J.H.; Bhat, D.K. Novel ZnWO4/RGO Nanocomposite as High Performance Photocatalyst. AIMS Mat. Sci. 2017, 4, 158–171. [Google Scholar]
  48. Colusso, A.V.; McDonagh, A.; Cortie, M.B. X-ray-induced reduction of a surfactant/polyoxotungstate hybrid compound. Surf. Interface Anal. 2018, 50, 1384–1388. [Google Scholar] [CrossRef][Green Version]
  49. Dutta, D.P.; Raval, P. Effect of transition metal ion (Cr3+, Mn2+ and Cu2+) doping on the photocatalytic properties of ZnWO4 nanoparticles. J. Photochem. Photobiol. A Chem. 2018, 357, 193–200. [Google Scholar] [CrossRef]
  50. Kubelka, P.; Munk, F. Ein Beitrag zur Optik der Farbanstriche. Z. Tech. Phys. 1931, 12, 593–601. [Google Scholar]
  51. Lacomba-Perales, R.; Ruiz-Fuertes, J.; Errandonea, D.; Martínez-García, D.; Segura, A. Optical absorption of divalent metal tungstates: Correlation between the band-gap energy and the cation ionic radius. EPL (Europhys. Lett.) 2008, 83, 37002–37018. [Google Scholar] [CrossRef][Green Version]
  52. Su, Y.; Zhu, B.; Guan, K.; Gao, S.; Lv, L.; Du, C.; Peng, L.; Hou, L.; Wang, X. Particle Size and Structural Control of ZnWO4 Nanocrystals via Sn2+ Doping for Tunable Optical and Visible Photocatalytic Properties. J. Phys. Chem. C 2012, 116, 18508–18517. [Google Scholar] [CrossRef]
  53. Dong, Y.; Wu, D.; Chen, X.; Lin, Y. Adsorption of bisphenol A from water by surfactant-modified zeolite. J. Colloid Interface Sci. 2010, 348, 585–590. [Google Scholar] [CrossRef] [PubMed]
  54. Bechambi, O.; Jlaiel, L.; Najjar, W.; Sayadi, S. Photocatalytic Degradation of Bisphenol A in the Presence of Ce-ZnO: Evolution of Kinetics, Toxicity and Photodegradation Mechanism. Mater. Chem. Phys. 2016, 173, 95–105. [Google Scholar] [CrossRef]
  55. Anju, S.; Yesodharan, S.; Yesodharan, E. Zinc oxide mediated sonophotocatalytic degradation of phenol in water. Chem. Eng. J. 2012, 189–190, 84–93. [Google Scholar] [CrossRef]
  56. Staples, C.A.; Dome, P.B.; Klecka, G.M.; Oblock, S.T.; Harris, L.R. A review of the environmental fate, effects, and exposures of bisphenol A. Chemosphere 1998, 36, 2149–2173. [Google Scholar] [CrossRef]
  57. Onundi, Y.; Drake, B.A.; Malecky, R.T.; DeNardo, M.A.; Mills, M.R.; Kundu, S.; Ryabov, A.D.; Beach, E.S.; Horwitz, C.P.; Simonich, M.T.; et al. A multidisciplinary investigation of the technical and environmental performances of TAML/peroxide elimination of Bisphenol A compounds from water. Green Chem. 2017, 19, 4234–4262. [Google Scholar] [CrossRef][Green Version]
  58. Daneshvar, N.; Salari, D.; Khataee, A. Photocatalytic degradation of azo dye acid red 14 in water: Investigation of the effect of operational parameters. J. Photochem. Photobiol. A Chem. 2003, 157, 111–116. [Google Scholar] [CrossRef]
  59. Goto, H.; Hanada, Y.; Ohno, T.; Matsumura, M. Quantitative analysis of superoxide ion and hydrogen peroxide produced from molecular oxygen on photoirradiated TiO2 particles. J. Catal. 2004, 225, 223–229. [Google Scholar] [CrossRef]
  60. Tseng, D.-H.; Juang, L.-C.; Huang, H.-H. Effect of Oxygen and Hydrogen Peroxide on the Photocatalytic Degradation of Monochlorobenzene in Aqueous Suspension. Int. J. Photoenergy 2012, 2012, 1–9. [Google Scholar] [CrossRef]
  61. Awfa, D.; Ateia, M.; Fujii, M.; Johnson, M.S.; Yoshimura, C. Photodegradation of Pharmaceuticals and Personal Care Products in Water Using Carbonacious -TiO2 Composites: A Critical Review of Recent Literature. Water Res. 2018, 142, 26–45. [Google Scholar] [CrossRef]
  62. Sojic-Merkulov, D.; Lazarevic, M.; Despotović, V.N.; Banić, N.D.; Fincur, N.; Maletic, S.; Abramović, B.F. The effect of inorganic anions and organic matter on mesotrione (Callisto®) removal from environmental waters. J. Serbian Chem. Soc. 2017, 82, 343–355. [Google Scholar] [CrossRef]
  63. Kudlek, E.; Dudziak, M.; Bohdziewicz, J. Influence of Inorganic Ions and Organic Substances on the Degradation of Pharmaceutical Compound in Water Matrix. Water 2016, 8, 532. [Google Scholar] [CrossRef][Green Version]
  64. Choi, J.; Lee, H.; Choi, Y.; Kim, S.; Lee, S.; Lee, S.; Choi, W.; Lee, J. Heterogeneous photocatalytic treatment of pharmaceutical micropollutants: Effects of wastewater effluent matrix and catalyst modifications. Appl. Catal. B Environ. 2014, 147, 8–16. [Google Scholar] [CrossRef]
  65. Antonopoulou, M.; Skoutelis, C.; Daikopoulos, C.; Deligiannakis, Y.; Konstantinou, I. Probing the photolytic–photocatalytic degradation mechanism of DEET in the presence of natural or synthetic humic macromolecules using molecular-scavenging techniques and EPR spectroscopy. J. Environ. Chem. Eng. 2015, 3, 3005–3014. [Google Scholar] [CrossRef]
  66. Reddy, P.V.L.; Kim, K.-H.; Kavitha, B.; Kumar, V.; Raza, N.; Kalagara, S. Photocatalytic degradation of bisphenol A in aqueous media: A review. J. Environ. Manag. 2018, 213, 189–205. [Google Scholar] [CrossRef] [PubMed]
  67. Sun, Q.; Xu, Y. Sensitization of TiO2 with Aluminum Phthalocyanine: Factors Influencing the Efficiency for Chlorophenol Degradation in Water under Visible Light. J. Phys. Chem. C 2009, 113, 12387–12394. [Google Scholar] [CrossRef]
  68. Souza, J.D.; Pinheiro, M.V.B.; Krambrock, K.; Alves, W.A. Dye Degradation Mechanisms Using Nitrogen Doped and Copper(II) Phthalocyanine Tetracarboxylate Sensitized Titanate and TiO2 Nanotubes. J. Phys. Chem. C 2016, 120, 11561–11571. [Google Scholar] [CrossRef]
  69. Pelaez, M.; Falaras, P.; Likodimos, V.; O’Shea, K.; De La Cruz, A.A.; Dunlop, P.S.; Byrne, J.A.; Dionysiou, D.D. Use of selected scavengers for the determination of NF-TiO2 reactive oxygen species during the degradation of microcystin-LR under visible light irradiation. J. Mol. Catal. A Chem. 2016, 425, 183–189. [Google Scholar] [CrossRef]
  70. Li, B.; Sun, L.; Bian, J.; Sun, N.; Sun, J.; Chen, L.; Li, Z.; Jing, L. Controlled synthesis of novel Z-scheme iron phthalocyanine/porous WO3 nanocomposites as efficient photocatalysts for CO2 reduction. Appl. Catal. B Environ. 2020, 270, 118849. [Google Scholar] [CrossRef]
  71. Wang, S.L.; Gu, Y.; Cao, T.T.; Wang, P.; Zhang, A.; Huang, Y.P.; Ma, W. Photodegradation of Toxic Organic Pollutants Catalyzed by MnPcTC Immobilized on WO3. Fresen. Environ. Bull. 2011, 20, 2071–2077. [Google Scholar]

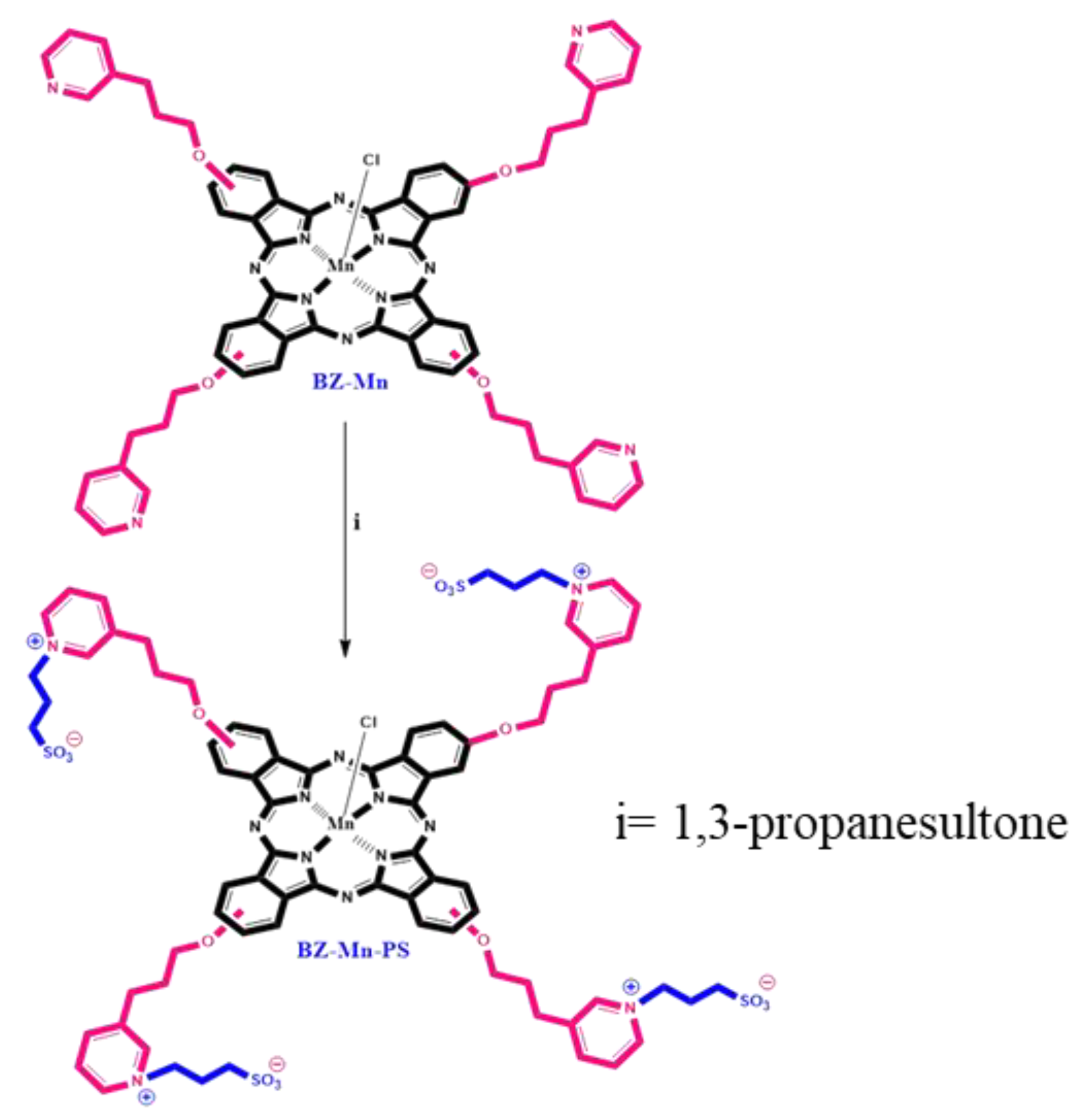

Scheme 1. Synthesis route of BZ-Mn-PS.
Scheme 1. Synthesis route of BZ-Mn-PS.
Nanomaterials 10 02139 sch001

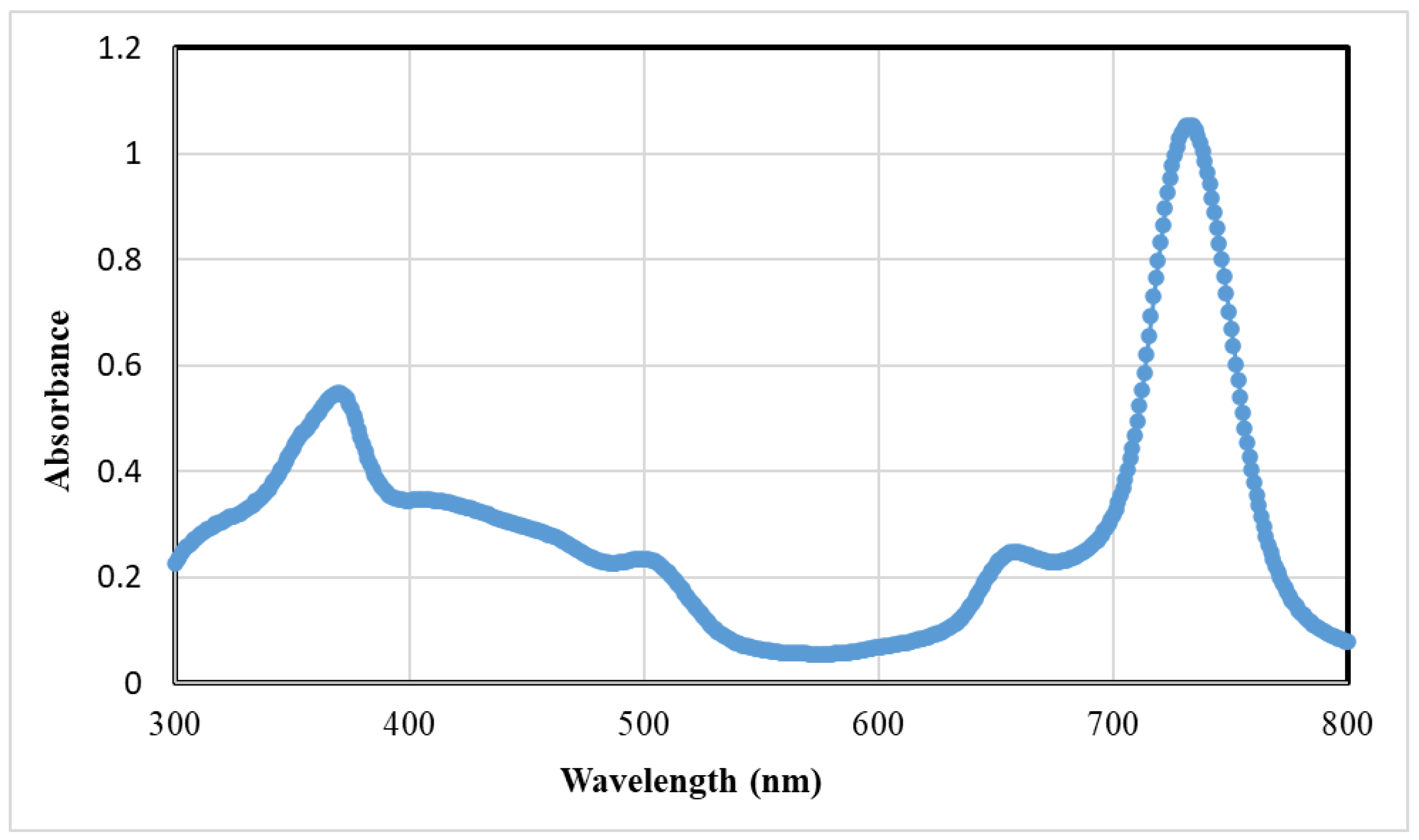

Figure 1. UV-Vis spectrum in DMSO of BZ-Mn-PS.
Figure 1. UV-Vis spectrum in DMSO of BZ-Mn-PS.
Nanomaterials 10 02139 g001

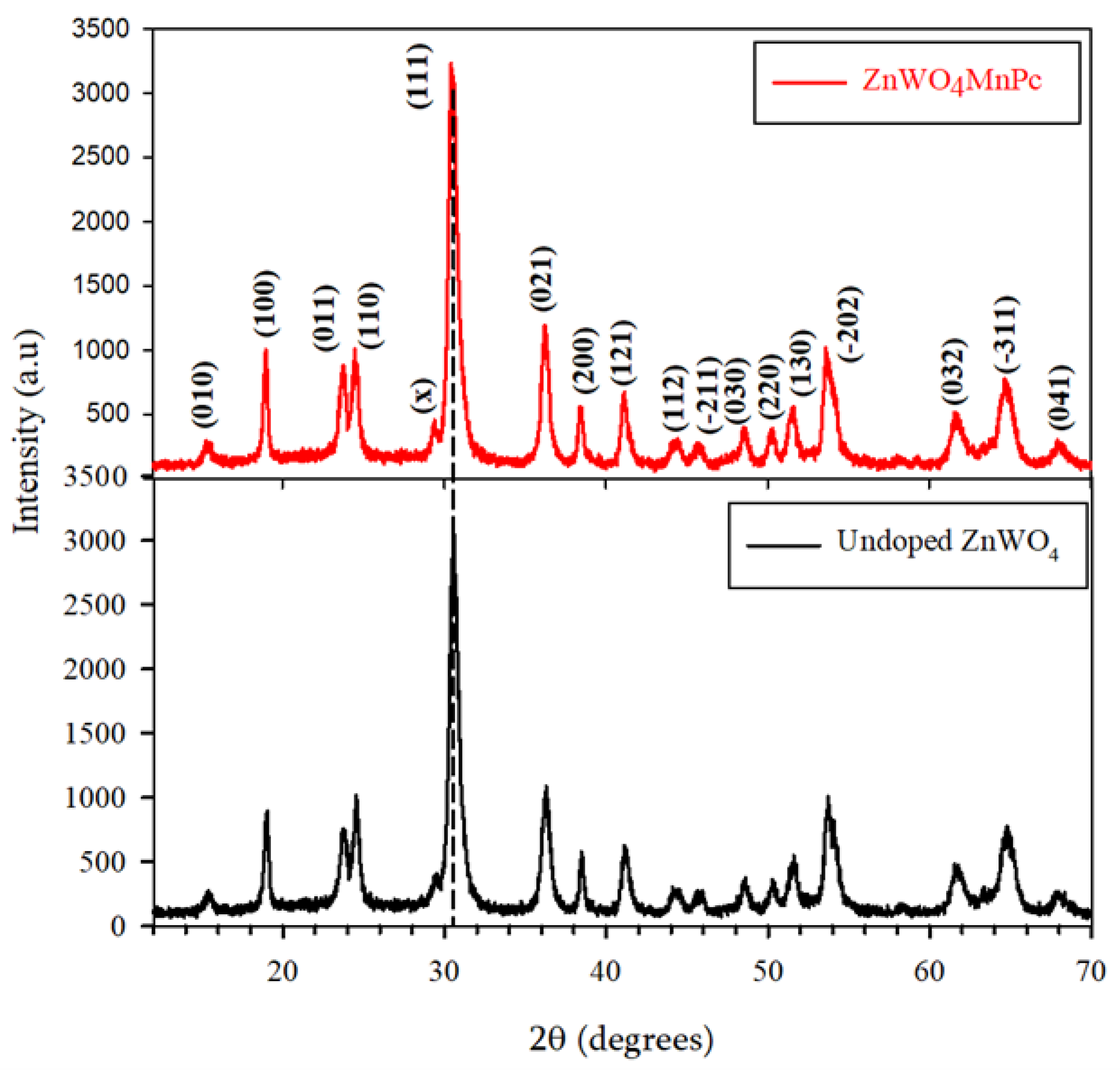

Figure 2. XRD patterns of ZnWO4 and ZnWO4MnPc sample materials.
Figure 2. XRD patterns of ZnWO4 and ZnWO4MnPc sample materials.
Nanomaterials 10 02139 g002
Figure 3. FTIR patterns of ZnWO4 and ZnWO4MnPc sample materials.
Figure 3. FTIR patterns of ZnWO4 and ZnWO4MnPc sample materials.
Nanomaterials 10 02139 g003
Figure 4. TEM images of as synthesized photocatalyst materials: ZnWO4 (A,B), and ZnWO4MnPc (C,D).
Figure 4. TEM images of as synthesized photocatalyst materials: ZnWO4 (A,B), and ZnWO4MnPc (C,D).
Nanomaterials 10 02139 g004

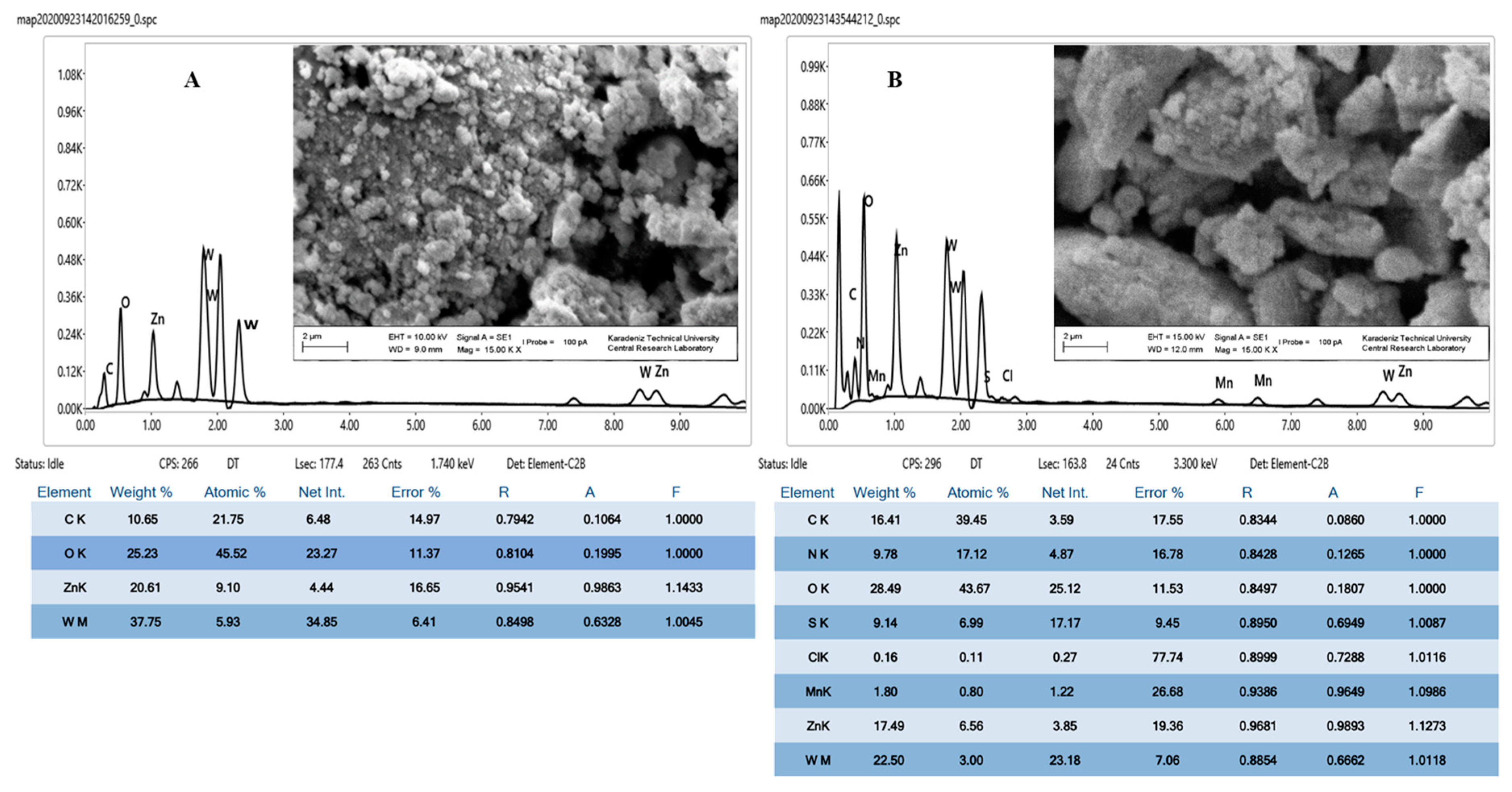

Figure 5. SEM images and associated EDX maps of as synthesized photocatalyst materials: (A) ZnWO4, and (B) ZnWO4MnPc.
Figure 5. SEM images and associated EDX maps of as synthesized photocatalyst materials: (A) ZnWO4, and (B) ZnWO4MnPc.
Nanomaterials 10 02139 g005
Figure 6. N2 adsorption–desorption isotherms (A), and adsorption cumulative distribution of synthesized materials (B).
Figure 6. N2 adsorption–desorption isotherms (A), and adsorption cumulative distribution of synthesized materials (B).
Nanomaterials 10 02139 g006
Figure 7. (a) XPS survey spectrum of ZnWO4 and ZnWO4MnPc synthesized materials, and (b) Zn2p, (c) W4f, (d) O1s, (e) Mn2p, and (f) N 1s deconvoluted peaks of synthesized materials.
Figure 7. (a) XPS survey spectrum of ZnWO4 and ZnWO4MnPc synthesized materials, and (b) Zn2p, (c) W4f, (d) O1s, (e) Mn2p, and (f) N 1s deconvoluted peaks of synthesized materials.
Nanomaterials 10 02139 g007

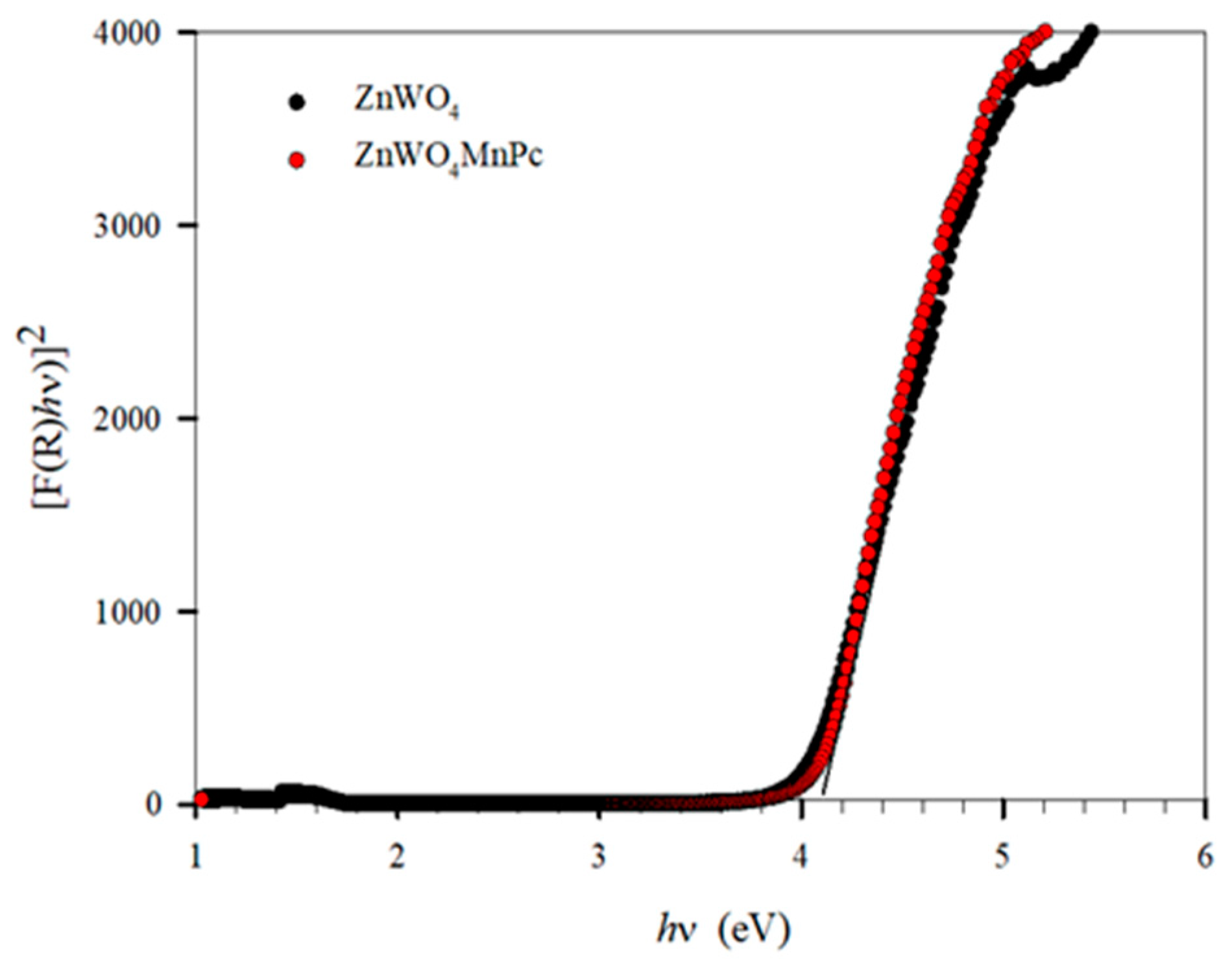

Figure 8. Energy band gap (Eg) of synthesized materials.
Figure 8. Energy band gap (Eg) of synthesized materials.
Nanomaterials 10 02139 g008
Figure 9. Plot for the determination of pH point of zero charge (pHpzc) of ZnWO4MnPc photocatalyst.
Figure 9. Plot for the determination of pH point of zero charge (pHpzc) of ZnWO4MnPc photocatalyst.
Nanomaterials 10 02139 g009

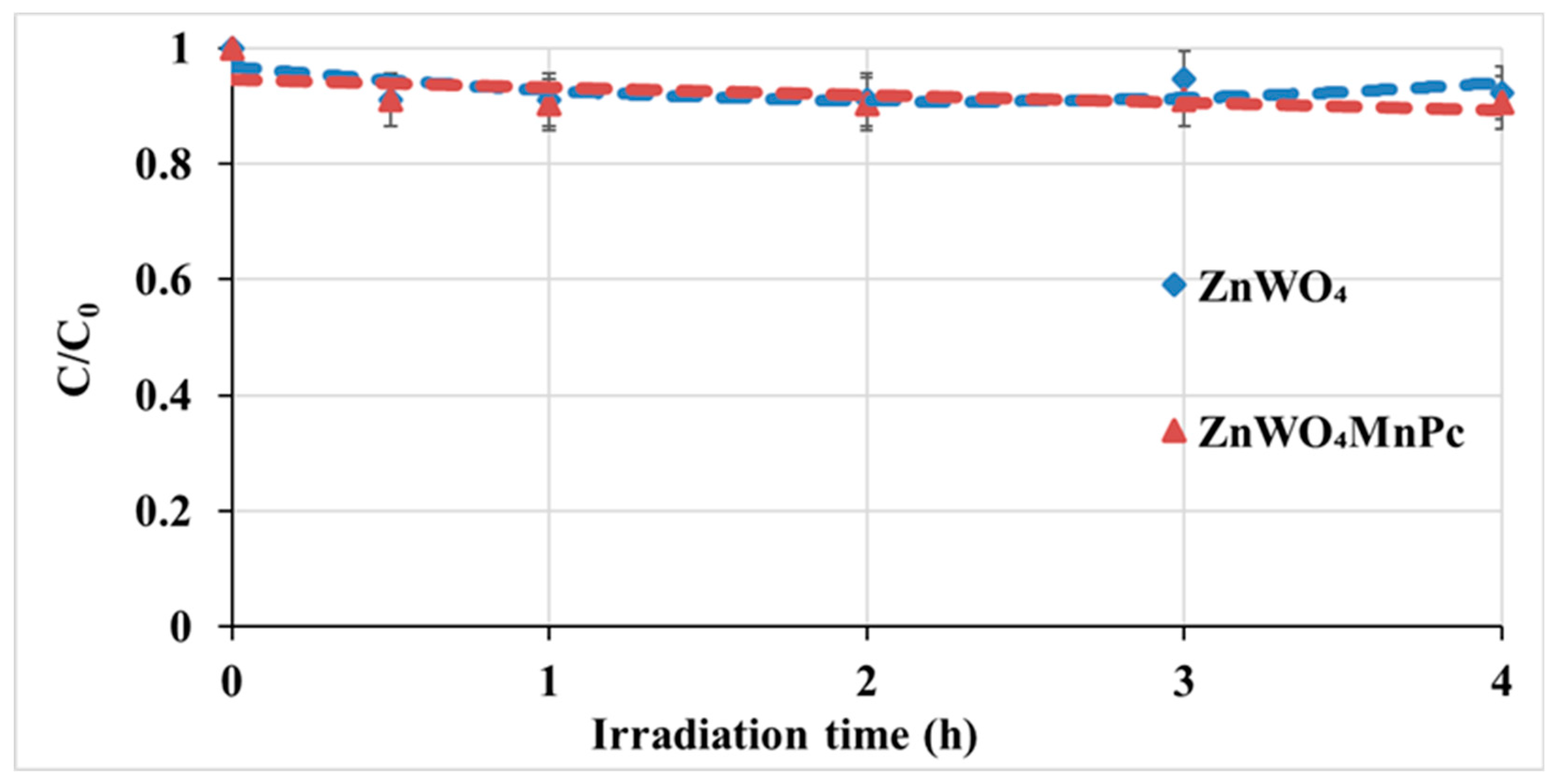

Figure 10. ZnWO4 (blue line), and ZnWO4MnPc (red line) photocatalyst materials degradation towards BPA. ([BPA]0 = 10 mg/L, Catalyst dosage = 1 g, ZnWO4 pHnatural = 6.58, and ZnWO4MnPc pHnatural = 6.68).
Figure 10. ZnWO4 (blue line), and ZnWO4MnPc (red line) photocatalyst materials degradation towards BPA. ([BPA]0 = 10 mg/L, Catalyst dosage = 1 g, ZnWO4 pHnatural = 6.58, and ZnWO4MnPc pHnatural = 6.68).
Nanomaterials 10 02139 g010
Figure 11. Initial pH effects on (a) ZnWO4, and (b) ZnWO4MnPc photocatalyst materials towards BPA degradation, and (c) photolysis and dark tests ([BPA]0 = 10 mg/L, Catalyst dosage = 1 g).
Figure 11. Initial pH effects on (a) ZnWO4, and (b) ZnWO4MnPc photocatalyst materials towards BPA degradation, and (c) photolysis and dark tests ([BPA]0 = 10 mg/L, Catalyst dosage = 1 g).
Nanomaterials 10 02139 g011
Figure 12. Effects of (a) ZnWO4MnPc catalyst dose against 10 mg/L BPA concentration, and (b) BPA concentrations against 1 g catalyst dose on photocatalytic system at pH 11.
Figure 12. Effects of (a) ZnWO4MnPc catalyst dose against 10 mg/L BPA concentration, and (b) BPA concentrations against 1 g catalyst dose on photocatalytic system at pH 11.
Nanomaterials 10 02139 g012

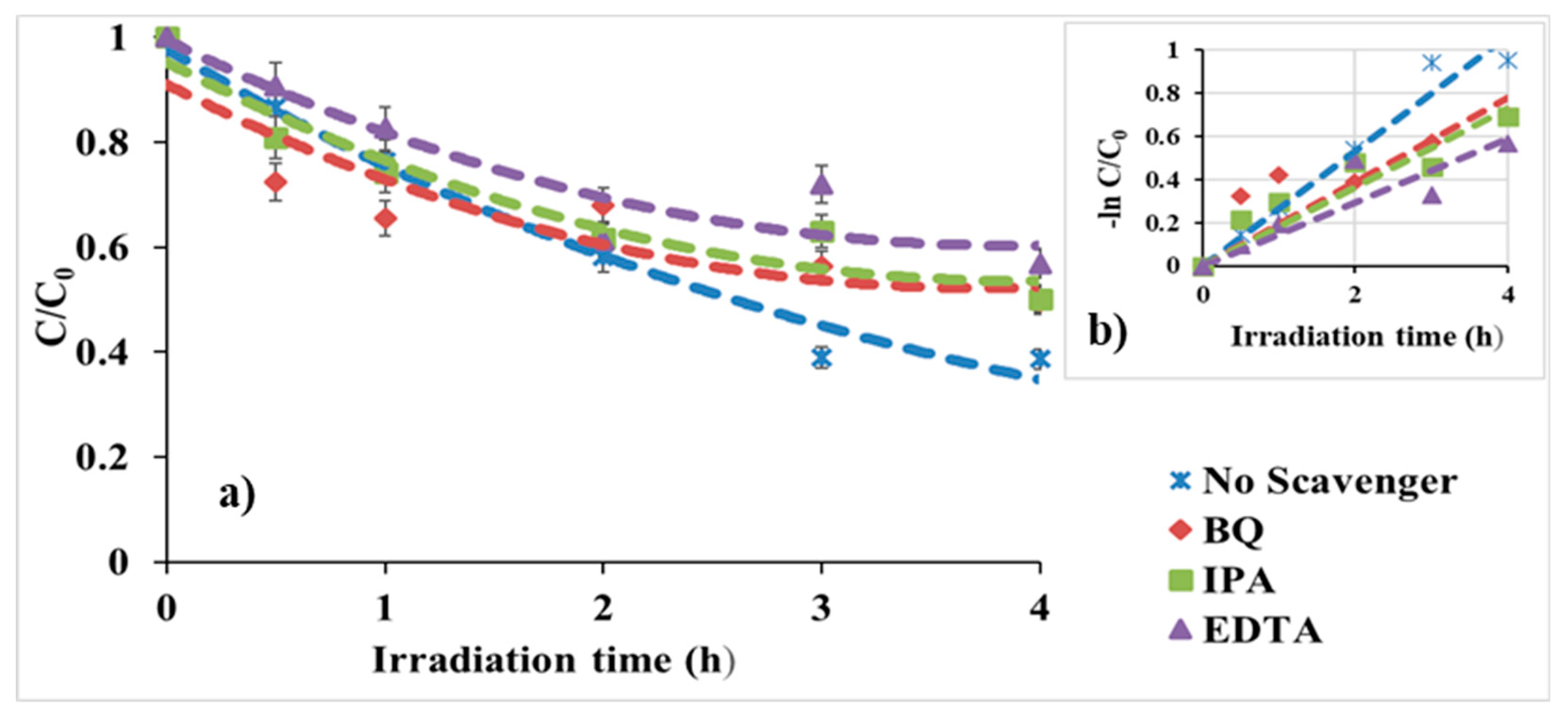

Figure 13. (a) Effects of scavengers on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11), and (b) corresponding degradation rate constant (inset).
Figure 13. (a) Effects of scavengers on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11), and (b) corresponding degradation rate constant (inset).
Nanomaterials 10 02139 g013
Figure 14. (a) Effect of H2O2, and photolysis on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11), and (b) corresponding degradation rate constant (inset).
Figure 14. (a) Effect of H2O2, and photolysis on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11), and (b) corresponding degradation rate constant (inset).
Nanomaterials 10 02139 g014
Figure 15. Inorganic ion species effect on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11): (a) Anions and rate of degradation (inset), (b) cations and rate of degradation (inset), and (c) humic acid (HA) and rate of degradation (inset).
Figure 15. Inorganic ion species effect on BPA removal (1 g ZnWO4MnPc, [BPA]0 = 10 mg/L, pH 11): (a) Anions and rate of degradation (inset), (b) cations and rate of degradation (inset), and (c) humic acid (HA) and rate of degradation (inset).
Nanomaterials 10 02139 g015
Figure 16. Photocatalytic activity of (a) ZnWO4, ZnWO4MnPc, ZnWO4MnPc + 5 mM H2O2, and photolysis (b) respective degradation rate constant of tested materials under 450 nm visible light (1 g catalyst, [BPA]0 = 10 mg/L, pH 11).
Figure 16. Photocatalytic activity of (a) ZnWO4, ZnWO4MnPc, ZnWO4MnPc + 5 mM H2O2, and photolysis (b) respective degradation rate constant of tested materials under 450 nm visible light (1 g catalyst, [BPA]0 = 10 mg/L, pH 11).
Nanomaterials 10 02139 g016
Scheme 2. Proposed reaction mechanism for ZnWO4MnPc photocatalyst material.
Scheme 2. Proposed reaction mechanism for ZnWO4MnPc photocatalyst material.
Nanomaterials 10 02139 sch002
Table 1. Physical properties of synthesized materials a.
Table 1. Physical properties of synthesized materials a.
MaterialsdXRD (nm)dTEM (nm)SBET (m2/g)Vp (cm3/g)dp (nm)Eg (eV)
a dXRD, crystallite size estimated by XRD; dTEM, particle size estimated by TEM; SBET, surface area; Vp, total pore volume and dp, average pore size estimated by Barrett, Joyner, and Halenda (BJH) adsorption pore volume and BJH adsorption pore size respectively; Eg, energy band gap.
Table 2. Degradation rate constant (h−1) and corresponding correlation coefficient constant (R2) of controlled photocatalytic parameters.
Table 2. Degradation rate constant (h−1) and corresponding correlation coefficient constant (R2) of controlled photocatalytic parameters.
TestDegradation Rate Constant K (h−1)R2
Scavenger effects on ZnWO4MnPc #
No Scavenger0.26610.9842
Benzoquinone (BQ)0.19420.9125
Isopropyl alcohol (IPA)0.1820.9516
Etheylenediamine tetracetic acid (EDTA)0.14170.9245
H2O2 effects on ZnWO4MnPc #
0 mM H2O20.26610.9842
5 mM H2O20.54420.8607
Ion effects on ZnWO4MnPc: Anions #
No ion0.26610.9842
20 mg/L NO30.17350.9815
100 mg/L CO32−0.18230.8227
200 mg/L Cl0.22700.9938
Ion effects on ZnWO4MnPc: Cations #
No ion0.26610.9842
20 mg/L Al3+0.23360.9674
50 mg/L Ca2+0.17950.9006
50 mg/L K+0.17950.9006
Humic acid (HA) effects on ZnWO4MnPc #
0 mg/L HA0.26610.9842
10 mg/L HA0.14730.7826
15 mg/L HA0.09740.9219
Photolysis effect/450 nm Visible range test
ZnWO4MnPc + 5 mM H2O211.8991
UV-365 nm #0.1595 0.8309
450 nm0.05860.8451
# Tests performed under 365 nm near UV-vis irradiation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Anucha, C.B.; Altin, I.; Biyiklioglu, Z.; Bacaksiz, E.; Polat, I.; Stathopoulos, V.N. Synthesis, Characterization, and Photocatalytic Evaluation of Manganese (III) Phthalocyanine Sensitized ZnWO4 (ZnWO4MnPc) for Bisphenol A Degradation under UV Irradiation. Nanomaterials 2020, 10, 2139.

AMA Style

Anucha CB, Altin I, Biyiklioglu Z, Bacaksiz E, Polat I, Stathopoulos VN. Synthesis, Characterization, and Photocatalytic Evaluation of Manganese (III) Phthalocyanine Sensitized ZnWO4 (ZnWO4MnPc) for Bisphenol A Degradation under UV Irradiation. Nanomaterials. 2020; 10(11):2139.

Chicago/Turabian Style

Anucha, Chukwuka Bethel, Ilknur Altin, Zekeriya Biyiklioglu, Emin Bacaksiz, Ismail Polat, and Vassilis N. Stathopoulos. 2020. "Synthesis, Characterization, and Photocatalytic Evaluation of Manganese (III) Phthalocyanine Sensitized ZnWO4 (ZnWO4MnPc) for Bisphenol A Degradation under UV Irradiation" Nanomaterials 10, no. 11: 2139.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
