Review

Culture of Oral Mucosal Epithelial Cells for the Purpose of Treating Limbal Stem Cell Deficiency

1
Department of Medical Biochemistry, Oslo University Hospital, Oslo 0407, Norway
2
Department of Oral Biology, Faculty of Dentistry, University of Oslo, Oslo 0372, Norway
3
Department of Ophthalmology, Drammen Hospital, Vestre Viken Hospital Trust, Drammen 3004, Norway
4
Department of Ophthalmology, Oslo University Hospital, Oslo 0407, Norway
5
Department of Medical Biology, Faculty of Health Sciences, University of Tromsø, Tromsø 9037, Norway
*
Author to whom correspondence should be addressed.
J. Funct. Biomater. 2016, 7(1), 5; https://doi.org/10.3390/jfb7010005
Received: 20 December 2015 / Revised: 1 February 2016 / Accepted: 22 February 2016 / Published: 1 March 2016
(This article belongs to the Special Issue Ocular Tissue Engineering)

Abstract

:
The cornea is critical for normal vision as it allows allowing light transmission to the retina. The corneal epithelium is renewed by limbal epithelial cells (LEC), which are located in the periphery of the cornea, the limbus. Damage or disease involving LEC may lead to various clinical presentations of limbal stem cell deficiency (LSCD). Both severe pain and blindness may result. Transplantation of cultured autologous oral mucosal epithelial cell sheet (CAOMECS) represents the first use of a cultured non-limbal autologous cell type to treat this disease. Among non-limbal cell types, CAOMECS and conjunctival epithelial cells are the only laboratory cultured cell sources that have been explored in humans. Thus far, the expression of p63 is the only predictor of clinical outcome following transplantation to correct LSCD. The optimal culture method and substrate for CAOMECS is not established. The present review focuses on cell culture methods, with particular emphasis on substrates. Most culture protocols for CAOMECS used amniotic membrane as a substrate and included the xenogeneic components fetal bovine serum and murine 3T3 fibroblasts. However, it has been demonstrated that tissue-engineered epithelial cell sheet grafts can be successfully fabricated using temperature-responsive culture surfaces and autologous serum. In the studies using different substrates for culture of CAOMECS, the quantitative expression of p63 was generally poorly reported; thus, more research is warranted with quantification of phenotypic data. Further research is required to develop a culture system for CAOMECS that mimics the natural environment of oral/limbal/corneal epithelial cells without the need for undefined foreign materials such as serum and feeder cells.

1. Introduction

1.1. Limbal Stem Cell Deficiency

The regenerating organs in the body (e.g., cornea, skin, and gut) harbor tissue-specific stem cells, which are responsible for tissue homeostasis and efficient healing in case of injury. The ocular surface is composed of corneal and conjunctival epithelium [1]. The corneal epithelium in particular plays a crucial role in maintaining the cornea’s avascularity and transparency [2]. The self-renewal of the corneal surface is a multistep process dependent on a small population of limbal stem cells [3,4] located in structures referred to as limbal crypts [5] or limbal epithelial crypts [6].
Numerous external factors and disorders (e.g., chemical or thermal injuries, microbial infections, surgeries involving the limbus, cicatricial pemphigoid, and aniridia) can lead to dysfunction or loss of limbal epithelial cells (LEC), resulting in either partial or total limbal stem cell deficiency (LSCD) [2]. The condition can be painful and may lead to reduced vision, or even blindness, by causing persistent epithelial defects, fibrovascular pannus, conjunctivalization, and superficial and deep vascularization of the cornea. The persistence of epithelial defects may result in ulceration, scarring, and corneal perforation [2]. Limbal stem cell deficiency is most often bilateral.

1.2. Treatment Strategies for Limbal Stem Cell Deficiency

Treatment approaches for LSCD can be categorized as follows: (a) transplantation of cultured cells [2]; (b) transplantation of non-cultured cells [2]; and (c) approaches that do not involve transplantation of cells, for example keratoprostheses [7]. A great variety of cell-based therapeutic strategies have been suggested for LSCD [8]. The stem cells of the corneal epithelium are believed to be located in the limbus [3,4]. In 1989, limbal grafts were transplanted to eyes suffering from LSCD to restore the corneal surface [9]. The results were promising. However, the procedure carries a risk of inducing LSCD in the healthy eye because of large limbal cell withdrawal [10], and the therapy is not possible in cases of bilateral LSCD. This led to a novel therapeutic strategy with ex vivo expansion of LEC first reported by Pellegrini and colleagues in 1997 [11]. In their study, successful ocular surface reconstruction was achieved using autologous cultivated LEC isolated from small biopsies in two patients, both affected with severe unilateral ocular surface disease. Since then, more than 1000 patients suffering from LSCD have been treated with ex vivo cultured LEC [11,12,13,14,15,16,17,18]. Since 2003, nine cultured non-limbal cell sources have been successfully used to reconstruct the corneal epithelium in bilateral LSCD, in which limbal tissue is not recommended for harvest [8]. The sources include oral mucosal epithelial cells [19], embryonic stem cells [20], conjunctival epithelial cells [21], epidermal stem cells [22], dental pulp stem cells [23], bone marrow-derived mesenchymal stem cells [24], hair follicle bulge-derived stem cells [25], umbilical cord lining stem cells [26], and orbital fat-derived stem cells [27]. Among non-limbal cell types, cultured autologous oral mucosal epithelial cell sheet (CAOMECS) and conjunctival epithelial cells are the only laboratory cultured cell sources that have been explored in humans.

2. Cultured Autologous Oral Mucosal Epithelial Cell Sheet

A significant advantage of CAOMECS as a cell source is easy isolation from biopsies that heal quickly without residual scarring. As the CAOMECS are autologous, there is no risk of immune rejection, thus making immunosuppression unnecessary. However, a disadvantage of transplantation of CAOMECS is the development of peripheral neovascularization [28,29,30,31]. Studies have demonstrated that angiogenesis related factors were expressed in corneas after transplantation [32,33,34,35]. Anti-angiogenic therapy has been proposed as a method to prevent corneal neovascularization and improve the outcomes after transplantation with CAOMECS [36]. Thus far, 242 patients with LSCD have been reported as treated, with a success rate of 72% and a follow-up time of between one and 7.5 years [19,28,29,30,31,32,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51].
An ideal substrate is easily available, transparent, and easy to manipulate; it permits cells to proliferate and retain high viability. Though transplant success has been demonstrated using various culture methods, the optimal culture method for CAOMECS for use in corneal regeneration has not been established. The determination of appropriate substrates and culture protocols for CAOMECS may contribute to the development of standardized, safe, and effective regenerative therapy for LSCD. The present review focuses on the current state of knowledge of the culture methods and substrates used for CAOMECS in ocular regeneration. The review was prepared by searching the National Library of Medicine database using the search term “oral mucosal epithelial cells” in an attempt not to leave out any relevant publications. In total, the search resulted in 4897 studies, of which 41 studies, published from 2003 to 2015, were related directly to the core topic of the present review.

3. Characteristics of the Culture Protocol for Cultured Autologous Oral Mucosal Epithelial Cell Sheet

The standard culture conditions used for production of transplantable epithelial cell sheets, including CAOMECS, typically requires fetal bovine serum (FBS) and murine 3T3 feeder layers [52]. The epithelial progenitor or stem cells isolated from small biopsies can, under these conditions, be expanded in vitro to create stratified epithelial layers that closely resemble native tissues [53]. However, these constructs are classified as xenogeneic products, with the inherent possibility of infection or pathogen transmission from animal-derived materials [54]. In addition, xeno-contamination may result in immunogenicity [55]. The use of feeder layers and foreign serum is, therefore, a concern in regenerative medicine. Furthermore, dispase, a bacteria-derived protease, is commonly used to enable cell isolation [53].
Treatment of LSCD based on various methods using CAOMECS is presented in Figure 1. The following culture methods and substrates have been used in order to produce transplantable CAOMECS: (1) amniotic membrane [28,29,30,32,35,37,39,40,42,43,45,46,47,49,51,56,57,58,59,60,61,62,63] (Table 1); (2) temperature-responsive cell-culture surfaces [31,38,64,65,66,67,68,69,70] (Table 2); (3) fibrin-coated culture plates [41,48] (Table 3); (4) fibrin gel [71] (Table 3); (5) collagen IV-coated culture plates [72] (Table 3); and (6) culture plates without any substrate [33,34,73,74] (Table 3).
The possibility of pathogen transmission cannot be excluded from xenogeneic or allogeneic materials, such as human amniotic membrane obtained following elective Caesarean operations [17,18,75], collagen isolated from porcine or bovine skin [76], and hydrated gels made from fibrin derived from human donor blood [77,78,79]. Therefore, the establishment of culture conditions avoiding animal-derived products and foreign undefined components is warranted.

4. Culture of Oral Mucosal Epithelial Cells on Amniotic Membrane

Amniotic membrane has been used on the ocular surface since 1940 [80], and for the first time in treatment of LSCD in 1946 [81]. In cases of partial LSCD, amniotic membrane can be applied to the affected eye and provide a suitable substrate for corneal epithelial repopulation [82,83]. The amniotic membrane secretes several growth factors such as hepatocyte growth factor, basic fibroblast growth factor, and transforming growth factor β [84,85]. Amniotic membrane is suggested to exert its effects by suppressing inflammation and scarring [86]. There is currently a discussion over whether amniotic membrane should be deepithelialized/denuded prior to culture, or if this substrate should remain intact. It has been reported that native, intact amniotic membrane comprise higher levels of growth factors compared to denuded amniotic membrane [87].
Amniotic membrane is the most common culture substrate for CAOMECS, and has been used in 15 clinical, three animal, and six in vitro studies (Table 1). With one exception [43], the amniotic membrane was denuded, i.e., the single layer of epithelial cells on the amniotic membrane was removed (Table 1). In the studies using amniotic membrane as a substrate for cultured CAOMECS, cell suspension [28,29,30,32,35,37,39,42,45,46,47,49,50,51,56,57,58,61,62,63] was applied in all studies, except four using the explant method [40,43,59,60]. The number of fabricated, stratified epithelial cell layers varied from two [56] to 10 [32]. Oral mucosal epithelial cells were normally cultivated between two to three weeks; however, the culture time varied between seven [62] and 28 [63] days. The most frequently used culture medium with added supplements was Dulbecco`s Modified Eagle Medium (DMEM:F12) [28,29,30,35,39,40,42,43,46,47,49,50,51,56,57,58,59,60,61,63], followed by keratinocyte growth medium (KGM) [37,45] and supplemented hormonal epithelial medium (SHEM) [32,62] (Table 1). Murine fibroblasts (3T3 strain) were used in all but three studies [40,43,56]. Most of the culture protocols exposed the cells to air-lifting (lowering the level of the culture medium to allow the cells to be cultured at the air–liquid interface), including clinical [28,30,37,42,43,45,47,49,50,51], animal [57,58], and in vitro studies [35,59,60,63] (Table 1). Fetal bovine serum (FBS) [29,30,37,47,57,58,59,61,62,63] and fetal calf serum (FCS) [28,32,39,42,56,60] were broadly used; however, six studies used human autologous serum (HAS) [28,43,45,46,49,50] in an attempt to minimize/avoid the use of animal derived components (Table 1).
Oral mucosal epithelial cells cultivated on amniotic membrane exhibited multilayered, stratified epithelium and appeared very similar to a normal corneal epithelium (Table 1). The presence of non-keratinized, stratified-specific keratins K3 and K4/K13 was detected by immunohistochemistry, reverse transcription polymerase chain reaction, and Western blotting (Table 1). The expression of p63, a marker for undifferentiated cells, was reported in 33% (8/24) of the studies (Table 4). Using transmission electron microscopy it was demonstrated that the cultivated oral epithelial sheet had junctional contacts, such as desmosomes, hemidesmosomes, and tight junctions, which were almost identical to those of normal corneal epithelial cells [30,56,60,62].

5. Culture of Oral Mucosal Epithelial Cells on Temperature- Responsive Surfaces

In order to avoid the use of allogenic bacteria [53,67] and animal derived [52] components in the cornea-engineered constructs, carrier-free epithelial cell sheets using temperature-responsive culture dishes have been developed [31,88,89]. The modified surfaces transition between hydrophilic and hydrophobic states—depending on the temperature—by covalently immobilizing the temperature-responsive polymer poly(N-isopropylacrylamide) onto commercially available tissue culture wells. Under in vitro culture conditions at 37 °C, numerous cell types adhere and proliferate similarly to those of normal tissue culture polystyrene. By reducing the temperature to 20 °C, the cultured cells spontaneously detach along with their deposited extracellular matrix (ECM) without the need for proteolytic enzymes such as dispase [89,90]. Therefore, with temperature-responsive culture surfaces the undesirable factors inherent to some substrates can be excluded from transplantable constructs.
Nine studies (three clinical, four animal, and two in vitro) have utilized the temperature-responsive cell-culture surfaces as a substrate for CAOMECS. In all studies the cells were applied as a cell suspension and DMEM:F12 with added supplements was used as a culture medium (Table 2). The culture time for CAOMECS in these studies ranged from 10 [69] to 28 [65] days, but was most often two weeks [31,64,66,67,70]. The most common nutrient used was FBS [64,65,66,69,70]; however, two studies utilized HAS [67,68]. None of the studies exposed the cells to air-lifting (Table 2). The number of fabricated cell layers varied from three [69] to eight [65]. Only one study did not use 3T3 murine fibroblasts [67]. Two studies reported the cell viability of the cultured sheets to be 86% [68] and 93% [65]. The presence of p63 in the fabricated cell sheets was reported in 78% (7/9) of the studies (Table 4).

6. Culture of Oral Mucosal Epithelial Cells on Fibrin Substrates

Fibrin has been broadly used as a substrate in regenerative medicine and for wound-healing [91,92]. It is easily available, assists epithelial cell growth, and its degradation can be controlled by addition of fibrinolytic components. Rama and colleagues first established the use of fibrin gels as a substrate for ocular surface reconstruction in 2001 [78]. Fibrin gel is a hemostatic compound of thrombin, fibrinogen, and calcium chloride [93]. The mixture of these components fabricates a gel that is similar to the physiological lump formed at the last stage of the coagulation cascade [94]. The gel produced by this reaction is biodegradable, non-toxic, and inhibits fibrosis, tissue necrosis, and inflammation [94,95,96]. In vivo, the gel is completely resorbed and ultimately replaced by matrix components such as collagen [95]. A major disadvantage with fibrin as a substrate is that it encourages angiogenesis [97]. The gel, however, is resorbed within days to weeks after transplantation [94], minimizing the effects. Sheth et al. have demonstrated that CAOMECS cultivated on fibrin gel results in production of multilayered epithelium in vitro. The fabricated cell sheets expressed keratins K3, K4, and K13 [71]. The putative epithelial progenitor cell marker p63 [98] was also highly expressed (Table 3). Sheth and associates modified the pre-existing methodology to produce a reproducible, robust gel that supports the expansion and transplantation of CAOMECS, without the need for murine 3T3 fibroblasts. Fibrin-coated culture plates have also been used as a substrate for CAOMECS [41,48] (Table 3). Both studies utilized murine 3T3 fibroblasts and DMEM:F12 with added supplements as a culture medium. Human autologous serum was used as nutrient, and the cells were exposed to air-lifting [41,48].

7. Culture of Oral Mucosal Epithelial Cells on Collagen Substrates

All of the previously reported culture protocols for CAOMECS use serum, and most also use feeder cells to support the stratification of the epithelial cells. Due to the risk of infections associated with murine feeder cells and non-autologous serum in the cultivation of cell sheets, Ilmarinen and colleagues sought other options to support the stratification of isolated CAOMECS [72]. In their in vitro study, stratified epithelium was generated on collagen IV-coated culture plates in serum-free culture conditions without using 3T3 feeder cells. The authors analyzed the functional properties of the cell sheets by transepithelial electrical resistance measurements, in addition to morphology, differentiation, and regenerative capacity. This study is the only report of a successful stratification of oral mucosal epithelium for ocular surface regeneration in the absence of serum. The results showed that, in serum-free conditions, oral mucosal epithelial cells attached to and proliferated on collagen IV–coated inserts more readily than on amniotic membrane [72]. Ilmarinen and colleagues also studied the effects of increased epidermal growth factor (EGF) concentration, as EGF is known to stimulate the growth and differentiation of a variety of epithelial tissues [99,100]. However, they detected no major effects on the phenotype of the cell sheets using additional EGF.

8. Culture of Oral Mucosal Epithelial Cells on Non-Coated Culture Plates

Four studies (three in vitro and one animal) have used non-coated, substrate-free culture plates in order to fabricate transplantable CAOMECS [33,34,73,74] (Table 3). All of the studies used DMEM:F12 with added supplements as a culture medium and FBS as a nutrient, without including air-lifting. In three studies, murine 3T3 feeder cells were included [33,34,74]. The authors reported formation of a multilayered epithelium [33,34,73], one study specifying the number of cell layers [74]. Two of the four studies confirmed the expression of K3 and high expression of p63 [73,74].

9. Challenges and Future Perspectives

Recently, a meta-analytic concise review about transplantation of CAOMECS for treating LSCD has reported a success rate of 72% [19]. In this review, the focus was on clinical features of transplants of CAOMECS over the past 10 years, including surgery and pre- and postoperative considerations. In contrast, herein we focus on cell culture methods, with particular emphasis on substrates. Moreover, in the present review we expand on both in vitro and animal studies.
A complete xenobiotic-free culture protocol has become a goal in regenerative medicine; this is to avoid the risk of transferring known and unknown microorganisms and to standardize the culture conditions. The properties of epithelial cells are dependent upon extracellular signals supplied by the cell–cell and cell–substratum interactions. Further research is warranted to develop a culture system for CAOMECS that mimics the natural environment of oral/limbal/corneal epithelial cells without the need for undefined foreign materials such as serum and feeder cells.
It is likely that the phenotype of CAOMECS affects clinical success following transplantation. Thus far, p63 is the only predictor of clinical outcome following transplantation to correct LSCD [12]. Recently, Rama et al. demonstrated that the phenotype of cultured LEC is critical to ensure successful reconstruction of the ocular surface following LSCD [12]. The authors showed that successful transplantation was achieved in 78% of patients when using cell cultures in which p63-bright cells constituted more than 3% of the total number of clonogenic cells. In contrast, successful transplantation was only seen in 11% of patients when p63-bright cells made up 3% or less of the total number of cells. In the studies using different substrates for culture of CAOMECS, the expression of p63 varied considerably (Table 4). Few studies reported the expression of p63 when using fibrin-coated culture plates, fibrin gels, collagen-coated culture plates, and culture plates without substrate (Table 4). When comparing amniotic membrane and temperature-responsive inserts, 33% (8/24) and 78% (7/9) of the studies showed the expression of p63, respectively (Table 4). The quantitative expression of p63 was generally poorly reported; thus, more research is warranted with quantification of phenotypic data.
The use of culture inserts with autologous serum has also been shown to facilitate the stratification of oral mucosal epithelial cells in the absence of 3T3 feeders [67]. Kolli et al. found that autologous serum was superior to FCS in generating an undifferentiated epithelium [43], and in another study the porcine trypsin was replaced with xeno-free trypsin with successful outcomes [61]. Hirayama et al. [41] showed that transplantation of a substrate-free cell sheet resulted in significantly better results than engrafting oral mucosal cells cultured on an amniotic membrane. The improvements were significantly higher graft survival rate, better visual acuity (1, 3, 6, and 12 months postoperatively), and reduction of neovascularization (12 months postoperatively) [41]. Furthermore, except collagen IV-coated culture plate, this review demonstrates that the use of different methods and substrates for culture of CAOMECS did not appear to have any effect on the number of cell layers generated (Table 5).
Due to the lack of mechanical strength provided by various culture substrates, transplantation of substrate-free cell sheets can be challenging. Hence, methods to enhance the strength and durability of the epithelial cell sheets should be further explored. Using the air-lifting technique, originally developed to formulate skin cell culture sheets for transplantation, the mechanical strength of epithelial cell sheets can be increased. The present review reveals that only 48.8% of the studies applied the air-lifting method (Table 1, Table 2 and Table 3). Interestingly, the majority of studies using amniotic membrane (71%) did utilize air-lifting, while none of the studies with temperature-responsive surfaces applied this method (Table 5). Arguments for air-lifting include the promotion of migration [101], proliferation [101], epithelial stratification [101], and increased barrier function of LEC [102]. Arguments against air-lifting include induction of squamous metaplasia [103], gradual loss of stem cells [104], and differentiation of LEC [104,105]. Until 2010, the clinical implications of increased differentiation of transplanted cells in corneal reconstruction were unknown. This changed when Rama and colleagues demonstrated the critical importance for clinical success of a substantial, putative stem cell population within the cultured cells [12]. It is yet to be investigated whether the potential advantages of air-lifting outweigh the disadvantages in corneal regeneration using CAOMECS.

10. Conclusions

Most culture protocols for CAOMECS used amniotic membrane as a substrate and included the xenogeneic components FBS and murine 3T3 fibroblasts. However, it has been demonstrated that tissue-engineered epithelial cell sheet grafts can be successfully fabricated using temperature-responsive culture surfaces and autologous serum. More studies on how various substrates and other culture parameters affect the cell sheet, with special emphasis on the phenotype, are warranted. Furthermore, it is important to focus on cell culture methods using xenobiotic-free conditions.

Acknowledgments

The authors would like to thank Astrid Østerud, Department of Medical Biochemistry, Oslo University Hospital, Oslo, and Catherine Jackson at Department of Medical Biochemistry. Funding received from Department of Oral Biology, Faculty of Dentistry, University of Oslo and Department of Medical Biochemistry, Oslo University Hospital, Oslo, Norway is acknowledged.

Author Contributions

Tor Paaske Utheim, Øygunn Aass Utheim and Amer Sehic searched and identified the literature; Tor Paaske Utheim and Amer Sehic analyzed the data; All wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Land, M.F.; Fernald, R.D. The evolution of eyes. Ann. Rev. Neurosci. 1992, 15, 1–29. [Google Scholar] [CrossRef] [PubMed]
  2. Utheim, T.P. Limbal epithelial cell therapy: Past, present, and future. Methods Mol. Biol. 2013, 1014, 3–43. [Google Scholar] [PubMed]
  3. Cotsarelis, G.; Cheng, S.Z.; Dong, G.; Sun, T.T.; Lavker, R.M. Existence of slow-cycling limbal epithelial basal cells that can be preferentially stimulated to proliferate: Implications on epithelial stem cells. Cell 1989, 57, 201–209. [Google Scholar] [CrossRef]
  4. Davanger, M.; Evensen, A. Role of the pericorneal papillary structure in renewal of corneal epithelium. Nature 1971, 229, 560–561. [Google Scholar] [CrossRef] [PubMed]
  5. Shortt, A.J.; Secker, G.A.; Munro, P.M.; Khaw, P.T.; Tuft, S.J.; Daniels, J.T. Characterization of the limbal epithelial stem cell niche: Novel imaging techniques permit in vivo observation and targeted biopsy of limbal epithelial stem cells. Stem cells 2007, 25, 1402–1409. [Google Scholar] [CrossRef] [PubMed]
  6. Dua, H.S.; Shanmuganathan, V.A.; Powell-Richards, A.O.; Tighe, P.J.; Joseph, A. Limbal epithelial crypts: A novel anatomical structure and a putative limbal stem cell niche. Br. J. Ophthalmol. 2005, 89, 529–532. [Google Scholar] [CrossRef] [PubMed]
  7. Modjtahedi, B.S.; Eliott, D. Vitreoretinal complications of the boston keratoprosthesis. Semin. Ophthalmol. 2014, 29, 338–348. [Google Scholar] [CrossRef] [PubMed]
  8. Sehic, A.; Utheim, O.A.; Ommundsen, K.; Utheim, T.P. Pre-clinical cell-based therapy for limbal stem cell deficiency. J. Funct. Biomater. 2015, 6, 863–888. [Google Scholar] [CrossRef] [PubMed]
  9. Kenyon, K.R.; Tseng, S.C. Limbal autograft transplantation for ocular surface disorders. Ophthalmol. 1989, 96, 709–722. [Google Scholar]
  10. Jenkins, C.; Tuft, S.; Liu, C.; Buckley, R. Limbal transplantation in the management of chronic contact-lens-associated epitheliopathy. Eye 1993, 7, 629–633. [Google Scholar] [CrossRef] [PubMed]
  11. Pellegrini, G.; Traverso, C.E.; Franzi, A.T.; Zingirian, M.; Cancedda, R.; de Luca, M. Long-term restoration of damaged corneal surfaces with autologous cultivated corneal epithelium. Lancet 1997, 349, 990–993. [Google Scholar] [CrossRef]
  12. Rama, P.; Matuska, S.; Paganoni, G.; Spinelli, A.; de Luca, M.; Pellegrini, G. Limbal stem-cell therapy and long-term corneal regeneration. New Engl. J. Med. 2010, 363, 147–155. [Google Scholar] [CrossRef] [PubMed]
  13. Nakamura, T.; Sotozono, C.; Bentley, A.J.; Mano, S.; Inatomi, T.; Koizumi, N.; Fullwood, N.J.; Kinoshita, S. Long-term phenotypic study after allogeneic cultivated corneal limbal epithelial transplantation for severe ocular surface diseases. Ophthalmology 2010, 117, 2247–2254. [Google Scholar] [CrossRef] [PubMed]
  14. Kolli, S.; Ahmad, S.; Lako, M.; Figueiredo, F. Successful clinical implementation of corneal epithelial stem cell therapy for treatment of unilateral limbal stem cell deficiency. Stem cells 2010, 28, 597–610. [Google Scholar] [CrossRef] [PubMed]
  15. Shortt, A.J.; Secker, G.A.; Rajan, M.S.; Meligonis, G.; Dart, J.K.; Tuft, S.J.; Daniels, J.T. Ex vivo expansion and transplantation of limbal epithelial stem cells. Ophthalmology 2008, 115, 1989–1997. [Google Scholar] [CrossRef] [PubMed]
  16. Nakamura, T.; Inatomi, T.; Sotozono, C.; Ang, L.P.; Koizumi, N.; Yokoi, N.; Kinoshita, S. Transplantation of autologous serum-derived cultivated corneal epithelial equivalents for the treatment of severe ocular surface disease. Ophthalmology 2006, 113, 1765–1772. [Google Scholar] [CrossRef] [PubMed]
  17. Koizumi, N.; Inatomi, T.; Suzuki, T.; Sotozono, C.; Kinoshita, S. Cultivated corneal epithelial stem cell transplantation in ocular surface disorders. Ophthalmology 2001, 108, 1569–1574. [Google Scholar] [CrossRef]
  18. Tsai, R.J.; Li, L.M.; Chen, J.K. Reconstruction of damaged corneas by transplantation of autologous limbal epithelial cells. New Engl. J. Med. 2000, 343, 86–93. [Google Scholar] [CrossRef] [PubMed]
  19. Utheim, T.P. Concise review: Transplantation of cultured oral mucosal epithelial cells for treating limbal stem cell deficiency-current status and future perspectives. Stem Cells 2015, 33, 1685–1695. [Google Scholar] [CrossRef] [PubMed]
  20. Homma, R.; Yoshikawa, H.; Takeno, M.; Kurokawa, M.S.; Masuda, C.; Takada, E.; Tsubota, K.; Ueno, S.; Suzuki, N. Induction of epithelial progenitors in vitro from mouse embryonic stem cells and application for reconstruction of damaged cornea in mice. Investig. Ophthalmol. Vis. Sci. 2004, 45, 4320–4326. [Google Scholar] [CrossRef] [PubMed]
  21. Tanioka, H.; Kawasaki, S.; Yamasaki, K.; Ang, L.P.; Koizumi, N.; Nakamura, T.; Yokoi, N.; Komuro, A.; Inatomi, T.; Kinoshita, S. Establishment of a cultivated human conjunctival epithelium as an alternative tissue source for autologous corneal epithelial transplantation. Investig. Ophthalmol. Vis. Sci. 2006, 47, 3820–3827. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, X.; Qu, L.; Wang, X.; Zhao, M.; Li, W.; Hua, J.; Shi, M.; Moldovan, N.; Wang, H.; Dou, Z. Plasticity of epidermal adult stem cells derived from adult goat ear skin. Mol. Reprod. Dev. 2007, 74, 386–396. [Google Scholar] [CrossRef] [PubMed]
  23. Monteiro, B.G.; Serafim, R.C.; Melo, G.B.; Silva, M.C.; Lizier, N.F.; Maranduba, C.M.; Smith, R.L.; Kerkis, A.; Cerruti, H.; Gomes, J.A.; et al. Human immature dental pulp stem cells share key characteristic features with limbal stem cells. Cell Prolif. 2009, 42, 587–594. [Google Scholar] [CrossRef] [PubMed]
  24. Ma, Y.; Xu, Y.; Xiao, Z.; Yang, W.; Zhang, C.; Song, E.; Du, Y.; Li, L. Reconstruction of chemically burned rat corneal surface by bone marrow-derived human mesenchymal stem cells. Stem Cells 2006, 24, 315–321. [Google Scholar] [CrossRef] [PubMed]
  25. Meyer-Blazejewska, E.A.; Call, M.K.; Yamanaka, O.; Liu, H.; Schlotzer-Schrehardt, U.; Kruse, F.E.; Kao, W.W. From hair to cornea: Towards the therapeutic use of hair follicle-derived stem cells in the treatment of limbal stem cell deficiency. Stem Cells 2010, 29, 57–66. [Google Scholar] [CrossRef] [PubMed]
  26. Reza, H.M.; Ng, B.Y.; Gimeno, F.L.; Phan, T.T.; Ang, L.P. Umbilical cord lining stem cells as a novel and promising source for ocular surface regeneration. Stem Cell Rev. 2011, 7, 935–947. [Google Scholar] [CrossRef] [PubMed]
  27. Lin, K.J.; Loi, M.X.; Lien, G.S.; Cheng, C.F.; Pao, H.Y.; Chang, Y.C.; Ji, A.T.; Ho, J.H. Topical administration of orbital fat-derived stem cells promotes corneal tissue regeneration. Stem Cell Res. Ther. 2013, 4. [Google Scholar] [CrossRef] [PubMed]
  28. Inatomi, T.; Nakamura, T.; Koizumi, N.; Sotozono, C.; Yokoi, N.; Kinoshita, S. Midterm results on ocular surface reconstruction using cultivated autologous oral mucosal epithelial transplantation. Am. J. Ophthalmol. 2006, 141, 267–275. [Google Scholar] [CrossRef] [PubMed]
  29. Ma, D.H.; Kuo, M.T.; Tsai, Y.J.; Chen, H.C.; Chen, X.L.; Wang, S.F.; Li, L.; Hsiao, C.H.; Lin, K.K. Transplantation of cultivated oral mucosal epithelial cells for severe corneal burn. Eye 2009, 23, 1442–1450. [Google Scholar] [CrossRef] [PubMed]
  30. Nakamura, T.; Inatomi, T.; Sotozono, C.; Amemiya, T.; Kanamura, N.; Kinoshita, S. Transplantation of cultivated autologous oral mucosal epithelial cells in patients with severe ocular surface disorders. Br. J. Ophthalmol. 2004, 88, 1280–1284. [Google Scholar] [CrossRef] [PubMed]
  31. Nishida, K.; Yamato, M.; Hayashida, Y.; Watanabe, K.; Yamamoto, K.; Adachi, E.; Nagai, S.; Kikuchi, A.; Maeda, N.; Watanabe, H.; et al. Corneal reconstruction with tissue-engineered cell sheets composed of autologous oral mucosal epithelium. Engl. J. Med. 2004, 351, 1187–1196. [Google Scholar] [CrossRef] [PubMed]
  32. Chen, H.C.; Yeh, L.K.; Tsai, Y.J.; Lai, C.H.; Chen, C.C.; Lai, J.Y.; Sun, C.C.; Chang, G.; Hwang, T.L.; Chen, J.K.; et al. Expression of angiogenesis-related factors in human corneas after cultivated oral mucosal epithelial transplantation. Investig. Ophthalmol. Vis. Sci. 2012, 53, 5615–5623. [Google Scholar] [CrossRef] [PubMed]
  33. Kanayama, S.; Nishida, K.; Yamato, M.; Hayashi, R.; Maeda, N.; Okano, T.; Tano, Y. Analysis of soluble vascular endothelial growth factor receptor-1 secreted from cultured corneal and oral mucosal epithelial cell sheets in vitro. Br. J. Ophthalmol. 2009, 93, 263–267. [Google Scholar] [CrossRef] [PubMed]
  34. Kanayama, S.; Nishida, K.; Yamato, M.; Hayashi, R.; Sugiyama, H.; Soma, T.; Maeda, N.; Okano, T.; Tano, Y. Analysis of angiogenesis induced by cultured corneal and oral mucosal epithelial cell sheets in vitro. Exp. Eye Res. 2007, 85, 772–781. [Google Scholar] [CrossRef] [PubMed]
  35. Sekiyama, E.; Nakamura, T.; Kawasaki, S.; Sogabe, H.; Kinoshita, S. Different expression of angiogenesis-related factors between human cultivated corneal and oral epithelial sheets. Exp. Eye Res. 2006, 83, 741–746. [Google Scholar] [CrossRef] [PubMed]
  36. Lim, P.; Fuchsluger, T.A.; Jurkunas, U.V. Limbal stem cell deficiency and corneal neovascularization. Semin. Ophthalmol. 2009, 24, 139–148. [Google Scholar] [CrossRef] [PubMed]
  37. Ang, L.P.; Nakamura, T.; Inatomi, T.; Sotozono, C.; Koizumi, N.; Yokoi, N.; Kinoshita, S. Autologous serum-derived cultivated oral epithelial transplants for severe ocular surface disease. Arch. Ophthalmol. 2006, 124, 1543–1551. [Google Scholar] [CrossRef] [PubMed]
  38. Burillon, C.; Huot, L.; Justin, V.; Nataf, S.; Chapuis, F.; Decullier, E.; Damour, O. Cultured autologous oral mucosal epithelial cell sheet (CAOMECS) transplantation for the treatment of corneal limbal epithelial stem cell deficiency. Investig. Ophthalmol. Vis. Sci. 2012, 53, 1325–1331. [Google Scholar] [CrossRef] [PubMed]
  39. Chen, H.C.; Chen, H.L.; Lai, J.Y.; Chen, C.C.; Tsai, Y.J.; Kuo, M.T.; Chu, P.H.; Sun, C.C.; Chen, J.K.; Ma, D.H. Persistence of transplanted oral mucosal epithelial cells in human cornea. Investig. Ophthalmol. Vis. Sci. 2009, 50, 4660–4668. [Google Scholar] [CrossRef] [PubMed]
  40. Gaddipati, S.; Muralidhar, R.; Sangwan, V.S.; Mariappan, I.; Vemuganti, G.K.; Balasubramanian, D. Oral epithelial cells transplanted on to corneal surface tend to adapt to the ocular phenotype. Indian J. Ophthalmol. 2014, 62, 644–648. [Google Scholar] [PubMed]
  41. Hirayama, M.; Satake, Y.; Higa, K.; Yamaguchi, T.; Shimazaki, J. Transplantation of cultivated oral mucosal epithelium prepared in fibrin-coated culture dishes. Investig. Ophthalmol. Vis. Sci. 2012, 53, 1602–1609. [Google Scholar] [CrossRef] [PubMed]
  42. Inatomi, T.; Nakamura, T.; Kojyo, M.; Koizumi, N.; Sotozono, C.; Kinoshita, S. Ocular surface reconstruction with combination of cultivated autologous oral mucosal epithelial transplantation and penetrating keratoplasty. Am. J. Ophthalmol. 2006, 142, 757–764. [Google Scholar] [CrossRef] [PubMed]
  43. Kolli, S.; Ahmad, S.; Mudhar, H.S.; Meeny, A.; Lako, M.; Figueiredo, F.C. Successful application of ex vivo expanded human autologous oral mucosal epithelium for the treatment of total bilateral limbal stem cell deficiency. Stem Cells 2014, 32, 2135–2146. [Google Scholar] [CrossRef] [PubMed]
  44. Nakamura, T.; Inatomi, T.; Cooper, L.J.; Rigby, H.; Fullwood, N.J.; Kinoshita, S. Phenotypic investigation of human eyes with transplanted autologous cultivated oral mucosal epithelial sheets for severe ocular surface diseases. Ophthalmology 2007, 114, 1080–1088. [Google Scholar] [CrossRef] [PubMed]
  45. Nakamura, T.; Takeda, K.; Inatomi, T.; Sotozono, C.; Kinoshita, S. Long-term results of autologous cultivated oral mucosal epithelial transplantation in the scar phase of severe ocular surface disorders. Br. J. Ophthalmol. 2011, 95, 942–946. [Google Scholar] [CrossRef] [PubMed]
  46. Priya, C.G.; Arpitha, P.; Vaishali, S.; Prajna, N.V.; Usha, K.; Sheetal, K.; Muthukkaruppan, V. Adult human buccal epithelial stem cells: Identification, ex vivo expansion, and transplantation for corneal surface reconstruction. Eye 2011, 25, 1641–1649. [Google Scholar] [CrossRef] [PubMed]
  47. Satake, Y.; Dogru, M.; Yamane, G.Y.; Kinoshita, S.; Tsubota, K.; Shimazaki, J. Barrier function and cytologic features of the ocular surface epithelium after autologous cultivated oral mucosal epithelial transplantation. Arch. Ophthalmol. 2008, 126, 23–28. [Google Scholar] [CrossRef] [PubMed]
  48. Satake, Y.; Higa, K.; Tsubota, K.; Shimazaki, J. Long-term outcome of cultivated oral mucosal epithelial sheet transplantation in treatment of total limbal stem cell deficiency. Ophthalmology 2011, 118, 1524–1530. [Google Scholar] [CrossRef] [PubMed]
  49. Sotozono, C.; Inatomi, T.; Nakamura, T.; Koizumi, N.; Yokoi, N.; Ueta, M.; Matsuyama, K.; Kaneda, H.; Fukushima, M.; Kinoshita, S. Cultivated oral mucosal epithelial transplantation for persistent epithelial defect in severe ocular surface diseases with acute inflammatory activity. Acta Ophthalmol. 2014, 92, e447–e453. [Google Scholar] [CrossRef] [PubMed]
  50. Sotozono, C.; Inatomi, T.; Nakamura, T.; Koizumi, N.; Yokoi, N.; Ueta, M.; Matsuyama, K.; Miyakoda, K.; Kaneda, H.; Fukushima, M.; et al. Visual improvement after cultivated oral mucosal epithelial transplantation. Ophthalmology 2013, 120, 193–200. [Google Scholar] [CrossRef] [PubMed]
  51. Takeda, K.; Nakamura, T.; Inatomi, T.; Sotozono, C.; Watanabe, A.; Kinoshita, S. Ocular surface reconstruction using the combination of autologous cultivated oral mucosal epithelial transplantation and eyelid surgery for severe ocular surface disease. Am. J. Ophthalmo. 2011, 152, 195–201. [Google Scholar] [CrossRef] [PubMed]
  52. Rheinwald, J.G.; Green, H. Serial cultivation of strains of human epidermal keratinocytes: The formation of keratinizing colonies from single cells. Cell 1975, 6, 331–343. [Google Scholar] [CrossRef]
  53. Green, H.; Kehinde, O.; Thomas, J. Growth of cultured human epidermal cells into multiple epithelia suitable for grafting. Proc. Natl. Acad. Sci. USA 1979, 76, 5665–5668. [Google Scholar] [CrossRef] [PubMed]
  54. Mariappan, I.; Maddileti, S.; Savy, S.; Tiwari, S.; Gaddipati, S.; Fatima, A.; Sangwan, V.S.; Balasubramanian, D.; Vemuganti, G.K. In vitro culture and expansion of human limbal epithelial cells. Nat. Protoc. 2010, 5, 1470–1479. [Google Scholar] [CrossRef] [PubMed]
  55. Martin, M.J.; Muotri, A.; Gage, F.; Varki, A. Human embryonic stem cells express an immunogenic nonhuman sialic acid. Nat. Med. 2005, 11, 228–232. [Google Scholar] [CrossRef] [PubMed]
  56. Madhira, S.L.; Vemuganti, G.; Bhaduri, A.; Gaddipati, S.; Sangwan, V.S.; Ghanekar, Y. Culture and characterization of oral mucosal epithelial cells on human amniotic membrane for ocular surface reconstruction. Mol. Vis. 2008, 14, 189–196. [Google Scholar] [PubMed]
  57. Nakamura, T.; Endo, K.; Cooper, L.J.; Fullwood, N.J.; Tanifuji, N.; Tsuzuki, M.; Koizumi, N.; Inatomi, T.; Sano, Y.; Kinoshita, S. The successful culture and autologous transplantation of rabbit oral mucosal epithelial cells on amniotic membrane. Investig. Ophthalmol. Vis. Sci. 2003, 44, 106–116. [Google Scholar] [CrossRef]
  58. Nakamura, T.; Kinoshita, S. Ocular surface reconstruction using cultivated mucosal epithelial stem cells. Cornea 2003, 22, S75–S80. [Google Scholar] [CrossRef] [PubMed]
  59. Promprasit, D.; Bumroongkit, K.; Tocharus, C.; Mevatee, U.; Tananuvat, N. Cultivation and phenotypic characterization of rabbit epithelial cells expanded ex vivo from fresh and cryopreserved limbal and oral mucosal explants. Curr. Eye Res. 2014, 1–8. [Google Scholar]
  60. Sen, S.; Sharma, S.; Gupta, A.; Gupta, N.; Singh, H.; Roychoudhury, A.; Mohanty, S.; Sen, S.; Nag, T.C.; Tandon, R. Molecular characterization of explant cultured human oral mucosal epithelial cells. Investig. Ophthalmol. Vis. Sci. 2011, 52, 9548–9554. [Google Scholar] [CrossRef] [PubMed]
  61. Sharma, S.M.; Fuchsluger, T.; Ahmad, S.; Katikireddy, K.R.; Armant, M.; Dana, R.; Jurkunas, U.V. Comparative analysis of human-derived feeder layers with 3T3 fibroblasts for the ex vivo expansion of human limbal and oral epithelium. Stem cell Rev. 2012, 8, 696–705. [Google Scholar] [CrossRef] [PubMed]
  62. Shimazaki, J.; Higa, K.; Kato, N.; Satake, Y. Barrier function of cultivated limbal and oral mucosal epithelial cell sheets. Investig. Ophthalmol. Vis. Sci. 2009, 50, 5672–5680. [Google Scholar] [CrossRef] [PubMed]
  63. Yokoo, S.; Yamagami, S.; Mimura, T.; Amano, S.; Saijo, H.; Mori, Y.; Takato, T. UV absorption in human oral mucosal epithelial sheets for ocular surface reconstruction. Ophthalmic Res. 2006, 38, 350–354. [Google Scholar] [CrossRef] [PubMed]
  64. Bardag-Gorce, F.; Oliva, J.; Wood, A.; Hoft, R.; Pan, D.; Thropay, J.; Makalinao, A.; French, S.W.; Niihara, Y. Carrier-free cultured autologous oral mucosa epithelial cell sheet (CAOMECS) for corneal epithelium reconstruction: A histological study. Ocul. Surf. 2015, 13, 150–163. [Google Scholar] [CrossRef] [PubMed]
  65. Hayashi, R.; Yamato, M.; Takayanagi, H.; Oie, Y.; Kubota, A.; Hori, Y.; Okano, T.; Nishida, K. Validation system of tissue-engineered epithelial cell sheets for corneal regenerative medicine. Tissue Eng. Part C Methods 2010, 16, 553–560. [Google Scholar] [CrossRef] [PubMed]
  66. Hayashida, Y.; Nishida, K.; Yamato, M.; Watanabe, K.; Maeda, N.; Watanabe, H.; Kikuchi, A.; Okano, T.; Tano, Y. Ocular surface reconstruction using autologous rabbit oral mucosal epithelial sheets fabricated ex vivo on a temperature-responsive culture surface. Investig. Ophthalmol. Vis. Sci. 2005, 46, 1632–1639. [Google Scholar] [CrossRef] [PubMed]
  67. Murakami, D.; Yamato, M.; Nishida, K.; Ohki, T.; Takagi, R.; Yang, J.; Namiki, H.; Okano, T. Fabrication of transplantable human oral mucosal epithelial cell sheets using temperature-responsive culture inserts without feeder layer cells. J. Artif. Organs Off. J. Jpn. Soc. Artif. Organs 2006, 9, 185–191. [Google Scholar] [CrossRef] [PubMed]
  68. Oie, Y.; Hayashi, R.; Takagi, R.; Yamato, M.; Takayanagi, H.; Tano, Y.; Nishida, K. A novel method of culturing human oral mucosal epithelial cell sheet using post-mitotic human dermal fibroblast feeder cells and modified keratinocyte culture medium for ocular surface reconstruction. Br. J. Ophthalmol. 2010, 94, 1244–1250. [Google Scholar] [CrossRef] [PubMed]
  69. Soma, T.; Hayashi, R.; Sugiyama, H.; Tsujikawa, M.; Kanayama, S.; Oie, Y.; Nishida, K. Maintenance and distribution of epithelial stem/progenitor cells after corneal reconstruction using oral mucosal epithelial cell sheets. PloS One 2014, 9. [Google Scholar] [CrossRef] [PubMed]
  70. Sugiyama, H.; Yamato, M.; Nishida, K.; Okano, T. Evidence of the survival of ectopically transplanted oral mucosal epithelial stem cells after repeated wounding of cornea. Mol. Ther. J. Am. Soc. Gene Ther. 2014, 22, 1544–1555. [Google Scholar] [CrossRef] [PubMed]
  71. Sheth, R.; Neale, M.H.; Shortt, A.J.; Massie, I.; Vernon, A.J.; Daniels, J.T. Culture and characterization of oral mucosal epithelial cells on a fibrin gel for ocular surface reconstruction. Curr. Eye Res. 2014, 1–11. [Google Scholar] [CrossRef] [PubMed]
  72. Ilmarinen, T.; Laine, J.; Juuti-Uusitalo, K.; Numminen, J.; Seppanen-Suuronen, R.; Uusitalo, H.; Skottman, H. Towards a defined, serum- and feeder-free culture of stratified human oral mucosal epithelium for ocular surface reconstruction. Acta Ophthalmol. 2013, 91, 744–750. [Google Scholar] [CrossRef] [PubMed]
  73. Krishnan, S.; Iyer, G.K.; Krishnakumar, S. Culture & characterisation of limbal epithelial cells & oral mucosal cells. Indian J. Med. Res. 2010, 131, 422–428. [Google Scholar] [PubMed]
  74. Hyun, D.W.; Kim, Y.H.; Koh, A.Y.; Lee, H.J.; Wee, W.R.; Jeon, S.; Kim, M.K. Characterization of biomaterial-free cell sheets cultured from human oral mucosal epithelial cells. J. Tissue Eng. Regener. Med. 2014. [Google Scholar] [CrossRef] [PubMed]
  75. Schwab, I.R.; Reyes, M.; Isseroff, R.R. Successful transplantation of bioengineered tissue replacements in patients with ocular surface disease. Cornea 2000, 19, 421–426. [Google Scholar] [CrossRef] [PubMed]
  76. Schwab, I.R. Cultured corneal epithelia for ocular surface disease. Trans. Am. Ophthalmol. Soc. 1999, 97, 891–986. [Google Scholar] [PubMed]
  77. Pellegrini, G.; Ranno, R.; Stracuzzi, G.; Bondanza, S.; Guerra, L.; Zambruno, G.; Micali, G.; de Luca, M. The control of epidermal stem cells (holoclones) in the treatment of massive full-thickness burns with autologous keratinocytes cultured on fibrin. Transplantation 1999, 68, 868–879. [Google Scholar] [CrossRef] [PubMed]
  78. Rama, P.; Bonini, S.; Lambiase, A.; Golisano, O.; Paterna, P.; de Luca, M.; Pellegrini, G. Autologous fibrin-cultured limbal stem cells permanently restore the corneal surface of patients with total limbal stem cell deficiency. Transplantation 2001, 72, 1478–1485. [Google Scholar] [CrossRef] [PubMed]
  79. Han, B.; Schwab, I.R.; Madsen, T.K.; Isseroff, R.R. A fibrin-based bioengineered ocular surface with human corneal epithelial stem cells. Cornea 2002, 21, 505–510. [Google Scholar] [CrossRef] [PubMed]
  80. De Rötth, A. Plastic repair of conjunctival defects with fetal membrane. Arch. Ophthalmol. 1940, 23, 522–525. [Google Scholar] [CrossRef]
  81. Sorsby, A.; Symons, H.M. Amniotic membrane grafts in caustic burns of the eye (burns of the second degree). Br. J. Ophthalmol. 1946, 30, 337–345. [Google Scholar] [CrossRef] [PubMed]
  82. Anderson, D.F.; Ellies, P.; Pires, R.T.; Tseng, S.C. Amniotic membrane transplantation for partial limbal stem cell deficiency. Br. J. Ophthalmol. 2001, 85, 567–575. [Google Scholar] [CrossRef] [PubMed]
  83. Tseng, S.C.; Prabhasawat, P.; Barton, K.; Gray, T.; Meller, D. Amniotic membrane transplantation with or without limbal allografts for corneal surface reconstruction in patients with limbal stem cell deficiency. Arch. Ophthalmol. 1998, 116, 431–441. [Google Scholar] [CrossRef] [PubMed]
  84. Shimazaki, J.; Shinozaki, N.; Tsubota, K. Transplantation of amniotic membrane and limbal autograft for patients with recurrent pterygium associated with symblepharon. Br. J. Ophthalmol. 1998, 82, 235–240. [Google Scholar] [CrossRef] [PubMed]
  85. Sato, H.; Shimazaki, J.; Shinozaki, N.; Tsubota, K. Role of growth factors for ocular surface reconstruction after amniotic membrane transplantation. Investig. Ophthalmol. Vis. Sci. 1998, 39, 428–430. [Google Scholar]
  86. Tosi, G.M.; Massaro-Giordano, M.; Caporossi, A.; Toti, P. Amniotic membrane transplantation in ocular surface disorders. J. Cell Physiol. 2005, 202, 849–851. [Google Scholar] [CrossRef] [PubMed]
  87. Koizumi, N.J.; Inatomi, T.J.; Sotozono, C.J.; Fullwood, N.J.; Quantock, A.J.; Kinoshita, S. Growth factor mRNA and protein in preserved human amniotic membrane. Curr. Eye Res. 2000, 20, 173–177. [Google Scholar] [CrossRef]
  88. Nishida, K.; Yamato, M.; Hayashida, Y.; Watanabe, K.; Maeda, N.; Watanabe, H.; Yamamoto, K.; Nagai, S.; Kikuchi, A.; Tano, Y.; et al. Functional bioengineered corneal epithelial sheet grafts from corneal stem cells expanded ex vivo on a temperature-responsive cell culture surface. Transplantation 2004, 77, 379–385. [Google Scholar] [CrossRef] [PubMed]
  89. Yamato, M.; Utsumi, M.; Kushida, A.; Konno, C.; Kikuchi, A.; Okano, T. Thermo-responsive culture dishes allow the intact harvest of multilayered keratinocyte sheets without dispase by reducing temperature. Tissue Eng. 2001, 7, 473–480. [Google Scholar] [CrossRef] [PubMed]
  90. Kushida, A.; Yamato, M.; Konno, C.; Kikuchi, A.; Sakurai, Y.; Okano, T. Decrease in culture temperature releases monolayer endothelial cell sheets together with deposited fibronectin matrix from temperature-responsive culture surfaces. J. Biomed. Mater. Res. 1999, 45, 355–362. [Google Scholar] [CrossRef]
  91. Dunn, C.J.; Goa, K.L. Fibrin sealant: A review of its use in surgery and endoscopy. Drugs 1999, 58, 863–886. [Google Scholar] [CrossRef] [PubMed]
  92. Martinowitz, U.; Saltz, R. Fibrin sealant. Curr. Opin. Hematol. 1996, 3, 395–402. [Google Scholar] [CrossRef] [PubMed]
  93. Le Guehennec, L.; Goyenvalle, E.; Aguado, E.; Pilet, P.; Spaethe, R.; Daculsi, G. Influence of calcium chloride and aprotinin in the in vivo biological performance of a composite combining biphasic calcium phosphate granules and fibrin sealant. J. Mater. Sci. Mater. Med. 2007, 18, 1489–1495. [Google Scholar] [CrossRef] [PubMed]
  94. Radosevich, M.; Goubran, H.I.; Burnouf, T. Fibrin sealant: Scientific rationale, production methods, properties, and current clinical use. Vox Sang. 1997, 72, 133–143. [Google Scholar] [CrossRef] [PubMed]
  95. Tuan, T.L.; Song, A.; Chang, S.; Younai, S.; Nimni, M.E. In vitro fibroplasia: Matrix contraction, cell growth, and collagen production of fibroblasts cultured in fibrin gels. Exp. Cell Res. 1996, 223, 127–134. [Google Scholar] [CrossRef] [PubMed]
  96. Weisel, J.W. Fibrinogen and fibrin. Adv. Protein. Chem. 2005, 70, 247–299. [Google Scholar] [PubMed]
  97. Dvorak, H.F.; Harvey, V.S.; Estrella, P.; Brown, L.F.; McDonagh, J.; Dvorak, A.M. Fibrin containing gels induce angiogenesis. Implications for tumor stroma generation and wound healing. Lab. Invest. 1987, 57, 673–686. [Google Scholar] [PubMed]
  98. Pellegrini, G.; Dellambra, E.; Golisano, O.; Martinelli, E.; Fantozzi, I.; Bondanza, S.; Ponzin, D.; McKeon, F.; de Luca, M. P63 identifies keratinocyte stem cells. Proc. Natl. Acad. Sci. USA 2001, 98, 3156–3161. [Google Scholar] [CrossRef] [PubMed]
  99. Carpenter, G.; Cohen, S. Epidermal growth factor. J. Biol. Chem. 1990, 265, 7709–7712. [Google Scholar] [PubMed]
  100. Herbst, R.S. Review of epidermal growth factor receptor biology. Int. J. Radiat. Oncol. Biol. Phys. 2004, 59, 21–26. [Google Scholar] [CrossRef] [PubMed]
  101. Dua, H.S.; Miri, A.; Alomar, T.; Yeung, A.M.; Said, D.G. The role of limbal stem cells in corneal epithelial maintenance: Testing the dogma. Ophthalmology 2009, 116, 856–863. [Google Scholar] [CrossRef] [PubMed]
  102. Kawakita, T.; Espana, E.M.; He, H.; Li, W.; Liu, C.Y.; Tseng, S.C. Intrastromal invasion by limbal epithelial cells is mediated by epithelial-mesenchymal transition activated by air exposure. Am. J. Pathol. 2005, 167, 381–393. [Google Scholar] [CrossRef]
  103. Ban, Y.; Cooper, L.J.; Fullwood, N.J.; Nakamura, T.; Tsuzuki, M.; Koizumi, N.; Dota, A.; Mochida, C.; Kinoshita, S. Comparison of ultrastructure, tight junction-related protein expression and barrier function of human corneal epithelial cells cultivated on amniotic membrane with and without air-lifting. Exp. Eye Res. 2003, 76, 735–743. [Google Scholar] [CrossRef]
  104. Henderson, H.W.; Collin, J.R. Mucous membrane grafting. Dev. Ophthalmol. 2008, 41, 230–242. [Google Scholar] [PubMed]
  105. Meyer-Blazejewska, E.A.; Kruse, F.E.; Bitterer, K.; Meyer, C.; Hofmann-Rummelt, C.; Wunsch, P.H.; Schlotzer-Schrehardt, U. Preservation of the limbal stem cell phenotype by appropriate culture techniques. Investig. Ophthalmol. Vis. Sci. 2010, 51, 765–774. [Google Scholar] [CrossRef] [PubMed]

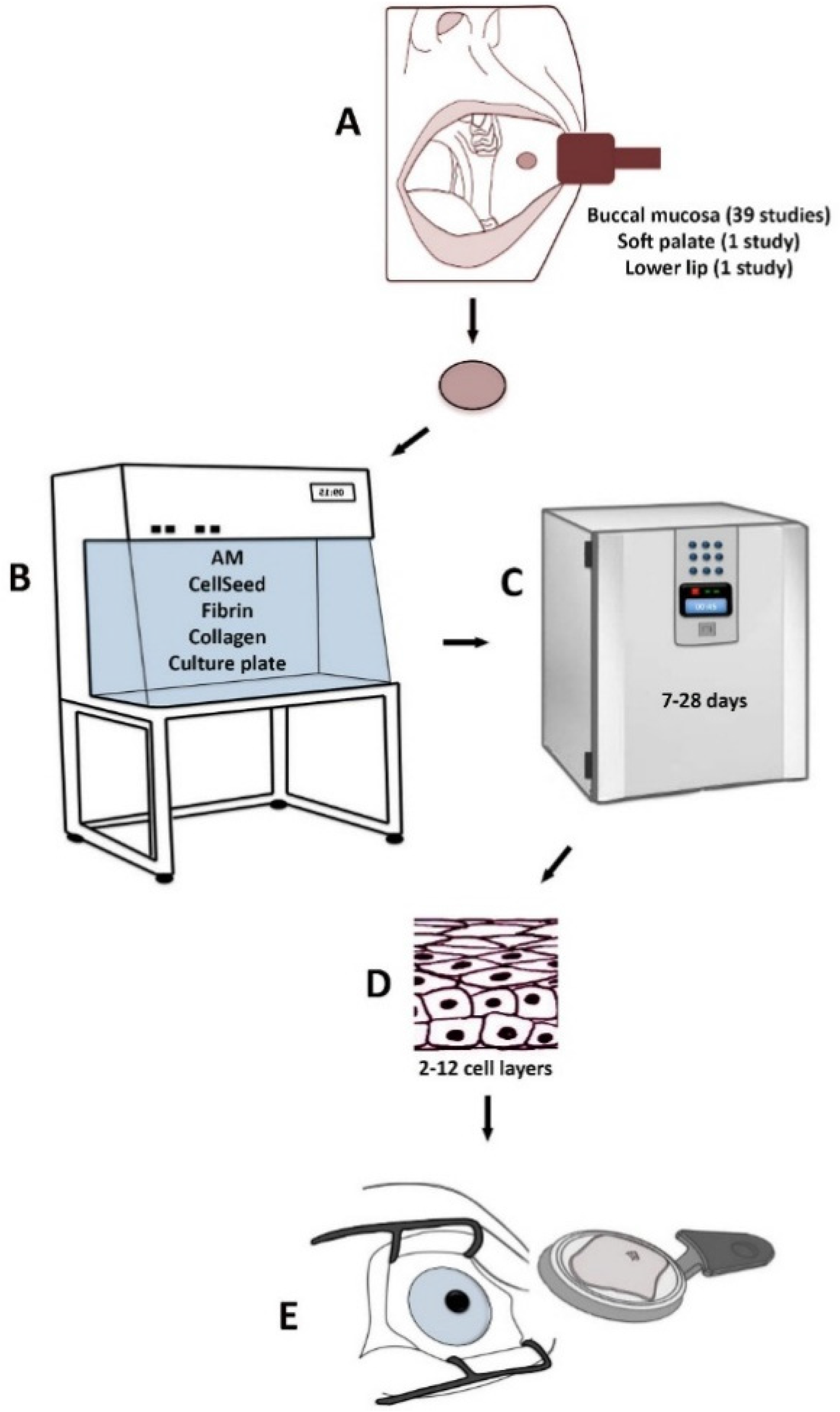

Figure 1. Treatment of LSCD based on various methods using CAOMECS. A biopsy from the mucosa is harvested from the oral cavity (A). The biopsy is cultured in the laboratory on different substrates (B) for 7–28 days (C). A stratified cultured tissue is produced (D) and is transplanted to the diseased eye (E).
Figure 1. Treatment of LSCD based on various methods using CAOMECS. A biopsy from the mucosa is harvested from the oral cavity (A). The biopsy is cultured in the laboratory on different substrates (B) for 7–28 days (C). A stratified cultured tissue is produced (D) and is transplanted to the diseased eye (E).
Jfb 07 00005 g001
Table 1. Culture of oral mucosal epithelial cells on amniotic membrane.
Table 1. Culture of oral mucosal epithelial cells on amniotic membrane.
Author, YearType of StudyCell Suspension/ExplantSubstrateAir-LiftingSerum3T3Culture MediumCulture Time (Days)MorphologyPhenotype
Shimazaki et al., 2009 [62]AnimalCell suspensionDenuded AMYesFBSYesSHEM (aprotinin)7–10Multilayered stratified epithelium; Tight junctionsExpression of K3, ZO-1, and occludin
Sekiyama et al., 2006 [35]in VitroCell suspensionDenuded AMYesYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)7–14Expression of VEGF and Flt-1; Low expression of PEDF
Sotozono et al., 2013 [50]ClinicalCell suspensionDenuded AMYesHASYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)8–9
Sotozono et al., 2014 [49]ClinicalCell suspensionDenuded AMYesHASYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)8–9
Gaddipati et al., 2014 [40]ClinicalExplantDenuded AMNoDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)95–6 cell layers; Stratified epitheliumExpression of K3, K12, K19, Ki-67, p75, and PAX6; p63 expression in most of the basal and supra basal cells
Sen et al., 2011 [60]in VitroExplantDenuded AMYesFCSYesDMEM:F12 (penicillin, streptomycin, amphotericin, EGF, insulin)14Stratified epithelium; Desmosomes; Abundant mucin granulesExpression of K3, K4, K13, connexin 43, p63, p75, β1-integrin, CD29, ABCG2, and MUC 1, 5B, 6, 13, 15 and 16
Satake et al., 2008 [47]ClinicalCell suspensionDenuded AMYesFBSYesDMEM:F12 (gentamycin, streptomycin, penicillin, amphotericin, EGF, insulin)>14Non-keratinized, squamous, polygonal, cells with a low nuclear to cytoplasmatic ratio
Takeda et al., 2011 [51]ClinicalCell suspensionDenuded AMYesYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)14–16
Chen et al., 2009 [39]ClinicalCell suspensionDenuded AMNoFCSYesDMEM:F12(penicillin, streptomycin, insulin, cholera toxin, EGF)14–212–5 cell layers; Elongated cell nucleiExpression of K3, K4, K13, p63, p75, and ABCG2
Chen et al., 2012 [32]ClinicalCell suspensionDenuded AMNoFCSYesSHEM (penicillin, streptomycin, insulin, cholera toxin, EGF)14–215–10 cell layers; Stratified epitheliumExpression of FGF2, K8, VEGF, endostatin, PEDF, and IL-1ra
Ma et al., 2009 [29]ClinicalSuspensionDenuded AMNoFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)14–212–5 cell layers; Elongated cell nucleiExpression of K3, K13, p63, p75, and ABCG2
Nakamura et al., 2004 [30]ClinicalCell suspensionDenuded AMYesFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)14–215–6 cell layers; Desmosomes and hemidesmosomes Expression of K3, K4, and K13
Ang et al., 2006 [37]ClinicalCell suspensionDenuded AMYesHAS/FBSYesKGM (penicillin, streptomycin, insulin, EGF)15–164–6 cell layers; Cuboidal cells, More flattened cells superficiallyExpression of K3, K4, K13, ZO-1, desmoplakin, integrin-α1, laminin 5, and collagen IV
Ang et al., 2006 [37]ClinicalCell suspensionDenuded AMYesHAS/FBSYesKGM (penicillin, streptomycin, insulin, EGF)15–164–6 cell layers; Cuboidal cells, More flattened cells superficiallyExpression of K3, K4, K13, ZO-1, desmoplakin, integrin-α1, laminin 5, and collagen IV
Inatomi et al., 2006 [28]ClinicalCell suspensionDenuded AMYesFCSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)15–165–6 cell layers; Cuboidal cells, several suprabasal cell layers, and flat apical cell layersExpression of VEGF, FGF, and thrombospondin 1
Inatomi et al., 2006 [28]ClinicalCell suspensionDenuded AMYesFCSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)15–165–6 cell layers; Cuboidal cells, several suprabasal cell layers, and flat apical cell layersExpression of VEGF, FGF, and thrombospondin 1
Inatomi et al., 2006 [42]ClinicalCell suspensionDenuded AMYesHAS/FCSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)15–165–6 cell layers; Cuboidal cells, several suprabasal cell layers, and flat apical cell layers
Nakamura et al., 2011 [45]ClinicalCell suspensionDenuded AMYesHASYesKGM (penicillin, streptomycin, insulin, cholera toxin, EGF)15–16
Priya et al., 2011 [46]ClinicalCell suspensionDenuded AMNoASYesDMEM:F12 (PI, mouse IgG1/IgG2a, mitomycin C, EGF, insulin, penicillin, streptomycin)18–21Flat and uniformly distributed epithelial cellsLow expression of p63 (3.0% ± 1.7% of cells); Negative expression of K12
Sharma et al., 2011 [61]In vitroCell suspensionDenuded AMFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)213–5 cell layers; Stratified epitheliumExpression of K3 and β1-integrin; High expression of p63
Promprasit et al., 2014 [59]in VitroExplantDenuded AMYesFBSYesDMEM:F12 (penicillin, streptomycin, insulin, EGF)212–5 cell layers; Stratified epithelium; Cuboidal cells in basal layer, flat superficial cellsExpression of K3 and connexin 43; High expression of p63
Nakamura et al., 2003 [57]AnimalCell suspensionDenuded AMYesFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)213–5 cell layers; Stratified epithelium;Expression of K3, K4, and K13
Nakamura et al., 2003 [58] AnimalCell suspensionDenuded AMYesFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)215–6 cell layers; Stratified epithelium;Expression of K3, K4, and K13
Nakamura et al., 2003 [58] AnimalCell suspensionDenuded AMYesFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF)215–6 cell layers; Stratified epithelium;Expression of K3, K4, and K13
Kolli et al., 2014 [43]ClinicalExplantIntact AMYesHASNoDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF, hydrocortisone, triiodothyronine, adenine)213–7 cell layers, firmly attached to each other; High nucleus to cytoplasm ratioExpression of K3, ABCG2, and C/EBPδ; High expression of ΔNp63α; Negative for K12 and PAX6
Madhira et al., 2008 [56]in VitroCell suspensionDenuded AMNoFCSNoDMEM:F12 (penicillin, streptomycin, amphotericin, gentamycin, insulin, cholera toxin, EGF)21–282–3 cell layers; Stratified epithelium; Gap junctions and desmosomesExpression of K3, K4, K15, and connexin 43; Negative for K12 and PAX6
Yokoo et al., 2006 [63]in VitroCell suspensionDenuded AMYesFBSYesDMEM/F12 (penicillin, streptomycin, amphotericin)283–5 cell layers; Stratified epithelium
ABCG2, ATP binding cassette subfamily G member; AM, amniotic membrane; AS, autologous serum; DMEM, Dulbecco’s modified eagle medium; EGF, epidermal growth factor; FBS, fetal bovine serum; FCS, fetal calf serum; FGF2, fibroblast growth factor 2; Flt-1, Fms-like tyrosine kinase 1; HAS, human autologous serum; IgG2a, immunoglobulin G2a; IL-1ra, interleukin 1ra; KGM, keratinocyte growth medium; MUC, mucin; PAX6, paired box 6; PEDF, pigment epithelium derived factor; PI, propidium iodide; SHEM, supplemented hormonal epithelial medium; VEGF, vascular endothelial growth factor; ZO-1, zona occludens protein 1; –, indicates not reported.
Table 2. Culture of oral mucosal epithelial cells on temperature-responsive surfaces.
Table 2. Culture of oral mucosal epithelial cells on temperature-responsive surfaces.
Author, YearType of StudyCell Suspension/ExplantSubstrateAir-LiftingSerum3T3Culture MediumCultureTime (Days)MorphologyPhenotype
Burillon et al., 2012 [38]Clinical Cell suspensionCellSeed aNoYesSimilar characteristics to normal corneal epithelium; Basal membraneExpression of K3/76, p63, laminin 5, and β1-integrin
Soma et al., 2014 [69]AnimalCell suspensionCellSeed aFBSYesDMEM:F12 (insulin, triiodthyronine, hydrocortisone)10–123–4 cell layers; Stratified epithelium; Cobble stone-like cell morphologyExpression of K14 and p63
Sugiyama et al., 2014 [70]AnimalCell suspensionCellSeed aFBSYesDMEM:F12 (penicillin, streptomycin, insulin, cholera toxin, EGF, hydrocortisone, triiodothyronine)143–5 cell layers; Stratified epithelium; Cuboidal cells in the basal layer, squamous epithelium on the apical sideExpression of K4, K13, MUC5
Nishida et al., 2004 [31]ClinicalCell suspensionCellSeed aNoYes14Multilayered cell sheets; Microvilli, desmosomes, basement membraneExpression of β1-integrin, K3, and p63
Bardag-Gorce et al., 2015 [64]AnimalCell suspensionCellSeed aFBSYes14Multilayered stratified epitheliumExpression of K4, ΔNp63, TIMP-1, TIMP-3, and connexin 43
Hayashida et al., 2005 [66]AnimalCell suspensionCellSeed aFBSYes143–5 cell layers; Stratified epithelium;Expression of K3, K4, K13, p63, ΔNp63, and β1-integrin
Murakami et al., 2006 [67]in VitroCell suspensionCellSeed aHASNoDMEM/F12 (penicillin, streptomycin, fungizone, transferrin, EGF, cholera toxin, hydrocortisone, triiodothyronine)143–5 cell layers; Cuboidal basal cells, flattened middle cells, and polygonal flattened superficial cellsExpression of p63 and Ki67
Oie et al., 2010 [68]ClinicalCell suspensionCellSeed aHASYes14–174–5 cell layers; Small basal cells, flattened middle cells, and polygonal flattened superficial cellsExpression of K1, K3/76, K4, K10, K12, K13, K15, ZO-1, and MUC16; Moderate expression of p63 (30.7% ± 7.6% of cells)
Table 3. Culture of oral mucosal epithelial cells on other substrates.
Table 3. Culture of oral mucosal epithelial cells on other substrates.
Author, YearType of StudyCell Suspension/ExplantSubstrateAir-LiftingSerum3T3Culture MediumCulture Time (Days)MorphologyPhenotype
Satake et al., 2011 [48]ClinicalCell suspensionFibrin-coated cell culture insertsYesHASYesDMEM:F12 (penicillin, streptomycin, transferrin, EGF, hydrocortisone, triiodothyronine)5–6 cell layers;
Hirayama et al., 2012 [41]ClinicalCell suspensionFibrin-coated cell culture inserts YesHASYesDMEM:F12 (penicillin, streptomycin, insulin, EGF, hydrocortisone)5–6 cell layers;
Sheth et al., 2014 [71]in VitroExplantFibrin gelFCSNoDMEM:F12 (penicillin, cholera toxin, insulin, EGF, hydrocortisone)-Multilayered epithelium; Cobblestone morphologyExpression of K3, K13, and K19; High expression of p63
Ilmarinen et al., 2012 [72]in VitroCell suspensionCollagen IV-coated cell culture insertsYesNoNoSerum-free oral PCT epithelium medium (EGF)13–174–12 cell layers; Stratified epithelium; Cuboidal basal cells and flat intermediate and superficial cellsExpression of K3/12, K4, K13, Ki67, and p63
Kanayama et al., 2007 [34]in VitroCell suspensionCulture plateFBSYesDMEM (Supplements not reported)Multilayered cells; Normal epithelial morphologyExpression of FGF2, VEGF, Ang1, and TGF-β1
Kanayama et al., 2009 [33]in VitroCell suspensionCulture plateFBSYesDMEM (Supplements not reported)14Multilayered cellsExpression of VEGFr-1
Hyun et al., 2014 [74]AnimalCell suspensionCulture plateFBSYesDMEM:F12 (penicillin, streptomycin, gentamycin, amphotericin)142–6 cell layers; Stratified epitheliumExpression of K3, K4, and Ki67; High expression of p63
Krishnan et al., 2010 [73]in VitroExplantCulture plateFBSDMEM:F12 (streptomycin, amphotericin, EGF, insulin, transferrin, selenium, hydrocortisone)21Multilayered cells; Normal epithelial morphologyExpression of ABCG2, K3, MUC1/4/16, hBD1/2,3; High expression of p63 and ΔNp63
ABCG2, ATP binding cassette subfamily G member; Ang1, angiopoietin; DMEM, Dulbecco’s modified eagle medium; EGF, epidermal growth factor; FBS, fetal bovine serum; FCS, fetal calf serum; FGF2, fibroblast growth factor 2; HAS, human autologous serum; hBD, human beta defensing; MUC, mucin; PCT, progenitor cell-targeted; TGF-β1, transforming growth factor beta 1; VEGF, vascular endothelial growth factor; –, indicates not reported.
Table 4. Expression of p63 in cultured autologous oral mucosal epithelial cell sheet cultivated on different substrates.
Table 4. Expression of p63 in cultured autologous oral mucosal epithelial cell sheet cultivated on different substrates.
SubstrateTotal Number of StudiesExpression of p63 Not ReportedNon-Quantitative Expression of p63 ReportedQuantitative Expression of p63 Reported
Amniotic membrane2416 studies4 studies: p63 expressed;
1 study: high expression of ΔNp63; 2 studies: high expression of p63
1 study: 3.0% ± 1.7% of cells
Temperature-responsivecell-culture inserts92 studies6 studies: p63 expressed1 study: 30.7% ± 7.6% of cells
Fibrin-coated culture plate22 studies
Fibrin gel11 study: high expression of p63
Collagen IV-coated culture plate11 study: p63 expressed
Culture plate42 studies2 studies: high expression of p63
Table 5. Overall Effect of Different Culture Methods and Substrates for Cultured Autologous Oral Mucosal Epithelial Cell Sheet.
Table 5. Overall Effect of Different Culture Methods and Substrates for Cultured Autologous Oral Mucosal Epithelial Cell Sheet.
Substrate/MethodAir-liftingAnimal-derived NutrientUse of 3T3Serum-free MediumViabilityMorphologyPhenotype (Expression of p63)
Amniotic membrane17/2416/2421/240/24>98% (1)4.2 cell layers (15)++
Temperature-responsive cell-culture inserts0/95/98/90/986%–93% (2)4.3 cell layers (6)++
Fibrin-coated culture plate2/20/22/20/2 5–6 cell layers (2)
Fibrin gel0/11/10/10/1+++
Collagen IV-coated culture plate1/10/30/11/14–12 cell layers (1)+
Culture plate0/44/43/40/42–6 cell layers (1)+++
Number of studies using different culture parameters is presented in the Table; –, indicates not reported; +, low expression of p63; ++, moderate expression of p63; +++, high expression of p63.

Share and Cite

MDPI and ACS Style

Paaske Utheim, T.; Aass Utheim, Ø.; Khan, Q.-E.-S.; Sehic, A. Culture of Oral Mucosal Epithelial Cells for the Purpose of Treating Limbal Stem Cell Deficiency. J. Funct. Biomater. 2016, 7, 5. https://doi.org/10.3390/jfb7010005

AMA Style

Paaske Utheim T, Aass Utheim Ø, Khan Q-E-S, Sehic A. Culture of Oral Mucosal Epithelial Cells for the Purpose of Treating Limbal Stem Cell Deficiency. Journal of Functional Biomaterials. 2016; 7(1):5. https://doi.org/10.3390/jfb7010005

Chicago/Turabian Style

Paaske Utheim, Tor, Øygunn Aass Utheim, Qalb-E-Saleem Khan, and Amer Sehic. 2016. "Culture of Oral Mucosal Epithelial Cells for the Purpose of Treating Limbal Stem Cell Deficiency" Journal of Functional Biomaterials 7, no. 1: 5. https://doi.org/10.3390/jfb7010005

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
