Abstract

The conventional applicability of biomaterials in the field of bone tissue engineering takes into consideration several key parameters to achieve desired results for prospective translational use. Hence, several engineering strategies have been developed to model in the regenerative parameters of different forms of biomaterials, including bioactive glass and β-tricalcium phosphate. This review examines the different ways these two materials are transformed and assembled with other regenerative factors to improve their application for bone tissue engineering. We discuss the role of the engineering strategy used and the regenerative responses and mechanisms associated with them.
Keywords: Tricalcium Phosphate; Bioactive Glass; Bone; Scaffolds; Biomaterial Tricalcium Phosphate; Bioactive Glass; Bone; Scaffolds; Biomaterial

1. Introduction

The Tissue Engineering field has rapidly expanded over the past two decades with promising translational results [1]. Based on the growth in the numbers of publications, both the research and clinical foci in the field of bone tissue engineering (BTE) are enormous. This is particularly driven by current clinical limitations associated with the restoration of bone function such as immunological complications associated with allografts, donor site morbidity [2]. BTE approaches provide better solutions [3]. The most recent results in the area of stem bioprinting of biocompatible materials have many potential translational applications [4].
This paper focuses on two key biocompatible materials: Bioactive Glass 45S5 (BAG) and β-Tricalcium Phosphate (β-TCP) which have been used in BTE for decades [5,6,7]. Calcium Phosphate (Ca-P) materials have the potential to become the biomaterials of the future. They are safe, found naturally in our body, integrate with tissues easily and can be easily produced in large amounts at low cost [8]. It remains a great challenge to design and successfully apply biomaterials such that structural and functional restoration of native bone is accomplished, where by the remodelling of the biomaterial completely synchronizes with the natural healing process (as illustrated in Figure 1), and the degree of strength and stiffness required is maintained until new growing bone completely replaces and degrades [9]. Taken altogether, a discussion of the regenerative foci of synthetic grafts, highlighting the limitations and suggestion of approaches to improving their functionalities significance, deserves greater scientific attention. We discuss the strategic transformation of BAG and β-TCP the mechanisms associated with them, towards the development of different forms of scaffold matrices for applications in BTE.
Natural bone contains a hydrated calcium component, hydroxyapatite (HA) and therefore, if a material is able to form an HA layer in vivo may not be rejected by the body [5]. When Bioactive glass 45S5 is implanted, the glass reacts with native body fluid, forming apatite, after which it bonds to native bone and soft tissue, and releases calcium and silicon ions, which in turn enhance activation of osteogenic biomarkers and promote bone formation [10]. Chemically, sodium ions leach out of the glass, increasing local pH due to rapid exchange of sodium ions with H+ ions. This process initiates the dissolution of the SiO2 networks, later forming silanol groups, which gradually precipitates into a silica layer. The formation of this silica layer enhances the migration of the calcium and phosphate ions of the glass to form a dense layer of calcium phosphate. Further crystallization and integration of the hydroxyl and carbonate ions from the solution produces an apatite (hydroxycarbonated apatite) layer on the glass surface [11]. The collagenous fibers of the soft tissue can bond to this apatite and silica shortly after implantation [12]. There is evidence [13] of BAG attachment to soft tissue but the mechanism behind this process is unknown [14,15].
In calcium phosphates, it is believed that the release of the calcium and phosphate ions creates more precipitation of Ca-P, as a result of increasing ionic concentration. This facilitates protein adsorption and finally enhances bone formation [16]. Evidence of the role of proteins in the dissolution of Ca-P has been reported in Lui et.al [17], in which the dilution kinetics of Ca2+ ion species in Ca-P were much slower in bovine serum albumin coated surface compared to non-coated ones. A change in crystallinity was observed in protein-coated surfaces following reprecipitation. The role of proteins in the dissolution of Ca-P is dependent on three major factors: (1) properties of the bioceramic (phase, crystallinity, composition, and texture); (2) properties of the proteins (e.g conformation, isoelectric point, and composition) and (3) whether they act in solution or on a substrate. The proteins from the fluid of the local area mediate the ionic exchange process [18,19,20,21,22,23], and contribute to the dissolution events.
In vivo, the dissolution of calcium phosphate and reprecipatation are mediated by ions and proteins. The adsorbed protein can determine the final nature of the Ca-P crystal by either blocking or unblocking sites of nucleation of the substrate [24]. Given the roles of proteins in facilitating calcium nucleation [25], they have used as tactical entities in the construction of scaffold matrices in surface modified interfaces [26]. Despite the remarkable clinical results of bioceramic phosphates in BTE, the mechanisms associated with Ca-P induced bone formation are still obscure [8].
Nonetheless, the regenerative properties of BAG and β-TCP, as used in BTE, are governed by their chemical makeups and physical properties, which can strongly influence regenerative activators associated with repair and/or regeneration [27,28]. For some of the limitations associated with the applications of BAG and β-TCP in BTE, several other engineering strategies have been designed and applied to unleash their full regenerative capabilities. Among these limitations, 45S5 bioactive glass has slow degradation rates and this may complicate resorption and formation of new bone [29]. It is crystalline when sintered and this makes it challenging to apply in making porous scaffold matrices [30]. This limitation becomes particularly significant when controlling pore interconnectivity to construct and achieve a three dimensional geometric configurations [31,32].
In regards to β-TCP, rate of resorption does not correspond to the rate of bone formation. Although this is relative, the imbalance between resorption and osteogenesis have implications in the quality of new bone formed. Additionally, the brittle nature of β-TCP, lessens the toughness of constructs and their ability to withstand collapse [33]. The application of several other strategies, among those discussed below, are useful to alleviate some of these challenges.
Despite these limitations, the regenerative properties of β-TCP are quite distinct among other calcium phosphate and widely used in bone regeneration [34]. β-TCP is considered both osteoconductive and osteoinducive and its rate of resorption is higher compared to crystalline HA, which resorbs much slower [35,36]. Also, amorphous calcium phosphate has high rate of solubility and the rapid release of calcium and phosphates ions in aqueous can result in perturbation in the local pH, which negatively affects the adhesion and proliferation of cells as well their viability [35].
To apply both BAG and β-TCP in fabricating suitable scaffolds, the engineering strategies will involve: the transformation of the basic material properties (chemical or physical); designing the appropriate geometry; optimizing the ratio of the constituent polymer or co-polymer used to achieve mechanical stability; and constructing a unit three-dimensional porous architecture to facilitate tissue ingrowth and perfusion of blood. This is a particularly standard approach applied in the reconstruction of segmental defects [37]. Given, the strong connections between scaffold chemical and geometric nature and regenerative response, we focus our discussions on key areas of scaffold development and how transforming certain factors contribute towards robust scaffold properties and regenerative responses. Where applicable we discuss the translational indicators associated with the applications of these materials. Key subject areas in focus, related to the use of these materials, include porosity, bonding, surface area-to-volume ratio, mechanical properties, differentiation, and energy gradients based on material surface interaction. Additionally, other aspects in focus relate to surface modification, antibiotic delivery in multifunctional scaffolds, and translational models used to test the function of materials in bone repair or regeneration in BAG or β-TCP-based scaffold materials.

2. Scaffold Transformation for Regenerative Application

To ensure that cells’ growth and regenerative capabilities are properly modulated and maintained, a scaffold should have one or more of these properties: osteoinduction (ability to induce stem cell differentiation to the bone lineage), osteoconduction (ability to maintain an optimum condition for neogenesis of the bone tissue), porosity, and mechanical stability [38,39,40,41]. From a performance-based perspective, some of these properties are more distinct than others in certain kinds of synthetic or natural materials. A selective transformation protocol allows us to enhance one or more properties to produce a support infrastructure for the cells to grow and foster regeneration. The ultimate focus in bone scaffold engineering is to be able to construct all the essential regenerative features in a single scaffold template that is eventually replaced with completely vascularized bone in a patient, irrespective of the bone defect size, shape and geometry.

2.1. Scaffold Interface

A key area in the transformation of scaffold is the interface. This is where the “regenerative language” is first communicated and is a key determinant of the material’s regenerative behaviour.
It has been shown that the presence of a single protein (fibronectin) can greatly influence the surface charge factor and consequently the formation of apatite layers on the surface of BAG glass. It further shows that the presence of fibronectin produced electronegativity on the BAG surface and delayed the formation of both amorphous and crystalline apatite. The resultant increase in calcium ion concentration generated a structural change in the BAG surface. This shows that surface charge might play a significant role in protein-substrate interaction [42]. It has been found that the surface properties influence cellular adhesion and binding affinity of proteins to α5β1 integrin, in binding efficiency and strength of the interactions [43]. The regenerative implications are that the extra-cellular matrix (ECM) and α5β1 integrin signaling control the maintenance of bone formation capacity in stromal cells [44]. Key features at the interface as shown in Figure 2, include the surface area to volume ratio (topography), and the corresponding energy gradient produced.
Other evidence of surface chemistry, gradient energy profiles, influence of pore size, topography, impact protein interactions and adhesion of bone cells have been reported [45]. Often, one or many of these properties are acquired or added to the material during the fabrication of the scaffold [46]. The modification of the scaffold interface is also aimed at achieving high-performance bonding/integration with the native tissue or cell when applied in vivo. Another aspect of the interface is aimed at improving the preferential affinity of the material surface to promote adhesion of the ECM. For example, biomaterials, which are cross-linkable due to their strong bonding affinity to functional groups, are good choices for surface modification. The regenerative implications of surface modification will be discussed in latter sections of this review.
Another important aspect of scaffold transformation takes into consideration the appropriate combination of toughness and maintenance of plasticity of the scaffold matrix in order to solve problems associated with behaviours of bioceramic particles, like β-TCP and BAG, when they are incorporated into polymeric interfaces. Given that the bioactive particles are initially covered with a polymer, they are not quickly exposed as the polymer degrades. Since cells can easily demonstrate preferential affinity to the bioactive particles, further degradation of the polymer may cause an inflammatory/localized body reaction as the scaffold degrades and the particles become exposed. Thus, sol-gel hybrid materials have been developed to soften bioactive glass for bone regeneration [47].
The regenerative sensitivity at the interface as a factor of regenerative response is not fully investigated. To do so will require development of high throughput protocols to understand changes in scaffold surface properties and how they impact regenerative susceptibility. This will provide more insight and predictability regarding the long-term regenerative profile of progenitor cells as applied in bone tissue engineering. Additionally, other key indicators of cell fate would be clearer.

2.2. Surface Modification

In the surface modification method, a monomer serves as the precursor for the desired functional group, serving as an initiator of the synthesis process. The concept of surface modification has been applied in several other engineering protocols for development of biomimetic scaffolds. The major surface modification techniques established and applied for the development of biomimetic scaffolds are: radiofrequency plasma deposition [48,49,50,51,52,53], silane modification of glass and ceramics [54,55] and thiol-based modification [56,57]. These forms of chemical interventions allow functional groups with regenerative effects (e.g., amine, carboxylic rings) to be successfully grafted to the underlying entity (e.g., another material forming part of the scaffold) to improve the regenerative potential of the scaffold [58]. Functional groups also influence the differentiation cascades of stem cells. Studies have demonstrated osteogenic differentiation of stem cells induced by the presence of amine functional groups [59,60,61]. To our knowledge, surface modification of β-TCP and BAG aimed at specifically assessing the role of a functional group via the insertion of functional rings for bone tissue regeneration has not been widely reported. However, Jiang et al., have demonstrated that surface modified BAG functionalized with amine for drug delivery also promotes formation of apatite layers and thus possesses regenerative potential for bone tissue engineering [62]. The osteogenic potential of amine-functionalized BAG is believed to be influenced by its positively charged surface and slow degradation rate [58]. Research into the area of functional group-based surface modification screening may lead to the development of highly mineralized scaffolds to maintain an ideal substrate-cell interaction profile and improve the conditions of differentiation and proliferation [63]. Also, a study by Keselowsky et al., showed that the amine functional group (–NH2), has more capability in adsorption of fibronectin compared to –COOH, and –OH groups [64].
The regenerative performance of surface modified materials is highly influenced by the hydrophilicity or hydrophobicity gradient established between the cell and the material. It is evident that cells have more preference to hydrophilic surface substrates than hydrophobic ones [65]. It is suggested that certain surface functional species of alkanethiols, carrying terminals such as –CH3, –NH2, –OH, or –COOH, affect both cell adhesion and protein adsorption [65,66]. Others have gone further to understand the activation process induced by these functional groups at the blood-material interface and revealed that surfaces with high contact activation have low adhesion of platelet rich plasma and blood. Hydrophobic-rich surfaces (–CH3, –COOH) showed no platelet adhesion. However, a significant shift was observed upon incubation with citrated plasma rich platelets, and adhesion was remarkably improved [67]. Others have shown that the hydrophobic gradient can be increased by the addition of BAG nanoparticles. The addition of BAG nanoparticles to a polycaprolactone film with an initial average contact angle of ~109.2° resulted in a significant decrease in contact angle, measuring a final value of 54.7° [68]. The contact angle can be measured using any of the OCA15 (Dataphysics), Optical Tensiometer (Dyne Technology, Lichfield, Staffordshire, UK), Contact Angle Meter (Holmarc Opto-Mechatronics Pvt. Ltd., Kochi, Kerala, India) or other machines. Given that β-TCP is a hydrophobic material, its water retention property can be improved by mixing with γ-PGA (poly (γ-glutamic acid)). Chemically, as the reaction proceeds, the α-C units off the carboxylic main chain form a hydrogen bond to the –OH groups of the β-TCP [69].

2.3. Cells

Now that stem cells can be generated from somatic cells through reprogramming protocols based on signal transduction and key transcription factors [70]; adult somatic cells reprogrammed as induced pluripotent stem cells (iPSCs), as shown in Figure 3, can be another potential source of cells for bone tissue engineering application [71].
The applicability of this technology in tissue engineering, however, would require use of a suitable delivery mechanism of transcription factors to ensure minimal genomic alteration (e.g., insertional mutagenesis), largely associated with the use of delivery vectors [72]. A direct delivery method, of reprogramming proteins to produce induced pluripotency in somatic cells has been reported [73]. We suggest that by taking advantage of the controllable delivery properties of BAG and β-TCP and the ability turn them into microspheres or nanoparticles, a delivery method can be designed to deliver reprogramming proteins to minimize genomic alteration. Elsewhere, others have shown controllable delivery of protein unit by modification of the surface properties of bioactive glass [74,75].

2.4. Micro-Architecture

Micro-architecture is a critical parameter of the scaffold and can significantly enhance regenerative performance. The scaffold’s microporous matrix, composed of interconnected, three-dimensional networks of pores, supports the adhesion and growth of cells. The microenvironment further supports the regenerative performance of the scaffold by promoting ingrowth of new bone and vasculogenesis. The porous micro-architecture of the scaffold is critical in supporting cell survival by meeting the mass-transport needs for nutrition, attachment, and migration [76]. Studies have shown that scaffolds with pore diameters greater than 300 µm enhance vascularization [77,78]. It is also maintained that scaffolds in which more than 60% of pores are between 150 µm and 400 µm and 20% them less than 20 µm, are ideal. Scaffolds with less than 1 µm pore size promote bioactivity and protein interaction. Porous materials with pore size ranging between 1 µm and 20 µm support cell growth, adhesion and migration. Moreover, pore diameters of 100 µm to 1000 µm enhance blood flow, bone ingrowth, and mechanical stability of the substrate [79]. Scaffolds with similar porous properties can be generated that are made of β-TCP-ion doped matrices [80], Polyacrolactone/β-TCP scaffold [81]. Other factors that influence porosity include material chemistry, fabrication, temperature, and chemical bonds formed between the constituent materials making up the scaffold. In this regard, particle size modelling and bonding chemistry, which are discussed further, have been creatively applied to improve scaffold regenerative properties and applicability in bone tissue engineering or regeneration.

2.5. Nano-Architecture

The fabrication of nano- size ceramic structures has been shown to improve bone regenerative performance. Nanoparticles have been used as target units to modulate the surface area to volume ratio and surface roughness of scaffolds [82]. β-TCP and BAG micro particles can be transformed to nanoscale length to improve scaffold regenerative performance and reinforce osteoinduction, mechanical stability, and the delivery profile of growth agents or antimicrobial agents as applied in bone tissue engineering. Cells co-cultured with BAG nanoparticles showed higher expression of prominent osteogenic markers ALP and RNX2, compared with other nanoparticles [83]. Additionally, for BAG, prepared using the sol-gel method, its nanoporosity significantly affected its rate of dissolution and silica release profile in simulated body fluid. These processes influence apatite nucleation and bioactivity [84]. The fabrication of PLLA nanocomposite using β-TCP nanoparticles as the building unit, demonstrated positive influence in porosity, compressive modulus, protein adsorption profile and affinity towards osteoblast adhesion [85].

2.6. Dopants

Dopants facilitate the activation of important regulatory/molecular precursors (collagen I and osteocalcin) associated with early bone formation [86,87]. It is also reported that by introducing ion dopants, the structural mesoporosity of BAG, sheared by phosphorus pentoxide (P2O5), is changed. The mechanism regulating the change in structural geometry is due to the presence of P2O5, which propagates the formation of clusters of divalent cations and this impacts it regenerative property [88]. Others have doped TCP with metal oxides to improve mechanical strength, control resorption and osteoconduction. Results indicate stability and early stages of osteoid formation [89].

3. Application of Regenerative Scaffold for BTE and or Regeneration

The many functional regenerative indicators of BAG and β-TCP are evident in how they are transformed. In a similar way, their applications are targeted to the direction at which they have been transformed. This will be discussed in the following sub sections.

3.1. Construct for Reconstruction of Segmental Defects

A reconstructive strategy has been presented for the repair of canine mandibular bone defects with stromal cells delivered on a mechanically stable scaffold made of β-Tricalcium Phosphate. The stromal cells, osteogenically treated in dexamethasone, β-phosphoglycerol media prior to interacting with scaffolds, maintained their osteogenic phenotype [90]. The resorbability of the substrate prevents the implant from remaining in the bone tissue. This study have demonstrated that incorporating rod shaped β-TCP particles produced evidence of improved bone development [91]. However, it is worth noting that rapid resorption of the substrate may inhibit proper bone tissue deposition and thus an appropriate balance between bone formation and scaffold resorption needs to be maintained. It has been speculated that proper bioresorption depends on the biological activity of the recipient bone cells and as such may vary between different cells types [91]. An approach to reconstruction of a critical size mandibular defect in minipig model is shown in Figure 4. Early implantation was made of scaffolds seeded with autogenous cells, treated with osteogenic factors and incubated in a rotational oxygen-permeable bioreactor for 2 weeks prior to implantation.
Results showed that cell penetration decreased as extracellular matrix deposition progressed. Although animals were sacrificed at a relatively short time point, angiogenesis was observed in the centre of the construct and was more prominent in areas of newly formed bone. This study also confirmed that early implantation of constructs was beneficial [81]. The propagation of angiogenesis in the center of constructs is still a critical challenge to achieve complete regenerative reconstruction of large segmental defects. To solve this challenge, and promote neovasculation at the center, others have introduce a method to activate the hypoxia inducible factor (the master regulator of angiogenic and metabolic response to low oxygen) using deferoxamine [92]. Others studies have shown that the activation of this pathway accelerates bone regeneration [93]. The injection of angiopoietin 2 into the defect area has also shown evidence of promoting bone repair by accelerating angiogenesis in synthetic grafts This concept is based on the function of the angiopoietin tyrosine kinase receptor 2 pathway in tumor cell survival and metastasis, which is characterized by active angiogenesis [94]. In another study, 3D printed polybutylene terephthalate scaffolds coated with micro-size β-TCP were infiltrated with endogenous mesenchymal stem cell and grown in a bioreactor and successfully facilitated the bridging of femoral critical size defects (42 mm). This phenomenon was not observed in grafts free of mesenchymal stem cell and β-TCP, which validates their role in regeneration [95]. Elsewhere, others have shown the application of N-hydroxysuccinimide as an adhesive material [96]. By binding free bioglass particles a more organized matrix for reconstruction of critical size defects can be constructed. As shown in this study, chondroitin sulfate was effectively combined with 45S5 bioglass and bone marrow cells for repair of distal femoral bone defect with promising results [96]. This technique has the potential to reduce inflammation emanating from free particulate migration from constructs, in vivo and stabilize bioceramic-based scaffold matrices.

3.2. Delivery

BAG nanoparticles can serve as a reservoir for biological molecules, and they and their nanointerface can facilitate adhesion of osteoprogenitor cells and promotion of vascularized bone ingrowth. The physical properties of the glass can be optimized to target other biologic responses associated with bone development [97]. BAG’s functional capabilities are not limited to bone growth function, as BAG can control microbial activity around the defect and this promote proper healing [98]. A study on S53P4 bioactive glass, demonstrated bactericidal effects on several clinically important panels of anaerobic bacteria. The mechanism of the bactericidal effect was due to the release of the cations in the aqueous medium. When the cations are released, pH and osmotic pressure increase and partly explain the growth inhibition effect. The high concentration of alkali and calcium ions may also have been responsible for the perturbation of the membrane potential of bacteria [30,99].
Comparatively, β-TCP does not elicit a bactericidal effect in its natural form. However, β-TCP can be further processed for the efficient load and delivery of antibiotics. The fabrication of microporous structural units of β-TCP can provide stability to deliver antibiotic compounds. The maintenance of stability during loading and delivery was more prominent in β-TCP microporous constructs compared to powder or granular forms of β-TCP, which are too unstable for delivery purpose [100]. The functionalization of β-TCP with oxides of zinc and silver can achieve dual functionality, serving as a regenerative substrate and antimicrobial substance [101,102].
Additionally, by modifying the structural geometry of the material, drug molecules can be systematically incorporated and released using β-TCP or BAG. This approach has quite useful prospective translational benefits as a drug delivery system. It has the benefits of sparing patients from the adverse effects of using non-degradable PMMA (poly (methyl methacrylate)) beads, for which a second operation is required to remove them after the antibiotics have been released [100]. Additionally, given that the risk of impairment of bone regeneration due to bacterial colonization is high and can cause necrosis of tissue (especially periodontal), the role of β-TCP and BAG applied as resorbable delivery agents is an important one.
The articles referenced in Table 1, outlined different methods of transforming β-TCP to serve as an antimicrobial delivery agent. It should however, be noted that the excellent stability and delivery response profiles demonstrated by these materials (BAG and β-TCP) were not exclusively tested or investigated for regenerative applicability in bone tissue damage repair and/or regeneration.
However, from a material science perspective, authors provided vital knowledge about the technical processing of β-TCP, which could be applied towards the engineering of scaffolds for BTE.

3.3. Reinforcement of Stability in Guided Bone Regeneration (GBR) Membrane

Both BAG and β-TCP also been selectively applied in GBR. Exhaustive analyses and review of GBR are captured by [105,106,107]. The concept of guided bone regeneration was first introduced by Hurley et al. in 1959 [108]. In GBR, a membrane is applied around the defect area, which assists in containing blood clot and separating the defect site from the bordering connective tissues, thereby providing space for formation of new bone cells and regeneration of the defect [109].
Currently, both synthetic and naturally derived resorbable membranes for GBR are commercially available. The synthetic materials include PGA (polyglycolic acid), PLA (polylactic acid), PCL (polycaprolactone) and their derivatives or copolymers. These membranes are clinically beneficial owing to their excellent biocompatibility, biodegradability and tissue integration properties. However, such polyester-based membranes may lose mechanical strength when incubated during cell culture.
To solve this drawback, BAG or β-TCP have been used to reinforce membrane stability and improve membrane bioactivity for GBR. Other naturally derived membranes, such as collagen, have poor mechanical stability, and uncontrollable degradation rates. Their derivation from mainly animal or human origin increases the risk of disease transmission [106,107,110]. As a result, the development of other resorbable, biocompatible membranes of natural origin, like chitosan and alginate, have gained attention [105]. In Table 2, recent studies investigating β-TCP for guided bone regeneration in animal models have been summarized.
In another study, the increase in tensile strength in a PLLA membrane resulted from the addition of strontium borosilicate bioactive glasses. This response was created as cations derived from the microparticles cross-linked with the carboxyl groups of the PLLA. The bonding triggers an interlinkage in the membrane and yields a corresponding increase in Young’s modulus [117].
The combination of β-TCP with recombinant human growth factor, applied to improve the performance of a Bio-OSS™ (Geistlich Pharma, Wolhusen, Switzerland ) membrane, was aimed at increasing bone mineral density. The growth factors profoundly mediated the regulatory signal associated with growth and differentiation of the cells. The addition of β-TCP fostered both resorption of the membrane and quality of new bone [116]. In a different study, β-TCP blended with PLGA (poly (lactic-co-glycolic acid)) and PCL displayed increased elastic modulus and surface roughness properties in a 3D printed membrane. The membrane was applied over buccal defects, aimed at preserving the underlying tissue, and protecting the area from exposure to blood, saliva and irrigation [112].

3.4. Reinforcement of Mechanical Stability

The mechanical stability can be enhanced by incorporation of ceramic particles likes BAG. A study by Li et al. (2015) shows increased surface roughness, hydrophilicity, and flexibility in chitosan-based GBR membrane, after incorporation of BAG and PHBV (poly (3-hydroxybutyrate-co-3-hydroxyvalerate)) microspheres. The membrane promoted cell adhesion, ALP activity, sustained and controlled release of drug molecules. The applicability of these kinds of membrane may be useful in GBR of periodontitis where mechanical stability to prevent failure is essential. In a similar vein, given that BAG can be applied in regeneration of hard or soft tissue, it can be a remarkable candidate for periodontal application [12,118].
Towards the development of a gelatin- β-TCP scaffold, the β-TCP mainly contributed to the mechanical strength of the membrane. This was prepared by initially making a slurry of gelatin-β-TCP, which was later lyophilized and cross-linked. The membrane was more than twice as strong as a collagen membrane and its ALP activity also increased. This biological response was closely associated with hydrophilicity, and reinforced osteoconductivity of the membrane due to the β-TCP. Histology results confirmed bone formation. However, there was no significant difference in bone volume between the two membranes when compared to the untreated control [115].

4. Summary and Conclusion

One key challenge remains, which is specifically how to institute all the essential regenerative features in a single scaffold template that is converted to the patient’s own vascularized bone. To the extent that we defined the different parameters of constructing or reconstituting a bone-regenerative scaffold by different methods, it is worth noting that these parameters are not independent of each other, especially during the fabrication process of the scaffold. The aim is to give a technical perspective on how to interlock and combine a smart engineering strategy to assure stability, regenerative sensitivity and enrichment of substrates.
Therefore, exploiting these forms of design is expected to produce a robust method for designing scaffolds especially in co-construct development where one modelling strategy might not be sufficient for creating a substrate infrastructure with multifunctional capabilities. The regenerative applicability of bioactive glass and β-tricalcium phosphate largely stems from their physiological reactivity, cyto-sensitivity and influences on the cascades of stem cell differentiation and development of new bone tissue. Both β-TCP and BAG are easily transformed into different forms and shapes, embedded in polymer matrices, and sandwiched with other growth factors to improve their application potentials in the field of bone tissue engineering.
To design a sacrificial template for the restoration of bone defects, these materials serve as regenerative entities that modulate the regenerative capabilities of biomaterial-based substrates in a variety of ways. The research covered in this article includes both in vitro and in vivo studies. The assessments provide a strategic outlook in the role of these materials and how they are strategically used to achieve bone regeneration. We discussed the use of these materials and their roles in addressing drawbacks and reinforcing the capabilities of other polymers, applied in bone tissue engineering. We focused our discussions on parameters including porosity, surface area-to-volume ratio, mechanical stability, initiators of differentiation cascades, charge gradients based on material surface-cell interaction, reinforcement of stability (both mechanical and regenerative) of substrates, functional-group-based surface modification, antibiotic delivery in multifunctional application of scaffolds, translational applicability in different screening models (in vivo) as well as a justification of the engineering strategy used, where applicable and necessary for better understanding of the concept-based design.
Finally, for biomaterials of the future, it will be compelling to apply advanced tools of molecular biology, e.g., genomic sequencing, and proteomics to understand the ‘regenerative language’ of stem cells when combined with these materials and how the transformation of their functional properties affects the sequence of biological events associated with repair or regeneration. Additionally, the design of in vitro and in vivo models to further investigate the resorptive properties of β-TCP and bioactive glass-based scaffolds, will offer more clues into the complex mechanism of biomaterial resorption, in regenerative reconstruction of large defects. This is a still a major challenge in the field.

Author Contributions

All authors have contributed to the manuscript. B.L. and Q.Y. chose the topic; B.L. performed the literature search; C.X. and Y.H. advised on the structure of the manuscript; B.L. wrote the manuscript; M.P.O. and Q.Y. edited the manuscript; M.J.T. and Q.Y. provided substantial improvement in the content and approved the manuscript before submission.

Funding

This project in part is funded by the Australian Government Research Training Program Scholarship, The University of Queensland; The University of Queensland Strategic Grant (Ye 2015), MGH-OMFS Education Research Fund, The Lynn Foundation; The Jean Foundation; The Walter C. Guralnick Fund.

Acknowledgments

The authors would like to extend sincere thanks to Lim Li Yang for the illustrations.

Conflicts of Interest

The authors have no conflict of interest.

References

  1. Gomes, M.E.; Rodrigues, M.T.; Domingues, R.M.; Reis, R.L. Tissue engineering and regenerative medicine: New trends and directions—A year in review. Tissue Eng. Part B. Rev. 2017, 23, 211–224. [Google Scholar] [CrossRef] [PubMed]
  2. Rose, F.R.; Oreffo, R.O. Bone tissue engineering: Hope vs hype. Biochem. Biophys. Res. Commun. 2002, 292, 1–7. [Google Scholar] [CrossRef]
  3. Amini, A.R.; Laurencin, C.T.; Nukavarapu, S.P. Bone tissue engineering: Recent advances and challenges. Crit. Rev. Biomed. Eng. 2012, 40, 363–408. [Google Scholar] [CrossRef]
  4. Murphy, S.V.; Atala, A. 3D bioprinting of tissues and organs. Nat. Biotechnol. 2014, 32, 773. [Google Scholar] [CrossRef] [PubMed]
  5. Hench, L.L. The story of Bioglass®. J. Mater. Sci. Mater. Med. 2006, 17, 967–978. [Google Scholar] [CrossRef]
  6. Eliaz, N.; Metoki, N. Calcium phosphate bioceramics: A review of their history, structure, properties, coating technologies and biomedical applications. Materials 2017, 10, 334. [Google Scholar] [CrossRef] [PubMed]
  7. Dekker, R.; De Bruijn, J.; Van Den Brink, I.; Bovell, Y.; Layrolle, P.; Van Blitterswijk, C. Bone tissue engineering on calcium phosphate-coated titanium plates utilizing cultured rat bone marrow cells: A preliminary study. J. Mater. Sci. Mater. Med. 1998, 9, 859–863. [Google Scholar] [CrossRef] [PubMed]
  8. Habraken, W.; Habibovic, P.; Epple, M.; Bohner, M. Calcium phosphates in biomedical applications: Materials for the future? Mater. Today 2016, 19, 69–87. [Google Scholar] [CrossRef]
  9. Kohli, N.; Ho, S.; Brown, S.J.; Sawadkar, P.; Sharma, V.; Snow, M.; García-Gareta, E. Bone remodelling in vitro: Where are we headed?:-A review on the current understanding of physiological bone remodelling and inflammation and the strategies for testing biomaterials in vitro. Bone 2018, 110, 38–46. [Google Scholar] [CrossRef]
  10. Fu, Q.; Saiz, E.; Rahaman, M.N.; Tomsia, A.P. Bioactive glass scaffolds for bone tissue engineering: State of the art and future perspectives. Mater. Sci. Eng. C Mater. Biol. Appl. 2011, 31, 1245–1256. [Google Scholar] [CrossRef]
  11. Abdollahi, S.; Ma, A.C.C.; Cerruti, M. Surface transformations of Bioglass 45S5 during scaffold synthesis for bone tissue engineering. Langmuir 2013, 29, 1466–1474. [Google Scholar] [CrossRef] [PubMed]
  12. Miguez-Pacheco, V.; Hench, L.L.; Boccaccini, A.R. Bioactive glasses beyond bone and teeth: Emerging applications in contact with soft tissues. Acta Biomater. 2015, 13, 1–15. [Google Scholar] [CrossRef] [PubMed]
  13. Yu, H.; Peng, J.; Xu, Y.; Chang, J.; Li, H. Bioglass activated skin tissue engineering constructs for wound healing. ACS. Appl. Mater. Interfaces 2015, 8, 703–715. [Google Scholar] [CrossRef]
  14. Jones, J.R.; Brauer, D.S.; Hupa, L.; Greenspan, D.C. Bioglass and bioactive glasses and their impact on healthcare. Int. J. Appl. Glass Sci. 2016, 7, 423–434. [Google Scholar] [CrossRef]
  15. Naseri, S.; Lepry, W.C.; Nazhat, S.N. Bioactive glasses in wound healing: Hope or hype? J. Mater. Chem. B 2017, 5, 6167–6174. [Google Scholar] [CrossRef]
  16. Tang, Z.; Li, X.; Tan, Y.; Fan, H.; Zhang, X. The material and biological characteristics of osteoinductive calcium phosphate ceramics. Regen. Biomater. 2017, 5, 43–59. [Google Scholar] [CrossRef] [PubMed]
  17. Liu, Y.; Hunziker, E.; Randall, N.; De Groot, K.; Layrolle, P. Proteins incorporated into biomimetically prepared calcium phosphate coatings modulate their mechanical strength and dissolution rate. Biomaterials 2003, 24, 65–70. [Google Scholar] [CrossRef]
  18. Sharpe, J.; Sammons, R.; Marquis, P. Effect of pH on protein adsorption to hydroxyapatite and tricalcium phosphate ceramics. Biomaterials 1997, 18, 471–476. [Google Scholar] [CrossRef]
  19. El-Ghannam, A.; Ducheyne, P.; Shapiro, I. Effect of serum proteins on osteoblast adhesion to surface-modified bioactive glass and hydroxyapatite. J. Orthop. Res. 1999, 17, 340–345. [Google Scholar] [CrossRef] [PubMed]
  20. Rouahi, M.; Champion, E.; Gallet, O.; Jada, A.; Anselme, K. Physico-chemical characteristics and protein adsorption potential of hydroxyapatite particles: Influence on in vitro biocompatibility of ceramics after sintering. Colloids. Surf. B Biointerfaces 2006, 47, 10–19. [Google Scholar] [CrossRef]
  21. Koutsopoulos, S.; Dalas, E. The effect of acidic amino acids on hydroxyapatite crystallization. J. Cryst. Growth 2000, 217, 410–415. [Google Scholar] [CrossRef]
  22. Bar-Yosef Ofir, P.; Govrin-Lippman, R.; Garti, N.; Füredi-Milhofer, H. The influence of polyelectrolytes on the formation and phase transformation of amorphous calcium phosphate. Cryst. Growth Des. 2004, 4, 177–183. [Google Scholar] [CrossRef]
  23. Combes, C.; Rey, C. Adsorption of proteins and calcium phosphate materials bioactivity. Biomaterials 2002, 23, 2817–2823. [Google Scholar] [CrossRef]
  24. Barrère, F.; van Blitterswijk, C.A.; de Groot, K. Bone regeneration: Molecular and cellular interactions with calcium phosphate ceramics. Int. J. Nanomed. 2006, 1, 317. [Google Scholar]
  25. Vasin, S.L.; Rosanova, I.B.; Sevastianov, V.I. The role of proteins in the nucleation and formation of calcium-containing deposits on biomaterial surfaces. J. Biomed. Mater. Res. 1998, 39, 491–497. [Google Scholar] [CrossRef]
  26. Takahashi, Y.; Yamamoto, M.; Tabata, Y. Enhanced osteoinduction by controlled release of bone morphogenetic protein-2 from biodegradable sponge composed of gelatin and β-tricalcium phosphate. Biomaterials 2005, 26, 4856–4865. [Google Scholar] [CrossRef]
  27. Thomas, A. Preparation and Characterization of Gelatin-Bioactive Glass Ceramic Scaffolds for Bone Tissue Engineering. J. Biomater. Sci. Polym. Ed. 2019, 1–16. [Google Scholar] [CrossRef] [PubMed]
  28. Bothe, F.; Lotz, B.; Seebach, E.; Fischer, J.; Hesse, E.; Diederichs, S.; Richter, W. Stimulation of calvarial bone healing with human bone marrow stromal cells versus inhibition with adipose-tissue stromal cells on nanostructured β-TCP-collagen. Acta Biomater. 2018, 76, 135–145. [Google Scholar] [CrossRef]
  29. Huang, W.; Day, D.E.; Kittiratanapiboon, K.; Rahaman, M.N. Kinetics and mechanisms of the conversion of silicate (45S5), borate, and borosilicate glasses to hydroxyapatite in dilute phosphate solutions. J. Mater. Sci. Mater. Med. 2006, 17, 583–596. [Google Scholar] [CrossRef]
  30. Jones, J.R. Reprint of: Review of bioactive glass: From Hench to hybrids. Acta Biomater. 2015, 23, S53–S82. [Google Scholar] [CrossRef]
  31. Zhang, L.; Ke, X.; Lin, L.; Xiao, J.; Yang, X.; Wang, J.; Yang, G.; Xu, S.; Gou, Z.; Shi, Z. Systematic evaluation of the osteogenic capacity of low-melting bioactive glass-reinforced 45S5 Bioglass porous scaffolds in rabbit femoral defects. Biomed. Mater. 2017, 12, 035010. [Google Scholar] [CrossRef] [PubMed]
  32. El-Rashidy, A.A.; Roether, J.A.; Harhaus, L.; Kneser, U.; Boccaccini, A.R. Regenerating bone with bioactive glass scaffolds: A review of in vivo studies in bone defect models. Acta Biomater. 2017, 62, 1–28. [Google Scholar] [CrossRef]
  33. Liu, B.; Lun, D.x. Current application of β -tricalcium phosphate composites in orthopaedics. Orthop. Surg. 2012, 4, 139–144. [Google Scholar] [CrossRef]
  34. Gao, P.; Zhang, H.; Liu, Y.; Fan, B.; Li, X.; Xiao, X.; Lan, P.; Li, M.; Geng, L.; Liu, D. Beta-tricalcium phosphate granules improve osteogenesis in vitro and establish innovative osteo-regenerators for bone tissue engineering in vivo. Sci. Rep. 2016, 6, 23367. [Google Scholar] [CrossRef] [PubMed]
  35. Samavedi, S.; Whittington, A.R.; Goldstein, A.S. Calcium phosphate ceramics in bone tissue engineering: A review of properties and their influence on cell behavior. Acta Biomater. 2013, 9, 8037–8045. [Google Scholar] [CrossRef]
  36. Baheiraei, N.; Nourani, M.R.; Mortazavi, S.M.J.; Movahedin, M.; Eyni, H.; Bagheri, F.; Norahan, M.H. Development of a bioactive porous collagen/β-tricalcium phosphate bone graft assisting rapid vascularization for bone tissue engineering applications. J. Biomed. Mater. Res. A 2018, 106, 73–85. [Google Scholar] [CrossRef]
  37. Roohani-Esfahani, S.-I.; Newman, P.; Zreiqat, H. Design and fabrication of 3D printed scaffolds with a mechanical strength comparable to cortical bone to repair large bone defects. Sci. Rep. 2016, 6, 19468. [Google Scholar] [CrossRef] [PubMed]
  38. Popov, A.; Sergeeva, N.; Britaev, T.; Komlev, V.; Sviridova, I.; Kirsanova, V.; Akhmedova, S.; Dgebuadze, P.Y.; Teterina, A.Y.; Kuvshinova, E. Some Physical, Chemical, and Biological Parameters of Samples of Scleractinium Coral Aquaculture Skeleton Used for Reconstruction/Engineering of the Bone Tissue. Bull. Exp. Biol. Med. 2015, 159, 494–497. [Google Scholar] [CrossRef]
  39. Williams, J.M.; Adewunmi, A.; Schek, R.M.; Flanagan, C.L.; Krebsbach, P.H.; Feinberg, S.E.; Hollister, S.J.; Das, S. Bone tissue engineering using polycaprolactone scaffolds fabricated via selective laser sintering. Biomaterials 2005, 26, 4817–4827. [Google Scholar] [CrossRef] [PubMed]
  40. Shor, L.; Güçeri, S.; Wen, X.; Gandhi, M.; Sun, W. Fabrication of three-dimensional polycaprolactone/hydroxyapatite tissue scaffolds and osteoblast-scaffold interactions in vitro. Biomaterials 2007, 28, 5291–5297. [Google Scholar] [CrossRef] [PubMed]
  41. Erol, M.; Mouriňo, V.; Newby, P.; Chatzistavrou, X.; Roether, J.; Hupa, L.; Boccaccini, A.R. Copper-releasing, boron-containing bioactive glass-based scaffolds coated with alginate for bone tissue engineering. Acta Biomater. 2012, 8, 792–801. [Google Scholar] [CrossRef] [PubMed]
  42. Lu, H.H.; Pollack, S.R.; Ducheyne, P. 45S5 bioactive glass surface charge variations and the formation of a surface calcium phosphate layer in a solution containing fibronectin. J. Biomed. Mater. Res. 2001, 54, 454–461. [Google Scholar] [CrossRef]
  43. Lee, M.H.; Ducheyne, P.; Lynch, L.; Boettiger, D.; Composto, R.J. Effect of biomaterial surface properties on fibronectin–α5β1 integrin interaction and cellular attachment. Biomaterials 2006, 27, 1907–1916. [Google Scholar] [CrossRef]
  44. Di Maggio, N.; Martella, E.; Frismantiene, A.; Resink, T.J.; Schreiner, S.; Lucarelli, E.; Jaquiery, C.; Schaefer, D.J.; Martin, I.; Scherberich, A. Extracellular matrix and α 5 β 1 integrin signaling control the maintenance of bone formation capacity by human adipose-derived stromal cells. Sci. Rep. 2017, 7, 44398. [Google Scholar] [CrossRef] [PubMed]
  45. Dos Santos, E.; Farina, M.; Soares, G.; Anselme, K. Surface energy of hydroxyapatite and β-tricalcium phosphate ceramics driving serum protein adsorption and osteoblast adhesion. J. Mater. Sci. Mater. Med. 2008, 19, 2307–2316. [Google Scholar] [CrossRef] [PubMed]
  46. Zhang, X.; Meng, S.; Huang, Y.; Xu, M.; He, Y.; Lin, H.; Han, J.; Chai, Y.; Wei, Y.; Deng, X. Electrospun Gelatin/-TCP Composite Nanofibers Enhance Osteogenic Differentiation of BMSCs and In Vivo Bone Formation by Activating Ca2. Stem Cells Int. 2015, 2015, 507154. [Google Scholar] [CrossRef] [PubMed]
  47. Valliant, E.M.; Jones, J.R. Softening bioactive glass for bone regeneration: Sol–gel hybrid materials. Soft Matter 2011, 7, 5083–5095. [Google Scholar] [CrossRef]
  48. Ertel, S.I.; Ratner, B.D.; Horbett, T.A. The adsorption and elutability of albumin, IgG, and fibronectin on radiofrequency plasma deposited polystyrene. J. Colloid. Interface Sci. 1991, 147, 433–442. [Google Scholar] [CrossRef]
  49. Intranuovo, F.; Gristina, R.; Brun, F.; Mohammadi, S.; Ceccone, G.; Sardella, E.; Rossi, F.; Tromba, G.; Favia, P. Plasma Modification of PCL Porous Scaffolds Fabricated by Solvent-Casting/Particulate-Leaching for Tissue Engineering. Plasma Process. Polym. 2014, 11, 184–195. [Google Scholar] [CrossRef]
  50. Domingos, M.; Intranuovo, F.; Gloria, A.; Gristina, R.; Ambrosio, L.; Bártolo, P.; Favia, P. Improved osteoblast cell affinity on plasma-modified 3-D extruded PCL scaffolds. Acta Biomater. 2013, 9, 5997–6005. [Google Scholar] [CrossRef]
  51. Sankar, D.; Shalumon, K.; Chennazhi, K.; Menon, D.; Jayakumar, R. Surface plasma treatment of poly (caprolactone) micro, nano, and multiscale fibrous scaffolds for enhanced osteoconductivity. Tissue Eng. Part A 2014, 20, 1689–1702. [Google Scholar] [CrossRef] [PubMed]
  52. Roh, H.-S.; Jung, S.-C.; Kook, M.-S.; Kim, B.-H. In vitro study of 3D PLGA/n-HAp/β-TCP composite scaffolds with etched oxygen plasma surface modification in bone tissue engineering. Appl. Surf. Sci. 2016, 388, 321–330. [Google Scholar] [CrossRef]
  53. Liu, X.; Feng, Q.; Bachhuka, A.; Vasilev, K. Surface modification by allylamine plasma polymerization promotes osteogenic differentiation of human adipose-derived stem cells. ACS Appl. Mater. Interfaces 2014, 6, 9733–9741. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, L.; Weng, L.Q.; Wu, Z.Z.; Wang, C.B. The Properties of Polyetheretherketone Biocomposite Reinforced by Surface-Modified Nano-Hydroxyapatite. Adv. Mater. Res. 2015, 1096, 214–218. [Google Scholar] [CrossRef]
  55. Heule, M.; Rezwan, K.; Cavalli, L.; Gauckler, L.J. A miniaturized enzyme reactor based on hierarchically shaped porous ceramic microstruts. Adv. Mater. 2003, 15, 1191–1194. [Google Scholar] [CrossRef]
  56. Lin, C.C.; Ki, C.S.; Shih, H. Thiol–norbornene photoclick hydrogels for tissue engineering applications. J. Appl. Polym. Sci. 2015, 8, 132. [Google Scholar] [CrossRef] [PubMed]
  57. Porté-Durrieu, M.-C.; Guillemot, F.; Pallu, S.; Labrugère, C.; Brouillaud, B.; Bareille, R.; Amédée, J.; Barthe, N.; Dard, M.; Baquey, C. Cyclo-(DfKRG) peptide grafting onto Ti–6Al–4V: Physical characterization and interest towards human osteoprogenitor cells adhesion. Biomaterials 2004, 25, 4837–4846. [Google Scholar] [CrossRef]
  58. Zhang, X.; Zeng, D.; Li, N.; Wen, J.; Jiang, X.; Liu, C.; Li, Y. Functionalized mesoporous bioactive glass scaffolds for enhanced bone tissue regeneration. Sci. Rep. 2016, 6, 19361. [Google Scholar] [CrossRef]
  59. Curran, J.M.; Chen, R.; Hunt, J.A. The guidance of human mesenchymal stem cell differentiation in vitro by controlled modifications to the cell substrate. Biomaterials 2006, 27, 4783–4793. [Google Scholar] [CrossRef]
  60. Curran, J.; Chen, R.; Hunt, J. Controlling the phenotype and function of mesenchymal stem cells in vitro by adhesion to silane-modified clean glass surfaces. Biomaterials 2005, 26, 7057–7067. [Google Scholar] [CrossRef]
  61. Phillips, J.E.; Petrie, T.A.; Creighton, F.P.; García, A.J. Human mesenchymal stem cell differentiation on self-assembled monolayers presenting different surface chemistries. Acta Biomater. 2010, 6, 12–20. [Google Scholar] [CrossRef]
  62. Jiang, S.; Zhang, Y.; Shu, Y.; Wu, Z.; Cao, W.; Huang, W. Amino-functionalized mesoporous bioactive glass for drug delivery. Biomed. Mater. 2017, 12, 025017. [Google Scholar] [CrossRef] [PubMed]
  63. Cui, W.; Li, X.; Xie, C.; Zhuang, H.; Zhou, S.; Weng, J. Hydroxyapatite nucleation and growth mechanism on electrospun fibers functionalized with different chemical groups and their combinations. Biomaterials 2010, 31, 4620–4629. [Google Scholar] [CrossRef]
  64. Keselowsky, B.G.; Collard, D.M.; García, A.J. Surface chemistry modulates fibronectin conformation and directs integrin binding and specificity to control cell adhesion. J. Biomed. Mater. Res. Part A 2003, 66, 247–259. [Google Scholar] [CrossRef] [PubMed]
  65. Arima, Y.; Iwata, H. Effect of wettability and surface functional groups on protein adsorption and cell adhesion using well-defined mixed self-assembled monolayers. Biomaterials 2007, 28, 3074–3082. [Google Scholar] [CrossRef] [PubMed]
  66. Tzoneva, R.; Faucheux, N.; Groth, T. Wettability of substrata controls cell–substrate and cell–cell adhesions. BBA. Gen. Subj. 2007, 1770, 1538–1547. [Google Scholar] [CrossRef]
  67. Sperling, C.; Fischer, M.; Maitz, M.F.; Werner, C. Blood coagulation on biomaterials requires the combination of distinct activation processes. Biomaterials 2009, 30, 4447–4456. [Google Scholar] [CrossRef] [PubMed]
  68. Roohani-Esfahani, S.; Nouri-Khorasani, S.; Lu, Z.; Appleyard, R.; Zreiqat, H. Effects of bioactive glass nanoparticles on the mechanical and biological behavior of composite coated scaffolds. Acta Biomater. 2011, 7, 1307–1318. [Google Scholar] [CrossRef]
  69. Shu, X.-l.; Shi, Q.-s.; Feng, J.; Yang, Y.-h.; Zhou, G.; Li, W.-r. Poly (γ-glutamic acid)/beta-TCP nanocomposites via in situ copolymerization: Preparation and characterization. J. Biomater. Appl. 2016, 31, 102–111. [Google Scholar] [CrossRef]
  70. Yusa, K.; Yamamoto, O.; Iino, M.; Takano, H.; Fukuda, M.; Qiao, Z.; Sugiyama, T. Eluted zinc ions stimulate osteoblast differentiation and mineralization in human dental pulp stem cells for bone tissue engineering. Arch. Oral Biol. 2016, 71, 162–169. [Google Scholar] [CrossRef]
  71. Wu, Q.; Yang, B.; Hu, K.; Cao, C.; Man, Y.; Wang, P. Deriving osteogenic cells from induced pluripotent stem cells for bone tissue engineering. Tissue Eng. Part B Rev. 2017, 23, 1–8. [Google Scholar] [CrossRef]
  72. Mali, P.; Cheng, L. Concise review: Human cell engineering: Cellular reprogramming and genome editing. Stem Cells 2012, 30, 75–81. [Google Scholar] [CrossRef] [PubMed]
  73. Kim, D.; Kim, C.-H.; Moon, J.-I.; Chung, Y.-G.; Chang, M.-Y.; Han, B.-S.; Ko, S.; Yang, E.; Cha, K.Y.; Lanza, R. Generation of human induced pluripotent stem cells by direct delivery of reprogramming proteins. Cell Stem Cell 2009, 4, 472–476. [Google Scholar] [CrossRef] [PubMed]
  74. Wu, C.; Zhang, Y.; Ke, X.; Xie, Y.; Zhu, H.; Crawford, R.; Xiao, Y. Bioactive mesopore-glass microspheres with controllable protein-delivery properties by biomimetic surface modification. J. Biomed. Mater. Res. Part A 2010, 95, 476–485. [Google Scholar] [CrossRef] [PubMed]
  75. Bergeron, E.; Marquis, M.; Chretien, I.; Faucheux, N. Differentiation of preosteoblasts using a delivery system with BMPs and bioactive glass microspheres. J. Mater. Sci. Mater. Med. 2007, 18, 255–263. [Google Scholar] [CrossRef] [PubMed]
  76. Hollister, S.J. Porous scaffold design for tissue engineering. Nat. Mater. 2005, 4, 518–524. [Google Scholar] [CrossRef]
  77. de Wild, M.; Zimmermann, S.; Rüegg, J.; Schumacher, R.; Fleischmann, T.; Ghayor, C.; Weber, F.E. Influence of Microarchitecture on Osteoconduction and Mechanics of Porous Titanium Scaffolds Generated by Selective Laser Melting. 3D Print. Addit. Manuf. 2016, 3, 142–151. [Google Scholar] [CrossRef]
  78. Kapat, K.; Srivas, P.K.; Rameshbabu, A.P.; Maity, P.P.; Jana, S.; Dutta, J.; Majumdar, P.; Chakrabarti, D.; Dhara, S. Influence of Porosity and Pore-Size Distribution in Ti6Al4 V Foam on Physicomechanical Properties, Osteogenesis, and Quantitative Validation of Bone Ingrowth by Micro-Computed Tomography. ACS Appl. Mater. Interfaces 2017, 9, 39235–39248. [Google Scholar] [CrossRef]
  79. Sánchez-Salcedo, S.; Nieto, A.; Vallet-Regí, M. Hydroxyapatite/β-tricalcium phosphate/agarose macroporous scaffolds for bone tissue engineering. Chem. Eng. J. 2008, 137, 62–71. [Google Scholar] [CrossRef]
  80. Nandi, S.K.; Fielding, G.; Banerjee, D.; Bandyopadhyay, A.; Bose, S. 3D-printed β-TCP bone tissue engineering scaffolds: Effects of chemistry on in vivo biological properties in a rabbit tibia model. J. Mater. Res. 2018, 33, 1939–1947. [Google Scholar] [CrossRef] [PubMed]
  81. Konopnicki, S.; Sharaf, B.; Resnick, C.; Patenaude, A.; Pogal-Sussman, T.; Hwang, K.-G.; Abukawa, H.; Troulis, M.J. Tissue-engineered bone with 3-dimensionally printed β-tricalcium phosphate and polycaprolactone scaffolds and early implantation: An in vivo pilot study in a porcine mandible model. J. Oral Maxillofac. Surg. 2015, 73, 1016.e1–1016.e11. [Google Scholar] [CrossRef]
  82. Zhang, L.; Webster, T.J. Nanotechnology and 8nanomaterials: Promises for improved tissue regeneration. Nano Today 2009, 4, 66–80. [Google Scholar] [CrossRef]
  83. Fan, J.P.; Kalia, P.; Di Silvio, L.; Huang, J. In vitro response of human osteoblasts to multi-step sol–gel derived bioactive glass nanoparticles for bone tissue engineering. Mater. Sci. Eng. C Mater. Biol. Appl. 2014, 36, 206–214. [Google Scholar] [CrossRef] [PubMed]
  84. Maçon, A.L.; Kim, T.B.; Valliant, E.M.; Goetschius, K.; Brow, R.K.; Day, D.E.; Hoppe, A.; Boccaccini, A.R.; Kim, I.Y.; Ohtsuki, C. A unified in vitro evaluation for apatite-forming ability of bioactive glasses and their variants. J. Mater. Sci. Mater. Med. 2015, 26, 115. [Google Scholar] [CrossRef] [PubMed]
  85. Lou, T.; Wang, X.; Song, G.; Gu, Z.; Yang, Z. Structure and properties of PLLA/β-TCP nanocomposite scaffolds for bone tissue engineering. J. Mater. Sci. Mater. Med. 2015, 26, 34. [Google Scholar] [CrossRef] [PubMed]
  86. Fielding, G.; Bose, S. SiO2 and ZnO dopants in three-dimensionally printed tricalcium phosphate bone tissue engineering scaffolds enhance osteogenesis and angiogenesis in vivo. Acta Biomater. 2013, 9, 9137–9148. [Google Scholar] [CrossRef] [PubMed]
  87. Bandyopadhyay, A.; Petersen, J.; Fielding, G.; Banerjee, S.; Bose, S. ZnO, SiO2, and SrO doping in resorbable tricalcium phosphates: Influence on strength degradation, mechanical properties, and in vitro bone–Cell material interactions. J. Biomed. Mater. Res. B Appl. Biomater. 2012, 100, 2203–2212. [Google Scholar] [CrossRef]
  88. Philippart, A.; Gómez-Cerezo, N.; Arcos, D.; Salinas, A.J.; Boccardi, E.; Vallet-Regi, M.; Boccaccini, A.R. Novel ion-doped mesoporous glasses for bone tissue engineering: Study of their structural characteristics influenced by the presence of phosphorous oxide. J. Non-Cryst. Solids 2017, 455, 90–97. [Google Scholar] [CrossRef]
  89. Bose, S.; Tarafder, S.; Banerjee, S.S.; Davies, N.M.; Bandyopadhyay, A. Understanding in vivo response and mechanical property variation in MgO, SrO and SiO2 doped β-TCP. Bone 2011, 48, 1282–1290. [Google Scholar] [CrossRef]
  90. Yuan, J.; Cui, L.; Zhang, W.J.; Liu, W.; Cao, Y. Repair of canine mandibular bone defects with bone marrow stromal cells and porous β-tricalcium phosphate. Biomaterials 2007, 28, 1005–1013. [Google Scholar] [CrossRef] [PubMed]
  91. Okuda, T.; Ioku, K.; Yonezawa, I.; Minagi, H.; Kawachi, G.; Gonda, Y.; Murayama, H.; Shibata, Y.; Minami, S.; Kamihira, S. The effect of the microstructure of β-tricalcium phosphate on the metabolism of subsequently formed bone tissue. Biomaterials 2007, 28, 2612–2621. [Google Scholar] [CrossRef]
  92. Stewart, R.; Goldstein, J.; Eberhardt, A.; Chu, T.-M.G.; Gilbert, S. Increasing vascularity to improve healing of a segmental defect of the rat femur. J. Orthop. Trauma 2011, 25, 472. [Google Scholar] [CrossRef] [PubMed]
  93. Wan, C.; Gilbert, S.R.; Wang, Y.; Cao, X.; Shen, X.; Ramaswamy, G.; Jacobsen, K.A.; Alaql, Z.S.; Eberhardt, A.W.; Gerstenfeld, L.C. Activation of the hypoxia-inducible factor-1α pathway accelerates bone regeneration. Proc. Natl. Acad. Sci. USA 2008, 105, 686–691. [Google Scholar] [CrossRef]
  94. Yin, J.; Gong, G.; Sun, C.; Yin, Z.; Zhu, C.; Wang, B.; Hu, Q.; Zhu, Y.; Liu, X. Angiopoietin 2 promotes angiogenesis in tissue-engineered bone and improves repair of bone defects by inducing autophagy. Biomed. Pharmacother. 2018, 105, 932–939. [Google Scholar] [CrossRef] [PubMed]
  95. Szivek, J.A.; Gonzales, D.A.; Wojtanowski, A.M.; Martinez, M.A.; Smith, J.L. Mesenchymal stem cell seeded, biomimetic 3D printed scaffolds induce complete bridging of femoral critical sized defects. J. Biomed. Mater. Res. Part B Appl. Biomater. 2019, 107, 242–252. [Google Scholar] [CrossRef]
  96. Yang, S.; Guo, Q.; Shores, L.S.; Aly, A.; Ramakrishnan, M.; Kim, G.H.; Lu, Q.; Su, L.; Elisseeff, J.H. Use of a chondroitin sulfate bioadhesive to enhance integration of bioglass particles for repairing critical-size bone defects. J. Biomed. Mater. Res. A 2015, 103, 235–242. [Google Scholar] [CrossRef] [PubMed]
  97. Jones, J.R.; Lin, S.; Yue, S.; Lee, P.; Hanna, J.V.; Smith, M.E.; Newport, R.J. Bioactive glass scaffolds for bone regeneration and their hierarchical characterisation. Proc. Inst. Mech. Eng. Part H J. Eng. Med. 2010, 224, 1373–1387. [Google Scholar] [CrossRef]
  98. Bari, A.; Bloise, N.; Fiorilli, S.; Novajra, G.; Vallet-Regí, M.; Bruni, G.; Torres-Pardo, A.; González-Calbet, J.M.; Visai, L.; Vitale-Brovarone, C. Copper-containing mesoporous bioactive glass nanoparticles as multifunctional agent for bone regeneration. Acta Biomater. 2017, 55, 493–504. [Google Scholar] [CrossRef]
  99. Munukka, E.; Leppäranta, O.; Korkeamäki, M.; Vaahtio, M.; Peltola, T.; Zhang, D.; Hupa, L.; Ylänen, H.; Salonen, J.I.; Viljanen, M.K. Bactericidal effects of bioactive glasses on clinically important aerobic bacteria. J. Mater. Sci. Mater. Med. 2008, 19, 27–32. [Google Scholar] [CrossRef]
  100. Seidenstuecker, M.; Mrestani, Y.; Neubert, R.H.; Bernstein, A.; Mayr, H.O. Release kinetics and antibacterial efficacy of microporous β-TCP coatings. J. Nanomater. 2013, 2013, 13. [Google Scholar] [CrossRef]
  101. Liu, S.; Fan, C.; Jin, F.; Zhao, L.; Dai, K.; Lu, J. Preparation and Antibacterial Activities of Porous Silver-doped β-Tricalcium Phosphate Bioceramics. Int. J. Appl. Ceram. Technol. 2015, 12, 294–299. [Google Scholar] [CrossRef]
  102. Piccirillo, C.; Pullar, R.; Tobaldi, D.; Castro, P.L.; Pintado, M.E. Silver-containing calcium phosphate materials of marine origin with antibacterial activity. Ceram. Int. 2015, 41, 10152–10159. [Google Scholar] [CrossRef]
  103. Labay, C.; Buxadera-Palomero, J.; Avilés, M.; Canal, C.; Ginebra, M. Modulation of release kinetics by plasma polymerization of ampicillin-loaded β-TCP ceramics. J. Phys. D Appl. Phys. 2016, 49, 304004. [Google Scholar] [CrossRef]
  104. Nazemi, Z.; Mehdikhani-Nahrkhalaji, M.; Nazarpak, M.H.; Staji, H. The Antibacterial Activity Evaluation of Sol–Gel Prepared Zn-Doped Biphasic Calcium Phosphate Nanopowders. Adv. Sci. Eng. Med. 2015, 7, 995–1002. [Google Scholar] [CrossRef]
  105. Elgali, I.; Omar, O.; Dahlin, C.; Thomsen, P. Guided bone regeneration: Materials and biological mechanisms revisited. Eur. J. Oral Sci. 2017, 125, 315–337. [Google Scholar] [CrossRef] [PubMed]
  106. Gentile, P.; Chiono, V.; Tonda-Turo, C.; Ferreira, A.M.; Ciardelli, G. Polymeric membranes for guided bone regeneration. Biotechnol. J. 2011, 6, 1187–1197. [Google Scholar] [CrossRef] [PubMed]
  107. Bottino, M.C.; Thomas, V.; Schmidt, G.; Vohra, Y.K.; Chu, T.-M.G.; Kowolik, M.J.; Janowski, G.M. Recent advances in the development of GTR/GBR membranes for periodontal regeneration—A materials perspective. Dent. Mater. 2012, 28, 703–721. [Google Scholar] [CrossRef]
  108. Hurley, L.A.; Stinchfield, F.E.; Bassett, C.A.L.; Lyon, W.H. The Role of Soft Tissues in Osteogenesis: An Experimental Study of Canine Spine Fusions. J. Bone Jt. Surg. Am. 1959, 41, 1243–1266. [Google Scholar] [CrossRef]
  109. Shim, J.-H.; Won, J.-Y.; Sung, S.-J.; Lim, D.-H.; Yun, W.-S.; Jeon, Y.-C.; Huh, J.-B. Comparative efficacies of a 3D-printed PCL/PLGA/β-TCP membrane and a titanium membrane for guided bone regeneration in beagle dogs. Polymers 2015, 7, 2061–2077. [Google Scholar] [CrossRef]
  110. Rodrigues, J.R.; Alves, N.M.; Mano, J.F. Biomimetic polysaccharide/bioactive glass nanoparticles multilayer membranes for guided tissue regeneration. RSC Adv. 2016, 6, 75988–75999. [Google Scholar] [CrossRef]
  111. Shim, J.-H.; Yoon, M.-C.; Jeong, C.-M.; Jang, J.; Jeong, S.-I.; Cho, D.-W.; Huh, J.-B. Efficacy of rhBMP-2 loaded PCL/PLGA/β-TCP guided bone regeneration membrane fabricated by 3D printing technology for reconstruction of calvaria defects in rabbit. Biomed. Mater. 2014, 9, 065006. [Google Scholar] [CrossRef]
  112. Won, J.; Park, C.; Bae, J.; Ahn, G.; Kim, C.; Lim, D.; Cho, D.; Yun, W.; Shim, J.; Huh, J. Evaluation of 3D printed PCL/PLGA/β-TCP versus collagen membranes for guided bone regeneration in a beagle implant model. Biomed. Mater. 2016, 11, 055013. [Google Scholar] [CrossRef]
  113. Smeets, R.; Knabe, C.; Kolk, A.; Rheinnecker, M.; Gröbe, A.; Heiland, M.; Zehbe, R.; Sachse, M.; Große-Siestrup, C.; Wöltje, M. Novel silk protein barrier membranes for guided bone regeneration. J. Biomed. Mater. Res. B Appl. Biomater. 2017, 105, 2603–2611. [Google Scholar] [CrossRef]
  114. Dahlin, C.; Obrecht, M.; Dard, M.; Donos, N. Bone tissue modelling and remodelling following guided bone regeneration in combination with biphasic calcium phosphate materials presenting different microporosity. Clin. Oral Implant. Res. 2015, 26, 814–822. [Google Scholar] [CrossRef] [PubMed]
  115. Noritake, K.; Kuroda, S.; Nyan, M.; Atsuzawa, Y.; Uo, M.; Ohya, K.; KASUGAI, S. Use of a gelatin hydrogel membrane containing β-tricalcium phosphate for guided bone regeneration enhances rapid bone formation. Dent. Mater. J. 2014, 33, 674–680. [Google Scholar] [CrossRef]
  116. Al-Askar, M.; Javed, F.; Al-Hezaimi, K.; Al-Hamdan, K.S.; Ramalingam, S.; Aldahmash, A.; Nooh, N.; Al-Rasheed, A. Guided Bone Regeneration in Standardized Calvarial Defects in Rats Using Bio-Oss and β-Tricalcium Phosphate with Adjunct Platelet-Derived Growth Factor Therapy: A Real-Time In Vivo Microcomputed Tomographic, Biomechanical, and Histologic Analysis. Int. J. Periodontics Restor. Dent. 2016, 36, s61–s73. [Google Scholar] [CrossRef]
  117. Fernandes, J.S.; Gentile, P.; Martins, M.; Neves, N.M.; Miller, C.; Crawford, A.; Pires, R.A.; Hatton, P.; Reis, R.L. Reinforcement of poly-l-lactic acid electrospun membranes with strontium borosilicate bioactive glasses for bone tissue engineering. Acta Biomater. 2016, 44, 168–177. [Google Scholar] [CrossRef] [PubMed]
  118. Li, W.; Ding, Y.; Yu, S.; Yao, Q.; Boccaccini, A.R. Multifunctional chitosan-45S5 bioactive glass-poly (3-hydroxybutyrate-co-3-hydroxyvalerate) microsphere composite membranes for guided tissue/bone regeneration. ACS Appl. Mater. Interfaces 2015, 7, 20845–20854. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic representation of bone remodeling showing bone lining cells (quiescent osteoblast) at first stage of activation; osteoclast (resportion); the resorptive lucanae where mononuclear cells differentiate into macrophage (reversal) and deposits of osteoid (formation) and osteocytes (maturation).
Figure 1. Schematic representation of bone remodeling showing bone lining cells (quiescent osteoblast) at first stage of activation; osteoclast (resportion); the resorptive lucanae where mononuclear cells differentiate into macrophage (reversal) and deposits of osteoid (formation) and osteocytes (maturation).
Jfb 10 00016 g001

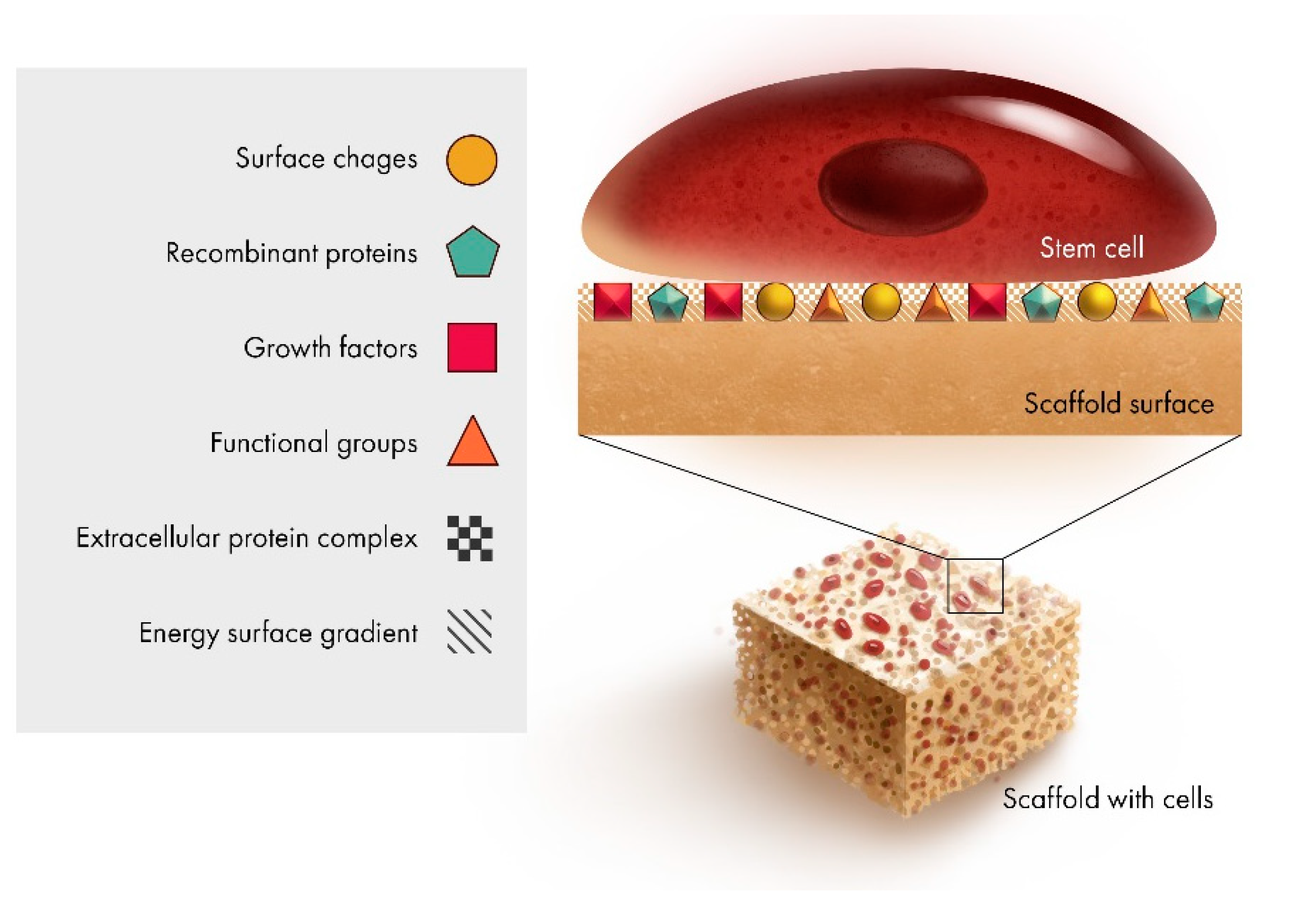

Figure 2. Schematic representation of the key regenerative factors at the scaffold interface.
Figure 2. Schematic representation of the key regenerative factors at the scaffold interface.
Jfb 10 00016 g002

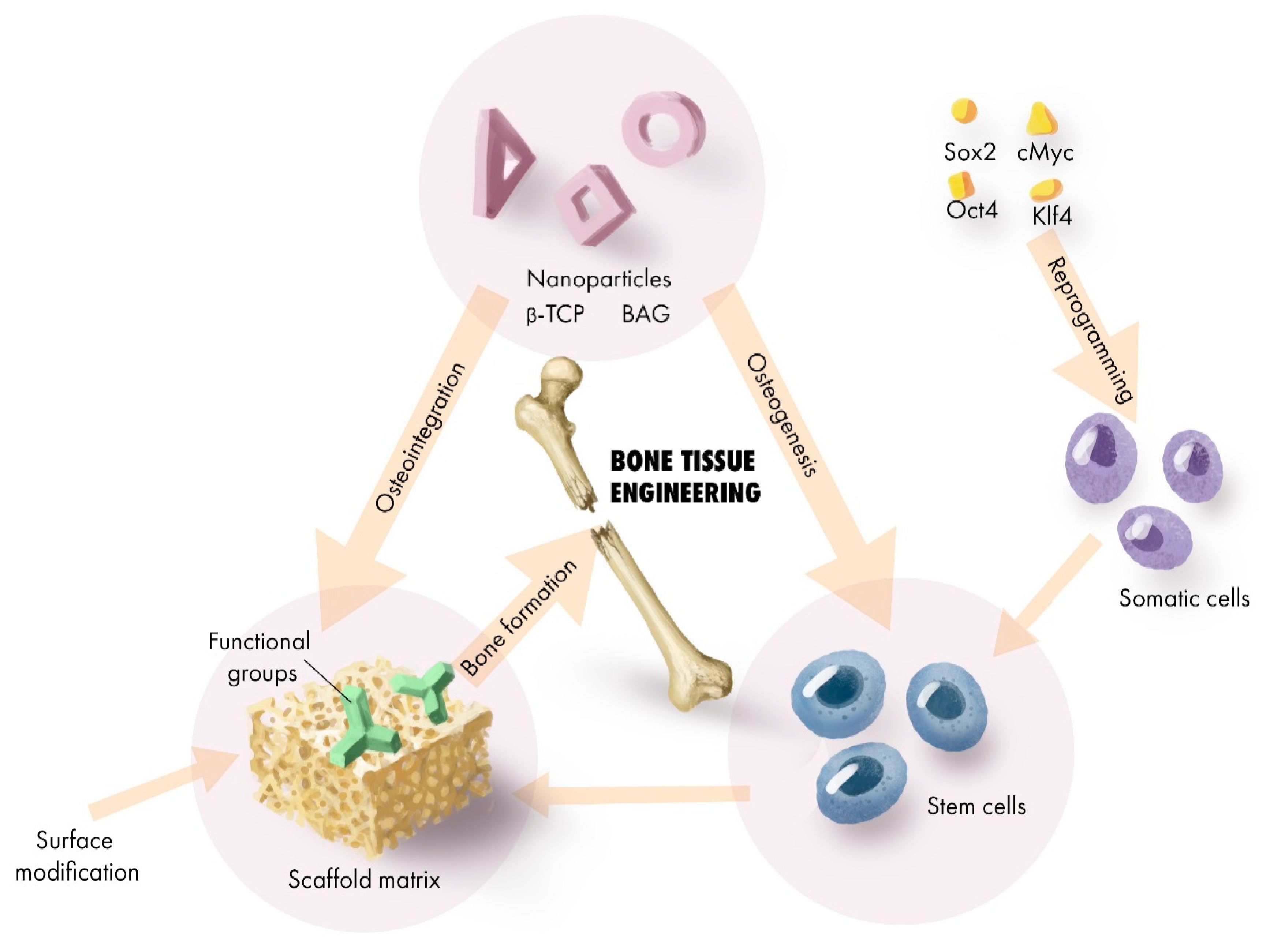

Figure 3. A summary of the transformation pattern associated with the regenerative applicability of β-TCP and BAG for bone tissue engineering.
Figure 3. A summary of the transformation pattern associated with the regenerative applicability of β-TCP and BAG for bone tissue engineering.
Jfb 10 00016 g003

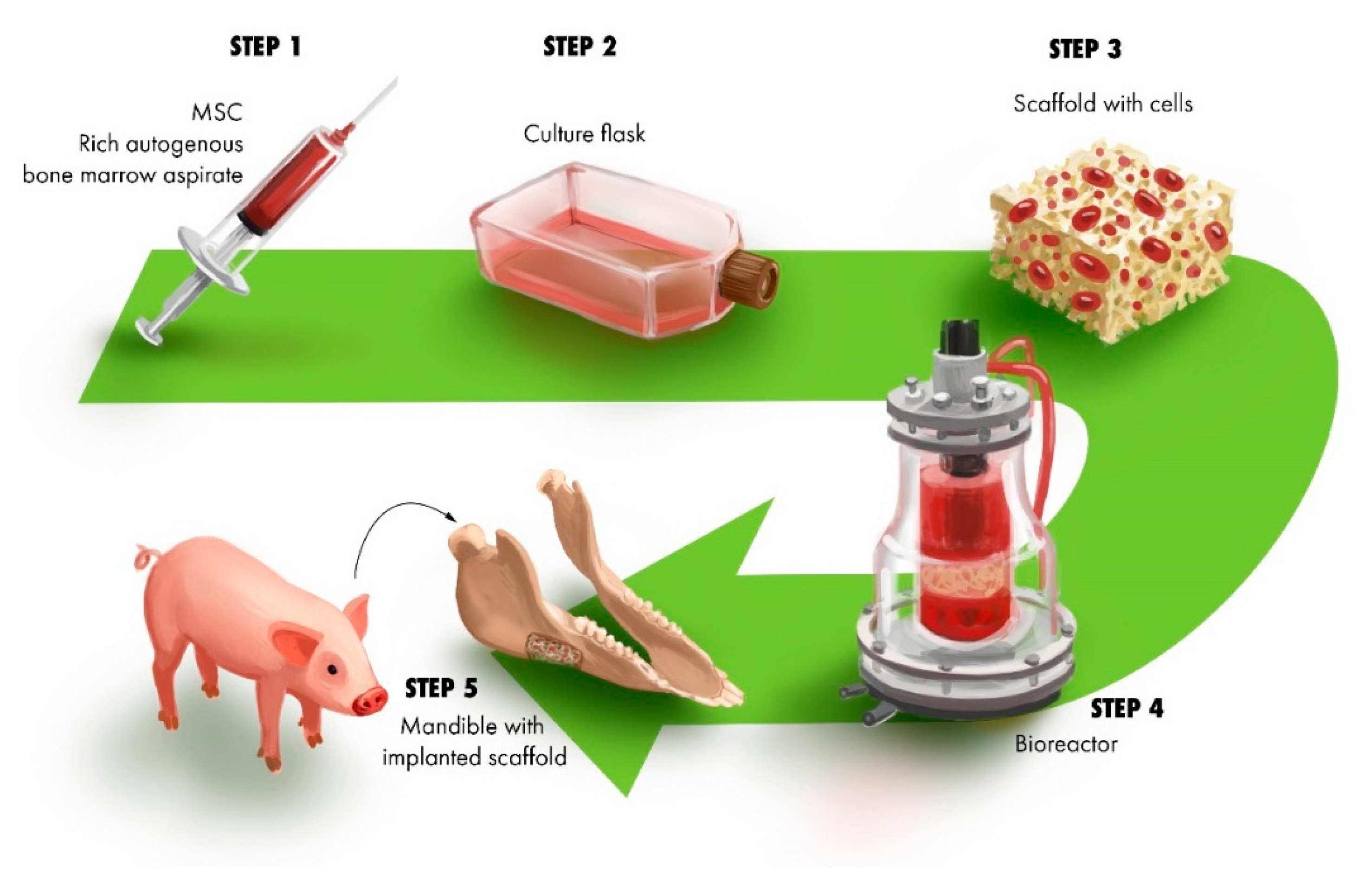

Figure 4. A schematic summary of the process of mandibular reconstruction in minipig model. An autogenous aspirate of bone marrow cells is harvested (1) and expanded (2). Cells are seeded to scaffold (construct) (3); Incubation in bioreactor (4); Construct is implanted into a critical size defect of the pig mandible (5).
Figure 4. A schematic summary of the process of mandibular reconstruction in minipig model. An autogenous aspirate of bone marrow cells is harvested (1) and expanded (2). Cells are seeded to scaffold (construct) (3); Incubation in bioreactor (4); Construct is implanted into a critical size defect of the pig mandible (5).
Jfb 10 00016 g004
Table 1. The processing and application of β-TCP with other materials as agent for bacterial control.
Table 1. The processing and application of β-TCP with other materials as agent for bacterial control.
MaterialMethodFormActivity TestObservationsRef.
Ag/β-TCPDopingNanoparticles Pore interconnectivity with even distribution of macropores.L929 cells; S. epidermidis and S. aureusSignificant inhibition of bacteria and no toxic effect to fibroblast cells[101]
PEG/β-TCPPlasma polymerizationDiscS. aureusExhibited a controlled release profile of antimicrobial drug and showed astrong bactericidal effect[103]
Zn/β-TCPSol-gelNanoparticles Nanoparticle size (10-500nm)S.aureus, E. coli, S. typhiZn-β-TCP (3.2wt% of Zn) showed the most antibacterial activity[104]
1 Zn (zinc); PEG (polyethylene glycol); Ag (silver); PLA (polylactic acid).
Table 2. In vivo studies of composites comprising β-TCP for guided bone regeneration.
Table 2. In vivo studies of composites comprising β-TCP for guided bone regeneration.
MaterialFabricationModel/DefectTime PointsResultsRef.
rhBMP-2/PCL/PLGA/β-TCP3D printingCalvaria, rabbit8 weeksBone turn over significantly higher than control group (p < 0.05).
Bone to implant contact ratio significantly higher (p < 0.05).
Full or partial absorption of implant observed.
[111]
PCL/PLGA/β-TCP/rhBMP-23D printingLower Jaw, Beagle Dog4 to 8 weeksThe stability of the membrane was maintained at 4 weeks (post-implantation).
Complete healing; new bone deposition observed.
Significant increase in bone formation from 4 to 8 weeks.
No inflammatory reaction.
[109]
PCL/PLGA/β-TCP3D printingExtracted premolars; mandibular alveolar ridge; Beagle Dog8 weeksHigher levels of new bone area and bone implant contact, compared to the control (collagen membrane).
Remaining biomaterial was much higher compared to control.
Results were insignificant to each other.
[112]
Modified Silk/β-TCPCasting, particle depositionRabbit; Calvaria5 and 10 weeksControl (collagen membrane)
Rate of resorption higher in control compared to membrane.
Silk/β-TCP highly support bone formation and restoration of microarchitecture of defect compared to the control.
Less statistical difference from histomorphometric data between the two (p < 0.05).
[113]
β-TCP/HA granulesN/AMinipig; Lower premolar3 and 8 weeksGroup with higher percentage of β-TCP (90%) showed more mineralized bone.[114]
Gelatin/β-TCPFreeze-dried/Cross-linkingCalvaria, Rat2, 4, 8 weeksBone volume was higher in Gelatin/β-TCP membrane compared to control.
Absorption was greater in collagen compared to Gelatin/β-TCP.
No significant difference in bone volume between collagen
membrane and Gelatin/β-TCP.
[115]
Bio-Oss/β-TCP/rhPDGFN/ACalvaria; Rat2, 4, 6, 8, 10 weeksSignificant increase in bone mineral density.
A 30% reduction in mean volume of remnant bone particles.
[116]
2 PCL (polycaprolactone); rhPDGF (recombinant human platelet-derived growth factor); N/A (no explicit description of the material development process).
Back to TopTop
