Transdermal Optical Wireless Links with Multiple Receivers in the Presence of Skin-Induced Attenuation and Pointing Errors

Abstract

The last few years, the scientific field of optical wireless communications (OWC) has witnessed tremendous progress, as reflected in the continuous emergence of new successful high data rate services and variable sophisticated applications. One such development of vital research importance and interest is the employment of high speed, robust, and energy-effective transdermal optical wireless (TOW) links for telemetry with implantable medical devices (IMDs) that also have made considerable progress lately for a variety of medical applications, mainly including neural recording and prostheses. However, the outage performance of such TOW links is significantly degraded due to the strong attenuation that affects the propagating information-bearing optical signal through the skin, along with random misalignments between transmitter and receiver terminals, commonly known as pointing error effect. In order to anticipate this, in this work we introduce a SIMO TOW reception diversity system that employs either OOK or more power-effective L-PPM schemes. Taking into account the joint impact of skin-induced attenuation and non-zero boresight pointing errors, modeled through the suitable Beckmann distribution, novel closed-form mathematical expressions for the average BER of the total TOW system are derived. Thus, the possibility of enhancing the TOW availability by using reception diversity configurations along with the appropriate modulation format is investigated. Finally, the corresponding numerical results are presented using the new derived theoretical outcomes.

1. Introduction

Over the last few years, the growing increase in traffic carried by emerging telecommunication network applications, which require higher data rates, higher security levels, along with lower power consumption and cost, has triggered remarkable scientific interest in the transition from the increasingly crowed radio frequency (RF) spectrum to the more bandwidth-effective optical spectrum, where OWC, commonly known as Free Space Optical (FSO) communications, have attracted particular attention lately for a variety of applications in both medical and telecommunication fields [1,2]. In basic terms, this kind of technology uses an optical information-bearing carrier—i.e., visible, infrared, ultra-violet—which is propagated through the unguided transmission mediums such as atmosphere, space, seawater, or skin, in order to transmit the information signal from one end to another. Indeed, FSO links use either Lasers or LEDs (light emitting diodes) at the transmitter’s side and photo-detectors at the receiver, in order to detect the propagating optical beam. In fact, by modulating the intensity and/or the phase of light waves traversing atmosphere, space, seawater, or even biological tissues, the FSO links can reliably transmit huge amounts of data. FSO systems have concrete advantages in comparison with their RF counterparts, mainly due to their operation at optical wavelengths. In fact, by increasing the carrier frequency from RF to that of optical waves, the information capacity is increased by many orders of magnitude. Thus, FSO can establish ultra-high bit rate wireless links. Furthermore, FSO systems can offer higher security level because of the very narrow laser beam that carries the information, which makes undetected interception difficult. Additionally, considering that FSO terminals are more compact and less heavy, FSO systems can be installed rapidly with low installation and operational cost. Moreover, they operate with lower power consumption in the unlicensed optical spectrum, while they are practically immune to multi-path dispersion and electromagnetic interference (EMI) [3,4,5,6,7,8,9,10,11,12,13].

By focusing on medical applications with IMDs that have made also notable advances lately in commercial and research field, FSO, in terms of TOW, is a prime candidate for effective high bandwidth transdermal communication, such as recording signals from in-body devices and actuating these devices from extra-body signals [14,15,16,17]. Nowadays, the common modalities used for transcutaneous communication are based on RF, acoustic wave, conductive, or electrical induction [9], and therefore, this kind of communication is realized by various conventional methods such as percutaneous wires, ultrasound or ultra-wide band (UWB) technology. Among them, percutaneous wires have a larger bandwidth and lower power consumption but physically traversing human skin increases the possibility of infection. Alternatively, an ultrasonic acoustic link has been used as a means of telemetry for cochlear implants, but utilizes piezoelectric materials that are not ideal for an IMD, due to high driving voltages [18]. On the other hand, wireless RF, which is a mature technology, is currently used in most implantable systems [19]. Indeed, RF telemetry has been used for diverse applications, including neuromuscular stimulators [17], commercial implantable cardioverter defibrillators and commercial cochlear implants for many years, while also neural microelectrode recording systems with integrated RF systems are being developed [20,21,22]. Current transdermal RF systems have been shown to achieve data rates up to several Mbps [20]. However, although a high-speed RF has been recently reported as being capable of transmitting data at 24 Mbps [23], it still requires a large amount of power consumption, ca. 30 mW. Additionally, transdermal RF systems cannot usually cover a sufficient bandwidth, since RF bandwidth is highly regulated. Indeed, the only available RF bands that could be used for high capacity wireless links are increasingly crowded, because of commonly used protocols and applications such as 802.11, Bluetooth, and others. Moreover, RF transdermal links are highly vulnerable to EMI, and thus, susceptible to interference from other RF emitters and devices. It becomes now evident that exploiting the above-mentioned distinct advantages of FSO communication, TOW technology is a very promising alternative to all these conventional methods. Indeed, considering mainly the high data rates they provide (above 20 Mbps rate which is the threshold to satisfy anticipated needs [24], especially with regard to neural recording [25,26,27]), their extremely high immunity to external interference along with their operation with low power consumption (of the 10 mW target [24]), TOW transmissions can meet easily the essential requirements of transdermal high-data-rate communication, including wireless operation, i.e., no wires traversing skin that could increase the possibility of infection and discomfort, high noise immunity to ensure operational independence of the ambient environment and operation with low-power consumption for the internal device to extend the longevity of the implant [14], which sometimes is strongly associated with patient’s longevity.

However, the widespread deployment of TOW technology is significantly hampered by several performance-degrading factors that mainly arise from the variable characteristics and the nature of the skin as a transmission medium. Skin is a complex, multilayer, highly anisotropic biological entity—composed mainly of dermis, epidermis, and hypodermis—which entail many and different structural components such as cells, corpuscles, blood vessels, nerve endings, glands, muscles, and hair follicles. Consequently, light incident on skin is reflected, scattered, and absorbed by all its structural constituents that depend strongly on variable conditions and characteristics such as skin’s thickness, tissues’ heterogeneities, as well as different topology, region, race, gender, and race [28]. This leads to an important skin-induced loss in optical signal power, and hence, to a spatially broadened power distribution at the receiver, alike [29]. Specifically, photon absorption arise primarily from water content or hemoglobin and melanin, and can be minimized within the so-called skin’s ‘optical window’, i.e., with radiation at wavelengths between 600 nm and 1300 nm, while scattering, which is usually the most dominant process, happens mostly into the direction of photon travel, and thus, a highly forward-directed scattering occurs [30]. Due to the strong scattering induced by thick tissue, photons arrive in a very anisotropic pattern at the receiver and the power distribution is widely broadened, and as a result, a large photodiode should be used to collect the scattered photons [29]. However, larger size photodiodes not only lead to a limited bandwidth, and thus, to a lower link speed but also generate a greater input-referred noise [9,29,31]. Additionally, many commercially available emitters and photodiodes are optimized for operation in skin’s ‘optical window’ range, as is the same wavelength range used for many fiber optics or free-air applications [32]. Nevertheless, this skin-induced attenuation described above remains a major concern in TOW communication since even for the highest tissue transmittance, i.e., for wavelengths between 800 nm and 1300 nm, only 10% to 30% of incident optical power is transmitted through skin of typical thickness, i.e., 2 mm to 6 mm, when the emitter and the detector are aligned [33,34,35]. Considering also the pointing errors due to unavoidable misalignments between transmitter and receiver terminals that is also an effect of primary concern in TOW communication, as well as in the wider FSO communication, the performance and availability of TOW transmissions is further degraded [2,4,7,36,37,38,39].

In view of the above improving communication with IMDs still remains a critical research issue due to the limitations including power loss, misalignment-induced fading, and the simultaneous need for very high data rates [40]. Thus, several works have been published by different research organizations around the world concerning optical transdermal transmission of data. In short, the feasibility of establishing TOW links has been experimentally verified in [14,28,29,31]. Specifically, in [28], it has been shown that FSO is an attractive solution in medical applications, in terms of TOW communication, because of its low power consumption that is of order of μW or below 10 mw for very high data rates contrary to that of some tens of mW that their current RF counterparts require. Next, in [14] the concept of a “Medical Spectral Window”, commonly known as skin’s’optical window’ mentioned above, has been experimentally proven. Within this wavelength region, optical radiation is least attenuated traversing human skin, and therefore, the propagating light experiences its maximum depth of penetration, penetrating into tissue as much as several centimeters [14,30,32,33,35]. Additionally, by using a vertical cavity surface emitting laser (VCSEL) with 850 nm wavelength very effective TOW experimental links have been reported in [19,29,35]. More precisely, in [35], data rates up to 16 Mbps have been achieved through a skin thickness of 4 mm with a bit error rate (BER) of order of 10⁻⁹ and misalignment between transmitter and receiver terminals of 2 mm, while consuming a power of 10 mW. In [19], a TOW link capable of transmitting data at 50 Mbps through sufficiently thick tissue, i.e., 2–6 mm, with a BER below 1 × 10⁻⁵ and power consumption as low as 1.1 mW to 6.4 mW respectively, considering 2 mm misalignment between terminals, while in [29] in vivo tests performed on an anesthetized sheep demonstrated transmitting data at 100 Mbps with a BER below 2 × 10⁻⁷, consuming only 2.1 mW of electrical power. With regard to pointing errors, in the majority of works concerning TOW communications, this effect has been either considered as a negligible one or it has been described by deterministic models, which are less suitable for the description of such random misalignment-induced irradiance fades [14,19,29,31].

Recently, in [36,37,38], the authors considered the stochastic nature of a TOW link and derived closed-form expressions for the average signal-to-noise-ratio (SNR) and its outage performance, in terms of outage probability metric. In basic terms, they demonstrated that pointing errors can degrade the TOW performance by more than 10%. However, in the latter works, the stochastic nature of misalignment due to the relative motion between the transmitter and the receiver terminals is modeled by the commonly used model that has been proposed in [7] for outdoor FSO communication links, which takes into account the jitter but ignores the non-zero boresight displacement. Indeed, pointing errors consist of two components, i.e., boresight and jitter. The former is the fixed displacement between the beam and the detector center, while the latter is the random offset of the beam center at detector plane [41]. Thus, we should use a more generalized and practical pointing error model, commonly known as nonzero boresight (NZB) pointing error model, where apart from the effect of beam width, detector size, and different jitters for the elevation and horizontal displacement, the effects of NZB errors are also taken into consideration [42]. For the sake of clarity, this boresight displacement must be necessarily always considered at the receiver side when more than one detector aperture is employed, since each laser can be strictly aligned with only one receive aperture. Hence, there is an inherent boresight displacement that depends on the spacing among receiver detectors, due to the different distances from the specific detector aperture that determines the alignment point [41].

Nevertheless, NZB pointing errors had never been examined in TOW literature, just as no method had been proposed in order to enhance the TOW outage performance and availability. Only, very recently, authors demonstrated for the first time, in [39], that a diversity method—i.e., in space, in time, or in wavelength—is an effective technique to enhance the outage performance of a typical TOW in terms of outage probability metric, by considering the joint impact of both attenuation-induced fading and misalignment-induced fading with NZB, modeled by the accurate Beckmann distribution [3,41,42,43,44,45,46]. In basic terms, diversity refers to the consideration of multiple copies of the propagated signals in an attempt to overcome a poor transmission media state so as to reinforce the communication link’s availability and robustness. Diversity can be realized either in space, in time or in wavelength [3,4,47,48,49,50,51]. Considering spatial diversity [47,50], an FSO system employs multiple transmitters and/or receivers at different places that transmit and receive copies from the same information-bearing signal, resulting in an enhanced error performance. Through time diversity [49,52,53], an FSO system employs a single transmitter-receiver pair, but the signal is retransmitted at different time slots. Finally, assuming wavelength diversity [49,54], an FSO system uses a composite transmitter, and thus, copies of the same signal are transmitted at the same time at different wavelengths towards a number of receivers [51].

It becomes clear that via diversity an initial single input-single output (SISO) FSO link is transformed into a more performance effective, by means of error rate and availability, single input-multiple output (SIMO), multiple input-single output (MISO), or multiple input-multiple output (MIMO) FSO system. Additionally, to the best of the authors’ knowledge, in previous works related to TOW communication, only the simplest, but not always efficient enough, intensity modulation/direct detection (IM/DD) with on-off keying (OOK) modulation formats have been investigated. Although OOK is the most widely used modulation scheme in FSO area mainly due to its simplicity, when it is operating under fading conditions the detector threshold must be estimated and adopted by appropriate means, according to the variable channel states. This drawback can be circumvented via Pulse Position Modulation (PPM), which outperforms OOK in power efficiency [3,55,56,57]. The latter happens at the expense of higher complexity and lower spectral efficiency, which is however, of minor importance considering the huge, in any case, available optical modulation bandwidth. Moreover, to the best of our knowledge, TOW links have been evaluated only in terms of instantaneous BER, when the reality is that the average bit error rate (ABER) metric is recommended in order to be able to draw meaningful conclusions for their reliability.

Motivated by these facts, a key novelty in this work is the estimation of the ABER performance of a SIMO TOW system that may employ apart from OOK, L-PPM modulation format alike, under the joint impact of skin-induced attenuation and pointing errors with non-zero boresight. It should be highlighted here that in previous published works concerning FSO, receiver’s diversity in terms of SIMO configurations have been used in order to enhance the performance of a terrestrial, outdoor FSO communication link, and thus, random atmospheric channel’s impairments have been addressed, such as atmospheric turbulence-induced signal’s fading [2,4,46], while in [2] L-PPM signaling technique has been proposed in order to achieve further such performance enhancements. However, for a TOW link which is investigated in this work, there is an essential difference concerning the nature of the transmission medium. In this work, the transmission medium is biological tissue instead of atmosphere. In fact, the examined channel is the skin which is totally different and more complex for the optical signal in comparison with atmosphere. Thus, apart from non-zero boresight pointing errors which arise from random movements between transmitter and receiver terminals, skin-induced attenuation that experiences the information-bearing optical signal is now considered, while atmospheric turbulence is obviously neglected. In short, although SIMO and L-PPM techniques have been also considered in outdoor FSO communications, this is the first time that both techniques are applied this way in the biomedical and transdermal communication systems where the requirements for very low energy consumption and negligible biological effects must be fully met. Thus, motivated and inspired by our previous works in outdoor FSO [2,4,46], in the current work we introduce, for the first time ever, SIMO with L-PPM in an entirely different field of optical wireless communications—i.e., transdermal optical communications with medical implants—as an attempt to enhance the outage probability of such systems. Thus, the scope of this work is to outbalance the negative side-effects of this joint impact by introducing L-PPM SIMO TOW configurations. Therefore, an ABER analysis is presented and novel closed-form mathematical expressions are derived for its estimation. In this context, a performance comparison in terms of ABER between SISO and SIMO TOW configurations with either OOK or L-PPM formats is performed, as an attempt to reveal possible significant ABER performance enhancements and/ or IMD’s lower power consumption achievements that stem from the selection of proper SIMO L-PPM TOW system configurations.

2. System Model

2.1. Signal Model

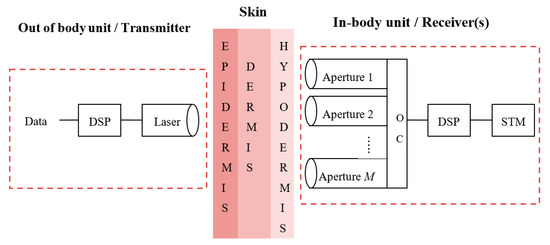

The TOW system under consideration consists of three fundamental components, i.e., the out-of-body unit, the skin channel and the M in-body unit(s). In this respect, the system employs M direct TOW links, where the M optical signal’s copies pass through skin channel once. The whole link appears in Figure 1.

It is assumed that that the external unit consists of a data capturing unit, followed by a digital signal processing (DSP) unit. The former unit converts external stimulations into electrical signals, while the latter unit performs the processes of digitization and compression of the M data copies into OOK, IM/DD, or L-PPM modulated signals. These signals are forwarded to the transmitter, which emits M data copies of the same part of information towards the internal unit that consists, in turn, of the corresponding receiver(s), DSP unit and the stimulation (STM) unit that eventually stimulates the appropriate nerve. Thus, the internal DSP and STM units are responsible for generating the appropriate stimulations [14,36,37,38,39]. In this context, the statistical channel model for the examined TOW system is given as [39]

$$y_m={\eta }_m{h}_{m}x+n,$$

(1)

where y_m represents the m-th signal copy with m = 1, 2,..., M, η_m is the effective receiver’s photo-current conversion ratio, x is the modulated signal, convey over the corresponding h_m channel with additive noise n that is modeled as a zero-mean complex Gaussian process with variance σ².

The m-th channel for the case of the transdermal link can be expressed as [36,37,38,39,58]

$$h_m^{}=h_{l,m}^{}{h}_{p,m}^{},$$

(2)

where h_l,m stands for the deterministic channel coefficient due to the propagation losses of the m-th channel though the skin and h_p,m represents the corresponding stochastic process that models the geometric spread due to the presence of pointing errors. The former deterministic term is expressed as [36,37,38,39]

$$h_{l,m}^{}=\exp \left[-\frac{1}{2}\alpha \left({\lambda }_m\right){\delta }_m\right],$$

(3)

where δ_m is the total dermis thickness of the m-th channel and α(λ_m) is the corresponding skin attenuation coefficient in the corresponding operational wavelength λ_m. More specifically, the term skin refers to the complex biological structure that consists of three basic layers, i.e., stratum corneum, epidermis and dermis, with transmitter and receiver terminals being in contact with the epidermal and the adipose side of skin [28]. Thus, their distance can be accurately approximated by skin’s thickness while the parameter h_l,m expresses the skin-induced attenuation of the propagated optical signal through the m-th transdermal path. The wavelength dependent value of α(λ_m), depends also on the optical properties of the skin and for values between 400 nm and 1800 nm is obtained as [37,38,39]

$$\alpha \left({\lambda }_m\right)={\displaystyle \sum _{i=1}^8{a}_i}\exp \left[-{\left(\frac{{\lambda }_m-b_i}{c_i}\right)}^2\right],$$

(4)

where λ_m values are expressed in nm and the values of a_i, b_i and c_i, with i = 1, 2..., 8, are given in the following table as [37,38].

2.2. Generalized Pointing Errors Model with Non-Zero Boresight

Principally, pointing errors include the random beam offset and the fixed displacement between the beam and detector—i.e., the jitter and the boresight component—respectively [41]. Hence, when a Gaussian beam propagates through distance δ_m from the transmitter to a circular detector with aperture radius r_m, the fraction of the collected power at receiver can be approximated as [42]

$$h_p\left(R_m,{\delta }_m\right)\approx A_{0,m}\exp \left(-\frac{2R_m^2}{w_{eq,m}^2}\right),R_m\ge 0,$$

(5)

where w_eq,m represents the equivalent beam radius in the m-th receiver aperture which is given as $w_{eq,m}={\left[\sqrt{\pi }\mathrm{erf}(v_m)w_{\delta ,m}^2/2v_m\exp (-v_m^2)\right]}^{1/2}$, with $v_m=\sqrt{\pi }{r}_m/\sqrt{2}{w}_{\delta ,m}$ and erf(.) denotes the error function [59], (8.250.1). Additionally, in TOW links the parameter $w_{\delta ,m}={\delta }_m\tan \left({\theta }_m/2\right),$ stands for the m-th beam waist on the receiver plane at distance δ_m from the transmitter [36,37,38,39], with θ_m being the corresponding divergence angle. Furthermore, $A_{0,m}={\mathrm{erf}}^2(v_m)$ is the fraction of the collected power at r_m = 0 [7,42]. Moreover, R_m is the radial displacement at the m-th receiver that is expressed as $R_m=\left|{\overrightarrow{R}}_m\right|=\sqrt{R_{x,m}^2+R_{y,m}^2}$ where ${\overrightarrow{R}}_m={\left[R_{x,m},R_{y,m}\right]}^T$ is the radial displacement vector with R_x,m, R_y,m, representing the displacements located along the horizontal and elevation axes at the detector plane, respectively. These variables are considered as nonzero mean Gaussian distributed random variables, i.e., $R_{x,m}~N\left({\mu }_{x,m},{\sigma }_{x,m}^2\right)$, $R_{y,m}~N\left({\mu }_{y,m},{\sigma }_{y,m}^2\right)$ where μ_x,m, μ_y,m, denote their mean values and σ_x,m, σ_y,m, the jitters for horizontal and elevation displacements, respectively [42]. Here, it should be clearly outlined that the approximation in (5) is accurate enough for ${w_{\delta ,m}/r}_m>6$, which is satisfied in typical FSO systems.

Hence, a generalized statistical model which can accurately emulate the pointing errors effect considering the beam width, the detector size, the different jitter for the elevation and the horizontal displacements and the NZB error, is Beckmann’s model with the following probability density function (PDF) [58],

$$\begin{array}{ll}{f}_{R,m}\left(R_m\right)& =\frac{R_m}{2\pi {\sigma }_{x,m}{\sigma }_{y,m}}\\ & \times {\displaystyle \underset{0}{\overset{2\pi }{\int }}\exp \left[-\frac{{\left(R_m\cos {\phi }_m-{\mu }_{x,m}\right)}^2}{2{\sigma }_{x,m}^2}-\frac{{\left(R\sin {\phi }_m-{\mu }_y\right)}^2}{2{\sigma }_y^2}\right]}d{\phi }_m,\end{array}$$

(6)

where ${\phi }_m$ stands for the transmit divergence angle, which denotes the increase in beam radius with distance from the transmitter [42].

According to the analysis performed in [42], the Beckmann’s distribution in (6) can be accurately approximated and simplified through the following modified Rayleigh distribution [42]

$$f_{R,m}\left(R_m\right)=\frac{R_m}{{\sigma }_{\mathrm{mod},m}^2}\exp \left(-\frac{R_m^2}{2{\sigma }_{\mathrm{mod},m}^2}\right),R_m\ge 0,$$

(7)

where the modified jitter is expressed as [3,46]

$${\sigma }_{\mathrm{mod},m}^2={\left(\frac{3{\mu }_{x,m}^2{\sigma }_{x,m}^4+3{\mu }_{y,m}^2{\sigma }_{y,m}^4+{\sigma }_{x,m}^6+{\sigma }_{y,m}^6}{2}\right)}^{1/3}.$$

(8)

Consequently, the PDF for $h_{p,m}^{}$ is approximated as [3,46]

$$f_{h_{p,m}^{}}^{}\left(h_{p,m}\right)=\frac{{\psi }_m^2{g}_m^{-{\psi }_m^2}}{A_{0,m}^{{\psi }_m^2}}{h}_{p,m}^{{\psi }_m^2-1},0\le h_{p,m}\le g_m{A}_{0,m},$$

(9)

where in each link it holds that ${\psi }_m=w_{eq,m}/2{\sigma }_{\mathrm{mod},m}$, with ${\psi }_{x,m}=w_{eq,m}/2{\sigma }_{x,m}$, ${\psi }_{y,m}=w_{eq,m}/2{\sigma }_{y,m}$ and $g_m=\exp \left(\frac{1}{{\psi }_m^2}-\frac{1}{2{\psi }_{x,m}^2}-\frac{1}{2{\psi }_{y,m}^2}-\frac{{\mu }_{x,m}^2}{2{\sigma }_{x,m}^2{\psi }_{x,m}^2}-\frac{{\mu }_{y,m}^2}{2{\sigma }_{y,m}^2{\psi }_{y,m}^2}\right)$ [39,41,46,58]. Here, it becomes evident that the impact of pointing errors effect is getting stronger as the value of ${\psi }_m$ parameter decreases. Conversely, for very large values of ${\psi }_m$, pointing errors effect can be considered as a negligible one. Moreover, considering independent identical zero mean Gaussian distributions for both elevation and horizontal displacement with $g_m=1,{\mu }_{x,m}^2=0,{\mu }_{y,m}^2=0,{\sigma }_{x,m}^2={\sigma }_{y,m}^2={\sigma }_s^2$, the generalized PDF for pointing errors with NZB in (9), can be simplified to the one for zero boresight misalignments presented in [7].

2.3. Joint Impact of Skin-Induced Attenuation and NZB Pointing Errors

Once we obtained the expressions for skin-induced attenuation through the parameter h_l,m in (3) and misalignment induced fading with NZB the through the parameter h_p,m in (9) respectively, we can now estimate their combined impact through their product in (2), i.e., through the parameter h_m. Indeed, since the parameter h_l,m is a deterministic one, by both using (2), (3), and (9) and applying a random variable (RV) transformation [60], the joint PDF of the random variable h_m is obtained as

$$f_{h_m^{}}^{}\left(h_m\right)=\frac{{\psi }_m^2}{{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}{h}_{l,m}^{{\psi }_m^2-1}{h}_m^{-{\psi }_m^2}.$$

(10)

Additionally, based on (1)–(3) the instantaneous electrical SNR, γ, is given as [39]

$${\gamma }_m=\frac{{\eta }_m^2\exp \left(-\alpha \left({\lambda }_m\right){\delta }_m\right)h_{p,m}^2{\tilde{P}}_S}{N_0},$$

(11)

where ${\tilde{P}}_S$ and N₀ rerpresent the signal and noise optical power spectral density (PSD), respectively.

Since $\mathrm{E}\left[h_m\right]={\displaystyle \underset{0}{\overset{\infty }{\int }}{h}_m{f}_{h_m}}\left(h_m\right)d{h}_m$, by using (10), the average electrical SNR in the case of TOW links with NZB errors is obtained as [37]

$${\mu }_m=\frac{{\eta }_m^2{\mathrm{E}}^2[h_m]{\tilde{P}}_S}{N_0}=\frac{{\eta }_m^2{\psi }_m^2{A}_{0,m}^2{g}_m^2\exp \left(-\alpha \left({\lambda }_m\right){\delta }_m\right){\tilde{P}}_S}{\left({\psi }_m^2+2\right)N_0},$$

(12)

while for the zero boresight scenario, the expected electrical SNR, ${\mu }_{m,zero}$, is given by setting in (12) that $g_m=1$, while also it holds that ${\mu }_{x,m}^2=0,{\mu }_{y,m}^2=0,{\sigma }_{x,m}^2={\sigma }_{y,m}^2={\sigma }_s^2$.

More precisely, for SIMO spatial diversity FSO systems the nonzero-boresight electrical SNR could be considered as equal to the zero-boresight scenario only for the simplified SISO configuration, where M = 1, i.e., ${\mu }_1={\mu }_{1,zero}=\mu$. This denotes that the positioning of the laser is assumed to be performed in regard to the corresponding photodetector and thus only zero-boresight pointing errors are addressed. On the contrary, when M > 1, the boresight is equal zero only to one branch, while the others should also deal with nonzero boresight components. Indeed, the laser cannot be simultaneously strictly aligned with all the additional photodiodes as effectively as with the initial one. Hence, NZB pointing errors are emerged for the rest receiver apertures, where lower amount of optical power arrives at their side. Thus, the nonzero boresight consideration through (12) brings about lower electrical SNR values, i.e., ${\mu }_1<{\mu }_{1,zero}$ for $1<m\le M$ [2]. Consequently, it becomes evident from the above that by estimating the expected value of h_m, we conclude that the average electrical SNR in the case of TOW links depends strongly on pointing errors effect with or without non-zero boresight components. As we will more clearly see below, this is a very important outcome for the outage performance estimation as a function of the average SNR for a TOW link with pointing errors.

3. ABER Analysis of the SISO TOW Link

The BER is a critical metric for the availability and performance estimation of each communication system, such as TOW links. Nevertheless, the BER is estimated through the instantaneous electrical SNR at the receiver, γ_m, which experiences random fluctuations, and thus, the BER metric obtains random values as well. Thus, in order to draw more accurate conclusions for the system performance in practice we need to estimate the ABER metric. Consequently, in this section we first investigate the ABER for an IM/DD SISO TOW link with OOK, and then, we expand this work for an IM/DD SIMO TOW system with OOK and L-PPM formats with optimal combining (OC) [2,51].

3.1. SISO TOW Link with IM/DD OOK

The OOK scheme is the most widely used modulation format for FSO communication systems, mainly due to its simplicity, ease in installation, simple receiver design, bandwidth efficiency, low cost, and immunity to the innate nonlinear ties of the laser and the external modulator [57,61]. However, when OOK is employed through a transmission medium of varying characteristics, in order to optimally operate, the knowledge of an adaptive threshold for each specific channel state is necessarily required [2].

Assuming an IM/DD TOW SISO link with OOK, errors may be occurred at the receiver in determining the actual symbols transmitted, because of the presence of AWGN [2]. Thus, the instantaneous BER is estimated through the following expression [47,50,52]

$$P_e=p\left(0\right)P\left(e|0\right)+p\left(1\right)P\left(e|1\right),$$

(13)

where $p\left(0\right)$ and $p\left(1\right)$ are the probabilities of transmitting the bits “0” and “1” respectively, while $P\left(e|0\right)$ and $P\left(e|1\right)$ are their corresponding conditional bit-error probabilities [47,62]. Without loss of generality, assuming that $p\left(0\right)=p\left(1\right)=1/2$ and $P\left(e|0\right)=P\left(e|1\right)$, and assuming m = 1, because SISO link is considered, and ${\tilde{P}}_S$ = 1 mw/MHz, the BER is given as [47,50,52]

$$P_e\left(h\right)=P\left(e|0,h\right)=P\left(e|1,h\right)=P\left(n>\frac{\eta h}{2}\right)=P\left(n<-\frac{\eta h}{2}\right)=\frac{1}{2}\mathrm{erfc}\left(\frac{\eta h}{2\sqrt{N_0}}\right),$$

(14)

where erfc(.) stands for the complementary error function [59], (8.250.4). By averaging (14) over h, the ABER, P_e,av, is obtained as [47,52]

$$P_{e,av}={\displaystyle {\int }_0^{\infty }{P}_e\left(h\right)f_h}\left(h\right)dh.$$

(15)

Thus, by substituting (10) into (15) we get

$$P_{e,av}^{OOK}=\frac{1}{2}\frac{{\psi }^2{h}_l^{{\psi }^2-1}}{{\left(A_{0}g\right)}^{{\psi }^2}}{\displaystyle {\int }_0^{\infty }erfc\left(\frac{\eta h}{2\sqrt{N_0}}\right)h^{-{\psi }^2}}dh,$$

(16)

and by using then ${\displaystyle {\int }_0^{\infty }{t}^{z-1}erfc{\left(t\right)}^{}}dt=\frac{1}{\sqrt{\pi }z}\mathsf{\Gamma }\left(\frac{z+1}{2}\right)$,$\mathrm{Re}\left(z\right)>0$ [63], (06.2721.0132.01), we get after some calculations the following ABER expression for the IM/DD OOK TOW link, by taking into account the skin-induced attenuation and NZB pointing errors

$$P_{e,av}^{OOK}=\frac{{\psi }^2\exp {\left(-\frac{1}{2}\alpha \left(\lambda \right)\delta \right)}^{{\psi }^2-1}}{2\sqrt{\pi }\left(1-{\psi }^2\right){\left(A_{0}g\right)}^{{\psi }^2}}{\left(\frac{\eta }{2\sqrt{N_0}}\right)}^{{\psi }^2-1}\mathsf{\Gamma }\left(\frac{2-{\psi }^2}{2}\right).$$

(17)

Furthermore, by substituting (12) into (17) we can alternatively express the ABER as a function of the average electrical SNR, μ

$$P_{e,av}^{OOK}=\frac{{\psi }^2{\left[\mu \left({\psi }^2+2\right)\right]}^{\frac{{\psi }^2-1}{2}}\mathsf{\Gamma }\left(\frac{2-{\psi }^2}{2}\right)}{2^{{\psi }^2}\sqrt{\pi }{\psi }^{{\psi }^2-1}\left(1-{\psi }^2\right){\left(A_{0}g\right)}^{2{\psi }^2-1}{\left({\tilde{P}}_s\right)}^{\frac{{\psi }^2-1}{2}}}.$$

(18)

3.2. SISO TOW Link with IM/DD L-PPM

The PPM modulation format is more power effective than OOK, but at the expense of an increased bandwidth requirement and higher complexity. Additionally, PPM eliminates the requirement of OOK for a decision threshold dependent on the input power [2,57]. In L-PPM, each word of N bits is mapped into one of the L = 2^N symbols and transmitted through the channel, while each L-PPM symbol has the form of a pulse transmitted in one of the L = 2^N consecutive time slots with duration T_s = NT_b/L, where T_b is the bit duration, with the remaining slots being empty. Information is encoded within the position of a pulse of constant power along with (N-1) empty slots, while the position of the pulse corresponds to the decimal values of the N–bit input data [64]. Assuming a SISO L-PPM TOW link we can omit, for the sake of brevity, the index m, and thus, the BER as a function of h, can be defined as [56]

$$P_e^{L-PPM}\left(h\right)=\frac{1}{2}\mathrm{erfc}\left(\sqrt{\frac{{\eta }^2{h}^2}{8N_0}L{\log }_{2}L}\right).$$

(19)

Next, in order to estimate the ABER of the TOW link with the L-PPM scheme under the joint impact of skin-induced attenuation and NZB pointing errors, we average (19) over h. After substituting (10) and (19) into (15), we get

$$P_{e,av}^{L-PPM}=\frac{{\psi }^2\exp {\left(-\frac{1}{2}\alpha \left(\lambda \right)\delta \right)}^{{\psi }^2-1}}{2\sqrt{\pi }\left(1-{\psi }^2\right){\left(A_{0}g\right)}^{{\psi }^2}}{\left(\frac{\eta \sqrt{L{\log }_{2}L}}{\sqrt{8N_0}}\right)}^{{\psi }^2-1}\mathsf{\Gamma }\left(\frac{2-{\psi }^2}{2}\right).$$

(20)

Alternatively, by substituting (12) into (20), the latter can be expressed as a function of the average electrical SNR, μ

$$P_{e,av}^{L-PPM}=\frac{{\psi }^2{\left[\mu \left({\psi }^2+2\right)\right]}^{\frac{{\psi }^2-1}{2}}{\left(\frac{\sqrt{L{\log }_{2}L}}{8}\right)}^{\frac{{\psi }^2-1}{2}}\mathsf{\Gamma }\left(\frac{2-{\psi }^2}{2}\right)}{2\sqrt{\pi }{\psi }^{{\psi }^2-1}\left(1-{\psi }^2\right){\left(A_{0}g\right)}^{{\psi }^2}{\left({\tilde{P}}_s\right)}^{\frac{{\psi }^2-1}{2}}}.$$

(21)

4. ABER for SIMO TOW Systems with Receivers’ Diversity

In this Section, we investigate spatial, time or wavelength diversity implementations, in terms of a SIMO optical communication system. In this context, it is assumed that the transmitter emits M copies of the same part of the information signal towards M receivers for the case of spatial diversity configuration or in M different time moments at the same receiver, for the time diversity case [4]. However, in time diversity system, since the transmitter is emitting M copies of the same signal in M different moments and the channel characteristics randomly change over time, each propagating copy addresses different channel characteristics. Consequently, M different virtual propagation paths (or receivers) can be considered and thus, this time diversity system can be also emulated as a SIMO one. In reality, each copy arrives at the receiver and remains at the buffer of the system until all the M copies been received. Thus, each copy of the information signal propagates through the same path but with different channel’s characteristics, while the total information signal at the receiver buffer consists of M different versions of the same initial signal [4,52]. Finally, in wavelength diversity a composite transmitter simultaneously emits M copies of the same part of the information signal at M different optical wavelengths towards M corresponding receivers [51].

4.1. SIMO TOW System with IM/DD OOK

The optimum decision metric for a SIMO TOW link with IM/DD OOK is obtained as [47,50]

$$P\left(\overrightarrow{y}|on,h_m\right)\begin{array}{c}\stackrel{on}{>}\\ \underset{off}{<}\end{array}P\left(\overrightarrow{y}|off,h_m\right),$$

(22)

where $\overrightarrow{y}=\left[y_1,y_2,\dots ,y_M\right]$ is the vector signal that describes the corresponding emissions $m=1,2,\dots M$, in different receivers or in different time slots the $M$ copies of the signal. Recall that considering OOK the condition ‘on’ refers to presence of light at the receiver’s side, i.e., to the transmission of bit ‘1’, while the condition ‘off’ corresponds to light’s absence, i.e., to the transmission of bit ‘0’, respectively. Additionally, one of the most significant schemes for the signal reception is the OC [47,50,52]. Considering OC diversity with M branches at the receiver, aperture area of each detector is M times smaller than the area of detector when there is no diversity implementation. Thus, as a consequence of the background radiation noise, the variance of the noise in each detector at receiver is M times smaller than the noise variance of the system without diversity implementation, i.e., ${\sigma }_{m,n}^2={\sigma }_n^2/M=N_0/\left(2M\right)$. Here, the ABER is given as [50]

$$P_{e,av,M}^{OOK}={\displaystyle {\int }_{\mathrm{h}}{f}_{\mathrm{h}}\left(\mathrm{h}\right)\begin{array}{c}Q\left[\frac{1}{\sqrt{2M{N}_0}}\sqrt{{\displaystyle \sum _{m=1}^M{\left({\eta }_m{h}_m\right)}^2}}\right]d\mathrm{h}\end{array}},$$

(23)

where $\mathrm{h}=\left[h_1,h_2,\dots ,h_M\right]$ is the vector of the TOW channel state for each one the $M$ copies of the signal. In order to estimate the multiple integral in (23) we initially substitute the approximation of [65] for the Q-function, $Q\left(x\right)\approx \frac{e^{-x^2/2}+3e^{-2x^2/3}}{12}$, into (23). Note that it practically holds that 0.5 ≤ η_m ≤ 0.9. Additionally, the parameter h_m obtains non-negative values, i.e., 0 ≤ h_m ≤ 1, with h = h_l h_p. Specifically considering that for the optical medical window 700 nm ≤ λ_m ≤ 1300 nm and that 2 mm ≤ δ_m ≤ 8 mm for typical TOW links, by using (3), (4), and

Table 1. Parameter a_i, b_i and c_i values.

i	ai	bi	ci
1	10	0.35	0.065
2	4.5	0.42	0.25
3	13.48	−1.5	50.12
4	14.7	1442	49.35
5	7.435	1499	75.88
6	48	3322	1033
7	594.1	−183	285.9
8	11.47	−618.5	1054

we get that 0.0003 ≤ h_l,m ≤ 0.23, while also from (9), 0 ≤ h_p,m ≤ g_m A_0,m, i.e., 0 ≤ h_p,m ≤ 1. Moreover, it practically holds that 1 ≤ M ≤ 5 and that $N_0={\left(1.3pA/\sqrt{Hz}\right)}^2$. Under these parameter values, this approximation for the Q-function is valid. Therefore, the obtained multiple integral can be estimated through the following multiplication of single integrals [66]

$$P_{e,av,M}^{OOK}\approx \frac{1}{12}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^2}{4M{N}_0}\right)}}{f}_{h_m}\left(h_m\right)d{h}_m+\frac{1}{4}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^2}{3M{N}_0}\right)}}{f}_{h_m}\left(h_m\right)d{h}_m.$$

(24)

Next, by substituting (10) into (24) we get

$$\begin{array}{ll}{P}_{e,av,M}^{OOK}& \approx \frac{1}{12}\frac{h_{l,m}^{{\psi }_m^2-1}{\psi }_m^2}{{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^2}{4M{N}_0}\right)}}{h}_m^{-{\psi }_m^2}d{h}_m\\ & +\frac{1}{4}\frac{h_{l,m}^{{\psi }_m^2-1}{\psi }_m^2}{{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^2}{3M{N}_0}\right)}}{h}_m^{-{\psi }_m^2}\left(h_m\right)d{h}_m\end{array}$$

(25)

Thus, by using ${\displaystyle \underset{0}{\overset{\infty }{\int }}{x}^n}{e}^{-z{x}^2}dx=\frac{\mathsf{\Gamma }\left[\left(n+1\right)/2\right]}{2z^{\frac{n+1}{2}}},n>-1,z>0$ [59], and by substituting (3) in (25), the ABER of a IM/DD OOK SIMO TOW system with OC under both skin-induced attenuation and NZB pointing errors conditions, is estimated as

$$\begin{array}{ll}{P}_{e,av,M}^{OOK}& \approx \frac{1}{12}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^2\exp {\left(-\alpha \left({\lambda }_m\right){\delta }_m/2\right)}^{{\psi }_m^2-1}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left({\eta }_m^2/4M{N}_0\right)}^{\frac{1-{\psi }_m^2}{2}}{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}}\\ & +\frac{1}{4}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^2\exp {\left(-\alpha \left({\lambda }_m\right){\delta }_m/2\right)}^{{\psi }_m^2-1}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left({\eta }_m^2/3M{N}_0\right)}^{\frac{1-{\psi }_m^2}{2}}{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}}\end{array}$$

(26)

Alternatively, by substituting (12) into (26) we get the latter as a function of the average electrical SNR, μ_m

$$\begin{array}{ll}{P}_{e,av,M}^{OOK}& \approx \frac{1}{12}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^{3-{\psi }_m^2}{\left(A_{0,m}^{}{g}_m\right)}^{1-2{\psi }_m^2}{\left(4{\tilde{P}}_{S}M\right)}^{\frac{1-{\psi }_m^2}{2}}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left[{\mu }_m\left({\psi }_m^2+2\right)\right]}^{\frac{1-{\psi }_m^2}{2}}}}\\ & +\frac{1}{4}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^{3-{\psi }_m^2}{\left(A_{0,m}^{}{g}_m\right)}^{1-2{\psi }_m^2}{\left(3{\tilde{P}}_{S}M\right)}^{\frac{1-{\psi }_m^2}{2}}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left[{\mu }_m\left({\psi }_m^2+2\right)\right]}^{\frac{1-{\psi }_m^2}{2}}}}\end{array}$$

(27)

4.2. SIMO TOW System with IM/DD L-PPM

Considering (19) for the $M$ copies of the optical signal with $L$-PPM and OC, the ABER of the total SIMO TOW system can be expressed as

$$P_{e,av,M}^{L-PPM}={\displaystyle {\int }_{\mathrm{h}}{f}_{\mathrm{h}}\left(\mathrm{h}\right)\begin{array}{c}Q\left[\sqrt{\frac{L{\log }_{2}L}{4M{N}_0}{\displaystyle \sum _{m=1}^M{\left({\eta }_m{h}_m\right)}^2}}\right]d\mathrm{h}\end{array}},$$

(28)

Next, by using the accurate enough approximation of [65] for the Q-function, $Q\left(x\right)\approx \frac{e^{-x^2/2}+3e^{-2x^2/3}}{12}$, into (28) the latter gives

$$\begin{array}{ll}{P}_{e,av,M}^{L-PPM}& \approx \frac{L}{24}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^{2}L{\log }_{2}L}{8M{N}_0}\right)}}{f}_{h_m}\left(h_m\right)d{h}_m\\ & +\frac{L}{8}{\displaystyle \prod _{m=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}\exp \left(-\frac{{\eta }_m^2{h}_m^{2}L{\log }_{2}L}{6M{N}_0}\right)}}{f}_{h_m}\left(h_m\right)d{h}_m.\end{array}$$

(29)

Thus, by using ${\displaystyle \underset{0}{\overset{\infty }{\int }}{x}^n}{e}^{-z{x}^2}dx=\frac{\mathsf{\Gamma }\left[\left(n+1\right)/2\right]}{2z^{\frac{n+1}{2}}},n>-1,z>0$ [59], and by substituting (3) in (29), the following ABER expression is derived for a IM/DD L-PPM SIMO TOW system with OC, under the joint impact of both skin-induced attenuation and NZB pointing errors

$$\begin{array}{ll}{P}_{e,av,M}^{L-PPM}& \approx \frac{L}{24}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^2\exp {\left(-\alpha \left({\lambda }_m\right){\delta }_m/2\right)}^{{\psi }_m^2-1}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left({\eta }_m^{2}L{\log }_{2}L/8M{N}_0\right)}^{\frac{1-{\psi }_m^2}{2}}{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}}\\ & +\frac{L}{8}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^2\exp {\left(-\alpha \left({\lambda }_m\right){\delta }_m/2\right)}^{{\psi }_m^2-1}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left({\eta }_m^{2}L{\log }_{2}L/6M{N}_0\right)}^{\frac{1-{\psi }_m^2}{2}}{\left(A_{0,m}^{}{g}_m\right)}^{{\psi }_m^2}}.}\end{array}$$

(30)

Additionally, by substituting (12) into (30) we obtain the latter expression as a function of the average electrical SNR, μ_m

$$\begin{array}{ll}{P}_{e,av,M}^{L-PPM}& \approx \frac{1}{12}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^{3-{\psi }_m^2}{\left(A_{0,m}^{}{g}_m\right)}^{1-2{\psi }_m^2}{\left(8{\tilde{P}}_{S}M\right)}^{\frac{1-{\psi }_m^2}{2}}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left[{\mu }_m\left({\psi }_m^2+2\right)L{\log }_{2}L\right]}^{\frac{1-{\psi }_m^2}{2}}}}\\ & +\frac{1}{4}{\displaystyle \prod _{m=1}^M\frac{{\psi }_m^{3-{\psi }_m^2}{\left(A_{0,m}^{}{g}_m\right)}^{1-2{\psi }_m^2}{\left(6{\tilde{P}}_{S}M\right)}^{\frac{1-{\psi }_m^2}{2}}\mathsf{\Gamma }\left[\left(1-{\psi }_m^2\right)/2\right]}{2{\left[{\mu }_m\left({\psi }_m^2+2\right)L{\log }_{2}L\right]}^{\frac{1-{\psi }_m^2}{2}}}.}\end{array}$$

(31)

5. Numerical Results

In this section, by using the closed-form expressions derived above (18), (21), (26), (27), (30), (31), we present, over a wide range of average electrical SNR, performance results by means of the ABER metric for both SISO and SIMO TOW configurations than may employ either OOΚ or L-PPM modulation formats. In all investigated cases, the joint impact of both skin-induced attenuation and pointing errors effects are considered. Note that without loss of generality we focus on spatial diversity, i.e., the examined TOW system may support SIMO configurations where the transmitter simultaneously emits the same part of information to more than one spatially separated receiver apertures. Thus, each detector receives independent information-bearing optical signals. Specifically, when multiple receivers are assumed, i.e., M > 1, the ΝΖΒ component is also taken into account. In fact the examined system may employ from M = 1 to M = 3 ΤOW links of a typical skin thickness of δ = 8 mm, while the operational wavelength of the system is fixed at λ = 850 nm. For each receiver aperture, it is assumed that η_m = 0.8, r_m = 0.5 mm, θ_m = 30^ο, ${\tilde{P}}_S$ = 1 mw/MHz and $N_0={\left(1.3pA/\sqrt{Hz}\right)}^2$. Thus, concerning pointing errors effects it holds that ${w_{\delta ,m}/r}_m>6$ which indicates that approximation in (5) is valid. Additionally, for M = 1, due to most precise positioning, the parameter ψ₁ should obtain its maximal value, i.e., ψ₁ = 0.35 for $\left(w_{\delta }/r,{\mu }_x/r,{\mu }_y/r,{\sigma }_x/r,{\sigma }_y/r\right)=\left(9.2,20,10,9,9\right)$ in comparison with SIMO configurations. Indeed, for M > 1, due to the spacing between photodetectors, we assume also stronger or even stronger non-zero boresight pointing errors effects, i.e., ψ₂, ψ₃ = 0.29 or 0.25, for $\left(w_{\delta }/r,{\mu }_x/r,{\mu }_y/r,{\sigma }_x/r,{\sigma }_y/r\right)=\left\{\left(9.2,20,10,12,10\right)or\left(9.2,20,10,15,10\right)\right\}$, respectively. Note that by substituting 850 nm for λ_m and the corresponding parameter values of Table 1 for a_i , b_i, and c_i, we obtain from (4) that for the examined cases it holds that α(λ_m) = 1.8. Additionally, in all cases that we present below, the numerically evaluated results from the above derived closed form mathematical expressions, are accompanied by the corresponding ones obtained with Monte Carlo simulations with 2 × 10⁷ samples.

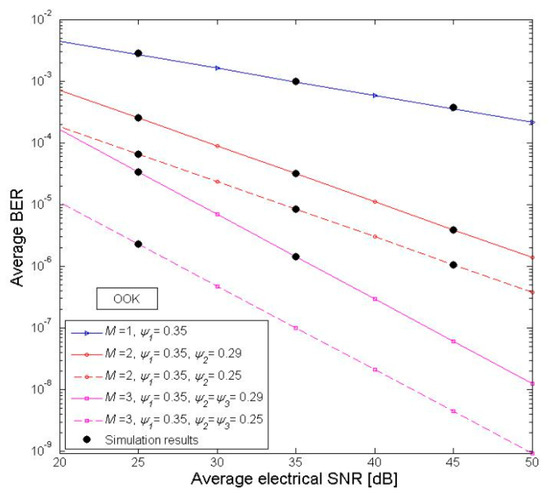

As is the case of terrestrial FSO in [2,46] results in Figure 2 are now obtained for the examined TOW with OOK system by using the corresponding (26) and (27) expressions. Figure 2 illustrates the ABER evolution for the TOW system that employs both SISO and SIMO configurations with OOK over a wide range of average electrical SNR, along with different amounts of ΝΖΒ misalignment-induced fading. Significant ABER degradations are demonstrated when NZB pointing errors are getting stronger. However, very important ABER performance improvements are depicted via the use of SIMO configurations, especially for larger number of receivers. Thus, the beneficial impact of the use of multiple receivers in terms of total TOW ABER performance is highlighted. Indeed, through diversity, for instance in space, the quality of the received signal is enhanced by achieving a lower ABER value for the same average electrical SNR value. Recall that higher average BER values translate into more erroneous bits arriving at the receiver’s side, which aggravates the detection capability, and thus degrades the quality of the received signal.

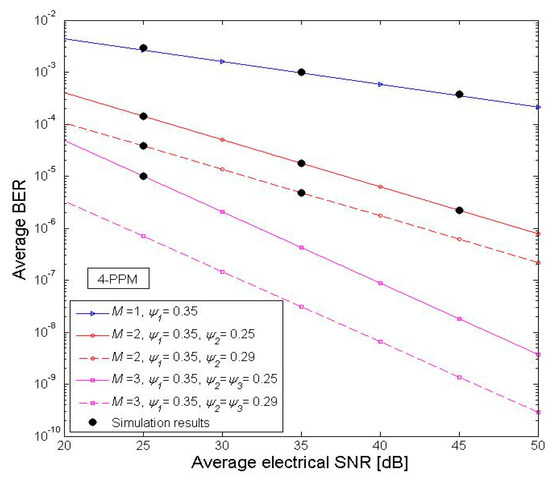

As is the case of terrestrial FSO in [2,46] results in Figure 3 are now obtained for the examined TOW with 4-PPM system by using the corresponding (26) and (27), (30), and (31) expressions. Figure 3 illustrates the corresponding to Figure 2 ABER evolution, but under the assumption that TOW employs 4-PPM modulation format instead of OOK. Τhe ABER performance comparison between results of Figure 2 and Figure 3 illustrates that decreased corresponding ABER values are obtained by using 4-PPM instead of OOΚ. Thus, it is proved that PPM modulation format can be used as an effective solution to address more drastically than OOK the ABER performance degradation of TOW links due to the joint impact of skin-induced attenuation and ΝΖΒ pointing errors.

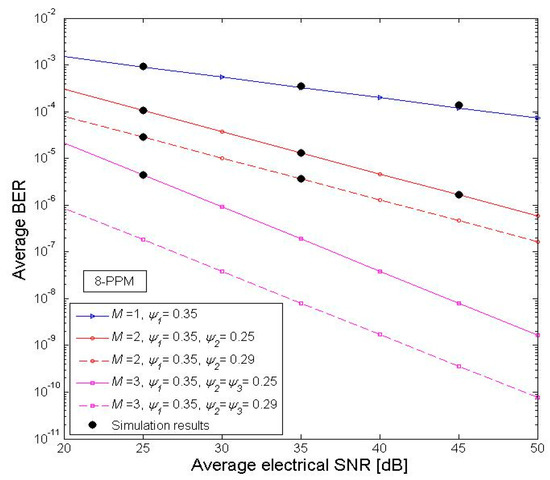

As is the case of terrestrial FSO in [2,46] results in Figure 4 are now obtained for the examined TOW with 8-PPM system by using the corresponding (26) and (27), (30) and (31) expressions. Figure 4 illustrates, in turn, the corresponding to Figure 3 ABER evolution, but assuming that TOW system employs 8-PPM modulation format instead of 4-PPM. It is highlighted that TOW system outperforms when IM/DD with PPM scheme based on greater number of time slots is employed. Although greater time slots PPM ensures more power efficiency than lower one, as well as OOK, this happens at the expense of both an increased bandwidth and a more complex system’s design. Indeed, when 4-PPM format is employed the laser is ‘on’ during a specific quarter of the 4-PPM bit interval (slot) and ‘off’ during the rest bit intervals (slots). Thus, the detection is a more complex procedure than that for OOK, while also the lower power consumption at the expense of the increased bandwidth requirement stems from the fact that a 4-PPM symbol consists of a pulse of constant power where information occupies one slot duration within four possible time slots with the rest of the slots being empty.

6. Conclusions

In this work, it has been investigated the joint impact of skin-induced attenuation along with NZB pointing errors, on the outage performance of TOW communication system with or without receivers diversity—i.e., SISO or SIMO TOW links—using IM/DD with either OOK or L-PPM formats and OC method at the receiver(s) side. Under these circumstances novel closed-form expressions for the ABER of the TOW system have been derived. Using extracted expressions, we presented proper numerical results, validated by simulations, which reveal that the combined use of receivers’ diversity along with L-PPM modulation formats can significantly improve the ABER performance of typical TOW links. In this context, greater ABER performance enhancements can be obtained by increasing both the number of apertures at the receiver along with the complexity of L-PPM modulation formats. Thus, the proposed analysis is a useful tool to outbalance the major factors that have a negative impact on TOW development and design more effective TOW systems of higher availability and ABER performance.
