The Influence of One-Electron Self-Interaction on d-Electrons

Abstract

We investigate four diatomic molecules containing transition metals using two variants of hybrid functionals. We compare global hybrid functionals that only partially counteract self-interaction to local hybrid functionals that are designed to be formally free from one-electron self-interaction. As d-orbitals are prone to be particularly strongly influenced by self-interaction errors, one may have expected that self-interaction-free local hybrid functionals lead to a qualitatively different Kohn–Sham density of states than global hybrid functionals. Yet, we find that both types of hybrids lead to a very similar density of states. For both global and local hybrids alike, the intrinsic amount of exact exchange plays the dominant role in counteracting electronic self-interaction, whereas being formally free from one-electron self-interaction seems to be of lesser importance.

1. Introduction

Ground-state Kohn–Sham density-functional theory (DFT) [1,2,3] grants access to the electronic structure of condensed matter in an efficient manner. While DFT is exact in principle, practical calculations require an approximation for the exchange-correlation energy $E_{\mathrm{xc}}\left[n\right]$ as a functional of the electron ground-state density $n\left(\mathbf{r}\right)$. In the last decades, numerous such approximations were developed [4], leading to a high accuracy of DFT methods for many physical applications, thus contributing to make the story of DFT one of success.

Yet, certain systems pose severe difficulties for a satisfying description with DFT due to their chemical composition. For instance, the characterization of systems containing transition metals makes high demands on the density-functional approximation that is put to task [5]. The problems of describing systems with localized d- [6,7] or f-electrons [8] are often attributed to electronic self-interaction (SI) [9,10]: Most practical density functionals, and in particular the semilocal ones, include an erroneous interaction of an electron with itself. This leads to a significant decrease in accuracy for the description of a wide range of physical processes and observables (e.g., References [11,12] and references therein). The self-interaction in particular affects systems in which some orbitals are localized and others are not [13,14], which typically is the case for systems containing d-electrons [6].

Curing the SI problem is highly non-trivial for at least two conceptual reasons. The first is that (semi)local exchange functionals—which are responsible for the largest part of the self-interaction error—implicitly model part of what in wavefunction theory is called static correlation [11,15,16]. Straightforwardly eliminating SI can therefore have detrimental effects [17]. The second is that it is straightforward to identify SI in a one-electron system—the sum of the Hartree- and the exchange-correlation energy must vanish, and if it does not, then SI is present—yet, it is much less clear what the corresponding condition is for a many-electron system.

The most often used definition [9,10] of electronic SI is based on the concept of identifying electrons with spin-orbital densities $n_{i\sigma }\left(\mathbf{r}\right)={\left|{\phi }_{i\sigma }\left(\mathbf{r}\right)\right|}^2$, where i counts the single-particle states and σ the electron spin. In this definition, a specific density-functional approximation $E_{\mathrm{xc}}^{\mathrm{DFA}}\left[n\right]$ is regarded as free from SI if the condition

$$\sum _{\sigma =\uparrow ,\downarrow }\sum _{i=1}^{N_{\sigma }}\left\{E_{\mathrm{H}}\left[n_{i\sigma }\right]+E_{\mathrm{xc}}^{\mathrm{approx}}[n_{i\sigma },0]\right\}=0$$

(1)

is fulfilled [9,10]. Here, $E_{\mathrm{H}}\left[n_{i\sigma }\right]$ denotes the Hartree energy evaluated with the single spin-orbital density $n_{i\sigma }\left(\mathbf{r}\right)$.

Equation (1) has been introduced by Perdew and Zunger [9,10] for the definition of a SI correction (SIC). The basic idea of the Perdew–Zunger SIC is subtracting the SI error as quantified by Equation (1) from an explicit expression for the xc energy [10]. However, SIC schemes can also be defined in several other ways [12,18,19,20,21,22,23,24,25,26,27,28]. There is such a wide variety of SIC schemes because not only can the expression for $E_{\mathrm{xc}}$ be defined in other ways than done by Perdew and Zunger, but also within the Perdew–Zunger definition, different variants of SIC can be defined. This is due to the fact that Equation (1) explicitly uses the single particle orbitals and is not unitarily invariant. Thus, depending on how the mapping between the density and the orbitals is defined—i.e., depending on how the potential from which the orbitals are calculated is constructed—one and the same orbital-dependent expression for $E_{\mathrm{xc}}$ can correspond to different density functionals for $E_{\mathrm{xc}}$ [11]. The Perdew–Zunger SIC energy, can, for example, be used with orbital-specific potentials [10,29,30,31,32] or as a Kohn–Sham functional using the optimized effective potential (OEP) [33,34] and approximations to it [35,36,37,38,39,40,41,42]. Additionally, with respect to how to cope with the unitary variance of Equation (1), different concepts have been developed [29,41,43,44,45,46,47,48,49]. Recently, the use of complex-valued orbitals [48,49,50,51,52,53,54,55] and the use of the Fermi orbital [56,57,58] have been introduced as new concepts for the definition of improved SIC schemes.

As an alternative way of thinking about SI, it has been advocated to focus less on one-electron conditions as in Equation (1) and to instead think about SI directly for many-electron systems. Consequently, as a conceptually different approach, “many-electron SI” has been introduced [59,60] based on the straight-line criterion [61] of the total energy as a function of fractional electron numbers. Enforcing the straight-line condition indeed leads to an improved description of the electronic structure [62,63,64,65,66,67,68]. However, the condition cannot easily be formulated in “closed form” for use in density-functional construction. Therefore, Equation (1) continues to be of considerable importance in density-functional construction (we note that this is so, even though range-separated functionals [69,70,71,72,73], and in particular tuned ones [64,74], can yield eigenvalues that closely correspond to ionization potentials without making use of Equation (1). However, tuning comes at the price of violating size-consistency [75]).

Equation (1) is relevant not only for SIC schemes, but also for other approaches that aim at reducing SI (e.g., the use of exact (Fock) exchange). Whereas global hybrids [76,77,78] that use only a fraction of Fock exchange only partially eliminate one-electron SI, local hybrid functionals [79,80,81,82,83,84,85,86,87] can be constructed to obey Equation (1). Therefore, when one-electron SI is—as is usually done—defined via Equation (1), then local hybrids can be fully one-electron SI free. In local hybrids, nonlocal and semilocal functional components are mixed together in a spatially resolved and density-dependent fashion. Detection functions are typically used to reveal spatial regions where the density is dominated by single spin-orbital densities. This information is then used in the functional design in order to reduce or eliminate SI. As a consequence, local hybrids offer the advantage of being nominally free from electronic SI in the sense of Equation (1), while providing an xc energy expression that is invariant under unitary orbital transformations [88].

Yet, it was recently demonstrated [67] that this formal attribute of local hybrids does not necessarily result in a more accurate description of observables that are expected to be substantially influenced by electronic SI. Reference [67] focuses on the description of photoemission spectra of organic molecules by interpreting the set of occupied Kohn–Sham eigenvalues as a physical density of states (DOS) [13,14,89,90,91]. Somewhat surprisingly, it became clear that global hybrid functionals [76,77,78] and local hybrids in this respect lead to rather similar results, despite the fact that local hybrids are formally SI free and global hybrids are not.

The Kohn–Sham DOS can be used in order to characterize the structural, catalytic, and magnetic properties of solid state systems. In recent years, it has particularly often been relied on in studies of clusters [92,93,94,95,96,97,98,99,100,101,102,103,104]. Many of the potentially technologically relevant clusters contain elements with d-electrons. The influence of SI on the DOS is therefore of particular interest [5] with respect to the reliable representation of d-electrons. As the investigations in Reference [67] comprised only organic molecules and no systems with d-electrons, we here close this gap and study the Kohn–Sham DOS that results from local hybrids for molecules containing transition metals.

In order to allow for a calculation of the DOS within the Kohn–Sham scheme of DFT, we evaluate local hybrids with the OEP formalism (see References [11,105,106] and references therein). Furthermore, to refrain from uncertainties arising from, for example, basis sets and pseudopotentials [67], we present results obtained on accurate numerical grids using the all-electron program package DARSEC [86,107,108]. As a consequence, we are restricted to computations of molecules with two atomic centers. We find that for the transition metal-containing molecules investigated in this work, local and global hybrids exhibit great similarities for the description of the DOS. In particular, the investigated local hybrid functionals do not show a greater sensitivity to localized d-states despite the formal fulfillment of Equation (1). Thus, the main conclusion of Reference [67] is further confirmed in this work. While transition metal atoms in diatomic molecules differ from atoms in the solid-state limit of typical d-electron metals, we see the present study as an indicator for what one can qualitatively expect from local hybrids for d-electron metals.

This paper is structured as follows: In Section 2, we briefly discuss the differences in the construction of global in contrast to local hybrid functionals, with a special focus on the treatment of SI. Section 3 provides details on the computational aspects of this work, while we show and discuss our results in Section 4. Finally, in Section 5, we summarize this work with concluding remarks.

2. Counteracting Electronic Self-Interaction with Hybrid Functionals

The exact-exchange (EXX) integral, which is defined by

$$E_{\mathrm{x}}^{\mathrm{ex}}=-\frac{1}{2}\sum _{\begin{array}{c}i,j=1\\ \sigma =\uparrow ,\downarrow \end{array}}^{N_{\sigma }}\int \int \frac{{\phi }_{i\sigma }^{*}\left(\mathbf{r}\right){\phi }_{j\sigma }\left(\mathbf{r}\right){\phi }_{i\sigma }\left({\mathbf{r}}^{\prime }\right){\phi }_{j\sigma }^{*}\left({\mathbf{r}}^{\prime }\right)}{|\mathbf{r}-{\mathbf{r}}^{\prime }|}{\mathrm{d}}^{3}r{\mathrm{d}}^3{r}^{\prime },$$

(2)

provides an auspicious component for the construction of functional approximations, since EXX itself fulfills the requirement of Equation (1). In general, the xc energy can be expressed (ambiguously [85,109,110]) as $E_{\mathrm{xc}}=\int n\left(\mathbf{r}\right)e_{\mathbf{xc}}\left(\mathbf{r}\right){\mathrm{d}}^{3}r$, with $e_{\mathbf{xc}}\left(\mathbf{r}\right)$ denoting the xc energy density per particle. Here, we highlight two related, yet fundamentally different concepts of incorporating the EXX energy density per particle $e_{\mathbf{x}}^{\mathrm{ex}}\left(\mathbf{r}\right)$ into practical density-functional approximations.

Global hybrid functionals combine constant amounts of EXX with the corresponding parts of semilocal exchange and correlation. In this work, we focus on the PBEh hybrid functional [111,112], which employs an xc energy density per particle defined by

$$e_{\mathrm{xc}}^{\mathrm{PBEh}}(a,\mathbf{r})=a{e}_{\mathrm{x}}^{\mathrm{ex}}\left(\mathbf{r}\right)+(1-a)e_{\mathrm{x}}^{\mathrm{PBE}}\left(\mathbf{r}\right)+e_{\mathrm{c}}^{\mathrm{PBE}}\left(\mathbf{r}\right).$$

(3)

Here, $a\in [0,1]$ denotes the constant fraction of EXX, and $e_{\mathrm{x},\mathrm{c}}^{\mathrm{PBE}}\left(\mathbf{r}\right)$ represents the PBE exchange and correlation energy densities per particle [113,114]. It becomes evident from Equation (3) that the PBEh hybrid functional does not generally obey Equation (1), since PBE exchange and correlation are not free from SI and EXX is only partially included. Instead, one expects that SI is only effectively counteracted for large values of a (i.e., for large amounts of EXX included). This assumption is systematically confirmed by the results of Reference [63,67,115,116,117].

Local hybrid functionals, in contrast, substitute the constant hybrid parameter a by space- and density-dependent functions, resulting in a more flexible mixing of nonlocal EXX with semilocal functional components. In this work, we focus on the local hybrid functional presented in Reference [86], which is termed “ISO” functional in the following. It approximates the xc energy density by

$$e_{\mathrm{xc}}^{\mathrm{ISO}}(c,\mathbf{r})=\left(1-f_{\mathrm{x}}\left[n\right]\left(\mathbf{r}\right)\right)e_{\mathrm{x}}^{\mathrm{ex}}\left(\mathbf{r}\right)+f_{\mathrm{x}}\left[n\right]\left(\mathbf{r}\right)e_{\mathrm{x}}^{\mathrm{LSDA}}\left(\mathbf{r}\right)+f_{\mathrm{c}}\left[n\right]\left(\mathbf{r}\right)e_{\mathrm{c}}^{\mathrm{LSDA}}\left(\mathbf{r}\right).$$

(4)

Here, $e_{\mathrm{x}}^{\mathrm{LSDA}}\left(\mathbf{r}\right)$ and $e_{\mathrm{c}}^{\mathrm{LSDA}}\left(\mathbf{r}\right)$ denote the energy density of the local spin-density approximation (LSDA) [118,119,120] for exchange and correlation, respectively. The mixing functions are defined by

$$f_{\mathrm{x}}\left[n\right](c,\mathbf{r})=\frac{1-\frac{{\tau }_{\mathrm{W}}\left(\mathbf{r}\right)}{\tau \left(\mathbf{r}\right)}{\zeta }^2\left(\mathbf{r}\right)}{1+c{t}^2\left(\mathbf{r}\right)}$$

(5)

and

$$f_{\mathrm{c}}\left[n\right]\left(\mathbf{r}\right)=1-\frac{{\tau }_{\mathrm{W}}\left(\mathbf{r}\right)}{\tau \left(\mathbf{r}\right)}{\zeta }^2\left(\mathbf{r}\right).$$

(6)

The quantity ${\tau }_{\mathrm{W}}\left(\mathbf{r}\right)={\left|\nabla n\left(\mathbf{r}\right)\right|}^2/\left(8n\left(\mathbf{r}\right)\right)$ gives the von Weizsäcker and $\tau \left(\mathbf{r}\right)=\frac{1}{2}{\sum }_{\sigma }{\sum }_{i=1}^{N_{\sigma }}{\left|\nabla {\phi }_{i\sigma }\left(\mathbf{r}\right)\right|}^2$ the Kohn–Sham kinetic energy density. The function $t^2\left(\mathbf{r}\right)$ denotes the reduced density gradient [113]

$$t^2\left(\mathbf{r}\right)={\left(\frac{\pi }{3}\right)}^{1/3}\frac{a_0}{16{\mathsf{\Phi }}^2\left(\zeta \left(\mathbf{r}\right)\right)}\frac{{\left|\nabla n\left(\mathbf{r}\right)\right|}^2}{n^{7/3}\left(\mathbf{r}\right)},$$

(7)

with the Bohr radius $a_0$, $\mathsf{\Phi }\left(\zeta \left(\mathbf{r}\right)\right)=\frac{1}{2}\left({(1+\zeta )}^{2/3}+{(1-\zeta )}^{2/3}\right)$, and the spin polarization $\zeta \left(\mathbf{r}\right)=(n_{\uparrow }\left(\mathbf{r}\right)-n_{\downarrow }\left(\mathbf{r}\right))/(n_{\uparrow }\left(\mathbf{r}\right)+n_{\downarrow }\left(\mathbf{r}\right))$. The mixing function $f_{\mathrm{x}}(c,\mathbf{r})$ includes an a priori undetermined parameter c in the denominator, which regulates the intrinsic amount of EXX that is involved in the local hybrid. Increasing values of c reduce the function $f_{\mathrm{x}}(c,\mathbf{r})$, resulting in an increasing intrinsic amount of EXX. For more details on the construction and performance of the ISO local hybrid functional, see References [67,86,87,121].

Additionally, we investigate a modified form of the ISO local hybrid. Termed “ISOII”, it is also based on Equation (4), but uses mixing functions defined by

$$f_{\mathrm{x}}^{\mathrm{II}}(c^{*},\mathbf{r})=\frac{1-\frac{{\tau }_{\mathrm{W}}\left(\mathbf{r}\right)}{\tau \left(\mathbf{r}\right)}}{1+c^{*}{t}_{\mathrm{II}}^2\left(\mathbf{r}\right)}$$

(8)

and

$$f_{\mathrm{c}}^{\mathrm{II}}\left(\mathbf{r}\right)=1-\frac{{\tau }_{\mathrm{W}}\left(\mathbf{r}\right)}{\tau \left(\mathbf{r}\right)}$$

(9)

with $t_{\mathrm{II}}^2\left(\mathbf{r}\right)=t^2(\zeta \left(\mathbf{r}\right)=1,\mathbf{r})={\left(\frac{\pi }{3}\right)}^{1/3}\frac{a_0{2}^{\frac{2}{3}}}{16}\frac{{\left|\nabla n\left(\mathbf{r}\right)\right|}^2}{n^{7/3}\left(\mathbf{r}\right)}$. These mixing functions follow directly from Equations (5) and (6) by setting $\zeta \left(\mathbf{r}\right)=1\forall \mathbf{r}$. Additionally, here an a priori undetermined parameter $c^{*}$ appears. It regulates the amount of EXX in analogy to the ISO functional.

Importantly, both ISO and ISOII obey Equation (1) due to their construction: When the density consists of only a single spin orbital one finds [88,122]

$${\tau }_{\mathrm{W}}\left(\mathbf{r}\right)\stackrel{n\left(\mathbf{r}\right)\approx |{\phi }_{i\sigma }{\left(\mathbf{r}\right)|}^2}{\to }\tau \left(\mathbf{r}\right).$$

(10)

Consequently, the mixing functions $f_{\mathrm{x}}^{\mathrm{II}}\left(\mathbf{r}\right)$ and $f_{\mathrm{c}}^{\mathrm{II}}\left(\mathbf{r}\right)$ vanish regardless of the value of the respective functional parameter. Since in the case of a single spin orbital the spin polarization reduces to $\zeta \left(\mathbf{r}\right)\stackrel{n\left(\mathbf{r}\right)\approx |{\phi }_{i\sigma }{\left(\mathbf{r}\right)|}^2}{\to }1$, $f_{\mathrm{x}}\left(\mathbf{r}\right)$ and $f_{\mathrm{c}}\left(\mathbf{r}\right)$ also vanish systematically. Thus, both ISO and ISOII can be regarded as free from SI in the sense of Equation (1) (see Reference [67] for details).

In the following, we investigate how this formal property of the functionals ISO and ISOII affects their resulting Kohn–Sham DOS for systems with d-electrons. For this, we explicitly calculate four diatomic molecules containing transition metals with the local hybrids for various values of their respective functional parameter and evaluate the resulting spectrum of occupied Kohn–Sham eigenvalues. We contrast the results of the local hybrids to the outcome of calculations using purely semilocal functionals, the PBEh global hybrid functional, and to pure EXX, which itself is $100\%$ free from electronic SI.

3. Computational Details

All results throughout this work were obtained with the program package DARSEC using a highly accurate real-space grid. In DARSEC, the Kohn–Sham equations are solved self-consistently with an explicit consideration of all electrons. A local, multiplicative potential for orbital-dependent functionals (i.e., EXX and the global and local hybrid functionals) was obtained by using the KLI approximation [123] to the OEP. All calculations were performed in a non-relativistic way.

We here investigate the four diatomic molecules ZnO, Cu₂, CuCl, and Pd₂. The former three molecules were evaluated based on their experimental ground-state bond lengths $R_{\mathrm{ZnO}}=3.2162\mathrm{bohr}$, $R_{\mathrm{CuCl}}=3.8762\mathrm{bohr}$, and $R_{{\mathrm{Cu}}_2}=4.1946\mathrm{bohr}$ (see Reference [124]). The bond length of Pd₂ was determined as $R_{{\mathrm{Pd}}_2}=4.9063\mathrm{bohr}$ based on a geometry optimization using the LSDA, since no experimental value is available.

All molecules were evaluated in the ${}^1\Sigma$ state with no unpaired electrons, and consequently, a spin polarization of $\zeta \left(\mathbf{r}\right)=0$. In this context, a fundamental difference between ISO and ISOII becomes evident: for such systems, the detection function ${\tau }_{\mathbf{W}}\left(\mathbf{r}\right)/\tau \left(\mathbf{r}\right)$ effectively only contributes to the mixing functions in the case of the ISOII functional, since for ISO it is multiplied by zero. Yet, the argument that formally both local hybrids are free from SI still holds (see Reference [67] for more detailed arguments).

When plotting the Kohn–Sham DOS, we broaden the Kohn–Sham eigenvalue spectrum by convolution with Gaussians using a standard deviation of 0.08 eV. Furthermore, in order to allow for a better comparison of the different spectra, the eigenvalue spectra were aligned to match ${\epsilon }_{\mathrm{ho}}=0$, where ${\epsilon }_{\mathrm{ho}}$ denotes the highest occupied (ho) Kohn–Sham eigenvalue. We present and discuss the Kohn–Sham DOS of the four diatomic molecules obtained with PBEh, ISO, ISOII, and EXX in the next section.

4. Results and Discussion

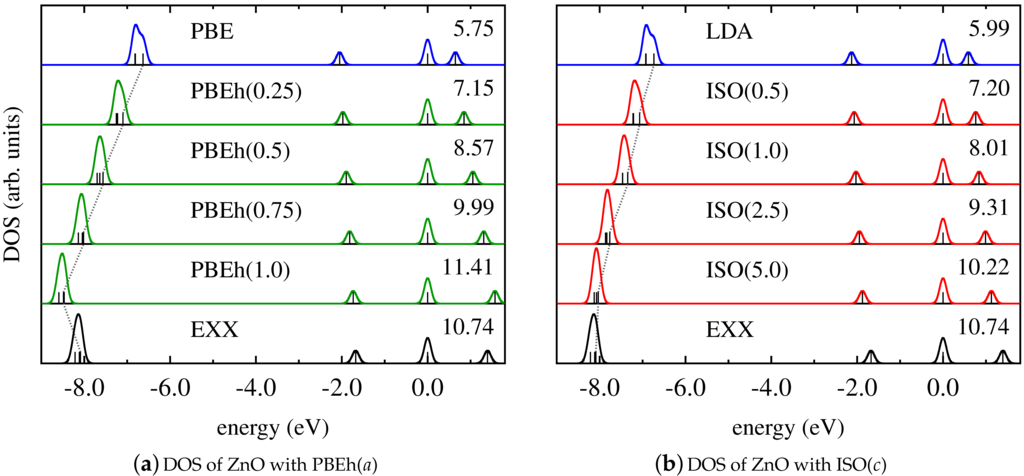

We begin our discussion by examining the Kohn–Sham DOS of ZnO as presented in Figure 1a. For this system, the group of eigenvalues that can be found around $\approx 7\mathrm{eV}$ below ${\epsilon }_{\mathrm{ho}}$ if evaluated with pure PBE can be identified as d-electrons originating from the Zn atom. When comparing the DOS of PBE to the one of pure EXX, it becomes evident that the position of these eigenvalues is significantly influenced by SI, as their positions are moved by $\approx 1\mathrm{eV}$ towards lower energies. In contrast, the eigenstate directly below the ho Kohn–Sham state remains nearly constant in its position relative to the ho state when going from PBE to EXX.

The DOS obtained with PBEh for various values of the parameter a (as shown in Figure 1a) reveals how the global hybrid functional copes with the electronic SI: the positions of the eigenvalues that are affected by SI are systematically shifted towards lower energies with increasing values of a. This behavior can be understood from the consideration that PBEh in general only partially counteracts SI, and the deviation from fulfilling Equation (1) can be reduced by increasing the value of a (see Reference [67] for a more detailed argument). Furthermore, the observed behavior is consistent with the fact that PBE and EXX can be considered as limiting cases of PBEh with $a=0$ and $a=1$, respectively (note that PBEh with $a=1$ does not exactly correspond to pure EXX due to the semilocal correlation term in Equation (3)).

In contrast, the local hybrid functional ISO formally obeys Equation (1) for any value of the parameter c, as argued in Section 2. Yet, this feature does not directly translate into an improved DOS. Instead, as shown in Figure 1b, the DOS of the ISO functional for various values of c behaves similar to the one of PBEh: with increasing values of c, the group of eigenvalues that is most affected by SI moves from the position given by the LSDA to the one of EXX. These functionals provide the limiting cases for ISO in the case of spin-unpolarized systems with $c=0$ and $c\to \infty$, respectively, as can be seen from Equations (4)–(6) [86]. In any case, the formal freedom from SI for ISO does not necessarily result in a DOS that is comparable to EXX. In fact, the intrinsic amount of EXX that is involved in the local hybrid plays the dominant role in determining the Kohn–Sham DOS.

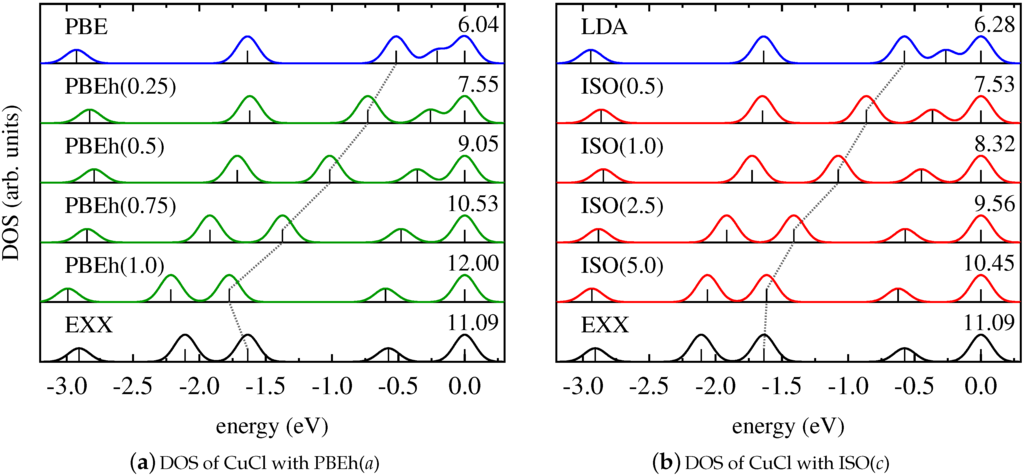

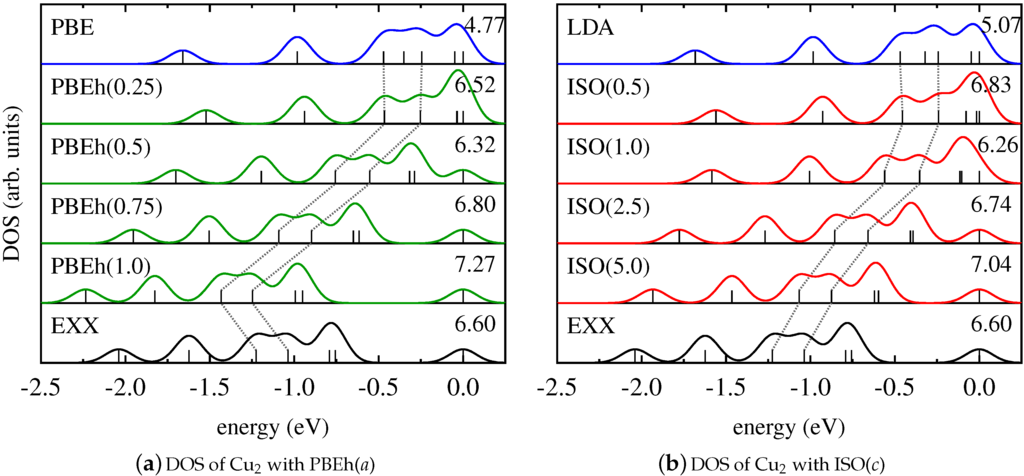

This finding is further supported by the results for the Kohn–Sham DOS of CuCl and Cu₂, as shown in Figure 2 and Figure 3. It becomes evident that both PBEh and ISO with varying values of their parameters gradually change the energetic position of Kohn–Sham states that are affected by SI between the limiting cases of the semilocal PBE/LSDA and nonlocal, SI-free EXX. Interestingly, for some states—such as, for instance, the lowest state shown for Cu₂—inclusion of small parts of EXX results in an upshift on the energy scale, while larger amounts of EXX reverse the direction of the shift. However, the local hybrid functional does not exhibit a special sensitivity to states affected by SI, as can be seen be comparing the DOS obtained with PBEh($a=0.25$) and ISO($c=0.5$). These functionals can be regarded as comparable in the sense that both use the parametrization that was determined as ideal for the description of thermochemical properties such as binding energies [86,111]. Yet, despite the fact that ISO in contrast to PBEh is formally free from SI, the spectra of PBEh($a=0.25$) and ISO($c=0.5$) are rather similar for the systems investigated here.

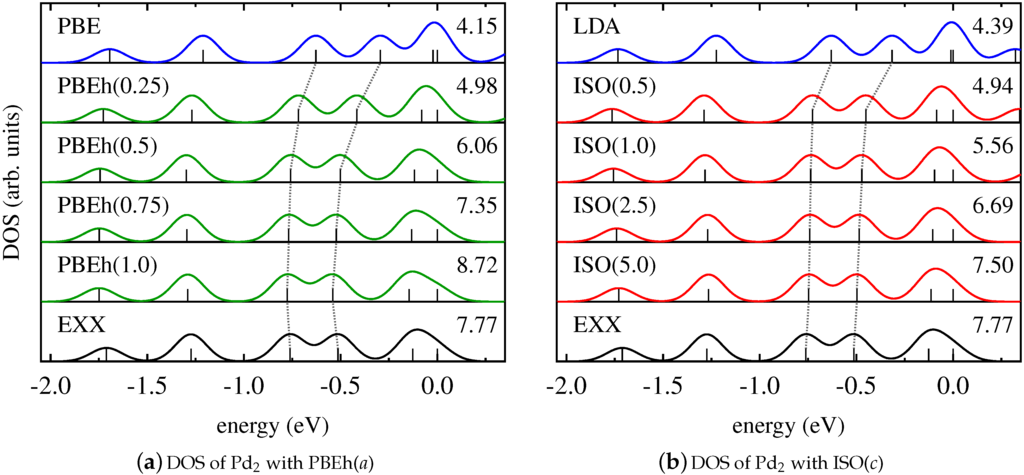

For Pd₂, a different scenario occurs. Figure 4 demonstrates that the DOS changes insignificantly when using EXX instead of semilocal functionals. This indicates that all states are affected by SI to the same extent [13,115]. In this case, counteracting SI by using a global hybrid functional with increasing amounts of EXX does not change the relative energetic positions of the Kohn–Sham states, as can be seen from Figure 4a. Similarly, the results obtained with ISO in Figure 4b exhibit a DOS that is nearly independent of the value of the functional parameter. Consequently, also for systems whose electronic structure is less influenced by SI, the local and global hybrid perform very similarly.

We note that both the DOS of the homonuclear dimer Cu₂ and the DOS of the heteronuclear dimer CuCl are greatly affected by SI. The relative position of the Kohn–Sham eigenvalues of the homonuclear diatomic molecule Pd₂, on the other hand, is hardly influenced by SI. We conclude from this finding that it is difficult to predict trends in the DOS based on general arguments about formally being free from SI. For this reason, the results for the Pd₂ dimer also cannot be generalized to bulk Pd.

As discussed in Section 3, the detection function ${\tau }_{\mathbf{W}}\left(\mathbf{r}\right)/\tau \left(\mathbf{r}\right)$ is canceled in the mixing functions of ISO if $\zeta =0$, as it is the case for the four molecules considered in this work. Thus, the detection function effectively does not contribute in the mixing process. Since this function (according to Equation (10)) is crucial for the local hybrid to be free from SI, one might argue that the similar performance of PBEh and ISO is a consequence of the appearance of the spin polarization in Equations (5) and (6). In order to contradict this conclusion, and to emphasize that the similarity between global and local hybrids is a fundamental feature rather than a specific result observed for one particular functional, we evaluate the Kohn–Sham DOS of the four molecules obtained with the modified local hybrid ISOII.

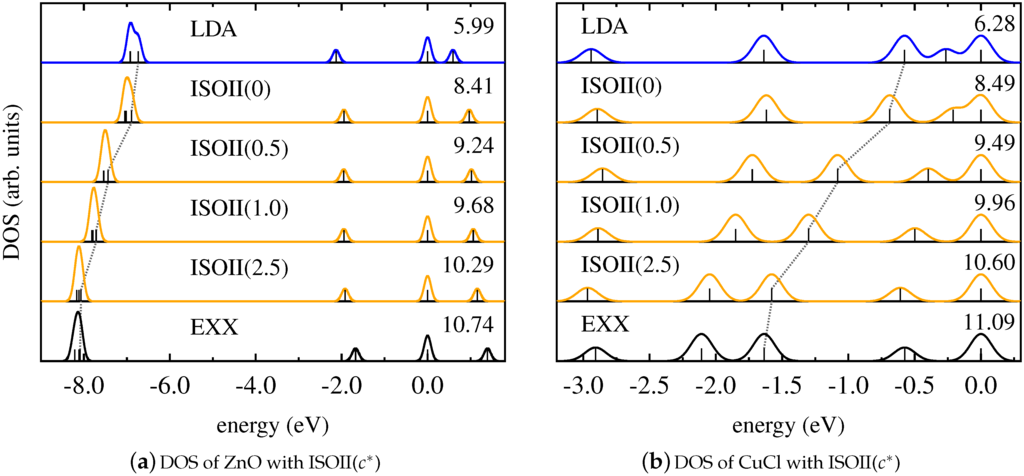

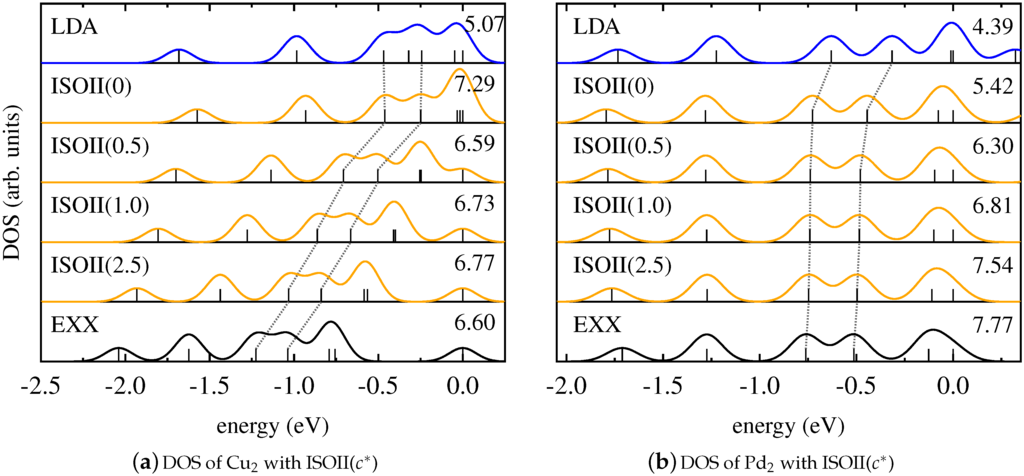

The corresponding results are shown in Figure 5 for ZnO and CuCl, and in Figure 6 for Cu₂ and Pd₂. These graphs demonstrate that ISOII, even though it explicitly uses the detection function ${\tau }_{\mathbf{W}}\left(\mathbf{r}\right)/\tau \left(\mathbf{r}\right)$ also for spin-unpolarized systems, provides a Kohn–Sham DOS that is similar to the results of PBEh and ISO. For ZnO, CuCl, and Cu₂, the energetic positions of the states affected by SI change gradually from the result of the LSDA to the one of pure EXX with increasing values of the functional parameter $c^{*}$, and good agreement with SI-free calculations is only achieved for large values of $c^{*}$. In the case of Pd₂, again, changing the parametrization of ISOII has virtually no effect on the relative Kohn–Sham eigenvalue spectrum. In general, also for ISOII, the intrinsic amount of EXX appears to be the decisive factor for the outcome of the Kohn–Sham DOS.

5. Conclusions

In this article, we investigated diatomic molecules containing transition metals under the aspect of electronic SI. Based on the Kohn–Sham eigenvalue spectrum as an indicator for the influence of SI, we compared local hybrid functionals (which are designed to be free from SI in the sense of Equation (1)) to global hybrids (which only partially counteract SI). We found that both types of hybrid functionals show striking similarities in their Kohn–Sham DOS. More specifically, the intrinsic amount of EXX included in the hybrid construction appears as the important criterion, independent of the formal reduction of SI via an iso-orbital detection function. Good agreement with the result of EXX calculations was only obtained for hybrid functionals with large EXX admixture. Thus, correcting SI via detection functions such as ${\tau }_{\mathbf{W}}\left(\mathbf{r}\right)/\tau \left(\mathbf{r}\right)$ does not generally result in a Kohn–Sham DOS comparable to pure EXX.

The observed behavior of the DOS with variation of the functional parameter marks another manifestation of the so-called parameter dilemma which, as discussed in the conclusion of Reference [86], affects local hybrids, global hybrids, range-separated hybrids, and SIC schemes alike: Properties determined by the total energy require a different parametrization of the functional than properties determined by the potential; e.g., the KS eigenvalues. Our investigation regarding transition metal dimers underlines the finding that an equally satisfying description of both domains remains challenging. Our finding that a functional’s property of being formally one-electron SI free is not necessarily important is in line with other recent reports [125] and extends the conclusions of Reference [67] to systems containing transition elements.
