DebtG: A Graph Model for Debt Relationship

Abstract

Debt is common in daily transactions, but it may bring great harm to individuals, enterprises, and society and even lead to a debt crisis. This paper proposes a weighted directed multi-arc graph model DebtG of debts among a large number of entities, including individuals, enterprises, banks, and governments, etc. Both vertices and arcs of DebtG have attributes. In further, it defines three basic debt structures: debt path, debt tree, and debt circuit, and it presents algorithms to detect them and basic methods to solve debt clearing problems using these structures. Because the data collection and computation need a third-party platform, this paper also presents the profit analysis of the platform. It carries out a case analysis using the real-life data of enterprises in Huangdao Zone. Finally, it points out four key problems that should be addressed in the future.

1. Introduction

Currently, debt is flooding people’s lives. Debt is the money borrowed by one entity from another, and it is used by many entities to make large purchases that they could not afford under normal circumstances [1]. In modern society, most of us often buy houses by borrowing from banks or buy some expensive items by installment payment and pay with a credit card. An enterprise often borrows for the needs of production and operation. A country will issue national debt in order to stimulate economic development.

Debt has always been a matter of great concern to governments, but it has been growing recently. Due to the impact of the COVID-19 epidemic in recent two years, the debt scale of countries all over the world has increased rapidly. According to the Institute of International Finance (IIF), the proportion of global government debt in global Gross Domestic Product (GDP) increased from 88% before the epidemic to 105% in 2020, and the total government debt may increase to USD 92 trillion this year. IIF also stated that the global debt increased to USD 281 trillion in 2020, and the ratio of global debt to GDP exceeded 355%, far exceeding the ratio during the international financial crisis in 2008. According to People’s Bank of China (PBC), in 2020, the loan balance of Chinese enterprises reached CNY 110.53 trillion, and the debt ratio exceeded 56%, which is 1.09 times China’s GDP in 2020.

Moderate debt has many advantages. For example, the government debt can make up the fiscal deficit, and the enterprise can use debt to increases access to new opportunities for expansion. However, debt increases the risk of insolvency, and debt forms a central part of the narrative of financial crises [2]. In further, the number of entities involved in debt is very large, and the relationship is very complex, so it is necessary to model the debt relationship.

It relies on a third-party platform to collect and process a large amount of debt information. As debt is one of the business secrets of enterprises, this platform must be highly credible and recognized by all entities. Meanwhile, the platform should be able to make profits when settling debts to maintain its operation. This platform may be the Ministry of Finance [3] or the subsidy center [4].

This paper constructs a graph model DebtG of a large number of debt relationships and points out the potential applications and key techniques of DebtG. The main contributions of the paper are as follows:

• It presents a graph model of debt relationship between entities including individuals, enterprises, governments, etc.;
• It defines three basic debt structures, namely debt path, debt tree, and debt circuit;
• It proposes two algorithms to detect the three debt structures and possible methods to solve the debt clearing problem based on these structures;
• It carries out a profit analysis of the third-party platform and presents a case analysis using real-life debt data.

The organizations of the rest of the paper are as follows. Section 2 introduces related works. Section 3 presents the DebtG model and its application, including the definitions of three debt structures and methods to detect and resolve them. Section 4 provides the profit analysis and case analysis. Section 5 concludes the paper and points out future works.

2. Related Works

Much of the literature focused on debt. L. Wang et al. [5] examined the relation between three dimensions of national culture and debt risk using a sample of 65 “Belt and Road” countries during the period from 2008 to 2017. Q. Ye et al. [6] analyzed the causes of local government debt in China by combing the development process of debt and relevant debt management policy measures, and then they put forward some suggestions on improving local government debt risk management mechanisms. C. Wang et al. [7] took five countries as examples to examine the relation between a firm’s short-term debt and its default probability.

Different from the above literature, this paper focuses on the model of debt relationship and explores the potential applications in the debt clearing problem. The model is based on a graph. As an important model to represent the complex relationships among entities, graphs are widely applied in many fields [8]. In economic and financial fields, the financial system can be modeled as a weighted directed graph to simulate and analyze the impact of financial regulations on systemic risk [9]. Q. Zhan et al. [10] combined knowledge graphs and machine learning to detect consumer finance fraud. A. Gogoglou et al. [11] formulated the credit card transactions as a bipartite graph between account holders and the merchants they shop at. Y. Ren et al. [12] utilized a bipartite graph to model the relationship between users and merchants and proposed an ensemble-based fraud detection method. S. Yang et al. [13] applied a temporal graph to model financial relationships between enterprises to analyze financial risk.

A graph is also used for modeling and theoretical research of debt clearing problems. V. Gazda [3] modeled the creditor–debtor relations as a weighted directed graph in order to deal with the firms’ financial insolvency as a result of their mutual debts. V. Gazda et al. [4] further demonstrated that the debt compensation is related to the optimization problem maximizing the circulation of the consecutive compensation in the digraph of debts. They formulated this optimization problem by linear programming methods and applied Klein’s cycle-canceling algorithm to solve it. C. Patcas et al. [14] also applied a weighted directed graph to model the debt relationship, but they described an evolutionary algorithm to solve the debt clearing problem based on the graph. L. Liang et al. [15] transferred all debts to the forward debt chain and backward debt chain and proposed an algorithm to simplify both debt chains.

The graph models used in the above references are all simple graphs; that is, there is at most one arc between two vertices, and they often aim to find or construct a cycle to solve the problem of mutual debt compensation or debt clearing. There are still some gaps between these ideal models and the actual situation:

• The entities involved in debt relationships have many attributes that affect debt clearing. For example, the due date of debt is more important than the amount of debt in determining the order of debt settlement. However, the current models only focus on the debt amount in order to clear the largest amount of debt;
• There is often more than one debt between a pair of entities, and these debts also have different attributes. An entity may prefer to settle earlier debts with higher discounts or vice versa. However, the current models only contain at most one debt between a pair of entities;
• It may be impossible to solve the debt clearing problem by constructing cycles with the help of the Ministry of Finance (see [3]) or subsidy center (see [4]). When the series of entities formed a debt path (see Section 3), refs. [3,4] added a third-party platform to the path to construct a cycle, and the platform paid the first debtor to clear the debts. However, the last creditor had no obligation to pay the platform because it did not owe the platform.

3. DebtG Model and Its Application

This section presents the formal definition of DebtG and its potential applications to deal with the debt problem.

3.1. Formal Definitions

In DebtG, the entities involved in debts are represented by vertices, and their debt relationships are represented by directed arcs. If entity A owes entity B, there is an arc from the corresponding vertex of A to that of B. Both vertices and arcs have attributes. The formal definition of DebtG is as follows.

Definition 1.

(DebtG) A DebtG is a weighted directed multi-arc graph $G=(V,E,P,W)$, where:

• $V=\left\{v_1,v_2,\cdots ,v_n\right\}$ is the set of vertices, and each vertex represents an entity (for example, enterprise, government, individual, bank, etc.). Each vertex has a unique ID;
• $E=\left\{e_1,e_2,\cdots ,e_m\right\}$ is the set of directed arcs, and each arc represents the corresponding entities have debt relationship. Specifically, $e=\langle v_i,v_j\rangle \in E$ denotes that the corresponding entity of  $v_i$ owes that of $v_j$. There may exist more than one arc between a pair of entities;
• $P=\left\{p_i|i=1,2,\cdots ,n\right\}$ is the attribute sets of vertices, and $p_i$ is the attribute set of $v_i$. The attribute sets of vertices contain the name, address, assets, and other information of corresponding entities;
• $W=\left\{w_i|i=1,2,\cdots ,m\right\}$ is the attribute sets of arcs, and $w_i$ is the attribute set of $e_i$. The attribute sets of arcs should contain the amount of debt, and it may also contain the debt arising/due date, priority, and other information of debt.

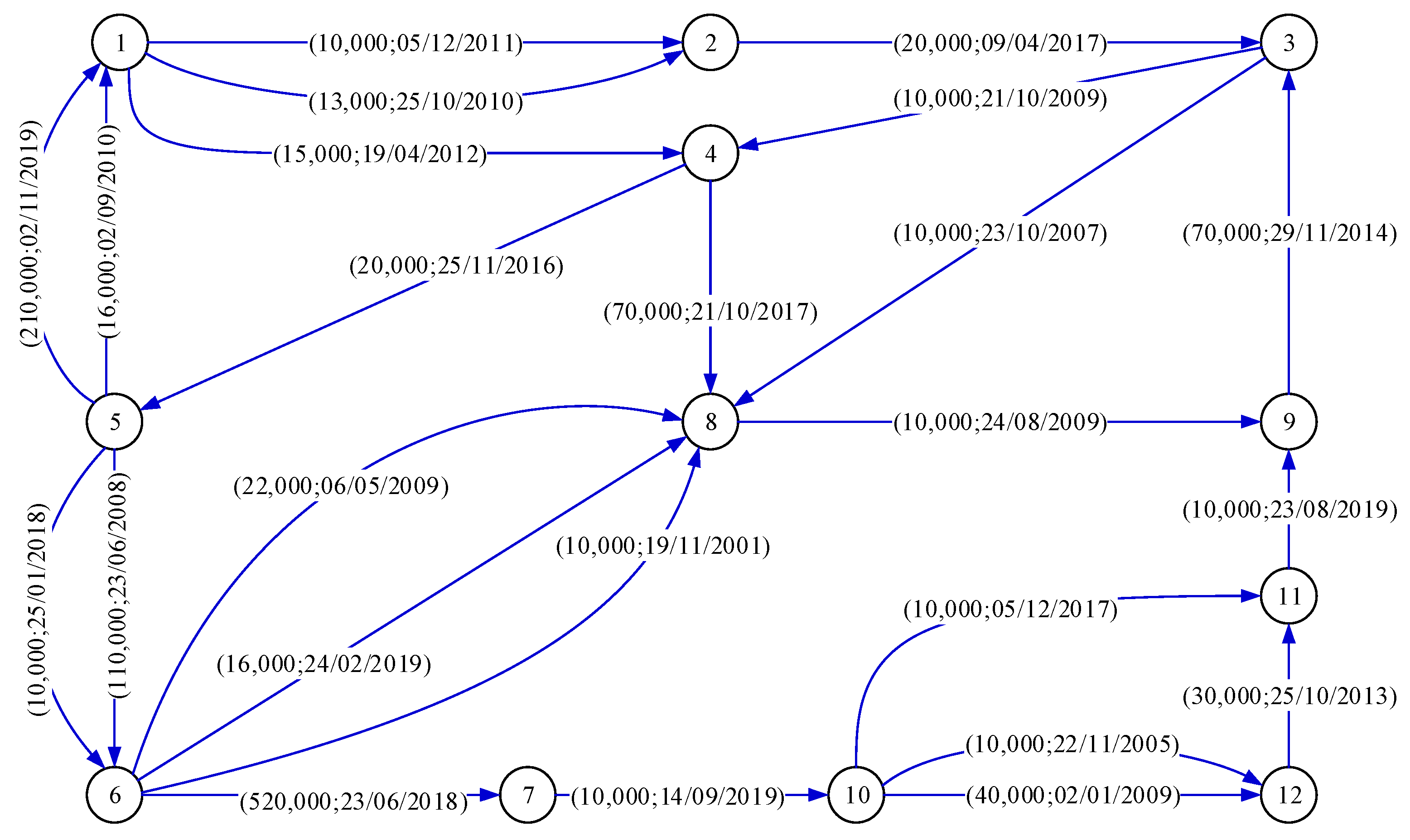

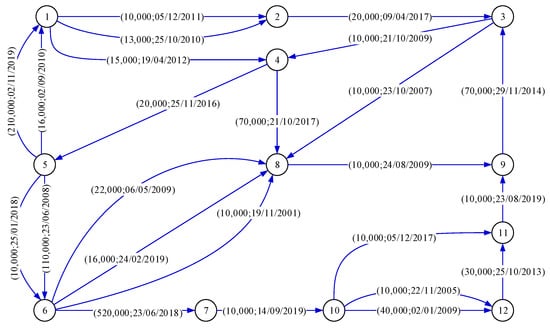

Figure 1 is a simple example of DebtG, which only exhibits a part of attributes of vertices and arcs due to the limited space of the figure. It has 12 vertices and 24 arcs. The arcs contain two attributes $(amount,date)$, where $amount$ is the amount of debt and $date$ is the debt arising/due date.

Definition 2.

(Degree) Given DebtG $G=(V,E,P,W)$, the degree of vertex $u\in V$ is:

• Out-degree  $d_u^{out}=\left|\left\{v|\langle u,v\rangle \in E\right\}\right|$  denotes  $u$  is the debtor of  $d_u^{out}$  entities;
• In-degree  $d_u^{in}=\left|\left\{v|\langle v,u\rangle \in E\right\}\right|$  denotes  $u$  is the creditor of  $d_u^{in}$  entities.

3.2. Debt Structures of DebtG

The main application of DebtG is to mine the relationship among a large number of entities to find the possible method to solve debt clearing problems. This paper mainly focuses on the following three debt structures.

Definition 3.

(debt path) A sequence of vertices $\left\{v_1,v_2,\cdots ,v_k\right\}$ is a debt path if it satisfies $\langle v_i,v_{i+1}\rangle \in E$ for $i=1,2,\cdots ,k-1$, and $v_i\ne v_j$ for $i,j=1,2,\cdots ,k$, $i\ne j$. The first vertex $v_1$ is called the path head, and the last vertex  $v_k$ is called the path end.

Definition 4.

(debt circuit) A debt path $\left\{v_1,v_2,\cdots ,v_k\right\}$ is a debt circuit if $v_1=v_k$. Given a debt circuit, the minimal amount of debt of all arcs is called the settle amount.

Definition 5.

(debt tree) A debt tree is composed of multiple debt paths with a common path head, and any sequence of vertices does not form a debt circuit. The common path head is called tree root.

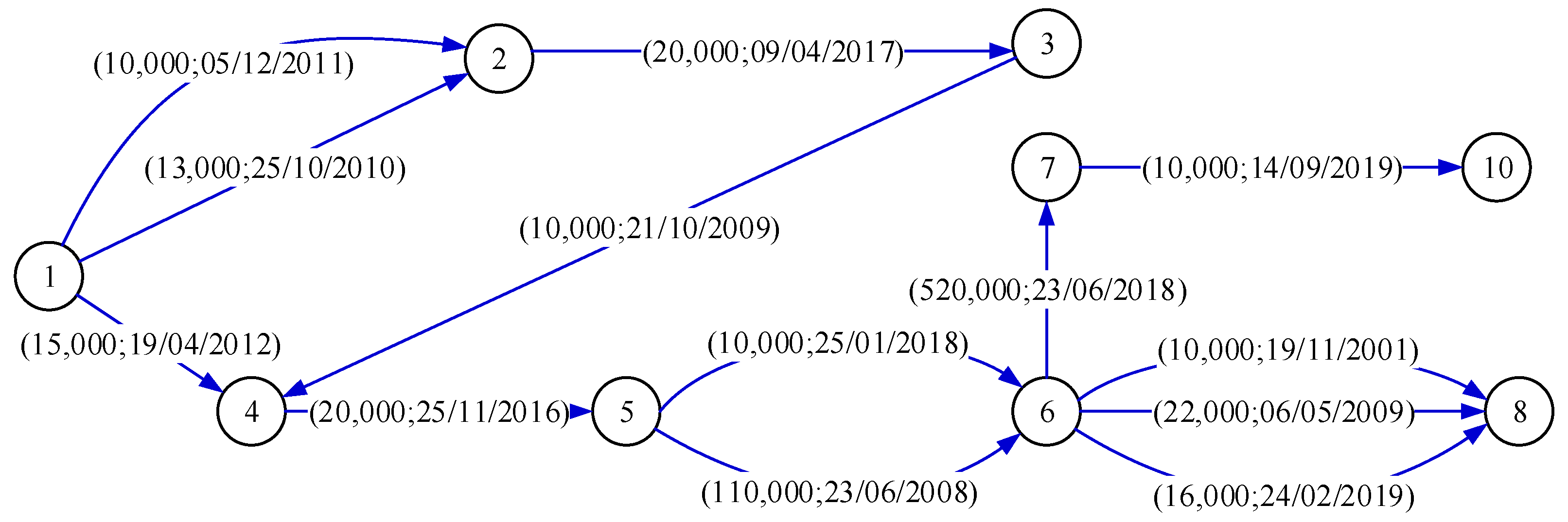

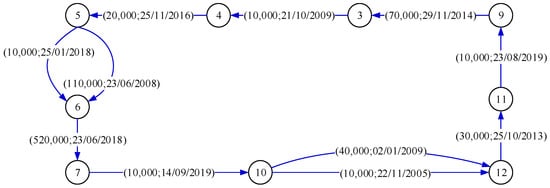

Figure 2, Figure 3 and Figure 4 present examples of a debt path, debt circuit, and debt tree, respectively. Note that the debt path and debt circuit are, respectively, the extensions of path and cycle in graph theory, where the “extension” means all arcs between two neighboring vertices should be included in the debt path and debt circuit. The debt tree is different from the directed tree in graph theory. In graph theory, a directed tree is a directed graph that would be connected and acyclic if the directions on the arcs were ignored. In DebtG, the debt tree is connected but cyclic if the directions on the arcs were ignored. For example, the debt tree in Figure 4 has a cycle {1,2,3,4}, so it is not a directed tree in graph theory.

3.3. Detection and Elimination of Debt Circuit

Debt circuit was studied in [3,4] as the problem of mutual debt compensation, but these references did not present the method of debt circuit detection. Additionally, refs. [3,4] tried to detect all debt circuits, which is very difficult for large-scale DebtG. According to experiments in Section 4.2, some debt circuits share at least one common arc. If this common arc is broken when the corresponding debt is cleared, these debt circuits are all broken. Moreover, the detection of all debt circuits is too expensive computationally, even for a small-scale graph [4]. Therefore, it is not necessary to detect all debt circuits, and a debt circuit should be eliminated immediately after it is detected.

Based on the above idea, Algorithm 1 presents the procedure to detect and eliminate debt circuits.

Algorithm 1 Detect and Eliminate Debt Circuits
Required: A DebtG $G=(V,E,P,W)$
Ensure: A set of debt circuits
1.	for each $u\in V$ do
2.	$d_u^{out}\leftarrow out degree of u$
3.	$d_u^{in}\leftarrow in degree of u$
4.	end for
5.	$ℒ\leftarrow \left\{u|d_u^{out}=0 or d_u^{in}=0\right\}$
6.	for each $u\in ℒ$ do
7.	if $\langle v,u\rangle \in E$ then
8.	$d_v^{out}\leftarrow d_v^{out}-1$
9.	else if $\langle u,v\rangle \in E$ then
10.	$d_v^{in}\leftarrow d_v^{in}-1$
11.	end if
12.	if $d_v^{out}=0$ or $d_v^{in}=0$ then
13.	$ℒ\leftarrow ℒ\cup \left\{v\right\}$
14.	end if
15.	delete $u$ and its associate arcs from $G$
16.	$ℒ\leftarrow ℒ-\left\{u\right\}$
17.	end for
18.	while $V\ne \varphi$ do
19.	Sort $V$ according to a certain criterion
20.	$u\leftarrow$ the first vertex in $V$
21.	detect a debt circuit $\mathcal{C}$    starting with $u$
22.	if $\mathcal{C}$ exists then
23.	$\omega \leftarrow \min \left\{amount attribute of arcs of \mathcal{C}\right\}$
24.	subtract $\omega$ from all $amount$ attributes of all arcs of $\mathcal{C}$
25.	else
26.	$V\leftarrow V-\left\{u\right\}$
27.	end if
28.	end while
29.	return all debt circuits

Algorithm 1 calculates the degrees of vertices in first (lines 1–4). Lines 5–17 iteratively remove the vertices whose out- or in-degree is 0 because these vertices will not form a debt circuit.

Line 19 sorts the vertices according to a certain criterion. The criterion may be the amount of debt, enterprise scale, debt arising/due date, or composition. This criterion is very important because it decides the order of eliminating debt circuits.

Line 20 fetches a vertex as the starting one to detect the debt circuit. Line 21 detects the debt circuit. Because a debt circuit is a cycle of a graph, and the cycle detection algorithms can be found in many places, such as [16], so the specific details are not given. Lines 22–25 eliminate the debt circuit whose idea is the same as [4]. Line 23 calculates the settle amount of this circuit, and line 24 eliminates the detected debt circuit. If it cannot detect debt circuits from vertex $u$, line 26 deletes $u$.

Taking Figure 3 as an example, its settle amount is 10,000. Therefore, the platform transfers 10,000 to vertex 5, and then vertex 5 pays 10,000 to vertex 6, and so on. Finally, vertex 4 pays 10,000 to vertex 5, and vertex 5 returns 10,000 to the platform. The above method clears the debt of 10,000 between two neighboring vertices, and the debts $\langle 7,10\rangle$, $\langle 3,4\rangle$ and $\langle 11,9\rangle$ are completely cleared. The debt circuit is broken.

The differences between Algorithm 1 and traditional cycle detection algorithms include: (1) Algorithm 1 removes the vertices whose out- or in-degree is 0 in first while existing algorithms do not; (2) Algorithm 1 clears a debt circuit once it is detected, while existing algorithms try to detect all cycles and choose the best one to clear.

3.4. Detection and Clearing of Debt Tree and Debt Path

Debt path can be regarded as a special case of debt tree, so debt trees and debt paths can be detected and cleared simultaneously. Because debt circuits were eliminated from DebtG, Algorithm 2 presents the procedure of detecting and clearing debt trees and debt paths for an acyclic graph. The basic idea is to start from one vertex $u$ and detect all the reachable vertices from $u$. We say that a vertex $u$ is reachable from a vertex $v$ if there exists a directed path from $v$ to $u$.

Algorithm 2 Detect and Clear Debt Trees and Debt Paths
Required: An acyclic DebtG $G=(V,E,P,W)$
Ensure: A set of debt trees and debt paths
1.	Sort $V$ according to a certain criterion
2.	$ℒ\leftarrow$ candidate tree roots and path heads
3.	for each $u\in ℒ$ do
4.	$enqueue(\mathcal{Q},u)$                                                                                 $⊳\mathcal{Q}$ is a queue
5.	$\mathcal{T}\leftarrow \left\{u\right\}$                             $⊳\mathcal{T}$ is the list of vertices of a debt tree or debt path
6.	while $\mathcal{Q}$ is not empty do
7.	$v\leftarrow dequeue(\mathcal{Q})$
8.	for each $\langle v,w\rangle \in E$ and $w\notin \mathcal{Q}$ do
9.	$enqueue(\mathcal{Q},w)$
10.	$\mathcal{T}\leftarrow \mathcal{T}\cup \left\{w\right\}$
11.	end for
12.	end while
13.	for each $v\in \mathcal{T}$ do
14.	$to{p}_v\leftarrow 0$
15.	end for
16.	$to{p}_u\leftarrow 1$
17.	$enqueue(\mathcal{Q},u)$
18.	while $\mathcal{Q}$ is not empty do
19.	$v\leftarrow dequeue(\mathcal{Q})$
20.	for each $\langle v,w\rangle \in E^d$ or $(v,w)\in E^u$ do
21.	if $to{p}_w<to{p}_v+1$ then
22.	$to{p}_w\leftarrow to{p}_v+1$
23.	end if
24.	end while
25.	resolve the debt tree or debt path according to $top$ values of all vertices
26.	end for

In Algorithm 2, line 1 sorts the vertices according to a certain criterion, where the sorting criterion may be the same as that of line 19 of Algorithm 1. Line 2 decides candidate tree roots and path heads. The entities who are willing and able to repay all or part of their debts are candidates, and the money they pay clear more debts by flowing through the debt tree or debt path. Lines 3–26 detect and clear the debt trees and debt paths from each candidate tree root and path head.

In this algorithm, $\mathcal{Q}$ is a queue, $dequeue(\mathcal{Q})$, and $enqueue(\mathcal{Q},w)$ are two basic operations of the queue. $dequeue(\mathcal{Q})$ fetches and removes the first element from $\mathcal{Q}$, and $enqueue(\mathcal{Q},w)$ adds $w$ to $\mathcal{Q}$. $\mathcal{T}$ records the list of vertices of a debt tree or debt path.

Lines 4–5 initialize $\mathcal{Q}$ and $\mathcal{T}$. Lines 6–12 compute the debt tree ($u$ is the tree root) or debt path ($u$ is the path head). When $\mathcal{Q}$ is not empty, line 7 fetches a vertex $v$ from $\mathcal{Q}$, and lines 8–11 append the neighboring vertices of $v$ to $\mathcal{Q}$ and $\mathcal{T}$.

For each vertex $v\in \mathcal{T}$, $to{p}_v$ is its topological sort order. Lines 13–15 initialize $to{p}_v$ to 0 for each $v\in \mathcal{T}$. Line 16 sets $to{p}_u$ ($u$ is the debt tree root or debt path head) to 1, and line 17 enqueues $u$ to $\mathcal{Q}$. Lines 18–24 calculate the topological orders of all vertices of $\mathcal{T}$. Line 25 clears the debt tree or debt path according to the topological orders. There are two ways to clear debt trees and debt paths:

• If the tree root or path head pays enough money, this money can flow along the debt tree or debt path according to the topological orders of vertices. Taking Figure 4 as an example, suppose vertex 1, respectively, pays 15,000 to its creditors, vertices 2 and 4. Next, vertex 2 pays 15,000 to vertex 3, and vertex 3 pays 10,000 to vertex 4, so vertex 4 has 25,000. Vertex 4 pays 20,000 to vertex 6 through vertex 5, and vertex 6, respectively, pays 10,000 to vertex 8 and vertex 10 (through vertex 7) finally. During the above procedure, if a vertex in the debt tree can afford additional money, the successive users can receive more money. Because the topological order of vertex 4 is larger than that of vertex 3, vertex 4 should pay vertex 5 after it receives from vertex 3;
• Each vertex of the debt tree or debt path contributes some money to the third-party platform to aggregate enough money, and the platform pays it to the tree root or path head. The subsequent solution is the same as the above procedure. Taking Figure 2 as an example, vertices 1, 2, 3, and 9, respectively, contribute 2000, vertices 4 and 8, respectively, contribute 1000. Finally, these vertices gather 10,000 and pay to the platform, and then the platform pays 10,000 to vertex 1. This method is similar to crowdfunding.

4. Profit and Case Analysis

4.1. Profit Analysis

As mentioned above, the collection and clearing of debts rely on the third-party platform. The platform needs to make some profit to maintain its operation. The profit model of the debt circuit is simple: the platform can charge the entity’s service fee of the debt circuit. Due to Algorithm 1 improving the efficiency of clearing debt circuits, the platform can detect and settle more debt circuits than existing methods.

This paper puts forward the concepts and settling methods of debt tree and debt path for the first time. These two new structures enhance the ability and scope of the platform to settle debt problems so that the platform can benefit from them. For debt tree or debt path, the platform can advance part of the money to tree root or path head to motivate more entities to participate in crowdfunding. Since the debt path is a special case of a debt tree, the profit model of the debt path is analyzed. Let $A$, $B$, and $C$, respectively, be the amount paid by path head, the amount advanced by platform, and the platform’s profit. Let $p$ be service fee rate. Therefore, each entity needs to take a part of the receipt as the service fee of the platform according to $p$. Suppose each vertex of a debt path transfers all of what it received. Given a debt path $\left\{u_1,u_2,\cdots ,u_n\right\}$, $u_1$ pays $A+B$ to $u_2$. Next, $u_2$ pays $(A+B)p$ to platform as the platform’s profit and pays $(A+B)(1-p)$ to $u_3$. Obviously, the amount of user $u_i(i=2,3,\cdots ,n)$ receives from the previous user is

$$Rc{v}_i=(A+B){(1-p)}^{i-2}.$$

(1)

Subsequently, $u_i$ needs to pay

$$Profi{t}_i=(A+B){(1-p)}^{i-2}p$$

(2)

to the platform as the platform’s profit, and needs to pay

$$Pa{y}_i=(A+B){(1-p)}^{i-1}$$

(3)

to $u_{i+1}$ if $i<n$. Therefore, the profit of the platform is

$$\begin{array}{c}P={\displaystyle {\displaystyle \sum }_{i=2}^n}(A+B){(1-p)}^{i-2}p-B\\ =(A+B)(1-{(1-p)}^{n-1})-B.\end{array}$$

(4)

According to Equation (4), the platform is profitable if and only if $P>0$. If $A$ is known prior, we need estimate $B$. $P>0$ implies

$$B<A{(1-p)}^{1-n}-A.$$

(5)

Define function $f$ as

$$f(n,p)=A{(1-p)}^{1-n}-A.$$

(6)

We have

$$\begin{array}{c}\frac{\partial f}{\partial p}=\frac{A(n-1)}{{(1-p)}^n}, \frac{\partial f}{\partial n}=-Alog(1-x){(1-x)}^{1-n},\\ \end{array}$$

(7)

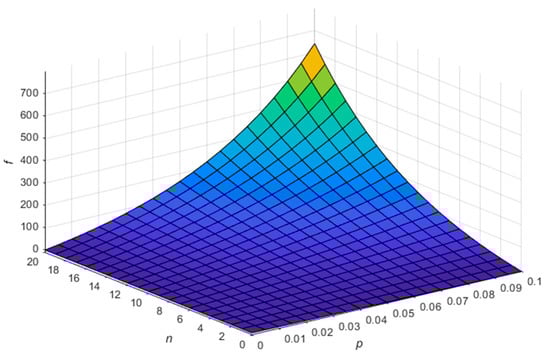

so $f(n,p)$ is monotonic increasing on $n$ and $p$. Figure 5 presents the figure of $f(n,p)$ when $A$ = 100. Using $f(n,p)$, the upper limit of $B$ can be calculated. If $B$ satisfies Equation (5) for a given $A$, the platform is profitable.

4.2. Case Analysis

We used the debt data collected in Huangdao Zone, Shandong Province, China, to carry out the case analysis. The data contained 7664 entities and 8704 debts; the total amount of debt is CNY 1.61 billion.

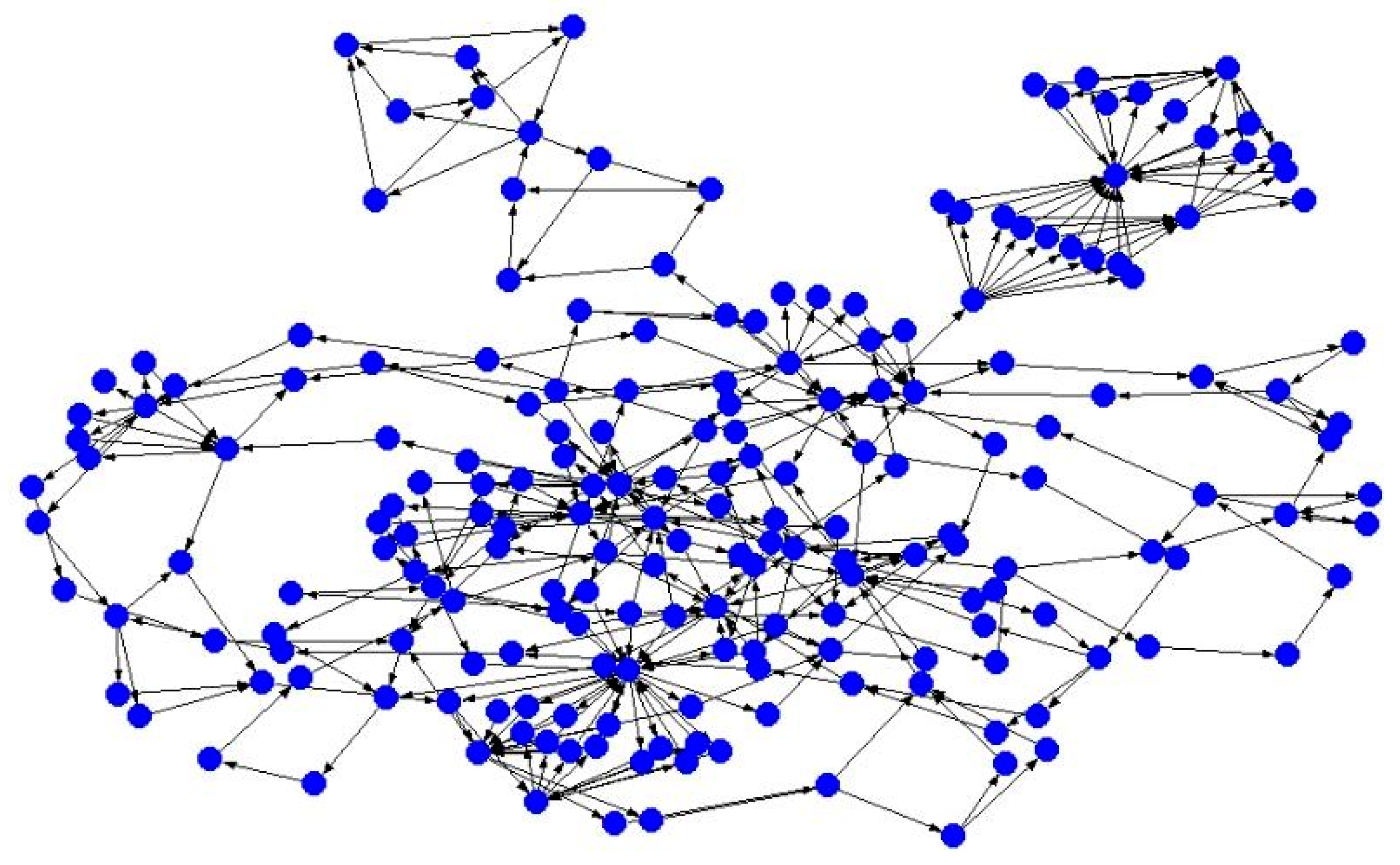

Using Algorithm 1 to detect the debt circuits, DebtG remains 201 vertices and 372 arcs after removing the vertices whose in- or out-degree is 0 iteratively (lines 5–17), as shown in Figure 6. Figure 7 shows the debt circuits detected by Algorithm 1. These debt circuits can clear CNY 13.35 million debts.

Table 1. Details of debt circuits in Figure 6.

Sequence of Vertices	Settle Amount
33,338–32,109–32,101–32,103–35,001–11,138–14,080–14,164–17,008–17,021–32,190–19,094–34,306–13,183	0.9
15,025–13,256–13,243–13,231	33.0
15,025–13,251–13,243–13,231	23.0
15,025–13,254–13,243–13,231	18.0
15,025–13,253–13,243–13,231	11.0
15,025–13,252–13,243–13,231	12.0
11,452–11,458–16,091–11,474	10.0
11,468–11,452–11,296–26,200	5.0
16,132–11,468–11,452–11,296	7.0
25,230–26,516–13,214–25,354–25,258–25,202	10.0
32,063–17,508–17,320–17,402	6.28
33,031–33,195–33,473–14,120–25,042–21,224–34,274–13,276–33,367–32,084–32,063–32,092	8.0
33,031–33,195–33,473–14,120–25,042–21,224–34,274–13,276	12.0
14,080–14,164–17,008–17,021–32,190–19,094–34,306–13,308–13,301–27,224–27,209–27,208–33,031–33,195–34,227–27,172–35,092–11,139	3.0
32,190–19,094–34,306–13,308–13,301–27,224–27,209–27,208–33,031–32,273	5.0
32,190–19,094–34,306–13,308–13,301–27,224–27,209–27,208–33,031–32,273–33,282–33,291–33,303–11,140	0.4
32,190–19,094–34,306–13,308–13,301–27,224–27,209–27,208–33,031–32,273–33,282–25,188–33,303–11,140	1.9
33,031–32,273–33,473–32,092	0.9
32,190–19,094–34,306–13,308–13,301–27,224–27,209–27,208–33,031–11,115	5.3
32,190–32,217–34,250–32,225	9.0
32,190–32,243–34,306–13,308–13,301–27,224–27,209–27,208–33,031–11,115	3.0
32,190–32,211–34,250–32,225	3.0
32,190–32,201–34,138–27,001–17,104–32,063–32,092–33,031–11,115	9.0
32,190–32,245–34,306–13,308–13,301–27,224–27,209–27,208–33,031–11,115	7.0
32,190–19,508–34,250–32,225	9.0
32,190–19,486–34,250–32,225	5.0
32,190–16,045–11,115	1.0
33,338–32,109–32,101–32,103–35,001–11,138–14,080–14,110–17,320–17,402–32,063–32,092–33,031–11,115–11,118	3.0
11,115–11,110–14,080–14,110–17,320–17,402–32,063–32,092–33,031	3.02
11,115–11,110–14,080–14,163–17,320–17,402–32,063–32,092–33,031	6.28
11,115–11,110–14,080–32,096–32,063–32,092–33,031	9.1
32,092–33,031–33,239–33,473	1.9
14,080–32,096–32,063–11,109	4.0
11,115–11,110–14,080–11,074	13.0
34,274–13,276–33,412–32,154–32,117–32,128–33,322–27,034–34,138–22,085	1.2
34,274–13,276–33,412–32,154–32,117–32,129–33,322–27,034–34,138–22,085	2.7
25,042–25,187–25,188–33,303–32,153–32,117–32,129–33,322–27,034–34,138–14,192	3.0
30,016–17,108–25,319–14,294	1.0
31,088–30,124–30,039–30,077	3.95
31,088–30,128–30,039–30,077	3.07

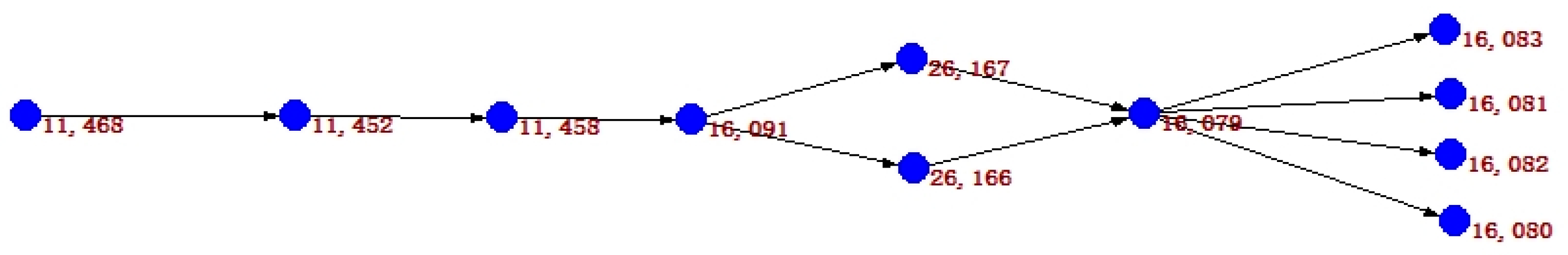

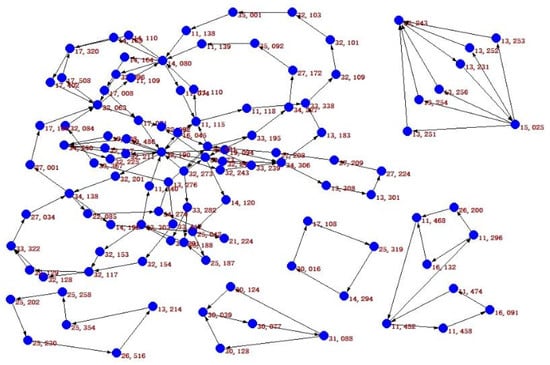

presents the details of these 40 debt circuits. In Table 1, the “sequence of vertices” is the IDs of entities involved in a debt circuit, and the “settle amount” is the settle amount of the corresponding debt circuit. For example, the second row means (15,025–13,256–13,243–13,231–15,025) is a debt circuit, and its settle amount is CNY 33,000. We can see that some debt circuits share common arcs. For example, the debt circuits of the second to sixth rows share a common arc <13,243;13,231>.

We tried to find all debt circuits in Figure 6 using a computer with Intel Core i5 CPU and 8GB memory, but the program cannot finish in 30 min, and it detects hundreds of debt circuits, many of which share common arcs. Due to the long runtime and many redundant results, Algorithm 1 eliminates a debt circuit immediately after it is detected.

After eliminating debt circuits from DebtG, it becomes acyclic. Given a vertex or a list of vertices as tree root or path head, Algorithm 2 detects the debt trees and debt paths. Starting from user 11,468, a debt tree shown in Figure 8 is detected.

5. Conclusions and Discussions

Many enterprises and countries are concerned about rapid and accurate debt clearing. However, each debtor is unable to understand the overall picture in the absence of comprehensive and accurate debt data.

This paper constructs a graph model DebtG of debt relationship between massive entities (individuals, enterprises, governments, etc.). Furthermore, it defines three possible debt structures: debt path, debt circuit, and debt tree, and it proposes algorithms and basic methods to detect and clear these debt structures.

Based on DebtG, the government can establish a department as the third-party platform mentioned in this paper, and then the platform can solve the debt clearing problem as much as possible using the algorithms proposed in this paper. On the one hand, the profit analysis proves that this platform can be profitable, which will be a potential emerging industry. On the other hand, the settlement of a large number of debts is conducive to the healthy, rapid, and sustainable development of the economy.

The proposed algorithms were applied by YouRong Information Technology Co., Ltd., located in Qingdao, China. Based on tens of thousands of debt information collected from more than 1000 enterprises, YouRong solved more than 2000 debts of them, with a total amount of debt of more than CNY 100 million and a profit of more than CNY 1 million.

However, there are still many problems that need to be addressed in the future:

• The sorting criterion of entities (also the vertices of DebtG). Each entity wants to clear its debts first, but the debt structures are conflicting, as shown in the case analysis, so priority should be decided to guide the detection of debt structures;
• Privacy-preserving strategies during debt data collection. Debt is entities’ privacy, so it is very important to provide extremely privacy-preserving strategies;
• Methods to ensure that money flow only in the debt structure. The money provided by the third-party platform and/or tree root or path head aims to clear a series of debts of a debt structure, so it is very important to ensure that this money only flows between neighboring entities (also the vertices of DebtG) in a given debt structure;
• Algorithms to deal with large-scale graphs. Obviously, the more debt information is collected, the larger the DebtG is constructed, and the more debt are cleared. The large-scale graph needs effective distributed algorithms running on distributed systems.
