# Reliable Estimation of Urban Link Travel Time Using Multi-Sensor Data Fusion

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Link Travel Time Extraction Algorithms Based on Single-Sensor Traffic Data

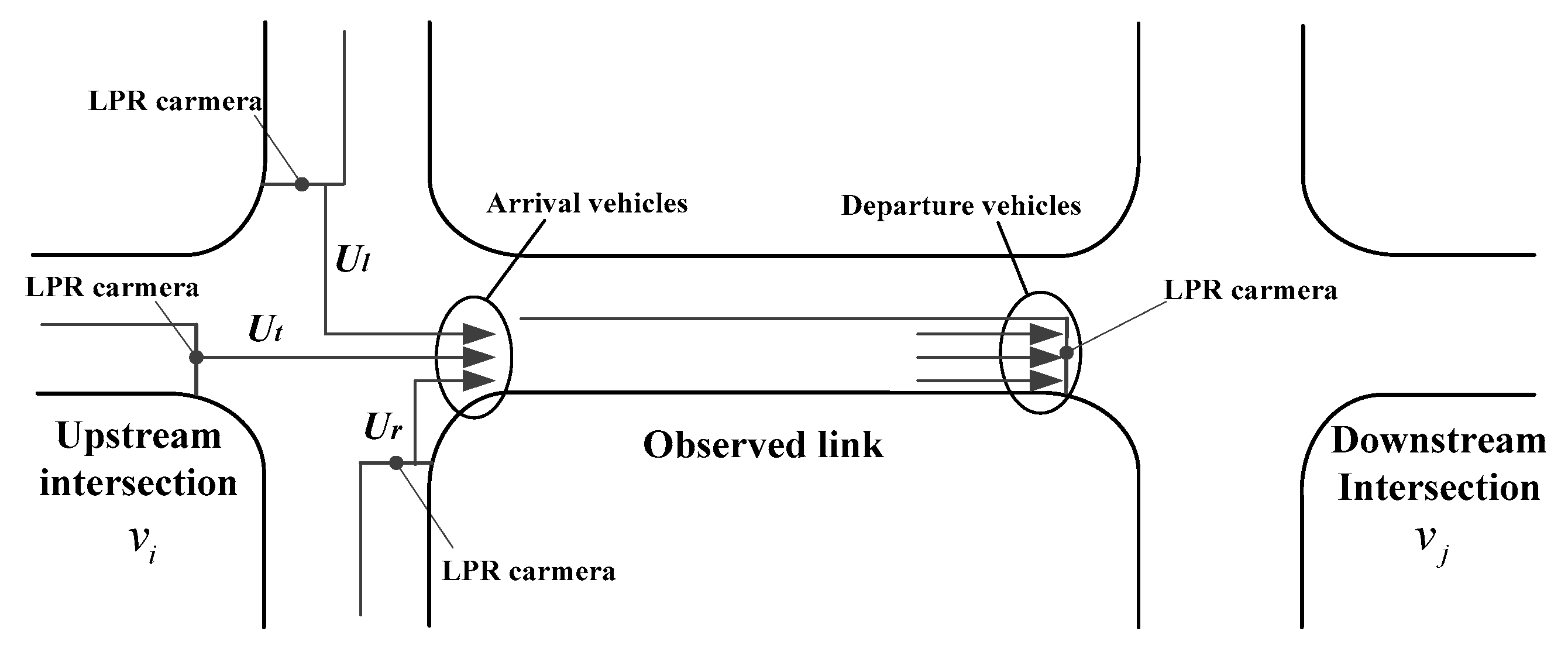

#### 2.1. Travel Time Extraction from License Plate Recognition Data

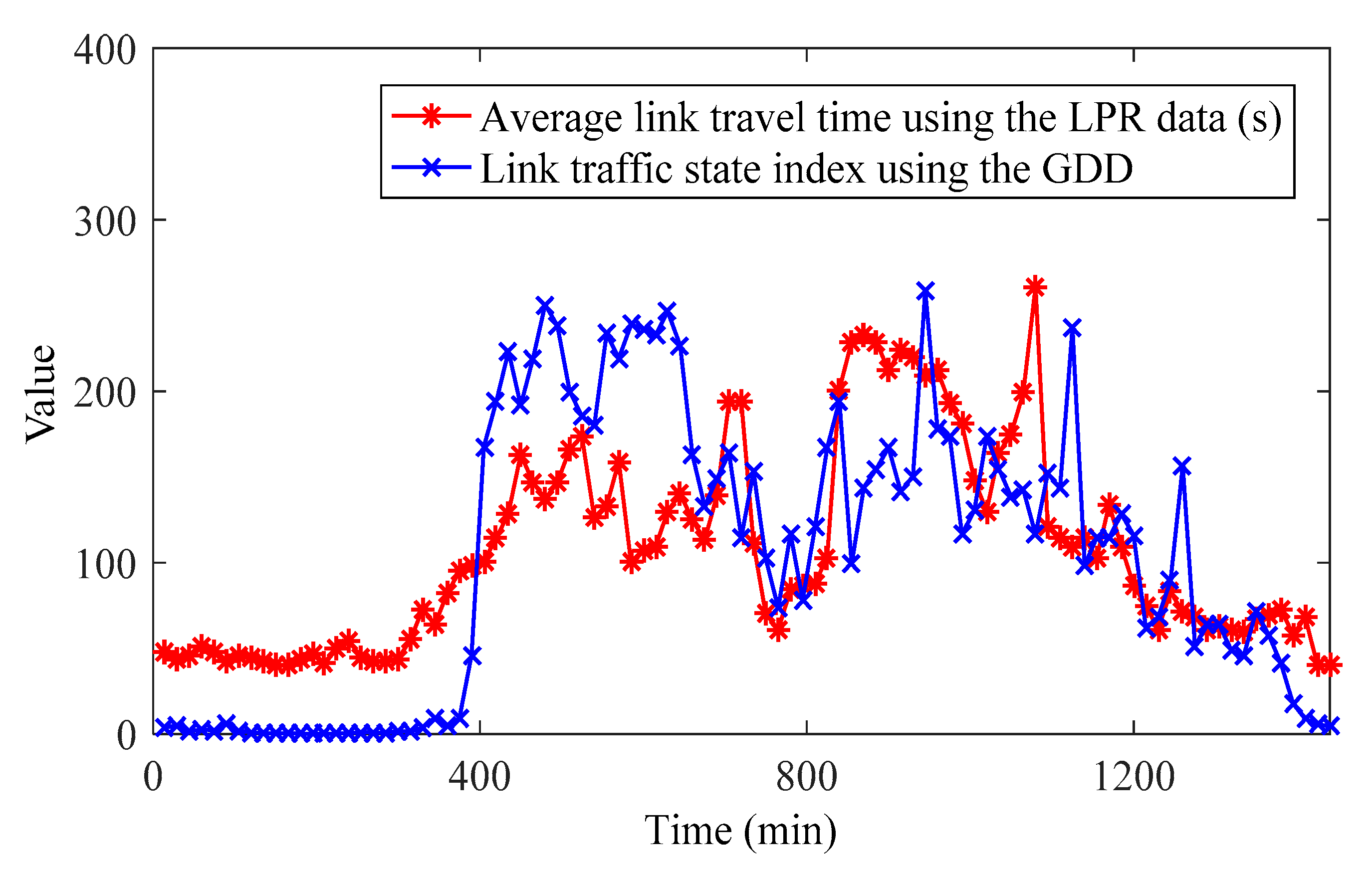

#### 2.2. Travel Time Extraction from Geomagnetic Detector Data

_{i}, v

_{j}) in free flow state; ${q}_{ij,GDD}^{t}$ is the actual traffic flow of observed link $({v}_{i},{v}_{j})$ obtained from the GDD at the timestep t; c

_{ij}is the capacity of observed link $({v}_{i},{v}_{j})$; $\alpha $ and $\beta $ are impedance parameters. The BPR function shows three important relationship characteristics: (i) the link travel time is close to the free-flow travel time when actual traffic flow is small enough; (ii) the link travel time varies slowly and is proportional to traffic flow when actual flow is far less than the link capacity; (iii) the link travel time increases rapidly with the change of traffic flow when actual flow approaches or exceeds capacity. Unlike the highway environment, there are signal controls in urban road networks. As traffic congestion is increasingly heavier, urban link travel time will not get continuous growth. This means that when traffic flow exceeds the capacity and road link reaches the certain congested level, the flow begins to decrease and the travel time increases to a stable high value. So, the BPR function model cannot be directly applied to urban roads, and the uniformly calibrated BPR model achieves poor estimation in the congested state. In view of this, the BPR model is calibrated by differentiating traffic conditions, so as to make better use of the GDD to estimate urban link travel time [29]. This paper considers the product of traffic flow and occupancy rate from the GDD as road traffic state index. The specific calculation formula is as follows:

#### 2.3. Travel Time Extraction from Floating Car Data

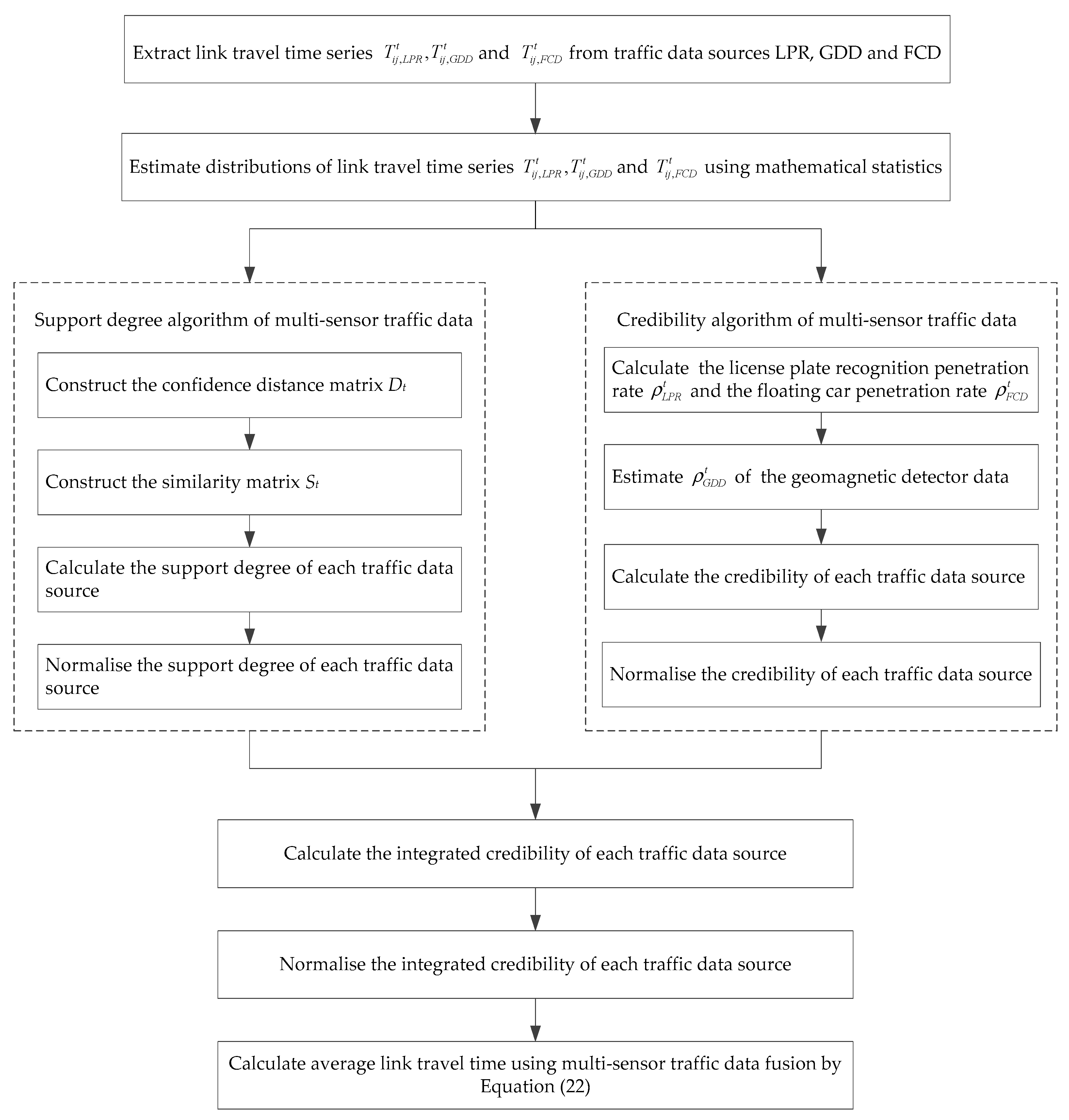

## 3. Urban Link Travel Time Estimation Method Using Multi-Sensor Data Fusion

#### 3.1. Support Degree Algorithm of Multi-Sensor Traffic Data

_{t}is obtained by:

#### 3.2. Credibility Algorithm of Multi-Sensor Traffic Data

#### 3.3. Reliable Fusion of Average Link Travel Time

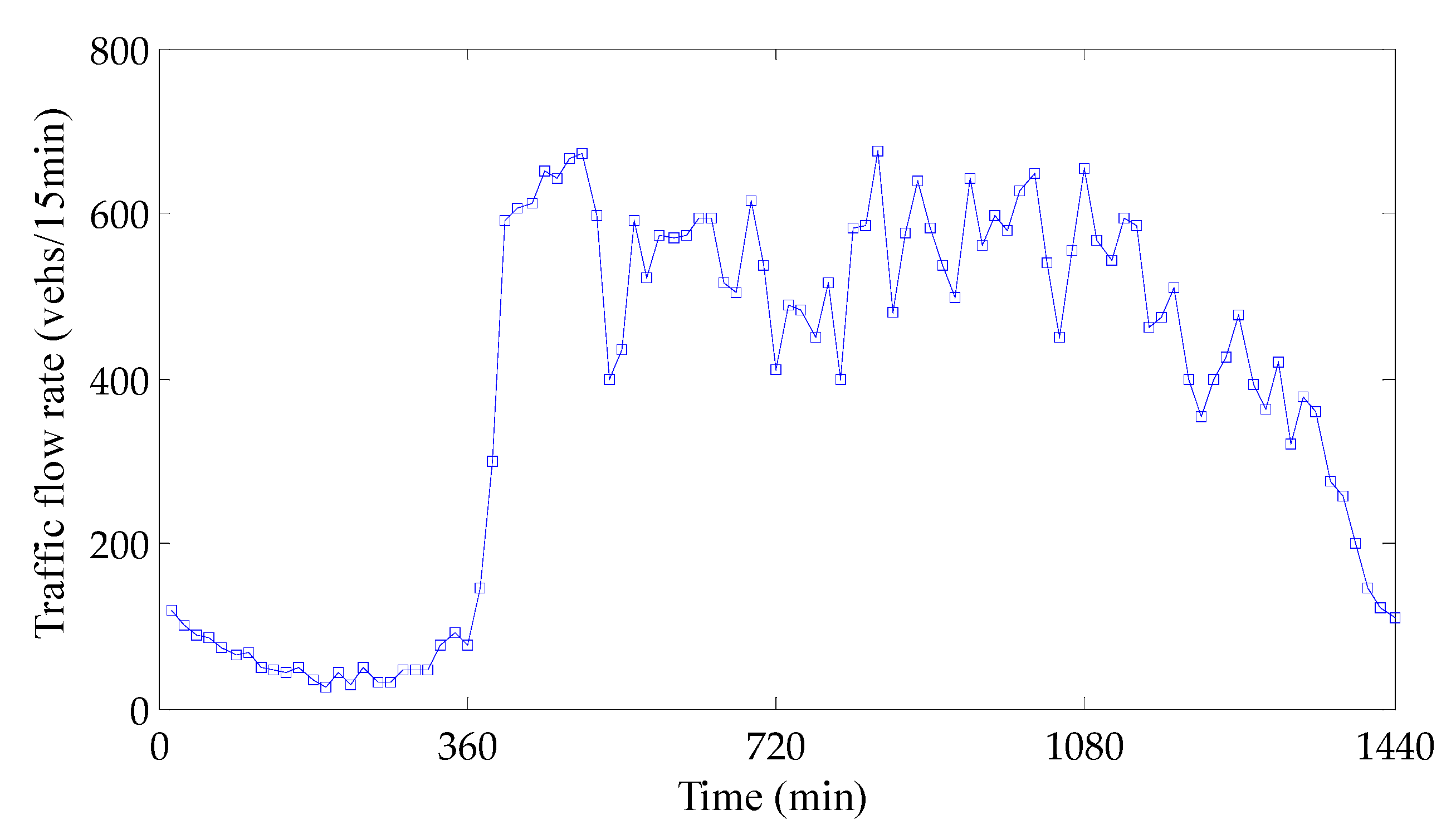

## 4. Case Study and Results

#### 4.1. Distribution Fitting of Average Link Travel Time Series

#### 4.2. Analysis of Case Results

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Nie, Q.; Xia, J.; Qian, Z.; An, C.; Cui, Q.; Information, R. Use of Multisensor Data in Reliable Short-Term Travel Time Forecasting for Urban Roads. Transp. Res. Rec. J. Transp. Res. Board
**2015**, 2526, 61–69. [Google Scholar] [CrossRef] - Bhaskar, A.; Chung, E.; Dumont, A.-G. Fusing Loop Detector and Probe Vehicle Data to Estimate Travel Time Statistics on Signalized Urban Networks. Comput. Civ. Infrastruct. Eng.
**2010**, 26, 433–450. [Google Scholar] [CrossRef] [Green Version] - Yuan, Y.; Van Lint, H.; Van Wageningen-Kessels, F.; Hoogendoorn, S. Network-Wide Traffic State Estimation Using Loop Detector and Floating Car Data. J. Intell. Transp. Syst.
**2014**, 18, 41–50. [Google Scholar] [CrossRef] - Zhu, N.; Liu, Y.; Ma, S.; He, Z. Mobile Traffic Sensor Routing in Dynamic Transportation Systems. IEEE Trans. Intell. Transp. Syst.
**2014**, 15, 2273–2285. [Google Scholar] [CrossRef] - Li, X.; Shu, W.; Li, M.; Huang, H.-Y.; Luo, P.-E.; Wu, M.-Y. Performance Evaluation of Vehicle-Based Mobile Sensor Networks for Traffic Monitoring. IEEE Trans. Veh. Technol.
**2008**, 58, 1647–1653. [Google Scholar] [CrossRef] - Shi, C.; Chen, B.; Lam, W.H.; Li, Q. Heterogeneous Data Fusion Method to Estimate Travel Time Distributions in Congested Road Networks. Sensors
**2017**, 17, 2822. [Google Scholar] [CrossRef] [Green Version] - Choi, K.; Chung, Y.S. A data fusion algorithm for estimating link travel time. J. Intell. Transp. Syst. Technol. Plan. Oper.
**2002**, 7, 235–260. [Google Scholar] [CrossRef] - Tarko, A.; Rouphail, N. Travel time data fusion in ADVANCE. In Proceedings of the Pacific Rim Trans Tech Conference, Seattle, WA, USA, 25–28 July 1993. [Google Scholar]
- El Faouzi, N.-E. Data-driven aggregative schemes for multisource estimation fusion: A road travel time application. Defense Secur.
**2004**, 5434, 351–359. [Google Scholar] [CrossRef] - Nantes, A.; Ngoduy, D.; Bhaskar, A.; Miska, M.; Chung, E. Real-time traffic state estimation in urban corridors from heterogeneous data. Transp. Res. Part C Emerg. Technol.
**2016**, 66, 99–118. [Google Scholar] [CrossRef] [Green Version] - Mil, S.; Piantanakulchai, M.; Soknath, M.; Mongkut, P. Modified Bayesian data fusion model for travel time estimation considering spurious data and traffic conditions. Appl. Soft Comput.
**2018**, 72, 65–78. [Google Scholar] [CrossRef] - El Faouzi, N.; Lefevre, E. Classifiers and distance-based evidential fusion for road travel time estimation. In Proceedings of the Multisensor, Multisource Information Fusion: Architectures, Algorithms, and Applications, Kissimmee, FL, USA, 19–20 April 2006; Volume 6242. [Google Scholar]
- Xia, J.X.; Zhang, W.H.; Ma, D.S. A method to urban road travel time estimation through its data fusion based on DS evidential theory. Appl. Mech. Mater.
**2014**, 488, 1419–1425. [Google Scholar] [CrossRef] - Xiao, F. A Novel Evidence Theory and Fuzzy Preference Approach-Based Multi-Sensor Data Fusion Technique for Fault Diagnosis. Sensors
**2017**, 17, 2504. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Deng, Y. Generalized evidence theory. Appl. Intell.
**2015**, 43, 530–543. [Google Scholar] [CrossRef] [Green Version] - Kolanowski, K.; Świetlicka, A.; Kapela, R.; Pochmara, J.; Rybarczyk, A. Multisensor data fusion using Elman neural networks. Appl. Math. Comput.
**2018**, 319, 236–244. [Google Scholar] [CrossRef] - Chen, D.; Zhang, K.; Liao, T. Practical travel time prediction algorithms based on neural network and data fusion for urban expressway. In Proceedings of the 2010 Sixth International Conference on Natural Computation, Yantai, China, 10–12 August 2010; Volume 4, pp. 1754–1758. [Google Scholar]
- Tak, S.; Kim, S.; Jang, K.; Yeo, H. Real-Time Travel Time Prediction Using Multi-Level k-Nearest Neighbor Algorithm and Data Fusion Method. Comput. Civ. Build. Eng.
**2014**, 2014, 1861–1868. [Google Scholar] [CrossRef] [Green Version] - Liu, J.; Li, T.; Xie, P.; Du, S.; Teng, F.; Yang, X. Urban big data fusion based on deep learning: An overview. Inf. Fusion
**2020**, 53, 123–133. [Google Scholar] [CrossRef] - Zhao, J.; Gao, Y.; Qu, Y.; Yin, H.; Liu, Y.; Sun, H. Travel Time Prediction: Based on Gated Recurrent Unit Method and Data Fusion. IEEE Access
**2018**, 6, 70463–70472. [Google Scholar] [CrossRef] - Khaleghi, B.; Khamis, A.; Karray, F.O.; Razavi, S.N. Multisensor data fusion: A review of the state-of-the-art. Inf. Fusion
**2013**, 14, 28–44. [Google Scholar] [CrossRef] - Wu, X.; Liu, H.X. Using high-resolution event-based data for traffic modeling and control: An overview. Transp. Res. Part C Emerg. Technol.
**2014**, 42, 28–43. [Google Scholar] [CrossRef] - Mo, B.; Li, R.; Zhan, X. Speed profile estimation using license plate recognition data. Transp. Res. Part C Emerg. Technol.
**2017**, 82, 358–378. [Google Scholar] [CrossRef] - Zhan, X.; Li, R.; Ukkusuri, S. Lane-based real-time queue length estimation using license plate recognition data. Transp. Res. Part C Emerg. Technol.
**2015**, 57, 85–102. [Google Scholar] [CrossRef] - Robinson, S.; Polak, J.W. Overtaking Rule Method for the Cleaning of Matched License-Plate Data. J. Transp. Eng.
**2006**, 132, 609–617. [Google Scholar] [CrossRef] - Rothrock, C.A.; Keefer, L.A. Measurement of urban traffic congestion. Highw. Res. Board Bull.
**1957**, 156, 1–13. [Google Scholar] - Branston, D. Link capacity functions: A review. Transp. Res.
**1976**, 10, 223–236. [Google Scholar] [CrossRef] - Bureau of Public Roads. Traffic Assignment Manual; Department of Commerce: Washington, DC, USA, 1964.
- Jiang, G.; Li, J.; Zhang, C. Modified BPR functions for travel time estimation of urban arterial road segment. J. Southwest Jiaotong Univ.
**2010**, 45, 124–129. [Google Scholar] - Rahmani, M.; Koutsopoulos, H.N. Path inference from sparse floating car data for urban networks. Transp. Res. Part C Emerg. Technol.
**2013**, 30, 41–54. [Google Scholar] [CrossRef] - Wu, L. Fuzzy distribution fitting for law of traffic accidents based on MATLAB. Math. Pract. Theory
**2009**, 39, 90–95. [Google Scholar] - Song, L.; Chen, J.; Shi, J.; Wang, S. Algorithm research of auto-detecting the travel delay information with vehicle license plate automatic recognition. J. Transp. Eng. Inf.
**2008**, 6, 107–112. [Google Scholar]

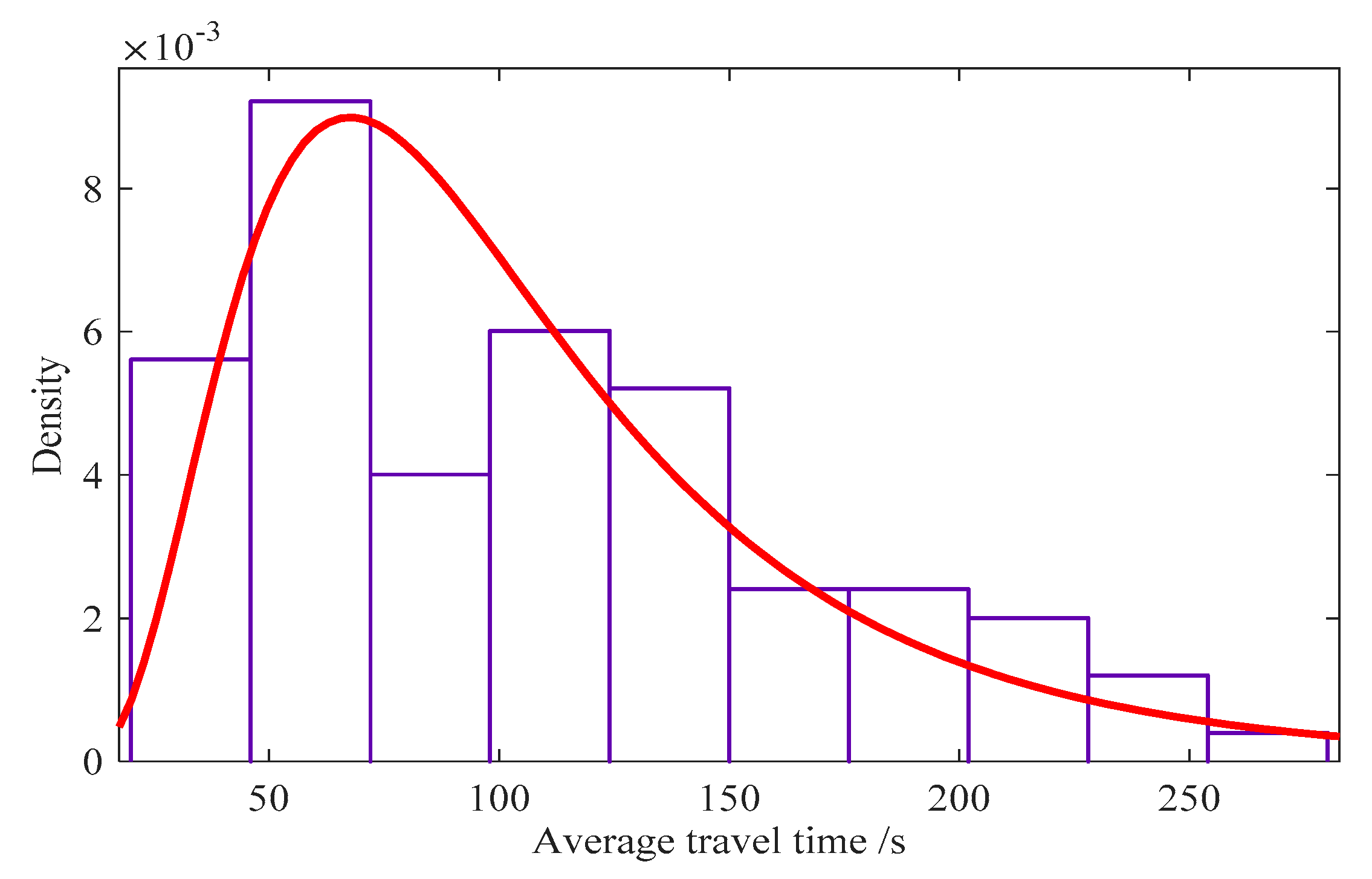

**Figure 4.**Probability histogram and probability density function (PDF) curve of average travel time based on license plate recognition (LPR) data.

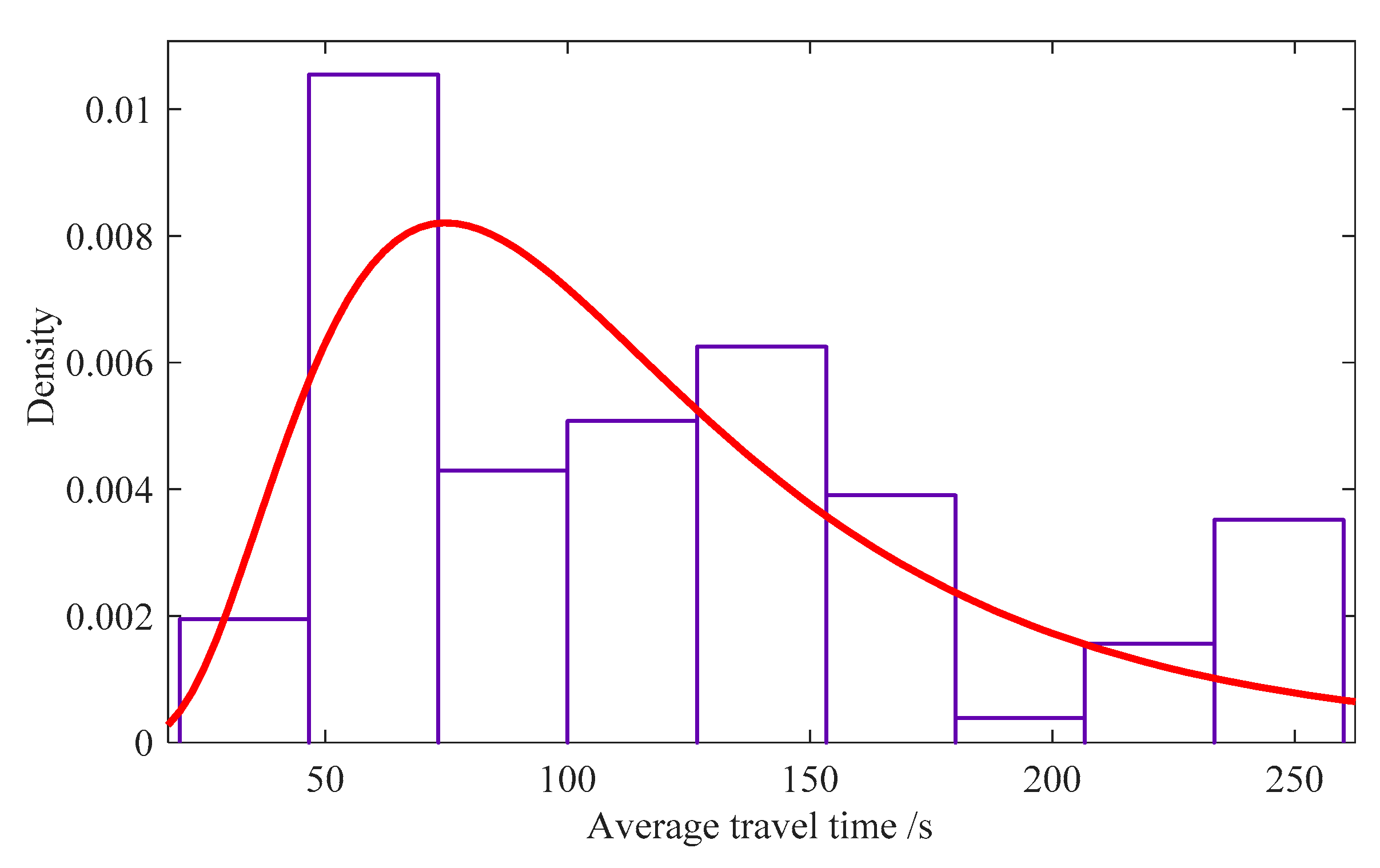

**Figure 5.**Probability histogram and PDF curve of average travel time based on geomagnetic detector data (GDD).

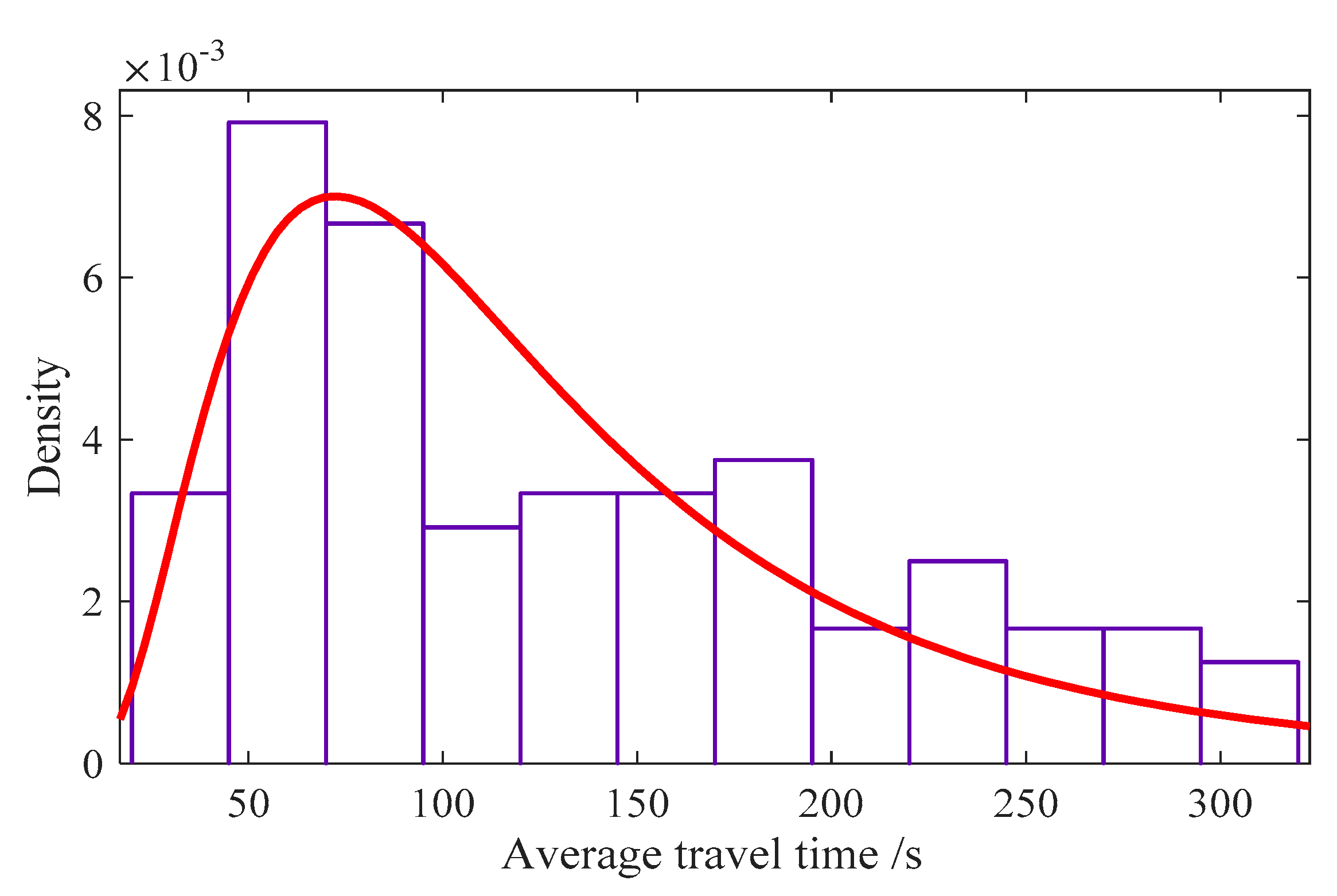

**Figure 6.**Probability histogram and PDF curve of average travel time based on floating car data (FCD).

**Table 1.**Parameters and goodness of fit test results of three average link travel time distributions.

Traffic Sensor Data | Distribution Parameter | Kolmogorov–Smirnov Test | |||
---|---|---|---|---|---|

Mean μ_{α} | Standard Deviation δ_{α} | Test Statistics | Critical Value at 0.05 Significance Level | Result | |

LPR | 4.5276 | 0.5612 | 0.0823 | 0.1388 | Accepted |

GDD | 4.6254 | 0.5561 | 0.1206 | 0.1388 | Accepted |

FCD | 4.6923 | 0.6410 | 0.0873 | 0.1388 | Accepted |

Methods | MAPE/% | MAE | RMSE |
---|---|---|---|

GDD extraction method | 22.34 | 26.82 | 35.59 |

FCD extraction method | 27.43 | 31.37 | 44.72 |

LPR extraction method | 12.31 | 15.43 | 22.72 |

Weight distribution fusion method | 10.39 | 11.46 | 16.07 |

The proposed fusion method | 9.34 | 10.43 | 13.41 |
