Remote Sensing of Narrowing Barrier Islands along the Coast of Pakistan over Past 30 Years

by
Shamsa Kanwal
1,*,
Xiaoli Ding
1,*,
Muhammad Sajjad
2,3,
Majid Nazeer
4 and
Ibrahim Zia
5
1
Department of Land Surveying and Geo-Informatics, The Hong Kong Polytechnic University, Hong Kong
2
Guy Carpenter Asia-Pacific Climate Impact Centre, School of Energy and Environment, City University of Hong Kong, Hong Kong
3
Department of Civil and Environmental Engineering, Princeton University, Princeton, NJ 08544, USA
4
Key Laboratory of Digital Land and Resources, East China University of Technology, Nanchang 330013, Jiangxi, China
5
National Institute of Oceanography, Karachi 75600, Pakistan
*
Authors to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2021, 9(3), 295; https://doi.org/10.3390/jmse9030295
Submission received: 31 December 2020 / Revised: 22 February 2021 / Accepted: 24 February 2021 / Published: 8 March 2021
(This article belongs to the Special Issue Remote Sensing Advancements in Sustaining Coastal Zones)
Browse Figures
Versions Notes

Abstract

:
Barrier islands (BIs) are the first line of defense against the sea/wave actions in coastal areas, and assessing their stability is crucial in the context of effective coastal planning. Therefore, this study evaluates the spatial–temporal shoreline changes of the BIs in Pakistan over the past three decades (1989–2018). Satellite data from Landsat missions are used to delineate the shorelines of 19 BIs in Pakistan. After delineating the shorelines from satellite observations, two well-known statistical methods (i.e., end point rate (EPR) and linear regression rate (LRR)) are used to capture the localized changes in the BIs. The results ascertain that nearly all of the BIs have experienced noteworthy erosion during the past three decades. While the mean erosion over all the BIs during the study period is estimated to be >6 m/y, significant spatial heterogeneities among the individual BIs exist. The interdecadal comparison indicates that the highest mean erosion of the BIs occurred during the period 1989–1999 (13.03 ± 0.62 m/y), which gradually reduced over the preceding decades (i.e., 7.76 ± 0.62 m/y during the period 1999–2009 and 3.8 ± 0.7 m/y during the period 2009–2018). Nevertheless, ~65% of the total BIs experienced high erosion (>2 m/y), ~15% experienced moderate (<2 m/y), and ~20% experienced low erosion (<1 m/y) during the period 1989-2018. This situation implies that while ~65% of these BIs need immediate interventions from the concerned authorities, the 15% BIs with moderate erosion might experience high erosion in the wake of rising sea levels and decreasing sediment influx in the near future without proper measures. This depletion of the BIs might not only affect Pakistan but also have regional consequences due to their various services.

Graphical Abstract

1. Introduction

Due to the significance of barrier islands (BIs) as the first line of natural defense to protect coastal communities against storm surges and provisioning of multiple services, considerable interest surrounds their health/stability for a better regional environment [1,2,3]. BIs provide essential economic services to coastal populations (e.g., supporting tourism) as well as serve valuable ecological functions (e.g., providing natural habitats to several species, such as migratory birds) supporting regional coastal sustainability. However, at the same time, these fragile and dynamic coastal features are also vulnerable to degradation from both natural processes and human interventions [4,5,6]. In the wake of climate change-induced sea-level rise and increasing anthropogenic pressures on coastal systems, it is essential to track the changes in the geometry, area, and position of BIs, particularly those bordering the developing and low-lying deltaic coasts. This information on coastal changes could help in taking appropriate measures for coastal resilience and sustainability [7]. Shoreline position determines the protection provided by various coastal barriers and landforms. The spatial–temporal shoreline change can be used as a proxy to monitor the coastal environmental change, as the assessment of long-term trends in shoreline changes is essential to improve the understanding regarding coastal responses to rising sea levels [8]. Several methods have been used for studying the shorelines, such as unmanned aerial systems (UAS), aerial photogrammetry, topographic and global positioning system (GPS) surveys [9,10,11,12]. Despite having a higher spatial resolution, they are money- and labor-intensive, particularly for the long-term monitoring of large-scale assessments for developing coasts. In the wake of climate change, it is imperative to track the shoreline changes [5], particularly those bordering the developing and low-lying deltaic coasts, to take appropriate measures for their stability. The information on spatial–temporal shoreline changes is of particular importance to coastal planners and decision makers [12,13]. To support effective policy production for coastal management, it is imperative to have baseline scientific information on the spatial–temporal trends and rates of shoreline changes [4]. Previous studies conducted in different parts of the world, such as Bangladesh [14], Egypt [15], the Mediterranean sea [16], the coast of North America [17,18], Mississippi River Deltaic Plain [19], and deltaic regions of China [20,21], highlight the need as well as the importance of monitoring the changes in the dynamic coastal areas for effective coastal policy and natural resource management. Similarly, some researchers map the perimeters of BIs [22,23,24] and quantify their geomorphological changes to inform national/sub-national coastal planning. On the contrary, few studies [25,26,27,28] have focused on studying shoreline degradation and morphological changes, particularly erosion, in the Indus River Delta, Pakistan—the world’s 6th largest delta—on a large scale. Most of the existing studies are limited in terms of spatial–temporal scales and have primarily focused on the mainland shoreline [25,27,29,30,31,32], neglecting the BIs in the Indus Deltaic Region (IDR). One seminal study by Waqas et al. [33] analyzed the changes in the area and perimeter of the BIs along the shoreline of Pakistan using the pixel frequency method. Relatively little is known about the rate at which these BIs have evolved and eroded. Furthermore, the approach adopted by Waqas et al. [33] is not adequate to provide localized changes regarding coastal erosion, which is a very important aspect of coastal adaptation. This lack of BI shoreline change assessment in Pakistan not only hinders the efficient coastal spatial planning and management but limits the coastal adaptation actions and opportunities to gain benefits in the form of many services provided by them. Furthermore, this lack of information on the rates at which these BI shorelines change restricts the consideration of these BIs in the overall coastal planning and management process. This situation can potentially influence the overall coastal sustainability in Pakistan and beyond. Hence, a comprehensive assessment of the coastal dynamics of the BIs in Pakistan becomes essential. In the context of current and future coastal planning processes and management strategies, this study aims to provide comprehensive preliminary baseline information on the spatial–temporal shoreline changes along with the BIs of Pakistan.
While the integrated utilization of remotely sensed earth observations and geographic information systems (GIS) [9,10,12,34] is becoming an essential tool for the management (monitoring and planning) of coastal environments [28,35], developing countries still lack in adapting these tools for several reasons, including data unavailability and higher monitoring coast associated with these labor-intensive and expensive methods. These tools, well known for spatial–temporal change assessment, serve as essential decision support systems vital for corrective local decision making and smart resource allocation to assure coastal sustainability [36]. The factors mentioned above make a large scale and long-term coastal assessment of shoreline changes in developing regions, particularly along with the BIs, unavailable or very limited. The lack of information regarding the rate at which BIs are translocating or their perimeters are being eroded further makes it difficult for developing coastal communities to take appropriate measures for their safety. Therefore, this study aims to use the multitemporal freely available medium resolution satellite observations from the past 30 years (1989-2018) in a GIS environment to systematically evaluate and map the shoreline changes in the BIs of Pakistan. Among two widely used shoreline change assessment methods (i.e., areal- and transect-based) [33,37], this study employs the transect-based assessment approach, as it provides comparatively detailed localized information on the shoreline changes. The results from this study would have significant policy and decision-making implications to aid effective coastal planning and management, which is integral to sustainability in the long-term. Additionally, these preliminary insights into the shoreline changes along the BIs would further help us to understand the impacts of human interventions (i.e., urbanization and intensive coastal development projects) on coasts, providing broader opportunities for sustainable coastal development. These temporal assessments help us to analyze the effectiveness of the previously implemented coastal policies, providing opportunities to update/revise them accordingly.

2. Study Area

In Pakistan, BIs are located in the form of a long chain along the south-eastern to the southern shoreline adjacent to the Arabian Sea along which the sea level is rising with a rate of > 1.1 mm/y [27]. About ~1000 km shoreline of Pakistan is divided into Sindh and Makran coasts. This study is focused along the ~320 km Sindh coast. The Sindh coast is further divided into two distinct parts encompassing 5 BIs along the Karachi coast and 14 along with the 6th largest Indus Delta Region (IDR, Figure 1 and Table 1). The Karachi shoreline is the most developed segment along the entire shoreline of Pakistan—presenting the highest anthropogenic/urbanization pressure on this part of the shoreline. However, the IDR shoreline is the most undeveloped segment where these BIs are separated by a unique dendritic network of 17 major creeks, several minor creeks, estuaries, and tidal inlets. Using the tidal classification scheme from Davies [38], the shoreline in the study area is found to be under the influence of mixed tidal conditions (mesotidal 2-4 m—Karachi shoreline, and macrotidal > 4 m—up to Sir creek) [39,40]. Furthermore, the BIs are subjected to a mixed energy regime (western side of IDR as wave-dominated and the eastern side as the tide-dominated) with an annual mean significant wave height (SWH) in the study area of 1.8 m during SW-monsoon season and 1.2 m in NE-monsoon season [39]. Any changes in the energy regime and the wave/tidal height can reshape these unprotected BIs [41]. The wetlands in this deltaic region are protected under the Ramsar Convention’s international regulations. The abrupt reduction in freshwater discharge from the Indus River to the Arabian Sea and the sediment loads reaching these natural coastal barriers are contributing to their degradation.

3. Data Used

For the long-term assessment of the BIs evolution in the study area, the following data sets were used for processing, acquisition of required information for BI perimeter estimation, and interpretation of the results (Table 2).

3.1. Satellite Data

This study used freely available and atmospherically corrected 30 m archived Level-2 (surface reflectance) imagery of Landsat satellite (TM: Thematic Mapper and OLI: Operational Land Imager) available from the United States Geological Survey (USGS)’s Earth Resources Observation and Science (EROS) Center Science Processing Architecture (ESPA) On-Demand Interface. The delineation of multitemporal perimeters (shorelines) of the BIs from remote sensing images is influenced by tides [27] and medium to high energy waves [42]. Therefore, we took great care to acquire the cloud-free Landsat images in the non-flooding pre-monsoon period (December–April).

3.2. Tide Height Data

Examining the tidal conditions for multitemporal images over the study region from a ~30 year (1989–2018) period showed that the tidal height ranges from ~0.20 to 3 m. Based on the data availability in the selected season/period and mean tidal height value constraint (<2.8 m), four out of 17 images acquired over 152/043 path/rows (i.e., from the years 1989, 1999, 2009 and 2018) were selected for the final processing and further interdecadal analysis of the morphological assessment and evolution of the BIs.

3.3. Hydrodynamic Data

The seasonal effects of the wave and wind is an essential and strong oceanic factor affecting the nourishment and erosion of the BIs in the study area. Wind creates waves in the ocean, which in turn increases the water level and causes it to penetrate in creeks and BIs in the coastal region. Waves sort the sediments, erode the coast, and transport sediments in and out from one location to other. They also move sediment from near the shore to offshore. Wave set up during summer monsoon along the Pakistan coast makes the water level up to half a meter high (reaching up to 3.5 m in the creeks). The monthly mean (January to December) wind field was adopted from the National Centers for Environmental Prediction (NCEP) to represent the yearly influence and direction of wind-driven waves and currents. To analyze the meteorological forcing influencing the Pakistan coast seasonally, the effects of wind on waves at different tidal stages (spring, neap, high, and low) were observed through the Simulation WAves Nearshore (SWAN) model [43] simulation using regional data from the National Institute of Oceanography (NIO) and analyzing the results for different wind conditions in Near Shore Wave (NSW) modules in MIKE software, powered by the Danish Hydraulic Institute (Denmark) [44]. For the estimation of SWH, we chose December as the representative month for the northerly wind case (January, February, November, and December), April for the westerly wind case (March and April), and June for the southwesterly wind case (May, June, July, August, September, and October).

3.4. Sediment Discharge Data

The sand supply from upstream also determines the stability of BIs. A deficit in the sediment discharge/flow reaching the shoreline adversely affects the sediment supply and redistribution to the BIs driven by the combined action of wind and waves, hence their stability. Long term sediment discharge from the Indus River below the Kotri barrage from Kidwai et al. [45] was used to evaluate the influence of the hydrodynamics of the Indus River (IR) on the erosion of the BIs in the study area.

3.5. Sea Levels Data

The menace of the rise in sea levels on the Pakistan coast was expected to be more pronounced in the IDR. To analyze its adverse effects on the BIs stability, the long-term historical records of sea levels at Karachi and adjoining IDR were collected during the study period from the Permanent Service for Mean Sea Level (PSMSL) data portal.

4. Methods

The research work was performed in a series of steps, from data acquisition to data selection, pre-processing, shoreline delineation, change rate analysis, and mapping. For simplification, we divided the overall workflow into two steps. The first step consisted of data acquisition, selection, pre-processing, and perimeter (shoreline) delineation for each BI. The second step included an assessment of changes in the shorelines of each BI during the period 1989-2018 using the transect-based method in the Digital Shoreline Analysis System (DSAS). The DSAS is an ArcGIS tool developed by the USGS and is widely used in coastal assessments to aid policy and decision making in the context of coastal management [15,46]. The spatial assessments were performed to provide a geographical reference and information for the prioritization of different BIs for immediate or gradual measures. The details on the two steps are provided in the following sub-sections.

4.1. Step 1: BI Perimeter (Shoreline) Delineation

Most of the shoreline along the BIs in Pakistan can broadly be classified as the muddy shoreline. Details of the classification scheme can be found in Zhang et al. [24]. For muddy coasts, the seaward edge of vegetation is identified as the BI perimeter (shoreline) [20]. The following steps were attempted to precisely delineate the perimeter of the BIs: (a) suitable band selection using a spectral profile curve of the images; (b) histogram threshold shoreline delineation; (c) edge detection; (d) conversion of binary data to shoreline vectors (see Step 1 in Figure 2).
To check the accuracy of the results, the vector shoreline representing the boundary of each BI was examined with the corresponding false-color combination (bands 2, 3, 4 for TM, and 3, 4, 5 for OLI 8) of Landsat images. This overlay analysis helped us visually verify the alignment of the BI perimeters with the seaward edge of vegetation representing BI boundaries on Landsat images and to ensure the quality/reliability of the results, as practiced by Sajjad et al. [7]. BI-wise visual assessment also enabled us to identify which islands are experiencing disintegration and where new sandbars/BI-segments are appearing over time.

4.2. Step 2: BI Perimeter Change Rate Analysis and Implications to Coastal Planning and Development

For change rate analysis, all the delineated shorelines (one for each time-step) were appended to a single shapefile, separately, for each BI, which was later utilized in the DSAS. To ensure that seaward shorelines were only compared with the seaward shorelines and not the landward shorelines, two versions of shoreline coverage representing the BI perimeter were created (i.e., open-ocean side of BI and bay/landside of BI) [47]. We used several editing tools in ArcGIS, including Delete and Merge, to prepare the BI perimeters by removing the unwanted extensions for this study. Using the polygon coverage of the extent of each BI, we clipped larger shorelines for each BI and saved them along with the corresponding baseline segment in its workspace.
After BI perimeter (shoreline) delineation, the following sequential steps were carried out to analyze the evolution and change rate of the BIs: (a) baseline generation; (b) transect generation; (c) computation of distances between BI perimeters and baseline at each transect; and (d) estimation of shoreline change rate statistics. To establish a reference baseline for change rate analysis, a 50 m buffer was created around the oldest shoreline (the year 1989). The baseline for each BI (both main island and neighboring small islands) was segmented into seaside and bay/landside following the overall sinuous shape [28] of the BI perimeter as best as possible [47]. The same process was repeated for all the shorelines of the BIs to create seaside and bay/landside shoreline segments. The division into seaside and landside was made for those parts of BIs which had shifted entirely. This method enabled us to study the BI migration on both sides, in addition to the shoreline change rate. All these data were then imported and managed in the Personal Geodatabase in ArcGIS 10.3. Each BI was analyzed separately, and transects of variable length were cast every 100 m orthogonally along the baseline considering their perimeter, geometry, the direction of translocation, and the extent of migration. Two different methods, endpoint rate (EPR) and linear regression rate (LRR), were used to compute and analyze the long-term and short-term changes in the BIs during the period 1989-2018. With reference to the baseline, the accretion of the shoreline was considered as a positive value and the erosion as a negative value. The results were spatially quantified and classified based on the shoreline migration direction and the rate during the study period. To determine whether erosion rates have accelerated or decelerated temporally, BI perimeters were analyzed using the EPR method for each distinct interval (1989–1999, 1999–2009, and 2009–2018). The confidence of EPR (ECI) was calculated as:
E C I = U ( A ) 2 − U ( B ) 2 D a t e   A − D a t e   B
where U(A) and U(B) are the uncertainty values for shoreline A and B, respectively; Date A and Date B are the dates of shoreline A and shoreline B, respectively.
The uncertainty of the calculated LRR rate, also known as the standard error of the slope of the regression line, is reported as a Confidence Interval of Line of the Regression (LCI). The LCI was considered at a confidence interval of 95% (i.e., LCI95).
To quantitatively assess the vulnerability of the shorelines to erosion in the study area, we adopted a relatively simple but robust classification scheme from Gornitz et al. [48] and divided the BI change rate statistics into 5 classes (i.e., >+2.0 m/y, +1.1 − +2.0 m/y, −1.0 − +1.0 m/y, −1.1 − −2.0 m/y, and <−2.0 m/y). This categorization helped us to prioritize the BIs for immediate or gradual actions and measures, where needed. A quantified histogram map of erosion/accretion intensity was produced for each BI. The interdecadal migration of the Bis was further analyzed using the historical trend of the changes in the BI perimeter distance from the reference baseline (year 1989).

5. Results

5.1. BI Perimeter Delineation

The BIs, along with the Sindh coast, have experienced migratory shorelines over the past three decades (Figure 3). The image-based BI perimeter uncertainty is subjective and probably more difficult, especially when no reference dataset is available for such a large area in undeveloped deltaic regions. In order to evaluate the BI perimeter accuracy, initially, we searched for high-resolution data, such as the reference shoreline or freely available high-resolution satellite images (e.g., Sentinel-2), that coincide with the dates of the Landsat images used. No information was found for the same date. Therefore, the results of this study were verified by authors through personal communications with the local authorities and residents wherever possible [33].
A sequential comparison of the shapes and positions of the BIs revealed that the systematic pattern of the land-loss due to erosion is barrier narrowing, also known as depletion of the BIs (e.g., BI-8 and BI-9). The disintegration of the main island into several small sandbars surrounding the main BI (island segmentation) was observed in some cases (e.g., BI-8 and BI-12 in Figure 3). The corridor created between different island segments due to their disintegration could further give way to increased erosion during storm surges and strong wave-action. Sea-sides of many of these BIs were substantially eroded during the study period. It was observed that most of the BIs have evolved differently (i.e., majority of the BIs are shrinking predominantly on the seaside, some are transgressing landward, and very few are expanding towards the seaside). For some islands, it was not possible to calculate the rate of change throughout the entire perimeter of the BIs because some parts of the BI vanished (e.g., BI-18), and some new areas appeared (e.g., BI-19). BI-5 in the Karachi sub-region and BIs 8, 10, 12, and 14-19 in the IDR were disintegrated into smaller units, and some segments appeared later due to new sand deposits/accumulation (Figure 3). Division of the BIs happened in all the islands located on the east side of the IDR, which formed the frontline of the sparse mangrove cover.

5.2. Rate of Shoreline Change in Different BIs

Out of the 19 BIs along the Sindh coast (including the Karachi and Deltaic coasts), 16 were found to be depleting, which calls for intervention and appropriate measures from the concerned authorities to be taken on a priority basis (Figure 4). A summary of the overall BI change rate and morphological evolution from 1989 to 2018 is presented in Figure 4. Only one sand body in BI-18 was found to be translocating seaward (seaward accretion and landside erosion), which lies in the eastern IDR containing sparse mangrove cover. It should be noted that for some BIs, the rate of change at a few transects was not computed because the direction of transect casting is perpendicular to the baseline, which does not intersect the shorelines at some places.
While the overall mean erosion of the BIs during the period 1989–2018 was estimated to be > 6 m/y (6.9 and 6.4 m per year as per the EPR and LRR methods, respectively), significant spatial heterogeneity among different BIs exists (Table 3). The Karachi shoreline is the most developed segment along the Sindh shoreline, which is invaginated by four major inlets (i.e., Manora Channel, Korangi creek, Phitti creek, and Khuddi creek). BIs 1-4 are not significantly affected by erosional effects of ocean factors due to being located behind the Manora channel. However, significant translocation was observed for Karachi’s outlying twin drumstick-shaped BI-5 (i.e., Buddo and Bundal Islands), located near Korangi-Phitti Creeks (Figure 4). BI-5 migrated landward between 1989 and 2018 at 16.28 m/y, most likely under the erosional effects of wave action and sea level rise. We found very high erosion up to 24.4 m/y ongoing at the seaward side of the island, threatening the eastern parts of Karachi city, where one of the major deep seaports of the country, Port Qasim, is located (Figure 4). The presence of thick vegetation cover on the northern side of the BI-5 (Bundal Island) has protected it against the erosional effects of the port jetties for the passage of the cargo ships through the Phitti Creek to Port Bin Qasim (towards Korangi creek) and Port Karachi (towards Khizri creek) [49]. However, the absence of mangroves on the western and the southern parts have made them vulnerable to the erosional effects of intense wave action. It was found that Buddo (located adjacent to the Bundal Island’s southern side—BI-5) is showing signs of accretion at an average rate of 0.49 m/y, particularly evident along its south-eastern lobe. This is most likely due to the accumulation of the eroded material coming from the southern side of Bundal Island.

Transect Level Assessment of Erosion for Local Changes

BIs 1, 2, and 6 experience low (<1 m/y), moderate (<2 m/y), and high erosion (>2 m/y) respectively, at all the transects, hence found to be depleting both the ocean-facing side and land/bay sides. BIs 5, 7, 9, and 11 experience high erosion at more than 80% of the transects on both the ocean side and land side (Table 3). BIs 8, 10, 17, 18, and 19 experience high erosion at more than 60% of the transects. Transects of BIs 3, 13, 14, 15, on the other hand, experience low to moderate erosion (up to 2 m/y). BIs 11–13 and 16–19 are experiencing erosion at a rate of > 2 m/y, except BI-14, which is located on the west side of the IR outfall and BI-15 situated on the east side of the IR outfall (Figure 4). This could be due to their presence near the IR outfall, which makes it likely to receive some amount of sediments from upstream. BIs 4, 12, and 16 were found to be accreting at more than 50% transects with the highest accretion (> 2 m/y) found for BI-16. The lowest mean erosion rate based on LRR was found in BI-4 (0.25 m/y) located in the Karachi sub-region, whereas the highest mean erosion rate was found in BI-17 (29.12 m/y) located in the administrative unit of Kharo-Chan on the east side of the IR, during the period 1989-2018. For a better comparison among different BIs, a spatial histogram plot of the LRR-based erosion/accretion statistics for each BI was plotted (Figure 5). These plots help us assess the severity of erosion/accretion in more detail for each BI, providing a broader range of information to coastal planners and decision makers [50,51]. Further analysis of erosion and accretion at different transects facing the Arabian sea and the mainland showed signs of translocation of large sand bodies in different BIs (e.g., BIs 15 and 16). It was found that eroding transects locations predominately exist on the seaside of the majority of the islands, such as BIs 13–17 (Figure 6). Several BIs have nearly the same number of accreting areas as eroding areas, such as BI-3 (47% eroding, 50% accreting, and 3% no change), BI-4 (56% eroding and 44% accreting), BI-12 (44% eroding and 56% accreting), and BIs 14–15 (51% eroding and 49% accreting) (Table 3). Accretion progrades the coasts and hence is beneficial, yet it takes a long time to use the accreted zones. This could mean the displacements of the BIs. However, the number of the accreting transects exceeds the number of eroding transects in only a few BIs (i.e., BI-2 (47% eroding and 50% accreting), BI-12 (44% eroding and 56% accreting), and BI-16 (34% eroding and 66% accreting)). However, in the other BIs where erosion is more pronounced, it leads to the destruction of the islands’ banks, which lets the seawater intrude, destroy the mangroves, and deplete the island, particularly near the open shoreline of undeveloped BIs, where tidal action is strong (Figure 7).
Among the 19 BIs, the majority of the sand bodies located in BIs 8-9 and 11-19 were found to be translocating towards the mainland (i.e., seaward erosion and landward accretion). Few BIs (i.e., BIs 3, 4, 12, 13, 15, and 18) exhibited mixed behaviors of landward and seaward movement, and only 1 out of the 19 BIs was found to be moving towards the ocean (i.e., seaward accretion and landward erosion; parts of BI-18) (Table 3). Only BI-16 was found to be accreting on both sea and landside, hence expanding both ways. This presents an interesting research question for further evaluations of these translocations of the BIs and the processes behind this phenomenon.

5.3. Interdecadal Translocation of BIs

The shoreline retreat rate varied notably during the years 1989–2018 (Table 4). Each of the BIs had a unique evolution between 1989 and 2018 that altered its shape and position. Erosion in BIs 3, 4, 7–10, and 13–15 slowed down from 1989 to 2018. For other BIs, such as BI-5 and 11, erosion was deaccelerated during the period 1989–2009 and then again accelerated after 2009 until 2018. The BI retreat rate deaccelerates notably during the years 1989–2009 for two BIs (BI-13 on the left side and BI-14 on the right side), which are located near the IR outfall at Khobar Creek and on the eastern side of the IR. However, erosion accelerated for the majority of the islands of Karachi and those located on the western side of the IR. An overall summary of BI-wise morphological changes from 1989 to 2018 is presented in Table 4. The mean BI erosion was found to be the highest during the first epoch (1989–1999, 13.03 m/y), which gradually reduced during the following period, 1999-2009 (7.76 m/y). However, the average erosion for all BIs of the study area was still very high during the latest period, 2009-2018 (3.81 m/y). In the study area, the uncertainties of the EPR for the periods of 1989–1999, 1999–2009, and 2009–2018 were ±0.62, ±0.62, and ±0.7 m/y, respectively.
It was found that most of the BIs (15 out of 19) are experiencing depletion (Figure 8), which is likely to be caused by the reduced sand supply from upstream and/or increasing sea level rise (SLR) rate (Figure 8 and Figure 9) [52]. Erosion in BI-13 and BI-15 (located near IR outfall) gradually reduced during the study period, whereas BI-14 located on the west of IR outfall showed signs of expansion seaward.

6. Discussion

This study demonstrates the application of earth observation data by combining the well-established shoreline evaluation methods to evaluate the shoreline changes in the BIs of Pakistan. The study provides important information to coastal planners and developers to direct the efforts for the stability of coastal areas. Communities who maintain their ecological features, such as BIs and coastal marshes, are resilient against storm surge-induced flooding and inundation [52,53,54,55]. In this context, the results from this study provide relevant references for risk-informed decision making in highly eroding BIs.
The effectiveness of coastal protection measures is closely linked to the decisions made by the concerned authorities and stakeholders (public/private), which could lead to coastal adaptation through the utilization of proper information on coastal dynamics (i.e., erosion results from this study) and policy implications [56]. The Government of Pakistan has planned two coastal cities (i.e., Island City and Zulfiqarabad) along the IDR to be built on BI-5 and land covering four administrative units of Keti Bandar (BIs 13,14), Kharo-Chhann (BIs 15–16), Shah Bandar (BIs 17–19), and Jati. Given the high erosion status of BIs 13 and 16–19 (Figure 6), future depletion of these BIs can make the planned cities vulnerable to inundation, erosion hazards, and coastal storms. The ongoing high erosion should be considered in the current and proposed development project design in the pre-construction phase to ensure the reduction in the current erosion rate as well as in the post-construction phase to assess the project’s behaviors and impacts. Hence, in view of regional coastal sustainability, we recommend the consideration of these depleting natural resources in current and proposed coastal development project designs in the pre-construction phase on a priority basis. The study is a practical and applied demonstration of earth observations in the context of coastal sustainability. The historical sea level at the Karachi tide-gauge station showed an accelerated trend during the period 1989–2018 (PSMSL) (Figure 9). This rise in sea levels is likely to increase the inundation, accelerating erosion and even BI loss in future in the low-lying deltaic areas of Sindh Province if no protection measures are taken. Therefore, the results from this study can be utilized in planning and design while taking the erosion into account to tackle these. In addition to climate change, human activities (such as land reclamation for coastal development) are the triggers of climatic hazards, such as coastal flooding, rising sea levels, and cyclones, in the low-lying deltaic regions (e.g., IDR) increasing the vulnerability of coastal ecosystems and landmarks. Furthermore, the depletion of the BIs in the study area might not only affect Pakistan but also have regional consequences due to their various services. During pre-monsoon (March–May) and post-monsoon (October–November) periods, tropical cyclones and storms usually develop in the Arabian sea. The prevailing monsoon winds push them along. The Arabian Sea is northwest of the Indian ocean and shares the coast with India, Pakistan, Oman, Iran, Siri-Lanka, Maldives, and Somalia.

6.1. Hydrodynamics of the Study Area

BIs are wave- and wind-built landforms created in wave-dominated and/or mixed energy environments, typically in micro/meso-tidal environments [57,58]. Results from the hydrodynamical analysis of tidal waves confirm that the tide in the area is mixed, predominantly semidiurnal, with approximately two unequal high and two low water levels occurring in a day. The mean offshore SWH in the west of the east coastline of Pakistan is > 0.6 m during the pre-summer non-flooding monsoon month of April, whereas SWH during storms can reach up to 5.5 m. The tidal wave propagates eastward produced by the westerly wind (Supplementary Figure S2). Storm surges can significantly increase water levels along with the BIs and the coast, potentially leading to severe flooding of unprotected areas. In the south-westerly monsoon season, the wave breaking wind direction causes west to east littoral drift (alongshore transport of sediments), which could be depositing the eroded materials on the south-eastern side of the BIs on the west of the IR (Supplementary Figures S1 and S2) [28], thus not only changing the shape and position of these BIs located in the west of the IR but also creating new sand bars to appear along with a reduced erosion rate compared to those islands located on the west of the IR (Table 3). The hydrodynamics of an area also actively control the sediment budget of the coast, and hence, its stability. There has been a significant reduction in the sediments in the Indus Delta coastal plains (Figure 10) due to the construction of dams, barrages, and channeling in the up-stream areas [45]. Limited/reduced sediment supply from the upstream distributaries coupled with rising relative sea levels and shoreline erosion will eventually lead to the separation of such natural coastal barrier islands from the mainland of Mississippi delta [19,59] and further narrowing of the deltaic islands in the case of non-episodic flooding and storm events. In the same way, the drastic reduction in the sediment discharge from the IR below the Kotri barrage has increased the erosional effects of waves and tides, resulting in seawater intrusion into coastal lands [28], and is expected to cause the erosion of the BIs in IDR—particularly on the landward sides.
Coastal adaptation measures through building-with-nature are gaining increasing attention across the globe recently [56]. The ecosystem-based measures, such as the active plantation of coastal forests on the back-barrier basin/backshore side of islands, can support the stability of these fragile features through capturing wash over sand within the island system and re-building a platform onto which the island can translocate [60]. For example, mangrove might have protected the northern side of the outlying BI-5 and slowed down erosion as compared to the southern side (Figure 6). Sand nourishment through placing dredged material and sediments on the backshore of the island fronting mainland shore can naturally develop the island, thereby slowing down the land loss from these deltaic islands. These measures will reduce not only coastal erosion but also provide multiple benefits, such as biodiversity conservation and provisioning of economic, biophysical, and social services [7,54,55,61].

6.2. Policy Implications for Coastal Management

The results from this study have important implications relevant to decision making and policy formulation for better coastal planning and designing conservation strategies to reduce erosion and protect the BIs in Pakistan. For example, the BIs experiencing high erosion (categorized in the highest erosion group, erosion > 2 m/y) must be prioritized for appropriate measures. They should be considered in the process of coastal planning and development projects [28]. Otherwise, defense measures against climate change remain unproductive. The localized transect-based information of erosion/accretion rate provided in this study, which is not presented by Waqas et al. [33], is vital for local actions and decision making in the context of the long-term sustainability of coastal areas in Pakistan. These localized findings on coastal erosion can be used to scale down the study area and combined with other datasets (e.g., population, infrastructure, and natural systems) for further detailed analysis, such as the risk/vulnerability assessment of coastal communities to coastal erosion, which could progressively contribute towards coastal sustainability in the wake of global environmental change [62,63].
BIs depletion, particularly on the low-lying deltaic region, can make the coastal natural systems vulnerable to the frequent flooding and erosive effects of the rising sea levels. The maps and spatial database comprise a current and valuable source of information on the BIs evolution in Sindh, including historical perimeters and their change rate statistics. This spatial database can serve as a solid foundation for BIs’ future assessment and applications. Similarly, the approach presented here can be adopted by academics, urban planners, developers, conservationists, and government agencies for a variety of purposes, such as long-term monitoring of the coastal natural systems in the context of coastal sustainability. Furthermore, the results of the BIs morphological assessment presented in this study can be integrated with the mainland shoreline analysis to provide a more comprehensive evaluation of the dynamics of Pakistan’s shoreline—left for future studies.

6.3. Limitations and Future Directions

The authors acknowledge the current limitations of this study. For instance, while the transect-based method works well in a small subset of the areas of interest, the approach is not appropriate for assessments along the long and highly sinuous shoreline. For this reason, the whole study area was subdivided into smaller subsets, one for each island in this study. Though this process increases the computation time, the results provide detailed local information, which is overlooked by other in-practice shoreline change assessment methods, such as an area-based approach [33]. Some other parameters, not addressed within this study, may affect BI shoreline changes, such as creek and tidal inlet modification as a result of low sediment supply and increased SLR. Previous research has concluded the modification (narrowing/widening) in the creeks of the IDR [27], which could be a possible cause of the BI disintegration and transgression [52] in the study area. The influence of creek modification on the evolution and sustainability of the BIs should also be investigated.
Similarly, if possible, higher resolution satellite observations could be used for similar assessments, which could enhance the reliability of the results. However, it could significantly increase the computation costs and may require more time and higher capacities/capabilities, which could make its adoption difficult in developing countries. Since changes in the BIs’ morphology impact the flood hazard and long-term coastal management depends on the changing shoreline position, depletion of the barrier island and flood hazard can be jointly studied for comprehensive coastal hazard risk/vulnerability assessment. The current study provides a basis for such further evaluations.
The sea level is rising along the IDR region, which could be the reason behind the estimated accelerated erosion of the BIs fronting the IDR, particularly those adjacent to the eastern side of the IR outfall at Khobar Creek, reaching up to 29 m/y (Figure 3). However, further in-depth evaluations in this regard are a pre-requisite to improve our understanding regarding the correlations among sediment supply, sea-level rise, and the accelerated erosion of the BIs. This represents an interesting research question for future studies, such as the storm-induced risk assessment of these coastal barriers.

7. Conclusions

The BIs are of both regional as well as local significance due to the provisioning of multiple services, which makes them a useful natural asset. This study used satellite observations to evaluate the morphological changes in the BI chain of Pakistan from 1989 to 2018. The approach used here integrated GIS and remote sensing to assess the spatial–temporal erosion of 19 BIs in order to inform the coastal management (assessment, monitoring, and planning) in Pakistan. The rates of erosion were quantified at the transect level (n = 2530) and reported as the average statistics for each island. This spatial information on erosion is important for coastal planners and decision makers for taking appropriate actions and devising effective adaptation measures to mitigate the erosion process for coastal sustainability, particularly in the regions which are highly vulnerable to erosion. The results show that while the erosion increased in the majority of the islands on both sides (i.e., the side facing the Arabian sea and the mainland) during the period 1989–2018, the shorelines of some of the islands facing the mainland experienced some accretion.
It was found that ~65% of BIs in the study area experienced high erosion, ~15% experienced moderate, and ~20% experienced low erosion during the period 1989–2018. This situation calls for consideration of the high erosion of BIs in the coastal planning and development plans in Pakistan. While the high erosion rates make the coastal communities vulnerable to erosion hazard, the depletion of the BIs in the study area can make the coastal population and infrastructure more susceptible to climate change-driven SLR-induced flooding and affect biodiversity due to the loss of natural systems. Therefore, it is imperative to assure the stability of these BIs in the context of coastal resilience. While the study acts as a roadmap to establish a coastal-change database for the monitoring of coastal environments in Pakistan, the approach presented here is equally applicable to other coastal regions—particularly data-scarce developing countries.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-1312/9/3/295/s1, Figure S1: Wind climatology of the study area from January–December. Figure S2: Significant wave height and wave direction along the coast of Pakistan, driven by the monthly mean wind in representative months for northerly (January, February, November, and December), westerly (March and April), and south-westerly (May, June, July, August, September, and October) wind cases.

Author Contributions

Conceptualization, X.D.; Data curation, S.K.; Formal analysis, S.K.; Funding acquisition, X.D.; Investigation, S.K.; Project administration, X.D.; Resources, X.D.; Software, X.D.; Supervision, X.D.; Visualization, S.K. and M.S.; Writing—original draft, S.K.; Writing—review & editing, S.K., X.D., M.S., M.N. and I.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by the Research Grants Council of Hong Kong Special Administrative Region (PolyU 152232/17E and PolyU152164/18E), the Research Institute for Sustainable Urban Development, The Hong Kong Polytechnic University (RISUD) (1-BBWB).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are openly available in the repositories, acknowledged and mentioned in the data source table within this article.

Acknowledgments

The authors would like to thank the National Institute of Oceanography, Karachi, Pakistan, for providing the survey photos. The authors would also like to thank anonymous reviewers for their valuable comments which improved the quality of this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brantley, S.T.; Bissett, S.N.; Young, D.R.; Wolner, C.W.V.; Moore, L.J. Barrier island morphology and sediment characteristics affect the recovery of dune building grasses following storm-induced overwash. PLoS ONE 2014, 9, e104747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Feagin, R.A.; Smith, W.K.; Psuty, N.P.; Young, D.R.; Martínez, M.L.; Carter, G.A.; Lucas, K.L.; Gibeaut, J.C.; Gemma, J.N.; Koske, R.E. Barrier islands: Coupling anthropogenic stability with ecological sustainability. J. Coast. Res. 2010, 26, 987–992. [Google Scholar] [CrossRef]
  3. Powell, E.J.; Tyrrell, M.C.; Milliken, A.; Tirpak, J.M.; Staudinger, M.D. A review of coastal management approaches to support the integration of ecological and human community planning for climate change. J. Coast. Conserv. 2019, 23, 1–18. [Google Scholar] [CrossRef] [Green Version]
  4. Hapke, C.J.; Kratzmann, M.G.; Himmelstoss, E.A. Geomorphic and human influence on large-scale coastal change. Geomorphology 2013, 199, 160–170. [Google Scholar] [CrossRef]
  5. McBride, R.A.; Byrnes, M.R. Regional variations in shore response along barrier island systems of the Mississippi River delta plain: Historical change and future prediction. J. Coast. Res. 1997, 13, 628–655. [Google Scholar]
  6. Stutz, M.L.; Pilkey, O.H. Open-ocean barrier islands: Global influence of climatic, oceanographic, and depositional settings. J. Coast. Res. 2011, 27, 207–222. [Google Scholar] [CrossRef]
  7. Sajjad, M.; Li, Y.; Tang, Z.; Cao, L.; Liu, X. Assessing hazard vulnerability, habitat conservation, and restoration for the enhancement of mainland China’s coastal resilience. Earth’s Future 2018, 6, 326–338. [Google Scholar] [CrossRef]
  8. Xu, N. Detecting coastline change with all available landsat data over 1986–2015: A case study for the state of Texas, USA. Atmosphere 2018, 9, 107. [Google Scholar] [CrossRef] [Green Version]
  9. Griffiths, D.; House, C.; Rangel-Buitrago, N.; Thomas, T. An assessment of areal and transect-based historic shoreline changes in the context of coastal planning. J. Coast. Conserv. 2019, 23, 315–330. [Google Scholar] [CrossRef] [Green Version]
  10. Hein, C.J.; Fallon, A.R.; Rosen, P.; Hoagland, P.; Georgiou, I.Y.; FitzGerald, D.M.; Morris, M.; Baker, S.M.; Marino, G.B.; Fitzsimons, G. Shoreline dynamics along a developed river mouth barrier island: Multi-decadal cycles of erosion and event-driven mitigation. Front. Earth Sci. 2019, 7, 103. [Google Scholar] [CrossRef]
  11. Maiti, S.; Bhattacharya, A.K. Shoreline change analysis and its application to prediction: A remote sensing and statistics based approach. Mar. Geol. 2009, 257, 11–23. [Google Scholar] [CrossRef]
  12. Oost, A.; Hoekstra, P.; Wiersma, A.; Flemming, B.; Lammerts, E.; Pejrup, M.; Hofstede, J.; Van der Valk, B.; Kiden, P.; Bartholdy, J. Barrier island management: Lessons from the past and directions for the future. Ocean. Coast. Manag. 2012, 68, 18–38. [Google Scholar] [CrossRef]
  13. Shaw, J.B.; Wolinsky, M.A.; Paola, C.; Voller, V.R. An image-based method for shoreline mapping on complex coasts. Geophys. Res. Lett. 2008, 35. [Google Scholar] [CrossRef]
  14. Ghosh, M.K.; Kumar, L.; Roy, C. Monitoring the coastline change of Hatiya Island in Bangladesh using remote sensing techniques. ISPRS J. Photogramm. Remote Sens. 2015, 101, 137–144. [Google Scholar] [CrossRef]
  15. Nassar, K.; Mahmod, W.E.; Fath, H.; Masria, A.; Nadaoka, K.; Negm, A. Shoreline change detection using DSAS technique: Case of North Sinai coast, Egypt. Mar. Georesources Geotechnol. 2019, 37, 81–95. [Google Scholar] [CrossRef]
  16. Petropoulos, G.P.; Kalivas, D.P.; Griffiths, H.M.; Dimou, P.P. Remote sensing and GIS analysis for mapping spatio-temporal changes of erosion and deposition of two Mediterranean river deltas: The case of the Axios and Aliakmonas rivers, Greece. Int. J. Appl. Earth Obs. Geoinf. 2015, 35, 217–228. [Google Scholar] [CrossRef]
  17. Paris, P.J.; Mitasova, H. Geospatial contrasts between natural and human-altered barrier island systems: Core Banks and Ocracoke Island, North Carolina, USA. J. Coast. Conserv. 2018, 22, 679–694. [Google Scholar] [CrossRef]
  18. Moore, L.J.; List, J.H.; Williams, S.J.; Stolper, D. Complexities in barrier island response to sea level rise: Insights from numerical model experiments, North Carolina Outer Banks. J. Geophys. Res. Earth Surf. 2010, 115. [Google Scholar] [CrossRef] [Green Version]
  19. Williams, S.J.; Kulp, M.; Penland, S.; Kindinger, J.L.; Flocks, J.G. Mississippi River Delta Plain, Louisiana coast and inner shelf: Holocene geologic framework and processes, and resources. Gulf Mex. Orig. Waters Biota 2011, 3, 175–193. [Google Scholar]
  20. Cui, B.-L.; Li, X.-Y. Coastline change of the Yellow River estuary and its response to the sediment and runoff (1976–2005). Geomorphology 2011, 127, 32–40. [Google Scholar] [CrossRef]
  21. Li, X.; Damen, M.C. Coastline change detection with satellite remote sensing for environmental management of the Pearl River Estuary, China. J. Mar. Syst. 2010, 82, S54–S61. [Google Scholar] [CrossRef]
  22. Nienhuis, J.; Lorenzo-Trueba, J. Can barrier islands survive sea-level rise? Quantifying the relative role of tidal deltas and overwash deposition. Geophys. Res. Lett. 2019, 46, 14613–14621. [Google Scholar] [CrossRef] [Green Version]
  23. Sankar, R.D.; Donoghue, J.F.; Kish, S.A. Spatio-temporal analysis of decadal-scale patterns in barrier island response to storms: Perdido Key, NW Florida. Phys. Geogr. 2018, 39, 166–195. [Google Scholar] [CrossRef]
  24. Zhang, X.; Pan, D.; Chen, J.; Zhao, J.; Zhu, Q.; Huang, H. Evaluation of coastline changes under human intervention using multi-temporal high-resolution images: A case study of the Zhoushan Islands, China. Remote Sens. 2014, 6, 9930–9950. [Google Scholar] [CrossRef] [Green Version]
  25. Giosan, L.; Constantinescu, S.; Clift, P.D.; Tabrez, A.R.; Danish, M.; Inam, A. Recent morphodynamics of the Indus delta shore and shelf. Cont. Shelf Res. 2006, 26, 1668–1684. [Google Scholar] [CrossRef]
  26. Ijaz, M.W.; Mahar, R.B.; Ansari, K.; Siyal, A.A. Optimization of salinity intrusion control through freshwater and tidal inlet modifications for the Indus River Estuary. Estuar. Coast. Shelf Sci. 2019, 224, 51–61. [Google Scholar] [CrossRef]
  27. Ijaz, M.W.; Mahar, R.B.; Siyal, A.A.; Anjum, M.N. Geospatial analysis of creeks evolution in the Indus Delta, Pakistan using multi sensor satellite data. Estuar. Coast. Shelf Sci. 2018, 200, 324–334. [Google Scholar] [CrossRef]
  28. Kanwal, S.; Ding, X.; Sajjad, M.; Abbas, S. Three Decades of Coastal Changes in Sindh, Pakistan (1989–2018): A Geospatial Assessment. Remote Sens. 2020, 12, 8. [Google Scholar] [CrossRef] [Green Version]
  29. Fatima, H.; Arsalan, M.H.; Khalid, A.; Marjan, K.; Kumar, M. Spatio-temporal analysis of shoreline changes along Makran Coast using remote sensing and geographical information system. In Proceedings of the Fourth International Conference on Space Science and Technology (ICASE), Islamabad, Pakistan, 12–14 November 2019. [Google Scholar]
  30. Hashmi, S.; Ahmad, S. GIS-Based Analysis and Modeling of Coastline Erosion and Accretion along the Coast of Sindh Pakistan. J. Coast. Zone Manag. 2018, 21, 6–9. [Google Scholar] [CrossRef]
  31. Khan, T.M.A.; Razzaq, D.; Chaudhry, Q.-U.-Z.; Quadir, D.A.; Kabir, A.; Sarker, M.A. Sea level variations and geomorphological changes in the coastal belt of Pakistan. Mar. Geod. 2002, 25, 159–174. [Google Scholar] [CrossRef]
  32. Siddig, N.A.; Al-Subhi, A.M.; Alsaafani, M.A. Tide and mean sea level trend in the west coast of the Arabian Gulf from tide gauges and multi-missions satellite altimeter. Oceanologia 2019, 61, 401–411. [Google Scholar] [CrossRef]
  33. Waqas, M.; Nazeer, M.; Shahzad, M.I.; Zia, I. Spatial and Temporal Variability of Open-Ocean Barrier Islands along the Indus Delta Region. Remote Sens. 2019, 11, 437. [Google Scholar] [CrossRef] [Green Version]
  34. Mentaschi, L.; Vousdoukas, M.I.; Pekel, J.-F.; Voukouvalas, E.; Feyen, L. Global long-term observations of coastal erosion and accretion. Sci. Rep. 2018, 8, 12876. [Google Scholar] [CrossRef] [Green Version]
  35. Sajjad, M.; Chan, J.C.; Kanwal, S. Integrating spatial statistics tools for coastal risk management: A case-study of typhoon risk in mainland China. Ocean. Coast. Manag. 2019, 184, 105018. [Google Scholar] [CrossRef]
  36. Cenci, L.; Disperati, L.; Persichillo, M.G.; Oliveira, E.R.; Alves, F.L.; Phillips, M. Integrating remote sensing and GIS techniques for monitoring and modeling shoreline evolution to support coastal risk management. Gisci. Remote Sens. 2018, 55, 355–375. [Google Scholar] [CrossRef]
  37. Thieler, E.R.; Himmelstoss, E.A.; Zichichi, J.L.; Ergul, A. The Digital Shoreline Analysis System (DSAS) Version 4.0—An ArcGIS Extension for Calculating Shoreline Change; US Geological Survey: Reston, VA, USA, 2009. [Google Scholar]
  38. Davies, J. A morphogenic approach to world shorelines. Z. Geomorphol. 1964, 8, 127–142. [Google Scholar] [CrossRef]
  39. Rizvi, S.; Ali, A.; Naeem, S.; Tahir, M.; Baquer, J.; Saleem, M.; Tabrez, S. Comparison of the physical properties of seawater offshore the Karachi coast between the northeast and southwest monsoons. In Marine Science of the Arabian Sea; American Institute of Biological Sciences: Washington, DC, USA, 1988. [Google Scholar]
  40. Waheed-uz-Zaman, M.; Saif, N. To Study Feasibility of the Generation of Tidal Power Energy at Pakistan Creek Areas. J. Am. Sci. 2014, 10, 40–43. [Google Scholar]
  41. Mulhern, J.S.; Johnson, C.L.; Martin, J.M. Is barrier island morphology a function of tidal and wave regime? Mar. Geol. 2017, 387, 74–84. [Google Scholar] [CrossRef]
  42. Limmer, D.R.; Henstock, T.J.; Giosan, L.; Ponton, C.; Tabrez, A.R.; Macdonald, D.I.; Clift, P.D. Impacts of sediment supply and local tectonics on clinoform distribution: The seismic stratigraphy of the mid Pleistocene-Holocene Indus Shelf. Mar. Geophys. Res. 2012, 33, 251–267. [Google Scholar] [CrossRef]
  43. SWAN. SWAN Manual; Delft University of Technology: Delft, The Netherlands, 2018. [Google Scholar]
  44. Danish Hydraulic Institute (DHI). Danish Hydraulic Institute. MIKE 21 & MIKE 3 Flow Model FM, Hydrodynamic and Transport, Scientific Documentation; Danish Hydraulic Institute (DHI): Hørsholm, Denmark, 2016. [Google Scholar]
  45. Kidwai, S.; Ahmed, W.; Tabrez, S.M.; Zhang, J.; Giosan, L.; Clift, P.; Inam, A. The Indus Delta—Catchment, River, Coast, and People. In Coasts and Estuaries; Elsevier: Amsterdam, The Netherlands, 2019; pp. 213–232. [Google Scholar]
  46. Qiao, G.; Mi, H.; Wang, W.; Tong, X.; Li, Z.; Li, T.; Liu, S.; Hong, Y. 55-year (1960–2015) spatiotemporal shoreline change analysis using historical DISP and Landsat time series data in Shanghai. Int. J. Appl. Earth Obs. Geoinf. 2018, 68, 238–251. [Google Scholar] [CrossRef]
  47. Bartlett, D.; Smith, J. GIS for Coastal Zone Management; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  48. Gornitz, V.M.; Daniels, R.C.; White, T.W.; Birdwell, K.R. The development of a coastal risk assessment database: Vulnerability to sea-level rise in the US Southeast. J. Coast. Res. 1994, 12, 327–338. [Google Scholar]
  49. MFF-Pakistan. A Handbook on Pakistan’s Coastal and Marine Resources; Ministry of Climate Change, Government of Pakistan: Islamabad, Pakistan, 2016.
  50. Frihy, O.; El-Sayed, M. Vulnerability risk assessment and adaptation to climate change induced sea level rise along the Mediterranean coast of Egypt. Mitig Adapt. Strat. Glob. Chang. 2013, 18, 1215–1237. [Google Scholar] [CrossRef]
  51. Mahapatra, M.; Ramakrishnan, R.; Rajawat, A. Coastal vulnerability assessment of Gujarat coast to sea level rise using GIS techniques: A preliminary study. J. Coast. Conserv. 2015, 19, 241–256. [Google Scholar] [CrossRef]
  52. Passeri, D.L.; Hagen, S.C.; Medeiros, S.C.; Bilskie, M.V.; Alizad, K.; Wang, D. The dynamic effects of sea level rise on low-gradient coastal landscapes: A review. Earth’s Future 2015, 3, 159–181. [Google Scholar] [CrossRef]
  53. Wamsley, T.V.; Cialone, M.A.; Smith, J.M.; Atkinson, J.H.; Rosati, J.D. The potential of wetlands in reducing storm surge. Ocean. Eng. 2010, 37, 59–68. [Google Scholar] [CrossRef]
  54. Temmerman, S.; Meire, P.; Bouma, T.J.; Herman, P.M.; Ysebaert, T.; De Vriend, H.J. Ecosystem-based coastal defence in the face of global change. Nature 2013, 504, 79–83. [Google Scholar] [CrossRef] [PubMed]
  55. Spalding, M.D.; Ruffo, S.; Lacambra, C.; Meliane, I.; Hale, L.Z.; Shepard, C.C.; Beck, M.W. The role of ecosystems in coastal protection: Adapting to climate change and coastal hazards. Ocean. Coast. Manag. 2014, 90, 50–57. [Google Scholar] [CrossRef]
  56. Silja, K.; Athanasios, T.V. Long-term adaptation planning for sustainable coasts. DIE ERDE J. Geogr. Soc. Berl. 2019, 150, 113–117. [Google Scholar]
  57. Domingues, R.B.; Santos, M.C.; de Jesus, S.N.; Ferreira, Ó. How a coastal community looks at coastal hazards and risks in a vulnerable barrier island system (Faro Beach, southern Portugal). Ocean. Coast. Manag. 2018, 157, 248–256. [Google Scholar] [CrossRef]
  58. Trujillo, A.P.; Thurman, H.V. Essentials of Oceanography, 12th ed.; Pearson: Dallas, TX, USA, 2016. [Google Scholar]
  59. Elsey-Quirk, T.; Graham, S.A.; Mendelssohn, I.A.; Snedden, G.; Day, J.W.; Twilley, R.; Shaffer, G.; Sharp, L.; Pahl, J.; Lane, R. Mississippi river sediment diversions and coastal wetland sustainability: Synthesis of responses to freshwater, sediment, and nutrient inputs. Estuar. Coast. Shelf Sci. 2019, 221, 170–183. [Google Scholar] [CrossRef]
  60. Irish, J.L.; Frey, A.E.; Rosati, J.D.; Olivera, F.; Dunkin, L.M.; Kaihatu, J.M.; Ferreira, C.M.; Edge, B.L. Potential implications of global warming and barrier island degradation on future hurricane inundation, property damages, and population impacted. Ocean. Coast. Manag. 2010, 53, 645–657. [Google Scholar] [CrossRef]
  61. Sutton-Grier, A.E.; Wowk, K.; Bamford, H. Future of our coasts: The potential for natural and hybrid infrastructure to enhance the resilience of our coastal communities, economies and ecosystems. Environ. Sci. Policy 2015, 51, 137–148. [Google Scholar] [CrossRef] [Green Version]
  62. Sajjad, M.; Chan, J.C. Risk assessment for the sustainability of coastal communities: A preliminary study. Sci. Total Environ. 2019, 671, 339–350. [Google Scholar] [CrossRef] [PubMed]
  63. Zhu, Z.-T.; Cai, F.; Chen, S.-L.; Gu, D.-Q.; Feng, A.-P.; Cao, C.; Qi, H.-S.; Lei, G. Coastal Vulnerability to Erosion Using a Multi-Criteria Index: A Case Study of the Xiamen Coast. Sustainability 2019, 11, 93. [Google Scholar] [CrossRef] [Green Version]
Jmse 09 00295 g001 550
Figure 1. Location map of the study area’s barrier islands divided into two sectors: Karachi and the Indus Delta Region (IDR). Yellow star represents the location of tide gauge station. Inset in the upper right corner shows the geographical location of the Sindh Coast at the head of the Arabian Sea (red-colored rectangle). (Note: IR = Indus River).
Figure 1. Location map of the study area’s barrier islands divided into two sectors: Karachi and the Indus Delta Region (IDR). Yellow star represents the location of tide gauge station. Inset in the upper right corner shows the geographical location of the Sindh Coast at the head of the Arabian Sea (red-colored rectangle). (Note: IR = Indus River).
Jmse 09 00295 g001
Jmse 09 00295 g002 550

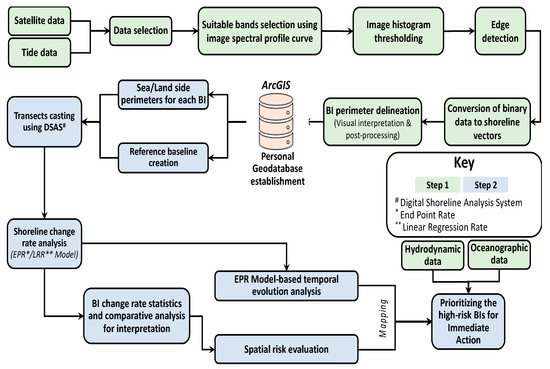

Figure 2. Schematic of the overall research workflow.
Figure 2. Schematic of the overall research workflow.
Jmse 09 00295 g002
Jmse 09 00295 g003 550
Figure 3. Multitemporal shoreline maps of the BIs along the coast of Sindh (i.e., Karachi shoreline (pink arc) and Indus Deltaic Region (IDR) shoreline (green arc)) during the period 1989–2018. BI segmentation is visible for many islands.
Figure 3. Multitemporal shoreline maps of the BIs along the coast of Sindh (i.e., Karachi shoreline (pink arc) and Indus Deltaic Region (IDR) shoreline (green arc)) during the period 1989–2018. BI segmentation is visible for many islands.
Jmse 09 00295 g003
Jmse 09 00295 g004 550

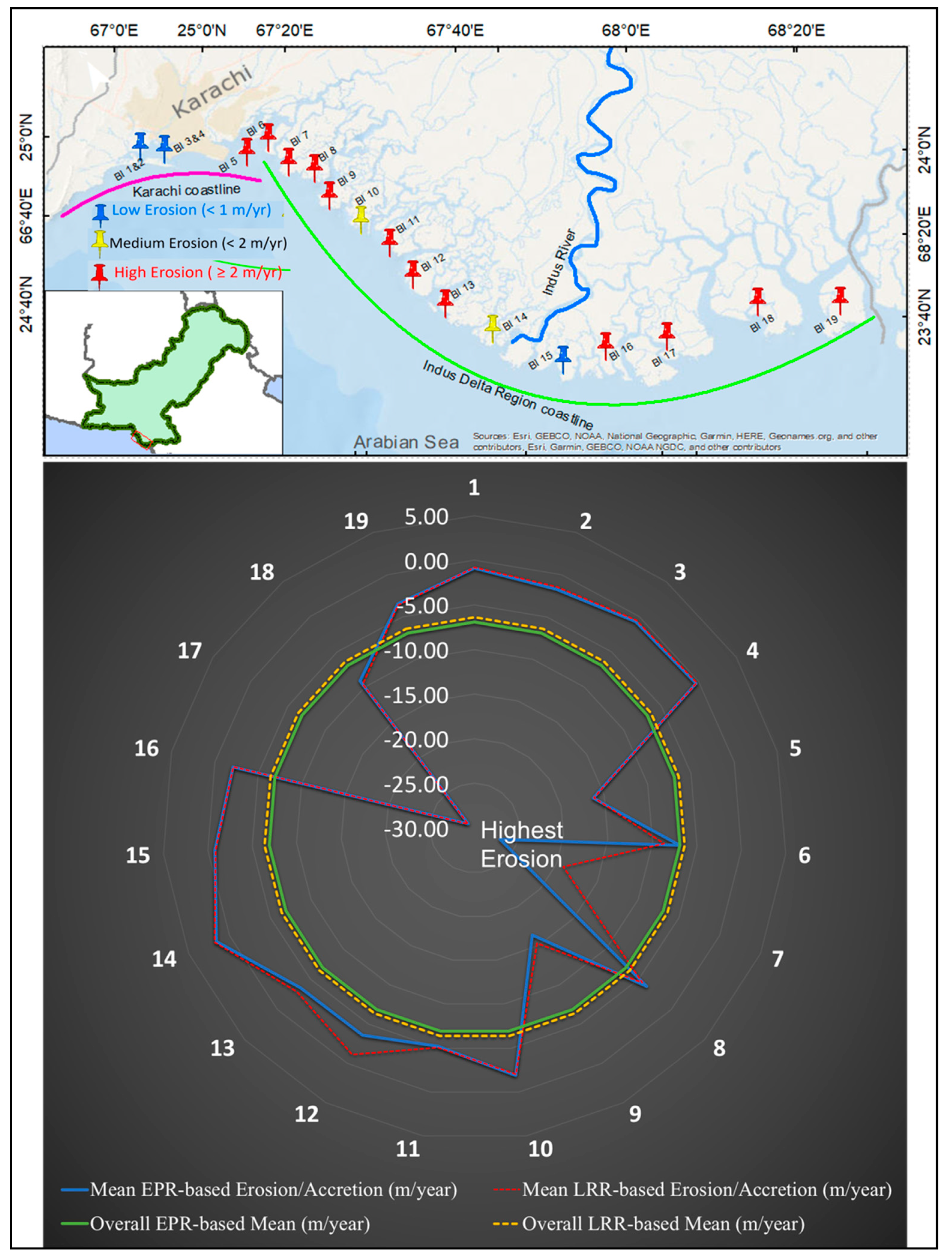

Figure 4. Statistical summary of the BI perimeter change rate during the period 1989–2018 (note: EPR = end point rate; LRR = linear regression rate). Different colors of pins in the upper panel represent three different classes of erosion ongoing in the BIs of the study area. Lower panel is a graphical representation of the average EPR and LRR rates in each BI zone.
Figure 4. Statistical summary of the BI perimeter change rate during the period 1989–2018 (note: EPR = end point rate; LRR = linear regression rate). Different colors of pins in the upper panel represent three different classes of erosion ongoing in the BIs of the study area. Lower panel is a graphical representation of the average EPR and LRR rates in each BI zone.
Jmse 09 00295 g004
Jmse 09 00295 g005 550

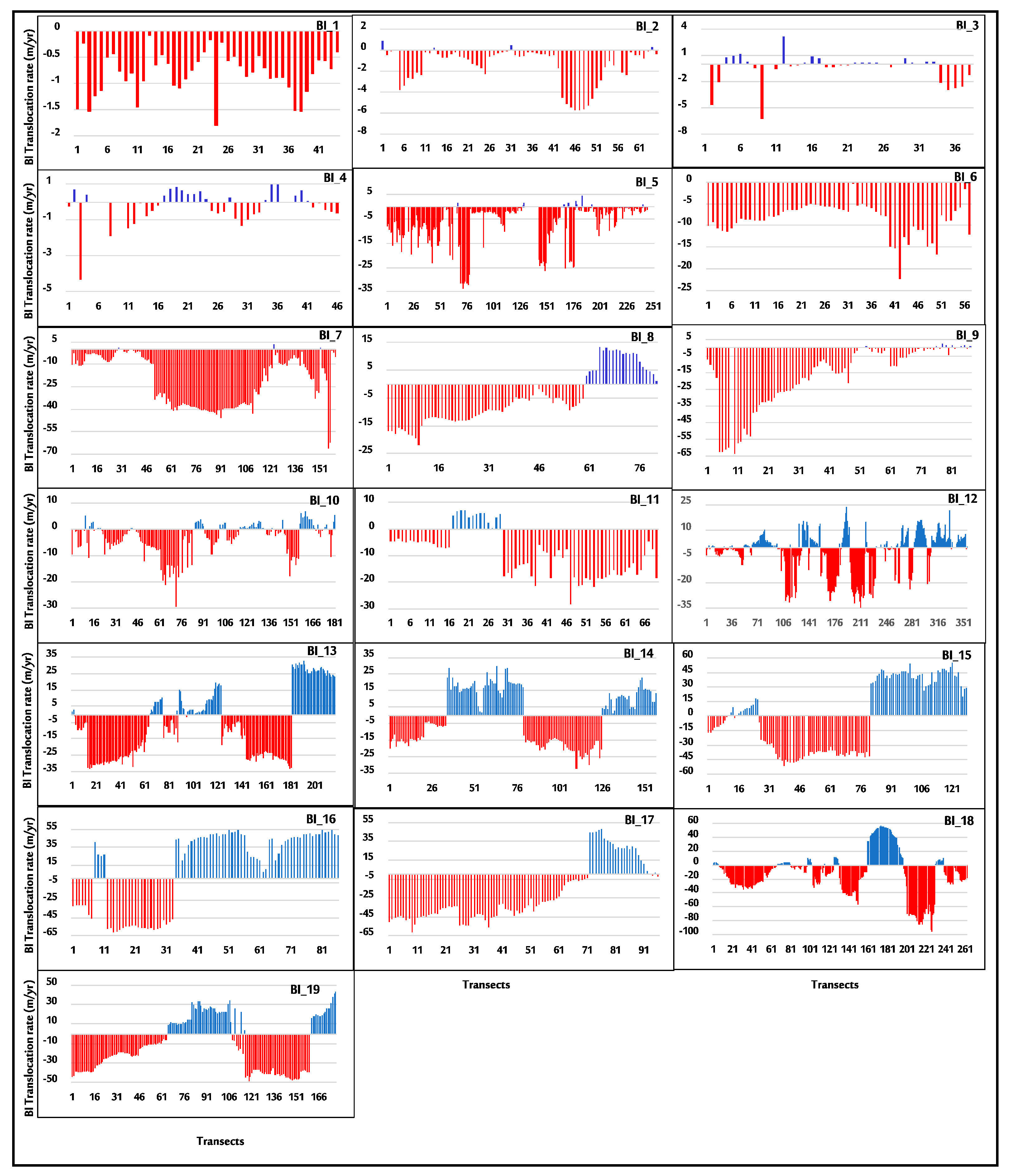

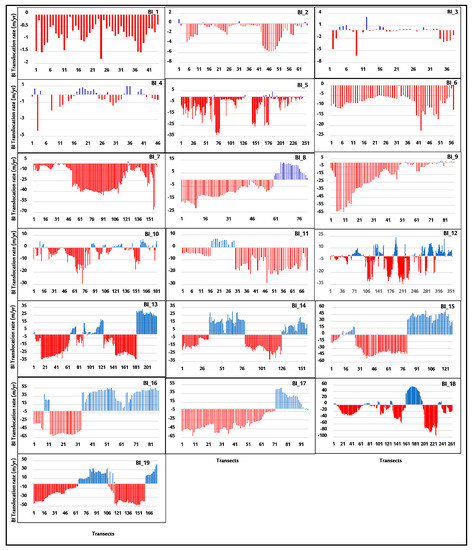

Figure 5. BI-wise erosion and accretion at each transect in the study area. For simplification, the linear regression rate (LRR, m/y) for both the seaside and landside transects are combined and presented together for each BI. For the majority of BIs, the number of eroding transects exceeds the number of accreting transects. These plots do not include those transects which do not intersect all the four shorelines, and output was NULL.
Figure 5. BI-wise erosion and accretion at each transect in the study area. For simplification, the linear regression rate (LRR, m/y) for both the seaside and landside transects are combined and presented together for each BI. For the majority of BIs, the number of eroding transects exceeds the number of accreting transects. These plots do not include those transects which do not intersect all the four shorelines, and output was NULL.
Jmse 09 00295 g005
Jmse 09 00295 g006 550

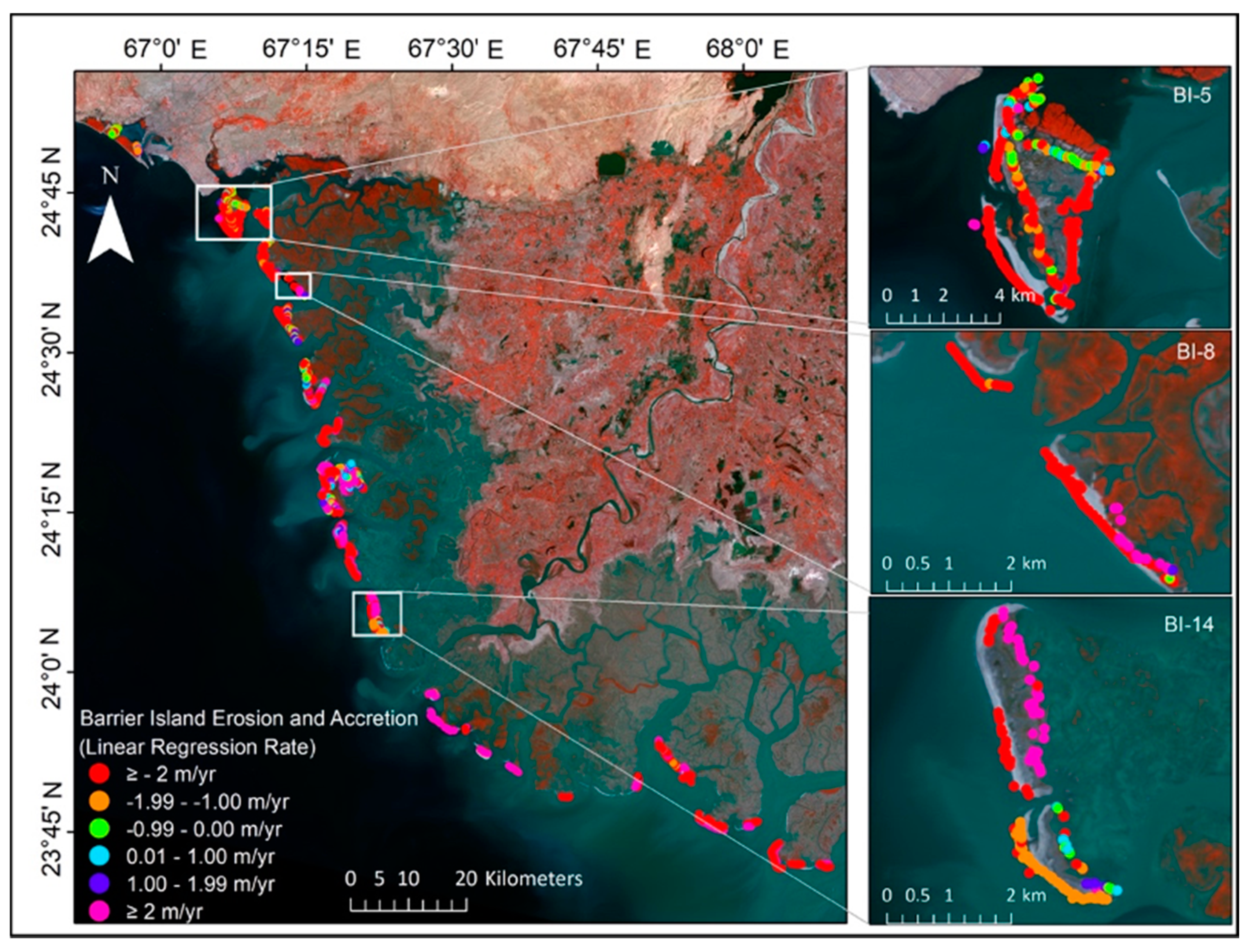

Figure 6. Map of BI perimeter change rate distribution along the Sindh coast. Insets show enlarged views of islands 5, 8, and 14. Areas with higher erosion rates and areas that have accreted are divided into sub-classes and represented in different colors. Positive values represent accretion and negative values represent erosion.
Figure 6. Map of BI perimeter change rate distribution along the Sindh coast. Insets show enlarged views of islands 5, 8, and 14. Areas with higher erosion rates and areas that have accreted are divided into sub-classes and represented in different colors. Positive values represent accretion and negative values represent erosion.
Jmse 09 00295 g006
Jmse 09 00295 g007 550

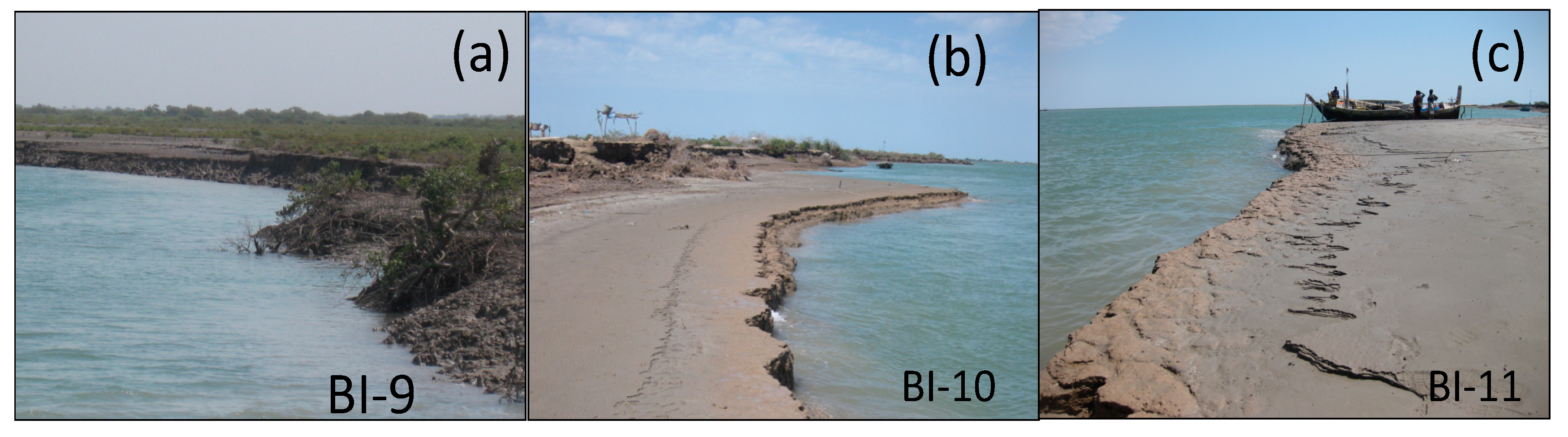

Figure 7. Land erosion and seawater intrusion into BIs along the Sindh coast. Seawater engulfing the islands’ banks is visible in (a–c).
Figure 7. Land erosion and seawater intrusion into BIs along the Sindh coast. Seawater engulfing the islands’ banks is visible in (a–c).
Jmse 09 00295 g007
Jmse 09 00295 g008 550

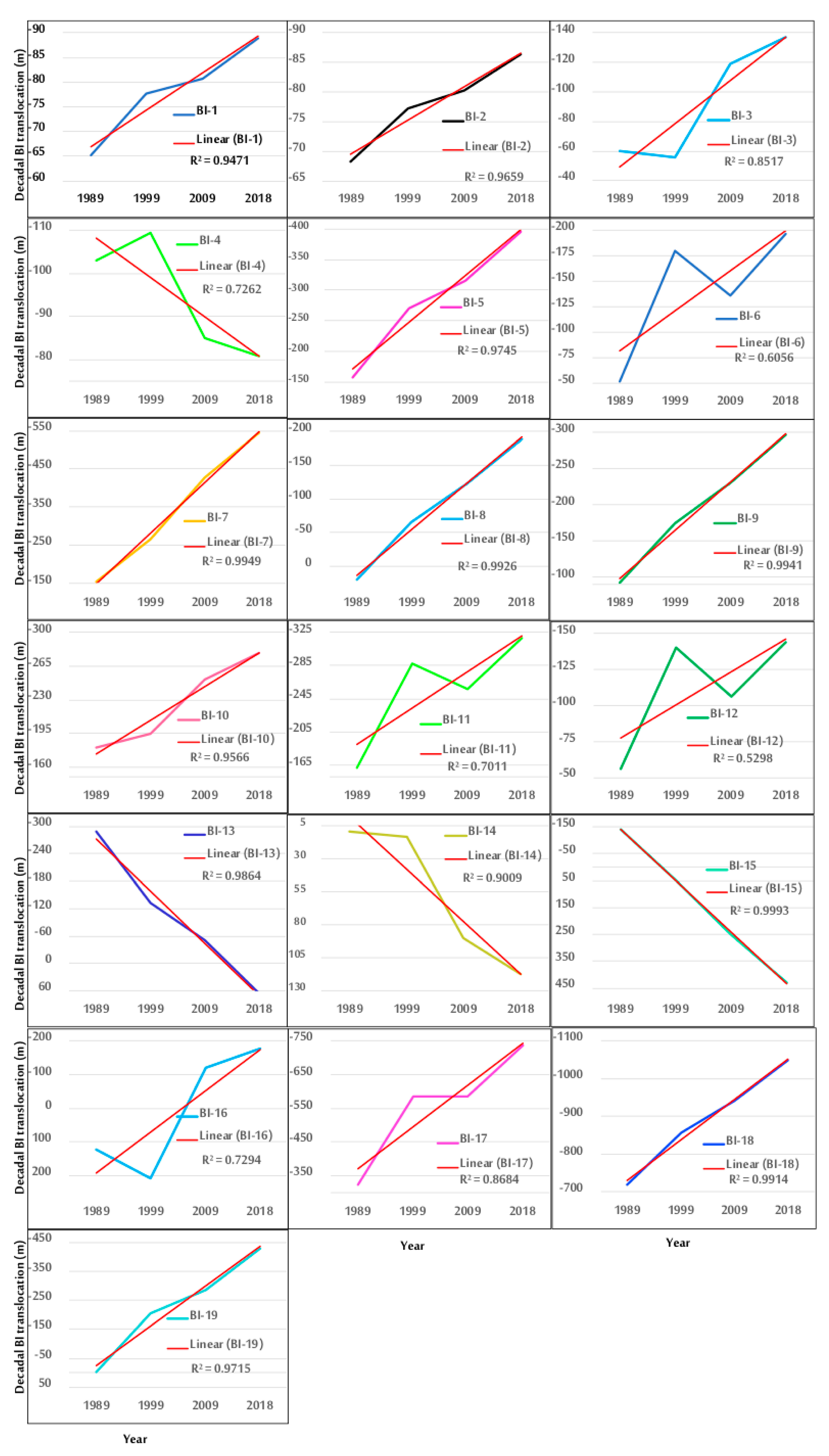

Figure 8. Historical trend of migration/erosion of barrier islands along study area shoreline, from 1989 reference shoreline derived using a transect based method.
Figure 8. Historical trend of migration/erosion of barrier islands along study area shoreline, from 1989 reference shoreline derived using a transect based method.
Jmse 09 00295 g008
Jmse 09 00295 g009 550

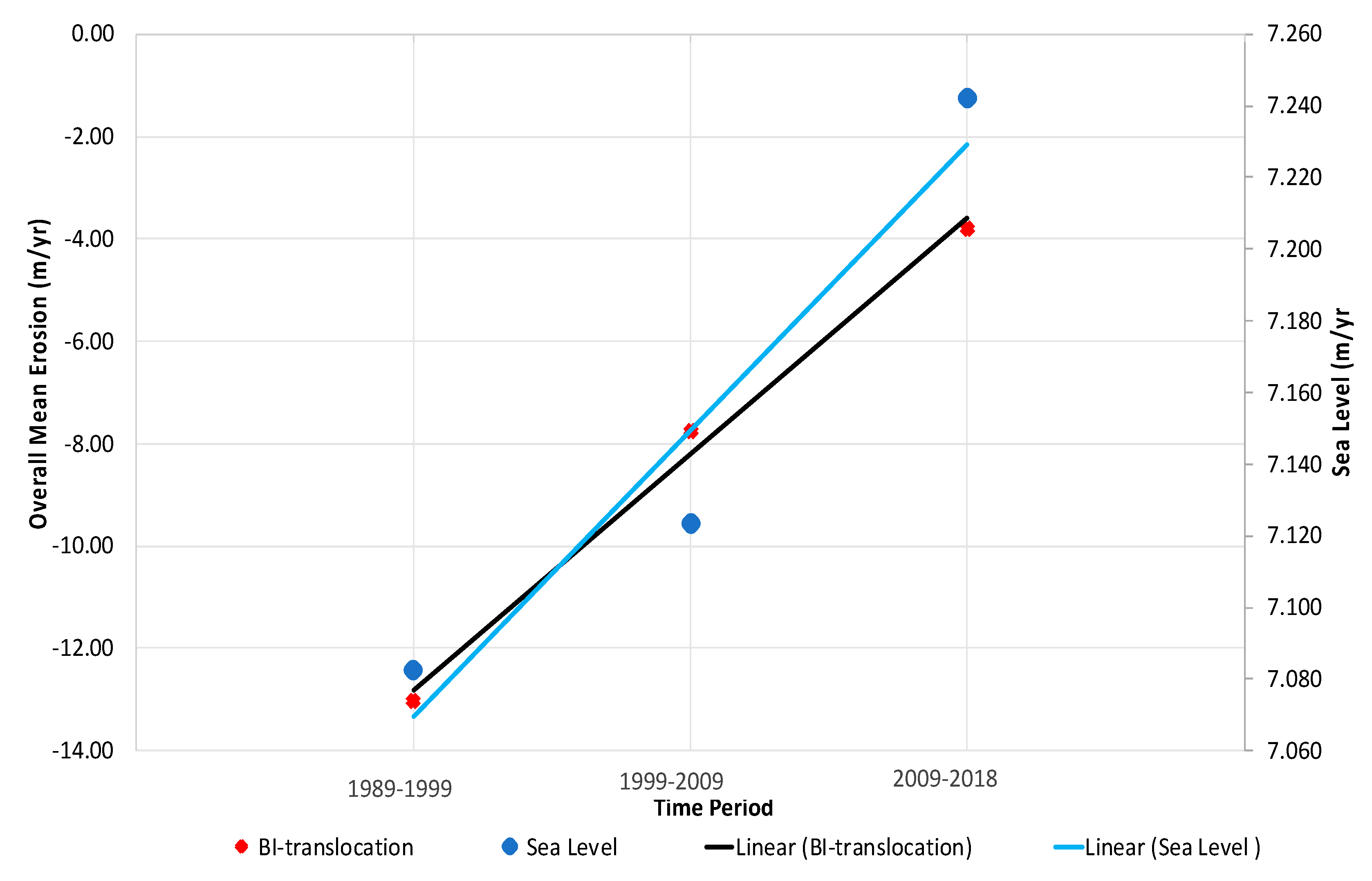

Figure 9. Graphical representation of the mean sea level estimates derived from PSMSL data for Karachi Station during the period 1989–2015 with a linear trend (blue color) vs. overall trend of mean erosion of the barrier islands (black color).
Figure 9. Graphical representation of the mean sea level estimates derived from PSMSL data for Karachi Station during the period 1989–2015 with a linear trend (blue color) vs. overall trend of mean erosion of the barrier islands (black color).
Jmse 09 00295 g009
Jmse 09 00295 g010 550

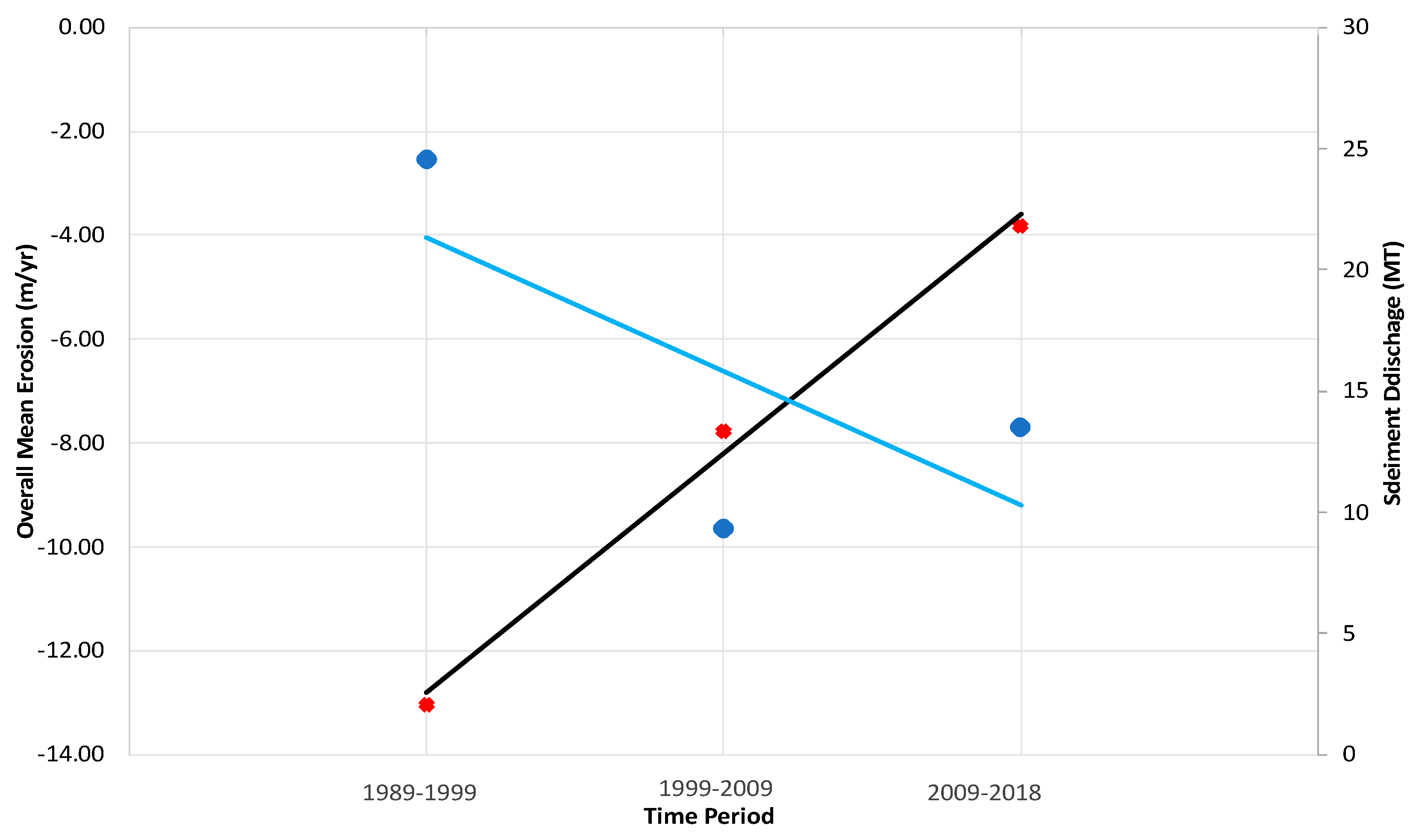

Figure 10. Overall trend of the mean changes in the sediment discharge (MT, 1 ton = 0.98 metric ton) downstream Kotri Barrage of IR catchment (blue color line) vs. overall trend of the mean erosion of the barrier islands (black color line) of the study area during the study period. Red points are representative measures of mean erosion of barrier islands and the blue points are the representative measures of the mean changes in the sediment discharge. Protecting BIs for effective coastal adaptation.
Figure 10. Overall trend of the mean changes in the sediment discharge (MT, 1 ton = 0.98 metric ton) downstream Kotri Barrage of IR catchment (blue color line) vs. overall trend of the mean erosion of the barrier islands (black color line) of the study area during the study period. Red points are representative measures of mean erosion of barrier islands and the blue points are the representative measures of the mean changes in the sediment discharge. Protecting BIs for effective coastal adaptation.
Jmse 09 00295 g010
Table
Table 1. Details of barrier islands (BIs) along Sindh coast (Note: IR = Indus River).
Table 1. Details of barrier islands (BIs) along Sindh coast (Note: IR = Indus River).
Shoreline SegmentAdministrative UnitsBarrier Islands
KarachiKarachi West BI-1, BI-2, BI-3, BI-4
Karachi SouthBI-5
West of IRMirpur Sakro BI-6, BI-7, BI-8, BI-9, BI-10, BI-11
GhorabariBI-12
Keti BandarBI-13, BI-14
East of IRKharo-ChhannBI-15, BI-16, part of BI-17
Shah BandarPart of BI-17, BI-18, BI-19
Table
Table 2. Details of data sets used along with necessary meta information.
Table 2. Details of data sets used along with necessary meta information.
Data SetDescriptionPeriodAcquisition Tide HeightSourceSoftware
Time (UTC)Date
Satellite dataLandsat TM1989–201805:26:113-April-19891.90 mUnited States Geological Survey (https://espa.cr.usgs.gov/ (accessed on 31 December 2020)).Envi 5.3, ArcMap 10.3 and Digital Shoreline Aanalysis System (DSAS)
05:41:596-April-19992.5 m
05:44:1310-April-20090.1 m
Landsat OLI05:56:492-March-20182.80 m
Tide DataMean tide level 1989–2018---Tides 4 Fishing (http://www.tides4fishing.com/ (accessed on 31 December 2020))
Hydrodynamic dataWind/WaveJanuary–December---National Centers for Environmental PredictionMIKE by DHI
Sediment Discharge dataIR discharge below Kotri barrage 1989–2015---Kidwai et al. [45]Microsoft Excel 2016
Sea Level dataRelative meansea levels1989–2015---Permanent Service for Mean Sea Level (PSMSL)Microsoft Excel 2016
Table
Table 3. Barrier island wise morphological changes with respect to the perimeter from 1989 to 2018 at all transects.
Table 3. Barrier island wise morphological changes with respect to the perimeter from 1989 to 2018 at all transects.
BINo. of Transects No. of Eroding Transects No. of Accreting Transects Eroding Transects
(%)		Accreting Transects
(%)		Disintegration of Island
1444401000No
264595928No
33617184750No
43922175644No
527525322928Yes
6575701000No
71601537964No
88159227327Yes
98673138515No
10180124566931Yes
117057138119No
123491551944456Yes 1
13218135836238No 1
1415780775149Yes 1
1512664625149Yes 1
168629573466Yes 1,2
179673237624Yes 1,2
18229161687030Yes 1
19177114636436Yes 1
Total 253017298006832-
1 Few new small sand bars appeared; 2 few old ones disappeared after barrier island’s disintegration. This summary does not include those transects where transects did not intersect all the four shorelines, and output was NULL.
Table
Table 4. End point rate (m/y) for individual time periods. (notes: ↑ represents erosion acceleration; ↓ represents erosion deacceleration).
Table 4. End point rate (m/y) for individual time periods. (notes: ↑ represents erosion acceleration; ↓ represents erosion deacceleration).
BI1989–19991999–20092009–2018Trend
1−1.86−0.43−0.32↓
2−4.440.562−2.30↓↑
3−1.750.85−4.63↓↑
4−6.425.84−0.39↓↑
5−24.46−2.48−8.91↓↑
6−9.64−18.01−18.01↑
7−32.04−22.69−7.89↓
8−1.82−9.12−1.70↓
9−24.36−7.58−4.28↓
10−13.79−1.504.12↓
11−18.81−9.83−20.63↓↑
12−6.27−7.492.94↑↓
13−15.55−5.748.44↓
14−6.66−2.86−0.37↓
15−10.90−0.965.52↓
16−16.655.3833.54↓
17−42.008−41.922−25.49↑
189.50−11.9−1.82↓
19−19.75−17.594−0.17↓
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kanwal, S.; Ding, X.; Sajjad, M.; Nazeer, M.; Zia, I. Remote Sensing of Narrowing Barrier Islands along the Coast of Pakistan over Past 30 Years. J. Mar. Sci. Eng. 2021, 9, 295. https://doi.org/10.3390/jmse9030295

AMA Style

Kanwal S, Ding X, Sajjad M, Nazeer M, Zia I. Remote Sensing of Narrowing Barrier Islands along the Coast of Pakistan over Past 30 Years. Journal of Marine Science and Engineering. 2021; 9(3):295. https://doi.org/10.3390/jmse9030295

Chicago/Turabian Style

Kanwal, Shamsa, Xiaoli Ding, Muhammad Sajjad, Majid Nazeer, and Ibrahim Zia. 2021. "Remote Sensing of Narrowing Barrier Islands along the Coast of Pakistan over Past 30 Years" Journal of Marine Science and Engineering 9, no. 3: 295. https://doi.org/10.3390/jmse9030295

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
