A Review of Maximum Power Point Tracking Algorithms for Wind Energy Conversion Systems

Abstract

Renewable energy resources are gaining a lot of popularity. Several researchers have worked on the tracking and extraction of energy from these sources. In the past few decades, among the available green energy resources, wind energy has been the most attractive option among the resources available. It is imperative to use the maximum power available in the wind to achieve the wind turbine (WT) operation at maximum power. The maximum power point tracking (MPPT) algorithms are a pioneer in this context. Many research papers are contributed in this domain which necessitates a thorough review while choosing an appropriate technique. This paper comprehensively focuses on reviewing different algorithms in the past and present for tracking maximum power point, and capturing maximized output power from the wind energy conversion system (WECS). In this paper, the algorithms are classified based on the direct and indirect power measurement, hybrid and smart algorithms for tracking maximum power point, and they are compared, considering the parameters like complexity, convergence speed, use of sensors, memory requirement, need for knowledge of system parameters, etc. The immense popularity of the different versions of perturb and observe (P&O) based algorithms due to their various features is evident from the literature. The review reveals that the hybrid maximum power point tracking algorithms can use the advantages of the conventional methods and eliminate their drawbacks.

1. Introduction

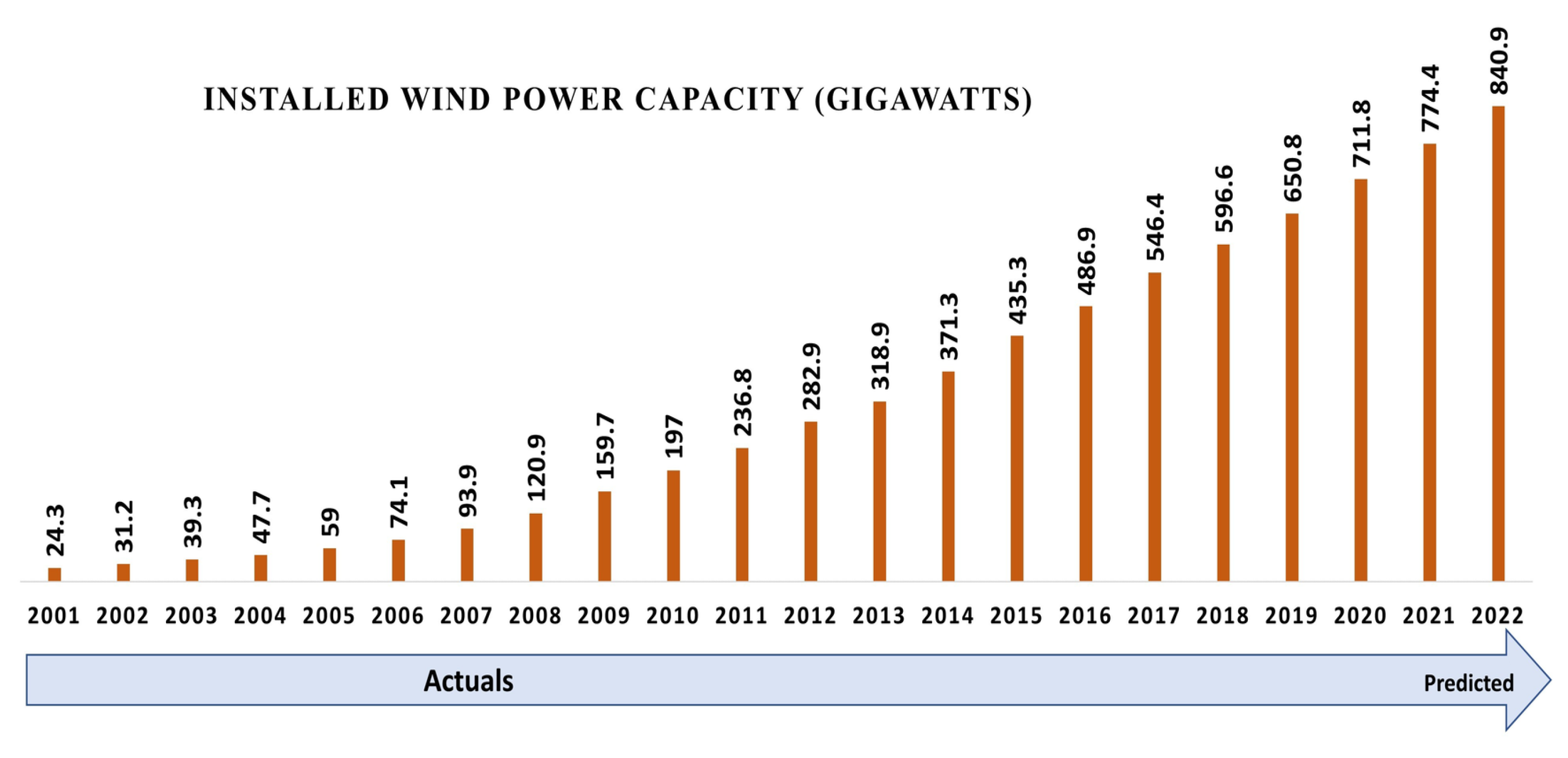

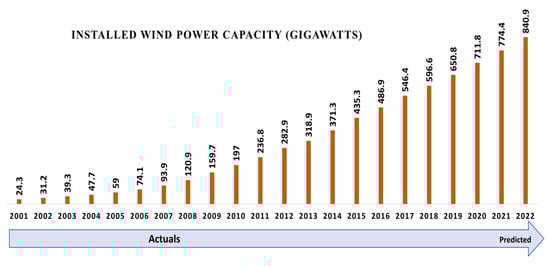

With the ever-increasing prices, the increasing need for conventional fuels, and the decline in their availability, renewable energy resources such as wind energy are gaining immense popularity. Moreover, it is a form of green energy that is environment friendly. Globally, a remarkable increase is observed in the installation of wind power plants consistently [1,2] as depicted in Figure 1. By the year 2022, the global installed wind capacity will reach 840 GW. The basic nature of wind being extremely fluctuating, the optimal speed of the generator has to be maintained to obtain maximum yield of energy from WECS. Therefore, tracking the MPP is very popular and extremely important for ensuring the maximum capture of energy from the WECS for different varying speeds of the wind.

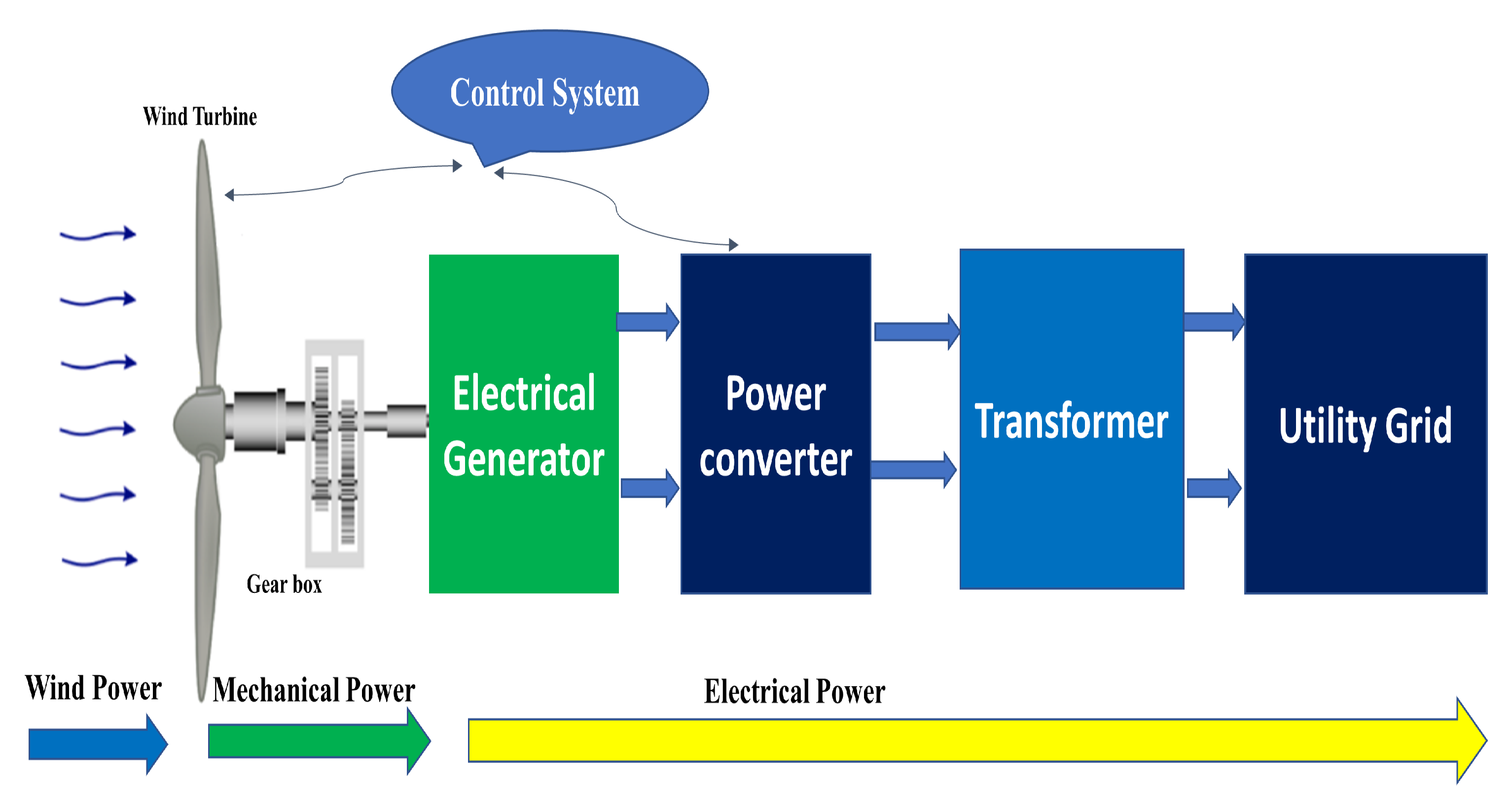

As portrayed in Figure 2, the kinetic energy present in the wind serves as an input to the WECS. The output of the WECS becomes fluctuating as the continuous changes in the speed of the wind influence it. The most important function of a WT is to provide mechanical energy by transforming the kinetic energy present in the wind, which can then drive the generator to produce clean electrical energy. Maximum energy extraction is possible for all variable speeds of the wind as the wind turbine with variable speed has a speed shaft that is adjustable [4,5]. WT’s are categorized as the horizontal axis wind turbine (HAWT) and the vertical axis wind turbine (VAWT), considering their axis of rotation [6]. The axis around which the WT rotates in VAWT is at a right angle to the ground, while the remaining assembly is placed on the ground. The VAWT has various drawbacks, such as those related to the blade lift forces, and another major drawback is the problem of the lower capacity of generation [7,8]. On the other hand, there are considerable advantages of the HAWT such as better aerodynamic performance, drive train loading is balanced, and their cost is low. The three-blade design is the most prevalent in the present-day industry [9]. The WT’s are also categorized as wind turbines with variable speed (VSWT) and wind turbines with fixed speed (FSWT). There are numerous issues with the FSWT, such as the huge mechanical stress, a limited range for speed of operation, and gear with multiple stages is required [10]. To overcome the drawbacks of the FSWT, the VSWT is preferred [11]. The main benefit of using the VSWT is obtaining maximum power for each wind speed along with reduced mechanical stress and power supply fluctuations [12,13,14].

There are various kinds of generators employed for the WECS. The Squirrel cage induction generators (SCIG’s) can be counted as a low-cost, reliable, and simple option available for WECS [15]. Doubly fed induction generators (DFIG’s) alternatively are also preferred for WECS as they are economical when used with the power converters. The only issue with them is the requirement of a multi-stage gearbox, and also they need excitation [16,17,18]. Finally, permanent magnet synchronous generators(PMSG’s) are attracting researchers due to higher efficiency and reliability, better performance, and better fault ride-through (FRT) capability [19,20,21,22]. A review of the generators for WECS is given in [10,11,17]. From the available energy possessed by the wind, only 59% is extracted by the WT by Betz limit. Therefore, the power present in the air is given as in Equation (1).

$$Pair=\frac{1}{2}\rho A{V}^3$$

(1)

The density of air is represented by $\rho$, the area swept by the blades of the turbines is represented by A in $m^2$, and the speed of the wind in (m/s) is represented by V. The tip speed ratio (TSR), represented by $\lambda$ is given as in Equation (2).

$$\lambda =\frac{R\ast \omega }{V}$$

(2)

R represents the radius of the turbine blade, and $\omega$ represents the angular speed which is given in rad/s. The air density is a variable parameter that may change from season to season and can be different at different locations. $C_p$ represents the power coefficient. Its maximum value is given by Equation (3) and it is limited to less than 59% by the Betz limit.

$$C_p=\frac{P_{windturbine}}{P_{air}}$$

(3)

$P_{windturbine}$ represents the power absorbed by the WT from the wind, and $P_{air}$ represents the power present in the wind. The parameter $C_p$ is dependent on the values of $\lambda$ and the pitch angle $\beta$. The relation between $C_p$ and TSR is shown in Figure 3. From the graph, we can comment that the $C_p$ has the highest value $C_{pmax}$ as 0.48 for a particular value of $\lambda$. This optimal value is useful in tracking the maximum power.

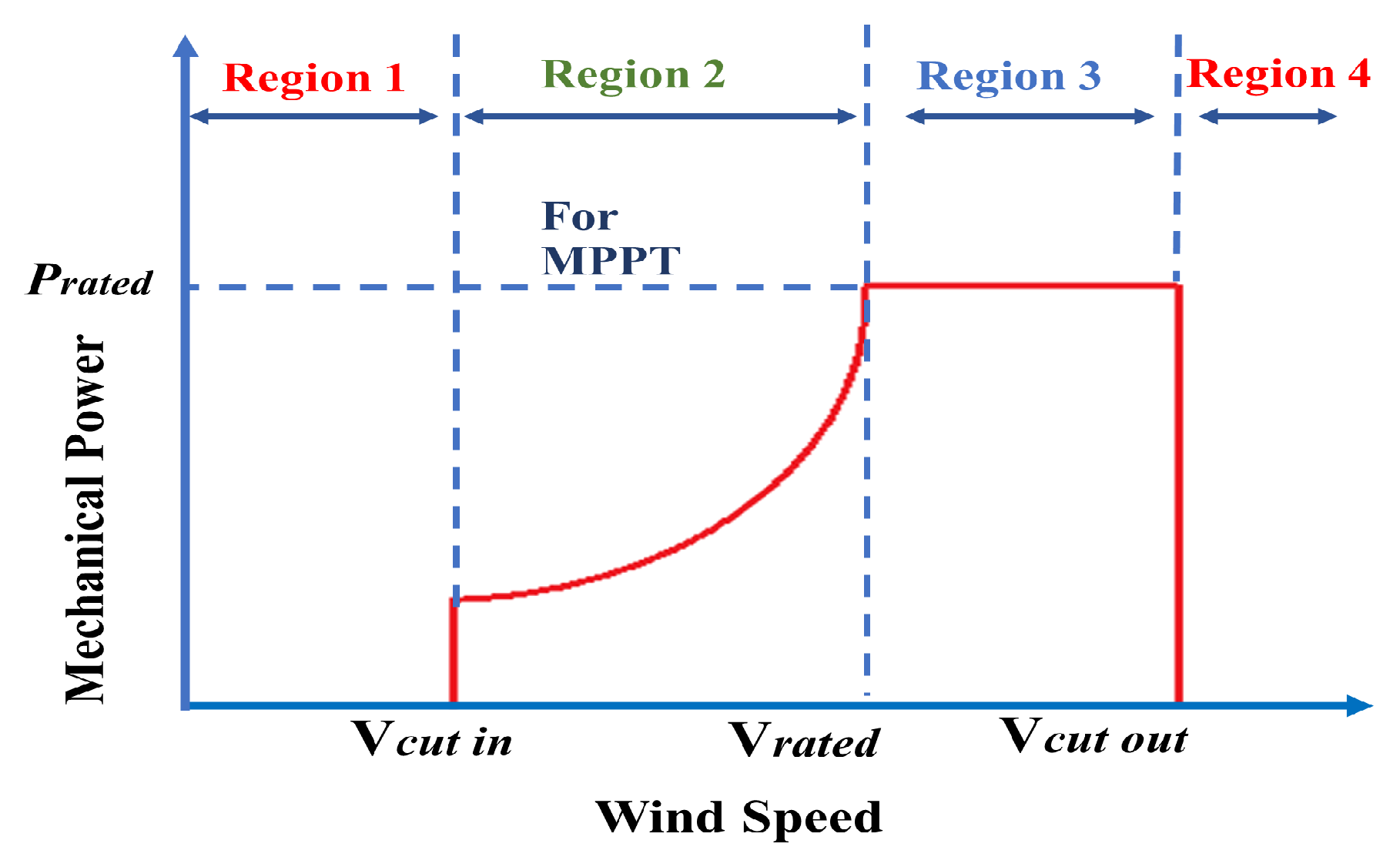

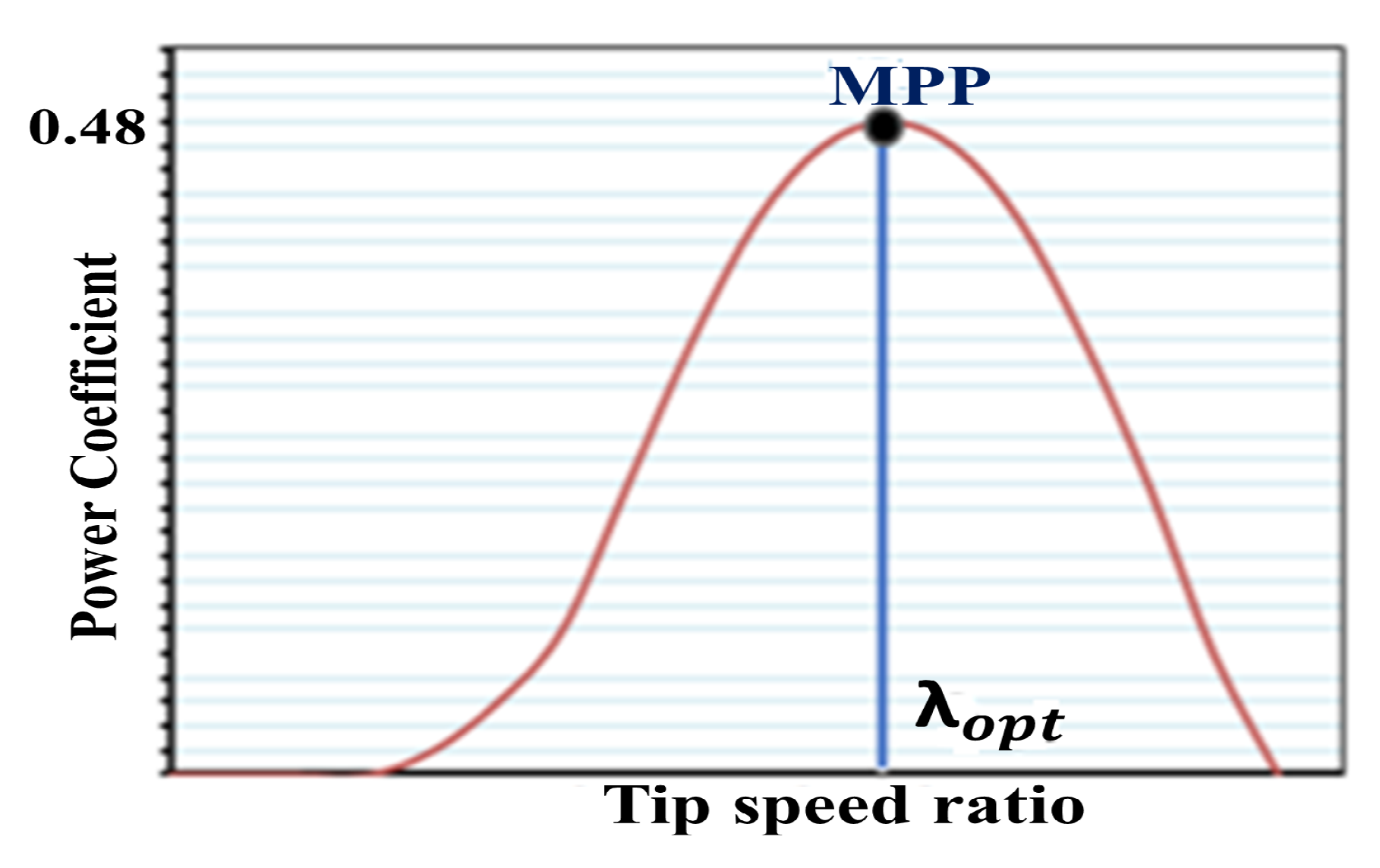

Figure 4 depicts the different regions of operation for WECS and the region for MPPT. There is no generation for all the velocities below the cut-in value as it is the minimum required speed to start generating usable power. The speed at which rated usable power is generated is the rated speed. The maximum power is extracted in region two that lies between the $V_{cutin}$ and $V_{rated}$. Figure 5 portrays the relation between optimal values of $\lambda$ and $C_p$ and explains the concept of MPPT for WECS. Various MPPT controllers are described in the literature, and all of them operate in this region and capture the maximum amount of power contained in the wind. Hence, this region is crucially important while considering the maximum extraction of power. The major focus of the MPPT algorithms described in this paper is on this region of operation.

The performance of WECS is affected by the control strategies that are employed. A review of the control strategies is presented in [25,26,27]. The control strategies are highly influenced by the integration of the MPPT algorithm for the WECS. Therefore, these advanced control techniques must produce minimum disturbances when these MPPT algorithms are implemented for WECS [28,29,30,31].

MPPT algorithms help in tracking and extracting maximum power from WECS. A large variety of algorithms are available. Based on the requirement of speed sensors for measurement of wind speed, MPPT methods employed are categorized into methods employing speed sensors and methods that do not employ speed sensors to estimate the speed of the wind. In the MPPT algorithms that use speed sensors for wind speed measurements, sensors such as anemometers are used. The MPPT algorithms such as tip speed ratio (TSR) and power signal flow (PSF) fall into the category of speed sensor based MPPT methods and perturb and observe (P&O), optimal relation based (ORB), and incremental conductance (INC) fall under the category of MPPT algorithms that do not employ wind speed sensors. Different hybrid techniques are also available in the literature that enables overcoming the drawbacks of the conventional algorithms mentioned above, and they facilitate the capture of maximum from WECS as they are formed by merging two or more conventional techniques. Smart MPPT algorithms are also proposed in the literature based on intelligent techniques such as neural networks (NN) and fuzzy logic controller (FLC). Different hybrid algorithms are available, which are a combination of optimization algorithms and the conventional MPPT algorithms to get maximum power from WECS [32].

Many review articles have given a comprehensive review of the MPPT algorithms for WECS [32,33,34,35,36,37]. In this paper, various algorithms of the past and present are described that are used for tracking and obtaining maximum power output from WECS along with the description of the recent advancements in the P&O based modified versions and the smart and hybrid versions available in the literature. The algorithms are classified based on the direct and indirect power measurement, hybrid and smart MPPT algorithms, and they are compared concerning parameters such as complexity, convergence speed, use of sensors, memory requirement, need of prior knowledge of system parameters, etc.

The organization of the remaining part of the paper is as follows, Section 2 explains the concept of MPPT for WECS followed by the classification and description of the conventional, modified, smart and hybrid MPPT algorithms with their classification. The references are summarized for these methods. Section 3 presents the discussion, and the trends and future scope are discussed in Section 4. A brief conclusion is presented for this study.

2. MPPT Algorithms for WECS

The basic objective behind using the MPPT algorithm is tracking and capturing maximum power from WECS. Different regions of operation for WECS and the region for MPPT are shown in Figure 4. We can very well understand the concept of MPPT from Figure 5. The MPP at every wind speed makes up the $P_{opt}$ curve. There is no generation for all the velocities below the cut-in value as it is the minimum required speed to start generating usable power. The speed at which rated usable power is generated is the rated speed. The maximum power is extracted in region two that lies between the $V_{cutin}$ and $V_{rated}$. Several important variables such as the voltage, optimal power, duty cycle have to be estimated that may be challenging as stated in [23,32,36]. For selecting the appropriate MPPT algorithm, among several parameters, efficiency, speed, need of wind speed sensors, implementation complexity is considered. MPPT algorithms find their applications in renewable energy systems such as solar PV, wind energy, and others.

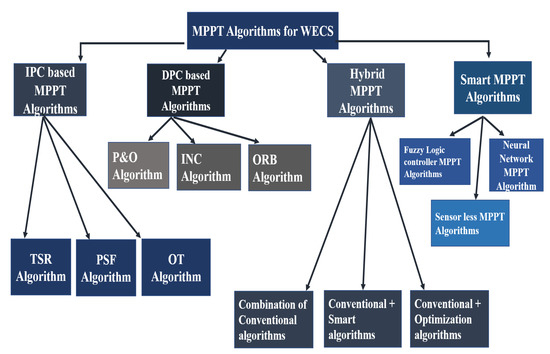

MPPT algorithms designed in the past works use the parameters such as the TSR, relation between the turbine rotational speed and power, and many others mentioned above in the review of the past works. They essentially aid in tracking and extracting maximum power from WECS. In [38,39] the classification of the MPPT algorithms is presented. They can be largely classified depending on the use of speed sensors. As depicted in Figure 6, they are categorized into the main types, as direct power control (DPC) and indirect power control (IPC) [32,40] and other advanced methods using neural networks (NN) and Fuzzy logic controller (FLC) [41,42]. There are MPPT techniques such as tip speed ratio(TSR), power signal feedback (PSF), and optimal torque(OT) [43,44,45] under the IPC control scheme. In the IPC technique, the power is pre-calculated using the wind speed plots, which maximizes the mechanical power $P_{wind}$, while in the DPC scheme, the electrical power ($P_{ele}$) is directly examined to operate the WT at the MPP. The DPC control scheme includes the MPPT algorithms such as perturb and observe (P&O) [46], incremental conductance (INC) [47], and optimal relation-based (ORB) [36,48]. An overview of several MPPT algorithms is presented in this section.

2.1. Conventional IPC Based MPPT Algorithms for WECS

In this section, the IPC-based conventional MPPT algorithms for WECS are discussed.

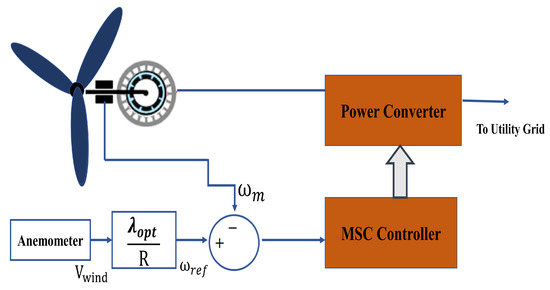

2.1.1. TSR MPPT Algorithm

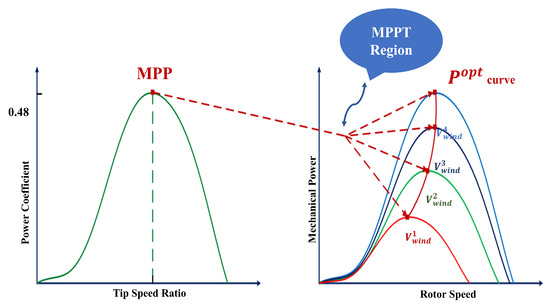

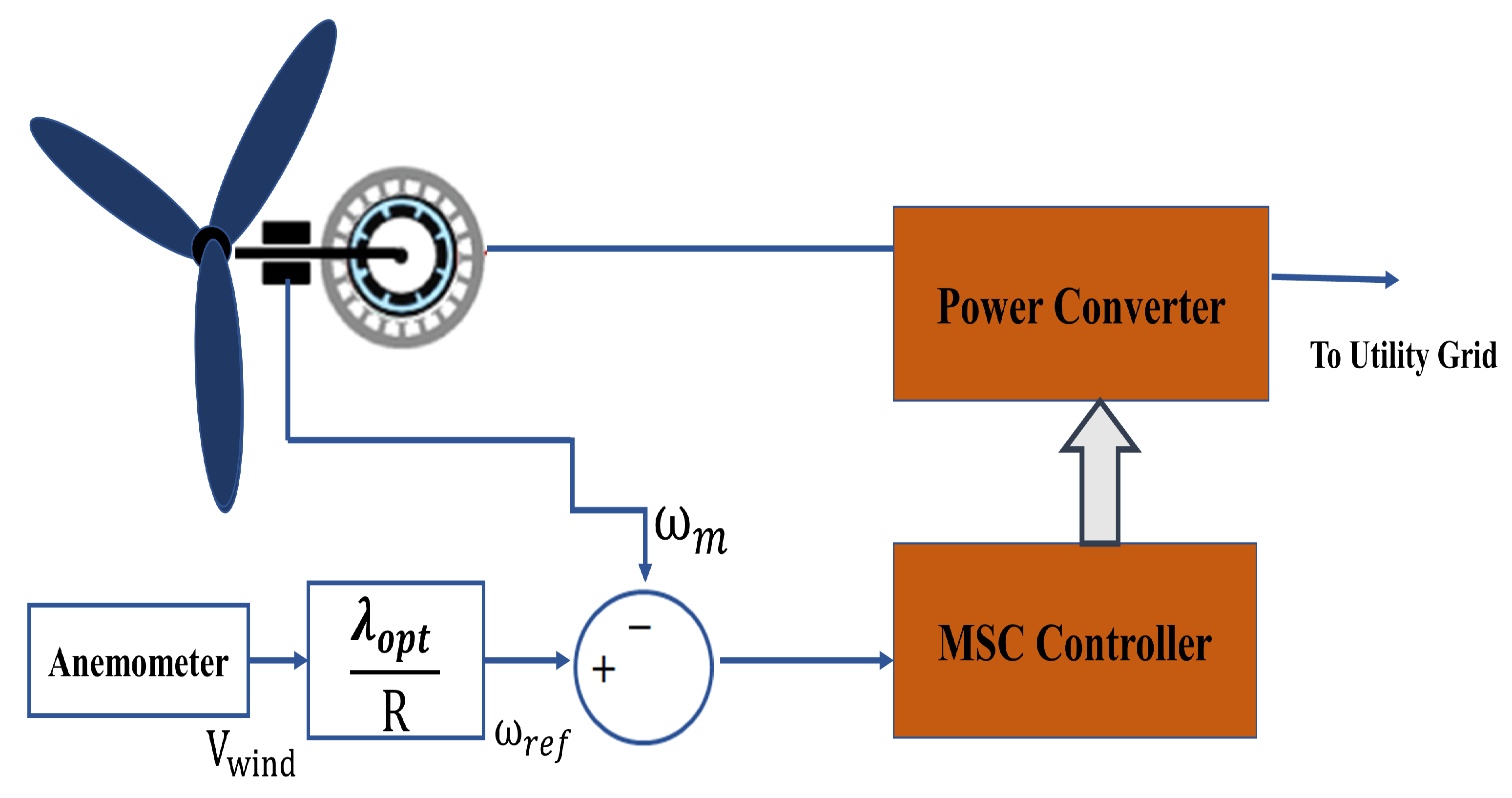

In this method, optimum TSR is obtained for the turbine to extract maximum power [49]. Figure 7 depicts this scheme. By estimating the speed of the rotor and the wind, an optimal reference speed of the rotor (${\omega }_{ref}$) is generated. By considering the system parameters, the optimal power extraction is estimated in the TSR method [50,51,52,53]. The TSR MPPT algorithm has advantages such as rapid response and simplicity; hence, it is employed for regulation of the optimal rotor speed under changing environmental conditions [54,55,56]. Based on the acquired speed of the wind, there are two approaches. The first approach is based on the mechanical sensor employed and the second one on the estimation of the speed of wind [23]. In the first approach, the TSR algorithm based on the mechanical sensors makes use of multiple anemometers which surround the WT swept area with an accuracy of −10% for measuring the speed of the wind [57]. The major drawback here is higher installation and initial cost and increased maintenance cost with lower efficiency and reduced reliability. In the second approach, wind speed estimation-based TSR algorithms were employed by researchers to overcome the drawbacks introduced due to the use of anemometers [58]. Wind speed estimation (WSE) algorithms provide higher accuracy in the calculated wind speed, although the accuracy decides the effectiveness in the tracking of energy as well as the harvesting. The efficient WSE algorithms based on the polynomial methods provide high accuracy, speed, and simplicity. These WSE algorithms are employed considering either the mathematical modeling of the WECS or considering the adaptive intelligent controllers [57,59,60,61].

2.1.2. OT MPPT Algorithm

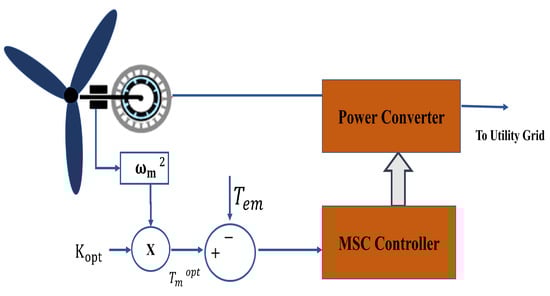

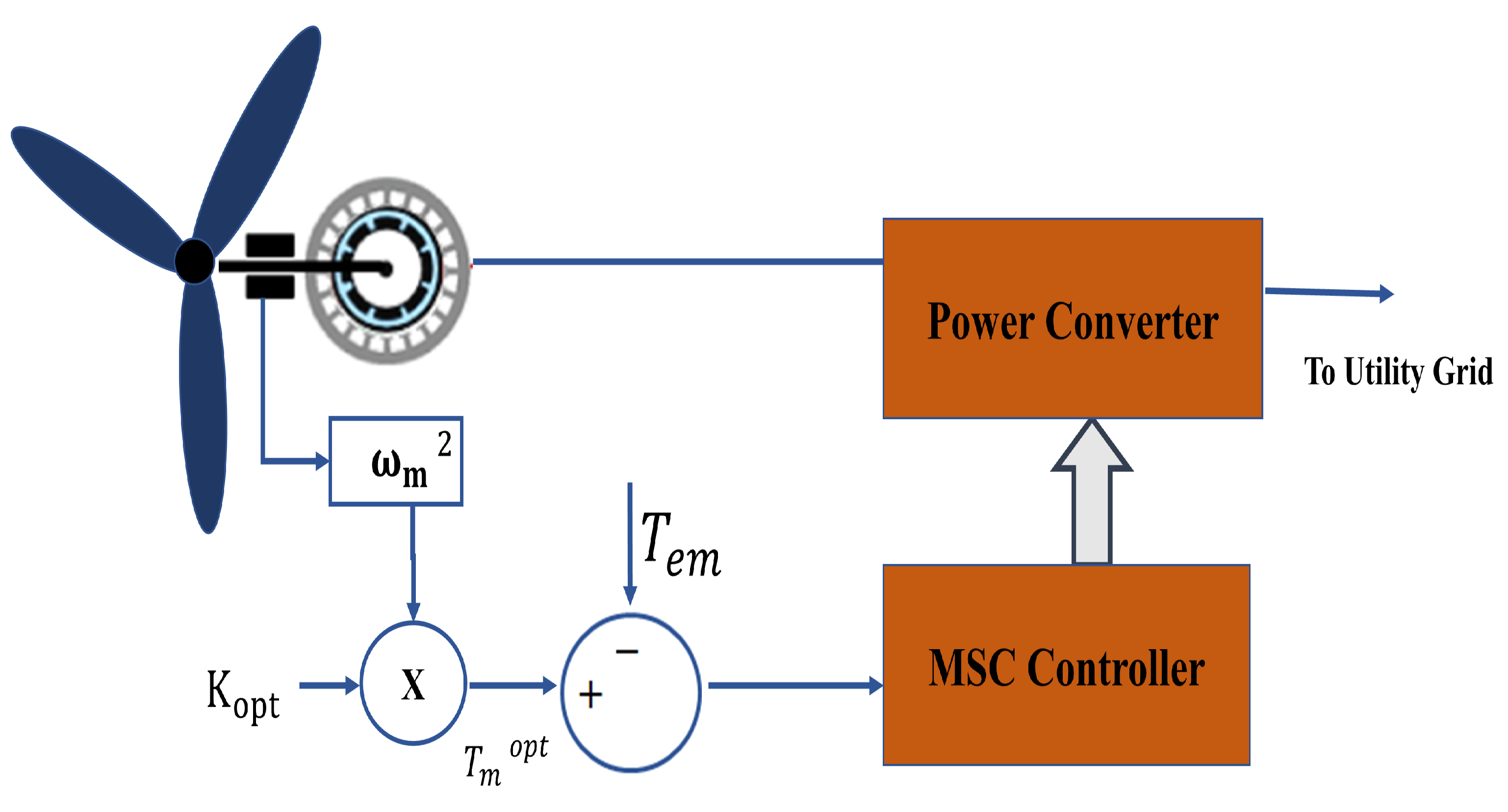

The approach for the OT MPPT algorithm involves the regulation of generator torque by using the optimal torque curve for multiple wind speeds [52,55]. The scheme for this algorithm is as shown in Figure 8. The efficiency of the WT is dependant and defined by the optimum value of the constants of the turbine, which emphasizes the need for experimental validation [62,63,64]. The benefits of this technique are greater efficiency, simplicity, and high tracking speed, but it suffers from the issues of dependency on the climatic conditions and the requirement of knowledge of the characteristics of the WT [65,66].

2.1.3. PSF MPPT Algorithm

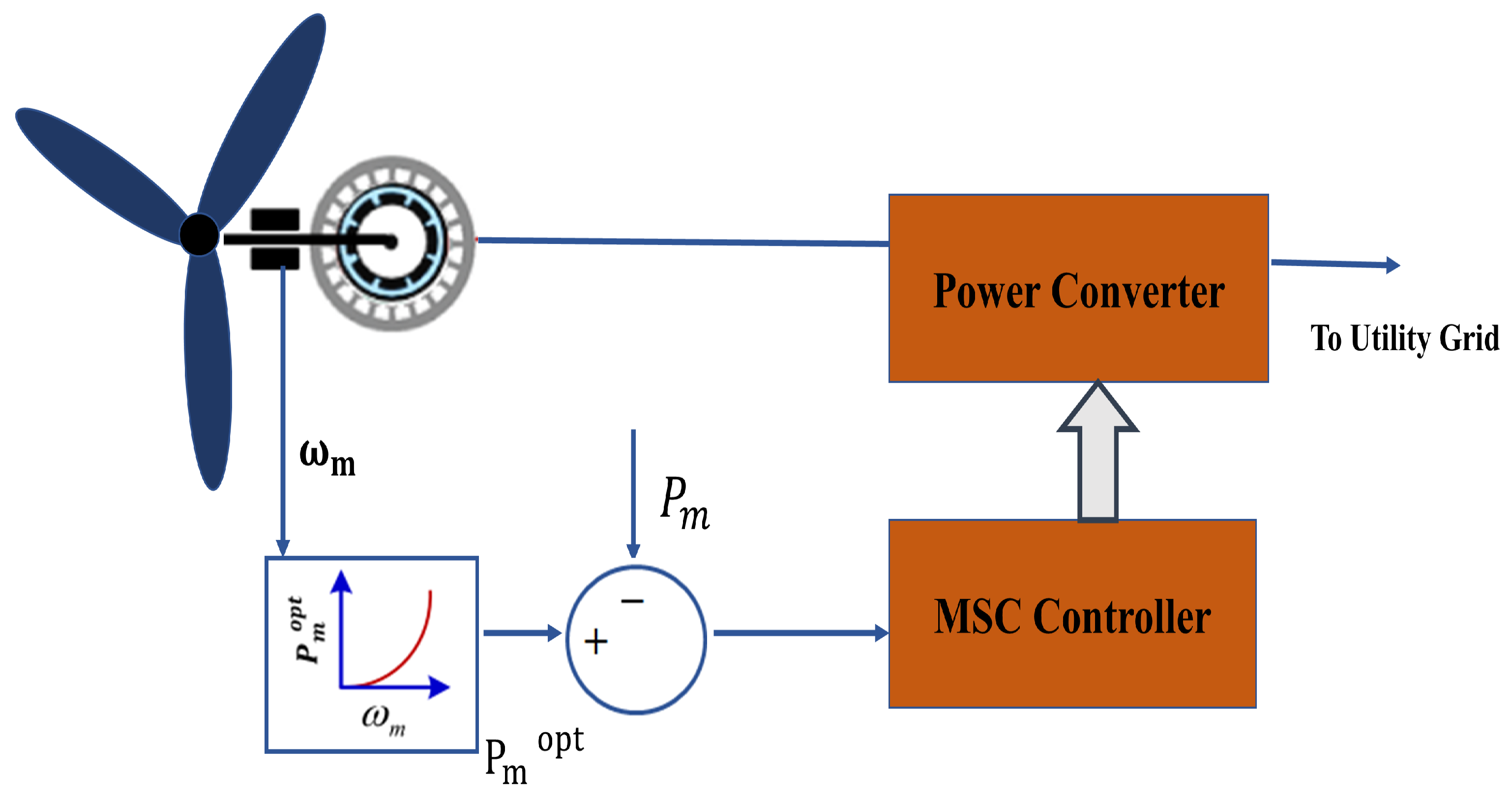

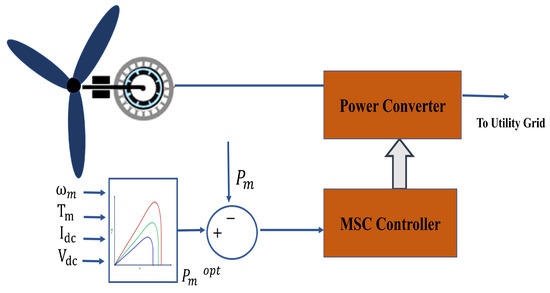

In this method lookup tables for the optimal power $P_m^{opt}$ are generated by experimental setup or by simulations for every WT [32]. The sensorless version of this algorithm measures the value of $P_m^{opt}$ as the relation between the change occurring in the DC link and the present wind speed. The value of ${\omega }_{ref}$ is measured based on the optimal power curve and estimated electrical power [67]. The drawbacks of PSF and OT are almost similar while tracking the MPP for WT with high inertia at the lower speeds of the wind. Both the algorithms are low-cost and robust. Figure 9 shows the scheme for the PSF algorithm. A comparison of the IPC-based techniques is presented in

Table 1. Comparison of IPC based MPPT Algorithms for WECS. Reused with permission from ref. [32,34,36,68]. Copyright 2012, 2015, 2016 Elsevier.

Features of the MPPT Algorithm	TSR	PSF	OT
Efficiency	High efficiency	Moderate efficiency	High efficiency
Complexity	Less	Less	Less
Convergence speed	Higher	Higher	Higher
Oscillations at MPP	No	No	No
Prior knowledge	Not needed	Needed	Needed
Memory requirement	No	Yes	No
Sensors for wind speed measurement	Yes	Yes	No
Parameter sensitivity	Yes	Yes	Yes
Cost	Very high	Moderate	Moderate
Online updating	No	No	No
Performance under fluctuating wind speed	Moderately fair	Moderately fair	Moderately fair

.

Table 2. Summary of references for IPC based MPPT Algorithms.

Type of Algorithm	Reference	Remarks
TSR	[52]	TSR algorithm is compared with the OT algorithm and TSR is found to provide a faster response to higher fluctuations in the wind speeds but suffers from the issue of greater fluctuations in the output.
TSR	[55]	A technique is proposed for improvement in the efficiency of the TSR and OT methods.
TSR	[34]	A review of different MPPT methods is presented. TSR algorithm requires speed sensors and hence suffers from the issue of higher cost.
OT	[55]	A technique is proposed for improvement in the efficiency of the TSR and OT methods.
OT	[66]	Some of the drawbacks of OT algorithm are discussed.
OT	[52]	A comparison of the OT algorithm is conducted with the TSR algorithm and it reveals that OT provides an improved response in terms of power smoothing and power extraction.
PSF	[32]	A review of several algorithms is presented. The PSF algorithm provides higher efficiency and faster response but has greater complexity.
PSF	[34]	A review of different MPPT methods is presented. PSF algorithm requires speed sensors and knowledge of the parameters of the turbine and hence suffers from the issue of higher complexity.

gives a summary of references for the IPC based algorithms

2.2. Conventional DPC Based MPPT Algorithms for WECS

Conventional DPC-based MPPT algorithms for WECS are discussed in this section. The DPC-based algorithms majorly include INC, P&O and ORB MPPT algorithms.

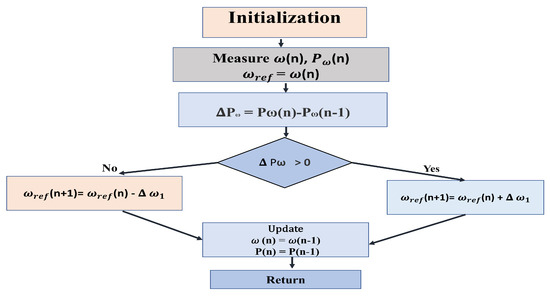

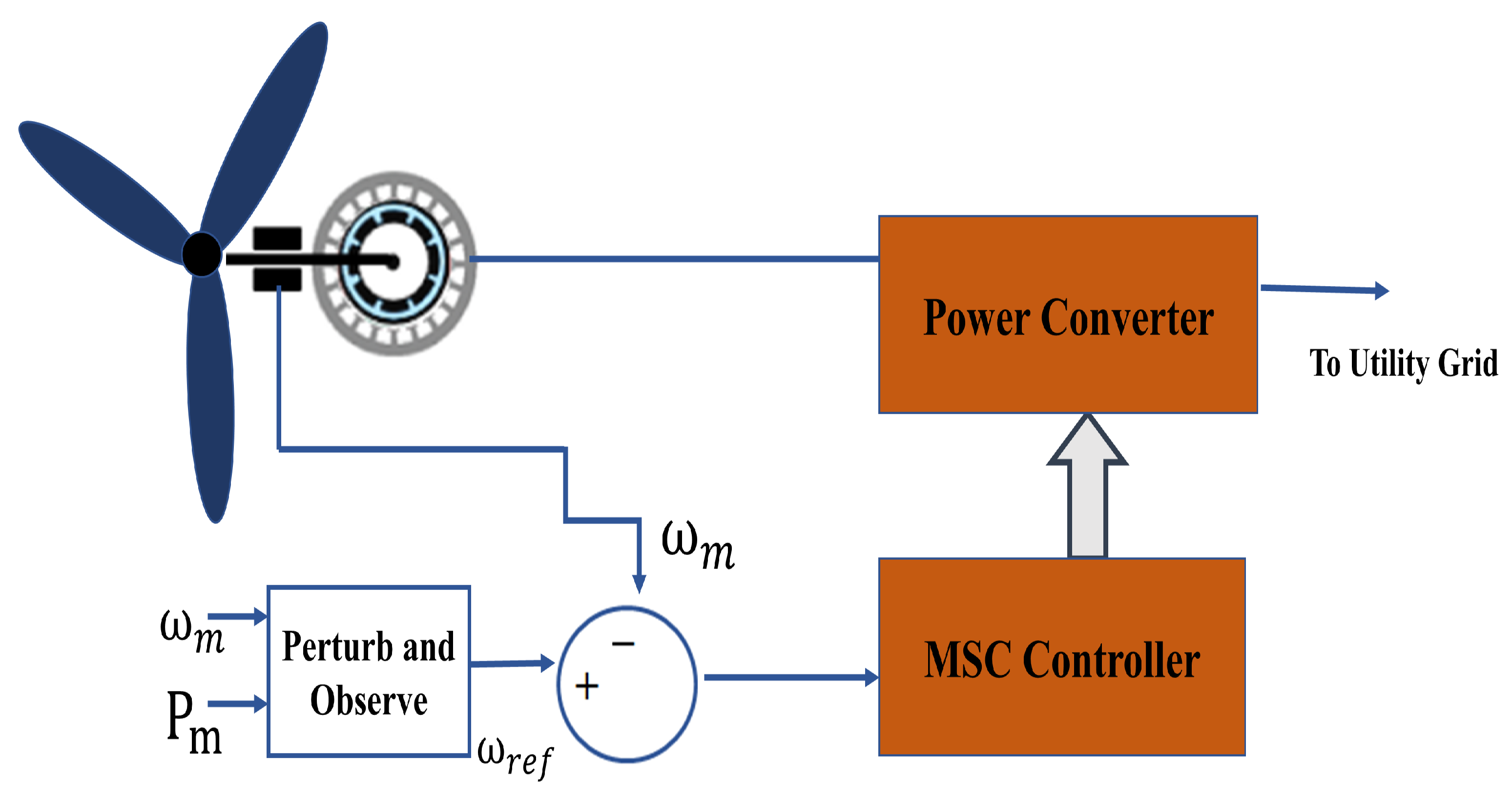

2.2.1. Conventional P&O MPPT Algorithm

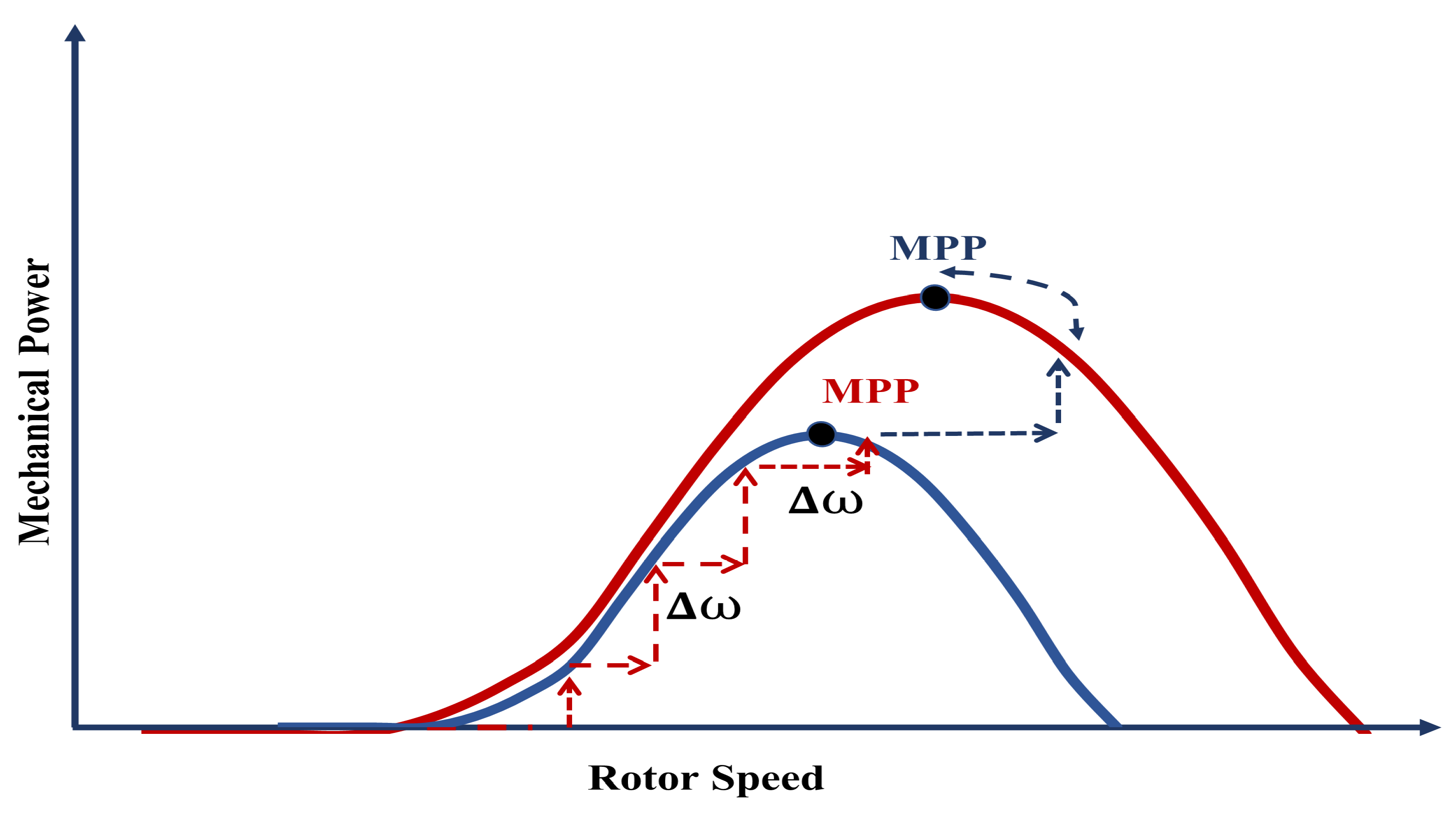

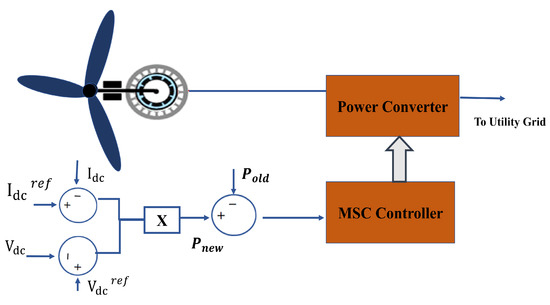

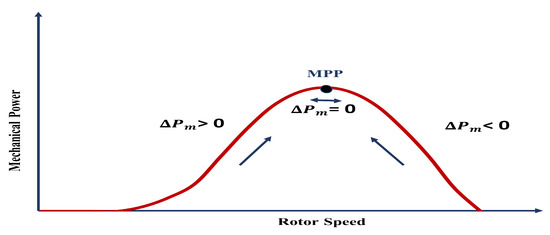

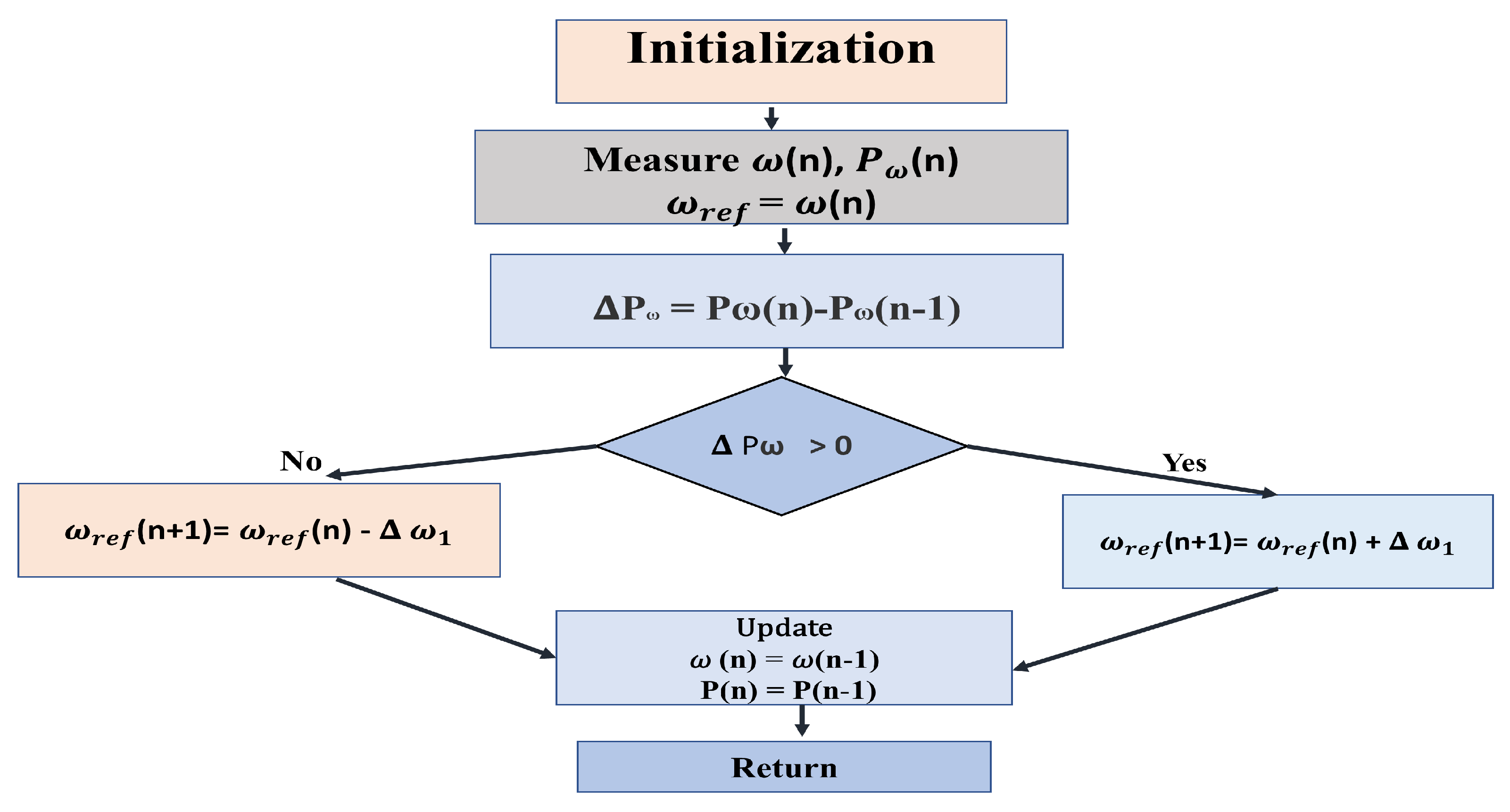

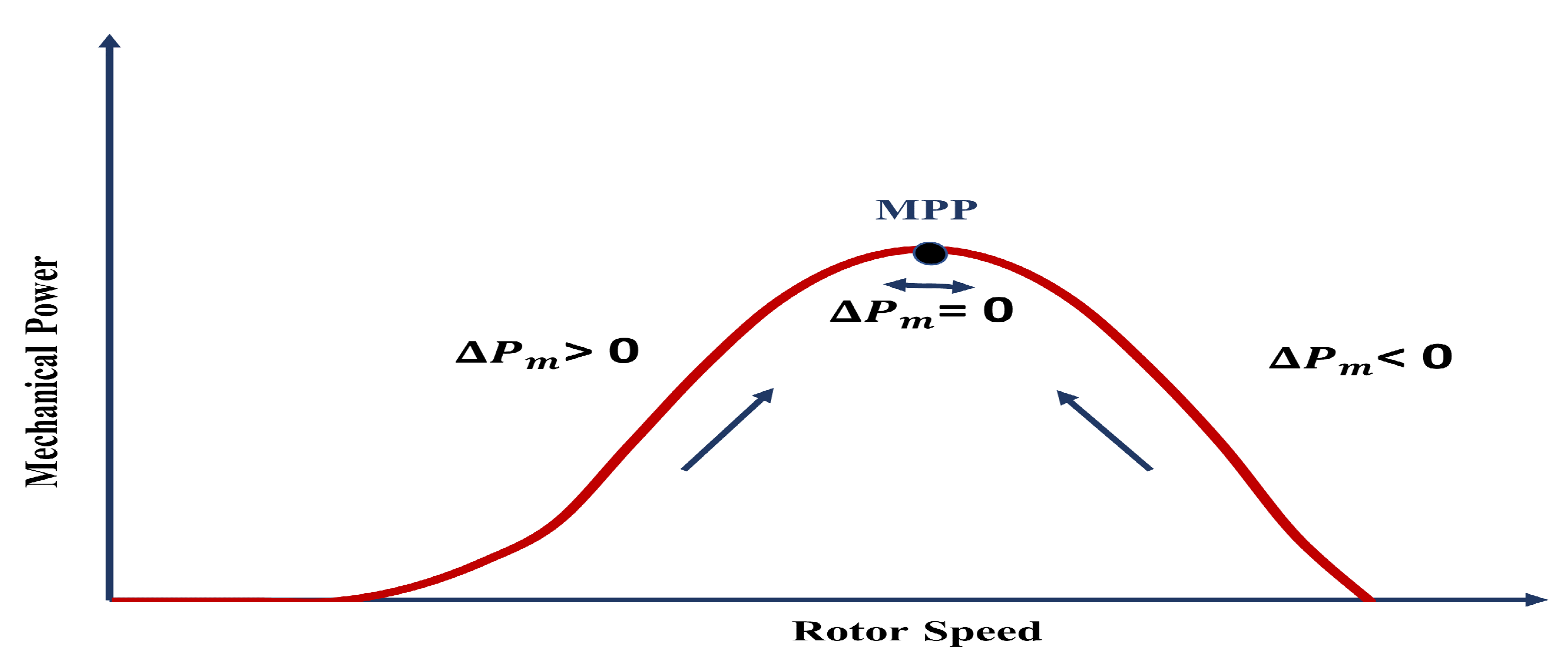

The approach for the P&O algorithm involves the location of the MPP by employing the strategy of mathematical optimization. This method involves perturbation of the control variables such as either the dc-link voltage or the speed of the rotor, and their effect on the performance of WECS is observed. In the conventional P&O (CPO) algorithm, the power obtained is amended along with the speed of the generator to obtain a zero slope for the P-$\omega$ curve. The most important features and advantages of this algorithm are that it does not need the sensors such as an anemometer, and also, there is no requirement of the knowledge of the WT parameters [36,69]. In the CPO algorithm, if the operating point lies towards the left of the MPP, then the controller moves it towards the right, and if it is on the left, then vice versa [40,70]. The optimal operating point is searched, and the maximum power is tracked in this method [71,72]. Figure 10 shows the flowchart for this scheme, and Figure 11 depicts the working concept of this algorithm. Due to its simplicity and ease of use, this technique is very popular. The important drawback of this algorithm is that it is challenging to decide upon an appropriate step size for perturbation since it affects the WT performance. Larger step sizes result in oscillation near the MPP. On the other hand, smaller step sizes will result in higher convergence time and slower response. Another issue is that of losing track of the MPP under varying speeds of the wind. Figure 12 depicts the issue of tracking the MPP under varying speeds of the wind. Figure 13 depicts this scheme.

2.2.2. Conventional INC MPPT Algorithm

This method involves observation of the rectifier output power, which is used for tracking the MPP and deciding the perturbation direction. The need for sensors and the knowledge of the WT parameters is eliminated by using the INC algorithm, which results in the increased reliability and efficiency [24,73]. The changes in the dc-link voltage and current are used for determining the output power [74]. The control scheme is shown in Figure 14.

2.2.3. Conventional ORB MPPT Algorithm

This MPPT algorithm majorly relies on the predetermined relationship between the parameters of the WT [68,74,75,76,77]. The simplicity of this method is because only the values of DC power and voltage along with current serve as the inputs for this algorithm [12]. A few examples are optimum relation among the parameters such as power and speed of the rotor in [78,79], electromagnetic torque and power in [80,81], rectified dc-link voltage versus power [41], and between dc-link current and voltage in [82]. When compared to the other algorithms, this method is found to provide faster response, and the operation is quite simple without the need for anemometers and hence is a preferred choice for commercial WECS [18,83,84]. However, the high memory requirement for the pre-obtained relation curves is a major disadvantage of this method [69,85]. Figure 15 portrays the control scheme of this algorithm. In

Table 3. Comparison of DPC based MPPT Algorithms for WECS Reused with permission from ref. [32,34,36,68]. Copyright 2012, 2015, 2016 Elsevier.

Features of the MPPT Algorithm	CPO	INC	ORB
Efficiency	Low	Low	Moderate
Complexity	Simple	Simple	Simple
Convergence speed	Slow	Slow	Medium
Oscillations at MPP	Yes	Yes	No
Prior knowledge	Not needed	Not needed	Not needed
Memory requirement	No	No	Yes
Need of sensors for measuring wind speed	Not needed	Not needed	Not needed
Parameter sensitivity	No	No	Yes
Cost	Moderate	Moderate	High
Online updating	Yes	Yes	No
Performance under fluctuating wind speed	Moderately fair	Moderately fair	Moderately fair

, a comparison based on different characteristics of MPPT algorithms is made for DPC-based algorithms. A summary of references for the DPC based algorithms is given in

Table 4. Summary of references for DPC based MPPT Algorithms.

Type of Algorithm	Reference	Remarks
CPO	[36]	A review of several MPPT algorithms is presented and the basic working concepts of these algorithms are described. The advantages of the CPO algorithm such as ease of implementation and no requirement of the sensors are listed.
CPO	[72]	Several MPPT algorithms are reviewed and the advantages and disadvantages of each of them are described. CPO being sensor less, is cheaper but suffers from the issue of lower efficiency for fluctuating wind speeds.
CPO	[40]	The problems in the CPO algorithm are addressed by the proposed novel peakdetection technique. It eliminates the trade-off between the efficiency and speed.
ORB	[75]	A sensorless technique to extract maximum power from WECS is presented.
ORB	[68]	Several MPPT algorithms are discussed and reviewed.The drawbacks and advantages of ORB algorithm are also discussed.
ORB	[84]	The features, advantages and disadvantages of the CPO and the ORB algorithms are discussed and a new algorithm which is a combination of the two is presented.
INC	[68]	Several MPPT algorithms are discussed and reviewed. The drawbacks and advantages of INC algorithm are also discussed.
INC	[74]	Two different boost converter topologies are used and compared by implementing the INC algorithm.

.

2.3. Modified Conventional MPPT Algorithms for WECS

The INC and CPO algorithms do not require sensors, and hence these are lower in cost, simple to implement, and the memory requirement for them is small. With these techniques, the calculation of the optimal power is conducted without any previous knowledge of the parameters and characteristics of the system. Besides these advantages, the CPO algorithm majorly suffers from the drawback of a trade-off between convergence and efficiency. As discussed above, the modified P&O algorithm (MPO) helps in eliminating these drawbacks. In addition, the modified INC algorithm is used to obtain a better system precision, performance, and convergence speed. Many variations have been brought about in the CPO algorithm due to its simplicity and ease of use. These variations and modifications have helped in overcoming the drawbacks of the CPO algorithms. MPO and the modified INC, OT, PSF algorithms are discussed in the section below.

2.3.1. Modified Optimum Torque (OT) MPPT Algorithm

The torque T in conventional OT MPPT algorithm is given by Equation (4).

$$T={\left(k\omega \right)}^2$$

(4)

A modification in this method is presented in [33,81,86,87,88] in which the net torque is used to represent the acceleration or deceleration, which is given by Equation (5) where G is the gain for adjusting the net torque, $\omega$ is the rotor speed and the mechanical torque $T_m$ that the WT captures.

$$T={\left(k\omega \right)}^2-G(Tm-{\left(k\omega \right)}^2)$$

(5)

The main objective in bringing about the modification is for faster tracking targeted at the large inertia of the turbine that creates hindrance in following the torque command when the wind speed is rapidly changing. This algorithm helps in better and faster tracking of the MPP.

2.3.2. Modified PSF MPPT Algorithm

The motivation behind using this modified form of PSF algorithm is to avoid the stalling of the generator, this is achieved by offsetting the power measured by a constant value [41,89]. The stator frequency derivative is feedback to increase the system sensitivity against the rapid wind speed changes. The major issue in this modified method is that unwanted overshoots are observed in the control variable, and achieving MPP becomes more cumbersome and difficult.

2.3.3. Modified INC MPPT Algorithm

A modification in the conventional INC algorithm, an adaptive INC algorithm, is presented in [90,91,92,93,94]. By changing the perturbation step size of the dc voltage, an enhancement is obtained in the dynamic performance of WECS as well as the speed of convergence, but the maximum amplitude of the step sizes is dependent on the parameters of the generator, and it is limited.

2.3.4. Modified P&O MPPT Algorithms

The CPO MPPT algorithm is very simple, and low cost is a preferred choice for tracking the MPP. However, due to several drawbacks, as discussed in the earlier section, the replacement of the CPO is gaining popularity among researchers. The modifications in CPO involve changes in the strategy of tracking and hence called modified P&O algorithms(MPO) which made use of the variable and adaptive step size [76,95]. Depending on the type of step size used for perturbation of the control variables, the classification of step sizes is as stated below,

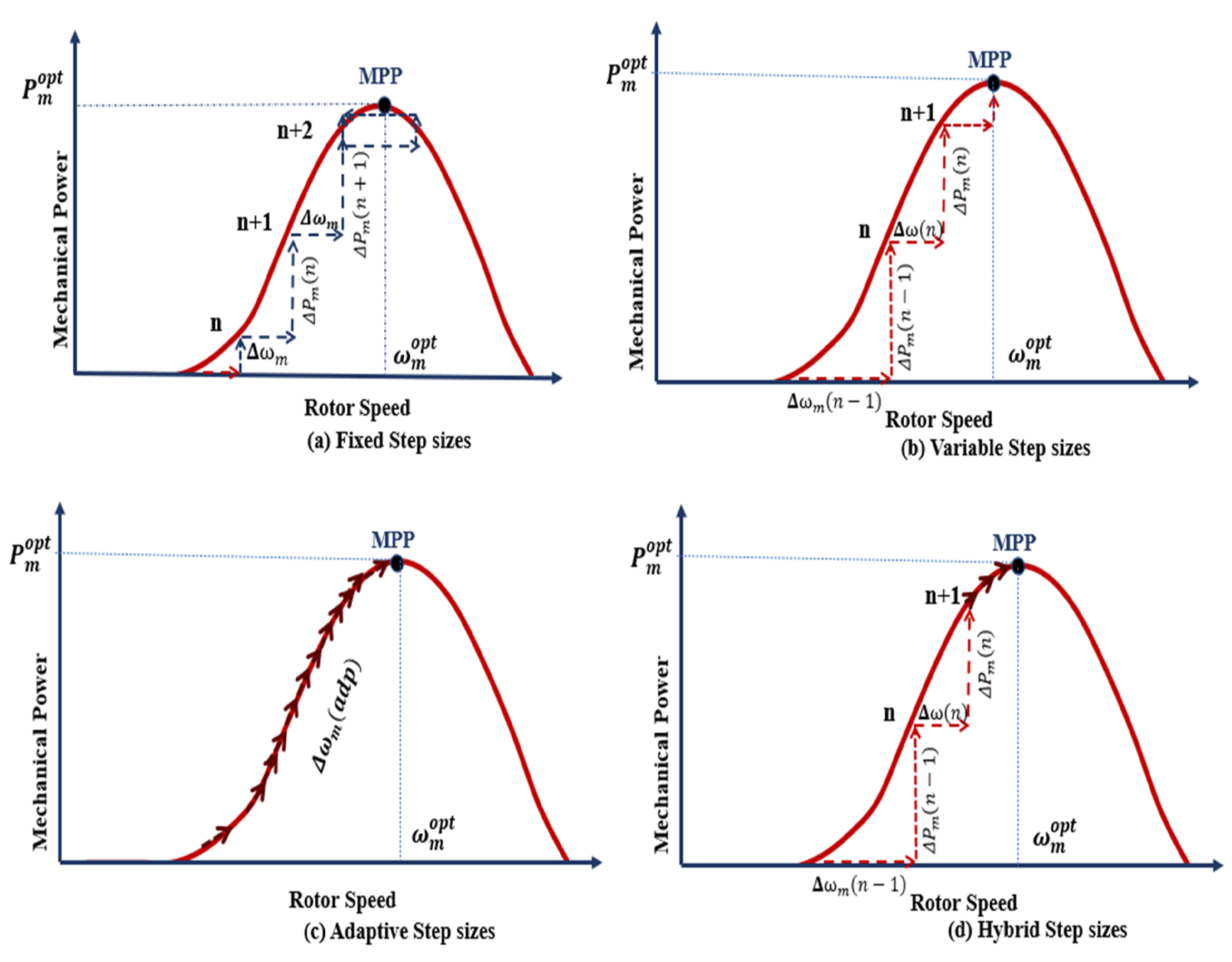

• Fixed step sizes: A fixed amplitude of the step size is employed to perturb the control variable while carrying out the tracking procedure.
• Variable step sizes: Step sizes of varying amplitudes are employed, with a unique step size for each region.
• Adaptive step sizes: The step size employed for perturbation is finalized depending on the variation in the general objective function at each operating point.
• Hybrid step sizes: A combination of two different generated step sizes while MPP tracking is employed. Figure 16a–d portrays the P&O algorithm-based categories of step sizes that are generated while carrying out the tracking process.

  Table 5. Comparison of P&O algorithm based types of step sizes generated.

  Generated Step Size Type	Reference	Remarks
  Fixed step size	[42,109,110,111]	Challenging to decide the step size used for perturbation, and significant oscillation of the MPP is observed near the MPP.
  Variable step size	[23,24,89,112,113]	The oscillations around the MPP and higher tracking time are well addressed, although the step size procurement strategy results in higher complexity.
  Adaptive step size	[48,69,76,114]	Depending on the definite objective function, accurate clarification of the relation among the control variables, and wind speed, the step sizes are varied. The objective function can be dependent on multiple constants. Accurate tuning of these constants needs to be conducted by the process of complex competition analysis.
  Hybrid step size	[115,116]	Step sizes of different types are generated. Their operation order and their activation need accurate designing and add to the complexity.

  summarizes the P&O method-based generated step sizes, and

  Table 6. Summary of references for the modified MPPT algorithms.

  Type of Algorithm	Reference	Remarks
  Modified OT	[81]	A sensor less modification in the OT algorithm is presented.
  Modified OT	[33]	A review of different MPPT algorithms is presented and the modification in the OT algorithm is also mentioned.
  Modified PSF	[33]	A review of different MPPT algorithms is presented and the modification in the PSF algorithm is also mentioned.
  Modified PSF	[89]	An Intelligent algorithm for extracting maximum power from WECS is presented.
  Modified INC	[92]	An ANN based modified INC algorithm for photovoltaic systems is presented.
  Modified PO	[93]	A modified version of INC algorithm is presented for a PMSG micro-WT.
  Modified PO	[3]	A review of C PO and MPO MPPT algorithms is presented.
  Modified PO	[23]	A modular sector MPO algorithm that eliminates the drawbacks of the CPO algorithm is presented.
  Modified PO	[24]	A MPO algorithm for a variable speed WECS is investigated for a five-phase large scale system.
  Modified PO	[38]	An MPO algorithm that employs variable step sizes and makes use of model reference adaptive control, which helps eliminate the issues of CPO, is presented.

  summarizes the references for modified MPPT algorithms. Finally, Figure 17 shows the classification of P&O algorithms for WECS.

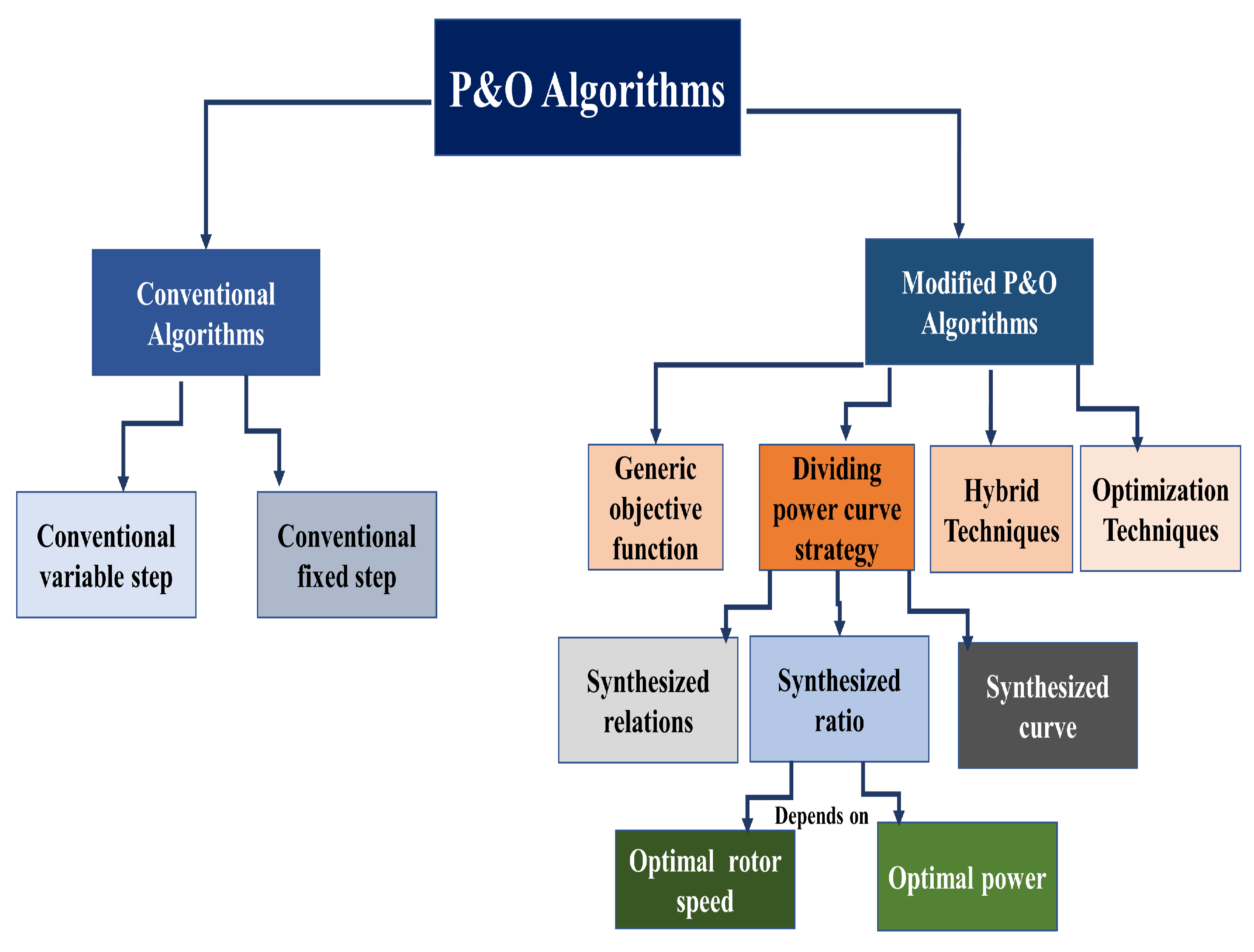

The MPO algorithms can also be grouped based on the generic objective function, optimization techniques, power curve division, and hybrid techniques. The approach of power curve division facilitates managing the step size in each of the regions individually. The way the MPO will work with adaptive, hybrid, or variable step sizes is influenced by the number of regions of operation and the way the power curve is divided. The synthesized curve, relations, or ratios can be used to decide the approach for power curve division. As discussed in [96,97,98], the power speed curve can be divided into multiple regions, and the synthesized curve is implemented, and anemometers are employed to produce four operating regions, with each of them having a unique step size. The issue with this method is that owing to fewer operating regions, there is a noticeable transient overshoot. Another issue is the need for sensors. The complexity involved in the synthesized curve is reduced by using the synthesized ratio that involves measuring either the changes in the output power, speed of the rotor, or both. In [23,99], the estimation of optimal power is conducted for finding the synthesized ratio. In the synthesized relations strategy, general relations are stated by the observation of the control variables. The related control variables are current, voltage, output power, or the perturbation step size. They are used for splitting the power curve into multiple regions of operation. The rotor speed is regulated with the help of the alterations in the power within the specified limits in [100]. In [101,102], the definite conditions are used as a replacement for the lookup table. Intermediate variables with dual control mode are presented in [103,104]. The strategy of dividing the power curve suffers from limitations such as the complexity of the system and the requirement of accurate tuning of several parameters. Hence, other methods employing the generic objective function are used for enhancing the CPO algorithm performance.

Many researchers have used optimization techniques in the domain of PV applications. The domain of WECS also has made use of several optimization techniques. The process of CPO algorithm optimization can be carried out by using the Wilcoxon radial basis function network as discussed in [105,106]. The strategy of optimization of the line of search to achieve optimal conditions for operation is presented in [107]. As presented in [108], proportional integral derivative (PID) controllers are optimized for employing with the P&O algorithms.

2.4. Smart MPPT Algorithms

Intelligent controllers such as neural networks (NN) and fuzzy logic controller (FLC), and several soft computing-based algorithms are available in the literature [117,118]. Several soft computing algorithms have proven to be an attractive option for WECS based applications since no mathematical parameters of the WECS are needed [55,119] although the accuracy of the optimal response of the control variables is not very precise. Numerous adaptive algorithms are available in the literature which does not make use of mechanical sensors and are used for treating the uncertainty of the system during optimal conditions as presented in [120,121,122]. A brief overview of the FLC, NN, sensorless, and multi-variable P&O MPPT algorithms is presented in this section. There are MPPT algorithms based on optimization algorithms that are proposed in the literature, such as Cuckoo Search (CS), Genetic Algorithm, Particle Swarm Optimization (PSO), Teaching Learning Based Optimization (TLBO), Grey Wolf Optimization, are employed with the conventional ones to eliminate the shortcomings of the conventional MPPT algorithms [28,96,123,124,125,126]. In a solar and wind hybrid system, the ant colony optimization(ACO) provides a faster convergence as compared to the PSO algorithm [127]. A comparison of the smart MPPT algorithms for WECS is presented in

Table 7. Comparison of Smart MPPT Algorithms for WECS. Reused with permission from ref. [34,35,68,128,129]. Copyright 2011, 2015, 2016 Elsevier.

Features of the MPPT Algorithm	FLC	NN	Sensor Less	MVPO	Other
Efficiency	Higher	Higher	Moderate	Moderate	Depends
Complexity	Higher	Higher	Higher	Higher	Moderately complex
Speed of convergence	Medium	Medium	Medium	Slow	Medium
Oscillations at MPP	Do not occur	Do not occur	Depends	Occur	Depends
Prior knowledge	Needed	Needed	Not needed	Not needed	Depends
Memory	Required	Required	Required	Not Required	Depends
Need of sensors for wind speed measurement	Depends	Depends	Not needed	Not needed	Depends
Parameter sensitivity	Depends	Depends	Not found	Not found	Depends
Cost	Higher	Higher	Lower	Lower	Medium
Online updating	Required	Required	Depends	Required	Depends
Performance under fluctuating wind speed	Higher	Higher	Higher	Moderate	Moderate

.

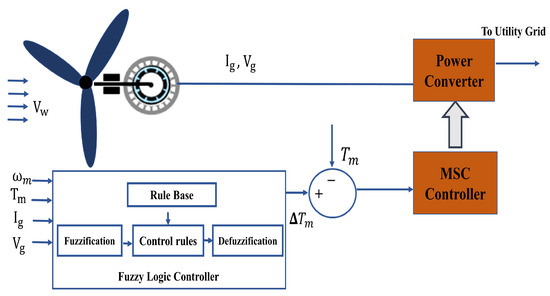

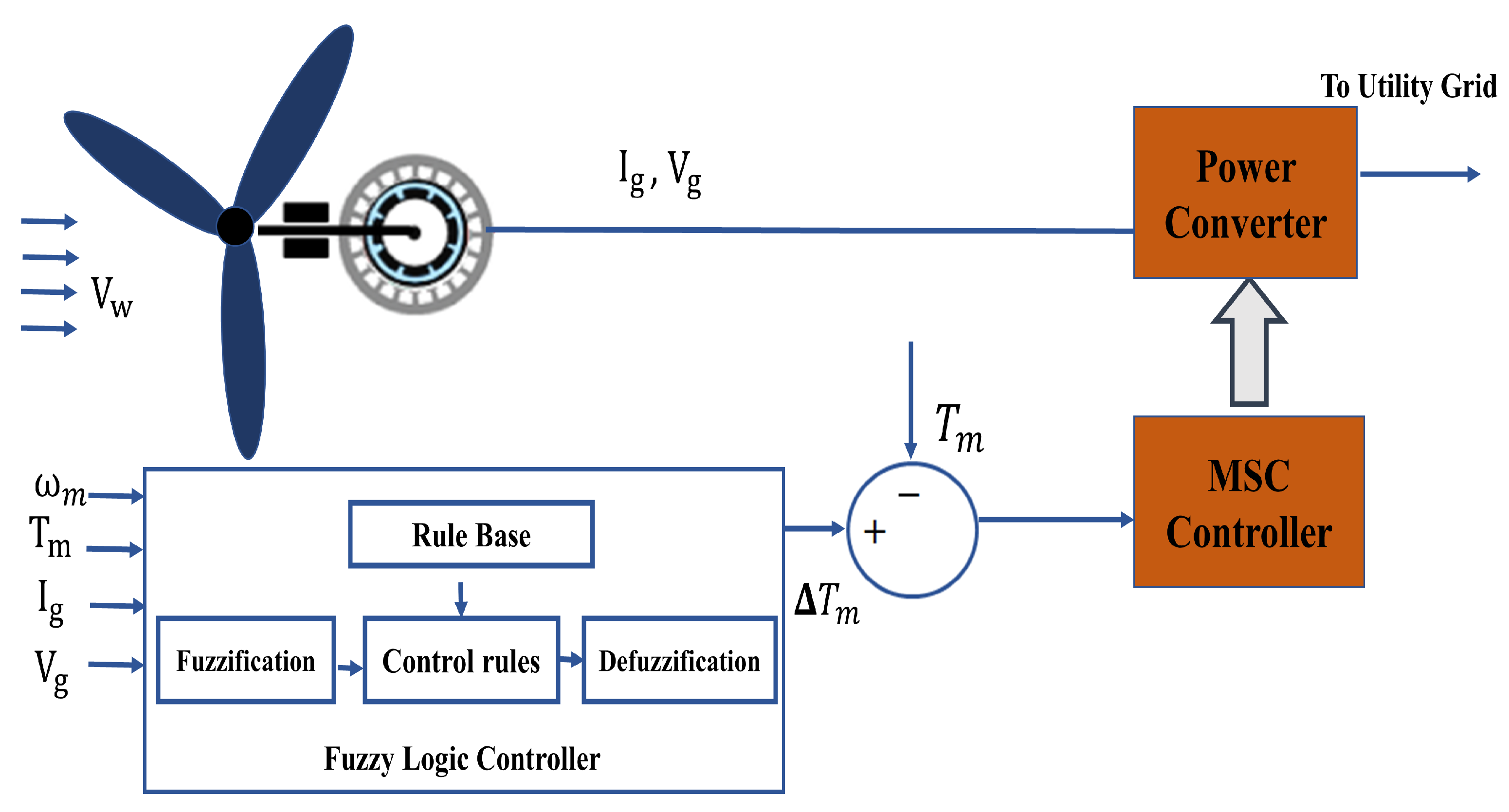

2.4.1. Fuzzy Logic Controller Based MPPT Algorithm

The issue of oscillations around the MPP is addressed by employing FLCs for the MPPT algorithm. This method is characterized by the fact that variables of the controller can be rapidly changed, corresponding to the changes that occur in the dynamics of the system. Therefore, there is no need for the mathematical modeling of WECS. The overall system performance of this type of method is good even under varying climatic conditions. Although it is possible only when proper rules are designed by the user with adequate knowledge of the system for selection of the appropriate rule base, membership functions, and high requirement of memory is also a major issue [32,130,131,132,133]. Different FLC based MPPT algorithms are presented in [107,108,117,118,119,134]. Figure 18 depicts the FLC scheme for WECS.

2.4.2. Neural Network Based MPPT Algorithm

There are three layers in the neural network architecture, that are the input, hidden, and output layers. The user decides how many nodes he will use and can vary from user to user [135,136,137]. Several variables are used as the input variables such as the terminal voltage, wind speed, output torque, etc. The output provided serves as a reference variable such as the reference power or the speed of the rotor to drive the power electronic circuitry. The weights given to the layers decide how the operating point will coincide with the peak point. The training is given to the system for the particular input-output pattern [138]. The training results in the reduction of the response time which facilitates the quick achievement of the steady state even under varying wind velocities. This method provides an improvement in the trade-off between the response time and the output power.

2.4.3. Smart Sensorless MPPT Algorithms

The sensorless approach helps in the elimination of the mechanical sensors and the need for prior knowledge of the characteristics of the WT [113,139,140,141]. Researchers have proposed sensorless MPPT algorithms for accurate measurement of wind speed as discussed in [142,143,144]. FLC-based and NN-based MPPT algorithms in which the prior knowledge of the WT is not required are discussed in [110,111,112].

2.4.4. Multi-Variable Perturb and Observe MPPT Algorithms

This algorithm aims at producing maximum power by employing a minimum number of sensors control units in a wind farm. MVPO algorithm yields higher generated power with lesser components for a wind farm [76,145,146]. The adoption of the MPO algorithm has facilitated optimization of currents of all the generators by perturbation of current of the individual generators until there is increased power in the wind farm. This procedure is iteratively performed to cover every generator in the wind farm [147].

2.5. Hybrid MPPT Algorithms

As described in the previous sections, each of the conventional algorithms has its advantages and disadvantages. Two or more algorithms are merged or clubbed together to form a hybrid algorithm, to make the best use of the advantages of two different algorithms and get rid of their disadvantages, and thereby enhance the performance of the WECS [17,119,148]. Several combinations of the conventional algorithms are available in the literature, and some are described below in this section.

Table 8. Summary of references for Smart and Hybrid MPPT algorithms.

Type of Algorithm	Reference	Remarks
Smart	[132]	MPPT algorithm based on FLC that makes use of the master-slave FLC training mode is presented.
Smart	[130]	An intelligent MPPT algorithm based on ANN is presented.
Smart	[37]	A review of MPPT algorithms is presented and the MVPO algorithm is discussed.
PO based Hybrid	[149]	A combination of FLC with CPO is employed that provides improved tracking of the MPP.
PO based Hybrid	[150]	The self-tuning P&O is combined with the ORB algorithm and this combination provides better MPP tracking.
PO based Hybrid	[151]	The combination of MPO and PSF is employed to improve the efficiency.
PO based Hybrid	[152]	A combination of ANN and PSF is employed which results in better accuracy.
Optimization based Hybrid	[153]	The combination of ORB and (PSO) is employed to form the hybrid MPPT algorithm. PSO is used in the first phase to search the optimum coefficient and in the second phase, ORB is used. This method yields higher efficiency.

summarizes references for the smart and hybrid MPPT algorithms, and

Table 9. Comparison of Hybrid MPPT Algorithms for WECS. Reused with permission from Refs.  [32,34,36,68,113,128]. Copyright 2011, 2012, 2015, 2016 Elsevier.

Features of the MPPT Algorithm	Hybrid
Efficiency	Very high
Complexity	Medium
Convergence speed	Fast
Oscillations at MPP	Depends
Prior knowledge	Not needed
Memory requirement	No
Wind speed sensor	Depends
Parameter sensitivity	No
Cost	Moderate
Online updating	Depends
Performance under fluctuating wind speed	Good

presents a comparison of the hybrid MPPT algorithms.

Table 10. List of symbols.

$\beta$	Pitch angle
$C_p$	Power coefficient
$P_m$	Mechanical power (watts)
$\lambda$	Tip speed ratio
${\lambda }_{opt}$	Optimum tip speed ratio
$V_{cutin}$	Cut-in wind speed (m/s)
$V_{cutout}$	Cut-out wind speed (m/s)
$V_{rated}$	Rated wind speed (m/s)
$C_{popt}$	Optimal power coefficient
$P_{opt}$	Optimal power (watts)
${\omega }_m$	Mechanical angular speed of the turbine (rad/s)
$V_{dc}$	DC voltage (volts)
$P_m^{opt}$	Optimal mechanical power (watts)
$\omega$	Rotor angular speed (rad/s)
${\omega }_{ref}$, ${\omega }_{opt}$	Reference rotor speed (rad/s)
$T_m$	Mechanical torque ( N.m.)
$T_{em}$	Electromagnetic torque ( N.m.)
$T_m^{opt}$	Optimum mechanical torque (N.m.)
$V_{wind}$	Wind speed (m/s)

gives a list of symbols.

2.5.1. P&O Based Hybrid MPPT Algorithms

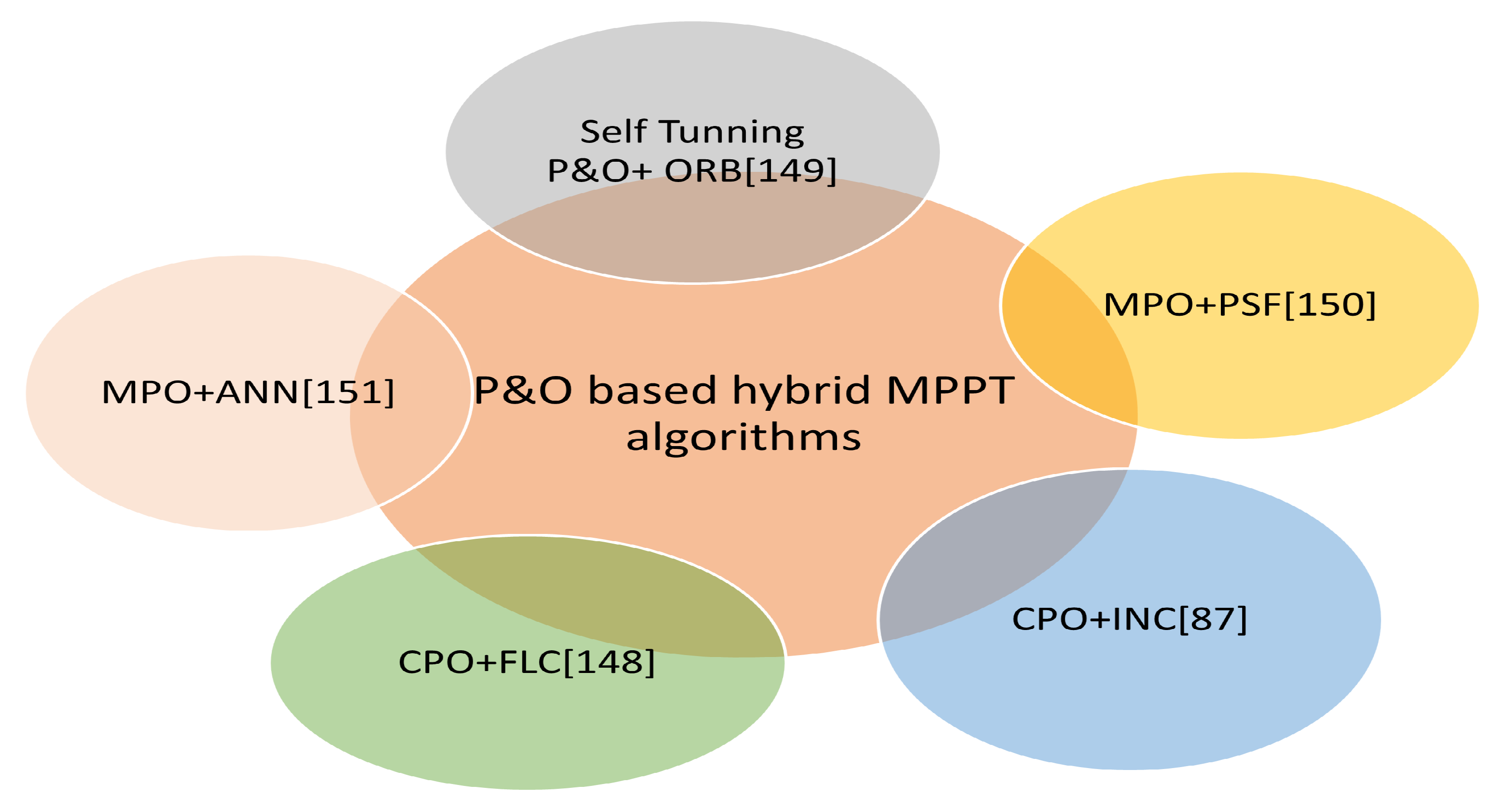

The simplicity and ease of use of CPO have been exploited for its use in hybrid algorithms by many researchers. The problems that occur in the CPO MPPT algorithm of oscillations around the MPP, the trade-off between speed and efficiency, and change in the wrong direction under a rapid change in the wind speed are overcome by combining it with other algorithms. OTC is combined with the HCS or conventional P&O. This combination helps in overcoming two issues. First is the issue of the trade-off between speed and efficiency, and the second is the wrong direction change under high-speed fluctuations of the wind [35]. Fuzzy logic control (FLC) is clubbed together with the CPO MPPT algorithm [149]. Combining these two improves MPP tracking. Self-tuning P&O algorithm merged with the ORB algorithm is presented in [150] which works in two modes and provides better MPP tracking. Other algorithms that are merged with CPO are OT, INC, TSR, and PSF for overcoming the related shortcomings of CPO, specifically the issue of incorrect directionality due to fluctuations in the speed of the wind, are presented in [40,69,90,154,155]. Modified P&O merged with PSF is presented in [151] where MPP is first tracked using MPO and employs PSF after that. MPPT based on ANN employing the P&O rules is discussed in [152], and the important benefits of using this technique are that it eliminates the need for the information about the values of $\lambda$ and $C_p$ and also provides better accuracy. Figure 19 portrays different P&O-based hybrid MPPT algorithms.

2.5.2. Optimization Algorithms Based Hybrid MPPT Algorithms

The combination of conventional MPPT algorithms and optimization algorithms are proposed, such as particle swarm optimization (PSO) employed with the conventional ones to eliminate the shortcomings of the conventional MPPT algorithms. The combination of ORB and particle swarm optimization (PSO) is used in [153]. In the first phase, PSO is employed for searching the optimum coefficient, and in the second phase, ORB MPPT is used. This technique increases efficiency, and no sensors and knowledge of the parameters are required for this hybrid method. MPPT algorithm based on the combination of PSF, soft stalling, and PSO controllers helps improve the efficiency over the entire speed range of the WT [156].

3. Discussion

The main objective behind the use of the MPPT algorithm is tracking and capturing the maximum power from the WECS. It is a tough task to select an appropriate algorithm. The comparative study reveals that the conventional IPC-based algorithms are faster and simpler to implement, but they capture mechanical power rather than electrical power. The DPC-based conventional algorithms do not require sensors, are low cost and are easy to implement. However, these algorithms do not provide satisfactory performance when the fluctuations are high in the speed of the wind. The CPO algorithm is immensely popular as it has several advantages of being simple, low cost, and easy to implement. However, it suffers from oscillations around the MPP and poor performance at higher fluctuating wind speeds.

The use of MPO has eliminated the drawbacks of this method. Several modifications are evident in the literature based on the step size employed for MPO algorithms. It is challenging for the methods with fixed step size to decide upon the step size for perturbation as a significant oscillation of the MPP is observed. By employing the variable step sizes, the oscillations around the MPP and higher tracking time issues can be very well addressed, although the step size procurement strategy results in higher complexity. In the case of hybrid step sizes, step sizes of different types are generated. However, their operation order and their activation need accurate designing and add to the complexity. It is evident from the literature that the demerits of an individual algorithm can be eliminated by either using the modified form or by employing hybrid techniques. The smart algorithms are efficient but suffer from issues such as high complexity, higher cost and may require speed sensors. The hybrid algorithms are promising as they are highly efficient, although they may need sensors depending on the combinations employed. The power coefficient is dependent on the air density. There can be a considerable variation in the air density over various seasons and different climatic conditions. The value considered for the air density is fixed while training the system, and as a result, optimum tracking of the maximum power in all the seasons and different environmental conditions may not be achieved. Some smart and hybrid MPPT algorithms are not generic and require sensors for wind velocity measurement while training. These are the issues that still need to be addressed.

4. Trends and Future Scope

This review reveals that the MPO has gained immense popularity among researchers, and this has given rise to several developments for providing reliable and improved MPP tracking techniques. The trend of using modified versions of P&O algorithms is also observed in the literature for the hybrid methods. The future trends will majorly be dealing with the extensive usage of optimization techniques and hybrid techniques employed for MPO-based algorithms. Optimizing generated step sizes by employing the simpler MPO methods can be seen as a promising research area.

5. Conclusions

MPPT algorithms have proven to be a key factor that aid in capturing and extracting maximum power from WECS. A large variety of algorithms are available in the literature. There is a need to devise a technique that can be very useful for the designers in making an appropriate choice of algorithm among the several available, for a given setup and thereby enhance the system performance to maximize the output produced.

In this paper, the MPPT algorithms of the past and present for WECS have been reviewed and compared. A comparison of the conventional algorithms based on IPC and DPC is conducted, followed by the hybrid and the smart algorithms. From the comparative study, the hybrid algorithms are found to be highly efficient. The hybrid MPPT algorithms can bring into use the advantages of the conventional methods and eliminate their drawbacks. The MPO algorithm has evolved in the recent years. The trend of preferring the P&O technique to enhance the extraction of power from WECS is evident from the literature due to its different features. Several modifications are evident in the literature based on the step size employed for MPO algorithms. Depending on the step size produced and the tracking approach used, the MPO algorithms are classified. The approach of generated step size includes fixed, adaptive, variable, and hybrid. The classification includes the main groups based on hybrid methods, optimization techniques, objective function, and power curve division. It is challenging for the methods with fixed step size to decide upon the step size for perturbation as a significant oscillation of the MPP is observed. By employing the variable step sizes, the oscillations around the MPP and higher tracking time issues can be very well addressed, although the step size procurement strategy results in higher complexity. In the case of hybrid step sizes, step sizes of different types are generated. However, their operation order and their activation need accurate designing and add to the complexity. Optimizing generated step sizes by employing the simpler MPO methods can be seen as a promising research area to devise robust MPPT methods.
