Performance Analysis of Combined Cycle with Air Breathing Derivative Gas Turbine, Heat Recovery Steam Generator, and Steam Turbine as LNG Tanker Main Engine Propulsion System
Department of Mechanical Engineering, Universitas Indonesia, Kampus Baru UI, Jawa Barat 16424, Indonesia
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2020, 8(9), 726; https://doi.org/10.3390/jmse8090726
Received: 1 September 2020 / Revised: 13 September 2020 / Accepted: 14 September 2020 / Published: 20 September 2020
(This article belongs to the Special Issue Marine Power Systems)

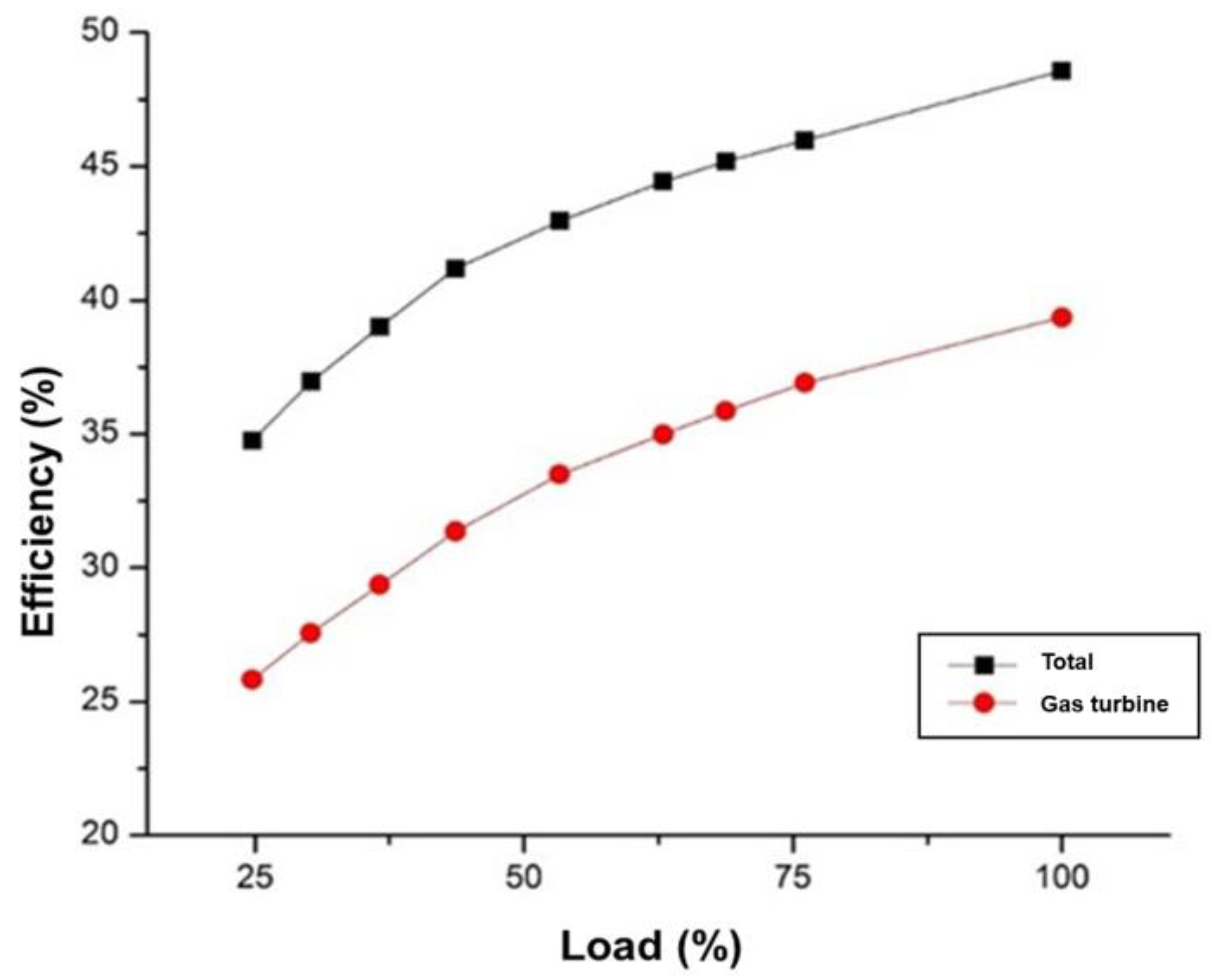

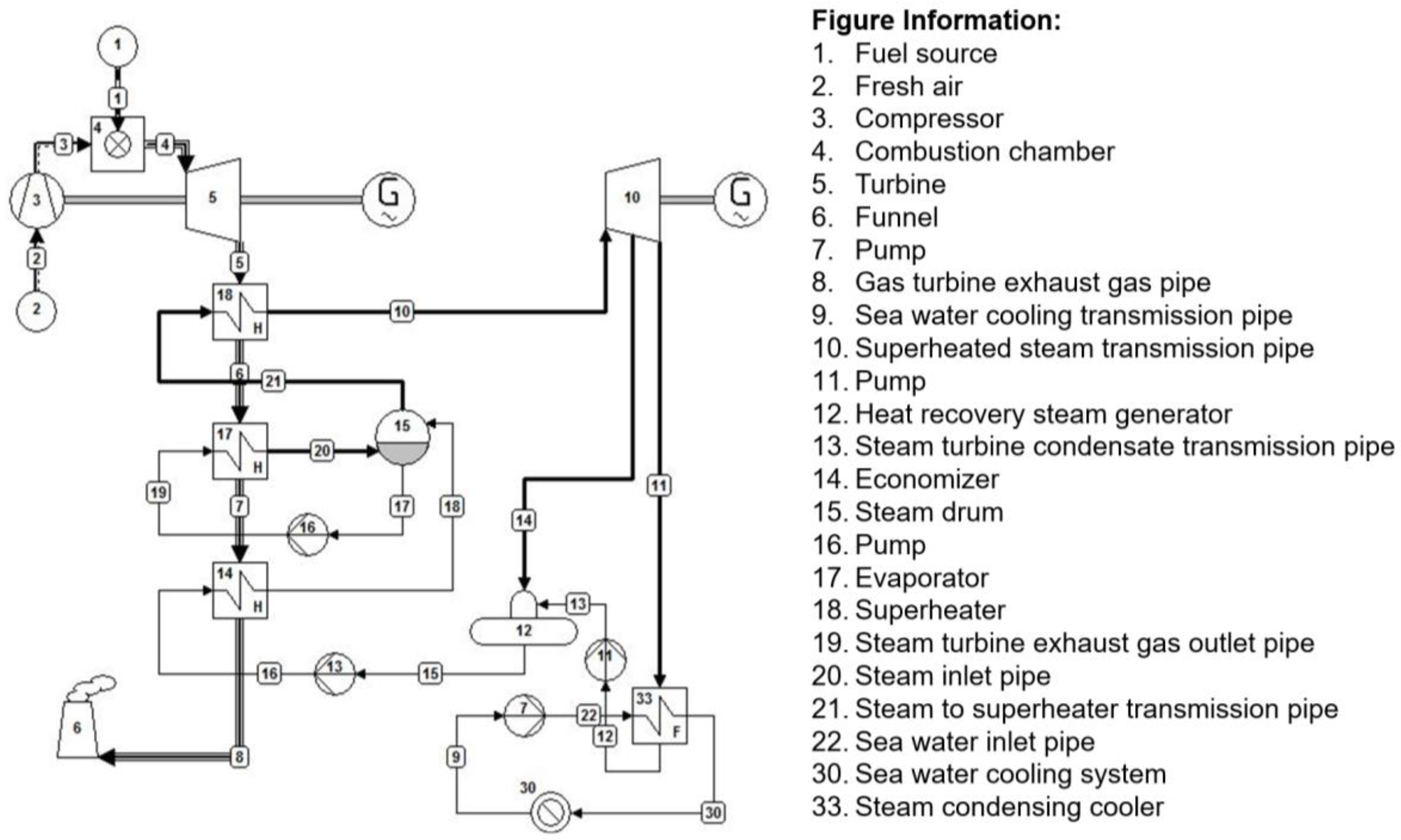

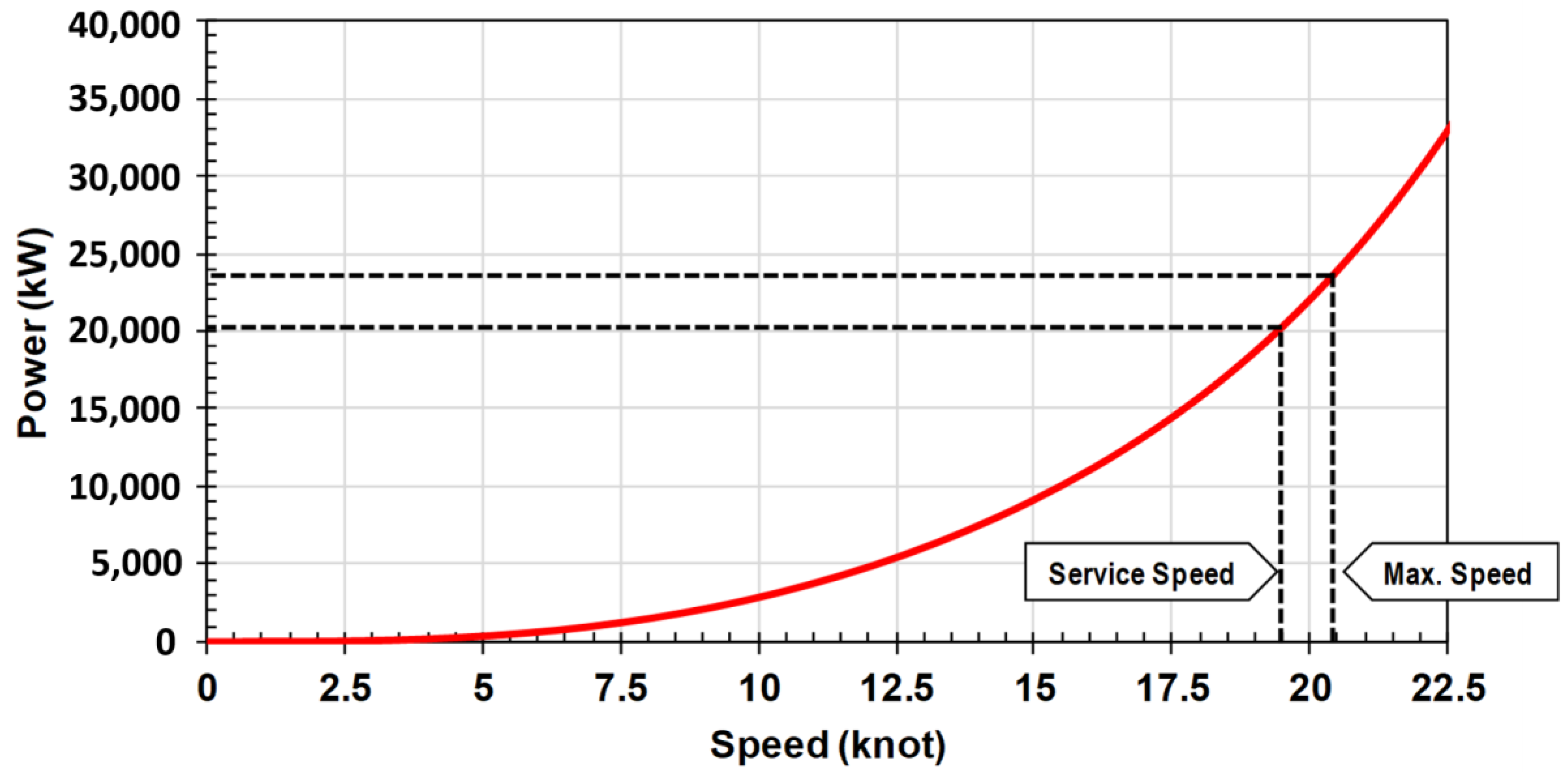

This study explains the performance analysis of a propulsion system engine of an LNG tanker using a combined cycle whose components are gas turbine, steam turbine, and heat recovery steam generator. The researches are to determine the total resistance of an LNG tanker with a capacity of 125,000 m3 by using the Maxsurf Resistance 20 software, as well as to design the propulsion system to meet the required power from the resistance by using the Cycle-Tempo 5.0 software. The simulation results indicate a maximum power of the system of about 28,122.23 kW with a fuel consumption of about 1.173 kg/s and a system efficiency of about 48.49% in fully loaded conditions. The ship speed can reach up to 20.67 knots.
View Full-Text
Keywords:
LNG tanker; combined cycle; propulsion main engine
▼
Show Figures
Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Nirbito, W.; Budiyanto, M.A.; Muliadi, R. Performance Analysis of Combined Cycle with Air Breathing Derivative Gas Turbine, Heat Recovery Steam Generator, and Steam Turbine as LNG Tanker Main Engine Propulsion System. J. Mar. Sci. Eng. 2020, 8, 726.
