Management Transition to the Great Lakes Nearshore: Insights from Hydrodynamic Modeling
Abstract
:1. Introduction
1.1. Science, Engineering, and Management Context
1.2. Study Site
1.3. Objectives and Approach
- Test model performance by comparing output to field measurements to establish the credibility and reliability required to support management decisions;
- Characterize dynamic plume behavior (e.g., variation in the direction of alongshore movement) as a determinant of plume dimensions;

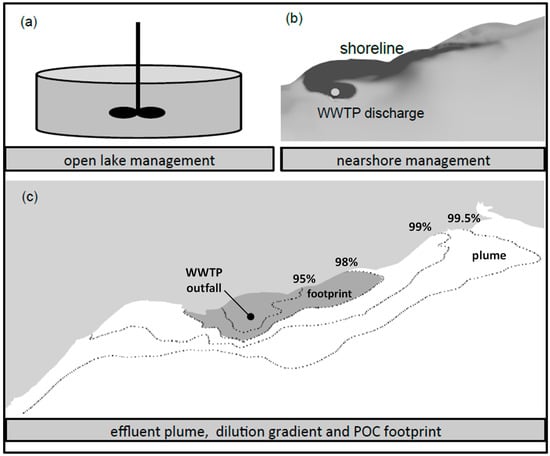

- Evaluate POC footprint dimensions for their consistency with mixing zone guidelines for nearshore water quality management.
2. Methods
2.1. Field Sampling and Laboratory Methods

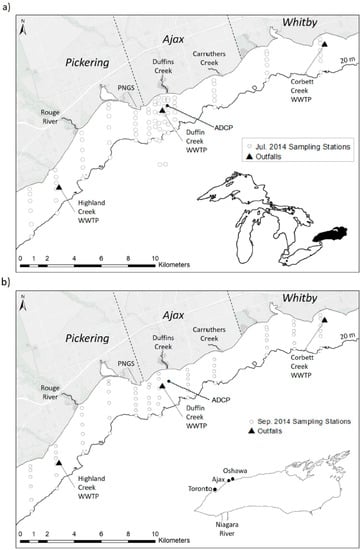

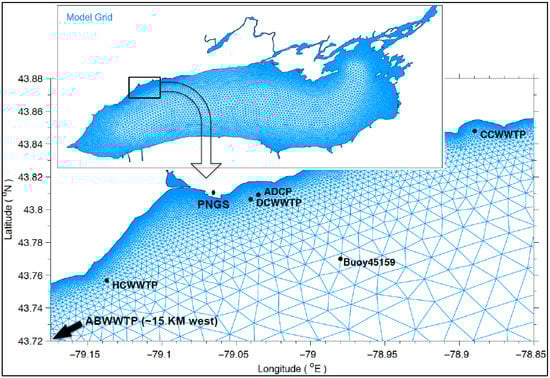

2.2. Hydrodynamic Modeling Methods
2.3. Soluble Tracer Sub-Model
2.4. Design of Numerical Experiments

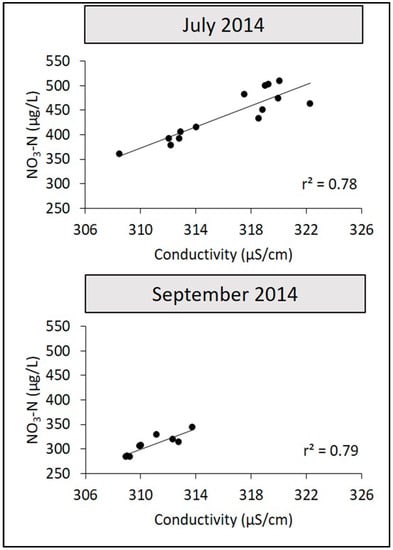

2.4.1. Testing Model Performance by Comparison with Field Measurements
2.4.2. Characterizing Dynamic Plume Behavior
2.4.3. Evaluating POC Footprint Dimensions in a Regulatory Context
3. Results and Discussion
3.1. Testing Model Performance

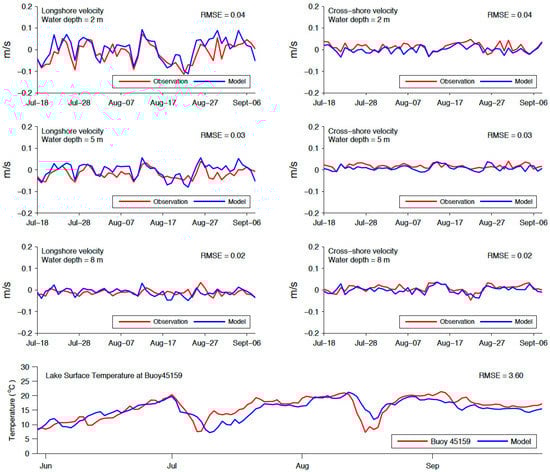

3.1.1. Simulating Meteorological and Hydrodynamic Conditions

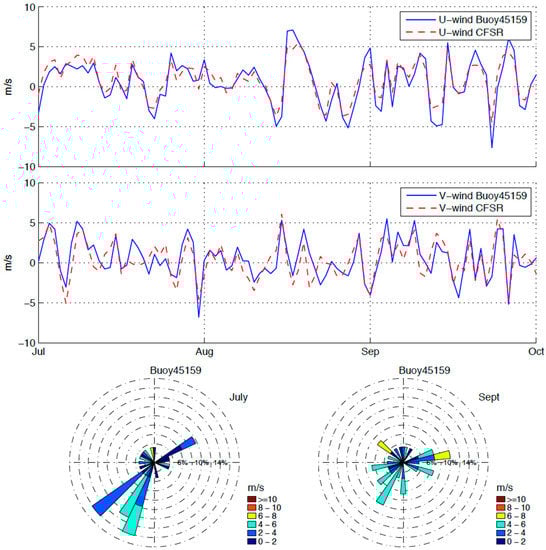

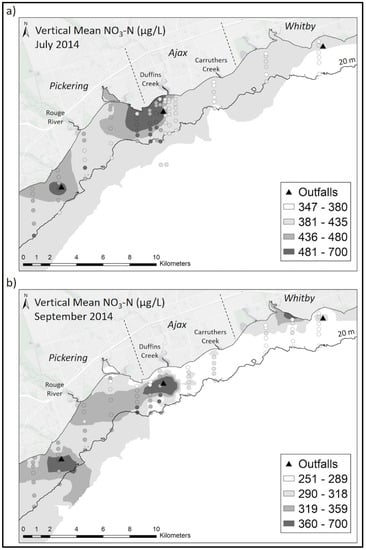

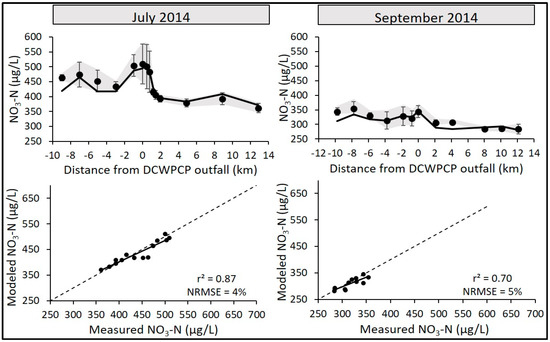

3.1.2. Simulating Tracer Plume Dimensions
3.2. Characterizing Dynamic Plume Behavior

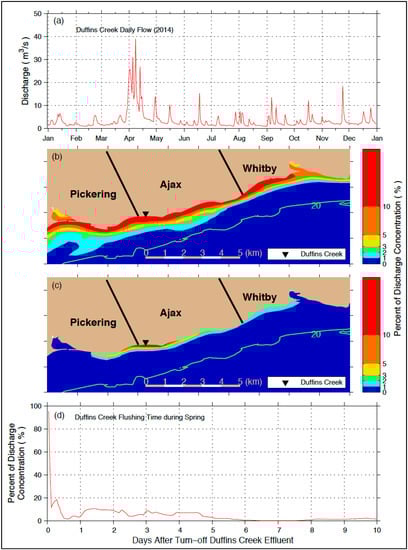

3.2.1. Tributary Inputs

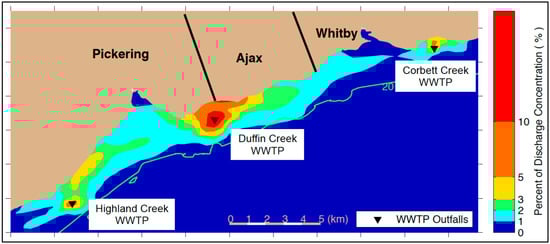

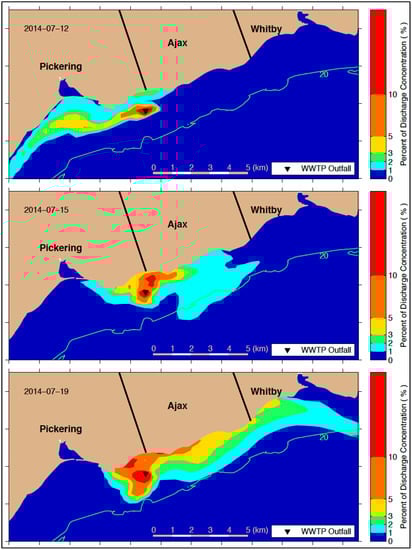

3.2.2. Point Source Inputs

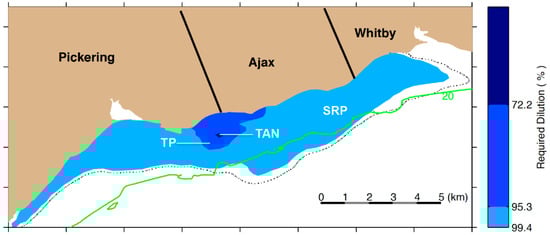

3.2.3. Evaluating POC Footprint Dimensions in a Regulatory Context
4. Conclusions: Management Insights
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Williamson, J.A. The Inland Seas of North America; and the Natural and Industrial Productions of Canada with the Real Foundations for Its Future Prosperity; H. Ramsay: Kingston, ON, Canada, 1854. [Google Scholar]
- Csanady, G.T. Hydrodynamics of Large Lakes. Ann. Rev. Fluid Mech. 1975, 7, 357–386. [Google Scholar] [CrossRef]
- Csanady, G.T. Milestones of Research on the Physical Limnology of the Great-Lakes. J. Great Lakes Res. 1984, 10, 114–125. [Google Scholar] [CrossRef]
- Rao, Y.R.; Schwab, D.J. Transport and mixing between the coastal and offshore waters in the great lakes: A review. J. Great Lakes Res. 2007, 33, 202–218. [Google Scholar] [CrossRef]
- Csanady, G.T. The Coastal Boundary Layer in Lake Ontario. Part I: The Spring Regime. J. Phy. Oceanogr. 1972, 2, 41–53. [Google Scholar] [CrossRef] [Green Version]
- Csanady, G.T. The Coastal Boundary Layer in Lake Ontario: Part II. The Summer-Fall Regime. J. Phy. Oceanogr. 1972, 2, 168–176. [Google Scholar] [CrossRef] [Green Version]
- Plew, D.R.; Zeldis, J.R.; Shankar, U.; Elliott, A.H. Using Simple Dilution Models to Predict New Zealand Estuarine Water Quality. Estuar. Coast. 2018, 41, 1643–1659. [Google Scholar] [CrossRef]
- Beletsky, D.; Schwab, D.J. Modeling circulation and thermal structure in Lake Michigan: Annual cycle and interannual variability. J. Geophys. Res. Ocean. 2001, 106, 19745–19771. [Google Scholar] [CrossRef] [Green Version]
- Xue, P.F.; Schwab, D.J.; Sawtell, R.W.; Sayers, M.J.; Shuchman, R.A.; Fahnenstiel, G.L. A particle-tracking technique for spatial and temporal interpolation of satellite images applied to Lake Superior chlorophyll measurements. J. Great Lakes Res. 2017, 43, 1–13. [Google Scholar] [CrossRef]
- Xue, P.F.; Pal, J.S.; Ye, X.Y.; Lenters, J.D.; Huang, C.F.; Chu, P.Y. Improving the Simulation of Large Lakes in Regional Climate Modeling: Two-Way Lake-Atmosphere Coupling with a 3D Hydrodynamic Model of the Great Lakes. J. Clim. 2017, 30, 1605–1627. [Google Scholar] [CrossRef]
- Leon, L.F.; Smith, R.E.H.; Malkin, S.Y.; Depew, D.; Hipsey, M.R.; Antenucci, J.P.; Higgins, S.N.; Hecky, R.E.; Rao, R.Y. Nested 3D modeling of the spatial dynamics of nutrients and phytoplankton in a Lake Ontario nearshore zone. J. Great Lakes Res. 2012, 38, 171–183. [Google Scholar] [CrossRef]
- U.S. Environmental Protection Agency (U.S.EPA). Dilution Models for Effluent Discharges, 3rd ed.; EPA/600/R-94/086; Office of Research and Development: Washington, DC, USA, 1994.
- Anderson, E.J.; Fujisaki-Manome, A.; Kessler, J.; Lang, G.A.; Chu, P.Y.; Kelley, J.G.; Chen, Y.; Wang, J. Ice Forecasting in the Next-Generation Great Lakes Operational Forecast System (GLOFS). J. Mar. Sci. Eng. 2018, 6, 123. [Google Scholar] [CrossRef]
- Xue, P.; Schwab, D.J.; Zhou, X.; Huang, C.; Kibler, R.; Ye, X. A Hybrid Lagrangian–Eulerian Particle Model for Ecosystem Simulation. J. Mar. Sci. Eng. 2018, 6, 109. [Google Scholar] [CrossRef]
- Roberts, P.J.W. Engineering of Ocean Outfalls. In The Role of the Oceans as a Waste Disposal Option; Kullenberg, G., Ed.; Springer: Dordrecht, The Netherlands, 1986; pp. 73–109. [Google Scholar]
- Ministry of the Environment (MOE). Water Management Policies, Guidelines and Provincial Water Quality Objectives of the Ministry of Environment and Energy; Queen’s Printer for Ontario: Toronto, ON, Canada, 1994.
- Rao, Y.R.; Murthy, R.C.; Chiocchio, F.; Skafel, M.G.; Charlton, M.N. Impact of proposed Burlington and Hamilton sewage discharges in western Lake Ontario. Water Qual. Res. J. Can. 2003, 38, 627–645. [Google Scholar] [CrossRef]
- Neilson, M.A.; Stevens, R.J.J. Spatial Heterogeneity of Nutrients and Organic-Matter in Lake-Ontario. Can. J. Fish. Aqua. Sci. 1987, 44, 2192–2203. [Google Scholar] [CrossRef]
- Makarewicz, J.C.; Booty, W.G.; Bowen, G.S. Tributary phosphorus loading to Lake Ontario. J. Great Lakes Res. 2012, 38, 14–20. [Google Scholar] [CrossRef]
- Higgins, S.N.; Pennuto, C.M.; Howell, E.T.; Lewis, T.W.; Makarewicz, J.C. Urban influences on Cladophora blooms in Lake Ontario. J. Great Lakes Res. 2012, 38, 116–123. [Google Scholar] [CrossRef]
- Howell, E.T. Cladophora (green algae) and dreissenid mussels over a nutrient loading gradient on the north shore of Lake Ontario. J. Great Lakes Res. 2018, 44, 86–104. [Google Scholar] [CrossRef]
- Yurista, P.M.; Kelly, J.R.; Miller, S.; Van Alstine, J. Lake Ontario: Nearshore conditions and variability in water quality parameters. J. Great Lakes Res. 2012, 38, 133–145. [Google Scholar] [CrossRef]
- CH2M HILL. Class Environmental Assessment to Address Outfall Capacity Limitations at the Duffin Creek Water Pollution Control Plant. Environmental Study Report. Prepared for The Regional Municipalities of York and Durham by CH2M HILL; CH2M HILL Canada Limited: Toronto, ON, Canada, 2013. [Google Scholar]
- Kuczynski, A.; Auer, M.T.; Brooks, C.N.; Grimm, A.G. The Cladophora resurgence in Lake Ontario: characterization and implications for management. Can. J. Fish. Aqua. Sci. 2016, 73, 999–1013. [Google Scholar] [CrossRef] [Green Version]
- Auer, M.T.; Tomlinson, L.M.; Higgins, S.N.; Malkin, S.Y.; Howell, E.T.; Bootsma, H.A. Great Lakes Cladophora in the 21st century: same algae-different ecosystem. J. Great Lakes Res. 2010, 36, 248–255. [Google Scholar] [CrossRef]
- Booty, W.G.; Wong, I.; Bowen, G.S.; Fong, P.; McCrimmon, C.; Leon, L. Loading estimate methods to support integrated watershed-lake modelling: Duffins Creek, Lake Ontario. Water Qual. Res. J. Can. 2014, 49, 179–191. [Google Scholar] [CrossRef]
- Howell, E.T. Influences on Water Quality and Abundance of Cladophora, a Shore-Fouling Green Algae, over Urban Shoreline in Lake Ontario. Water 2018, 10, 1569. [Google Scholar] [CrossRef]
- Howell, E.T.; Chomicki, K.M.; Kaltenecker, G. Tributary discharge, lake circulation and lake biology as drivers of water quality in the Canadian Nearshore of Lake Ontario. J. Great Lakes Res. 2012, 38, 47–61. [Google Scholar] [CrossRef]
- Howell, E.T.; Chomicki, K.M.; Kaltenecker, G. Patterns in water quality on Canadian shores of Lake Ontario: Correspondence with proximity to land and level of urbanization. J. Great Lakes Res. 2012, 38, 32–46. [Google Scholar] [CrossRef]
- Leon, L.F.; Smith, R.E.; Malkin, S.; Depew, D.; Hecky, R.E. Modeling and Analysis of Cladophora Dynamics and Their Relationship to Local Nutrient Sources in A Nearshore Segment of Lake Ontario, #4253501. Final Report for OPG; University of Waterloo: Waterloo, ON, Canada, 2009; p. 64. [Google Scholar]
- Martin, G.M. Nutrient sources for excessive growth of benthic algae in Lake Ontario as inferred by the distribution of SRP. M.S. Thesis, UWSpace, University of Waterloo, Waterloo, ON, Canada, 2010. [Google Scholar]
- Chen, C.S.; Liu, H.D.; Beardsley, R.C. An unstructured grid, finite-volume, three-dimensional, primitive equations ocean model: Application to coastal ocean and estuaries. J. Atmosph. Ocean. Technol. 2003, 20, 159–186. [Google Scholar] [CrossRef]
- Chen, C.S.; Beardsley, R.C.; Cowles, G. An unstructured grid, finite-volume coastal ocean model (FVCOM) system. Oceanography 2006, 19, 78–89. [Google Scholar] [CrossRef]
- Xue, P.F.; Chen, C.S.; Beardsley, R.C. Observing system simulation experiments of dissolved oxygen monitoring in Massachusetts Bay. J. Geophys. Res. Ocean. 2012, 117. [Google Scholar] [CrossRef] [Green Version]
- Anderson, E.J.; Bechle, A.J.; Wu, C.H.; Schwab, D.J.; Mann, G.E.; Lombardy, K.A. Reconstruction of a meteotsunami in Lake Erie on 27 May 2012: Roles of atmospheric conditions on hydrodynamic response in enclosed basins. J. Geophys. Res. Ocean. 2015, 120, 8020–8038. [Google Scholar] [CrossRef] [Green Version]
- Safaie, A.; Wendzel, A.; Ge, Z.F.; Nevers, M.B.; Whitman, R.L.; Corsi, S.R.; Phanikumar, M.S. Comparative Evaluation of Statistical and Mechanistic Models of Escherichia coli at Beaches in Southern Lake Michigan. Environ. Sci. Technol. 2016, 50, 2442–2449. [Google Scholar] [CrossRef]
- Xue, P.F.; Schwab, D.J.; Hu, S. An investigation of the thermal response to meteorological forcing in a hydrodynamic model of Lake Superior. J. Geophys. Res. Ocean. 2015, 120, 5233–5253. [Google Scholar] [CrossRef] [Green Version]
- Ye, X.Y.; Anderson, E.J.; Chu, P.Y.; Huang, C.F.; Xue, P.F. Impact of Water Mixing and Ice Formation on the Warming of Lake Superior: A Model-guided Mechanism Study. Limnol. Oceanogr. 2019, 64, 558–574. [Google Scholar] [CrossRef]
- Xue, P.F.; Chen, C.S.; Qi, J.H.; Beardsley, R.C.; Tian, R.C.; Zhao, L.Z.; Lin, H.C. Mechanism studies of seasonal variability of dissolved oxygen in Mass Bay: A multi-scale FVCOM/UG-RCA application. J. Mar. Sys. 2014, 131, 102–119. [Google Scholar] [CrossRef]
- Xue, P.F.; Eltahir, E.A.B. Estimation of the Heat and Water Budgets of the Persian (Arabian) Gulf Using a Regional Climate Model. J. Clim. 2015, 28, 5041–5062. [Google Scholar] [CrossRef]
- Schwab, D.J.; Bedford, K.W. Initial Implementation of the Great Lakes Forecasting System: A Real-Time System for Predicting Lake Circulation and Thermal Structure. Water Qual. Res. J. 1994, 29, 203–220. [Google Scholar] [CrossRef]
- Beletsky, D.; Schwab, D.; McCormick, M. Modeling the 1998–2003 summer circulation and thermal structure in Lake Michigan. J. Geophys. Res. Ocean. 2006, 111. [Google Scholar] [CrossRef] [Green Version]
- Wang, J.; Hu, H.G.; Schwab, D.; Leshkevich, G.; Beletsky, D.; Hawley, N.; Clites, A. Development of the Great Lakes Ice-circulation Model (GLIM): Application to Lake Erie in 2003-2004. J. Great Lakes Res. 2010, 36, 425–436. [Google Scholar] [CrossRef]
- Huang, A.N.; Rao, Y.R.; Lu, Y.Y.; Zhao, J. Hydrodynamic modeling of Lake Ontario: An intercomparison of three models. J. Geophys. Res. Ocean. 2010, 115. [Google Scholar] [CrossRef]
- Fujisaki, A.; Wang, J.; Hu, H.G.; Schwab, D.J.; Hawley, N.; Rao, Y.R. A modeling study of ice-water processes for Lake Erie applying coupled ice-circulation models. J. Great Lakes Res. 2012, 38, 585–599. [Google Scholar] [CrossRef]
- Mellor, G.L.; Yamada, T. Development of a Turbulence Closure-Model for Geophysical Fluid Problems. Rev. Geophys. 1982, 20, 851–875. [Google Scholar] [CrossRef]
- Smagorinsky, J. General circulation experiments with the primitive equations. Month. Weath. Rev. 1963, 91, 99–164. [Google Scholar] [CrossRef]
- Xue, P.F.; Chen, C.S.; Ding, P.X.; Beardsley, R.C.; Lin, H.C.; Ge, J.Z.; Kong, Y.Z. Saltwater intrusion into the Changjiang River: A model-guided mechanism study. J. Geophys. Res. Ocean. 2009, 114. [Google Scholar] [CrossRef]
- Schwab, D.J.; Beletsky, D.; DePinto, J.; Dolan, D.M. A hydrodynamic approach to modeling phosphorus distribution in Lake Erie. J. Great Lakes Res. 2009, 35, 50–60. [Google Scholar] [CrossRef]
- Lean, D.R.S.; Knowles, R. Nitrogen Transformations in Lake-Ontario. Can. J. Fish. Aqua. Sci. 1987, 44, 2133–2143. [Google Scholar] [CrossRef]
- Johengen, T.H.; Johannsson, O.E.; Pernie, G.L.; Millard, E.S. Temporal and Seasonal Trends in Nutrient Dynamics and Biomass Measures in Lakes Michigan and Ontario in Response to Phosphorus Control. Can. J. Fish. Aqua. Sci. 1994, 51, 2570–2578. [Google Scholar] [CrossRef]
- Winter, J.G.; Howell, E.T.; Nakamoto, L.K. Trends in nutrients, phytoplankton, and chloride in nearshore waters of Lake Ontario: Synchrony and relationships with physical conditions. J. Great Lakes Res. 2012, 38, 124–132. [Google Scholar] [CrossRef]
- Rodgers, G.K. Time of Onset of Full Thermal Stratification in Lake-Ontario in Relation to Lake Temperatures in Winter. Can. J. Fish. Aqua. Sci. 1987, 44, 2225–2229. [Google Scholar] [CrossRef]
- Holmes, J.D. Wind Loading of Structures, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2015. [Google Scholar]
- Jarraud, M. Guide to Meteorological Instruments and Methods of Observation WMO-No. 8; World Meteorological Organization: Geneva, Switzerland, 2008. [Google Scholar]
- CH2M HILL. Duffin Creek Water Pollution Control Plant Phosphorus Reduction Action Plan Study Final Report. Prepared for The Regional Municipalities of York and Durham by CH2M HILL; CH2M HILL Canada Limited: Toronto, ON, Canada, 2018. [Google Scholar]
- Tomlinson, L.M.; Auer, M.T.; Bootsma, H.A.; Owens, E.M. The Great Lakes Cladophora Model: Development, testing, and application to Lake Michigan. J. Great Lakes Res. 2010, 36, 287–297. [Google Scholar] [CrossRef]
- Canale, R.P.; Auer, M.T. Ecological Studies and Mathematical Modeling of Cladophora in Lake Huron: 7. Model Verification and System Response. J. Great Lakes Res. 1982, 8, 134–143. [Google Scholar] [CrossRef]
- Targets Task Team. Recommended phosphorus loading targets for Lake Erie. Annex 4 Obectives and Targets Task Team Final Report to the Nutrients Annex Subcommittee; U.S. EPA and Environment Canada: Washington, DC, USA.
- Durham and York Regions. Duffin Creek Water Pollution Control Plant 2014 Annual Performance Report; The Regional Municipality of Durham and York: ON, Canada, 2014.
- Lambert, R.S.; Auer, M.T.; Effler, S.W.; Greene, M.R.; Downer, B.E.; Kuczynski, A. Onondaga to Ontario: Management of bioavailable phosphorus in municipal wastewaters for control of Cladophora. J. Great Lakes Res. 2015, 41, 1106–1113. [Google Scholar] [CrossRef]
- Rowe, M.D.; Anderson, E.J.; Wang, J.; Vanderploeg, H.A. Modeling the effect of invasive quagga mussels on the spring phytoplankton bloom in Lake Michigan. J. Great Lakes Res. 2015, 41, 49–65. [Google Scholar] [CrossRef]
- Rowe, M.D.; Anderson, E.J.; Vanderploeg, H.A.; Pothoven, S.A.; Elgin, A.K.; Wang, J.; Yousef, F. Influence of invasive quagga mussels, phosphorus loads, and climate on spatial and temporal patterns of productivity in Lake Michigan: A biophysical modeling study. Limnol. Oceanogr. 2017, 62, 2629–2649. [Google Scholar] [CrossRef]
Flow (m3·s−1) | Location | |
---|---|---|
Tributaries 1 | ||
Rouge River | 4.31 | Scarborough/Pickering, ON |
Duffins Creek | 2.92 | Ajax/Pickering, ON |
Carruthers Creek | 0.39 | Ajax, ON |
Point Sources 2 | ||
Highland Creek WWTP | 1.97 | Scarborough, ON |
Duffin Creek WWTP | 3.97 | Pickering, ON |
Corbett Creek WWTP | 0.6 | Whitby, ON |
Ashbridges Bay WWTP | 7.31 | Toronto, ON |
Pickering Nuclear Generating Station 3 | ||
PNG A plus PNG B | 153.1 | Pickering, ON |
Sources | Daily Flow | Outfall Depth | Temp | NO3-N | |
---|---|---|---|---|---|
(m3·s−1) | (m) | (°C) | (µg·L−1) | ||
Tributaries | |||||
Rouge River | July | 0.66–2.37 | - | - | 444 |
Sept | 0.95–30.39 | - | 771 | ||
Duffins Creek | July | 1.32–1.74 | - | - | 323 |
Sept | 1.16–15.05 | - | 335 | ||
Carruthers Creek | July | 0.17–0.23 | - | - | 69 |
Sept | 0.15–1.99 | - | 79 | ||
Point Sources | |||||
Highland Creek WWTP | July | 1.9 | 11.9 | 23.1 | 18,600 |
Sept | 2.0 | 22.7 | 11,900 | ||
Duffin Creek WWTP | July | 3.7 | 10 | 21.1 | 16,500 |
Sept | 3.9 | 18.8 | 15,800 | ||
Corbett Creek WWTP | July | 0.5 | 9 | 19.5 | 20,800 |
Sept | 0.6 | 21.0 | 14,900 | ||
Ashbridges Bay WWTP | July | 7.31 | 11 | 20.9 | 18,500 |
Sept | 7.31 | 20.9 | 18,500 | ||
Pickering Nuclear Generation Station | |||||
PNG A | July | 49.7 | - | 22 | 450 |
Sept | 49.7 | 28.2 | 283 | ||
PNG B | July | 103.4 | - | 21 | 450 |
Sept | 103.4 | 28.2 | 283 | ||
Baseline Conditions | |||||
Open Lake | July | - | - | - | 355 |
Sept | - | - | 270 |
Constituent | Cstandard | Ceffluent | D |
---|---|---|---|
(mg·L−1) | (mg·L−1) | (%) | |
Total Ammonia Nitrogen, as N | 500 | 1800 | 72.2 |
Total Phosphorus, as P | 20 | 422 | 95.3 |
Soluble Reactive Phosphorus, as P | 1.5 | 232 | 99.4 |
