Data Descriptor

CADDY Underwater Stereo-Vision Dataset for Human–Robot Interaction (HRI) in the Context of Diver Activities

Robotics Group, Computer Science & Electrical Engineering, Jacobs University Bremen, Campus Ring 1, 28759 Bremen, Germany
Institute of Marine Engineering—National Research Council, Via E. De Marini 6, 16149 Genova, Italy
Institute for Computational Linguistics—National Research Council, Via E. De Marini 6, 16149 Genova, Italy
Faculty of Electrical Engineering and Computing, University of Zagreb, Unska ul. 3, 10000 Zagreb, Croatia
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2019, 7(1), 16;
Received: 18 December 2018 / Revised: 4 January 2019 / Accepted: 10 January 2019 / Published: 16 January 2019
(This article belongs to the Special Issue Underwater Imaging)


In this article, we present a novel underwater dataset collected from several field trials within the EU FP7 project “Cognitive autonomous diving buddy (CADDY)”, where an Autonomous Underwater Vehicle (AUV) was used to interact with divers and monitor their activities. To our knowledge, this is one of the first efforts to collect a large public dataset in underwater environments with the purpose of studying and boosting object classification, segmentation and human pose estimation tasks. The first part of the dataset contains stereo camera recordings (≈10 K) of divers performing hand gestures to communicate with an AUV in different environmental conditions. The gestures can be used to test the robustness of visual detection and classification algorithms in underwater conditions, e.g., under color attenuation and light backscatter. The second part includes stereo footage (≈12.7 K) of divers free-swimming in front of the AUV, along with synchronized measurements from Inertial Measurement Units (IMU) located throughout the diver’s suit (DiverNet), which serve as ground-truth for human pose and tracking methods. In both cases, these rectified images allow the investigation of 3D representation and reasoning pipelines from low-texture targets commonly present in underwater scenarios. This work describes the recording platform, sensor calibration procedure plus the data format and the software utilities provided to use the dataset.

1. Introduction

From the robotics perspective, underwater environments present numerous technological challenges for communication, navigation, image processing and other areas. There are unique sensors’ problems due to the electromagnetic waves being attenuated very strongly: there is no GPS-based localization, no radio communication and there are only limited possibilities of using visible light. Acoustics sensors are mostly used, but they offer only low bandwidth and high latency transmissions. It is no surprise that most of the applications such as biological sample acquisition, archaeological site exploration, and industrial manipulation still require human intervention for their successful completion.
For this reason, the EU FP7 project “Cognitive autonomous diving buddy (CADDY)” focused on diver–robot cooperation. An Autonomous Underwater Vehicle (AUV) monitors the divers’ activities, while communicating with them and performing multiple tasks on command [1]. During this project, a unique set of data was recorded covering two main aspects: (a) diver gesture recognition on a sign language dubbed CADDIAN [2,3] (derived from the name CADDY), which includes standard diving signals, as well as (b) diver pose estimation using stereo images and inertial sensor measurements mounted in a tailor-made diving suit, called DiverNet [4].
Although exhaustive underwater surveys and performance evaluations of object recognition and stereo systems [5,6] have been performed, commonly, these reviews benchmark scientific methods across datasets targeted for different applications or use very constrained datasets. This is due to the difficulty and cost of underwater data collection and the relatively small size of the datasets compared to on-land robotics. Only recently, efforts to gather data from different closed and open-water environments to study cutting edge data-driven (deep learning) methods [7,8] have been made.
The work in [7] focuses on the diver-detection network architecture design, and Ref. [8] tackles human–robot collaboration by adapting existing on-land gesture recognition methods based on skin detection to scenarios where the diver does not need gloves. Nonetheless, these publications do not thoroughly describe the training data, which in general can give insights to the users to develop their own approach or about the strength and weaknesses of existing methods. In addition, these datasets are not publicly available.
The work presented here aims to provide (a) an open, publicly available dataset with (b) a detailed description of the collected data by explaining qualitatively and quantitatively the environmental conditions of each recording. The data also contain samples not only of closed and open-water settings but of dynamic scenarios, e.g., where currents are strong and the diver or the AUV are not static. In this way, users of our datasets can methodically study the behavior and performance of their approaches in each type of scenario.
Furthermore, the available rectified stereo images allow for testing 2D and 3D perception cues, as well as a fusion of both. It is of special interest to investigate 3D algorithms in these environments where image features are scarce and texture is often uniform. To the best of our knowledge, this is the first public underwater dataset focusing on human–robot interaction between AUV and divers using stereo imagery.
It is important to note that the use of these data is not limited to recognition and pose estimation tasks; it can serve as a basis for any vision-based algorithm in underwater applications. This stems from the fact that the data were recorded in different environmental conditions that cause various image distortions unique to underwater scenarios, i.e., low contrast, color distortion, and haze [9], which cannot be easily replicated from on-land recordings or in simulation.
The presented work is structured as follows. First, Section 2 describes the hardware and sensor setup used to record the data. Section 3 examines the collected dataset; specifically, Section 3.1 and Section 3.2 analyze the dynamic and environmental conditions from the recordings and how they impact the quality of the captured stereo images. Section 3.3 and Section 3.4 present the diver gestures and pose estimation datasets respectively, each with subsections describing details of the data content, storage and the provided directories and software for their usage. Finally, conclusions and remarks about the importance of this work are made in Section 4.

2. Sensor Setup


To collect data and perform real diver missions, the BUDDY-AUV was specifically designed by the University of Zagreb during the CADDY project [10]. The vehicle is fully actuated and it is equipped with navigation sensors: Doppler velocity log (DVL) and ultra-short baseline (USBL); and perception sensors: multibeam sonar and a stereo camera in an underwater housing. In addition, it has a tablet in an underwater housing to enable bidirectional human–robot interaction capabilities (see Figure 1), i.e., to output feedback to the diver. As a backup vehicle for data collection only, the e-URoPe AUV [11] from the Italian National Research Council was placed on standby.

2.2. Stereo Camera and Underwater Image Rectification

For image collection, a Point Grey Bumblebee XB3 color stereo camera (Richmond, BC, CAN) was used, model BBX3-13S2C. This stereo camera provides raw images with 1280 × 960 pixels resolution at 16 Hz; it has 3.8 mm nominal focal length and wide baseline B = 23.9 cm . After rectification, all images are scaled to 640 × 480 , and these are the dimensions of all the stereo image pairs in the provided datasets. The camera intrinsic parameter matrix is: K = [ 710 0 320 ; 0 710 240 ; 0 0 1 ] .
The camera was enclosed in a watertight housing with a flat glass panel (see Figure 1). When using flat panel housings, the light is refracted twice: first on the water-glass and then on the glass-water interface. These refraction effects cause the image to be distorted; as discussed in [12], a camera behind a flat glass panel underwater does not possess a single viewpoint and therefore the classic pinhole model is not valid. This problem is addressed in [13] by proposing the new Pinax (PINhole-AXial) camera model that maps a rectified image with in-air parameters to its underwater counterpart, which adheres to the pinhole model given a minimum distance between the camera and the housing glass.
This method was tested on multiple types of cameras, including the Bumblebee XB3 stereo camera, yielding higher quality results than direct underwater calibration [14], i.e., recording a calibration pattern underwater. One of the main reasons is that this pattern detection is commonly less accurate when performed on distorted raw underwater images, which have low contrast and radial distortions due to magnification artifacts, than when performed on raw in-air images. Instead, Pinax uses the physical camera model, water salinity and glass thickness to map the air-rectified image to its underwater model. For these reasons, and the fact that many of the recordings were done during real diver missions, underwater raw images from calibration patterns are not available for all of the scenarios. Hence, only high-quality rectified stereo images are provided.
Examples of this rectification process are shown in Figure 2. In-air intrinsic calibration was done using the CamOdCal software package [15] with the camera model from [16]. The obtained calibration files for the used BumbleBee XB3 instances are provided for the user’s inspection, along with the CamOdCal and Pinax packages as Docker containers [17]. These can be used for underwater camera calibration with flat-glass panels [18].

2.3. DiverNet

For ground truth body pose recordings, divers used the DiverNet; its hardware, software and data acquisition modules are described in detail in [4]. In summary, DiverNet is a network of 17 Pololu MinIMU-9 Inertial Measurement Units (IMUs) with nine degrees of freedom (DoFs). They are distributed and mounted as shown in Figure 3a,b: three on each arm and leg, one on each shoulder and one on the head, torso, and lower back. Since it is practically impossible to have the sensors perfectly aligned and firmly in place during tests, a calibration procedure is performed by asking the diver to hold a T-posture and rotating each sensor’s coordinate frame to the expected pose; see Figure 3a. This posture allows for easy access to the IMUs, a respiration monitor belt and their cabling in case adjustments are needed; then, raw and filtered orientation are computed for each IMU as follows:
  • Raw orientation is acquired based on the magnetometer data and the gravity distribution along each of the accelerometer axes.
  • Filtered orientation is computed by fusing the raw orientation with the gyroscope data through a Madgwick–Mahony filter [19].
For data collection, all IMU sensors operate with maximum sensitivity, i.e., accelerometer ±16 g, magnetometer ± 1.2 mT, and gyroscope ±2000 deg/s. Values are recorded at 50 Hz through a parallel I 2 C bus by a central acquisition unit (see Ref. [4]) and then transmitted to an on-land workstation via an optic fiber cable.
The filtered orientation originally consists of absolute values, globally referenced to the map frame M. Then, its value in the BUDDY-AUV frame R is obtained through the transformation M R T. The reported heading ϕ in this dataset (see Figure 3c) comes from the average input of the torso and lower back IMU, projected onto the XY plane. As it was done in the EU-FP7 CADDY trials, the data can be exploited to obtain the diver’s swimming direction (heading) and test tracking algorithms with the AUV based on stereo imagery [7,20].

3. Dataset

3.1. Data Collection

The recordings for both the underwater gesture and diver pose database took place in three different locations in open sea, indoor and outdoor pools, respectively in Biograd na Moru—Croatia, Brodarski Institute—Croatia, and in Genova—Italy. Then, the collected data was further divided into eight scenarios representing the different diver missions and field experiments carried out in these locations. Underwater gestures were recorded in all of them (≈10 K stereo pairs), whereas diver pose/heading only in three of the scenarios (≈12.7 K stereo pairs). All of the described data and software tools for its analysis and visualization are hosted at [21].

3.2. Data Description

Figure 4 shows a sample image from each scenario. In order to offer and describe more details about these image recordings and their environmental conditions, we extract image quality metrics based on the Minkowski distance [22] for each of the scenarios. This image quality metric, denoted as MDM, has faster computation times and provides better quality predictions than state-of-the-art no-reference image quality assessment (NR-IQA) methods such as no-reference image quality metric for contrast change (NIQMC) [23] or natural scene statistics (NSS) induced models [24]. Furthermore, the MDM metrics offer a quantitative way to investigate types of contrast distortion, which are typical in underwater scenarios due to haze and color absorption.
First, we compute the MDM-based image entropy H ( D ) as shown in Figure 5a, where D is the contrast distorted image and D ¯ = 255 D is its complement. Previous studies [25] state that a higher entropy corresponds to images with higher contrast and more texture. Based on this only, the recordings from Brodarski-A, Biograd-A and Biograd-C have better quality and the ones from Brodarski-D and Genova-A the worst. Biograd-A and Biograd-C images have very similar entropy density distributions, but Figure 5b shows that Biograd-C has lower contrast overall. This is an example of the importance to examine all MDM measures to understand how image quality varies in each scenario. In Figure 5b, the centroids for each recording setting are displayed and the closer they are to the bottom left corner of the plot, the lower global contrast they have. M D M ( D ) and M D M ( D ¯ ) describe the contrast behavior of colors with high and low luminance, respectively.
Table 1 provides a description of all scenarios, including their dynamic and environmental properties. Dynamics refer to the relative motion between AUV and the diver caused by currents or the diver swimming. The environmental characteristics are described using the mean and standard deviation of the MDM metrics, also shown in Figure 5a,b. Finally, the last column of Table 1 indicates whether underwater gestures, diver pose measurements or both were recorded. The aim is to provide the users of our datasets with enough information to evaluate algorithms developed with images from the different scenarios and/or to assemble their own training and testing sets.

3.3. Underwater Gestures

The underwater gesture database is a collection of annotated rectified stereo images from divers using the CADDIAN gesture-based language [2,3]. From all the scenarios mentioned in the previous section, 9191 annotated stereo pairs were gathered for 15 classes (gesture types), i.e., 18,382 total samples. Likewise, we include 7190 true negative stereo pairs (14,380 samples) that contain background scenery and divers without gesturing; these follow the same distribution per scenario as the true positives.
The diver’s gloves are modified by adding color stripes to each finger and known shapes as shown in Figure 6. There is a 2.5 cm radius circle and a 5 cm square in the forehand and backhand respectively; both with a 1 cm white border. The main goal is to augment the texture content in the diver’s hands to allow for better feature extraction in classification and disparity computation tasks. Pure black gloves are hard to distinguish from the rest of the diver’s body, even for the human eye.
From the viewpoint of general users of our datasets, the color stripes provide a basis to investigate the use of color information as an additional cue for classification tasks or to develop approaches to recover color data in underwater vision. Color attenuation underwater has been studied extensively in the literature [26,27]. If the distance from an object to the camera can be computed, e.g., using stereo images, it is possible to recover color information about the target. To allow for such color constancy analysis [28,29,30], the average HSV (hue, saturation, value) colors of the diver’s gloves and a RAL-K7 chart used for reference are reported in Table 2. For this, ten images were taken from different perspectives in a set-up with uniform illumination.

3.3.1. Data Distribution and Processing

As it can be seen in Figure 7, Figure 8 and Figure 9, the number of samples and the class distribution in each scenario vary significantly. The main reason is that the recordings were done at different development stages of the EU FP7 CADDY project. Biograd-A and B, and Genova-A trials were organized mainly for data collection, hence their high number of samples (Figure 7); the rest of the data was collected during real diver missions. The data from these missions also produce a high variance in the samples per class (Figure 8) because some gestures are used more frequently than others as it happens for some words in our daily speech. For example, connective gestures such as start_comm, end_comm, num_delimiter are grammatically required more times (see Ref. [3]) as the connective words and, or, but in English.
Based on this, Figure 7, Figure 8 and Figure 9 are given to enable the user to decide how to build their training/testing sets to suit their application. For instance, follow the original distribution or build a balanced data set. The plot in Figure 7 shows the samples distribution per scenario, and Figure 8 and Figure 9 depict the class distribution for the complete dataset and per scenario, respectively. Due to the high variance in these distributions, as well as the variance in environmental and dynamic conditions during the recordings, this dataset allows to:
  • Test algorithms and/or image features robustness across different unseen settings.
  • Investigate which environmental conditions have greater impact on classification methods.
  • Balance the number of training samples used per scenario to achieve better performance, or
  • Create specific training/test sets by associating data samples across different scenarios based on a particular criteria, e.g., recording location, image quality, distance to camera, etc.
  • Find approaches that fuse 2D and 3D information from the stereo pairs to boost performance.
  • Test not only object classification methods but also object detectors, i.e., locate the diver’s hand, and color constancy algorithms.

3.3.2. Data Parsing

All of these data are compiled in tabular form in *.csv files as they do not require any extra software to be handled and most data analysis packages have built-in methods to process them. One file contains the true positives data and other the true negatives data. Table 3 shows the header/column fields in these files; row with index 0 contains a brief description of the field data, row index 1 shows an example of how a true positive image is referenced and row index 2 shows an example from a true negative. An explanation of these fields is given below:
  • Scenario: Name corresponding to a location that encompasses particular settings affecting the quality of the image according to Table 1.
  • Stereo left/right: String to the path where the image is saved. The file basename also indicates the scenario from which it is taken, a sequence number and the stereo view it corresponds to, e.g., biograd-A_00123_left.jpg.
  • Label name: String that identifies the gesture class.
  • Label id: Integer that identifies the gesture class.
  • Roi left/right: Arrays that describe the regions of interest in the left/right image, i.e., where the hand gesture is located. Each array element is separated by a comma. When two instances of the target object are present in the image, each array is separated by a semicolon (this is only true for the mosaic gesture).
To augment and complement this database, we added entries for the image quality metrics mentioned in Section 3.2 and the parameters describing four types of image distortions: blur, contrast reduction, channel noise and compression. These standard distortions were applied to the original stereo pairs since they are commonly present while collecting and transmitting underwater data. The user can utilize these synthetic images or choose to apply these or other distortions themselves. Nonetheless, they are briefly described here because some extra header/column entries in the database are reserved for them. Then, the user can take advantage of this format, the directory structure presented in Figure 10 and the provided software scripts to log their own synthetic images.
Table 4 shows these additional columns. Image quality metrics (IQA) are only applied to the raw rectified images, referred as non-synthetic. As for the synthetic images, the distortion column declares the applied type of distortion and the param columns store key values that characterize it. Blur has as only parameter the kernel size, contrast reduction has the weight α since the distortion D is achieved by blending a gray image G with the original I, i.e., D = G × α + I × ( 1 α ) , channel noise requires the standard deviation of the Gaussian distribution used to add noise to each image channel, and compression needs the compression scheme and the quality level to be used.

3.3.3. Database Directory and Provided Software

The provided image files follow the directory structure shown in Figure 10. As stated in Section 3.1, the dataset is first divided by scenarios, which contain a true positives and a true negatives folder. Then, each of these folders contains a raw directory with all the original rectified stereo pairs, plus a directory for each image distortion applied to them. Since we can apply a particular image distortion with different parameters, a subdirectory named dir_ # # is created for each different set of parameters used. The correspondence between these subdirectories and the distortion parameters can be checked in the database tabular file (see Table 3 and Table 4). Finally, an extra folder named visualization is available for each scenario, where images with highlighted region of interest (ROIs) or hand gesture patches are saved.
In summary, we provide the following tools/scripts for parsing and visualizing the described data, as well as files describing the sensor parameters (see Section 2.2). Their usage is explained in the mentioned links [18,21].
  • Parse and visualization scripts to:
    parse by label ID, label name and/or recording scenario, see Table 1.
    visualize and/or extract region of interests (ROIs).
    apply the mentioned or other image distortions with user defined parameters, and expanding the given directory accordingly (see Figure 10).
  • Camera intrinsic calibration files
  • Software tools to calibrate underwater cameras with flat-glass panels (CamOdCal+Pinax).

3.4. Diver Pose Estimation

The diver pose/heading database is also a collection of annotated rectified stereo images extracted from video sequences showing the diver free-swimming. Each stereo pair is associated with a diver heading as explained in Section 2.3. In the CADDY project, the primary objective was to track the diver in order to position the AUV in front him/her such that the diver always faces the camera. In this way, the AUV can monitor the diver’s activities and communicate through gestures or the underwater tablet as shown in Figure 1.
Thus, the dataset can be used to test human pose estimation, segmentation or scene geometry understanding methods in this particular context, e.g., our work in [31]. For one-shot or frame-by-frame algorithms, we offer the rectified stereo pairs, while for methods that consider the input history, i.e., the diver’s previous movements, we provide a sequence number explained in the next section (see Table 5). Data were collected in the scenarios Biograd-B, Brodarski-A and Brodarski-C (see Table 1).

3.4.1. Data Distribution and Processing

To collect the data, divers were asked to perform three tasks in front of the AUV: (1) turn 360 deg horizontally (chest pointing downwards, to the floor) and (2) vertically, clockwise and anticlockwise, and (3) swim freely. For the latter, the AUV was operated manually to follow the diver. In total, 12,708 rectified stereo pair images are provided from which 3D representations can be computed as well.
The collected measurements have passed through a noise (median) filter with a buffer size 5, and an offset correction step (sensor bias), which was done manually before each test. As mentioned, ϕ is the diver’s angle in the XY plane relative to the AUV (frame R) and 0 deg is defined when the diver is facing the camera (see Figure 3c). Hence, the range of values go from 180 deg to 180 deg.

3.4.2. Data Parsing

This dataset is also presented in tabular *.csv form as in Table 5. The explanation of its headers is as follows:
  • Scenario: Name corresponding to recording the location and specific settings as in Table 1.
  • Sequence: Integer that identifies the sequence to which the stereo pair belongs. An image only belongs to a sequence if its from the same scenario and forms part of a set continuous in time.
  • Stereo left/right: c.f. Table 3.
  • Heading: Float number in degrees that indicates the diver heading.

3.4.3. Database Directory and Provided Software

The provided video sequences are just split into directories for each scenario, as the first level of the directory structure in Figure 10. We also offer software tools to:
  • Extract stereo pairs sets given a scenario name, a sequence or a combination of both.
  • Extract all stereo pairs associated with a range of heading values.
  • Output a sequence as video file for visualization purposes.

4. Conclusions

In this article, we presented a novel dataset from divers interacting with an AUV in several field trials in closed and open-water. The data mainly consists of stereo images with the diver performing hand gestures to command certain tasks to the AUV, and the diver’s heading information while swimming. The main purpose is to use the data to study underwater human–robot interaction activities, such as diver tracking, monitoring, guidance and communication. Furthermore, the dataset is thoroughly organized and analyzed to allow the user to utilize it in a quick and easy manner, according to the application or research challenge they have in mind.
The rich variety of environments and situations in which the data was recorded can also be exploited to benchmark underwater vision algorithms in general, especially with regard to their robustness against unseen type of data or image distortions. In particular, accurately rectified stereo images offer the opportunity to investigate 3D perception methods, which are typically performed with acoustic sensors in underwater scenarios. Overall, there is still a scarcity of datasets for underwater robotics applications due to the high logistic and technological costs that are required. Commonly, the available datasets do not have enough number of samples or variety to test and deploy state-of-the-art perception frameworks used in on-land robotics. Hence, the work here presented aims to set the first efforts in bridging this gap and to provide a quality research baseline to the underwater scientific community.

Author Contributions

Conceptualization, A.G.C., D.C., E.Z. and A.B. (Anja Babić); Methodology, A.G.C., D.C., E.Z. and A.B. (Anja Babić); Software, A.G.C., A.R. and A.B. (Anja Babić); Validation, A.G.C. and E.Z.; Formal Analysis, A.G.C.; Investigation, A.G.C., A.R. and D.C.; Data Curation, A.G.C. and A.R.; Writing—Original Draft Preparation, A.G.C. and E.Z.; Writing—Review and Editing, A.G.C., D.C., E.Z. and A.R; Visualization, A.G.C. and A.R.; Supervision, A.B. (Andreas Birk); Funding Acquisition, A.B. (Andreas Birk).


The research leading to the presented results was supported in part by the European Community’s Seventh Framework Programme (FP7/2007-2013) under Grant No. 611373 “Cognitive Autonomous Diving Buddy (CADDY)”.


This work was also possible thanks to the enthusiasm, collaboration and patience of all the divers that participated in the CADDY project, especially Pavel Ankon and Maša Frleta Valić. Likewise, thanks to Maria Elena Chavez Cereceda for her assistance and time in verifying the integrity of the data presented here.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Mis̆ković, N.; Pascoal, A.; Bibuli, M.; Caccia, M.; Neasham, J.A.; Birk, A.; Egi, M.; Grammer, K.; Marroni, A.; Vasilijevic, A.; et al. CADDY project, year 3: The final validation trials. In Proceedings of the OCEANS 2017, Aberdeen, UK, 19–22 June 2017. [Google Scholar]
  2. Chiarella, D.; Bibuli, M.; Bruzzone, G.; Caccia, M.; Ranieri, A.; Zereik, E.; Marconi, L.; Cutugno, P. Gesture-based language for diver–robot underwater interaction. In Proceedings of the OCEANS 2015, Genoa, Italy, 18–21 May 2015. [Google Scholar]
  3. Chiarella, D.; Bibuli, M.; Bruzzone, G.; Caccia, M.; Ranieri, A.; Zereik, E.; Marconi, L.; Cutugno, P. A Novel Gesture-Based Language for Underwater Human–Robot Interaction. J. Mar. Sci. Eng. 2018, 6, 91. [Google Scholar] [CrossRef]
  4. Goodfellow, G.M.; Neasham, J.A.; Rendulic, I.; Nad, D.; Miskovic, N. DiverNet—A network of inertial sensors for real time diver visualization. In Proceedings of the 2015 IEEE Sensors Applications Symposium (SAS), Zadar, Croatia, 13–15 April 2015. [Google Scholar]
  5. Garcia, R.; Gracias, N. Detection of interest points in turbid underwater images. In Proceedings of the OCEANS 2011 IEEE, Santander, Spain, 6–9 June 2011. [Google Scholar]
  6. Rizzini, D.L.; Kallasi, F.; Oleari, F.; Caselli, S. Investigation of Vision-Based Underwater Object Detection with Multiple Datasets. Int. J. Adv. Robot. Syst. 2015, 12, 77. [Google Scholar] [CrossRef][Green Version]
  7. Islam, M.J.; Fulton, M.; Sattar, J. Towards a Generic Diver-Following Algorithm: Balancing Robustness and Efficiency in Deep Visual Detection. arXiv, 2018; arXiv:1809.06849. [Google Scholar]
  8. Islam, M.J.; Ho, M.; Sattar, J. Dynamic Reconfiguration of Mission Parameters in Underwater Human-Robot Collaboration. In Proceedings of the 2018 IEEE International Conference on Robotics and Automation (ICRA), Brisbane, QLD, Australia, 21–25 May 2018. [Google Scholar]
  9. Schettini, R.; Corchs, S. Underwater Image Processing: State of the Art of Restoration and Image Enhancement Methods. EURASIP J. Adv. Signal Process. 2010, 2010, 14. [Google Scholar] [CrossRef]
  10. Stilinovic, N.; Nad, D.; Miskovic, N. AUV for diver assistance and safety—Design and implementation. In Proceedings of the OCEANS 2015, Genoa, Italy, 18–21 May 2015. [Google Scholar]
  11. Odetti, A.; Bibuli, M.; Bruzzone, G.; Caccia, M.; Spirandelli, E.; Bruzzone, G. e-URoPe: a reconfgurable AUV/ROV for man-robot underwater cooperation. In Proceedings of the 2017 IFAC-PapersOnLine, Toulouse, France, 9–14 July 2017. [Google Scholar]
  12. Treibitz, T.; Schechner, Y.; Kunz, C.; Singh, H. Flat Refractive Geometry. IEEE Trans. Pattern Anal. Mach. Intell. 2012, 34, 51–65. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Łuczyński, T.; Pfingsthorn, M.; Birk, A. The Pinax-model for accurate and efficient refraction correction of underwater cameras in flat-pane housings. Ocean Eng. 2017, 133, 9–22. [Google Scholar] [CrossRef]
  14. Łuczyński, T.; Pfingsthorn, M.; Birk, A. Image Rectification with the Pinax Camera Model in Underwater Stereo Systems with Verged Cameras. In Proceedings of the OCEANS 2017, Anchorage, AK, USA, 18–21 September 2017. [Google Scholar]
  15. Heng, L.; Li, B.; Pollefeys, M. CamOdoCal: Automatic intrinsic and extrinsic calibration of a rig with multiple generic cameras and odometry. In Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, Tokyo, Japan, 3–7 November 2013. [Google Scholar]
  16. Kannala, J.; Brandt, S.S. A generic camera model and calibration method for conventional, wide-angle, and fish-eye lenses. IEEE Trans. Pattern Anal. Mach. Intell. 2006, 28, 1335–1340. [Google Scholar] [CrossRef] [PubMed]
  17. Merkel, D. Docker: Lightweight Linux Containers for Consistent Development and Deployment. Linux J. 2014, 2014, 2. [Google Scholar]
  18. Jacobs University Bremen gGmbH. Underwater Camera Calibration (CamOdoCal+PinAx). Available online: (accessed on 5 January 2019).
  19. Madgwick, S.O.H.; Harrison, A.J.L.; Vaidyanathan, R. Estimation of IMU and MARG orientation using a gradient descent algorithm. In Proceedings of the 2011 IEEE International Conference on Rehabilitation Robotics, Zurich, Switzerland, 29 June–1 July 2011. [Google Scholar]
  20. Nad, D.; Mandic, F.; Miskovic, N. Diver Tracking Using Path Stabilization—The Virtual Diver Experimental Results. IFAC-PapersOnLine 2016, 49, 214–219. [Google Scholar] [CrossRef]
  21. National Research Council of Italy and Jacobs University Bremen gGmbH. CADDY Underwater Stereo-Vision Dataset. Available online: (accessed on 5 January 2019).
  22. Nafchi, H.Z.; Cheriet, M. Efficient No-Reference Quality Assessment and Classification Model for Contrast Distorted Images. IEEE Trans. Broadcast. 2018, 64, 518–523. [Google Scholar] [CrossRef][Green Version]
  23. Gu, K.; Lin, W.; Zhai, G.; Yang, X.; Zhang, W.; Chen, C.W. No-Reference Quality Metric of Contrast-Distorted Images Based on Information Maximization. IEEE Trans. Cybern. 2017, 47, 4559–4565. [Google Scholar] [CrossRef] [PubMed]
  24. Fang, Y.; Ma, K.; Wang, Z.; Lin, W.; Fang, Z.; Zhai, G. No-Reference Quality Assessment of Contrast- Distorted Images Based on Natural Scene Statistics. IEEE Signal Process. Lett. 2015, 22, 838–842. [Google Scholar] [CrossRef]
  25. Gu, K.; Zhai, G.; Lin, W.; Liu, M. The Analysis of Image Contrast: From Quality Assessment to Automatic Enhancement. IEEE Trans. Cybern. 2016, 46, 284–297. [Google Scholar] [CrossRef] [PubMed]
  26. McGlamery, B.L. A Computer Model For Underwater Camera Systems. Proc. SPIE 1980, 208, 221–232. [Google Scholar] [CrossRef]
  27. Bonin-Font, F.; Burguera, A.; Oliver, G. Imaging systems for advanced underwater vehicles. J. Marit. Res. 2011, 8, 65–86. [Google Scholar]
  28. Ciurea, F.; Funt, B. A Large Image Database for Color Constancy Research. In Proceedings of the 11th Color Imaging Conference, Scottsdale, AZ, USA, 13 November 2003. [Google Scholar]
  29. Cheng, D.; Prasad, D.K.; Brown, M.S. Illuminant estimation for color constancy: why spatial-domain methods work and the role of the color distribution. J. Opt. Soc. Am. A 2014, 31, 1049–1058. [Google Scholar] [CrossRef] [PubMed]
  30. Cheng, D.; Price, B.; Cohen, S.; Brown, M.S. Beyond White: Ground Truth Colors for Color Constancy Correction. In Proceedings of the 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 7–13 December 2015. [Google Scholar]
  31. Chavez, A.G.; Mueller, C.A.; Birk, A.; Babic, A.; Miskovic, N. Stereo-vision based diver pose estimation using LSTM recurrent neural networks for AUV navigation guidance. In Proceedings of the OCEANS 2017, Aberdeen, UK, 19–22 June 2017. [Google Scholar]

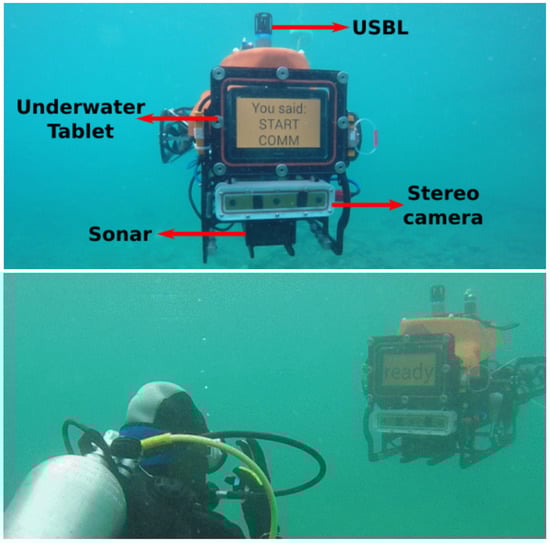

Figure 1. (Top) the BUDDY-AUV equipped with sensors to monitor the diver: Blueprint Subsea X150 USBL (Low Wood, Ulverston, UK), ARIS 3000 Multibeam Sonar (Chesapeake, VA, USA), BumbleBeeXB3 Stereo Camera (Richmond, BC, CAN), Underwater Tablet; (Bottom) diver issuing gesture commands to the AUV.
Figure 1. (Top) the BUDDY-AUV equipped with sensors to monitor the diver: Blueprint Subsea X150 USBL (Low Wood, Ulverston, UK), ARIS 3000 Multibeam Sonar (Chesapeake, VA, USA), BumbleBeeXB3 Stereo Camera (Richmond, BC, CAN), Underwater Tablet; (Bottom) diver issuing gesture commands to the AUV.
Jmse 07 00016 g001

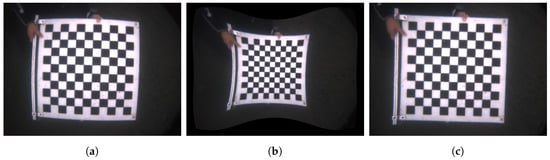

Figure 2. (a) underwater raw image; (b) rectification based on in-air calibration; (c) Pinax rectification based on water salinity and flat-glass panel thickness.
Figure 2. (a) underwater raw image; (b) rectification based on in-air calibration; (c) Pinax rectification based on water salinity and flat-glass panel thickness.
Jmse 07 00016 g002

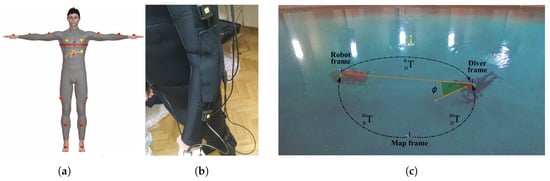

Figure 3. (a) position of the DiverNet 17 IMUs—red dots; (b) Divernet suit with sewed in sensors; (c) computed heading ϕ , filtered orientation, of the diver relative to the AUV.
Figure 3. (a) position of the DiverNet 17 IMUs—red dots; (b) Divernet suit with sewed in sensors; (c) computed heading ϕ , filtered orientation, of the diver relative to the AUV.
Jmse 07 00016 g003
Figure 4. Sample rectified images from each scenario. From left to right and top to bottom: Biograd-A, Biograd-B, Biograd-C, Brodarski-A, Brodarski-B, Brodarski-C, Brodarski-D, Genova-A.
Figure 4. Sample rectified images from each scenario. From left to right and top to bottom: Biograd-A, Biograd-B, Biograd-C, Brodarski-A, Brodarski-B, Brodarski-C, Brodarski-D, Genova-A.
Jmse 07 00016 g004

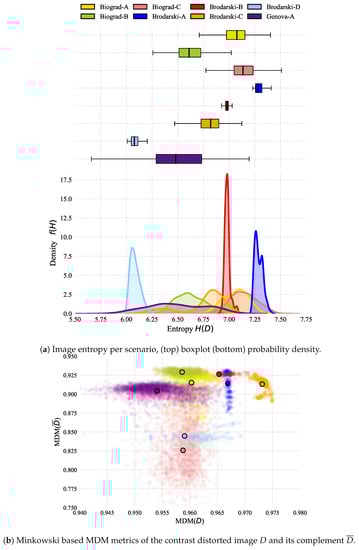

Figure 5. Dataset image quality assessment using MDM metric [22] based on Minkowski distance.
Figure 5. Dataset image quality assessment using MDM metric [22] based on Minkowski distance.
Jmse 07 00016 g005

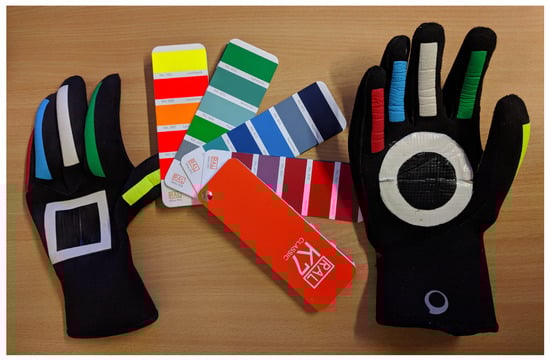

Figure 6. Diver gloves and RAL-K7 chart.
Figure 6. Diver gloves and RAL-K7 chart.
Jmse 07 00016 g006

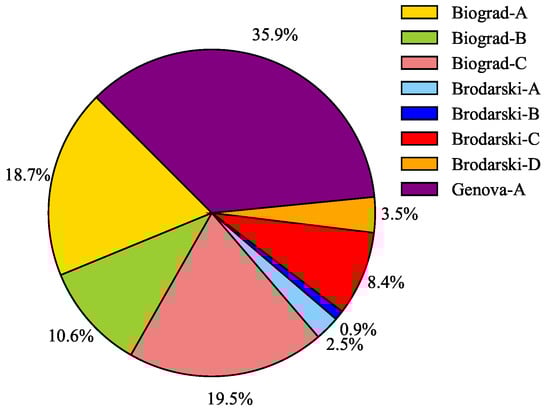

Figure 7. Samples distribution per scenario (True Positives).
Figure 7. Samples distribution per scenario (True Positives).
Jmse 07 00016 g007

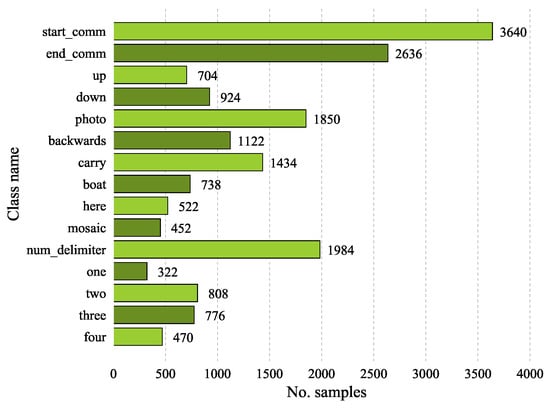

Figure 8. Distribution of gesture classes.
Figure 8. Distribution of gesture classes.
Jmse 07 00016 g008

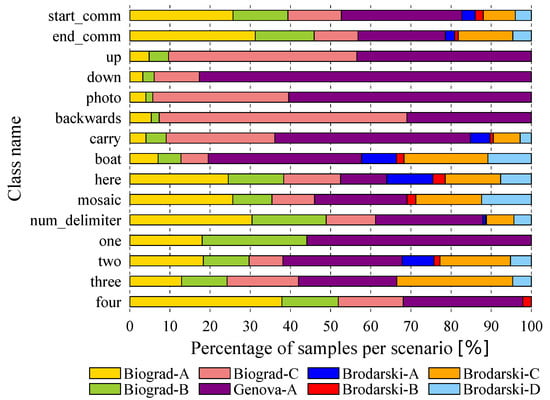

Figure 9. Distribution of classes per scenario.
Figure 9. Distribution of classes per scenario.
Jmse 07 00016 g009

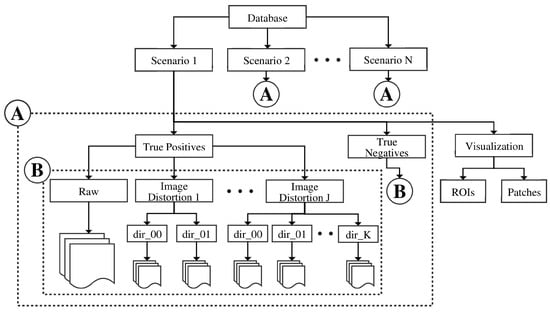

Figure 10. Underwater gestures database directory tree.
Figure 10. Underwater gestures database directory tree.
Jmse 07 00016 g010
Table 1. Description of the different dataset recording scenarios.
Table 1. Description of the different dataset recording scenarios.
LocationScenarioTypeDynamicsEntropy H ( D ) MDM ( D ) MDM ( D ¯ ) Recording Action
na Moru,
Biograd-AOpen seaNo current 7.06 ± 0.12 0.960 ± 0.002 0.915 ± 0.016Gestures
Biograd-BOpen seaNo current 6.62 ± 0.14 0.958 ± 0.001 0.929 ± 0.005Gestures, Diver pose
Biograd-COpen seaStrong currents, diver non-static 7.14 ± 0.13 0.959 ± 0.003 0.825 ± 0.031Gestures
Brodarski-AIndoor poolNo current 7.28 ± 0.03 0.967 ± 0.001 0.914 ± 0.016Gestures, Diver pose
Brodarski-BIndoor poolNo current 6.98 ± 0.02 0.965 ± 0.014 0.926 ± 0.001Gestures, Diver pose
Brodarski-CIndoor poolNo current 6.75 ± 0.21 0.973 ± 0.001 0.913 ± 0.009Gestures
Brodarski-DIndoor poolNo current 6.08 ± 0.04 0.959 ± 0.017 0.844 ± 0.006Gestures
Genova ItalyGenova-AOutdoor poolDiver non-static 6.49 ± 0.28 0.954 ± 0.005 0.904 ± 0.008Gestures
Table 2. HSV colors for diver gloves and RAL-K7 chart using camera setup from Section 2.2.
Table 2. HSV colors for diver gloves and RAL-K7 chart using camera setup from Section 2.2.
FingerHSVRAL-K7 Value 1RAL-K7 Value 2
Index142, 98, 436037131, 99, 526033175, 62, 49
Middle47, 16, 67900371, 8, 98901053, 14, 105
Ring203, 82, 715015213, 81, 745017219, 87, 53
Little357, 91, 643028358, 96, 763031355, 86, 59
Thumb72, 83, 78102662, 99, 92101649, 81, 88
Table 3. Header from underwater gestures database *.csv file. Row 0 describes the data fields, Row 1 and Row 2 have an example of a true positive and a true negative sample respectively.
Table 3. Header from underwater gestures database *.csv file. Row 0 describes the data fields, Row 1 and Row 2 have an example of a true positive and a true negative sample respectively.
ScenarioStereo LeftStereo RightLabel NameLabel IdRoi LeftRoi Right
0Recording scenario nameFilepath to stereo left imageFilepath to stereo right imageString class nameInteger class IDArray: [top corner X, top corner Y, width, height]Array: [top corner X, top corner Y, width, height]
1biograd-Abiograd-A _00003_left.jpgbiograd-A _00003_right.jpgboat7[231, 231, 62, 83][152, 231, 62, 83]
2genova-Agenova-A _00012_left.jpggenova-A _00003_right.jpgtrue_neg−1NaNNaN
Table 4. Additional header/column fields for database augmentation, includes image quality metrics and distortion parameters. Row-0 shows the column values for a non-synthetic image, and Row-1 to Row-3 for distorted synthetic images.
Table 4. Additional header/column fields for database augmentation, includes image quality metrics and distortion parameters. Row-0 shows the column values for a non-synthetic image, and Row-1 to Row-3 for distorted synthetic images.
Syntheticiqa_ mdm_entropyiqa _ mdm_diqa_ mdm_dcompDistortionParam 1Param 2
00 6.05 0.832 0.755 NaNNaNNaN
21NaNNaNNaNlow contrast0.6NaN
Table 5. Header/column fields for diver heading database. Row 0 describes the data fields, Row 1 and Row 2 show samples.
Table 5. Header/column fields for diver heading database. Row 0 describes the data fields, Row 1 and Row 2 show samples.
ScenarioSequenceStereo LeftStereo RightHeading
0Scenario NameInteger IDc.f. Table 3c.f. Table 3Float (deg)
1Brodarski-B0c.f. Table 3c.f. Table 331.42
2Biograd-A3c.f. Table 3c.f. Table 3−74.51

Share and Cite

MDPI and ACS Style

Gomez Chavez, A.; Ranieri, A.; Chiarella, D.; Zereik, E.; Babić, A.; Birk, A. CADDY Underwater Stereo-Vision Dataset for Human–Robot Interaction (HRI) in the Context of Diver Activities. J. Mar. Sci. Eng. 2019, 7, 16.

AMA Style

Gomez Chavez A, Ranieri A, Chiarella D, Zereik E, Babić A, Birk A. CADDY Underwater Stereo-Vision Dataset for Human–Robot Interaction (HRI) in the Context of Diver Activities. Journal of Marine Science and Engineering. 2019; 7(1):16.

Chicago/Turabian Style

Gomez Chavez, Arturo, Andrea Ranieri, Davide Chiarella, Enrica Zereik, Anja Babić, and Andreas Birk. 2019. "CADDY Underwater Stereo-Vision Dataset for Human–Robot Interaction (HRI) in the Context of Diver Activities" Journal of Marine Science and Engineering 7, no. 1: 16.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
