Capturing Physical Dispersion Using a Nonlinear Shallow Water Model

1
Department of Ocean Engineering, Texas A&M University at Galveston, Galveston, TX 77554, USA
2
Laboratory of Computing Hydromechanics and Oceanography, Special Research Bureau for Automation of Marine Researches, Far Eastern Branch of Russian Academy of Sciences, Yuzhno-Sakhalinsk 693023, Russia
3
Department of Applied Mathematics, Nizhny Novgorod State Technical University n.a. R.E. Alekseeva, Nizhny Novgorod 603950, Russia
4
Department of Civil Engineering, Ocean Engineering Research Center, Ankara 06800, Turkey
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2018, 6(3), 84; https://doi.org/10.3390/jmse6030084
Submission received: 9 May 2018 / Revised: 3 July 2018 / Accepted: 4 July 2018 / Published: 9 July 2018
(This article belongs to the Special Issue Tsunami Science and Engineering II)

Abstract

:
Predicting the arrival time of natural hazards such as tsunamis is of very high importance to the coastal community. One of the most effective techniques to predict tsunami propagation and arrival time is the utilization of numerical solutions. Numerical approaches of Nonlinear Shallow Water Equations (NLSWEs) and nonlinear Boussinesq-Type Equations (BTEs) are two of the most common numerical techniques for tsunami modeling and evaluation. BTEs use implicit schemes to achieve more accurate results compromising computational time, while NLSWEs are sometimes preferred due to their computational efficiency. Nonetheless, the term accounting for physical dispersion is not inherited in NLSWEs, calling for their consideration and evaluation. In the present study, the tsunami numerical model NAMI DANCE, which utilizes NLSWEs, is applied to previously reported problems in the literature using different grid sizes to investigate dispersion effects. Following certain conditions for grid size, time step and water depth, the simulation results show a fairly good agreement with the available models showing the capability of NAMI DANCE to capture small physical dispersion. It is confirmed that the current model is an acceptable alternative for BTEs when small dispersion effects are considered.

1. Introduction

Tsunami is a very common hazard that often devastates coastal areas. The prediction of tsunami arrival time is crucial for the effective and wise decisions by tsunami warning centers. As a result, numerical studies have been extensively carried out to simulate tsunami propagation more effectively and efficiently. Traditionally, models utilizing NLSWEs have been used to simulate tsunami generation and to predict tsunami propagation and runup. Notwithstanding the great advantage of very low computational costs, NLSWEs based models do not consider physical dispersion. Alternatively, the utilization of dispersive models using the Boussinesq approach is rapidly growing in tsunami modeling. Dispersive models are also used for the calculation of tsunami propagation in the near shore regions. Nevertheless, this type of models are less computationally efficient as compared to NLSWEs based approaches.
The coastal modeling community has put a lot of attention on modeling wave propagation using BTEs models and, accordingly, many improvements have been reported for the tsunami generation, propagation and runup modeling. Three major advantages of using BTEs over NLSWEs are: the horizontal particle velocity and acceleration over the depth are considered to be varying and the vertical acceleration is not neglected; better prediction of wave propagation over complex topographies can be achieved; and better frequency dispersion effects can be obtained [1]. Although Navier-Stokes (NS) models are fully dispersive due to the consideration of the complete physics, it is impractical to perform a full solution of the NS equation over large domains, especially for tsunami propagation. Notwithstanding the capability of NS and BTEs models, Horrillo et al. [2] showed that for practical purposes solutions that are based on the NLSWEs are quite reliable in many circumstances since they give consistent results compared to BTEs and full NS models. More importantly, as discussed, models based on NLSWEs have the great advantage of very low computational costs. Further improvements of NLSWEs models can be achieved by taking the advantage of inherent numerical dispersion errors mimicking physical frequency dispersion of tsunamis. Generally, frequency dispersion consideration is very important to get a precise and realistic prediction of tsunami propagation. In fact, many factors such as refraction, diffraction, nonlinear shoaling, wave-wave interaction, breaking and runup heavily depend on dispersion effects and should be considered to obtain an accurate prediction.
Linear shallow water equations considering numerical dispersion were solved by Imamura et al. [3] for principal horizontal axes. Cho [4] improved the algorithm to include the effects of frequency dispersion for diagonal propagation. They both used an algorithm through the modified leap-frog finite difference scheme for discretizing linear shallow water equations to account for the effect of frequency dispersion. This helped to control the inherent numerical dispersion errors of the scheme to cover the effects of physical frequency dispersion for the propagation of tsunami in bathymetries with constant water depth. Later, the approach was extended by Yoon [5] to a slowly varying bathymetry. He proposed a hidden grid system in which the local water depth determines the grid size for the capturing of dispersion effects. Subsequently, Yoon et al. [6] developed another scheme using an explicit finite difference method to solve the linearized BTEs and to improve the physical frequency dispersion effects. The linearized BTEs model considers the frequency dispersion effects from shallow to intermediate water regimes accurately [7,8,9,10,11,12,13,14]. However, it needs finer spatial and temporal resolutions since the higher order of the derivatives associated with the consideration of the frequency dispersion requires more computational efforts, which is sometimes unnecessary. Establishing an appropriate grid size in NLSWEs models in which the numerical error matches physical frequency dispersion may lead to similar results to BTEs based models with less expensive computational costs.
One of the most commonly used tsunami numerical models is Tohoku University’s Numerical Analysis Model for Investigation of Near-field tsunamis, No. 2 (TUNAMI-N2) [15] which solves NLSWEs using the finite difference method. This model uses the explicit leap-frog scheme and has been modified to account for frequency dispersion [3]. The dispersion effects are captured by choosing an appropriate time step and a grid size given by [3]:
Δ x = 4 h 2 + g h ( Δ t ) 2
where Δ x is the grid size, h denotes water depth, g symbolizes gravity acceleration and Δ t is the time step.
Using a similar approach accounting for the frequency dispersion effects and by using Equation (1) following the efforts of Imamura et al. [3] and Cho [4], a shallow water equations based model named NAMI DANCE was developed [16]. A brief explanation of NAMI DANCE is presented in the next section. In this study, the ability of NAMI DANCE to capture dispersion effects is examined with several bathymetry profiles or case studies taken from the literature [5,6]. The bathymetry profiles are: (i) uniform bottom, (ii) slowly varying depth and (iii) submerged circular shoal. Our objective is to investigate the fact that by selecting an appropriate grid size in NAMI DANCE, we can obtain comparable results to BTEs or NS models in mimicking physical dispersion effects.

2. NAMI DANCE Tool

NAMI DANCE, tsunami numerical modeling was developed by the Special Bureau of Automation of Research Russian Academy of Sciences (SBARRAS) in collaboration with the Middle East Technical University (METU) in Turkey. The code uses the leap-frog finite difference scheme of Goto et al. [17] and is capable of solving NLSWEs with various boundary conditions [16,18,19]. The model has the capability to switch off the nonlinearity and allows nested domains in Cartesian or spherical coordinate systems. NAMI DANCE has been verified and validated with standard benchmark problems as well as with several tsunami events worldwide [18,19,20,21,22,23,24,25,26]. The governing equations of NAMI DANCE are the nonlinear form of shallow water equations and hence, the vertical motions of water particles do not have any role on the hydrostatic pressure. More information about NAMI DANCE is available in Ref. [16].

3. Gaussian Wave Propagation over Uniform Bottom

The accuracy of the numerical solution of NLSWEs in NAMI DANCE is tested through simulation of a Gaussian hump tsunami as initial free surface [5,6] on a constant uniform bottom. In this section, the water surface displacement at certain time steps along horizontal, vertical and diagonal directions are computed and compared with the analytical solution of the linear BTEs [3,27]. The initial form of the water surface is determined using Gaussian function Equations (2) and (3) resulting in the cross sectional shape given in Figure 1.
η ( r , θ ) = e ( r / a ) 2
η ( r , θ ) t = 0
In Equation (2) a denotes the characteristic radius of Gaussian function, r = ( x 2 + y 2 ) 1 / 2 is the distance of the Gaussian hump from the center, θ represents the angle measured counter clockwise from the x axis, t represents time and η is free surface elevation. Shown in Figure 2 are the plan view of the initial wave condition, propagation axes, and location of gauges. The analytical solution of the initial Gaussian wave profile was solved by the linear form of the Boussinesq equation given by Carrier [27] (see Figure 3):
η ( r , t ) = 0 a 2 e ( a / k ) 2 / 4 k cos g h k t 1 + ( k h ) 2 3 J 0 ( k r ) d k
where J 0 is the zero order Bessel function of the first kind, k denotes the wave number of uniform waves, g = 9.81 m/s 2 , a is the characteristic radius and h represents the water depth.
Figure 3 compares snapshots of the water surface profiles at t = 600 seconds using different numerical methods against the analytical solution of Carrier [27]. Two different propagation axes ( θ = 0 and θ = 45 ) as well as two different depths ( h = 600 m and h = 2100 m) are investigated using a uniform bottom domain. The time step is not strongly influenced by a ratio for dispersion and hence, a constant value of Δ t = 6 s is used following the work of Yoon [5]. The grid size Δ x is constant according to Equation (1) and the memory capacity of the hardware/software. In the NAMI DANCE simulations, two different methods are employed to specify the grid size. In the first case, the grid size is selected according to Equation (1) which provides Δ x = 1280 m, given h = 600 m (Figure 3a,b) and Δ x = 4287 m for h = 2100 m (Figure 3c,d). In the second case, the grid size is selected as Δ x = 2500 m according to [5]. Figure 3a,c ( θ = 0 ) show that when Equation (1) is satisfied, NAMI DANCE’s solutions are closer to the analytical results of [27] and Yoon’s model [5], while, in diagonal propagation (Figure 3b,d), Yoon’s [5] solution leads to more accurate results. Along the diagonal propagation axis ( θ = 45 ), more wave dispersion is observed in Imamura et al.’s [3] results since the dispersion correction term in the diagonal direction is not considered in the solutions, whereas the numerical solution of Yoon is independent of direction [5]. When Equation (1) is not satisfied, the numerical solutions of NAMI DANCE do not fit well with the analytical results with the tendency to be closer to Imamura et al.’s [3] results. It should be mentioned that Yoon’s model considered the dispersion correction term in the diagonal direction [5]. Yoon’s model is independent of the direction, and therefore its result at θ = 45 is closer to the analytical solution as compared to those of Imamura’s [3].
Figure 3c,d show that when Equation (1) is satisfied (for Δ x = 4287 m) both Yoon’s [5] and NAMI DANCE’s results are closer to the analytical solutions compared to other models with Yoon’s solution [5] being more accurate in the diagonal propagation. In general, the NAMI DANCE’s results for h = 600 m, Δ x = 1280 m and h = 2100 m, Δ x = 4287 m compare well with the analytical solution (see Figure 3). Figure 3 also indicates that whenever the Equation (1) is satisfied, physical dispersion of the analytical solution is reproduced with reasonable accuracy by the numerical dispersion of the leap-frog finite difference scheme of NAMI DANCE.
In a separate study, Yoon et al. in 2007 [6] improved the numerical scheme to reproduce the physical dispersion effects and tested on a uniform bottom domain with different water depths [6]. Shown in Figure 4 are the results which compare time histories of the water surface profiles at a distance of 312,900 m (150 Δ x and Δ x = 2086 m) away from the center of the initial Gaussian hump obtained by different models including Yoon et al.’s [6] model. Here, three different depths and two different propagation axes are investigated ( h = 500 m, h = 1000 m and h = 1500 m with θ = 0 and θ = 45 ). Again, in the simulations with the NAMI DANCE model two different methods are employed to specify the grid size. In the first case, the grid size is selected according to Equation (1) which provides Δ x = 1085 m for h = 500 m (Figure 4a,b), Δ x = 2086 m for h = 1000 m (Figure 4c,d) and Δ x = 3087 m for h = 1500 m (Figure 4e,f). In the second case, the grid size is selected as Δ x = 2086 m according to [6]. Figure 4a,c,e ( θ = 0 ) show that when Equation (1) is satisfied, NAMI DANCE’s results are closer to the analytical solution of Carrier [27] and Yoon et al.’s [6] results as compared to other models, while, in diagonal propagation (Figure 4b,d,f) Yoon et al.’s [6] solution leads to more accurate results. On the other hand, more dispersion effects are observed in Imamura et al.’s [3] results, since the dispersion correction term in the diagonal direction is not considered in the solutions. When Equation (1) is not satisfied in NAMI DANCE, the results do not fit well with the analytical solutions having a tendency to be closer to Imamura et al.’s [3] results. In addition, on the diagonal propagation, NAMI DANCE results show less dispersive behavior as compared to other models. The solutions predicted by Yoon et al.’s [6] model are closer to the analytical solution than those of Imamura et al.’s [3] model since the dispersion correction term in the diagonal direction is considered in Yoon et al.’s [6] model.
In general, NAMI DANCE’s results for Δ x = 1085 m given h = 500 m, Δ x = 2086 m given h = 1000 m and Δ x = 3087 m given h = 1500m, compare well with the analytical solution. However, along the diagonal propagation axis the water surface profiles are slightly higher than the analytical solution. In addition, whenever Equation (1) is satisfied in NAMI DANCE, physical dispersion of the Boussinesq equations is reproduced with reasonable accuracy by the numerical dispersion of the leap-frog finite difference scheme. It is also worth mentioning that the choice of the space discretization by Equation (1) can unresolve the wave length, given the insufficient points per wave length to provide the approximation needed for accuracy of numerical solutions, as pointed out in earlier work [3]. However, this basic low resolution (points per wave length) is needed to create the numerical dispersion required to reproduce the physical dispersion.

4. Gaussian Wave Propagation over Slowly Varying Depth

The above-mentioned wave propagation model (proposed by Yoon [5]) uses a uniform bottom and therefore is not applicable for a varying bathymetry. Alternatively, Yoon [5] developed a new finite difference adjustable grid scheme which satisfies the local wave frequency dispersion in both varying and flat bathymetries. He showed that this new scheme provides a noticeable improvement on the effect of frequency dispersion compared to the schemes of Imamura et al. [3] and Cho [4].
In this section, the one-dimensional water surface displacement at certain time along the horizontal direction is computed with NAMI DANCE and compared with the solutions of Yoon’s [5] model, adjustable grid model [5] and Imamura et al.’s [3] model. The wave propagation is over a slowly varying bathymetry consisting of two uniform water depths, h = 2 km and 1 km, connected by a half-sine function (Figure 5a). The initial water surface profile is determined using the same Gaussian profile defined by Equations (2) and (3) (Section 3). Figure 5b,c compare snapshots of the water surface profiles at time 40,000 s using different numerical methods indicated above against the numerical solution of Yoon’s (2002) adjustable grid. In the simulations, NAMI DANCE employed two different grid sizes selected according to the Equation (1) which provides Δ x = 4 km, given h = 2 km (Figure 5b) and Δ x = 2 km for h = 1 km (Figure 5c). Simulations were done using a uniform grid size for the entire domain, even though a slowly varying bottom with two different depths were considered.
In general, results show that when Equation (1) is satisfied, NAMI DANCE’s solutions are closer to both Yoon’s [5] models. However, when a low resolution grid size (4 km) was used in NAMI DANCE, a smaller dispersive effect was observed in the tail of the wave train. Since the large grid size leads to having a smaller numerical dispersion than physical dispersion, smaller tailing waves are created.

5. Solitary Wave Propagation over a Submerged Circular Shoal

Using a finite difference model, Yoon et al. [6] developed a dispersion-correction parameter to solve Boussinesq type wave equations which could be applied to more general varying bathymetries, e.g., two dimensions. In the model proposed by Yoon et al. [6], the numerical dispersion effect is determined by the local water depth variations and time step, presenting good performance especially for cases featuring short waves. Yoon et al. [6] presented the evolution of a tsunami wave over a submerged circular shoal and since there is no analytical solution available for this case, they compared their solutions with those of the linearized Nwogu’s Boussinesq equations [7] implemented in the FUNWAVE code [8,9].
FUNWAVE is a fully nonlinear Boussinesq wave model and has been improved for the dispersion relationship of short waves. In BTEs based models, the grid size should be small enough to avoid the dependency of numerical dispersion effects on higher order terms. Therefore, FUNWAVE’s results with smaller grid size are more reliable.
Figure 6 shows the domain configuration with size of 1500 km × 500 km. The center of the submerged circular shoal is located at x 0 = 500 km, y 0 = 250 km. The water depth of the numerical domain over the shoal is given by:
h ( r ) = 1500 , r R 1 1500 r 2 R 1 2 , R 2 < r < R 1 500 , r R 2
where r = ( x x 0 ) 2 + ( y y 0 ) 2 is the distance from the center of the submerged circular shoal, R 1 = 150 km is the base radius and R 2 = 86.6 km is the top radius.
The initial form of the water surface is given in the form of a soliton as:
η ( x ) = 2 e ( x / 7500 ) 2
The gauges 1 and 3 are located on the slope of the circular shoal with depth of 1000 m. Gauge 2 is placed at the center of the circular shoal with 500 m water depth and Gauge 4 is at x = 750 km, see Figure 6. In order to dissipate the outgoing wave energy, Yoon et al. [6] considered sponge layers at the two ends of the numerical domain. The grid size was selected as Δ x = 2000 m and the time step Δ t = 4 s. The water surface displacements at these numerical gauges were also computed with NAMI DANCE and compared with the FUNWAVE’s results to test our model capability to reproduce the physical dispersion effects. Simulations with FUNWAVE were conducted with two different grid sizes ( Δ x = 500 m and Δ x = 2000 m). The grid size in NAMI DANCE is selected as 3000 m to satisfy Equation (1).
Figure 7 compares time series of the water surface profiles at different numerical gauges. The simulations are carried out for 9000 seconds from the initial soliton wave condition. In general, the first wave matches well with the FUNWAVE’s results but later NAMI DANCE’s results show less dispersive behavior compared to both, Yoon et al. [6] and FUNWAVE [6]. Figure 7a shows the time history of water surface profiles recorded at numerical gauge 1 (1000 m water depth). It is clearly seen that NAMI DANCE matches very well with the other results, especially with FUNWAVE ( Δ x = 2000 m), although, some small discrepancies are seen in the tail of the time series. This good match is attributed to the model capability to mimic the physical dispersion and also to the minor effects caused by refraction and shoaling. Figure 7b shows the time history of water surface profiles computed at numerical gauge 2 which is located at the center of the circular shoal at a water depth of 500 m. In general, NAMI DANCE’s first two wave results are in good agreement with both, FUNWAVE and Yoon et al.’s [6] results. The first wave is slightly under predicted, as a consequence, a small phase lag is observed in the following wave. When the first wave is smaller than predicted, tail waves occur in order to satisfy the energy conservation.
The time history of the water surface profile on the back side of the circular shoal (1000 m depth) at numerical gauge 3 is shown in Figure 7c. At this gauge, NAMI DANCE’s result shows a smaller wave amplitude and a slightly longer period. However, in general, results are considered reasonable if we account the accumulating effect of numerical dispersion through the shoaling process. Figure 7d confirms the model’s capability to reproduce well the water surface profile at the lee part of the circular shoal (1500 m depth), numerical gauge 4. Although the wave went through a varying bathymetry as well as the shoaling process, the agreement of the NAMI DANCE solution with FUNWAVE result is quite good indicating that the model approach works well in mimicking the physical dispersion proving that a correct grid size and time step are chosen. Thus, the NAMI DANCE model is a good option to be applied in practical tsunami modeling that requires dispersion effects.
It is noticeable that the first waves play the main role in tsunami inundation problems, however, inundation is outside the scope of this study.

6. Conclusions

In this study, NAMI DANCE was tested with several bathymetry profiles and compared with previous works in the literature in order to test the capability of the model for reproducing the numerical dispersion. Based on the cases investigated in the current study, it was found that the model can reproduce reasonable physical frequency dispersion provided that for each case an appropriate grid size is used based on the time step and water depth (Equation (1)). This makes the model an attractive candidate to be used in simplified and practical tsunami calculations since the approach is more efficient as compared with more sophisticated models based on BTEs. It should be emphasized that this is a purely numerical approach, causing the numerical errors to mimic some physics that is not included in the solved equations. Following certain conditions for the grid size based on Equation (1), the simulation results showed a fairly good agreement with the available models, confirming NAMI DANCE capability to capture small physical dispersion. It is also worth mentioning that the choice of the space discretization by Equation (1) can resolve the issue of having not enough points per wave length to provide the approximation needed for accuracy of numerical solutions. This was also pointed out in the earlier work of Imamura et al. [3]. This resolution (points per wave length) is needed to create the numerical dispersion required to capture the physical dispersion. In general, NAMI DANCE follows the solutions based on BTEs as well as analytical models more closely as compared to that of Imamura et al. [3], still more work will be necessary in the near future, especially to account for the more complex bathymetry profiles required in practical application of tsunami.

Author Contributions

Conceptualization, R.K. and A.C.Y.; Methodology, R.K.; Software, A.Z., A.C.Y.; Validation, J.H; Formal Analysis, R.K.; Investigation, R.K.; Resources, R.K.; Data Curation, J.H.; Writing—Original Draft Preparation, R.K.; Writing—Review & Editing, J.H.

Funding

This study is partly supported by The Scientific and Technological Research Council of Turkey (TUBITAK), 2215 Program. It is also partially funded by framework of the state task program in the sphere of scientific activity of the Ministry of Education and Science of Russian Federation (project No. 5.5176.2017/8.9) and Assessment, Strategy and Risk Reduction for Tsunamis in Europe (ASTARTE) project - FP7-ENV2013 6.4-3, Grant 603839.

Acknowledgments

R.K. would like to thank the faculty summer research support from Texas A&M University at Galveston. Also, The authors would like to express their gratitude to the editor and the reviewers for their constructive comments and suggestions that helped enhancing the quality of the present work.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
BTEBoussinesq-Type Equation
NSNavier-Stokes
NLSWENonlinear Shallow Water Equation

References

  1. Pujiraharjo, A.; Hosoyamada, T. Comparison of numerical wave models of long distance tsunami propagation—An application to Indian ocean tsunami in 2004. J. Appl. Mech. 2007, 10, 749–756. [Google Scholar] [CrossRef]
  2. Horrillo, J.; Kowalik, Z.; Shigihara, Y. Wave dispersion study in the Indian ocean-tsunami of December 26, 2004. Mar. Geod. 2006, 29, 149–166. [Google Scholar] [CrossRef]
  3. Imamura, F.; Shuto, N.; Goto, C. Numerical simulations of the transoceanic propagation of tsunamis. In Proceedings of the 6th Congress of the Asian and Pacific Regional Division; IAHR: Kyoto, Japan, 1988. [Google Scholar]
  4. Cho, Y.-S. Numerical Simulations of Tsunami Propagation and Run-Up. Ph.D. Thesis, School of Civil and Environmental Engineering, Cornell University, Ithaca, NY, USA, January 1995. [Google Scholar]
  5. Yoon, S.B. Propagation of distant tsunamis over slowly varying topography. J. Geophys. Res. Ocean. 2002, 107, 1–11. [Google Scholar] [CrossRef]
  6. Yoon, S.B.; Lim, C.H.; Choi, J. Dispersion-correction finite difference model for simulation of transoceanic tsunamis. Terr. Atmos. Ocean. Sci. 2007, 18, 31–53. [Google Scholar] [CrossRef]
  7. Nwogu, O. Alternative form of Boussinesq equations for nearshore wave propagation. J. Waterw. Port Coast. Ocean Eng. 1993, 119, 618–638. [Google Scholar] [CrossRef]
  8. Wei, G.; Kirby, J.T. Time-dependent numerical code for extended Boussinesq equations. J. Waterw. Port Coast. Ocean Eng. 1995, 121, 251–261. [Google Scholar] [CrossRef]
  9. Kirby, J.T.; Wei, G.; Chen, Q.; Kennedy, A.B.; Dalrymple, R.A. Fully Nonlinear Boussinesq Wave Model; User Manual, Rep. No. Technical Report, CACR-98-06; University of Delaware: Newark, DE, USA, 1998. [Google Scholar]
  10. Lynett, P.J.; Liu, P.L.-F. A two-dimensional, depth-integrated model for internal wave propagation over variable bathymetry. Wave Motion 2002, 36, 221–240. [Google Scholar] [CrossRef]
  11. Hsiao, S.C.; Lynett, P.; Hwung, H.-H.; Liu, P.L.-F. Numerical simulations of nonlinear short waves using a multilayer model. J. Eng. Mech. 2005, 131, 231–243. [Google Scholar] [CrossRef]
  12. Lynett, P.J. Nearshore wave modeling with high-order Boussinesq-type equations. J. Waterw. Port Coast. Ocean Eng. 2006, 132, 348–357. [Google Scholar] [CrossRef]
  13. Lynett, P.J. Effect of a shallow water obstruction on long wave runup and overland flow velocity. J. Waterw. Port Coast. Ocean Eng. 2007, 133, 455–462. [Google Scholar] [CrossRef]
  14. Wang, X. Numerical Modelling of Surface and Internal Waves over Shallow and Intermediate Water. Ph.D. Thesis, Cornell University, Ithaca, NY, USA, 2008. [Google Scholar]
  15. Imamura, F. Review of tsunami simulation with a finite difference method, long-wave runup models. In Proceedings of the International Workshop, Friday Harbour, USA; World Scientific: Singapore, 1996; pp. 25–42. [Google Scholar]
  16. Yalciner, A.C.; Pelinovsky, E.; Zaytsev, A.; Kurkin, A.; Ozer, C.; Karakus, H. Nami Dance Manual; Middle East Technical University, Civil Engineering Department, Ocean Engineering Research Center: Ankara, Turkey, 2006; Available online: http://namidance.ce.metu.edu.tr/pdf/NAMIDANCE-version-5-9-manual.pdf (accessed on 10 June 2018).
  17. Goto, C.; Ogawa, Y.; Shuto, N.; Imamura, F. IUGG/IOC Time Project: Numerical Method of Tsunami Simulation with the Leap-Frog Scheme; Manuals and Guides; Intergovernmental Oceanographic Commission of UNESCO: Paris, France, 1997; Volume 35. [Google Scholar]
  18. Kian, R.; Yalciner, A.C.; Zaytsev, A. Dispersion of long waves on varying bathymetry. Coast. Eng. Proc. 2014, 1, 19. [Google Scholar] [CrossRef]
  19. Kian, R.; Yalciner, A.C.; Zaytsev, A. Evaluating the performance of tsunami propagation models. In Proceedings of the Forecast Engineering, Bauhaus Summer School, Weimar, Germany, 17–29 August 2014; Volume 25, p. 10. [Google Scholar]
  20. Velioglu, D.; Kian, R.; Yalciner, A.C.; Zaytsev, A. Performance assessment of NAMI DANCE in tsunami evolution and currents using a benchmark problem. J. Mar. Sci. Eng. 2016, 4, 49. [Google Scholar] [CrossRef]
  21. Kian, R.; Velioglu, D.; Yalciner, A.C.; Zaytsev, A. Effects of harbor shape on the induced sedimentation; L-type basin. J. Mar. Sci. Eng. 2016, 4, 55. [Google Scholar] [CrossRef]
  22. Ozer, C. Tsunami Hydrodynamics in Coastal Zones. Ph.D. Thesis, Middle East Technical University, Ankara, Turkey, 2007. [Google Scholar]
  23. Ozer, C.; Yalciner, A.C. Sensitivity study of hydrodynamic parameters during numerical simulations of tsunami inundation. Pure Appl. Geophys. 2011, 168, 2083–2095. [Google Scholar] [CrossRef]
  24. Yalciner, A.C.; Ozer, C.; Karakus, H.; Zaytsev, A.; Guler, I. Evaluation of coastal risk at selected sites against eastern Mediterranean tsunamis. Coast. Eng. Proc. 2011, 1, 10. [Google Scholar] [CrossRef]
  25. Yalciner, A.C.; Suppasri, A.; Mas, E.; Kalligeris, N.; Necmioglu, O.; Imamura, F.; Ozer, C.; Zaytsev, A.; Ozel, M.N.; Synolakis, C. Field survey on the coastal impacts of march 11, 2011 great east Japan tsunami. In Proceedings of the Seismic Protection of Cultural Heritage, Antalya, Turkey, 31 October–1 November 2011. [Google Scholar]
  26. Yalciner, A.C.; Zaytsev, A.; Aytore, B.; Insel, I.; Heidarzadeh, M.; Kian, R.; Imamura, F. A possible submarine landslide and associated tsunami at the northwest Nile delta, Mediterranean Sea. Oceanography 2014, 27, 68–75. [Google Scholar] [CrossRef]
  27. Carrier, G.F. Tsunami propagation from a finite source. In Proceedings of the 2nd UJNR Tsunami Workshop, NGDC, Honolulu, HI, USA, 5–6 November 1990. [Google Scholar]

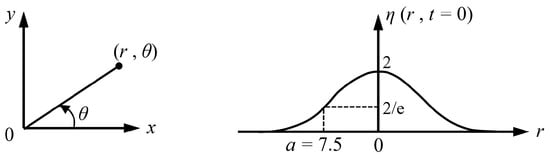

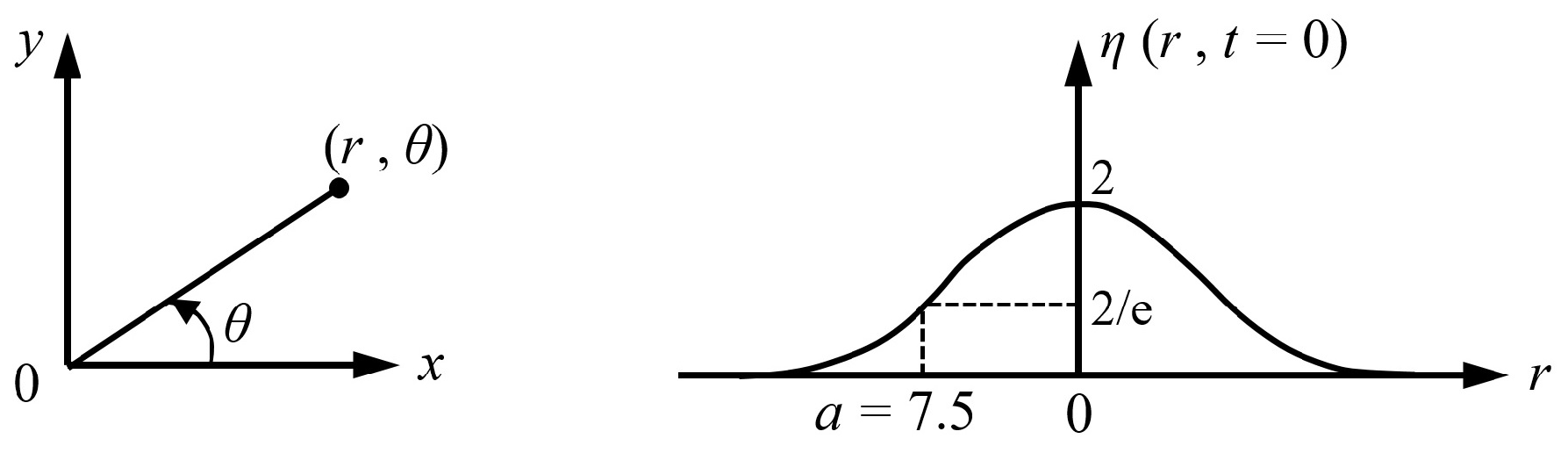

Figure 1. Profile of initial free surface and the coordinate system (adopted from [5]).
Figure 1. Profile of initial free surface and the coordinate system (adopted from [5]).
Jmse 06 00084 g001

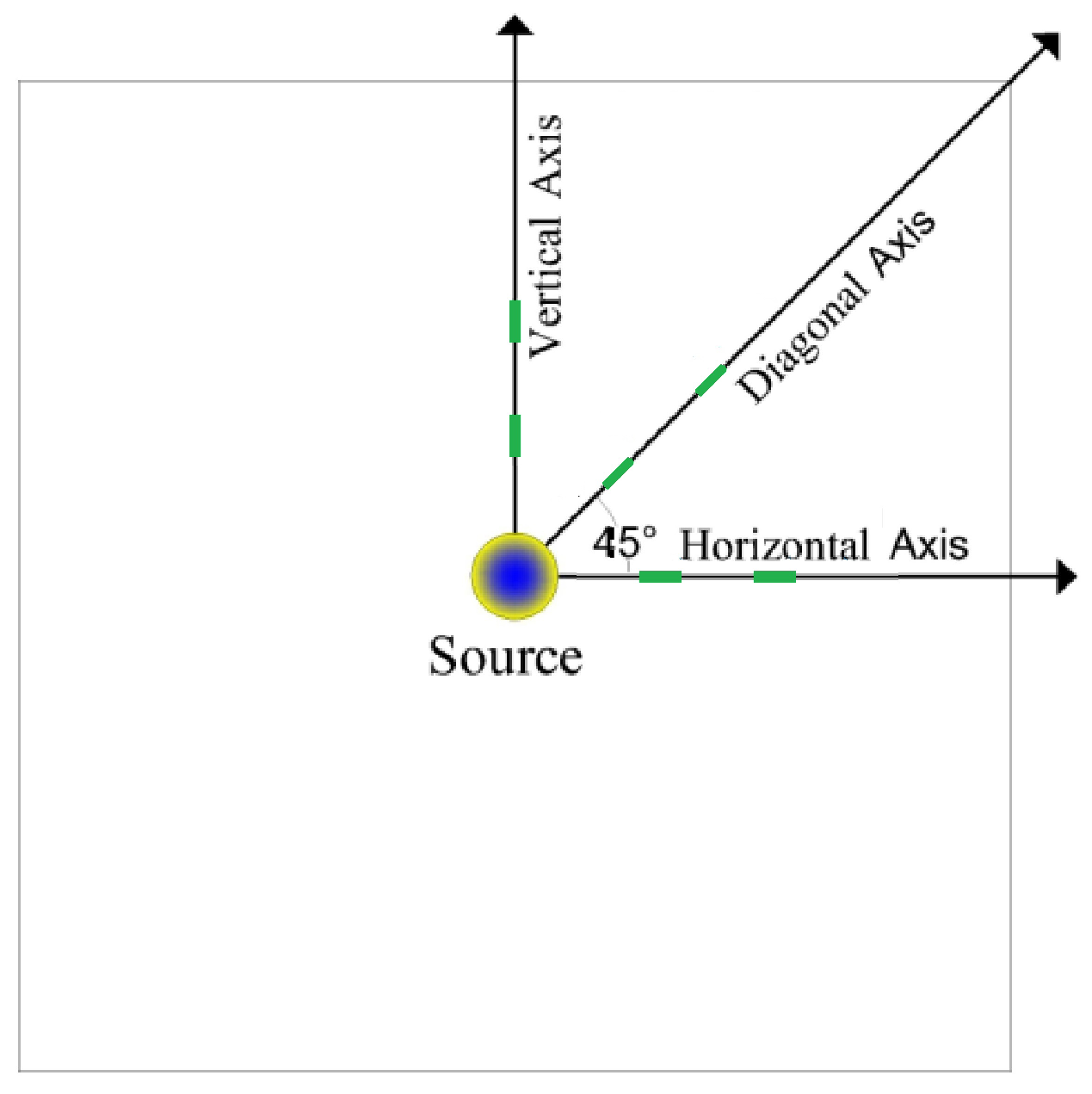

Figure 2. Plan view of the initial wave and axis for the uniform bottom domain. Green lines represent gauges along the axis.
Figure 2. Plan view of the initial wave and axis for the uniform bottom domain. Green lines represent gauges along the axis.
Jmse 06 00084 g002

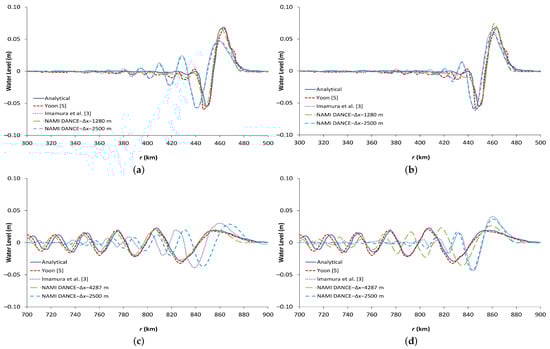

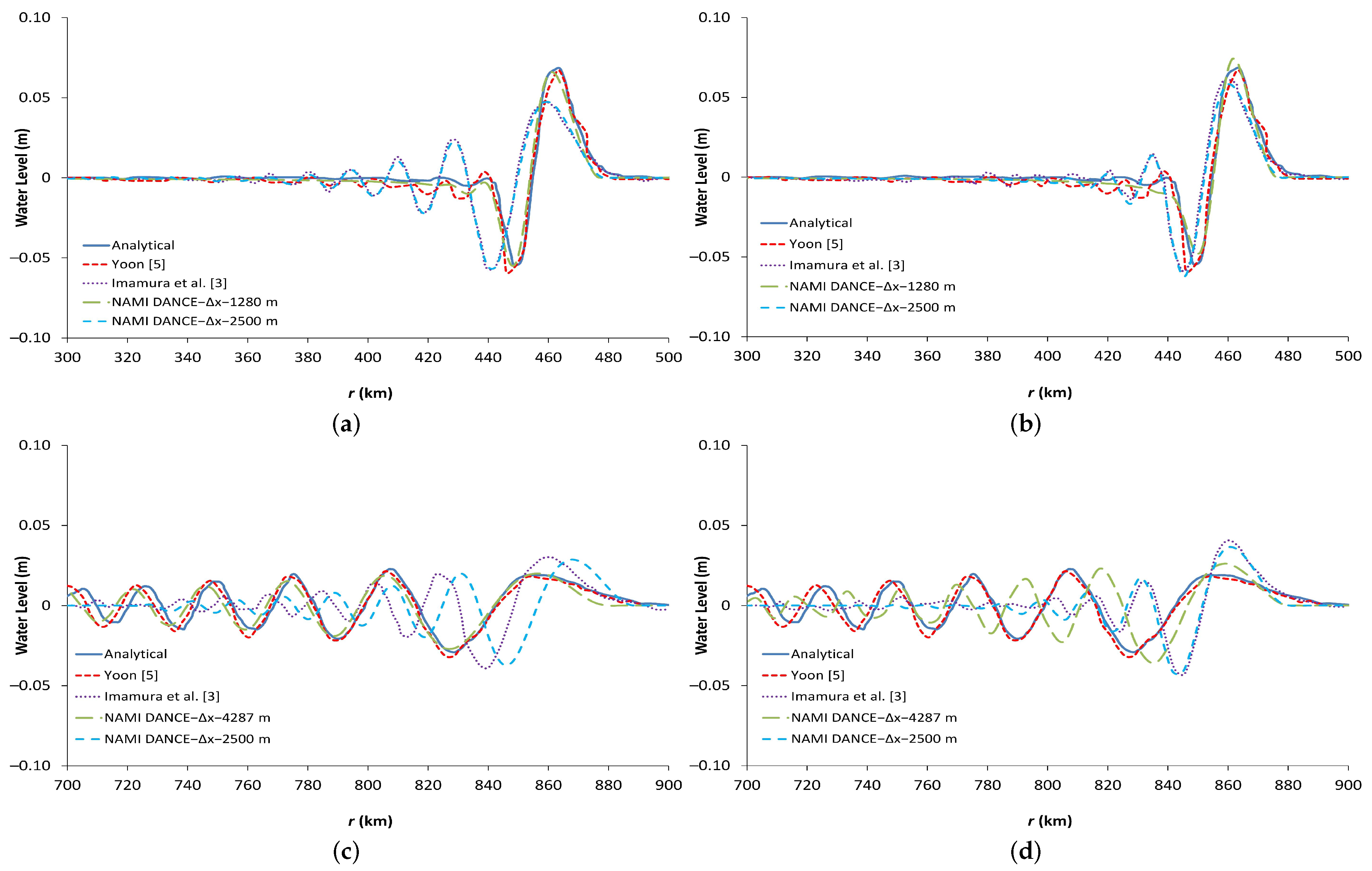

Figure 3. Comparison of water surface profiles of several numerical methods against the analytical solution of Carrier [27]: (a) h = 600 m and θ = 0 , 90 , (b) h = 600 m and θ = 45 , (c) h = 2100 m and θ = 0 , 90 , (d) h = 2100 m and θ = 45 . All comparisons are done at time 600 s for two different propagation axes and depths.
Figure 3. Comparison of water surface profiles of several numerical methods against the analytical solution of Carrier [27]: (a) h = 600 m and θ = 0 , 90 , (b) h = 600 m and θ = 45 , (c) h = 2100 m and θ = 0 , 90 , (d) h = 2100 m and θ = 45 . All comparisons are done at time 600 s for two different propagation axes and depths.
Jmse 06 00084 g003

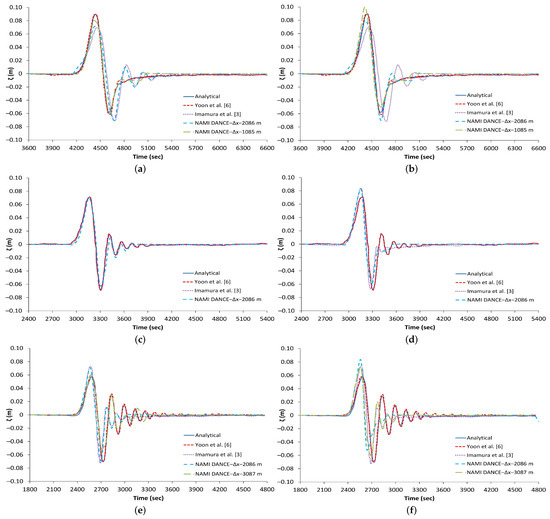

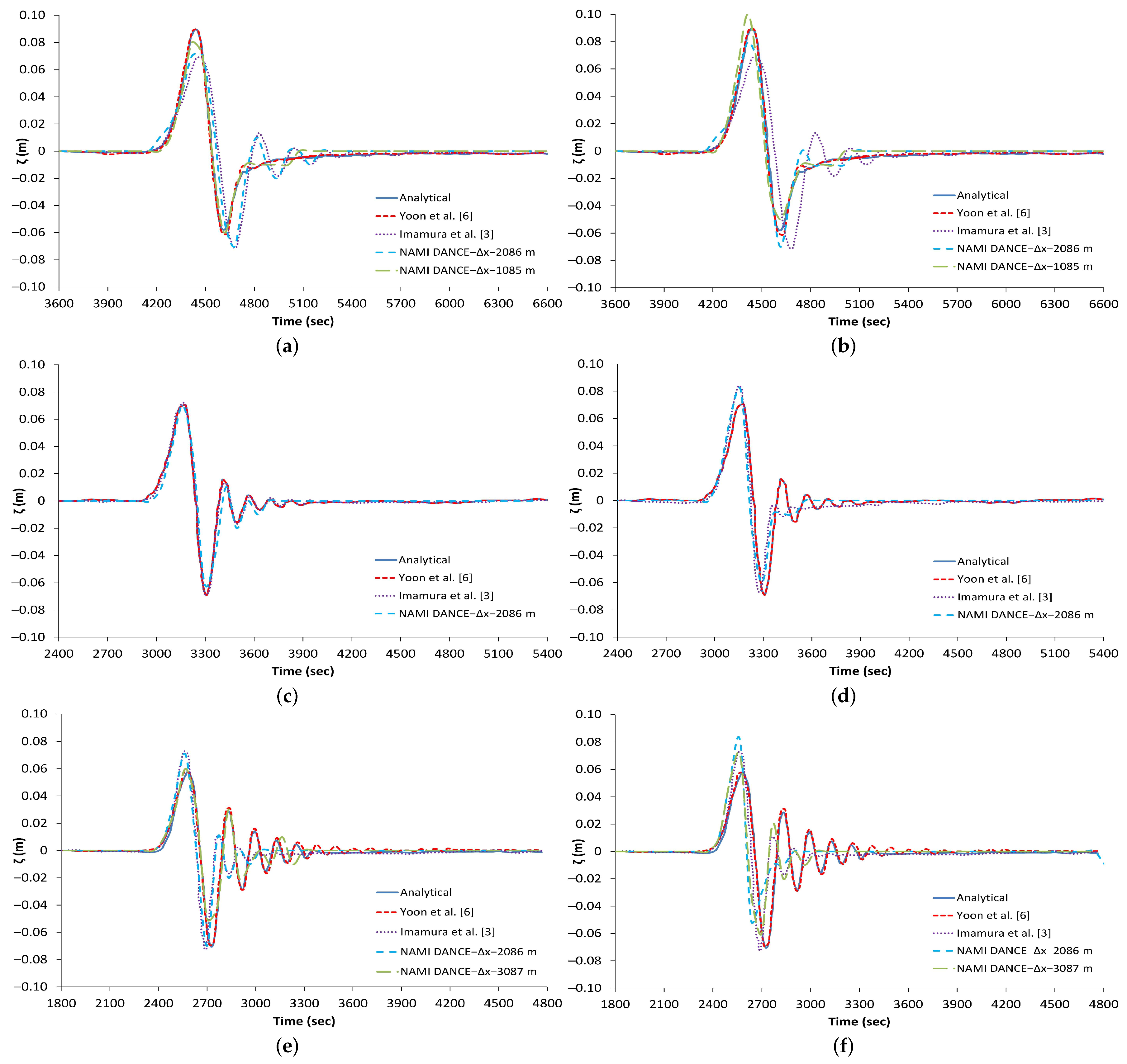

Figure 4. Comparison of water surface profiles of several numerical methods against the analytical solution of Carrier [27]: (a) h = 500 m and θ = 0 , 90 , (b) h = 500 m and θ = 45 , (c) h = 1000 m and θ = 0 , 90 , (d) h = 1000 m and θ = 45 , (e) h = 1500 m and θ = 0 , 90 , (f) h = 1500 m and θ = 45 . All comparisons are done at distance 312,900 m away from the center of the initial Gaussian hump on a uniform bottom.
Figure 4. Comparison of water surface profiles of several numerical methods against the analytical solution of Carrier [27]: (a) h = 500 m and θ = 0 , 90 , (b) h = 500 m and θ = 45 , (c) h = 1000 m and θ = 0 , 90 , (d) h = 1000 m and θ = 45 , (e) h = 1500 m and θ = 0 , 90 , (f) h = 1500 m and θ = 45 . All comparisons are done at distance 312,900 m away from the center of the initial Gaussian hump on a uniform bottom.
Jmse 06 00084 g004

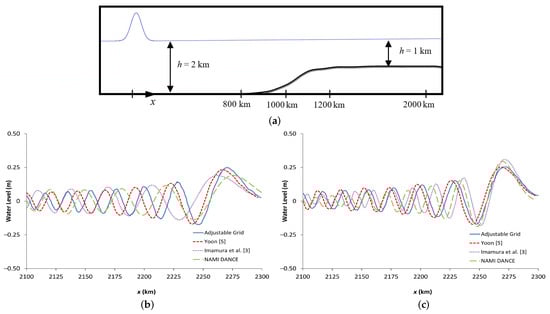

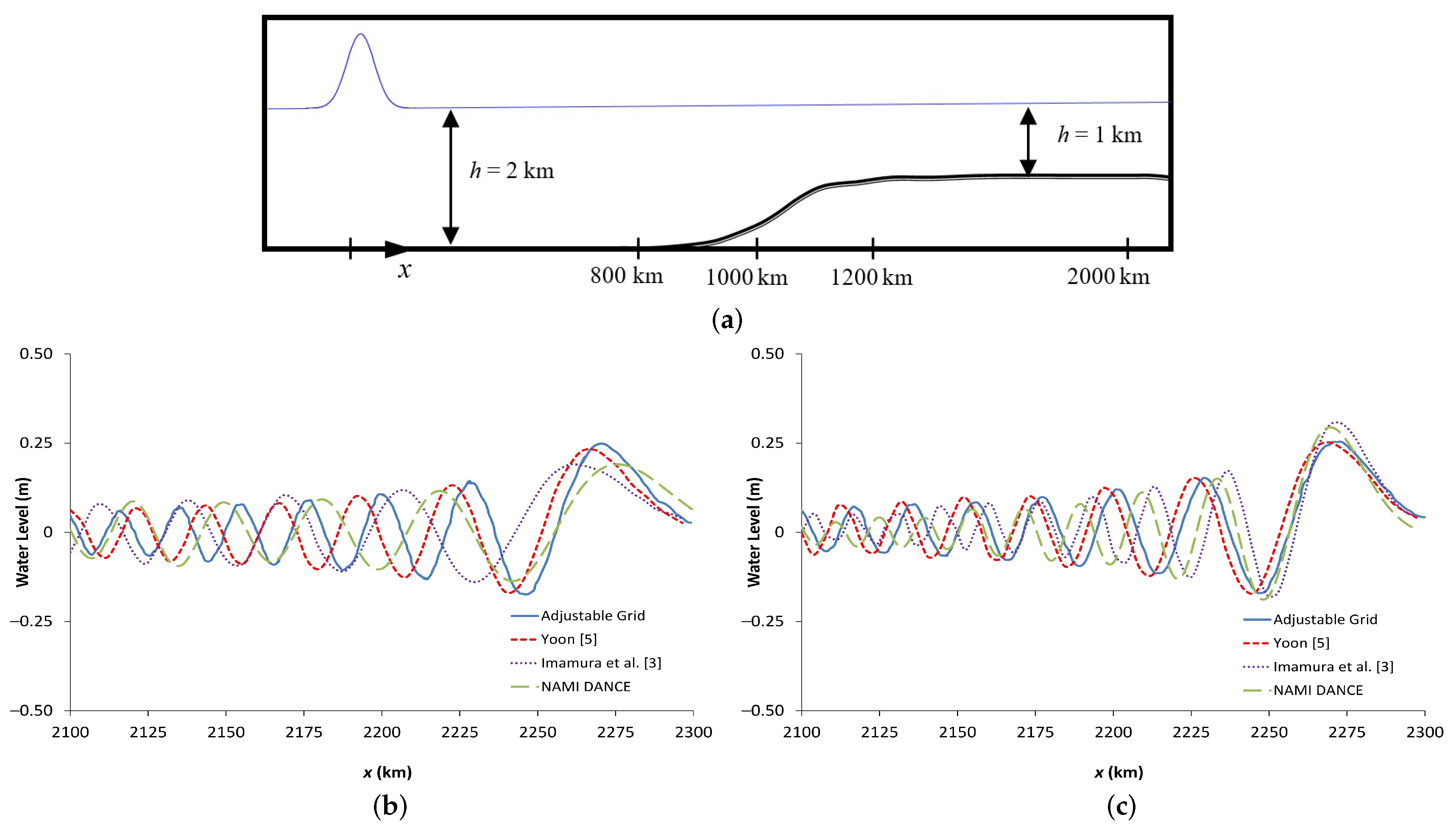

Figure 5. (a) Schematic representation of Gaussian hump propagating over a slowly varying topography [5]. Water surface profiles comparison of several methods at t = 40 , 000 s and h = 1 km for two different grid sizes (b) Δ x = 4 km and (c) Δ x = 2 km.
Figure 5. (a) Schematic representation of Gaussian hump propagating over a slowly varying topography [5]. Water surface profiles comparison of several methods at t = 40 , 000 s and h = 1 km for two different grid sizes (b) Δ x = 4 km and (c) Δ x = 2 km.
Jmse 06 00084 g005

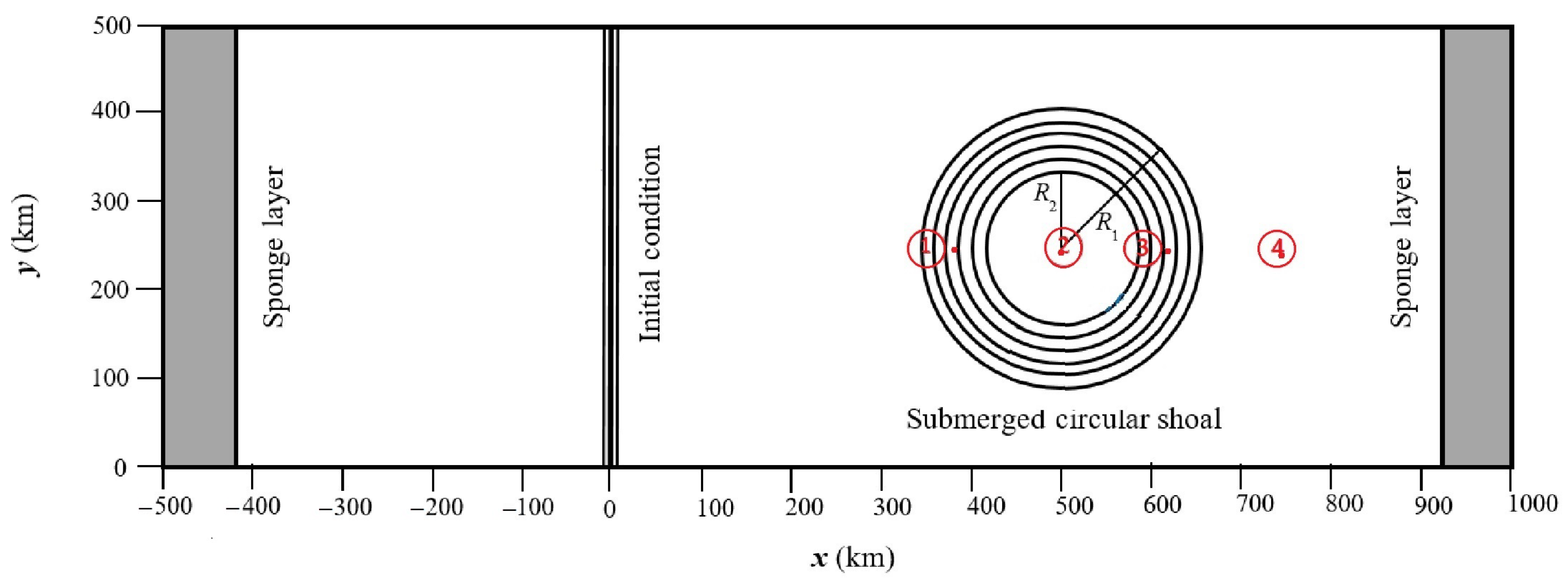

Figure 6. Submerged circular shoal, wave gauges and initial condition [6].
Figure 6. Submerged circular shoal, wave gauges and initial condition [6].
Jmse 06 00084 g006

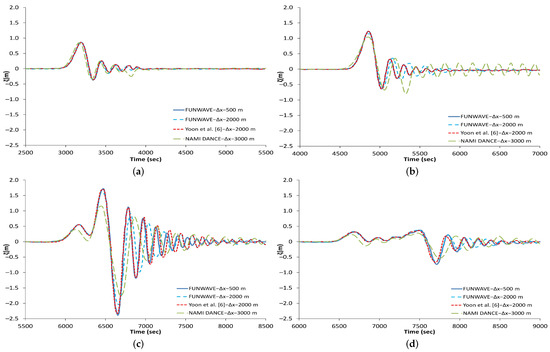

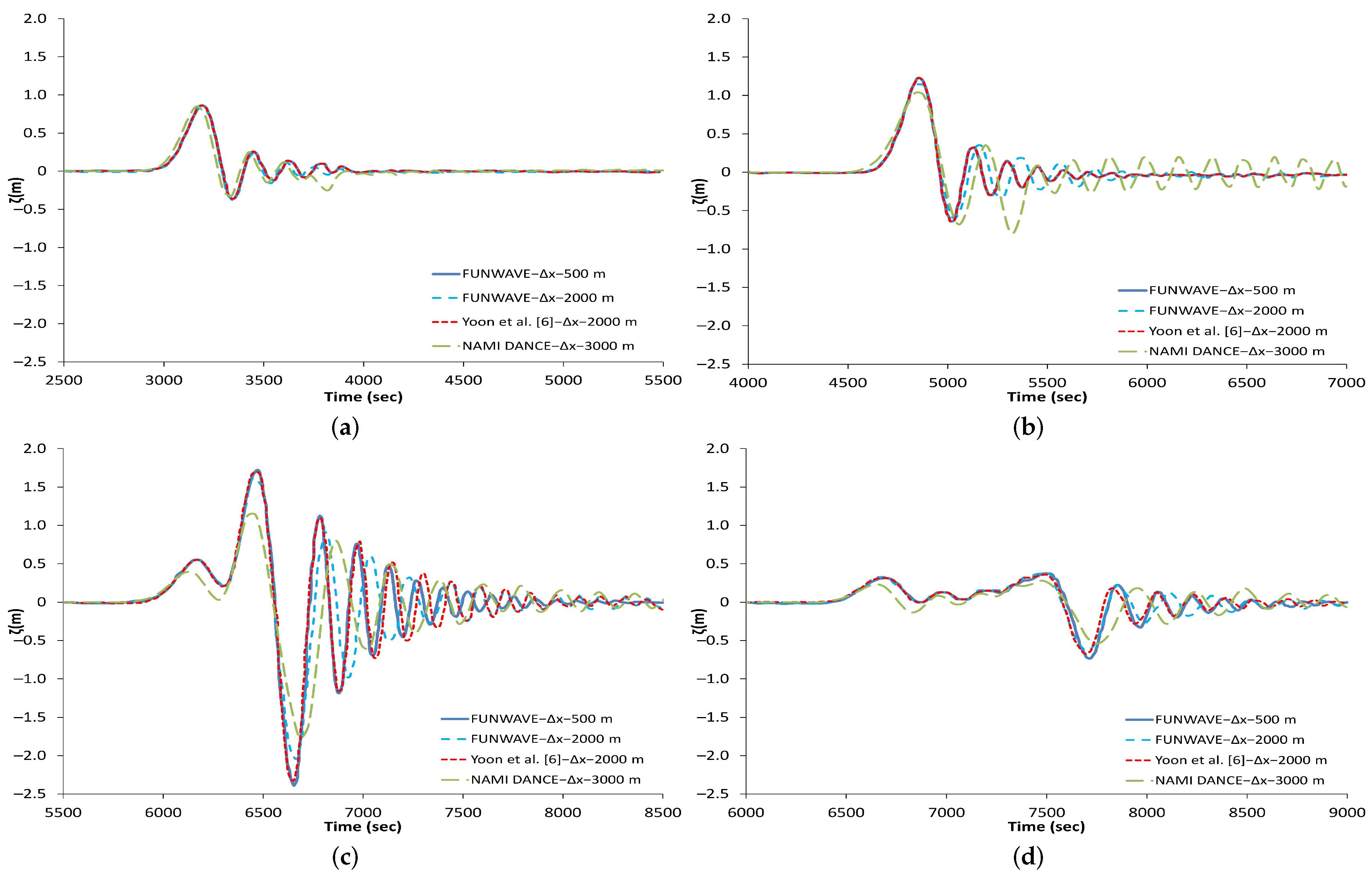

Figure 7. Comparison of time history of water surface profiles of NAMI DANCE, FUNWAVE (using Nwogu’s BTEs) [8,9] and Yoon et al.’s [6] solution at numerical gauges: (a) Gauge 1, (b) Gauge 2, (c) Gauge 3 and (d) Gauge 4.
