Article

A Turbulence Survey in the Gulf of Naples, Mediterranean Sea, during the Seasonal Destratification

by
Florian Kokoszka
1,*,
Fabio Conversano
1,
Daniele Iudicone
2,
Bruno Ferron
3 and
Pascale Bouruet-Aubertot
4
1
Department of Research Infrastructures for Marine Biological Resources (RIMAR), Stazione Zoologica Anton Dohrn, 80121 Naples, Italy
2
Department of Integrative Marine Ecology (EMI), Stazione Zoologica Anton Dohrn, 80121 Naples, Italy
3
Université de Brest, Centre National de la Recherche Scientifique (CNRS), Institut Français pour Recherche et l’Exploitation de la Mer (IFREMER), Institut de Recherche pour le Développement (IRD), Laboratoire d’Océanographie Physique et Spatiale (LOPS)—Institut Universitaire Européen de la Mer (IUEM), 29280 Plouzané, France
4
Sorbonne Université, Centre National de la Recherche Scientifique (CNRS), Institut de Recherche pour le Développement (IRD), Muséum National d’Histoire Naturelle (MNHN), Laboratoire d’Océanographie et du Climat: Expérimentation et Approches Numérique (LOCEAN), 75005 Paris, France
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2023, 11(3), 499; https://doi.org/10.3390/jmse11030499
Submission received: 26 January 2023 / Revised: 14 February 2023 / Accepted: 21 February 2023 / Published: 25 February 2023
(This article belongs to the Special Issue Dynamics in Coastal Areas)

Abstract

:
The seasonality of the vertical mixing at coastal sites is not well characterized yet. Here, a time series of the dissipation rate of turbulent kinetic energy (ε) was obtained from weekly morning microstructure observations covering the destratification period (July 2015, February 2016) at a coastal site in the western Mediterranean Sea, influenced by freshwater runoffs. Estimated with bulk parameters from the public re-analyzed dataset ERA5, the Ekman layer, and the convective penetration depth scale with the mixed layer depth (MLD) with a good agreement. Below the MLD, peaks of ε are observed in the baroclinic layers that progressively overlap with the bottom layer, where repeated near-bottom turbidity peaks provide evidence of sediment resuspension, suggesting energetic processes within the bottom boundary layer. In the subsurface, moderate values ( 10 9 to 10 8   W   kg 1 ) are observed, following a Burr type XII distribution. Significant correlation with ε at MLD is obtained with a model combining the effects of wind, wind–wave, and convection, highlighting a calm sea bias in our data, plus a sunrise bias when morning buoyancy fluxes are stabilizing. Another correlation, obtained from a pure-wind estimation 18 h before, suggests the role of wind in generating internal waves in the stratified layers, thus, impacting mixing intensity.

1. Introduction

The Gulf of Naples (GoN) is a coastal marine ecosystem in the western Mediterranean Sea (Figure 1) that features a subtropical regime, weak tides, and a marked salinity contrast due to the combination of salty Tyrrhenian Sea waters and freshwater inputs from a densely inhabited coastal area and nearby rivers [1,2]. It provides an ideal study site to understand how changes in coastal salinity and temperature affect vertical stratification [3], particularly in the context of rising air and sea temperatures and increased frequency of extreme events such as storms, floods, and Mediterranean hurricanes [4,5,6]. The GoN’s inter-annual variability is influenced by a complex combination of temperature and salinity trends linked to large-scale atmospheric forcings on multi-annual scales [7].
However, the short-term impact of these forcings on the coastal system is not well understood. Levels of mixing caused by wind stress, waves, and buoyancy fluxes are still poorly observed in such boundary areas, where the proximity of the coast and the bottom possibly enhance some turbulent features [9]. Moreover, the presence of coastal freshwater inputs can impact the stratification by straining the surface and subsurface density field [10,11], and possibly inhibiting small-scale mixing. As [12] suggest, the interactions between wind and waves through Langmuir circulation cells, as well as waves and sub-mesoscale filaments [13] in buoyant waters [14] may play a significant role in mixing the stratification in shallow enclosed areas such as the GoN, by enhancing the shear-driven turbulence [15] and/or adding its effect to the convective destabilizing events [16].
These multiple forcings commonly act simultaneously in generating turbulence in the surface layer of the ocean and understanding their interplay is important for predicting the transport in the water column of scalars, momentum, and materials (e.g., plastics, plankton, sediments [17,18,19]), particularly in shallow coastal areas where turbulent structures can develop in the wavy Ekman layer [20] and extend over the full depth [21]. This could be of importance to the transport of negatively buoyant materials, such as the resuspension of sediment by the Langmuir turbulence in shallow seas [22,23].
The relative importance of wind, waves, and buoyancy fluxes on the vertical distribution of temperature and salinity varies greatly throughout the year, leading to a strong seasonality of fine-scale processes over the vertical dimension [24]. This seasonal variability also regulates the biological activity by controlling the vertical transfer and uptake of nutrients [25,26], and affects the behavior of marine species, taking advantage of or being limited by the water motions modulated by the stratification [27,28,29]. Understanding its seasonality in relation to mixing is, thus, relevant for the comprehension of biogeochemical cycles, harmful algae blooms, and plastic dispersal, among others [25,30,31].
Mixing observations have improved with high-resolution profilers since the 1960s [32,33,34], but the difficulty of deployment at sea and the complexity of physical phenomena cause in-situ characterization to be challenging. High-quality data collection at all scales, from open ocean to coastal area, remains of importance. Studies based on continuous detailed observations are crucial, as seen in recent works in lakes [35,36,37], which examine the impact of seasonal interactions between wind stress, internal waves, and convection on mixing in specific locations. Ultimately, time series observations of mixing (intensity, location, and intermittency) are important for improving the predictions of numerical simulations [38,39]. In this context, our observations contribute to the Long-Term Ecosystem Research Marechiara (LTER-MC) initiative that produced a historical time series of a Mediterranean coastal ecosystem through weekly sampling of the water column starting in 1984 and running until now [7,40,41].
With a time series of microstructure observations, we will examine the hydrological and turbulence features in a shallow coastal area of the GoN during the seasonal destratification period from July 2015 to February 2016 (Section 3.1). We will analyze the atmospheric context of wind stress, waves, and buoyancy fluxes, and relate the MLD deepening to these forcings, by comparing the MLD to vertical scales that model the penetration due to wind friction and convection (Section 3.2). Our analysis will provide a framework for characterizing the turbulent environment in the GoN by layers and periods of forcings (Section 3.3). Finally, we will test a model estimating dissipation rates associated with wind, wind–wave, and convection (Section 3.4), and use this information to establish a seasonal cycle for dissipation that can be used to extend time series when in-situ observations are not available.

2. Materials and Methods

2.1. Geographical Situation and Collected Data

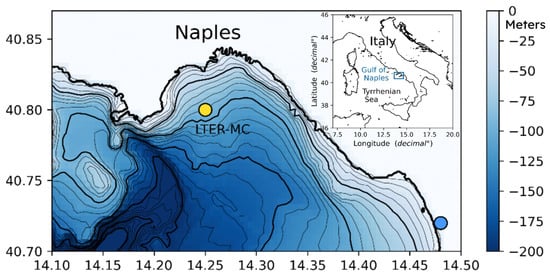

The measurement campaign took place in the Gulf of Naples (GoN)—a coastal bay located in the Mediterranean Sea (Figure 1). The GoN has a sub-tropical climate and low tides, and its bathymetry is generally gentle and regular in the eastern half. It is bordered by several mountain systems (e.g., Mount Vesuvius to the northeast, the Lattari Mountains on the Sorrentine Peninsula to the east and southeast) and the river Sarno flows through the region. In contrast, the western half of the GoN is more rugged and includes several deep submarine canyons (e.g., Canyon Dohrn, Bocca Grande) that extend from the islands of Capri in the south to Ischia in the west. The Marechiara (MC) coastal reference point, located 2 km from the coast at a depth of 75 m, has been used for over 30 years as a monitoring site within the framework of the national long-term ecological research network (LTER-MC).
Hydrology and turbulence data were collected weekly at the Marechiara point using a vertical microstructure profiler (VMP-250) manufactured by Rockland Scientific International (RSI) from July 2015 to March 2016. One to four vertical profiles were collected per trip, usually between 8:00 and 10:00 am (Table 1). The profiler was deployed from the surface and made a free descent in the water column at a vertical speed of 0.7 0.9   m   s 1 . The instrument was tethered with a low hydrodynamic drag cable. Sufficient slack was provided during the descent to avoid contamination of the signal by vibrations. The VMP was equipped with two perpendicularly oriented microstructure shear sensors (SH1, SH2), a fast response thermistor (FP07), a micro-conductivity sensor (SBE7), and JFE Advantech optical sensors for measuring fluorescence (FLUO) and turbidity (TURB) in the water column. All of these sensors were sampled at 512 Hz, except for the 64 Hz JFE-CT sensors. The VMP-250 data were processed using the Matlab ODAS Toolbox provided by RSI (v4.5.1). A total of 71 profiles were collected over 31 unique days distributed weekly from summer to winter. This measurement campaign was conducted as part of the LTER-MC program, which uses a Seabird 911+ CTD (conductivity, temperature, depth) probe mounted on a rosette with 12 Niskin bottles to collect water samples for bio-geochemical analyses. The microstructure profiles were generally collected on the same day as the CTD deployment, with a few exceptions where a special trip was dedicated the day before or after. The time period covered (July 2015 to March 2016) corresponds to stations MC1160 to MC1190 (as described in [7]).

2.2. Microstructure, Dissipation (ε), and Diffusion (ᴋ) Rates of Turbulent Kinetic Energy (TKE)

The shear probes ( S H 1 , S H 2 ) measured the vertical shear of horizontal velocity fluctuations (i.e., u z , v z ). The raw signals are subject to noise and signal contamination from instrument vibrations, internal circuitry, and impact of biology and sediments. To reduce the impact of signal contamination, several processing steps were required before computing the shear spectra and dissipation rate. Firstly, the upper and lower meters of each cast, where the profiler was stopped, were identified and discarded manually. Secondly, spikes of large-amplitude and short-duration were eliminated from the shear data using the de-spiking algorithm provided in Rockland’s ODAS Matlab Library. In particular, spikes were identified using a threshold value of 8 when comparing the instantaneous shear signal to a smoothed version. The smoothed signal was obtained using a first-order Butterworth filter, with a cut-off frequency ranging from 0.7 to 0.9   Hz , depending on the median value of the fall speed. Once identified, spikes were removed over a 5   cm segment (ca. 0.07   s ). Thirdly, the shear signals were high-pass filtered at 1.5   Hz to remove low-frequency contamination ( 0.1 1.0   Hz ) possibly associated with the pyroelectric effect [42] and low frequency vibrations induced by the moving VMP [43]. The spectrum of the high-passed vertical shear signal was computed and used to estimate the dissipation rate. The dissipation rate of turbulent kinetic energy (TKE) was calculated using the isotropic relation ε = 7.5   ν < ( u z ) 2 > = 7.5   ν < ( v z ) 2 > , where ν is the kinematic viscosity of seawater and u and v are the horizontal components of the small-scale velocity fluctuations. In practice, the estimate of ϵ was obtained iteratively by integrating the velocity shear spectrum ϕ k up to an upper wavenumber limit ( k m a x ), i.e., ε = 7.5   ν 0 k m a x ϕ k   d k as it is outlined in Rockland’s technical note 028 [44]. This was performed for each microstructure sensor separately, i.e., for u z ( S H 1 ) and v z ( S H 2 ). Dissipation segment lengths of 6   s were used with 2   s FFT segments that overlapped by 50 % . The dissipation segments themselves were overlapped by ca. 1.5   s , which resulted in a vertical resolution in ε of approximately 4   m (values are later interpolated linearly on a 1   m regular vertical grid). Contamination of the spectra for instrument vibrations was reduced using the cross-coherency method of [45]. The last release of ODAS (v.4.5.1, June 2022) includes a correction to the Goodman routine to remove biases in the dissipation rate [43,46]. The quality of the spectra were assessed using a figure of merit, which is defined as F M = D O F M A D , where D O F = 9.5 is the number of degrees of freedom of the spectra [47] and M A D is the mean absolute deviation of the spectral values from the Nasmyth spectrum as M A D = 1 n k i = 1 n k ϕ k i ϕ N a s m y t h k i 1 where n k is the number of discrete wavenumbers up to k m a x [48]. Segments of data where the spectra had F M > 1.5 were rejected from further analysis. The final dissipation rate was obtained by averaging the estimates for the two independent probes, i.e., ε S H 1 and ε S H 2 . If their values differ by more than a factor of 10 , the minimum value is used. Finally, surface values above 10 5   W   k g 1 were removed (e.g., ship wake) and we did not consider the first 5   m in our statistics.

2.3. Turbulent Activity Index

The turbulent activity [49,50] is quantified by the buoyancy Reynolds number R e b derived from the ratio between the Ozmidov scale L O = ( ε   /   N 3 ) 1 / 2 and the Kolmogorov scale L K = ( ν 3 /   ε   ) 1 / 4 , with R e b = L O   /   L K ) 4 / 3 = ε   /   ( ν N 2 where ν is the kinematic viscosity. The buoyancy Reynolds number can be interpreted as the ratio of the maximum length at which eddies can overturn before being inhibited by buoyancy to the length scale at which the smallest eddies are eroded by viscous forces [51]. The study of [52] indicates that fully turbulent isotropic mixing takes place for R e b > 100 , while a transitional regime occurs for 7 < R e b < 100 in which turbulence is not fully isotropic but able to mix the stratification. In general, a turbulent activity index lower than 7.0 20.0 should indicate quiescent flow driven by molecular and buoyancy-controlled regimes, which is not turbulent enough to generate an important diapycnal mixing [53,54].

2.4. Hydrology

The hydrological temperature and salinity were derived from the calibrated JFE-CT sensor. Consistent vertical profiles were obtained by averaging the raw data on a regular vertical grid of 10   cm , using a vertical binning dependent on the median profiling velocity. Given the sampling rate and a speed of 0.7   m   s 1 , ensembles of nearly 92 data points are used to provide averages every 10   cm . We used the Gibbs–SeaWater Oceanographic Toolbox [55] to calculate the conservative temperature ϴ ( ° C ), the absolute salinity A S ( g   kg 1 ), the water density anomaly ρ ( kg   m 3 ), the potential density σ 0 ( kg   m 3 ), the potential temperature θ 0 ( ° C ), and the Brunt–Väisälä frequency N 2 ( s 2 ). When mentioned thereafter, T and S refer to ϴ and A S .

2.5. Optical Sensors

The fluorometer-turbidity sensor from JFE Advantech has a spatial response of ca. 1   cm [56] and the data were bin-averaged on a regular grid of 10   cm following the same procedure as for the JFE-CT. Given the 512   Hz sampling rate with a speed of 0.7   m   s 1 , ensembles of nearly 733 data points were averaged per bin. Data were preliminarily despiked, applying the same settings as for microstructure shears. For turbidity (FTU, Formazin Turbidity Units), we offset down each profile from its minimum value. Some diverging values ( > 100 ) were removed. The obtained profile was then smoothed using a 5 m running median. Some profiles were discarded and eventual missing segments in the individual profiles due to the data cleaning are solved when averaging all the profiles of the same cast to produce one unique daily profile.

2.6. Atmospheric Forcings from Bulk Parameters

Surface heat fluxes, wind velocities ( u 10 , v 10 ), evaporation and precipitation rates E , P , and significant wave height ( H S ) were extracted from the ERA5 re-analysed product provided by Copernicus [57] to estimate buoyancy fluxes at the air–sea interface, wind friction, and Langmuir number at the sea surface for the area surrounding the coastal monitoring point. The buoyancy flux B 0 ( m 2   s 3 or W   k g 1 ) is defined negatively when stabilizing the water column and is proportional to the density flux at the surface, as B 0 = g   Q p ρ 0 , where the density flux Q p into the ocean from the atmosphere was computed as Q p = ρ α F T + β F S   [58], with α and β the thermal expansion and saline contraction coefficients, respectively. Here, F T = ( Q n e t / ρ s e a ) C p and F S = E P S / 1 S / 1000 , where C p is the specific heat of seawater and S the sea surface salinity. The net radiative heat flux at the ocean surface Q n e t ( W   m 2 ) was calculated from the combination of the incoming short wave, net incoming and emitted long wave, and sensible and latent heat. The velocity friction u * was calculated as u * = τ   /   ρ s e a , where ρ s e a is the density of seawater, and τ the wind stress, as τ = ρ a i r C D U 10 2 , where ρ a i r = 1.22   k g   m 3 . The drag coefficient, C D , and velocity at 10 m, U 10 , were calculated from the wind velocity following [59]. To include the effect of waves, we calculated the Langmuir number L a [60] that relies on the interaction between the Stokes drift and the wind-forced surface shear. Under favorable conditions between wind and sea state, the wave field can generate vertically aligned Langmuir circulations cells [61] that can contribute significantly to the mixing in the surface layers. The Langmuir number is defined as L a = u *   /   u S   , where u S is the Stokes drift velocity, and L a is considered to be critical for wave dominance when its values are close and below to 0.5 [62]. Stokes drift was estimated from bulk values of wind velocity and sea wave [63,64]: u S t o k e s = 5 10 4 ( 1.25 0.25 0.5 / f c ) 1 / 3 W 10 W 10 m + 0.025 H s 0.4 , where f c = 0.5   H z refers to the cut-off frequency, and W 10 m is an upper threshold for the wind module ( W 10 m = W 10 if W 10 < 14.5   m   s 1 , W 10 m = 14.5 if W 10 > 14.5   m   s 1 ), and H s is the significant wave height. Values H s < 0.4 were not considered in the estimation and we considered u S = 0 and L a = . To bring insights about the influence of freshwater runoffs from the land in the area, we use the river discharge and related historical data from the European Flood Awareness System provided by Copernicus (https://cds.climate.copernicus.eu/cdsapp#!/dataset/efas-historical?tab=overview, accessed on 6 July 2022). This dataset provides gridded modeled sub-daily and daily hydrological time series forced with meteorological observations. The dataset is a consistent representation of the most important hydrological variables across the European Flood Awareness System (EFAS) domain. We use the daily river discharge ( m 3   s 1 ) during the last 24 h, around the GoN area, and we identify the Sarno river as the dominant contributor (average flow of 10   m 3   s 1 , compared to 2.0 3.0   m 3   s 1 for Napoli or Bagnoli rivers). Note that the Sarno average is coherent with the 13   m 3   s 1 flow mentioned in [65].

2.7. Mixed Layer Depth

We estimated the mixed layer depth ( M L D , m ) with the method of [66] based on threshold values. Given a vertical profile of density σ 0 z , or potential temperature θ 0 z , we calculated the depth below z r e f = 3   m where the profile reached various thresholds, defined as cumulative of 0.2   ° C for θ 0 , and 0.05 and 0.15   kg   m 3 for σ 0 . Due to the salty subsurface layers observed during some casts, the density-based estimate using a threshold of 0.05   kg   m 3 was sometimes too shallow when compared to the visual M L D that was closer to the temperature-based estimate. To detect such a case and automatize the procedure, we used at the same time another density-based estimate with a stronger threshold of 0.15   kg   m 3 . If the first estimate (threshold of 0.05   kg   m 3 ) was shallower than the temperature-based estimate (threshold of 0.2   ° C ), the second one (threshold of 0.15   kg   m 3 ) was used to replace the first one.

2.8. Baroclinic Layers

We hypothetize that internal wave breaking is among one of the processes that lead to intensified dissipation rates, and we propose to identify the stratified layers below the M L D where the maxima of the main baroclinic modes are located. We presume these layers could contain most of the energy of the internal oscillations. Ocean dynamic vertical modes were calculated for each profile from N 2 , using the routine from [67]. Profiles were smoothed by filtering over a 10   m length running window before applying the algorithm. We focused on the first two modes ( B C 1 and B C 2 ) that presented the largest variances. For each profile we identify the depth where the shear associated to each mode was maximum. We considered only the stratified part of the water column and we conserved the depths located below the M L D . The maxima of B C 1 are located below the M L D and are associated with the highly stratified part of the water column, while the maxima of B C 2 lie deeper and are associated with a weaker stratification.

2.9. Ekman Layer and Convection Depth: A Scaling of the Combination of Wind and Buoyancy Effects

To represent the influence of the wind stress u * and rotation f on the mixed-layer deepening, the stratified Ekman scale is calculated to be compared to the M L D . We follow the parametrization of [68] that defined L E = 1.9   u * / f N where N is the buoyancy frequency from in-situ profiles that have been averaged over the M L D before being interpolated linearly on the ERA5 timestamp. Noteworthy, the authors consider the wind stress 12 h in advance of the observations to account for the adjustment time of inertial oscillations to produce critical shear at the base of the mixed layer. In our time series we will consider L E during the last 18 h before the M L D observation. To represent the thermal convection due to the buoyancy fluxes applied at the sea surface, we follow [69] and apply the case of pure buoyancy fluxes to provide a scaling for the non-penetrative deepening of a mixed layer, as δ C = N 1 2 B 0 δ t where δ t is the duration (here δ t = 1   h ) to estimate a shallowing or deepening rate (in m   h 1 ), due to stabilizing or destabilizing convection. This is a good approximation for our observations since it happens during the night. We combine L E and δ C to scale the M L D in the preceding 18 h as: L E C = L E + c u m u l . t = 18 t = 0 δ C   .

2.10. A Model for ε

Taking into account the direct contribution of buoyancy and mechanical mixing at the air–sea interface to the evolution of the ocean surface boundary layer (OSBL), ref. [62] derived a parameterization (mentioned thereafter as B12) for ε as the result of a linear combination of wind stress, wave–wind interaction through the Langmuir circulation cells, and buoyancy forcing due to destabilizing convection, valid at the depth where the three forms of turbulence are considered to be well established. This formulation derives from a universal function using the mixing or mixed layer length scale h , the cubic wind friction u * 3 , the Langmuir number L a , the convection velocity scale w * = ( B 0 h ) 1 / 3 , and the velocity scale for wave-forced turbulence w * L = ( u * 2 u s ) 1 / 3 . Dissipation rates are given by the linear combination of the effect of wind, wave, and convection at the depth h , as ε B 12 = ε w i n d + ε w i n d w a v e + ε c o n v   = E S u * 3 / h + E L w * L 3 / h + E C w * 3 / h , with E S = 2 1 e L a / 2 , E L = 0.22   [70], E C = 0.3 [71]. The authors pointed to the fact that warming at the ocean surface would re-stratify the ocean surface boundary layer and inhibit the turbulent mixing, and this case was not considered by the authors. In our study, it can happen during the diurnal cycle when B 0 changes its sign due to stable fluxes (with our definition, B 0 < 0 ), and in this case, values of the convection term are not considered, and the term is taken equal to zero. The comparisons with the observations are evaluated at the MLD.

2.11. Definition of the Statistics Used in this Study

When several consecutive casts were performed, they were averaged to produce the daily representative vertical profile (Table 1). The monthly average is the mean of the parameter values for each month of the year. Linear regressions and statistics were performed using the “linregress” function from the Python library scipy.stats [72], peaks were identified using the “find_peaks” function, probability distributions functions (PDF) and boxplots were calculated using the “hist” and “boxplot” functions (minimum, first quartile, median, third quartile, maximum), and the Burr XII distribution [73] fit with its parameters were obtained using the “burr12” function. The fitting of probability distributions to data was performed with the Python package (https://fitter.readthedocs.io/en/latest/, accessed on 6 July 2022).

3. Results

3.1. Hydrological and Turbulence Observations

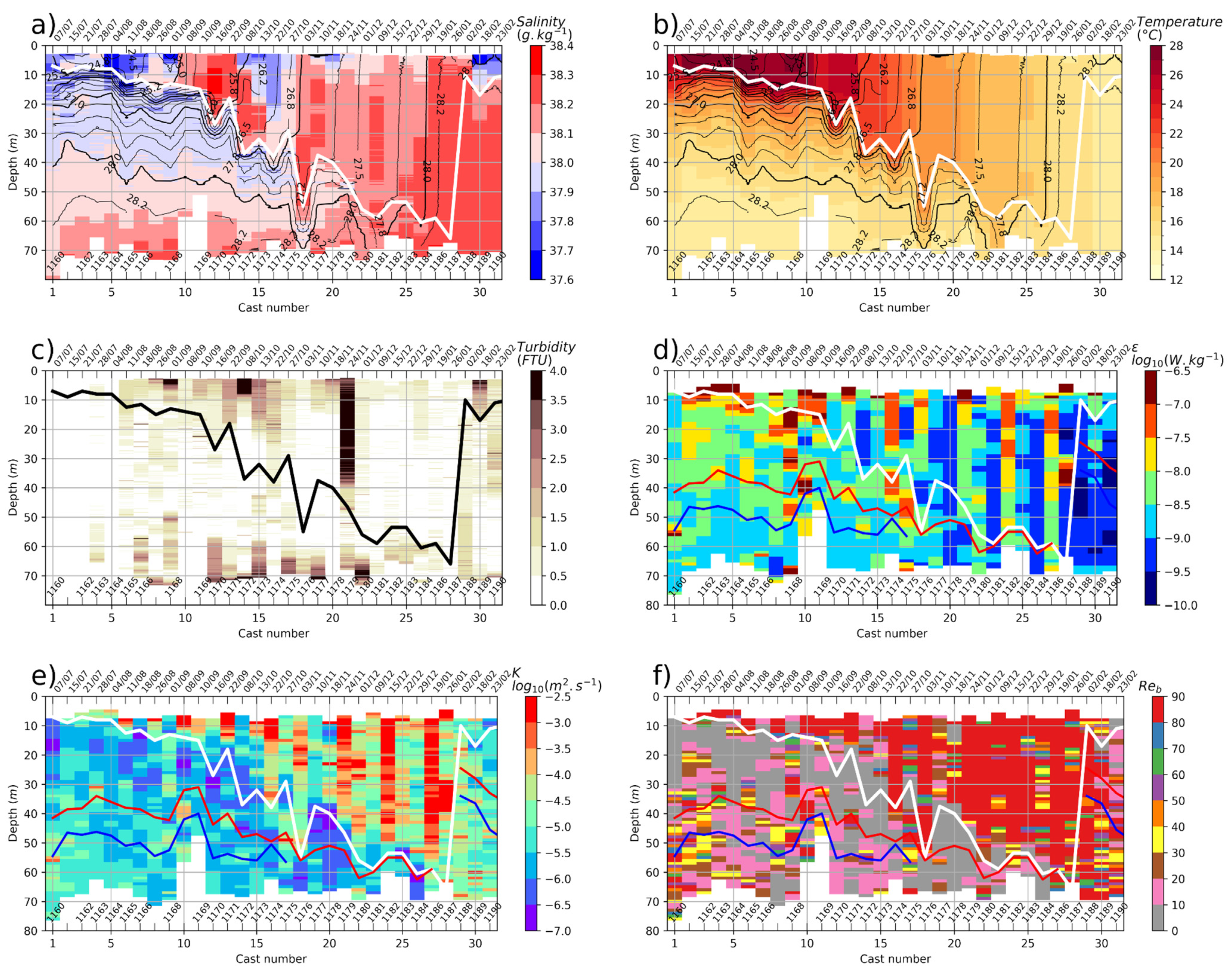

We present the hydrological and microstructure observations that were performed between July 2015 and February 2016, following the seasonal destratification of the water column marked by a deepening M L D . We show in Figure 2 the vertical profiles of the water column, for (a) salinity, (b) temperature, (c) turbidity, (d) dissipation, (e) diffusion rates of turbulent kinetic energy, and (f) the buoyancy Reynolds number.

3.1.1. Mixed Layer Depth

M L D is indicated on all plots by the thick line and shows a clear seasonal cycle: a stratified period in July–August, followed by a progressive deepening of the M L D from September to November, finally reaching a period when the water column is close to being fully mixed from December to January, followed by a surface re-stratification in February induced by a low salinity anomaly. This behavior in density is clearly driven by the freshwater contribution to the salinity at the surface and subsurface. A visual inspection of the MLD was finally performed. The MLD estimates were further checked, with a computed quality index Qc [74], following the detailed procedure given in [75]. The majority of MLD estimates were acceptable, with a Qc in the range 0.5 1.0 (not shown). Four of the MLD estimates presented a Qc < 0.5 . For one cast (cast n°23), Qc could not be computed as the M L D was close to the seafloor; the M L D was set to the seafloor depth. Other casts with Qc < 0.5 (casts n°28, 29, 30) corresponded to the re-stratification period in February when the vertical structure of the profiles appears to mislead the MLD calculation. For those cases, a visual inspection confirmed that these estimates were acceptable.

3.1.2. Salinity and Turbidity

Relatively fresh waters persist all along the summer until early November, from the surface down to 50–60 m depth, after which they are rapidly replaced by salty waters that remain till the end of the record (Figure 2a). A salty bottom layer of 38.1 to 38.3   g   kg 1 is visible below the 28.3   kg   m 3 isopycnal layer all along the record. This seasonal salinity variability is associated with some patterns visible in the turbidity measurements (Figure 2c). A turbid bottom layer was co-located with the deep salty layer. Some turbid bottom patches are visible in September (e.g., cast n°12), and when the mixed layer is close to the bottom, from the end of October to December (e.g., cast n°17 or 22). This provides evidence of the re-suspension of sediments in a weakly tidal area and suggests that energetic processes are located between the M L D and the bottom boundary layer. Once a full vertical homogenization is achieved in January (the core of winter period), no additional turbid layers are observed. Looking at the subsurface, local turbid patches are present inside the mixed layer from September to November, with structures occupying a large part of the water column (cast n°21) and are present at the surface during the re-stratification period in February (cast n°30).

3.1.3. Turbulent Kinetic Energy Dissipation Rate ε

The seasonal sequence of vertical profiles of dissipation rates of turbulent kinetic energy shows maximum values between 10 7 and 10 6   W   kg 1 (Figure 2d), distributed through patches in various parts of the water column. The summer period shows peak values above 10 8   W   kg 1 in the M L D (cast n°6, 11, 13, 16, 18). Some patches from 10 8 and 10 7   W   kg 1 are visible between the M L D and the mean depth of the 1st baroclinic mode (red line), following their depth variation between July and October. More intense patches are visible intermittently and locally on certain casts, with values between 5 10 8 and 10 7   W   kg 1 (e.g., cast n°9, 16, 17). Deep layers are associated with dissipation rates under 5 10 9   W   kg 1 that are generally located below the main depth of the 2nd baroclinic mode, even some intermittent intense structures can be observed (e.g., cast n°1, 6, 11). Note that minimum values close to 5 10 10   W   kg 1 are observed (the noise limit of the instrument is 10 11   W   kg 1 ). In winter, the dissipation rates are clearly intermittent: low ( 5 10 10   W   kg 1 ) throughout most of the water column (cast n°20, 23, 26, 28, 29, 31), or more intense ( 10 9 to 10 8   W   kg 1 ) on large fraction (cast n°21, 24, 27) with local peaks ( ε > 10 8   W   kg 1 between 15 and 30 m at cast n°24, or 20 m at cast n°27).

3.1.4. Turbulent Eddy Diffusivity

The eddy diffusivity K was estimated using the Osborn relation [76] as K ρ = Γ ε   /   N 2 ( m 2   s 1 ) with a mixing efficiency coefficient Γ = 0.2 . A remarkably low diffusive layer ( K < 5 10 6   m 2   s 1 ) is visible during the destratification, occupying a 10 to 30   m thick layer below the M L D (Figure 2e). In July, some intensified patches can be observed from 30 to 70   m (cast n°1–4) in the depth ranges associated with the two first baroclinic modes. In the surface layers, the most intense values are between 5 10 4 and 5 10 3   m 2   s 1 (cast n°11, 13, 18, 24, 27) and, generally, large patches with values between 5 10 5   and 5 10 4   m 2   s 1 are observed (cast n°20, 23, 28) and few profiles show relatively low values ( K < 10 5     m 2   s 1 , cast n°19, 26, 31). The turbulent activity is quantified by the buoyancy Reynolds R e b (see Section 2, Methods). For the GoN, the buoyancy Reynolds number (Figure 2f) shows that the stratified layers belong to the buoyancy-controlled regimes ( R e b < 10 ), except for intermittent cases ( 10 < R e b < 30 ) around the main baroclinic depths, while the surface intermittent turbulence belongs to both buoyancy-controlled ( R e b < 10 ) and transitional regimes ( R e b > 20 ).

3.2. The Forcing Context of the Wind Stress, Buoyancy Fluxes, and Sea Waves during the Seasonal Survey

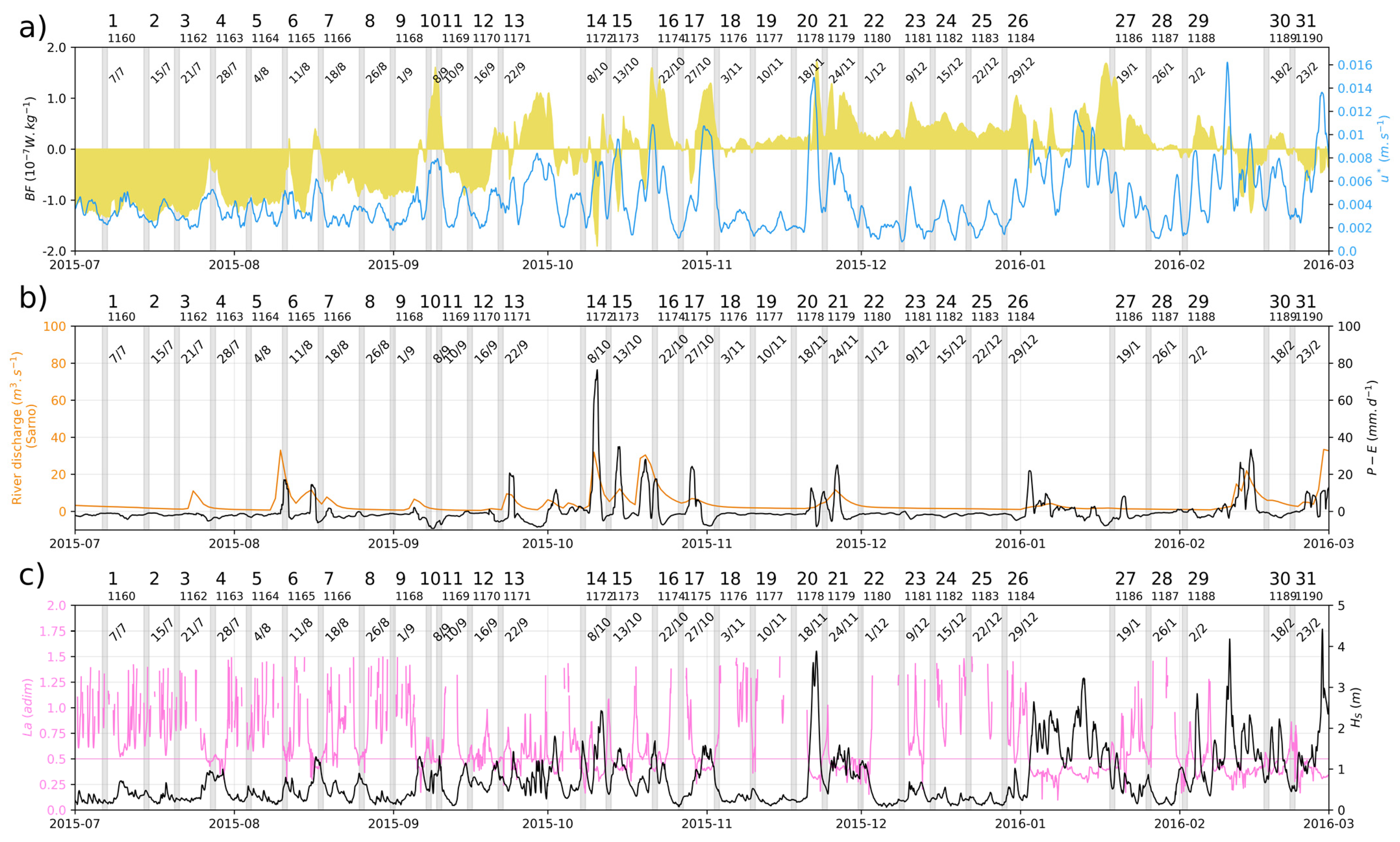

The time evolutions of the buoyancy fluxes, the surface wind stress, and the wave height are examined to build a simple scaling of the M L D .

3.2.1. Wind, Wave, and Heat Fluxes: A Seasonal Overview

In general, negative buoyancy fluxes strengthen the stratification of the water column while positive buoyancy fluxes weaken the stratification and may lead to surface convection and a deepening of the M L D . During summer and till mid-September, the daily averaged B 0 was always negative apart from three short episodes of positively buoyant days (Figure 3). In contrast, after mid-September, B 0 remained positive (or close to zero). Consequently, from the beginning of the observed period, the cumulative buoyancy flux decreased and reached a minimum level around mid-September (not shown) and then constantly increased from mid-October to reach a maximum at the end of the record. Buoyancy fluxes and the wind stress contribute both to mix the surface layer and deepening the M L D . A negative flux counteracts the wind stress by stabilizing the water column, while a positive flux will add its effect to the wind mixing by destabilizing the layers. The wind stress (Figure 3a) over the summer period is weak and shows few intermittent events before mid-September ( u * < 5 10 3   m   s 1 ). In September, relatively strong wind events started ( u * close to 8 10 3   m   s 1 ), followed by three events during October ( u * close to 10 2   m   s 1 ). The three most energetic storms ( u * > 10 2   m   s 1 ) occurred around the 20th of November, in January, and in February. The precipitation rates show intermittent events with values close to or larger than 20   m m   d 1 , with a maximum of about 75   m m   d 1 in early October, followed by intermittent rainy events during the rest of the period (Figure 3b). This time series is highly coherent with the river discharge (in blue). Wave heights are generally well correlated with the wind stress and reproduce the quiet and intensified periods (Figure 3c). Strong events show values of H S > 1   m (e.g., mid-October) with peaks between 2   and 4   m (e.g., mid-November, or January and February). The associated Langmuir number (pink line) indicates critical periods with values of L a < 0.5 , a regime for which Langmuir cells should contribute to the mechanical mixing at the same time as the wind. Interestingly, we see a repeating regime from July to September, with values L a < 0.5 , that is probably due to the daily cycle of the summer breeze [2].

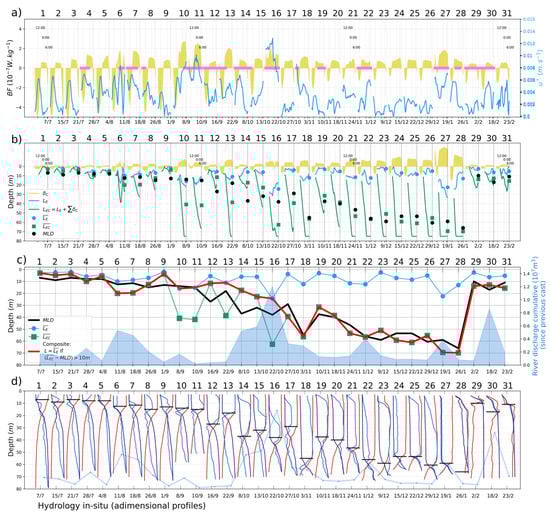

3.2.2. Forcings during the 24 h before the Casts, and the Observed Profiles

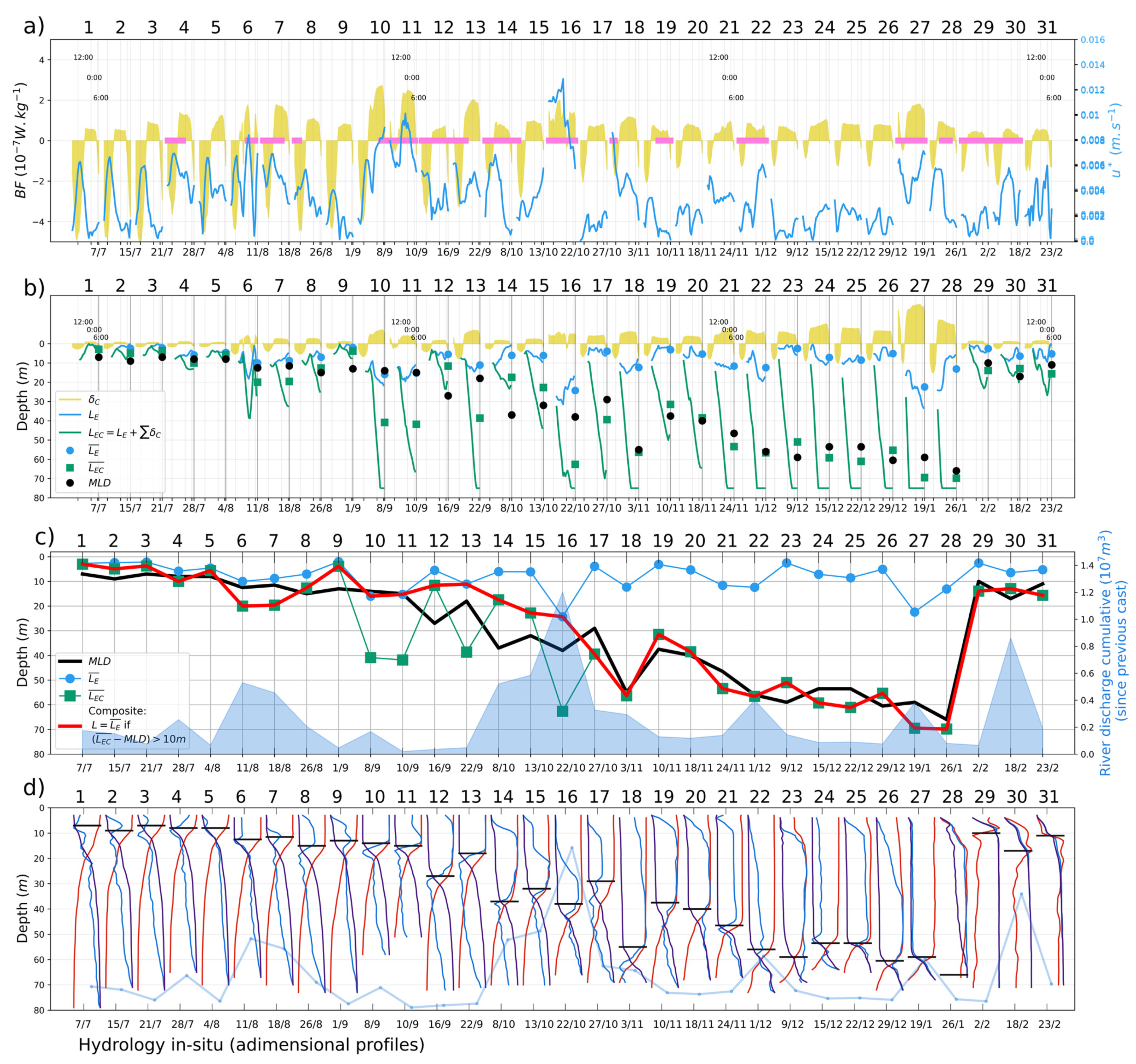

We hypothesize that the hydrology we observed for each weekly cast was the result of the processes that occurred in the hours before. We present in Figure 4a the synthesis of the forcings that occurred in the previous 24 h before each cast. Episodes of strong winds happened hours before the cast, inducing a “calm sea bias” at the time of our measurements. Moreover, the cast hour (generally around 8:30 am, sometimes later, see Table 1) positioned the observations at the transition between nocturnal and diurnal heat fluxes. Consequently, at the moment of measurements, the convective fluxes were expected to be weakening since their nocturnal maximum. Furthermore, heat fluxes can already stabilize the water column in the early morning at such latitude.
We propose to model the MLD (see Section 2, Methods) as the sum, L E C , of the buoyancy effects (through the determination of a convective depth) and the wind stress effect (through the determination of an Ekman layer depth). Given the lagged correlations obtained thereafter in the study (when establishing correlations between ε and the forcings, see Section 3.4), we calculated the mean of the Ekman layer depth L E in a window of 18 h before the cast. Positive L E C values (out of surface) are finally ceiled to zero and values deeper than the bottom of the water column are limited to 75 m. In general, the Ekman layer is in good agreement with the M L D when the water column is stratified, but fails to represent it when destratification occurs (Figure 4b,c). We calculate the correlation coefficient ( c c ) and the p-value ( p v ) of the linear regression with the observations. When adding the convective contribution, a very good agreement is obtained (green curve;   c c = 0.86 ; p v = 3.86 10 10 ). In some cases the convective layer depth overestimates the M L D ( L E C M L D > 10   m , casts n°10, 11, 13, 16, Figure 4c) and we can substitute L E C values with L E to obtain a composite, significantly correlated with the M L D ( 0.93 , p-value 5.40 10 15 , red line in Figure 4c).
We show the observed hydrology at the moment of the cast ( T , S , σ and M L D ) in Figure 4d. Looking closer at the vertical structure, we can notice that the overestimations in the convection contribution coincide well with the presence of relatively freshwater parcels at the basis of the M L D , in the 5   m located below, independent of the surface or bottom salinity. Interestingly, when looking at the river’s runoff, considering the cumulation of the discharges that occurred between the casts (Figure 4c, blue area; blue line in Figure 4d), we can identify consistently the two fresh episodes from the Sarno river that could have been advected westward (the river’s mouth is located at the east) to the LTER-MC point. They coincide with casts n°6 and n°15 that are characterizing two distinct episodes of low surface salinity ( 37.6 and 37.8   g   kg 1 , respectively). Once such freshwater is present in the coastal area, it opens the question of its persistence during the following days and weeks, as it is emphasized by the cases of “fresh M L D basis” (e.g., cast n°6, 10, 11, 13, 16, 17).

3.3. Observations of ε: Distributions into the Vertical Layers and at Single Depths

In this part, the time evolution of ε is characterized in the layers and periods that came out from the previous section. We use our results about the time course of some layers of interest ( M L D ,   B C 1 ,   B C 2 ) during the seasonal destratification to define vertical bins that describe the stratified layers: M L D B C 1 as a transitional layer and B C 1 b o t t o m as a bottom layer. At the same time, we characterize the seasonal variability in the surface layers by looking at two periods: July–October ( J O , summer to autumn) and November–February ( N F , autumn to winter). We complete, then, the overview by considering ε at single depths ( h = H / 2 ,   M L D ,   M L D / 2 ).

3.3.1. Peaks

The time sequence of the profiles of dissipation rates exhibits a succession of peaks and minima, illustrating well the complexity of the vertical structure of the water column (Figure 5, left). When the water column is the most stratified (July to September), the surface local minimum of dissipation ( O ( 10 8 )   W   kg 1 , located below the red area on the plot) is generally close to the observed M L D and may sign for a mixing surface layer. The M L D deepens during the season and various local minima and maxima ε can be found between the surface and the M L D , showing a complex variability. Noteworthy, some can be observed repetitively below the M L D into layers close to the main baroclinic depths (e.g., in August, the peaks are around 40   m , repeated for three weeks). Some are close to the bottom, where they could sign for boundary effects. In the surface layers, other peaks can be observed when the water column is less stratified (e.g., in December, around 20   m and 30   m ) and may be due to the intermittency of the surface forcings.

3.3.2. Distributions

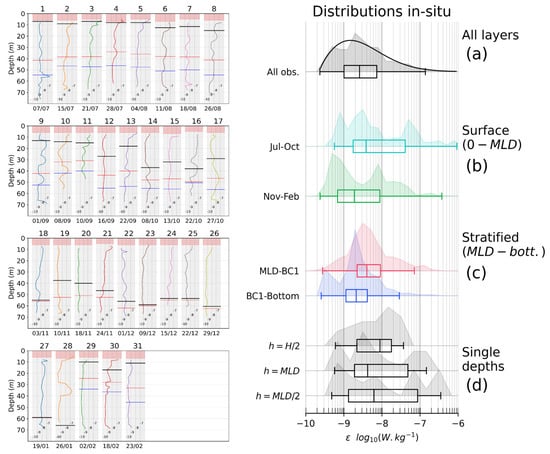

We characterize the statistical distribution grouping the observations by layers and periods. We show the general distribution in Figure 5a and the surface and stratified layers in Figure 5b,c. Finally, in Figure 5d, we show the distribution obtained when considering only single depths (not vertical bins). This will be used in the next section for the modelization of ε. In general, the probability density function (PDF) of epsilon (Figure 5a) is better described by the Burr type XII distribution than the log normal (not shown), as the distribution is not symmetrical and displays an important tail. Even with this good agreement, we note that the distribution seems to have a bi-modal component, with a first peak centered on 5.0 10 10   W   kg 1 and a second close to 2.0 10 9   W   kg 1 . The asymmetry is visible too when considering the subsurface layers (Figure 5b). The two distributions show different peaks when examining the distributions by time period. With more details, JO (mean: 7.20 10 9   W   kg 1 , median: 3.85 10 9   W   kg 1 ) is shifted toward higher dissipations with an additional peak close to 5.0 10 8   W   kg 1 , while NF is weaker and without such a peak (mean: 2.90 10 9   W   kg 1 , median: 1.90 10 9   W   k g 1 ). In the stratified layers (Figure 5c), ε in the transition layers ( M L D B C 1 , in red) displays a shape that is the closest to the log normality (from a classification test using the sum of the square errors between the data and the fitted distribution) with a mean value centered on 4.81 10 9   W   kg 1 . Differently, the deepest layer ( B C 1 b o t t o m , in blue) is shifted toward lower dissipations (mean: 2.21 10 9   W   kg 1 ) and displays the same bi-modal component as the upper layers (Figure 5a).

3.3.3. Single Depths

We show in Figure 5d the boxplots obtained at single locations ( h = H / 2 ,   M L D ,   M L D / 2 ) that are different from the more complete distributions. We want to see if general properties from the layer approach (e.g., vertical bins) can be reproduced by considering only single depths. The distribution of the layer h = H / 2 describes the middle of the water column and contains ε occurrences characterizing both surface and stratified layers. Distributions at h = M L D ,   M L D / 2 are comparable and closely reproduce the main peaks seen in the subsurface distributions in Figure 5b. These single depths catch the variability observed in the layers.

3.4. A Model for ε in the Subsurface Layer

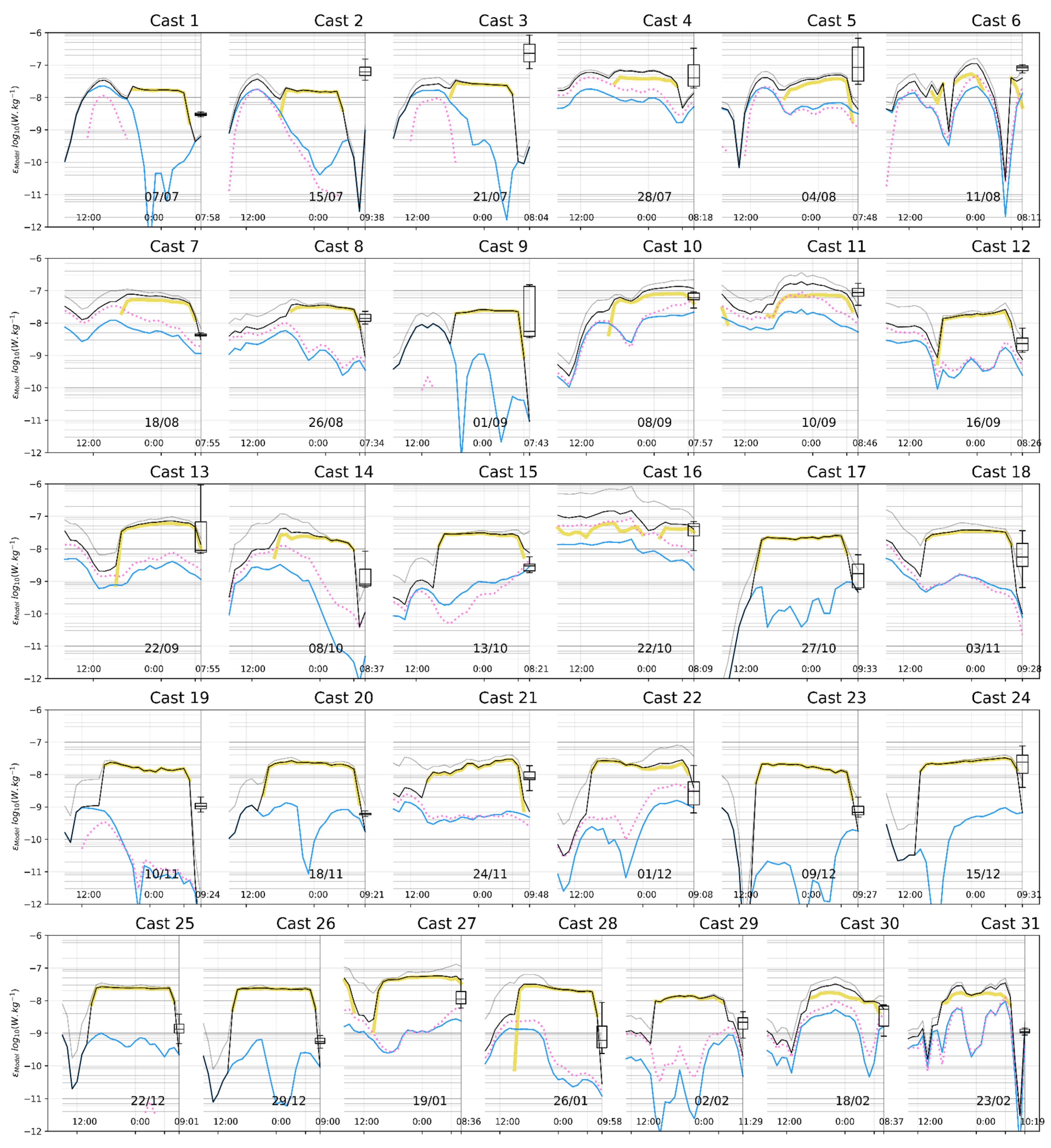

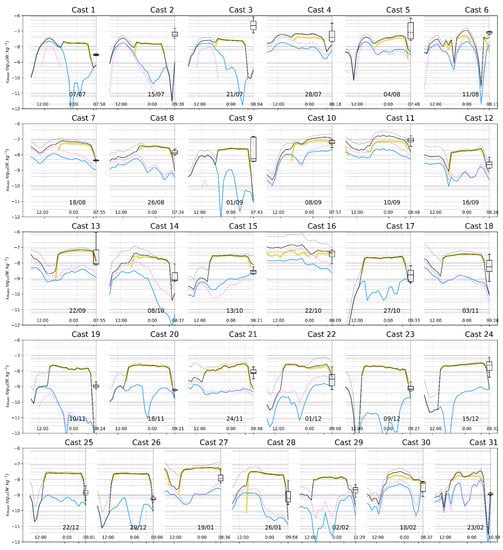

Time series of forcings are used here to infer more finely the role of each contributor to the observed dissipation, parameterized using the bulk parameters ( B 0 , u * , L a ) following the model of [62] (and named thereafter B12). Dissipation rates are given by the linear combination of the effect of wind, wave, and convection at the depth h , as ε B 12 = ε w i n d + ε w i n d w a v e + ε c o n v = E S u * 3 / h + E L w * L 3 / h + E C w * 3 / h   (see Section 2, Methods). Each contributor is quantified during the 24 h preceding the observations of ε (Figure 6) and summed to compare the model to the observed dissipation rates (Figure 7). Finally, we exploit the seasonal coverage of the survey to produce a monthly cycle of ε.

3.4.1. Moments of the Measurements

Calm sea bias. In general, the casts were gathered when the weather conditions allowed outings to the sea as well as a safe deployment of the various instruments. The data presented in this study include a calm sea bias that is well illustrated here. We see in Figure 6 that casts are generally performed after possible intense atmospheric events implying strong winds or large waves.
Timing. In Results 3.2 we obtained a good agreement between the M L D and the vertical scales associated with the forcings evaluated during the 18 h preceding the cast. Coherently, this time scale seems to apply to ε too: we can observe that 18 h before the casts, values of ε w i n d (blue) or ε w i n d w a v e (pink) are, generally, of the same order as the observations (e.g., casts n°7, 19, 20, 27). The term ε c o n v (yellow) is of the same order as the two others in summer, then, progressively increases with the seasonal setting of stronger unstable buoyancy fluxes.
Sunrise bias. Looking closer at the timing of ε c o n v , we see that our observations include a sunrise bias. Measurements were conducted between 8:00 and 10:00, which corresponds to the ascending phase of the daily heat fluxes. The diurnal cycle sets, the buoyancy fluxes progressively switch to stabilize the water column, and ε c o n v is not evaluated ( B 0 > 0 ). Moreover, nocturnal values are generally high (between 10 7 10 8   W   kg 1 ) and tend to decrease to 10 9   W   kg 1 within one hour after the sun rises. Given such a timing, the 1 h temporal resolution of the ERA5 dataset could lead to a model misevaluation: a possible source of overestimation due to strong nocturnal values or underestimation due to not evaluating the model under stable fluxes.

3.4.2. Model vs. Observations

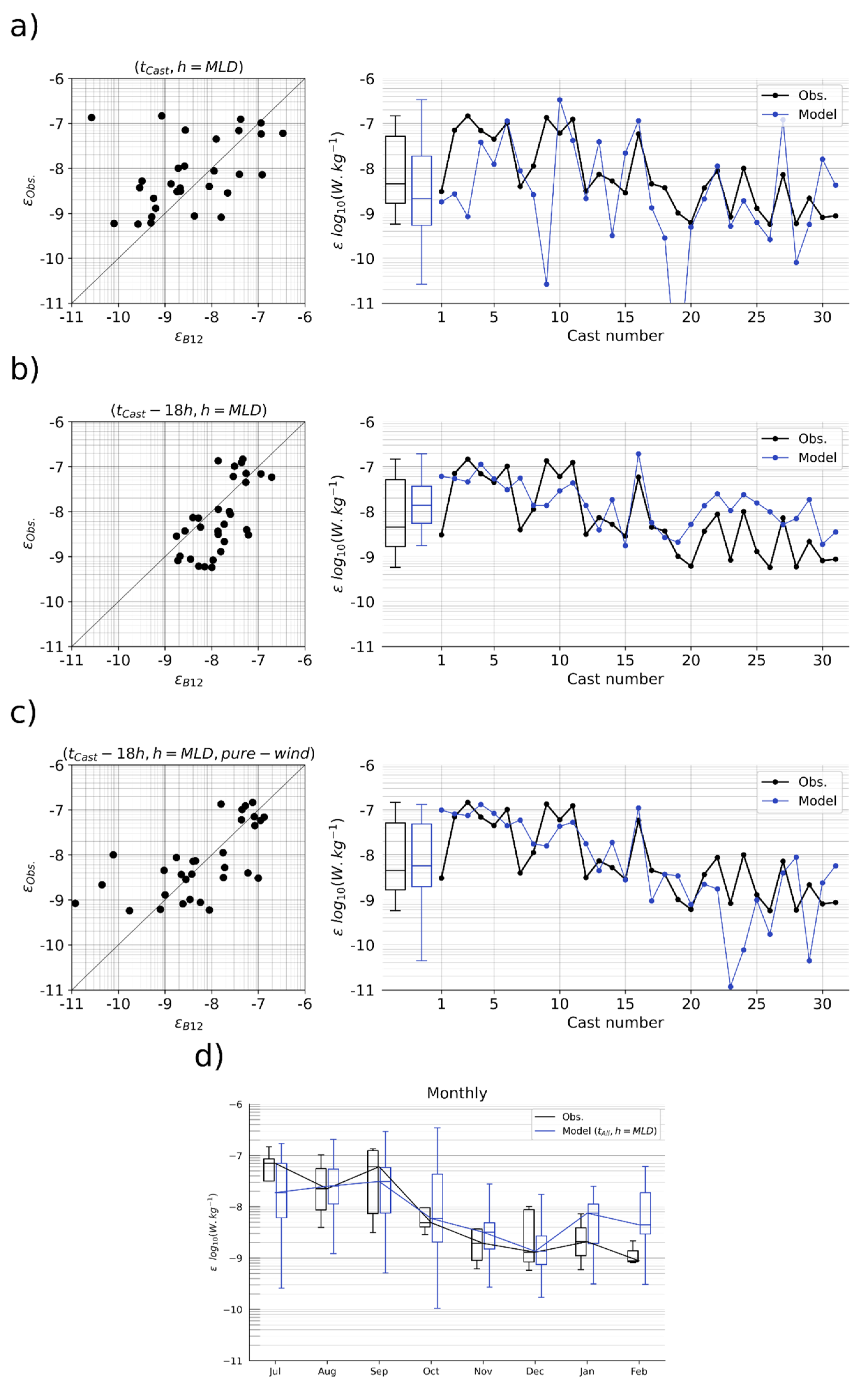

General performance. To assess the performance of the model, we calculate the correlation coefficient ( c c ) and the p-value ( p v ) of the linear regression with the observations and the mean factor m f = ε O b s / ε M o d e l . The best agreement is obtained when evaluating the model at h = M L D ( c c = 0.43 ;   p v = 0.0154 ;   m f = 2.88 ), which is closely comparable to using h = M L D / 2 ( c c = 0.46 ;   p v = 0.0267 ;   m f = 4.84 ). The distributions are presented in Figure 7a (left: scatterplots; right: boxplots and sequence of values).
18 h before. Additionally, we estimated ε M o d e l every hour and tested its correlations with ε O b s using temporal lags of 1 h in the past. A preliminarily check of the autocorrelations of u * , H S , and B 0 times series indicated a temporal window properly decorrelated after 13 h in the past for u * , and after 16 h for H S (windows for B 0 were between 4–8 h, around 13 h, and after 18 h). Taking this into account, we calculated the correlations between ε O b s and ε M o d e l h = M L D , t = t C a s t 18   h and we obtained a good agreement (Figure 7b; c c = 0.65 ;   p v = 7.42 10 5 ;   m f = 1.91 ) . Relative to the casts, this lag of 18 h corresponds to considering the forcings between 14:00 and 16:00 the day before. This hour range is generally associated with low or non-contributing buoyancy fluxes compared to the morning phase. Consequently, with this lag we can expect that the model represents mainly the effect of wind. When considering the case of a pure-wind estimation (i.e., ε B 12 = 2   u * 3 / h   , Figure 7c), correlations are still significative ( c c = 0.63 ;   p v = 1.27 10 4 ;   m f = 1.55 ) . We hypothesize that the dissipation observed 18 h later in our casts could be partially due to the inertial adjustment of the shears generated by the wind at the basis of the M L D . The instruments used on board did not include an ADCP (acoustic doppler current profiler) and we did not have measurements of the speed of ocean currents in the water column at the time the vertical profiles were performed. We do not have information to know the state of the velocity field, its vertical and horizontal gradients, and the energetics associated with them. This particularly limits the development of our study and its conclusions.
Seasonal cycle. We fruitfully exploit the sequence of the weekly snapshots from our observations to establish a seasonal cycle for ε based on the monthly time scale. From the summer 2015 to the winter 2016, we characterize a half-seasonal cycle (Figure 7d). In July, the model underestimated the observations, whose higher median value indicates that observations included more energetic processes not reproduced by the model. August and September indicate ranges of variability comparable to the model. A wide variability was obtained in October, while the observations were clearly more limited, maybe due to the conditions at sea that prevented sampling in bad weather conditions. Variability in November seems comparable. More intense events are captured by the observations in December. January and February indicate wide ranges that were partially covered by the observations.
The calm sea bias we have in our data is illustrated too in Figure 7d. When considering all the days between July 2015 and February 2016, we include de facto the energetic events when the conditions at sea were not compatible for a safe deployment and sampling. Compared to the model in this period between 8:00 and 12:00, the median value of the observations is weaker (observations centered on 3.0 10 9   W   kg 1 ; model on 1.0 10 8   W   kg 1 ) and a more limited dispersion. We show that we missed a large part of the variability range and, consequently, the most intense values of dissipation.

4. Discussion

4.1. A Coastal Station at the Crossroad between Offshore and Riverine Systems?

Our observations showed that the nearby Tyrrhenian Sea acts as a source of salty water, which was observed at depth from July to October and throughout the water column later in the year. This causes the subsurface layers to be susceptible to weak salt fingering regimes [77]. The lateral salinity gradient has yet to be determined, but it is probably an important factor to consider when estimating the mixed layer depth (MLD). Using relatively low-density thresholds for the MLD calculation can lead to underestimation due to the contribution of salinity. However, we found a good agreement between the MLD calculated using temperature ( 0.2   ° C ) and the MLD calculated using a strong density threshold ( 0.15   kg   m 3 ). If M L D θ 0.2 ° C was deeper than M L D σ   0.15   kg   m 3 , we retained its value. We also observed the influence of freshwater in the system. The nearby Sarno River, located in the northeast corner of the GoN, is a potential source of freshwater anomalies that can propagate along the east side of the Gulf. This river could be the main source of the low salinity surface waters observed between July and October (as well as the re-stratification in February). The study [1] noticed that this influence was mostly confined to the eastern part of the GoN and our study suggests its freshwater parcels may reach the LTER-MC site too. In addition, local trapping of freshwater at the coast due to daily oscillations of breeze winds (as described in [2]) may contribute to a pooling effect during the summer months.

4.2. What Is the Effect of Wind and Buoyancy Forcings on Setting the MLD?

Our results suggest that subsurface layers associated with relatively fresh water can inhibit the penetration of surface forcings into the water column. We developed an MLD model that combines the contributions of wind and convection. Forcings were considered within an 18 h window before each cast and the model provided a good agreement with the observations. Our results are consistent with [68], which found a better agreement between the MLD and the Ekman layer when the wind stress was considered 10–12 h beforehand. We obtained the best results using an 18 h window. We also included the impact of hourly buoyancy fluxes on the MLD. The good agreement with the observations suggests that wind and buoyancy forcings are the main drivers of mixing in this area. However, we identified overestimations due to convective terms when relatively low salinity layers were present below the MLD, which is not accounted for in the model. This suggests that the presence of such low salinity layers may inhibit convective penetration and contribute to the MLD. These layers often coincide with periods of intense runoffs, highlighting the connectivity between the LTER-MC station and freshwater sources along the coastline. The presence of turbidity patches in the subsurface layers, particularly during winter, may also be indicative of runoff discharging sediments at various coastal points after rainfalls (as described in [78]). The role of the wind in advecting these nutrient-rich waters, potentially influenced by mesoscale and sub-mesoscale features in the area (as described in [79]), remains to be explored.

4.3. How Turbulent Is the Coastal Environment?

By determining the MLD and timing and contributions of forcings, we were able to analyze the observations of ε in the surface and stratified layers (e.g., the average depths of the main baroclinic mode; the bottom layer) and periods (summer to autumn with moderate winds and buoyancy fluxes, and autumn to winter with stronger events). This allowed us to statistically characterize ε, as recently studied in the open ocean [80,81]. Our results showed that the dissipation rates in the mixed layer are more similar to a Burr XII distribution than a lognormal distribution. This warrants further investigation, as a lognormal behavior is typically expected for intermittent features such as these [38]. In general, our distributions show moderate values ( 10 9 10 8   W   kg 1 ) with few energetic occurrences (above 10 7   W   kg 1 ), indicating a relatively quiescent environment rather than fully isotropic turbulence. This may be due to the use of a small research vessel that did not allow for sampling in rough weather, leading to an underestimation of temporal intermittency. Additionally, observations were always performed in the morning, when buoyancy fluxes stabilize the water column, which may also contribute to the calm sea bias.

4.4. Is the Ocean Surface Boundary Layer (OSBL) Influenced by Coastal Boundaries?

The coastal environment may be less energetic than offshore conditions in the GoN, but the presence of both vertical (bottom layer) and horizontal (coastline) boundaries likely complicates the local motions and circulations, which may respond non-linearly to various forcings [82,83]. Evidence of sediment resuspension in a weakly tidal area, indicated by the presence of a turbid bottom layer with near-bottom peaks, suggests energetic processes between the MLD and the bottom boundary layer. This has been observed in shallow bays with distinct nepheloid layers produced by internal bores leading to breaking internal waves [84,85]. Processes such as resuspension due to bed shear stress caused by wind, waves, and currents (as described in [86]) need to be further investigated. Our observations of ε in the water column show a rich collection of peaks that are difficult to systematically link with other variables such as turbidity and chlorophyll. As a result, it is difficult to determine a single mixing depth as established in recent studies [75,87]. The vertical variability of ε observations prevented us from identifying a unique depth, as it exhibits many minima and maxima. This raises questions about the validity of the OSBL concept in coastal areas due to the proximity to the bottom. We identified the transitional layer thickness from the low buoyancy Reynolds number below the MLD, where vertical motions are suppressed by strong buoyancy (as described in [54]). During the seasonal cycle, this layer progressively mixes with the rest of the water column and eventually with the bottom layer. Instead of the typical four-layer structure (surface, transition, thermocline, bottom), the vertical structure in this area is more like a three-layer system (surface, transition, bottom) with stratified layers that mix during seasonal destratification, eventually forming a single mixed layer reaching the bottom in winter.

4.5. Which Processes Could We Miss?

Observations of ocean currents, fronts, and internal waves are lacking in our study, preventing us from understanding the velocity field, its bulk and fine-scale shears, and the horizontal fronts in more detail. Nevertheless, we can list here various processes of interest that could be investigated in the next studies with the help of current meters in surface and through the water column.
In such coastal areas, freshwater runoffs are expected to be of importance in straining the density fields, by stabilizing the water column and suppressing small-scale mixing [9]. In their recent work, ref. [88] identified two types of vertical structures prevailing in zones influenced by a river’s plume, very similar to the density profiles we observed during our survey. Moreover, in weakly tidal locations, the straining caused by the ebb tide is expected to be weaker and should be driven instead by the direct freshwater input from rivers, with a major role being given to the onshore or offshore wind that can retain or spread the fresh coastal flow [10].
In the absence of data, the influence of lateral density gradients was not considered in our study. It would be of importance in future studies to estimate the horizontal buoyancy gradient and the horizontal velocity field in order to quantify the relative importance of the lateral buoyancy flux (driven by wind or eddies) and the surface buoyancy flux due to heat transfer [89]. In this perspective, the role of wind and the precise tracking and quantification of fresh parcels should be investigated.
Internal waves may be a source of mixing, also supported by motions in Langmuir cells forced by the surface wave field [11,90]. The role of Langmuir cells in the wind–wave coupling needs further investigation in the Gulf of Naples, as the authors report observations in the surface near the coast under constant wind conditions (white streaks of nearly 300 m long, with clumps of floating algae).
Our results suggest the importance of the inertial response in the stratified layers. The vertical microscale shear events observed in the stratified layers of the water column may be caused by wind-driven inertial oscillations in the mixed layer, responding to the wind forcing that occurred 18 h before [68]. Recently, ref. [91] highlighted the role of coastal reflection in generating such wind-driven inertial oscillations, propagating offshore and intensifying the shear in the region below the mixed layer. In shallow waters, the presence of a bulk shear between the main flow and the bottom drag, combined with phase shifts due to surface wind stress between upper and lower layers of the water column, may enhance shear and lower the Richardson number, leading to instability through the shear spike mechanism [92,93]. This process may be amplified in coastal areas influenced by freshwater inputs due to the straining of the stratification caused by runoffs [10].
Bathymetry may also play a role in the GoN. Internal waves generated by current–topography interactions can radiate from the shelf toward the coast and affect the first two baroclinic modes [94]. The steep canyons in the GoN, particularly the Dohrn Canyon, may serve as a source for onshore propagating waves. The various bathymetric features near the coast, such as the Banco della Montagna, the Ammontatura channel, and the Mt. Somma–Vesuvius complex ([95], their Figure 1), may also contribute to current–topography interactions. In addition, the presence of Kelvin coastal trapped waves in the area has been proposed by [96].

4.6. Long-Term Time Series Completed by Weekly Snapshots of Microstructure Observations: Can We Improve the Coastal Modeling?

Our microstructure survey was part of the long-term monitoring of the coastal area of the Gulf of Naples by the Marechiara project which started in 1984 and has run until now. It provided a useful time series, from July 2015 to February 2016, with valuable insights about the seasonal cycle of stratification and dissipation in the GoN. These observations can be used to validate and improve models of the region. The general agreement with the model by Belcher et al. 2012 [62] encourages us to estimate the dissipation rates in the M L D from bulk parameters, available at the regional scale in a recent public re-analyzed dataset (ERA5, Copernicus [57]). These estimates can then be applied to longer time series to understand the inter-annual variability of the mixing in the GoN, and to relate it to the rich biological observations already available. Long-term observations of coastal areas such as the GoN are crucial for understanding the various processes at work and which ones may be the most sensitive to future climate change. Our study highlights the need for microstructure observations that cover a wide range of space and time scales [38]. Meeting these challenges in the future [39] will require the deployment of microstructure devices on moorings and wirewalker systems [97,98] or dedicated drifters like Argo floats [99]. The mechanisms driving convection, shear, and mixing at fine scales, which ultimately lead to the mixed layer deepening, can be significantly affected by long-term changes in heat, freshwater, and wind [100]. In conclusion, the GoN, as a shelf region with weak tides, is a suitable location to study processes less energetic than tides, such as internal waves or even double diffusion, in addition to the impact of global warming and increased stratification [3,101].

5. Conclusions

The measurement campaign in the Gulf of Naples (GoN) between July 2015 and February 2016 showed the seasonal deepening of the mixed layer, which was associated with intermittent dissipation rates of turbulent kinetic energy (from 10 9 to 10 7   W   k g 1 ). Wind stress, buoyancy fluxes, and waves were identified as the main forcings influencing the shallow waters of the GoN. Turbulence in the coastal environment is generally moderate, but the use of a small research vessel and the limited temporal coverage may have underestimated its intermittency. The GoN is also influenced by freshwater inputs, such as runoffs from the Sarno River and local pooling effects. The presence of low salinity layers below the mixed layer depth can inhibit convective mixing and contribute to setting the mixed layer depth. In terms of vertical structure, the water column at the LTER-MC point in the GoN may be better described as a three-layer system, rather than the typical four-layer system, with the stratified layers overlapping and forming a single mixed layer in winter. Future microstructure observations of ocean currents, fronts, internal waves, and Langmuir cells, as well as the stratification response to storms and the role of wind in advecting nutrient-rich waters, will improve our understanding of the processes at work in the GoN.

Author Contributions

Conceptualization, F.K., F.C., D.I., B.F. and P.B.-A.; methodology, F.K., B.F. and P.B.-A.; software, F.K. and B.F.; validation, F.K. and B.F.; formal analysis, F.K., D.I., B.F. and P.B.-A.; investigation, F.K.; resources, F.C. and D.I.; data curation, F.C. and F.K.; writing—original draft preparation, F.K., B.F., P.B.-A. and D.I.; writing—review and editing, F.K., B.F., P.B.-A. and D.I.; visualization, F.K.; supervision, D.I. and F.C.; project administration, F.C. and D.I.; funding acquisition, F.C. and D.I. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Stazione Zoologica Anton Dohrn. The research program LTER-MC is supported by the Stazione Zoologica Anton Dohrn.

Data Availability Statement

The ocean in-situ microstructure data that support the findings of this study are available online under netcdf format on https://zenodo.org/record/4306862#.X8qt8bIReHo, accessed on 6 July 2022, (DOI: 10.5281/zenodo.4306861), or from the corresponding author, F.K., upon request. The external data that support this study are openly available: ERA5 ECMWF reanalysis for the global climate and weather (https://doi.org/10.24381/cds.adbb2d47, accessed on 6 July 2022); the River discharge and related historical data from the European Flood Awareness System (https://doi.org/10.24381/cds.e3458969, accessed on 6 July 2022). A preliminary version of this study is still available as a pre-print on the Earth and Space Science Open Archive https://www.essoar.org/doi/10.1002/essoar.10505074.3, accessed on 6 July 2022.

Acknowledgments

We would like to thank all the LTER-MC team. Special thanks must be given to the commandants and crews of the R/V Vettoria. And we are grateful to Justine Mc Millan from Rockland Scientific International, thanks to her for all the support, help, and insights she provided to help release this study.

Conflicts of Interest

The authors declare no conflict of interest.
