# A Numerical Performance Analysis of a Rim-Driven Turbine in Real Flow Conditions

^{1}

^{2}

^{*}

## Abstract

**:**

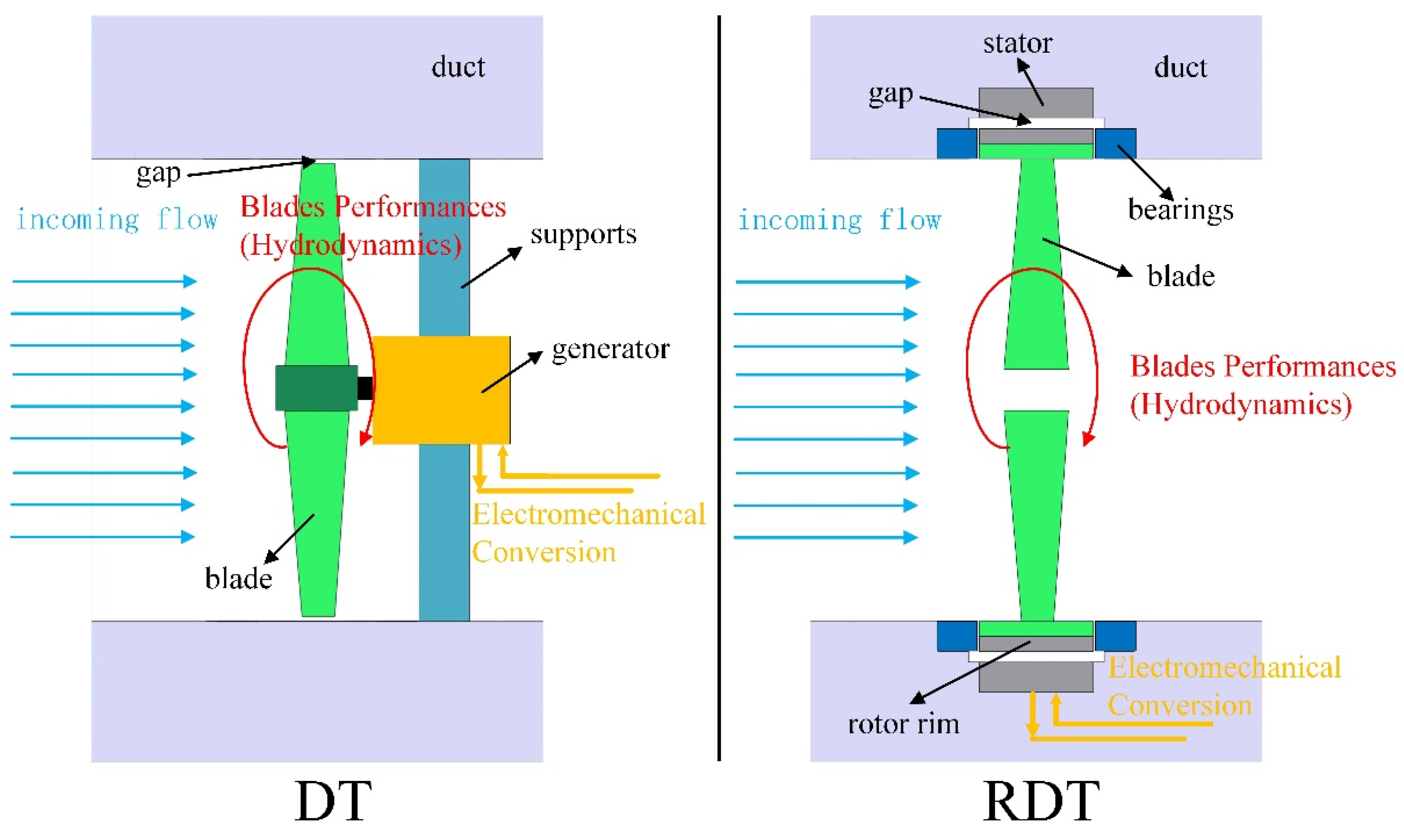

## 1. Introduction

## 2. Numerical Methods

#### 2.1. General Features

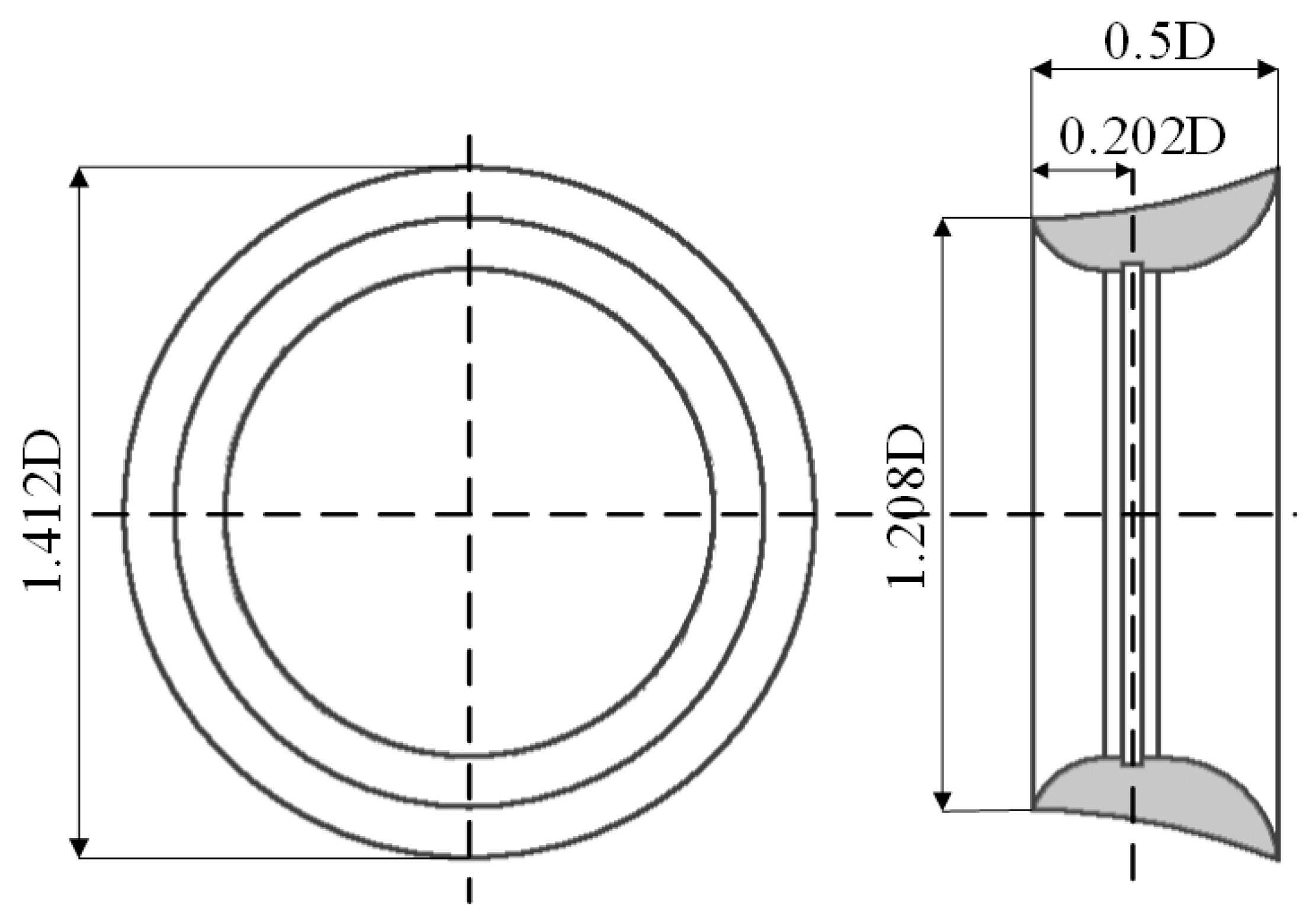

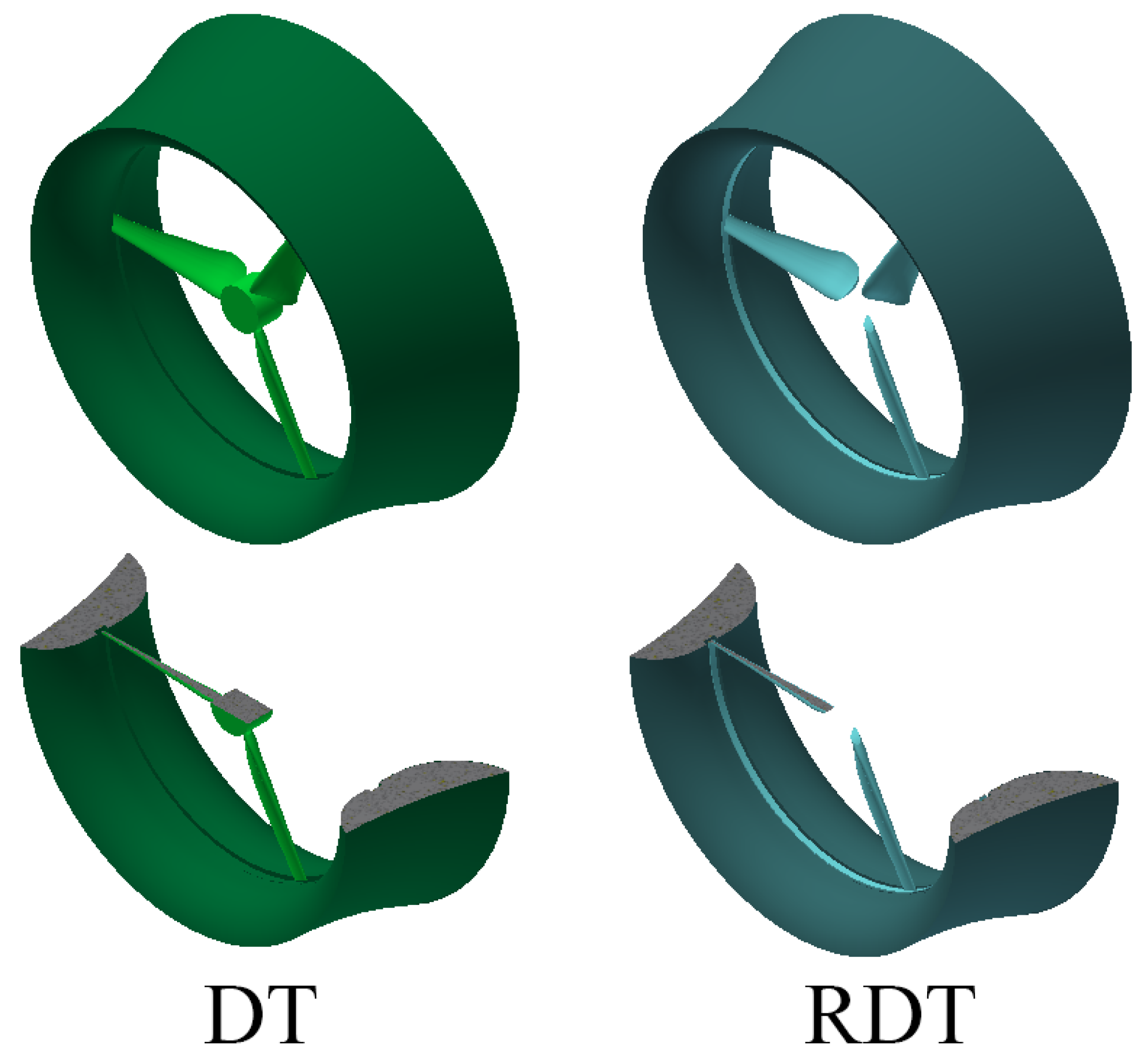

#### 2.2. Turbine Model

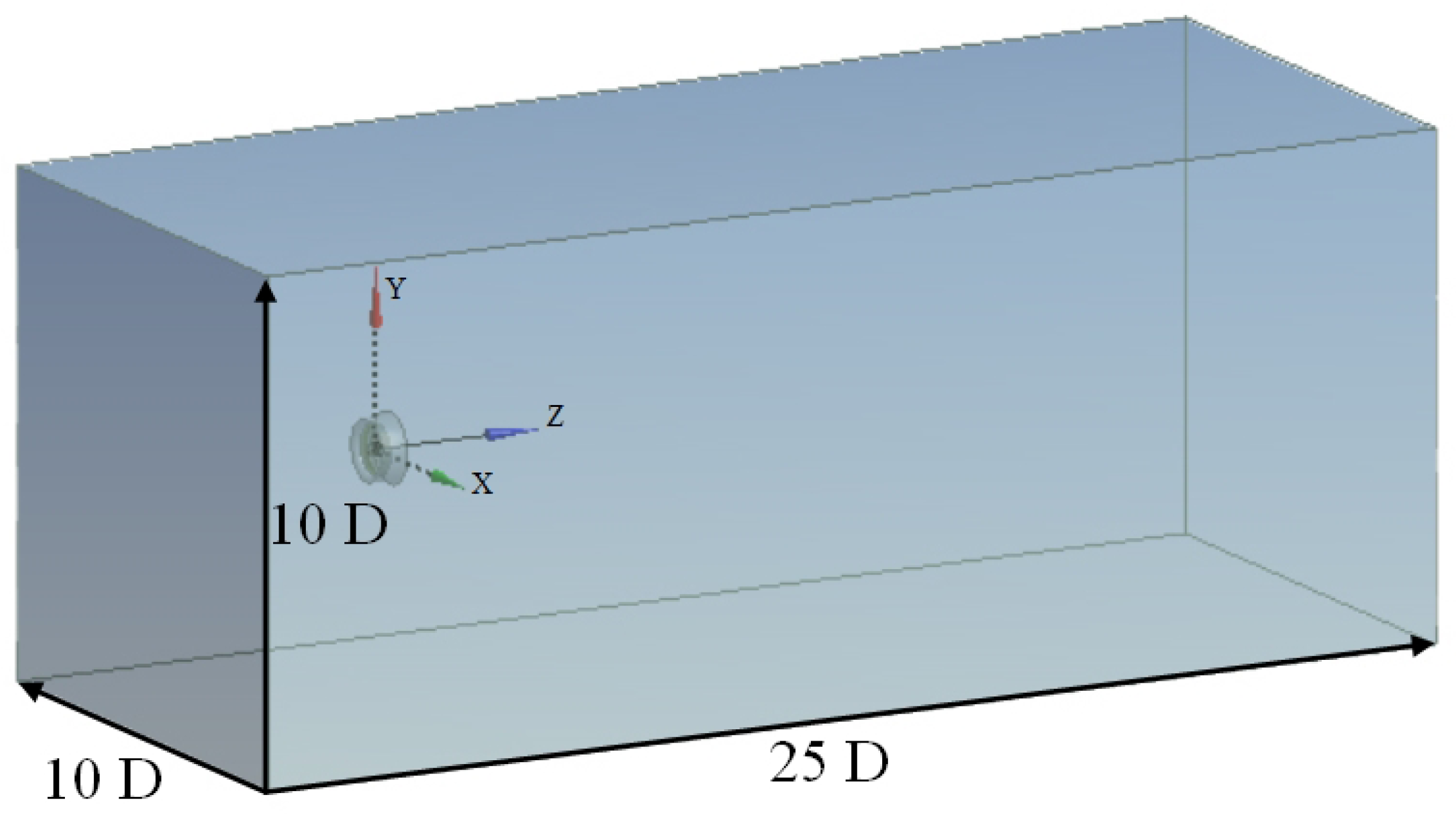

#### 2.3. Computational Domain

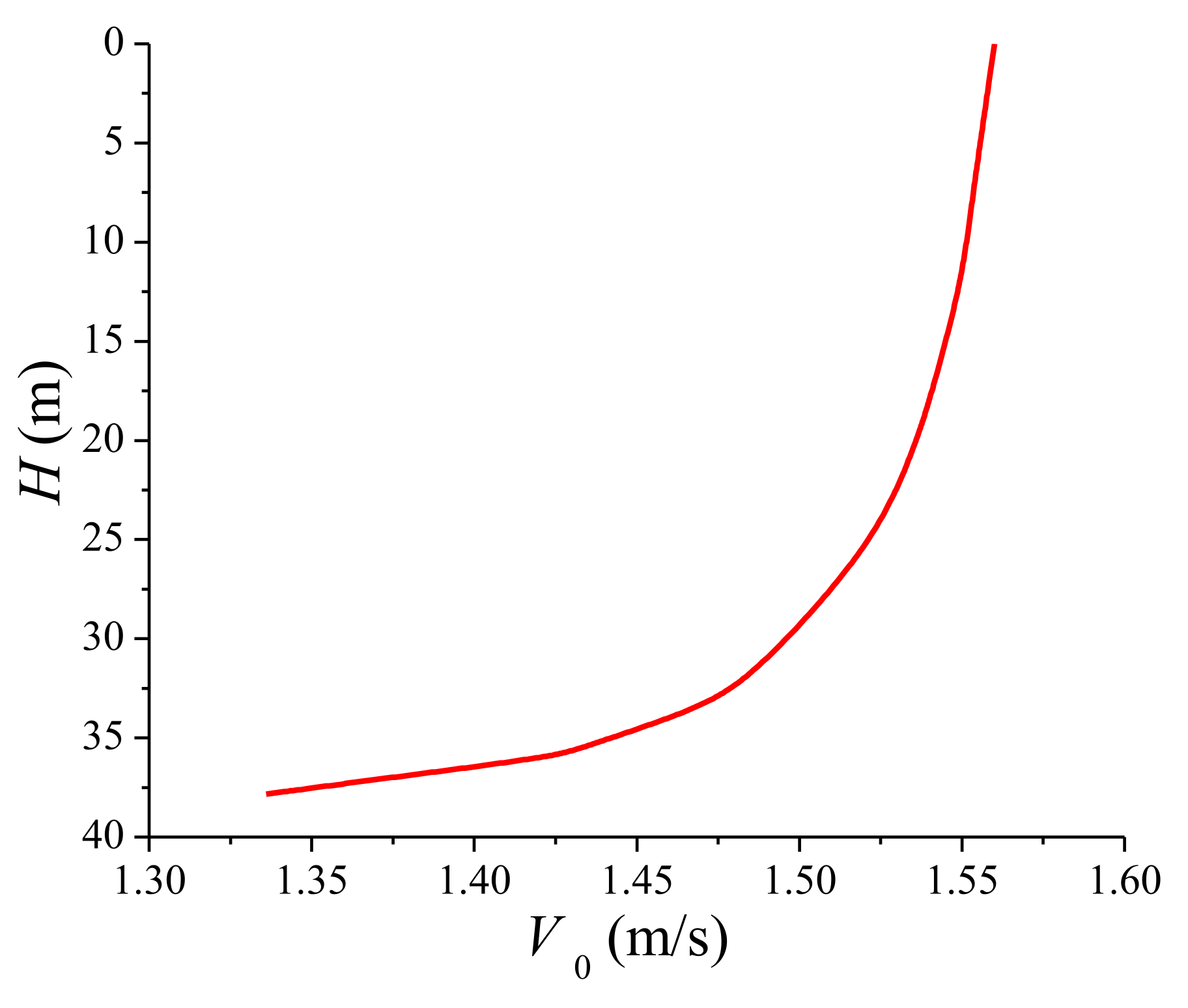

#### 2.4. Boundary Conditions

#### 2.5. Mesh Generation

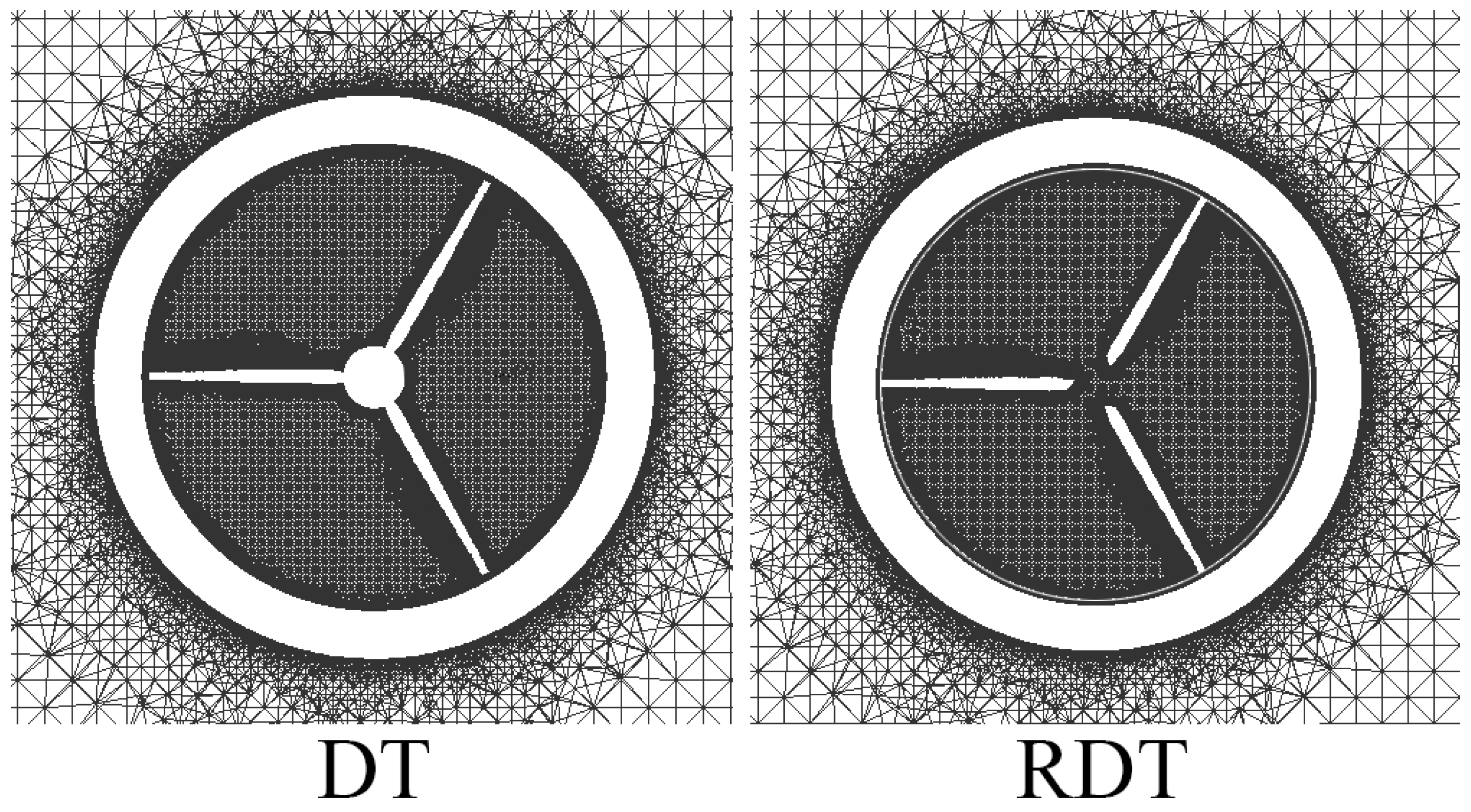

^{6}. The prism layers are placed on the rotor and duct surface with smooth transition normal to the walls. The first layer height satisfies ${\mathrm{y}}^{+}=1$ condition and 10 prism layers are placed. The mesh detail on the DT and RDT are shown in Figure 7. A mesh independence assessment of three sets of meshes on RDT at 1.56 m/s and $TSR$ = 4.0 is shown in Table 1, which is carried out by analyzing ${C}_{P}$ and ${C}_{T}$. With the refinement of the mesh, the deviation becomes much smaller. The set of 8.5 million is selected for the subsequent calculations due to the consideration of calculation accuracy and efficiency.

#### 2.6. Numerical Model Validation

## 3. Results and Discussion

#### 3.1. Power and Thrust

#### 3.2. Performance Fluctuation Characteristics

#### 3.3. Wake Characteristics

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Alotaibi, I.; Abido, M.A.; Khalid, M.; Savkin, A.V. A comprehensive review of recent advances in smart grids: A sustainable future with renewable energy resources. Energies
**2020**, 13, 6269. [Google Scholar] [CrossRef] - Ellabban, O.; Abu-Rub, H.; Blaabjerg, F. Renewable energy resources: Current status, future prospects and their enabling technology. Renew. Sustain. Energy Rev.
**2014**, 39, 748–764. [Google Scholar] [CrossRef] - Chen, L.; Li, W.; Li, J.; Fu, Q.; Wang, T. Evolution Trend Research of Global Ocean Power Generation Based on a 45-Year Scientometric Analysis. J. Mar. Sci. Eng.
**2021**, 9, 218. [Google Scholar] [CrossRef] - Khan, M.J.; Bhuyan, G.; Iqbal, M.T.; Quaicoe, J.E. Hydrokinetic energy conversion systems and assessment of horizontal and vertical axis turbines for river and tidal applications: A technology status review. Appl. Energy
**2009**, 86, 1823–1835. [Google Scholar] [CrossRef] - Vermaak, H.J.; Kusakana, K.; Koko, S.P. Status of micro-hydrokinetic river technology in rural applications: A review of literature. Renew. Sustain. Energy Rev.
**2014**, 29, 625–633. [Google Scholar] [CrossRef] - Olczak, A.; Stallard, T.; Feng, T.; Stansby, P.K. Comparison of a rans blade element model for tidal turbine arrays with labor-atory scale measurements of wake velocity and rotor thrust. J. Fluids Struct.
**2016**, 64, 87–106. [Google Scholar] [CrossRef] - Magagna, D.; Monfardini, R.; Uihlein, A. JRC Ocean Energy Status Report; Publications Office of the European Union: Copenhagen, Denmark, 2016. [Google Scholar]
- Nachtane, M.; Tarfaoui, M.; Goda, I.; Rouway, M. A review on the technologies, design considerations and numerical models of tidal current turbines. Renew. Energy
**2020**, 157, 1274–1288. [Google Scholar] [CrossRef] - Walker, S.; Thies, P.R. A review of component and system reliability in tidal turbine deployments. Renew. Sustain. Energy Rev.
**2021**, 151, 111495. [Google Scholar] [CrossRef] - Liu, P.; Veitch, B. Design and optimization for strength and integrity of tidal turbine rotor blades. Energy
**2012**, 46, 393–404. [Google Scholar] [CrossRef] - Zhu, F.W.; Ding, L.; Huang, B.; Bao, M.; Liu, J.T. Blade design and optimization of a horizontal axis tidal turbine. Ocean Eng.
**2020**, 195, 106652. [Google Scholar] [CrossRef] - Creech, A.C.; Borthwick, A.G.; Ingram, D. Effects of support structures in an LES actuator line model of a tidal turbine with contra-rotating rotors. Energies
**2017**, 10, 726. [Google Scholar] [CrossRef] - Nan, D.; Shigemitsu, T.; Zhao, S.; Ikebuchi, T.; Takeshima, Y. Study on performance of contra-rotating small hydro-turbine with thinner blade and longer front hub. Renew. Energy
**2018**, 117, 184–192. [Google Scholar] [CrossRef] - Huang, B.; Zhu, G.J.; Kanemoto, T. Design and performance enhancement of a bi-directional counter-rotating type horizontal axis tidal turbine. Ocean Eng.
**2016**, 128, 116–123. [Google Scholar] [CrossRef] - Baratchi, F.; Jeans, T.L.; Gerber, A.G. Assessment of blade element actuator disk method for simulations of ducted tidal turbines. Renew. Energy
**2020**, 154, 290–304. [Google Scholar] [CrossRef] - Allsop, S.; Peyrard, C.; Bousseau, P.; Thies, P. Adapting conventional tools to analyse ducted and open centre tidal stream turbines. Int. Mar. Energy J.
**2018**, 1, 91–99. [Google Scholar] [CrossRef] - Rezek, T.J.; Camacho, R.; Filho, N.M.; Limacher, E.J. Design of a Hydrokinetic Turbine Diffuser Based on Optimization and Computational Fluid Dynamics. Appl. Ocean Res.
**2020**, 107, 102484. [Google Scholar] [CrossRef] - Tampier, G.; Troncoso, C.; Zilic, F. Numerical analysis of a diffuser-augmented hydrokinetic turbine. Ocean Eng.
**2017**, 145, 138–147. [Google Scholar] [CrossRef] - Yan, X.; Liang, X.; Ouyang, W.; Liu, Z.; Liu, B.; Lan, J. A review of progress and applications of ship shaft-less rim-driven thrusters. Ocean Eng.
**2017**, 144, 142–156. [Google Scholar] [CrossRef] - Gaggero, S. Numerical design of a RIM-driven thruster using a RANS-based optimization approach. Appl. Ocean Res.
**2020**, 94, 101941. [Google Scholar] [CrossRef] - Dubas, A.J.; Bressloff, N.W.; Sharkh, S.M. Numerical modelling of rotor–stator interaction in rim driven thrusters. Ocean Eng.
**2015**, 106, 281–288. [Google Scholar] [CrossRef] [Green Version] - Liang, X.; Yan, X.; Ouyang, W.; Liu, Z. Experimental research on tribological and vibration performance of water-lubricated hydrodynamic thrust bearings used in marine shaft-less rim driven thrusters. Wear
**2019**, 426, 778–791. [Google Scholar] [CrossRef] - Borg, M.G.; Xiao, Q.; Allsop, S.; Incecik, A.; Peyrard, C. A numerical performance analysis of a ducted, high-solidity tidal turbine. Renew. Energy
**2020**, 159, 663–682. [Google Scholar] [CrossRef] - Borg, M.G.; Xiao, Q.; Allsop, S.; Incecik, A.; Peyrard, C. A numerical structural analysis of ducted, high-solidity, fibre-composite tidal turbine rotor configurations in real flow conditions. Ocean Eng.
**2021**, 233, 109087. [Google Scholar] [CrossRef] - Song, K.; Yang, B. A Comparative Study on the Hydrodynamic-Energy Loss Characteristics between a Ducted Turbine and a Shaftless Ducted Turbine. J. Mar. Sci. Eng.
**2021**, 9, 930. [Google Scholar] [CrossRef] - Djebarri, S.; Charpentier, J.F.; Scuiller, F.; Benbouzid, M. Design and performance analysis of double stator axial flux PM generator for rim driven marine current turbines. IEEE J. Ocean. Eng.
**2015**, 41, 50–66. [Google Scholar] - Djebarri, S.; Charpentier, J.F.; Scuiller, F.; Benbouzid, M. Comparison of direct-drive PM generators for tidal turbines. In Proceedings of the International Power Electronics and Application Conference and Exposition, Shanghai, China, 20–22 November 2014. [Google Scholar]
- Feng, B.; Liu, X.; Ying, Y.; Si, Y.; Zhang, D.; Qian, P. Research on the tandem arrangement of the ducted horizontal-axis tidal turbine. Energy Convers. Manag.
**2022**, 258, 115546. [Google Scholar] - Open Hydro Ltd. Cape Sharp Tidal, Bay of Fundy, Nova Scotia, Canada. Available online: http://www.openhydro.com/Projects (accessed on 1 March 2018).
- Song, K.; Wang, W.; Yan, Y. Numerical and experimental analysis of a diffuser-augmented micro-hydro turbine. Ocean Eng.
**2018**, 171, 590–602. [Google Scholar] [CrossRef] - Jiang, X.; Wang, S.; Si, X.; Yuan, P.; Tan, J. Tidal stream characteristic analysis and micro-sitting selection in sea area around Zhaitang island. Acta Energ. Sol. Sin.
**2018**, 39, 892–899. (In Chinese) [Google Scholar] - Menter, F.R. Two-equation eddy-viscosity turbulence models for engineering applications. AIAA J.
**1994**, 32, 1598–1605. [Google Scholar] [CrossRef] - Alipour, R.; Alipour, R.; Fardian, F.; Tahan, M.H. Optimum performance of a horizontal axis tidal current turbine: A numerical parametric study and experimental validation. Energy Convers. Manag.
**2022**, 258, 115533. [Google Scholar] [CrossRef] - Lee, H.; Lee, D.J. Wake impact on aerodynamic characteristics of horizontal axis wind turbine under yawed flow conditions. Renew. Energy
**2019**, 136, 383–392. [Google Scholar] [CrossRef]

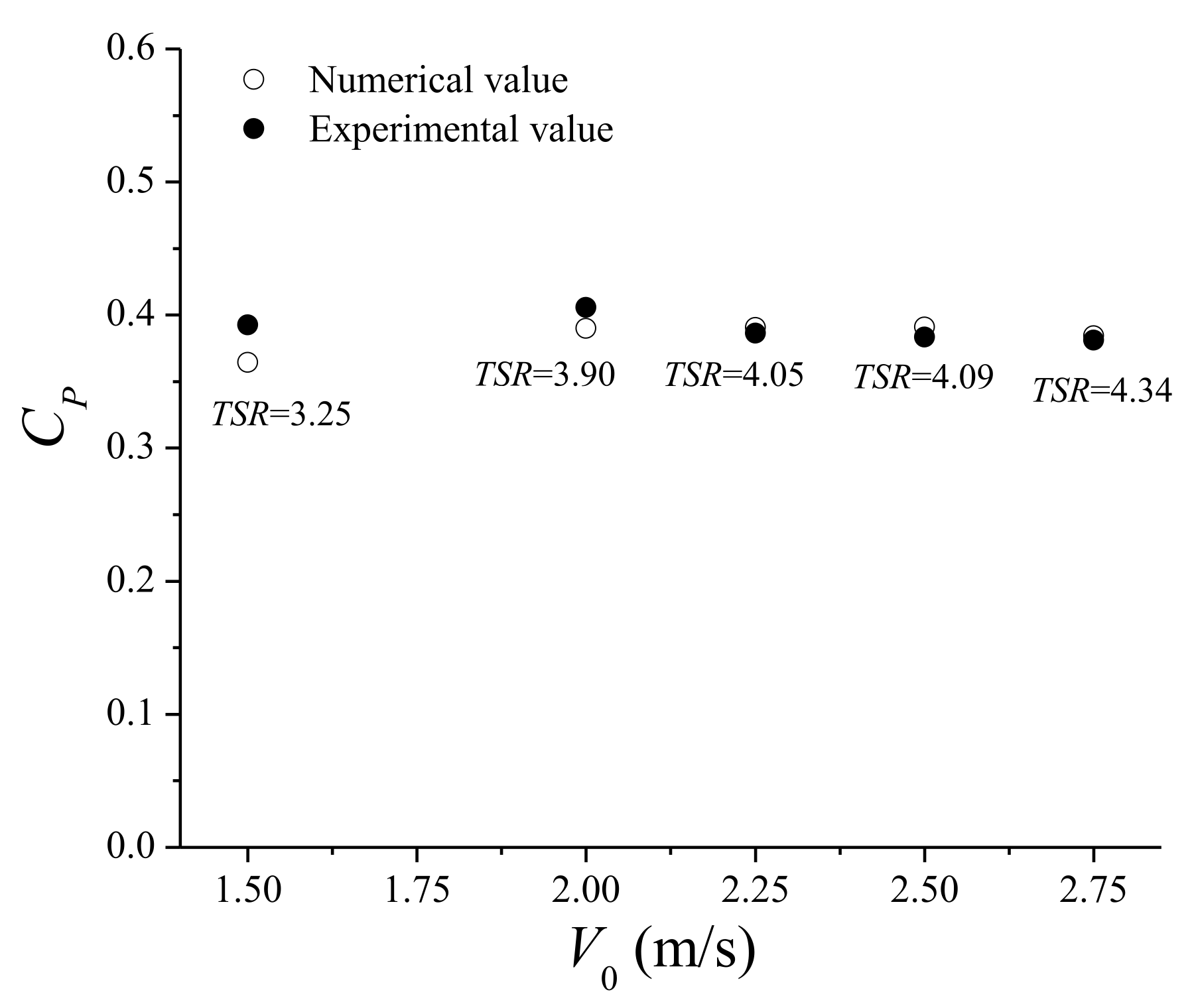

**Figure 8.**Computational model validation with experimental data at different values of current velocity and $TSR$.

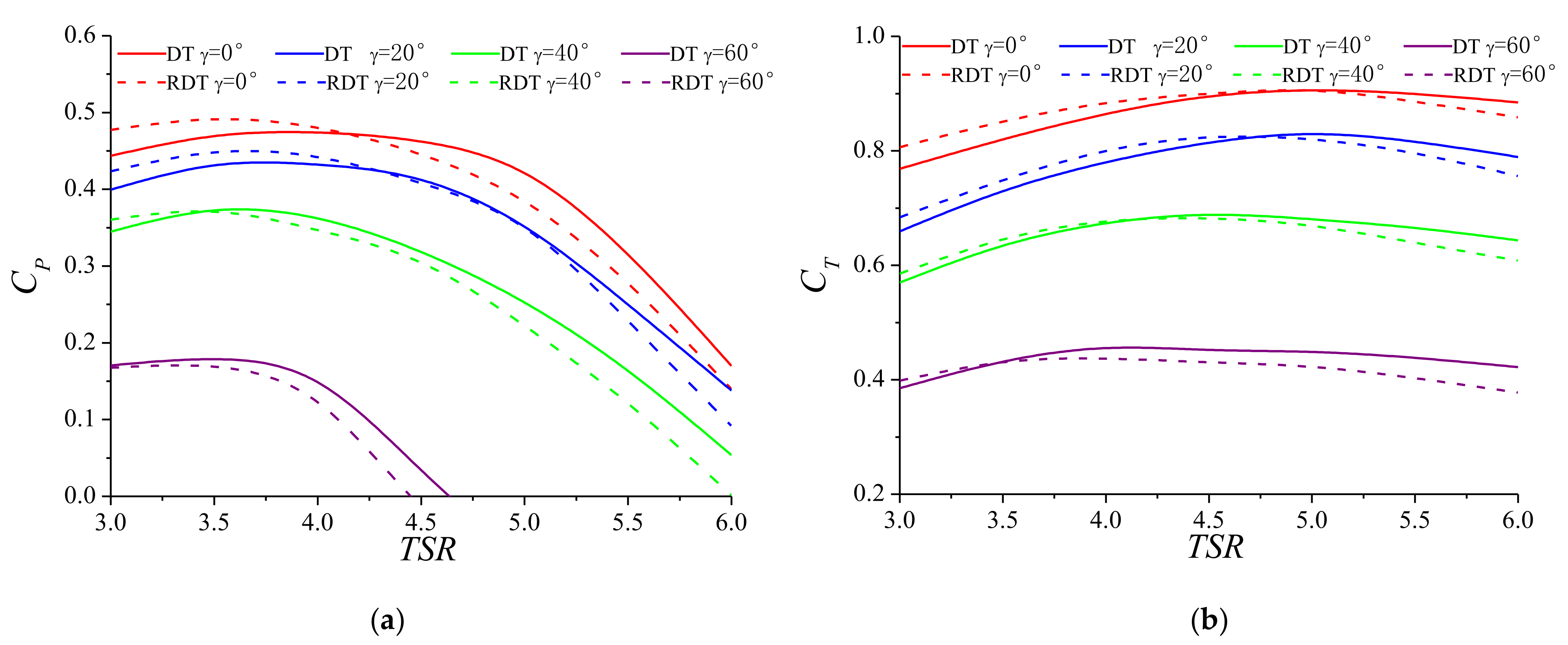

**Figure 9.**${C}_{P}$ and ${C}_{T}$ versus $TSR$ for the two configurations: (

**a**) ${C}_{P}$; (

**b**) ${C}_{T}$.

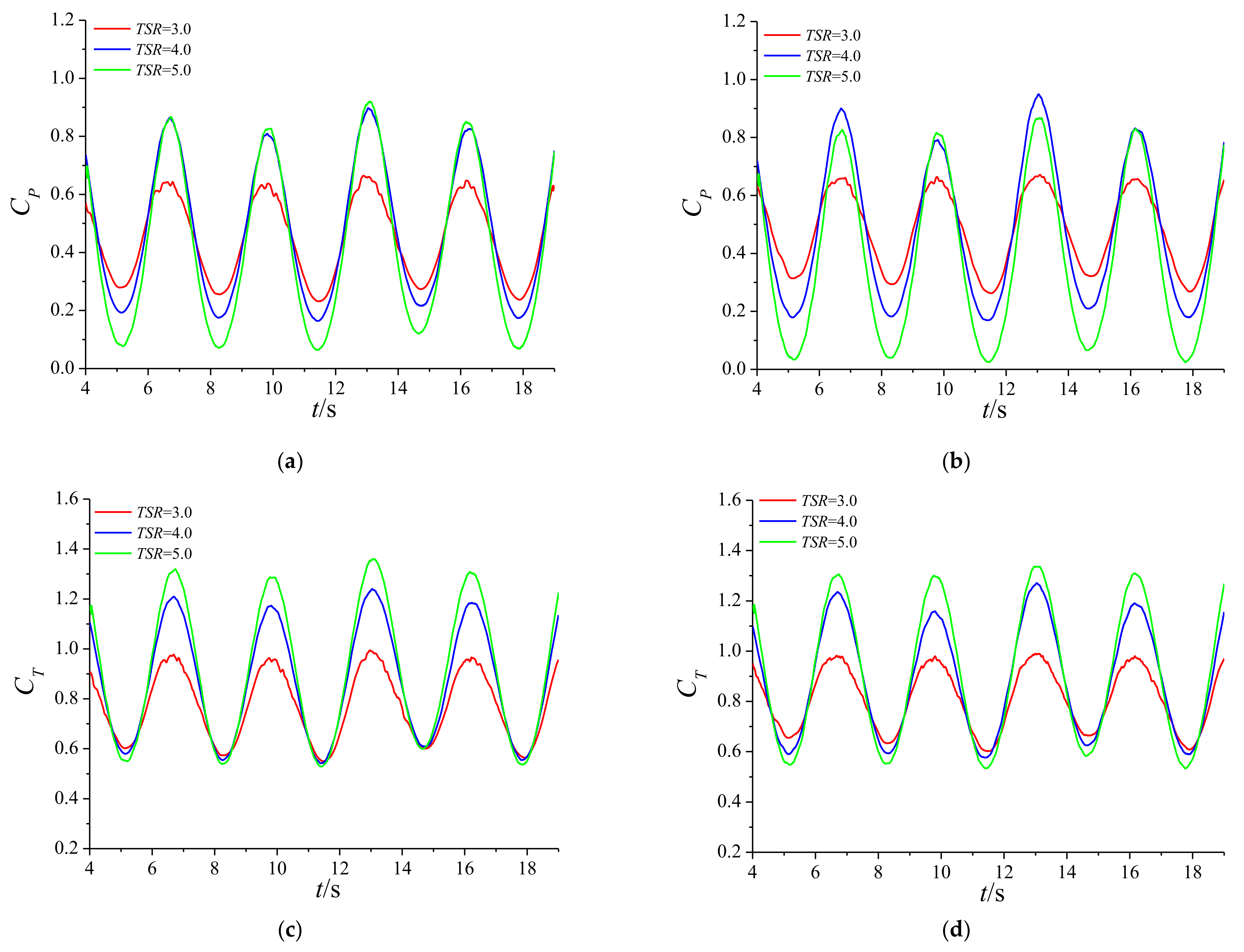

**Figure 10.**Time histories of ${C}_{P}$ and ${C}_{T}$ for the two configurations at different values of $TSR$: (

**a**) ${C}_{P}$ for DT; (

**b**) ${C}_{P}$ for RDT; (

**c**) ${C}_{T}$ for DT; (

**d**) ${C}_{T}$ for RDT.

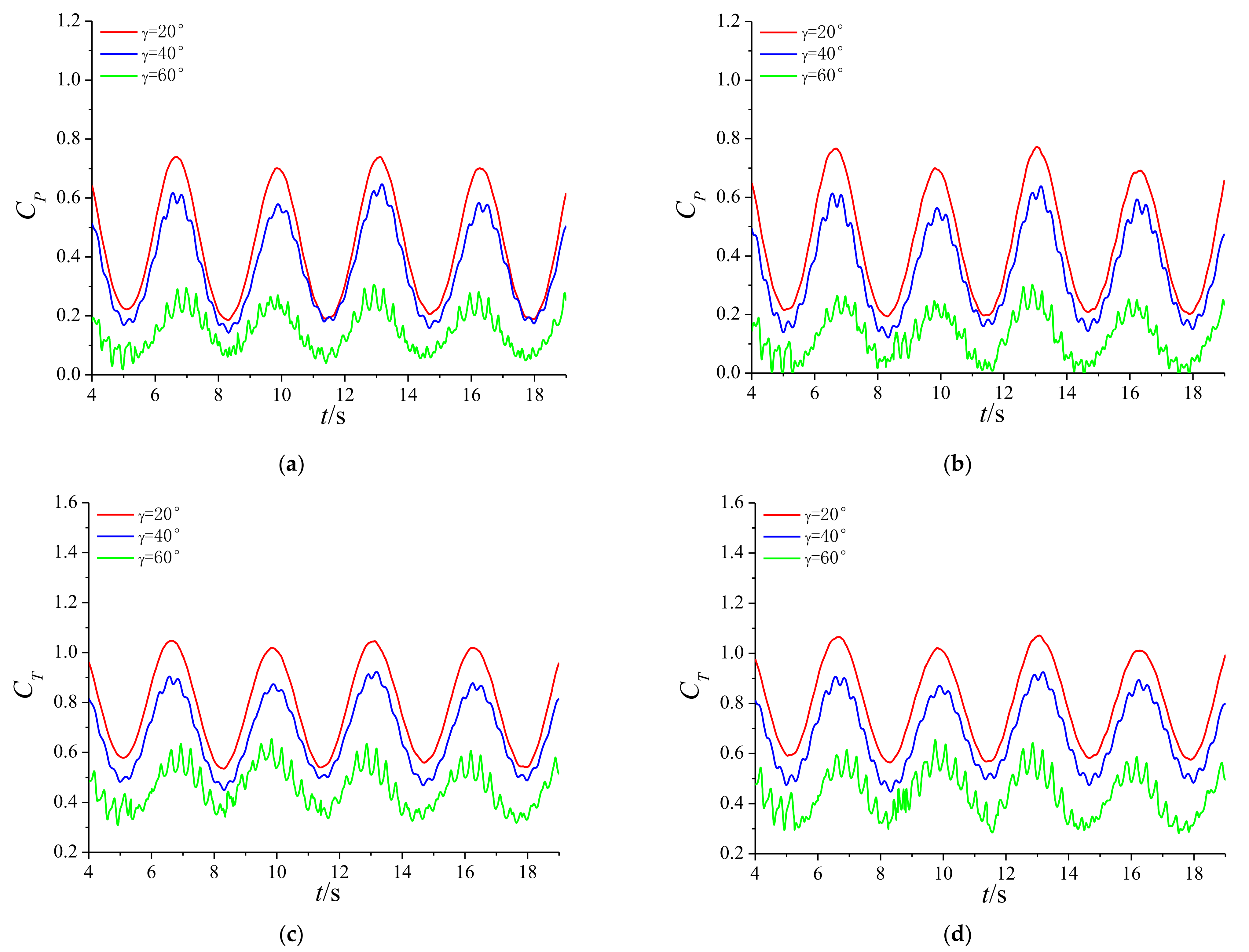

**Figure 11.**Time histories of ${C}_{P}$ and ${C}_{T}$ for the two configurations at different values of $\gamma $: (

**a**) ${C}_{P}$ for DT; (

**b**) ${C}_{P}$ for RDT; (

**c**) ${C}_{T}$ for DT; (

**d**) ${C}_{T}$ for RDT.

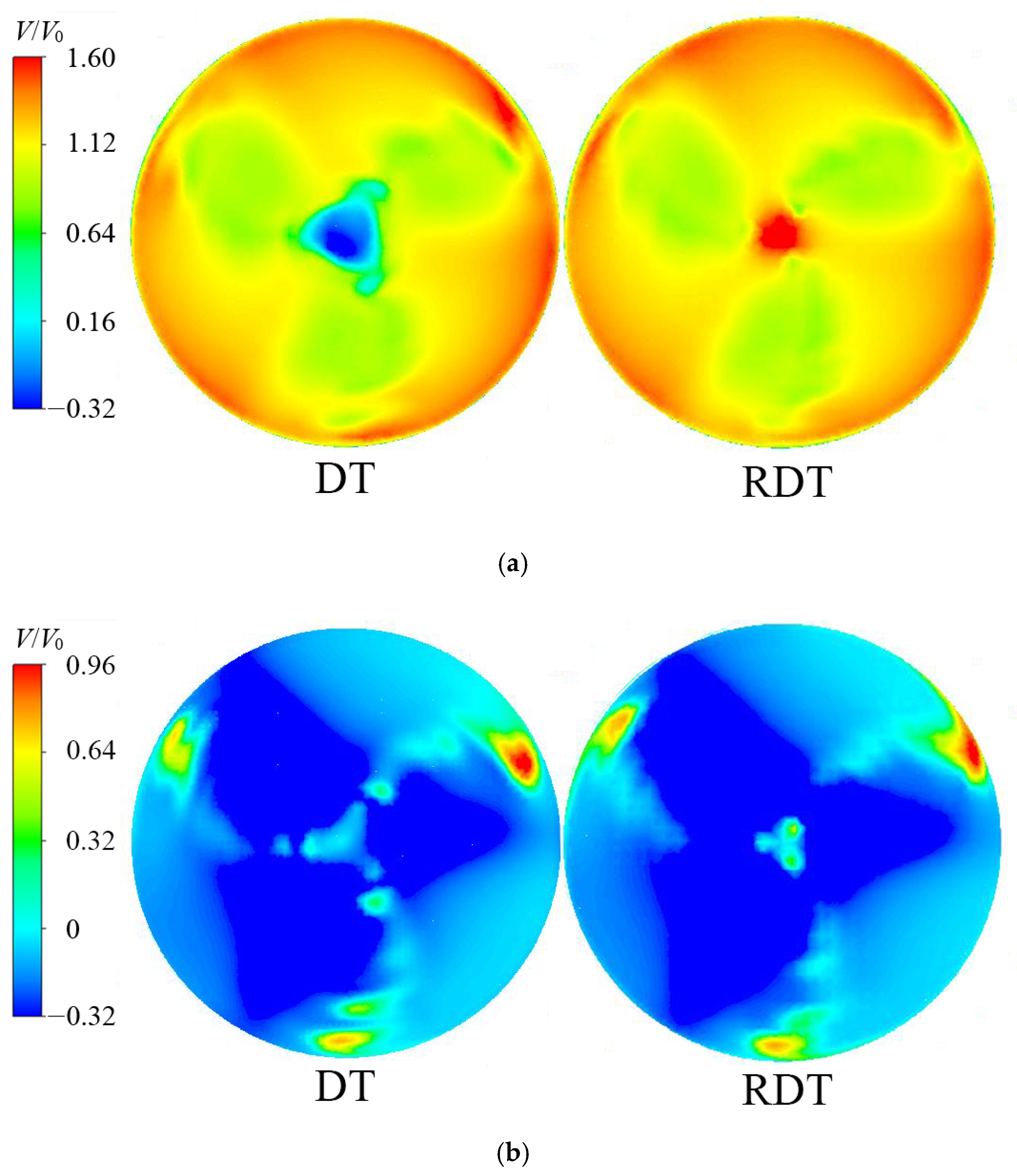

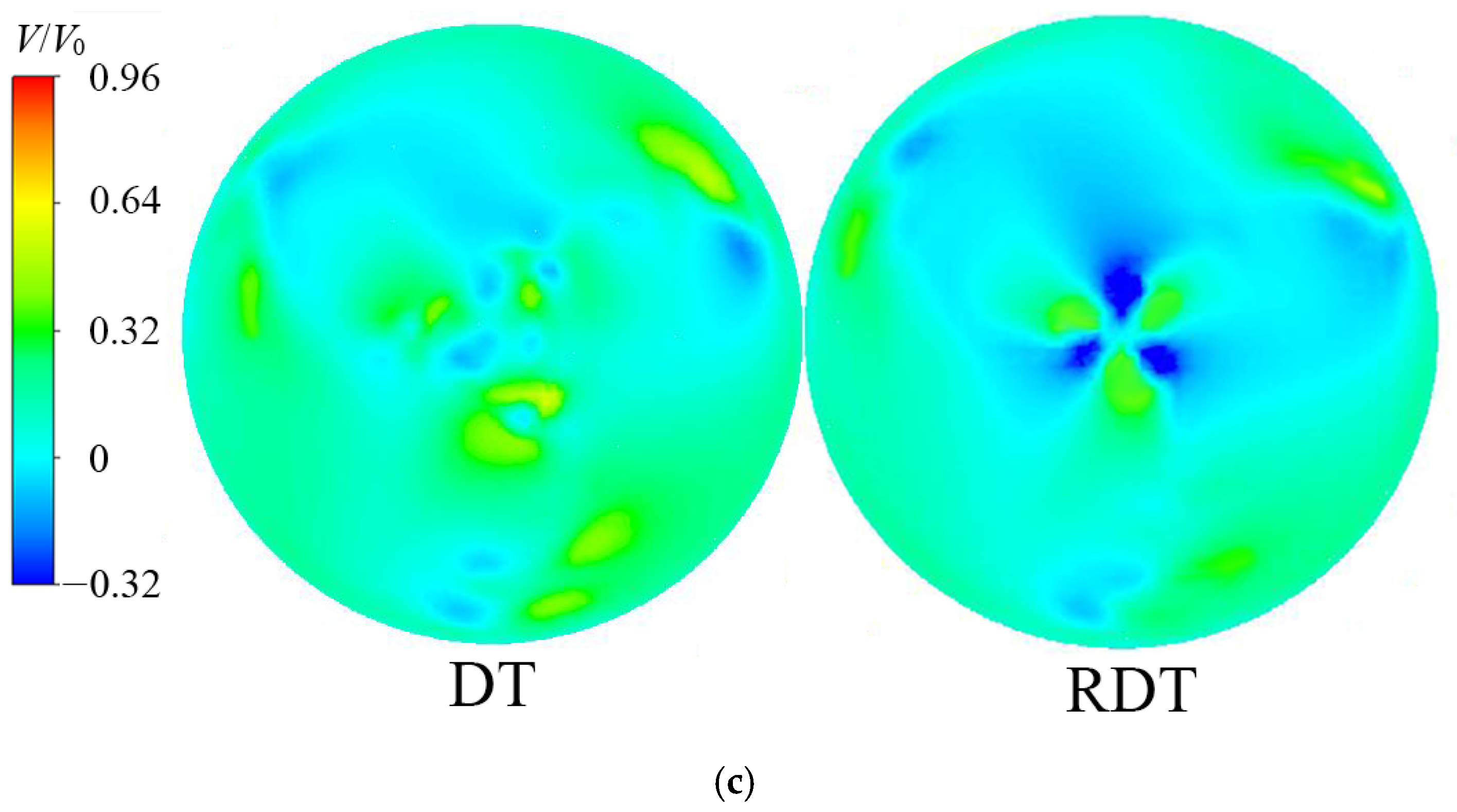

**Figure 12.**Velocity component contours for the two configurations in the x-y plane of z/D = 0.1: (

**a**) axial velocity contours; (

**b**) tangential velocity contours; (

**c**) radial velocity contours.

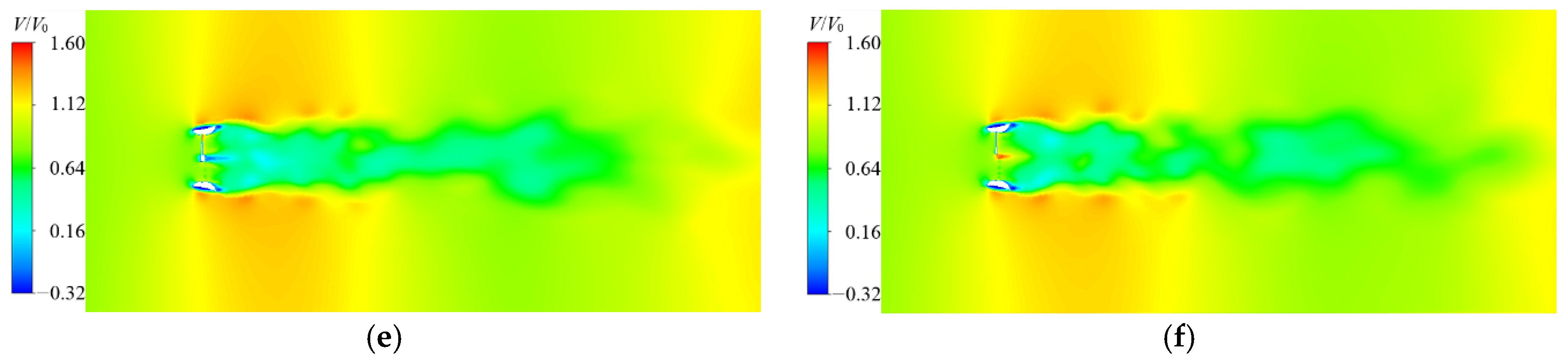

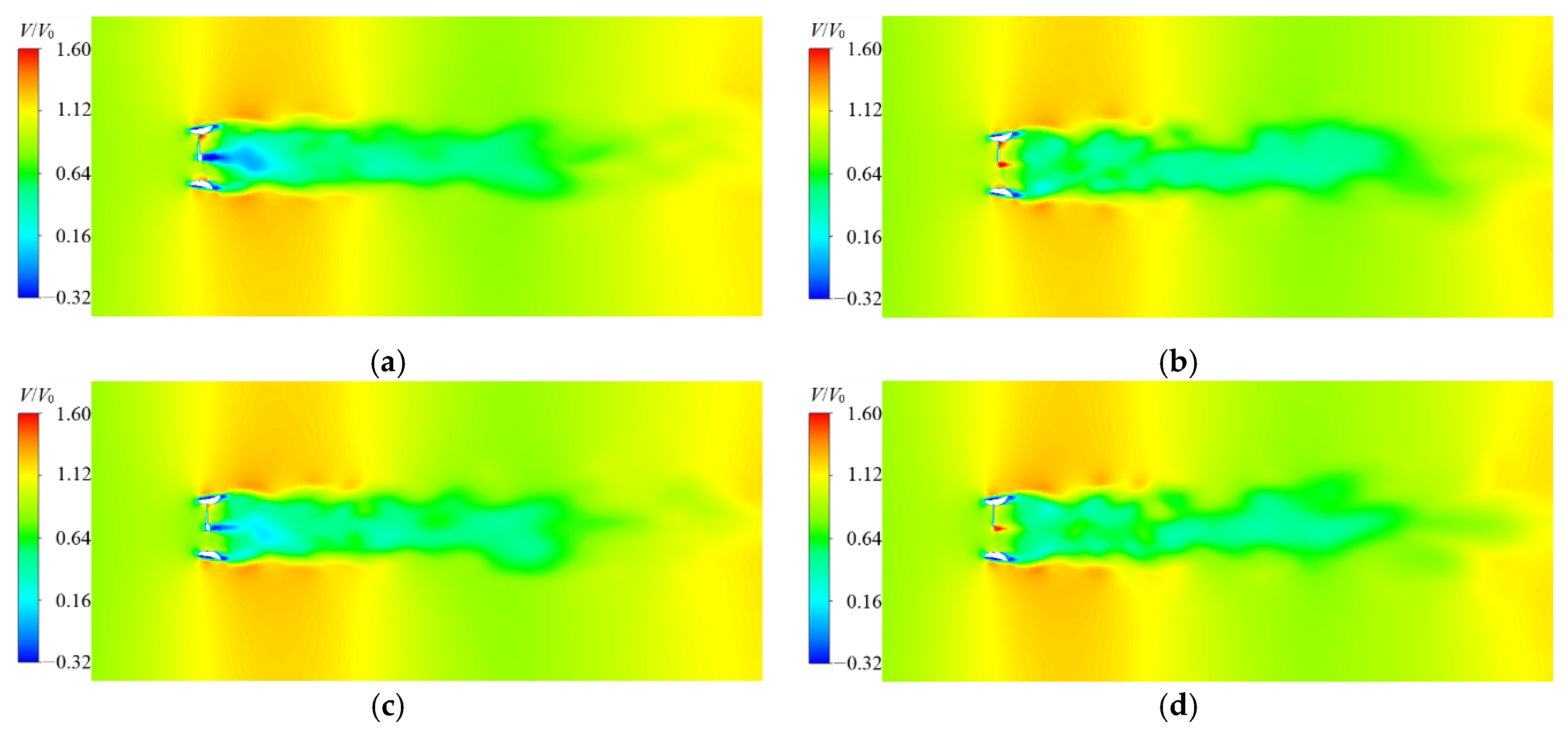

**Figure 13.**Axial velocity contours for the two configurations in the central x-z plane: (

**a**) DT for $TSR$ = 3.0; (

**b**) RDT for $TSR$ = 3.0; (

**c**) DT for $TSR$ = 4.0; (

**d**) RDT for $TSR$ = 4.0; (

**e**) DT for $TSR$ = 5.0; (

**f**) RDT for $TSR$ = 5.0.

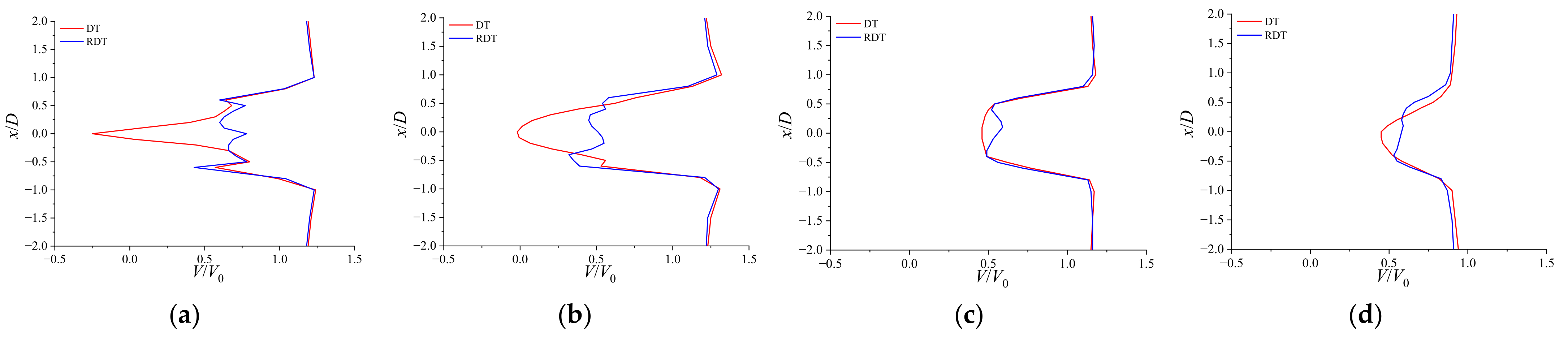

**Figure 14.**Profiles of mean streamwise velocity for $TSR$ = 3.0 at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

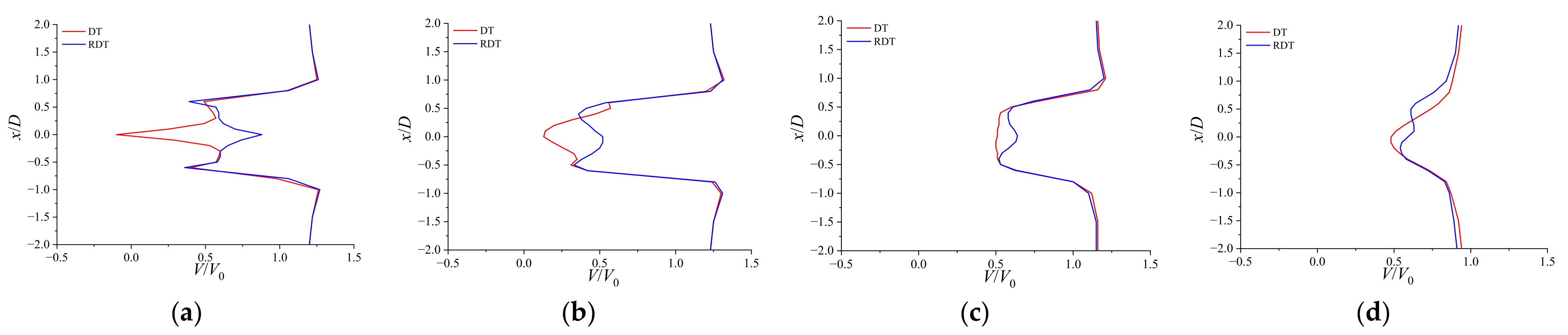

**Figure 15.**Profiles of mean streamwise velocity for $TSR$ = 4.0 at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

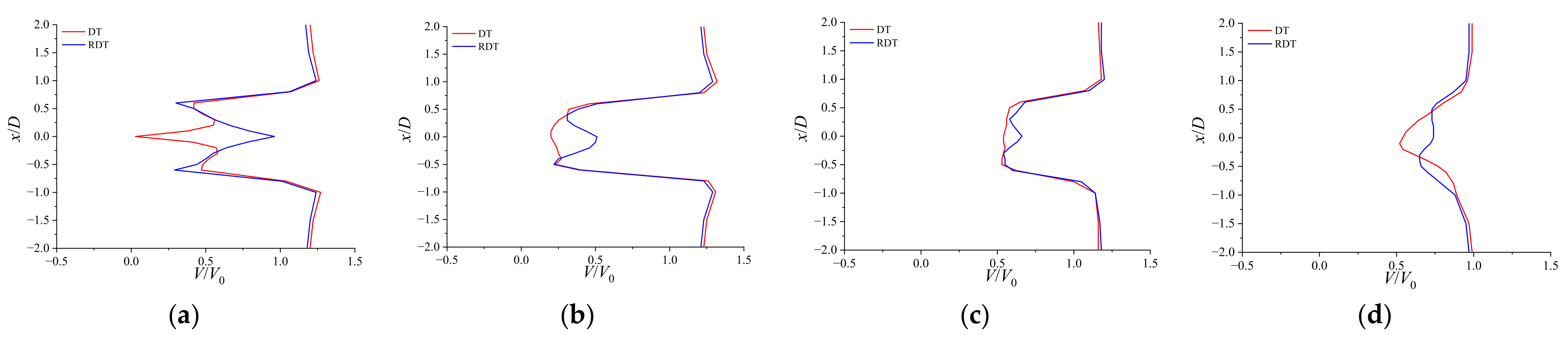

**Figure 16.**Profiles of mean streamwise velocity for $TSR$ = 5.0 at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

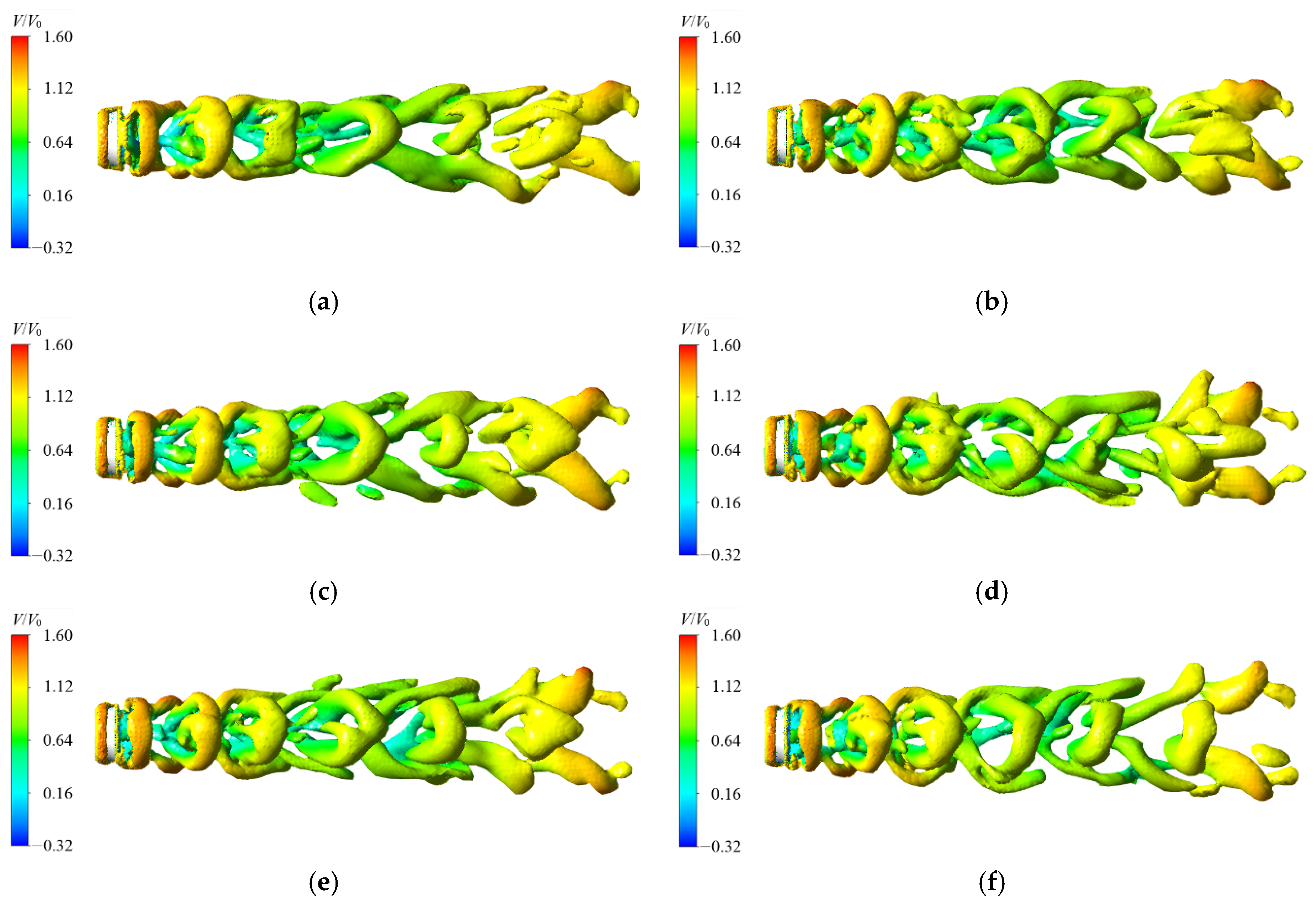

**Figure 17.**Vorticity Iso-surfaces colored by velocity for the two configurations: (

**a**) DT for $TSR$ = 3.0; (

**b**) RDT for $TSR$ = 3.0; (

**c**) DT for $TSR$ = 4.0; (

**d**) RDT for $TSR$ = 4.0; (

**e**) DT for $TSR$ = 5.0; (

**f**) RDT for $TSR$ = 5.0.

**Figure 18.**Axial velocity contours for the two configurations in the central x-z plane: (

**a**) DT for $\gamma $ = 20°; (

**b**) RDT for $\gamma $ = 20°; (

**c**) DT for $\gamma $ = 40°; (

**d**) RDT for $\gamma $ = 40°; (

**e**) DT for $\gamma $ = 60°; (

**f**) RDT for $\gamma $ = 60°.

**Figure 19.**Profiles of mean streamwise velocity for $\gamma $ = 20° at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

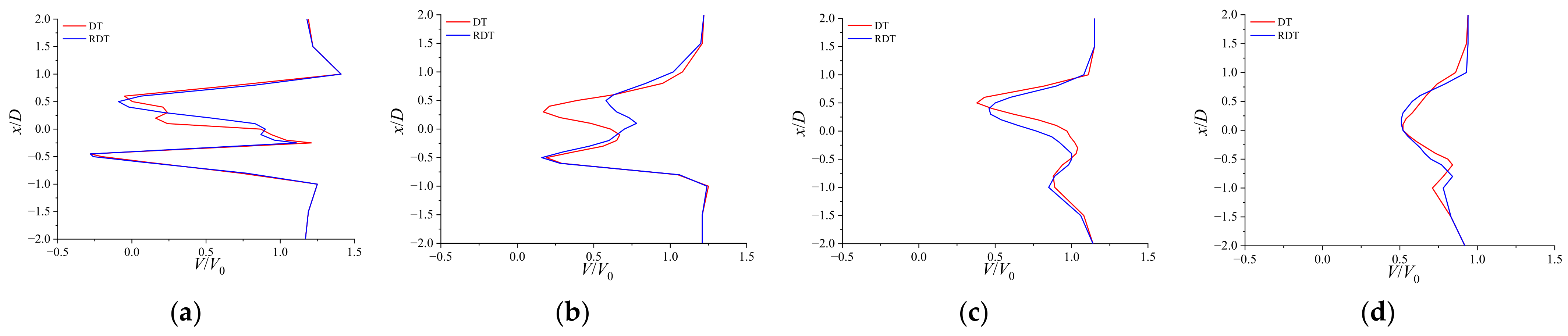

**Figure 20.**Profiles of mean streamwise velocity for $\gamma $ = 40° at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

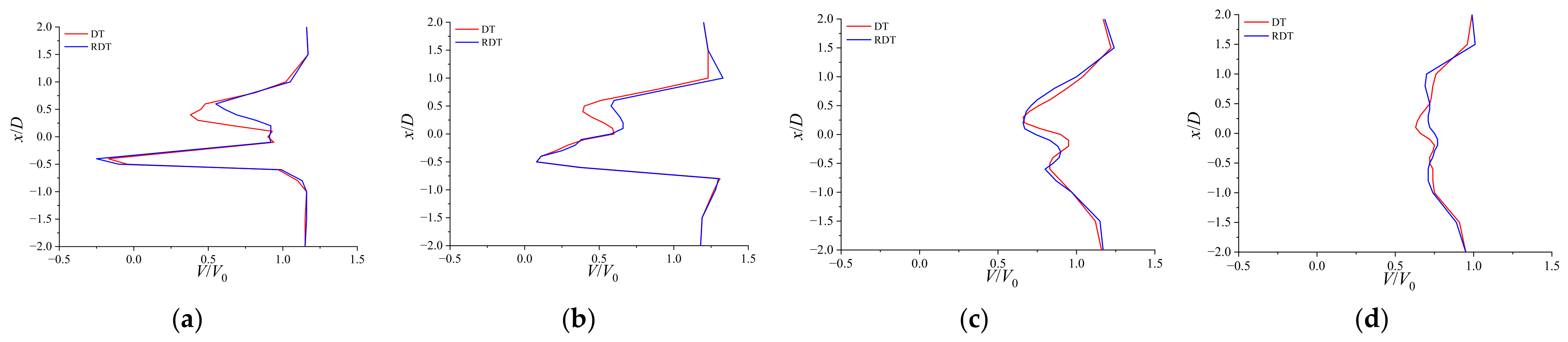

**Figure 21.**Profiles of mean streamwise velocity for $\gamma $ = 60° at different streamwise locations in the central x-z plane: (

**a**) z/D = 0.5; (

**b**) z/D = 1.0; (

**c**) z/D = 3.0; (

**d**) z/D = 5.0.

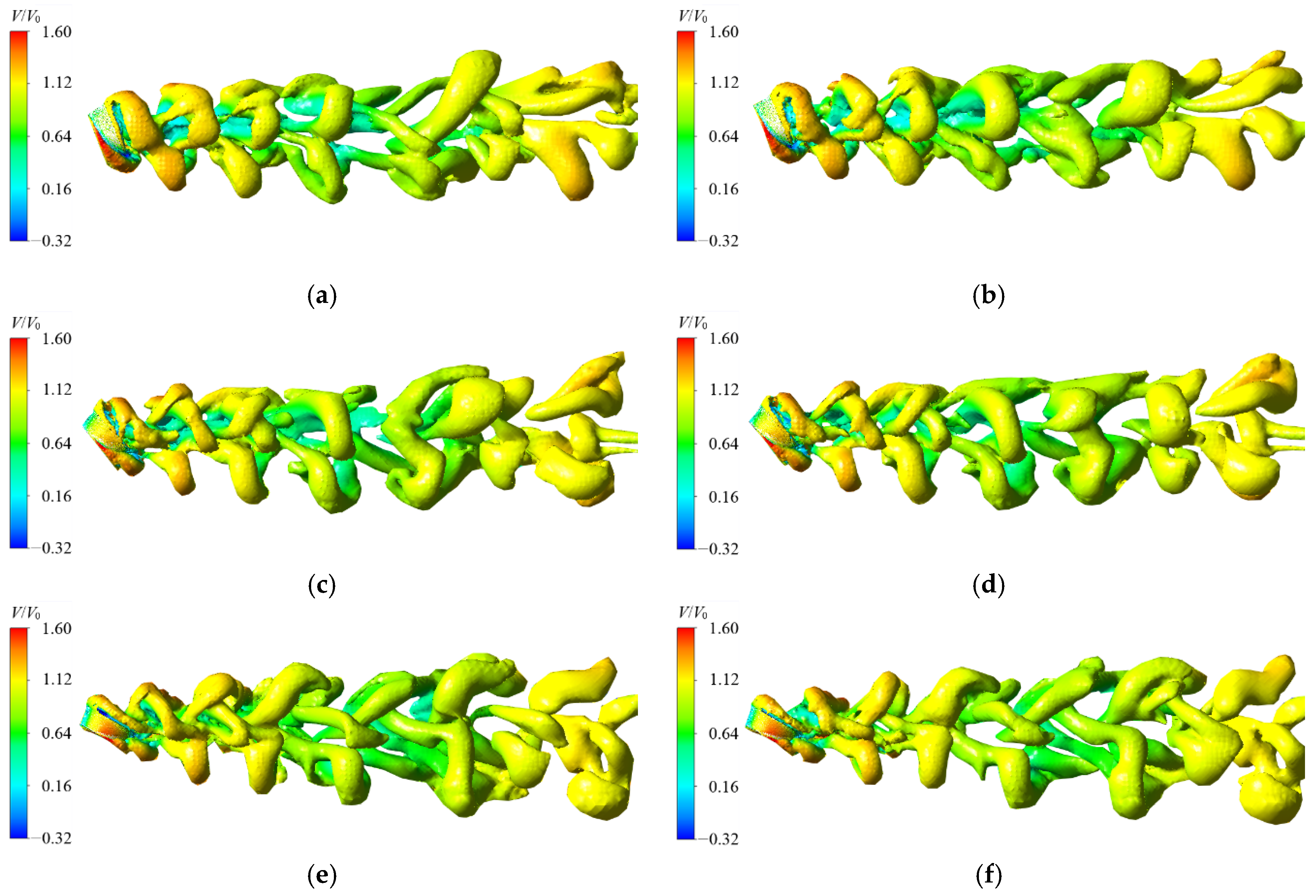

**Figure 22.**Vorticity Iso-surfaces colored by velocity for the two configurations: (
