Technical Note

Shear Modulus of a Carbonate Sand–Silt Mixture with THF Hydrate

1
Key Laboratory of Ministry of Education for Geomechanics and Embankment Engineering, Hohai University, Nanjing 210098, China
2
Guangdong Engineering Center for Structure Safety and Health Monitoring, Shantou University, Shantou 515063, China
3
College of Architecture, Anhui Science and Technology University, Bengbu 232002, China
4
Department of Civil, Environmental and Geomatic Engineering, University College London, London WC1E 6BT, UK
5
Nanjing TKA Technology, 6 Xiaohang Road, Yuhuatai District, Nanjing 210012, China
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2022, 10(10), 1519; https://doi.org/10.3390/jmse10101519
Submission received: 6 September 2022 / Revised: 7 October 2022 / Accepted: 11 October 2022 / Published: 18 October 2022

Abstract

:
The maximum shear modulus (Gmax) is an important factor determining soil deformation, and it is closely related to engineering safety and seafloor stability. In this study, a series of bender element tests was carried out to investigate the Gmax of a hydrate-bearing carbonate sand (CS)–silt mixture. The soil mixture adopted a CS:silt ratio of 1:4 by weight to mimic the fine-grained deposit of the South China Sea (SCS). Tetrahydrofuran (THF) was used to form the hydrate. Special specimen preparation procedures were adopted to form THF hydrate inside the intraparticle voids of the CS. The test results indicate that hydrate contributed to a significant part of the skeletal stiffness of the hydrate-bearing CS–silt mixture, and its Gmax at 5% hydrate saturation (Sh) was 4–6 times that of the host soil mixture. Such stiffness enhancement at a low Sh may be related to the cementation hydrate morphology. However, the Gmax of the hydrate-bearing CS–silt mixture was also sensitive to the effective stress for an Sh ranging between 5% and 31%, implying that the frame-supporting hydrate morphology also plays a key role in the skeletal stiffness of the soil mixture. Neither the existing cementation models nor the theoretical frame-supporting (i.e., Biot–Gassmann theory by Lee (BGTL)), could alone provide a satisfactory prediction of the test results. Thus, further theoretical study involving a combination of cementation and frame-supporting models is essential to understand the effects of complicated hydrate morphologies on the stiffness of soil with a substantial amount of intraparticle voids.

1. Introduction

Gas hydrate is emerging as one of the future energy sources, but its dissociation can cause significant environmental hazards such as the release of methane (a potent greenhouse gas), the instability of the seafloor, etc. Past studies have revealed that hydrate morphology is a crucial factor governing the mechanical behaviour of hydrate-bearing sediments. In coarse-grained soil, the following three hydrate morphologies are commonly assumed: pore-filling, load-bearing and cementation [1]. As hydrate formation in sediments depends on many factors, such as the geological conditions and the fluid conductivity of the sediments, the transportation mechanism of gas, etc., many complex hydrate morphologies can exist including segregated veins, nodules and lenses in fine-grained soil and heterogeneous hydrate patches in coarse-grained soil under high effective stress [2,3]. Moreover, it is a significantly difficult task to identify the occurrence of paleo-gas hydrate in fossil sediments. Based on long-term field data, recent studies have shown that clathrite-like structures and the geochemical properties of pore water are useful indicators that provide helpful information for understanding the formation and dissociation of gas hydrate [4,5]. Recent field explorations in the South China Sea (SCS) have reported that high methane hydrate saturation can be found in fine-grained sediments containing foraminifera (carbonate fossils containing a significant proportion of intraparticle voids) [6]. Compared with the small interparticle voids of a fine-grained soil matrix, hydrates tend to form in the larger intraparticle voids of foraminifera. As such, the distribution of hydrates is heterogeneous, depending on the spatial variability of foraminifera instead of being evenly distributed in the voids.
Different laboratory methods have been adopted to form hydrate in soil specimens, resulting in different hydrate morphologies, e.g., excess gas method [7,8], excess water method [9,10], ice seed method [11,12], etc. However, two other methods are used for fine-grained soils of low permeability. In the first method, under high pressure and low temperature, methane gas was injected and reacted with ice powder, with an average particle size of 250 μm, to form hydrate powder. Then, it was mixed with fine-grained soil [13,14,15]. However, no bonding is formed between hydrate and soil particles in this method. This study adopted the second method, where tetrahydrofuran (THF) was used to replace methane gas [16,17,18]. THF hydrate is often adopted as a good substitute for methane hydrate owing to the similarities in the mechanical and thermal properties. As THF is miscible with water at room temperature, it is easier to control the hydrate saturation and its distribution by adding the estimated amount of THF/water solution to the desired location of the specimen. The objective of the study was to model the hydrate accumulation inside the interparticle voids of CS rather than the field hydrate formation process. Only CS was soaked in the THF/water solution to achieve this ends and details of laboratory procedures will be presented in the next section. It should be noted that THF hydrate discomposes into liquid without gas during dissociation; thus, one of the limitations is that no gas dissociation can be modelled from THF hydrate.
The deformation and shear strength of soil are closely related to the safety of engineering structures and seafloor stability during hydrate exploitation. Thus, the mechanical properties of hydrate-bearing soils have been reported in the past literature, e.g., the stress–strain behaviour and shear strength of hydrate-bearing sand [19], the dynamic shear modulus and damping ratio of hydrate-bearing sand [20], the effects of hydrate on the rheological properties of mudflow [21], shear wave velocity and maximum shear modulus (Gmax) of hydrate-bearing sand [22], etc. Clayton et al. [22] conducted a series of resonant column tests on sand-sized geomaterials. The results showed that cementation morphology has more significant influence on the shear moduli of the host sand than pore-filling morphology. Similarly, Liu et al. [20] carried out resonant column tests on THF hydrate-bearing sand. The results revealed that effective stress and hydrate can enhance the shear modulus, while high hydrate saturation would suppress its enhancement. However, the effects of hydrate accumulated inside the intraparticle voids on the soil stiffness of fine-grained sediments with carbonate fossils are not well understood. In this study, special laboratory procedures were applied to form hydrate in the intraparticle voids of the CS–silt mixture. The bender element test was used to study Gmax of the THF hydrate-bearing CS–silt mixture with the hydrate filling the intraparticle voids. The effects of this type of hydrate morphology on the Gmax of fine-grained soil mixtures have rarely been reported in the literature. Furthermore, the effects of hydrate on soil stiffness were compared and discussed using theoretical frame-supporting and cementation models.

2. Materials and Methods

The tested soil mixture was formed by mixing a carbonate sand (CS) and a nonplastic silt in a ratio of 1:4 by dry weight to mimic the fine-grained sediment of the SCS. The CS was a marine sediment consisting of angular and shelly carbonate particles, which had similar chemical compositions and mechanical properties to that of foraminifera. As CS particles contain a substantial proportion of intraparticle voids, one of the objectives of this study was to model the hydrate accumulation in the intraparticle voids of the tested soil mixture. The silt was a crushed quartz. Table 1 summarises the basic physical properties of the tested soils. The average particle size (d50) and the effective particle size (d10) of the soil mixture were 50 and 17 μm, respectively. Figure 1 shows the particle size distribution (PSD) for CS, silt and the CS–silt mixture. The PSDs of two fine-grained sediment samples taken from the SCS [23] are also presented in the figure for comparison. The CS–silt mixture was a gap-graded soil, and the range of particle sizes was consistent with that of SCS sediments. Despite the fact that the tested soil mixture did not contain any fraction of clay, the fines content was similar to the marine sediment samples taken from the SCS. Ma et al. [24] found that fines play a dominant role in the soil matrix of a mixture if the CS content is less than 60%. To focus on the effects of the intraparticle voids of CS on the stiffness of the CS–silt mixture, only the fines content but not the soil plasticity was modelled correctly in this study. Moreover, the permeability of soil decreases with increasing clay content. To minimise the effects of the permeability of the soil on hydrate formation in the specimen, clay was not included in the soil mixture. Further study will be required to investigate soil mixtures with some fractions of clay, which more closely represent natural marine sediments.
THF was used in this study to form hydrate in the soil specimens. The following procedures were used to ensure hydrate accumulation in the intraparticle voids of specimens. A given weight of the oven-dried samples of CS was first soaked inside a THF/water solution (21% THF by volume) under vacuum to saturate the intraparticle voids. After soaking, the weight of the wetted CS was carefully measured to determine the weight of the THF/water solution used in the soil specimen. The wetted CS was mixed thoroughly with the oven-dried silt. Then, the soil mixture was compacted on the pedestal of a triaxial test device to three different initial void ratios, as shown in Table 2, using the wet tamping method. Hydrate saturation (Sh), as shown in Table 2, is defined as the ratio of the volume of hydrate to the volume of void. In the solution consisting of 21% THF and 79% water by volume, all solution will form hydrate if the soil specimen is subjected to appropriate high-pressure and low-temperature conditions [25]. In other words, the hydrate-bearing specimens were dry specimens. The volume of hydrate was determined as the ratio of the weight of the THF/water solution in the soil specimen to the density of THF hydrate, which was taken as 0.981 × 103 kg/m3 [26]. By adjusting the proportion of CS soaked in the THF/water solution, the percentage of intraparticle voids filled with hydrate was controlled to be between 25% and 100%. In addition, three control specimens without hydrate (Sh = 0) were compacted to the target initial void ratios, as shown in Table 2.
To verify that the intraparticle voids of the CS were saturated by the THF/water solution after soaking, a THF/water solution-soaked CS specimen was scanned by micro-CT equipped with a high-resolution X-ray tube (Type: XTH225/320 LC from Nikon, Tokyo, Japan). A CT imaging of a typical cross-section of a CS specimen, as shown in Figure 2. The grey, yellow and black colours represent soil particles, THF/water solution and air, respectively. It is depicted that the THF/water solution is either filled inside the intraparticle voids or on the surface of the CS particles. After mixing the THF/water-soaked CS with dry silt, it was postulated that the THF/water solution remains inside the intraparticle voids and on the surface of the CS particles of the CS–silt specimens. Nikitin et al. [27] observed that there was inevitable water migration during methane hydrate formation due to the cryogenic suction. However, the influence of the excess gas method in their study on water migration was omitted and in which a multiphase flow may cause water movement. In this study, it was assumed that there was negligible water migration in the specimens during hydrate formation when the temperature decreased to below 0 °C. Hence, it was reasonable to assume that hydrate was formed in the intraparticle voids and interparticle voids adjacent to the CS particles, as shown in Figure 3. The accumulation of hydrate inside the intraparticle voids of the CS–silt specimen agrees well with that observed in the field samples of hydrate-bearing sediment containing carbonate fossils taken from the SCS [28].
Table 2. Test conditions.
Table 2. Test conditions.
Specimen IDInitial Void Ratio, e0Percentage of Intraparticle Voids Filled with HydrateEffective Void Ratio, eHydrate Saturation, Sh (%)Effective Confining Stress, σc′ (kPa)
10.79900.7990100, 200, 300, 400
20.7991000.51024100, 300, 500, 800
3 a0.73300.7330100. 200, 300, 400
40.733250.6725100, 300, 500
50.733500.59312100, 300, 500, 800
6 a0.7331000.44727100, 300, 500, 800
70.66600.6660100, 200, 300, 400
80.6661000.38131100, 300, 500, 800
a Ji et al. [29].
The maximum shear modulus (Gmax) was measured using a temperature controlled triaxial test apparatus with a pair of bender elements installed at the top cap and bottom pedestals of the triaxial cell, as shown in Figure 4a,b, in which dimethyl silicone oil was chosen as the medium to provide confining pressure and heat exchange. The experimental system (Nanjing TKA Technology Co. Ltd., Nanjing, China) consisted of a triaxial apparatus, two water pumps, a thermal controller, a temperature sensor, a wave generator, a power amplifier, an oscilloscope, a signal amplifier and a linear power supply. It is worth noting that the bender element on the top cap should be aligned carefully to keep it parallel to another one on the bottom pedestal for the accuracy of the shear wave measurement. In this study, only the time difference between the peak emitted wave and that of the received wave was chosen to calculate the shear wave velocity (vs) in this study. The details regarding the interpretation of the bender element signals were reported by Ji et al. [29]. It should be noted that it is also possible to measure the damping ratio (ζ) of soil using the bender element test [30], i.e., the viscous behaviour of soil. In general, ζ is determined by viscoelasticity methods recommended in Sodeifian [31] and Liu et al. [20]. Cheng and Leong [30] proposed that ζ can be measured by applying the Hilbert transform method to the bender element test results. Although, bender element signals can be processed to study the viscoelastic behaviour of soil, this study focused only on small strain stiffness, i.e., the Gmax of THF hydrate-bearing soil.

3. Results and Discussion

Table 2 shows that eight specimens were tested in this study. As the control of high pressure and low temperature was time-consuming, only two replicated tests have been carried out for each specimen ID 1 and 2 to verify the reproducibility of consistent specimens and reliability of test data. Figure 5 shows the measured shear wave velocity against the effective confining pressure for the host soil mixture (Sh = 0) and those with Sh ranging between 24% and 31%. The test results of six specimen ID are depicted in the figure for e0 ranging from 0.666 to 0.799 and effective confining pressure ranging from 100 to 800 kPa. The measured vs of specimen ID 1 and 2 (e0 = 0.799) are the average values of two replicated tests. It is found that the measurements were within ±8% and ±5% of the average values for specimens ID 1 and 2, respectively. Those of the remaining four specimens were measurements of a single test. The test results of two other fine-grained soils are also shown in the figure for comparison [32,33]. Hardin and Richart [34] suggested that vs can be related to the effective stress using the following equation:
v s = a σ c b
where σc is the effective confining stress, a and b are the two fitting parameters; b reflects the sensitivity of the effective stress on vs. Equation (1) was used to best fit the data shown in Figure 5. It was found that b increased from 0.187 to 0.320, while the initial void ratio decreased from 0.799 to 0.666 for the dry soil mixture. As expected, a dense soil has more contact points or a higher coordination number, resulting in a greater contribution of the effective stress on vs. Santamarina et al. [35] reported a value for b of approximately 0.25 for rough or angular sand and silt particles. The measured range of b for the tested soil mixture was consistent with this reference value. By adding Sh ranging between 24% and 31%, it was apparent that the vs of the hydrate-bearing soil mixture was 3–5 times that of the host soil mixture. The increase in vs reflects the increase in skeletal stiffness due to the presence of hydrate. In addition, b reduced to the range between 0.127 and 0.161. In other words, the hydrate-bearing soil mixture was less sensitive to the effective stress. Lee et al. [32] also observed a similar trend on remould clay-dominated sediments, where b decreased from 0.3 to 0.03 as the Sh increased from 0 to 100%. As expected, vs of specimen with 100% Sh (all the voids filled with THF hydrate) is almost independent of the effective stress. Furthermore, Kim et al. [33] has also obtained similar results on CO2 hydrate-bearing clayey silt where b decreases from 0.26 to 0.01 as Sh increases from 0 to 63%. It should be noted that at a Sh of 27–28%, the CO2 hydrate-bearing clayey silt was less sensitive to the effective stress than the soil mixture tested in this study. The specimen preparation in this study resulted in some hydrates forming inside the intraparticle voids, leading to a lower amount of cementation than that found in Kim et al. [33] at a similar Sh.
The Gmax was evaluated using Gmax = ρvs2, where ρ is soil density. Past studies [36,37,38] have revealed that the effective stress and the void ratio are the two most important factors controlling the Gmax, and the following empirical equation is proposed:
G max = C 0 F e · σ P a h
where C0 is a material parameter characterised by the particle size, shape, bonding and overconsolidation ratio. It increases with the increase in the particle size and sphericity and roundness of particle [39]. σ′ is the effective stress, F(e) is a void ratio function, Pa is a reference pressure taken as 1 kPa in this study and h is the exponent term for the effective stress. Different forms have been proposed for F(e). In this study, F(e) = (0.3 + 0.7e2)−1, as proposed by Hardin [40], was adopted. Equation (2) was used to fit the measured Gmax against the effective stress. To eliminate the influence of the void ratio, Figure 6 depicts the Gmax normalised by F(e) as a function of the effective stress for the test results shown in Figure 5. For the hydrate-bearing specimens, F(e) was evaluated using the effective void ratio (e′), defined as the void ratio considering hydrate as the solid constituent. It is evident from Table 2 that the e′ was approximately 57–64% of the initial e of the host soil mixture, resulting in an increase of 50% of F(e) for hydrate-bearing CS–silt at an Sh between 24% and 31%. As expected, the normalized Gmax of the hydrated-bearing specimens was at least one order of magnitude higher than that of the dry specimens. The best-fit values of C0 and h and the corresponding R2 are summarised in Table 3. The best-fit values of a hydrate-bearing Leighton Buzzard Grade E (LB-E) sand using the excess gas method are also shown in the table for comparison. On the one hand, with hydrate forming in the specimens, the value of exponent h decreased from 0.57 to 0.28. The reduction in the value of h implies that the contribution of the effective stress became less important with the addition of hydrate. In other words, the hydrate contributed to a significant part of the skeletal stiffness. On the other hand, the value of parameter C0 increased sharply from 2 to 78, which may be due to the bonding effect of hydrate or larger and rounder coagulated particles of CS and silt bonded together by hydrate. Clayton et al. [22] studied the effects of the hydrate morphology on the small strain stiffness of the LB-E sand. Hydrate morphology is controlled by the specimen preparation method. In general, cementation hydrate morphology is formed by the excess gas method. The Gmax of the hydrate-bearing sand containing 10% Sh was 6–13 times that of the host sand, as shown in Figure 6. The h value decreased from 0.42 to 0.02, and the C0 value increased from 12 to 1394. An h value close to 0 indicates that the material is either solid or cemented soil. A small amount of hydrate (low Sh) bonding the interparticle contacts is sufficient to stiffen substantially the soil matrix of the host sand.
Figure 7 compares the effects of hydrate on the Gmax of the tested soil mixture with those of two common hydrate morphologies found in sand: (i) cementation (from the excess gas method) and (ii) pore-filling (from the excess water method). The Gmax was normalised by the effective stress factor (σc′/Pa)h in which the exponent h was assumed as 0.5. The amount of hydrate formed in the pores of the specimen is reflected by the reduction in the effective void ratio, e′. It is apparent that cementation and pore filling have the greatest and least increase in the normalized Gmax, respectively. The hydrate-bearing CS–silt mixture lies between cementation and pore-filling morphologies. Equation (2) is shown with different values for C0 as the broken lines in the figure. It seems that C0 = 6 can be used to best fit the hydrate-bearing sand with pore-filling morphologies as well as the host sand. Thus, the effects of hydrate on the Gmax can be reflected by the increase in F(e) as a result of the reduction in e′. On the contrary, the best-fit parameters for the hydrate-bearing CS–silt were different from those of the host soil (see Table 3). This was because the accumulation of hydrates in the intraparticle voids of the CS and the interparticle voids of the soil mixture involved both cementation and pore-filling morphologies. Thus, all three parameters in Equation (2) were affected.
To understand the effects of the hydrate morphology on the soil stiffness, a frame-supporting model, namely, the Biot–Gassmann theory modified by Lee (BGTL) [41], and the cementation model proposed by Dvorkin and Nur [42] were adopted in this study to estimate the Gmax. In the BGTL model, hydrate is assumed to be one of the solid constituents, which reduces the porosity and changes the shear modulus of the soil mixture. A reduced porosity (φr) is defined as follows:
φ r = φ 1 S h
where φ is the porosity of the soil mixture. The shear modulus of the soil mixture can be calculated from Equation (4) [39]:
G d r y = G s a t = G m a K m a 1 β C 2 1 φ r 2 x + G m a β 2 M C 2 1 φ r 2 x K m a + 4 G m a 1 C 2 1 φ r 2 x / 3
where Gma and Kma are the shear and bulk moduli of solid phase, respectively; β is a Biot coefficient, which is a function of the porosity for unconsolidated sediments; x is a parameter depending on the degree of consolidation and differential pressure; C is a parameter depending on the clay content; M is a modulus that measures the variation in the hydraulic pressure needed to force an amount of water into a formation without any change in the formation’s volume. The formulae used to calculate the above parameters are given in Equations (A1)–(A6) in Appendix A. It should be noted fluid is not able to transmit shear waves, which has no effect on the shear modulus. Therefore, Gdry = Gsat in Equation (4).
In the cementation model [42], hydrate is assumed to form at the particle contacts. The effective bulk (Kdry) and shear moduli (Gdry) can be calculated using Equations (5) and (6), respectively:
K d r y = n 1 φ 6 K c + 4 3 G c S n
G d r y = 3 5 K d r y + 3 n 1 - φ 20 G c S T
where Kc and Gc are the bulk and shear moduli of hydrate, respectively, as shown in Table 4 [43]. Sn and ST are parameters that are proportional to the normal and shear stresses of a pair of cemented particles, respectively, which depend on the amount of particle contacts and the soil and particle moduli. The formulae for Sn and ST are given in Equations (A7) and (A8), respectively, in Appendix B [42]. n is the average number of particle contacts, taken as 5.6 in this study. Equations (A15)–(A23) in Appendix B [44] were used to calculate n, which agreed with the findings verified by CT that n is taken reasonably between 4.8 and 7 for random dense packing [45].
Figure 8 compares the test results with the computed values of the BGTL and cementation models for an initial void ratio of 0.733. It was apparent that the measured Gmax of the CS–silt mixture increased nonlinearly from 43 to 1100 MPa for an Sh ranging between 0% and 27%. The trend of the nonlinear increase in the Gmax with respect to an Sh at a low regime of the Sh was consistent with the predicted tendency of the cementation model. For example, the predicted Gmax increased from 1703 to 3565 MPa when the Sh increased from 0.5% to 5%. At a low Sh < 5%, a certain extent of hydrate accumulated at the interparticle contacts in the vicinity of CS particles, leading to a substantial stiffening of the soil matrix. Yu et al. [46] conducted a numerical simulation on the small strain behaviour of hydrate-bearing soil using the discrete element method. A contact bonding model was imposed between hydrate and soil particles to simulate the effects of cementation. The bonding effect may increase the contact number of the soil matrix, leading to a higher shear wave velocity (or Gmax). The numerical results showed that the Gmax increased nonlinearly with Sh, where the rate of increment decreased substantially with further increases in the Sh. Despite a similar nonlinear trend at the low regime of the Sh, the magnitude of the predicted Gmax by the cementation model was much higher than the measured value. One of the limitations of the cementation model is that it is independent of the effective stress. However, the Gmax is dependent on the effective stress. On the other hand, the BGTL model can account for the stress-dependent Gmax. For the hydrate-free soil mixture (Sh = 0), under an effective stress of 100 and 300 kPa, the BGTL predicted a Gmax of 33 and 86 MPa, respectively, which is consistent with the test results. However, BGTL cannot model the substantial increase in the Gmax for 0 < Sh < 5%. Furthermore, both of the test results of Clayton et al. [22] using the excess gas method and this study fall between the cementation and BGTL models. Hence, hydrates play more than one role in the soil mixture. Figure 8 also shows that for a given Sh, the Gmax of the specimens prepared by the excess gas method [22] is higher than that in this study. Some hydrates accumulated inside the intraparticle voids resulting in a weaker cementation effect for the CS–silt mixture, while the excess gas method tends to form a cementation morphology in the sand, enhancing significantly the stiffness of the soil matrix. Thus, a hydrate morphology is as important as the hydrate saturation and effective stress in governing the stiffness of hydrate-bearing soils.
Jung et al. [47] used the discrete element method to model the stress–strain behaviour of hydrate-bearing sand. Grain clusters and the parallel bond model were adopted to simulate the patchy hydrate and bonding effects between hydrate grains and mineral grains, respectively. The breakage of hydrate clusters was ignored in their study. According to the hypothesis shown in Figure 3, the hydrate morphology of the CS–silt mixture had two distinct features: (1) filling the intraparticle and interparticle voids; (2) cementation at the interparticle contacts. Due to the complex hydrate morphology, a hybrid model that incorporates features of both the cementation and frame-supporting models should be used to predict the observed Gmax of the hydrate-bearing CS–silt mixture. The hydrate filling the intraparticle and interparticle voids plays a role in frame-supporting, while the hydrate occupying the interparticle contacts works as cementation. Various modelling techniques in the discrete element method may be used to numerically implement the concept of a hybrid model [46,47,48]. In this way, it is essential to quantify the proportions of hydrate filling the intraparticle and interparticle voids and those cementing at the interparticle contacts.

4. Conclusions

The maximum shear modulus (Gmax) is an important factor determining soil deformation, and it is closely related to engineering safety and seafloor stability. The bender element test was conducted to investigate the effects of hydrate on the Gmax of a CS–silt mixture in this study. By adopting special specimen preparation procedures, THF hydrate formed in the intraparticle voids of the CS grains and interparticle voids between the CS and surrounding silt particles. Both cementation and pore-filling hydrate morphologies contributed to the skeletal stiffness of the hydrate-bearing CS–silt mixture. At a low hydrate saturation (Sh), the cementation morphology played a dominant role, where the Gmax of the hydrate-bearing CS–silt mixture increased by 4–6 times at an Sh of 5%. However, the Gmax also depends on the stress for the range of Sh tested. This stress-dependent stiffness implies that the hydrate with a frame-supporting morphology also plays a significant role in the soil matrix. In other words, the difference in the hydrate morphologies determines the effect of the hydrate saturation and effective stress on hydrate-bearing specimens. Therefore, neither the existing cementation model nor the frame-supporting model, i.e., BGTL, could alone predict adequately the shear modulus of the hydrate-bearing CS–silt mixture. Thus, a hybrid model incorporating both cementation and frame-supporting models should be used. This type of hybrid model may be implemented numerically using the discrete element method. Further investigation is required to provide theoretical evidence for the effects of complicated hydrate morphology on the stiffness of the CS–silt mixture, which is essential for hydrate exploration and ocean engineering safety.

Author Contributions

Conceptualization, C.F.C. and C.J.; methodology, C.F.C. and C.J.; software, Y.R. and C.J.; validation, Y.R. and L.M.; formal analysis, C.F.C., Y.R., L.M. and Y.P.C.; investigation, C.J.; resources, L.J.; data curation, Y.R. and L.M.; writing—original draft preparation, C.J. and Y.R.; writing—review and editing, C.F.C. and Y.P.C.; visualization, C.F.C. and Y.R.; supervision, C.F.C.; project administration, C.F.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Department of Education of Anhui Province (grant numbers: KJ2020A0080, KJ2021A0862 and gxyq2022052) and by Anhui Science and Technology University (grant number: BSWD202104).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to acknowledge the financial support of the Key Projects of Natural Science Research in Colleges and Universities of Anhui Province (KJ2020A0080 and KJ2021A0862), the 2022 Outstanding Young Talents Support Program of Colleges and Universities (gxyq2022052) and the Doctoral Program of Anhui Science and Technology University (BSWD202104).

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

For Equation (4), the shear and bulk moduli of the solid phase (Gma, Kma) consisting of CS, quartz silt and THF hydrate can be calculated by the average of the arithmetic and harmonic means of the solid constituents [49]:
G m a = 1 2 i = 1 m f i G i + i = 1 m f i / G i 1
K m a = 1 2 i = 1 m f i K i + i = 1 m f i / K i 1
where m is the number of solid constituents, taken as three; fi, Ki and Gi are the volume fraction, bulk modulus and shear modulus of the ith solid constituent, respectively, which were taken from Table 4.
The Biot coefficient (β) is given by Equation (A3) [41]:
β = 184.05 1 + e φ r + 0.56468 / 0.09425 + 0.99494
The parameter C, which depends on the clay content in the sediments, and exponent x are given by Equations (A4) and (A5), respectively:
C = 0.9552 + 0.0448 e C v / 0.06714
x = 10 0.426 0.235 L o g 10 P / w
where Cv is the clay volume content. In this study, there was no clay volume content in the specimen. Thus, Equation (A4) indicates that C is equals to 1. P is the effective pressure and w is a constant, which was taken as 1.2 in this study, and it is suitable for unconsolidated sediments at an effective pressure less than 10 MPa [41].
The parameter M is given by (A6):
1 M = β - φ r K m a + φ r K f l
where Kfl is the bulk modulus of the fluid, which was taken as 2.18 GPa in this study.

Appendix B

For Equations (5) and (6), the formulae for Sn and ST are given in Equations (A7) and (A8), respectively:
S n = 0.024153 Λ n 1.3646 α 2 + 0.20405 Λ n 0.89008 α + 0.000246 Λ n 1.9864
S T = A T Λ T , ν α 2 + B T Λ T , ν α + C T Λ T , ν
α = 2 S h φ 3 1 φ 0.5
Λ n = 2 G c π G s 1 ν s 1 ν c 1 2 ν c
Λ T = G c π G s
A T Λ T , ν = - 0.01 2.26 ν s 2 + 2.07 ν s + 2.3 Λ T 0.079 ν s 2 + 0.1754 ν s 1 . 342
B T Λ T , ν = 0.0573 ν s 2 + 0.0937 ν s + 0.202 Λ T 0.0274 ν s 2 + 0.0529 ν s 0.8765
C T Λ T , ν = 0.0001 9.654 ν s 2 + 4.945 ν s + 3.1> Λ T 0.01867 ν s 2 + 0.4011 ν s - 1.8186
where νs and Gs are the Poisson’s ratio and shear modulus of the hydrate-free soil, respectively, and νc and Gc are the Poisson’s ratio and shear modulus of the hydrate, respectively. νc was assumed as 0.15 in this study.
n = S p N c 2 + 1 S p N c 1
N c 1 = S a N 1 , 2 + 1 S a N 1 , 1
N c 2 = S a N 2 , 2 + 1 S a N 2 , 1
S p = n 2 n 1 + n 2
S a = n 2 D p 2 2 n 1 D p 1 2 + n 2 D p 2 2
N 1 , 2 = 2 j D p 1 D p 2 + 1 1 + D p 1 D p 2 D p 1 D p 2 D p 1 D p 2 + 2 1 / 2
N 2 , 1 = 2 j D p 2 D p 1 + 1 1 + D p 2 D p 1 D p 2 D p 1 D p 2 D p 1 + 2 1 / 2
N 1 , 2 , N 2.1 2
j = 0.067 N c
where n is the average coordination number in the CS–silt mixture. N1,1, N1,2, N2,1 and N2,2 are particle 1 contacts with a reference particle 1, particle 2 contacts with a reference particle 1, particle 1 contacts with a reference particle 2 and particle 2 contacts with a reference particle 2, respectively. In this study, particle 1 refers to the CS grain and particle 2 refers to the silt grain. Sp is the fractional number of particles 2, and Sa is the fractional area of particles 2. Dp1 is the diameter of particle 1, taken as 750 μm, and Dp2 is the diameter of particles 2, taken as 43 μm from Ma et al.’s study [24]. It is worth noting that we assumed Dp1 and Dp2 as D50 of each component in Ma et al.’s study. n1 and n2 are the number of particle 1 and particle 2, respectively, which were calculated from volume of each component by the volume of each particle. Nc is the coordination number of uniformly sized spheres, taken as 6 [50]. In addition, N1,1 and N2,2 were taken as 6. It is worth noting that if N1,2 and N2,1 calculated using Equations (A20) and (A21) were less than 2, we took it as 2 according to Equation (A22). j is a proportional constant.

References

  1. Waite, W.F.; Santamarina, J.C.; Cortes, D.D.; Dugan, B.; Espinoza, D.N.; Germaine, J.; Jang, J.; Jung, J.W.; Kneafsey, T.J.; Shin, H.; et al. Physical properties of hydrate-bearing sediments. Rev. Geophys. 2009, 47, RG4003. [Google Scholar] [CrossRef] [Green Version]
  2. Dai, S.; Santamarina, J.C.; Waite, W.F.; Kneafsey, T.J. Hydrate morphology: Physical properties of sands with patchy hydrate saturation. J. Geophys. Res. Sol. Earth 2012, 117, B11205. [Google Scholar] [CrossRef] [Green Version]
  3. Lei, L.; Santamarina, J.C. Laboratory strategies for hydrate formation in fine-grained sediments. J. Geophys. Res. Sol. Earth 2018, 123, 2583–2596. [Google Scholar] [CrossRef]
  4. Argentino, C.; Conti, S.; Fioroni, C.; Fontana, D. Evidences for Paleo-Gas Hydrate Occurrence: What We Can Infer for the Miocene of the Northern Apennines (Italy). Geosciences 2019, 9, 134. [Google Scholar] [CrossRef] [Green Version]
  5. Hesselbo, S.P.; Grocke, D.R.; Jenkyns, H.C.; Bjerrum, C.J.; Farrimond, P.; Bell, H.S.M.; Green, O.R. Massive dissociation of gas hydrate during a Jurassic oceanic anoxic event. Nature 2000, 406, 392–395. [Google Scholar] [CrossRef]
  6. Wang, X.; Collett, T.S.; Lee, M.W.; Yang, S.; Guo, Y.; Wu, S. Geological controls on the occurrence of gas hydrate from core, downhole log, and seismic data in the Shenhu area, South China Sea. Mar. Geol. 2014, 357, 272–292. [Google Scholar] [CrossRef]
  7. Lei, L.; Seol, Y.; Choi, J.-H.; Kneafsey, T.J. Pore habit of methane hydrate and its evolution in sediment matrix-laboratory visualization with phase-contrast micro-CT. Mar. Pet. Geol. 2019, 104, 451–467. [Google Scholar] [CrossRef] [Green Version]
  8. Lei, L.; Seol, Y. Pore-scale investigation of methane hydrate bearing sediments under triaxial condition. Geophys. Res. Lett. 2020, 47, e2019GL086448. [Google Scholar] [CrossRef]
  9. Yang, M.; Fu, Z.; Jiang, L.; Song, Y. Gas recovery from depressurized methane hydrate deposits with different water saturations. Appl. Energy 2017, 187, 180–188. [Google Scholar] [CrossRef]
  10. Chong, Z.R.; Pujar, G.A.; Yang, M.J.; Linga, P. Methane hydrate formation in excess water simulating marine locations and the impact of thermal stimulation on energy recovery. Appl. Energy 2016, 177, 409–421. [Google Scholar] [CrossRef]
  11. Liu, W.; Wu, Z.; Li, Y.; Song, Y.; Ling, Z.; Zhao, J.; Lv, Q. Experimental study on the gas phase permeability of methane hydrate-bearing clayey sediments. J. Nat. Gas Sci. Eng. 2016, 36, 378–384. [Google Scholar] [CrossRef]
  12. Wu, Z.; Li, Y.; Sun, X.; Wu, P.; Zheng, J. Experimental study on the effect of methane hydrate decomposition on gas phase permeability of clayey sediments. Appl. Energy 2018, 230, 1304–1310. [Google Scholar] [CrossRef]
  13. Li, Y.; Liu, W.; Zhu, Y.; Chen, Y.; Song, Y.; Li, Q. Mechanical behaviors of permafrost-associated methane hydrate-bearing sediments under different mining methods. Appl. Energy 2016, 162, 1627–1632. [Google Scholar] [CrossRef]
  14. Song, Y.; Zhu, Y.; Liu, W.; Li, Y.; Lu, Y.; Shen, Z. The effects of methane hydrate dissociation at different temperatures on the stability of porous sediments. J. Pet. Sci. Eng. 2016, 147, 77–86. [Google Scholar] [CrossRef]
  15. Liu, W.; Luo, T.; Li, Y.; Song, Y.; Zhu, Y.; Liu, Y.; Zhao, J.; Wu, Z.; Xu, X. Experimental study on the mechanical properties of sediments containing CH4 and CO2 hydrate mixtures. J. Nat. Gas Sci. Eng. 2016, 32, 20–27. [Google Scholar] [CrossRef]
  16. Yun, T.; Santamarina, J.; Ruppel, C. Mechanical properties of sand, silt, and clay containing tetrahydrofuran hydrate. J. Geophys. Res. Sol. Earth 2007, 112, B04106. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, X.; Lu, X.; Shi, Y.; Xia, Z.; Liu, W. Centrifuge experimental study on instability of seabed stratum caused by gas hydrate dissociation. Ocean Eng. 2015, 105, 1–9. [Google Scholar] [CrossRef] [Green Version]
  18. Shi, Y.; Zhang, X.; Lu, X.; Wang, S.; Wang, A. Experimental study on the static mechanical properties of hydrate-bearing silty-clay in the South China Sea. Chin. J. Theor. Appl. Mech. 2015, 47, 521–528. [Google Scholar] [CrossRef]
  19. Hyodo, M.; Yoneda, J.; Yoshimoto, N.; Nakata, Y. Mechanical and dissociation properties of methane hydrate-bearing sand in deep seabed. Soils Found. 2013, 53, 299–314. [Google Scholar] [CrossRef] [Green Version]
  20. Liu, Z.; Kim, J.; Hu, G.; Hu, W.; Ning, F. Geomechanical property evolution of hydrate-bearing sediments under dynamic loads: Nonlinear behaviors of modulus and damping ratio. Eng. Geol. 2021, 295, 106427. [Google Scholar] [CrossRef]
  21. Liu, W.; Liu, R.; Zhang, M.; Liu, Z.; Lang, C.; Li, Y. Rheological properties of hydrate slurry formed from mudflows in South China Sea. Energy Fuels 2021, 35, 10575–10583. [Google Scholar] [CrossRef]
  22. Clayton, C.R.I.; Priest, J.A.; Rees, E.V.L. The effects of hydrate cement on the stiffness of some sands. Geotechnique 2010, 60, 435–445. [Google Scholar] [CrossRef]
  23. Liu, C.; Ye, G.; Meng, Q.; He, X.; Lu, H.; Zhang, J.; Liu, J.; Yang, S. The characteristics of gas hydrates recovered from Shenhu Area in the South China Sea. Mar. Geol. 2012, 307, 22–27. [Google Scholar] [CrossRef]
  24. Ma, L.; Chiu, C.F.; Cheng, Y.P.; Ren, Y.Z. Effects of particle breakage on the compression behaviour of gap graded carbonate sand–silt mixtures. Geotech. Lett. 2021, 11, 16–20. [Google Scholar] [CrossRef]
  25. Yun, T.S.; Francisca, F.M.; Santamarina, J.C.; Ruppel, C. Compressional and shear wave velocities in uncemented sediment containing gas hydrate. Geophys. Res. Lett. 2005, 32, L10609. [Google Scholar] [CrossRef]
  26. Mahabadi, N.; Zheng, X.; Jang, J. The effect of hydrate saturation on water retention curves in hydrate-bearing sediments. Geophys. Res. Lett. 2016, 43, 4279–4287. [Google Scholar] [CrossRef] [Green Version]
  27. Nikitin, V.V.; Dugarov, G.A.; Duchkov, A.A.; Fokin, M.I.; Drobchik, A.N.; Shevchenko, P.D.; De Carlo, F.; Mokso, R. Dynamic in-situ imaging of methane hydrate formation and self-preservation in porous media. Mar. Pet. Geol. 2020, 115, 104234. [Google Scholar] [CrossRef]
  28. Li, C.; Hu, G.; Zhang, W.; Ye, Y.; Liu, C.; Li, Q.; Sun, J. Influence of foraminifera on formation and occurrence characteristics of natural gas hydrates in fine-grained sediments from Shenhu area, South China Sea. Sci. China Earth Sci. 2016, 46, 1223–1230. [Google Scholar] [CrossRef]
  29. Ji, L.; Chiu, A.C.F.; Ma, L.; Jian, C. Shear modulus of hydrate bearing calcareous sand-fines mixture. EWeb Conf. 2019, 92, 04002. [Google Scholar] [CrossRef]
  30. Cheng, Z.; Leong, E.C. Determination of damping ratios for soils using bender element tests. Soil Dyn. Earthq. Eng. 2018, 111, 8–13. [Google Scholar] [CrossRef]
  31. Sodeifian, G. Non-Linear Rheology of Polymer Melts; LAP Lambert Academic Publishing: Chisinau, Moldova, 2011. [Google Scholar]
  32. Lee, J.Y.; Santamarina, J.C.; Ruppel, C. Mechanical and electromagnetic properties of northern Gulf of Mexico sediments with and without THF hydrates. Mar. Pet. Geol. 2008, 25, 884–895. [Google Scholar] [CrossRef]
  33. Kim, H.; Cho, G.; Kwon, T. Effect of CO2 hydrate formation on seismic wave velocities of fine-grained sediments. Geochem. Geophys. Geosyst. 2013, 14, 1787–1799. [Google Scholar] [CrossRef]
  34. Hardin, B.O.; Richart, F.E., Jr. Elastic Wave Velocities in Granular Soils. J. Geotech. Geoenviron. 1963, 89, 33–65. [Google Scholar] [CrossRef]
  35. Santamarina, J.C.; Klein, K.A.; Fam, M.A. Soils and waves: Particulate materials behavior, characterization and process monitoring. J. Soils Sediments 2001, 1, 130. [Google Scholar] [CrossRef]
  36. Hardin, B.O.; Blandford, G.E. Elasticity of particulate materials. J. Geotech. Eng. ASCE 1989, 115, 788–805. [Google Scholar] [CrossRef]
  37. Jamiolkowski, M.; Lancellotta, R.; Lo Presti, D.C.F. Remarks on the stiffness at small strains of six Italian clays. Pre-Fail. Deform. Geomater. 1994, 2, 817–836. [Google Scholar]
  38. Stokoe, K.H., II; Darendeli, M.B.; Andrus, R.D.; Brown, L.T. Dynamic soil properties: Laboratory, field and correlation studies, theme lecture. In Proceedings of the 2nd International Conference on Earthquake Geotechnical Engineering, Lisbon, Portugal, 21–25 June 1999. [Google Scholar]
  39. Bui, M.T. Influence of Some Particle Characteristics on the Small Strain Response of Granular Materials. Ph.D. Thesis, University of Southampton, Southampton, UK, 2009. [Google Scholar]
  40. Hardin, B.O. The nature of stress-strain behaviour of soils. In Proceedings of the ASCE Geotechnical Engineering Division Speciality Conference, Pasadena, CA, USA, 19–21 June 1978. [Google Scholar] [CrossRef]
  41. Lee, M.W. Elastic Properties of Overpressured and Unconsolidated Sediments; U.S. Geological Survey Bulletin 2214; US Department of the Interior, US Geological Survey: Reston, VA, USA, 2003. [Google Scholar] [CrossRef]
  42. Dvorkin, J.; Nur, A. Rock Physics for Characterization of Gas Hydrates. In the Future of Energy Gases; US Geological Survey Professional Paper; US Government Printing Office: Washington, DC, USA, 1993; Volume 1570, pp. 293–298. [Google Scholar]
  43. Helgerud, M.B.; Dvorkin, J.; Nur, A.; Sakai, A.; Collett, T. Elastic-wave velocity in marine sediments with gas hydrates: Effective medium modeling. Geophys. Res. Lett. 1999, 26, 2021–2024. [Google Scholar] [CrossRef]
  44. Suzuki, M.; Oshima, T. Estimation of the co-ordination number in a multi-component mixture of spheres. Power Technol. 1983, 35, 159–166. [Google Scholar] [CrossRef]
  45. Schmidt, J.; Parteli, E.J.R.; Uhlmann, N.; Wörlein, N.; Wirth, K.-E.; Pöschel, T.; Peukert, W. Packings of micron-sized spherical particles-Insights from bulk density determination, X-ray microtomography and discrete element simulations. Adv. Powder Technol. 2020, 31, 2293–2304. [Google Scholar] [CrossRef]
  46. Yu, Y.; Xu, X.; Cheng, Y.P.; Soga, K. Study on small-strain behaviours of methane hydrate sandy sediments using discrete element method. Powders Grains 2013, 1542, 555–558. [Google Scholar] [CrossRef] [Green Version]
  47. Jung, J.-W.; Santamarina, J.C.; Soga, K. Stress-strain response of hydrate-bearing sands: Numerical study using discrete element method simulations. Geophys. Res. Sol. Earth 2012, 117, B04202. [Google Scholar] [CrossRef]
  48. Zhu, H.P.; Zhou, Z.Y.; Yang, R.Y.; Yu, A.B. Discrete particle simulation of particulate systems: A review of major applications and findings. Chem. Eng. Sci. 2009, 63, 5728–5770. [Google Scholar] [CrossRef]
  49. Hill, R. The elastic behaviour of a crystalline aggregate. Proc. Phys. Soc. A 1952, 65, 349–354. [Google Scholar] [CrossRef]
  50. Suzuki, M.; Oshima, T. Co-ordination number of a multi-component randomly packed bed of spheres with size distribution. Power Technol. 1985, 44, 213–218. [Google Scholar] [CrossRef]
Figure 1. Particle size distribution of the CS–silt mixture [23].
Figure 1. Particle size distribution of the CS–silt mixture [23].
Jmse 10 01519 g001
Figure 2. Micro-CT image of the distribution of the THF/water solution in the CS specimen.
Figure 2. Micro-CT image of the distribution of the THF/water solution in the CS specimen.
Jmse 10 01519 g002

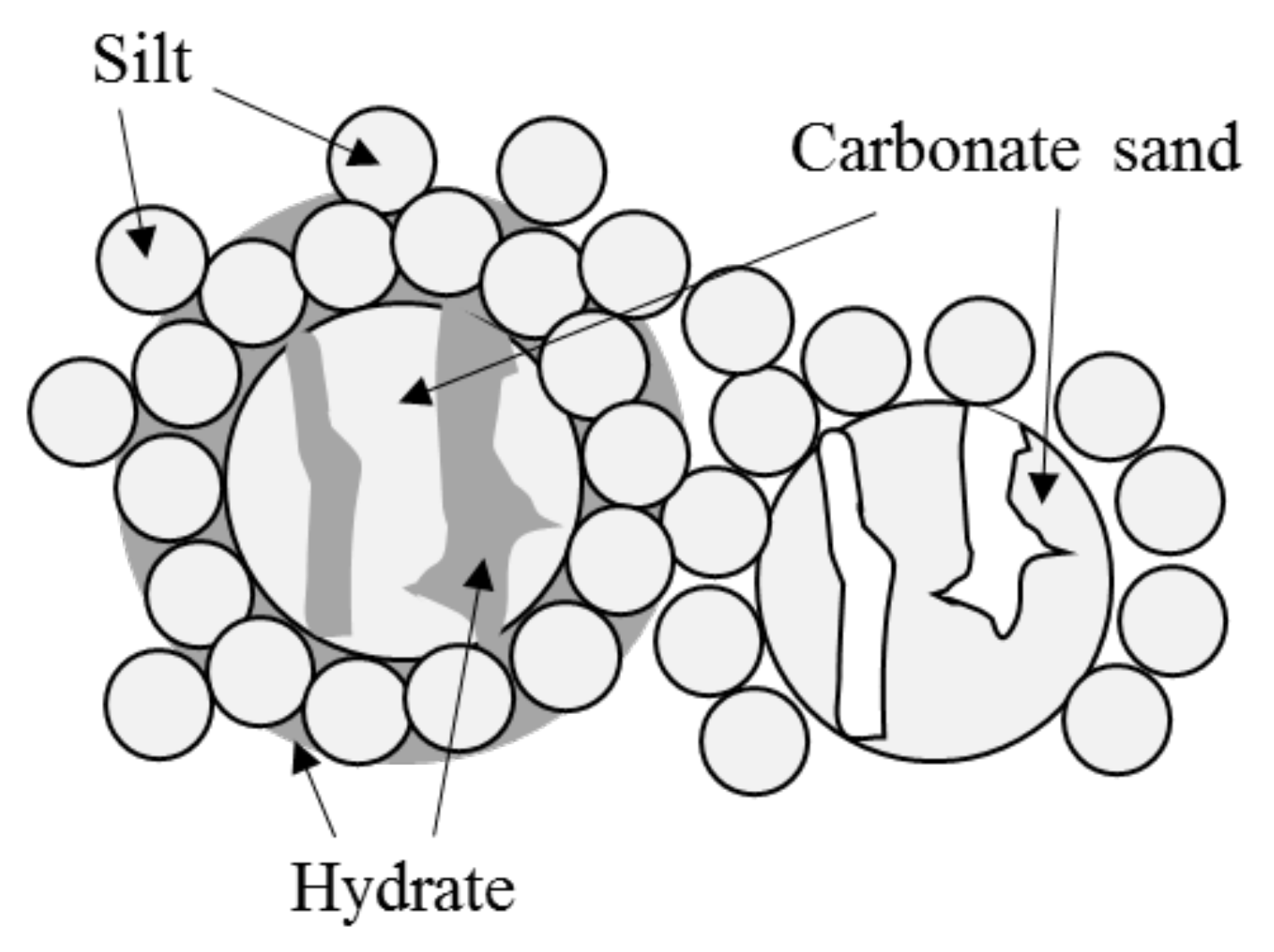

Figure 3. Proposed hydrate morphology of the CS–silt mixture.
Figure 3. Proposed hydrate morphology of the CS–silt mixture.
Jmse 10 01519 g003

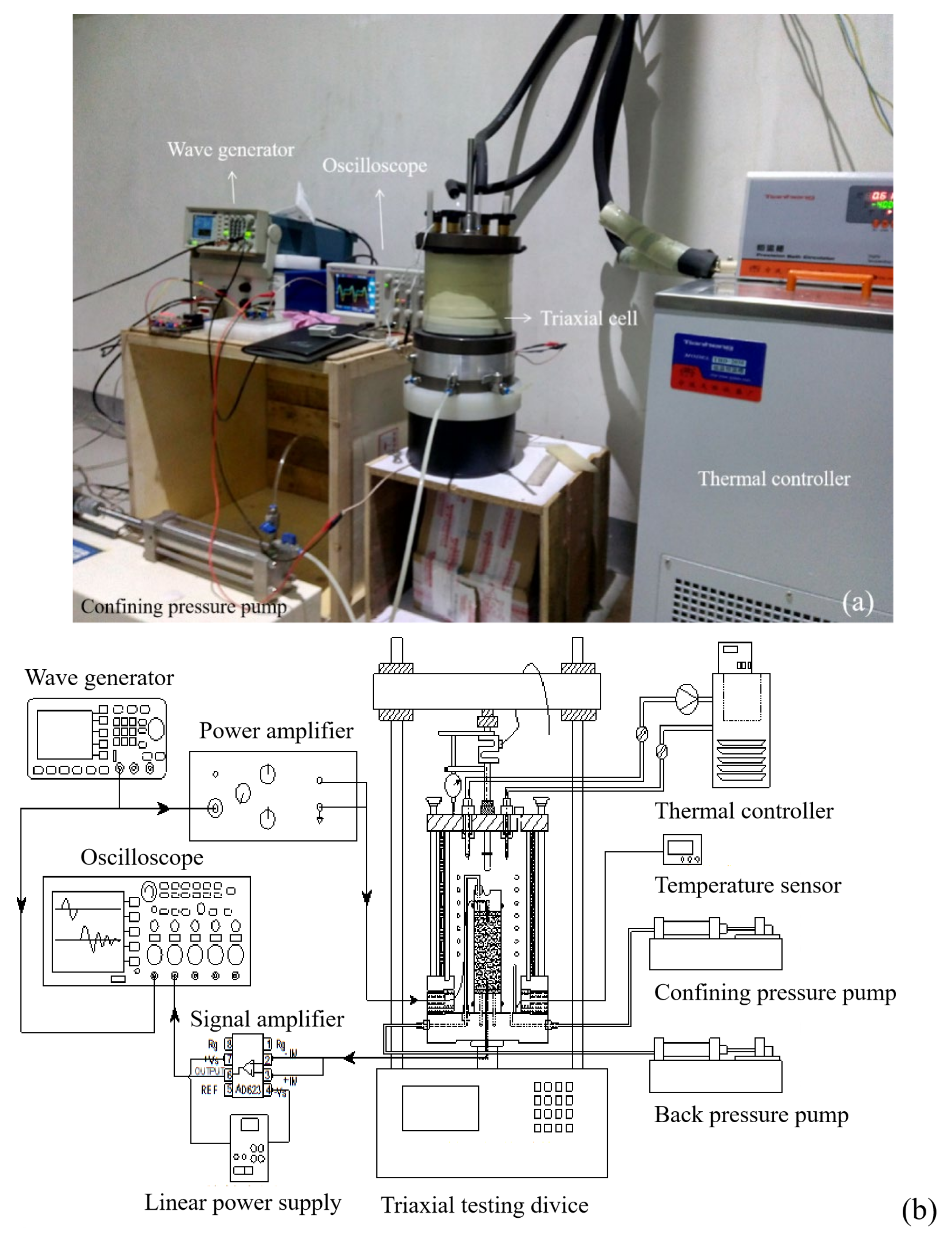

Figure 4. (a) Photo and (b) schematic setup of the bender element test apparatus.
Figure 4. (a) Photo and (b) schematic setup of the bender element test apparatus.
Jmse 10 01519 g004

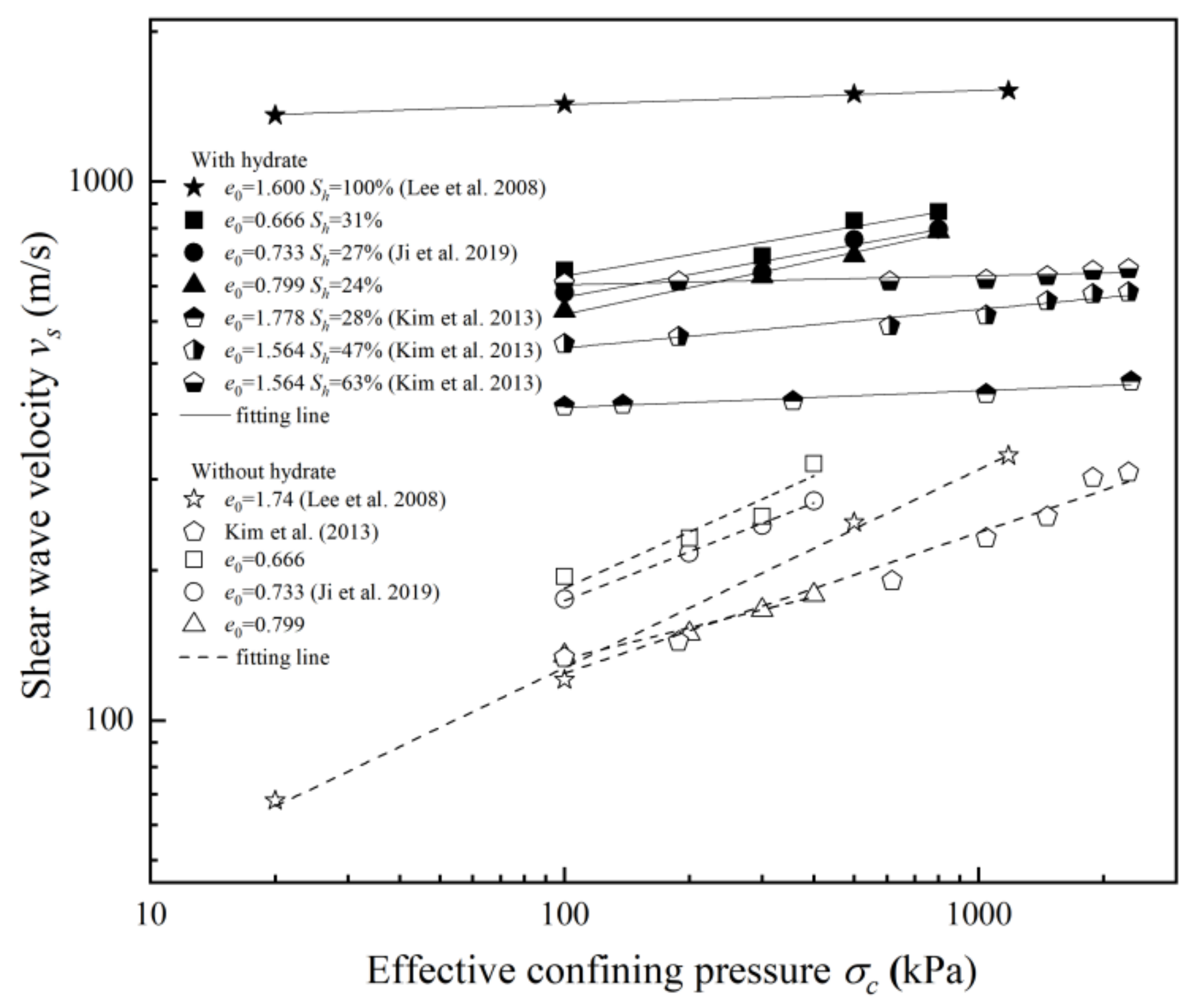

Figure 5. Comparison of the shear wave velocity of the CS–silt mixture with and without THF hydrate [29,32,33].
Figure 5. Comparison of the shear wave velocity of the CS–silt mixture with and without THF hydrate [29,32,33].
Jmse 10 01519 g005

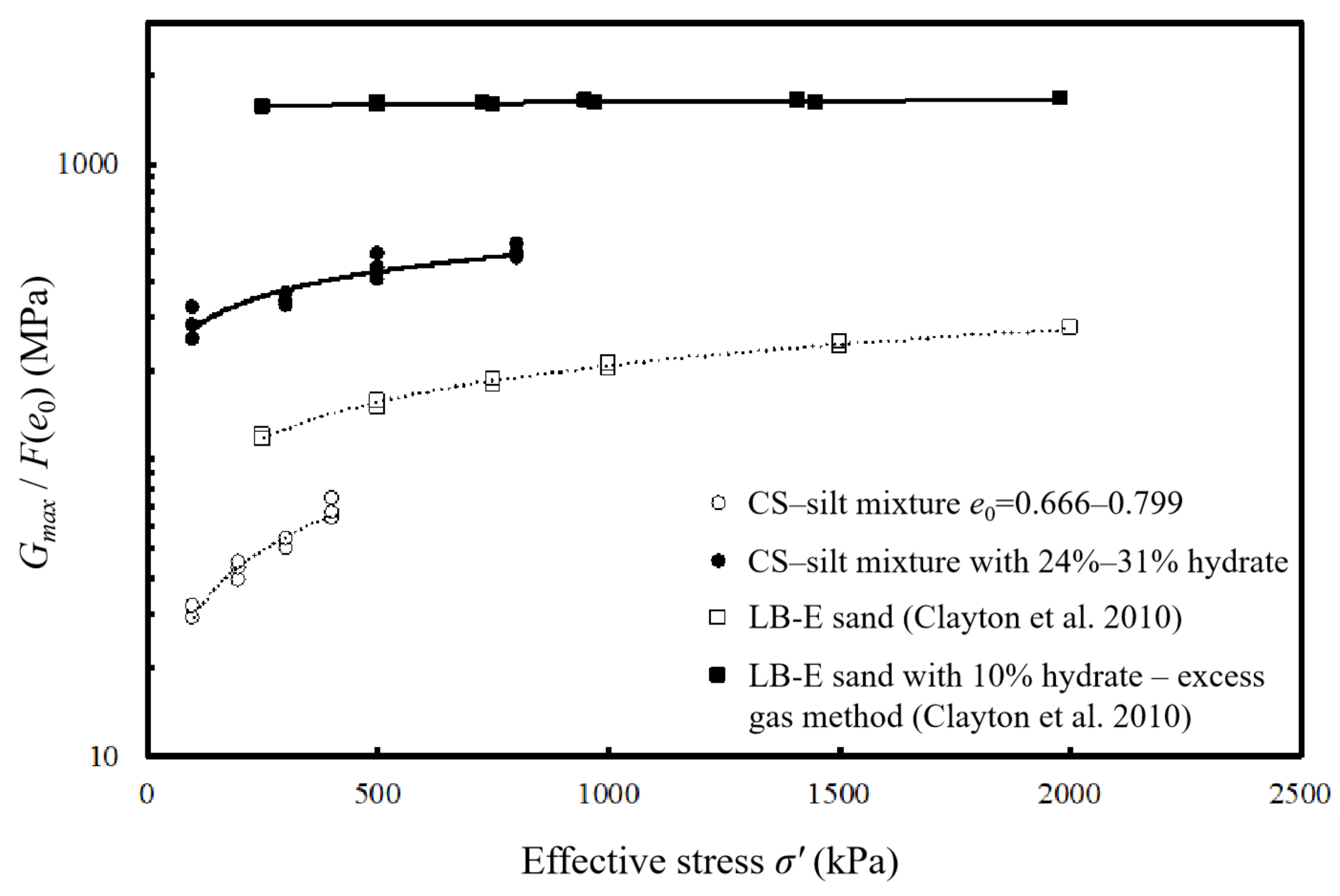

Figure 6. Relationship between the normalized maximum shear modulus and the effective stress [22].
Figure 6. Relationship between the normalized maximum shear modulus and the effective stress [22].
Jmse 10 01519 g006

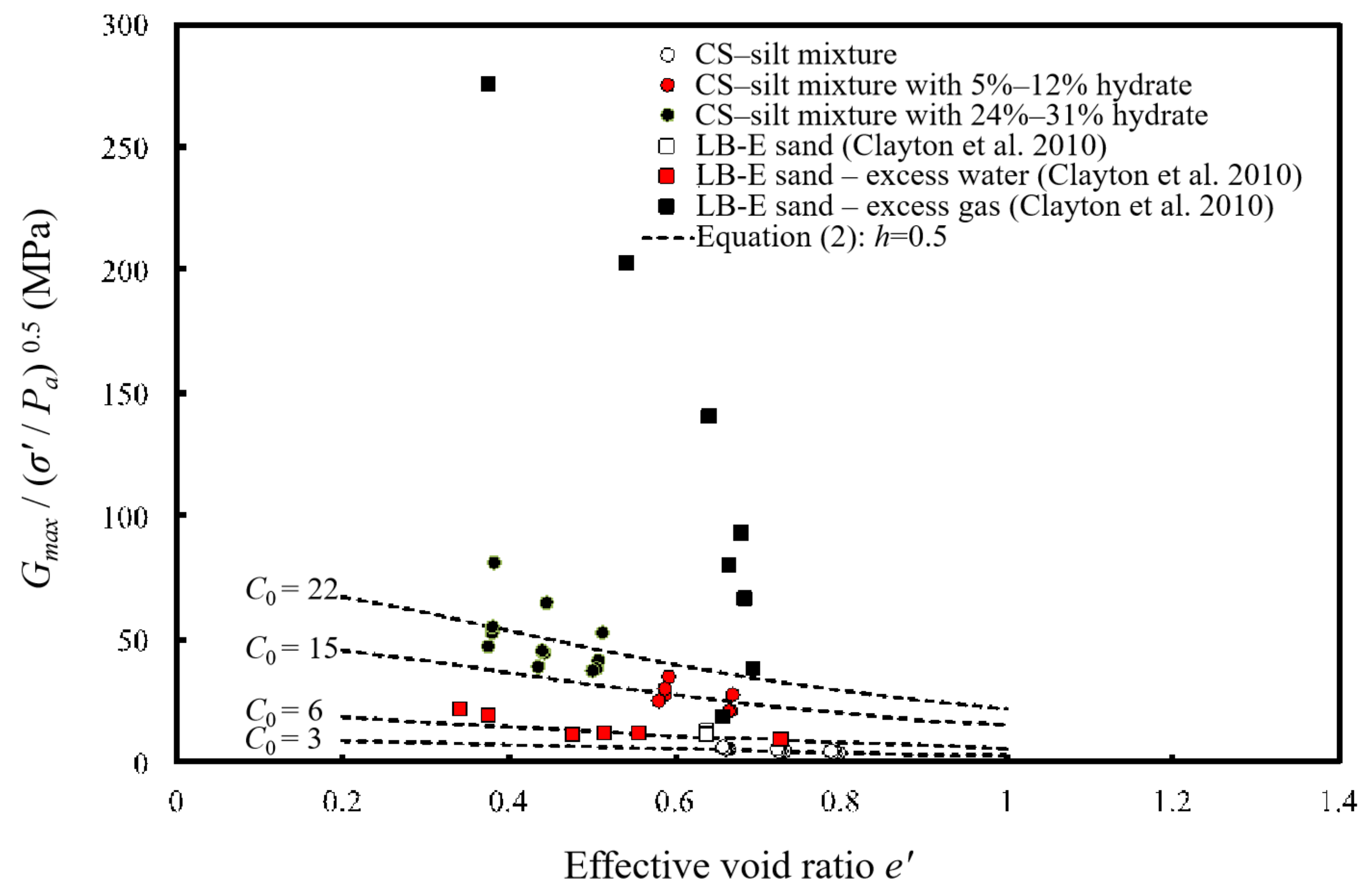

Figure 7. Relationship between the normalised maximum shear modulus and the effective void ratio [22].
Figure 7. Relationship between the normalised maximum shear modulus and the effective void ratio [22].
Jmse 10 01519 g007

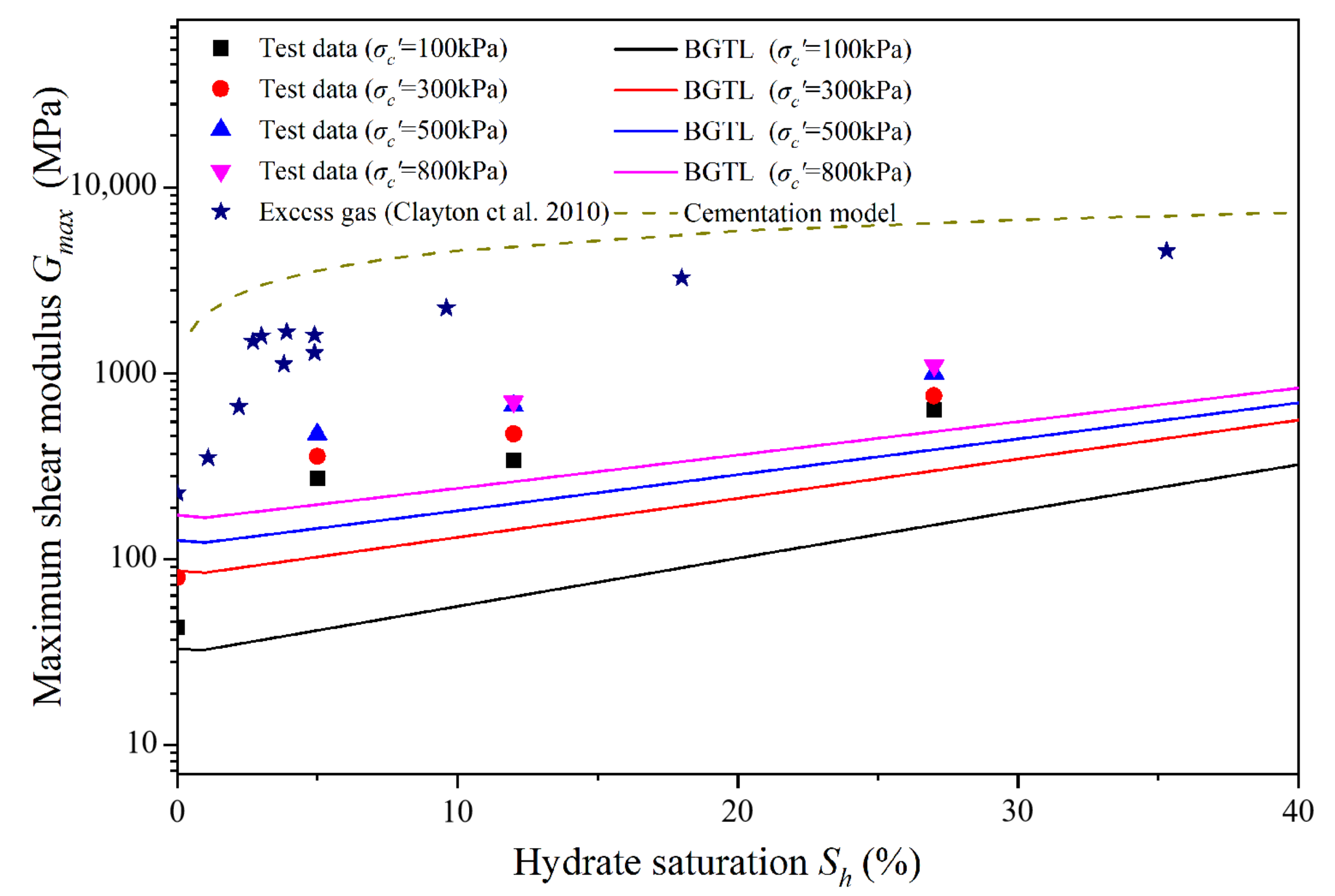

Figure 8. Relationship between the maximum shear modulus and the hydrate saturation [22].
Figure 8. Relationship between the maximum shear modulus and the hydrate saturation [22].
Jmse 10 01519 g008
Table 1. Physical properties of the tested soils.
Table 1. Physical properties of the tested soils.
SoilsSpecific Gravity, GsDiameter Range (mm)d50 (mm)Maximum Void RatioMinimum Void Ratio
Nonplastic silt2.63<0.0750.0431.1760.560
Carbonate sand (CS)2.770.5−1.00.7501.3360.957
Soil mixture-<0.075, 0.5−1.00.0501.0100.476
Table 3. Best-fit values of the model parameters for Equation (2).
Table 3. Best-fit values of the model parameters for Equation (2).
SoilC0hR2
CS–silt mixture20.570.92
CS–silt mixture with Sh = 24–31%780.280.82
LB-E sand120.420.99
LB-E sand with Sh = 10% (excess gas method)13940.020.76
Table 4. Elastic properties of the solid constituents.
Table 4. Elastic properties of the solid constituents.
ConstituentG
(GPa) [43]
K
(GPa) [43]
Quartz4536.6
Calcite3276.8
Hydrate3.37.9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ren, Y.; Chiu, C.F.; Ma, L.; Cheng, Y.P.; Ji, L.; Jiang, C. Shear Modulus of a Carbonate Sand–Silt Mixture with THF Hydrate. J. Mar. Sci. Eng. 2022, 10, 1519. https://doi.org/10.3390/jmse10101519

AMA Style

Ren Y, Chiu CF, Ma L, Cheng YP, Ji L, Jiang C. Shear Modulus of a Carbonate Sand–Silt Mixture with THF Hydrate. Journal of Marine Science and Engineering. 2022; 10(10):1519. https://doi.org/10.3390/jmse10101519

Chicago/Turabian Style

Ren, Yuzhe, C. F. Chiu, Lu Ma, Y. P. Cheng, Litong Ji, and Chao Jiang. 2022. "Shear Modulus of a Carbonate Sand–Silt Mixture with THF Hydrate" Journal of Marine Science and Engineering 10, no. 10: 1519. https://doi.org/10.3390/jmse10101519

APA Style

Ren, Y., Chiu, C. F., Ma, L., Cheng, Y. P., Ji, L., & Jiang, C. (2022). Shear Modulus of a Carbonate Sand–Silt Mixture with THF Hydrate. Journal of Marine Science and Engineering, 10(10), 1519. https://doi.org/10.3390/jmse10101519

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
