Assessment of Biometric Parameters and Health of Canna’s Cultivars as Plant Useful in Phytoremediation of Degraded Agrocenoses

Mariusz Szmagara
Marek Kopacki
Barbara Skwaryło-Bednarz
Agnieszka Jamiołkowska
Barbara Marcinek
Krystyna Rysiak
3 and
Agnieszka Szmagara
Subdepartment of Ornamental Plants and Dendrology, Institute of Horticulture Production, University of Life Sciences in Lublin, Głęboka 28, 20-612 Lublin, Poland
Department of Plant Protection, University of Life Sciences in Lublin, Leszczyńskiego 7, 20-069 Lublin, Poland
Botanical Garden, Maria-Curie Sklodowska University, Sławinkowska 3, 20-810 Lublin, Poland
Department of Chemistry, Institute of Biological Sciences, Faculty of Medicine, The John Paul II Catholic University of Lublin, Konstantynów 1J, 20-708 Lublin, Poland
Author to whom correspondence should be addressed.
Agriculture 2023, 13(1), 157;
Submission received: 9 December 2022 / Revised: 5 January 2023 / Accepted: 5 January 2023 / Published: 8 January 2023


Recently, the ecological awareness of society and the need to take care of our surroundings and the natural environment has significantly increased. There is also an urgent problem of searching for new, environmentally friendly techniques for its purification (soil, ground and surface waters, sewage sludge and air) with the use of living organisms, especially higher plants. One plant species investigated for phytoremediation is canna. Ten varieties of canna, grown on degraded and garden soil, were tested in this respect. The disease index and species composition of fungi inhabiting its organs, growth dynamics, parameters of photosynthesis and gas exchange were determined. The conducted research showed that cannas are able to satisfactorily grow even in seemingly unfavorable soil conditions with its strong degradation. Among a total of 24 species of fungi obtained from its organs, genus Fusarium, considered as pathogenic for canna, Alternaria alternata, and, less frequently, Thanatephorus cucumeris and Botrytis cinerea, dominated. The cultivars ‘Picasso’, ‘Cherry Red’, ‘President’ and ‘La Boheme’ had lower rates of photosynthesis and gas exchange than the least affected ‘Botanica’, ‘Wyoming’, ‘Robert Kemp’ and ‘Lucifer’ cultivars. Those turned out to be the most beneficial and they can be recommended for cultivation on strongly degenerated soils.

1. Introduction

In the last decade, environmental awareness has increased and counteracting environmental pollution has become the main goal of many global institutions. There is an urgent problem of searching for new, environmentally friendly techniques for purifying pollutants from water, sewage, and other contaminated materials with the use of living organisms, especially plants [1]. An interesting example is the EU-funded Phy2Climate project, which aims to validate five pilot phytoremediation in selected soil-contaminated sites, the most common in the world. The project aims to produce energy crops that will eventually power a pilot biorafinery [2]. Canna is an attractive ornamental plant often planted in urban plantings in Europe near communication routes, parking lots and other places that require covering or isolation from exhaust fumes or impurities. It is also known as a plant used in phytoremediation to purify wastewater from various pollutants that are dangerous to humans. In recent years, especially in countries with a warmer climate, canna has been increasingly used as a plant element of a sewage treatment plant useful in phytoremediation. Phosphorus and nitrogen from contaminated water from households can be effectively treated by canna [3,4,5], as well as lead in rhizofiltration systems [6] or oil refinery wastewater [7]. In addition, canna positively affects the preservation of biodiversity in ecosystems through flowers that attract birds and insects [8,9]. Due to its strong growth and development opportunities in coastal and flooded zones, forming large clumps in wet forests and clearings in polluted areas, it seems to be a very promising plant affecting sustainable development in rural and urban areas, despite its invasive nature in some countries [10]. In a warm climate, canna has many uses, including culinary ones, because all its parts are edible, but in the climatic conditions of Central Europe it does not survive the winter, so the rhizomes should be dug up and stored at a positive temperature [11,12]. Therefore, the possibility of using plants resistant to difficult environmental conditions, fast growing and with the ability to clean the area from pollution is sought. An important feature of these plants is a resistance to pests. In order to assess the resistance of plants to pathogens, in addition to the methods of classical mycology, the assessment of the photosynthesis process is used, which allows us to determine the condition of plants in a short time [13]. The process of photosynthesis is strictly associated with a plant species or an even variety and could be modified to a significant extend by the environmental conditions, such as temperature, precipitation and their distribution throughout the vegetation season, like numerous other parameters [14]. Concurrently, there is a major physiological plant process, which has been frequently suffered due to plant pathogens, especially those infecting the leaves [15]. The generally known fact is that leaf diseases may have destructive effect on the photosynthesis and gas exchange and can sharply reduce photosynthesis in different crop plants [16]. Pathogens cause morphological, physiological and biochemical changes, as the significant decrease in the amount of photosynthetic pigments, and thus restrict the photosynthesis rate and, resulting from it, reduce the capacity of the assimilation apparatus [17,18,19]. Following the plant tissues infection, many pathogens may impair photosynthesis even in the initial stage of an infection before any symptoms are visible [20,21]. The aim of the investigations was to generate an impact assessment of the infestation of the specified cultivars of canna by pathogenic fungi on the intensity of photosynthesis and the gas exchange.

2. Materials and Methods

2.1. Experimental Design

The observations were performed in 2017–2019 in the Botanical Garden in the Lublin region, Poland (51°16’ N, 22°30’ E). The most popular cultivars with a varying growth strength and high decorative qualities in the form of attractive flowers and leaves were selected for the study. These are generally available on the market and widely grown in our climatic zone. The objects of the study were ten cultivars of canna plants: Ai—‘Aida’, Am—‘America’, Bo—‘Botanica’, Ch—‘Cherry Red’, LB—‘La Boheme’, Lu—‘Lucifer’, Pi—‘Picasso’, Pr—‘President’, RK—‘Robert Kemp’ and Wy—‘Wyoming’.
The canna rhizomes were stored for the winter period in containers covered with peat in a cool room at about 5–10 °C. The seedlings were planted into the 2 L pots in March. Then, the pots were set in a foil tunnel, in which they grew until mid-May. After the last spring frosts, they were placed in the field at 60 × 60 cm spacing.
The experiment was performed in a complete randomized blocks design with four replicates, where the block was the random effect. The experimental combination consisted of 12 plants (3 plants in 4 replicates) of each cultivar.
Mineral fertilization in accordance with the recommendations for canna plants was used.
Shoot length tests were carried out for three years from June to October. Plant height measurements were made using a measuring tape. The canna height growth figures are given as the three-year averages for all varieties.

2.2. Weather Parameters

The meteorological data sourced from the Meteorological Observatory of the Hydrology and Climatology Department, the Maria Curie-Sklodowska University in Lublin. The observations were carried out in 2017–2019 in the Botanical Garden in the Lublin region, Poland [22,23].

2.3. Soil Analysis

The investigations were carried out on the control (garden) and contaminated soil. The plots with contaminated soil were located near the communication route, which, apart from passers-by, was used by animal owners with their pupils. It resulted in the heavy contamination of the area with organic waste and animal excrements. So, the condition of the soil was after strong antropopressure. The control plots were with typical garden soil. The analyses of the soil in the plots were performed annually before planting the plants.

2.4. Plant Health Assessement

The evaluation for the level of infection disease index (DI) was performed twice every year, i.e., in mid-June and mid-September on the base of the 5-grade scale: 0—no symptoms, 1—minor spots on the leaves, 2—necrotic spots on most leaves, 3—wilting of plants and 4—dying of plants. The data were processed by McKinney’s formula [24], which generates a numeric disease index (DI) of the severity of the attack: DI = (Σvn)/(NV) × 100, where v represents the numeric value of the class, n is the number of plants assigned to the class, N is the total number of plants in the replication and V is the numeric value of the highest class. Due to the fact that canna planted in a permanent place after the 15th May did not indicated the disease symptoms, the DI was not calculated.

2.5. Mycological Analysis

The presence of fungi was established at the first decade of October on the basis of etiological symptoms occurring on the infected parts of the plants and on the basis of mycological analysis being performed according to the artificial cultures method as described by Kopacki and Wagner [25]. Fungi were isolated from leaves and the stems and rhizome were analyzed in a mycological laboratory (University of Life Sciences in Lublin). Parts of the plant were pre-cleaned, and they were washed for 20 min under running water. Next, we disinfected the surface with 10% NaOCl for 60 s and then rinsed the parts three times with sterile distilled water for 3 min. Finally, the fragments were placed in a mineral medium. After separation, the obtained fungal colonies were identified to the species with the available monographs.

2.6. Measurements of Gas Exchange Parameters

The measurements of the photosynthetic activity of the plants were carried out in two growing seasons, in the first decade of July and first decade of September, in two combinations (plots with contaminated soil and garden soil). Ten plants per every variety have been chosen. The measurements were conducted on the 3rd fully expanded leaf counting from the base of the plant and throughout the entire growing season the same leaves were used. The following gas exchange parameters were determined: the intensity of photosynthesis (Pn) (µmol CO2.m−2 s−1), transpiration (E) (mmol H2O m−2 s−1), stomatal conductance (Gs) (mmol H2O m−2 s−1) and intercellular CO2 concentration (Ci) (µmol CO2 m−2 s−1). They were carried out with the use of a portable infrared gas exchange analyser, CIRAS-2 PPSystems (Hitchin, Hertfordshire, UK). The analyser’s cuvette conditions were set to the external source of the CO2, humidity and temperature equal to ambient and daylight.

2.7. Statistical Analysis

The obtained results (for the gas exchange and disease index) were statistically analyzed with the use of an ANOVA and Tukey’s confidence intervals at the 5% significance level (α = 0.05). The Pearson correlation coefficients between photosynthesis, transpiration and the disease index was determined for both types of plots [26,27].

3. Results

3.1. Weather Parameters

During the research period, the highest temperature was recorded in the summer months, especially in July, with the exception of 2019. This year the temperature was much lower than the long-term average. The year 2017 turned out to be unusual, when a record high temperature was recorded in the autumn period. The amount of precipitation during the study period was similar to the long-term average, except for July 2019, when it was much lower than the long-term average (Figure 1).

3.2. Soil Analysis

The contaminated soil was in a bad culture, compacted by animals and had no glandular structure. It also contained numerous cat and dog droppings. The obtained results are the average of the three years of research (Table 1). The contaminated soil was characterized by a significant salinity, and the macro- and microelements contents, especially nitrogen, were significantly higher than in the garden one.

3.3. Plant Health Assessement

As a result of the research, it was observed that after planting the plants on the plots, their growth was slow. A significant increase in their length was recorded from the beginning of August. On plots with contaminated soil, a significantly better growth was recorded in three cultivars: ‘Botanica’, ‘Robert Kemp’ and ‘Wyoming’. The individual plants of these varieties reached the greatest height (Figure 2). On the other hand, plants planted on plots with garden soil showed a growth dominance in the same cultivars. The growth of most varieties was very even (Figure 3).
The average disease index for all varieties was the highest in the first year of the research, but no significant statistical differences were noted. The highest index was found in plants of the variety ‘Aida’ (over 30%) and the lowest ‘Botanica’ (over 20%). In the coming years, the disease indices were significantly lower and ranged between 15 and 20% (Figure 4).
It was observed that the temperature and precipitation had an impact on fungi inhabiting canna plants. Differences between the cultivars were also observed. There were numerous yellow and brown necrotic spots visible on the leaves, which extended from the lateral veins towards the edge of the leaf blade, causing the leaves to twist over time, the leaf blade to crumble and the leaves to dry out completely. There were also, especially in the initial growth phase, extensive spots on the stems, which expanded and covered the entire stem, leading to wilting (Figure 5).
Some of the rhizomes taken out of storage completely rotted or dried up. The cross-section showed signs of conduction bundle necrosis with wet rot with brown exudate and etiological signs in the form of sporulating mycelium in grey, red, pink, yellow and brown on some rhizomes were observed. In others, however, the apical part often withered and become covered with sporulating mycelium (Figure 6).

3.4. Fungi Obtained from Canna Plant

During the three-year study period (2017–2019), as a result of the mycological analysis of the canna leaves, shoots and rhizomes, a total of 5882 isolates of fungi belonging to 24 species were collected. The 2318 fungal isolates were obtained from the leaves, 2018 from the shoots and 1546 from the rhizomes (Figure 7, Figure 8 and Figure 9).
The pathogenic fungi of the genus Fusarium were the dominant colonizers of the leaves in the period of the study. They accounted for as much as 59% of the total number of fungi isolated in the first year of the study, 30% in the second year and 22% in the third year of the study (Figure 7). F. culmorum was most often isolated from the ‘Robert Kemp’ and ‘America’ cultivars; numerous F. oxysporum isolates were also obtained in the first year of research from the ‘La Boheme’ cultivar. During the three-year study period, the isolation of Alternaria alternata from all cultivars was very frequent, and accounted for 23%, 38% and 67% of the total number of fungi isolated from the leaves. They were obtained especially often from the ‘President’ variety in 2019. Pathogenic species Botrytis cinerea and Sclerotinia sclerotiorum were also collected from the leaves.
The most numerous canna shoots were inhabited by A. alternata and the fungi of the genus Fusarium. They were isolated from all cultivars. Most of A. alternata was isolated from the varieties ‘Cherry Red’ and ‘Lucifer’. The fungi F. culmorum, F. oxysporum and F. avenaceum were collected in great numbers, mostly from the varieties of ‘Wyoming’ and ‘Robert Kemp’. B. cinerea was often obtained from the cultivar ‘America’, ‘Aida’ and ‘Picasso’, and Truncatella truncata on ‘Picasso’ and ‘President’ were also noted (Figure 8).
Rhizomes were also colonized in great numbers by A. alternata and the fungi of the genus Fusarium, mainly F. culmorum and F. avenaceum, inhabited generally ‘America’ and ‘Cherry Red’ cultivars (Figure 3). Cylindrocarpon obtusisporum and Thanatephorus cucumeris were often isolated from the canna organs. Moreover, the occurrence of Cylindrocarpon destructans and Phoma exigua was reported (Figure 7, Figure 8 and Figure 9).
It is noteworthy that there was the numerous colonization of all canna organs by the saprophytic fungi of the genus Trichoderma. From the shoots, the most often isolated was Trichoderma koningii in the second and the third year of study, and the isolates accounted for 10% and 7%, respectively. During the same period, numerous isolates from rhizomes were obtained and they constituted 5% and 6% of the isolated fungi. In the first and second years of the research, numerous Epicoccum nigrum isolates were obtained from the leaves and they accounted for 13% and 19% of the obtained fungi. Most of it was obtained from the varieties ‘America’ and ‘La Boheme’ (Figure 7, Figure 8 and Figure 9). Useful fungus, Chaetomium cochlioides, was also collected from the stems during all years of studies and from the leaves in 2017 and 2018 (Figure 7 and Figure 8).

3.5. Measurement of Gas Exchange Parameters

The analysis of the results indicated the considerable differentiation of photosynthesis and gas exchange parameters in particular canna varieties infested by pathogenic fungi. Among the determined photosynthetic intensities, the Tte lowest value, 5.61 µmol CO2 m−2 s−1, was noted at the ‘Picasso’ cultivar growing on the degraded substrate and the obtained results differed significantly from other cultivars (Table 2). Similar low results were reported at cultivars ‘Cherry Red’ and ‘President’, 8.90 and 9.78 µmol CO2 m−2 s−1, respectively. The analogous trend was observed also on the uncontaminated plots. The lowest level of photosynthesis was carried out at ‘Picasso’, 6.95, and ‘La Boheme’, 7.17 CO2 m−2 s−1, and the obtained results differ significantly from other cultivars, except for ‘America’ and ‘Robert Kemp’, at which values 7.77 and 8.63 µmol CO2 m−2 s−1 were noted. Nevertheless, the highest photosynthesis intensities were observed in ‘Botanica’, ‘Wyoming’ and ‘Lucifer’ varieties (Table 2).
The studied varieties have also differed in their transpiration rate (E). On contaminated soil, the lowest transpiration was reported in the ‘Aida’ cultivar, 1.76 mmol H2O m−2 s−1. The other cultivars carried the transpiration out at the level of ca. 2 mmol H2O m−2 s−1, except for ‘America’, which evaporated the most water, 3.18 mmol H2O m−2 s−1, from the leaf area, and this value differs significantly from all other cultivars. The similar tendency continued also in the plots with garden soil (Table 2).
The lowest stomatal conductance (Gs) in relation to the other varieties was shown by ‘Cherry Red’, 90.00 mmol H2O m−2 s−1, on plots with contaminated soil and ‘Aida’ by 94.50 mmol H2O m−2 s−1. In turn, ‘Wyoming’, during the entire period of the measurements, was in the range of 96.08–98.17 mmol H2O m−2 s−1. The ‘Picasso’, ‘La Boheme’ and ‘Lucifer’ varieties also showed a lower level of stomatal conductance in both sites. The highest transpiration in all combinations was showed by the varieties ‘Botanica’, ‘America’ and ‘Robert Kemp’ (Table 2).
The lowest concentration of intercellular carbon dioxide (Ci) compared to other varieties during the observations in all combinations was recorded in the cultivars ‘Aida’, ‘La Boheme’, ‘Wyoming’ and ‘Picasso’ and ranged from 240.83 to 364.25 µmol CO2 m−2 s−1. Nevertheless, the highest Ci values have been notified in the cultivars ‘Robert Kemp’ and ‘Botanica’ and ranged between 440.17 and 508.08 µmol CO2 m−2 s−1 (Table 2).

4. Discussion

The obtained results are consistent with those of other authors. Different species and varieties of plants react to a different degree of infection by pests, which manifests itself in interfering with the physiological processes in the plant. In the majority of diseases, the photosynthesis rate may be reduced at the beginning of the infection. Indeed, most pathogens decreased their photosynthesis levels from the onset of infection even though there were no visible symptoms [19,20,28].
The low photosynthesis parameters are correlated with a high air temperature during the growing season and a limited and unevenly distributed rainfall. The photosynthesis process is uniquely connected with unfavorable meteorological conditions due to the acute sensitivity of the photosynthetic apparatus in the assimilation organs. In the response to a water deficit, the stomata closes, which then results in a decrease in the stomatal conductance, thus the limiting the availability of CO2, consequently resulting in the reduction in the photosynthetic intensity [14]. In the conducted research, this was particularly evident in 2017, when the weather parameters differed from the long-term averages.
The lowest stomatal conductance (Gs) among all cultivars on the contamination fields was showed at ‘Cherry Red’ and ‘Aida’. However, the cultivar ‘Wyoming’ has stomatal conductance (Gs) in the range of 96.08–98.17 mmol H2O m−2 s−1. The stomatal conductance at a low level have also ‘Picasso’, ‘La Boheme’ and ‘Lucifer’ cultivars. The highest values of transpiration during the performed studies were noticed in ‘Botanica’, ‘America’ and ‘Robert Kemp’ cultivars. In conclusion, higher photosynthesis parameters were found in plants growing on contaminated soil. Numerous researchers have observed a similar trend on other plant species. The investigations of Bispo et al. [28] have confirmed that Ceratocystis fimbriata isolates caused the decrease in stomatal conductance independently of the mango variety, and therefore simultaneously they cause a diffusive limitation of the assimilation of CO2. It was proved that the reduced level of Gs is the one of major limitations of photosynthesis in infected plants by lowering the availability of the CO2 flow by the leaf area [19]. The research of Ribeiro et al. [29] is concur with ours and shows that the factors of the CO2 assimilation and stomatal conductance (Gs) were higher on the healthy seedlings of orange than on those infested by Xylella fastidiosa. Polanco et al. [16] has also demonstrated an analogous relationship in bean plants infested by Colletotrichum lindemuthianum.
The examined varieties differed also in the transpiration rate (E). In the first year of studies, the lowest transpiration was reported in the ‘Aida’ cultivar. The other cultivars carried the transpiration out at the similar level, except for ‘America’, which evaporated the most water, 3.18 mmol H2O m−2 s−1 from the leaf area, and this value differed significantly from all other cultivars. A similar tendency continued also in the second combination. In the studies of Lobato et al. [17], it was confirmed that the transpiration rate corresponded to the plant infection degree and is lower in the infested plants.
The lowest intercellular CO2 (Ci) values, in comparison to other cultivars, were noticed in ‘Aida’, ‘La Boheme’, ‘Wyoming’ and ‘Picasso’. However, the highest values were found in ‘Robert Kemp’ and ‘Botanica’ cultivars by Mikiciuk et al. [30]. They had demonstrated that Ci could indicate a significant variation depending on the physiological and developmental stage of a plant, and is higher at the beginning of the growing season than at the end. This tendency is also proved in our research.
Analyzing the level of DI, no statistically significant differences were noted between the levels, but the level of infection was quite low. It is possible that at a higher level these differences would be more noticeable. Observing the colonization of plants by fungi in a polluted field, Alternaria alternata and the fungi of the genus Fusarium dominated. The number of populations of these fungi varied in particular years of research and could be related to the weather conditions, especially the soil moisture, which affects the development of these fungi [31,32]. The polyphagous Fusarium oxysporum, which often inhabits canna, is grown in warm climates [33,34]. Isolated Fusarium culmorum and Thanatephorus cucumeris are known as the cause of shoot base and rhizome rot, which often occur on numerous species of ornamental plants [35]. High humidity is associated with the occurrence of S. sclerotiorum, causing the rotting of many plant species [36]. An often isolated in tropical countries, weak pathogen, Alternaria alternata, has in recent years been frequently noted on canna plants used for wastewater treatment [37]. This fungus is responsible for considerable losses in the production of canna in tropical countries [38]. Numerous populations of A. alternata obtained in our investigation suggest further studies on its pathogenicity to canna. Frequently isolated antagonistic fungi, like Trichoderma sp. or Chaetomium sp. and Epicoccum nigrum, have a great influence on the health of canna plants due to the reduction in the pathogenic fungi number, especially in the soil [39,40,41,42]. Currently, the contamination of the environment, especially areas after anthropopressure with heavy metals and other pollutions, is a serious problem. An effective way to purify it is phytoremediation. Research conducted by Trąmpczyńska and Gawroński [43] in Poland proved that the planting of garden canna in the area of urban greenery contributed to the reduction in the lead contamination of the planted stand. Many authors confirm that canna can be a very valuable plant to purify polluted water in different climatic zones ([1,44,45,46]) and remove pesticides from the environment [47]. Taking into account the climate change and the assumptions of the “European Green Deal” recently introduced, it can be assumed that canna will become a plant recommended for planting biological sewage treatment plants.

5. Conclusions

Canna plants were most often inhabited by the fungi of the genus Fusarium, considered as being pathogenic to canna and Alternaria alternata, and less frequently by Thanatephorus cucumeris and Botrytis cinerea.
‘Picasso’, ‘Cherry Red’, ‘President’ and ‘La Boheme’, as the more infected by pathogens cultivars, carried out the photosynthesis and gas exchange processes on significantly lower levels than the less infested cultivars of ‘Botanica’, ‘Wyoming’, ‘Robert Kemp’ and ‘Lucifer’.
In the conducted research, the cultivation of the canna cultivars ‘Botanica’, ‘Robert Kemp’ and ‘Wyoming’ in difficult conditions on contaminated soils turned out to be the most beneficial, so they can be recommended for cultivation on strongly degenerated soils.

Author Contributions

Conceptualization, M.S. and M.K.; methodology, M.K., M.S. and B.S.-B.; software, M.S., A.J. and B.M.; validation, M.S., M.K. and B.S.-B.; formal analysis, M.S. and M.K. and A.J.; investigation, M.K., M.S., B.M. and K.R.; resources, K.R.; data curation, M.S. and M.K.; writing—original draft preparation, M.S. and M.K.; writing—review and editing, M.S., M.K. and A.S.; visualization, M.K. and A.S.; supervision and project administration, M.S. and M.K. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are available upon reasonable request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Hassan, I.; Chowdhury, S.R.; Prihartato, P.K.; Razzak, S.A. Wastewater Treatment Using Constructed Wetland: Current Trends and Future Potential. Processes 2021, 9, 1917. [Google Scholar] [CrossRef]
  2. European Commission. A Global Approach for Recovery of Arable Land through Improved Phytoremediation Coupled with Advanced Liquid Biofuel Production and Climate Friendly Copper Smelting Process; Horizon 2020; European Commission: Luxembourg, 2020.
  3. Ojoawo, S.O.; Udayakumar, G.; Naik, P. Phytoremediation of Phosphorus and Nitrogen with Canna x Generalis Reeds in Domestic Wastewater through NMAMIT Constructed Wetland. Aquat. Procedia 2015, 4, 349–356. [Google Scholar] [CrossRef]
  4. Arliyani, I.; Tangahu, B.; Mangkoedihardjo, S. Plant Diversity in a Constructed Wetland for Pollutant Parameter Processing on Leachate: A Review. J. Ecol. Eng. 2021, 22, 240–255. [Google Scholar] [CrossRef]
  5. Plaza, B.M.; Maggini, R.; Borghesi, E.; Pardossi, A.; Lao, M.T.; Jiménez-Becker, S. Nutrient Extraction in Pansy Fertigated with Pure, Diluted, Depurated and Phytodepurated Leachates from Municipal Solid Waste. Agronomy 2020, 10, 1911. [Google Scholar] [CrossRef]
  6. Čule, N.; Vilotic, D.; Nešić, M.; Veselinovic, M.; Drazic, D.; Mitrovic, S. Phytoremediation Potential of Canna Indica L. in Water Contaminated with Lead. Fresenesius Environ. Bull. 2016, 25, 3728–3733. [Google Scholar]
  7. Ghezali, K.; Bentahar, N.; Barsan, N.; Nedeff, V.; Moșneguțu, E. Potential of Canna Indica in Vertical Flow Constructed Wetlands for Heavy Metals and Nitrogen Removal from Algiers Refinery Wastewater. Sustainability 2022, 14, 4394. [Google Scholar] [CrossRef]
  8. Glinos, E.; Cocucci, A.A. Pollination Biology of Canna Indica (Cannaceae) with Particular Reference to the Functional Morphology of the Style. Plant Syst. Evol. 2011, 291, 49–58. [Google Scholar] [CrossRef]
  9. Yeo, P. Secondary Pollen Presentation: Form, Function, and Evolution; Plant Systematics and Evolution; Springer: Wien, Austria; New York, NY, USA, 1993; ISBN 978-0-387-82448-2. [Google Scholar]
  10. Henderson, L.; Cilliers, C.J. Invasive Aquatic Plants—A Guide to the Identification of the Most Important and Potentially Dangerous Invasive Aquatic and Wetland Plants in South Africa; ARC-Plant Protection Research Institute: Pretoria, South Africa, 2002. [Google Scholar]
  11. Okonwu, K.; Ariaga, C. Nutritional Evaluation of Various Parts of Canna Indica L. ARRB 2016, 11, 1–5. [Google Scholar] [CrossRef]
  12. Piperno, D.R. The Origins of Plant Cultivation and Domestication in the New World Tropics: Patterns, Process, and New Developments. Curr. Anthropol. 2011, 52, S453–S470. [Google Scholar] [CrossRef]
  13. Wagner, A.; Jamiołkowska, A.; Michałek, W. Pathogenicity of Fusarium Oxysporum from Different Soil Environments and Its Effect on Photosynthetic Activity of Tomato Plants. EJPAU 2007, 10, 29. [Google Scholar]
  14. Olszewska, M.; Grzegorczyk, S.; Olszewski, J.; Bałuch-Małecka, A. A Comparison of the Response of Selected Grass Species to Water Stress. Grassl. Sci. Pol. 2010, 13, 127–137. [Google Scholar]
  15. Rios, V.S.; Rios, J.A.; Aucique-Pérez, C.E.; Silveira, P.R.; Barros, A.V.; Rodrigues, F.Á. Leaf Gas Exchange and Chlorophyll a Fluorescence in Soybean Leaves Infected by Phakopsora Pachyrhizi. J. Phytopathol. 2018, 166, 75–85. [Google Scholar] [CrossRef]
  16. Polanco, L.R.; Rodrigues, F.A.; Nascimento, K.J.T.; Cruz, M.F.A.; Curvelo, C.R.S.; DaMatta, F.M.; Vale, F.X.R. Photosynthetic Gas Exchange and Antioxidative System in Common Bean Plants Infected by Colletotrichum Lindemuthianum and Supplied with Silicon. Trop. Plant Pathol. 2014, 39, 35–42. [Google Scholar] [CrossRef]
  17. Lobato, A.; Gonçalves-Vidigal, M.; Vidigal Filho, P.; Andrade, C.; Kvitschal, M.; Bonato, C. Relationships between Leaf Pigments and Photosynthesis in Common Bean Plants Infected by Anthracnose. N. Z. J. Crop Hortic. Sci. 2010, 38, 29–37. [Google Scholar] [CrossRef]
  18. Lobato, A.K.S.; Mc, G.-V.; PS Vidigal, F.; Costa, R.C.L.; Cruz, F.J.R.; Santos, D.G.C.; Silva, C.R.; Li, S.; Ll, S. Changes in Photosynthetic Pigment and Carbohydrate Content in Common Bean Cultivars Infected by Colletotrichum Lindemuthianum. Plant Soil Environ. 2009, 55, 58–61. [Google Scholar] [CrossRef] [Green Version]
  19. Alves, A.A.; Guimarães, L.M.d.S.; Chaves, A.R.d.M.; DaMatta, F.M.; Alfenas, A.C. Leaf Gas Exchange and Chlorophyll a Fluorescence of Eucalyptus Urophylla in Response to Puccinia Psidii Infection. Acta Physiol. Plant 2011, 33, 1831–1839. [Google Scholar] [CrossRef]
  20. Berger, S.; Sinha, A.K.; Roitsch, T. Plant Physiology Meets Phytopathology: Plant Primary Metabolism and Plant Pathogen Interactions. J. Exp. Bot. 2007, 58, 4019–4026. [Google Scholar] [CrossRef] [PubMed]
  21. Moshou, D.; Bravo, C.; Oberti, R.; West, J.; Bodria, L.; McCartney, A.; Ramon, H. Plant Disease Detection Based on Data Fusion of Hyper-Spectral and Multi-Spectral Fluorescence Imaging Using Kohonen Maps. Real-Time Imaging 2005, 11, 75–83. [Google Scholar] [CrossRef]
  22. Hortus Botanicus Universitatis Mariae Curie-Skłodowska. Index Seminum 2018; Hortus Botanicus Universitatis Mariae Curie-Skłodowska: Lublin, Polonia, 2019. [Google Scholar]
  23. Hortus Botanicus Universitatis Mariae Curie-Skłodowska. Index Seminum 2019; Hortus Botanicus Universitatis Mariae Curie-Skłodowska: Lublin, Polonia, 2020. [Google Scholar]
  24. Parafiniuk, S.; Kopacki, M. Biological Efficacy of the Chemical Chrysanthemums Protection with the Use of Fine and Coarse Droplets. J. Cent. Eur. Agric. 2012, 13, 554–559. [Google Scholar] [CrossRef]
  25. Kopacki, M.; Wagner, A. Effect of Some Fungicides on Mycelium Growth of Fusarium Avenaceum (Fr.) Sacc. Pathogenic to Chrysanthemum (Dendranthema Grandiflora Tzvelev). Agron. Res. 2006, 4, 237–240. [Google Scholar]
  26. Bordens, K.S.; Abbott, B.B. Research Design and Methods. A Process Approach, 7th ed.; McGraw-Hill: New York, NY, USA, 2008. [Google Scholar]
  27. Raudonius, S. Application of Statistics in Plant and Crop Research: Important Issues. Zemdirb. Agric. 2017, 104, 377–382. [Google Scholar] [CrossRef] [Green Version]
  28. Bispo, W.M.d.S.; Araujo, L.; Moreira, W.R.; Silva, L.d.C.; Rodrigues, F.Á. Differential Leaf Gas Exchange Performance of Mango Cultivars Infected by Different Isolates of Ceratocystis Fimbriata. Sci. Agric. (Piracicaba Braz.) 2016, 73, 150–158. [Google Scholar] [CrossRef] [Green Version]
  29. Ribeiro, R.V.; Machado, E.C.; Oliveira, R.F. Growth- and Leaf-Temperature Effects on Photosynthesis of Sweet Orange Seedlings Infected with Xylella Fastidiosa. Plant Pathol. 2004, 53, 334–340. [Google Scholar] [CrossRef]
  30. Mikiciuk, G.; Mikiciuk, M.; Ptak, P. The Effect of Antitranspirant Di-1-p-Methene on Some Physiological Traits of Strawberry. J. Ecol. Eng. 2015, 16, 161–167. [Google Scholar] [CrossRef]
  31. Kopacki, M.; Wagner, A. Pathogenicity of Fusarium Spp. to Chrysanthemum (Dendranthema Grandiflora Tzvelev). Latv. J. Agron. 2004, 7, 158–159. [Google Scholar]
  32. Jerushalmi, S.; Maymon, M.; Dombrovsky, A.; Freeman, S. Fungal Pathogens Affecting the Production and Quality of Medical Cannabis in Israel. Plants 2020, 9, 882. [Google Scholar] [CrossRef]
  33. Kunal, T.; Milind, G.; Shrirang, B. Diversity of Rhizosphere Mycoflora of Canna Indica L. Int. J. Curr. Res. Life Sci. 2018, 7, 1669–1671. [Google Scholar]
  34. Olivares, B.O.; Rey, J.C.; Lobo, D.; Navas-Cortés, J.A.; Gómez, J.A.; Landa, B.B. Fusarium Wilt of Bananas: A Review of Agro-Environmental Factors in the Venezuelan Production System Affecting Its Development. Agronomy 2021, 11, 986. [Google Scholar] [CrossRef]
  35. Sharma, S.; Chandel, S. Management of Stem Rot (Rhizoctonia Solani) of Carnation by Fungicides. J. Mycol. Pl. Pathol. 2013, 43, 187–189. [Google Scholar]
  36. Grabowski, M.A.; Malvick, D.K. Evaluation of Ornamental Tropical Plants for Resistance to White Mold Caused by Sclerotinia Sclerotiorum. Hortscience 2017, 52, 1375–1379. [Google Scholar] [CrossRef] [Green Version]
  37. Kundu, D.; John, D.J.; Adhikari, T.; Ghosh, P.; Sarkar, S.; Mitra, A.K. Study of Rhizospheric Association in Improving the Effectiveness of a Phytorid Plant towards Bioremediation. World J. Pharm. Res. 2016, 5, 1546–1556. [Google Scholar]
  38. Roopa, P.; Fugro, P.A.; Kadam, J. Symptomatology, Host Range Study and Management by Botanicals against Alternaria Alternata of Canna Indica (Fr.) Keissler. Int. J. Life Sc. Bt. Pharm. Res. 2014, 3, 116–120. [Google Scholar]
  39. Ogórek, R.; Plaskowska, E. Epicoccum Nigrum for Biocontrol Agents in Vitro of Plant Fungal Pathogens. Commun. Agric. Appl. Biol. Sci. 2011, 76, 691–697. [Google Scholar]
  40. Fatima, N.; Ismail, T.; Muhammad, S.A.; Jadoon, M.; Ahmed, S.; Azhar, S.; Mumtaz, A. Epicoccum Sp. an Emerging Source of Unique Bioactive Metabolites. Acta Pol. Pharm. 2016, 73, 13–21. [Google Scholar]
  41. Soytong, K.; Kahonokmedhakul, S.; Song, J.; Tongon, R. Chaetomium Application in Agriculture. In Technology in Agriculture; Ahmad, F., Sultan, M., Eds.; IntechOpen: London, UK, 2021; ISBN 978-1-83881-921-7. [Google Scholar]
  42. Tyśkiewicz, R.; Nowak, A.; Ozimek, E.; Jaroszuk-Ściseł, J. Trichoderma: The Current Status of Its Application in Agriculture for the Biocontrol of Fungal Phytopathogens and Stimulation of Plant Growth. Int. J. Mol. Sci. 2022, 23, 2329. [Google Scholar] [CrossRef]
  43. Trąmpczyńska, A.; Gawroński, S.W. Canna x Generalis Jako Fitoremediant Terenów Zurbanizowanych. Folia Hortic. 2003, 1, 447–449. [Google Scholar]
  44. Choudhary, A.; Kumar, S.; Sharma, C.; Kumar, P. Performance of Constructed Wetland for the Treatment of Pulp and Paper Mill Wastewater. In Proceedings of the World Environmental and Water Resources Congress, Palm Springs, CA, USA, 22–26 May 2011. [Google Scholar]
  45. Huang, T.; Liu, W.; Zhang, Y.; Zhou, Q.; Wu, Z.; He, F. A Stable Simultaneous Anammox, Denitrifying Anaerobic Methane Oxidation and Denitrification Process in Integrated Vertical Constructed Wetlands for Slightly Polluted Wastewater. Environ. Pollut. 2020, 262, 114363. [Google Scholar] [CrossRef] [PubMed]
  46. Karungamye, P.N. Potential of Canna Indica in Constructed Wetlands for Wastewater Treatment: A Review. Conservation 2022, 2, 499–513. [Google Scholar] [CrossRef]
  47. Chen, Q.; Zeng, H.; Liang, Y.; Qin, L.; Peng, G.; Huang, L.; Song, X. Purification Effects on β-HCH Removal and Bacterial Community Differences of Vertical-Flow Constructed Wetlands with Different Vegetation Plantations. Sustainability 2021, 13, 13244. [Google Scholar] [CrossRef]

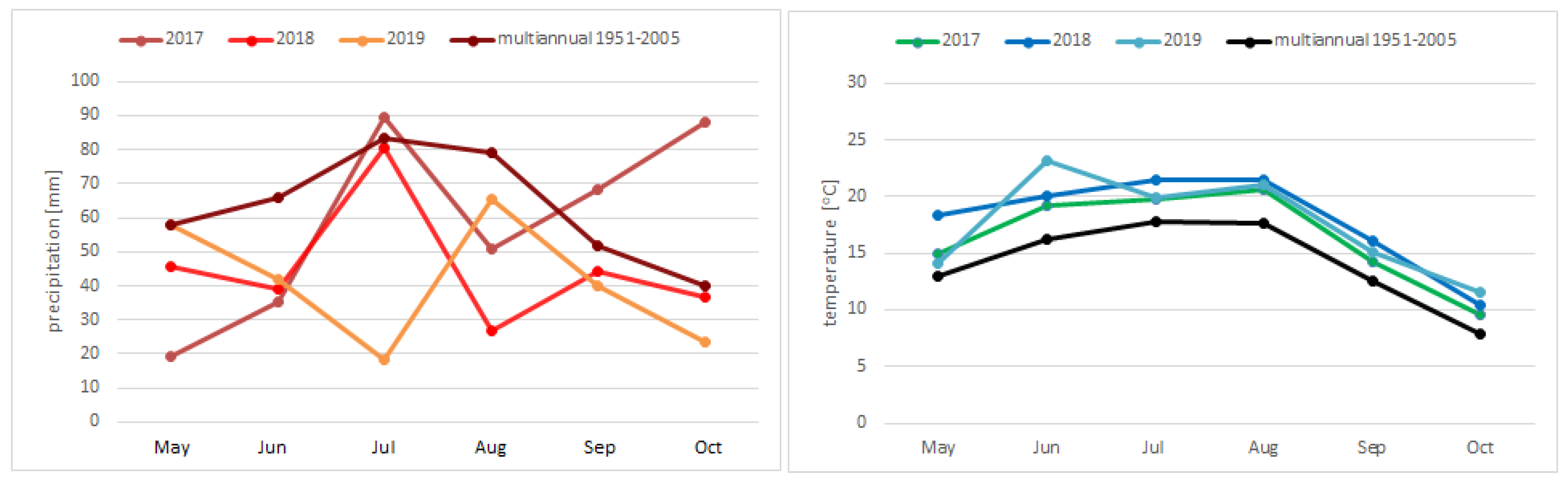

Figure 1. The average monthly rainfall and temperature.
Figure 1. The average monthly rainfall and temperature.
Agriculture 13 00157 g001

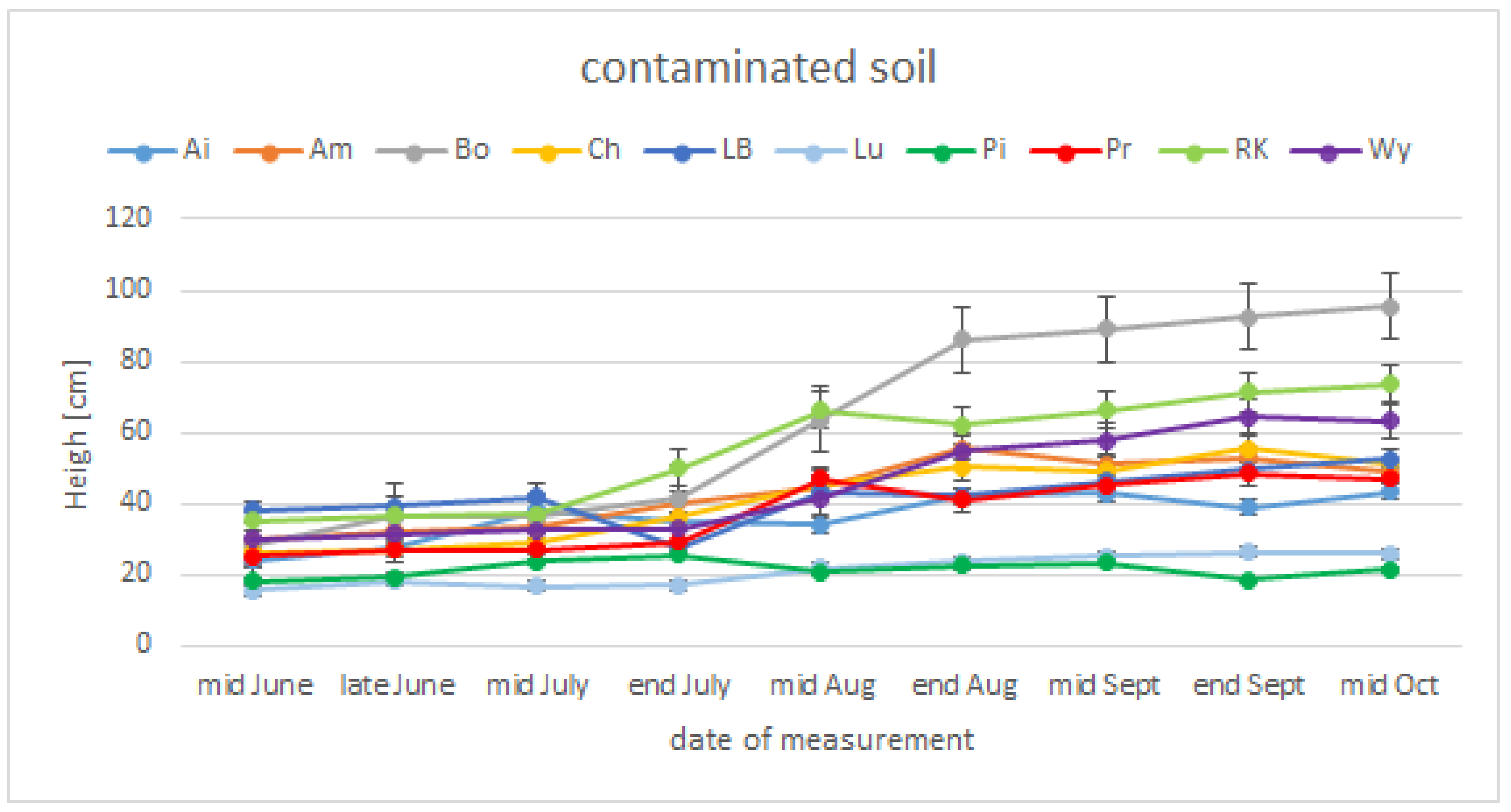

Figure 2. Dynamics of canna growth on contaminated soil. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value.
Figure 2. Dynamics of canna growth on contaminated soil. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value.
Agriculture 13 00157 g002

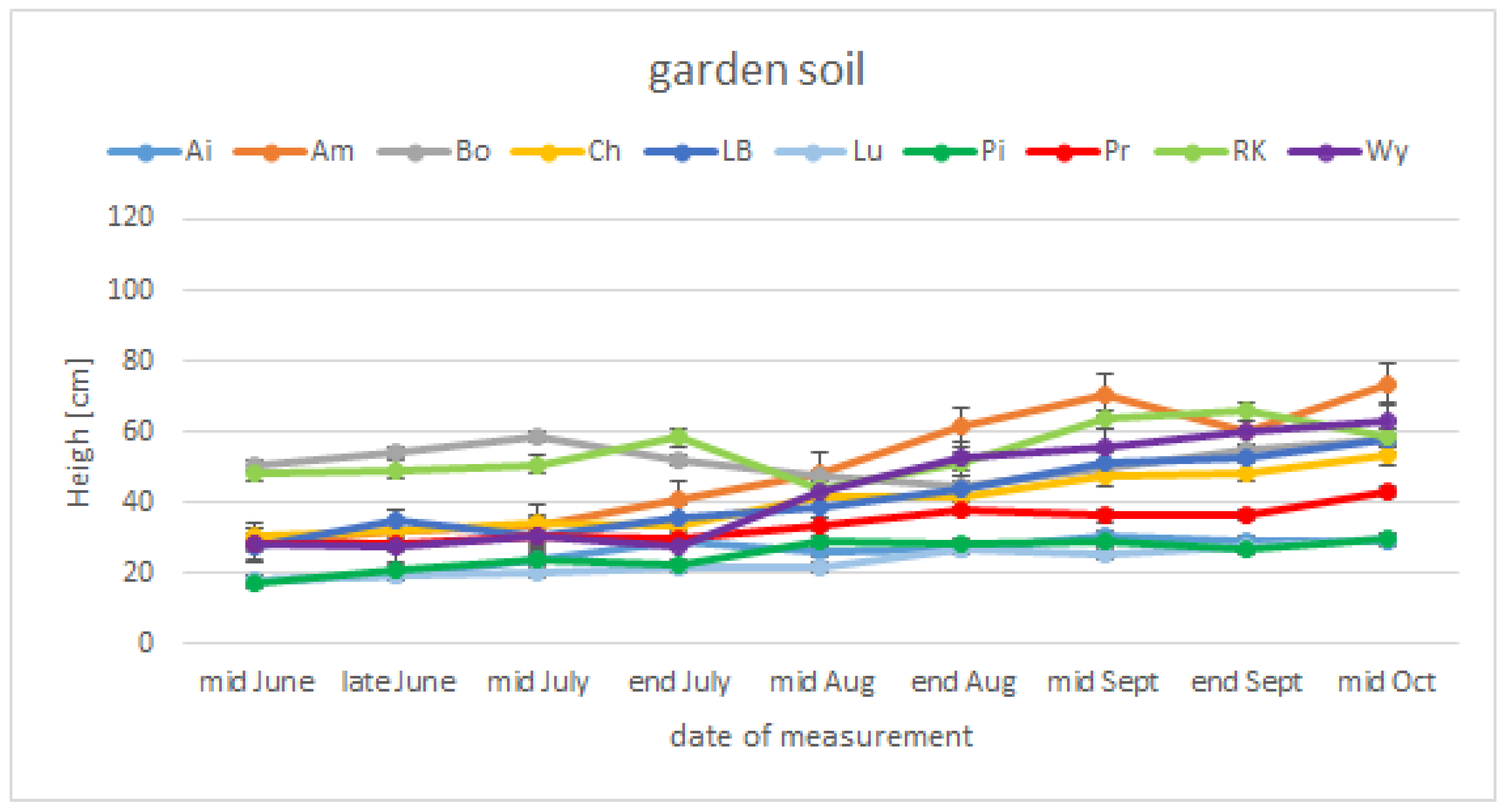

Figure 3. Dynamics of canna growth on garden soil. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value.
Figure 3. Dynamics of canna growth on garden soil. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value.
Agriculture 13 00157 g003

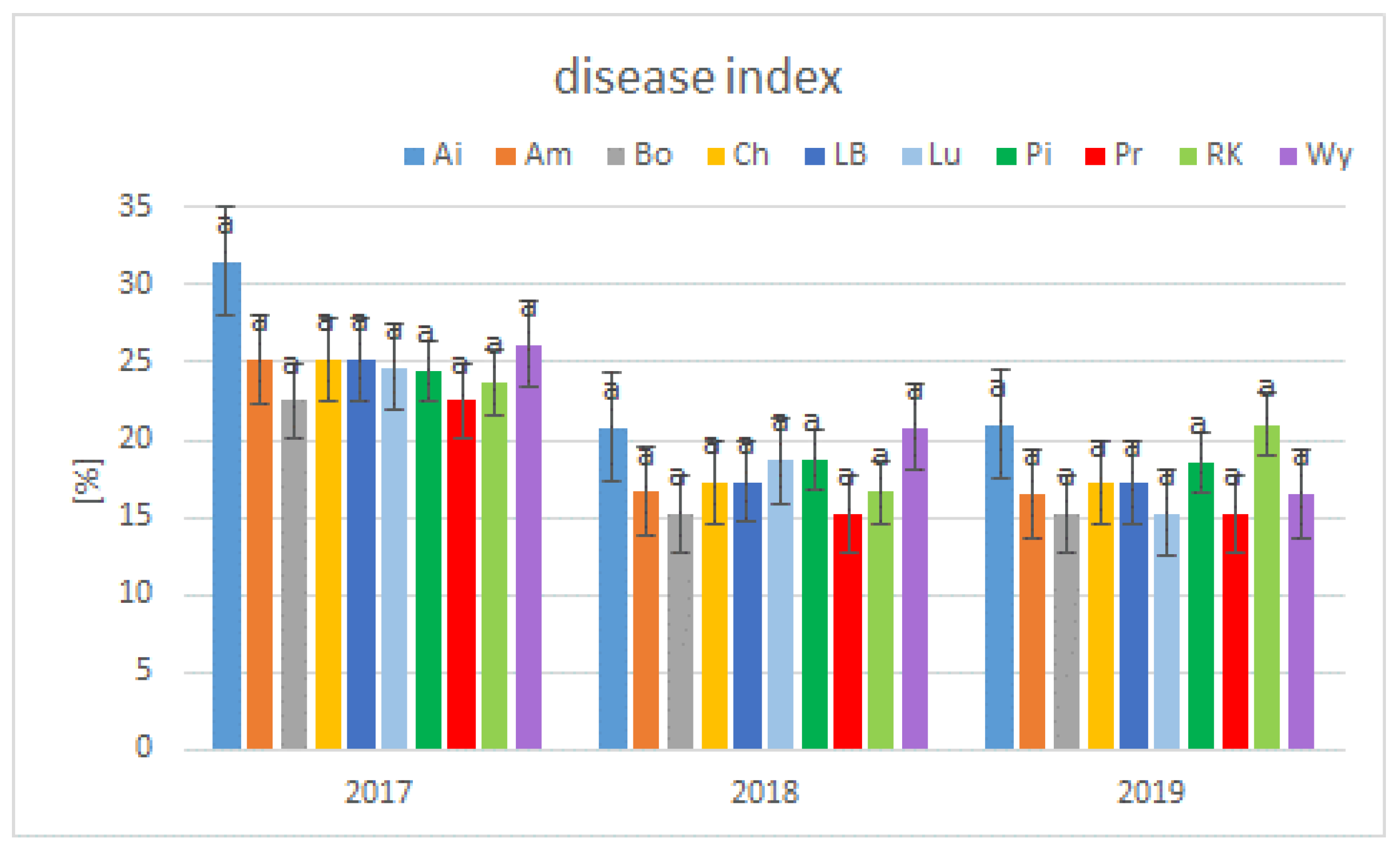

Figure 4. Disease index of canna varieties grow in 2017–2019. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value. Values marked with the same letter are not significantly different (α = 0.05).
Figure 4. Disease index of canna varieties grow in 2017–2019. Description of cultivars is given in Materials and Methods Section 2.1. The means ± SE is expressed by each value. Values marked with the same letter are not significantly different (α = 0.05).
Agriculture 13 00157 g004
Figure 5. Disease symptoms on leaves of different canna varieties: (A)—‘Aida’, (B)—‘America’, (C)—‘Botanica’, (D)—‘Cherry Red’, (E)—‘La Boheme’, (F)—‘Lucifer’, (G)—‘Picasso’, (H)—‘President’, (I)—‘Robert Kemp’, (J)—‘Wyoming’.
Figure 5. Disease symptoms on leaves of different canna varieties: (A)—‘Aida’, (B)—‘America’, (C)—‘Botanica’, (D)—‘Cherry Red’, (E)—‘La Boheme’, (F)—‘Lucifer’, (G)—‘Picasso’, (H)—‘President’, (I)—‘Robert Kemp’, (J)—‘Wyoming’.
Agriculture 13 00157 g005

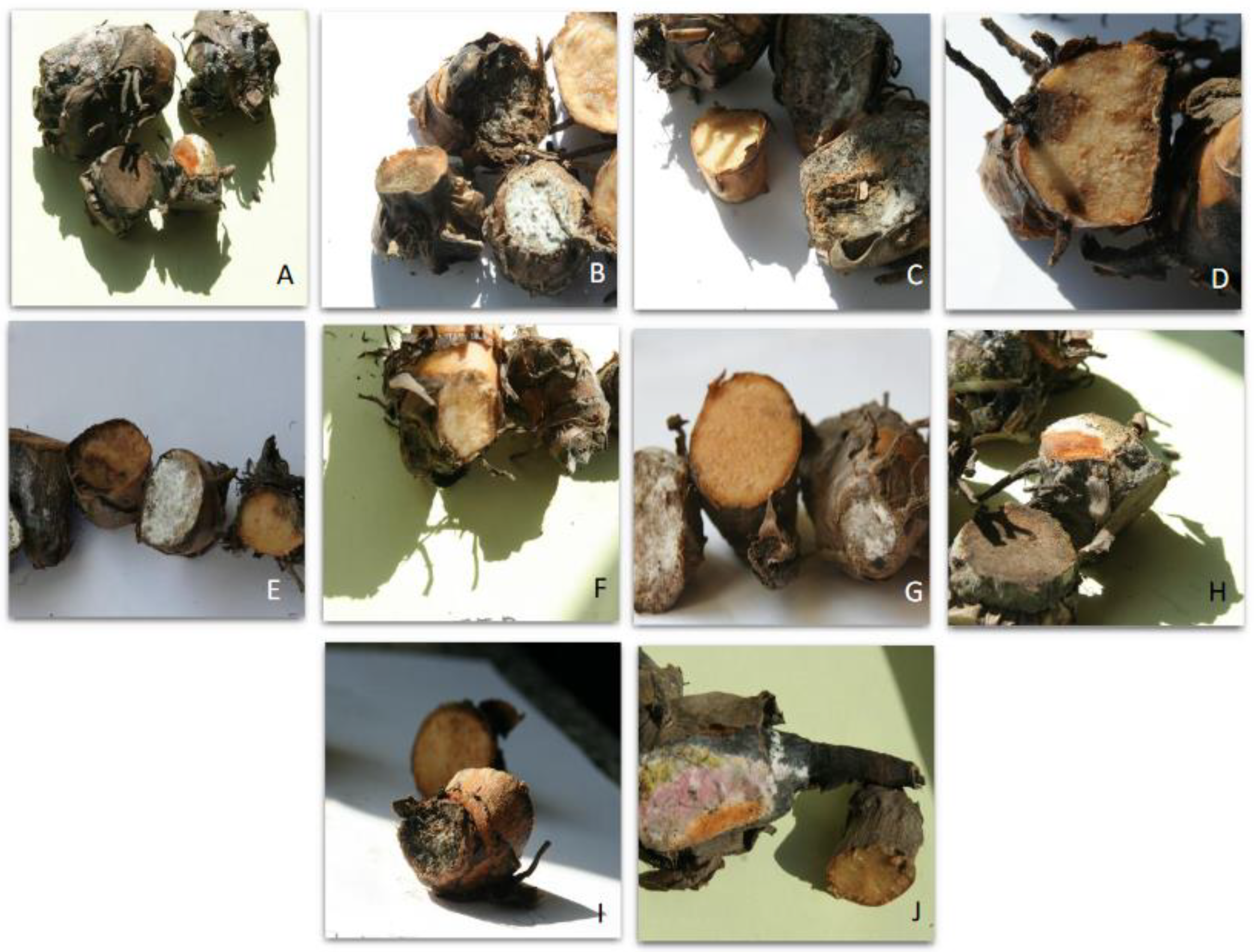

Figure 6. Disease symptoms on rhizome of different canna varieties: (A)—‘Aida’, (B)—‘America’, (C)—‘Botanica’, (D)—‘Cherry Red’, (E)—‘La Boheme’, (F)—‘Lucifer’, (G)—‘Picasso’, (H)—‘President’, (I)—‘Robert Kemp’, (J)—‘Wyoming’.
Figure 6. Disease symptoms on rhizome of different canna varieties: (A)—‘Aida’, (B)—‘America’, (C)—‘Botanica’, (D)—‘Cherry Red’, (E)—‘La Boheme’, (F)—‘Lucifer’, (G)—‘Picasso’, (H)—‘President’, (I)—‘Robert Kemp’, (J)—‘Wyoming’.
Agriculture 13 00157 g006

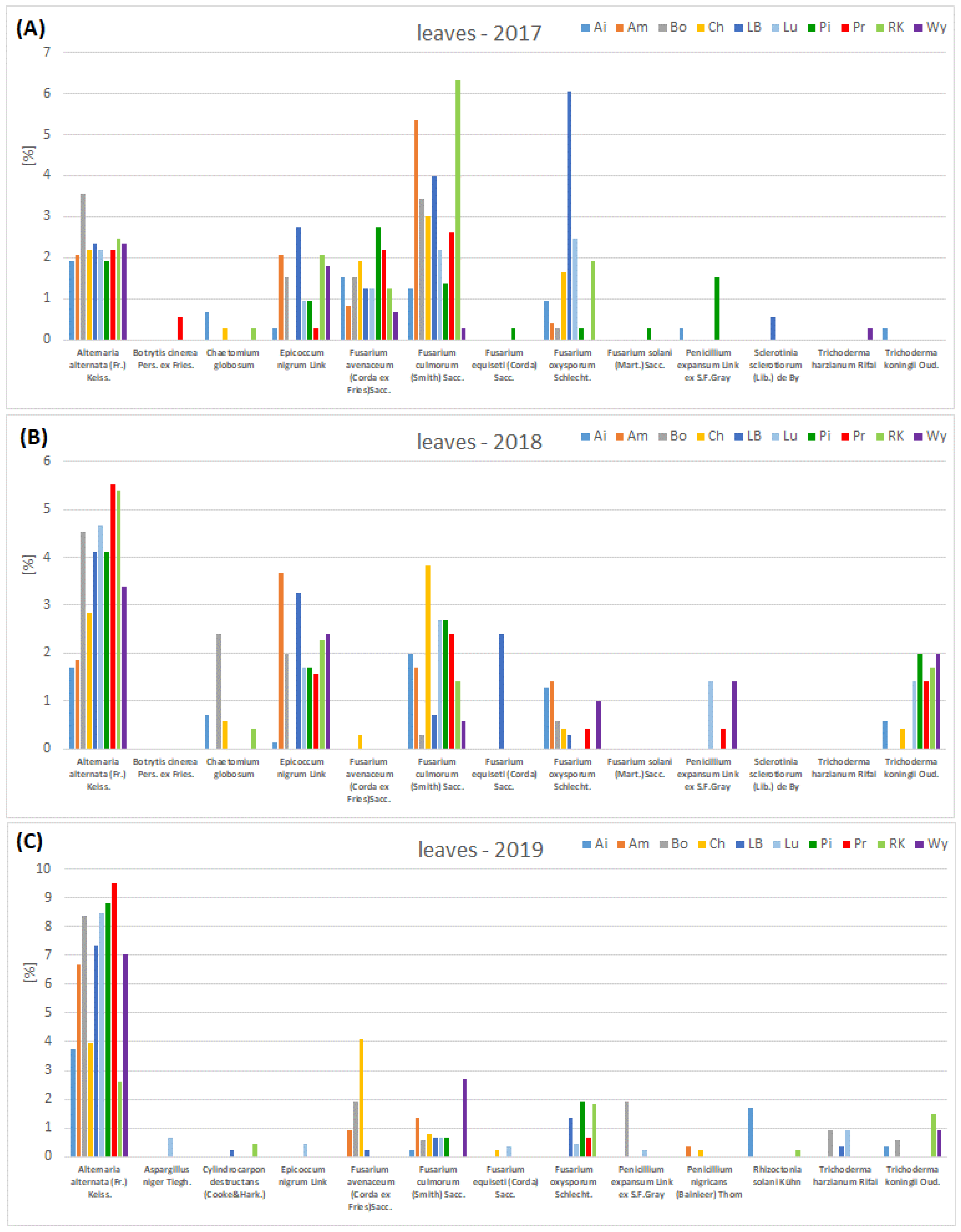

Figure 7. Fungi colonizing leaves of canna in particular year of research. Description of cultivars is given in Materials and Methods Section 2.1.
Figure 7. Fungi colonizing leaves of canna in particular year of research. Description of cultivars is given in Materials and Methods Section 2.1.
Agriculture 13 00157 g007

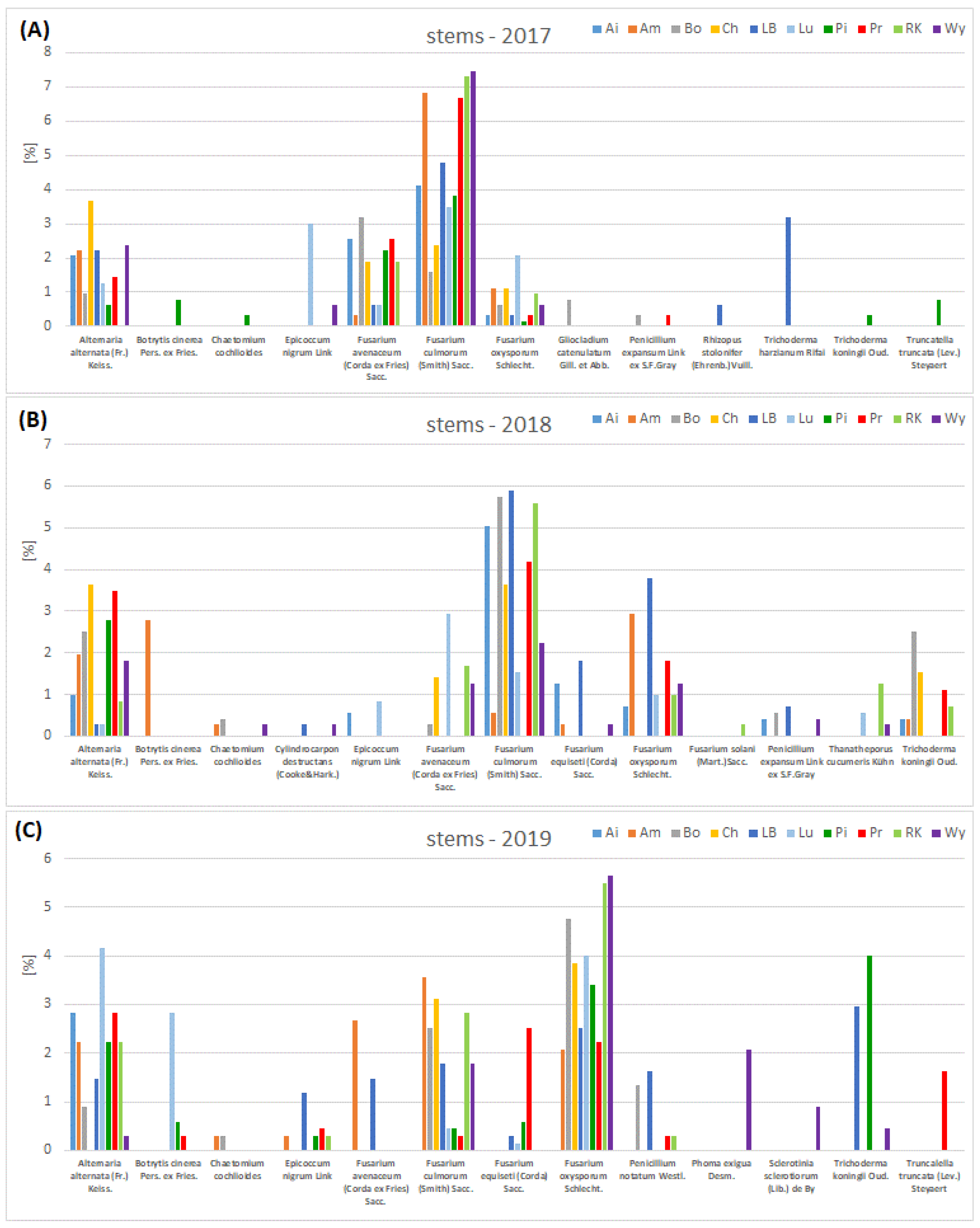

Figure 8. Fungi colonizing stems of canna in particular year of research. Description of cultivars is given in Materials and Methods Section 2.1.
Figure 8. Fungi colonizing stems of canna in particular year of research. Description of cultivars is given in Materials and Methods Section 2.1.
Agriculture 13 00157 g008

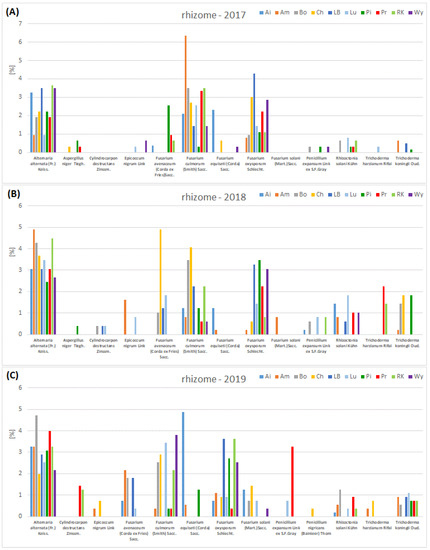

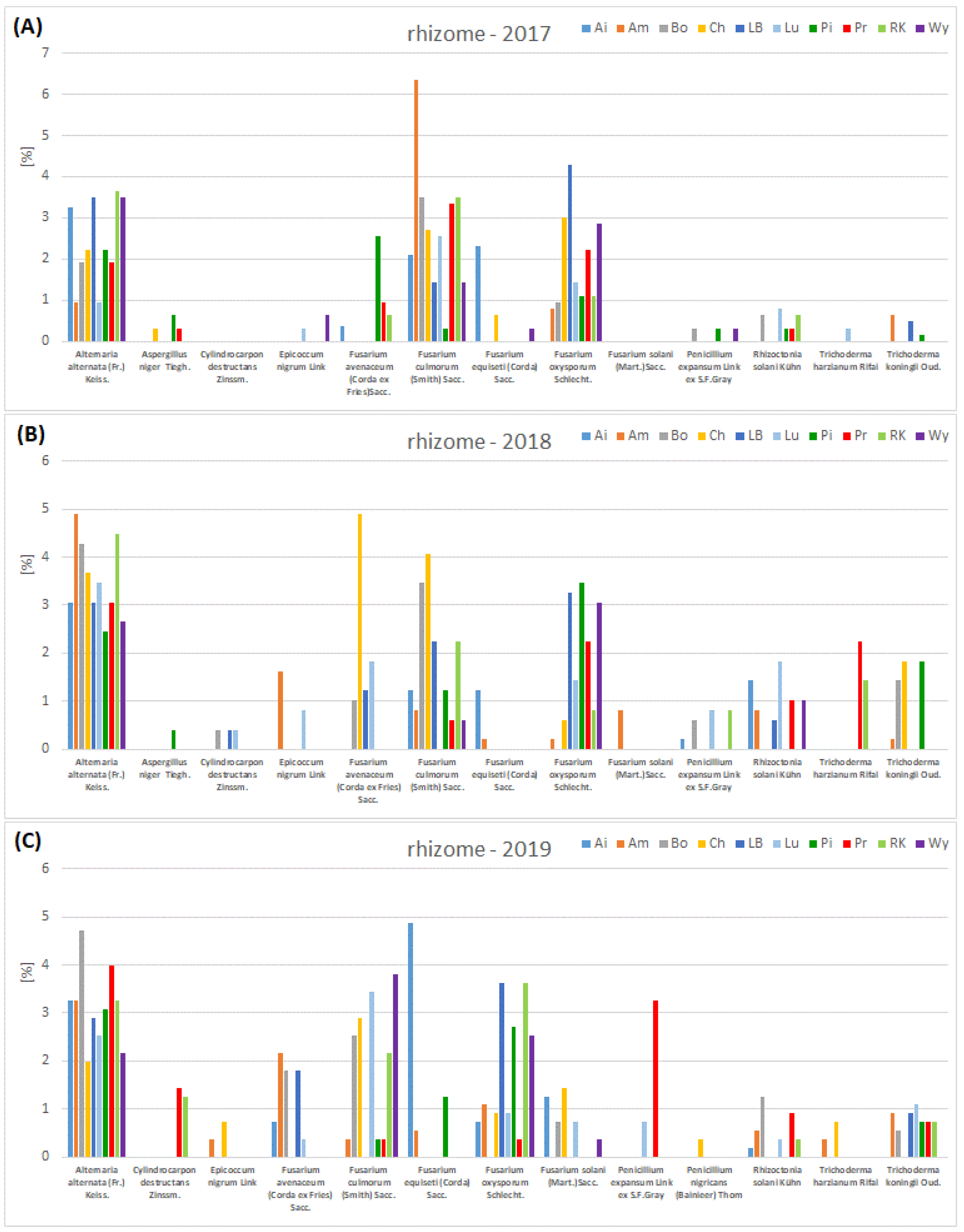

Figure 9. Fungi colonizing rhizome of canna in particular year of studies. Description of cultivars is given in Materials and Methods Section 2.1.
Figure 9. Fungi colonizing rhizome of canna in particular year of studies. Description of cultivars is given in Materials and Methods Section 2.1.
Agriculture 13 00157 g009
Table 1. Chemical characteristics of cultivation sites.
Table 1. Chemical characteristics of cultivation sites.
(in H2O)
[g NaCl/L]
Macro- and Microelements Content [mg/L of Sample]
Contaminated Soil
Garden Soil
Table 2. The photosynthesis intensity and gas exchange parameters of the canna at various cultivation sites.
Table 2. The photosynthesis intensity and gas exchange parameters of the canna at various cultivation sites.
VarietyContaminated Soil
Aida10.56 b–f1.76 g94.50 f304.67 efg
America11.06 a–e3.18 a152.50 ab392.25 b–e
Botanica14.12 a2.01 fg119.67 b–f502.50 ab
Cherry Red8.90 d–g2.38 c–g90.00 f393.67 a–e
La Boheme11.31 a–e2.20 d–g106.25 def333.75 d–g
Lucifer12.23 abc2.18 d–g113.50 c–f456.08 abc
Picasso5.61 h2.09 efg103.67 def364.25 c–f
President9.78 c–g2.83 c–g104.25 def412.25 a–e
Robert Kemp12.32 abc2.42 b–f123.25 b–f508.08 a
Wyoming12.08 a–d2.07 efg96.08 ef337.67 d–g
Mean10.80 a2.31 b110.37 b400.52 a
Garden Soil
Aida9.43 c–g2.52 b–f145.33 abc305.67 efg
America7.77 fgh3.05 ab151.17 ab360.67 c–f
Botanica13.23 abc2.67 a–e164.83 a440.17 a–d
Cherry Red10.63 b–f3.03 abc142.83 abc360.00 c–f
La Boheme7.17 gh2.63 a–f129.50 b–e255.17 fg
Lucifer11.18 a–e2.33 d–g112.33 c–f355.83 c–f
Picasso6.95 gh2.57 a–f122.17 b–f337.00 d–g
President9.35 c–g2.67 a–e133.33 a–d342.00 c–g
Robert Kemp8.63 e–h2.83 a–d146.33 abc442.00 c–g
Wyoming10.58 b–f2.26 d–g98.17 ef240.83 g
Mean9.49 b2.65 a134.60 a343.98 b
Pn—photosynthesis (µmol CO2 m−2 s−1), E—transpiration rate (mmol H2O m−2 s−1), Gs—stomatal conductance (mmol H2O m−2 s−1), Ci—intercellular carbon dioxide concentration (µmol CO2 m−2 s−1). Values designated with the same letter are not significantly different (α = 0.05).
