Highly Conserved Homotrimer Cavity Formed by the SARS-CoV-2 Spike Glycoprotein: A Novel Binding Site

1
International Centre for Cancer Vaccine Science, University of Gdansk, Wita Stwosza 63, 80-308 Gdansk, Poland
2
Sharp Life Science (EU) Limited, Oxford Science Park, Edmund Halley Rd, Oxford OX4 4GB, UK
3
Department of Pharmaceutical Technology and Biochemistry, Faculty of Chemistry, Gdansk University of Technology, Narutowicza St 11/12, 80-233 Gdansk, Poland
4
Institute of Genetics and Molecular Medicine, University of Edinburgh, Edinburgh, Scotland EH4 2XR, UK
5
Department of Infectious Disease, Edinburgh, Scotland EH4 2XR, UK
*
Authors to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(5), 1473; https://doi.org/10.3390/jcm9051473
Received: 22 April 2020 / Revised: 8 May 2020 / Accepted: 12 May 2020 / Published: 14 May 2020
(This article belongs to the Section Infectious Diseases)

Abstract

An important stage in severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) life cycle is the binding of the spike (S) protein to the angiotensin converting enzyme-2 (ACE2) host cell receptor. Therefore, to explore conserved features in spike protein dynamics and to identify potentially novel regions for drugging, we measured spike protein variability derived from 791 viral genomes and studied its properties by molecular dynamics (MD) simulation. The findings indicated that S2 subunit (heptad-repeat 1 (HR1), central helix (CH), and connector domain (CD) domains) showed low variability, low fluctuations in MD, and displayed a trimer cavity. By contrast, the receptor binding domain (RBD) domain, which is typically targeted in drug discovery programs, exhibits more sequence variability and flexibility. Interpretations from MD simulations suggest that the monomer form of spike protein is in constant motion showing transitions between an “up” and “down” state. In addition, the trimer cavity may function as a “bouncing spring” that may facilitate the homotrimer spike protein interactions with the ACE2 receptor. The feasibility of the trimer cavity as a potential drug target was examined by structure based virtual screening. Several hits were identified that have already been validated or suggested to inhibit the SARS-CoV-2 virus in published cell models. In particular, the data suggest an action mechanism for molecules including Chitosan and macrolides such as the mTOR (mammalian target of Rapamycin) pathway inhibitor Rapamycin. These findings identify a novel small molecule binding-site formed by the spike protein oligomer, that might assist in future drug discovery programs aimed at targeting the coronavirus (CoV) family of viruses.
Keywords: SARS-CoV-2; coronavirus disease 2019 (COVID-19); spike glycoprotein; variability; molecular docking; molecular dynamics; inhibitors; trimer cavity; binding site SARS-CoV-2; coronavirus disease 2019 (COVID-19); spike glycoprotein; variability; molecular docking; molecular dynamics; inhibitors; trimer cavity; binding site

1. Introduction

The global pandemic developing from December 2019 by a strain of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) can cause coronavirus disease 2019 (COVID-19) disease. This emergent variant adds to the additional coronavirus strains that can infect humans including human coronavirus OC43 (HCoV-OC43), human coronavirus HKU1 (HCoV-HKU1), SARS-CoV, human coronavirus 229E (HCoV-229E), human coronavirus NL63 (HCoV-NL63), and human coronavirus NL63 (HCoV-NL63) [1,2,3,4,5,6]. Coronaviruses (CoVs) are positive-sense, enveloped, single-stranded RNA viruses that are classified taxonomically as a family Coronavirdiae and order Nidovirales [4]. There are four genera of CoVs, including αCoV, βCoV, δCoV, and γCoV; most δCoVs and γCoVs target avians, whilst αCoVs and βCoVs infect rodents and bats [1,7,8]. Severe acute respiratory syndrome CoV (SARS-CoV) outbreaks have also emerged previously creating an epidemic [2,4,9,10,11,12,13]. Although the mortality of MERS-CoV, SARS-CoV, and SARS-CoV-2 is substantial, there are no preventative vaccines or drugs available to treat patients infected with the virus [9,11,12]. The current public health emergency of international concern (PHEIC) by the World Health Organization (WHO) has declared SARS-CoV-2 (COVID-19; a novel βCoV) as a pandemic threat. The data obtained from WHO (08/May/2020) suggest that the virus has caused 3,759,967 infections, 259,474 deaths, and it has affected over 200 countries.
The Open Reading Frame 1ab (ORF1ab) of SARS-CoV-2 encodes for three proteins that are broadly recognized as drug targets, since they are key components for infections and disease progression: the SARS-CoV-2 protease [14,15], the RNA-dependent RNA Polymerase (RdRP) [14,16,17], and the SARS-CoV-2 spike (S) glycoprotein [15,18,19,20]. The SARS-CoV-2 protease processes the polyproteins that are translated from the viral RNA, and it has been heavily studied using small molecules inhibitors [15]. To penetrate the host, the SARS-CoV-2 makes use of homotrimeric class I glycosylated fusion spike protein [18,21,22]. Fusion of the viral and host cell membranes is facilitated by the spike glycoprotein, which undergoes a significant conformational change upon fusion [18,21,22].
SARS-CoV-2 studies suggest [18,23,24] that the spike glycoprotein functions as a homotrimer. The recognition and subsequent fusion of the viral and cellular membranes are triggered by the S1 subunit of the spike protein, which binds the host cell receptor; angiotensin converting enzyme-2 (ACE2) [16,25,26,27,28,29,30,31]. Several insights from structural biology are consistent with the role for this domain in affecting the infection rate of the virus. This host–virus interaction is mediated by the receptor binding domain (RBD) domain from S1 subunit of SARS-CoV-2 spike glycoprotein that forms a hinge-like conformation [18,32], i.e., “down” and “up” states that represents the host cell receptor-inaccessible and receptor-accessible [18]. This receptor-accessible “up” conformation exists in a highly fluctuating state [33,34,35,36]. Binding to the host target destabilizes the pre-fusion homotrimer, which sheds off the S1 subunit, and allows for the transition of the S2 subunit to a highly stable postfusion conformation [18]. Interestingly, protein-mediated cell–cell fusion assays suggest that SARS-CoV-2 spike protein displays an elevated plasma membrane fusion capacity when compared to that of SARS-CoV [32,37].
Several studies have aimed to define the mechanism of binding of SARS-CoV-2 to the host cell receptor [38]. Molecular dynamics simulations of the spike (RBD)-ACE2 complex, over 10 ns indicated that spike(RBD)-ACE2 binding free energy for SARS-CoV-2 is better than for the SARS-CoV [39]. Similarly, other studies have shown that the SARS-CoV-2 spike protein has a better binding affinity to ACE2 at two different “up” angles of the RBD domain than the SARS-CoV [40]. Structural features at the spike-ACE2 interface suggest that residues Q493 and P499 from the spike RBD domain are responsible for maintaining protein–protein stability [41]. Using a virtual high-throughput screening approach, small-molecules have been identified that can interact with the RBD domain of SARS-CoV-2 spike protein [42]. Natural compounds present in Curcuma sp., Citrus sp., Alpiniagalanga, and Caesalpiniasappan could also target the RBD domain of the SARS-CoV-2 spike glycoprotein, the protease domain (PD) from ACE2, and the SARS-CoV-2 protease [20]. A set of B cell and T cell epitopes derived from the spike and nucleocapsid proteins that map identically to SARS-CoV-2 proteins, were identified as potential vaccine candidates [23].
Applying an integrative, antiviral drug repurposing methodology, the interplay between the CoV–host interactome and drug targets in the human protein–protein interaction network have been defined [43]. Bioinformatics methodologies were used to identify neutralizing antibodies that might interact with interfaces formed by the spike glycoprotein and the ACE2 host cell receptor [24]. By targeting the RBD domain of the spike protein using docking experiments, Kanishka et al. identified small molecule inhibitors [44]. In the majority of studies, the most common strategy is focused on targeting the interface formed by SARS-CoV-2 spike glycoprotein and the ACE2 host cell receptor (i.e., spike(RBD)-ACE2). Currently, there are no robust drugs for wide-spread dissemination available against coronaviruses including; the SARS-CoV-2 virus. Due to the relatively rapid spread in the current outbreak and the relatively high mortality rate (3.5%), more rapid development of new or repurposed antiviral drugs is of high value. Although the majority of drug discovery programs target classically druggable enzymes encoded by the virus, such as the viral RNA polymerase inhibited by remdesivir [13,17,45], there is a paucity of information concerning the other regions of spike glycoprotein outwith the ACE2-binding domains, especially the domains interacting with the viral membrane.
The SARS-CoV-2 spike protein is a homotrimer composed of three monomers (chains A, B, and C; Figure 1a). Each monomeric protein contains an N-terminal ACE2 binding domain (receptor binding domain; RBD), a central helix/heptad repeat, and a C-terminal region that interacts with the plasma membrane [18]. Homotrimer spike protein assembly from monomeric forms can be rate limiting in cells, suggesting a possible space for intervention on the viral life cycle [46]. Our current study focuses on understanding the variability of the trimer spike glycoprotein in SARS-CoV-2 with respect to the genomes from other coronavirus strains, and identifying the changes in the molecular properties due to conformational flexibility in the spike protein. The analysis suggests that residues in the S2 subunit are less variable compared to the other regions. In addition, the molecular dynamics simulations (MDS) identified that residues from the RBD domain obtained substantial flexibility which may be an obstacle in finding active hits. By contrast, residues in the S2 subunit (trimer cavity) showed the least flexibility representing a novel binding region for ligands. This information was used to identify potentially novel drug pockets or the active site regions specifically in the oligomeric SARS-CoV-2 spike glycoprotein.
We performed MD simulations on the monomeric and trimeric form of the SARS-CoV-2 spike glycoprotein, and developed a virtual screening using a Food and Drug Administration (FDA) approved chemical library. We identified and focused on an apparent cavity formed by three subunits (the homotrimer), that our simulations suggest can mediate dynamic movements that mimic a “bouncing spring” or a “sarrus linkage (converting a circular motion to a linear motion or vice versa)” when interacting with the ACE2 host cell receptor. This motion might be important in the fusion of the virion and the host cell membrane. We hypothesized that such a cavity formed by three monomers or subunits of the spike protein (i.e., chains A, B, and C) might form an acceptor for small molecules, and we asked whether small molecules could be identified with a relatively high binding energy. We identified several known compounds with predicted binding energy of GBVI/WSA dG (Generalized-Born Volume Integral/Weighted Surface area) from −35 to −71 kcal/mol, some of which are already proposed for clinical trials including an mTOR (mammalian target of Rapamycin) pathway inhibitor, Sirolimus (Rapamycin; a macrolide type; NCT03901001 not yet recruiting) [47,48,49] and Ritonavir (open-label trial in hospitalized adults with severe COVID-19) [48,50,51,52]. A recent study that screened hundreds of approved molecules in a SARS-CoV-2 assay using artificial intelligence-enabled phenomic assays [53], also identified Sirolimus (Rapamycin) as a promising candidate. In addition to the macrolides, one of the top hits we have identified, Chitosan, has a recently reported derivative inhibiting SARS-CoV-2 coronavirus replication in cell lines [54,55]. A previous study has also shown that the chitosan derivatives can interact with the spike protein and block its interaction with the host receptor [56]. Our data suggest a mechanism whereby Chitosan (and possibly its derivatives), as well as macrolide type molecules, might bind to a pocket formed by the spike protein trimer and provide a novel domain to focus on for future drug discovery projects.

2. Material and Methods

2.1. Bioinformatics Analysis of the SARS-CoV-2 Spike Variability

A total of 791 viral genome sequences were downloaded from the Global Initiative on Sharing All Influenza Data platform (GISAID) [57], in order to define the evolutionary variability in different domains of the spike glycoprotein. Only genomes with high coverage and complete sequences were selected. Further filtering was applied to obtain complete sequences on the targeted domains which reduced the total number of strains to 768. Total protein sequences were acquired from 3 frame translation using the transeq tool from EMBOSS (European Molecular Biology Open Software Suite) package (version 6.5.7) (European Bioinformatics Institute (EMBL-EBI), Hinxton, Cambridge, UK) [58]. The amino acid chains from the spike glycoprotein were aligned to the reference protein (PDB ID. 6vsb [18,59]) using MUSCLE [60]. Variations in the amino acid or the residue changes were scanned on the entire spike protein sequence, along with two areas of interest in the multiple alignment file, focusing on a subset of the S2 subunit (HR1, CH, and CD domains) and the RBD domain (Figure 1 and Tables S1–S3).

2.2. Structural Bioinformatics, Molecular Dynamics

The cryo-EM (cryogenic electron microscopy) homotrimer structure of SARS-CoV-2 spike glycoprotein was retrieved from the Protein Data Bank database (http://www.rcsb.org/pdb; PDB ID. 6vsb; Figure 1) [18,59]. In addition, the missing amino acid (residues range: 67–78, 96–98, 143–155, 177–186, 247–260, 329–334, 444–448, 455–490, 501–502, 621–639, 673–686, 812–814, and 829–852) coordinates in the structure of SARS-CoV-2 spike glycoprotein were built using the swissmodel (Figure 1) [61]. Molecular dynamics simulations were carried on the model systems as per the standardized pipelines [62,63,64] (detailed method explained in the supplementary materials; File S1). The GROMACS 4.6.5 [65] program (GROMACS; Groningen Machine for Chemical Simulations, University of Groningen, Groningen, The Netherlands) was used to perform MD calculations assigning the CHARMM27 forcefield [66]. We performed 100 ns molecular dynamics simulations on two systems: (i) The monomeric form and (ii) the homotrimer form of the spike protein. In our analysis of the MD simulations, the dynamics of the monomeric form of the spike protein serves as control to the homotrimer, which is the functional unit. Initially, the model systems were energy minimized, which provides a base-line model structure and resolves poorly-resolved conformations often found in crystal structures [13,18,62,67,68,69,70]. A simulation box of solvent atoms is then added to enhance simulation realism. Following that, using the NPT (number of particles (N), system pressure (P), and temperature (T); isobaric-isothermal) thermodynamic ensemble, equilibration of the systems was performed to adjust solvent molecules with counter ions in the simulation box [71]. These equilibrated systems were subsequently used to perform the final MD production runs for 100 ns, and results were analyzed using GROMACS [56], BIOVIA Discovery Studio (DassaultSystèmes, BIOVIA Corp., San Diego, CA, USA), Chimera, and visual molecular dynamics (VMD) tools [71,72,73].

2.3. In Silico Structure Based Virtual Screening

Structure-based virtual screening (SBVS) is an application of in silico methods that identify promising lead molecules from chemical libraries or databases. These methods are computational counterparts of experimental biological evaluation methods, such as high-throughput screening (HTS). FDA approved drug libraries were retrieved from Target Molecule Corp. (TargetMol; www.targetmol.com) and Selleck Chemicals (Selleckchem; www.selleckchem.com) vendors. The SBVS against the SARS-CoV-2 spike glycoprotein was performed using the Molecular Operating Environment (MOE; Chemical Computing Group Inc., Montreal, QC, Canada) package [74,75]. Receptor–ligand binding or docking using the CHARMM27 forcefield [66] was evaluated using the GBVI/WSA ∆G scoring function [76]. The compounds showing best energies with the spike protein were selected for further analysis. GBVI/WSA ∆G is a forcefield based scoring function which determines the free energy of binding of the ligand from a given position [75]. In addition, we have also selected the compounds that showed comparatively stable interactions with the homotrimer spike protein. Applying the “Triangle Matcher”placement method, receptor–ligand docking was performed defining the receptor as rigid and ligands as flexible [74,75].

3. Results

3.1. Investigating the SARS-CoV-2 Spike Glycoprotein Reveals a Cavity with Potential Utility as a Drug-Binding Pocket

3.1.1. Variability in the Spike Glycoprotein

We were interested to define the evolutionary variance in the SARS-COV-2 spike protein. Understanding regions of high and low variance can identify domains that may be functionally conserved and potentially important to the virus life cycle, or those under positive evolutionary pressure whose selection might avoid the immune system.
Examining the variability of the spike protein in SARS-CoV-2 and its different domains, a total of 791 genome viral sequences were retrieved from GISAID [57]. A global view of the mutation space of the virus is presented in Figure 2a, which represents the amino acid substitutions in bins of 10 aminoacids across the spike glycoprotein. These hotspots of variation are mostly confined to the NTD and the RBD domains (Figure 1b and Figure 2b). We investigated the variability in the entire sequence of the spike protein, focusing on the regions that showed low-variability in the structure (Figure 2).
By investigating the variations in the residue changes across the entire spike protein sequence or all the regions of lower variability (Figure 2a and Table S1), the S2 subunit exhibited the lowest sequence variability (residue range: 816–1141; Figure 1b and Figure 2c). Moreover, previous studies have identified that the active site region for this spike protein is located in the RBD domain which interacts with the ACE2 host cell receptor [18,20,26,38,39,40,42,44]. Comparing the variability of the RBD domain and S2 subunit domains, the RBD domain was shown to contain more mutations in its region compared to the S2 subunit (HR1, CH, and CD) domains (Figure 2b,c, and Tables S1–S4). These data suggest that during mutation by natural selection, the viral-host “arms race” might operate more frequently on the RBD domain. By contrast, the S2 subunit conservation is suggestive of an important core function where mutations cannot be tolerated. These findings prompted our focus on the S2 subunit as an important region to investigate for identifying potentially novel druggable pockets.

3.1.2. Molecular Properties and the Dynamics of the Spike Protein

We next traced the dynamics of different domains in the spike protein using MD simulations (Figure 1b). The simulated model systems of the spike protein in the monomer and the homotrimer forms were first processed to check the stability of the protein. Stability of the simulated spike protein in both forms in the solvent environment was traced by RMSDs (root mean square deviation), a time dependent change in the non-hydrogen atoms (Figure 3a). The RMSD plots (Figure 3a) suggest that the trimer form of the spike protein is more stable compared to the monomer form. In addition, chain A in trimer has a higher RMSD (~2 Å) compared to the other two chains which is a consequence of the fact that the “up” (or ACE2-active) conformation [18] induces flexibility. Since the monomer form has a higher RMSDs compared to the trimer (Figure 3a), we performed independent triplicates (MDS was repeated three times) of MD simulation for the monomer form (Figure S1). The findings from these replicates indicate that the monomer form has a higher RMSD compared to the trimer spike protein (Figure 3a and Figure S1).
The root mean square fluctuations (RMSF) were computed on the Cα atoms of each residue from the spike protein, in order to trace their flexibility and thereby define the motions of different domains (Figure 3b). The RMSF findings in both forms (monomer and trimer) indicated that the amino acids in the RBD domain (residue range: 329–521) were highly fluctuating (Figure 1b and Figure 3b). In addition, the triplicate MD simulations of the monomer form, also suggests that the RBD domain has a higher RMSF in all three simulation replicates (Figure S1). These analyses correlate with previous studies [33,34,35,36,39]. Particularly, amino acids ranging from 470–490, responsible for interacting with the ACE2, that were highly fluctuating. Furthermore, examining other regions of the spike protein suggests that the S2 subunit domains (residue range: 850–1141; HR1, CH, and CD) showed the least fluctuations within the entire protein sequence (Figure 3b). This correlates with the cryo-EM studies performed on the spike protein; that the S2 subunit is more stable [18] compared to the RBD domain, and that this subunit is responsible for a highly stable postfusion conformation of the spike protein [18,32]. From the perspective of designing drugs, the more stable or less flexible a region is within a protein, the more accurately we can trace a better hit molecule. In the case of the spike protein, the RMSF findings guided us towards focusing on the S2 subunit (Figure 3b).
Moreover, by tracing the residues involved in the H-bond interactions between two monomers (i.e., chains A-B, A-C, or B-C) of the homotrimer, we observed that the RBD domain residues were also involved in intermolecular interactions with each other and with high occupancy (%). This suggests that intermolecular interactions between chains in the homotrimer might equilibrate the spike protein, and might stimulate conversion from a “down” to “up” conformation of the RBD domain that interacts with the ACE2 receptor (Figure S2 and Table S5).
The structural dynamics over the time course for spike protein in the monomer and the homotrimer form was monitored during MD simulations (Figure 3c,d). The monomeric spike protein in the solvent environment exhibited a movement from the “up” active state towards the “down” inactive state for the RBD domain (Figure 1c, Figure 3c, and Movie S1). These correlate with the previous findings that the RBD domain can form two different conformations, i.e., “down” and “up” states, which represents the host cell receptor-inaccessible and receptor-accessible, respectively [33,34,35,36]. The SARS-CoV-2 spike protein has a better binding affinity to the ACE2 receptor at two different “up” angles of the RBD domain compared to the SARS-CoV [40]. Figure 3c (and Movie S1) describes the conformational change in other regions of the spike protein, when the RBD domain moves towards an “up” to “down” state in the monomeric form.
Figure 3d (and Movie S2) represents the dynamics of the homotrimer spike protein, suggesting that the RBD domain of chain A opens more widely in its “up” state. Domains HR1, CH, and CD close to the viral transmembrane exhibited the least movement (Figure 3d) during MD simulations. In addition, exploration of the structural orientation of these S2 subunit domains (Figure 3d and Movie S2) suggests that they form a large pocket or cavity using three chains (or monomers) from a homotrimer spike protein. The slight movement observed in homotrimer during MD simulation of this cavity (Movies S1 and S2), and the structural orientation suggest that it could work as “bouncing spring” or “sarrus linkage”. One may postulate that, when the spike protein interacts with the ACE2 receptor, this “bouncing spring” or “sarrus linkage” movement may be important in the fusion of the virion with the host membrane. Additionally, this cavity from the spike protein could work as a platform for the design or development of new drug leads against this protein (Figure 3d). Such molecules might alter the trimer stability upon viral entry or upon viral coat assembly. There have been several studies performed to design drugs specific for the SARS-CoV-2 spike protein [20,38,39,40,42,44]; however, most of them are focused on the RBD domain. In addition, from our MD simulation and variability analysis (Figure 2 and Figure 3), the RBD domain is highly flexible and variable, therefore, drugging this variable site may be an obstacle in finding active hit molecules. By targeting the less variable S2 region, such as the cavity formed by the homotrimer (Figure 2 and Figure 3d) we suggest that this might be a novel approach to develop small molecule drug leads.

3.2. Potential Druggability of the Homotrimer Cavity

We next investigated the targetability of the trimer cavity formed by the S2 subunit (HR1, CH, and CD domains) in the spike protein (Figure 2 and Figure 3) using the MOE (Chemical Computing Group Inc.) package [74,75], before using it for high-throughput virtual screening (or SBVS) using a library of FDA approved drugs. The “Alpha Shapes” construction [75,77] geometric method was used to compute the possible residues that can be considered for ligand docking from this trimer cavity in the spike protein (Figure 4a).
High-throughput virtual screening is a powerful computational approach that is increasingly being used in the drug discovery process, through the in silico identification of novel hits from large compound databases [78]. We applied the SBVS approach to dock the molecules to the trimer cavity and to check its feasibility as a target. Ligand binding to this cavity might reduce or increase the “bouncing spring” movement in the spike protein, as observed in MD simulations (Figure 3, Movies S1 and S2). This perturbation might affect its interactions with the host cell receptor or the hinge movement of the RBD domain. The compounds that exhibit a relatively high binding affinity towards the SARS-CoV-2 spike glycoprotein trimer cavity with a binding affinity −35 to −71 kcal/mol (GBVI/WSA dG) were recorded. From the list of ligands showing best binding, the compounds that were already validated or suggested to be/can be active against the SARS-CoV-2 virus includes: Chitosan [54,55,56], Rapamycin [47,48,49], Everolimus (RAD001) [49], Paclitaxel [79], Ritonavir [48,50,51,52], SelaMeerin (Selamectin) [80], and Danoprevir [52] (Table 1).
Among these molecules Rapamycin and Everolimus drugs were previously identified as mTOR pathway inhibitors [47,50,81,82,83]. The antibacterial or antiparasitic drugs from the list are Chitosan [84] or SelaMeerin (Selamectin) [85], respectively. Paclitaxel, has been found to be previously target Bcl-2 and microtubule associated functions [86,87]. In addition, the FDA approved drugs that target the protease are: Ritonavir [88] and Danoprevir (ITMN-191) [89].
By docking known drugs within the trimer cavity of spike protein, the relative selectivity of the cavity suggests that the majority of higher-affinity drugs will have a molecular weight (MW) ≥ ~700 g/mol (Table 1 and Figure S3). However, this is with the certainty that compounds with high MW can form more interactions with the spike protein, in addition, our finding highlights the possibility that the trimer cavity can occupy large ligands deep inside the binding pocket (Figure 4a). Particularly, a specific class of ligands (mostly macrolide type) were found to exhibit a better fit to the trimer cavity (Figure 4a); for example, Rapamycin [47,48,49], Everolimus (RAD001) [49], Paclitaxel [79], and SelaMeerin (Selamectin) [80] (Figure 4a). The intermolecular interactions between the spike protein and the compounds suggest that residues from all three monomers (chains A, B, and C) are actively involved in binding to the drugs. In addition, placement of the compounds inside the trimer cavity suggests that they make use of the pocket space (forming different conformation) to form stable interactions with the spike protein (Figure 4a).
In order to check the selectivity of these ligands to the trimer cavity, we docked this same subset (Table 1) with the RBD domain of the viral spike protein (Figure 4b; PDB ID. 6lzg [90]). The RBD domain is involved in interacting with the ACE2 host cell receptor [16,26,30,38,39,40,41,42,90,91]. The docking suggests that all compounds from Table 1 have better binding affinity to the trimer cavity compared to that of the RBD domain. In addition, Chitosan [54,55,56,84] (a linear polysaccharide; −37.29 kcal/mol) could form a linear conformation in its structure when binding tothe RBD domain (Figure 4b and Table 1), whilst the same ligand (due to its molecular structural nature) can form a slightly folded shape (as shown in 2d-diagram; Figure 4a) within the trimer cavity. By contrast, Everolimus [49] (a macrolide type) exhibits high affinity for the trimer pocket, and very little selectivity for the RBD domain (Table 1). Moreover, ligands (Figure 4b) that interact with the RBD domain overlap with the region bound by CR3022 (a neutralizing antibody isolated from a convalescent SARS patient that, interacts with the receptor binding domain of the SARS-CoV-2 spike protein [92]).

4. Discussion

The SARS-CoV-2 virus causing COVID-19 disease uses the fusion spike glycoprotein to penetrate into the host cell, and therefore a detailed understanding of this protein forms a critical intervention point in the viral life-cycle. We interrogated the spike protein with a diversity of computational approaches. First, the variability in spike protein from 791 different viral genome sequences was evaluated. Residues in the S2 subunit (residue range: 816–1141; HR1, CH, and CD domains) were found to be less evolutionarily variable compared to other regions or domains. By contrast, residues H49Y, Q239K, V367F, V483A, S943P, K986P, and V987P were found to be the most common amino acid substitutions in the spike protein from related viruses. Secondly, MD simulations revealed that residues in RBD domain (residue range: 329–521) were more flexible compared to residues in the S2 subunit, making it more complicated for drug design strategies. An examination of less variable regions revealed that the HR1, CH, and CD domains (S2 subunit) located close to the viral transmembrane formed a large cavity or pocket that is formed from three spike monomers. The MD simulation traced an “up” active state and a “down” inactive state of the spike protein in its monomer form. Slight movement of the trimer cavity within this structural orientation suggests that it could work as “bouncing spring” or “sarrus linkage” when interacting with the host cell receptor.
The conversion between “up” and “down” states in the monomer form of spike protein using the in silico methods is defined by the MD field to be relatively fast. Nevertheless, there are different structural isoforms that have been identified on the spike protein using different experimental methods or virus strains. This indicates that, although conversion may be quick, there are structural endpoints which are “stable”. Using the recent cryo-EM structure of the SARS-CoV-2 spike protein [18]; an asymmetric hinge-like movement was observed in only one of the three RBD domains in the S1 subunit, which was also observed in MERS-CoV and SARS-CoV [33,34]. However, there are also other structures where all three RBD domains are in the “up” or “down” conformation [18,31,33,34,40]. These data suggest a physiological relevance due to heterogeneous protein conformational dynamics. For example, asymmetric conformational flexibility might have a functional role, perhaps in evading the exposure of B-cell epitopes (only one RBD domain is in the “up” conformation) and/or optimized interaction with the ACE2 receptor depending on virus strain. In addition, because of the “bouncing spring” mechanism (communication between the trimer pocket and the RBD domain conformation), it is possible that these different spike protein conformational isoforms provide another avenue to develop drug discovery programs that exploit and/or circumvent these dynamics.
Our investigation into the genomic variation within virus strains, as well as our findings from the MD simulations, identified a conserved trimer cavity or pocket formed by the S2 subunit in the spike protein. These findings suggest that a novel target, “the trimer cavity formed by spike protein oligomerization”, may be suitable to manipulate viruses of this class. Targeting the trimer pocket might identify a new functional class of drugs against this protein. Applying the SBVS approach, we docked drug libraries against the trimer cavity with the hypothesis that such a ligand might perturb the predicted “bouncing spring” movement and the homotrimer formation. Protein–ligand docking identified severalhits that have already been published or proposed to inhibit the SARS-CoV-2 virus in cell systems. For example, our studies suggest an action mechanism for molecules such as Chitosan and macrolide types (e.g., Rapamycin).
Based on the sequence variability of the coronavirus, including our findings from MD simulations of the spike protein, a conserved trimer cavity (HR1, CH, and CD domains) is a feature of the spike protein in most coronaviruses. Consistent with this, previous work has shown that the molecule EK1 exhibited potent inhibitory activity against all human coronaviruses (hCoVs) tested through binding to the C-terminal HR1 domain [37]. Additionally, the “up” and “down” conformations of RBD domain observed during MD simulations, supports that concept that the spike protein can also be a target of a possible IgG therapeutic [92]. From the list of the top compounds identified that dock into the trimer cavity, some of them have already been validated or suggested as SARS-CoV-2 virus inhibitors in cells, including; a Chitosan derivative [54,55,56], Rapamycin [47,48,49], Everolimus (RAD001) [49], Paclitaxel [79], Ritonavir [48,50,51,52], SelaMeerin (Selamectin) [80], and Danoprevir [52]. Among these, a modified polymeric version of the Chitosan drug (a top hit in our analysis) was recently shown to inhibit CoV replication with evidence that the molecule inhibits the binding of the viral spike protein to the host ACE2 receptor [54,55,56]. The protein–protein interaction map or the network-based methodologies [14,43] suggest that Sirolimus (Rapamycin) emerges as a common potential drug lead for repurposing against COVID-19. This Rapamycin (mTOR inhibitor) drug was found previously to disrupt LARP1 (La-related protein 1) and mTORC1 (mammalian target of rapamycin complex 1) binding, and has been shown to reduce MERS infection by ~60% in vitro [47]. The postulated geroprotectors, such as Sirolimus (Rapamycin) and its close derivative, the rapalog Everolimus (RAD001), decreased infection rates in a small sample of elderly patients [49].
Moreover, the drugs Sirolimus (Rapamycin) and Ritonavir are currently in clinical trials for repurposing against COVID-19 [48,50,51]. Sirolimus (Rapamycin) is registered in a clinical trial (NCT03901001 not yet recruiting) designed to evaluate adjunctive use of Sirolimus (Rapamycin) and Oseltamivir in patients hospitalized with influenza [47,48]. Ritonavir, a HIV protease inhibitor is in an open-label trial in hospitalized adults with severe COVID-19 [48,51]. The data from this small-sample clinical study showed that Danoprevir boosted by Ritonavir is safe and well tolerated in all patients [52]. Selamectin is a potential drug for treating COVID-2019 found active against the pangolin coronavirus GX_P2V, a workable model for SARS-CoV-2 research [80]. The antitumor drug Paclitaxel increases cellular methylglyoxal to virucidal levels, providing a rationale for repurposing Doxorubicin and Paclitaxel for COVID-19 treatment [79]. Nevertheless, whether the hit molecules we have identified that dock into the trimer cavity and impact on the virus life cycle requires orthogonal validation. We hope the findings of our study can help to understand the function of the highly conserved spike protein trimer cavity in the SARS-CoV-2 viral life cycle, as well as provide a novel approach to target this class of infectious disease by the examination of spike protein trimer stability and/or assembly.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0383/9/5/1473/s1, File S1. Molecular dynamics simulation methods; Table S1: Variability in the SARS-CoV-2 spike protein for the entire sequence. The amino acid substitutions in each position across 791 SARS-CoV-2 strains from the GISAID database, Table S2: The receptor binding domain variability of the SARS-CoV-2 S protein. The amino acid substitutions in each position across 791 SARS-CoV-2 strains from the GISAID database, Table S3: S2 subunit sequence variability (residue range: 816-1141; HR1, CH, and CD domains) in the SARS-CoV-2 S protein. The amino acid substitutions in each position across 791 SARS-CoV-2 strains from the GISAID database, Table S4:The most common amino acid substitutions, position in the RBD domain and S2 subunit (HR1, CH, and CD domains), with comparison to the consensus sequence obtained from the alignment, Table S5: The hydrogen bond (H-bond) interactions between three monomers (i.e., chains A-B, A-C, and B-C) of the homotrimer spike protein traced during the MD simulations. In this table, the interaction pairs with donor or acceptor are mentioned, and residues showing occupancy (%) ≥10 % are considered; Figure S1: Triplicates of the MD simulations (or MD repeated three times) for the monomeric form of the SARS-CoV-2 spike protein. The plots represent the RMSF and RMSD obtained for the monomeric spike protein. In particular, the results of the monomeric form labeled as “0a” in the plots, is compared with the homotrimer spike protein in Figure 3, Figure S2: The intermolecular H-bond (hydrogen bond) interactions formed between three monomers (i.e., chains A-B, A-C, and B-C) of the homotrimer spike protein traced during the MD simulations, Figure S3: Correlation between the binding affinity (GBVI/WSA; kcal/mol) and molecular weight (MW; g/mol) of the compounds showing good or the best binding with the trimer cavity of the SARS-CoV-2 spike protein; Movie S1: The conformation dynamics of the monomeric form of the spike protein. This movie is generated using Chimera, taking into consideration the spike protein coordinates from 1 ns and 100 ns of the MD simulation, Movie S2: The conformation dynamics of the homotrimer spike protein observed during the MD simulations, focusing on the homotrimer cavity. The movie is generated using Chimera, taking into consideration spike protein coordinates from 1 ns and the average structure generated from the entire MD simulation (1–100 ns).

Author Contributions

Conceptualization and writing original draft: U.K., M.P., T.R.H., and J.A.A. Data curation and formal analysis: U.K., M.P., M.M., N.C., T.R.H., and J.A.A., Project administration: U.K., T.R.H., and J.A.A. Writing—review and editing: U.K., T.R.H., J.A.A., M.L., J.N., M.B., A.S., A.D., R.F., K.B., and J.H. All authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by the International Centre for Cancer Vaccine Science, University of Gdansk.

Acknowledgments

The International Centre for Cancer Vaccine Science project is carried out within the International Research Agendas programme of the Foundation for Polish Science co-financed by the European Union under the European Regional Development Fund. Authors would also like to thank the PL-Grid Infrastructure, Poland for providing their hardware and software resources.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Chan, J.F.W.; To, K.K.W.; Tse, H.; Jin, D.Y.; Yuen, K.Y. Interspecies transmission and emergence of novel viruses: Lessons from bats and birds. Trends Microbiol. 2013, 21, 544–555. [Google Scholar] [CrossRef] [PubMed]
  2. Cheng, V.C.C.; Lau, S.K.P.; Woo, P.C.Y.; Yuen, K.Y. Severe acute respiratory syndrome coronavirus as an agent of emerging and reemerging infection. Clin. Microbiol. Rev. 2007, 20, 660–694. [Google Scholar] [CrossRef] [PubMed]
  3. Chan, J.F.W.; Lau, S.K.P.; To, K.K.W.; Cheng, V.C.C.; Woo, P.C.Y.; Yuen, K.Y. Middle east respiratory syndrome coronavirus: Another zoonotic betacoronavirus causing SARS-like disease. Clin. Microbiol. Rev. 2015, 28, 465–522. [Google Scholar] [CrossRef] [PubMed]
  4. Chan, J.F.W.; Kok, K.H.; Zhu, Z.; Chu, H.; To, K.K.W.; Yuan, S.; Yuen, K.Y. Genomic characterization of the 2019 novel human-pathogenic coronavirus isolated from a patient with atypical pneumonia after visiting Wuhan. Emerg. Microbes Infect. 2020, 9, 221–236. [Google Scholar] [CrossRef] [PubMed]
  5. Lau, S.K.P.; Woo, P.C.Y.; Yip, C.C.Y.; Tse, H.; Tsoi, H.W.; Cheng, V.C.C.; Lee, P.; Tang, B.S.; Cheung, C.H.; Lee, R.A.; et al. Coronavirus HKU1 and other coronavirus infections in Hong Kong. J. Clin. Microbiol. 2006, 44, 2063–2071. [Google Scholar] [CrossRef] [PubMed]
  6. Shanmugaraj, B.; Siriwattananon, K.; Wangkanont, K.; Phoolcharoen, W. Perspectives on monoclonal antibody therapy as potential therapeutic intervention for coronavirus disease-19 (COVID-19). Asian Pac. J. Allergy Immunol. 2020, 38, 10–18. [Google Scholar]
  7. Zhou, H.; Chen, X.; Hu, T.; Li, J.; Song, H.; Liu, Y.; Peihan, W.; Liu, D.; Jing, Y.; Edward, C.H.; et al. A novel bat coronavirus reveals natural insertions at the S1/S2 cleavage site of the Spike protein and a possible recombinant origin of HCoV-19. BioRxiv 2020. [Google Scholar] [CrossRef]
  8. Liu, Z.; Xiao, X.; Wei, X.; Li, J.; Yang, J.; Tan, H.; Zhu, J.; Zhang, Q.; Wu, J.; Liu, L. Composition and divergence of coronavirus spike proteins and host ACE2 receptors predict potential intermediate hosts of SARS-CoV-2. J. Med. Virol. 2020, 92, 595–601. [Google Scholar] [CrossRef]
  9. Smith, R.D. Responding to global infectious disease outbreaks: Lessons from SARS on the role of risk perception, communication and management. Soc. Sci. Med. 2006, 63, 3113–3123. [Google Scholar] [CrossRef]
  10. Woo, P.C.Y.; Lau, S.K.P.; Chu, C.M.; Chan, K.H.; Tsoi, H.W.; Huang, Y.; Beatrice, H.L.W.; Rosana, W.S.P.; James, J.C.; Wei-kwang, L.; et al. Characterization and complete genome sequence of a novel coronavirus, coronavirus HKU1, from patients with pneumonia. J. Virol. 2004, 79, 884–895. [Google Scholar] [CrossRef]
  11. Peiris, J.S.; Lai, S.T.; Poon, L.L.; Guan, Y.; Yam, L.Y.; Lim, W.; Nicholls, J.; Yee, W.K.; Yan, W.W.; Cheung, M.T.; et al. Coronavirus as a possible cause of severe acute respiratory syndrome. Lancet 2003, 361, 1319–1325. [Google Scholar] [CrossRef]
  12. Yeung, M.L.; Yao, Y.; Jia, L.; Chan, J.F.; Chan, K.H.; Cheung, K.F.; Chen, H.; Poon, V.K.; Tsang, A.K.; To, K.K.; et al. MERS coronavirus induces apoptosis in kidney and lung by upregulating Smad7 and FGF2. Nat. Microbiol. 2016, 1, 16004. [Google Scholar] [CrossRef] [PubMed]
  13. Sheahan, T.P.; Sims, A.C.; Zhou, S.; Graham, R.L.; Hill, C.S.; Leist, S.R.; Alexandra, S.; Kenneth, H.D.; Stephanie, A.M.; Maria, L.A.; et al. An orally bioavailable broad-spectrum antiviral inhibits SARS-CoV-2 and multiple endemic, epidemic and bat coronavirus. Sci. Transl. Med. 2020, 12, eabb5883. [Google Scholar] [CrossRef] [PubMed]
  14. Gordon, D.E.; Jang, G.M.; Bouhaddou, M.; Xu, J.; Obernier, K.; O’meara, M.J.; Guo, J.Z.; Swaney, D.L.; Tummino, T.A.; Hüttenhain, R.; et al. A SARS-CoV-2-Human protein–protein interaction map reveals drug targets and potential drug-repurposing. BioRxiv 2020. [Google Scholar] [CrossRef]
  15. Zhang, L.; Lin, D.; Sun, X.; Curth, U.; Drosten, C.; Sauerhering, L.; Stephan, B.; Katharina, R.; Hilgenfeld, R. Crystal structure of SARS-CoV-2 main protease provides a basis for design of improved α-ketoamide inhibitors. Science 2020, 368, 409–412. [Google Scholar] [CrossRef]
  16. Lan, J.; Ge, J.; Yu, J.; Shan, S.; Zhou, H.; Fan, S.; Qi, Z.; Xuanling, S.; Qisheng, W.; Linqi, Z.; et al. Structure of the SARS-CoV-2 spike receptor-binding domain bound to the ACE2 receptor. Nature 2020. [Google Scholar] [CrossRef]
  17. Tchesnokov, E.; Feng, J.; Porter, D.; Götte, M. Mechanism of inhibition of Ebola virus RNA-dependent RNA polymerase by remdesivir. Viruses 2019, 11, 326. [Google Scholar] [CrossRef]
  18. Wrapp, D.; Wang, N.; Corbett, K.S.; Goldsmith, J.A.; Hsieh, C.L.; Abiona, O.; Graham, B.S.; McLellan, J.S. Cryo-EM structure of the 2019-nCoV spike in the prefusion conformation. Science 2020, 367, 1260–1263. [Google Scholar] [CrossRef]
  19. Zhou, G.; Zhao, Q. Perspectives on therapeutic neutralizing antibodies against the novel coronavirus SARS-CoV-2. Int. J. Biol. Sci. 2020, 16, 1718–1723. [Google Scholar] [CrossRef]
  20. Utomo, R.Y.; Ikawati, M.; Meiyanto, E. Revealing the potency of citrus and galangal constituents to halt SARS-CoV-2 infection. Preprints 2020, 2020030214. [Google Scholar] [CrossRef]
  21. Li, F. Structure, function, and evolution of coronavirus spike proteins. Ann. Rev. Virol. 2016, 3, 237–261. [Google Scholar] [CrossRef] [PubMed]
  22. Bosch, B.J.; Zee, R.V.D.; Haan, C.A.M.D.; Rottier, P.J.M. The coronavirus spike protein is a Class I virus fusion protein: Structural and functional characterization of the fusion core complex. J. Virol. 2003, 77, 8801–8811. [Google Scholar] [CrossRef] [PubMed]
  23. Ahmed, S.F.; Quadeer, A.A.; Mckay, M.R. Preliminary identification of potential vaccine targets for the COVID-19 coronavirus (SARS-CoV-2) based on SARS-CoV immunological studies. Viruses 2020, 12, 254. [Google Scholar] [CrossRef] [PubMed]
  24. Park, T.; Lee, S.-Y.; Kim, S.; Kim, M.J.; Kim, H.G.; Jun, S.; Seung, K.; Bum, T.K.; Park, D. Spike protein binding prediction with neutralizing antibodies of SARS-CoV-2. BioRxiv 2020. [Google Scholar] [CrossRef]
  25. Li, W.; Moore, M.J.; Vasilieva, N.; Sui, J.; Wong, S.K.; Berne, M.A.; Somasundaran, M.; Sullivan, J.L.; Luzuriaga, K.; Greenough, T.C.; et al. Angiotensin-converting enzyme 2 is a functional receptor for the SARS coronavirus. Nature 2003, 426, 450–454. [Google Scholar] [CrossRef]
  26. Hoffmann, M.; Kleine-Weber, H.; Krüger, N.; Müller, M.; Drosten, C.; Pöhlmann, S. The novel coronavirus 2019 (2019-nCoV) uses the SARS-coronavirus receptor ACE2 and the cellular protease TMPRSS2 for entry into target cells. BioRxiv 2020. [Google Scholar] [CrossRef]
  27. Wan, Y.; Shang, J.; Graham, R.; Baric, R.S.; Li, F. Receptor Recognition by the Novel Coronavirus from Wuhan: An Analysis Based on Decade-Long Structural Studies of SARS Coronavirus. J. Virol. 2020. [Google Scholar] [CrossRef]
  28. Zhou, P.; Yang, X.L.; Wang, X.G.; Hu, B.; Zhang, L.; Zhang, W.; Si, H.R.; Zhu, Y.; Li, B.; Huang, C.L.; et al. A pneumonia outbreak associated with a new coronavirus of probable bat origin. Nature 2020, 579, 270–273. [Google Scholar] [CrossRef]
  29. Wu, A.; Niu, P.; Wang, L.; Zhou, H.; Zhao, X.; Wang, W.; Jingfeng, W.; Chengyang, J.; Xiao, D.; Xianyue, W.; et al. Mutations, recombination and insertion in the evolution of 2019-nCoV. BioRxiv 2020. [Google Scholar] [CrossRef]
  30. Yan, R.; Zhang, Y.; Guo, Y.; Xia, L.; Zhou, Q. Structural basis for the recognition of the 2019-nCoV by human ACE2. BioRxiv 2020. [Google Scholar] [CrossRef]
  31. Walls, A.C.; Park, Y.J.; Tortorici, M.A.; Wall, A.; McGuire, A.T.; Veesler, D. Structure, function, and antigenicity of the SARS-CoV-2 Spike Glycoprotein. Cell 2020, 181, 281–292. [Google Scholar] [CrossRef]
  32. Walls, A.C.; Tortorici, M.A.; Snijder, J.; Xiong, X.; Bosch, B.J.; Rey, F.A.; Veesler, D. Tectonic conformational changes of a coronavirus spike glycoprotein promote membrane fusion. Proc. Natl. Acad. Sci. USA 2017, 114, 11157–11162. [Google Scholar] [CrossRef] [PubMed]
  33. Gui, M.; Song, W.; Zhou, H.; Xu, J.; Chen, S.; Xiang, Y.; Wang, X. Cryo-electron microscopy structures of the SARS-CoV spike glycoprotein reveal a prerequisite conformational state for receptor binding. Cell Res. 2017, 27, 119–129. [Google Scholar] [CrossRef] [PubMed]
  34. Pallesen, J.; Wang, N.; Corbett, K.S.; Wrapp, D.; Kirchdoerfer, R.N.; Turner, H.L.; Cottrell, C.A.; Becker, M.M.; Wang, L.; Shi, W.; et al. Immunogenicity and structures of a rationally designed prefusion MERS-CoV spike antigen. Proc. Natl. Acad. Sci. USA 2017, 114, 7348–7357. [Google Scholar] [CrossRef]
  35. Walls, A.C.; Xiong, X.; Park, Y.J.; Tortorici, M.A.; Snijder, J.; Quispe, J.; Cameroni, E.; Gopal, R.; Dai, M.; Lanzavecchia, A.; et al. Unexpected receptor functional mimicry elucidates activation of coronavirus fusion. Cell 2019, 176, 1026–1039. [Google Scholar] [CrossRef]
  36. Yuan, Y.; Cao, D.; Zhang, Y.; Ma, J.; Qi, J.; Wang, Q.; Lu, G.; Wu, Y.; Yan, J.; Shi, Y.; et al. Cryo-EM structures of MERS-CoV and SARS-CoV spike glycoproteins reveal the dynamic receptor binding domains. Nat. Commun. 2017, 8, 15092. [Google Scholar] [CrossRef]
  37. Xia, S.; Liu, M.; Wang, C.; Xu, W.; Lan, Q.; Feng, S.; Feifei, Q.; Linlin, B.; Lanying, D.; Shuwen, L.; et al. Inhibition of SARS-CoV-2 infection (previously 2019-nCoV) by a highly potent pan-coronavirus fusion inhibitor targeting its spike protein that harbors a high capacity to mediate membrane fusion. Cell Res. 2020, 30, 343–355. [Google Scholar] [CrossRef]
  38. Liu, C.; Zhou, Q.; Li, Y.; Garner, L.V.; Watkins, S.P.; Carter, L.J.; Smoot, J.; Gregg, A.C.; Daniels, A.D.; Jervey, S.; et al. Research and development on therapeutic agents and vaccines for COVID-19 and related human coronavirus diseases. ACS Cent. Sci. 2020, 6, 315–331. [Google Scholar] [CrossRef]
  39. He, J.; Tao, H.; Yan, Y.; Huang, S.Y.; Xiao, Y. Molecular mechanism of evolution and human infection with the novel coronavirus (2019-nCoV). BioRxiv 2020. [Google Scholar] [CrossRef]
  40. Peng, C.; Zhu, Z.; Shi, Y.; Wang, X.; Mu, K.; Yang, Y.; Xinben, Z.; Zhijian, X.; Zhu, W. Exploring the binding mechanism and accessible angle of SARS-CoV-2 spike and ACE2 by molecular dynamics simulation and free energy calculation. ChemRxiv 2020. [Google Scholar] [CrossRef]
  41. Othman, H.; Bouslama, Z.; Brandenburg, J.-T.; Rocha, J.D.; Hamdi, Y.; Ghedira, K.; Najet-Srairi, A.; Hazelhurst, S. Interaction of the spike protein RBD from SARS-CoV-2 with ACE2: Similarity with SARS-CoV, hot-spot analysis and effect of the receptor polymorphism. BioRxiv 2020. [Google Scholar] [CrossRef]
  42. Smith, M.; Smith, J.C. Repurposing therapeutics for COVID-19: Supercomputer-based docking to the SARS-CoV-2 viral spike protein and viral spike protein-human ACE2 interface. BioRxiv 2020. [Google Scholar] [CrossRef]
  43. Zhou, Y.; Hou, Y.; Shen, J.; Huang, Y.; Martin, W.; Cheng, F. Network-based drug repurposing for novel coronavirus 2019-nCoV/SARS-CoV-2. Cell Discov. 2020, 6, 14. [Google Scholar] [CrossRef] [PubMed]
  44. Senathilake, K.; Samarakoon, S.; Tennekoon, K. Virtual screening of inhibitors against spike glycoprotein of 2019 novel corona virus: A drug repurposing approach. Preprints 2020, 2020030042. [Google Scholar] [CrossRef]
  45. Gordon, C.J.; Tchesnokov, E.P.; Feng, J.Y.; Porter, D.P.; Gotte, M. The antiviral compound remdesivir potently inhibits RNA-dependent RNA polymerase from Middle East respiratory syndrome coronavirus. J. Biol. Chem. 2020, 295, 4773–4779. [Google Scholar] [CrossRef]
  46. Delmas, B.; Laude, H. Assembly of coronavirus spike protein into trimers and its role in epitope expression. J. Virol. 1990, 64, 5367–5375. [Google Scholar] [CrossRef]
  47. Kindrachuk, J.; Ork, B.; Hart, B.J.; Mazur, S.; Holbrook, M.R.; Frieman, M.B.; Traynor, D.; Johnson, R.F.; Dyall, J.; Kuhn, J.H.; et al. Antiviral potential of ERK/MAPK and PI3K/AKT/mTOR signaling modulation for Middle East respiratory syndrome coronavirus infection as identified by temporal kinome analysis. Antimicrob. Agents Chemother. 2015, 59, 1088–1099. [Google Scholar] [CrossRef]
  48. Assessment of Evidence for COVID-19-Related Treatments: Updated 3/27/2020. Available online: https://www.ashp.org/Pharmacy-Practice/Resource-Centers/Coronavirus (accessed on 27 March 2020).
  49. Zhavoronkov, A. Geroprotective and senoremediative strategies to reduce the comorbidity, infection rates, severity, and lethality in gerophilic and gerolavic infections. Aging 2020, 12, 6492–6510. [Google Scholar] [CrossRef]
  50. Faccenda, E.; Armstrong, J.F.; Harding, S.D.; Pawson, A.J.; Davies, J.A. Coronavirus Information. IUPHAR/BPS Guide to Pharmacology. Available online: https://www.guidetopharmacology.org/coronavius.jsp (accessed on 22 March 2020).
  51. U.S. National Library of Medicine. Clinical Trials.gov. Available online: https://clinicaltrials.gov (accessed on 24 March 2020).
  52. Chen, H.; Zhang, Z.; Wang, L.; Huang, Z.; Gong, F.; Li, X.; Chen, Y.; Wu, J.J. First Clinical study using HCV protease inhibitor danoprevir to treat naive and experienced COVID-19 patients. MedRxiv 2020. [Google Scholar] [CrossRef]
  53. Heiser, K.; McLean, P.F.; Davis, C.T.; Fogelson, B.; Gordon, H.B.; Jacobson, P.; Hurst, B.; Miller, B.; Alfa, R.W.; Earnshaw, B.A.; et al. Identification of potential treatments for COVID-19 through artificial intelligence-enabled phenomic analysis of human cells infected with SARS-CoV-2. BioRxiv 2020. [Google Scholar] [CrossRef]
  54. Milewska, A.; Chi, Y.; Szczepanski, A.; Barreto-Duran, E.; Liu, K.; Liu, D.; Xiling, G.; Yiyue, G.; Jingxin, L.; Lunbiao, C.; et al. HTCC as a highly effective polymeric inhibitor of SARS-CoV-2 and MERS-CoV. BioRxiv 2020. [Google Scholar] [CrossRef]
  55. Milewska, A.; Kaminski, K.; Ciejka, J.; Kosowicz, K.; Zeglen, S.; Wojarski, J.; Maria, N.; Krzysztof, S.; Krzysztof, P. HTCC: Broad range inhibitor of coronavirus entry. PLoS ONE 2016, 11, e0156552. [Google Scholar] [CrossRef] [PubMed]
  56. Milewska, A.; Ciejka, J.; Kaminski, K.; Karewicz, A.; Bielska, D.; Zeglen, S.; Karolak, W.; Nowakowska, M.; Potempa, J.; Bosch, B.J.; et al. Novel polymeric inhibitors of HCoV-NL63. Antivir. Res. 2013, 97, 112–121. [Google Scholar] [CrossRef]
  57. Elbe, S.; Buckland-Merrett, G. Data, disease and diplomacy: GISAID’s innovative contribution to global health. Glob. Chall. 2017, 1, 33–46. [Google Scholar] [CrossRef] [PubMed]
  58. Rice, P.; Longden, I.; Bleasby, A. EMBOSS: The european molecular biology open software suite. Trends Genet. 2000, 16, 276–277. [Google Scholar] [CrossRef]
  59. Rose, P.W.; Beran, B.; Bi, C.; Bluhm, W.F.; Dimitropoulos, D.; Goodsell, D.S.; Prlic, A.; Quesada, M.; Quinn, G.B.; Westbrook, J.D.; et al. The RCSB Protein Data Bank: Redesigned web site and web services. Nucleic Acids Res. 2011, 39, 392–401. [Google Scholar] [CrossRef]
  60. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef]
  61. Waterhouse, A.; Bertoni, M.; Bienert, S.; Studer, G.; Tauriello, G.; Gumienny, R.; Heer, F.T.; de Beer, T.; Rempfer, C.; Bordoli, L.; et al. SWISS-MODEL: Homology modelling of protein structures and complexes. Nucleic Acids Res. 2018, 46, 296–303. [Google Scholar] [CrossRef]
  62. Padariya, M.; Kalathiya, U.; Houston, D.R.; Alfaro, J.A. Recognition dynamics of cancer mutations on the ERp57-Tapasin interface. Cancers 2020, 12, 737. [Google Scholar] [CrossRef]
  63. Kalathiya, U.; Padariya, M.; Pawlicka, K.; Verma, C.S.; Houston, D.; Hupp, T.R.; Alfaro, J.A. Insights into the effects of cancer associated mutations at the UPF2 and ATP-binding sites of NMD master regulator: UPF1. Int. J. Mol. Sci. 2019, 20, 5644. [Google Scholar] [CrossRef]
  64. Kalathiya, U.; Padariya, M.; Baginski, M. Structural, functional, and stability change predictions in human telomerase upon specific point mutations. Sci. Rep. 2019, 9, 8707. [Google Scholar] [CrossRef]
  65. Pronk, S.; Páll, S.; Schulz, R.; Larsson, P.; Bjelkmar, P.; Apostolov, R.; Shirts, M.R.; Smith, J.C.; Kasson, P.M.; Van der Spoel, D.; et al. GROMACS 4.5: A high-throughput and highly parallel open source molecular simulation toolkit. Bioinformatics 2013, 29, 845–854. [Google Scholar] [CrossRef]
  66. Bjelkmar, P.; Larsson, P.; Cuendet, M.A.; Hess, B.; Lindahl, E. Implementation of the CHARMM force field in GROMACS: Analysis of protein stability effects from correction maps, virtual interaction sites, and water models. J. Chem. Theory Comput. 2010, 6, 459–466. [Google Scholar] [CrossRef]
  67. Darden, T.; York, D.; Pedersen, L. Particle mesh Ewald: AnN⋅log(N) method for Ewald sums in large systems. J. Chem. Phys. 1993, 98, 10089–10092. [Google Scholar] [CrossRef]
  68. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A linear constraint solver for molecular simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  69. Bussi, G.; Donadio, D.; Parrinello, M. Canonical sampling through velocity rescaling. J. Chem. Phys. 2007, 126, 014101. [Google Scholar] [CrossRef]
  70. Parrinello, M.; Rahman, A. Polymorphic transitions in single crystals: A new molecular dynamics method. J. Appl. Phys. 1981, 52, 7182–7190. [Google Scholar] [CrossRef]
  71. Gunsteren, W.F.V.; Berendsen, H.J.C. A Leap-frog algorithm for stochastic dynamics. Mol. Simulat. 1988, 1, 173–185. [Google Scholar] [CrossRef]
  72. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  73. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera--A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef]
  74. Kitchen, D.B.; Decornez, H.; Furr, J.R.; Bajorath, J. Docking and scoring in virtual screening for drug discovery: Methods and applications. Nat. Rev. Drug Discov. 2004, 3, 935–949. [Google Scholar] [CrossRef]
  75. Molecular Operating Environment (MOE) 2011.10; Chemical Computing Group: Montreal, QC, Canada, 2011.
  76. Wojciechowski, M.; Lesyng, B. Generalized Born model: Analysis, refinement, and applications to proteins. J. Phys. Chem. B 2004, 108, 18368–18376. [Google Scholar] [CrossRef]
  77. Edelsbrunner, H. The union of balls and its dual shape. Discrete Comput. Geom. 1995, 13, 415–440. [Google Scholar] [CrossRef]
  78. Lill, M. Virtual screening in drug design. In Silico Models for Drug Discovery; Kortagere, S., Ed.; Humana Press: Totowa, NJ, USA, 2013; Volume 993, pp. 1–12. [Google Scholar]
  79. Al-Motawa, M.; Abbas, H.; Wijten, P.; Fuente, A.D.L.; Xue, M.; Rabbani, N.; Thornalley, P.J. Vulnerabilities of the SARS-CoV-2 virus to proteotoxicity-opportunity for repurposed chemotherapy of COVID-19 infection. BioRxiv 2020. [Google Scholar] [CrossRef]
  80. Fan, H.-H.; Wang, L.-Q.; Liu, W.-L.; An, X.-P.; Liu, Z.-D.; He, X.-Q.; Li-Hua, S.; Tong, Y.-G. Repurposing of clinically approved drugs for treatment of coronavirus disease 2019 in a 2019-novel coronavirus (2019-nCoV) related coronavirus model. Chin. Med. J. 2020, 133, 1051–1056. [Google Scholar] [CrossRef]
  81. Nisha, M.; Mark, A. Targeted therapy and promising novel agents for the treatment of advanced soft tissue sarcomas. Expert Opin. Investig. Drug 2015, 24, 1409–1418. [Google Scholar]
  82. Squillace, R.M.; Miller, D.; Wardwell, S.D.; Wang, F.; Clackson, T.; Rivera, V.M. Synergistic activity of the mTOR inhibitor ridaforolimus and the antiandrogen bicalutamide in prostate cancer models. Int. J. Oncol. 2012, 41, 425–432. [Google Scholar] [CrossRef]
  83. Iyer, G.; Hanrahan, A.J.; Milowsky, M.I.; Al-Ahmadie, H.; Scott, S.N.; Janakiraman, M.; Pirun, M.; Sander, C.; Socci, N.D.; Ostrovnaya, I.; et al. Genome sequencing identifies a basis for everolimus sensitivity. Science 2012, 338, 221. [Google Scholar] [CrossRef]
  84. Kean, T.; Roth, S.; Thanou, M. Trimethylatedchitosans as non-viral gene delivery vectors: Cytotoxicity and transfection efficiency. J. Control. Release 2005, 103, 643–653. [Google Scholar] [CrossRef] [PubMed]
  85. Dryden, M.W.; Payne, P.A.; Smith, V.; Berg, T.C.; Lane, M. Efficacy of selamectin, spinosad, and spinosad/milbemycin oxime against the KS1 Ctenocephalidesfelis flea strain infesting dogs. Parasites Vectors 2013, 6, 80. [Google Scholar] [CrossRef]
  86. Aldonza, M.; Ku, J.; Hong, J.Y.; Kim, D.; Yu, S.J.; Lee, M.S.; Prayogo, M.C.; Tan, S.; Kim, D.; Han, J.; et al. Prior acquired resistance to paclitaxel relays diverse EGFR-targeted therapy persistence mechanisms. Sci. Adv. 2020, 6, eaav7416. [Google Scholar] [CrossRef]
  87. Ferlini, C.; Cicchillitti, L.; Raspaglio, G.; Bartollino, S.; Cimitan, S.; Bertucci, C.; Mozzetti, S.; Gallo, D.; Persico, M.; Fattorusso, C.; et al. Paclitaxel Directly Binds to Bcl-2 and Functionally Mimics Activity of Nur77. Cancer Res. 2009, 69, 6906–6914. [Google Scholar] [CrossRef]
  88. Zeldin, R.K. Pharmacological and therapeutic properties of ritonavir-boosted protease inhibitor therapy in HIV-infected patients. J. Antimicrob. Chemother. 2003, 53, 4–9. [Google Scholar] [CrossRef]
  89. Deutsch, M.; Papatheodoridis, G.V. Danoprevir, a small-molecule NS3/4A protease inhibitor for the potential oral treatment of HCV infection. Curr. Opin. Investig. Drugs 2010, 11, 951–963. [Google Scholar]
  90. Zhang, G.; Pomplun, S.; Loftis, A.R.; Loas, A.; Pentelute, B.L. The first-in-class peptide binder to the SARS-CoV-2 spike protein. BioRxiv 2020. [Google Scholar] [CrossRef]
  91. Shang, J.; Ye, G.; Shi, K.; Wan, Y.; Luo, C.; Aihara, H.; Qibin, G.; Ashley, A.; Li, F. Structural basis of receptor recognition by SARS-CoV-2. Nature 2020. [Google Scholar] [CrossRef]
  92. Yuan, M.; Wu, N.C.; Zhu, X.; Lee, C.C.D.; So, R.T.Y.; Lv, H.; Chris, K.P.M.; Wilson, I.A. A highly conserved cryptic epitope in the receptor-binding domains of SARS-CoV-2 and SARS-CoV. Science 2020, 368, 630–633. [Google Scholar] [CrossRef]
Figure 1. Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) spike protein structure and function. (a) The homotrimer spike glycoprotein (PDB ID. 6vsb) [18]. (b) Different domains of the spike protein that includes; signal sequence (SS), the N-terminal domain (NTD), receptor-binding domain (RBD), subdomain 1 and 2 (SD1&2), protease cleavage sites (S1/S2/S2′), fusion peptide (FP), heptad repeat 1 and 2 (HR1&2), central helix (CH), connector domain (CD), transmembrane domain (TM), and cytoplasmic tail (CT) [18,19]. (c) Receptor binding domain (RBD) illustrating the “up” or “open” (PDB ID. 6vsb [18]) and “down” or “closed” (PDB ID. 6vxx [31]) conformation.
Figure 1. Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) spike protein structure and function. (a) The homotrimer spike glycoprotein (PDB ID. 6vsb) [18]. (b) Different domains of the spike protein that includes; signal sequence (SS), the N-terminal domain (NTD), receptor-binding domain (RBD), subdomain 1 and 2 (SD1&2), protease cleavage sites (S1/S2/S2′), fusion peptide (FP), heptad repeat 1 and 2 (HR1&2), central helix (CH), connector domain (CD), transmembrane domain (TM), and cytoplasmic tail (CT) [18,19]. (c) Receptor binding domain (RBD) illustrating the “up” or “open” (PDB ID. 6vsb [18]) and “down” or “closed” (PDB ID. 6vxx [31]) conformation.
Jcm 09 01473 g001
Figure 2. Variability in the SARS-CoV-2 spike protein. (a) The heat map contains the amino acid substitutions for each position in the spike protein compared to the consensus sequence (wild-type) from the alignment of 791 SARS-CoV-2 strains from the Global Initiative on Sharing All Influenza Data (GISAID) database [57]. (b) Represents the previous variations over the spike protein structure, marking in red color the spots of variability. (c,d) Analysis of the amino acid substitutions in the receptor binding domain (RBD) domain and in the S2 subunit (HR1, CH, and CD domains), including a bar plot with the total number of changes for each position.
Figure 2. Variability in the SARS-CoV-2 spike protein. (a) The heat map contains the amino acid substitutions for each position in the spike protein compared to the consensus sequence (wild-type) from the alignment of 791 SARS-CoV-2 strains from the Global Initiative on Sharing All Influenza Data (GISAID) database [57]. (b) Represents the previous variations over the spike protein structure, marking in red color the spots of variability. (c,d) Analysis of the amino acid substitutions in the receptor binding domain (RBD) domain and in the S2 subunit (HR1, CH, and CD domains), including a bar plot with the total number of changes for each position.
Jcm 09 01473 g002

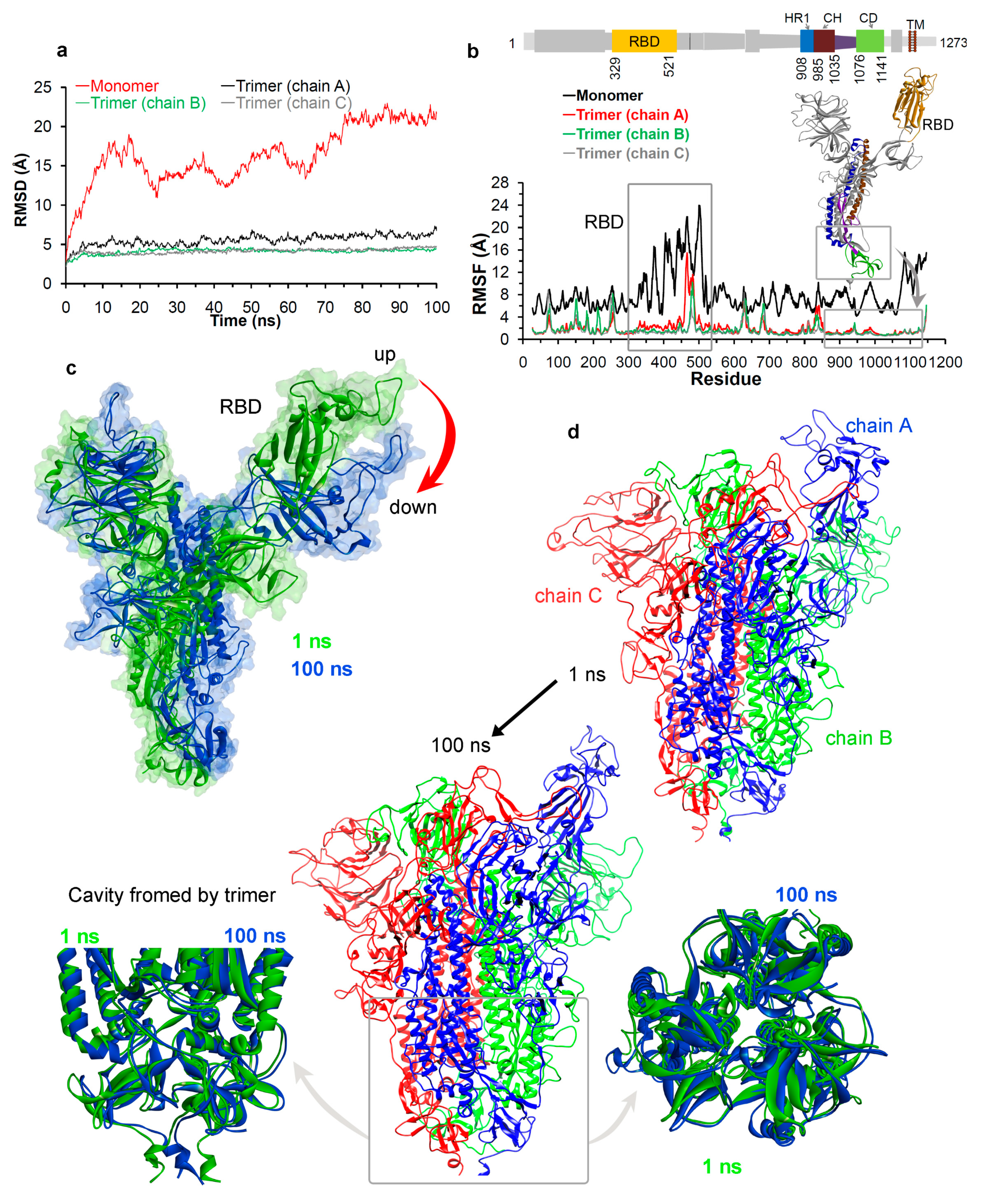

Figure 3. Conformational dynamics of the SARS-CoV-2 spike glycoprotein. (a,b) RMSD and RMSF of the monomeric and trimeric forms. (c) The “up” and “down” state traced during the MD simulations of the monomeric form. (d) The conformation dynamics of homotrimer spike protein, as well as the highlighted cavity formed by the trimer state and its evolution over 100 ns of the MD simulation. RMSD, root mean square deviation; RMSF, root mean square fluctuations; MD, molecular dynamics.
Figure 3. Conformational dynamics of the SARS-CoV-2 spike glycoprotein. (a,b) RMSD and RMSF of the monomeric and trimeric forms. (c) The “up” and “down” state traced during the MD simulations of the monomeric form. (d) The conformation dynamics of homotrimer spike protein, as well as the highlighted cavity formed by the trimer state and its evolution over 100 ns of the MD simulation. RMSD, root mean square deviation; RMSF, root mean square fluctuations; MD, molecular dynamics.
Jcm 09 01473 g003
Figure 4. Targeting different pockets of the SARS-CoV-2 spike protein. (a) The homotrimer cavity from the SARS-CoV-2 spike glycoprotein bound to known compounds. (b) The ligands that were found interacting with the homotrimer cavity with high binding affinity were also docked with an interface formed by the spike proteins (RBD domain; PDB ID. 6lzg [90]) that interact with the ACE2 receptor. SBVS, structure-based virtual screening.
Figure 4. Targeting different pockets of the SARS-CoV-2 spike protein. (a) The homotrimer cavity from the SARS-CoV-2 spike glycoprotein bound to known compounds. (b) The ligands that were found interacting with the homotrimer cavity with high binding affinity were also docked with an interface formed by the spike proteins (RBD domain; PDB ID. 6lzg [90]) that interact with the ACE2 receptor. SBVS, structure-based virtual screening.
Jcm 09 01473 g004
Table 1. The list of compounds showing the highest binding affinity to the trimer cavity from the spike protein, and the compounds that are already validated or suggested to be/can be active against the SARS-CoV-2 virus *.
Table 1. The list of compounds showing the highest binding affinity to the trimer cavity from the spike protein, and the compounds that are already validated or suggested to be/can be active against the SARS-CoV-2 virus *.
Compounds Against SARS-CoV-2GBVI/WSA dG (kcal/mol)MW g/molPrevious Target
Trimer CavityRBD Domain
Chitosan [54,55,56]−67.49−37.30161.16 *Antibacterial [84]
Rapamycin (Sirolimus) [47,48,49]−49.28−25.81914.17mTOR [47]
Paclitaxel [79]−45.84−32.42853.92Bcl-2, Microtubule Associated [86,87]
SelaMeerin (Selamectin) [80]−44.24−32.35769.96Antiparasitic [85]
Everolimus (RAD001) [49]−41.800.29958.22mTOR [83]
Ritonavir [48,50,51,52]−37.92−24.11720.94HIV Protease [88]
Danoprevir (ITMN-191) [52]−35.09−30.80731.83Proteasome, HCV, Protease [89]
* Drugs in this list are in need of further clinical validation. MW for the monomer Chitosan compound is 161.16 g/mol, and for the entire Chitosan molecule is 1526.46 g/mol. GBVI/WSA, Generalized-Born Volume Integral/Weighted Surface area; mTOR, mammalian target of Rapamycin; HIV, human immunodeficiency viruses; HCV, hepatitis C virus; RBD, receptor binding domain; MW, molecular weight.
Back to TopTop
