Article

Tomotherapy as an Alternative Irradiative Treatment for Complicated Keloids

by
Yu-Fang Lin
1,†,
Pei-Wei Shueng
1,2,†,
Tyng-Luen Roan
3,†,
Dun-Hao Chang
3,
Yen-Chen Yu
3,
Che-Wei Chang
3,
An-Ta Kuo
3,
Yo-Shen Chen
3,
Hsiu-Wen Hsiao
1,
Hui-Ju Tien
1 and
Chen-Hsi Hsieh
1,2,4,*
1
Division of Radiation Oncology, Department of Radiology, Far Eastern Memorial Hospital, New Taipei 22060, Taiwan
2
Faculty of Medicine, School of Medicine, National Yang-Ming University, Taipei 11221, Taiwan
3
Department of Plastic Surgery, Far Eastern Memorial Hospital, New Taipei 22060, Taiwan
4
Institute of Traditional Medicine, School of Medicine, National Yang-Ming University, Taipei 11221, Taiwan
*
Author to whom correspondence should be addressed.
†
Co-first author, these authors contributed equally to this work.
J. Clin. Med. 2020, 9(11), 3732; https://doi.org/10.3390/jcm9113732
Submission received: 17 October 2020 / Revised: 16 November 2020 / Accepted: 18 November 2020 / Published: 20 November 2020
(This article belongs to the Section Dermatology)
Browse Figures
Versions Notes

Abstract

:
The aim of this study was to investigate the treatment of complicated keloids with helical tomotherapy (HT) and electron beam radiotherapy. From July 2018 to September 2018, 11 patients with 23 keloid lesions treated with HT were enrolled. Additionally, 11 patients with 20 lesions treated with electron beam radiotherapy in the same period were enrolled. Patients in both groups were treated within 24 h after surgical excision of the keloid lesion with 13.5 Gy in three consecutive daily fractions. The median follow-up period was 15 months. The local control rate was 91.3% and 80% in the HT group and the electron beam group, respectively. No acute adverse effects were observed in either group, but most patients exhibited pigmentation. No radiation-induced cancer occurred in these patients up to the time of this report. Pain and pruritus improved for all patients and more obviously for three patients with complicated keloids treated with HT. The measured surface dose was 103.7–112.5% and 92.8–97.6% of the prescribed dose in the HT group and the electron beam group, respectively. HT can be considered an alternative in cases where it is not feasible to use multiple electron fields, due to encouraging clinical outcomes.

1. Introduction

Keloids are disfiguring fibroproliferative lesions that grow beyond the boundaries of the original wound scar and can significantly impair the quality of life of affected individuals [1]. Keloids can occur at any age but most commonly occur during the second and third decades of life [2]. Affected patients may experience itching, pain, impaired range of motion, and interference with normal daily activities, and keloids can be complicated by ulceration, bleeding, and infection [2].
Various adjuvant keloid treatment strategies have been tested, including surgical excision, pressure treatment, intralesional steroids, interferon and 5-fluorouracil injections, laser therapy, cryotherapy, and silicone gel sheeting [3]. However, the relapse rate is greater than 50% for patients receiving these treatments [3,4]. According to the international recommendations for scar management, postoperative radiotherapy is considered to be an effective method available for keloids to decrease the relapse rate to 20% [4,5,6,7,8,9]. One of the radiation-based modalities used for keloids is electron beam irradiation [10]. Nevertheless, electron beam irradiation exhibits an inhomogeneous dose distribution, especially when the treated area is irregular, has a large slope [11], or is in a junctional field [12].
Helical tomotherapy (HT, Accuray, Inc., Madison, WI, USA) is an advanced modality using a 6 MV photon beam linear accelerator. Compared with volumetric-modulated arc therapy and intensity-modulated radiotherapy (IMRT) for clinical postmastectomy radiotherapy, in HT, the surface dose is not reduced [13]. Additionally, the special design of HT to restrict exposure to only obliquely incident photon beams can decrease damage to critical organs while increasing the superficial dose [14,15].
According to the potential benefits of HT in treating superficial lesions, we retrospectively assessed the efficacy and dose verification in patients with keloids who underwent surgical excision followed by HT or electron beam irradiation.

2. Materials and Methods

2.1. Patient Selection

From July 2018 to September 2018, eleven patients with 23 keloids treated with HT and 11 patients with 20 lesions treated with electron beam radiotherapy (Elekta VERSA HD linac accelerator, Elekta Oncology Systems Ltd, Crawley, UK) were enrolled. Retrospective data were collected after receiving approval from the Institutional Review Board of the Far Eastern Memorial Hospital (FEMH-IRB-109069). The need for informed consent was waived by the IRB of FEMH due to the research involving no more than minimal risk to subjects.

2.2. CT Simulation for HT

The patients underwent CT (Discovery CT590 RT, GE Healthcare, Chicago, IL, USA) with 2.5 mm slice spacing, and then the image sets were transferred to a treatment planning system (Pinnacle3, version 9.8.1, Philips Medical Systems, Madison, WI, USA) for targeting and organ delineation. The patients who underwent head keloidectomy were immobilized by a U-Frame head and neck immobilization system (CIVCO Radiotherapy, Orange City, IA, USA) with the face turned to the contralateral side (Figure 1A). A Body Vac Cushion (Klarity Medical, Newark, OH, USA) was used to immobilize the whole body of patients with keloids on the torso or extremities (Figure 1B). Additionally, a 1 cm bolus was added to the surgical area to provide an adequate surface dose to the scar.

2.3. Target Contouring, Treatment Planning, and Treatment by HT

The clinical target volume (CTV) was defined as the area encompassing the surgical bed subcutaneously 0.8 cm from the skin plus a 1 cm width margin. The inner margin of the planning target volume (PTV) was 0.5 cm, and the outer margin of the PTV was defined by a three-dimensional (3D) expansion of 0.5 cm. The plan was created using the Tomotherapy Hi Art Planning system (version 5.1.3, Tomotherapy, Inc., Madison, WI, USA). For HT planning, three parameters should be selected: the field width (the slice thickness of the radiation field projected at the isocenter along the gantry rotation axis) was set to 5.048 cm, the pitch (the couch movement relative to the field width during one gantry rotation) was set to 0.2–0.3, and the modulation factor (the ratio between the maximum number of opening leaves and the average number of opening leaves in active gantry rotation) was set to 2.6–3.0. The calculation grid was 0.195 × 0.195 cm. Patients were treated by HT with 13.5 Gy in 3 consecutive daily fractions within 24 h after surgical excision of the keloid lesion.

2.4. Plan Evaluation for HT

2.4.1. Paddick Conformity Index (PCI) and Uniformity Index (UI)

The PCI was originally proposed by Paddick [16] to evaluate the tightness of fit of the PTV to the prescription isodose volume in treatment plans and was calculated as follows:
PCI = (TVPIV2)/(TV × PIV)
where TV is the PTV volume, PIV is the treated volume enclosed by the prescription isodose surface, and TVPIV is the volume of the PTV within the prescribed isodose. A PCI closer to unity means greater conformity of the dose distribution to the target volume.
The UI was defined as D5%/D95%, where D5% and D95% is the minimum dose delivered to 5% and 95% of the PTV, respectively, as previously reported [17].

2.4.2. Dose Sparing for Organs at Risk (OARs) for HT

The mean and maximum doses were reduced to the lowest possible for all critical organs. For keloids in the head area, the critical organs included the lens, eyeball, optic nerve, optic chiasm, inner ears, parotids, and brain. For keloids on the chest and abdomen, the critical organs included the trachea, esophagus, whole lungs, heart, intestine, liver, stomach, and kidneys. The bladder, rectum, uterus, and femur bones were critical organs for keloids in the pelvis area. The cervical spine, thoracic spine, lumbar spine, and iliac, pelvic, and femur bones were contoured and expected to receive a mean dose less than 4.0 Gy to avoid bone marrow toxicity [18].

2.4.3. Dose Prescription Policy

To ensure dose coverage of target volume, the primary aim in HT plan was to achieve 100% prescription dose with 95% PTV volume (D95 of PTV = 13.5 Gy). Besides this, the maximum dose of PTV should be lower than the 115% of prescription dose.

2.5. Treatment with Electron Beam Irradiation

The surgical incision area with a 1.5 cm margin was treated by electron beam irradiation (6 MeV) with custom Cerrobend blocks. The prescribed dose was 13.5 Gy in 3 consecutive daily fractions with a 90% isodose line and a 3 mm bolus. All lesions underwent surgical excision followed by electron beam irradiation within 24 h.

2.6. Surface Dose Measurement

Gafchromic EBT3 films (Ashland ISP, Wayne, NJ, USA) in the form of 2.5 × 3.0 cm2 sheets were used to measure the surface dose of the keloid lesions. The EBT3 films were digitized by using an Epson 11000XL scanner (Seiko Epson Corporation, Nagano, Japan) and analyzed with Film QA Pro software (Film QA Pro 2015, version 5.0, Ashland, Inc., Wayne, NJ, USA) [19]. In all investigations, EBT3 films were scanned within 24 h after irradiation. All scans were acquired in a 48-bit RGB color channel (16 bits per color) transmission mode with a resolution of 72 dpi and all available color correction options turned off. After scanning, the images were saved in the tagged image file format (tiff).

2.7. Outcome Assessment

In the current study, keloid patients were followed and evaluated by every 3 months. The scar was examined by the radiation oncologist and the plastic surgeon during the follow-up period. There were no post-operative treatments after radiation therapy. However, the patients received steroid injections when the scar was recurrent. Recurrence was defined as elevation of the scar above the plane of the skin or scar dehiscence and the reappearance of itching and erythema. Adverse effects included acute and chronic radiotherapy-related complications. Acute adverse effects included skin ulceration and lack of wound healing after the operation. Chronic adverse effects included skin hyperpigmentation and telangiectasia with depigmentation (occurring within a year after treatment). Considering the limited sample number in this study, the differences between the techniques were analyzed with the Wilcoxon signed-rank test (a nonparametric test) for paired samples. A p-value below 0.05 was considered significant.

2.8. Surgical Process

Most of the surgeries were done under local anesthesia, and if the lesion was large or needed further reconstruction procedure, general anesthesia was administered. Excision was performed at the margin between the lesion and the normal skin. If the scar contractures were present, the adhesion and contracture were released to demonstrate actual defect size. The reconstruction methods were selected according to the defect size and skin tension. Most of the wounds were closed primarily with long-lasting absorbable sutures (e.g., Monocryl, Poly-p-dioxanone) subcutaneously and the skin was closed with 5-0 nylon, which was removed 7–10 days later. If the defect size or skin tension were too large, local flap or skin graft was required.

3. Results

There were five males and six females in the HT group and four males and seven females in the electron beam group. The average age was 43 years (range, 20–75 years) in the HT group and 38 years (range, 22–66 years) in the electron beam group. The characteristics of the patients and sites are summarized in Table 1. The median follow-up time was 13 months (range, 12–14 months) in the HT group and 15 months (range, 13–16 months) in the electron beam group. In the HT group, two patients had five keloids, one patient had three keloids, two patients had two keloids, and six patients had one keloid. Additionally, there were three patients with severe keloids. There were 11 lesions in high-tension areas and 12 lesions in low-tension areas [20]. In the electron beam group, one patient had three keloids, seven patients had two keloids, and three patients had one keloid. There were 12 lesions in high-tension areas and eight lesions in low-tension areas.
One patient in the HT group had the largest PTV, at 1159.8 mL, on the abdomen. The isodose distributions for the complex areas (torso and bilateral arms) of the patient are shown in Figure 2. The isodose distributions for the left ear are shown in Figure 3. The PCI, UI, and various OARs are listed in Table 2. The mean and maximum doses of critical organs were all under 1.8 Gy, and most were under 1 Gy in treatment planning.
The surface dose of lesions in the HT group and the electron beam group was 103.7–112.5% of the prescribed dose (range, 466.5–506.1 cGy) and 92.8–97.4% of the prescribed dose (range, 417.6–438.3 cGy), respectively. The mean dose was 486 and 427.5 Gy, respectively (Table 3). The shortest beam on time was 254.1 s for single keloid lesion, and the longest beam on time was 1271.3 s for complicated keloid, and the mean beam on time was 569.5 s for all HT patients.
In the HT group, one abdominal lesion and one left arm lesion relapsed six months after irradiation. Four lesions relapsed three to six months after electron beam irradiation; one was on the scapula, one was on the left arm, and two were on the chest. The local control rate was 91.3% in the HT group and 80% in the electron beam group. The one-year local control rate was 81.8% and 63.4% in the HT group and the electron beam group, respectively (Figure 4). The p-value between the two groups was 0.238. There were no acute or chronic radiotherapy-related adverse effects, such as skin ulceration, lack of wound healing, or infection, in these patients (Figure 5). Skin hyperpigmentation was noted in the irradiation field for all patients, but the skin color returned to normal within a year after treatment. One patient with an ear keloid developed temporary, slight hair loss around the treatment site. No patients suffered from treatment-related cancer up to the time of this report.

4. Discussion

Keloids commonly adopt distinct site-specific shapes, namely the typical butterfly, crab claw, and dumbbell shapes on the shoulder, anterior chest, and upper arm, respectively [21]. These areas are highly mobile and high-tension areas [20] and are reported as the most common sites of recurrence [22]. At present, there are many therapeutic options available, including surgery, radiation, corticosteroids, 5-fluorouracil, cryotherapy, laser therapy, and cosmetic therapies [23]. The main problem of surgery for pathological scars is recurrence, and the recurrence rate is approximately 45–100% [3].
The cutaneous wound healing process includes coagulation, inflammation, proliferation, and remodeling [24]. Keloids are fibroproliferative lesions that result from abnormal wound healing [25,26]. Compared to surgery alone, radiotherapy following surgery decreases the relapse rate of keloids to 10–20% [4,5,6,7,8,9]. The possible mechanisms of keloid inhibition by irradiation include the suppression of angiogenesis, which decreases the delivery of inflammatory cytokines, and the successive inhibition of fibroblast activity, resulting in decreased collagen synthesis and thus effectively suppressing keloid development [26,27]. Additionally, irradiation potentially reduces keloid fibroblast autophagy and migration by targeting phosphatase and tensin homolog (PTEN) [28]. Moreover, irradiation not only silences many genes in keloid fibroblasts that play roles in enhancing cell proliferation and extracellular matrix production but also upregulates genes involved in promoting apoptosis and extracellular matrix degradation [29].
Since the early 1900s, radiotherapy has been used for treating keloids and has been deemed safe and effective in numerous studies [5]. One of the radiation-based modalities used for treating keloids is electron beam irradiation [10]. However, the inhomogeneity of the electron beam irradiation dose distribution in areas with a large slope does not allow the treatment of concave or convex volumes with a homogeneous dose [11,30] or a large field with a junctional position [12,31]. A dosimetric evaluation in electron beam irradiation of the total scalp showed that the dose variation in junctional regions ranged from −50% to +70% [11]. A 20–50% hot spot caused by electron scattering and a 10% cold spot caused by a shorter distance from the surface to the electron source at the junction line between photon and electron beams have been reported [12,31]. Moreover, inhomogeneity of approximately 15% can occur across the skin surface [32]. Deviations of 32–124% from the prescription dose in specific areas of the body have been reported in total skin electron beam therapy [30]. Additionally, the maximum irradiation size for electron beam is only 25 cm in the Elekta linac accelerator [33], which limited of the field of treatment. As mentioned above, HT could be considered for complicated situations such as larger treatment size (>25 cm), irregular shape, and large slope position. In the current study, HT provided an 11–15% higher surface dose to the keloid lesions than did electron beam irradiation. Additionally, the one-year local control rate was approximately 20% higher in the HT group than in the electron beam group, although the difference between the groups was not significant (p = 0.238). The possible reason may result from the small number of cases in the current study.
By using central core complete block to restrict exposure to only obliquely incident photon beams, thereby increasing the superficial dose and reducing the internal organ dose, in the treatment of irregularly shaped cutaneous areas where it is difficult to use multiple electron fields, HT provides impressive uniformity, conformity, and dose distribution with limited damage to critical organs [14,34,35]. In the current study, the mean and maximum doses to critical organs were under 1.8 Gy in patients treated by the HT technique. Additionally, the PCI was apparently lower than 1. In fact, the electron beam falls off rapidly after Dmax, but the photon beam falls off smoothly. It makes electron beams obliquely incident onto the surface with bolus, which results in a decreased surface dose relative to an unbolused surface, but the photon beam does not [14]. The surface dose delivered by HT for the total skin reportedly ranges from 85% to 150% of the prescribed dose [14,34,35]. In the current study, the surface dose delivered to lesions measured by EBT3 film exposure ranged from 103.7% to 112.5% of the prescribed dose in HT. Moreover, the surface dose delivered to the lips and pelvis was larger than 10% of the prescribed dose, which may have been caused by the tangential beam angles utilized in the treatment plan to spare normal tissues. In electron beam irradiation, the measured surface dose was lower than the prescribed dose in all cases, and the largest variation was observed for the ear, which may have been due to the irregular shape. Most areas showed approximately 5% error due to the small and narrow field. Underdose of the lesion could be one of the reasons for the higher recurrence rate after electron beam irradiation than after HT.
Kal et al. [36] suggested that the recurrence rate after the delivery of a biologically effective dose (BED) greater than 30 Gy and of approximately 20 Gy is less than 10% and approximately 20–25%, respectively. The BED can be calculated as follows: BED = nd [1 + d/(α/β)] [37,38], where “n” is the number of fractions, “d” is the dose per fraction, and “α” and “β” are parameters that determine the initial slope and curvature of the underlying cell survival curve. For keloids, as acute responding tissues, α/β is 10 Gy [36]. The BED for the current dose schedule (13.5 Gy in 3 fractions) was 19.57 Gy, and the recurrence rate was 8.7% for HT and 20% for electron beam radiotherapy. Additionally, higher recurrence rates are found for keloids in the chest wall and scapular and suprapubic regions. In contrast, regions with low tension, such as the earlobe, have lower recurrence rates [8,39]. However, HT provides dose homogeneity with precise depth penetration to offset the disadvantages of electron beam irradiation, and the surface dose was 103.7–112.5% of the prescribed dose. In contrast, the surface dose in similar areas treated by electron beam irradiation and measured by EBT3 films was 92.8–97.4% in our clinical experience. The underdose by electron beam irradiation indicates that the relapse rate may be higher in these patients. The recurrence rate for electron beam radiotherapy in the current study is similar to that in other studies [39,40]. As mentioned above, the treatment of keloids with HT reduces the recurrence rate as much as possible.
A frequently posed question in the treatment of benign diseases by irradiation concerns the risk of radiation-induced malignancy. De Lorenzi et al. [40] reported no cases of radiation-induced cancer after brachytherapy for keloids. Additionally, in a study that included more than 6500 patients who were treated with external radiotherapy, only five cases of potential and doubtful radiation-induced cancer were noted [41]. Additionally, the risk of inducing the development of a fatal tumor with a single dose of 13 Gy (BED = 30 Gy) is approximately 1.3 × 10−6 [36], which is similar to the risk of inducing the development of a fatal tumor by a computed tomography scan of the chest (4.8 × 10−6) [42]. Considering that the BED was approximately 20 Gy in the current study, which is lower than 30 Gy, the risk of a radiation-induced tumor seems to be limited or even negligible. Additionally, psychological factors (satisfaction with appearance, shame and suffering from the disease) and physical problems (pruritus, pain, and restricted movement) impair the quality of life of patients with keloids [43]. For those with lesions that are irregular in shape or not suitable for junctional electron beam irradiation, HT provides an opportunity for the treatment of complex keloids, which merits further exploration.
There are some limitations to the present study. First, the sample size of patients was limited, making statistical conclusions very tentative. Therefore, enrolling a larger sample of patients to confirm the effects of HT for complicated keloid treatment is warranted in the future. Second, quality-of-life assessments were not included in the current study due to the limited number of patients. Third, Maemoto H et al. [44] reported that the local control rates of same keloid lesions could be 93% at 1 year and 68% at the 10th year. However, the median follow-up time in the current study was 13 and 15 months in the HT and electron beam group, respectively. In the future, a longer following time to confirm the current observation is warranted.

5. Conclusions

The current study is the first to perform dose verification on keloid scars treated with electron beam irradiation and HT. HT provided a higher surface dose with precise conformity and depth penetration and a higher local control rate than electron beam irradiation for patients with complex or difficult-to-treat keloids. Considering the published data, the clinical results, and the limited and reversible toxicity of HT, it can be considered an alternative for treating large, convex, cutaneous areas that are difficult or not feasible for any reason to treat using multiple electron fields.

Author Contributions

Conceptualization, Y.-F.L., C.-H.H. and P.-W.S.; methodology, Y.-F.L. and C.-H.H.; software programming, D.-H.C.; validation, Y.-C.Y.; formal analysis, T.-L.R., H.-W.H. and H.-J.T.; investigation, Y.-F.L., H.-W.H., H.-J.T. and C.-H.H.; resources, T.-L.R., D.-H.C., Y.-C.Y., C.-W.C., A.-T.K. and Y.-S.C.; data curation, T.-L.R.; writing—original draft preparation, Y.-F.L.; writing—review and editing, C.-H.H.; visualization, C.-W.C. and A.-T.K.; supervision, P.-W.S. and Y.-S.C.; project administration, Y.-F.L. and C.-H.H.; funding acquisition, Y.-F.L. and C.-H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Far Eastern Memorial Hospital (Project No. FEMH-2019-C-063). The authors are grateful to all colleagues in the Division of Radiation Oncology and Department of Plastic Surgery in Far Eastern Memorial Hospital for their help.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Furtado, F.; Hochman, B.; Ferrara, S.F.; Dini, G.M.; Nunes, J.M.; Juliano, Y.; Ferreira, L.M. What factors affect the quality of life of patients with keloids? Rev. Assoc. Med. Bras. 2009, 55, 700–704. [Google Scholar] [CrossRef] [PubMed]
  2. Chike-Obi, C.J.; Cole, P.D.; Brissett, A.E. Keloids: Pathogenesis, clinical features, and management. Semin. Plast. Surg. 2009, 23, 178–184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Arno, A.I.; Gauglitz, G.G.; Barret, J.P.; Jeschke, M.G. Up-to-date approach to manage keloids and hypertrophic scars: A useful guide. Burns 2014, 40, 1255–1266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Guix, B.; Henriquez, I.; Andres, A.; Finestres, F.; Tello, J.I.; Martinez, A. Treatment of keloids by high-dose-rate brachytherapy: A seven-year study. Int. J. Radiat. Oncol. Biol. Phys. 2001, 50, 167–172. [Google Scholar] [CrossRef]
  5. Borok, T.L.; Bray, M.; Sinclair, I.; Plafker, J.; LaBirth, L.; Rollins, C. Role of ionizing irradiation for 393 keloids. Int. J. Radiat. Oncol. Biol. Phys. 1988, 15, 865–870. [Google Scholar] [CrossRef]
  6. Kovalic, J.J.; Perez, C.A. Radiation therapy following keloidectomy: A 20-year experience. Int. J. Radiat. Oncol. Biol. Phys. 1989, 17, 77–80. [Google Scholar] [CrossRef]
  7. Escarmant, P.; Zimmermann, S.; Amar, A.; Ratoanina, J.L.; Moris, A.; Azaloux, H.; Francois, H.; Gosserez, O.; Michel, M.; G’Baguidi, R. The treatment of 783 keloid scars by iridium 192 Interstitial irradiation after surgical excision. Int. J. Radiat. Oncol. Biol. Phys. 1993, 26, 245–251. [Google Scholar] [CrossRef]
  8. Ogawa, R.; Miyashita, T.; Hyakusoku, H.; Akaishi, S.; Kuribayashi, S.; Tateno, A. Postoperative radiation protocol for keloids and hypertrophic scars: Statistical analysis of 370 sites followed for over 18 months. Ann. Plast. Surg. 2007, 59, 688–691. [Google Scholar] [CrossRef]
  9. Mustoe, T.A.; Cooter, R.D.; Gold, M.H.; Hobbs, F.D.; Ramelet, A.A.; Shakespeare, P.G.; Stella, M.; Teot, L.; Wood, F.M.; Ziegler, U.E.; et al. International clinical recommendations on scar management. Plast. Reconstr. Surg. 2002, 110, 560–571. [Google Scholar] [CrossRef]
  10. Mankowski, P.; Kanevsky, J.; Tomlinson, J.; Dyachenko, A.; Luc, M. Optimizing Radiotherapy for Keloids: A Meta-Analysis Systematic Review Comparing Recurrence Rates Between Different Radiation Modalities. Ann. Plast. Surg. 2017, 78, 403–411. [Google Scholar] [CrossRef]
  11. Able, C.M.; Mills, M.D.; McNeese, M.D.; Hogstrom, K.R. Evaluation of a total scalp electron irradiation technique. Int. J. Radiat. Oncol. Biol. Phys. 1991, 21, 1063–1072. [Google Scholar] [CrossRef]
  12. Johnson, J.M.; Khan, F.M. Dosimetric effects of abutting extended source to surface distance electron fields with photon fields in the treatment of head and neck cancers. Int. J. Radiat. Oncol. Biol. Phys. 1994, 28, 741–747. [Google Scholar] [CrossRef]
  13. Yoon, J.; Xie, Y.; Zhang, R. Evaluation of surface and shallow depth dose reductions using a Superflab bolus during conventional and advanced external beam radiotherapy. J. Appl. Clin. Med. Phys. 2018, 19, 137–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Hsieh, C.H.; Tien, H.J.; Yu, Y.B.; Wu, Y.H.; Shueng, P.W.; Lu, Y.F.; Wang, S.Y.; Wang, L.Y. Simultaneous integrated boost with helical arc radiotherapy of total skin (HEARTS) to treat cutaneous manifestations of advanced, therapy-refractory cutaneous lymphoma and leukemia-dosimetry comparison of different regimens and clinical application. Radiat. Oncol. 2019, 14, 17. [Google Scholar] [CrossRef] [PubMed]
  15. Yeh, H.P.; Huang, Y.C.; Wang, L.Y.; Shueng, P.W.; Tien, H.J.; Chang, C.H.; Chou, S.F.; Hsieh, C.H. Helical tomotherapy with a complete-directional-complete block technique effectively reduces cardiac and lung dose for left-sided breast cancer. Br. J. Radiol. 2020, 93, 20190792. [Google Scholar] [CrossRef] [PubMed]
  16. Paddick, I. A simple scoring ratio to index the conformity of radiosurgical treatment plans. Technical note. J. Neurosurg. 2000, 93 (Suppl. 3), 219–222. [Google Scholar] [CrossRef]
  17. Wang, X.; Zhang, X.; Dong, L.; Liu, H.; Gillin, M.; Ahamad, A.; Ang, K.; Mohan, R. Effectiveness of noncoplanar IMRT planning using a parallelized multiresolution beam angle optimization method for paranasal sinus carcinoma. Int. J. Radiat. Oncol. Biol. Phys. 2005, 63, 594–601. [Google Scholar] [CrossRef]
  18. Waselenko, J.K.; MacVittie, T.J.; Blakely, W.F.; Pesik, N.; Wiley, A.L.; Dickerson, W.E.; Tsu, H.; Confer, D.L.; Coleman, C.N.; Seed, T.; et al. Medical management of the acute radiation syndrome: Recommendations of the Strategic National Stockpile Radiation Working Group. Ann. Intern. Med. 2004, 140, 1037–1051. [Google Scholar] [CrossRef] [Green Version]
  19. Lewis, D.; Micke, A.; Yu, X.; Chan, M.F. An efficient protocol for radiochromic film dosimetry combining calibration and measurement in a single scan. Med. Phys. 2012, 39, 6339–6350. [Google Scholar] [CrossRef]
  20. Ogawa, R.; Okai, K.; Tokumura, F.; Mori, K.; Ohmori, Y.; Huang, C.; Hyakusoku, H.; Akaishi, S. The relationship between skin stretching/contraction and pathologic scarring: The important role of mechanical forces in keloid generation. Wound Repair Regen. 2012, 20, 149–157. [Google Scholar] [CrossRef]
  21. Huang, C.; Liu, L.; You, Z.; Wang, B.; Du, Y.; Ogawa, R. Keloid progression: A stiffness gap hypothesis. Int. Wound J. 2017, 14, 764–771. [Google Scholar] [CrossRef] [PubMed]
  22. Bischof, M.; Krempien, R.; Debus, J.; Treiber, M. Postoperative electron beam radiotherapy for keloids: Objective findings and patient satisfaction in self-assessment. Int. J. Dermatol. 2007, 46, 971–975. [Google Scholar] [CrossRef] [PubMed]
  23. Ogawa, R.; Akaishi, S.; Kuribayashi, S.; Miyashita, T. Keloids and Hypertrophic Scars Can Now Be Cured Completely: Recent Progress in Our Understanding of the Pathogenesis of Keloids and Hypertrophic Scars and the Most Promising Current Therapeutic Strategy. J. Nippon. Med. Sch. 2016, 83, 46–53. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ogawa, R. Recent Advances in Scar Biology. Int. J. Mol. Sci. 2018, 19, 1749. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lee, H.J.; Jang, Y.J. Recent Understandings of Biology, Prophylaxis and Treatment Strategies for Hypertrophic Scars and Keloids. Int. J. Mol. Sci. 2018, 19, 711. [Google Scholar] [CrossRef] [Green Version]
  26. Ji, J.; Tian, Y.; Zhu, Y.Q.; Zhang, L.Y.; Ji, S.J.; Huan, J.; Zhou, X.Z.; Cao, J.P. Ionizing irradiation inhibits keloid fibroblast cell proliferation and induces premature cellular senescence. J. Dermatol. 2015, 42, 56–63. [Google Scholar] [CrossRef] [Green Version]
  27. Keeling, B.H.; Whitsitt, J.; Liu, A.; Dunnick, C.A. Keloid removal by shave excision with adjuvant external beam radiation therapy. Dermatol. Surg. 2015, 41, 989–992. [Google Scholar] [CrossRef]
  28. Yan, L.; Wang, L.Z.; Xiao, R.; Cao, R.; Pan, B.; Lv, X.Y.; Jiao, H.; Zhuang, Q.; Sun, X.J.; Liu, Y.B. Inhibition of microRNA-21-5p reduces keloid fibroblast autophagy and migration by targeting PTEN after electron beam irradiation. Lab. Investig. 2020, 100, 387–399. [Google Scholar] [CrossRef]
  29. Tosa, M.; Ghazizadeh, M.; Shimizu, H.; Hirai, T.; Hyakusoku, H.; Kawanami, O. Global gene expression analysis of keloid fibroblasts in response to electron beam irradiation reveals the involvement of interleukin-6 pathway. J. Investig. Dermatol. 2005, 124, 704–713. [Google Scholar] [CrossRef] [Green Version]
  30. Weaver, R.D.; Gerbi, B.J.; Dusenbery, K.E. Evaluation of dose variation during total skin electron irradiation using thermoluminescent dosimeters. Int. J. Radiat. Oncol. Biol. Phys. 1995, 33, 475–478. [Google Scholar] [CrossRef]
  31. Sun, C.; Cheng, C.W.; Shimm, D.S.; Cassady, J.R. Dose profiles in the region of abutting photon and electron fields in the irradiation of head and neck tumors. Med. Dosim. 1998, 23, 5–10. [Google Scholar] [CrossRef]
  32. Anacak, Y.; Arican, Z.; Drumea, K.; Rosenblatt, E.; Tamir, A.; Chetver, L.; Stein, M.; Bar Deroma, R.; Kuten, A. Total skin electron irradiation in mycosis fungoides: Comparison between a modified Christie Hospital translational technique and the Stanford technique. Leuk. Lymphoma 2002, 43, 2093–2097. [Google Scholar] [CrossRef] [PubMed]
  33. Van Battum, L.J.; Van Der Zee, W.; Huizenga, H. Scattered radiation from applicators in clinical electron beams. Phys. Med. Biol. 2003, 48, 2493–2507. [Google Scholar] [CrossRef] [PubMed]
  34. Buglione, M.; Spiazzi, L.; Urpis, M.; Baushi, L.; Avitabile, R.; Pasinetti, N.; Borghetti, P.; Triggiani, L.; Pedretti, S.; Saiani, F.; et al. Light and shadows of a new technique: Is photon total-skin irradiation using helical IMRT feasible, less complex and as toxic as the electrons one? Radiat. Oncol. 2018, 13, 158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Hsieh, C.H.; Shueng, P.W.; Lin, S.C.; Tien, H.J.; Shiau, A.C.; Chou, Y.H.; Wu, M.H.; Wang, J.Y.; Chen, C.K.; Chen, Y.J. Helical irradiation of the total skin with dose painting to replace total skin electron beam therapy for therapy-refractory cutaneous CD4+ T-cell lymphoma. Biomed. Res. Int. 2013, 2013, 717589. [Google Scholar] [CrossRef] [Green Version]
  36. Kal, H.B.; Veen, R.E.; Jurgenliemk-Schulz, I.M. Dose-effect relationships for recurrence of keloid and pterygium after surgery and radiotherapy. Int. J. Radiat. Oncol. Biol. Phys. 2009, 74, 245–251. [Google Scholar] [CrossRef]
  37. Barendsen, G.W. Dose fractionation, dose rate and iso-effect relationships for normal tissue responses. Int. J. Radiat. Oncol. Biol. Phys. 1982, 8, 1981–1997. [Google Scholar] [CrossRef]
  38. Thames, H.D., Jr.; Withers, H.R.; Peters, L.J.; Fletcher, G.H. Changes in early and late radiation responses with altered dose fractionation: Implications for dose-survival relationships. Int. J. Radiat. Oncol. Biol. Phys. 1982, 8, 219–226. [Google Scholar] [CrossRef]
  39. Kal, H.B.; Veen, R.E. Biologically effective doses of postoperative radiotherapy in the prevention of keloids. Dose-effect relationship. Strahlenther. Onkol. 2005, 181, 717–723. [Google Scholar] [CrossRef]
  40. De Lorenzi, F.; Tielemans, H.J.; Van Der Hulst, R.R.; Rhemrev, R.; Nieman, F.H.; Lutgens, L.C.; Boeckx, W.D. Is the treatment of keloid scars still a challenge in 2006? Ann. Plast. Surg. 2007, 58, 186–192. [Google Scholar] [CrossRef]
  41. Ragoowansi, R.; Cornes, P.G.; Moss, A.L.; Glees, J.P. Treatment of keloids by surgical excision and immediate postoperative single-fraction radiotherapy. Plast. Reconstr. Surg. 2003, 111, 1853–1859. [Google Scholar] [CrossRef] [PubMed]
  42. Nishizawa, K.; Mori, S.; Ohno, M.; Yanagawa, N.; Yoshida, T.; Akahane, K.; Iwai, K.; Wada, S. Patient dose estimation for multi-detector-row CT examinations. Radiat. Prot. Dosim. 2008, 128, 98–105. [Google Scholar] [CrossRef] [PubMed]
  43. Bock, O.; Schmid-Ott, G.; Malewski, P.; Mrowietz, U. Quality of life of patients with keloid and hypertrophic scarring. Arch. Dermatol. Res. 2006, 297, 433–438. [Google Scholar] [CrossRef] [PubMed]
  44. Maemoto, H.; Iraha, S.; Arashiro, K.; Ishigami, K.; Ganaha, F.; Murayama, S. Risk factors of recurrence after postoperative electron beam radiation therapy for keloid: Comparison of long-term local control rate. Rep. Pract. Oncol. Radiother. 2020, 25, 606–611. [Google Scholar] [CrossRef] [PubMed]
Jcm 09 03732 g001 550

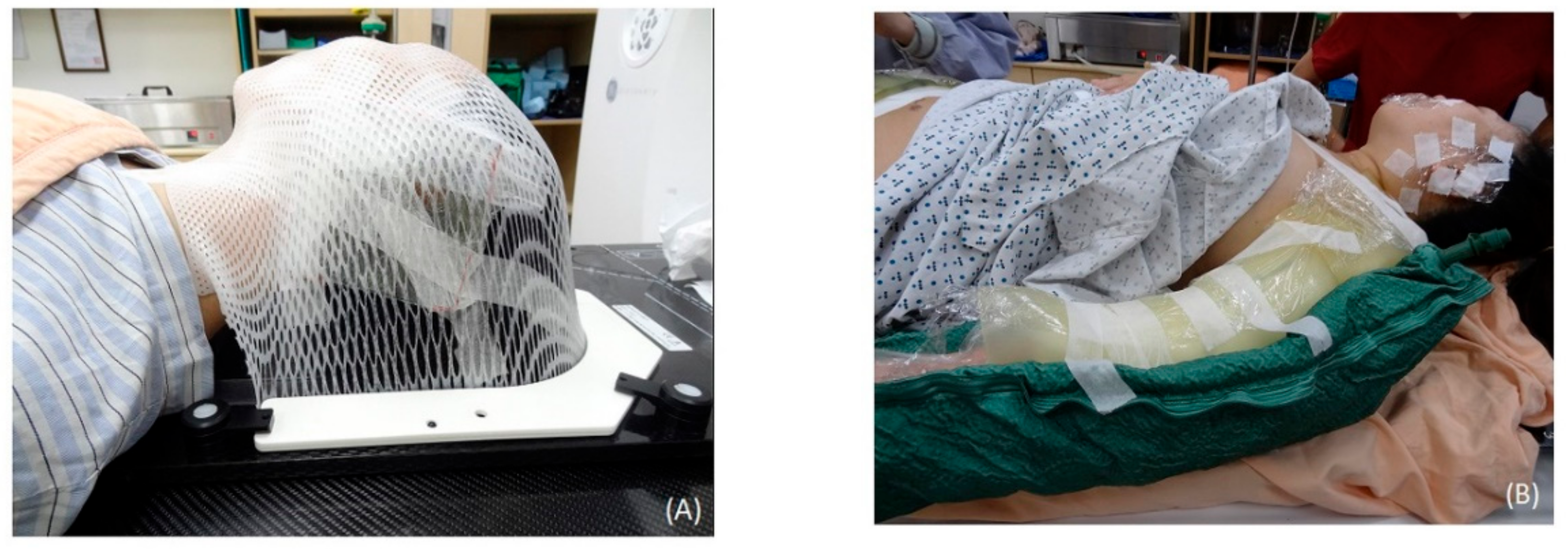

Figure 1. CT simulation setup conditions for patients with keloids in different areas after resection. (A) A patient with a keloid on the left ear was immobilized by a U-frame head and neck immobilization system (CIVCO Radiotherapy, Orange City, IA, USA), with her face turned to the contralateral side to expose the operative ear. (B) A patient with complicated keloids on the body was immobilized by a Body Vac Cushion (Klarity Medical, Newark, OH, USA) in the supine position.
Figure 1. CT simulation setup conditions for patients with keloids in different areas after resection. (A) A patient with a keloid on the left ear was immobilized by a U-frame head and neck immobilization system (CIVCO Radiotherapy, Orange City, IA, USA), with her face turned to the contralateral side to expose the operative ear. (B) A patient with complicated keloids on the body was immobilized by a Body Vac Cushion (Klarity Medical, Newark, OH, USA) in the supine position.
Jcm 09 03732 g001
Jcm 09 03732 g002 550

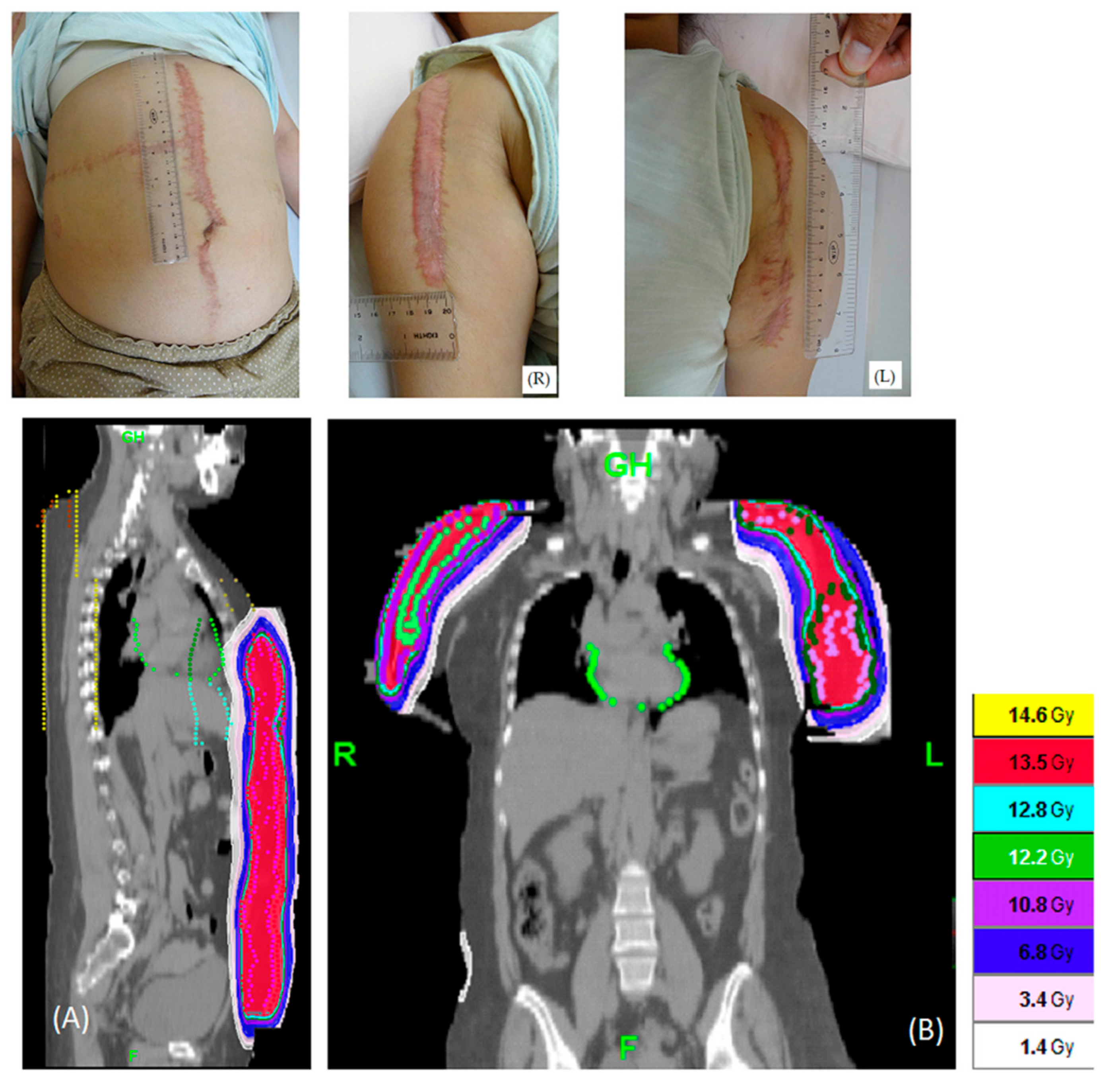

Figure 2. One patient had an extensive keloid caused by a car accident (up three pictures in the figure). She was treated with helical tomography within 24 h after keloid excision with 13.5 Gy in 3 fractions. (A) Sagittal view. (B) Coronal view.
Figure 2. One patient had an extensive keloid caused by a car accident (up three pictures in the figure). She was treated with helical tomography within 24 h after keloid excision with 13.5 Gy in 3 fractions. (A) Sagittal view. (B) Coronal view.
Jcm 09 03732 g002
Jcm 09 03732 g003 550

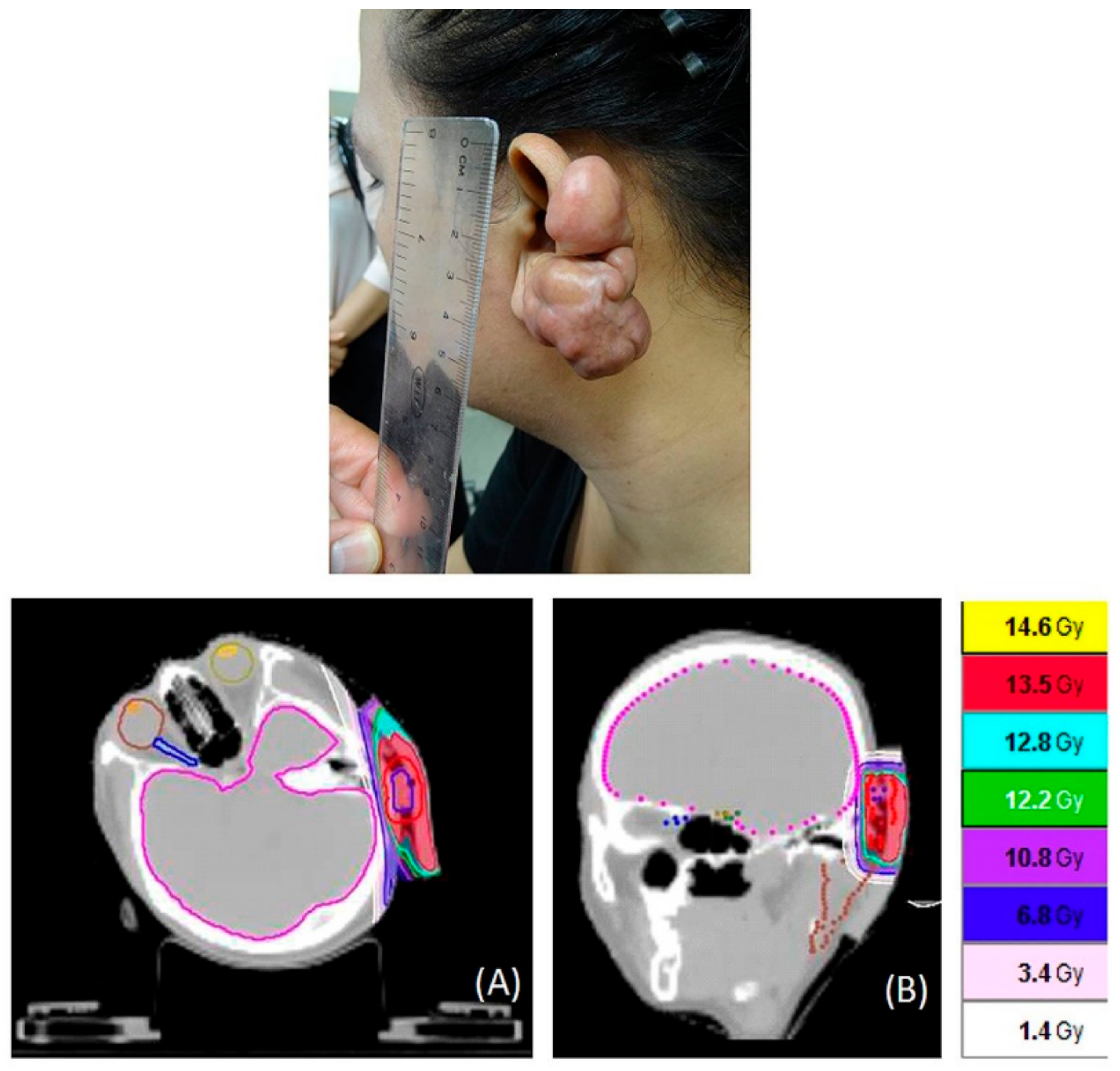

Figure 3. One patient had a keloid on the left ear (up picture in the figure). He was treated with helical tomography within 24 h after keloid excision with 13.5 Gy in 3 fractions. (A) Transverse view. (B) Sagittal view.
Figure 3. One patient had a keloid on the left ear (up picture in the figure). He was treated with helical tomography within 24 h after keloid excision with 13.5 Gy in 3 fractions. (A) Transverse view. (B) Sagittal view.
Jcm 09 03732 g003
Jcm 09 03732 g004 550

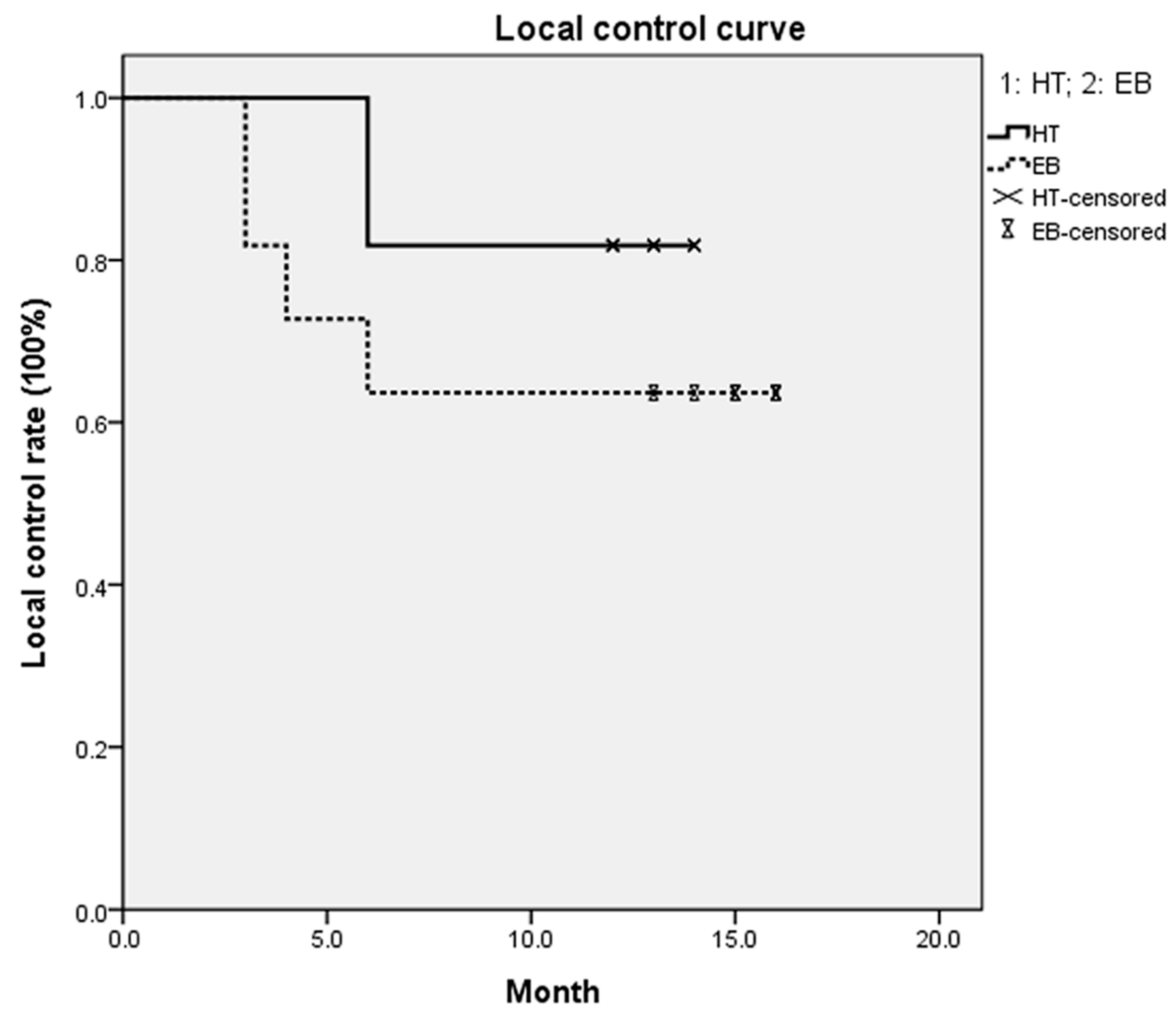

Figure 4. One-year local control rates for patients treated with helical tomotherapy or electron beam irradiation. There were no significant differences between the HT and electron beam (EB) groups (p = 0.238).
Figure 4. One-year local control rates for patients treated with helical tomotherapy or electron beam irradiation. There were no significant differences between the HT and electron beam (EB) groups (p = 0.238).
Jcm 09 03732 g004
Jcm 09 03732 g005 550

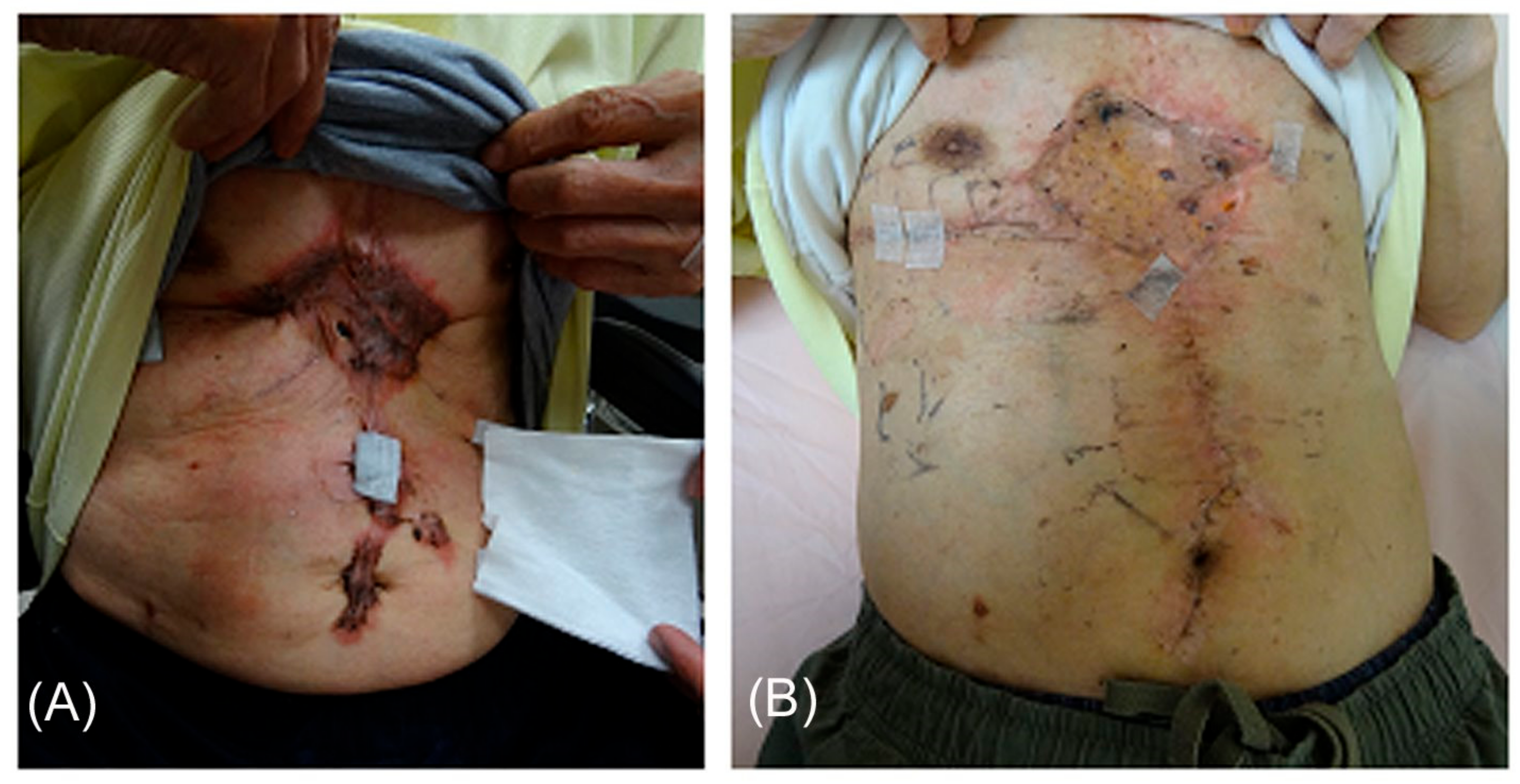

Figure 5. (A) Pre-treatment and (B) post-treatment images of the keloid of one patient treated with helical tomography. Post-treatment, the scar was white and not elevated. Additionally, the patient reported no tightness, itching, or painful sensations.
Figure 5. (A) Pre-treatment and (B) post-treatment images of the keloid of one patient treated with helical tomography. Post-treatment, the scar was white and not elevated. Additionally, the patient reported no tightness, itching, or painful sensations.
Jcm 09 03732 g005
Table
Table 1. Patient characteristics.
Table 1. Patient characteristics.
HT Group
(Lesion Number, n = 23)		Electron Beam Group
(Lesion Number, n = 20)
Age (years)
  Mean4338
  Range20–7522–66
Sex
  Male54
  Female67
LocationLesion number (n)/
Irradiation mean size (c.c. for HT, cm for Electron)
  Scalp1/220.5 c.c
  Ear5/31.1 c.c.5/5.2 cm
  Lip1/53.2 c.c
  Neck1/102.1 c.c1/4.8 cm
  Shoulder4/152.1 c.c1/6.2 cm
  Arm4/214.5 c.c2/6.5 cm
  Anterior
  chest wall		 2/8.6 cm
  Breast 5/9.8 cm
  Abdomen2/700.1 c.c.1/5.0 cm
  Pelvis4/311.8 c.c.2/6.0 cm
  Back1/200.2 c.c
  Scapula 1/5.5 cm
Abbreviation: HT: helical tomotherapy.
Table
Table 2. Calculated doses to organs at risk and the Paddick conformity index (PCI) and uniformity index (UI) for patients with keloids treated with helical tomotherapy.
Table 2. Calculated doses to organs at risk and the Paddick conformity index (PCI) and uniformity index (UI) for patients with keloids treated with helical tomotherapy.
Critical OrganMean ± SD (Gy)Maximum ± SD (Gy)
Right lens-0.05 ± 0.04
Left lens-0.08 ± 0.05
Right eyeball0.05 ± 0.04-
Left eyeball0.07 ± 0.05-
Right optic nerve-0.04 ± 0.03
Left optic nerve-0.08 ± 0.06
Optic chiasm-0.06 ± 0.01
Right inner ear0.07 ± 0.06-
Left inner ear0.20 ± 0.11-
Right parotid0.10± 0.05-
Left parotid0.80 ± 0.72-
Brain0.26 ± 0.22-
Heart1.50 ± 0.32-
Whole lungs1.09 ± 0.20-
Bilateral kidneys0.55 ± 0.45-
Liver1.28 ± 0.23-
Esophagus0.80 ± 0.51-
Trachea0.78 ± 0.39-
Intestine1.75 ± 0.02-
Stomach0.85 ± 0.26-
Bladder0.35 ± 0.05-
Rectum0.19 ± 0.09-
Uterus0.28 ± 0.11-
Bilateral femur bones0.64 ± 0.43-
PCI0.70 ± 0.05-
UI1.09 ± 0.3-
Femur bones included the femoral head and neck. SD, standard deviation; PCI, Paddick conformity index; UI, uniformity index.
Table
Table 3. Surface doses delivered to the skin for patients with keloids treated with helical tomotherapy (HT) or electron beam irradiation (13.5 Gy in 3 fractions) as measured with radiochromic EBT3 film.
Table 3. Surface doses delivered to the skin for patients with keloids treated with helical tomotherapy (HT) or electron beam irradiation (13.5 Gy in 3 fractions) as measured with radiochromic EBT3 film.
Treatment SiteHT GroupElectron Beam Groupp Value
Mean Dose
(cGy)		Compared to Prescription Dose (%)Mean Dose
(cGy)		Compared to Prescription Dose (%)
Ear466.5+3.7%417.6−7.2%
Lip502.8+11.7%--
Shoulder483.7+7.5%422.6−6.1%
Arm489.3+8.7%427.1−5.1%
Chest--429.8−4.5%
Abdomen467.5+3.9%430.7−4.3%
Pelvis506.1+12.5%438.3−2.6%
Mean486.0+8.0%427.5−5.0%p = 0.001
