J. Clin. Med. 2019, 8(4), 554; https://doi.org/10.3390/jcm8040554
Effectiveness and Safety of Direct Oral Anticoagulants versus Vitamin K Antagonists for People Aged 75 Years and over with Atrial Fibrillation: A Systematic Review and Meta-Analyses of Observational Studies
Department of Pharmacy and Pharmacology, University of Bath, Bath BA2 7AY, UK
Pharmacy Research Centre, University Hospital Southampton, Southampton SO16 6YD, UK
Research Institute for the Care of Older People (RICE), Bath BA1 3NG, UK
Institute of Clinical Neurosciences, University of Bristol, Bristol BS8 1TH, UK
Author to whom correspondence should be addressed.
Received: 7 March 2019 / Accepted: 18 April 2019 / Published: 24 April 2019
Older people, are underrepresented in randomised controlled trials of direct oral anticoagulants (DOACs) for stroke prevention in atrial fibrillation (AF). The aim of this study was to combine data from observational studies to provide evidence for the treatment of people aged ≥75 years. Medline, Embase, Scopus and Web of Science were searched. The primary effectiveness outcome was ischaemic stroke. Safety outcomes were major bleeding, intracranial haemorrhage, gastrointestinal bleeding, myocardial infarction, and mortality. Twenty-two studies were eligible for inclusion. Two studies related specifically to people ≥75 years but were excluded from meta-analysis due to low quality; all data in the meta-analyses were from subgroups. The pooled risk estimate of ischaemic stroke was slightly lower for DOACs. There was no significant difference in major bleeding, mortality, or myocardial infarction. Risk of intracranial haemorrhage was 44% lower with DOACs, but risk of GI bleeding was 46% higher. Our results suggest that DOACs may be preferable for the majority of older patients with AF, provided they are not at significant risk of a GI bleed. However, these results are based entirely on data from subgroup analyses so should be interpreted cautiously. There is a need for adequately powered research in this patient group.
Keywords:anticoagulants; atrial fibrillation; stroke; hemorrhage; aged
The prevalence of atrial fibrillation (AF) increases with age, with 14% of over 80s having this condition . AF predisposes sufferers to the risk of embolic stroke, and it is estimated that 25% of all strokes in those over 80 years occur in patients with AF . Strokes due to AF tend to be larger, more severe and result in higher mortality rates than their non-AF counterparts .
Meta-analyses have consistently shown that among patients with AF, with a moderate to high risk of thromboembolic events, anticoagulation with warfarin, a vitamin K antagonist (VKA), significantly reduces the incidence of stroke with an acceptable bleeding risk compared with placebo . Trials in older people comparing warfarin with aspirin also found this to be the case , yet individuals over 80 years old are less likely to be anticoagulated with warfarin than younger people even where their stroke and bleeding risks are the same .
The direct oral anticoagulants (DOACs), dabigatran, rivaroxaban, apixaban and edoxaban, were introduced from 2010 onwards as alternatives to VKAs. The initiation rate of DOACs increased 17-fold between 2012 and 2015 in UK general practice and use of VKAs has subsequently declined . DOACs have been recommended internationally as an option for stroke prevention in AF for people with additional risk factors for stroke [7,8]. Additional risk factors are defined by the CHA2DS2-VASc score as chronic heart failure, hypertension, age ≥75 years, diabetes mellitus, prior stroke/transient ischaemic attack, vascular disease, age 65–74 years, female sex. This risk stratification tool defines being aged ≥75 years as a major risk factor for stroke and allocates a score of 2 to this risk factor, meaning that all patients in this age group should be considered for anticoagulation.
To date, no randomised controlled trials (RCTs) have included older people (defined as ≥75 years) as the primary population of interest and inclusion and exclusion criteria limit the generalisability of the results to older people. Numerous co-morbidities and medications would cause patients to be ineligible to join the trial, and a number of these such as cancer, cognitive impairment and severe renal impairment are more common in older people.
Whilst numerous systematic reviews and meta-analyses of DOACs have been published in recent years, none focus solely on observational studies of older people aged ≥75 years where there is a need to better understand effectiveness and safety. The aim of this review and meta-analyses was to combine data from observational studies comparing DOACs with VKAs for people ≥75 years with AF to gain generalisable estimates of the effectiveness and safety of specific outcomes in this population. The outcomes being considered are ischaemic stroke, as a measure of effectiveness; major bleeding, intracranial haemorrhage, gastrointestinal bleeding, mortality and myocardial infarction as measures of safety. The main aim of anticoagulation is to reduce the risk of ischaemic stroke, consequently this was chosen as the primary effectiveness outcome. Major bleeding and the risk of intracranial haemorrhage is a significant concern to those prescribing anticoagulants particularly to older people who may be at higher risk of falls. The risk of gastrointestinal bleeding was shown to increase with DOACs in the RCTs by up to 79% and myocardial infarction increased by 38% with dabigatran in the RE-LY trial.
2. Experimental Section
2.1. Search Strategy and Selection Criteria
For this systematic review and meta-analyses, we searched without language restrictions for observational studies comparing the use of DOACs with VKAs for older people (defined as aged ≥75 years) with atrial fibrillation. Studies were excluded if results did not specify outcome data for participants aged 75 years and over; if anticoagulation was prescribed for multiple indications and results were not stratified for participants with AF; if a DOAC was being compared with a non-vitamin K antagonist anticoagulant or no anticoagulation. We also excluded studies that used randomised, controlled or interventional study designs.
We searched Medline, Embase, Scopus, and Web of Science from 1st January 2009, when the DOACs were first licensed, to 3rd January 2018. Full search terms and search strategy for both Medline and Embase are presented in Appendix A. Database searches were supplemented by contacting pharmaceutical companies to request unpublished data. Reference lists of relevant studies, reviews, and letters were screened for additional articles. Foreign language articles were translated.
A.M. conducted the searches and screened all titles and abstracts for inclusion. A.M.G. independently duplicated screening of 10% of titles and abstracts. Full-text review was conducted independently and in duplicate by two reviewers (A.M. and either A.M.G., M.C.W. or M.L.). Conflicts were resolved through discussion.
Studies were included in the systematic review and meta-analyses if they compared at least one DOAC with a VKA and, presented data of one or more outcomes of interest for participants aged ≥75 years with atrial fibrillation. The study protocol was registered with PROSPERO (CRD42018081696) prior to starting the systematic review and is available online .
2.2. Data Analysis
Data extraction was completed independently and in duplicate by A.M. and A.M.G. using a pre-piloted form in Microsoft Access. Primary effectiveness outcomes of interest were ischaemic stroke and/or systemic embolism. Composite outcome measures of effectiveness (e.g., all strokes, or stroke and transient ischaemic attack or other thromboembolic events) were analysed as secondary outcome measures. Primary safety outcomes were major bleeding, gastrointestinal bleeding and intracranial haemorrhage. Major bleeding was primarily defined as per the International Society on Thrombosis and Haemostasis (ISTHM): “A reduction in haemoglobin of at least 20 g/L, and transfusion of at least 2 units of blood, or symptomatic bleeding in a critical area or organ”. However, similar definitions and hospitalisation for bleeding were also included as major bleeding. Secondary outcomes were: all-cause mortality, non-major or other bleeding, and myocardial infarction and composite safety outcomes (e.g., all bleeding, or any combination of safety outcomes of interest).
The quality of studies was assessed using the Newcastle–Ottawa Scale by duplicate, independent assessment (A.M. and A.M.G.). Discrepancies were resolved through discussion and the studies were rescored using a modified version of the Newcastle–Ottawa scale which better reflected the reviewers’ bias assessment (Appendix B).
Data were extracted for the following variables: total number of participants, total number of participants aged ≥75 years, sex, data source, healthcare setting, co-morbidities and medication at baseline, definition of exposure to DOAC or VKA, dose of DOAC, inclusion and exclusion criteria, hazard ratios or incident rates comparing DOAC to VKA in participants aged over 75 years only (or event numbers if summary estimate not available) for all outcomes of interest.
All studies scoring ≥6 on the modified Newcastle–Ottawa scale were included in the meta-analyses. Adjusted hazard ratios and their 95% confidence intervals were extracted and pooled for meta-analyses, results were stratified by individual DOAC then grouped by DOAC dose and age band. For the purposes of this study DOAC dose was stratified as “low” (dabigatran 75 mg or 110 mg, rivaroxaban 15 mg, apixaban 2.5 mg) or “standard” (dabigatran 150 mg, rivaroxaban 20 mg, apixaban 5 mg). Where hazard ratios were not reported, incident rates were used to calculate incident rate ratios and associated 95% confidence intervals. Heterogeneity was assessed using the Cochrane Q statistic, and Higgins and Thompsons’ I2. Heterogeneity was defined as low if I2 = 25%, moderate if I2 = 50%, or high if I2 = 75% . High levels of heterogeneity were anticipated due to the varying designs of observational studies so both a fixed model (using the inverse-variance method) and a random-effects model (using the DerSimonian and Laird method) were used to combine the data. Statistical analysis was undertaken using Stata 14  and the Stata package admetan .
3.1. Study Identification
We identified 12,330 records through database searching. Title and abstract screening excluded 12,019 records, a further 289 were excluded after full text screening. Finally, 22 studies were eligible for inclusion in the systematic review [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34]. Only 20 studies were included in the meta-analyses as two scored <6 on the Newcastle–Ottawa scale. Hand-searching of reference lists did not identify any additional relevant studies. No data were received from pharmaceutical companies. Full details of the selection process are shown in Figure 1. Of the included studies, only two were specifically designed to investigate outcomes in people aged ≥75 years [22,25]. The remaining studies presented some data for older people, but this was limited to subgroup or sensitivity analyses.
3.2. Characteristics of Included Studies
The 20 studies included in the meta-analysis included over 428,031 patients aged ≥75 years. However, not all studies reported the total number of patients in this age group. Table S1 provides a breakdown of the total participants in each study. Eleven studies were conducted in the USA and Canada [13,16,17,18,24,26,28,29,30,32,34], followed by Asia [14,15,22,25,33] (n = 5), Europe [19,20,21,27,31] (n = 5), and New Zealand  (n = 1). Most studies compared dabigatran with a vitamin K antagonist [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34] (n = 21); rivaroxaban [14,16,17,18,19,20,21,25,27,28,31] and apixaban [14,17,19,20,21,31,32] were licensed later so have not been studied as extensively (n = 11 and n = 7, respectively). The VKA comparator was predominantly warfarin; one study allowed any VKA, but the majority of participants were prescribed fluindione . Table S1 shows a summary of the main characteristics of the included studies.
3.3. Risk of Bias
The Newcastle–Ottawa scale has been widely used in the literature, but we found that interrater agreement on some domains was low due to the subjective nature of the questions and vague decision rules accompanying the tool, a limitation which has been noted elsewhere . We therefore modified the tool to make it more specific and transparent (Appendix B). Overall, the quality of included studies was high, with over half scoring 8 or more out of 12 [15,16,20,21,23,26,27,29,30,31,32,33]. Two studies scored less than 6 and were excluded from the meta-analyses. Table 1 shows the score for each study. Exclusion of these studies is unlikely to have affected the result of the meta-analyses as they were very small studies [22,25].
Overall, the pooled risk estimate for both ischaemic stroke and composite effectiveness outcomes were of borderline significance (ischaemic stroke: seven studies, 0.86 (95% CI 0.75–0.99), Figure 2; composite effectiveness outcomes: nine studies, 0.93 (95% CI 0.85–1.01), Figure 3) between DOACs and VKA. There were no significant differences between DOACs and VKA in the composite or majority of individual safety outcomes (composite safety: six studies, 0.95 (95% CI 0.87–1.04), Figure 4; major bleed: 12 studies, 0.96 (95% CI 0.84–1.09), Figure 5; mortality: six studies, 0.92 (95% CI 0.77–1.10), Figure 6; myocardial infarction: five studies, 0.97 (95% CI 0.81–1.18), Figure 7). However, there was a significantly lower risk of intracranial haemorrhage (10 studies, 0.56 (95% CI 0.48–0.67), Figure 8) and a significantly higher risk of gastrointestinal bleeding (nine studies, 1.46 (95% CI 1.31–1.63), Figure 9) with DOACs than with VKAs.
Differences were shown when the DOACs were analysed individually. Dabigatran had a lower risk of mortality than VKA (three studies, 0.78 (95% CI 0.61–0.99)). Rivaroxaban performed less favourably than DOACs overall in safety outcomes. There was no significant difference in risk of intracranial haemorrhage (two studies, 0.79 (95% CI 0.41–1.54)), and a higher risk of major bleeding (three studies, 1.17 (95% CI 1.04–1.33)) when compared with VKA. Apixaban had a significantly lower risk of major bleeding (three studies, 0.68 (95% CI 0.55–0.84)), but there was no significant difference in the risk of intracranial haemorrhage (one study, 0.82 (95% CI 0.46–1.46)).
Nielsen and colleagues  found an excess risk of death in both the apixaban and rivaroxaban groups (1.54 (95% CI 1.4–1.7), 1.67 (95% CI 1.49–1.87) respectively). This was the only study that looked at mortality with these agents and they only considered low doses of these drugs.
This systematic review with meta-analyses is the first to investigate the effectiveness and safety of DOACs compared with VKAs in people aged 75 years and over. We found that there were no significant differences in effectiveness outcomes between DOACs and VKAs, but their safety outcomes varied. The risk of ischaemic stroke was similar and there was no difference when composite outcomes were analysed. There was no significant difference between DOACs and VKAs for major bleeding. However, for site-specific bleeding, there was a 46% increased risk of gastrointestinal bleeding and a 44% decreased risk of intracranial haemorrhage in the DOAC group compared with the VKA group. In contrast to the combined DOAC results, dabigatran alone was associated with a lower risk of major bleeding. Rivaroxaban had a higher risk of major bleeding. There was a lower risk of major bleeding with apixaban than VKA; no studies investigated gastrointestinal bleeding with apixaban.
The main strengths of this study are the focus on older people who have been underrepresented in the RCTs, the use of real world data which are more representative of older people being treated with anticoagulants in clinical practice, and the broad search strategy (which allowed identification of studies where older people were the primary study population or where they were analysed as a subgroup). The quality of each study included in the review was thoroughly assessed, with emphasis on the methods used, exposure definition, outcomes, bias and the potential for misclassification. We translated foreign language studies to minimise the risk of bias. The primary weakness was the use of aggregated data as opposed to using patient level data. We have not been able to validate the results reported as the authors did not include sufficient information. These meta-analyses highlighted the scarcity of evidence comparing the safety and effectiveness of DOACs with VKAs in people aged ≥75 years with AF. Only two studies looked specifically at outcomes in older people and these studies were small, conducted in Asia and low quality which led to exclusion from the meta-analyses [22,25]. All other data came from subgroup or sensitivity analyses within larger studies, which meant that detailed information was often lacking for this specific group and we had to rely on limited results presented as tables or graphs.
The included studies had a number of strengths. Most included a treatment population and comparator group representative of people with AF. Most studies considered a wide range of potential confounders and accounted for these in the analysis using a variety of methods (propensity scores used for matching [13,15,23,26,27,28,32,34], or weighting of survival models [17,19,20,29,30,33], or as a covariate in the survival model [24,31]; high dimensional propensity scores used for matching , or adjustment of survival model ; adjustment within survival models for age, sex, risk scores and baseline co-morbidities  and baseline medications ).
The main weaknesses of the included studies firstly related to how exposure was measured. The majority of studies used prescription records from administrative or claims data. All studies described how the initial exposure was identified, but half did not describe how ongoing exposure was measured [16,18,19,24,29,31,33] or stated that an intention-to-treat approach was used [14,24,27]. Two studies were conducted using registry data from a single hospital and did not describe how exposure was measured [22,25]. Observational studies using routinely collected data have been criticised for not considering variation in compliance. It could therefore be argued that not describing ongoing exposure is worse as there is a further risk of misclassification. This is particularly the case where people may have switched anticoagulant or stopped treatment altogether. Secondly, whilst most studies addressed the influence of confounders, three studies did very little to control for confounding [14,22,25]. Where matching was used to control for confounding, there was sometimes a loss of significant numbers of patients from the VKA group who were not eligible for matching [13,15] which may have limited overall generalisability. Follow-up was relatively short for most studies. Ten studies had less than one year’s follow-up for the DOAC group [13,14,21,25,26,27,30,31,32,33], and four studies did not state the average follow-up time [17,23,28,34]. Follow-up times, where stated, were for the population of the study as a whole and may not have been the same for the sub-group of patients aged ≥75 years included in these meta-analyses. It is unlikely that studies with less than a year’s follow-up would have been long enough to capture effectiveness outcomes adequately. Finally, only two studies described follow-up of patients throughout the study and reported details about loss to follow-up [27,31].
Large RCTs have demonstrated that DOACs are at least as effective as warfarin for preventing stroke and systemic embolization in AF [36,37,38,39] and may also be associated with significantly less intracranial haemorrhage and major bleeding episodes [36,37,38,39]. A reduction in major or clinically relevant non-major bleeding with the DOAC apixaban was also observed for patients prescribed concomitant antiplatelet therapy following acute coronary syndrome or percutaneous coronary intervention . Meta-analyses of RCTs found DOACs to be superior to warfarin for the prevention of stroke and systemic embolism [41,42,43,44]. However, many found no significant difference in the risk of major bleeding between DOACs and warfarin [41,42,43]. Concerns have been raised about the conduct of some of these trials and the impact this may have had on the validity of the results [45,46]. There is also less substantial evidence for the use of DOACs in older individuals, particularly those aged 75 years and over as people in this group only made up 30–40% of the total study populations [36,37,38,39]. Subgroup analyses of RE-LY , ROCKET-AF , and ENGAGE AF-TIMI 48  and two meta-analyses [50,51] suggest that whilst at standard doses, the benefits of DOACs may be maintained in older patients, the risk of major extracranial, and in particular GI bleeding, is significantly higher. Meta-analyses which included both RCTs and observational studies identified similar trends to RCTs alone. On the whole, DOACs were favourable to warfarin in reducing stroke and systemic embolism [52,53], they found no significant difference between DOACs and warfarin for the outcome of major bleeding [53,54] and a significantly reduced risk of ICH . Risk of GI bleeding was reported by only one study and found no significant difference in the pooled risk between DOACs and warfarin when RCTs or observational studies were combined .
In our meta-analysis, we used ischaemic stroke as the only effectiveness outcome as we argue that haemorrhagic stroke is a safety outcome. We found that the risk of ischaemic stroke was lower for DOACs. However, this was of borderline significance. It is likely that in the RCTs, the reduction in stroke with DOACs was due to their effect on haemorrhagic stroke rather than ischaemic stroke. Three meta-analyses of phase III RCTs showed this effect, all finding a significant reduction in the combined outcome of stroke and systemic embolism with DOACs, a significant reduction in haemorrhagic stroke but no significant difference in the risk of ischaemic stroke between DOACs and warfarin [42,43,44]. We found no significant difference in major bleeding between DOACs overall and VKAs which is in line with other meta-analyses in the age group [42,51]. Only Sharma and colleagues, who based their meta-analyses on individual DOACs, found that major bleeding was significantly reduced with apixaban compared with warfarin, which our results agreed with. We found rivaroxaban to significantly increase the risk of major bleeding whereas Sharma and colleagues found no significant difference. However, their meta-analyses included both trials of both AF and venous thromboembolism where we focused solely on AF . We found the risk of GI bleeding was increased and intracranial haemorrhage decreased significantly with DOACs compared with warfarin, which is in keeping with previous meta-analyses of RCTs in patients aged over 75 years.
The results of these current meta-analyses and those published previously suggest that DOACs are no less effective than warfarin when prescribed to older patients with AF, do not significantly increase the risk of major bleeding as a whole, and cause significantly less intracranial haemorrhage than warfarin at the expense of an increased risk of gastrointestinal bleeding. However, the majority of data, both in the present meta-analyses and previous analyses, are based on sub-group or sensitivity analyses from studies that were not designed or powered to look at outcomes in this age group, so the results must be interpreted with caution. These meta-analyses highlight the high level of heterogeneity between the results of observational studies which may be due to a number of factors. Firstly, a number of studies were conducted in Asian patients [14,15,22,25,33] who are known to have a higher risk of ICH when treated with warfarin ; this may cause DOACs to appear more favourable for bleeding outcomes. Lower INR targets have also been advocated in Asian patients due to the increased risk of ICH and this may contribute to DOACs appearing more efficacious than warfarin . Secondly, a number of studies included in these meta-analyses were conducted in the US [13,16,17,18,26,28,29,30,32,34]. The FDA did not approve the 110 mg dose of dabigatran which is widely used in Europe.
This systematic review has highlighted a need for research which is well conducted, adequately powered, and generalizable to older patients prescribed oral anticoagulants for AF. Observational studies should be transparent in how exposure is measured and use methods that address patients who switch or stop therapy during the study period. There are often differences in patient characteristics for those prescribed new medications to those prescribed older medications that influence prescribing. This potential for channelling is important and should be taken into account during the analysis. The follow-up time should be sufficient to assess all desired outcomes and follow-up should be described for all patients.
The following are available online at https://www.mdpi.com/2077-0383/8/4/554/s1, Table S1: Description of included studies.
Conceptualization, A.M. (Anneka Mitchell), M.C.W., T.W. and A.M.G. (Anita McGrogan); methodology, A.M. (Anneka Mitchell), M.C.W., T.W., and A.M.G. (Anita McGrogan); formal analysis, A.M. (Anneka Mitchell) and A.M.G. (Anita McGrogan); investigation, A.M. (Anneka Mitchell), M.C.W. and A.M.G. (Anita McGrogan); data curation, A.M. (Anneka Mitchell) and A.M.G. (Anita McGrogan); writing—original draft preparation, A.M. (Anneka Mitchell); writing—review and editing, M.C.W., T.W. and A.M.G. (Anita McGrogan); visualization, A.M. (Anneka Mitchell) and A.M.G. (Anita McGrogan).
This work was supported by The Dunhill Medical Trust (grant number RTF109/0117).
We thank Marianna Liaskou (M.L.) for contributing to the screening of the full text articles.
Conflicts of Interest
The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
Appendix A. Search Strategy
Medline was searched using a combination of subject headings (denoted as MeSH) and free text terms in title or abstract (denoted as ti,ab):
- Rivaroxaban (MeSH and ti,ab) OR Xarelto.ti,ab OR Apixaban.ti,ab OR Eliquis.ti,ab OR Dabigatran (MeSH and ti,ab) OR Pradaxa.ti,ab OR Edoxaban.ti,ab OR Lixiana.ti,ab OR Savaysa.ti,ab OR Factor Xa Inhibitors (Pharmacological Action) OR Antithrombins (Pharmacological Action) OR “New oral anticoagulant$”.ti,ab OR “Novel oral anticoagulant$”.ti,ab OR “direct oral anticoagulant$”.ti,ab OR (NOAC or NOACS).ti,ab OR (DOAC or DOACS).ti,ab OR oral adj2 anticoagulant$.ti,ab)
- (Warfarin (MeSH and ti,ab) OR exp Coumarins (MeSH) OR Coumarin*.ti,ab OR Acenocoumarol (MeSH and ti,ab) OR Fluindione.ti,ab OR Phenindione (MeSH and ti,ab))
- (exp Atrial fibrillation (MeSH and free text) OR exp atrial flutter (MeSH and free text) OR exp stroke (MeSH and ti,ab) OR ((atrial or atrium or auricular) adj3 fibrillat*).ti,ab OR heart fibrillat*.ti,ab OR ((atrial or atrium) adj3 (tachycardi$ or arrythmi$)).ti,ab OR (atrial adj3 tachyarrhythmi$).ti,ab OR ((atrial or auricular) adj3 flutter$).ti,ab).
The three searches were conducted separately then combined using AND
EMBASE was searched using a combination of subject headings (denoted as Emtree) and free text terms in the title or abstract (denoted as ti,ab):
- Rivaroxaban (Emtree and ti,ab) OR Xarelto.ti,ab OR dabigatran (Emtree and ti,ab) OR dabigatran etexilate (Emtree) OR Pradaxa.ti,ab OR apixaban (Emtree and ti,ab) OR Eliquis.ti,ab OR edoxaban (Emtree and ti,ab) OR Lixiana.ti,ab OR Savaysa.ti,ab OR thrombin inhibitor (Emtree) OR exp blood clotting factor 10A inhibitor (Emtree) OR “direct oral anticoagulant$”.ti,ab OR “novel oral anticoagulant$”.ti,ab OR “new oral anticoagulant$”.ti,ab OR (NOAC or NOACS).ti,ab OR (DOAC or DOACS).ti,ab OR oral adj2 anticoagulant$.ti,ab
- Warfarin (Emtree and ti,ab) OR antivitamin k (Emtree) OR fluindione (Emtree and ti,ab) OR acenocoumarol (Emtree and ti,ab) OR phenindione (Emtree and ti,ab) OR exp coumarin anticoagulant (Emtree)
- Exp Cerebrovascular accident (Emtree) OR stroke.ti,ab OR exp atrial fibrillation (Emtree or ti,ab) OR atrial flutter.ti,ab OR heart atrium flutter.ti,ab ((atrial or atrium or auricular) adj3 fibrillat*).ti,ab OR heart fibrillat*.ti,ab OR ((atrial or atrium) adj3 (tachycardi$ or arrythmi$)).ti,ab OR (atrial adj3 tachyarrhythmi$).ti,ab OR ((atrial or auricular) adj3 flutter$).ti,ab
Appendix B. Modified Newcastle–Ottawa Scale
Note: This has been adapted from Wells, G. A, Shea, B., O’Connel, D. et al. The Newcastle–Ottawa scale (NOS) for assessing the quality of non-randomised studies in meta-analyses. http://www.ohri.ca/programs/clinical_epidemiology/oxford.htm. The underlined sections show where changes have been made or additional information has been added to the original score.
- Representativeness of the Exposed Cohort
- Truly representative of the average atrial fibrillation patient in the community (2 point)
- Somewhat representative of the average atrial fibrillation patient in the community (1 point)
- Selected group of users e.g., hospital inpatients
- No description of the derivation of the cohort
- Selection of the Non-Exposed Cohort
- Drawn from the same community as the exposed cohort (1 point)
- Drawn from a different source
- No description of the derivation of the non-exposed cohort
- Ascertainment of Exposure
- Secure record (e.g., medical records)—describes how both the initial and ongoing exposure were measured (2 points)
- Secure record (e.g., medical records)—describes only how the initial exposure was measured (1 point)
- Structured interview (1 point)
- Written self-report
- No description
- Demonstration that Outcome of Interest was not Present at Start of StudyIn the case of mortality studies, outcome of interest is still the presence of a disease/ incident, rather than death. That is to say that a statement of no history of disease or incident earns a star
- Yes (1 point)
- Comparability of Cohorts on the Basis of the Design or Analysis
- Study controls for age, sex, medication and comorbidities at baseline (1 point)
- Study controls for the above plus any additional factors (such as socioeconomic status, type of prescriber) (2 points)
- Limited or no attempt to control for differences in cohorts
- Assessment of Outcome
- Independent or blind assessment stated in the paper, or confirmation of the outcome by reference to secure records (x-rays, medical records, etc.) (2 point)
- Record linkage (e.g., identified through ICD codes on database records) (1 point)
- Self-report (i.e., no reference to original medical records or x-rays to confirm the outcome)
- No description
- Was Follow-Up Long Enough for Outcomes to Occur
- yes—for all primary outcomes (minimum follow-up of 3 months for bleeding outcomes, 1 year for effectiveness outcomes) (2 points)
- Yes—for some outcomes (1 point)
- Length of follow-up not stated
- Adequacy of Follow-Up of Cohorts
- Complete follow-up - all subjects accounted for (1 point)
- Subjects lost to follow-up unlikely to introduce bias - small number lost, follow-up, or description provided of those lost) (1 point)
- Follow-up rate <50% and no description of those lost
- No statement
- Zoni-Berisso, M.; Lercari, F.; Carazza, T.; Domenicucci, S. Epidemiology of atrial fibrillation: European perspective. Clin. Epidemiol. 2014, 6, 213–220. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Ali, A.N.; Abdelhafiz, A. Clinical and Economic Implications of AF Related Stroke. J. Atr. Fibrillat. 2016, 8, 1279. [Google Scholar]
- Hart, R.G.; Pearce, L.A.; Aguilar, M.I. Meta-analysis: Antithrombotic therapy to prevent stroke in patients who have nonvalvular atrial fibrillation. Ann. Intern. Med. 2007, 146, 857–867. [Google Scholar] [CrossRef] [PubMed]
- Mant, J.; Hobbs, F.D.; Fletcher, K.; Roalfe, A.; Fitzmaurice, D.; Lip, G.Y.; Murray, E. Warfarin versus aspirin for stroke prevention in an elderly community population with atrial fibrillation (the Birmingham Atrial Fibrillation Treatment of the Aged Study, BAFTA): A randomised controlled trial. Lancet 2007, 370, 493–503. [Google Scholar] [CrossRef]
- Scowcroft, A.C.; Lee, S.; Mant, J. Thromboprophylaxis of elderly patients with AF in the UK: An analysis using the General Practice Research Database (GPRD) 2000-2009. Heart 2013, 99, 127–132. [Google Scholar] [CrossRef]
- Loo, S.Y.; Dell’Aniello, S.; Huiart, L.; Renoux, C. Trends in the prescription of novel oral anticoagulants in UK primary care. Br. J. Clin. Pharmacol. 2017, 83, 2096–2106. [Google Scholar] [CrossRef]
- Kirchhof, P.; Benussi, S.; Kotecha, D.; Ahlsson, A.; Atar, D.; Casadei, B.; Castella, M.; Diener, H.C.; Heidbuchel, H.; Hendriks, J.; et al. 2016 ESC Guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur. Heart J. 2016, 37, 2893–2962. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Lip, G.Y.H.; Banerjee, A.; Boriani, G.; Chiang, C.E.; Fargo, R.; Freedman, B.; Lane, D.A.; Ruff, C.T.; Turakhia, M.; Werring, D.; et al. Antithrombotic Therapy for Atrial Fibrillation: CHEST Guideline and Expert Panel Report. Chest 2018, 154, 1121–1201. [Google Scholar] [CrossRef]
- Mitchell, A.; Watson, M.C.; Welsh, T.; McGrogan, A. Systematic Review and Meta-Analysis of Observational Studies Comparing Direct Oral Anticoagulants with Vitamin K Antagonists for Stroke Prevention and Major Bleeding in People Aged over 75 Years Old with Atrial Fibrillation. Available online: http://www.crd.york.ac.uk/PROSPERO/display_record.php?ID=CRD42018081696 (accessed on 22 April 2019).
- Higgins, J.P.T.; Thompson, S.G.; Deeks, J.J.; Altman, D.G. Measuring inconsistency in meta-analyses. Br. Med. J. (Clin. Res. Ed.) 2003, 327, 557–560. [Google Scholar] [CrossRef] [PubMed][Green Version]
- StataCorp. Stata Statistical Software: Release 14; StataCorp LP: College Station, TX, USA, 2015. [Google Scholar]
- Fisher, D. Two-stage individual participant data meta-analysis and generalized forest plots. Stata J. 2015, 15, 369–396. [Google Scholar] [CrossRef]
- Go, A.S.; Singer, D.E.; Toh, S.; Cheetham, T.C.; Reichman, M.E.; Graham, D.J.; Southworth, M.R.; Zhang, R.; Izem, R.; Goulding, M.R.; et al. Outcomes of Dabigatran and Warfarin for Atrial Fibrillation in Contemporary Practice A Retrospective Cohort Study. Ann. Intern. Med. 2017, 167, 845–854. [Google Scholar] [CrossRef]
- Cha, M.J.; Choi, E.K.; Han, K.D.; Lee, S.R.; Lim, W.H.; Oh, S.; Lip, G.Y.H. Effectiveness and Safety of Non-Vitamin K Antagonist Oral Anticoagulants in Asian Patients with Atrial Fibrillation. Stroke 2017, 48, 3040–3048. [Google Scholar] [CrossRef]
- Lau, W.C.Y.; Li, X.; Wong, I.C.K.; Man, K.K.C.; Lip, G.Y.H.; Leung, W.K.; Siu, C.W.; Chan, E.W. Bleeding-related hospital admissions and 30-day readmissions in patients with non-valvular atrial fibrillation treated with dabigatran versus warfarin. J. Thromb. Haemost. 2017, 15, 1923–1933. [Google Scholar] [CrossRef]
- Norby, F.L.; Bengtson, L.G.S.; Lutsey, P.L.; Chen, L.Y.; MacLehose, R.F.; Chamberlain, A.M.; Rapson, I.; Alonso, A. Comparative effectiveness of rivaroxaban versus warfarin or dabigatran for the treatment of patients with non-valvular atrial fibrillation. BMC Cardiovasc. Disord. 2017, 17, 238. [Google Scholar] [CrossRef]
- Adeboyeje, G.; Sylwestrzak, G.; Barron, J.J.; White, J.; Rosenberg, A.; Abarca, J.; Crawford, G.; Redberg, R. Major Bleeding Risk During Anticoagulation with Warfarin, Dabigatran, Apixaban, or Rivaroxaban in Patients with Nonvalvular Atrial Fibrillation. J. Manag. Care Spec. Pharm. 2017, 23, 968–978. [Google Scholar] [CrossRef]
- Bengtson, L.G.S.; Lutsey, P.L.; Chen, L.Y.; MacLehose, R.F.; Alonso, A. Comparative effectiveness of dabigatran and rivaroxaban versus warfarin for the treatment of non-valvular atrial fibrillation. J. Cardiol. 2017, 69, 868–876. [Google Scholar] [CrossRef]
- Nielsen, P.B.; Skjoth, F.; Sogaard, M.; Kjaeldgaard, J.N.; Lip, G.Y.H.; Larsen, T.B. Effectiveness and safety of reduced dose non-vitamin K antagonist oral anticoagulants and warfarin in patients with atrial fibrillation: Propensity weighted nationwide cohort study. Br. Med. J. 2017, 356, j510. [Google Scholar] [CrossRef]
- Forslund, T.; Wettermark, B.; Andersen, M.; Hjemdahl, P. Stroke and bleeding with non-vitamin K antagonist oral anticoagulant or warfarin treatment in patients with non-valvular atrial fibrillation: A population-based cohort study. Europace 2018, 20, 420–428. [Google Scholar] [CrossRef] [PubMed]
- Halvorsen, S.; Ghanima, W.; Tvete, I.F.; Hoxmark, C.; Falck, P.; Solli, O.; Jonasson, C. A nationwide registry study to compare bleeding rates in patients with atrial fibrillation being prescribed oral anticoagulants. Eur. Heart J. Cardiovasc. Pharmacother. 2017, 3, 28–36. [Google Scholar] [CrossRef] [PubMed]
- Chan, P.H.; Huang, D.; Hai, J.J.; Li, W.-H.; Yin, L.-X.; Chan, E.W.; Wong, I.C.K.; Lau, C.-P.; Chiang, C.-E.; Zhu, J.; et al. Stroke prevention using dabigatran in elderly Chinese patients with atrial fibrillation. Heart Rhythm 2016, 13, 366–373. [Google Scholar] [CrossRef]
- Nishtala, P.S.; Gnjidic, D.; Jamieson, H.A.; Hanger, H.C.; Kaluarachchi, C.; Hilmer, S.N. ‘Real-world’ haemorrhagic rates for warfarin and dabigatran using population-level data in New Zealand. Int. J. Cardiol. 2016, 203, 746–752. [Google Scholar] [CrossRef]
- Avgil-Tsadok, M.; Jackevicius, C.A.; Essebag, V.; Eisenberg, M.J.; Rahme, E.; Behlouli, H.; Pilote, L. Dabigatran use in elderly patients with atrial fibrillation. Thromb. Haemost. 2016, 115, 152–160. [Google Scholar] [CrossRef]
- Kwon, C.H.; Kim, M.; Kim, J.; Nam, G.B.; Choi, K.J.; Kim, Y.H. Real-world comparison of non-vitamin K antagonist oral anticoagulants and warfarin in Asian octogenarian patients with atrial fibrillation. J. Geriatr. Cardiol. 2016, 13, 566–572. [Google Scholar] [PubMed]
- Seeger, J.D.; Bykov, K.; Bartels, D.B.; Huybrechts, K.; Zint, K.; Schneeweiss, S. Safety and effectiveness of dabigatran and warfarin in routine care of patients with atrial fibrillation. Thromb. Haemost. 2015, 114, 1277–1289. [Google Scholar] [PubMed]
- Maura, G.; Blotière, P.O.; Bouillon, K.; Billionnet, C.; Ricordeau, P.; Alla, F.; Zureik, M. Comparison of the Short-Term Risk of Bleeding and Arterial Thromboembolic Events in Nonvalvular Atrial Fibrillation Patients Newly Treated with Dabigatran or Rivaroxaban Versus Vitamin K Antagonists A French Nationwide Propensity-Matched Cohort Study. Circulation 2015, 132, 1252–1260. [Google Scholar] [CrossRef] [PubMed]
- Abraham, N.S.; Singh, S.; Alexander, G.C.; Heien, H.; Haas, L.R.; Crown, W.; Shah, N.D. Comparative risk of gastrointestinal bleeding with dabigatran, rivaroxaban, and warfarin: Population based cohort study. Br. Med. J. 2015, 350, h1857. [Google Scholar] [CrossRef]
- Lauffenburger, J.C.; Farley, J.F.; Gehi, A.K.; Rhoney, D.H.; Brookhart, M.A.; Fang, G. Effectiveness and safety of dabigatran and warfarin in real-world US patients with non-valvular atrial fibrillation: A retrospective cohort study. J. Am. Heart Assoc. 2015, 4, e001798. [Google Scholar] [CrossRef]
- Hernandez, I.; Baik, S.H.; Piñera, A.; Zhang, Y. Risk of Bleeding with Dabigatran in Atrial Fibrillation. JAMA Intern. Med. 2015, 175, 18–24. [Google Scholar] [CrossRef]
- Friberg, L.; Oldgren, J. Efficacy and safety of non-Vitamin K antagonist oral anticoagulants compared with warfarin in patients with atrial fibrillation. Open Heart 2017, 4, e000682. [Google Scholar] [CrossRef]
- Li, X.; Deitelzweig, S.; Keshishian, A.; Hamilton, M.; Horblyuk, R.; Gupta, K.; Luo, X.; Mardekian, J.; Friend, K.; Nadkarni, A.; et al. Effectiveness and safety of apixaban versus warfarin in non-valvular atrial fibrillation patients in “real-world” clinical practice: A propensity-matched analysis of 76,940 patients. Thromb. Haemost. 2017, 117, 1072–1082. [Google Scholar] [PubMed]
- Chan, Y.H.; Yen, K.C.; See, L.C.; Chang, S.-H.; Wu, L.-S.; Lee, H.-F.; Tu, H.-T.; Yeh, Y.-H.; Kuo, C.-T. Cardiovascular, Bleeding, and Mortality Risks of Dabigatran in Asians with Nonvalvular Atrial Fibrillation. Stroke 2016, 47, 441–449. [Google Scholar] [CrossRef] [PubMed]
- Graham, D.J.; Reichman, M.E.; Wernecke, M.; Zhang, R.; Southworth, M.-R.; Levenson, M.; Sheu, T.-C.; Mott, K.; Goulding, M.-R.; Houstoun, M.; et al. Cardiovascular, Bleeding, and Mortality Risks in Elderly Medicare Patients Treated with Dabigatran or Warfarin for Non-Valvular Atrial Fibrillation. Circulation 2015, 131, 157–164. [Google Scholar] [CrossRef]
- Hartling, L.; Milne, A.; Hamm, M.P.; VanderMeer, B.; Ansari, M.; Tsertsvadze, A.; Dryden, D.M. Testing the Newcastle Ottawa Scale showed low reliability between individual reviewers. J. Clin. Epidemiol. 2013, 66, 982–993. [Google Scholar] [CrossRef]
- Connolly, S.J.; Ezekowitz, M.D.; Yusuf, S.; Eikelboom, J.; Oldgren, J.; Parekh, A.; Pogue, J.; Reilly, P.A.; Themeles, E.; Varrone, J.; et al. Dabigatran versus Warfarin in Patients with Atrial Fibrillation. N. Engl. J. Med. 2009, 361, 1139–1151. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Hylek, E.M.; Al-Khalidi, H.R.; Ansell, J.; Bahit, M.C.; Ezekowitz, J.A.; Geraldes, M.; Golitsyn, S.; Hermosillo, A.G.; Mohan, P.; Lewis, B.S.; et al. Apixaban versus Warfarin in Patients with Atrial Fibrillation. N. Engl. J. Med. 2011, 365, 981–992. [Google Scholar]
- Patel, M.R.; Mahaffey, K.W.; Garg, J.; Pan, G.; Singer, D.E.; Hacke, W.; Breithardt, G.; Halperin, J.L.; Hankey, G.J.; Piccini, J.P.; et al. Rivaroxaban versus Warfarin in Nonvalvular Atrial Fibrillation. N. Engl. J. Med. 2011, 365, 883–891. [Google Scholar] [CrossRef][Green Version]
- Giugliano, R.P.; Ruff, C.T.; Braunwald, E.; Murphy, S.A.; Wiviott, S.D.; Halperin, J.L.; Waldo, A.L.; Ezekowitz, M.D.; Weitz, J.I.; Špinar, J.; et al. Edoxaban versus Warfarin in Patients with Atrial Fibrillation. N. Engl. J. Med. 2013, 369, 2093–2104. [Google Scholar] [CrossRef] [PubMed]
- Lopes, R.D.; Heizer, G.; Aronson, R.; Vora, A.N.; Massaro, T.; Mehran, R.; Goodman, S.G.; Windecker, S.; Darius, H.; Li, J.; et al. Antithrombotic Therapy after Acute Coronary Syndrome or PCI in Atrial Fibrillation. N. Engl. J. Med. 2019, 380, 1509–1524. [Google Scholar] [CrossRef]
- López-López, J.A.; Sterne, J.A.C.; Thom, H.H.Z.; Higgins, J.P.T.; Hingorani, A.D.; Okoli, G.N.; A Davies, P.; Bodalia, P.N.; A Bryden, P.; Welton, N.J.; et al. Oral anticoagulants for prevention of stroke in atrial fibrillation: Systematic review, network meta-analysis, and cost effectiveness analysis. Br. Med. J. 2017, 359, j5058. [Google Scholar] [CrossRef]
- Ruff, C.T.; Giugliano, R.P.; Braunwald, E.; Hoffman, E.B.; Deenadayalu, N.; Ezekowitz, M.D.; Camm, A.J.; I Weitz, J.; Lewis, B.S.; Parkhomenko, A.; et al. Comparison of the efficacy and safety of new oral anticoagulants with warfarin in patients with atrial fibrillation: A meta-analysis of randomised trials. Lancet 2014, 383, 955–962. [Google Scholar] [CrossRef]
- Ntaios, G.; Papavasileiou, V.; Diener, H.C.; Makaritsis, K.; Michel, P. Nonvitamin-K-antagonist oral anticoagulants versus warfarin in patients with atrial fibrillation and previous stroke or transient ischemic attack: An updated systematic review and meta-analysis of randomized controlled trials. Int. J. Stroke 2017, 12, 589–596. [Google Scholar] [CrossRef]
- Makam, R.C.P.; Hoaglin, D.C.; McManus, D.D.; Wang, V.; Gore, J.M.; Spencer, F.A.; Pradhan, R.; Tran, H.; Yu, H.; Goldberg, R.J. Efficacy and safety of direct oral anticoagulants approved for cardiovascular indications: Systematic review and meta-analysis. PLoS ONE 2018, 13, e0197583. [Google Scholar] [CrossRef]
- Cohen, D. Dabigatran: How the drug company withheld important analyses. Br. Med. J. 2014, 349, g4670. [Google Scholar] [CrossRef]
- Cohen, D. Rivaroxaban: Can we trust the evidence? Br. Med. J. 2016, 352, i575. [Google Scholar] [CrossRef]
- Eikelboom, J.W.; Wallentin, L.; Connolly, S.J.; Ezekowitz, M.; Healey, J.-S.; Oldgren, J.; Yang, S.; Alings, M.; Kaatz, S.; Hohnloser, S.-H.; et al. Risk of Bleeding With 2 Doses of Dabigatran Compared With Warfarin in Older and Younger Patients With Atrial Fibrillation: An analysis of the randomized evaluation of long-term anticoagulant therapy(RE-LY) trial. Circulation 2011, 123, 2363–2372. [Google Scholar] [CrossRef]
- Halperin, J.L.; Hankey, G.J.; Wojdyla, D.M.; Piccini, J.-P.; Lokhnygina, Y.; Patel, M.-R.; Breithardt, G.; Singer, D.-E.; Becker, R.-C.; Hacke, W.; et al. Efficacy and Safety of Rivaroxaban Compared with Warfarin Among Elderly Patients With Nonvalvular Atrial Fibrillation in the Rivaroxaban Once Daily, Oral, Direct Factor Xa Inhibition Compared With Vitamin K Antagonism for Prevention of Stroke and Embolism Trial in Atrial Fibrillation (ROCKET AF). Circulation 2014, 130, 138–146. [Google Scholar]
- Kato, E.T.; Giugliano, R.P.; Ruff, C.T.; Koretsune, Y.; Yamashita, T.; Kiss, R.G.; Nordio, F.; Murphy, S.A.; Kimura, T.; Jin, J.; et al. Efficacy and Safety of Edoxaban in Elderly Patients with Atrial Fibrillation in the ENGAGE AF-TIMI 48 Trial. J. Am. Heart Assoc. 2016, 5, e003432. [Google Scholar] [CrossRef]
- Sharma, M.; Cornelius, V.R.; Patel, J.P.; Davies, J.G.; Molokhia, M. Efficacy and Harms of Direct Oral Anticoagulants in the Elderly for Stroke Prevention in Atrial Fibrillation and Secondary Prevention of Venous Thromboembolism. Circulation 2015, 132, 194–204. [Google Scholar] [CrossRef]
- Kim, I.S.; Kim, H.J.; Kim, T.H.; Uhm, J.-S.; Joung, B.; Lee, M.-H.; Pak, H.-N. Non-vitamin K antagonist oral anticoagulants have better efficacy and equivalent safety compared to warfarin in elderly patients with atrial fibrillation: A systematic review and meta-analysis. J. Cardiol. 2018, 72, 105–112. [Google Scholar] [CrossRef]
- Bai, Y.; Guo, S.D.; Deng, H.; Shantsila, A.; Fauchier, L.; Ma, C.-S.; Lip, G.Y. Effectiveness and safety of oral anticoagulants in older patients with atrial fibrillation: A systematic review and meta-regression analysis. Age Ageing 2018, 47, 9–17. [Google Scholar] [CrossRef]
- Almutairi, A.R.; Zhou, L.; Gellad, W.F.; Lee, J.K.; Slack, M.K.; Martin, J.R.; Lo-Ciganic, W.-H. Effectiveness and Safety of Non-vitamin K Antagonist Oral Anticoagulants for Atrial Fibrillation and Venous Thromboembolism: A Systematic Review and Meta-analyses. Clin. Ther. 2017, 39, 1456–1478. [Google Scholar] [CrossRef] [PubMed]
- Bai, Y.; Deng, H.; Shantsila, A.; Lip, G.Y. Rivaroxaban Versus Dabigatran or Warfarin in Real-World Studies of Stroke Prevention in Atrial Fibrillation: Systematic Review and Meta-Analysis. Stroke 2017, 48, 970–976. [Google Scholar] [CrossRef] [PubMed]
- Shen, A.Y.; Yao, J.F.; Brar, S.S.; Jorgensen, M.B.; Chen, W. Racial/ethnic differences in the risk of intracranial hemorrhage among patients with atrial fibrillation. J. Am. Coll. Cardiol. 2007, 50, 309–315. [Google Scholar] [CrossRef] [PubMed]
- Wang, K.L.; Chiang, C.E. Optimal International Normalized Ratio for Atrial Fibrillation in Asians and Japanese. Circ. J. 2013, 77, 2242–2243. [Google Scholar] [CrossRef] [PubMed][Green Version]
Figure 1. Study Selection.
Figure 2. Meta-analysis of observational studies on ischaemic stroke stratified by direct oral anticoagulant (DOAC), then grouped by age band and DOAC dose. New users = no previous use of VKA, and switchers = previous use of VKA prior to starting DOAC. Effect sizes reported are hazard ratios. Sex is male and female unless otherwise stated.

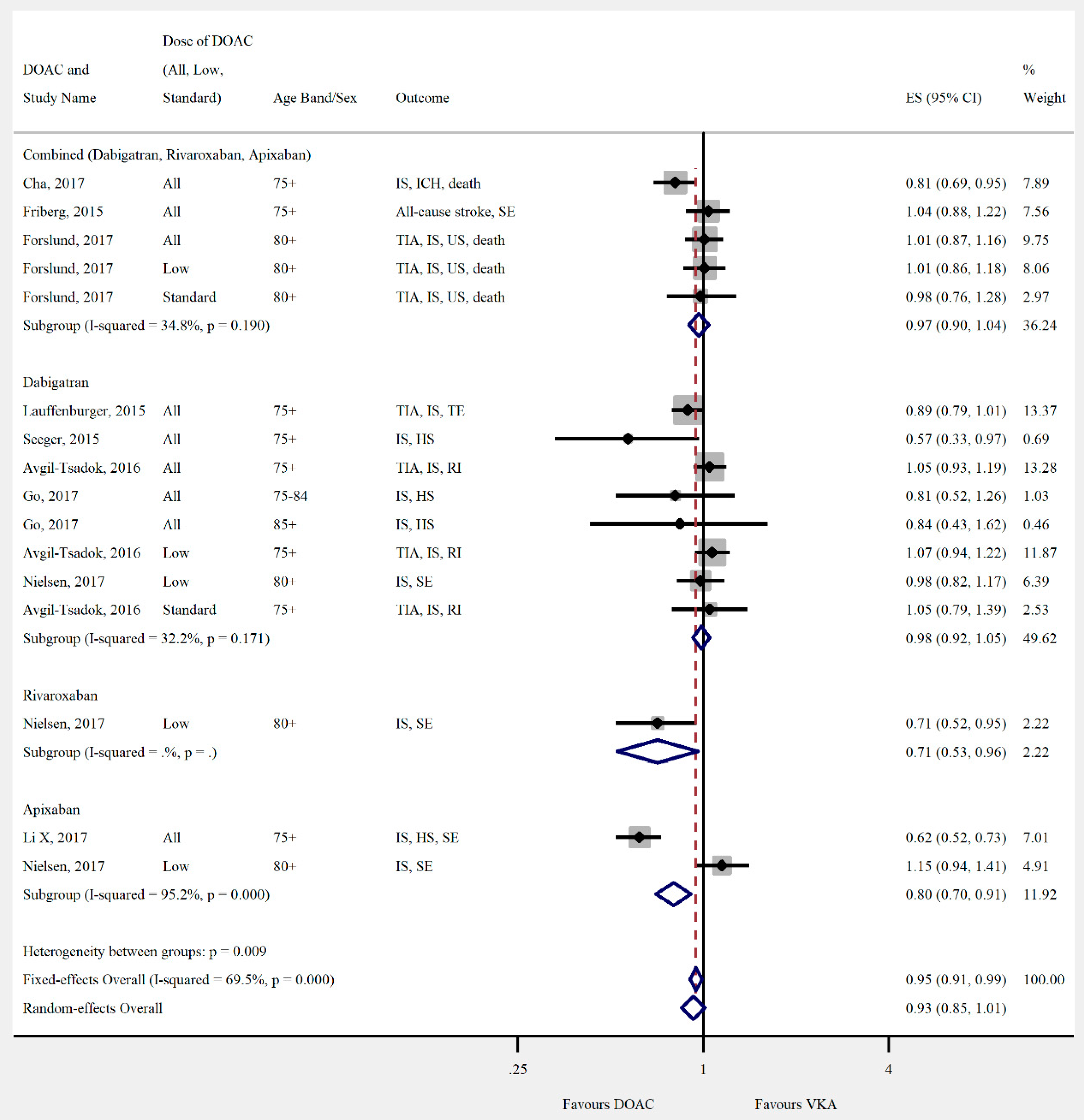

Figure 3. Meta-analysis of observational studies on composite effectiveness outcomes stratified by DOAC, then grouped by age band and DOAC dose. HS = haemorrhagic stroke, ICH = intracranial haemorrhage, IS = ischaemic stroke, RI = retinal infarct, SE = systemic embolism, TIA = transient ischaemic attack, and US = unspecified stroke. Effect sizes reported are hazard ratio. Sex is male and female unless otherwise stated.

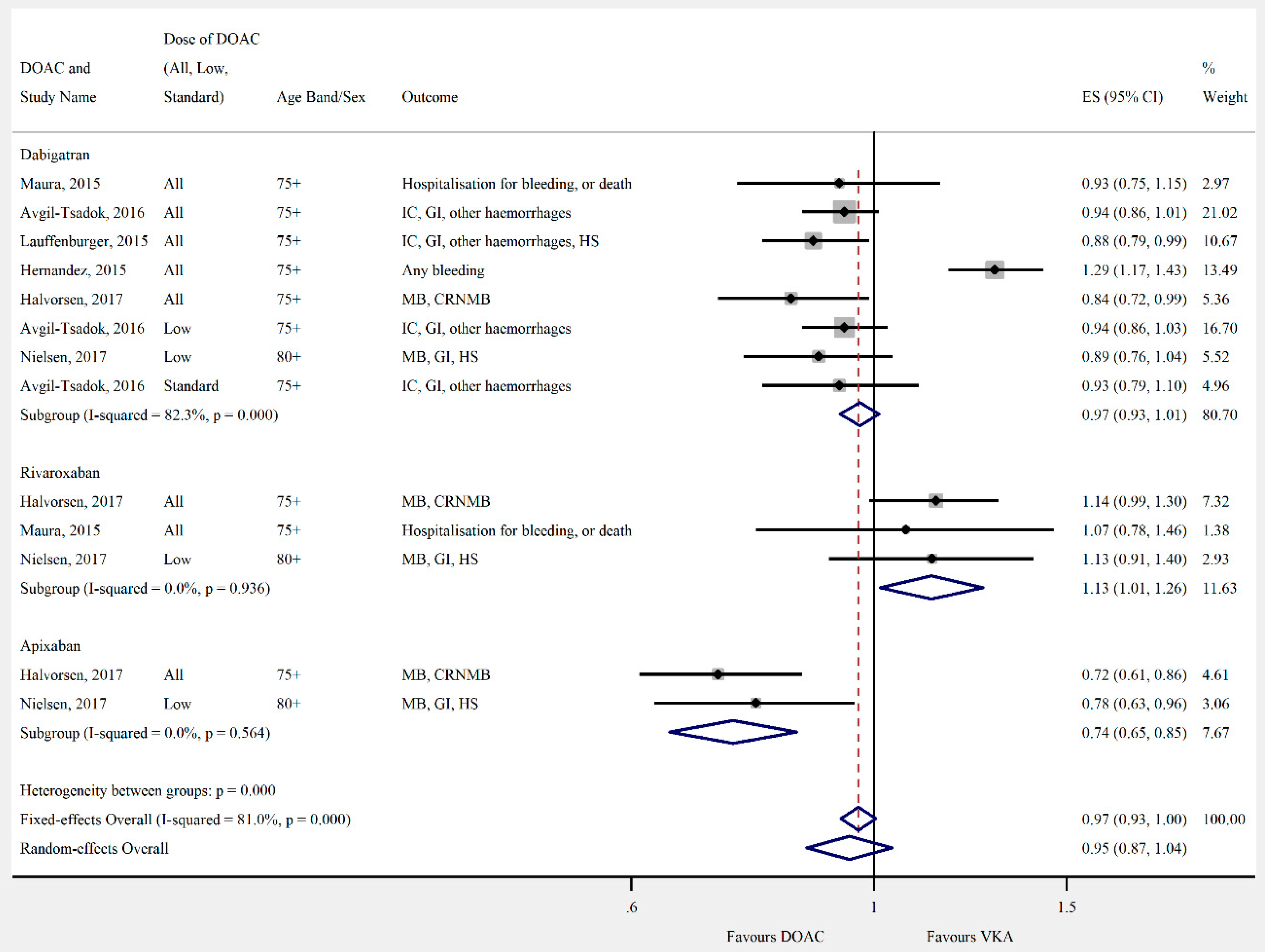

Figure 4. Meta-analysis of observational studies on composite safety outcomes stratified by DOAC, then grouped by age band and DOAC dose. CRNMB = clinically-relevant non-major bleeding, GI = gastrointestinal bleeding, HS = haemorrhagic stroke, IC = intracranial haemorrhage, and MB = major bleeding. Effect sizes reported are hazard ratio. Sex is male and female unless otherwise stated.

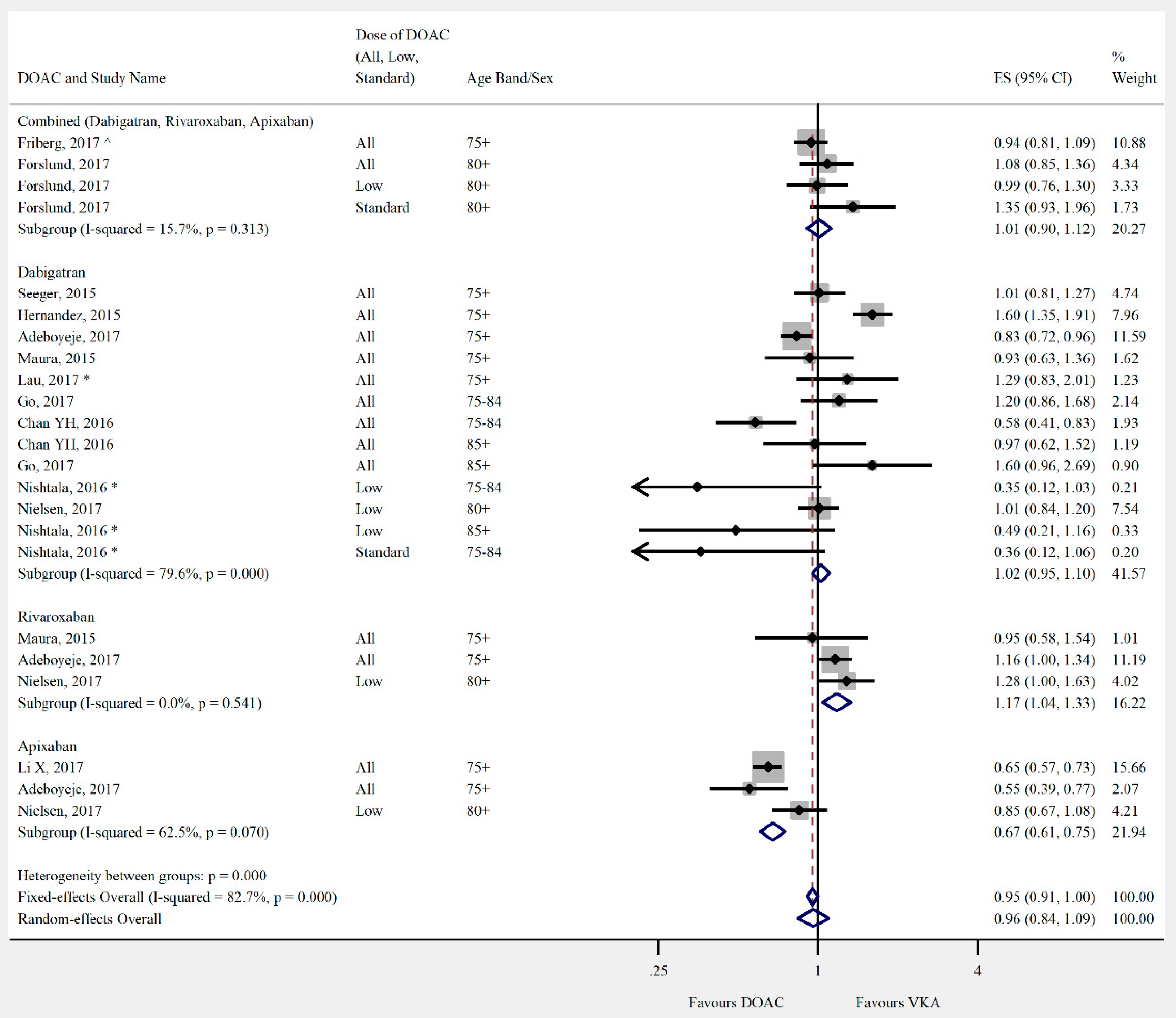

Figure 5. Meta-analysis of observational studies on major bleeding stratified by DOAC, then grouped by age band and DOAC dose. Effect sizes reported are hazard ratios, except where ^ = sub-hazard ratio, and * = incident rate ratio. Sex is male and female unless otherwise stated.
Figure 6. Meta-analysis of observational studies on mortality stratified by DOAC, then grouped by age band and DOAC dose. Effect sizes reported are hazard ratios, except where ^ = sub-hazard ratio. Sex is male and female unless otherwise stated.
Figure 7. Meta-analysis of observational studies on myocardial infarction stratified by DOAC, then grouped by age band and DOAC dose. New users = no previous use of VKA, and switchers = previous use of VKA prior to starting DOAC. Effect sizes reported are hazard ratios. Sex is male and female unless otherwise stated.

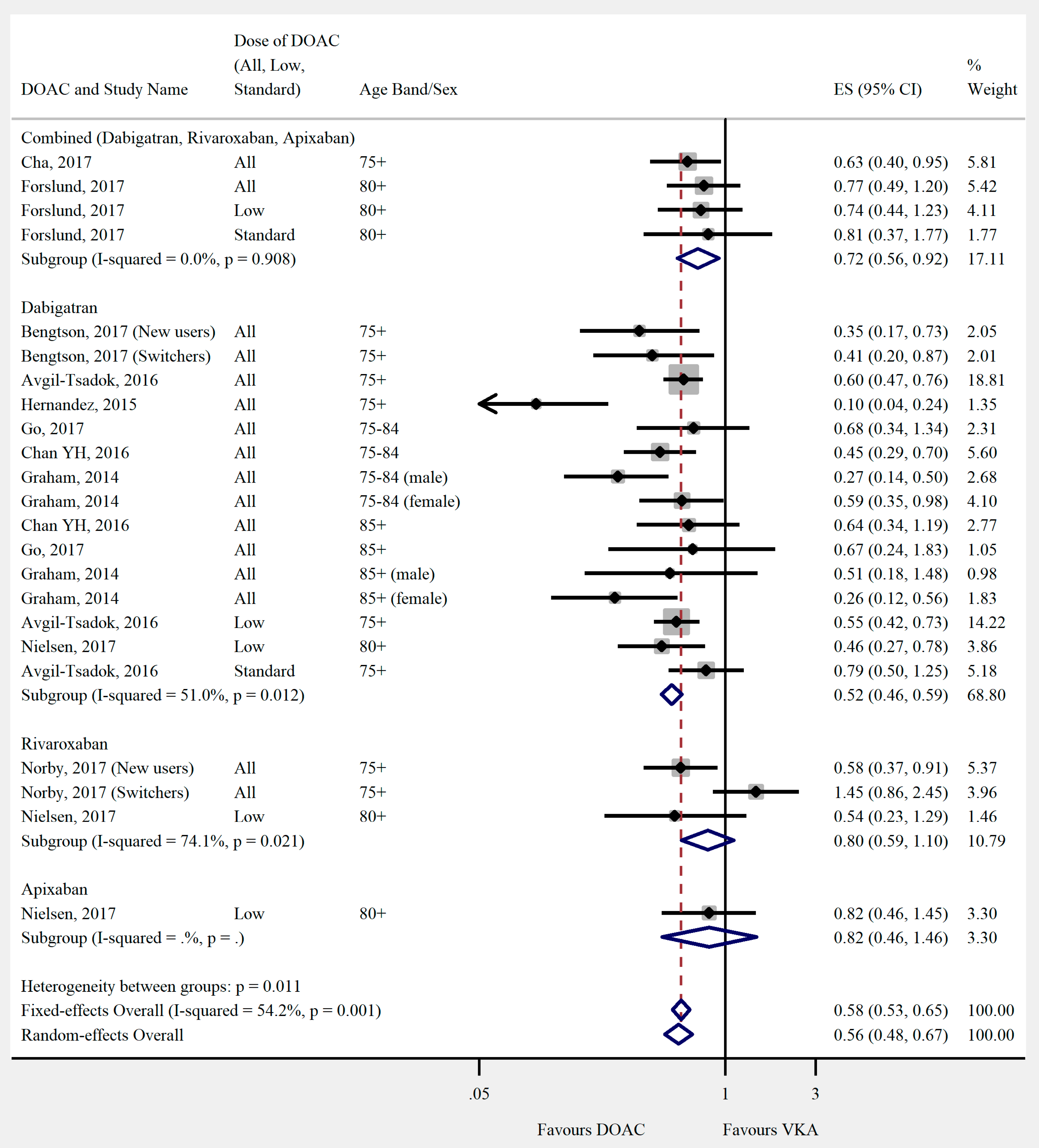

Figure 8. Meta-analysis of observational studies on intracranial haemorrhage stratified by DOAC, then grouped by age band and DOAC dose. New users = no previous use of VKA, and switchers = previous use of VKA prior to starting DOAC. Effect sizes reported are hazard ratios. Sex is male and female unless otherwise stated.

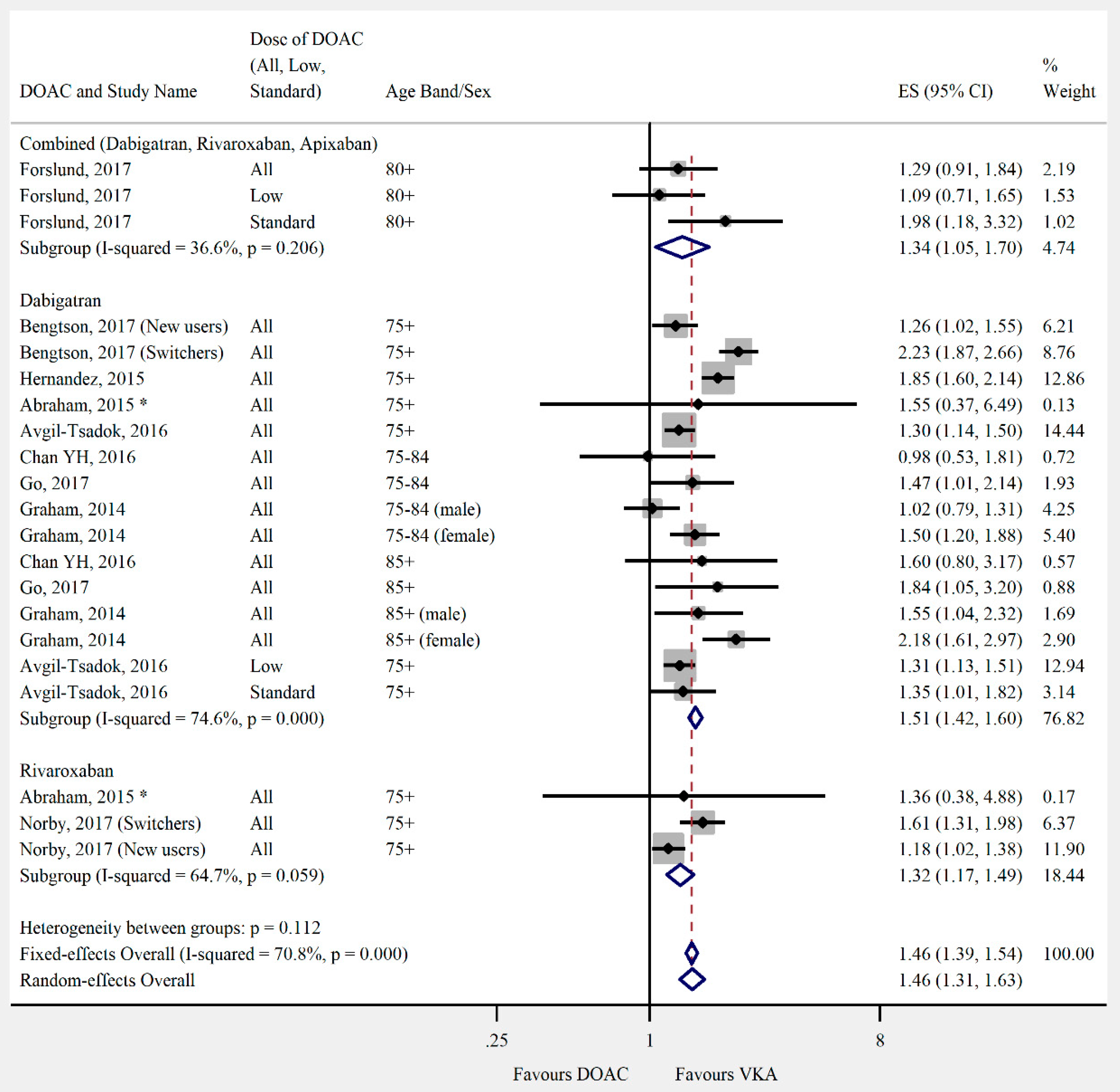

Figure 9. Meta-analysis of observational studies on gastrointestinal bleeding stratified by DOAC, then grouped by age band and DOAC dose. New users = no previous use of VKA, and switchers = previous use of VKA prior to starting DOAC. Effect sizes reported are hazard ratios, except where * = incident rate ratio. Sex is male and female unless otherwise stated.
Table 1. Quality assessment of included studies based on the modified Newcastle–Ottawa scoring system (Appendix B). Red = low quality, Amber = medium quality, and Green = high quality for each individual domain. Ordered by score (high to low) then alphabetically by author (A–Z).
|Score per Modified NOS Domain||Total||Comments|
|Halvorsen, 2017||2||1||2||0||2||1||2||0||10||No demonstration that outcome was not present at start of study.|
|Li X, 2017||2||1||2||0||2||1||2||0||10||No demonstration that outcome was not present at start of study.|
|Maura, 2015||2||1||1||0||2||1||2||1||10||Intention to treat approach stated so exposure assumed to continue from index date until censored. No demonstration that outcome was not present at start of study.|
|Friberg, 2017||2||1||1||0||2||1||1||1||9||Exposure monitoring after initial fill date not stated. No demonstration that outcome was not present at start of study.|
|Hernandez, 2015||1||1||2||0||2||1||2||0||9||Used a 5% sample of Medicare patients, so unclear how representative of US population as a whole. No demonstration that outcome was not present at start of study.|
|Chan YH, 2016||2||1||1||0||2||1||1||0||8||Exposure monitoring after initial fill date not stated. No demonstration that outcome was not present at start of study.|
|Forslund, 2017||2||1||1||0||2||1||1||0||8||No demonstration that outcome was not present at start of study.|
|Lauffenburger, 2015||1||1||1||0||2||1||2||0||8||Commercially insured population may not be truly representative of average US population. Exposure monitoring after initial fill date not stated. No demonstration that outcome was not present at start of study|
|Nielsen, 2017||2||1||1||0||2||1||1||0||8||Exposure monitoring after initial fill date not stated. No demonstration that outcome was not present at start of study.|
|Nishtala, 2016||1||1||2||0||2||1||1||0||8||Only includes patients with a hospital admission in the 5 years prior to study entry, so potentially represents sicker patients than in the average population. No demonstration that outcome was not present at start of study.|
|Seeger, 2015||1||1||2||0||2||1||1||0||8||Predominantly commercially insured patients only, so may not be truly representative of average US population. No demonstration that outcome was not present at start of study.|
|Abraham, 2015||1||1||2||0||2||1||0||0||7||Does not include Medicare patients, so may not represent older population well. Length of follow-up not stated, so unclear if long enough for outcomes to occur. No demonstration that outcome was not present at start of study.|
|Adeboyeje, 2017||1||1||2||0||2||1||0||0||7||Commercially insured patients only, so may not be truly representative of average US population. No demonstration that outcome was not present at start of study.|
|Avgil-Tsadok, 2016||1||1||1||0||2||1||1||0||7||Only represents patients diagnosed with AF as inpatients, so may not be truly representative. No demonstration that outcome was not present at start of study.|
|Cha, 2017||2||1||1||1||0||1||1||0||7||Intention to treat approach stated, so exposure assumed to continue from index date until censored. Propensity score used in analysis to adjust for confounders. However, it seems to include CHADS2-VASC2 score as the only variable.|
|Go, 2017||1||1||2||0||2||1||0||0||7||Predominantly privately insured population, so may not represent average US population.|
|Graham, 2014||1||1||2||0||2||1||0||0||7||Included only Medicare patients, so may not represent average US population. Follow-up duration not explicitly stated. However, sensitivity analysis for different lengths of follow-up did not affect results.|
|Kwon, 2016||0||1||1||0||0||2||1||0||5||Data from one hospital only. No description of how exposure was measured. Limited attempts to control for confounding. No demonstration that outcome was not present at start of study.|
|Chan PH, 2016||0||1||0||0||0||1||2||0||4||Data from one hospital only. No description of how exposure was measured. Limited attempts to control for confounding.|
|Modified Newcastle–Ottawa scale (NOS) domains:|
1. Representativeness of the exposed cohort
2. Selection of the non-exposed cohort
3. Ascertainment of exposure
4. Demonstration that outcome of interest was not present at start of study
5. Comparability of cohorts on the basis of the design or analysis
6. Assessment of outcome
7. Was follow-up long enough for outcomes to occur
8. Adequacy of follow-up of cohorts
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
