Current and Emerging Energy Sources for Atrial Fibrillation Ablation: A Comparative Analysis of Clinical Efficacy, Safety, and Procedural Implementation

by
Cristian Martignani
1,*,
Giulia Massaro
1,2,
Alberto Spadotto
1,2,
Jennifer Oppimitti
3,
Maria Carelli
1,
Andrea Angeletti
1,
Alessandro Carecci
1,2,
Igor Diemberger
1,2 and
Mauro Biffi
1
1
Cardiology Unit, IRCCS Azienda Ospedaliera-Universitaria di Bologna, 40138 Bologna, Italy
2
Department of Medical and Surgical Sciences, Institute of Cardiology, University of Bologna, Via Massarenti 9, 40138 Bologna, Italy
3
Pharmacy Unit, IRCCS Azienda Ospedaliera-Universitaria di Bologna, 40138 Bologna, Italy
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2026, 15(2), 751; https://doi.org/10.3390/jcm15020751
Submission received: 9 December 2025 / Revised: 30 December 2025 / Accepted: 12 January 2026 / Published: 16 January 2026
(This article belongs to the Special Issue Advances in Ablation Therapy for Atrial Fibrillation: Innovations and Clinical Applications)
Browse Figures
Versions Notes

Abstract

Atrial fibrillation (AF) management has historically relied on thermal ablation modalities—radiofrequency (RF) and cryoballoon—which have established a high benchmark for pulmonary vein isolation (PVI). However, the inherent risk of collateral thermal injury and lesion inconsistency has driven the search for alternative energy sources. The recent clinical adoption of pulsed-field ablation (PFA), based on irreversible electroporation, represents a significant technological evolution. This narrative review provides a critical appraisal of the transition from thermal to pulsed-field technologies. We synthesized data from pivotal trials and recent health-economic analyses to evaluate the biophysical mechanisms, clinical efficacy, and safety profiles of contemporary devices. We conduct a head-to-head comparison of all modalities regarding critical safety endpoints (esophageal, neurological, and vascular), real-world procedural challenges (anesthesia, lesion assessment), and economic sustainability. While PFA offers distinct advantages in procedural speed and tissue selectivity, we highlight that thermal modalities—particularly cryoballoon and very-high-power RF—retain competitive profiles in terms of cost-effectiveness and established long-term durability. This review aims to provide a balanced roadmap for clinicians navigating the complex choice between established thermal efficacy and the promising, yet evolving, landscape of electroporation.

1. Introduction

Atrial fibrillation (AF) represents a rapidly growing global health burden. Epidemiological data project a doubling of AF prevalence by 2050, driven by an aging population and improved survival from comorbid conditions [1]. Beyond its profound impact on quality of life, AF is independently associated with a 1.5- to 3.5-fold increase in mortality and a significant risk of stroke, heart failure, and cognitive decline [2]. Consequently, the therapeutic paradigm has shifted from palliative rate control to early and aggressive rhythm control strategies, aiming to modify the natural history of the disease [3].
Catheter ablation has progressively emerged as the cornerstone of this strategy. Initially reserved for drug-refractory symptomatic patients, current guidelines and compelling evidence from trials such as EARLY-AF and STOP-AF First now position ablation as a viable first-line option for paroxysmal AF [2,4,5]. Central to this therapeutic success is the concept of pulmonary vein isolation (PVI), based on the fundamental recognition that ectopic beats originating from muscular sleeves within the pulmonary veins (PVs) trigger the majority of AF episodes [6].
For over two decades, the achievement of PVI has relied predominantly on thermal injury—either heating tissue through radiofrequency (RF) energy or freezing it via cryothermal systems. These modalities have matured significantly, establishing a high benchmark for efficacy with 1-year success rates hovering between 70% and 80% for paroxysmal AF. However, thermal ablation carries intrinsic biophysical limitations. The indiscriminate nature of thermal propagation results in a persistent risk of collateral damage to critical non-target structures, such as the esophagus (atrio-esophageal fistula), the phrenic nerve, and the pulmonary vein ostia (stenosis) [7,8]. Furthermore, the reliance on conductive heat transfer can lead to incomplete lesion formation in areas of thick tissue or heat-sink effect, contributing to late arrhythmia recurrence.
The past decade has shown an accelerated shift toward non-thermal modalities to overcome these safety and durability barriers. Pulsed-field ablation (PFA), based on the principle of irreversible electroporation (IRE), has generated significant clinical interest. By delivering high-voltage electrical pulses that destabilize cell membranes, PFA offers the theoretical advantage of tissue selectivity—sparing the extracellular matrix and adjacent vascular or neural structures [9].
As highlighted in comprehensive frameworks by Brasca et al., the landscape of AF ablation is no longer a binary choice but a spectrum of evolving technologies [10]. This narrative review provides an extensive and critical analysis of both thermal and non-thermal ablation energies (Figure 1). We dissect the biophysical underpinnings, scrutinize the latest clinical evidence from randomized trials and large registries, and evaluate the economic sustainability of these innovations. Particular attention is devoted to emerging PFA technologies—including circular loop systems, balloon-guided platforms, and nanosecond PFA—assessing their potential to redefine the standard of care in electrophysiology.

2. Methods

This narrative review is based on a comprehensive literature search performed on PubMed and Embase. The search strategy employed combinations of keywords: (‘Atrial Fibrillation’ OR ‘AF’) AND (‘Ablation’ OR ‘PVI’) AND (‘Pulsed Field’ OR ‘Radiofrequency’ OR ‘Cryoballoon’ OR ‘Laser’). The search primarily focused on articles published between January 2015 and February 2025 to reflect contemporary technological progress; however, selected landmark studies (e.g., Haïssaguerre et al., 1998 [6]) and fundamental biophysical papers published prior to this window were intentionally included to provide essential historical and mechanistic context. Out of 452 records identified and screened for relevance, 41 articles were ultimately included. Selection criteria focused on randomized controlled trials, large-scale registries, and health-economic analyses, while modalities not in mainstream clinical use (e.g., microwave, high-intensity focused ultrasound) were excluded.

3. Thermal Modalities: Established Standards and Persistent Limitations

Thermal ablation remains the standard of care against which all new technologies must be measured. Understanding the specific mechanisms and limitations of these established modalities is essential to contextualize the rise in PFA (Table 1).

3.1. Radiofrequency and the Pursuit of Lesion Durability

Radiofrequency (RF) ablation relies on resistive heating at the electrode-tissue interface, followed by conductive heat transfer to deeper myocardial layers [11]. The durability of PVI with RF has historically been hampered by catheter instability and variable tissue contact. The introduction of contact force-sensing catheters represented a major leap forward, allowing operators to titrate energy delivery based on real-time feedback [12].
The most recent evolution in this field is Very-High-Power Short-Duration (vHPSD) RF (e.g., 90 W for 4 s). This strategy aims to shift the lesion formation mechanism almost entirely to resistive heating, creating wider but shallower lesions. The theoretical benefit is improved catheter stability (shorter application time reduces movement artifact) and reduced conductive heating to collateral organs. Clinical data confirm that vHPSD is non-inferior to standard RF in safety and efficacy, with significantly reduced procedural times [13,14]. However, intrinsic limitations remain: the risk of “steam pops” (explosive tissue vaporization) persists if irrigation is inadequate, and achieving transmurality in thick ventricular or ridge tissues without conductive heating remains challenging.

3.2. Cryoballoon: Efficiency and Anatomical Considerations

Cryoballoon ablation standardized PVI by reducing operator dependency. By utilizing the Joule-Thomson effect to freeze tissue to −40 °C/−60 °C, the cryoballoon creates a circumferential lesion in a single application. The landmark FIRE AND ICE trial demonstrated its non-inferiority to RF, establishing it as a primary tool for paroxysmal AF [15,16].
The main limitation of the cryoballoon is its dependence on anatomy. Effective heat transfer requires a perfect seal (occlusion) of the vein. In patients with common ostia, large veins, or oval anatomies, achieving occlusion can be difficult, leading to gaps or the need for “pull-down” maneuvers that may compromise safety. Furthermore, the proximity to the phrenic nerve during right-sided ablation requires continuous pacing and monitoring, with a residual risk of transient or persistent palsy [17].

3.3. Laser Balloon: Visual Precision and Versatility

Laser balloon technology offers a distinct approach by combining a compliant balloon with a rotatable laser arc under direct endoscopic visualization. This allows the operator to see the tissue contact and titrate energy delivery point-by-point within the balloon, overcoming the “occlusion dependency” of the cryoballoon [18].
While often considered a niche technology due to a steeper learning curve, recent data reinforce its relevance. A large international multicenter study by Martignani et al. analyzed outcomes in a real-world cohort, demonstrating that laser balloon ablation achieves high rates of durable isolation with a favorable safety profile. The study highlighted the device’s utility in complex anatomies where fixed-shape balloons fail, suggesting that for experienced centers, the laser balloon remains a highly precise thermal alternative [19].

4. Biophysics of Electroporation: Beyond the “Non-Thermal” Label

To understand the clinical behavior of PFA, one must look beyond the simplified label of “non-thermal energy”. PFA applies ultra-short, high-voltage electrical fields (typically 1000–2000 V/cm) that induce a transmembrane potential difference. When this difference exceeds a critical threshold, hydrophilic pores form in the phospholipid bilayer (electroporation). If the field strength is sufficient, these pores become permanent, leading to loss of homeostasis and apoptotic cell death (irreversible electroporation, IRE) [20].
The therapeutic rationale of PFA lies in tissue selectivity. The threshold for IRE depends on cell size, geometry, and orientation relative to the field. Cardiomyocytes, being large and elongated, have a lower threshold for IRE compared to the smaller fibers of the esophagus, the myelinated axons of the phrenic nerve, or the collagen matrix of blood vessels [21]. This creates a wide therapeutic window where myocardial necrosis can be achieved without damaging adjacent structures (Figure 2).
However, PFA is not entirely “non-thermal”. The high current density generates Joule heating. If pulses are not properly spaced or if the electrode is embedded in tissue without cooling, thermal effects can occur. Modern PFA waveforms (biphasic, pulse trains) are engineered to minimize this thermal component and prevent muscle capture, but the bio-physical reality is a complex interplay of electrical field distribution and thermal management.

5. Pulsed-Field Ablation: Technological Approaches and Critical Appraisal

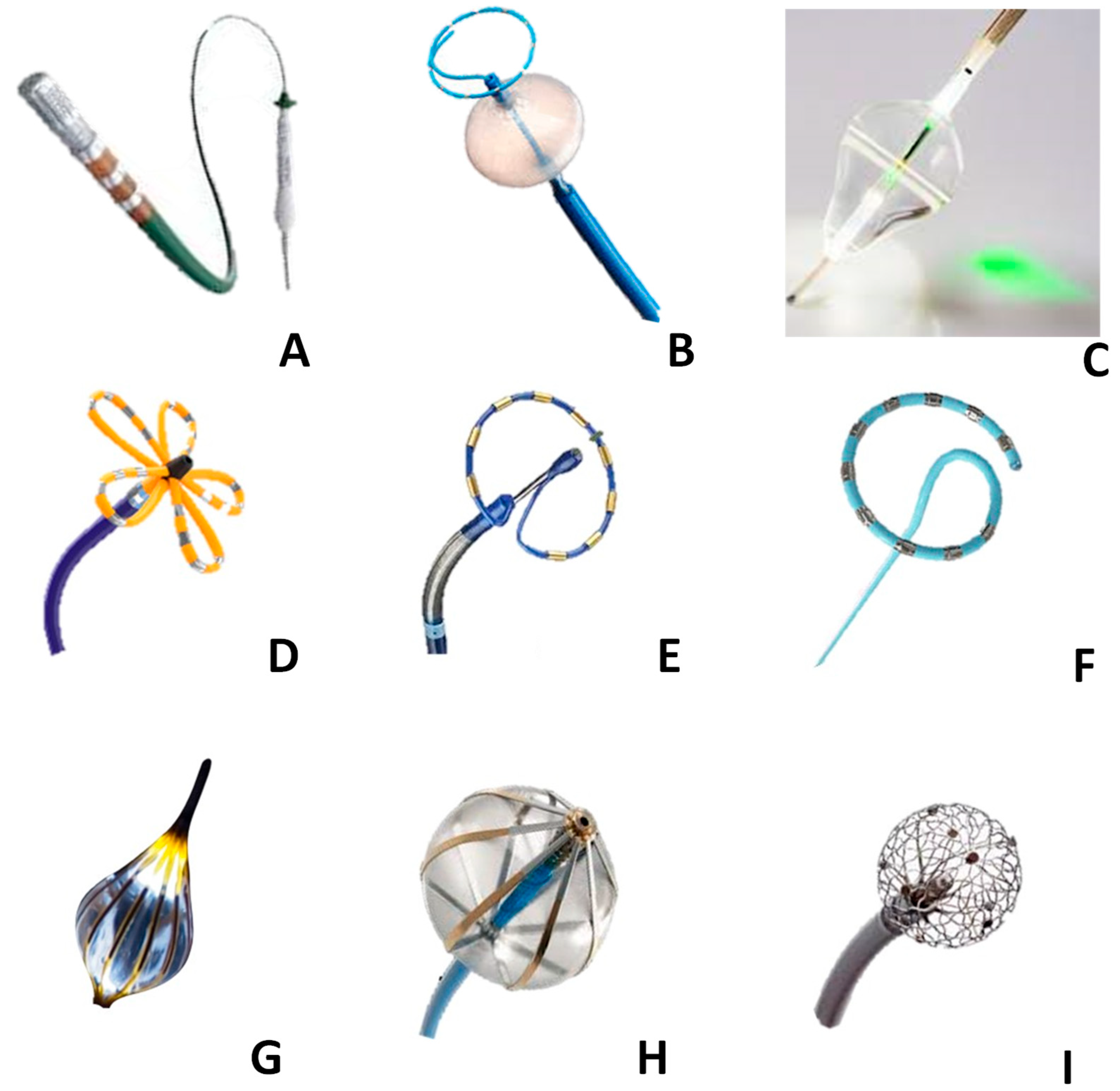

PFA is not a monolithic entity; clinical outcomes depend heavily on catheter geometry and waveform engineering. The current ecosystem can be categorized into four main design philosophies (Figure 3 and Table 2).

5.1. Pentaspline Catheters (Farawave)

The pentaspline design (Farawave, Boston Scientific) has spearheaded PFA adoption. It can transform between a basket (for ostial stability) and a flower (for antral coverage) configuration. The ADVENT trial, a randomized comparison against thermal standard-of-care, met its primary endpoints, showing a 73.3% success rate for PFA versus 71.3% for thermal ablation [22]. Crucially, the PFA arm had significantly less PV stenosis and zero esophageal fistulas. Beyond clinical trials, large-scale real-world registries such as MANIFEST-PF, encompassing over 1700 patients, have confirmed the high safety profile of PFA in clinical practice, reporting a major complication rate of 1.6%, which is favorably comparable to established thermal modalities [23].
  • Critical Appraisal: The main limitation of the first-generation system was the lack of integration with electroanatomical mapping (“blind” procedure), necessitating heavy fluoroscopy use. While the “single-shot” approach is fast, it lacks the feedback of contact force, relying entirely on catheter positioning to ensure field coverage.

5.2. Circular Loop Catheters (PulseSelect, Varipulse)

These devices integrate PFA into familiar circular mapping geometries, appealing to operators accustomed to RF workflows.
  • PulseSelect (Medtronic): This fixed-diameter loop was evaluated in the PULSED AF trial, achieving 66% freedom from arrhythmia at one year [20]. While safety was exceptional (0% esophageal/phrenic injury), the efficacy was slightly lower than historical thermal benchmarks, likely due to the learning curve and the fixed loop size not fitting all anatomies.
  • Varipulse (Biosense Webster): This variable-loop catheter integrates fully with the CARTO 3 system. The INSPIRE trial reported 100% acute isolation and zero primary adverse events [24]. The integration with 3D mapping allows for “lesion tagging”, addressing the “blindness” of earlier systems and potentially reducing gap formation.

5.3. Balloon-Based Systems (Volt, OptiShot)

Combining balloon stability with PFA energy aims to ensure optimal contact and blood displacement (blood shunts electrical current, reducing efficacy).
  • Volt (Abbott): Uses a “balloon-in-basket” design to insulate the blood pool while splines deliver energy [25].
  • OptiShot (Galvanize): Incorporates the direct endoscopic visualization of laser balloons. This addresses a critical PFA challenge: verifying tissue contact. Visual confirmation of blood displacement could theoretically improve lesion transmurality assurance [26].

5.4. Focal/Lattice-Tip Catheters (Sphere-9)

The Sphere-9 (Affera/Medtronic) features a lattice tip capable of delivering both PFA and RF. The SPHERE Per-AF trial indicated high efficacy in persistent AF [27].
  • Critical Appraisal: This device provides maximum flexibility for treating non-PV triggers (e.g., mitral lines, localized reentry) where single-shot tools fail. However, point-by-point PFA is slower than single-shot approaches, negating the “speed” advantage of PFA, but offering a comprehensive tool for complex substrates.

6. Nanosecond PFA: Theoretical Advantages vs. Clinical Reality

Current clinical PFA systems operate in the microsecond range. Nanosecond PFA (nsPFA) utilizes pulses of significantly shorter duration (e.g., 200–600 ns). The theoretical benefit rests on the chronaxie principle: pulses are too short to recruit skeletal muscle, potentially eliminating the vigorous muscle contraction seen with microsecond PFA [28]. Furthermore, shorter pulses may reduce the electrolysis responsible for microbubble formation. While promising, nsPFA is currently in the preclinical and early feasibility stage. It remains to be seen if the reduced muscle capture translates to equivalent lesion durability in large-scale human cohorts compared to more aggressive microsecond protocols [29].

7. Safety Profile: A Multi-Energy Comparative Analysis

Safety in AF ablation is an inevitable trade-off. No single energy source is entirely devoid of risk; rather, the risk profile shifts to different organ systems depending on the physical modality used.

7.1. Collateral Damage: Esophagus and Phrenic Nerve

Thermal energy sources carry the highest historical burden of collateral damage due to indiscriminate heat or cold propagation. Radiofrequency ablation is associated with a low but potentially lethal risk of atrio-esophageal fistula (0.02–0.11%), a complication that remains a primary concern despite esophageal temperature monitoring. Similarly, cryoballoon ablation is associated with phrenic nerve palsy in 2–4% of cases, necessitating continuous diaphragmatic pacing during right-sided procedures [17].
Conversely, PFA demonstrates a distinct safety advantage in this domain. Large-scale registries such as MANIFEST-PF report a near-zero incidence of esophageal fistulas and persistent phrenic palsy [23]. This clinical reality confirms the biophysical “tissue selectivity” of electroporation, which spares the collagen-rich esophageal wall and myelinated nerve axons. However, operators must remain vigilant, as transient phrenic stunning can still occur if the electric field is applied directly to the nerve.

7.2. Neurological Safety: Thromboembolism and Microbubbles

Cerebral embolic risk is a shared concern across all modalities, although the underlying mechanisms differ significantly. For RF and Laser ablation, the risk primarily originates from char formation (denatured protein) or thromboembolism related to long sheath times. Cryoballoon ablation carries a specific, albeit rare, risk of air embolism during balloon insertion or exchange [30].
PFA introduces a novel mechanism: the generation of microbubbles via electrolysis and thermal fluid expansion. Early investigations raised concerns regarding high rates of “silent cerebral lesions” (SCL) on MRI. However, recent data utilizing optimized waveforms suggest that SCL rates (3–10%) are comparable to those observed with thermal ablation [31]. Consequently, no modality can currently be declared “neurologically risk-free.” Emerging nanosecond PFA (nsPFA) technologies may theoretically reduce bubble formation, but definitive clinical validation is pending.

7.3. Vascular Complications: Stenosis vs. Spasm

The vascular risk profile also varies by energy type. Thermal modalities (RF and Cryo) are historically associated with pulmonary vein stenosis caused by inflammation and collagen retraction at the ostium. While rare in modern practice, it remains a structural risk if ablation is performed too deeply.
Conversely, PFA spares the collagen matrix, significantly reducing the risk of structural stenosis [32]. However, it introduces a functional complication: coronary vasospasm. Severe spasm has been reported during mitral isthmus ablation due to smooth muscle stimulation or receptor activation [33]. Unlike the permanent structural damage of stenosis, PFA-induced spasm is typically reversible with nitrates, yet it represents a new clinical entity requiring specific pharmacological protocols and vigilance during linear ablation.

7.4. Mechanical Complications: Pericardial Effusion

Regardless of the energy source, mechanical complications such as cardiac tamponade remain a persistent risk (typically 1–2%) related to transseptal access and catheter manipulation. While PFA may reduce the risk of ‘steam pops’ compared to RF, the requirement for larger-diameter sheaths and the learning curve for new catheter geometries necessitate continued vigilance regarding mechanical cardiac injury.

8. Real-World Challenges: The Operator’s Perspective

Beyond the controlled environment of pivotal trials, the daily clinical implementation reveals distinct operational challenges that differentiate the energy sources. Procedural efficiency, safety considerations, economic implications, and real-world implementation challenges across AF ablation modalities are synthesised in Table 3 and Table 4.

8.1. Workflow and Anesthesia

Regarding workflow logistics, thermal modalities currently offer advantages in simplicity. RF and Cryoballoon procedures are routinely performed under conscious sedation in many high-volume centers, facilitating rapid turnover. In contrast, current microsecond PFA systems induce significant skeletal muscle contraction. To ensure catheter stability and patient comfort, many institutions mandate General Anesthesia (GA) with deep neuromuscular blockade. This requirement can negate the procedural speed advantage of PFA, as GA induction and emergence significantly add to the total room time. While nanosecond PFA aims to allow sedation-only workflows, for the present moment, thermal modalities often provide a more streamlined anesthetic pathway [34,35]. However, anesthesia protocols are evolving; some high-volume centers are moving toward conscious sedation for PFA by using modified pulse protocols, suggesting that GA may not be a permanent constraint but rather a center-specific preference that is currently evolving.

8.2. Lesion Quality Assessment

A similar divergence is observed in lesion quality assessment. RF ablation benefits from decades of validation, with metrics such as Contact Force (CF) and Ablation Index/LSI providing reliable surrogates for lesion durability [12]. Cryoballoon operators utilize time-to-isolation (TTI) and balloon nadir temperature as robust predictors of success [36].
PFA, however, currently suffers from a lack of direct feedback. There is no validated metric for lesion depth or durability; success relies heavily on catheter proximity and electrogram diminution. In areas of thick tissue, such as the left atrial roof or lateral ridge, the lack of “contact force” feedback means an operator may not know if a lesion is transmural until recurrence occurs. This “blindness” represents a significant gap in the current PFA workflow compared to the data-rich environment of modern RF mapping.

8.3. The “Learning Curve” Factor

The learning curve also varies substantially. Laser balloon ablation has historically presented a steep learning curve due to the manual manipulation required for the laser arc. RF ablation requires moderate skill development regarding catheter stability and point-by-point mapping. Conversely, both Cryoballoon and PFA share the advantage of being “single-shot” technologies with relatively short learning curves. However, PFA requires specific training regarding catheter manipulation (e.g., basket/flower transitions) to avoid air ingress or mechanical trauma, a skill set distinct from the passive inflation of a cryoballoon [37,38].
Table 3. Procedural Efficiency, Safety, and Economic Comparison of AF Ablation Modalities.
Table 3. Procedural Efficiency, Safety, and Economic Comparison of AF Ablation Modalities.
AspectRF (Standard)CryoballoonPFA (Microsecond)nsPFA (Nanosecond, Emerging)Notes/Evidence
Average Procedural Time90–120 min60–90 min45–60 min<45 min (preclinical/estimated)PFA reduces “skin-to-skin” time, improving lab throughput [39]
Workflow ComplexityHigh
point-by-point, operator dependent		Medium
single-shot, vein occlusion required		Low
reproducible single-shot isolation		Very low
potential sedation-only workflow		Lower complexity allows higher daily case volumes
Device Cost (per procedure)Low-MediumMediumHighHigh (next-gen)PFA devices cost more, but reduce downstream costs [40,41]
Redo/Retreatment Rate10–20%10–15%5–10%Estimated < 5%Durable lesions reduce need for repeat procedures [39,41]
Major ComplicationsAEF, PV stenosis, char (1–2%)Phrenic nerve palsy (2–4%), PV stenosisRare-minimal AEF, PV stenosisExpected lower than microsecond PFAPFA’s tissue selectivity reduces collateral injury [22,23]
Microbubble/Embolic RiskModerateLowLow (3–10%)MinimalnsPFA may reduce electrolysis-related microbubbles [28]
Total Cost of CareMedium-HighMediumCompetitiveCompetitiveIncludes hospital stay, anesthesia, management of complications
Economic AdvantageLimitedModerateHigh–faster
workflow		High-additional savings with sedationICER within willingness-to-pay thresholds for PFA [39]
Table 4. Comparative Real-World Challenges.
Table 4. Comparative Real-World Challenges.
ChallengeThermal Modalities (RF/Cryo/Laser)Pulsed-Field Ablation (PFA)
AnesthesiaOften feasible with Conscious Sedation.Often requires General Anesthesia (muscle capture).
Lesion FeedbackGood: Contact Force (RF), Temperature/Time (Cryo), Visual (Laser).Poor: No direct metric for depth; relies on electrogram reduction.
AnatomyCryo/Laser: Limited by vein size/shape (occlusion). RF: Highly adaptable.Single-shot PFA: Limited by spline/loop contact. Focal PFA: Adaptable.
VascularRisk of PV Stenosis (structural damage).Risk of Coronary Spasm (functional effect).
Learning CurveRF/Laser: Steep/Moderate.PFA: Short (comparable to Cryo).

9. Economic Analysis: The Value Equation

As healthcare systems face increasing financial pressure, the choice of energy source is often dictated by health economics, specifically the trade-off between device cost and procedural efficiency.

9.1. Direct Costs vs. Efficiency

From a direct cost perspective, thermal catheters (RF and Cryo) have become commodities with stable or declining prices. However, these procedures typically require longer lab occupancy (90–120 min). PFA catheters command a significant price premium, which manufacturers justify through the “efficiency dividend”-the ability to complete procedures in under 60 min. Specifically, while PFA catheters often command a price 2–3 times higher than standard RF tools, recent analyses suggest the Incremental Cost-Effectiveness Ratio (ICER) remains favorable if procedural throughput increases by 20–30%.
Recent analyses by Neužil et al. (2025) support the cost-effectiveness of PFA in high-volume, efficiency-driven systems where time saved translates directly into additional reimbursable cases [39]. However, Soleimani et al. (2025) [40] provide a crucial counterpoint: in fixed-budget systems (common in many European public hospitals), a shorter procedure does not automatically save money. If the lab cannot perform an extra case due to staffing or bed shortages, the higher upfront cost of the PFA catheter represents a net financial loss compared to thermal options.

9.2. Long-Term Value: The Cost of Recurrence

The ultimate economic driver in AF management is the rate of redo procedures. With recurrence rates for paroxysmal AF remaining between 15–25% for thermal modalities, the long-term value of PFA hinges on its durability. If PFA can consistently demonstrate superior long-term freedom from arrhythmia, as suggested by the ADVENT economic analysis, the reduction in costly redo procedures would justify the higher initial investment (lower Incremental Cost-Effectiveness Ratio) [41]. Consequently, economic viability is highly context dependent: high-volume centers may leverage PFA’s speed for profit, while cost-constrained centers may find optimized thermal ablation (e.g., vHPSD RF or Cryo) to be the more sustainable standard.

10. Conclusions

The landscape of AF ablation has evolved into a multi-polar energy ecosystem. Radiofrequency remains the most versatile tool for complex substrates, enhanced by vHPSD technology. Cryoballoon and Laser Balloon remain robust, efficient, and cost-effective standards for pulmonary vein isolation with massive longitudinal data. Pulsed-Field Ablation represents a transformative leap in safety, minimizing collateral risks to the esophagus and nerves, but introduces new challenges regarding anesthesia, visualization, and cost.
The “best” energy source does not exist in isolation. The future of electrophysiology lies in a tailored approach: utilizing PFA for speed and safety in straightforward anatomies, while retaining thermal modalities for cost-containment or complex substrate modification where feedback metrics (like contact force) are paramount.

Author Contributions

Conceptualization, C.M. and G.M.; methodology, C.M., J.O. and A.S.; writing—original draft preparation, C.M., G.M. and A.S.; writing—review and editing, M.C. and A.A.; visualization, A.C.; supervision, I.D. and M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lippi, G.; Sanchis-Gomar, F.; Cervellin, G. Global Epidemiology of Atrial Fibrillation: An Increasing Epidemic and Public Health Challenge. Int. J. Stroke 2021, 16, 217–221. [Google Scholar] [CrossRef]
  2. Van Gelder, I.C.; Rienstra, M.; Bunting, K.V.; Casado-Arroyo, R.; Caso, V.; Crijns, H.J.G.M.; De Potter, T.J.R.; Dwight, J.; Guasti, L.; Hanke, T.; et al. 2024 ESC Guidelines for the Management of Atrial Fibrillation Developed in Collaboration with the European Association for Cardio-Thoracic Surgery (EACTS). Eur. Heart J. 2024, 45, 3314–3414. [Google Scholar] [CrossRef] [PubMed]
  3. Kirchhof, P.; Camm, A.J.; Goette, A.; Brandes, A.; Eckardt, L.; Elvan, A.; Fetsch, T.; van Gelder, I.C.; Haase, D.; Haegeli, L.M.; et al. Early Rhythm-Control Therapy in Patients with Atrial Fibrillation. N. Engl. J. Med. 2020, 383, 1305–1316. [Google Scholar] [CrossRef] [PubMed]
  4. Andrade, J.G.; Wells, G.A.; Deyell, M.W.; Bennett, M.; Essebag, V.; Champagne, J.; Roux, J.-F.; Yung, D.; Skanes, A.; Khaykin, Y.; et al. Cryoablation or Drug Therapy for Initial Treatment of Atrial Fibrillation. N. Engl. J. Med. 2021, 384, 305–315. [Google Scholar] [CrossRef]
  5. Wazni, O.M.; Dandamudi, G.; Sood, N.; Hoyt, R.; Tyler, J.; Durrani, S.; Niebauer, M.; Makati, K.; Halperin, B.; Gauri, A.; et al. Cryoballoon Ablation as Initial Therapy for Atrial Fibrillation. N. Engl. J. Med. 2021, 384, 316–324. [Google Scholar] [CrossRef] [PubMed]
  6. Haïssaguerre, M.; Jaïs, P.; Shah, D.C.; Takahashi, A.; Hocini, M.; Quiniou, G.; Garrigue, S.; Le Mouroux, A.; Le Métayer, P.; Clémenty, J. Spontaneous Initiation of Atrial Fibrillation by Ectopic Beats Originating in the Pulmonary Veins. N. Engl. J. Med. 1998, 339, 659–666. [Google Scholar] [CrossRef]
  7. Kapur, S.; Barbhaiya, C.; Deneke, T.; Michaud, G.F. Esophageal Injury and Atrioesophageal Fistula Caused by Ablation for Atrial Fibrillation. Circulation 2017, 136, 1247–1255. [Google Scholar] [CrossRef]
  8. Fender, E.A.; Widmer, R.J.; Hodge, D.O.; Cooper, G.M.; Monahan, K.H.; Peterson, L.A.; Holmes, D.R.; Packer, D.L. Severe Pulmonary Vein Stenosis Resulting From Ablation for Atrial Fibrillation. Circulation 2016, 134, 1812–1821. [Google Scholar] [CrossRef]
  9. Reddy, V.Y.; Koruth, J.; Jais, P.; Petru, J.; Timko, F.; Skalsky, I.; Hebeler, R.; Labrousse, L.; Barandon, L.; Kralovec, S.; et al. Ablation of Atrial Fibrillation With Pulsed Electric Fields: An Ultra-Rapid, Tissue-Selective Modality for Cardiac Ablation. JACC Clin. Electrophysiol. 2018, 4, 987–995. [Google Scholar] [CrossRef]
  10. Brasca, F.M.; Curti, E.; Perego, G.B. Thermal and Non-Thermal Energies for Atrial Fibrillation Ablation. J. Clin. Med. 2025, 14, 2071. [Google Scholar] [CrossRef]
  11. Haines, D.E. The Biophysics of Radiofrequency Catheter Ablation in the Heart: The Importance of Temperature Monitoring. Pacing Clin. Electrophysiol. 1993, 16, 586–591. [Google Scholar] [CrossRef] [PubMed]
  12. Shurrab, M.; Di Biase, L.; Briceno, D.F.; Kaoutskaia, A.; Haj-Yahia, S.; Newman, D.; Lashevsky, I.; Nakagawa, H.; Crystal, E. Impact of Contact Force Technology on Atrial Fibrillation Ablation: A Meta-Analysis. J. Am. Heart Assoc. 2015, 4, e002476. [Google Scholar] [CrossRef] [PubMed]
  13. Ravi, V.; Poudyal, A.; Abid, Q.-U.-A.; Larsen, T.; Krishnan, K.; Sharma, P.S.; Trohman, R.G.; Huang, H.D. High-Power Short Duration vs. Conventional Radiofrequency Ablation of Atrial Fibrillation: A Systematic Review and Meta-Analysis. EP Eur. 2021, 23, 710–721. [Google Scholar] [CrossRef]
  14. Heeger, C.-H.; Kuck, K.-H.; Tilz, R.R. Very High-Power Short-Duration Catheter Ablation for Treatment of Cardiac Arrhythmias: Insights from the FAST and FURIOUS Study Series. J. Cardiovasc. Electrophysiol. 2024, 35, 547–556. [Google Scholar] [CrossRef] [PubMed]
  15. Kuck, K.-H.; Brugada, J.; Fürnkranz, A.; Metzner, A.; Ouyang, F.; Chun, K.R.J.; Elvan, A.; Arentz, T.; Bestehorn, K.; Pocock, S.J.; et al. Cryoballoon or Radiofrequency Ablation for Paroxysmal Atrial Fibrillation. N. Engl. J. Med. 2016, 374, 2235–2245. [Google Scholar] [CrossRef] [PubMed]
  16. Su, W.; Kowal, R.; Kowalski, M.; Metzner, A.; Svinarich, J.T.; Wheelan, K.; Wang, P. Best Practice Guide for Cryoballoon Ablation in Atrial Fibrillation: The Compilation Experience of More than 3000 Procedures. Heart Rhythm 2015, 12, 1658–1666. [Google Scholar] [CrossRef]
  17. Murray, M.-I.; Arnold, A.; Younis, M.; Varghese, S.; Zeiher, A.M. Cryoballoon versus Radiofrequency Ablation for Paroxysmal Atrial Fibrillation: A Meta-Analysis of Randomized Controlled Trials. Clin. Res. Cardiol. 2018, 107, 658–669. [Google Scholar] [CrossRef]
  18. Dukkipati, S.R.; Cuoco, F.; Kutinsky, I.; Aryana, A.; Bahnson, T.D.; Lakkireddy, D.; Woollett, I.; Issa, Z.F.; Natale, A.; Reddy, V.Y.; et al. Pulmonary Vein Isolation Using the Visually Guided Laser Balloon: A Prospective, Multicenter, and Randomized Comparison to Standard Radiofrequency Ablation. J. Am. Coll. Cardiol. 2015, 66, 1350–1360. [Google Scholar] [CrossRef]
  19. Martignani, C.; Rovaris, G.; Tilz, R.R.; Schiavone, M.; Ciconte, G.; Giaccardi, M.; Miracapillo, G.; Giomi, A.; Arena, G.; Spadotto, A.; et al. Atrial Fibrillation Laser Balloon Ablation: Multicenter International Study. Heart Rhythm O2 2025, 6, 1870–1876. [Google Scholar] [CrossRef]
  20. Verma, A.; Haines, D.E.; Boersma, L.V.; Sood, N.; Natale, A.; Marchlinski, F.E.; Calkins, H.; Sanders, P.; Packer, D.L.; Kuck, K.-H.; et al. Pulsed Field Ablation for the Treatment of Atrial Fibrillation: PULSED AF Pivotal Trial. Circulation 2023, 147, 1422–1432. [Google Scholar] [CrossRef]
  21. Koruth, J.S.; Kuroki, K.; Kawamura, I.; Brose, R.; Viswanathan, R.; Buck, E.D.; Donskoy, E.; Neuzil, P.; Dukkipati, S.R.; Reddy, V.Y. Pulsed Field Ablation Versus Radiofrequency Ablation: Esophageal Injury in a Novel Porcine Model. Circ. Arrhythmia Electrophysiol. 2020, 13, e008303. [Google Scholar] [CrossRef]
  22. Reddy, V.Y.; Gerstenfeld, E.P.; Natale, A.; Whang, W.; Cuoco, F.A.; Patel, C.; Mountantonakis, S.E.; Gibson, D.N.; Harding, J.D.; Ellis, C.R.; et al. Pulsed Field or Conventional Thermal Ablation for Paroxysmal Atrial Fibrillation. N. Engl. J. Med. 2023, 389, 1660–1671. [Google Scholar] [CrossRef]
  23. Turagam, M.K.; Neuzil, P.; Schmidt, B.; Reichlin, T.; Neven, K.; Metzner, A.; Hansen, J.; Blaauw, Y.; Maury, P.; Arentz, T.; et al. Safety and Effectiveness of Pulsed Field Ablation to Treat Atrial Fibrillation: One-Year Outcomes From the MANIFEST-PF Registry. Circulation 2023, 148, 35–46. [Google Scholar] [CrossRef]
  24. Duytschaever, M.; De Potter, T.; Grimaldi, M.; Anic, A.; Vijgen, J.; Neuzil, P.; Van Herendael, H.; Verma, A.; Skanes, A.; Scherr, D.; et al. Paroxysmal Atrial Fibrillation Ablation Using a Novel Variable-Loop Biphasic Pulsed Field Ablation Catheter Integrated With a 3-Dimensional Mapping System: 1-Year Outcomes of the Multicenter inspIRE Study. Circ. Arrhythmia Electrophysiol. 2023, 16, e011780. [Google Scholar] [CrossRef] [PubMed]
  25. Tilz, R.R.; Chierchia, G.B.; Gunawardene, M.; Sanders, P.; Haqqani, H.; Kalman, J.; Healy, S.; Pürerfellner, H.; Neuzil, P.; Asensi, J.O.; et al. Safety and Effectiveness of the First Balloon-in-Basket Pulsed Field Ablation System for the Treatment of Atrial Fibrillation: VOLT CE Mark Study 6-Month Results. EP Eur. 2025, 27, euaf072. [Google Scholar] [CrossRef] [PubMed]
  26. CardioFocus. Pulmonary Vein Isolation with the Single Shot Endoscopic Ultra-Compliant Pulsed Field Ablation Balloon for the Treatment of Atrial Fibrillation; ClinicalTrials.gov: Bethesda, MD, USA, 2025.
  27. Anter, E.; Mansour, M.; Nair, D.G.; Sharma, D.; Taigen, T.L.; Neuzil, P.; Kiehl, E.L.; Kautzner, J.; Osorio, J.; Mountantonakis, S.; et al. Dual-Energy Lattice-Tip Ablation System for Persistent Atrial Fibrillation: A Randomized Trial. Nat. Med. 2024, 30, 2303–2310. [Google Scholar] [CrossRef] [PubMed]
  28. Nies, M.; Watanabe, K.; Kawamura, I.; Wang, B.J.; Litt, J.; Turovskiy, R.; Danitz, D.J.; Uecker, D.R.; Linder, K.E.; Maejima, Y.; et al. Ablating Myocardium Using Nanosecond Pulsed Electric Fields: Preclinical Assessment of Feasibility, Safety, and Durability. Circ. Arrhythmia Electrophysiol. 2024, 17, e012854. [Google Scholar] [CrossRef]
  29. Xie, F.; Varghese, F.; Pakhomov, A.G.; Semenov, I.; Xiao, S.; Philpott, J.; Zemlin, C. Ablation of Myocardial Tissue With Nanosecond Pulsed Electric Fields. PLoS ONE 2015, 10, e0144833. [Google Scholar] [CrossRef]
  30. Di Biase, L.; Gaita, F.; Toso, E.; Santangeli, P.; Mohanty, P.; Rutledge, N.; Yan, X.; Mohanty, S.; Trivedi, C.; Bai, R.; et al. Does Periprocedural Anticoagulation Management of Atrial Fibrillation Affect the Prevalence of Silent Thromboembolic Lesion Detected by Diffusion Cerebral Magnetic Resonance Imaging in Patients Undergoing Radiofrequency Atrial Fibrillation Ablation with Open Irrigated Catheters? Results from a Prospective Multicenter Study. Heart Rhythm 2014, 11, 791–798. [Google Scholar] [CrossRef]
  31. Hu, X.; Li, W.; Ren, B.; Zeng, R. Incidence of Silent Cerebral Events Detected by MRI in Patients with Atrial Fibrillation Undergoing Pulsed Field Ablation vs Thermal Ablation: A Systematic Review and Network Meta-Analysis. Heart Rhythm 2025, 23, 32–43. [Google Scholar] [CrossRef]
  32. Kuroki, K.; Whang, W.; Eggert, C.; Lam, J.; Leavitt, J.; Kawamura, I.; Reddy, A.; Morrow, B.; Schneider, C.; Petru, J.; et al. Ostial Dimensional Changes after Pulmonary Vein Isolation: Pulsed Field Ablation vs Radiofrequency Ablation. Heart Rhythm 2020, 17, 1528–1535. [Google Scholar] [CrossRef]
  33. Gunawardene, M.A.; Schaeffer, B.N.; Jularic, M.; Eickholt, C.; Maurer, T.; Akbulak, R.Ö.; Flindt, M.; Anwar, O.; Hartmann, J.; Willems, S. Coronary Spasm During Pulsed Field Ablation of the Mitral Isthmus Line. JACC Clin. Electrophysiol. 2021, 7, 1618–1620. [Google Scholar] [CrossRef]
  34. Carboni, L.; Tondo, C.; Rossillo, A.; Polselli, M.; Themistoclakis, S.; Dello Russo, A.; Volpicelli, M.; Maggio, R.; Bertini, M.; De Simone, A.; et al. Sedation Protocols for Atrial Fibrillation Ablation Using Pulsed-Field Ablation: Patient and Operator-Reported Outcomes from a Large Nationwide Study. Europace 2025, 27, euaf085.383. [Google Scholar] [CrossRef]
  35. Heeger, C.-H.; Gassanov, N.; Mutallimov, M. Anaesthesia for Pulsed Field Ablation Procedures. Arrhythmia Electrophysiol. Rev. 2025, 14, e25. [Google Scholar] [CrossRef] [PubMed]
  36. Keçe, F.; de Riva, M.; Alizadeh Dehnavi, R.; Wijnmaalen, A.P.; Mertens, B.J.; Schalij, M.J.; Zeppenfeld, K.; Trines, S.A. Predicting Early Reconnection after Cryoballoon Ablation with Procedural and Biophysical Parameters. Heart Rhythm O2 2021, 2, 290–297. [Google Scholar] [CrossRef]
  37. Velagic, V.; Prepolec, I.; Pasara, V.; Puljevic, M.; Puljevic, D.; Planinc, I.; Samardzic, J.; Milicic, D. Learning Curves in Atrial Fibrillation Ablation—A Comparison between Second Generation Cryoballoon and Contact Force Sensing Radiofrequency Catheters. Indian Pacing Electrophysiol. J. 2020, 20, 273–280. [Google Scholar] [CrossRef]
  38. Kueffer, T.; King, R.; Maurhofer, J.; Iqbal, S.U.R.; Thalmann, G.; Kozhuharov, N.A.; Galuszka, O.; Servatius, H.; Haeberlin, A.; Noti, F.; et al. Beyond the Learning Curve: How Operator Experience Affects Pulsed-Field Ablation Outcomes. Heart Rhythm, 2025; in press. [Google Scholar] [CrossRef]
  39. Neužil, P.; Ferrero de Loma-Osorio, A.; Martínez Brotons, Á.; Bondanza Saavedra, L.; Mei, D.A.; Moučka, P.; Uffenorde, S.; Vieira Ruiz, J.; Boriani, G. Cost-Consequence Analysis of Three Cardiac Ablation Technologies in Paroxysmal Atrial Fibrillation. J. Med. Econ. 2025, 28, 1826–1839. [Google Scholar] [CrossRef] [PubMed]
  40. Soleimani, H.; Dastjerdi, P.; Mohammadi, N.S.H.; Shayesteh, H.; Yarmohammadi, H.; Mollazadeh, R. Cost Comparison of Pulsed Field Ablation and Conventional Thermal Ablation for Atrial Fibrillation: A Systematic Review. Pacing Clin. Electrophysiol. 2025. online ahead of print. [Google Scholar] [CrossRef]
  41. Padula, W.V.; Paffrath, A.; Jacobsen, C.M.; Cohen, B.G.; Nadboy, R.; Sutton, B.S.; Gerstenfeld, E.P.; Mansour, M.; Reddy, V.Y. Comparing Pulsed Field Ablation and Thermal Energy Catheter Ablation for Paroxysmal Atrial Fibrillation: A Cost-Effectiveness Analysis of the ADVENT Trial. J. Med. Econ. 2025, 28, 127–135. [Google Scholar] [CrossRef]
Jcm 15 00751 g001

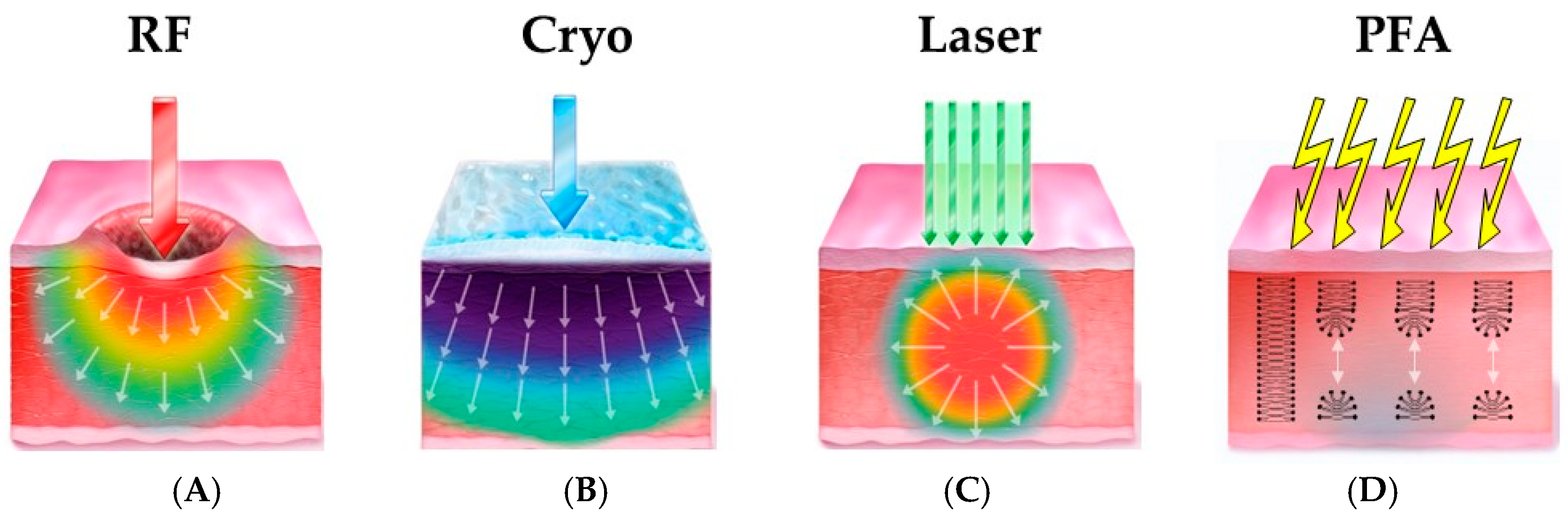

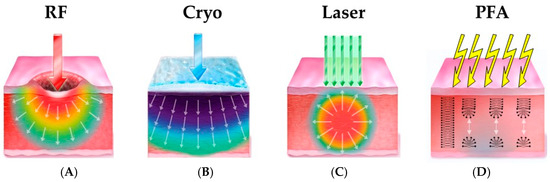

Figure 1. Biophysical mechanisms of lesion formation across ablation modalities. (A) Radiofrequency (RF): Lesions are created via resistive heating at the catheter tip and passive conductive heating into deeper tissue, causing coagulative necrosis. Note the potential for thermal spread to collateral structures. (B) Cryoballoon: Utilizes the Joule-Thomson effect to freeze tissue, causing intracellular ice crystal formation and microvascular stasis (freeze-thaw injury). Efficacy relies on balloon occlusion. (C) Laser Balloon: Delivers photothermal energy (980-nm diode) directed visually. Light is absorbed by tissue water, converting to heat. (D) Pulsed-Field Ablation (PFA): Uses high-voltage microsecond or nanosecond pulses to create an electric field. This causes dielectric breakdown of the cell membrane, forming permanent nanopores (irreversible electroporation). The mechanism is non-thermal and tissue-selective, sparing the extracellular matrix and adjacent nerves.
Figure 1. Biophysical mechanisms of lesion formation across ablation modalities. (A) Radiofrequency (RF): Lesions are created via resistive heating at the catheter tip and passive conductive heating into deeper tissue, causing coagulative necrosis. Note the potential for thermal spread to collateral structures. (B) Cryoballoon: Utilizes the Joule-Thomson effect to freeze tissue, causing intracellular ice crystal formation and microvascular stasis (freeze-thaw injury). Efficacy relies on balloon occlusion. (C) Laser Balloon: Delivers photothermal energy (980-nm diode) directed visually. Light is absorbed by tissue water, converting to heat. (D) Pulsed-Field Ablation (PFA): Uses high-voltage microsecond or nanosecond pulses to create an electric field. This causes dielectric breakdown of the cell membrane, forming permanent nanopores (irreversible electroporation). The mechanism is non-thermal and tissue-selective, sparing the extracellular matrix and adjacent nerves.
Jcm 15 00751 g001
Jcm 15 00751 g002

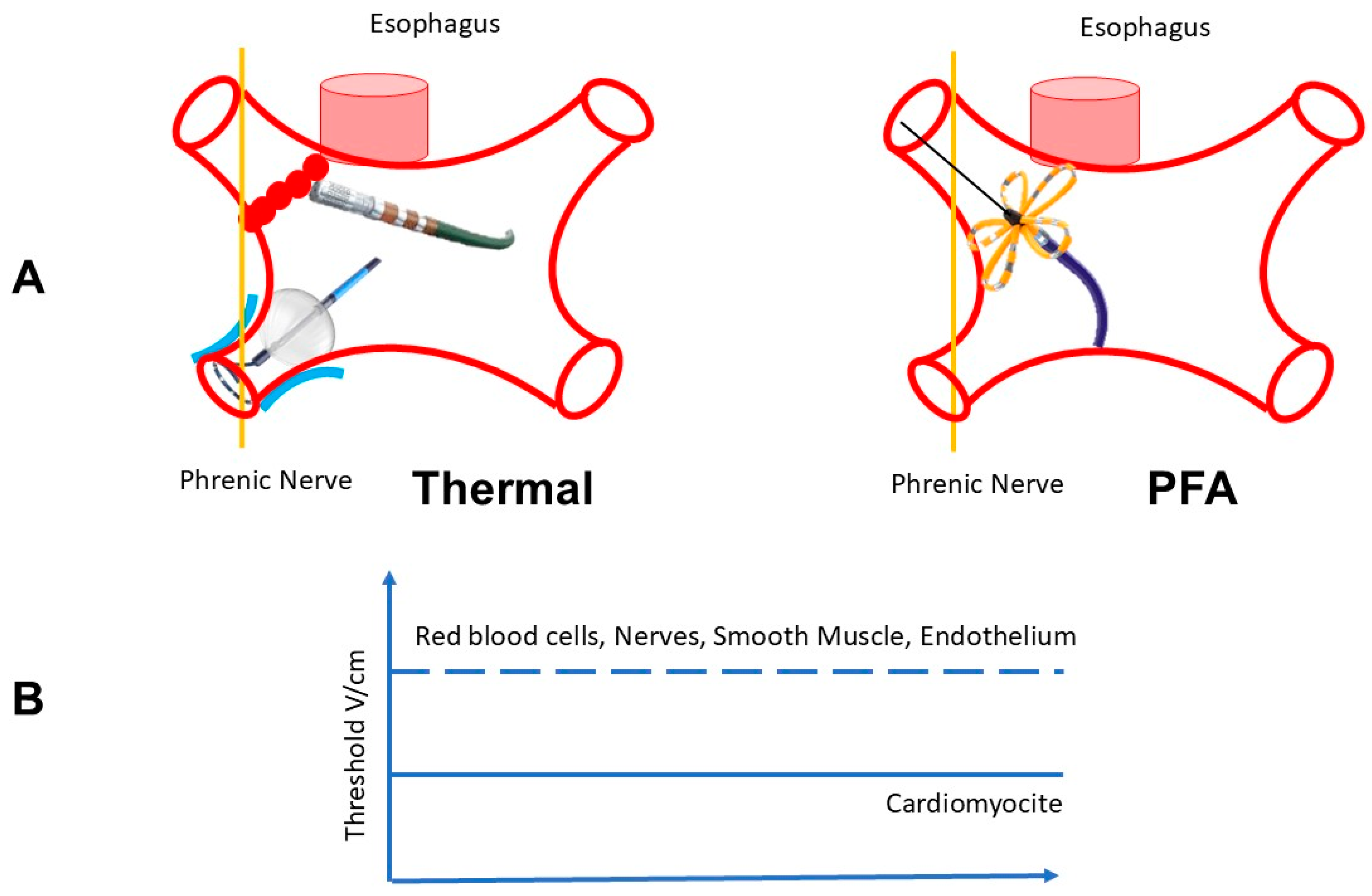

Figure 2. Tissue selectivity and the concept of the therapeutic window. (A) Anatomical Comparison: Cross-sectional view of the posterior left atrial wall and adjacent esophagus. Left (Thermal): Radiofrequency or Cryo energy propagates indiscriminately through tissue conductivity. If the lesion extends beyond the myocardium, it causes collateral thermal injury to the esophageal wall (risk of atrio-esophageal fistula). Right (PFA): The electric field penetrates both tissues. However, while cardiomyocytes undergo irreversible electroporation (necrosis), the esophageal smooth muscle and nerve axons possess a higher threshold for damage, remaining structurally intact despite exposure to the field. (B) The Therapeutic Window: Graphic representation of cell susceptibility to electric fields. Cardiomyocytes (solid line) are larger and more sensitive, undergoing cell death at lower field strengths (e.g., 400–1000 V/cm). Collateral tissues like nerves and blood vessels (dashed line) require significantly higher field strengths to suffer irreversible damage. The operational range of clinical PFA devices targets this “Therapeutic Window”, ensuring myocardial ablation while sparing collateral structures.
Figure 2. Tissue selectivity and the concept of the therapeutic window. (A) Anatomical Comparison: Cross-sectional view of the posterior left atrial wall and adjacent esophagus. Left (Thermal): Radiofrequency or Cryo energy propagates indiscriminately through tissue conductivity. If the lesion extends beyond the myocardium, it causes collateral thermal injury to the esophageal wall (risk of atrio-esophageal fistula). Right (PFA): The electric field penetrates both tissues. However, while cardiomyocytes undergo irreversible electroporation (necrosis), the esophageal smooth muscle and nerve axons possess a higher threshold for damage, remaining structurally intact despite exposure to the field. (B) The Therapeutic Window: Graphic representation of cell susceptibility to electric fields. Cardiomyocytes (solid line) are larger and more sensitive, undergoing cell death at lower field strengths (e.g., 400–1000 V/cm). Collateral tissues like nerves and blood vessels (dashed line) require significantly higher field strengths to suffer irreversible damage. The operational range of clinical PFA devices targets this “Therapeutic Window”, ensuring myocardial ablation while sparing collateral structures.
Jcm 15 00751 g002
Jcm 15 00751 g003
Figure 3. Comprehensive overview of ablation catheter technologies. (A) Radiofrequency (RF) Catheter: Standard point-by-point irrigated catheter equipped with contact force-sensing technology for titrated energy delivery. (B) Cryoballoon: Balloon-based platform designed for circumferential pulmonary vein isolation using cryothermal energy (Joule-Thomson effect). (C) Laser Balloon: Visually guided compliant balloon featuring a rotatable laser arc for point-by-point thermal ablation under direct endoscopic visualization. (D) Pentaspline PFA Catheter (e.g., Farawave): Shown in the “flower” configuration deployed for antral isolation; it can also be retracted into a “basket” for ostial stability. (E) Fixed Circular PFA Loop (e.g., PulseSelect): A multi-electrode loop on a tilted shaft designed for “single-shot” pulsed-field delivery. (F) Variable PFA Loop (e.g., Varipulse): An adjustable-diameter loop integrated with 3D electro-anatomical mapping systems for real-world lesion tagging. (G) Visually Guided Compliant PFA Balloon (e.g., OptiShot): Features electrodes on the balloon surface and an endoscopic camera for direct verification of tissue contact. (H) Balloon-in-Basket PFA (e.g., Volt): Combines an inner occlusion balloon for blood flow insulation with outer splines for targeted energy delivery. (I) Focal Lattice-Tip (e.g., Sphere-9): A compressible mesh-tip catheter capable of delivering both PFA and RF for versatile point-by-point ablation.
Figure 3. Comprehensive overview of ablation catheter technologies. (A) Radiofrequency (RF) Catheter: Standard point-by-point irrigated catheter equipped with contact force-sensing technology for titrated energy delivery. (B) Cryoballoon: Balloon-based platform designed for circumferential pulmonary vein isolation using cryothermal energy (Joule-Thomson effect). (C) Laser Balloon: Visually guided compliant balloon featuring a rotatable laser arc for point-by-point thermal ablation under direct endoscopic visualization. (D) Pentaspline PFA Catheter (e.g., Farawave): Shown in the “flower” configuration deployed for antral isolation; it can also be retracted into a “basket” for ostial stability. (E) Fixed Circular PFA Loop (e.g., PulseSelect): A multi-electrode loop on a tilted shaft designed for “single-shot” pulsed-field delivery. (F) Variable PFA Loop (e.g., Varipulse): An adjustable-diameter loop integrated with 3D electro-anatomical mapping systems for real-world lesion tagging. (G) Visually Guided Compliant PFA Balloon (e.g., OptiShot): Features electrodes on the balloon surface and an endoscopic camera for direct verification of tissue contact. (H) Balloon-in-Basket PFA (e.g., Volt): Combines an inner occlusion balloon for blood flow insulation with outer splines for targeted energy delivery. (I) Focal Lattice-Tip (e.g., Sphere-9): A compressible mesh-tip catheter capable of delivering both PFA and RF for versatile point-by-point ablation.
Jcm 15 00751 g003
Table 1. Biophysical and Safety Comparison of Ablation Modalities.
Table 1. Biophysical and Safety Comparison of Ablation Modalities.
ModalityEnergy
Mechanism		Target
Selectivity		Muscle CaptureMicrobubblesEsophageal RiskHemolysis RiskCoronary Spasm Risk
RF (Standard)Resistive + Conductive HeatingLowNoLowModerateLowLow
vHPSD RFPredominantly Resistive HeatingModerateNoLowLow-ModerateLowLow
CryoballoonFreezing
(Joule-Thomson)		LowNoNoneLowLowLow
Laser BalloonPhotothermal HeatingLowNoLowLow-ModerateLowLow
PFA (Microsecond)Irreversible
Electroporation		High
(Myocardium)		Yes (GA req)HighMinimalHighModerate
nsPFANanosecond
Electroporation		High
(Myocardium)		No (Sedation possible)MinimalMinimalLowLow
Table 2. Overview of PFA Catheter Geometries.
Table 2. Overview of PFA Catheter Geometries.
GeometryDeviceMapping
Integration		Key StrengthCritical Limitation
PentasplineFarawaveNo (Gen 1)/Yes (Gen 2)Extensive safety data (ADVENT)“Blind” procedure (Gen 1); fluoroscopy dependent
Circular LoopPulseSelectNoFamiliar shape for RF operatorsFixed diameter may not fit all ostia; lower efficacy in first gen
Variable LoopVaripulseYes (CARTO 3)Visualized tissue proximityMechanics of variable loop can be complex
Compliant BalloonOptiShotN/A (Visual)Direct Endoscopic ViewLearning curve for visual interpretation
Balloon-in-BasketVoltYes (EnSite)Insulation of blood poolVirtual visualization only (no direct view)
Focal LatticeSphere-9Yes (Mapping)Flexibility (Linear/Point)Slower (point-by-point); requires high skill
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Martignani, C.; Massaro, G.; Spadotto, A.; Oppimitti, J.; Carelli, M.; Angeletti, A.; Carecci, A.; Diemberger, I.; Biffi, M. Current and Emerging Energy Sources for Atrial Fibrillation Ablation: A Comparative Analysis of Clinical Efficacy, Safety, and Procedural Implementation. J. Clin. Med. 2026, 15, 751. https://doi.org/10.3390/jcm15020751

AMA Style

Martignani C, Massaro G, Spadotto A, Oppimitti J, Carelli M, Angeletti A, Carecci A, Diemberger I, Biffi M. Current and Emerging Energy Sources for Atrial Fibrillation Ablation: A Comparative Analysis of Clinical Efficacy, Safety, and Procedural Implementation. Journal of Clinical Medicine. 2026; 15(2):751. https://doi.org/10.3390/jcm15020751

Chicago/Turabian Style

Martignani, Cristian, Giulia Massaro, Alberto Spadotto, Jennifer Oppimitti, Maria Carelli, Andrea Angeletti, Alessandro Carecci, Igor Diemberger, and Mauro Biffi. 2026. "Current and Emerging Energy Sources for Atrial Fibrillation Ablation: A Comparative Analysis of Clinical Efficacy, Safety, and Procedural Implementation" Journal of Clinical Medicine 15, no. 2: 751. https://doi.org/10.3390/jcm15020751

APA Style

Martignani, C., Massaro, G., Spadotto, A., Oppimitti, J., Carelli, M., Angeletti, A., Carecci, A., Diemberger, I., & Biffi, M. (2026). Current and Emerging Energy Sources for Atrial Fibrillation Ablation: A Comparative Analysis of Clinical Efficacy, Safety, and Procedural Implementation. Journal of Clinical Medicine, 15(2), 751. https://doi.org/10.3390/jcm15020751

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
