Review

Reviewing the Genetic and Molecular Foundations of Congenital Spinal Deformities: Implications for Classification and Diagnosis

by
Diana Samarkhanova
1,
Maxat Zhabagin
1,* and
Nurbek Nadirov
1,2,*
1
National Center for Biotechnology, Astana 010000, Kazakhstan
2
Department of Orthopedics, Mother and Child Health Center, University Medical Center, Astana 010000, Kazakhstan
*
Authors to whom correspondence should be addressed.
J. Clin. Med. 2025, 14(4), 1113; https://doi.org/10.3390/jcm14041113
Submission received: 12 January 2025 / Revised: 3 February 2025 / Accepted: 7 February 2025 / Published: 9 February 2025
(This article belongs to the Special Issue Advances in Scoliosis, Spinal Deformity, and Other Spinal Disorders: 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Congenital spinal deformities (CSDs) are rare but severe conditions caused by abnormalities in vertebral development during embryogenesis. These deformities, including scoliosis, kyphosis, and lordosis, significantly impair patients’ quality of life and present challenges in diagnosis and treatment. This review integrates genetic, molecular, and developmental insights to provide a comprehensive framework for classifying and understanding CSDs. Traditional classification systems based on morphological criteria, such as failures in vertebral formation, segmentation, or mixed defects, are evaluated alongside newer molecular-genetic approaches. Advances in genetic technologies, including whole-exome sequencing, have identified critical genes and pathways involved in somitogenesis and sclerotome differentiation, such as TBX6, DLL3, and PAX1, as well as key signaling pathways like Wnt, Notch, Hedgehog, BMP, and TGF-β. These pathways regulate vertebral development, and their disruption leads to skeletal abnormalities. The review highlights the potential of molecular classifications based on genetic mutations and developmental stage-specific defects to enhance diagnostic precision and therapeutic strategies. Early diagnosis using non-invasive prenatal testing (NIPT) and emerging tools like CRISPR-Cas9 gene editing offer promising but ethically complex avenues for intervention. Limitations in current classifications and the need for further research into epigenetic and environmental factors are discussed. This study underscores the importance of integrating molecular genetics into clinical practice to improve outcomes for patients with CSDs.

1. Introduction

Congenital spinal deformities (CSDs) are disorders of the musculoskeletal system, characterized by abnormal development of the vertebral column at the embryonic stage. Morphologically, CSDs are divided into scoliosis, kyphosis, and lordosis. Congenital scoliosis (CS) is a lateral displacement of the spine that forms during the period of intrauterine development. A meta-analysis covering 101,548 children and adolescents shows that the prevalence rate of congenital scoliosis is about 0.215% [1]. There is a lack of information on the incidence rate since CS is a rare spinal deformity. Worldwide, the incidence rate of CS is between 0.5/1000 and 1/1000 births [2]. In a recent study conducted using the Korean Statistical Information Service database, the incidence of CS was 3.08 per 100,000 over the 5-year period [3,4]. The other two types of CSD based on morphology are kyphosis, backward curvature of the thoracic region, and lordosis, forward curvature of the lumbar and cervical spine, which are less common than congenital scoliosis [5].
Although congenital spinal anomalies are rare, they cause severe progressive pain syndromes, complicating the lives of patients with CSDs. Therefore, it is necessary to analyze the causes of congenital spinal deformities, which could allow early diagnosis and management to improve the lives of people with such conditions. Embryonic spine development is a complexly organized series of events. Gaining knowledge of these features will help to understand the pathogenesis of congenital spinal anomalies. Congenital spinal deformities represent a unique challenge in medical research and clinical practice, as they encompass a broad spectrum of genetic, molecular, and environmental factors. This review aims to integrate recent findings on the genetic and molecular underpinnings of these deformities, offering a comprehensive framework for their classification, diagnosis, and potential therapeutic strategies. The ultimate goal is to provide clinicians and researchers with an enhanced genetic understanding of the pathogenesis of CSDs and to equip them with the tools necessary to optimize patient outcomes.

2. Classification of Congenital Spinal Deformities

Nature of Vertebral Development Failure

Proper diagnosis, treatment, and research of congenital anomalies of the spine require the classification of CSDs. These deformities can be classified differently based on various criteria. CSDs can be classified based on the nature of vertebral development failure in the following three groups: formation failure, segmentation failure, and mixed type [6]. Formation failure includes wedge-shaped vertebrae (WSV), hemivertebrae (HV), butterfly vertebrae (BV), and vertebral aplasia (VA), characterized by the partial or complete absence of vertebral elements. WSV is characterized by asymmetrical development, in which one side of the vertebra is smaller than the other. The failure of one-half of the vertebral body to develop results in the formation of HV. The total absence of the vertebral body is known as the VA.
Segmentation failure is an absence of the segmented structure of the vertebral column due to partial or complete fusion of two or more vertebrae. This failure developed at the embryonic stage of the spinal column segmentation, which includes unilateral unsegmented bars and block vertebrae (Figure 1). Fusion of two or more adjacent vertebrae in one side identifies a unilateral nonsegmented spine, which results in vertebra rigidity and congenital scoliosis showing challenges for surgical treatment [7]. Block vertebra is the result of a segmentation failure associated with the fusion of two or more vertebrae due to a fibrous intervertebral junction or complete absence of the discoid structure [8].
The third classification group of CSDs is the mixed type, which includes cases with formation and segmentation failures simultaneously or anomalies that do not fit their descriptions. The vertebral formation anomalies are extremely variable in terms of severity, extent, and rate of progression of the deformation. The classification of CSDs into formation failure, segmentation failure, and mixed type was described in the late 20th century and was accepted worldwide [9]. However, the lack of resources and technologies used for the study and description of CSDs indicates the need for a new classification.
Later, in 2009, Kawakami and colleagues published a new classification of CSDs derived from the analysis of three-dimensional (3D) computer tomography images [9]. Novel classification considered 4 types of CSDs, including solitary simple (SS), multiple simple (MS), multiple complex (MC), and segmentation failure (SFK) (Table 1). SS describes an abnormal vertebra with a formation disorder, including HV, WSV, BV, and others. MS involves multiple anomalies of vertebrae resulting in CSD occurrence and is not related to the anterior and posterior structure relationship. A combination of HV, WSV, BV, discrete, adjacent, and other types constitutes the MS type. MC covers formation defects with some segmentation defects, while SFK only covers segmentation failure.
In 2018, Kawakami et al. proposed a modified classification for CSDs that categorizes these defects into formation failure, coupling failure, segmentation failure, and mixed failure [10]. Formation failure and segmentation failure are consistent with the same characteristics described by Winter et al. [6]. Novel classification differs from previous systems by the introduction of a coupling failure type. Coupling failure is characterized by the false coupling of somites resulting in the formation of contralateral hemivertebrae. Previously, such defects were classified as formation failure. Mixed failure covers coupling failure with segmentation or formation defects.
It is important to note that CSDs are highly variable, and their classification based on the nature of vertebral development failure may not be complete and precise. Limitations of the classifications of Winter et al. [6] and Kawakami et al. [9,10] are the presence of a group, such as ‘mixed type’ and ‘mixed complex’, which include cases that could not be classified into other categories due to a combination of defects. The presence of ‘mixed’ type categories poses challenges in the planning of treatment, prognosis, and research. Therefore, it is necessary to develop a classification system that reflects the complexity of CSDs.

3. Embryonic Development of the Vertebral Column

Congenital spinal deformities are serious conditions that require a comprehensive approach to diagnosis and treatment. Congenital scoliosis and other CSDs are formed during embryonic development. Understanding the processes of embryonic development of the spine and the risk factors that contribute to the occurrence of these pathologies is key to timely prevention and effective treatment. There are three main stages of the development of vertebrae: mesenchymal, cartilaginous, and bony stages. Vertebrae development involves notochord development, somite differentiation, sclerotome migration, chondrification, and ossification of the vertebrae [11]. The vertebrae development starts with notochord formation, where the paraxial mesoderm differentiates into the axial skeleton [12]. Somites, paired segmented structures that give rise to vertebrae, are formed from the paraxial mesoderm. The ventral region of the somite forms the sclerotome, which differentiates into vertebrae and ribs, and the dorsal region gives rise to the dermomyotome that forms the dermatome and myotome, forming the skin and muscles [13].
Sclerotome formation is regulated by the Sonic hedgehog (SHH) protein released from the neural tube floor plate and notochord [14,15]. Sclerotome cells migrate around the notochord and neural tube during the fourth week of embryonic development, which subsequently leads to the formation of cartilaginous tissue. SHH is expressed in the vertebral part of the developing vertebrae and triggers the PAX1 transcription factor (TF), which is crucial for sclerotome cells to acquire ventral and dorsal identities [16,17]. The synergistic work of PAX1 protein with other TFs, such as PAX9 and MFH1 proteins, leads to axial skeleton development (Figure 2). PAX1 protein is responsible for the differentiation of sclerotome cells into chondrocytes that form cartilage and somite segmentation [18]. On the dorsal side of the forming vertebrae, bone morphogenic proteins (BMPs) are involved in the bone and cartilage formation [19]. The result of SHH and BMP signaling is the formation of the dorsal and ventral sides of the vertebrae.
The second stage of vertebral development is the cartilaginous stage, in which chondrification centers appear in the 6th week of embryonic development. The final stage of spinal development is the skeletal stage, which begins at 8 weeks and is not completed until the mid-twenties. Between the 5th and 8th weeks of gestation, sclerotome cells differentiate into chondroblasts. This process of formation of cartilaginous models of the vertebrae is tightly controlled by HOX genes. HOX gene regulation is responsible for anterior–posterior positional information during vertebrate development and correct regionalization of the vertebrae in the vertebral column [20,21]. HOX genes provide spatial identity to developing tissues throughout the embryo. Mutations in these genes alter tissue identity within their expression domains, often in the anterior region.
To sum up, HOX genes provide regional identity to developing vertebrae, while SHH signaling controls PAX1 protein expression in the sclerotome. CSDs can result from mutations in any of these genes, which can cause a chain reaction that disrupts the balance of these interactions. Altered PAX1 expression levels caused by disrupted SHH signaling may result in defects in sclerotome differentiation. Similarly, changes in HOX gene expression may affect vertebral size, shape, and alignment by influencing the interpretation of PAX1 and SHH signals during vertebral development. The complex interactions between these genes highlight the importance of carefully regulating them during embryogenesis to avoid congenital defects.

4. Genetic Basis of Spinal Deformities

Congenital spinal deformities are usually the result of genetic mutations, such as those seen in Marfan syndrome [22], Klippel–Feil syndrome (KFS) [23], spondylocostal dysostosis [24], VACTERL/VATER association [25], Alagille syndrome [26], Ehler–Danlos syndrome [27], and others. The mutations responsible for these disorders disturb the individual gene or gene cascades involved in the development and proper functioning of organs and tissue unrelated to the musculoskeletal system. Therefore, it is necessary to classify CSDs based on mutations in genes that are associated with these disorders.
Advances in molecular genetic analysis, including whole-exome sequencing, have enhanced the ability to identify the genetic basis of congenital disorders. Gene mutations that affect the entire process of embryonic development can result in CSDs. Numerous genes and signaling pathways, such as fibroblast growth factor (FGF), wingless-related integration site (Wnt), Notch, and others, are involved in various stages of vertebrae development [28]. These genes frequently switch on and off and regulate the mechanisms of organ and tissue formation and development. These genes are in turn regulated by a number of regulatory genes. These gene cascades can be subject to breakdowns due to gene mutations leading to disruptions in developmental processes.
Classification based on the nature of vertebral development failure does not fully reflect the complexity of CSDs. A new classification of spinal deformities can be suggested based on particular genetic abnormalities that interfere with critical pathways involved in spinal development discovered by whole-exome sequencing. Therefore, two categories of classification can be outlined for CSDs. One category classifies based on the stage of vertebrae development, developmental stage-specific malformation of the spine; another one relies on signaling pathways involved in vertebral development, signaling pathways in CSDs.

5. Classification of CSDs Based on Developmental Stage Specificity

There are numerous key genes involved in vertebrae development that have been identified thanks to recent advances in whole-exome sequencing [29]. Developmental defects are usually caused by alterations in the genetic components of key developmental stages such as somitogenesis and sclerotome differentiation. A thorough understanding of the genetic basis of these problems will make it possible to selectively diagnose and treat developmental phases affected by stage-specific mutations. CSDs can be categorized according to the developmental stages that are interrupted by specific mutations and result in spinal abnormalities. Two main categories of this developmental, stage-specific classification are somitogenesis-related and sclerotome differentiation disorders.

5.1. Somitogenesis-Related CSDs

The first category of CSD classification is somitogenesis-related disorders. Somitogenesis is a process of the formation of somites. This process is regulated by FGF, Notch, and Wnt signaling within presomitic mesoderm cells [30]. Somites, segmented blocks of mesoderm in the embryo, are formed from the paraxial mesoderm and undergo resegmentation to give rise to vertebrae, ribs, and associated musculature [31]. This segmentation process is disturbed by mutations affecting genes involved in somitogenesis, which leads to different CSDs, such as spondylocostal dysostosis (SCD) and CS. There are different genes involved in somitogenesis.
During somitogenesis, TBX6 protein controls the differentiation and segmentation of paraxial mesoderm [32]. About 10% of patients with congenital scoliosis had a heterozygous nonsense/frameshift mutation in the TBX6 gene or a heterozygous deletion on chromosome 16p11.2. It should be noted that patients with TBX6 heterozygous null mutation had the same haplotype (T-C-A) on the other allele, identified by the following SNPs: rs2289292, rs3809624, and rs3809627 [33,34]. Mutations in TBX6, which is crucial for somite development, cause obvious skeletal abnormalities. Another gene associated with somitogenesis is DLL3, which encodes a ligand for the Notch signaling pathway. In research analyzing the genetic basis of SCD, there were observed nonsense, missense, frameshift, splicing, and in-frame insertion mutations in exons 4–8 of the DLL3 gene [35]. In a recent study, a novel homozygous nonsense variant c.535G>T in the DLL3 gene was observed in a Pakistani family with SCD [36]. The MEOX1 gene is expressed in the presomitic mesoderm, and mice with a mutation in this gene show vertebrae and rib bone defects derived from the sclerotome, a ventral part of a somite [37]. In a patient with KFS, a homozygous transition c.664C>T was observed in the MEOX1 gene, which leads to the formation of a premature stop codon [38].

5.2. Sclerotome Differentiation CSDs

The second group of developmental stage-specific CSD classifications is the sclerotome differentiation disorders. After somitogenesis, somites are subjected to differentiation to form a sclerotome, which subsequently leads to the epithelial–mesenchymal transformation of somite cells and their detachment from the epithelial somite [39]. There are different genes associated with early sclerotome development, such as PAX1, PAX9, and BAPX1. PAX1 and PAX9 genes encode transcription factors that control the differentiation of vertebrae from sclerotome [17]. It was found that Pax1/Pax9 double mutant mice lack vertebral column bones and proximal ribs, intervertebral disks, and the sclerotomal cells that contribute to these structures are unable to undergo chondrogenesis, a cartilage formation process [40]. In turn, PAX1 and PAX9 proteins are required for the expression of BAPX1 involved in the initiation of chondrogenic differentiation [41]. Overexpression of PAX1 protein can substitute SHH, which activates BAPX1, to initiate chondrogenic differentiation. The role of the MEOX1 gene is not limited to the somitogenesis stage only; it was observed that this gene is required for proper sclerotome polarity [42]. The MEOX1 gene has a dual role in somitogenesis and sclerotome differentiation, indicating its importance in vertebrae development.
Classification of CSDs into somitogenesis-related disorders and sclerotome differentiation disorders offers a genetically based approach. This approach helps to make a more precise classification, which can offer a new therapeutic approach to the treatment of central nervous system diseases. Physicians can anticipate spinal deformities at an early stage, for example, by testing on TBX6, DLL3, and MEOX1 gene mutations, which provide personalized treatment. Abnormalities in sclerotome differentiation can be detected by identifying mutations in PAX1, PAX9, and other genes associated with this stage of vertebrae development. Identifying specific gene mutations allows for accurate diagnosis, which in turn will enable the development of targeted therapies for skeletal deformities based on the stage of development. Genes associated with CSDs have been summarized and described (Table 2).

6. Classification of CSDs Based on Signaling Pathways

Mutations occurring in genes not only disrupt protein translation but also affect downstream signaling pathways that are crucial for spine formation. By analyzing genes associated with CSDs and grouping them by signaling pathways, it can uncover the underlying mechanisms of CSDs and create a basis for future research in diagnostics and targeted therapy strategies. There are main signaling pathways such as Wnt/β-catenin, Notch, Hedgehog, BMP, and TGF-β involved in the vertebrae development process (Table 3) [43,44,45,46].

6.1. Wnt Signaling Pathway

There are two types of Wnt signaling: the β-catenin-dependent canonical pathway responsible for cell proliferation and the β-catenin-independent non-canonical pathway for cell polarity [43]. The Wnt signal stabilizes cytosolic β-catenin, which enters the nucleus and activates transcription of target genes (Figure 3). Genes such as BAZ1B, KMT2D, and SOX9 mutations, which are associated with spinal deformities, participate in the Wnt/β-catenin pathway [47,48]. The BAZ1B gene was discovered to be associated with congenital vertebral fusion and associated with KFS [47]. Another gene associated with KFS is KMT2D, which has been identified in patients with multiple contiguous cervical fusion levels (c.13364G>A, c.3074C>T, c.8939C>T) [47]. The KMT2D protein transcriptionally regulates the beta-globin and estrogen receptor genes. Wnt signaling can inhibit SOX9 activity, which is a transcriptional factor involved in chondrogenesis, therefore it was proposed that mutation in this gene can cause congenital spinal deformities [48].
Genes correlated with non-canonical Wnt signaling are FZD6 and VANGL1, and mutations in these genes were observed in CSDs [47,49]. The FZD6 gene encodes a protein, which is a Frizzled family receptor involved in Wnt signaling [50]. Disrupted FZD6/Wnt signaling leads to a defective neural tube, which can lead to spina bifida and other congenital spinal abnormalities [49]. VANGL1 is a protein that regulates planar cell polarity [51]. Mutations in the VANGL1 gene are found to be related to neural tube defects and spina bifida [52]. Canonical and non-canonical Wnt pathways play a critical role in the regulation of bone mass and skeletal homeostasis. Disturbed Wnt signaling leads to compromised development of neural tube and limb patterns. Moreover, the Wnt signaling pathway interacts with other signaling pathways, such as Notch, TGF-β, and BMP, which highlights its complexity in regulating various cellular processes.

6.2. Notch Signaling Pathway

The Notch signaling pathway, which is important in embryogenesis, controls intercellular interactions and determines the direction of cell development and differentiation [44]. This pathway is regulated by genes such as RIPPLY2, TBX6, and JAG1; mutations in these genes have been linked to KFS, congenital scoliosis, and Alagille syndrome [53,54,55]. Notch signaling activates the MESP2 protein, a transcriptional factor responsible for rostro-caudal patterning within a somite, which induces RIPPLY2 protein [56]. RIPPLY2 protein, a TBX6 inhibitor, acts as a transcriptional co-repressor involved in the somitogenesis and regulation of presomitic mesoderm segmentation by interacting with TBX6 protein [57]. A frameshift mutation in RIPPLY2 was detected by exome sequencing in patients with segmentation defects of the vertebrae [53]. RIPPLY2 suppresses TBX6 expression at specific locations, which allows it to form somite boundaries accurately [58]. TBX6 gene missense changes were observed in patients with congenital scoliosis and spondylocostal dysostosis [54]. JAG1 protein, a ligand of the NOTCH receptor, is associated with defects of vertebrae segmentation in Alagille syndrome [55]. Frameshift mutations in the JAG1 gene cause altered protein synthesis, while deletion of this gene leads to haploinsufficiency, causing Alagille syndrome [55]. Thus, the Notch signaling pathway, associated with RIPPLY2, TBX6, and JAG1 genes, is involved in vertebral formation, and mutations lead to segmentation defects and other skeletal dysplasias.

6.3. Hedgehog Signaling Pathway

Hedgehog (HH) signaling plays a crucial role in many developmental processes. Indian hedgehog (IHH), a type of HH, is expressed during endochondral ossification [45]. Furthermore, HH signaling is involved in the maintenance and repair of skeletal tissues during the postnatal period [59]. Genes such as PAX1 and SUFU are involved in HH signaling, which is critical for growth plate development and chondrocyte differentiation [47,60]. PAX1 protein is a transcription factor that responds to SHH protein signaling, which is responsible for sclerotome segmentation [17]. PAX1 gene mutations linked to CSD were found at exon 4 [60]. Another key regulator of the HH pathway is SUFU, which controls the activity of GLI transcription factors that transmit HH signals to control gene expression [61]. SUFU, in the absence of HH signals, binds to GLI proteins and keeps them in an inactive form. Even though SUFU protein is a major negative regulator of the HH pathway, a strong correlation of this gene with congenital spinal deformities has not yet been found. Some SUFU mutations, missense (c.1105G>A) and splice region (c.1157+6C>T), were identified in patients with KFS; however, it requires further research [47]. Therefore, in vertebral segmentation and limb patterning, HH signaling determines cell fates and promotes organized growth. Dysregulation of this pathway due to mutations in its components can lead to congenital deformities, including scoliosis or vertebral fusion.

6.4. BMP Pathway

BMP signaling plays an important role in cartilage primordia and skeletal formation, particularly limb development [46]. Cartilage production is inhibited by Noggin, the BMP antagonist, which helps to regulate proper development [62]. Additionally, the BMP pathway works synergistically with Smad and MAPK pathways in limb development [63]. Studies on Bmp-2 and Bmp-4 double knockout mice have shown severe bone formation defects, which highlights its critical function in vertebrae development [64].
BMP controls the proliferation of chondrocytes by the expression of SOX9, a transcription factor responsible for the regulation of cartilage matrix genes such as COL2A1 and COL11A1 [65]. A specific SOX9 gene mutation (c.1405A>G) was detected in patients with congenital scoliosis [48]. Regarding the role of COL11A2 in vertebral development, vertebral fusions were observed in mutant zebrafish models with nonsense mutation or gene deletion [66].
Other mutations of the BMP pathway connected with CSDs are missense variants of GDF3 and GDF6 observed in KFS [67]. GDF3 and GDF6 proteins belong to the TGF-β superfamily and play important roles in skeletal and joint formation during embryogenesis. The mutations in GDF3 and GDF6 genes disrupt chondrocyte differentiation and proliferation, required for the segmentation of the vertebrae [67].

6.5. TGF-β Pathway

Similarly to the BMP pathway, TGF-β signaling is required for skeletal formation. The TGF-β signaling pathway is involved in the development of intervertebral disks (IVD) and vertebral bodies. The TGF-β cascade regulates cell proliferation, differentiation, and synthesis of components of the intercellular substance of the IVD [68]. Disrupted TGF-β signaling due to mutations in TGFBR2, SMAD2, SMAD3, and other genes is associated with spinal deformities [69,70]. One research study confirmed that the deletion of Tgfr2 in mice leads to disrupted TGF-β signaling, which results in short limbs and joint fusion [69]. TGF-β signals through a canonical pathway involving SMAD2 and SMAD3 proteins. SMAD2 plays a prominent role compared to SMAD3 in non-hypertrophic chondrocytes in the growth plate and elevated Indian hedgehog RNA levels [70]. The development and maintenance of IVDs and vertebral bodies depend heavily on the TGF-β signaling pathway. Therefore, mutations in genes interacting with this pathway can lead to skeletal abnormalities, including spinal deformities and joint fusion.

7. Early Diagnosis of CSDs

There are currently no direct treatments for congenital scoliosis and other CSDs, but early diagnosis through the study of the genetic basis can help in the prognosis of severity and confounding complications, such as neurological deficits, respiratory issues, cardiovascular abnormalities, and musculoskeletal complications. Knowing which genes and signaling pathways play a role in the formation of the spine in the embryo makes prenatal testing possible. Diagnosis of monogenic disorders, such as Tay–Sachs, fragile X syndrome, and cystic fibrosis, has traditionally relied on risky invasive tests, which is why non-invasive prenatal testing (NIPT) based on cell-free fetal DNA (cffDNA) present in maternal plasma is preferred [71]. Knowing which genes and signaling pathways are involved in the formation of the vertebral embryo makes it possible for early diagnosis of CSDs using NIPT.
Although a genetic cure for CS remains elusive, advances in genetic technology offer possibilities for future therapeutic interventions, such as gene editing and stem cell therapy. A successful case of CRISPR-Cas9-based treatment, with no evidence of off-target editing, in a genetic disorder, transfusion-dependent β-thalassemia (TDT) and sickle cell disease [72]. The use of CRISPR-Cas9 in congenital scoliosis is challenging due to the nature of the disease. Because congenital scoliosis and other spinal deformities are present from birth and often result from abnormal development of the vertebrae in the embryo, CRISPR-Cas9-based treatments will likely need to be administered early in pregnancy to correct the formation of the vertebrae. This in utero gene editing approach comes with ethical and technical risks. Because CRISPR permanently alters DNA, unintended consequences could have long-term developmental consequences [73]. The risk-benefit ratio will need to be carefully assessed, especially given that some forms of congenital scoliosis can be treated with surgery and supportive care.

8. Limitations and Future Perspectives

The genetic-based classification of CSDs can enable accurate diagnosis, which is a major step forward in understanding the causes of vertebral malformations and their treatment. The proposed classifications of CSDs based on developmental stage specificity and signaling pathways support a molecular-genetic approach to diagnosis and research. However, there are some limitations to these proposed categories of CSDs. Despite advancements, there are many CSD cases that do not have known genetic mutations. The existence of such cases requires further study and research beyond a genetic basis. One of the possible causes is epigenetic modifications, especially DNA methylation. In patients with CS, hypomethylation was detected in COL5A1, GRID1, RGS3, SORCS2, and ROBO2, while hypermethylation was noted in GSE1, IGHG1, IGHM, IGHG3, KAT6B, TNS3, and RNF213 [28].
Classification of CSDs based on genetic background does not reflect environmental and epigenetic causes. Since cervical fusions seen in KFS are also observed in fetal alcohol syndrome, alcohol can impact the vertebral formation of the embryo [74]. Exposure of the embryo to valproic acid used for psychiatric and neurological disorders is associated with congenital malformations such as lumbar vertebral fusion and thoracolumbar scoliosis [75]. Another teratogenic effect is maternal diabetes, and a child born to a mother with diabetes has craniofacial anomalies, particularly fused cervical vertebrae [76].

9. Conclusions

In conclusion, the genetic-based classification of congenital spinal deformities (CSDs) marks a pivotal advancement in the understanding and management of these complex conditions. While current classifications provide significant insights into the developmental and molecular basis of CSDs, they remain limited by incomplete understanding of epigenetic, environmental, and multifactorial contributions. Future research should prioritize the integration of advanced genomic techniques, such as single-cell sequencing and transcriptomics, to uncover the interplay between gene expression patterns and environmental exposures during embryogenesis. Moreover, the potential role of epigenetic modifications, such as DNA methylation and histone acetylation, warrants further investigation as these factors may bridge the gap between genetic predisposition and phenotypic expression. Advances in non-invasive prenatal testing (NIPT) and in utero therapeutic interventions offer transformative opportunities for early diagnosis and targeted treatment, but ethical and technical challenges must be addressed. Collaborative, multidisciplinary efforts that incorporate bioinformatics, developmental biology, and clinical genetics will be essential for refining classifications and developing personalized therapeutic strategies. Expanding knowledge of signaling pathways and their crosstalk, as well as leveraging emerging tools like CRISPR-Cas9 for functional studies, will further enhance our ability to translate genetic discoveries into clinical applications. This comprehensive approach holds promise for improving diagnostic accuracy, therapeutic outcomes, and the overall quality of life for patients with CSDs.

Author Contributions

Conceptualization, M.Z. and N.N.; methodology, M.Z.; validation, M.Z.; formal analysis, D.S., M.Z. and N.N.; investigation, D.S., M.Z. and N.N.; resources, M.Z.; data curation, M.Z. and N.N.; writing—original draft preparation, D.S.; writing—review and editing, D.S., M.Z. and N.N.; visualization, D.S.; supervision, N.N.; project administration, M.Z.; funding acquisition, N.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research has been funded by the Science Committee of the Ministry of Science and Higher Education of the Republic of Kazakhstan (AP19579029).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Li, M.; Nie, Q.; Liu, J.; Jiang, Z. Prevalence of scoliosis in children and adolescents: A systematic review and meta-analysis. Front. Pediatr. 2024, 12, 1399049. [Google Scholar] [CrossRef]
  2. Giampietro, P.F.; Raggio, C.L.; Blank, R.D.; McCarty, C.; Broeckel, U.; Pickart, M.A. Clinical, genetic and environmental factors associated with congenital vertebral malformations. Mol. Syndromol. 2012, 4, 94–105. [Google Scholar] [CrossRef] [PubMed]
  3. Korean Statistical Information Service. Available online: https://kosis.kr/eng/ (accessed on 15 November 2024).
  4. Kwon, J.W.; Chae, H.W.; Lee, H.S.; Kim, S.; Sung, S.; Lee, S.B.; Moon, S.-H.; Lee, H.M.; Lee, B.H. Incidence rate of congenital scoliosis estimated from a nationwide health insurance database. Sci. Rep. 2021, 11, 1–10. [Google Scholar] [CrossRef]
  5. Lonstein, J.E. Congenital spine deformities. Orthop. Clin. North Am. 1999, 30, 387–405. [Google Scholar] [CrossRef] [PubMed]
  6. Winter, R.B.; Leonard, A.S.; Smith, D.E. Congenital Deformities of the Spine; Thieme-Stratton Inc.: New York, NY, USA, 1983; ISBN 9780865770799. [Google Scholar]
  7. Li, C.; Fu, Q.; Zhou, Y.; Yu, H.; Zhao, G. Surgical treatment of severe congenital scoliosis with unilateral unsegmented bar by concave costovertebral joint release and both-ends wedge osteotomy via posterior approach. Eur. Spine J. 2011, 21, 498–505. [Google Scholar] [CrossRef] [PubMed]
  8. Jung, C.; Asbach, P.; Niehues, S.M. Are congenital cervical block vertebrae a risk factor for adjacent segment disease? A retrospective cross-sectional CT and MR imaging study. Diagnostics 2021, 12, 90. [Google Scholar] [CrossRef] [PubMed]
  9. Kawakami, N.; Tsuji, T.; Imagama, S.; Lenke, L.G.; Puno, R.M.; Kuklo, T.R. Classification of congenital scoliosis and Kyphosis. Spine 2009, 34, 1756–1765. [Google Scholar] [CrossRef]
  10. Kawakami, N.; Saito, T.; Kawakami, K.; Tauchi, R. Coupling Failure as the Forth Category in the Classification of Congenital Spinal Deformity. Sci. Repos. 2018, 1, 1–7. [Google Scholar]
  11. Kaplan, K.M.; Spivak, J.M.; Bendo, J.A. Embryology of the spine and associated congenital abnormalities. Spine J. 2005, 5, 564–576. [Google Scholar] [CrossRef]
  12. Tani, S.; Chung, U.; Ohba, S.; Hojo, H. Understanding paraxial mesoderm development and SCLEROTOME specification for Skeletal Repair. Exp. Mol. Med. 2020, 52, 1166–1177. [Google Scholar] [CrossRef] [PubMed]
  13. Kato, N.; Aoyama, H. Dermomyotomal origin of the ribs as revealed by extirpation and transplantation experiments in chick and quail embryos. Development 1998, 125, 3437–3443. [Google Scholar] [CrossRef] [PubMed]
  14. Fan, C.M.; Tessier-Lavigne, M. Patterning of mammalian somites by surface ectoderm and notochord: Evidence for sclerotome induction by a hedgehog homolog. Cell 1994, 79, 1175–1186. [Google Scholar] [CrossRef]
  15. Johnson, R.L.; Laufer, E.; Riddle, R.D.; Tabin, C. Ectopic expression of sonic hedgehog alters dorsal-ventral patterning of somites. Cell 1994, 79, 1165–1173. [Google Scholar] [CrossRef]
  16. Furumoto, T.; Miura, N.; Akasaka, T.; Mizutani-Koseki, Y.; Sudo, H.; Fukuda, K.; Maekawa, M.; Yuasa, S.; Fu, Y.; Moriya, H.; et al. Notochord-dependent expression of MFH1 and PAX1 cooperates to maintain the proliferation of sclerotome cells during the vertebral column development. Dev. Biol. 1999, 210, 15–29. [Google Scholar] [CrossRef]
  17. Wu, W.; Kong, X.; Jia, Y.; Jia, Y.; Ou, W.; Dai, C.; Li, G.; Gao, R. An overview of PAX1: Expression, function and regulation in development and diseases. Front. Cell Dev. Biol. 2022, 10, 1051102. [Google Scholar] [CrossRef] [PubMed]
  18. Smith, C.A.; Tuan, R.S. Functional involvement of Pax-1 in somite development: Somite dysmorphogenesis in chick embryos treated with Pax-1 paired-box antisense oligodeoxynucleotide. Teratology 1995, 52, 333–345. [Google Scholar] [CrossRef]
  19. Wang, R.N.; Green, J.; Wang, Z.; Deng, Y.; Qiao, M.; Peabody, M.; Zhang, Q.; Ye, J.; Yan, Z.; Denduluri, S.; et al. Bone morphogenetic protein (BMP) signaling in development and human diseases. Genes Dis. 2014, 1, 87–105. [Google Scholar] [CrossRef] [PubMed]
  20. Kessel, M.; Gruss, P. Murine developmental control genes. Science 1990, 249, 374–379. [Google Scholar] [CrossRef] [PubMed]
  21. Mallo, M.; Wellik, D.M.; Deschamps, J. Hox genes and regional patterning of the Vertebrate Body Plan. Dev. Biol. 2010, 344, 7–15. [Google Scholar] [CrossRef] [PubMed]
  22. Baumgartner, C.; Mátyás, G.; Steinmann, B.; Eberle, M.; Stein, J.I.; Baumgartner, D. A bioinformatics framework for genotype–phenotype correlation in humans with Marfan syndrome caused by FBN1 gene mutations. J. Biomed. Inform. 2006, 39, 171–183. [Google Scholar] [CrossRef]
  23. Alazami, A.M.; Kentab, A.Y.; Faqeih, E.; Mohamed, J.Y.; Alkhalidi, H.; Hijazi, H.; Alkuraya, F.S. A novel syndrome of Klippel-Feil Anomaly, myopathy, and characteristic facies is linked to a null mutation in MYO18B. J. Med. Genet. 2015, 52, 400–404. [Google Scholar] [CrossRef]
  24. Gucev, Z.S.; Tasic, V.; Pop-Jordanova, N.; Sparrow, D.B.; Dunwoodie, S.L.; Ellard, S.; Young, E.; Turnpenny, P.D. Autosomal dominant spondylocostal dysostosis in three generations of a Macedonian family: Negative mutation analysis of DLL3, MESP2, HES7, and LFNG. Am. J. Med. Genet. Part A 2010, 152A, 1378–1382. [Google Scholar] [CrossRef] [PubMed]
  25. Solomon, B.D. VACTERL/Vater Association. Orphanet J. Rare Dis. 2011, 6, 56. [Google Scholar] [CrossRef] [PubMed]
  26. Turnpenny, P.D.; Ellard, S. Alagille syndrome: Pathogenesis, diagnosis and management. Eur. J. Hum. Genet. 2011, 20, 251–257. [Google Scholar] [CrossRef] [PubMed]
  27. Uehara, M.; Takahashi, J.; Kosho, T. Spinal deformity in Ehlers–Danlos Syndrome: Focus on musculocontractural type. Genes 2023, 14, 1173. [Google Scholar] [CrossRef]
  28. Szoszkiewicz, A.; Bukowska-Olech, E.; Jamsheer, A. Molecular landscape of congenital vertebral malformations: Recent discoveries and Future Directions. Orphanet J. Rare Dis. 2024, 19, 32. [Google Scholar] [CrossRef] [PubMed]
  29. Murakami, K.; Kikugawa, S.; Seki, S.; Terai, H.; Suzuki, T.; Nakano, M.; Takahashi, J.; Nakamura, Y. Exome sequencing reveals de novo variants in congenital scoliosis. J. Pediatr. Genet. 2021, 11, 287–291. Available online: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC9578779/ (accessed on 1 January 2025). [CrossRef]
  30. Meijer, W.H.M.; Sonnen, K.F. From signalling oscillations to somite formation. Curr. Opin. Syst. Biol. 2024, 39, 100520. [Google Scholar] [CrossRef]
  31. Eckalbar, W.L.; Fisher, R.E.; Rawls, A.; Kusumi, K. Scoliosis and segmentation defects of the vertebrae. WIREs Dev. Biol. 2012, 1, 401–423. [Google Scholar] [CrossRef] [PubMed]
  32. Watabe-Rudolph, M.; Schlautmann, N.; Papaioannou, V.E.; Gossler, A. The mouse rib-vertebrae mutation is a hypomorphic TBX6 allele. Mech. Dev. 2002, 119, 251–256. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, N.; Ming, X.; Xiao, J.; Wu, Z.; Chen, X.; Shinawi, M.; Shen, Y.; Yu, G.; Liu, J.; Xie, H.; et al. TBX6 null variants and a common hypomorphic allele in congenital scoliosis. N Engl. J. Med. 2015, 372, 341–350. [Google Scholar] [CrossRef]
  34. Feng, X.; Cheung, J.P.; Je, J.S.; Cheung, P.W.; Chen, S.; Yue, M.; Wang, N.; Choi, V.N.; Yang, X.; Song, Y.; et al. Genetic variants of TBX6 and TBXT identified in patients with congenital scoliosis in southern China. J. Orthop. Res. 2020, 39, 971–988. [Google Scholar] [CrossRef] [PubMed]
  35. Turnpenny, P.D.; Whittock, N.; Duncan, J.; Dunwoodie, S.; Kusumi, K.; Ellard, S. Novel mutations in DLL3, a somitogenesis gene encoding a ligand for the notch signalling pathway, cause a consistent pattern of abnormal vertebral segmentation in spondylocostal dysostosis. J. Med. Genet. 2003, 40, 333–339. [Google Scholar] [CrossRef]
  36. Khan, F.; Arshad, A.; Ullah, A.; Steenackers, E.; Mortier, G.; Ahmad, W.; Arshad, M.; Khan, S.; Hayat, A.; Khan, I.; et al. Identification of a novel nonsense variant in the DLL3 gene underlying spondylocostal dysostosis in a consanguineous Pakistani family. Mol. Syndromol. 2023, 14, 191–200. [Google Scholar] [CrossRef] [PubMed]
  37. Reijntjes, S.; Stricker, S.; Mankoo, B.S. A comparative analysis of Meox1 and Meox2 in the developing somites and limbs of the chick embryo. Int. J. Dev. Biol. 2007, 51, 753–759. [Google Scholar] [CrossRef] [PubMed]
  38. Mohamed, J.Y.; Faqeih, E.; Alsiddiky, A.; Alshammari, M.J.; Ibrahim, N.A.; Alkuraya, F.S. Mutations in MEOX1, encoding mesenchyme homeobox 1, Cause Klippel-Feil Anomaly. Am. J. Hum. Genet. 2013, 92, 157–161. [Google Scholar] [CrossRef] [PubMed]
  39. Mallo, M. The Axial Musculoskeletal System. In Kaufman’s Atlas of Mouse Development Supplement; Academic Press: Cambridge, MA, USA, 2016; pp. 165–175. [Google Scholar] [CrossRef]
  40. Peters, H.; Wilm, B.; Sakai, N.; Imai, K.; Maas, R.; Balling, R. PAX1 and PAX9 synergistically regulate vertebral column development. Development 1999, 126, 5399–5408. [Google Scholar] [CrossRef] [PubMed]
  41. Rodrigo, I.; Hill, R.E.; Balling, R.; Munsterberg, A.; Imai, K. PAX1 and PAX9 activate Bapx1 to induce chondrogenic differentiation in the sclerotome. Development 2003, 130, 473–482. [Google Scholar] [CrossRef]
  42. Skuntz, S.; Mankoo, B.; Nguyen, M.T.T.; Hustert, E.; Nakayama, A.; Tournier-Lasserve, E.; Wright, C.V.E.; Pachnis, V.; Bharti, K.; Arnheiter, H. Lack of the mesodermal homeodomain protein MEOX1 disrupts sclerotome polarity and leads to a remodeling of the cranio-cervical joints of the axial skeleton. Dev. Biol. 2009, 332, 383–395. [Google Scholar] [CrossRef] [PubMed]
  43. Hu, L.; Chen, W.; Qian, A.; Li, Y.P. Wnt/β-catenin signaling components and mechanisms in bone formation, homeostasis, and disease. Bone Res. 2024, 12, 39. [Google Scholar] [CrossRef]
  44. Louvi, A.; Artavanis-Tsakonas, S. Notch signalling in Vertebrate Neural Development. Nat. Rev. Neurosci. 2006, 7, 93–102. [Google Scholar] [CrossRef]
  45. Ohba, S. Hedgehog signaling in skeletal development: Roles of Indian hedgehog and the mode of its action. Int. J. Mol. Sci. 2020, 21, 6665. [Google Scholar] [CrossRef] [PubMed]
  46. Wu, M.; Wu, S.; Chen, W.; Li, Y.-P. The roles and regulatory mechanisms of TGF-β and BMP signaling in bone and cartilage development, homeostasis and disease. Cell Res. 2024, 34, 101–123. [Google Scholar] [CrossRef] [PubMed]
  47. Li, Z.; Zhao, S.; Cai, S.; Zhang, Y.; Wang, L.; Niu, Y.; Li, X.; Hu, J.; Chen, J.; Wang, S.; et al. The mutational burden and oligogenic inheritance in Klippel-Feil Syndrome. BMC Musculoskelet. Disord. 2020, 21, 220. [Google Scholar] [CrossRef]
  48. Wu, N.; Wang, L.; Hu, J.; Zhao, S.; Liu, B.; Li, Y.; Du, H.; Zhang, Y.; Li, X.; Yan, Z.; et al. A recurrent rare SOX9 variant (M469V) is associated with congenital vertebral malformations. Curr. Gene Ther. 2019, 19, 242–247. [Google Scholar] [CrossRef]
  49. Beaumont, M.; Akloul, L.; Carré, W.; Quélin, C.; Journel, H.; Pasquier, L.; Fradin, M.; Odent, S.; Hamdi-Rozé, H.; Watrin, E.; et al. Targeted panel sequencing establishes the implication of planar cell polarity pathway and involves new candidate genes in neural tube defect disorders. Hum. Genet. 2019, 138, 363–374. [Google Scholar] [CrossRef] [PubMed]
  50. Corda, G.; Sala, A. Non-canonical wnt/PCP signalling in cancer: FZD6 takes Centre Stage. Oncogenesis 2017, 6, e364. [Google Scholar] [CrossRef]
  51. Song, H.; Hu, J.; Chen, W.; Elliott, G.; Andre, P.; Gao, B.; Yang, Y. Planar cell polarity breaks bilateral symmetry by controlling ciliary positioning. Nature 2010, 466, 378–382. [Google Scholar] [CrossRef] [PubMed]
  52. Kibar, Z.; Torban, E.; McDearmid, J.R.; Reynolds, A.; Berghout, J.; Mathieu, M.; Kirillova, I.; De Marco, P.; Merello, E.; Hayes, J.M.; et al. Mutations in VANGL1 associated with neural-tube defects. N Engl. J. Med. 2007, 356, 1432–1437. [Google Scholar] [CrossRef]
  53. Karaca, E.; Yuregir, O.O.; Bozdogan, S.T.; Aslan, H.; Pehlivan, D.; Jhangiani, S.N.; Akdemir, Z.C.; Gambin, T.; Bayram, Y.; Atik, M.M.; et al. Rare variants in the notch signaling pathway describe a novel type of autosomal recessive klippel–feil syndrome. Am. J. Med. Genet. Part A 2015, 167, 2795–2799. [Google Scholar] [CrossRef] [PubMed]
  54. Lefebvre, M.; Duffourd, Y.; Jouan, T.; Poe, C.; Jean-Marçais, N.; Verloes, A.; St-Onge, J.; Riviere, J.B.; Petit, F.; Pierquin, G.; et al. Autosomal recessive variations of TBX6, from congenital scoliosis to spondylocostal dysostosis. Clin. Genet. 2017, 91, 908–912. [Google Scholar] [CrossRef] [PubMed]
  55. Li, L.; Krantz, I.D.; Deng, Y.; Genin, A.; Banta, A.B.; Collins, C.C.; Qi, M.; Trask, B.J.; Kuo, W.L.; Cochran, J.; et al. Alagille syndrome is caused by mutations in human JAGGED1, which encodes a ligand for notch1. Nat. Genet. 1997, 16, 243–251. [Google Scholar] [CrossRef] [PubMed]
  56. Morimoto, M.; Sasaki, N.; Oginuma, M.; Kiso, M.; Igarashi, K.; Aizaki, K.; Kanno, J.; Saga, Y. The negative regulation of Mesp2 by Mouse Ripply2 is required to establish the Rostro-caudal patterning within a somite. Development 2007, 134, 1561–1569. [Google Scholar] [CrossRef] [PubMed]
  57. Zhao, W.; Oginuma, M.; Ajima, R.; Kiso, M.; Okubo, A.; Saga, Y. Ripply2 recruits proteasome complex for TBX6 degradation to define segment border during murine somitogenesis. eLife 2018, 7, e33068. [Google Scholar] [CrossRef]
  58. Turnpenny, P.D. Classification and etiologic dissection of vertebral segmentation anomalies. Mol. Genet. Pediatr. Orthop. Disord. 2015, 105–130. [Google Scholar] [CrossRef]
  59. Maeda, Y.; Nakamura, E.; Nguyen, M.T.; Suva, L.J.; Swain, F.L.; Razzaque, M.S.; Mackem, S.; Lanske, B. Indian hedgehog produced by postnatal chondrocytes is essential for maintaining a growth plate and trabecular bone. Proc. Natl. Acad. Sci. USA 2007, 104, 6382–6387. [Google Scholar] [CrossRef] [PubMed]
  60. Giampietro, P.; Raggio, C.; Reynolds, C.; Shukla, S.; McPherson, E.; Ghebranious, N.; Jacobsen, F.; Kumar, V.; Faciszewski, T.; Pauli, R.; et al. An analysis of PAX1 in the development of vertebral malformations. Clin. Genet. 2005, 68, 448–453. [Google Scholar] [CrossRef]
  61. Carballo, G.B.; Honorato, J.R.; de Lopes, G.P.; Spohr, T.C. A highlight on sonic hedgehog pathway. Cell Commun. Signal. 2018, 16, 11. [Google Scholar] [CrossRef] [PubMed]
  62. Brunet, L.J.; McMahon, J.A.; McMahon, A.P.; Harland, R.M. Noggin, cartilage morphogenesis, and joint formation in the Mammalian Skeleton. Science 1998, 280, 1455–1457. [Google Scholar] [CrossRef] [PubMed]
  63. Zuzarte-Luís, V.; Montero, J.A.; Rodriguez-León, J.; Merino, R.; Rodríguez-Rey, J.C.; Hurlé, J.M. A new role for BMP5 during limb development acting through the synergic activation of SMAD and MAPK PATHWAYS. Dev. Biol. 2004, 272, 39–52. [Google Scholar] [CrossRef] [PubMed]
  64. Bandyopadhyay, A.; Tsuji, K.; Cox, K.; Harfe, B.D.; Rosen, V.; Tabin, C.J. Genetic analysis of the roles of BMP2, BMP4, and BMP7 in limb patterning and skeletogenesis. PLoS Genet. 2006, 2, e216. [Google Scholar] [CrossRef] [PubMed]
  65. Gao, L.; Sheu, T.; Dong, Y.; Hoak, D.M.; Zuscik, M.J.; Schwarz, E.M.; Hilton, M.J.; O’Keefe, R.J.; Jonason, J.H. TAK1 regulates SOX9 expression in chondrocytes and is essential for postnatal development of the growth plate and articular cartilages. J. Cell Sci. 2013, 126, 5704–5713. [Google Scholar] [CrossRef] [PubMed]
  66. Rebello, D.; Wohler, E.; Erfani, V.; Li, G.; Aguilera, A.N.; Santiago-Cornier, A.; Zhao, S.; Hwang, S.W.; Steiner, R.D.; Zhang, T.J.; et al. COL11A2 as a candidate gene for vertebral malformations and congenital scoliosis. Hum. Mol. Genet. 2023, 32, 2913–2928. [Google Scholar] [CrossRef]
  67. Ye, M.; Berry-Wynne, K.M.; Asai-Coakwell, M.; Sundaresan, P.; Footz, T.; French, C.R.; Abitbol, M.; Fleisch, V.C.; Corbett, N.; Allison, W.T.; et al. Mutation of the bone morphogenetic protein GDF3 causes ocular and skeletal anomalies. Hum. Mol. Genet. 2009, 19, 287–298. [Google Scholar] [CrossRef] [PubMed]
  68. Chen, S.; Liu, S.; Ma, K.; Zhao, L.; Lin, H.; Shao, Z. TGF-β signaling in intervertebral disc health and disease. Osteoarthr. Cartil. 2019, 27, 1109–1117. [Google Scholar] [CrossRef] [PubMed]
  69. Seo, H.S.; Serra, R. Deletion of TGFBR2 in Prx1-Cre expressing mesenchyme results in defects in development of the long bones and joints. Dev. Biol. 2007, 310, 304–316. [Google Scholar] [CrossRef] [PubMed]
  70. Wang, W.; Song, B.; Anbarchian, T.; Shirazyan, A.; Sadik, J.E.; Lyons, K.M. Smad2 and Smad3 regulate chondrocyte proliferation and differentiation in the growth plate. PLOS Genet. 2016, 12, e1006352. [Google Scholar] [CrossRef]
  71. Deans, Z.; Hill, M.; Chitty, L.S.; Lewis, C. Non-invasive prenatal testing for single gene disorders: Exploring the ethics. Eur. J. Hum. Genet. 2012, 21, 713–718. [Google Scholar] [CrossRef] [PubMed]
  72. Frangoul, H.; Altshuler, D.; Cappellini, M.D.; Chen, Y.S.; Domm, J.; Eustace, B.K.; Foell, J.; de la Fuente, J.; Grupp, S.; Handgretinger, R.; et al. CRISPR-Cas9 gene editing for sickle cell disease and β-thalassemia. N Engl. J. Med. 2021, 384, 252–260. [Google Scholar] [CrossRef] [PubMed]
  73. Alanis-Lobato, G.; Zohren, J.; McCarthy, A.; Fogarty, N.M.; Kubikova, N.; Hardman, E.; Greco, M.; Wells, D.; Turner, J.M.; Niakan, K.K. Frequent loss of heterozygosity in CRISPR-Cas9–edited early human embryos. Proc. Natl. Acad. Sci. USA 2021, 118, e2004832117. [Google Scholar] [CrossRef]
  74. Tredwell, S.J.; Smith, D.F.; Macleod, P.J.; Wood, B.J. Cervical spine anomalies in fetal alcohol syndrome. Spine 1982, 7, 331–334. [Google Scholar] [CrossRef] [PubMed]
  75. Bantz, M.E. Valproic acid and congenital malformations. Clin. Pediatr. 1984, 23, 352–353. [Google Scholar] [CrossRef] [PubMed]
  76. Ewart-Toland, A.; Yankowitz, J.; Winder, A.; Imagire, R.; Cox, V.A.; Aylsworth, A.S.; Golabi, M. Oculoauriculovertebral abnormalities in children of diabetic mothers. Am. J. Med. Genet. 2000, 90, 303–309. [Google Scholar] [CrossRef]
Jcm 14 01113 g001

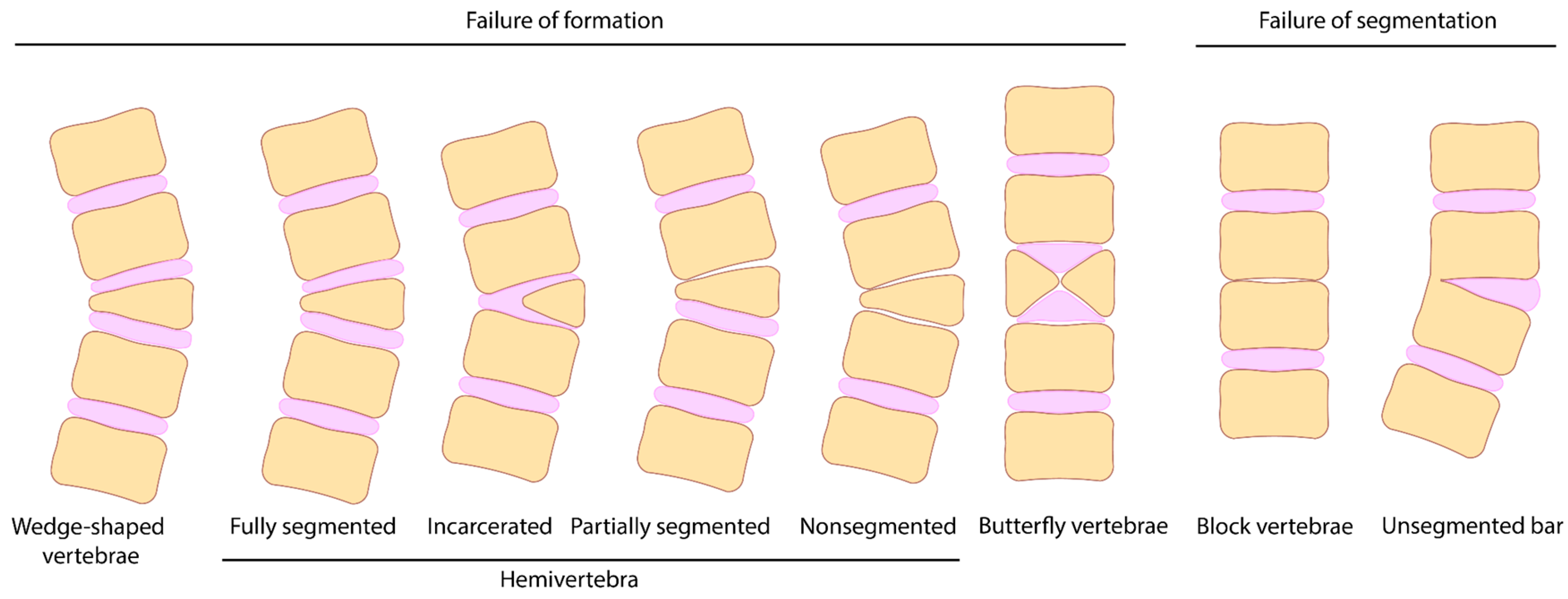

Figure 1. Classification of the spinal deformities based on the nature of vertebral development failure.
Figure 1. Classification of the spinal deformities based on the nature of vertebral development failure.
Jcm 14 01113 g001
Jcm 14 01113 g002

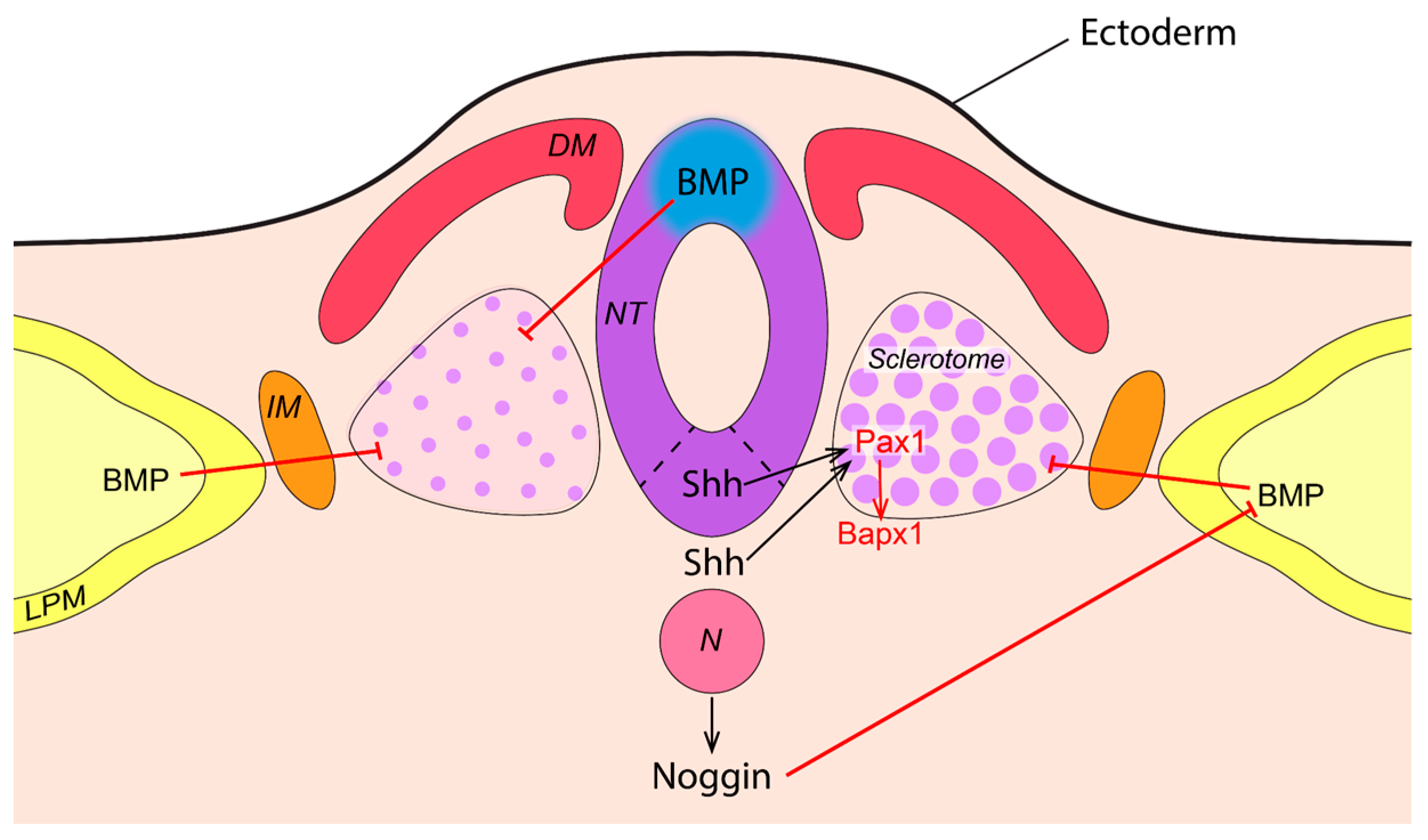

Figure 2. SHH and BMP signaling in sclerotome development. SHH protein initiates sclerotome formation and its transformation into cartilage after secretion from the notochord and neural tube floor plate. During early sclerotome development, SHH is antagonized by BMP signals from the LPM. Sclerotome development is supported by the secretion of Noggin from the notochord, which inhibits BMP and promotes cartilage development in conjunction with SHH. PAX1 and PAX9 activate the BAPX1 gene, which is necessary for axial skeleton development. DM—dermomyotome, IM—intermediate mesoderm, N—notochord, NT—neural tube, LPM—lateral plate mesoderm.
Figure 2. SHH and BMP signaling in sclerotome development. SHH protein initiates sclerotome formation and its transformation into cartilage after secretion from the notochord and neural tube floor plate. During early sclerotome development, SHH is antagonized by BMP signals from the LPM. Sclerotome development is supported by the secretion of Noggin from the notochord, which inhibits BMP and promotes cartilage development in conjunction with SHH. PAX1 and PAX9 activate the BAPX1 gene, which is necessary for axial skeleton development. DM—dermomyotome, IM—intermediate mesoderm, N—notochord, NT—neural tube, LPM—lateral plate mesoderm.
Jcm 14 01113 g002
Jcm 14 01113 g003
Figure 3. Crosstalk between Wnt, Notch, TGFβ, BMP, and Hedgehog signaling pathways. β-catenin activates the Notch signaling pathway. GSK3β phosphorylates NICD and activates Notch signaling, while Notch degrades β-catenin and negatively regulates its stability. As for the Hedgehog pathway, Wnt inhibits it by Gli3. The expression of ligands and components, such as Wnts, LRP5, Axin, BMP2, and TGF-β, is determined by TGF-β/BMP signaling and Wnt signaling, and these two signaling pathways are connected by the interaction between Smad7 and Axin.
Figure 3. Crosstalk between Wnt, Notch, TGFβ, BMP, and Hedgehog signaling pathways. β-catenin activates the Notch signaling pathway. GSK3β phosphorylates NICD and activates Notch signaling, while Notch degrades β-catenin and negatively regulates its stability. As for the Hedgehog pathway, Wnt inhibits it by Gli3. The expression of ligands and components, such as Wnts, LRP5, Axin, BMP2, and TGF-β, is determined by TGF-β/BMP signaling and Wnt signaling, and these two signaling pathways are connected by the interaction between Smad7 and Axin.
Jcm 14 01113 g003
Table 1. Summary of established classifications for CSDs.
Table 1. Summary of established classifications for CSDs.
Winter et al. (1983) [6]Kawakami et al. (2009) [9]Kawakami et al. (2018) [10]
Formation failure
Improper vertebral formation. Includes WSV, HV, BV, and VA.		Solitary simple (SS)
Abnormal vertebrae with formation disorder. Includes HV, WSV, and BV.		Formation failure
Improper vertebral formation. Includes WSV, HV, BV, and VA.
Segmentation failure
Partial or complete fusion of two or more vertebrae. Includes unilateral unsegmented bars and block vertebrae.		Multiple simple (MS)
Multiple anomalies of vertebrae, not related to anterior/posterior structure. Includes WSV, HV, BV, discrete, adjacent anomalies.		Coupling failure
False coupling of somites resulting in contralateral HV formation.
Mixed type
Both formation and segmentation failures or anomalies not fitting descriptions.		Multiple complex (MC)
Formation defects with some segmentation defects.		Segmentation failure
Partial or complete fusion of two or more vertebrae. Includes unilateral unsegmented bars and block vertebrae.
Segmentation failure (SFK)
Only covers segmentation failure.		Mixed type
Covers coupling failure with segmentation or formation defects.
WSV: wedge-shaped vertebrae; HV: hemivertebrae; BV: butterfly vertebrae; VA: vertebral aplasia; SS: solitary simple; MS: multiple simple; MC: multiple complex; SFK: segmentation failure.
Table 2. Genes involved in CSDs, their biological function, and their effect on CSDs.
Table 2. Genes involved in CSDs, their biological function, and their effect on CSDs.
GeneBiological FunctionEffect on CSDs
SHHRegulates sclerotome formation, promotes cartilage differentiation.Mutations disrupt sclerotome development, leading to vertebral segmentation defects.
PAX1Controls sclerotome differentiation into chondrocytes.Defects cause improper vertebral segmentation and cartilage formation abnormalities.
PAX9Works with the PAX1 protein in sclerotome development.Mutations lead to the absence of vertebral column bones and IVDs.
HOXProvide anterior–posterior positional identity.Alterations disrupt vertebral patterning, leading to abnormalities in vertebral size and alignment.
TBX6Regulates differentiation of paraxial mesoderm into somites.Mutations linked to congenital scoliosis, causing vertebral segmentation defects.
DLL3Involved in Notch signaling and somitogenesis.Defects lead to SCD and improper vertebral segmentation.
MEOX1Required for somite development and sclerotome polarity.Mutations result in KFS, affecting vertebral and rib formation.
BAPX1Regulates axial skeleton development and chondrogenesis.Deficiencies contribute to vertebral fusion and skeletal abnormalities.
JAG1Part of the Notch signaling pathway, regulates somitogenesis.Mutations associated with Alagille syndrome, affecting vertebral segmentation.
BAZ1BInvolved in Wnt/β-catenin signaling.Mutations associated with congenital vertebral fusion and KFS.
KMT2DTranscriptional regulator linked to skeletal development.Mutations cause multiple contiguous cervical fusion abnormalities.
SOX9Transcription factor involved in chondrogenesis.Mutations impair cartilage development, leading to CSDs.
FZD6Wnt signaling receptor, involved in neural tube development.Mutations cause neural tube defects and congenital spinal abnormalities.
VANGL1Regulates planar cell polarity and neural tube closure.Defects lead to spina bifida and other vertebral segmentation issues.
SUFUNegative regulator of HH signaling.Mutations affect chondrocyte differentiation, potentially contributing to KFS.
COL11A2Essential for cartilage matrix formation.Mutations cause vertebral fusion and skeletal defects.
GDF3Member of the TGF-β superfamily, regulates skeletal formation.Mutations disrupt chondrocyte differentiation, leading to vertebral segmentation defects.
GDF6Involved in joint and vertebral development.Deficiencies result in skeletal deformities such as KFS.
TGFBR2Mediates TGF-β signaling, crucial for vertebral body formation.Mutations lead to joint fusion and skeletal abnormalities.
SMAD2/SMAD3Key players in the TGF-β pathway, regulating cartilage formation.Disruptions result in vertebral segmentation defects and IVD malformations.
IVD: intervertebral disk; SCD: spondylocostal dysostosis; KFS: Klippel–Feil syndrome.
Table 3. Signaling pathways with associated genes that are linked to the development of CSDs.
Table 3. Signaling pathways with associated genes that are linked to the development of CSDs.
Signaling PathwayKey FunctionsKey GenesAssociated CSDs
WntRegulates cell proliferation (canonical) and cell polarity (non-canonical).BAZ1B, KMT2D, SOX9, FZD6, VANGL1Congenital vertebral fusion, KFS, neural tube defects, spina bifida
NotchControls intercellular interactions and somitogenesis; regulates vertebral segmentation.RIPPLY2, TBX6, JAG1KFS, CS, Alagille syndrome
HedgehogDetermines cell fate in vertebral segmentation and limb patterning; maintains and repairs skeletal tissue.PAX1, SUFUScoliosis, vertebral fusion, neural tube defects
BMPRegulates limb development and chondrocyte proliferation.SOX9, COL2A1 SOL11A1, GDF3, GDF6CS, vertebral fusions, skeletal abnormalities
TGF-βRequired for skeletal formation, vertebral body, and IVD development.TGFBR2, SMAD2, SMAD3Spinal deformities, joint fusion, disrupted IVD development
KFS: Klippel–Feil syndrome; CS: congenital scoliosis; IVD: intervertebral disk.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Samarkhanova, D.; Zhabagin, M.; Nadirov, N. Reviewing the Genetic and Molecular Foundations of Congenital Spinal Deformities: Implications for Classification and Diagnosis. J. Clin. Med. 2025, 14, 1113. https://doi.org/10.3390/jcm14041113

AMA Style

Samarkhanova D, Zhabagin M, Nadirov N. Reviewing the Genetic and Molecular Foundations of Congenital Spinal Deformities: Implications for Classification and Diagnosis. Journal of Clinical Medicine. 2025; 14(4):1113. https://doi.org/10.3390/jcm14041113

Chicago/Turabian Style

Samarkhanova, Diana, Maxat Zhabagin, and Nurbek Nadirov. 2025. "Reviewing the Genetic and Molecular Foundations of Congenital Spinal Deformities: Implications for Classification and Diagnosis" Journal of Clinical Medicine 14, no. 4: 1113. https://doi.org/10.3390/jcm14041113

APA Style

Samarkhanova, D., Zhabagin, M., & Nadirov, N. (2025). Reviewing the Genetic and Molecular Foundations of Congenital Spinal Deformities: Implications for Classification and Diagnosis. Journal of Clinical Medicine, 14(4), 1113. https://doi.org/10.3390/jcm14041113

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
