Review

Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): Techniques, Outcomes and Safety Profiles

by
Filippo Antonini
1,*,
Giacomo Emanuele Maria Rizzo
2,
Giuseppe Vanella
3,
Lorenzo Fuccio
4,5,
Andrea Lisotti
6,
Michiel Bronswijk
7,8,
Enrique Pérez-Cuadrado-Robles
9,
Cecilia Binda
10,
Stefano Mazza
11,
Andrea Anderloni
11,12,
Carlo Fabbri
10 and
Ilaria Tarantino
2 on behalf of I-EUS Working Group
1
Gastroenterology and Interventional Endoscopy Unit, Mazzoni Hospital AST Ascoli Piceno, 63100 Ascoli Piceno, Italy
2
Gastroenterology and Endoscopy Unit, Istituto Mediterraneo per i Trapianti e Terapie ad Alta Specializzazione, IRCCS-ISMETT, 90127 Palermo, Italy
3
Pancreatobiliary Endoscopy and EUS Division, San Raffaele Scientific Institute IRCCS, 20132 Milan, Italy
4
Department of Medical Sciences and Surgery, University of Bologna, 40138 Bologna, Italy
5
Gastroenterology Unit, IRCCS-Azienda Ospedaliero-Universitaria di Bologna, 40138 Bologna, Italy
6
Gastroenterology Unit, Hospital of Imola, University of Bologna, 40026 Bologna, Italy
7
Gastroenterology and Hepatology, Imelda Hospital, 2820 Bonheiden, Belgium
8
Gastroenterology and Hepatology, KU Leuven University Hospitals Leuven, 3000 Leuven, Belgium
9
Department of Gastroenterology, Georges-Pompidou European Hospital, 75015 Paris, France
10
Gastroenterology and Digestive Endoscopy Unit, Forlì-Cesena Hospitals, AUSL Romagna, 47121 Forlì-Cesena, Italy
11
Gastroenterology and Digestive Endoscopy Unit, IRCCS Foundation Policlinico San Matteo, 27100 Pavia, Italy
12
Department of Internal Medicine and Medical Therapeutics, University of Pavia, 27100 Pavia, Italy

add Show full affiliation list

remove Hide full affiliation list
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2025, 14(16), 5675; https://doi.org/10.3390/jcm14165675
Submission received: 1 July 2025 / Revised: 7 August 2025 / Accepted: 9 August 2025 / Published: 11 August 2025
(This article belongs to the Section Gastroenterology & Hepatopancreatobiliary Medicine)
Browse Figures
Versions Notes

Abstract

Patients with Roux-en-Y gastric bypass (RYGB) are a significant challenge for endoscopic retrograde cholangiopancreatography (ERCP) due to the altered anatomy. Endoscopic ultrasound (EUS)-directed transgastric ERCP (EDGE) has emerged as a valuable alternative to standard methods like enteroscopy-assisted (EA-ERCP) and laparoscopy-assisted (LA-ERCP) ERCP. EDGE involves creating a temporary fistula between the gastric pouch and the excluded stomach under EUS guidance, typically using a lumen-apposing metal stent (LAMS). This allows a standard ERCP scope to access the second duodenum and the biliary tree with standard devices. Several studies have investigated the efficacy and safety of this approach, with variations in techniques such as suturing the LAMS to prevent migration. EDGE has demonstrated high technical success rates, and current evidence indicates that it can be performed safely, with acceptable rates of adverse events such as stent migration, bleeding, and perforation, making it the preferred option in referral centers. This comprehensive review aims to provide a concise evaluation of EDGE, its techniques, outcomes, and role in managing biliary and pancreatic disorders in RYGB patients.

1. Introduction

Obesity is a significant public health issue, with rising prevalence and a clear association with a variety of medical comorbidities, including cardiovascular diseases, diabetes, and certain cancers [1,2]. Roux-en-Y gastric bypass (RYGB) has become one of the most widely performed bariatric procedures due to its effectiveness in promoting substantial weight loss and improving outcomes of obesity-related comorbidities [3]. However, despite its efficacy in weight management, RYGB increases the risk of developing biliary diseases. Approximately 35% of patients develop gallstones within 18 months post-surgery, significantly raising their likelihood of requiring endoscopic retrograde cholangiopancreatography (ERCP) [4,5]. In addition, the majority of biliary complications consist of chronic or acute cholecystitis, with about 12.2% developing biliary pancreatitis and 5.7% developing choledocholithiasis [6]. Altered anatomy in RYGB precludes conventional ERCP because of the need to transverse the jejunum to access the duodenum and ampulla. Therefore, enteroscopy-assisted ERCP (EA-ERCP) and laparoscopy-assisted ERCP (LA-ERCP) have been developed to address these challenges [7,8,9]. While these methods can achieve biliary drainage [10], they are often associated with extended procedural time, suboptimal technical success, increased morbidity, and do not facilitate multiple reinterventions. EA-ERCP has suboptimal technical success in achieving the ampullary/anastomotic region and performing effective therapeutics, as it also involves endoscopes with no elevator and smaller operative channels than duodenoscopes. LA-ERCP, despite demonstrating higher success rates compared to EA-ERCP, involves a surgical intervention and its associated risks, and requires logistical adaptation of the endoscopy team and equipment with fluoroscopy in the surgical theatre [11]. On the other hand, endoscopic ultrasound (EUS)-directed transgastric ERCP (EDGE) has emerged as a promising alternative in the era of advanced EUS-guided interventions since 2014 [12,13]. By creating a gastrogastric or jejunogastric connection under EUS guidance, this procedure enables access to the excluded stomach and allows for conventional ERCP to be performed without the need for surgical intervention [14]. The EDGE has gained increasing favor due to its high technical success rates, shorter procedure durations, and its ability to be performed entirely within the endoscopy room [15,16]. Nevertheless, widespread adoption of this technique necessitates a comprehensive understanding of its indications, procedural steps, safety considerations, and long-term outcomes. The aim of this narrative review is to explore the principles, technical findings, clinical outcomes, and current evidence of EDGE, highlighting its role in the management of RYGB patients requiring biliary interventions.

2. Technical Overview of the EDGE Procedure

A critical element of the EDGE procedure is the use of a specific stent for fistula creation, the lumen-apposing metal stent (LAMS), which ensures the maintenance of a stable and secure connection, thereby providing reliable access to the remnant stomach. However, high expertise in both interventional EUS and ERCP techniques is needed for minimizing adverse events (AEs) [17], which may arise during gastrointestinal anastomoses as well as during subsequent ERCP procedures [18,19]. Notably, the introduction of the “electrocautery-enhanced LAMS” (EC-LAMS) has simplified the EUS-guided procedure by reducing the number of procedural steps, eliminating the need for guidewires and tract dilation, thereby optimizing the process and enhancing procedural efficiency and safety [20]. The EDGE procedure involves three main key steps: first, under EUS guidance, a gastro-gastrostomy or jejuno-gastrostomy is created by deploying a LAMS; second, a conventional ERCP is performed using a duodenoscope through the newly established tract; and finally, the LAMS is removed. Peri-procedural management includes a careful evaluation of the clinical status of the patient and the availability of the instrumentation. Overall, the use of carbon dioxide insufflation is recommended to minimize the risk of gas-related complications [21], while the administration of antibiotics is not routinely recommended but may be considered based on technical difficulties and clinical indications, such as the presence of cholangitis [22]. No specific recommendations are given for the type of sedation, so the procedure is typically performed under general anesthesia or deep sedation, based on internal institutional policies and the anesthesiologist’s preference.
A proposed clinical guide to the EDGE procedure is shown in Table 1. Figure 1 illustrates the standard step-by-step approach to EDGE.

2.1. EUS-Guided LAMS Placement

A therapeutic linear echoendoscope is advanced into the gastric pouch or proximal Roux limb to visualize the excluded stomach sonographically, the identification of which is crucial, requiring differentiation from adjacent small bowel loops. The EUS-view of the collapsed or flattened antrum is known as the “sand dollar sign”, helping pinpoint the correct target for creating a fistula through the placement of the LAMS. Doppler ultrasound is used to avoid vascular structures, and the distance between the two lumens should be short enough to allow the deployment of the LAMS, approximately 10 mm. Once a safe access window is confirmed, the excluded stomach is first punctured using a fine-needle aspiration (FNA) needle so that saline mixed with contrast is injected under fluoroscopic guidance to verify appropriate needle positioning. If needed, a higher volume of fluid may be instilled to distend the excluded stomach, with the goal of gastric wall separation for accepting the LAMS [23,24]. At the operator’s discretion, a colorant such as indigo carmine or methylene blue may be added to the infusion to aid in confirming correct stent placement after its release, similarly to the technique used in EUS-guided gastroenterostomy [25]. An EC-LAMS is then deployed between the gastric pouch and the remnant stomach, either over a guidewire, if one was previously introduced through the needle used to puncture the remnant stomach, or using the freehand technique, depending on operator preference [26]. However, the site of needle injection and LAMS placement might be different, and, in case of inadequate distention, the patient’s position might be changed. Indeed, to facilitate smooth passage of the duodenoscope and maintain normal anatomical alignment, the LAMS should ideally be placed from the pouch into the proximal gastric body, as extreme positions towards the fundus or antrum have been associated with more difficult ERCP [27]. The LAMS must have a minimum diameter of 15 mm (but 20 mm would be even better) to ensure the safe passage of the duodenoscope, thereby reducing the risk of leakage and stent dislodgement [23,24,28]. The final positioning of the stent is confirmed fluoroscopically with contrast injection.

2.2. ERCP via the Created Access

ERCP can be performed either during the initial procedure, called single-session EDGE (SS-EDGE), or in a delayed separate approach (“staged” or “two-stage” or “dual session” EDGE) (Figure 2). Staged EDGE involves a brief maturation period of typically at least one week following LAMS deployment. During this period, the created fistula becomes more stable, reducing the risk of adverse events such as leakage or perforation. After the tract has adequately matured, a therapeutic duodenoscope is introduced through the LAMS into the residual stomach and advanced toward the second duodenum to access the major papilla for ERCP [29,30]. If the lumen of the LAMS is not sufficiently dilated, balloon dilation can be performed, usually up to the maximum size of the stent diameter, to facilitate passage of the duodenoscope. In case the ERCP cannot be deferred (for example, for cholangitis), LAMS fixation, with over-the-scope clips (OTSCs) or suturing devices, can help stabilize the position of the stent and reduce the risk of intraprocedural migration and peritonitis, as discussed in more detail below (Section 4.1) [31,32].

2.3. Other Procedures Through the LAMS

In addition to standard ERCP procedures, such as biliary cannulation, sphincterotomy, stone extraction, and stent placement, the EDGE-created fistula also provides access for other advanced interventions, so-called EUS-directed transgastric intervention (“EDGI”), that includes endoscopic biopsy of gastroduodenal luminal abnormalities, EUS-fine needle biopsy (FNB), EUS-guided biliary drainage, and EUS-guided cystogastrostomy [30,31,33,34]. Moreover, access through the LAMS can also facilitate the hemostasis of bleeding lesions located in the excluded stomach or duodenum, areas that are otherwise inaccessible. This includes treatment of bleeding ulcers, angiodysplasias, or anastomotic lesions in post-RYGB patients [35].

2.4. LAMS Removal

Following successful ERCP, the LAMS is typically removed after four weeks, whenever additional interventions are not foreseen [36]. Overall, two primary approaches have been proposed for addressing fistulas following LAMS removal. The first involves primary closure, utilizing a variety of techniques such as endoscopic suturing, through-the-scope clips, or OTSCs, with or without previous argon plasma coagulation (APC). These methods aim to achieve immediate and direct sealing of the fistula, even if other unconventional methods have been reported. In fact, some authors adapted devices from different fields (e.g., interventional cardiology) for closing the persistent fistula tract, such as a cardiac septal occluder [37,38].
The second approach involves a wait-and-see approach, sometimes with the application of APC only, to promote secondary intention healing, as the long-term LAMS indwelling seems necessary for maintenance of the fistula. Fistula closure can then be confirmed through endoscopy or upper gastrointestinal series [39].
However, in certain clinical situations, the LAMS may either be left in place or replaced with double pigtail plastic stents [23,40], especially in patients needing long-term access to the remnant stomach or those with malignancies [41,42], where a permanent reversal of RYGB could help prevent excessive weight loss and improve nutritional support.

3. Technical and Clinical Success

The EDGE procedure has demonstrated high technical and clinical success rates in patients with RYGB anatomy (Table 2), outperforming other established approaches such as EA-ERCP and LA-ERCP, considering all the outcomes [8]. Runge et al.’s multicenter study [28] reported a technical success rate of 98% on 178 patients with a mean procedure time of 92 min. A high number of studies have been reported so far for evaluating EDGE [16,24,27,28,31,43,44,45,46,47,48,49,50,51,52], and even comparative studies with other approaches are available [25,53,54,55,56,57]. Moreover, one of the alternatives, LA-ERCP, achieves superior therapeutic success when compared to EA-ERCP, with reported rates of 97.9% versus 73.2%, respectively [29,58].
Despite its higher efficacy, LA-ERCP carries a higher risk of adverse events (AEs) compared to EDGE (19.0% vs. 6.5%) and is associated with significantly longer procedural durations (158.4 min vs. 100.5 min) [29]. However, it must be mentioned that LA-ERCP does allow for same-session cholecystectomy in patients with a naïve gallbladder, reducing the procedural burden for this particular patient group. A meta-analysis comparing the effectiveness and safety of three techniques found that EA-ERCP was the least effective, with an overall success rate of 87.3%, duct cannulation 74.7%, and therapeutic success 69.1%. In contrast, EDGE and LA-ERCP demonstrated significantly higher success rates (EDGE: 97.9%, LA-ERCP: 99.1%), along with similarly high cannulation and therapeutic success [60]. A recent network meta-analysis showed that EDGE has a superior technical success compared to EA-ERCP (OR: 4.507, p < 0.001), comparable success to LA-ERCP (OR: 0.768, p = 0.704), and significantly shorter procedural time than both EA-ERCP (mean difference: −31 min, 95% CI: −40.748 to −21.217, p < 0.001) and LA-ERCP (MD: −78.145 min, 95% CI: −104.882 to −51.407, p < 0.001), without an increase in AEs [8]. Other meta-analyses have been published, confirming the latter results [7,8,11,60,61,62,63,64] (Table 3).

4. Safety

EDGE has demonstrated favorable outcomes in terms of both efficacy and safety, although, like all advanced EUS-guided procedures, it carries a risk of complications. Reported AEs include LAMS migration or dislodgement (15–16%), bleeding (6–7%), perforation (2–4%), and post-ERCP pancreatitis (PEP) (2%) [7,8,43]. Most of these AEs are mild and can be managed conservatively or with endoscopic interventions. Surgical intervention is rarely required. Recent meta-analyses have further assessed the safety profile of EDGE in comparison with LA-ERCP and EA-ERCP [8,64]. Although some studies [60] report lower AE rates with EA-ERCP, these discrepancies are likely due to methodological differences, including variations in patient selection, outcome definitions, the inclusion of retrospective non-comparative studies, and inconsistent reporting of outcomes by surgery type across studies. Despite these variations, only modest differences in overall complication rates have been observed among the three approaches: EDGE (13–21%), LA-ERCP (16–17%), and EA-ERCP (8–10%) [7,64].

4.1. Stent Migration/Dislodgement

Stent migration or dislodgement is a significant concern during EDGE, particularly in single-stage procedures. This risk is influenced by LAMS diameter, fixation technique, and patient anatomy. Keane et al. [45], using 20-mm LAMS, which was then sutured to the gastric wall, reported no stent migration. However, other studies have reported varying rates of stent dislodgement. For example, Tyberg et al. [16] reported stent dislodgement in 18.7% of patients during the index procedure, with successful repositioning or bridging in all cases. In a study by Mangiavillano et al. [31], two cases of late stent migration led to gastro-colonic fistulas. However, recent advancements in proximal flange fixation techniques have improved the stability of the stent, which may make SS-EDGE safer by reducing the risk of stent migration [59]. Usually, a 20-mm LAMS is used, which is then dilated to ensure the scope passage. Several methods have been reported to reduce dislodgement of the LAMS, such as mineral oil lubrication of the duodenoscope shaft for reducing friction and preventing migration [57], conventional endoscopic suturing systems, OTSCs [65], and through-the-scope suturing systems [32]. Recently, a dedicated fixation device (Stentfix over-the-scope clip [OTSC], Ovesco Endoscopy, Tübingen, Germany) has been released, which functions as an OTSC but is specifically designed for the fixation of stents, such as LAMS or fully covered self-expandable metal stents. In the multicenter study on the feasibility of this device, no LAMS migration occurred, and technical success was achieved in 95.0% [44]. However, the selection of the optimal stent fixation technique depends largely on the available technical expertise and the resources at hand [59].

4.2. Fistula Persistence

Fistula persistence is a potential issue after LAMS removal following EDGE, with ongoing debate about optimal management. However, the clinical relevance of this event is still debated, as weight regain has been rarely described (see below). While spontaneous fistula closure is common, some patients need intervention. Keane et al. [45] reported that a persistent fistula was diagnosed in 25% of patients who underwent objective testing. Factors contributing to persistence include LAMS size, stent duration, allowing the fistula to close by secondary intent, patient healing, and underlying conditions, whereas the location of the fistula and the timing of the ERCP session do not seem to have a significant impact [66]. The management of persistent fistula is similar to that of fistula closure following LAMS removal, and may include APC, endoscopic suturing, and clip deployment [46]. However, there is no consensus on the best approach to prevent fistula persistence. A study analyzing predictive factor for fistula persistence showed that longer LAMS dwell time (mean 127 vs. 48 days, p = 0.02) was significantly associated with a higher risk of persistent fistulas in EDGE patients, increasing by 9.5% for every additional seven days in situ, while primary fistula closure and APC treatment were not found to be protective against fistula formation [67]. Moreover, 19 patients among the 25 patients with persistent fistulas underwent endoscopic closure attempts. The techniques used were as follows: OTSC combined with APC in seven patients, endoscopic suturing with APC in seven patients, through-the-scope clips in two patients, endoscopic tacking with APC in one patient, OTSC combined with endoscopic suturing and APC in one patient, and APC alone in one patient. Follow-up assessments showed successful fistula resolution in 14 of these 19 patients (73.7%), all achieved after a single attempt, while the residual 5 underwent multiple endoscopic sessions or were lost at follow-up [67].
Mucosal ulceration at the LAMS site could be an underrecognized but clinically relevant adverse event [28]. It is most likely due to acid exposure and mechanical trauma from the stent. Prophylactic and post-procedural proton pump inhibitors (PPI) therapy could be suggested to prevent this adverse event. [68] In rare, refractory cases, particularly when ulceration persists despite optimal acid suppression, the use of misoprostol may be considered. Its benefit in treating post-bypass anastomotic ulcers has been described and may extend to EDGE-related mucosal injuries [69].

4.3. Weight Regain

Weight regain is a potential long-term concern post-EDGE, especially after RYGB. However, current data suggests EDGE does not cause significant weight regain in most patients [57,70]. Tyberg et al. [16] reported a mean weight change of −2.85 kg from LAMS insertion to removal. In Keane et al.’s study [45], patients also had a tendency to lose weight (mean weight loss, 3.1 kg). Another study from Kochhar et al. [56] showed that the mean weight change was negative 6.6 lbs at 28 weeks after the EDGE procedure. Conversely, a weight gain in 63 patients (36.6%) during the time the LAMS was in place was reported in another study, with an average weight gain of 12 lbs, with 38 patients gaining < 5 lbs [43], suggesting a trend toward possible weight gain in patients that did not have their fistula closed at the time of LAMS removal. This variability highlights the need for consistent weight monitoring and data collection across different centers to understand the true risk of persistent fistula leading to weight change after the procedure, and for identifying predictive factors.

5. Training Implications for EDGE

Training for the EDGE technique presents unique challenges due to the complex nature of the procedure, which demands proficiency in EUS, ERCP, fluoroscopic guidance, and the deployment of LAMS. Data from a single-operator prospective study involving 19 patients suggests that while technical success can be consistently achieved early on, procedural efficiency improves significantly with experience [48]. In this series, a median procedure time of 54.5 min was reported, with cumulative sum analysis indicating a noticeable gain in efficiency after nine procedures. Furthermore, nonlinear regression analysis demonstrated that procedural times continued to decrease, suggesting a plateau or “mastery” level may be reached after approximately 25 to 35 cases [48]. Although formal training guidelines for EDGE are lacking, these findings underscore the importance of a structured, case-volume-based approach to training. Based on expert consensus and parallels drawn from other interventional EUS procedures, it is recommended that operators have prior experience with at least 50 therapeutic EUS cases, including EUS-guided gastrointestinal anastomoses, and demonstrate competency in complex ERCP (ASGE grade 3–4) before attempting EDGE [71,72,73]. The integration of simulation models and supervised training programs may help accelerate the learning curve and enhance safety during the early adoption phase, though EDGE-specific data on these modalities remains limited [74].

6. Economic Considerations

From an economic standpoint, while EDGE may involve higher initial costs due to specialized equipment and technical demands, emerging data suggest it may offer long-term savings by reducing the need for more invasive alternatives such as LA-ERCP or EA-ERCP. A cost-effectiveness analysis found EDGE to be the least expensive and most beneficial option in terms of quality-adjusted life years (QALYs), outperforming both EA-ERCP and LA-ERCP [75]. Moreover, comparative observational data demonstrate substantially lower total procedural and hospitalization costs with EDGE, primarily due to shorter operative times, reduced hospital stays, and minimal need for multidisciplinary coordination compared to LA-ERCP and EA-ERCP [60,62]. Indeed, EDGE’s significantly shorter procedural duration contributes directly to reduced operating room utilization and resource consumption [8,62]. Furthermore, EDGE is associated with shorter hospital stays, typically by over one day, compared to LA-ERCP, further amplifying its cost-saving potential through lower postoperative resource use [11]. Although most available data derive from dual-session EDGE procedures performed in endoscopy units, it is plausible that single-session approaches may yield even greater economic benefits, though formal data are not yet available.

7. Conclusions

EDGE in RYGB patients continues to demonstrate high effectiveness and is evolving as a promising method for accessing the biliary tree without the need for surgical revision. Its high technical success rates are associated with high clinical success and a low incidence of severe adverse events. However, it should be noted that to date, literature retrospectively describes the outcomes of a relatively low number of large-volume centers, without any direct head-to-head comparison. Standardization of the technique and awareness of risk factors for AEs seem to have improved procedure outcomes.
To reduce the risk of LAMS migration, new dedicated devices such as the OTSC, as well as different fixation techniques (suturing systems), are increasingly being utilized. However, EDGE requires advanced expertise in both interventional EUS and ERCP techniques, making it the preferred option in specialized referral centers. Further research should focus on refining procedural techniques, evaluating long-term outcomes, and tailoring interventions to individual patient anatomy and clinical context.

Author Contributions

Conceptualization, F.A. and G.E.M.R.; methodology, F.A. and G.E.M.R.; software, F.A. and G.E.M.R.; validation, F.A. and G.E.M.R.; formal analysis, F.A. and G.E.M.R.; investigation, F.A. and G.E.M.R.; resources, F.A. and G.E.M.R.; data curation, F.A. and G.E.M.R.; writing—original draft preparation, F.A. and G.E.M.R.; writing—review and editing, F.A., G.E.M.R., G.V., L.F., A.L., M.B., E.P.-C.-R., C.B., S.M., A.A., C.F. and I.T.; visualization, F.A., G.E.M.R., G.V., L.F., A.L., M.B., E.P.-C.-R., C.B., S.M., A.A., C.F. and I.T.; supervision, F.A. and G.E.M.R.; project administration, F.A., G.E.M.R. and I.T.; funding acquisition, F.A., A.A., C.F. and I.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

I-EUS working group.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Perdomo, C.M.; Cohen, R.V.; Sumithran, P.; Clément, K.; Frühbeck, G. Contemporary medical, device, and surgical therapies for obesity in adults. Lancet 2023, 401, 1116–1130. [Google Scholar] [CrossRef]
  2. Seidell, J.C.; Halberstadt, J. The global burden of obesity and the challenges of prevention. Ann. Nutr. Metab. 2015, 66 (Suppl. S2), 7–12. [Google Scholar] [CrossRef] [PubMed]
  3. Roth, A.E.; Thornley, C.J.; Blackstone, R.P. Outcomes in Bariatric and Metabolic Surgery: An Updated 5-Year Review. Curr. Obes. Rep. 2020, 9, 380–389. [Google Scholar] [CrossRef] [PubMed]
  4. Nagem, R.G.; Lázaro-da-Silva, A.; de Oliveira, R.M.; Morato, V.G. Gallstone-related complications after Roux-en-Y gastric bypass: A prospective study. Hepatobiliary Pancreat. Dis. Int. 2012, 11, 630–635. [Google Scholar] [CrossRef] [PubMed]
  5. Tustumi, F.; Pinheiro Filho, J.E.L.; Stolzemburg, L.C.P.; Serigiolle, L.C.; Costa, T.N.; Pajecki, D.; Santo, M.A.; Nahas, S.C. Management of biliary stones in bariatric surgery. Ther. Adv. Gastrointest. Endosc. 2022, 15, 26317745221105090. [Google Scholar] [CrossRef]
  6. Chang, J.; Corcelles, R.; Boules, M.; Jamal, M.H.; Schauer, P.R.; Kroh, M.D. Predictive factors of biliary complications after bariatric surgery. Surg. Obes. Relat. Dis. Off. J. Am. Soc. Bariatr. Surg. 2016, 12, 1706–1710. [Google Scholar] [CrossRef]
  7. Dhindsa, B.S.; Dhaliwal, A.; Mohan, B.P.; Mashiana, H.S.; Girotra, M.; Singh, S.; Ohning, G.; Bhat, I.; Adler, D.G. EDGE in Roux-en-Y gastric bypass: How does it compare to laparoscopy-assisted and balloon enteroscopy ERCP: A systematic review and meta-analysis. Endosc. Int. Open 2020, 8, E163–E171. [Google Scholar] [CrossRef]
  8. Gangwani, M.K.; Aziz, M.; Haghbin, H.; Iqbal, A.; Dillard, J.; Dahiya, D.S.; Ali, H.; Hayat, U.; Khuder, S.; Lee-Smith, W.; et al. Comparing EUS-Directed Transgastric ERCP (EDGE) Versus Laparoscopic-Assisted ERCP Versus Enteroscopic ERCP: A Network Meta-Analysis. J. Clin. Gastroenterol. 2024, 58, 110–119. [Google Scholar] [CrossRef]
  9. Tarantino, I.; Rizzo, G.E.M. Biliopancreatic Endoscopy in Altered Anatomy. Medicina 2021, 57, 1014. [Google Scholar] [CrossRef]
  10. Mauro, A.; Vanella, G.; Mirante, V.G.; Fugazza, A.; Binda, C.; Elli, L.; Forti, E.; Di Mitri, R.; Berretti, D.; Bertani, H.; et al. Endoscopic biliary drainage in patients with surgically-altered anatomy: The street multicenter study. Gastrointest. Endosc. 2025; Online ahead of print. [Google Scholar] [CrossRef]
  11. de Oliveira, V.L.; de Moura, D.T.H.; do Monte, E.S., Jr.; Proença, I.M.; Ribeiro, I.B.; Sánchez-Luna, S.A.; Ribas, P.H.B.V.; Hemerly, M.C.; Bernardo, W.M.; de Moura, E.G.H. Laparoscopic-Assisted Endoscopic Retrograde Cholangiopancreatography (ERCP) Versus Endoscopic Ultrasound-Directed Transgastric ERCP in Patients with Roux-en-Y Gastric Bypass: A Systematic Review and Meta-Analysis. Cureus 2022, 14, e30196. [Google Scholar] [CrossRef]
  12. Kedia, P.; Sharaiha, R.Z.; Kumta, N.A.; Kahaleh, M. Internal EUS-directed transgastric ERCP (EDGE): Game over. Gastroenterology 2014, 147, 566–568. [Google Scholar] [CrossRef]
  13. Thompson, C.C.; Ryou, M.K.; Kumar, N.; Slattery, J.; Aihara, H.; Ryan, M.B. Single-session EUS-guided transgastric ERCP in the gastric bypass patient. Gastrointest. Endosc. 2014, 80, 517. [Google Scholar] [CrossRef] [PubMed]
  14. Kedia, P.; Tyberg, A.; Kumta, N.A.; Gaidhane, M.; Karia, K.; Sharaiha, R.Z.; Kahaleh, M. EUS-directed transgastric ERCP for Roux-en-Y gastric bypass anatomy: A minimally invasive approach. Gastrointest. Endosc. 2015, 82, 560–565. [Google Scholar] [CrossRef] [PubMed]
  15. Bukhari, M.; Kowalski, T.; Nieto, J.; Kunda, R.; Ahuja, N.; Irani, S.; Shah, A.; Loren, D.; Brewer, O.; Sanaei, O.; et al. An international, multicenter, comparative trial of EUS-guided gastrogastrostomy-assisted ERCP versus enteroscopy-assisted ERCP in patients with Roux-en-Y gastric bypass anatomy. Gastrointest. Endosc. 2017, 88, 486–494. [Google Scholar] [CrossRef]
  16. Tyberg, A.; Nieto, J.; Salgado, S.; Weaver, K.; Kedia, P.; Sharaiha, R.Z.; Gaidhane, M.; Kahaleh, M. Endoscopic Ultrasound (EUS)-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography or EUS: Mid-Term Analysis of an Emerging Procedure. Clin. Endosc. 2017, 50, 185–190. [Google Scholar] [CrossRef] [PubMed]
  17. Antonini, F.; Merlini, I.; Di Saverio, S. Endoscopic ultrasound-guided biliary drainage after failed endoscopic retrograde cholangiopancreatography: The road is open for almighty biliopancreatic endoscopists! World J. Gastrointest. Surg. 2024, 16, 2765–2768. [Google Scholar] [CrossRef]
  18. Ghandour, B.; Bejjani, M.; Irani, S.S.; Sharaiha, R.Z.; Kowalski, T.E.; Pleskow, D.K.; Do-Cong Pham, K.; Anderloni, A.A.; Martinez-Moreno, B.; Khara, H.S.; et al. Classification, outcomes, and management of misdeployed stents during EUS-guided gastroenterostomy. Gastrointest. Endosc. 2022, 95, 80–89. [Google Scholar] [CrossRef]
  19. Rizzo, G.E.M.; Carrozza, L.; Tammaro, S.; Ligresti, D.; Traina, M.; Tarantino, I. Complete intraperitoneal maldeployment of a lumen-apposing metal stent during EUS-guided gastroenteroanastomosis for malignant gastric outlet obstruction: Rescue retrieval with peritoneoscopy through natural orifice transluminal endoscopic surgery. VideoGIE 2023, 8, 310–312. [Google Scholar] [CrossRef]
  20. Adler, D.G.; Taylor, L.J.; Hasan, R.; Siddiqui, A.A. A retrospective study evaluating endoscopic ultrasound-guided drainage of pancreatic fluid collections using a novel lumen-apposing metal stent on an electrocautery enhanced delivery system. Endosc. Ultrasound 2017, 6, 389–393. [Google Scholar] [CrossRef]
  21. ASGE Technology Committee; Lo, S.K.; Fujii-Lau, L.L.; Enestvedt, B.K.; Hwang, J.H.; Konda, V.; Manfredi, M.A.; Maple, J.T.; Murad, F.M.; Pannala, R.; et al. The use of carbon dioxide in gastrointestinal endoscopy. Gastrointest. Endosc. 2016, 83, 857–865. [Google Scholar] [CrossRef]
  22. ASGE Standards of Practice Committee; Khashab, M.A.; Chithadi, K.V.; Acosta, R.D.; Bruining, D.H.; Chandrasekhara, V.; Eloubeidi, M.A.; Fanelli, R.D.; Faulx, A.L.; Fonkalsrud, L.; et al. Antibiotic prophylaxis for GI endoscopy. Gastrointest. Endosc. 2015, 81, 81–89. [Google Scholar] [CrossRef] [PubMed]
  23. Honda, H.; Mosko, J.D.; Kobayashi, R.; Fecso, A.; Kim, B.S.; Scott, S.; May, G.R. Endoscopic ultrasound-directed transgastric endoscopic retrograde cholangiopancreatography for patients with Roux-en-Y gastric bypass anatomy: Technical overview. Clin. Endosc. 2022, 55, 736–741. [Google Scholar] [CrossRef] [PubMed]
  24. Bahdi, F.; George, R.; Paneerselvam, K.; Nguyen, D.; Abidi, W.M.; Othman, M.O.; Raijman, I. Comparison of endoscopic ultrasound-directed transgastric endoscopic retrograde cholangiopancreatography outcomes using various technical approaches. Endosc. Int. Open 2022, 10, E459–E467. [Google Scholar] [CrossRef] [PubMed]
  25. Khara, H.S.; Parvataneni, S.; Park, S.; Choi, J.; Kothari, T.H.; Kothari, S.T. Review of ERCP Techniques in Roux-en-Y Gastric Bypass Patients: Highlight on the Novel EUS-Directed Transgastric ERCP (EGDE) Technique. Curr. Gastroenterol. Rep. 2021, 23, 10. [Google Scholar] [CrossRef]
  26. Binmoeller, K.F.; Smith, I.; Gaidhane, M.; Kahaleh, M. A kit for eus-guided access and drainage of pancreatic pseudocysts: Efficacy in a porcine model. Endosc. Ultrasound 2012, 1, 137–142. [Google Scholar] [CrossRef]
  27. Pérez-Cuadrado-Robles, E.; Alric, H.; Quénéhervé, L.; Monino, L.; Poghosyan, T.; Benosman, H.; Vienne, A.; Perrod, G.; Rebibo, L.; Aidibi, A.; et al. Risk factors of anastomosis-related difficult endoscopic retrograde cholangiopancreatography following endoscopic ultrasound-guided gastro-gastrostomy using a standardized protocol (with video). Dig. Endosc. Off. J. Jpn. Gastroenterol. Endosc. Soc. 2023, 35, 909–917. [Google Scholar] [CrossRef]
  28. Runge, T.M.; Chiang, A.L.; Kowalski, T.E.; James, T.W.; Baron, T.H.; Nieto, J.; Diehl, D.L.; Krafft, M.R.; Nasr, J.Y.; Kumar, V.; et al. Endoscopic ultrasound-directed transgastric ERCP (EDGE): A retrospective multicenter study. Endoscopy 2021, 53, 611–618. [Google Scholar] [CrossRef]
  29. Ayoub, F.; Brar, T.S.; Banerjee, D.; Abbas, A.M.; Wang, Y.; Yang, D.; Draganov, P.V. Laparoscopy-assisted versus enteroscopy-assisted endoscopic retrograde cholangiopancreatography (ERCP) in Roux-en-Y gastric bypass: A meta-analysis. Endosc. Int. Open 2020, 8, E423–E436. [Google Scholar] [CrossRef]
  30. van der Merwe, S.W.; van Wanrooij, R.L.J.; Bronswijk, M.; Everett, S.; Lakhtakia, S.; Rimbas, M.; Hucl, T.; Kunda, R.; Badaoui, A.; Law, R.; et al. Therapeutic endoscopic ultrasound: European Society of Gastrointestinal Endoscopy (ESGE) Guideline. Endoscopy 2022, 54, 185–205. [Google Scholar] [CrossRef]
  31. Mangiavillano, B.; Ramai, D.; Kahaleh, M.; Tyberg, A.; Shahid, H.; Sarkar, A.; Samanta, J.; Dhar, J.; Bronswijk, M.; Van der Merwe, S.; et al. Outcomes of lumen apposing metal stent placement in patients with surgically altered anatomy: Multicenter international experience. Endosc. Int. Open 2024, 12, E1143–E1149. [Google Scholar] [CrossRef]
  32. Khan, H.M.A.; Hussain, A.; Kumar, V.C.S.; Yang, D.; Hasan, M.K. Fixation of Proximal flange of Lumen Apposing Metal Stent using Through-the-Scope Endoscopic Suturing System to Prevent Stent Migration in Single-Session EUS-directed Transgastric ERCP: A Pilot Study. Gastrointest. Endosc. 2024, 100, 132–135. [Google Scholar] [CrossRef]
  33. Binda, C.; Giuffrida, P.; Fabbri, S.; Coluccio, C.; Petraroli, C.; Perini, B.; Fabbri, C. Same-session EUS-directed transgastric interventions: From tissue acquisition to choledochoduodenostomy. VideoGIE Off. Video J. Am. Soc. Gastrointest. Endosc. 2024, 9, 182–184. [Google Scholar] [CrossRef]
  34. Krafft, M.R.; Hsueh, W.; James, T.W.; Runge, T.M.; Baron, T.H.; Khashab, M.A.; Irani, S.S.; Nasr, J.Y. The EDGI new take on EDGE: EUS-directed transgastric intervention (EDGI), other than ERCP, for Roux-en-Y gastric bypass anatomy: A multicenter study. Endosc. Int. Open 2019, 7, E1231–E1240. [Google Scholar] [CrossRef]
  35. Ghandour, B.; Shinn, B.; Dawod, Q.M.; Fansa, S.; El Chafic, A.H.; Irani, S.S.; Pawa, R.; Gutta, A.; Ichkhanian, Y.; Paranandi, B.; et al. EUS-directed transgastric interventions in Roux-en-Y gastric bypass anatomy: A multicenter experience. Gastrointest. Endosc. 2022, 96, 630–638. [Google Scholar] [CrossRef]
  36. Shah, R.M.; Tarnasky, P.; Kedia, P. A review of endoscopic ultrasound guided endoscopic retrograde cholangiopancreatography techniques in patients with surgically altered anatomy. Transl. Gastroenterol. Hepatol. 2018, 3, 90. [Google Scholar] [CrossRef]
  37. Kim, K.-Y.; Skinner, M.J. Cardiac septal occluder for closure of persistent gastrogastric fistula. VideoGIE 2021, 6, 294–296. [Google Scholar] [CrossRef]
  38. Aghaie Meybodi, M.; Johal, A.S.; Abdulsamad, M. Persistent Fistula Closure After Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography by Postinfarct Ventricular Septal Defect Occluder. ACG Case Rep. J. 2024, 11, e01519. [Google Scholar] [CrossRef]
  39. Wang, T.J.; Thompson, C.C.; Ryou, M. Gastric access temporary for endoscopy (GATE): A proposed algorithm for EUS-directed transgastric ERCP in gastric bypass patients. Surg. Endosc. 2019, 33, 2024–2033. [Google Scholar] [CrossRef] [PubMed]
  40. Rizzo, G.E.M.; Coluccio, C.; Forti, E.; Fugazza, A.; Binda, C.; Vanella, G.; Di Matteo, F.M.; Crinò, S.F.; Lisotti, A.; Maida, M.F.; et al. Endoscopic Ultrasound-Guided Anastomoses of the Gastrointestinal Tract: A Multicentric Experience. Cancers 2025, 17, 910. [Google Scholar] [CrossRef] [PubMed]
  41. Marzioni, M.; Crinò, S.F.; Lisotti, A.; Fuccio, L.; Vanella, G.; Amato, A.; Bertani, H.; Binda, C.; Coluccio, C.; Forti, E.; et al. Biliary drainage in patients with malignant distal biliary obstruction: Results of an Italian consensus conference. Surg. Endosc. 2024, 38, 6207–6226. [Google Scholar] [CrossRef] [PubMed]
  42. Rizzo, G.E.M.; Carrozza, L.; Rancatore, G.; Binda, C.; Fabbri, C.; Anderloni, A.; Tarantino, I. The Role of Endoscopy in the Palliation of Pancreatico-Biliary Cancers: Biliary Drainage, Management of Gastrointestinal Obstruction, and Role in Relief of Oncologic Pain. Cancers 2023, 15, 5367. [Google Scholar] [CrossRef]
  43. Kedia, P.; Shah-Khan, S.; Tyberg, A.; Gaidhane, M.; Sarkar, A.; Shahid, H.; Zhao, E.; Thakkar, S.; Winkie, M.; Krafft, M.; et al. Endoscopic ultrasound-directed transgastric ERCP (EDGE): A multicenter US study on long-term follow-up and fistula closure. Endosc. Int. Open 2023, 11, E529–E537. [Google Scholar] [CrossRef]
  44. Bronswijk, M.; Gökce, E.; Hindryckx, P.; Van der Merwe, S. Single-session endoscopic ultrasound-directed transgastric endoscopic retrograde cholangiopancreatography with a dedicated over-the-scope fixation device: Feasibility study (with video). Dig. Endosc. Off. J. Jpn. Gastroenterol. Endosc. Soc. 2025, 37, 176–182. [Google Scholar] [CrossRef]
  45. Keane, M.G.; Higa, J.T.; La Selva, D.; Khashab, M.A.; Irani, S.S. Suturing a 20-mm lumen-apposing metal stent allows for safe same-session EUS-directed transgastric intervention in patients with Roux-en-Y gastric bypass anatomy: A multicenter study (with video). Gastrointest. Endosc. 2023, 97, 291–299. [Google Scholar] [CrossRef]
  46. Chhabra, P.; On, W.; Paranandi, B.; Huggett, M.T.; Robson, N.; Wright, M.; Maher, B.; Tehami, N. Initial United Kingdom experience of endoscopic ultrasound-directed transgastric endoscopic retrograde cholangiopancreatography. Ann. Hepato-Biliary-Pancreat. Surg. 2022, 26, 318–324. [Google Scholar] [CrossRef] [PubMed]
  47. Barclay, R.L.; Jain, A.; Buteau Ferland, A.-S.; Chen, Y.-I.; Donnellan, F. Living on the EDGE: Canadian Experience With EUS-directed Transgastric ERCP (EDGE) in Patients with Roux-en-Y Gastric Bypass Anatomy. J. Can. Assoc. Gastroenterol. 2022, 5, 116–120. [Google Scholar] [CrossRef] [PubMed]
  48. Tyberg, A.; Kedia, P.; Tawadros, A.; Tarnasky, P.R.; Gaidhane, M.; Nieto, J.; Kahaleh, M. EUS-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): The First Learning Curve. J. Clin. Gastroenterol. 2020, 54, 569–572. [Google Scholar] [CrossRef]
  49. De Benito Sanz, M.; Carbajo López, A.Y.; Sánchez-Ocaña Hernández, R.; Chavarría Herbozo, C.; Bagaza Pérez De Rozas, S.; García-Alonso, J.; De La Serna Higuera, C.; Pérez-Miranda Castillo, M. Endoscopic ultrasound-directed transgastric ERCP in patients with Roux-en-Y gastric bypass using lumen-apposing metal stents or duodenal self-expandable metal stents. A European single-center experience. Rev. Esp. Enfermedades Dig. 2020, 112, 211–215. [Google Scholar] [CrossRef] [PubMed]
  50. James, T.W.; Baron, T.H. Endoscopic Ultrasound-Directed Transgastric ERCP (EDGE): A Single-Center US Experience with Follow-up Data on Fistula Closure. Obes. Surg. 2019, 29, 451–456. [Google Scholar] [CrossRef]
  51. Ngamruengphong, S.; Nieto, J.; Kunda, R.; Kumbhari, V.; Chen, Y.-I.; Bukhari, M.; El Zein, M.; Bueno, R.; Hajiyeva, G.; Ismail, A.; et al. Endoscopic ultrasound-guided creation of a transgastric fistula for the management of hepatobiliary disease in patients with Roux-en-Y gastric bypass. Endoscopy 2017, 49, 549–552. [Google Scholar] [CrossRef]
  52. Attam, R.; Leslie, D.; Arain, M.; Freeman, M.; Ikramuddin, S. EUS-guided sutured gastropexy for transgastric ERCP (ESTER) in patients with Roux-en-Y gastric bypass: A novel, single-session, minimally invasive approach. Endoscopy 2015, 47, 646–649. [Google Scholar] [CrossRef] [PubMed]
  53. Ghazi, R.; Razzak, F.A.; Kerbage, A.; Brunaldi, V.; Storm, A.C.; Vargas, E.J.; Bofill-Garcia, A.; Chandrasekhara, V.; Law, R.J.; Martin, J.A.; et al. Endoscopic retrograde cholangiopancreatography (ERCP) approach for patients with Roux-en-Y gastric bypass: A comparative study between four ERCP techniques with proposed management algorithm. Surg. Obes. Relat. Dis. 2024, 20, 53–61. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, T.J.; Cortes, P.; Jirapinyo, P.; Thompson, C.C.; Ryou, M. A comparison of clinical outcomes and cost utility among laparoscopy, enteroscopy, and temporary gastric access-assisted ERCP in patients with Roux-en-Y gastric bypass anatomy. Surg. Endosc. 2021, 35, 4469–4477. [Google Scholar] [CrossRef] [PubMed]
  55. Kröll, D.; Müller, A.C.; Nett, P.C.; Wiest, R.; Maubach, J.; Stirnimann, G.; Candinas, D.; Borbély, Y.M. Tailored access to the hepatobiliary system in post-bariatric patients: A tertiary care bariatric center experience. Surg. Endosc. 2020, 34, 5469–5476. [Google Scholar] [CrossRef]
  56. Kochhar, G.S.; Mohy-Ud-Din, N.; Grover, A.; Carleton, N.; Kulkarni, A.; Farah, K.; Dhawan, M.; Thakkar, S. EUS-directed transgastric endoscopic retrograde cholangiopancreatography versus laparoscopic-assisted ERCP versus deep enteroscopy-assisted ERCP for patients with RYGB. Endosc. Int. Open 2020, 8, E877–E882. [Google Scholar] [CrossRef]
  57. Kedia, P.; Tarnasky, P.R.; Nieto, J.; Steele, S.L.; Siddiqui, A.; Xu, M.; Tyberg, A.; Gaidhane, M.; Kahaleh, M. EUS-directed Transgastric ERCP (EDGE) Versus Laparoscopy-Assisted ERCP (LA-ERCP) for Roux-en-Y Gastric Bypass (RYGB) Anatomy: A Multicenter Early Comparative Experience of Clinical Outcomes. J. Clin. Gastroenterol. 2019, 53, 304–308. [Google Scholar] [CrossRef]
  58. Klair, J.S.; Jayaraj, M.; Chandrasekar, V.T.; Priyan, H.; Law, J.; Murali, A.R.; Singh, D.; Larsen, M.; Irani, S.; Kozarek, R.; et al. ERCP with overtube-assisted enteroscopy in patients with Roux-en-Y gastric bypass anatomy: A systematic review and meta-analysis. Endoscopy 2020, 52, 824–832. [Google Scholar] [CrossRef]
  59. Bronswijk, M.; Vanella, G.; van Wanrooij, R.L.J.; Van der Merwe, S. Through-the-scope proximal flange fixation: “Edging” toward single-session procedures for all? Gastrointest. Endosc. 2025, 101, 486–487. [Google Scholar] [CrossRef]
  60. Gkolfakis, P.; Papaefthymiou, A.; Facciorusso, A.; Tziatzios, G.; Ramai, D.; Dritsas, S.; Florou, T.; Papanikolaou, I.S.; Hassan, C.; Repici, A.; et al. Comparison between Enteroscopy-, Laparoscopy- and Endoscopic Ultrasound-Assisted Endoscopic Retrograde Cholangio-Pancreatography in Patients with Surgically Altered Anatomy: A Systematic Review and Meta-Analysis. Life 2022, 12, 1646. [Google Scholar] [CrossRef]
  61. Gellért, B.; Rancz, A.; Hoferica, J.; Teutsch, B.; Sipos, Z.; Veres, D.S.; Hegyi, P.J.; Ábrahám, S.; Hegyi, P.; Hritz, I. Understanding the Role of Different ERCP Techniques in Post-Roux-en-Y Gastric Bypass Patients: A Systematic Review and Meta-analysis. Obes. Surg. 2025, 35, 285–304. [Google Scholar] [CrossRef]
  62. Gangwani, M.K.; Haghbin, H.; Priyanka, F.; Hadi, Y.; Dahiya, D.S.; Kamal, F.; Lee-Smith, W.; Nawras, A.; Aziz, M.; Adler, D.G. Efficacy and safety of EUS-directed transgastric ERCP (EDGE) versus laparoscopic-assisted ERCP: A systematic review and meta-analysis. Endosc. Ultrasound 2024, 13, 16–21. [Google Scholar] [CrossRef] [PubMed]
  63. Su, T.; Chen, T.; Wang, J.; Feng, Y.; Wang, R.; Zhao, S. Endoscopic-Directed Trans-Gastric Retrograde Cholangiopancreatography in Patients with Roux-en-Y gastric Bypasses: A Meta-Analysis. J. Clin. Gastroenterol. 2023, 57, 871–878. [Google Scholar] [CrossRef] [PubMed]
  64. Deliwala, S.S.; Mohan, B.P.; Yarra, P.; Khan, S.R.; Chandan, S.; Ramai, D.; Kassab, L.L.; Facciorusso, A.; Dhawan, M.; Adler, D.G.; et al. Efficacy & safety of EUS-directed transgastric endoscopic retrograde cholangiopancreatography (EDGE) in Roux-en-Y gastric bypass anatomy: A systematic review & meta-analysis. Surg. Endosc. 2023, 37, 4144–4158. [Google Scholar] [CrossRef] [PubMed]
  65. Park, S.W. Clinical and economic value of bispectral index monitoring for adequate endoscopic sedation. Clin. Endosc. 2022, 55, 518–519. [Google Scholar] [CrossRef]
  66. Esckilsen, S.; Sagatelian, M.; Nietert, P.J.; Baig, M.U.; Sharaiha, R.Z.; Elmunzer, B.J. Systematic review of technical factors associated with persistent fistula after EUS-directed transgastric ERCP in patients with Roux-en-Y gastric bypass. Gastrointest. Endosc. 2025. [Google Scholar] [CrossRef]
  67. Ghandour, B.; Keane, M.G.; Shinn, B.; Dawod, Q.M.; Fansa, S.; El Chafic, A.H.; Irani, S.S.; Pawa, R.; Gutta, A.; Ichkhanian, Y.; et al. Factors predictive of persistent fistulas in EUS-directed transgastric ERCP: A multicenter matched case-control study. Gastrointest. Endosc. 2023, 97, 260–267. [Google Scholar] [CrossRef]
  68. Ichkhanian, Y.; Runge, T.; Jovani, M.; Vosoughi, K.; Brewer Gutierrez, O.I.; Khashab, M.A. Management of adverse events of EUS-directed transgastric ERCP procedure. VideoGIE Off. Video J. Am. Soc. Gastrointest. Endosc. 2020, 5, 260–263. [Google Scholar] [CrossRef]
  69. Baldwin, D.; Ali, A.M.; Altieri, M.S.; DeMaria, E.J. Marginal ulceration after Roux-en-Y gastric bypass-literature review and management algorithm. Metab. Target Organ Damage 2024, 4, 6. [Google Scholar] [CrossRef]
  70. Krafft, M.R.; Lorenze, A.; Croglio, M.P.; Fang, W.; Baron, T.H.; Nasr, J.Y. “Innocent as a LAMS”: Does Spontaneous Fistula Closure (Secondary Intention), After EUS-Directed Transgastric ERCP (EDGE) via 20-mm Lumen-Apposing Metal Stent, Confer an Increased Risk of Persistent Fistula and Unintentional Weight Gain? Dig. Dis. Sci. 2022, 67, 2337–2346. [Google Scholar] [CrossRef]
  71. Jovani, M.; Ichkhanian, Y.; Parsa, N.; Singh, S.; Brewer Gutierrez, O.I.; Keane, M.G.; Al Ghamdi, S.S.; Ngamruengphong, S.; Kumbhari, V.; Khashab, M.A. Assessment of the learning curve for EUS-guided gastroenterostomy for a single operator. Gastrointest. Endosc. 2021, 93, 1088–1093. [Google Scholar] [CrossRef]
  72. Tyberg, A.; Kats, D.; Choi, A.; Gaidhane, M.; Nieto, J.; Kahaleh, M. Endoscopic Ultrasound Guided Gastroenterostomy: What Is the Learning Curve? J. Clin. Gastroenterol. 2021, 55, 691–693. [Google Scholar] [CrossRef] [PubMed]
  73. Montanelli, J.; Hernandez Lara, A.H.; Uribe Rivera, A.K.; Verde, J.M.; Burmester, E.; Al-Haddad, M.A.; Hollerbach, S.; Vilmann, P.; Abu-Suboh Abadia, M.; Badaoui, A.; et al. An optimal curriculum for training in endoscopic ultrasound: A summarized evidence-based literature systematic review. Surg. Endosc. 2025, 39, 4076–4093. [Google Scholar] [CrossRef]
  74. Sosa-Valencia, L.; Huppertz, J.; Wanert, F.; Haberzetser, F.; Swanström, L.; Mangiavillano, B.; Eisendrath, P.; Deprez, P.; Robles-Medranda, C.; Carrara, S.; et al. Design and validation of a therapeutic EUS training program using a live animal model: Taking training to the next level. Endosc. Ultrasound 2022, 11, 112–121. [Google Scholar] [CrossRef]
  75. James, H.J.; James, T.W.; Wheeler, S.B.; Spencer, J.C.; Baron, T.H. Cost-effectiveness of endoscopic ultrasound-directed transgastric ERCP compared with device-assisted and laparoscopic-assisted ERCP in patients with Roux-en-Y anatomy. Endoscopy 2019, 51, 1051–1058. [Google Scholar] [CrossRef]
Jcm 14 05675 g001
Figure 1. (A) Endoscopic ultrasound (EUS) view of the “sand dollar sign” for the identification of the excluded stomach. (B) EUS-guided contrast injection through the needle (red arrow) confirmed access to the gastric remnant by radiological view. (C) A 20 × 10 mm lumen-apposing metal stent (LAMS, red circle) was then placed between the gastric pouch (green arrow) and the excluded stomach (red arrow). (D) Endoscopic view of the excluded stomach through the LAMS. (E) Endoscopic view of the biliary stones extracted through conventional ERCP. (F) Radiologic view of the conventional ERCP conducted by passing a duodenoscope through the LAMS (red arrow).
Figure 1. (A) Endoscopic ultrasound (EUS) view of the “sand dollar sign” for the identification of the excluded stomach. (B) EUS-guided contrast injection through the needle (red arrow) confirmed access to the gastric remnant by radiological view. (C) A 20 × 10 mm lumen-apposing metal stent (LAMS, red circle) was then placed between the gastric pouch (green arrow) and the excluded stomach (red arrow). (D) Endoscopic view of the excluded stomach through the LAMS. (E) Endoscopic view of the biliary stones extracted through conventional ERCP. (F) Radiologic view of the conventional ERCP conducted by passing a duodenoscope through the LAMS (red arrow).
Jcm 14 05675 g001
Jcm 14 05675 g002

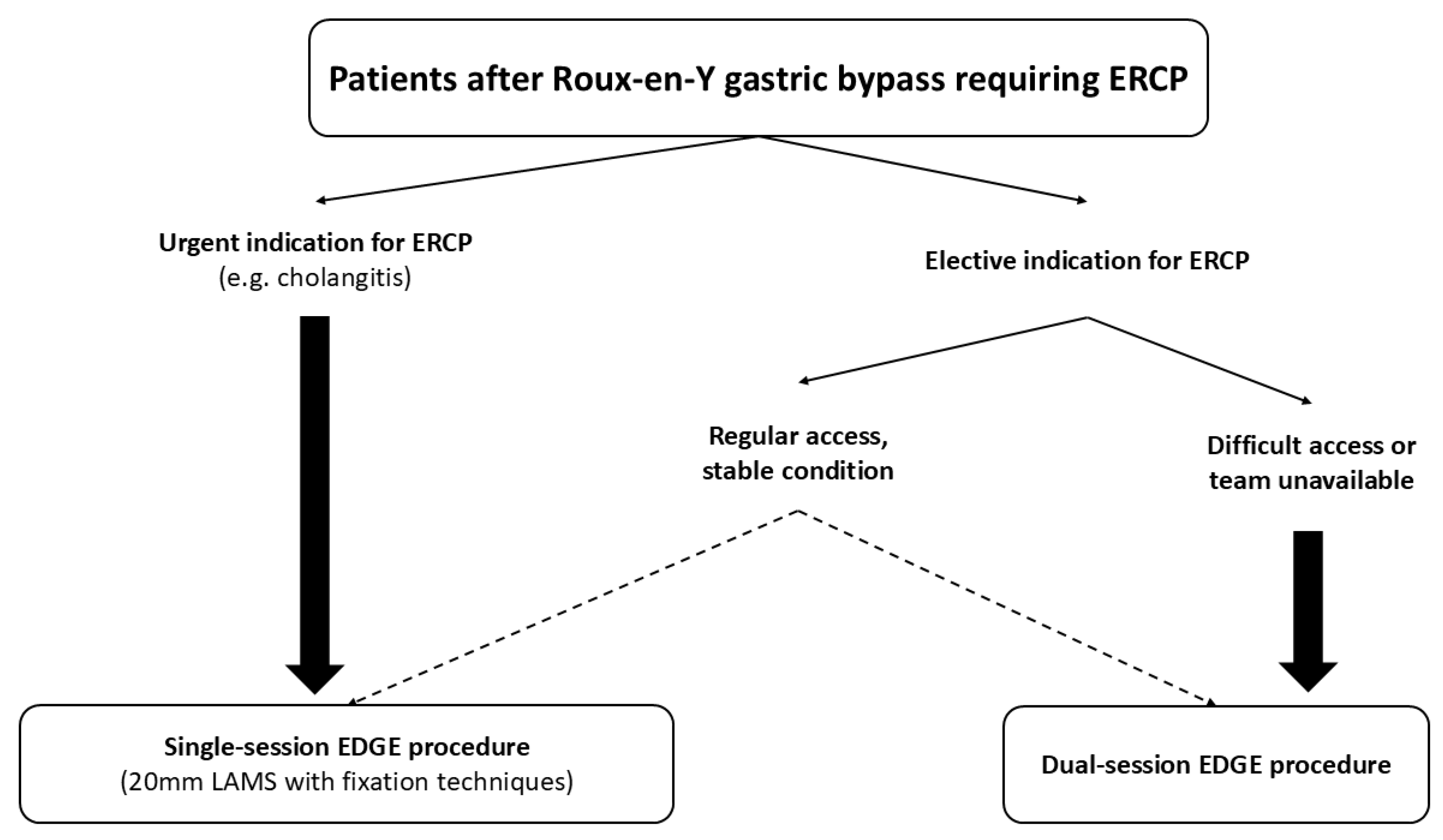

Figure 2. Decision-making algorithm for selecting single vs. dual-session EDGE procedure.
Figure 2. Decision-making algorithm for selecting single vs. dual-session EDGE procedure.
Jcm 14 05675 g002
Table 1. Stepwise guide to performing the EDGE procedure.
Table 1. Stepwise guide to performing the EDGE procedure.
PhaseAspectRecommendation
Pre-procedureImagingContrast-enhanced CT and/or MRCP to identify remnant stomach anatomy and landmarks
Antibiotic prophylaxisNot routinely indicated; advised if cholangitis or complex drainage expected
DietFast for 8 h pre-procedure
Intra-procedureLAMS selection Preferably 20 mm LAMS, especially in case of single-session procedure
LAMS fixationConsider fixation using OTSC or suturing, especially in case of single-session procedure
Post-procedurePPI Consider treatment until fistula closure
DietLiquid diet for 24 h, followed by gradual refeeding based on clinical tolerance
Fistula closureRemove LAMS at 4 weeks; close fistula if needed via clips or suturing; consider use of APC on the fistula edges
EDGE = EUS-directed transgastric ERCP; CT = Computed Tomography; MRCP = Magnetic Resonance Cholangiopancreatography; PPI = Proton Pump Inhibitor; LAMS = Lumen-Apposing Metal Stent; OTSC = Over-The-Scope Clip; APC = Argon Plasma Coagulation.
Table 2. A summary of the studies evaluating outcomes and characteristics of endoscopic ultrasound (EUS)-directed transgastric ERCP (Endoscopic Retrograde Cholangiopancreatography).
Table 2. A summary of the studies evaluating outcomes and characteristics of endoscopic ultrasound (EUS)-directed transgastric ERCP (Endoscopic Retrograde Cholangiopancreatography).
First AuthorYearStudy DesignTotal N/EDGETechnical Success, n (%)Clinical Success, n (%)AEs, n (%)Severe AEs, n (%)Comparison with Other ApproachesSessions
Bronswijk [59]2025Retrospective20/2019 (95)NA 2 (10)0NoSingle session (95%);
Dual session (5%)
Rizzo [40]2025Retrospective216/99 (100)8 (88.9)1 (11.1)0NoSingle session (66%);
Dual session (34%)
Mangiavillano [31]2024Retrospective270/7977 (97.5)77 (100)4 (5.1)NANoNA
Ghazi [53]2024Retrospective132/2522 (89.5)NA4 (15.8)NAYes (LA-ERCP, EA-ERCP)Single session (46.2%)
Dual session (53.8%)
Pérez-Cuadrado-Robles [27]2023Retrospective33/3130 (96.8)30 (100)1 (3.2)1 (3.2)NoDual session (100%)
Kedia [43]2023Retrospective172/172171 (99.4)163 (95.3)48 (27.9)1 (0.6)NoSingle session (44%)
Dual session (56%)
Keane [45]2023Retrospective37/3737 (100)37 (100)4 (10.8)2 (5.4)NoSingle session (100%)
Chhabra [46]2022Retrospective14/1413 (92.8)13 (100)3 (21.4)NANoSingle session (67%)
Dual session (43%)
Bahdi [24]2022Retrospective32/3231 (96.9)27 (87.1)11 (34.4)3 (9.4)NoSingle session (53.1%)
Dual session (46.9%)
Runge [28]2021Retrospective178/178175 (98.3)172 (98.3)28 (15.7)4 (2.2)NoSingle session (49%)
Dual session (51%)
Khara [25]2021Retrospective76/1717 (100)17 (100) 1(6)0 (0)Yes (LA-ERCP) Single session (51%)
Dual session (49%)
Wang [54]2021Retrospective130/1818 (100)NA1NAYes (LA-ERCP, EA-ERCP)NA
Barclay [47]2022Retrospective7/77 (100)7 (100)00NoDual session (100%)
Tyberg [48]2020Retrospective19/1919 (100)18 (94.7)4 (21.1)NANoSingle session (26%)
Dual session (74%)
Kröll [55]2020Retrospective19/22 (100)NA00Yes (LA-ERCP, HGS, EDGE)Dual session (100%)
Kochhar [56]2020Retrospective56/2626 (100)NA3 (11.5)NAYes (LA-ERCP, EA-ERCP)Single session (50%)
Dual session (50%)
de Benito Sanz [49]2020Retrospective14/1414 (100)13 (92.9)5 (35.7)NANoNA
James [50]2019Retrospective19/1919 (100)19 (100)6 (31.6)0NoSingle session (21%)
Dual session (79%)
Wang [39]2019Prospective10/1010 (100)10 (100)2 (20)0NoSingle session (78%)
Dual session (22%)
Kedia [57]2019Retrospective72/2928 (96.5)28 (100)7 (24.1)NAYes (LA-ERCP)Dual session (100%)
Tyberg [16]2017Prospective16/1616 (100)10/11 * (90.9)4 (25)1 (6.3)NoSingle session (40%)
Dual session (60%)
Ngamruengphong [51]2017Retrospective13/1313 (100)13 (100)00NoSingle session (15.4%)
Dual session (84.6%)
Attam [52]2015Retrospective10/109 (90)9 (100)00NoSingle session (100%)
EDGE = EUS-directed transgastric ERCP; EUS = endoscopic ultrasound; ERCP = Endoscopic Retrograde Cholangiopancreatography; AEs = Adverse events; NA = Not available. * only 11 patients out of 16 performed ERCP after EUS-guided gastrointestinal anastomosis creation
Table 3. Summary of the meta-analyses available on EDGE (endoscopic ultrasound [EUS]-directed transgastric ERCP [Endoscopic Retrograde Cholangiopancreatography]).
Table 3. Summary of the meta-analyses available on EDGE (endoscopic ultrasound [EUS]-directed transgastric ERCP [Endoscopic Retrograde Cholangiopancreatography]).
First AuthorYearPooled Technical Success, %Pooled Clinical Success, %Pooled AEs Rates, %Comparison with Other Approaches
Gellert [61]2025969320Yes, vs. LA-ERCP, EA-ERCP
Gangwani * [8]202494.8NA14.9Yes, vs. LA-ERCP, EA-ERCP
Gangwani [62]2024NANANAYes, vs. LA-ERCP
Su [63]2023989414No
Deliwala [64]2023969117Yes, vs. LA-ERCP, EA-ERCP
Gkolfakis [60]202297.997.913.1Yes, vs. LA-ERCP, EA-ERCP
de Oliveira [11]202297.8NA13Yes, vs. LA-ERCP
Dhindsa [7]202095.595.921.9Yes, vs. LA-ERCP and EA-ERCP
* Network meta-analysis. AEs = Adverse events; EDGE = EUS-directed transgastric ERCP; EUS = endoscopic ultrasound; ERCP = Endoscopic Retrograde Cholangiopancreatography.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Antonini, F.; Rizzo, G.E.M.; Vanella, G.; Fuccio, L.; Lisotti, A.; Bronswijk, M.; Pérez-Cuadrado-Robles, E.; Binda, C.; Mazza, S.; Anderloni, A.; et al. Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): Techniques, Outcomes and Safety Profiles. J. Clin. Med. 2025, 14, 5675. https://doi.org/10.3390/jcm14165675

AMA Style

Antonini F, Rizzo GEM, Vanella G, Fuccio L, Lisotti A, Bronswijk M, Pérez-Cuadrado-Robles E, Binda C, Mazza S, Anderloni A, et al. Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): Techniques, Outcomes and Safety Profiles. Journal of Clinical Medicine. 2025; 14(16):5675. https://doi.org/10.3390/jcm14165675

Chicago/Turabian Style

Antonini, Filippo, Giacomo Emanuele Maria Rizzo, Giuseppe Vanella, Lorenzo Fuccio, Andrea Lisotti, Michiel Bronswijk, Enrique Pérez-Cuadrado-Robles, Cecilia Binda, Stefano Mazza, Andrea Anderloni, and et al. 2025. "Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): Techniques, Outcomes and Safety Profiles" Journal of Clinical Medicine 14, no. 16: 5675. https://doi.org/10.3390/jcm14165675

APA Style

Antonini, F., Rizzo, G. E. M., Vanella, G., Fuccio, L., Lisotti, A., Bronswijk, M., Pérez-Cuadrado-Robles, E., Binda, C., Mazza, S., Anderloni, A., Fabbri, C., & Tarantino, I., on behalf of I-EUS Working Group. (2025). Endoscopic Ultrasound-Directed Transgastric Endoscopic Retrograde Cholangiopancreatography (EDGE): Techniques, Outcomes and Safety Profiles. Journal of Clinical Medicine, 14(16), 5675. https://doi.org/10.3390/jcm14165675

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
