Article

Differences in Grey Matter Concentrations and Functional Connectivity between Young Carriers and Non-Carriers of the APOE ε4 Genotype

by
Carlos Muñoz-Neira
1,2,†,
Jianmin Zeng
3,*,†,
Ludmila Kucikova
1,4,
Weijie Huang
1,2,5,
Xiong Xiong
1,6,
Graciela Muniz-Terrera
7,8,
Craig Ritchie
7,9,
John T. O’Brien
2 and
Li Su
1,2,4,*
1
Artificial Intelligence & Computational Neuroscience Group (AICN Group), Sheffield Institute for Translational Neuroscience (SITraN), Division of Neuroscience, School of Medicine and Population Health, Faculty of Health, University of Sheffield, Sheffield S10 2HQ, UK
2
Old Age Psychiatry Research Group (OAP Group), Department of Psychiatry, School of Clinical Medicine, University of Cambridge, Cambridge CB2 0SZ, UK
3
Sino-Britain Centre for Cognition and Ageing Research, Faculty of Psychology, Southwest University, Chongqing 400715, China
4
Insigneo Institute for In Silico Medicine, University of Sheffield, Sheffield S1 3JD, UK
5
School of Systems Science, Beijing Normal University, Beijing 100875, China
6
School of Information and Communication Engineering, Beijing University of Posts and Telecommunications, Beijing 100876, China
7
Edinburgh Dementia Prevention, Centre for Clinical Brain Sciences, University of Edinburgh, Edinburgh EH4 2XU, UK
8
Ohio University Heritage College of Osteopathic Medicine, Ohio University, Athens, OH 45701, USA
9
Scottish Brain Sciences, Edinburgh EH12 9DQ, UK
*
Authors to whom correspondence should be addressed.
†
Co-first authorship.
J. Clin. Med. 2024, 13(17), 5228; https://doi.org/10.3390/jcm13175228
Submission received: 18 July 2024 / Revised: 24 August 2024 / Accepted: 30 August 2024 / Published: 3 September 2024
(This article belongs to the Special Issue Recent Studies in Brain Imaging for Neurocognitive Disorders)
Browse Figures
Versions Notes

Abstract

:
Background: The pathophysiology of Alzheimer’s disease (AD) may begin developing years or even decades prior to the manifestation of its first symptoms. The APOE ε4 genotype is a prominent genetic risk for AD that has been found to be associated with brain changes across the lifespan since early adulthood. Thus, studying brain changes that may occur in young adults with an APOE ε4 status is highly relevant. Objective: Examine potential differences in grey matter (GM) and functional connectivity (FC) in brains of cognitively healthy young APOE ε4 carriers and non-carriers, denoted here as ε4(+) and ε4(−), respectively. Methods: Three Tesla magnetic resonance imaging (MRI) brain scans were acquired from cognitively healthy young participants aged approximately 20 years (n = 151). Voxel-based morphometry (VBM) analysis was employed to identify potential structural differences in GM between ε4(+) and ε4(−). In a subsequent seed-based connectivity (SBC) analysis, brain regions that structurally differed in the VBM analysis were considered as seeds and correlated with all the remaining voxels across the brains to then measure the differences in FC between groups. Results: The VBM analysis suggested that ε4(+) (n = 28) had greater GM densities relative to ε4(−) (n = 123) in the left hippocampus and the left posterior insula (puncorr < 0.001). However, the effect did not survive the correction for multiple comparisons, suggesting minimal structural differences in this age range. In contrast, the SBC analysis indicated that ε4(+) exhibited significantly decreased FC between the left hippocampus and areas of the left middle temporal gyrus (n = 27) compared to ε4(−) (n = 102). These results remained significant after multiple comparisons (pFDR < 0.05). Lastly, no statistically significant differences in FC between groups were observed for the left insular seed (pFDR > 0.05). Discussion: These results suggest early structural and functional brain changes associated with the APOE ε4 genotype on young adults. Yet, they must be cautiously interpreted and contrasted with both older adults with genetic risk for AD and patients diagnosed with AD.

1. Introduction

Dementia is a global challenge due to its high prevalence in older people [1,2] and its associated high costs in health and social care [3]. Alzheimer’s disease (AD) is the most common form of dementia [4], contributing to more than half of all dementia cases in those aged above 65 years [5]. Whilst AD symptoms can be typically observable in later life [6,7], AD pathophysiology may begin developing years or even decades earlier [8,9]. Hence, focusing research on young individuals with genetic risks to develop AD can shed light on its pathological underpinnings and clinical markers across the lifespan. Furthermore, this approach may enhance a timely diagnosis, facilitate early clinical and lifestyle interventions, and prompt prevention efforts [10,11].
APOE ε4 is the most prominent genetic risk factor for AD [12]. Estimates suggest that it is responsible for approximately 20% of all the cases of dementia and between 65% and 75% of all the cases of sporadic AD [13]. By contrast, other APOE alleles like ε2 or ε3 may have a neuroprotective effect [14] or a rather neutral/defensive influence [15], respectively. Likewise, brain imaging studies that conduct comparisons between APOE ε4 carriers and non-carriers, denoted as ε4(+) and ε4(−), respectively, in this paper, may depict premature structural and/or functional brain changes that could be taken later as early biomarkers for AD.
For example, structural neuroimaging through magnetic resonance imaging (MRI) has revealed grey matter (GM) differences between ε4(+) and ε4(−) of different ages over the course of life [16]. Among young adults (aged ~20 years), the right hippocampus has shown significantly smaller sizes in ε4(+) compared to ε4(−) [17]. Nevertheless, other studies found no significant hippocampal differences at this age [18]. In addition, cognitively healthy middle-aged adults (aged 40–59 years) ε4(+) exhibited significantly reduced volumes of the molecular layer of the hippocampi compared to ε4(−), although the entire volume of these areas may be unchanged [19]. Similarly, ε4(+) individuals in midlife have presented reduced cortical thickness over entorhinal and subiculum areas [20]. Altogether, such findings seem to be consistent with the patterns of neurodegeneration observed in typical AD patients, especially in the hippocampi [21].
In addition to structural changes, previous studies conducted with resting state functional MRI (rsfMRI) have indicated variable alterations in functional connectivity (FC) caused by APOE ε4 in different age groups. For instance, cognitively intact young ε4(+) in their 20s have shown increased FC in a brain network connecting hippocampal with sensorimotor areas [22]. In contrast, when taking a region of interest (ROI) like the hippocampus or the cuneus bilaterally, cognitively healthy middle-aged ε4(+) (up to 62 years old) can show a decreased FC towards adjacent structures commonly affected in AD [23,24]. Additionally, the default mode network (DMN), which spans throughout the hippocampal, cingulate, and temporoparietal regions [25], appears to be shaped by the APOE ε4 status in different forms [26,27]. In comparison with ε4(−), healthy young adults ε4(+) can exhibit an increased [28] or decreased FC [29], whereas healthy middle-aged adults ε4(+) may present an unaffected [30] or decreased [24] FC across this brain circuitry.
In sum, prior research has suggested heterogeneous effects of the APOE ε4 allele on brain changes over different ages. Thus, it remains unclear how APOE ε4 interacts with both brain structure and function at the same time in early life. A data-informed methodology may be valuable to address this issue due to its ability to capture nuanced variations and complexities within the brain structure and functioning within a given sample. In the current study, we combined both structural and functional neuroimaging to examine potential brain differences in GM and FC in brains of cognitively healthy young ε4(+) and ε4(−), adopting a data-driven multimodal MRI approach. We consider that their concatenation may provide an exhaustive revision of the impact of the APOE ε4 genotype on brain integrity.

2. Materials and Methods

2.1. Participants, Study Design, and Ethics

A convenience sample of 151 cognitively healthy young adults aged between 17 and 22 years was recruited from Southwest University, Chongqing, China. The participants were divided into ε4(+) and ε4(−) groups, according to their APOE genotype. Participants underwent genetic testing and 3 Tesla (T) MRI brain scans, including T1 and rsfMRI sequences. Age, years of education, and sex were recorded to report a demographic characterization of the sample. Demographics, as well as structural and functional brain images, were analyzed as detailed later. All participants provided written informed consent. This study was approved by the Ethic Committee of Psychological Research at Southwest University, Chongqing, China. Additionally, ethical approval from the University of Sheffield was obtained through an internal self-declaration form (Reference Number 043330; approval date 6 September 2021).

2.2. Data Collection

2.2.1. Genotyping

The APOE ε4 allele status was evaluated through a salivary sample utilizing the MassARRAY system (Agena iPLEX assay, San Diego, CA, USA), wherein the specimens were tested against a multiplex PCR reaction, followed by mass spectrometry, to identify specific alleles and then code the respective specific genotypes.

2.2.2. Brain Imaging

MRI brain scans were acquired from all the subjects at Southwest University in Chongqing, China, employing a high-resolution 3 T Siemens TrioTim MRI scanner, which captured both structural and functional sequences. Three-dimensional T1-weighted magnetization-prepared rapid gradient-echo (MPRAGE) images were taken according to the following parameters: 160 slices of 1 mm of thickness, repetition time (TR) = 2.3 s, echo time (TE) = 0.00298 s, inversion time (TI) = 0.9 s, flip angle = 9°, Field of View (FOV) = 240 × 256 mm2, voxel size = 1 × 1 × 1 mm3, GRAPPA factor 2, and total acquisition time = ~15–20 min. Resting-state echo planar images were obtained from participants whilst they were at rest and were asked to maintain their eyes shut, refraining themselves from thinking about anything specific. These sequences were taken then considering the following parameters: 35 slices of 3mm of thickness, TR/TE = 2 s/0.03 s, flip angle = 80°, FOV = 192 × 192 mm2, voxel size = 3 × 3 × 3 mm3, slice acquisition = interleaved with total 330 measurements, and total acquisition time = ~10–15 min.

2.3. Data Analysis

2.3.1. Demographic Data

All statistical analyses were carried out at a level of significance (p-value) lower than 0.05 (p < 0.05; two-tailed) with the software Jasper’s Amazing Statistical Programme Version 0.18.3 for Windows downloaded from https://jasp-stats.org/ (accessed on 6 September 2021) [31]. Age and years of education were tested for normality through Shapiro–Wilk tests to decide on the utilization of parametric or non-parametric statistics for the respective comparisons made between ε4(+) and ε4(−), either t-tests for the former or Mann–Whitney U tests for the latter. Comparisons between groups regarding sex were carried out with chi-square (X2) tests.

2.3.2. Structural Brain Imaging Analysis

Structural neuroimaging analysis was undertaken through voxel-based morphometry (VBM) employing the software Statistical Parametric Mapping 12 (SPM12) [32] to identify differences in GM concentrations [33] between ε4(+) and ε4(−). We firstly segmented the brain tissue into GM, white matter (WM), and cerebrospinal fluid (CSF) using the Computational Anatomy Toolbox 12 (CAT12) [34,35]. Images were normalized to the Montreal Neurological Institute (MNI) space, as well as smoothed with an 8 mm full width at half-maximum (FWHM) filter considering a mask with an absolute threshold of 0.05 [33].
A two-sample t-test model was used to compare structural brain differences between ε4(+) and ε4(−). The total intracranial volume (TIV), age, years of education, and sex were entered into this model as covariates. Identification and labeling of statistically significant brain areas was done with the Neuromorphometrics brain atlas incorporated in SPM12. Significant results for this analysis considered family-wise error-corrected p-values smaller than 0.05 (pFWEcorr < 0.05).

2.3.3. Functional Brain Imaging Analysis

Functional neuroimaging analysis was performed through seed-based connectivity (SBC) analysis using the software CONN (RRID:SCR_009550) [36] to explore the presence of differences in FC between ε4(+) and ε4(−). Pre-processing of the rsfMRI sequences was conducted with a default pipeline that involved functional realignment and unwarp (co-registration to a reference image using a least squares approach and a 6 parameter transformation and resampling with b-spline interpolation); slice-timing correction (images organized in interleaved Siemens order resampling misaligned BOLD timeseries to a common mid-acquisition time); outlier identification (an artifact detection tool captured acquisitions with framewise displacement above 0.9 mm or global Blood Oxygenation Level Dependent -BOLD- signal changes above 5 standard deviations); direct segmentation of T1 MRI (into GM, WM, and CSF); normalization (into the standard MNI space); and functional smoothing (spatial convolution with a Gaussian kernel of 8 mm FWHM) [37,38].
Denoising continued following a standard pipeline to refine the functional data incorporating regressions of possible confounding variables, namely WM and CSF (10 and 5 CompCor noise components, respectively), motion parameters and their first-order derivatives, outlier scans, session and task effects with their first-order derivatives and linear trends (12, 48, 8, and 2 factors, accordingly) for each functional run. Then, a bandpass frequency filtering of the BOLD timeseries was implemented, setting a range between 0.008 and 0.09 Hz, to also consider low-frequency fluctuations of other signals [37,38].
Pre-processing and denoising were followed by the SBC analysis, which permits to predefine seeds to examine their connectivity with the rest of the brain. In the present study, brain areas where GM concentrations differed significantly in the previous VBM analysis were taken as seeds. The FC values in these seeds were then correlated with FC values of all the remaining voxels across participants’ brains to measure differences between ε4(+) and ε4(−). It should be noted that the FC for the chosen seeds was explored considering the predetermined regions from the Oxford-Harvard atlas offered by CONN, which almost fully matched the brain areas derived from the VBM analysis.
The SBC analysis required the completion of 2 consecutive stages. At the first-level analysis, SBC maps were estimated by computing pairwise Fisher-transformed bivariate correlation coefficients between the voxels of the seeds under study and the other voxels belonging to the predefined areas that CONN provides across the entire brain. At the second-level (group-level) analysis, FC was then compared between ε4(+) and ε4(−) through the configuration of general linear models adjusted for TIV, age, years of education, and sex as covariates. The SBC maps generated were corrected for multiple comparisons employing False Discovery Rate (FDR)-corrected p-values smaller than 0.05 (pFDR < 0.05). The outcomes with the final group differences obtained from such maps were converted to t-statistics and overlaid onto the standard MNI template for visualization purposes [37,38].

3. Results

3.1. Demographic Characterization of the Sample

Table 1 displays a summary of the demographic characteristics of the cohort. It should be noticed that some rsfMRI images did not pass quality control for motion and other artefacts, so these participants were excluded from the FC analysis. Distributions for age and years of education were statistically different from normal (Shapiro–Wilk tests of 0.97, p = 0.003, and 0.79, p < 0.001, respectively). The ε4(+) and ε4(−) groups were not different in terms of age (Mann–Whitney U = 1919.50, p = 0.35 for structural brain imaging analysis and Mann–Whitney U = 1497.50, p = 0.49 for functional brain imaging analysis), years of education (Mann–Whitney U = 2020.50, p = 0.15 for structural brain imaging analysis and Mann–Whitney U = 1619.50, p = 0.16 for functional brain imaging analysis), and sex (chi-square (X2) = 0.01, p = 0.92 for structural brain imaging analysis and X2 = 0.34, p = 0.56 for functional brain imaging analysis).

3.2. Structural Brain Differences between ε4(+) and ε4(−)

According to the VBM analysis conducted, no statistically significant differences in GM concentrations were observed between ε4(+) and ε4(−) after correction for multiple comparisons (pFWEcorr > 0.05). However, when considering a less stringent criterion, an uncorrected GM difference between groups was found. ε4(+) exhibited greater GM densities relative to ε4(−) in the left hippocampus and the left posterior insula with a peak-level threshold (puncorr < 0.001) (Table 2 and Figure 1).

3.3. Functional Brain Differences between ε4(+) and ε4(−)

The subsequent SBC analysis took both the hippocampus and the posterior insula from the left hemisphere as seeds based on the uncorrected clusters from the previous VBM analysis. Statistically significant differences corrected for multiple comparisons were found in FC between the groups according to this SBC analysis (pFDR < 0.05). In contrast with ε4(−), ε4(+) showed a significantly decreased FC between the left hippocampus and the posterior region of the left middle temporal gyrus (MTG), as well as between the left hippocampus and the temporooccipital division of the left MTG (pFDR < 0.05) (Table 3 and Figure 2a,b). An SBC map affected for ε4(+) in these brain areas can therefore be delineated (Figure 2c). No significant results were observed in terms of FC between the left posterior insula and voxels belonging to any other particular area across the brain (pFDR > 0.05) (Table 3).

4. Discussion

Our results from the VBM analysis showed no statistically significant differences in GM density between young ε4(+) and ε4(−) after correction for multiple comparisons. Nevertheless, an uncorrected difference was observed in which ε4(+) exhibited greater concentrations of GM across the left hippocampus and the left posterior insula compared to ε4(−). Using the clusters from the VBM analysis as seeds, our findings from the subsequent SBC analysis revealed that, after the correction of multiple comparisons, ε4(+) presented a statistically significantly reduced FC between the left hippocampus (considered as a seed) and posterior and temporooccipital zones of the left MTG. Differently, non-significant differences between groups in terms of FC were observed for the left posterior insula.
The structural VBM analysis showed an uncorrected increased left hippocampal volume in young ε4(+) relative to ε4(−) that is consistent with the mixed findings at this age range discussed in the Introduction section. In comparison with ε4(−), ε4(+) also around the age of 20 years old have shown increased volumes of GM in the right entorhinal cortex [39], which is a well-known region highly associated with the hippocampus structurally and functionally. At the same time, the hippocampi’s volumes seem to increase from early development until roughly this age [40]. Conversely, an absence of differences in the GM volumes of the hippocampus [18] and the MTL entirely [41] have also been observed between young ε4(+) and ε4(−) at this younger age. Opposite to our results, other research has found that young carriers of APOE ε4 and ε3 alleles have presented similar hippocampal sizes, although significantly reduced relative to those from carriers of the APOE ε2 allele [42].
At later stages of life, ε4(+) aged between 20 and 40 have presented significantly smaller sizes in their hippocampi compared to ε4(−) [17]. Correspondingly, a reduction in hippocampal volumes progresses throughout the middle age and becomes more noticeable in older age [40]. This is in line with the significantly decreased size of the hippocampal molecular layer encountered in middle-aged adult carriers of this genotype [19], the significant reduction of certain hippocampal subfields seen in adults with a family history of dementia in their midlife [43], and the well-documented hippocampal and MTL atrophy that occurs in AD [44,45]. Moreover, individuals susceptible to being diagnosed with AD in the short, middle, or long term due to familial or genetic factors, especially ε4(+), have exhibited involvement of areas near the hippocampi such as GM loss across the MTL and precuneus, along with reductions of WM density in the fornix, cingulum, and corpus callosum [46]. Altogether, these findings may suggest that the APOE ε4 genotype could play diverse roles at different stages across the human lifespan.
In the subsequent FC analysis, it was considered that selecting a seed as a ROI from uncorrected VBM results would not affect the second-level statistical inference for FC, which is corrected by FDR. Our results corrected for multiple comparisons exhibited then a FC between the left hippocampus and areas of the left MTG significantly decreased in ε4(+) relative to ε4(−). This partially supports outcomes from previous research, wherein findings in FC are also mixed in the literature as it occurs with those coming from the structural analysis. For example, decreased FC from the hippocampus to the cingulate and precuneus and increased FC from the hippocampus to the sensorimotor cortex have been reported in ε4(+) contrasted with ε4(−) in cognitively healthy young adults with ages similar to those of our cohort [22]. Additionally, the same cohort studied here showed decreased FC in the DMN areas using a different methodology, specifically in the right angular gyrus and superior occipital regions in ε4(+) compared to ε4(−) [47]. By contrast, other studies undertaken with young adults aged 20 years have shown significantly increased FC in ε4(+) along trajectories that begin at the hippocampus and reach neighboring areas [48] or regions within the DMN [49].
Later in life, rsfMRI investigations have also presented mixed results. In one study, no differences in FC have been found between ε4(+) and ε4(−) aged between 20 and 40 years [50]. However, other studies that contrasted these groups reported that ε4(+) aged roughly 45 years can exhibit decreased FC between the posterior face of the hippocampi, prefrontal cortex, cingulate, precuneus, visual cortex, and lingual gyrus, whereas the anterior face of the hippocampi can present increased FC with the frontal and parietal regions [30]. Apart from this, middle-age ε4(+) from 40 to 60 years old have shown a significantly reduced global and local efficiency of the integrated resting state connectivity compared to ε4(−) [51]. Altogether, the present results are in line with those from studies conducted with cognitively healthy controls (with and without beta-amyloid pathology, which is one of the hallmarks of AD) [52], MCI patients positive for beta-amyloid pathology [52], and AD patients [53,54], where a decreased FC widespread across the MTL (especially from the hippocampal, entorhinal, and perirhinal areas) towards other multiple brain areas has been observed.
Explaining the outcomes obtained here is highly complex given the nature of the variables studied; however, some considerations can be suggested. The APOE ε4 genotype is the most important genetic risk factor for AD and may have a detrimental effect on hippocampi sizes across the lifespan that starts around the age of 20 [40]. This pattern probably leads to the decreased hippocampal volumes seen in ε4(+) in later life, whether they are cognitively healthy individuals [55], MCI patients [56,57], or AD patients [57,58]. Yet, our findings showcase a tendency in which the left hippocampus may be slightly altered in young ε4(−) contrasted with ε4(+), in accordance with the uncorrected outcomes yielded by VBM.
On the other hand, our results suggest that the left hippocampal function seems to be significantly affected in ε4(+) compared to ε4(−), which is specifically reflected by the significantly decreased FC found between the left hippocampus and the left MTG. This finding aligns with outcomes from existing studies on ε4(+) with preserved cognition, either young [59] or older [52] adults, as well as patients with MCI [52] or AD [54], which suggested similar reductions of FC between the hippocampus and the MTL. A possible explanation for the reduction of left hippocampal FC with the left MTG seen here in ε4(+) compared to ε4(−) may be associated with the specific mechanisms of the ε4 allele involved in beta-amyloid plaques and tau tangles formation [60,61]. It is presumed that this genetic predisposition to such pathologies may introduce a subtle vulnerability even in early life that could affect functional neural connections.
It may be theorized that the uncorrected increase in GM concentrations of the left hippocampus observed here in young ε4(+) is a compensatory mechanism to the decreased FC seen between the left hippocampus and the left MTG. It may be possible that young ε4(+) implement this strategy to maintain an appropriate cognitive performance. It should be noted that the described theory differs from the compensation hypothesis formulated for cognitively intact ε4(+) [62] in which an increased hippocampal activity or the engagement of other contiguous brain regions act as a neurocognitive strategy to counterbalance the potential underpinning pathology maintaining then an adequate cognitive efficiency, particularly when performing episodic memory tasks [63,64]. Our results can also be related to the ‘antagonistic pleiotropy’ theory, which postulates that certain genes or alleles “may impact fitness (i.e., survival and reproduction) differently during different life stages” [65]. If APOE ε4 was an allele with antagonistic pleiotropy, this could elucidate not only the occurrence of changes in the cognitive performances of ε4(+) over the course of a lifetime [62] but also the variability of the outcomes found in the brain structure [40] and function [66] across distinct age groups, including the young ones analyzed in this investigation.
The main limitation of this study concerns the imbalanced group size of ε4(+), which is considerably smaller than that of ε4(−), although such numbers probably represent the natural distribution of this genotype. This difference in the group sizes may account for the weak statistical power encountered here in the VBM analysis. More balanced sample sizes for both groups would have been ideal to increase the overall power. To sum up, our results must be cautiously interpreted due to their elevated complexity and the potential impact of other modifiable and non-modifiable risk factors that have not been considered in the current study. Nonetheless, it should be noticed that, to the best of our knowledge, the current cohort made up of ε4(+) and ε4(−) is still one of largest cohorts in this age range studied to date. Future studies should ideally reproduce the methodological aspects of this investigation across a much larger sample with individual APOE alleles (i.e., ε2, ε3, and ε4), which was not possible to implement in our sample. Similarly, looking into the gene-gene interaction effects of APOE ε4 and other genetic risk factors for AD on the brain structure and function can also set other interesting lines of research. Lastly, an extensive examination of FC in networks beyond the hippocampus, such as other critical regions in the medial temporal lobe network [67], can be of high interest.

Author Contributions

J.Z. and L.S. designed the study and secured the funding. J.Z. collected the data. C.M.-N. and L.K. conducted the analyses. C.M.-N. drafted the manuscript. J.T.O., G.M.-T. and C.R. co-designed the PREVENT-Dementia study. W.H. and X.X. provided feedback on the data analysis and the manuscript. J.T.O. provided feedback on the manuscript. L.S. provided oversight for the study. All authors have read and agreed to the published version of the manuscript.

Funding

J.Z. was funded by the China Ministry of Education’s Humanity and Social Sciences Project (23YJA190001). L.S. was funded by the Alzheimer’s Research UK Senior Research Fellowship (ARUK-SRF2017B-1) and the National Institute for Health and Care Research (NIHR) Sheffield Biomedical Research Centre (NIHR203321). The views expressed are those of the author(s) and not necessarily those of the NIHR or the Department of Health and Social Care.

Institutional Review Board Statement

This study was approved by the Ethic Committee of Psychological Research at Southwest University, Chongqing, China. Additionally, ethical approval from the University of Sheffield was obtained through an internal self-declaration form (Reference Number 043330; approval date 6 September 2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data supporting the findings of this study are available on request from the corresponding authors. The data are not publicly available due to privacy or ethical restrictions.

Conflicts of Interest

The authors have no conflict of interests to report.

References

  1. Prince, M.; Wimo, A.; Guerchet, M.; Ali, G.; Wu, Y.; Prina, M. The Global Impact of Dementia: An Analysis of Prevalence, Incidence, Cost and Trends; World Alzheimer Report. 2015. Available online: https://www.alzint.org/u/WorldAlzheimerReport2015.pdf (accessed on 17 July 2024).
  2. United Nations. World Population Prospects 2019: Highlights. Statistical Papers—United Nations (Ser. A), Population and Vital Statistics Report; United Nations: New York, NY, USA, 2019; p. 43. [Google Scholar]
  3. World Health Organization and Alzheimer’s Disease International. Dementia: A Public Health Priority; World Health Organization: Geneva, Switzerland, 2012; 1 Online Resource (112); Available online: https://www.who.int/publications/i/item/dementia-a-public-health-priority (accessed on 17 July 2024).
  4. Fiest, K.M.; Roberts, J.I.; Maxwell, C.J.; Hogan, D.B.; Smith, E.E.; Frolkis, A.; Cohen, A.; Kirk, A.; Pearson, D.; Pringsheim, T.; et al. The Prevalence and Incidence of Dementia Due to Alzheimer’s Disease: A Systematic Review and Meta-Analysis. Can. J. Neurol. Sci. 2016, 43 (Suppl 1), S51–S82. [Google Scholar] [CrossRef]
  5. McMurtray, A.; Clark, D.G.; Christine, D.; Mendez, M.F. Early-onset dementia: Frequency and causes compared to late-onset dementia. Dement. Geriatr. Cogn. Disord. 2006, 21, 59–64. [Google Scholar] [CrossRef]
  6. Barnes, J.; Dickerson, B.C.; Frost, C.; Jiskoot, L.C.; Wolk, D.; van der Flier, W.M. Alzheimer’s disease first symptoms are age dependent: Evidence from the NACC dataset. Alzheimers Dement. 2015, 11, 1349–1357. [Google Scholar] [CrossRef] [PubMed]
  7. Bature, F.; Guinn, B.-A.; Pang, D.; Pappas, Y. Signs and symptoms preceding the diagnosis of Alzheimer’s disease: A systematic scoping review of literature from 1937 to 2016. BMJ Open 2017, 7, e015746. [Google Scholar] [CrossRef]
  8. Aisen, P.S.; Cummings, J.; Jack, C.R., Jr.; Morris, J.C.; Sperling, R.; Frölich, L.; Jones, R.W.; Dowsett, S.A.; Matthews, B.R.; Raskin, J.; et al. On the path to 2025: Understanding the Alzheimer’s disease continuum. Alzheimers Res. Ther. 2017, 9, 60. [Google Scholar] [CrossRef]
  9. Apostolova, L.G. Alzheimer Disease. Contin. Lifelong Learn. Neurol. 2016, 22, 419–434. [Google Scholar] [CrossRef] [PubMed]
  10. Ritchie, K.; Carriere, I.; Su, L.; O’Brien, J.T.; Lovestone, S.; Wells, K.; Ritchie, C.W. The midlife cognitive profiles of adults at high risk of late-onset Alzheimer’s disease: The PREVENT study. Alzheimers Dement. 2017, 13, 1089–1097. [Google Scholar] [CrossRef]
  11. Ritchie, K.; Ritchie, C.W.; Yaffe, K.; Skoog, I.; Scarmeas, N. Is late-onset Alzheimer’s disease really a disease of midlife? Alzheimers Dement. 2015, 1, 122–130. [Google Scholar] [CrossRef] [PubMed]
  12. Ward, A.; Crean, S.; Mercaldi, C.J.; Collins, J.M.; Boyd, D.; Cook, M.N.; Arrighi, H.M. Prevalence of apolipoprotein E4 genotype and homozygotes (APOE e4/4) among patients diagnosed with Alzheimer’s disease: A systematic review and meta-analysis. Neuroepidemiology 2012, 38, 1–17. [Google Scholar] [CrossRef] [PubMed]
  13. Crean, S.; Ward, A.; Mercaldi, C.J.; Collins, J.M.; Cook, M.N.; Baker, N.L.; Arrighi, H.M. Apolipoprotein E epsilon4 prevalence in Alzheimer’s disease patients varies across global populations: A systematic literature review and meta-analysis. Dement. Geriatr. Cogn. Disord. 2011, 31, 20–30. [Google Scholar] [CrossRef] [PubMed]
  14. Suri, S.; Heise, V.; Trachtenberg, A.J.; Mackay, C.E. The forgotten APOE allele: A review of the evidence and suggested mechanisms for the protective effect of APOE ɛ2. Neurosci. Biobehav. Rev. 2013, 37 Pt 2, 2878–2886. [Google Scholar] [CrossRef]
  15. De-Almada, B.; De-Almeida, L.; Camporez, D.; De-Moraes, M.; Morelato, R.; Perrone, A.; Belcavello, L.; Louro, I.; De-Paula, F. Protective effect of the APOE-e3 allele in Alzheimer‘s’ disease. Braz. J. Med. Biol. Res. 2012, 45, 8–12. [Google Scholar] [CrossRef]
  16. Piers, R.J. Structural brain volume differences between cognitively intact ApoE4 carriers and non-carriers across the lifespan. Neural Regen. Res. 2018, 13, 1309–1312. [Google Scholar] [CrossRef]
  17. O’Dawyer, L.; Lamberton, F.; Matura, S.; Tanner, C.; Scheibe, M.; Miller, J.; Rujescu, D.; Prvulovic, D.; Hampel, H. Reduced hippocampal volume in healthy young ApoE4 carriers: An MRI study. PLoS ONE 2012, 7, e48895. [Google Scholar] [CrossRef] [PubMed]
  18. Stening, E.; Persson, J.; Eriksson, E.; Wahlund, L.-O.; Zetterberg, H.; Söderlund, H. Apolipoprotein E ϵ4 is positively related to spatial performance but unrelated to hippocampal volume in healthy young adults. Behav. Brain Res. 2016, 299, 11–18. [Google Scholar] [CrossRef] [PubMed]
  19. Dounavi, M.-E.; Mak, E.; Wells, K.; Ritchie, K.; Ritchie, C.W.; Su, L.; Brien, J.T.O. Volumetric alterations in the hippocampal subfields of subjects at increased risk of dementia. Neurobiol. Aging 2020, 91, 36–44. [Google Scholar] [CrossRef] [PubMed]
  20. Burggren, A.; Zeineh, M.; Ekstrom, A.; Braskie, M.; Thompson, P.; Small, G.; Bookheimer, S. Reduced cortical thickness in hippocampal subregions among cognitively normal apolipoprotein E e4 carriers. Neuroimage 2008, 41, 1177–1183. [Google Scholar] [CrossRef] [PubMed]
  21. Risacher, S.L.; Apostolova, L.G. Neuroimaging in Dementia. Contin. Lifelong Learn. Neurol. 2023, 29, 219–254. [Google Scholar] [CrossRef]
  22. Shen, J.; Qin, W.; Xu, Q.; Xu, L.; Xu, J.; Zhang, P.; Liu, H.; Liu, B.; Jiang, T.; Yu, C. Modulation of APOE and SORL1 genes on hippocampal functional connectivity in healthy young adults. Brain Struct. Funct. 2017, 222, 2877–2889. [Google Scholar] [CrossRef]
  23. Li, W.; Antuono, P.G.; Xie, C.; Chen, G.; Jones, J.L.; Ward, B.D.; Singh, S.P.; Franczak, M.B.; Goveas, J.S.; Li, S.J. Aberrant functional connectivity in Papez circuit correlates with memory performance in cognitively intact middle-aged APOE4 carriers. Cortex 2014, 57, 167–176. [Google Scholar] [CrossRef] [PubMed]
  24. Sheline, Y.I.; Morris, J.C.; Snyder, A.Z.; Price, J.L.; Yan, Z.; D’Angelo, G.; Liu, C.; Dixit, S.; Benzinger, T.; Fagan, A.; et al. APOE4 allele disrupts resting state fMRI connectivity in the absence of amyloid plaques or decreased CSF Aβ42. J. Neurosci. 2010, 30, 17035–17040. [Google Scholar] [CrossRef] [PubMed]
  25. Zhou, J.; Seeley, W.W. Network dysfunction in Alzheimer’s disease and frontotemporal dementia: Implications for psychiatry. Biol. Psychiatry 2014, 75, 565–573. [Google Scholar] [CrossRef]
  26. Kucikova, L.; Goerdten, J.; Dounavi, M.E.; Mak, E.; Su, L.; Waldman, A.D.; Danso, S.; Muniz-Terrera, G.; Ritchie, C.W. Resting-state brain connectivity in healthy young and middle-aged adults at risk of progressive Alzheimer’s disease. Neurosci. Biobehav. Rev. 2021, 129, 142–153. [Google Scholar] [CrossRef] [PubMed]
  27. Foo, H.; Mather, K.A.; Jiang, J.; Thalamuthu, A.; Wen, W.; Sachdev, P.S. Genetic influence on ageing-related changes in resting-state brain functional networks in healthy adults: A systematic review. Neurosci. Biobehav. Rev. 2020, 113, 98–110. [Google Scholar] [CrossRef]
  28. Su, Y.Y.; Liang, X.; Schoepf, U.J.; Varga-Szemes, A.; West, H.C.; Qi, R.; Kong, X.; Chen, H.J.; Lu, G.M.; Zhang, L.J. APOE Polymorphism Affects Brain Default Mode Network in Healthy Young Adults: A STROBE Article. Medicine 2015, 94, e1734. [Google Scholar] [CrossRef] [PubMed]
  29. Su, Y.Y.; Zhang, X.D.; Schoepf, U.J.; Varga-Szemes, A.; Stubenrauch, A.; Liang, X.; Zheng, L.J.; Zheng, G.; Kong, X.; Xu, Q.; et al. Lower functional connectivity of default mode network in cognitively normal young adults with mutation of APP, presenilins and APOE ε4. Brain Imaging Behav. 2017, 11, 818–828. [Google Scholar] [CrossRef]
  30. Trachtenberg, A.J.; Filippini, N.; Ebmeier, K.P.; Smith, S.M.; Karpe, F.; Mackay, C.E. The effects of APOE on the functional architecture of the resting brain. Neuroimage 2012, 59, 565–572. [Google Scholar] [CrossRef]
  31. JASP Team. JASP, (Version 0.18.3); Windows: Redmond, WA, USA, 2024.
  32. Friston, K.J.; Ashburner, J.; Kiebel, S.; Nichols, T.; Penny, W. Statistical Parametric Mapping: The Analysis of Funtional Brain Images; Elsevier: Amsterdam The Netherland; Academic Press: Boston, MA, USA, 2007. [Google Scholar]
  33. Ashburner, J.; Friston, K.J. Voxel-based morphometry—The methods. Neuroimage 2000, 11 Pt 1, 805–821. [Google Scholar] [CrossRef] [PubMed]
  34. Gaser, C.; Dahnke, R. CAT—A Computational Anatomy Toolbox for the Analysis of Structural MRI Data, in HBM. 2016. Available online: https://neuro-jena.github.io/cat12-help/ (accessed on 17 July 2024).
  35. Gaser, C.; Dahnke, R.; Thompson, P.M.; Kurth, F.; Luders, E.; the Alzheimer’s Disease Neuroimaging Initiative. CAT: A computational anatomy toolbox for the analysis of structural MRI data. GigaScience 2024, 13, 1–13. Available online: https://jasp-stats.org/ (accessed on 17 July 2024). [CrossRef]
  36. Whitfield-Gabrieli, S.; Nieto-Castanon, A. Conn: A functional connectivity toolbox for correlated and anticorrelated brain networks. Brain Connect. 2012, 2, 125–141. [Google Scholar] [CrossRef]
  37. Nieto-Castanon, A. Handbook of Functional Connectivity Magnetic Resonance Imaging Methods in CONN; Hilbert Press: Boston, MA, USA, 2020; Available online: https://www.hilbertpress.org/link-nieto-castanon2020 (accessed on 17 July 2024).
  38. Nieto-Castanon, A. Citing CONN. Available online: https://web.conn-toolbox.org/resources/citing-conn (accessed on 8 January 2024).
  39. DiBattista, A.M.; Stevens, B.W.; Rebeck, G.W.; Green, A.E. Two Alzheimer’s disease risk genes increase entorhinal cortex volume in young adults. Front. Hum. Neurosci. 2014, 8, 779. [Google Scholar] [CrossRef]
  40. Walhovd, K.B.; Fjell, A.M.; Sørensen, Ø.; Mowinckel, A.M.; Reinbold, C.S.; Idland, A.-V.; Watne, L.O.; Franke, A.; Dobricic, V.; Kilpert, F.; et al. Genetic risk for Alzheimer disease predicts hippocampal volume through the human lifespan. Neurol. Genet. 2020, 6, e506. [Google Scholar] [CrossRef]
  41. Ramusino, M.C.; Altomare, D.; Bacchin, R.; Ingala, S.; Bnà, C.; Bonetti, M.; Costa, A.; Barkhof, F.; Nicolosi, V.; Festari, C.; et al. Medial temporal lobe atrophy and posterior atrophy scales normative values. Neuroimage Clin. 2019, 24, 101936. [Google Scholar] [CrossRef]
  42. Konishi, K.; Bhat, V.; Banner, H.; Poirier, J.; Joober, R.; Bohbot, V.D. APOE2 Is Associated with Spatial Navigational Strategies and Increased Gray Matter in the Hippocampus. Front. Hum. Neurosci. 2016, 10, 349. [Google Scholar] [CrossRef] [PubMed]
  43. McKeever, A.; Paris, A.F.; Cullen, J.; Hayes, L.; Ritchie, C.W.; Ritchie, K.; Waldman, A.D.; Wells, K.; Busza, A.; Carriere, I.; et al. Hippocampal Subfield Volumes in Middle-Aged Adults at Risk of Dementia. J. Alzheimers Dis. 2020, 75, 1211–1218. [Google Scholar] [CrossRef] [PubMed]
  44. Ferreira, L.K.; Diniz, B.S.; Forlenza, O.V.; Busatto, G.F.; Zanetti, M.V. Neurostructural predictors of Alzheimer’s disease: A meta-analysis of VBM studies. Neurobiol. Aging 2011, 32, 1733–1741. [Google Scholar] [CrossRef]
  45. Park, H.Y.; Park, C.R.; Suh, C.H.; Shim, W.H.; Kim, S.J. Diagnostic performance of the medial temporal lobe atrophy scale in patients with Alzheimer’s disease: A systematic review and meta-analysis. Eur. Radiol. 2021, 31, 9060–9072. [Google Scholar] [CrossRef]
  46. Mak, E.; Gabel, S.; Mirette, H.; Su, L.; Williams, G.B.; Waldman, A.; Wells, K.; Ritchie, K.; Ritchie, C.; O’Brien, J.T. Structural neuroimaging in preclinical dementia: From microstructural deficits and grey matter atrophy to macroscale connectomic changes. Ageing Res. Rev. 2017, 35, 250–264. [Google Scholar] [CrossRef] [PubMed]
  47. Kucikova, L.; Zeng, J.; Muñoz-Neira, C.; Muniz-Terrera, G.; Huang, W.; Gregory, S.; Ritchie, C.; O’Brien, J.T.; Su, L. Genetic risk factors of Alzheimer’s Disease disrupt resting-state functional connectivity in cognitively intact young individuals. J. Neurol. 2023, 270, 4949–4958. [Google Scholar] [CrossRef]
  48. Zheng, L.J.; Su, Y.Y.; Wang, Y.F.; Schoepf, U.J.; Varga-Szemes, A.; Pannell, J.; Liang, X.; Zheng, G.; Lu, G.M.; Yang, G.F.; et al. Different Hippocampus Functional Connectivity Patterns in Healthy Young Adults with Mutations of APP/Presenilin-1/2 and APOEepsilon4. Mol. Neurobiol. 2018, 55, 3439–3450. [Google Scholar] [CrossRef]
  49. Zheng, L.J.; Lin, L.; Schoepf, U.J.; Varga-Szemes, A.; Savage, R.H.; Zhang, H.; Wang, Y.F.; Zhang, X.Y.; Luo, S.; Liu, Y.; et al. Different posterior hippocampus and default mode network modulation in young APOE epsilon4 carriers: A functional connectome-informed phenotype longitudinal study. Mol. Neurobiol. 2021, 58, 2757–2769. [Google Scholar] [CrossRef] [PubMed]
  50. Yang, A.C.; Huang, C.C.; Liu, M.E.; Liou, Y.J.; Hong, C.J.; Lo, M.T.; Huang, N.E.; Peng, C.K.; Lin, C.P.; Tsai, S.J. The APOE epsilon4 allele affects complexity and functional connectivity of resting brain activity in healthy adults. Hum. Brain Mapp. 2014, 35, 3238–3248. [Google Scholar] [CrossRef] [PubMed]
  51. Korthauer, L.E.; Zhan, L.; Ajilore, O.; Leow, A.; Driscoll, I. Disrupted topology of the resting state structural connectome in middle-aged APOE epsilon4 carriers. Neuroimage 2018, 178, 295–305. [Google Scholar] [CrossRef]
  52. Berron, D.; van Westen, D.; Ossenkoppele, R.; Strandberg, O.; Hansson, O. Medial temporal lobe connectivity and its associations with cognition in early Alzheimer’s disease. Brain 2020, 143, 1233–1248. [Google Scholar] [CrossRef]
  53. Kenny, E.R.; Blamire, A.M.; Firbank, M.J.; O’Brien, J.T. Functional connectivity in cortical regions in dementia with Lewy bodies and Alzheimer’s disease. Brain 2012, 135 Pt 2, 569–581. [Google Scholar] [CrossRef] [PubMed]
  54. Wu, X.; Li, R.; Fleisher, A.S.; Reiman, E.M.; Guan, X.; Zhang, Y.; Chen, K.; Yao, L. Altered default mode network connectivity in Alzheimer’s disease—A resting functional MRI and Bayesian network study. Hum. Brain Mapp. 2011, 32, 1868–1881. [Google Scholar] [CrossRef]
  55. Regy, M.; Dugravot, A.; Sabia, S.; Fayosse, A.; Mangin, J.F.; Chupin, M.; Fischer, C.; Bouteloup, V.; Dufouil, C.; Chene, G.; et al. Association of APOE epsilon4 with cerebral gray matter volumes in non-demented older adults: The MEMENTO cohort study. Neuroimage 2022, 250, 118966. [Google Scholar] [CrossRef] [PubMed]
  56. Tang, X.; Holland, D.; Dale, A.M.; Miller, M.I.; Alzheimer’s Disease Neuroimaging Initiative. APOE Affects the Volume and Shape of the Amygdala and the Hippocampus in Mild Cognitive Impairment and Alzheimer’s Disease: Age Matters. J. Alzheimers Dis. 2015, 47, 645–660. [Google Scholar] [CrossRef]
  57. Liu, Y.; Yu, J.T.; Wang, H.F.; Han, P.R.; Tan, C.C.; Wang, C.; Meng, X.F.; Risacher, S.L.; Saykin, A.J.; Tan, L. APOE genotype and neuroimaging markers of Alzheimer’s disease: Systematic review and meta-analysis. J. Neurol. Neurosurg. Psychiatry 2015, 86, 127–134. [Google Scholar] [CrossRef] [PubMed]
  58. Schuff, N.; Woerner, N.; Boreta, L.; Kornfield, T.; Shaw, L.M.; Trojanowski, J.Q.; Thompson, P.M.; Jack, C.R., Jr.; Weiner, M.W.; Alzheimer’s Disease Neuroimaging Initiative. MRI of hippocampal volume loss in early Alzheimer’s disease in relation to APOE genotype and biomarkers. Brain 2009, 132 Pt 4, 1067–1077. [Google Scholar] [CrossRef]
  59. Lee, H.; Stirnberg, R.; Wu, S.; Wang, X.; Stöcker, T.; Jung, S.; Montag, C.; Axmacher, N. Genetic Alzheimer’s Disease Risk Affects the Neural Mechanisms of Pattern Separation in Hippocampal Subfields. Curr. Biol. 2020, 30, 4201–4212 e3. [Google Scholar] [CrossRef]
  60. Liu, C.C.; Kanekiyo, T.; Xu, H.; Bu, G. Apolipoprotein E and Alzheimer disease: Risk, mechanisms and therapy. Nat. Rev. Neurol. 2013, 9, 106–118. [Google Scholar] [CrossRef] [PubMed]
  61. Mahley, R.W.; Weisgraber, K.H.; Huang, Y. Apolipoprotein E4: A causative factor and therapeutic target in neuropathology, including Alzheimer’s disease. Proc. Natl. Acad. Sci. USA 2006, 103, 5644–5651. [Google Scholar] [CrossRef] [PubMed]
  62. Han, S.D.; Bondi, M.W. Revision of the apolipoprotein E compensatory mechanism recruitment hypothesis. Alzheimers Dement. 2008, 4, 251–254. [Google Scholar] [CrossRef]
  63. Bondi, M.W.; Houston, W.S.; Eyler, L.T.; Brown, G.G. fMRI evidence of compensatory mechanisms in older adults at genetic risk for Alzheimer disease. Neurology 2005, 64, 501–508. [Google Scholar] [CrossRef] [PubMed]
  64. Bookheimer, S.Y.; Strojwas, M.H.; Cohen, M.S.; Saunders, A.M.; Pericak-Vance, M.A.; Mazziotta, J.C.; Small, G.W. Patterns of brain activation in people at risk for Alzheimer’s disease. N. Engl. J. Med. 2000, 343, 450–456. [Google Scholar] [CrossRef]
  65. Tuminello, E.R.; Han, S.D. The apolipoprotein e antagonistic pleiotropy hypothesis: Review and recommendations. Int. J. Alzheimers Dis. 2011, 2011, 1. [Google Scholar] [CrossRef] [PubMed]
  66. Filippini, N.; Ebmeier, K.; MacIntosh, B.; Trachtenberg, A.; Frisoni, G.; Wilcock, G.; Beckmann, C.; Smith, S.; Matthews, P.; Mackay, C.E. Differential effects of the APOE genotype on brain function across the lifespan. Neuroimage 2011, 54, 602–610. [Google Scholar] [CrossRef] [PubMed]
  67. Seitzman, B.A.; Snyder, A.Z.; Leuthardt, E.C.; Shimony, J.S. The State of Resting State Networks. Top. Magn. Reson. Imaging 2019, 28, 189–196. [Google Scholar] [CrossRef]
Jcm 13 05228 g001

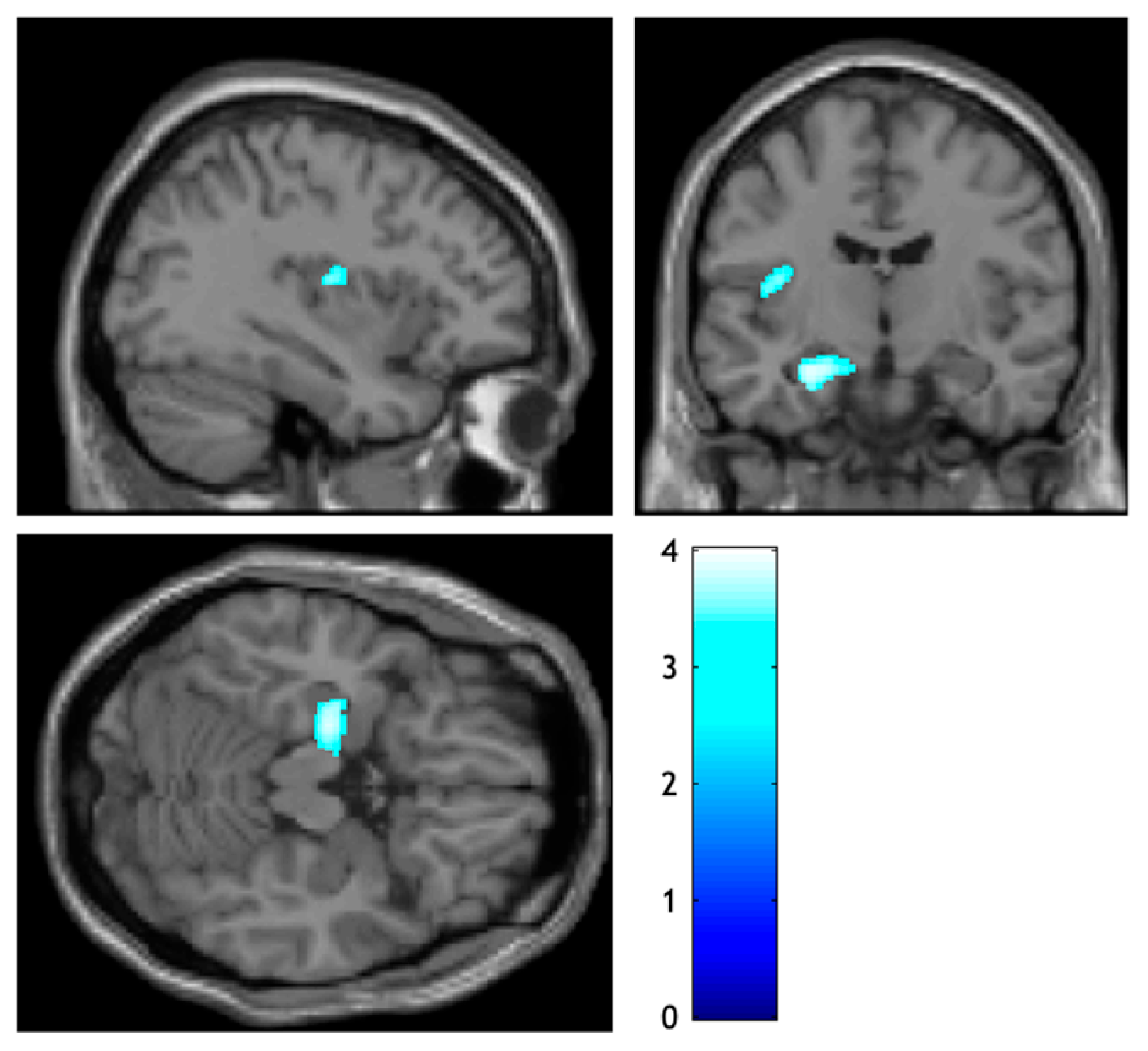

Figure 1. Structural differences between APOE ε4 carrier and APOE ε4 non-carrier groups. ε4(+) exhibited greater volume densities in the hippocampus and the posterior insula across the left hemisphere compared to ε4(−) (puncorr < 0.001 at the peak level). Uncorrected results mapped onto a single subject template taken from SPM12. ε4(+) = APOE ε4 carriers; ε4(−) = APOE ε4 non-carriers.
Figure 1. Structural differences between APOE ε4 carrier and APOE ε4 non-carrier groups. ε4(+) exhibited greater volume densities in the hippocampus and the posterior insula across the left hemisphere compared to ε4(−) (puncorr < 0.001 at the peak level). Uncorrected results mapped onto a single subject template taken from SPM12. ε4(+) = APOE ε4 carriers; ε4(−) = APOE ε4 non-carriers.
Jcm 13 05228 g001
Jcm 13 05228 g002

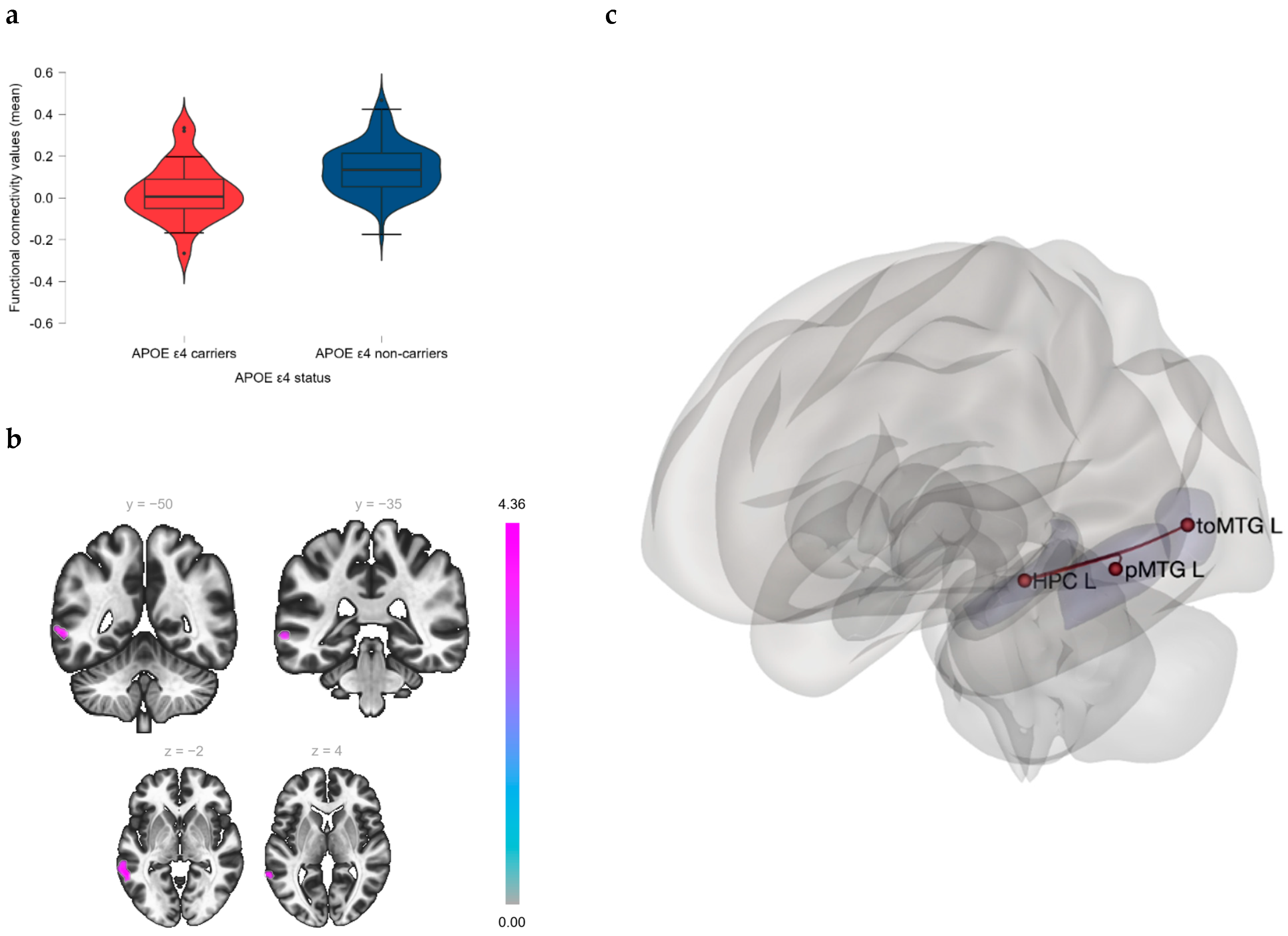

Figure 2. Differences in FC between ε4(+) and ε4(−): Seed-based connectivity analysis. (a) Violin plots indicating a significant reduction of FC (pFDR < 0.05) between HPC L and both pMTG L and toMTG L in ε4(+) compared to ε4(−). (b) Brain areas indicating statistically significant group differences (effect of the APOE ε4 genotype, pFDR < 0.05) in the hippocampal FC between ε4(+) and ε4(−), according to the SBC analysis. Taking the HPC L as the seed, ε4(+) showed a statistically significant reduction in FC with both pMTG L and toMTG L in comparison with ε4(−) (pFDR < 0.05). (c) A three-dimensional model of a brain representing the pattern of reduced FC described previously. FC = functional connectivity; pFDR = False Discovery Rate p-value; SBC = seed-based connectivity; HPC L = left hippocampus; pMTG L = left posterior region of the middle temporal gyrus; toMTG L = left temporooccipital division of the left middle temporal gyrus; ε4(+) = APOE ε4 carriers; ε4(−) = APOE ε4 non-carriers.
Figure 2. Differences in FC between ε4(+) and ε4(−): Seed-based connectivity analysis. (a) Violin plots indicating a significant reduction of FC (pFDR < 0.05) between HPC L and both pMTG L and toMTG L in ε4(+) compared to ε4(−). (b) Brain areas indicating statistically significant group differences (effect of the APOE ε4 genotype, pFDR < 0.05) in the hippocampal FC between ε4(+) and ε4(−), according to the SBC analysis. Taking the HPC L as the seed, ε4(+) showed a statistically significant reduction in FC with both pMTG L and toMTG L in comparison with ε4(−) (pFDR < 0.05). (c) A three-dimensional model of a brain representing the pattern of reduced FC described previously. FC = functional connectivity; pFDR = False Discovery Rate p-value; SBC = seed-based connectivity; HPC L = left hippocampus; pMTG L = left posterior region of the middle temporal gyrus; toMTG L = left temporooccipital division of the left middle temporal gyrus; ε4(+) = APOE ε4 carriers; ε4(−) = APOE ε4 non-carriers.
Jcm 13 05228 g002
Table 1. Demographic data of the sample.
Table 1. Demographic data of the sample.
ParameterDescriptive Statistics per GroupComparisons
Structural Neuroimaging Analysis (VBM)Functional Neuroimaging Analysis (SBC)
ε4(+)
(n = 28)		ε4(−)
(n = 123)		ε4(+)
(n = 27)		ε4(−)
(n = 102)
Age a19.53 ± 0.9819.64 ± 0.8719.57 ± 0.9819.64 ± 0.87nsd for
VBM and SBC
Years of Education a12.94 ± 0.5413.11 ± 0.5712.95 ± 0.5513.14 ± 0.59nsd for
VBM and SBC
Sex b nsd for
VBM and SBC
%Female (n)57.14% (16)56.10% (69)57.14% (16)56.10% (69)
%Male (n)42.86% (12)43.90% (54)42.86% (12)43.90% (54)
Results are expressed as mean ± standard deviation. a Comparisons made with Mann–Whitney U tests. b Comparison made with the chi-square (X2) test. VBM = voxel-based morphometry; SBC = seed-based connectivity; ε4(+) = APOE ε4 carriers; ε4(−) = APOE ε4 non-carriers; nsd = non-significant differences (p > 0.05).
Table 2. Structural differences between ε4(+) and ε4(−): VBM analysis.
Table 2. Structural differences between ε4(+) and ε4(−): VBM analysis.
VBM Analysis Contrast: APOE ε4 Carriers > APOE ε4 Non-Carriers
puncorr < 0.001, 97.472 Expected Voxels per Cluster
Structure
(Hemisphere)		%Types of SignificanceMNI Coordinates
Cluster-LevelPeak-Level
pFWEcorrkepuncorrpFWEcorrTZepuncorrmmmmmm
Hippocampus
(Left)		50.90.1535340.0230.4934.003.890.000−24−14−21
Posterior Insula
(Left)		26.90.7631480.2020.9433.513.430.000−39−1212
pFWEcorr = family-wise error-corrected p-value; ke = expected voxels per cluster; puncorr = uncorrected p-value, T = t-score; Ze = expected Z-score.
Table 3. Differences in FC between ε4(+) and ε4(−): SBC analysis.
Table 3. Differences in FC between ε4(+) and ε4(−): SBC analysis.
SBC Analysis between the Hippocampus Left and Other Voxels across the Brain and the Posterior Insula Left and Other Voxels across the Brain
SeedAssociated Brain AreasT(123)puncorrpFDR
Hippocampus (Left) 4.590.0000110.000011
Middle Temporal Gyrus, posterior region (Left)
Middle Temporal Gyrus, temporooccipital division (Left)
Posterior Insula (Left)Nonenana>0.05
puncorr = uncorrected p-value; pFDR = False Discovery Rate p-value; T = t-score; Ze = expected Z-score.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Muñoz-Neira, C.; Zeng, J.; Kucikova, L.; Huang, W.; Xiong, X.; Muniz-Terrera, G.; Ritchie, C.; O’Brien, J.T.; Su, L. Differences in Grey Matter Concentrations and Functional Connectivity between Young Carriers and Non-Carriers of the APOE ε4 Genotype. J. Clin. Med. 2024, 13, 5228. https://doi.org/10.3390/jcm13175228

AMA Style

Muñoz-Neira C, Zeng J, Kucikova L, Huang W, Xiong X, Muniz-Terrera G, Ritchie C, O’Brien JT, Su L. Differences in Grey Matter Concentrations and Functional Connectivity between Young Carriers and Non-Carriers of the APOE ε4 Genotype. Journal of Clinical Medicine. 2024; 13(17):5228. https://doi.org/10.3390/jcm13175228

Chicago/Turabian Style

Muñoz-Neira, Carlos, Jianmin Zeng, Ludmila Kucikova, Weijie Huang, Xiong Xiong, Graciela Muniz-Terrera, Craig Ritchie, John T. O’Brien, and Li Su. 2024. "Differences in Grey Matter Concentrations and Functional Connectivity between Young Carriers and Non-Carriers of the APOE ε4 Genotype" Journal of Clinical Medicine 13, no. 17: 5228. https://doi.org/10.3390/jcm13175228

APA Style

Muñoz-Neira, C., Zeng, J., Kucikova, L., Huang, W., Xiong, X., Muniz-Terrera, G., Ritchie, C., O’Brien, J. T., & Su, L. (2024). Differences in Grey Matter Concentrations and Functional Connectivity between Young Carriers and Non-Carriers of the APOE ε4 Genotype. Journal of Clinical Medicine, 13(17), 5228. https://doi.org/10.3390/jcm13175228

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
