Optimal Heart Rate May Improve Systolic and Diastolic Function in Patients with Fontan Circulation
by
, ,
Keiichi Hirono
1,*,
Teruhiko Imamura
2,
Kaori Tsuboi
1,
Shinya Takarada
1,
Mako Okabe
1,
Hideyuki Nakaoka
1,
Keijiro Ibuki
1 and
Sayaka Ozawa
1 1
Department of Pediatrics, Faculty of Medicine, University of Toyama, Toyama 930-0194, Japan
2
Second Internal Medicine, Faculty of Medicine, University of Toyama, Toyama 930-0194, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(8), 3033; https://doi.org/10.3390/jcm12083033
Submission received: 10 March 2023
/
Revised: 7 April 2023
/
Accepted: 19 April 2023
/
Published: 21 April 2023
(This article belongs to the Special Issue Congenital Heart Disease: Clinical Practice, Prognosis and Outcome)
Abstract
:(1) Background: The optimal heart rate, at which the E-wave and A-wave stand adjacent without any overlaps in the Doppler transmitral flow echocardiography, is associated with maximum cardiac output and favorable clinical outcomes in adult patients with systolic heart failure. However, the clinical implication of the echocardiographic overlap length in patients with Fontan circulation remains unknown. We investigated the relationship between heart rate (HR) and hemodynamics in Fontan surgery patients with and without beta-blockers. (2) Methods and Results: A total of 26 patients (median age 1.8 years, 13 males) were enrolled. At baseline, the plasma N-terminal pro-B-type natriuretic peptide was 2439 ± 3483 pg/mL, the fraction area change was 33.5 ± 11.4%, the cardiac index was 3.55 ± 0.90 L/min/m2, and the overlap length was 45.2 ± 59.0 msec. Overlap length was importantly decreased after the one-year follow-up (7.60 ± 78.57 msec, p = 0.0069). Positive correlations were noted between the overlap length and A-wave and E/A ratio (p = 0.0021 and p = 0.0046, respectively). Ventricular end-diastolic pressure was significantly correlated with the overlap length in non-beta-blocker patients (p = 0.0483). (3) Conclusion: Overlap length may reflect the status of ventricular dysfunction. Hemodynamic preservation at lower HR could be critical for cardiac reverse remodeling.
1. Introduction
Single ventricle disease refers to a group of severe cardiac conditions in which one ventricle predominates and supplies cardiac output to the entire body, necessitating staged surgical palliation such as Glenn surgery and Fontan surgery, which culminates in the Fontan circulation [1]. The Fontan surgery is the ultimate functional repair procedure to improve deoxygenation in patients with anatomic or functional single ventricles [2]. Due to advancements in surgical techniques and perioperative management, mid-term survival rates have reached satisfactory levels. Risk factors for postoperative complications after Fontan surgery include elevated pulmonary pressures, ventricular morphology, and ventricular dysfunction [3,4]. Increased cardiac filling pressures and a decreased ability of the Fontan circulation to maintain cardiac output can result from either systolic or diastolic ventricular dysfunction or excessive ventricular afterload.
Current guidelines strongly advise the administration and up-titration in beta-blockers in patients with systolic heart failure (HF) due to evidence that the drugs reduce mortality and morbidity and encourage cardiac reverse remodeling [5,6,7,8]. The results of large clinical trials suggest that lowering heart rate (HR) is critical for further lowering mortality in patients with HF with reduced ejection fraction who have relatively higher HR with sinus rhythm [9]. With decreasing HR, the clinical benefit of HR reduction appears to plateau. Thus, the target HR to maximize prognostic benefit remains controversial [10].
Pulse wave transmitral flow Doppler echocardiography may be a suitable tool to assess the relationship between HR and left ventricular filling. A Doppler echocardiography procedure to assess transmitral flow has been proposed recently to assess optimal HR in each individual with systolic HF. At sinus tachycardia, the E- and A-waves merge [11]. A merged A-wave is higher in a healthy cohort because the HR increases, probably to compensate for decreased left ventricular filling [12]; however, in HF patients with reduced atrial function, such compensation would not work. As the HR decreases, the widths of the E- and A-waves do not change and only the diastole is prolonged, which may not increase end-diastolic volume [12]. Patients’ cardiac output can be maximized when both the E-wave and A-wave in the transmitral flow echocardiography stand adjacent without any overlaps. Patients with optimal HR, as confirmed by Doppler echocardiography, may have better clinical outcomes than those with sub-optimal HR.
However, the clinical implication and prognostic impact of Doppler echocardiography-derived optimal HR among those with Fontan circulation remains unknown. This knowledge should improve the management of this cohort through risk stratification and provide us with the possibility of Doppler echocardiography-guided HR adjustment. We investigated the relationship between HR and hemodynamics in Fontan surgery patients with and without beta-blockers in this study.
2. Materials and Methods
2.1. Patients
All consecutive patients who received Glenn and/or Fontan surgery and were followed at our institute between June 2012 and July 2021 were retrospectively registered and included in this study. In summary, the Fontan procedure was carried out using the standard total cavopulmonary connection method, with a GORETEX artificial conduit placed between the inferior vena cava and the pulmonary artery. Following Fontan’s operation, all patients were followed by expert pediatricians according to the guideline-recommended standard manner.
The major exclusion criteria were: (1) patients who required cardioversion to terminate tachycardia; (2) the presence of or suspected hyperthyroidism; (3) following the implantation of a permanent pacemaker and/or implantable cardioverter defibrillator (except for patients who had temporary epicardial wire implantations during surgery); (4) atrial fibrillation with Wolff–Parkinson–White syndrome; (5) atrioventricular block (second degree or greater) or sick sinus syndrome; and (6) pheochromocytoma patients or suspects.
Informed consent was obtained from all patients or their parents according to institutional guidelines. This study protocol adheres to the ethical guidelines of the 1975 Helsinki Declaration, as evidenced by the prior approval by the University of Toyama’s Research Ethics Committee.
2.2. Echocardiographic Assessment
The actual HR at rest was measured at the time of index discharge for hemodynamic evaluation with echocardiogram and right heart catheterization. Expert sonographers blinded to the study’s protocol performed transthoracic echocardiography following current American Society of Echocardiography guidelines. Fraction area change (FAC) was used to evaluate ventricular systolic function. The deceleration time of the E-wave was measured using pulse Doppler echocardiography in the apical four-chamber view at trans-atrioventricular valvular flow. At the trans-atrioventricular valvular flow, the overlap between E-wave and A-wave was measured. If the two waves did not overlap, the distance between them was expressed as a negative value (Figure 1) [13].
2.3. Study Protocol
This is a retrospective study of patients who had Glenn and/or Fontan surgery with or without beta-blockers and had single ventricle physiology. Patients with systolic dysfunction began with beta-blockers following catheterization. The day when beta-blockers were initiated was defined as day 0. Beta-blockers were continued for at least one year. The clinical and hemodynamic status was assessed one year later. A date was compared between baseline and follow-up variables in the patients with and without beta-blockers.
2.4. Data Collection
Before starting beta-blockers, demographic, laboratory, medication, echocardiographic, and catheterization data were collected. Laboratory, echocardiographic, and catheterization data were obtained one year later again. Changes in hemodynamic parameters, including overlap length, were the primary endpoint. The effects of beta-blockers were counted as a secondary endpoint.
2.5. Statistical Analysis
Continuous variables, ordinal descriptive variables, and categorical variables were expressed as means ± SD, medians (ranges), numbers, and percentages, respectively. The unpaired t-test, nonparametric Mann–Whitney U test, or Kruskal–Wallis test was used to compare continuous variables, whereas categorical variables were compared employing the χ2 statistics or Fisher’s exact test, as appropriate. Paired t-tests used the parameters between baseline and follow-up. Pearson’s correlation analysis was used to examine the relationships between the same parameters before and after the Fontan operation. The intraclass correlation coefficient was used as a statistical method to assess measurement variability among observers. An intraclass correlation coefficient of ≥0.70 was considered to indicate acceptable reliability. Statistical analyses were performed using JMP software (version 16; SAS institute, Cary, NC, USA). A p-value < 0.05 was considered statistically significant.
3. Results
3.1. Baseline Characteristics
A total of 26 patients (median age 1.8 (0.4–3.6) years, 13 males) were included (Table 1). Twenty (76.9%) of the patients had a single right ventricle, while six (23.1%) had a single left ventricle. All patients underwent Glenn surgery at 0.8 ± 0.5 years old and 15 patients underwent Fontan surgery at 2.4 ± 0.8 years old. The plasma N-terminal pro-B-type natriuretic peptide level was 2439 ± 3483 pg/mL; the FAC level was 33.5% ± 11.4%; and the cardiac index level was 3.55 ± 0.90 L/min/m2. The overlap length was 45.2 ± 59.0 msec. During follow-up, 11 patients were given beta-blockers such as carvedilol and bisoprolol. There were no statistically significant differences in the demographics, laboratory, and outcomes between the two groups. Several baseline hemodynamic characteristics, including FAC, A-wave, and pulmonary vascular resistance, were significantly different between the two groups.
3.2. Hemodynamics between Baseline and Follow-Up Parameters
Table 2 shows the trends in laboratory, echocardiographic, and catheterization data from baseline (index discharge) to one year later. Overlap length was significantly reduced in all patients and beta-blockers patients (p < 0.05 for both, Table 2). FAC and A-wave on echocardiogram, and the cardiac index on catheterization were significantly improved in beta-blockers patients compared to those in non-beta-blocker patients, whereas pulmonary vascular resistance, pulmonary capillary wedge pressure, and ventricular end-diastolic pressure (VEDP) were not improved (p < 0.05 for all, Table 3 and Figure 2).
3.3. Relationship between Overlap Lengths and Other Variables
Positive correlations were discovered between the overlap length and A-wave frequency (Figure 3). The correlation r values between the overlap length and A-wave and E/A ratio were 0.4250 (p = 0.0021) and 0.3944 (p = 0.0046), respectively. On catheterization, VEDP was significantly correlated with the overlap length in patients not taking beta-blockers (Figure 3). There were no significant correlations between the amount of change in overlap length between baseline and follow-up data and amount of change in functional parameters between baseline and follow-up data.
Intraclass correlations for echocardiographic measurements were summarized in Supplementary Materials Table S1. Overall, there was a good correlation between the two readers.
4. Discussion
This is the first report that overlap length was negatively correlated with A-wave, E/A, and VEDP in children who have undergone Fontan surgery. Furthermore, beta-blockers improved hemodynamic data such as systolic and diastolic function, and cardiac index in children.
4.1. Fontan Circulation and Ventricular Dysfunction
The afterload on the systemic ventricle is increased by Fontan surgery via cavopulmonary connection. Cardiac output is decreased in the Fontan circulation by the impaired preload [2,14]. The ventricle can easily become trapped in a vicious cycle in which low preload causes remodeling, decreased compliance, and increased filling pressures. The ventricle in the Fontan circulation results secondarily in systolic and diastolic dysfunction [15]. Thus, patients with Fontan circulation have generally subclinical HF [2,14]. In this study, higher levels of NT-pro-BNP were found, which could indicate subclinical HF. Elevated diastolic pressure decreases cardiac filling and exacerbates systemic venous hypertension, which has important implications for long-term prognosis [16]. These findings corroborated our findings that VEDP was mildly elevated. Diastolic ventricular dysfunction is more common than systolic ventricular dysfunction after Fontan surgery [17]. Echocardiographic ventricular diastolic dysfunction is common, with more than half of patients in the large Pediatric Heart Network Fontan cross-sectional study meeting diastolic dysfunction criteria [18,19]. Potential diastolic dysfunction is associated with an increased risk of adverse clinical outcomes during mid-term follow-up [17]. The lower FAC and A-wave in beta-blockers than in non-beta-blocker patients in our data could be due to diastolic dysfunction.
4.2. Fontan Circulation and Optimal Heart Rate
We recently proposed an equation that uses the deceleration time of the E-wave obtained by transmitral Doppler echocardiography to calculate the ideal HR for each individual with systolic dysfunction [13]. We hypothesized that when the overlap length between the E- and A-waves in the transmitral Doppler echocardiogram is zero, the cardiac output would be maximal. We tried to elucidate the optimal HR in patients with Fontan surgery. However, there was no evident relationship between FAC and cardiac index. In patients with systolic dysfunction, unstable hemodynamics with relatively low blood pressure may prevent adequate beta-blocker up-titration. The ideal HR may differ depending on the deceleration time in each individual with a specific clinical situation and each hemodynamic situation in Fontan surgery patients.
4.3. Fontan Circulation and Beta-Blockers
In adult clinical trials, beta-blockers have been shown to promote ventricular remodeling, lower levels of free radicals and neurohumoral toxic factors, reduce arrhythmias and thus HF symptoms, decrease mortality and morbidity, and are expected to be a significant advance in HF treatment [20,21]. Previous large clinical trials have shown that beta-blockers such as carvedilol, bisoprolol, and metoprolol succinate extended-release reduce mortality and hospitalization in patients with HF and a low ejection fraction [22,23,24]. There was no significant difference in the tolerability of bisoprolol and carvedilol at target doses in Japanese patients with HF with reduced ejection fraction [22]. Clinical efficacy and safety were comparable, though bisoprolol reduced HR, and carvedilol reduced plasma BNP more significantly.
Carvedilol is effective in pediatric patients with congenital heart disease but another study failed to confirm its clinical efficacy in children and adolescents with systolic HF [20,25,26,27]. In single ventricle patients, the addition of carvedilol to standard therapy, which included diuretics, digoxin, and ACE inhibitors, reduced HF symptoms and improved clinical parameters such as systolic dysfunction [28]. We retrospectively evaluated the clinical effects of beta-blockers in Fontan surgery patients, and hemodynamic data such as CI, VEDP, and CVP improved after treatment. Our data support that beta-blockers improve hemodynamics in patients with congenital heart disease with single ventricle morphology and may improve prognosis.
In our study, PVR in patients with beta-blockers was slightly elevated above the baseline during 1-year follow-up, and serial change in PVR was higher in patients using beta-blockers than that that in patients without beta-blockers. A large retrospective cohort study that included 568 pulmonary arterial hypertension patients who received β1-selective blockers had a similar survival rate and time to clinical worsening events compared with untreated patients [29]. Changes in pulmonary hemodynamics and right ventricular size and function measure during the 20-month follow-up were similar between patients who were treated with and without beta-blockers [30]. In a pulmonary hypertension model of rats, bisoprolol increased right ventricular contractility and filling and partially restored right ventricular-arterial coupling despite having no change in pulmonary pressure [31]. Carvedilol was able to reduce right ventricular hypertrophy and dilation [32]. Thus, the pulmonary vascular effects of beta-blockers are not fully understood and are controversial. Moreover, their effect on patients with single ventricle physiology has not been elucidated and requires further investigation.
4.4. Limitations
There are several limitations to this study. First and foremost, this was a single-center, retrospective study with a limited sample size. Second, there was variability in clinical and hemodynamic status. Echocardiographic imaging and catheterization data were obtained at different times and under different hemodynamic conditions, thus limiting the correlation between these two modalities. There was also inter-rater variability. Third, the clinical significance, and prognostic significance are unknown.
5. Conclusions
To the best of our knowledge, this is the first report suggesting that optimal HR may be associated with diastolic function in patients with Fontan circulation. Because of the lower cardiac positional energy per minute, hemodynamic preservation at low HR may be necessary for future cardiac reverse remodeling. Adequate management of HR may improve chronic HF in children undergoing Fontan surgery.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm12083033/s1, Table S1: Inter-rater reliability for echocardiographic measurements.
Author Contributions
K.H. and T.I. designed the study and drafted the manuscript. Data were extracted by K.T., S.T. and H.N., and independently verified by K.I. and S.O. The quality of the included studies was assessed by K.H. and T.I. Investigation, M.O. All authors have read and agreed to the published version of the manuscript.
Funding
Keiichi Hirono is supported by grants from The Ministry of Education, Culture, Sports, Science, and Technology in Japan (Grant-in-Aid for Scientific Research Nos. 22K07932).
Institutional Review Board Statement
This study protocol conforms to the ethical guidelines of the 1975 Declaration of Helsinki as reflected in the prior approval by the Research Ethics Committee of the University of Toyama in Japan (I2017003).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study. Written informed consent was obtained from the patient(s) to publish this paper.
Data Availability Statement
The authors confirm that the data supporting the findings of this study are available within the article.
Acknowledgments
The authors wish to acknowledge Hitoshi Moriuchi, Haruna Hirai, and Eriko Masuda for their expert technical assistance.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Van der Ven, J.P.G.; van den Bosch, E.; Bogers, A.; Helbing, W.A. State of the art of the Fontan strategy for treatment of univentricular heart disease. F1000Reserch 2018, 7, 935. [Google Scholar] [CrossRef] [PubMed]
- Jolley, M.; Colan, S.D.; Rhodes, J.; DiNardo, J. Fontan physiology revisited. Anesth. Analg. 2015, 121, 172–182. [Google Scholar] [CrossRef] [PubMed]
- Rogers, L.S.; Glatz, A.C.; Ravishankar, C.; Spray, T.L.; Nicolson, S.C.; Rychik, J.; Rush, C.H.; Gaynor, J.W.; Goldberg, D.J. 18 years of the Fontan operation at a single institution: Results from 771 consecutive patients. J. Am. Coll. Cardiol. 2012, 60, 1018–1025. [Google Scholar] [CrossRef] [PubMed]
- Hosein, R.B.; Clarke, A.J.; McGuirk, S.P.; Griselli, M.; Stumper, O.; De Giovanni, J.V.; Barron, D.J.; Brawn, W.J. Factors influencing early and late outcome following the Fontan procedure in the current era. The ‘Two Commandments’? Eur. J. Cardiothorac. Surg. 2007, 31, 344–352; discussion 353. [Google Scholar] [CrossRef] [PubMed]
- Tsutsui, H.; Isobe, M.; Ito, H.; Ito, H.; Okumura, K.; Ono, M.; Kitakaze, M.; Kinugawa, K.; Kihara, Y.; Goto, Y.; et al. JCS 2017/JHFS 2017 Guideline on Diagnosis and Treatment of Acute and Chronic Heart Failure—Digest Version. Circ. J. 2019, 83, 2084–2184. [Google Scholar] [CrossRef]
- Packer, M.; Bristow, M.R.; Cohn, J.N.; Colucci, W.S.; Fowler, M.B.; Gilbert, E.M.; Shusterman, N.H. The effect of carvedilol on morbidity and mortality in patients with chronic heart failure. U.S. Carvedilol Heart Failure Study Group. N. Engl. J. Med. 1996, 334, 1349–1355. [Google Scholar] [CrossRef]
- CIBIS-II Investigators and Committees. The Cardiac Insufficiency Bisoprolol Study II (CIBIS-II): A randomised trial. Lancet 1999, 353, 9–13. [Google Scholar] [CrossRef]
- Kato, N.; Kinugawa, K.; Imamura, T.; Muraoka, H.; Minatsuki, S.; Inaba, T.; Maki, H.; Shiga, T.; Hatano, M.; Yao, A.; et al. Trend of clinical outcome and surrogate markers during titration of beta-blocker in heart failure patients with reduced ejection fraction: Relevance of achieved heart rate and beta-blocker dose. Circ. J. 2013, 77, 1001–1008. [Google Scholar] [CrossRef]
- Hori, M.; Sasayama, S.; Kitabatake, A.; Toyo-oka, T.; Handa, S.; Yokoyama, M.; Matsuzaki, M.; Takeshita, A.; Origasa, H.; Matsui, K.; et al. Low-dose carvedilol improves left ventricular function and reduces cardiovascular hospitalization in Japanese patients with chronic heart failure: The Multicenter Carvedilol Heart Failure Dose Assessment (MUCHA) trial. Am. Heart J. 2004, 147, 324–330. [Google Scholar] [CrossRef]
- Bohm, M.; Swedberg, K.; Komajda, M.; Borer, J.S.; Ford, I.; Dubost-Brama, A.; Lerebours, G.; Tavazzi, L.; Investigators, S. Heart rate as a risk factor in chronic heart failure (SHIFT): The association between heart rate and outcomes in a randomised placebo-controlled trial. Lancet 2010, 376, 886–894. [Google Scholar] [CrossRef]
- Chung, C.S.; Afonso, L. Heart Rate Is an Important Consideration for Cardiac Imaging of Diastolic Function. JACC Cardiovasc. Imaging 2016, 9, 756–758. [Google Scholar] [CrossRef] [PubMed]
- Chung, C.S.; Kovacs, S.J. Consequences of increasing heart rate on deceleration time, the velocity-time integral, and E/A. Am. J. Cardiol. 2006, 97, 130–136. [Google Scholar] [CrossRef] [PubMed]
- Izumida, T.; Imamura, T.; Nakamura, M.; Fukuda, N.; Kinugawa, K. How to consider target heart rate in patients with systolic heart failure. ESC Heart Fail. 2020, 7, 3231–3234. [Google Scholar] [CrossRef] [PubMed]
- Martino, D.; Rizzardi, C.; Vigezzi, S.; Guariento, C.; Sturniolo, G.; Tesser, F.; Salvo, G.D. Long-term management of Fontan patients: The importance of a multidisciplinary approach. Front. Pediatr. 2022, 10, 886208. [Google Scholar] [CrossRef] [PubMed]
- Gewillig, M.; Daenen, W.; Aubert, A.; Van der Hauwaert, L. Abolishment of chronic volume overload. Implications for diastolic function of the systemic ventricle immediately after Fontan repair. Circulation 1992, 86, II93–II99. [Google Scholar]
- Earing, M.G.; Cetta, F.; Driscoll, D.J.; Mair, D.D.; Hodge, D.O.; Dearani, J.A.; Puga, F.J.; Danielson, G.K.; O’Leary, P.W. Long-term results of the Fontan operation for double-inlet left ventricle. Am. J. Cardiol. 2005, 96, 291–298. [Google Scholar] [CrossRef]
- Milanesi, O.; Stellin, G.; Colan, S.D.; Facchin, P.; Crepaz, R.; Biffanti, R.; Zacchello, F. Systolic and diastolic performance late after the Fontan procedure for a single ventricle and comparison of those undergoing operation at <12 months of age and at >12 months of age. Am. J. Cardiol. 2002, 89, 276–280. [Google Scholar] [CrossRef]
- Margossian, R.; Sleeper, L.A.; Pearson, G.D.; Barker, P.C.; Mertens, L.; Quartermain, M.D.; Su, J.T.; Shirali, G.; Chen, S.; Colan, S.D.; et al. Assessment of Diastolic Function in Single-Ventricle Patients After the Fontan Procedure. J. Am. Soc. Echocardiogr. 2016, 29, 1066–1073. [Google Scholar] [CrossRef]
- Anderson, P.A.; Sleeper, L.A.; Mahony, L.; Colan, S.D.; Atz, A.M.; Breitbart, R.E.; Gersony, W.M.; Gallagher, D.; Geva, T.; Margossian, R.; et al. Contemporary outcomes after the Fontan procedure: A Pediatric Heart Network multicenter study. J. Am. Coll. Cardiol. 2008, 52, 85–98. [Google Scholar] [CrossRef]
- Bruns, L.A.; Chrisant, M.K.; Lamour, J.M.; Shaddy, R.E.; Pahl, E.; Blume, E.D.; Hallowell, S.; Addonizio, L.J.; Canter, C.E. Carvedilol as therapy in pediatric heart failure: An initial multicenter experience. J. Pediatr. 2001, 138, 505–511. [Google Scholar] [CrossRef]
- Yamaji, M.; Tsutamoto, T.; Tanaka, T.; Kawahara, C.; Nishiyama, K.; Yamamoto, T.; Fujii, M.; Horie, M. Effect of carvedilol on plasma adiponectin concentration in patients with chronic heart failure. Circ. J. 2009, 73, 1067–1073. [Google Scholar] [CrossRef] [PubMed]
- Tsutsui, H.; Momomura, S.I.; Masuyama, T.; Saito, Y.; Komuro, I.; Murohara, T.; Kinugawa, S.; Investigators, C.-J. Tolerability, Efficacy, and Safety of Bisoprolol vs. Carvedilol in Japanese Patients With Heart Failure and Reduced Ejection Fraction—The CIBIS-J Trial. Circ. J. 2019, 83, 1269–1277. [Google Scholar] [CrossRef]
- Packer, M.; Coats, A.J.; Fowler, M.B.; Katus, H.A.; Krum, H.; Mohacsi, P.; Rouleau, J.L.; Tendera, M.; Castaigne, A.; Roecker, E.B.; et al. Effect of carvedilol on survival in severe chronic heart failure. N. Engl. J. Med. 2001, 344, 1651–1658. [Google Scholar] [CrossRef] [PubMed]
- Brophy, J.M.; Joseph, L.; Rouleau, J.L. Beta-blockers in congestive heart failure. A Bayesian meta-analysis. Ann. Intern. Med. 2001, 134, 550–560. [Google Scholar] [CrossRef] [PubMed]
- Laer, S.; Mir, T.S.; Behn, F.; Eiselt, M.; Scholz, H.; Venzke, A.; Meibohm, B.; Weil, J. Carvedilol therapy in pediatric patients with congestive heart failure: A study investigating clinical and pharmacokinetic parameters. Am. Heart J. 2002, 143, 916–922. [Google Scholar] [CrossRef]
- Giardini, A.; Formigari, R.; Bronzetti, G.; Prandstraller, D.; Donti, A.; Bonvicini, M.; Picchio, F.M. Modulation of neurohormonal activity after treatment of children in heart failure with carvedilol. Cardiol. Young 2003, 13, 333–336. [Google Scholar] [CrossRef]
- Blume, E.D.; Canter, C.E.; Spicer, R.; Gauvreau, K.; Colan, S.; Jenkins, K.J. Prospective single-arm protocol of carvedilol in children with ventricular dysfunction. Pediatr. Cardiol. 2006, 27, 336–342. [Google Scholar] [CrossRef]
- Nagai, R.; Kinugawa, K.; Inoue, H.; Atarashi, H.; Seino, Y.; Yamashita, T.; Shimizu, W.; Aiba, T.; Kitakaze, M.; Sakamoto, A.; et al. Urgent management of rapid heart rate in patients with atrial fibrillation/flutter and left ventricular dysfunction: Comparison of the ultra-short-acting beta1-selective blocker landiolol with digoxin (J-Land Study). Circ. J. 2013, 77, 908–916. [Google Scholar] [CrossRef]
- Bandyopadhyay, D.; Bajaj, N.S.; Zein, J.; Minai, O.A.; Dweik, R.A. Outcomes of beta-blocker use in pulmonary arterial hypertension: A propensity-matched analysis. Eur. Respir. J. 2015, 46, 750–760. [Google Scholar] [CrossRef]
- So, P.P.; Davies, R.A.; Chandy, G.; Stewart, D.; Beanlands, R.S.; Haddad, H.; Pugliese, C.; Mielniczuk, L.M. Usefulness of beta-blocker therapy and outcomes in patients with pulmonary arterial hypertension. Am. J. Cardiol. 2012, 109, 1504–1509. [Google Scholar] [CrossRef]
- De Man, F.S.; Handoko, M.L.; van Ballegoij, J.J.; Schalij, I.; Bogaards, S.J.; Postmus, P.E.; van der Velden, J.; Westerhof, N.; Paulus, W.J.; Vonk-Noordegraaf, A. Bisoprolol delays progression towards right heart failure in experimental pulmonary hypertension. Circ. Heart Fail. 2012, 5, 97–105. [Google Scholar] [CrossRef] [PubMed]
- Bogaard, H.J.; Natarajan, R.; Mizuno, S.; Abbate, A.; Chang, P.J.; Chau, V.Q.; Hoke, N.N.; Kraskauskas, D.; Kasper, M.; Salloum, F.N.; et al. Adrenergic receptor blockade reverses right heart remodeling and dysfunction in pulmonary hypertensive rats. Am. J. Respir. Crit. Care Med. 2010, 182, 652–660. [Google Scholar] [CrossRef] [PubMed]

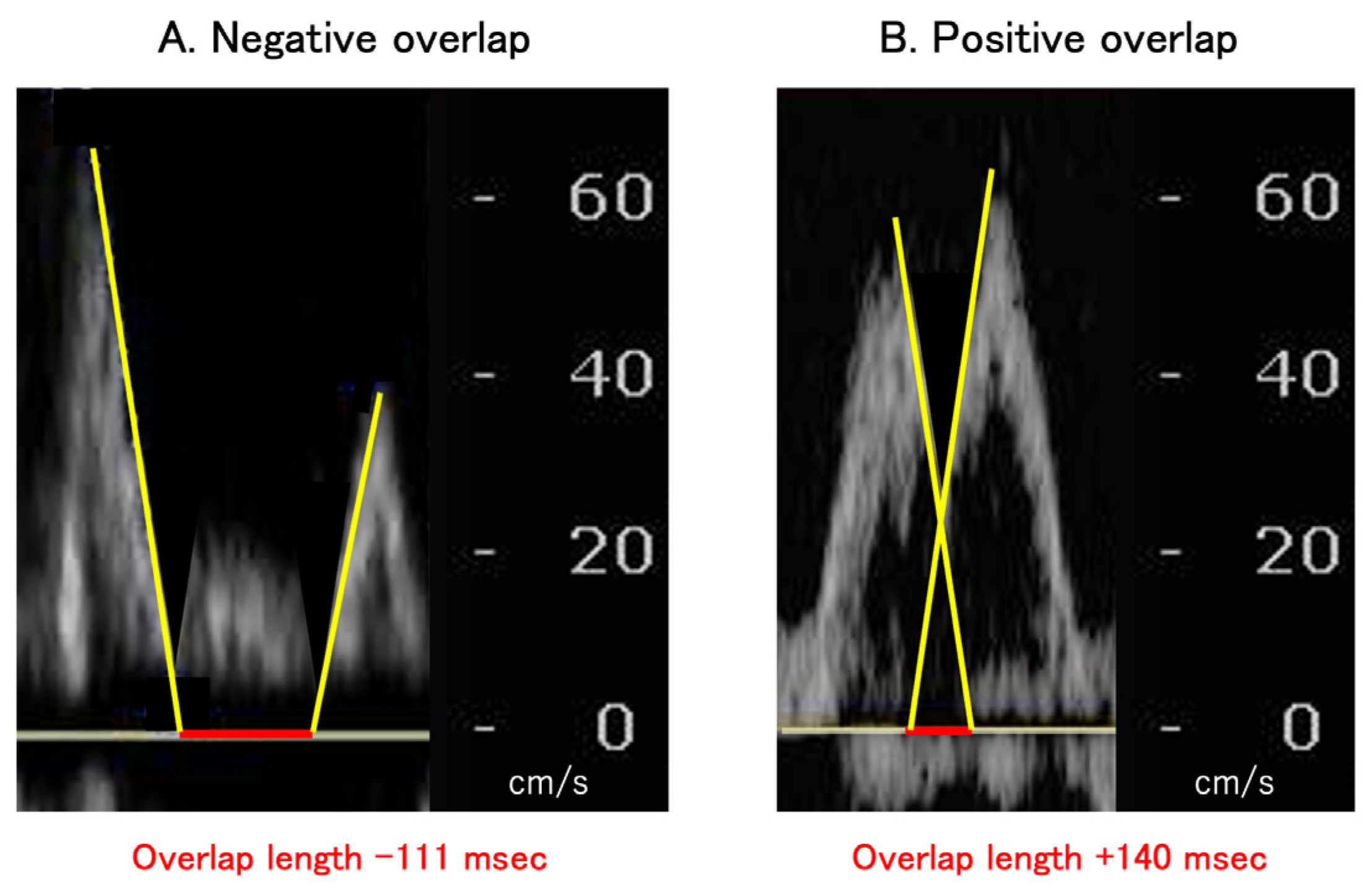

Figure 1.
Examples of a case with negative overlap (A) and a case with positive overlap (B). In the case of A, a patient had an HR of 60 bpm and a deceleration time of 137 msec. E-wave and A-wave did not overlap. In the case of B, another patient had an HR of 131 bpm and a deceleration time of 160 msec. E-wave and A-wave considerably overlapped.
Figure 1.
Examples of a case with negative overlap (A) and a case with positive overlap (B). In the case of A, a patient had an HR of 60 bpm and a deceleration time of 137 msec. E-wave and A-wave did not overlap. In the case of B, another patient had an HR of 131 bpm and a deceleration time of 160 msec. E-wave and A-wave considerably overlapped.

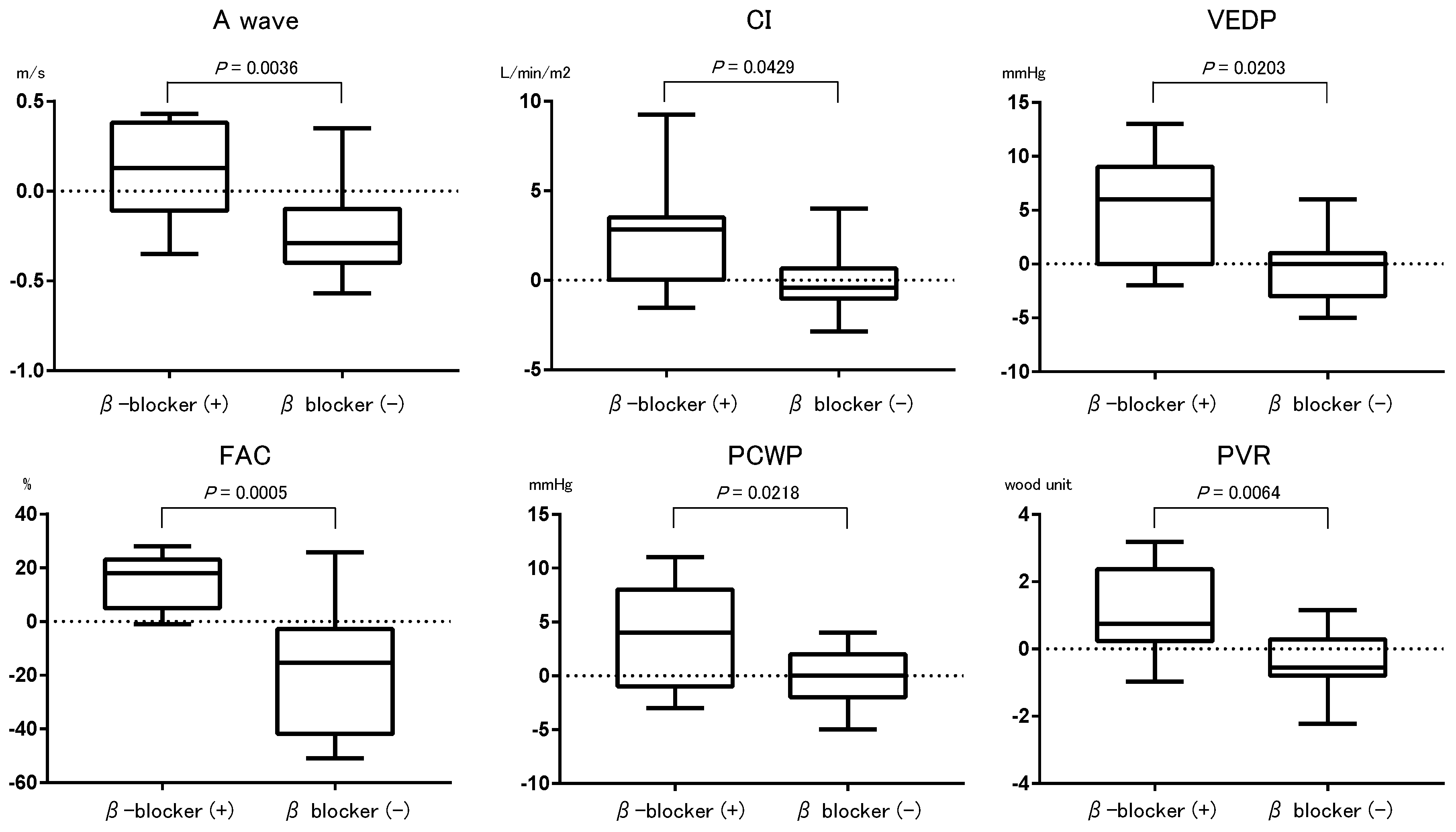

Figure 2.
Amount of change in variables between baseline and follow-up data of patients with and without beta-blockers. The upper and lower borders of the box represent the upper and lower quartiles. The middle horizontal line represents the median. The upper and lower whiskers represent the maximum and minimum values of nonoutliers. CI, cardiac index; VEDP, ventricular end-diastolic pressure; FAC, fraction area change; PCWP, pulmonary capillary wedge pressure; PVR, pulmonary vascular resistance; β-blocker (+): beta-blocker group, β-blocker (−): non-beta-blocker group.
Figure 2.
Amount of change in variables between baseline and follow-up data of patients with and without beta-blockers. The upper and lower borders of the box represent the upper and lower quartiles. The middle horizontal line represents the median. The upper and lower whiskers represent the maximum and minimum values of nonoutliers. CI, cardiac index; VEDP, ventricular end-diastolic pressure; FAC, fraction area change; PCWP, pulmonary capillary wedge pressure; PVR, pulmonary vascular resistance; β-blocker (+): beta-blocker group, β-blocker (−): non-beta-blocker group.

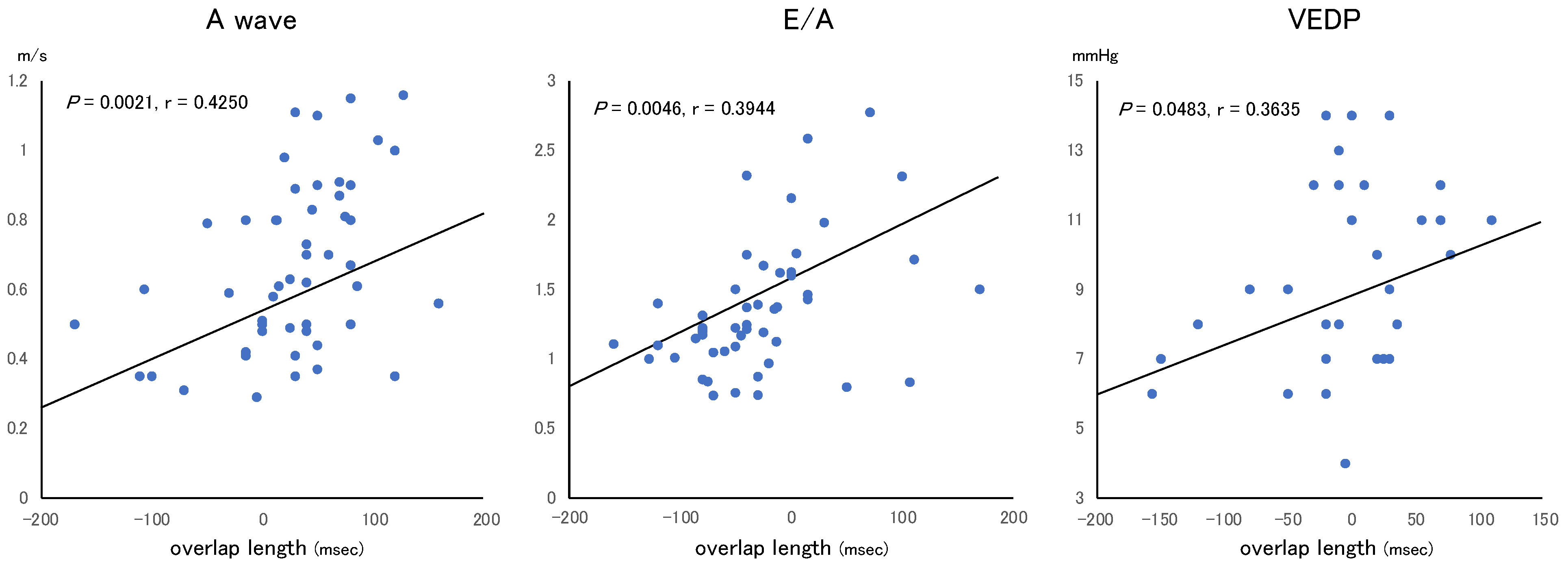

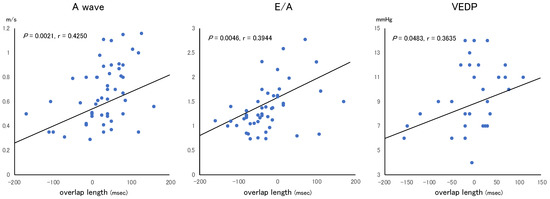

Figure 3.
Positive correlations between overlap length and each parameter. VEDP, ventricular end-diastolic pressure.
Figure 3.
Positive correlations between overlap length and each parameter. VEDP, ventricular end-diastolic pressure.
Table 1.
Baseline characteristics of the patients.
| Patient Characteristics | All (n = 26) | β-Blocker Group (n = 11) | Non-β-Blocker Group (n = 15) | p-Value |
|---|---|---|---|---|
| Ventricular physiology | ||||
| Right ventricle | 20 (76.9%) | 10 (90.9%) | 10 (66.7%) | 0.1973 |
| Left ventricle | 6 (23.1%) | 1 (9.1%) | 5 (33.3%) | 0.1973 |
| Demographics | ||||
| Male | 13 (50.0%) | 5 (45.4%) | 8 (53.3%) | 1.0000 |
| Age (years) | 1.8 (0.4–3.6) | 0.6 (0.3–4.1) | 1.8 (0.5–2.3) | 0.4816 |
| Glenn surgery | 26 (100%) | 11 (100%) | 15 (100%) | 1.0000 |
| Age of Glenn surgery | 0.8 ± 0.5 | 0.9 ± 0.5 | 0.8 ± 0.5 | 0.4801 |
| Fontan surgery | 15 (57.7%) | 4 (36.4%) | 11 (73.3%) | 0.1089 |
| Age of Fontan surgery | 2.4 ± 0.8 | 2.9 ± 1.0 | 2.2 ± 0.7 | 0.1733 |
| Age at last follow-up | 5.4 ± 3.9 | 4.7 ± 4.5 | 6.0 ± 3.4 | 0.1765 |
| Body surface area (m2) | 0.45 ± 0.22 | 0.42 ± 0.27 | 0.46 ± 0.17 | 0.2868 |
| Heart rate (bpm) | 114.0 ± 19.3 | 116.9 ± 22.7 | 111.9 ± 16.0 | 0.3755 |
| Systemic blood pressure (mmHg) | 90.0 ± 12.4 | 96.6 ± 13.9 | 85.1 ± 8.2 | 0.0453 |
| Diastolic blood pressure (mmHg) | 50.7 ± 10.0 | 55.2 ± 11.5 | 47.4 ± 7.0 | 0.0807 |
| Oxygen saturation (%) | 84.7 ± 6.3 | 85.5 ± 5.6 | 84.0 ± 6.6 | 0.2973 |
| Symptom | ||||
| Heart failure | 16 (61.54%) | 9 (81.82%) | 7 (46.67%) | 0.1092 |
| Arrhythmia | 9 (34.62%) | 7 (63.64%) | 2 (13.33%) | 0.0135 |
| Dearth | 1 (3.85%) | 1 (9.09%) | 0 (0%) | 0.4231 |
| Medication | ||||
| Beta-blocker | 11 (42.3%) | 11 (100%) | 0 (0%) | <0.0001 |
| Diuretic | 22 (84.62%) | 10 (90.91%) | 12 (80.0%) | 0.6137 |
| ACE inhibitor | 13 (50.0%) | 5 (45.45%) | 8 (53.33%) | 1.0000 |
| Anticoagulant | 20 (76.92%) | 11 (100%) | 9 (60.0%) | 0.0237 |
| Antiplatelet | 24 (92.31%) | 11 (100%) | 13 (86.67%) | 0.4923 |
| Pulmonary vasodilator | 13 (50.0%) | 5 (45.45%) | 8 (53.33%) | 1.0000 |
| Antiarrhythmic agent | 5 (19.23%) | 3 (27.27%) | 2 (13.33%) | 0.6196 |
| Chest X-ray | ||||
| Cardio-thoracic ratio (%) | 56.7 ± 8.8 | 56.8 ± 9.1 | 56.5 ± 8.6 | 0.8350 |
| Pulmonary congestion | 9 (34.62%) | 4 (36.36%) | 5 (33.33%) | 1.0000 |
| Electrocardiogram | ||||
| QRS duration (msec) | 98.8 ± 17.1 | 96.5 ± 19.9 | 100.4 ± 14.5 | 0.3109 |
| Laboratory data | ||||
| NT-pro-BNP (pg/mL) | 2439 ± 3483 | 4180 ± 4639 | 1162 ± 1184 | 0.1258 |
| Echocardiographic data | ||||
| Fraction area change (%) | 33.5 ± 11.4 | 26.9 ± 9.5 | 42.8 ± 6.2 | 0.0038 |
| E-wave (m/s) | 0.87 ± 0.26 | 0.86 ± 0.32 | 0.88 ± 0.21 | 0.4512 |
| E-wave deceleration time (msec) | 118.6 ± 21.6 | 113.4 ± 24.1 | 122.4 ± 19.6 | 0.1510 |
| A-wave (m/s) | 0.71 ± 0.26 | 0.57 ± 0.23 | 0.8 ± 0.23 | 0.0373 |
| E/A | 1.29±0.52 | 1.46±0.52 | 1.18±0.50 | 0.9033 |
| Overlap length (msec) | 45.2 ± 59.0 | 24.3 ± 56.4 | 605 ± 57.5 | 0.1244 |
| Catheterization data | ||||
| Cardiac index (L/min/m2) | 3.55 ± 0.90 | 3.36 ± 0.78 | 3.63 ± 0.93 | 0.4577 |
| Pulmonary vascular resistance (wood unit) | 1.33 ± 0.52 | 1.04 ± 0.35 | 1.45 ± 0.53 | 0.0319 |
| Central venous pressure (mmHg) | 9.8 ± 3.2 | 8.9 ± 3.5 | 10.2 ± 3.0 | 0.6450 |
| Pulmonary capillary wedge pressure (mmHg) | 8.9 ± 3.0 | 7.6 ± 2.8 | 9.5 ± 2.9 | 0.2154 |
| Ventricular end-diastolic pressure (mmHg) | 9.3 ± 3.3 | 8.5 ± 3.3 | 9.7 ± 3.2 | 0.5055 |
ACE, angiotensin-converting enzyme; BNP, brain natriuretic peptide.
Table 2.
Comparison between baseline and follow-up variables.
| All (n = 26) | β-Blocker Group (n = 11) | Non-β-Blocker Group (n = 15) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Patient Characteristics | Baseline | Follow-Up | p-Value | Baseline | Follow-Up | p-Value | Baseline | Follow-Up | p-Value |
| Age (years) | 1.8 (0.4–3.6) | 2.9 (1.4–5.0) | 0.0344 | 0.6 (0.3–4.1) | 2.5 (1.2–5.0) | 0.0930 | 1.8 (0.5–2.3) | 2.9 (1.6–3.3) | 0.0535 |
| Body surface area (m2) | 0.43 (0.27–0.52) | 0.51 (0.40–0.61) | 0.0369 | 0.26 (0.22–0.60) | 0.41 (0.33–0.67) | 0.1396 | 0.43 (0.33–0.49) | 0.53 (0.45–0.57) | 0.0152 |
| Heart rate (bpm) | 114.0 ± 19.3 | 103.1 ± 17.2 | 0.0045 | 116.9 ± 22.7 | 100.73 ± 14.7 | 0.0078 | 111.9 ± 16.00 | 104.8 ± 18.6 | 0.1626 |
| Systemic blood pressure (mmHg) | 90.0 ± 12.4 | 92.0 ± 12.5 | 0.5400 | 96.6 ± 13.9 | 93.5 ± 15.1 | 0.6199 | 85.1 ± 8.2 | 91.0 ± 10.0. | 0.1064 |
| Diastolic blood pressure (mmHg) | 50.7 ± 10.0 | 51.6 ± 12.4 | 0.7574 | 55.2 ± 11.5 | 52.9 ± 15.8 | 0.7108 | 47.4 ± 7.04 | 50.6 ± 8.91 | 0.1880 |
| Oxygen saturation (%) | 84.7 ± 6.3 | 89.7 ± 5.6 | 0.0012 | 85.5 ± 5.6 | 89.4 ± 6.1 | 0.1023 | 84.0 ± 6.6 | 90.0 ± 5.2 | 0.0061 |
| Cardio-thoracic ratio (%) | 56.7 ± 8.8 | 55.2 ± 9.5 | 0.1765 | 56.8 ± 9.1 | 56.5 ± 10.7 | 0.8351 | 56.5 ± 8.6 | 54.3 ± 8.4 | 0.1060 |
| QRS duration (msec) | 98.7 ± 17.1 | 108.0 ± 23.2 | 0.0201 | 96.5 ± 19.9 | 109.4 ± 28.2 | 0.0969 | 100.4 ± 14.5 | 106.9 ± 18.9 | 0.1202 |
| NT-pro-BNP (pg/mL) | 2439 ± 3483 | 977 ± 1292 | 0.0152 | 4180 ± 4639 | 1614 ± 1642 | 0.066 | 1162 ± 1184 | 510.3 ± 634.2 | 0.0138 |
| Fraction area change (%) | 33.5 ± 11.4 | 40.3 ± 7.1 | 0.0558 | 26.9 ± 9.5 | 41.7 ± 5.0 | 0.0006 | 42.8 ± 6.2 | 39.2 ± 8.1 | 0.6330 |
| E-wave (m/s) | 0.87 ± 0.26 | 0.88 ± 0.27 | 0.8554 | 0.86 ± 0.32 | 0.96 ± 0.33 | 0.3397 | 0.88 ± 0.21 | 0.83 ± 0.19 | 0.3487 |
| E-wave deceleration time (msec) | 118.6 ± 21.6 | 133.7 ± 28.0 | 0.0214 | 113.4 ± 24.1 | 133.8 ± 35.4 | 0.0773 | 122.4 ± 19.6 | 133.7 ± 22.5 | 0.1640 |
| A-wave (m/s) | 0.71 ± 0.26 | 0.61 ± 0.20 | 0.1014 | 0.57 ± 0.23 | 0.68 ± 0.20 | 0.2592 | 0.8 ± 0.23 | 0.57 ± 0.19 | 0.0017 |
| E/A | 1.29 ± 0.52 | 1.49 ± 0.50 | 0.1715 | 1.46 ± 0.52 | 1.32 ± 0.27 | 0.477 | 1.18 ± 0.50 | 1.60 ± 0.59 | 0.0446 |
| Overlap length (msec) | 45.2 ± 59.0 | 7.6 ± 78.6 | 0.0069 | 24.3 ± 56.4 | −5.2 ± 60.4 | 0.0086 | 60.5 ± 57.8 | 17.0 ± 88.4 | 0.1235 |
| Cardiac index (L/min/m2) | 3.55 ± 0.9 | 3.77 ± 1.64 | 0.9852 | 3.36 ± 0.78 | 4.18 ± 2.08 | 0.488 | 3.63 ± 0.93 | 3.47 ± 1.12 | 0.6489 |
| Pulmonary vascular resistance (wood unit) | 1.33 ± 0.52 | 1.31 ± 0.79 | 0.5406 | 1.04 ± 0.35 | 1.73 ± 0.86 | 0.2804 | 1.45 ± 0.53 | 1.01 ± 0.56 | 0.0622 |
| Central venous pressure (mmHg) | 9.8 ± 3.2 | 10.8 ± 2.2 | 0.1035 | 8.9 ± 3.5 | 10.4 ± 2.4 | 0.1476 | 10.2 ± 3.0 | 11.0 ± 2.0 | 0.3868 |
| Pulmonary capillary wedge pressure (mmHg) | 8.9 ± 3.0 | 9.4 ± 2.2 | 0.4181 | 7.6 ± 2.8 | 9.7 ± 2.5 | 0.1723 | 9.5 ± 2.9 | 9.1 ± 2.0 | 0.6702 |
| Ventricular end-diastolic pressure (mmHg) | 9.3 ± 3.3 | 9.8 ± 2.2 | 0.5753 | 8.5 ± 3.3 | 10.6 ± 2.2 | 0.2607 | 9.7 ± 3.2 | 9.2 ± 2.0 | 0.5708 |
BNP, brain natriuretic peptide.
Table 3.
Amount of change in variables between baseline and follow-up data.
| Change (Follow-Up—Baseline) | All (n = 26) | β-Blocker Group (n = 11) | Non-β-Blocker Group (n = 15) | p-Value |
|---|---|---|---|---|
| Δheart rate (bpm) | −10.9 ± 17.5 | −16.2 ± 16.2 | −7.1 ± 18.6 | 0.2869 |
| Δsystemic blood pressure (mmHg) | 2.1 ± 16.7 | −3.2 ± 20.6 | 5.9 ± 13.3 | 0.0771 |
| Δdiastolic blood pressure (mmHg) | 0.9 ± 14.2 | −2.3 ± 19.8 | 3.2 ± 9.0 | 0.0540 |
| Δoxygen saturation (%) | 5.1 ± 6.9 | 3.8 ± 7.0 | 6.0 ± 7.2 | 0.3234 |
| Δcardio-thoracic ratio (%) | −1.4 ± 5.1 | −0.4 ± 5.6 | −2.2 ± 4.9 | 0.6204 |
| ΔQRS duration (msec) | 9.2 ± 18.5 | 12.8 ± 23.2 | 6.5 ± 15.3 | 0.4303 |
| ΔNT-pro-BNP (pg/mL) | −1462 ± 2805 | −2566 ± 4124 | −652 ± 897 | 0.5506 |
| Δfraction area change (%) | −2.7 ± 23.6 | 14.9 ± 9.9 | −15.6 ± 23.3 | 0.0005 |
| ΔE-wave (m/s) | 0.010 ± 0.26 | 0.095 ± 0.32 | −0.053 ± 0.21 | 0.2323 |
| ΔE-wave deceleration time (msec) | 15.2 ± 31.5 | 20.5 ± 34.5 | 11.3 ± 29.7 | 0.7633 |
| ΔA-wave (m/s) | −0.100 ± 0.29 | 0.095 ± 0.26 | −0.24 ± 0.24 | 0.0036 |
| ΔE/A | 0.19 ± 0.79 | −0.12 ± 0.63 | 0.42 ± 0.83 | 0.0822 |
| Δoverlap length (msec) | −37.5 ± 88.8 | −50.5 ± 116.9 | −19.6 ± 28.2 | 0.6588 |
| Δcardiac index (L/min/m2) | 1.04 ± 2.57 | 2.35 ± 2.95 | 0.075 ± 1.93 | 0.0429 |
| Δpulmonary vascular resistance (wood unit) | 2.29 ± 1.23 | 1.16 ± 1.25 | −0.35 ± 0.83 | 0.0064 |
| Δcentral venous pressure (mmHg) | 2.1 ± 4.0 | 3.8 ± 4.4 | 0.8 ± 3.5 | 0.0900 |
| Δpulmonary capillary wedge pressure (mmHg) | 1.5 ± 4.2 | 4.0 ± 4.7 | −0.3 ± 2.9 | 0.0218 |
| Δventricular end-diastolic pressure (mmHg) | 1.9 ± 4.9 | 5.0 ± 5.5 | −0.5 ± 3.1 | 0.0203 |
BNP, brain natriuretic peptide.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Hirono, K.; Imamura, T.; Tsuboi, K.; Takarada, S.; Okabe, M.; Nakaoka, H.; Ibuki, K.; Ozawa, S. Optimal Heart Rate May Improve Systolic and Diastolic Function in Patients with Fontan Circulation. J. Clin. Med. 2023, 12, 3033. https://doi.org/10.3390/jcm12083033
AMA Style
Hirono K, Imamura T, Tsuboi K, Takarada S, Okabe M, Nakaoka H, Ibuki K, Ozawa S. Optimal Heart Rate May Improve Systolic and Diastolic Function in Patients with Fontan Circulation. Journal of Clinical Medicine. 2023; 12(8):3033. https://doi.org/10.3390/jcm12083033
Chicago/Turabian StyleHirono, Keiichi, Teruhiko Imamura, Kaori Tsuboi, Shinya Takarada, Mako Okabe, Hideyuki Nakaoka, Keijiro Ibuki, and Sayaka Ozawa. 2023. "Optimal Heart Rate May Improve Systolic and Diastolic Function in Patients with Fontan Circulation" Journal of Clinical Medicine 12, no. 8: 3033. https://doi.org/10.3390/jcm12083033
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
