Article

Utility of Covered Self-Expanding Metal Stents for Biliary Drainage during Neoadjuvant Chemotherapy in Patients with Borderline Resectable Pancreatic Cancer

1
Department of Gastroenterology, Graduate School of Biomedical and Health Sciences, Hiroshima University, Hiroshima 734-8551, Japan
2
Department of Surgery, Graduate School of Biomedical and Health Sciences, Hiroshima University, Hiroshima 734-8551, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2023, 12(19), 6245; https://doi.org/10.3390/jcm12196245
Submission received: 3 August 2023 / Revised: 1 September 2023 / Accepted: 26 September 2023 / Published: 28 September 2023
(This article belongs to the Special Issue Current Surgical Management of Pancreatic Cancer)

Abstract

:
Objectives: We aimed to compare the utility of covered self-expanding metal stents (CSEMSs) with that of plastic stents (PSs) for biliary drainage during neoadjuvant chemotherapy in patients with borderline resectable pancreatic cancer. Methods: Forty patients with borderline resectable pancreatic cancer underwent biliary stenting during neoadjuvant chemotherapy at Hiroshima University Hospital. PSs and CSEMSs were placed in 19 and 21 patients, respectively. Two gemcitabine-based regimens for chemotherapy were used. Treatment outcomes and postoperative complications were compared between both groups. Results: The incidence of recurrent biliary obstruction was significantly lower in the CSEMS group (0% vs. 47.4%, p < 0.001), and the median time to recurrent biliary obstruction in the PS group was 47 days. There was no difference in the incidence of other complications such as non-occlusive cholangitis, pancreatitis, and cholecystitis between the two groups. Delays in the chemotherapy schedule due to stent-related complications were significantly frequent in the PS group (52.6% vs. 4.8%, p = 0.001). There was no significant difference in the incidence of postoperative complications between the two groups. Conclusions: CSEMSs may be the best choice for safely performing neoadjuvant chemotherapy for several months in patients with borderline resectable pancreatic cancer with bile duct stricture.

1. Introduction

Among all cancers, pancreatic cancer (PC) has the worst prognosis, with a 5-year survival rate of <10% [1,2]. In recent years, therapeutic strategies for PC have been determined based on the resectability status proposed in the National Comprehensive Cancer Network (NCCN) guideline [3]. The resectability status is classified as resectable, borderline resectable, and unresectable according to the degree of local invasion and the presence/absence of distant metastases. Among these, borderline resectable PC (BRPC) is highly likely to have a residual cancer histologically with only standard surgery [4], and in the NCCN3 and Japanese clinical practice guidelines [5], neoadjuvant therapy such as chemotherapy and chemoradiotherapy have been recommended. However, evidence to recommend specific neoadjuvant therapies is still limited, and the standard neoadjuvant regimen remains controversial.
Nearly 80% of PC are reported to occur in the pancreatic head [6], and pancreatic head cancer is often associated with obstructive jaundice. Among patients with pancreatic cancer and biliary stricture, biliary drainage is essential for patients with cholangitis or severe jaundice who are planned to undergo surgery, and for patients undergoing chemotherapy. Types of stents used for biliary drainage in patients with PC include plastic stents (PSs) and self-expanding metal stents (SEMSs). A PS is relatively inexpensive and easy to insert into the bile duct, though has a short patency period. Therefore, the use of a covered SEMS (CSEMS), with a significantly longer patency period [7] is recommended in patients with unresectable PC [3,5]. In addition, guidelines [3,5] already recommend CSEMS for biliary drainage during neoadjuvant chemotherapy. On the other hand, few reports compare the outcomes of PS and CSEMS in biliary drainage during neoadjuvant therapy in patients with BRPC [8,9,10,11,12,13,14], and there are only three reports [9,10,11] on a small number of around 20 patients limited to neoadjuvant chemotherapy. We aimed to clarify the utility of the CSEMS for biliary drainage during neoadjuvant chemotherapy in patients with BRPC.

2. Materials and Methods

2.1. Patients

This was a retrospective, single-center, observational study. Forty consecutive patients with BRPC who underwent endoscopic biliary stenting (EBS) during neoadjuvant chemotherapy at Hiroshima University Hospital from January 2010 to December 2021 were enrolled. BRPC was defined according to the NCCN guideline [3], i.e., pancreatic head tumors which contact with the superior mesenteric artery at an angle ≤ 180° or contact with common hepatic artery without extension to the celiac artery or hepatic artery bifurcation, and pancreatic body/tail tumors which contact with the celiac artery at an angle ≤ 180° are defined as BRPC-A; tumors which contact with the superior mesenteric vein or portal vein at an angle > 180° are defined as BRPC-PV. Assessment of the resectability status was performed with contrast-enhanced multidetector-row computed tomography (MDCT).
Among 40 patients, 19 patients had PSs (PS group), and the other 21 had CSEMSs (CSEMS group). In the PS group, two patients in whom metastasis was detected during surgery and could not receive curative surgery were included.
Written informed consent was obtained from all patients and their families before endoscopic retrograde cholangiopancreatography (ERCP) was performed. This study was conducted in accordance with the Declaration of Helsinki and was approved by the Hiroshima University Hospital ethics committee (approval No. E-2843).

2.2. Strategy of Biliary Drainage

ERCP was performed using a video duodenoscope (JF-260V or TJF-260V; Olympus Medical Systems, Tokyo, Japan). At our institution, endoscopic nasobiliary drainage (ENBD) was primarily performed first in patients with suspected PC who had jaundice or elevated levels of hepatobiliary enzymes to prevent the occurrence of retrograde cholangitis until the diagnosis was defined and cholecystitis due to CSEMS placement. EBS was performed after a definitive diagnosis of cancer was made by bile cytology, brush cytology, or endoscopic ultrasound-guided fine needle aspiration. However, several patients were referred to our institution after biliary stenting was performed as the first biliary drainage method at other institutions. Until May 2013, PSs were mainly selected, whereas after June 2013, CSEMSs were mainly selected. The PSs used were 7 Fr FleximaTM Biliary Stent (Boston Scientific Corp., Marlborough, MA, USA), Through & Pass® (GADELIUS MEDICAL, Tokyo, Japan), and Zimmon® Biliary Stent (COOK MEDICAL, Bloomington, IN, USA), and the CSEMSs used were an 8 or 10 mm WallFlexTM Biliary RX Stent (Boston Scientific Corp.), HANAROSTENT® Biliary Full Cover (Boston Scientific Corp.), BONASTENT® Biliary (Medico’s Hirata, Osaka, Japan), and Niti-S SUPREMO (TaeWoong Medical Co., Gimpo, Republic of Korea). A small endoscopic sphincterotomy (EST) with an incision range of a few millimeters was performed before stenting to prevent post-ERCP pancreatitis. All ERCP-related procedures were performed under conscious sedation of the patient with intravenous administration of midazolam alone or midazolam plus pentazocine.

2.3. Neoadjuvant Chemotherapy

Neoadjuvant chemotherapy was initiated after serum total bilirubin level had decreased below 2.0 mg/dL, and aspartate aminotransferase and alanine aminotransferase had decreased below 100 U/L. In this study, two neoadjuvant chemotherapy regimens were used: gemcitabine plus S-1 (GS) chemotherapy [15], and gemcitabine, nab-paclitaxel plus S-1 (GAS) chemotherapy [16]. In GS chemotherapy, patients were administered 1000 mg/m2 gemcitabine on days 1 and 8 and 65 mg/m2 S-1 on days 1–14 through 14 of a 21-day cycle, and in GAS chemotherapy, patients were administered 1000 mg/m2 gemcitabine on day 1, 125 mg/m2 nab-paclitaxel on day 1 and 60–100 mg/day S-1 on days 1–7 of a 14-day cycle. GS chemotherapy was introduced for patients with BRPC-A until January 2016. GAS chemotherapy was introduced for patients with BRPC-A in a clinical trial after February 2016 and also for patients with BRPC-PV after January 2019. Patients received three cycles of GS chemotherapy or six cycles of GAS chemotherapy and were then evaluated for resectability with MDCT. Surgical resection was performed 1–2 weeks or 2–6 weeks after completion of GS and GAS chemotherapy, respectively.

2.4. Outcomes

The primary outcome measure was the rate of recurrent biliary obstruction (RBO) in the PS and CSEMS groups. The secondary outcomes were the time to RBO (TRBO) and complications other than RBO in the two groups. RBO and TRBO were defined according to the TOKYO criteria 2014 [17], and the cause of RBO and complications other than RBO (non-occlusive cholangitis, cholecystitis, pancreatitis, and gastrointestinal bleeding) were evaluated in accordance with the same criteria. We also evaluated the clinical characteristics and postoperative complications in the two groups. Postoperative complications were evaluated using the Clavien–Dindo classification [18], with grade IIIa or higher being positive.

2.5. Statistical Analysis

Statistical analyses were performed using JMP (Version Pro 16.2.0; SAS Institute Inc., Tokyo, Japan). Continuous variables were compared using Wilcoxon rank sum test, and categorical values were compared using the chi-square test or Fisher’s exact test. The cumulative RBO rate was calculated using the Kaplan-Meier method and compared using the log-rank test. p values < 0.05 were considered to indicate statistical significance.

3. Results

3.1. Patient Characteristics

All forty patients completed the planned neoadjuvant chemotherapy regimen and underwent surgical operation. Thirty-eight patients received curative surgery, but the other two patients could not receive curative surgery because of metastases which were detected during surgery; one had a positive peritoneal lavage cytology, and the other had liver metastasis. The clinical profiles of patients are presented in Table 1. There was no significant difference in median age, sex, tumor size, tumor location, resectability classification, serological findings, and neoadjuvant chemotherapy regimen between the CSEMS and PS groups. In the CSEMS group, almost all patients underwent 10 mm CSEMS placement, and only two patients underwent 8 mm CSEMS placement. In the CSEMS group, all patients underwent ENBD before stenting. Alternatively, ten patients (52.6%) in the PS group did not undergo ENBD before stenting (p < 0.001). Five patients underwent pancreatic stent placement at the discretion of the attending physician, and all of them were in the PS group.

3.2. Complications Related to Biliary Stent Placement

Table 2 summarizes the complications related to biliary stent placement. RBO occurred in 10 of 19 patients (47.4%) in the PS group and none in the CSEMS group (p < 0.001). In the PS group, three patients (15.8%) had stent migration, and six patients (31.6%) had stent occlusion. All stent occlusions were due to sludge. Complications other than RBO occurred in four patients (21.1%) in the PS group and four patients (19.1%) in the CSEMS group (p = 1.000). Non-occlusive cholangitis occurred in four patients (21.1%) in the PS group and three patients (14.3%) in the CSEMS group (p = 0.689). Cholecystitis occurred in two (9.5%) patients in the CSEMS group and no patient in the PS group (p = 0.489). One patient in the CSEMS group had both non-occlusive cholangitis and cholecystitis. Pancreatitis and gastrointestinal bleeding did not occur in either group. Non-occlusive cholangitis was relieved by intravenous administration of antibiotics. Cholecystitis was relieved conservatively by percutaneous transhepatic gallbladder aspiration and intravenous administration of antibiotics.
Figure 1 shows the Kaplan-Meier analysis of RBO rate. The cumulative RBO rate of the PS group was 15.8% in 30 days, 26.3% in 60 days, and 49.0% in 90 days. In contrast, the cumulative RBO rate of the CSEMS group was 0% throughout 90 days, and the cumulative rate of RBO was significantly lower in the CSEMS group (log-rank: p < 0.001). Median TRBO of the PS group was 47 days. In the PS group, there was no significant difference in the cumulative RBO rate with or without ENBD before stent placement (Figure 2; log-rank: p = 0.634), and median TRBO was also not significantly different with or without ENBD (50 vs. 47 days; p = 0.326).

3.3. Clinical Course during Neoadjuvant Chemotherapy

Table 3 presents the time from initiation of neoadjuvant chemotherapy to surgery and the rate of delay in the chemotherapy schedule for each regimen. Regardless of the regimen, there was no difference in the time from the initiation of neoadjuvant chemotherapy to surgery between the CSEMS and PS groups. All delays in chemotherapy schedule were significantly more frequent in the PS group than in the CSEMS group (63.2% vs. 19.1%, p = 0.009). In addition, delays due to stent-related complications were also significantly more frequent in the PS group (52.6% vs. 4.8%, p = 0.001). Four patients in the CSEMS group had a delayed chemotherapy schedule due to non-occlusive cholangitis in one patient, strangulated small bowel obstruction in one, and leukopenia in two. On the contrary, twelve patients in the PS group had a delayed chemotherapy schedule due to biliary stent obstruction in five patients, biliary stent migration in two, both biliary stent obstruction and osteoarthritis of the hip in one, both biliary stent migration and leukopenia in one, both non-occlusive cholangitis and leukopenia in one, and leukopenia in two.

3.4. Outcomes of Surgery and Postoperative Complications

Table 4 shows the outcomes of surgery and postoperative complications. Potentially curative pancreatectomy was performed in 21 patients (100%) in the CSEMS group and 17 (89.5%) in the PS group. There was no difference in surgical procedures between the CSEMS group and the PS group. Serious complications of Clavien–Dindo classification grade IIIa or higher were observed in six patients (28.6%) in the CSEMS group and in five (26.3%) in the PS group; there was no significant difference between the two groups. In-hospital mortality rate was 4.8% (1/21) in the CSEMS group, and 0% (0/17) in the PS group. There was no significant difference in the length of hospital stay following surgery between the two groups.

4. Discussion

The present study revealed the usefulness of CSEMSs for biliary drainage during planned gemcitabine-based neoadjuvant chemotherapy in patients with BRPC. There have been several reports [8,9,10,11,12,13,14] comparing the outcomes of PS and CSEMS for biliary drainage during neoadjuvant therapy for PC (Table 5). Similar to this study, these studies showed the utility of CSEMS for PS in terms of fewer stent-related complications. However, many studies [8,10,12,13,14] also included chemoradiotherapy as neoadjuvant therapy, and only two studies [9,11] were limited to patients with BRPC who received chemotherapy alone. Although this was a retrospective study, it may provide evidence for the utility of CSEMS for biliary drainage during neoadjuvant chemotherapy in patients with BRPC. Neoadjuvant therapy for patients with BRPC has been recommended in the guidelines [3,5] to improve prognosis. The optimal neoadjuvant therapy regimen is still unclear, but several study results have been reported. The results of two randomized controlled trials for chemoradiotherapy have been reported. Jang et al. [19] reported that in the intention-to-treat analysis, median overall survival was better in the neoadjuvant chemoradiation with gemcitabine group than in the upfront surgery group (21.0 vs. 12.0 months). In the phase chemoradiotherapy has been reported. Jang et al. [19] reported that in the intention-to-treat analysis, median overall survival was better in the neoadjuvant chemoradiation with gemcitabine group than in the upfront surgery group (21.0 vs. 12.0 months). In the phase III randomized controlled trial of resectable PC and BRPC conducted in a Dutch group (PREOPANC trial) [20], there was no significant difference in the overall survival among all patients, but when limited to patients with BRPC, median overall survival was longer in the neoadjuvant chemoradiation with gemcitabine group than in the upfront surgery group (17.6 vs. 13.2 months). Regarding chemotherapy, in addition to the two regimens in this study, GS and GAS therapies, modified FOLFIRINOX therapy [21,22] and gemcitabine plus nab-paclitaxel combination therapy [22,23] have been reported to be useful in patients with BRPC, although in all single-arm studies. Randomized controlled trials comparing neoadjuvant FOLFIRINOX with gemcitabine-based chemoradiotherapy [24] and GS therapy with gemcitabine and nab-paclitaxel combination therapy [25] for resectable PC and BRPC are currently underway, and the results are awaited. It took 10–16 weeks from initiation of neoadjuvant therapy to surgery in these reports. In this study, the median time from the initiation of chemotherapy to surgery was 14 weeks for both GS and GAS therapies. Although the regimen and duration of neoadjuvant therapy have been controversial, biliary drainage using CSEMS may enable safe treatment without causing RBO in a treatment period of approximately 3 to 4 months.
Pancreatitis is one of the major complications of biliary stent placement [17]. Patients without pancreatic duct dilatation are particularly at a high risk of pancreatitis after CSEMS placement, and the usefulness of pancreatic stenting during CSEMS placement in the prevention of pancreatitis has been reported [26,27]. In this study, none of the patients in the CSEMS group developed pancreatitis following stent placement, including six patients without main pancreatic duct dilatation. Pancreatic stenting was not performed in these six patients, but all patients enrolled in this study underwent EST. There are many negative reports regarding the usefulness of EST for prevention of pancreatitis caused by CSEMS placement in patients with malignant distal biliary stricture due to pancreatic head tumors [28,29,30]. However, these studies did not consider the presence or absence of pancreatic duct dilatation, and there have been no reports on the preventive effect of EST on pancreatitis in CSEMS placement for PC without pancreatic duct dilatation. It is difficult to prove the usefulness of EST from the results of this study, so further analysis with more cases will be needed. In this study, two patients had acute cholecystitis due to obstruction of the cystic duct confluence by CSEMSs. In a retrospective cohort study of 645 patients with malignant bile duct stricture who underwent SEMS placement [31], CSEMSs were associated with significantly more cholecystitis and stent migration than uncovered SEMSs. Contrarily, a randomized trial comparing the outcomes of CSEMSs and uncovered SEMSs during neoadjuvant therapy in PC found no significant difference in the incidence of cholecystitis between the two groups [32]. There is no sufficient evidence for a therapeutic intervention method for cholecystitis caused by SEMS placement. Percutaneous transhepatic gallbladder aspiration was selected for the patients in this study, but CSEMSs can be removed and changed to PSs or short SEMS, and transpapillary gallbladder drainage is also possible. CSEMSs offers more treatment options for cholecystitis than uncovered SEMSs and may be preferable as SEMSs during neoadjuvant chemotherapy without delays in the treatment schedule.
In this study, delays in chemotherapy schedule due to stent-related complication were significantly more common in the PS group than in the CSEMS group. Fortunately, almost all RBOs in the PS group occurred during the chemotherapy withdrawal period, so there was no difference in the time from the initiation of chemotherapy to surgery compared with the CSEMS group. However, the occurrence of RBO can delay planned surgery and affect patient prognosis.
Operation time, intraoperative blood loss, postoperative complications, and length of hospital stay did not differ between the CSEMS and PS groups in this study. In a retrospective study of 509 patients with PC who underwent pancreatoduodenectomy, SEMS did not increase postoperative complications, 30-day mortality, length of stay, but was associated with more wound infections and longer operation time [33]. It is necessary to investigate the effect of CSEMS on surgical safety in patients with BRPC who received neoadjuvant chemotherapy in a large number of cases.
This study has a few limitations. First, this was a retrospective, single-center study with small sample size, although the sample size was larger than those of other previously reported studies. However, the guidelines [3,5] already recommend CSEMSs for biliary drainage during neoadjuvant chemotherapy; therefore, it is impractical to design a prospective trial with a large sample size comparing the efficacy of CSEMSs with that of PSs. Second, there may have been a selection bias of patients due to the discretion of the attending physician on the choice of biliary stents, and it was difficult to simply compare the results, especially the relationship between cholecystitis or pancreatitis and biliary stents.

5. Conclusions

In conclusion, CSEMSs showed significantly lower RBO rates than PSs, and the incidence of pancreatitis and cholecystitis was similar to that in PS during 3–4 months of gemcitabine-based neoadjuvant chemotherapy in patients with BRPC. Therefore, CSEMSs may be the best biliary drainage method for safely performing neoadjuvant chemotherapy for several months in patients with BRPC.

Author Contributions

M.F. analyzed the data and wrote the manuscript. Y.I. designed the study and contributed to the analysis and interpretation of the data and assisted in the preparation of the manuscript. M.S., T.T., Y.T. (Yumiko Tatsukawa), T.H., S.N., J.I., Y.K., S.S., Y.T. (Yosuke Tamura), S.M., K.N., Y.Y., N.I. and K.U. contributed to data collection. S.O. critically reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

This study was conducted in accordance with the Declaration of Helsinki and was approved by the Hiroshima University Hospital ethics committee (approval No. E-2843).

Informed Consent Statement

Patient consent was waived due to the retrospective nature of this study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy issues.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. The Editorial Board of the Cancer Statistics in Japan. Cancer Registry and Statistics. Cancer Information Service NCCJ. Cancer Statics in Japan 2019. Foundation for Promotion of Cancer Research (FPCR). 2020. Available online: https://ganjoho.jp/en/professional/statistics/brochure/2019_en.html (accessed on 12 November 2022).
  2. Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics, 2020. CA Cancer J. Clin. 2020, 70, 7–30. [Google Scholar] [CrossRef]
  3. National Comprehensive Cancer Network. NCCN Clinical Practice Guidelines in Oncology—Pancreatic Adenocarcinoma. Version 1. 2022. Available online: https://www.nccn.org/professionals/physician_gls/pdf/pancreatic.pdf (accessed on 15 November 2022).
  4. Kato, H.; Usui, M.; Isaji, S.; Nagakawa, T.; Wada, K.; Unno, M.; Nakao, A.; Miyakawa, S.; Ohta, T. Clinical features and treatment outcome of borderline resectable pancreatic head/body cancer: A multi-institutional survey by the Japanese Society of Pancreatic Surgery. J. Hepatobiliary Pancreat. Sci. 2013, 20, 601–610. [Google Scholar] [CrossRef] [PubMed]
  5. Okusaka, T.; Nakamura, M.; Yoshida, M.; Kitano, M.; Uesaka, K.; Ito, Y.; Mizuno, N.; Hanada, K.; Ozaka, M.; Morizane, C.; et al. Clinical practice guidelines for pancreatic cancer 2019 from the Japan Pancreas Society: A synopsis. Pancreas 2020, 49, 326–335. [Google Scholar] [CrossRef] [PubMed]
  6. Sener, S.F.; Fremgen, A.; Menck, H.R.; Winchester, D.P. Pancreatic cancer: A report of treatment and survival trends for 100,313 patients diagnosed from 1985–1995, using the National Cancer Database. J. Am. Coll. Surg. 1999, 189, 1–7. [Google Scholar] [CrossRef]
  7. Isayama, H.; Yasuda, I.; Ryozawa, S.; Maguchi, H.; Igarashi, Y.; Matsuyama, Y.; Katanuma, A.; Hasebe, O.; Irisawa, A.; Itoi, T.; et al. Results of a Japanese multicenter, randomized trial of endoscopic stenting for non-resectable pancreatic head cancer (JM-test): Covered Wallstent versus DoubleLayer stent. Dig. Endosc. 2011, 23, 310–315. [Google Scholar] [CrossRef]
  8. Kubota, K.; Sato, T.; Watanabe, S.; Hosono, K.; Kobayashi, N.; Mori, R.; Taniguchi, K.; Matsuyama, R.; Endo, I.; Nakajima, A. Covered self-expandable metal stent deployment promises safe neoadjuvant chemoradiation therapy in patients with borderline resectable pancreatic head cancer. Dig. Endosc. 2014, 26, 77–86. [Google Scholar] [CrossRef] [PubMed]
  9. Tsuboi, T.; Sasaki, T.; Serikawa, M.; Ishii, Y.; Mouri, T.; Shimizu, A.; Kurihara, K.; Tatsukawa, Y.; Miyaki, E.; Kawamura, R.; et al. Preoperative biliary drainage in cases of borderline resectable pancreatic cancer treated with neoadjuvant chemotherapy and surgery. Gastroenterol. Res. Pract. 2016, 2016, 7968201. [Google Scholar] [CrossRef] [PubMed]
  10. Kuwatani, M.; Nakamura, T.; Hayashi, T.; Kimura, Y.; Ono, M.; Motoya, M.; Imai, K.; Yamakita, K.; Goto, T.; Takahashi, K.; et al. Clinical Outcomes of Biliary Drainage during a neoadjuvant Therapy for Pancreatic Cancer: Metal versus Plastic Stents. Gut Liver 2020, 14, 269–273. [Google Scholar] [CrossRef]
  11. Tamura, T.; Itonaga, M.; Ashida, R.; Yamashita, Y.; Hatamaru, K.; Kawaji, Y.; Emori, T.; Kitahata, Y.; Miyazawa, M.; Hirono, S.; et al. Covered self-expandable metal stents versus plastic stents for preoperative biliary drainage in patient receiving neo-adjuvant chemotherapy for borderline resectable pancreatic cancer: Prospective randomized study. Dig. Endosc. 2021, 33, 1170–1178. [Google Scholar] [CrossRef]
  12. Kobayashi, K.; Kobara, H.; Kamada, H.; Kohno, T.; Namima, D.; Fujita, N.; Yamana, H.; Fujihara, S.; Okano, K.; Masaki, T. Comparison of plastic stent versus metal stent in preoperative biliary drainage for pancreatic head cancer with neoadjuvant chemoradiotherapy. J. Hepatobiliary Pancreat. Sci. 2021, 28, 856–863. [Google Scholar] [CrossRef]
  13. Hasegawa, S.; Kubota, K.; Yagi, S.; Kurita, Y.; Sato, T.; Hosono, K.; Matsuyama, R.; Endo, I.; Kobayashi, N.; Nakajima, A. Covered metallic stent placement for biliary drainage could be promising in the coming era of neoadjuvant chemo-radiation therapy for all pancreatic cancer. J. Hepatobiliary Pancreat. Sci. 2021, 28, 617–624. [Google Scholar] [CrossRef] [PubMed]
  14. Vehviläinen, S.; Seppänen, H.; Nurmi, A.; Haglund, C.; Mustonen, H.; Udd, M.; Kylänpää, L. Use of self-expandable metallic stents for endoscopic biliary decompression decreases stent complications in pancreatic cancer patients receiving chemotherapy. Surg. Endosc. 2022, 36, 614–620. [Google Scholar] [CrossRef]
  15. Murakami, Y.; Uemura, K.; Sudo, T.; Hashimoto, Y.; Kondo, N.; Nakagawa, N.; Takahashi, S.; Sueda, T. Survival impact of neoadjuvant gemcitabine plus S-1 chemotherapy for patients with borderline resectable pancreatic carcinoma with arterial contact. Cancer Chemother. Pharmacol. 2017, 79, 37–47. [Google Scholar] [CrossRef] [PubMed]
  16. Kondo, N.; Uemura, K.; Sudo, T.; Hashimoto, Y.; Sumiyoshi, T.; Okada, K.; Seo, S.; Otsuka, H.; Murakami, Y.; Takahashi, S. A phase II study of gemcitabine/nab-paclitaxel/S-1 combination neoadjuvant chemotherapy for patients with borderline resectable pancreatic cancer with arterial contact. Eur. J. Cancer 2021, 159, 215–223. [Google Scholar] [CrossRef] [PubMed]
  17. Isayama, H.; Hamada, T.; Yasuda, I.; Itoi, T.; Ryozawa, S.; Nakai, Y.; Kogure, H.; Koike, K. Tokyo criteria 2014 for transpapillary biliary stenting. Dig. Endosc. 2015, 27, 259–264. [Google Scholar] [CrossRef] [PubMed]
  18. Dindo, D.; Demartines, N.; Clavien, P.A. Classification of surgical complications: A new proposal with evaluation in a cohort of 6336 patients and results of a survey. Ann. Surg. 2004, 240, 205–213. [Google Scholar] [CrossRef]
  19. Jang, J.Y.; Han, Y.; Lee, H.; Kim, S.W.; Kwon, W.; Lee, K.H.; Oh, D.-Y.; Chie, E.K.; Lee, J.M.; Heo, J.S.; et al. Oncological benefits of neoadjuvant chemoradiation with gemcitabine versus upfront surgery in patients with borderline resectable pancreatic cancer: A prospective, randomized, open-label, multicenter phase 2/3 trial. Ann. Surg. 2018, 268, 215–222. [Google Scholar] [CrossRef]
  20. Versteijne, E.; Suker, M.; Groothuis, K.; Akkermans-Vogelaar, J.; Besselink, M.; Bonsing, B.; Buijsen, J.; Busch, O.R.; Creemers, G.-J.M.; van Dam, R.M.; et al. Preoperative chemoradiotherapy versus immediate surgery for resectable and borderline resectable pancreatic cancer: Results of the Dutch randomized phase III PREOPANC trial. J. Clin. Oncol. 2020, 38, 1763–1773. [Google Scholar] [CrossRef]
  21. Katz, M.H.; Shi, Q.; Ahmad, S.A.; Herman, J.M.; Marsh, R.W.; Collisson, E.; Schwartz, L.; Frankel, W.; Martin, R.; Conway, W.; et al. Preoperative modified FOLFIRINOX treatment followed by capecitabine-based chemoradiation for borderline resectable pancreatic cancer: Alliance for clinical trials in oncology trial A021101. JAMA Surg. 2016, 151, e161137. [Google Scholar] [CrossRef]
  22. Yamaguchi, J.; Yokoyama, Y.; Fujii, T.; Yamada, S.; Takami, H.; Kawashima, H.; Ohno, E.; Ishikawa, T.; Maeda, O.; Ogawa, H.; et al. Results of a phase II study on the use of neoadjuvant chemotherapy (FOLFIRINOX or GEM/nab-PTX) for borderline-resectable pancreatic cancer (NUPAT-01). Ann. Surg. 2022, 275, 1043–1049. [Google Scholar] [CrossRef]
  23. Ielpo, B.; Duran, H.; Diaz, E.; Fabra, I.; Caruso, R.; Ferri, V.; Malavé, L.; Hidalgo, M.; Alvarez, R.; Plaza, C.; et al. Preoperative treatment with gemcitabine plus nab-paclitaxel is a safe and effective chemotherapy for pancreatic adenocarcinoma. Eur. J. Surg. Oncol. 2016, 42, 1394–1400. [Google Scholar] [CrossRef] [PubMed]
  24. Janssen, Q.P.; van Dam, J.L.; Bonsing, B.A.; Bos, H.; Bosscha, K.P.; Coene, P.P.L.O.; van Eijck, C.H.J.; de Hingh, I.H.J.T.; Karsten, T.M.; van der Kolk, M.B.; et al. Total neoadjuvant FOLFIRINOX versus neoadjuvant gemcitabine-based chemoradiotherapy and adjuvant gemcitabine for resectable and borderline resectable pancreatic cancer (PREOPANC-2 trial): Study protocol for a nationwide multicenter randomized controlled trial. BMC Cancer 2021, 21, 300. [Google Scholar]
  25. Yamada, D.; Kobayashi, S.; Takahashi, H.; Akita, H.; Yamada, T.; Asaoka, T.; Shimizu, J.; Takeda, Y.; Yokoyama, S.; Tsujie, M.; et al. Randomized phase II study of gemcitabine and S-1 combination therapy versus gemcitabine and nanoparticle albumin-bound paclitaxel combination therapy as neoadjuvant chemotherapy for resectable/borderline resectable pancreatic ductal adenocarcinoma (PDAC-GS/GA-rP2, CSGO-HBP-015). Trials 2021, 22, 568. [Google Scholar] [PubMed]
  26. Xia, M.X.; Zhou, Y.F.; Zhang, M.; Wang, W.; Wu, J.; Wang, T.T.; Zhang, X.; Hu, B. Influence of fully covered metal stenting on the risk of post-endoscopic retrograde cholangiopancreatography pancreatitis: A large multicenter study. J. Gastroenterol. Hepatol. 2020, 35, 2256–2263. [Google Scholar] [CrossRef]
  27. Zeng, C.; Zhang, Y.; Yang, H.; Hong, J. Prevention of pancreatitis after stent implantation for distal malignant biliary strictures: Systematic review and meta-analysis. Expert. Rev. Gastroenterol. Hepatol. 2022, 16, 141–154. [Google Scholar] [CrossRef]
  28. Artifon, E.L.; Sakai, P.; Ishioka, S.; Marques, S.B.; Lino, A.S.; Cunha, J.E.M.; Jukemura, J.; Cecconello, I.; Carrilho, F.J.; Opitz, E.; et al. Endoscopic sphincterotomy before deployment of covered metal stent is associated with greater complication rate: A prospective randomized control trial. J. Clin. Gastroenterol. 2008, 42, 815–819. [Google Scholar] [CrossRef]
  29. Hayashi, T.; Kawakami, H.; Osanai, M.; Ishiwatari, H.; Naruse, H.; Hisai, H.; Yanagawa, N.; Kaneto, H.; Koizumi, K.; Sakurai, T.; et al. No benefit of endoscopic sphincterotomy before biliary placement of self-expandable metal stents for unresectable pancreatic cancer. Clin. Gastroenterol. Hepatol. 2015, 13, 1151–1158.e2. [Google Scholar] [CrossRef]
  30. Nakahara, K.; Michikawa, Y.; Morita, R.; Suetani, K.; Morita, N.; Sato, J.; Tsuji, K.; Ikeda, H.; Matsunaga, K.; Watanabe, T.; et al. Endoscopic sphincterotomy before fully covered metal stent placement is not required for distal malignant biliary stricture due to a pancreatic head tumor. Gastroenterol. Res. Pract. 2019, 9675347. [Google Scholar] [CrossRef]
  31. Jang, S.; Stevens, T.; Parsi, M.; Lopez, R.; Zuccaro, G.; Dumot, J.; Vargo, J.J. Association of covered metallic stents with cholecystitis and stent migration in malignant biliary stricture. Gastrointest. Endosc. 2018, 87, 1061–1070. [Google Scholar] [CrossRef]
  32. Seo, D.W.; Sherman, S.; Dua, K.S.; Slivka, A.; Roy, A.; Costamagna, G.; Deviere, J.; Peetermans, J.; Rousseau, M.; Nakai, Y.; et al. Covered and uncovered biliary metal stents provide similar relief of biliary obstruction during neoadjuvant therapy in pancreatic cancer: A randomized trial. Gastrointest. Endosc. 2019, 90, 602–612.e4. [Google Scholar] [CrossRef]
  33. Cavell, L.K.; Allen, P.J.; Vinoya, C.; Eaton, A.A.; Gonen, M.; Gerdes, H.; Mendelsohn, R.B.; D’Angelica, M.I.; Kingham, P.T.; Fong, Y.; et al. Biliary self-expandable metal stents do not adversely affect pancreaticoduodenectomy. Am. J. Gastroenterol. 2013, 108, 1168–1173. [Google Scholar] [CrossRef] [PubMed]

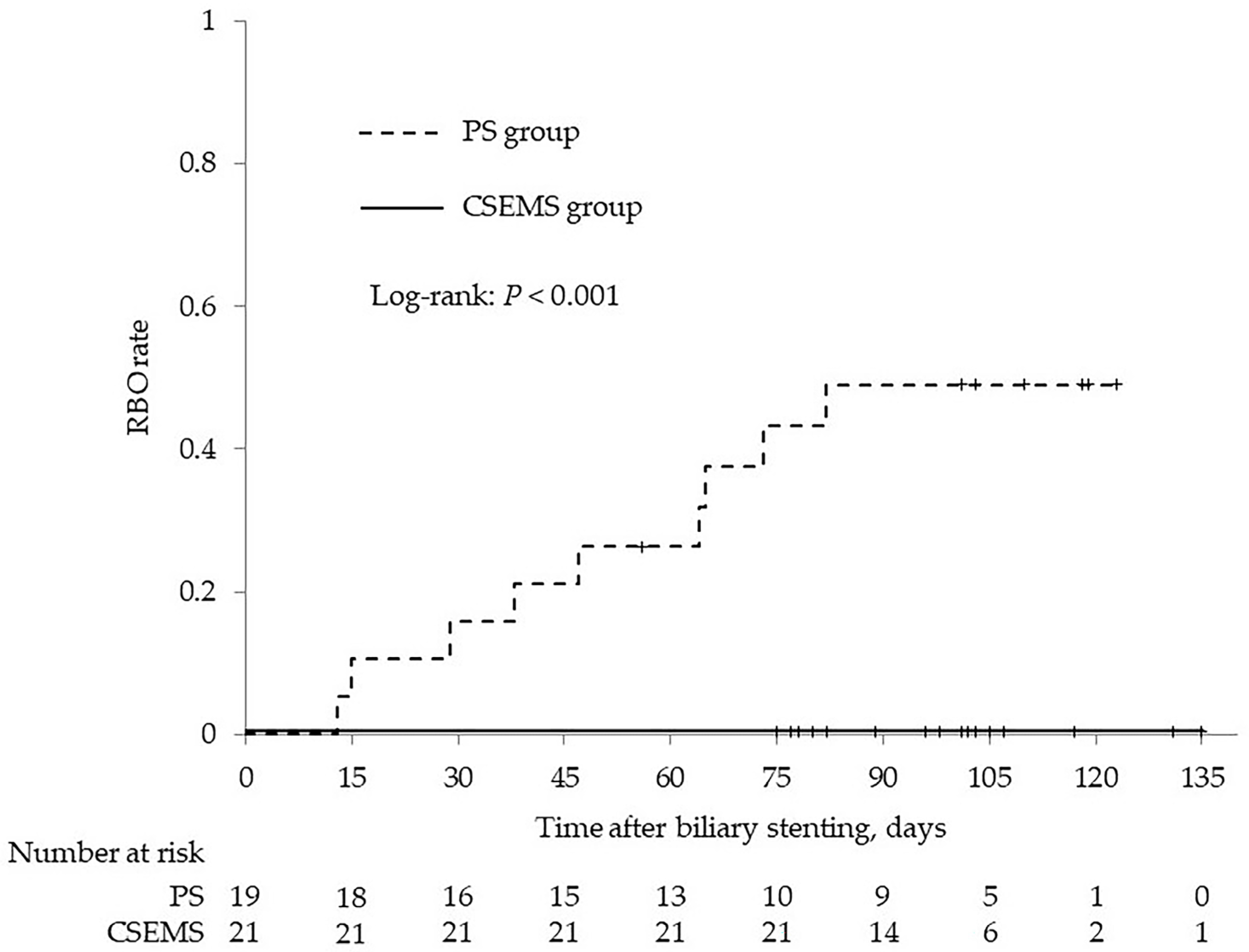

Figure 1. Kaplan–Meier analysis of the RBO rate. The cumulative rate was calculated using the Kaplan–Meier method and compared using the log-rank test. CSEMS, covered self-expanding metal stent; PS, plastic stent; RBO, recurrent biliary obstruction.
Figure 1. Kaplan–Meier analysis of the RBO rate. The cumulative rate was calculated using the Kaplan–Meier method and compared using the log-rank test. CSEMS, covered self-expanding metal stent; PS, plastic stent; RBO, recurrent biliary obstruction.
Jcm 12 06245 g001

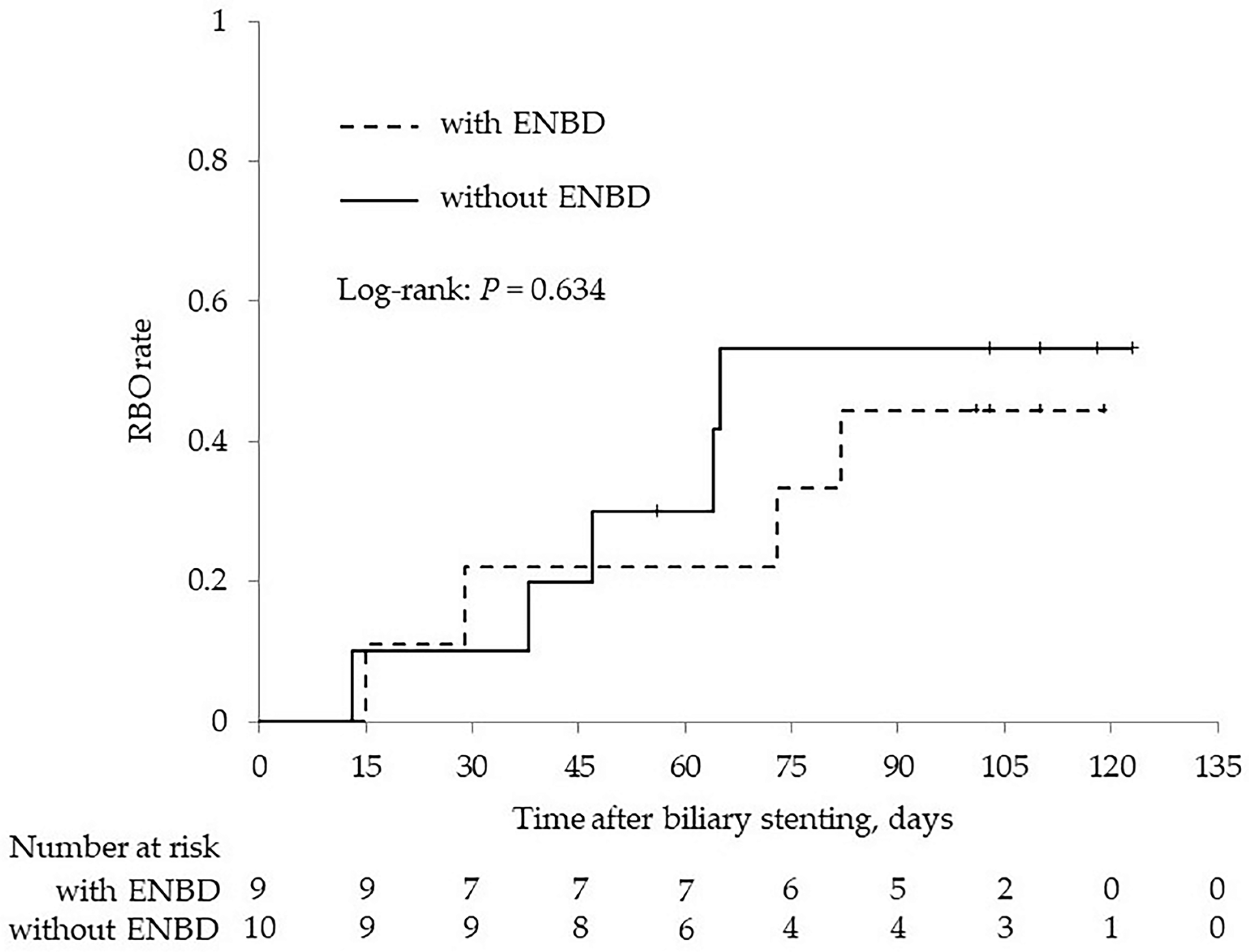

Figure 2. Kaplan–Meier analysis of the RBO rate with or without ENBD before stent placement in the PS group. RBO, recurrent biliary obstruction; ENBD, endoscopic nasobiliary drainage; PS, plastic stent.
Figure 2. Kaplan–Meier analysis of the RBO rate with or without ENBD before stent placement in the PS group. RBO, recurrent biliary obstruction; ENBD, endoscopic nasobiliary drainage; PS, plastic stent.
Jcm 12 06245 g002
Table 1. Clinical profiles of 40 patients with BRPC undergoing biliary drainage during neoadjuvant chemotherapy.
Table 1. Clinical profiles of 40 patients with BRPC undergoing biliary drainage during neoadjuvant chemotherapy.
CharacteristicsCSEMS Group
(n = 21)
PS Group
(n = 19)
p Value
Median age (years)63 (44–82)61 (41–90)0.456
Sex (male to female ratio)12:98:110.527
Tumor size (mm)30 (20–50)30 (18–40)0.345
Tumor location (head/body/tail)20/1/019/0/01.000
Classification (BRPC-A/BRPC-PV)13/812/70.935
Serological findings before drainage
 T-Bil (mg/dL)2.7 (0.3–23.3)5.3 (0.5–26.4)0.704
 AST (IU/L)128 (13–818)160 (18–321)0.650
 ALT (IU/L)232 (12–1212)296 (14–560)0.884
 ALP (IU/L)1251 (84–3577)609 (117–3857)0.180
ENBD before stenting21 (100)9 (47.4)<0.001
Neoadjuvant chemotherapy regimen 0.554
 Gemcitabine plus S-18 (38.1)9 (47.4)
 Gemcitabine, nab-paclitaxel plus S-113 (61.9)10 (52.6)
Data are expressed as numbers (percentages) or medians (interquartile ranges). ALP, alkaline phosphatase; ALT, alanine aminotransferase; AST, aspartate aminotransferase; BRPC, borderline resectable pancreatic cancer; BRPC-A, borderline resectable pancreatic cancer with arterial contact; BRPC-PV, borderline resectable pancreatic cancer with portal vein contact; CSEMS, covered self-expanding metal stent; ENBD, endoscopic nasobiliary drainage; PS, plastic stent; T-Bil, total bilirubin.
Table 2. Complications related to biliary stent placement.
Table 2. Complications related to biliary stent placement.
CSEMS Group
(n = 21)
PS Group
(n = 19)
p Value
Recurrent biliary obstruction09 (47.4)<0.001
 Stent migration03 (15.8)0.098
 Proximal side01 (5.3)0.475
 Distal side02 (10.5)0.219
 Stent occlusion06 (31.6)0.007
 Sludge06 (31.6)0.007
 Tumor ingrowth or overgrowth00-
 Biliary bleeding00-
 Food impaction00-
Other complications4 (19.1)4 (21.1)1.000
 Non-occlusive cholangitis3 (14.3)4 (21.1)0.689
 Cholecystitis2 (9.5)00.489
 Pancreatitis00-
 Gastrointestinal bleeding00-
Data are expressed as numbers (percentages). CSEMS, covered self-expanding metal stent; PS, plastic stent.
Table 3. Clinical course during neoadjuvant chemotherapy.
Table 3. Clinical course during neoadjuvant chemotherapy.
CSEMS Group
(n = 21)
PS Group
(n = 19)
p Value
Time from the initiation of neoadjuvant chemotherapy to surgery (days)98 (70–110)99 (54–118)0.407
 Gemcitabine + S-175.5 (70–107)87 (54–116)0.564
 Gemcitabine + nab-paclitaxel + S-199 (92–110)99 (92–118)0.412
Delay in chemotherapy schedule, n (%)4/21 (19.1)12/19 (63.2)0.009
 Gemcitabine + S-12/8 (25.0)8/9 (88.9)0.015
 Gemcitabine + nab-paclitaxel + S-12/13 (15.4)4/10 (40.0)0.341
Delay in chemotherapy schedule due to stent-related complications, n (%)1/21 (4.8)10/19 (52.6)0.001
 Gemcitabine + S-10/8 (0)6/9 (66.7)0.009
 Gemcitabine + nab-paclitaxel + S-11/13 (7.7)4/10 (40.0)0.127
Data are expressed as numbers (percentages) or medians (interquartile ranges). CSEMS, covered self-expanding metal stent; PS, plastic stent.
Table 4. Outcomes of surgical resection and postoperative complications.
Table 4. Outcomes of surgical resection and postoperative complications.
CSEMS Group
(n = 21)
PS Group
(n = 19)
p Value
Pancreatectomy21 (100)17 (89.5)0.524
Surgical procedure 0.354
 PD18 (85.7)13 (76.5)
 PD + hepatic artery resection2 (9.5)4 (23.5)
 TP1 (4.8)0
Arterial resection2 (9.5)5 (29.4)0.207
PV/SMV resection15 (71.4)11 (64.7)0.734
Operation time (min)358 (238–686)455 (238–676)0.081
Blood loss (mL)819 (45–6672)682 (158–2830)0.965
Postoperative complications6 (28.6)5 (26.3)0.955
 Biliary fistula00-
 Pancreatic fistula02 (11.8)0.194
 Cholangitis2 (9.5)1 (5.9)1.000
 Gastrointestinal bleeding00-
 Delayed gastric emptying1 (4.8)2 (11.8)0.577
 In-hospital mortality1 (4.8)01.000
 Others3 (14.3)2 (11.8)1.000
Length of hospital stay (days)19 (15–285)19 (14–63)0.802
Data are expressed as numbers (percentages) or medians (interquartile ranges). CSEMS, self-expanding metal stent; PD, pancreatoduodenectomy; PS, plastic stent; PV/SMV, portal vein/superior mesenteric vein; TP, total pancreatectomy.
Table 5. Previous studies comparing the outcome of PS and CSEMS during neoadjuvant therapy for pancreatic cancer.
Table 5. Previous studies comparing the outcome of PS and CSEMS during neoadjuvant therapy for pancreatic cancer.
StudyStentsPatientsResectabilityNeoadjuvant TherapyRBOOther Complications
Kubota [8],
2014
PS2121 BR11 NAC (G, GS)
10 NACRT (GS)
86%NR
CSEMS1717 BR17 NACRT (GS)24%NR
Tsuboi [9],
2016
PS1111 BR11 NAC (GS)63.6%9.1%
CSEMS99 BR9 NAC (GS)0%0%
Kuwatani [10],
2020
PS126 R, 6 BR6 NAC (S-1),
6 NACRT (S-1)
83%0%
CSEMS178 R, 9 BR8 NAC (S-1)
9 NACRT (S-1)
6%5.8%
Tamura [11],
2021
PS1111 BR11 NAC (GnP)64%NR
CSEMS1111 BR11 NAC (GnP)18%NR
Kobayashi [12],
2021
PS2215 R, 7 BR22 NACRT (S-1)95.4%0%
CSEMS2113 R, 8 BR21 NACRT (S-1)4.8%4.8%
Hasegawa [13],
2021
PS401 R, 32 BR, 7 UR37 NACRT
3 NAC
97%13%
CSEMS273 R, 19 BR, 5 UR25 NACRT
2 NAC
15%11%
Vehviläinen [14],
2022
PS91NRNAC/NACRT21%NR
CSEMS15NRNAC/NACRT3%NR
BR, borderline resectable; CSEMS, covered self-expanding metal stent; G, gemcitabine; GnP, gemcitabine plus nab-paclitaxel; GS, gemcitabine plus S-1; NAC, neoadjuvant chemotherapy; NACRT, neoadjuvant chemoradiotherapy; NR, not reported; PS, plastic stent; R, resectable; RBO recurrent biliary obstruction; UR, unresectable.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
