Characteristics of Diaphragmatic and Chest Wall Motion in People with Normal Pulmonary Function: A Study with Free-Breathing Dynamic MRI
by
,
Xiaoyan Yang
1,2,
Haishuang Sun
2,3,
Mei Deng
4,
Yicong Chen
1,2,
Chen Li
1,2,
Pengxin Yu
5,
Rongguo Zhang
5,
Min Liu
4,*,
Huaping Dai
1,2,* and
Chen Wang
1,2,* 1
Capital Medical University, Beijing 100069, China
2
National Center for Respiratory Medicine, National Clinical Research Center for Respiratory Diseases, Institute of Respiratory Medicine, Chinese Academy of Medical Sciences, Department of Pulmonary and Critical Care Medicine, Center of Respiratory Medicine, China-Japan Friendship Hospital, Beijing 100029, China
3
Department of Respiratory Medicine, The First Hospital of Jilin University, Changchun 130021, China
4
Department of Radiology, China-Japan Friendship Hospital, Beijing 100029, China
5
Institute of Advanced Research, Infervision Medical Technology Co., Ltd., Beijing 100025, China
*
Authors to whom correspondence should be addressed.
J. Clin. Med. 2022, 11(24), 7276; https://doi.org/10.3390/jcm11247276
Submission received: 2 November 2022
/
Revised: 5 December 2022
/
Accepted: 5 December 2022
/
Published: 8 December 2022
(This article belongs to the Section Pulmonology)
Abstract
:Objective: We aimed to quantitatively study the characteristic of diaphragm and chest wall motion using free-breathing dynamic magnetic resonance imaging (D-MRI) in Chinese people with normal lung function. Methods: 74 male subjects (mean age, 37 ± 11 years old) were prospectively enrolled, and they underwent high-resolution CT(HRCT), pulmonary functional tests (PFTs), and D-MRI in the same day. D-MRI was acquired with a gradient-echo sequence during the quiet and deep breathing. The motion of the diaphragm and chest wall were respectively assessed by measuring thoracic anteroposterior diameter (AP), left–right diameter (LR), cranial–caudal diameter (CC), and thoracic area ratios between end-inspiration and end-expiration. The effect of age, body mass index (BMI), and smoking on respiratory muscle function was also analyzed. Results: The mean ratio of right and left AP was greater than that of LR on three transversal planes during both quiet and deep breathing. The mean ratio at the anterior diaphragm (AND, Quiet: 1.04 ± 0.03; Deep: 1.15 ± 0.09) was weaker than that of the apex (vs. APD, Quiet: 1.08 ± 0.05, p < 0.001; Deep: 1.29 ± 0.12, p < 0.001) and posterior diaphragm (vs. POD, Quiet: 1.09 ± 0.04, p < 0.001; Deep: 1.30 ± 0.12, p < 0.001) both in quiet and deep breathing. Compared with non-smokers, the left AP and thoracic area ratios in smokers were significantly decreased (p < 0.05). However, the ratios of AP, LR, CC, and thoracic area on each plane were similar among groups in different age and BMI. Conclusions: During both quiet and deep breathing, the chest wall motion is prominent in the anteroposterior direction. The motions of diaphragm apex and posterior diaphragm were more prominent than that of the anterior diaphragm. Smoking may affect the respiratory muscle mobility. Dynamic MRI can quantitatively evaluate the motion of respiratory muscles.
1. Introduction
Diaphragm and chest wall muscles are the main respiratory muscles and play a very important role in respiratory function. The elevation of respiratory muscle function is vital for diseases that interfere with diaphragm and chest wall dysfunction [1,2,3,4]. Currently, the function of respiratory muscle can be assessed with pulmonary function tests (PFTs), computed tomography (CT), ultrasonography, and transdiaphragmatic pressure [5]. However, there are some limitations to these methods, such as invasive, ionizing radiation, and the inability to measure the chest wall and diaphragm motion synchronously.
Free-breathing Dynamic Magnetic Resonance Imaging (D-MRI), a non-invasive radiation-free method, can be accurately used to measure the lung volume, chest wall, and diaphragmatic motions with the application of multiplanar gradient-echo sequence during free breathing. D-MRI can be used to assess the motion of diaphragm and chest wall in healthy cohort [1,6,7,8,9] and some diseases with respiratory muscle dysfunction, such as chronic obstructive pulmonary disease (COPD) [10,11,12], adolescent idiopathic scoliosis (AIS) [13,14,15], and neuromuscular diseases [16,17,18,19]. These indicate that D-MRI is not only can be used to evaluate the severity of disease but also can be applied to assess the treatment efficacy. However, the characteristics of diaphragmatic and chest wall motion in thoracic anterior-posterior (AP), left-right (LR), and cranial-caudal (CC) directions using D-MRI was limited. In addition, the effect of smoking, age, and BMI on chest wall and diaphragm motion also remains unknown. We aimed to study the characteristics of diaphragmatic and chest wall motion of subjects with normal lung function using D-MRI in the thoracic anterior-posterior (AP), left-right (LR), and cranial-caudal (CC) directions and analyze the effect of age, BMI, and the tobacco smoke exposure on diaphragm and chest wall motion.
2. Materials and Methods
2.1. Study Cohort
This study was approved by our Institutional ethics committee (2022-KY-031), and all participants provided written informed consent. From October 2021 to June 2022, a total of 74 male subjects (mean age, 37 ± 11 years old) with normal high-resolution CT (HRCT) findings and normal PFTs were prospectively enrolled. All participants underwent HRCT, PFTs, and chest MRI in the same day. The subjects with hypertension, diabetes, scoliosis, congenital heart disease, pacemaker and coronary stent, neuromuscular diseases, and tumor were all excluded.
2.2. Pulmonary Function Tests
All subjects underwent PFTs (MasterScreen, Vyaire Medical GmbH, Hoechberg, Germany) at upright seated according to the standards of ATS/ERS [20]. The percentage of predicted forced vital capacity (FVC%), percentage of forced expiratory volume in one second (FEV1%), FEV1/FVC%, percentage of predicted total lung capacity (TLC%), and percentage of predicted DLco corrected for measured hemoglobin (DLco%) were measured.
2.3. MRI Protocol
All subjects underwent chest MRI on a 1.5T MRI scanner (MAGNETOM Aera; Siemens Healthcare, Erlangen, Germany) with an 18-channel phased-array body coil and 12-channel spine coil. D-MRI was acquired with a dynamic fast spoiled gradient-recalled echo sequence with parallel imaging acceleration during quiet and deep free breathing in the following key parameters: TR = 868 ms; TE = 46 ms; flip angle = 160°; FOV = 340 mm × 340 mm; resolution = 0.8 mm × 0.8 mm × 10.0 mm; PAT = 2. A total of 40 frames were acquired during the time of 16 s at each plane. The images were respectively obtained at the coronal, sagittal, and transversal planes [1,19]. Figure 1 shows the transversal images respectively acquired at the aortic arch level (Figure 1a), tracheal carina level (Figure 1b), and liver apex level (Figure 1c). The coronal plane was obtained through tracheal bifurcation (Figure 1d), and a right sagittal plane passed through the lung apex and diaphragm apex (Figure 1e). Before MRI scan, all subjects were instructed to practice the quiet breathing and deep breathing.
2.4. MR Image Processing and Measurements
Chest D-MR images processing was performed with InferScholar software (https://www.infer-vision.com/) (accessed on 20 May 2022). The details of image processing and quantitative analysis are summarized in Figure 2, including four steps: Step 1 (Figure 2a). MR image segmentation. Two chest radiologists respective with 20 years and 7 years of experience manually segmented images in the end-expiration and end-inspiration on D-MRI. In order to assess the inter-observer agreement of image annotation, 10 MR images were randomly selected to be annotated by one radiologist. Step 2 (Figure 2b). Marking referenced points. The referenced points were marked in the anterior–posterior (AP), left–right (LR), and cranial–caudal (CC) directions along the inner margin of thorax [1,19]. To confirm that the reference points were correctly indicated, all points were checked by two radiologists together.
Step 3 (Figure 2c,d). Measurements extraction and definition. The thoracic area was also extracted from each plane along the inner margin of chest wall. The length was directly extracted in the anterior–posterior (AP), left–right (LR), and cranial–caudal (CC) directions according to the points along the outline of lung [1,19]. The motion of chest wall was elevated by the anterior–posterior distance (AP) and left–right distance (LR) at three transversal planes including the aortic arch, tracheal carina, and the liver apex levels (Figure 2b). The AP distance is defined as the longest distance from dorsal to ventral of the lung (Figure 2c) and the LR distance is defined as the longest distance from the right inner edge to the left inner margin of thorax. The motion of diaphragm was elevated by the cranial–caudal (CC) distance measured as the distance between the lung apex and the anterior, apex, and posterior diaphragm on coronal and sagittal planes (Figure 2d).
Step 4. Measurements analysis. The mean values of end-expiration and end-inspiration among 2–4 respiratory cycles were used to further analysis (Supplementary Material). We calculated AP, LR, CC, and thoracic area ratios by dividing end-inspiration outcomes by end-expiration outcomes.
2.5. Statistical Analysis
All statistical analyses were performed with SPSS 26.0 (IBM Corp, Armonk, NY, USA). Numerical data were present as mean ± SD, while categorical data were present as numbers (percentage). The Mann–Whitney test and Kruskal–Wallis test were used for comparisons. The intraclass coefficients (ICC) were used to determine the inter-observer agreement. ICCs were classified from null (=0) to very good (>0.80) and almost perfect (>0.95) [21]. The significance level was set at p ≤ 0.05.
3. Results
3.1. The Demographic Characteristics
A total of 74 male subjects (mean age: 37 ± 11 years, age range: 22–67 years) prospectively enrolled in this study. Twenty-four males were non-smokers, and the other 50 males were smokers. The mean BMI was 24.2 ± 2.9 kg/M2. The metrics of PFTs including mean FVC, FEV1, FEV1/FVC, TLC, and DLco, respectively, were 102.6 ± 10.7, 98.1 ± 11.0, 82.9 ± 8.7, 97.1 ± 8.3, and 100.2 ± 14. 3 in the predicted normal range. The demographic characteristics of all subjects is shown in Table 1.
3.2. Quantitative Analysis of Chest Wall and Diaphragmatic Motion
The mean ratios of right and left AP were higher than the LR ratios on three transversal planes in both quiet breathing (Figure 3) and deep breathing (Figure 4). The mean ratio of the distance between the lung apex and anterior diaphragm on end-expiration and end-inspiration (AND, Quiet: 1.04 ± 0.03; Deep: 1.15 ± 0.09) was lower than the mean ratio of the distance between the lung apex and diaphragm apex on end-expiration and end-inspiration (vs. APD, Quiet: 1.08 ± 0.05, p < 0.001; Deep: 1.29 ± 0.12, p < 0.001) and the distance between the lung apex and posterior diaphragm on end-expiration and end-inspiration (vs. POD, Quiet: 1.09 ± 0.04, p < 0.001; Deep: 1.30 ± 0.12, p < 0.001) on the right sagittal plane on both quiet breathing (Figure 3d) and deep breathing (Figure 4d). However, the mean ratio was comparable between APD and POD (Quiet: 1.08 ± 0.05 vs. 1.09 ± 0.04, p = 0.142; Deep: 1.29 ± 0.12 vs. 1.30 ± 0.12, p = 0.344). Figure 5 shows the chest wall and diaphragmatic motion metrics on coronal plane and sagittal plane in end-inspiration and end-expiration. The inter-observer agreement between manual measurements was very good (Quiet breathing, ICC = 0.86; Deep breathing, ICC = 0.91).
3.3. Theeffect of Age and BMI on Chest Wall and Diaphragm Motion
As shown in Table 2, the ratios of AP, LR, CC, and thoracic area were comparable on each plane among different age groups, except the thoracic area ratio in the liver apex level during quiet breathing. The mean ratio of the thoracic area in the older people (>50 years old) (1.05 ± 0.06) was more than in the other 2 younger groups (age < 30 years old: 1.02 ± 0.02, 30–50 years old: 1.01 ± 0.03, p = 0.001) during quiet breathing. Table 3 indicated that the AP, LR, CC, and thoracic area ratios in each plane had no statistically significant differences between groups in BMI < 25 kg/m2 and group in BMI ≥ 25 kg/m2.
3.4. The Influence of Smoking on Chest Wall and Diaphragm Motion
During quiet breathing, Table 4 showed that the ratio of LAP and thoracic area on the liver apex level had significant differences between smokers and non-smokers (LAP ratios, 1.20 ± 0.03 vs. 1.40 ± 0.04, p = 0.024; thoracic area ratio, 1.02 ± 0.05 vs. 1.03 ± 0.03, p = 0.034). During deep breathing, the thoracic area ratios on the tracheal carina level in smokers were lower than in non-smokers on the tracheal carina level (non-smoker vs. smoker: 1.42 ± 0.18 vs. 1.33 ± 0.12, p = 0.016) and the coronal plane (non-smoker vs. smoker: 1.93 ± 0.28 vs. 1.69 ± 0.31, p = 0.003), respectively (Table 4). In addition, the ratio of AP, LR, CC, and thoracic area had no significant differences on other planes among non-smokers and smokers in both quiet breathing (p > 0.05) and deep breathing (p > 0.05).
4. Discussion
In this study, using 2D dynamic MRI, we explored the characteristics of chest wall and diaphragmatic motion in three vertical directions (thoracic anterior–posterior, left–right, cranial–caudal direction) during quiet and deep breathing in males with normal lung function. We found that the motion of chest wall is more prominent in the anterior-posterior direction on three transversal planes representing the upper, middle, and lower chest wall during both quiet and deep breathing. In addition, the motion of the diaphragm apex and posterior diaphragm was greater than that of the anterior diaphragm in the sagittal plane in both quiet and deep breathing, but there are similarities between diaphragm apex and posterior diaphragm. Moreover, both the chest wall and diaphragmatic motion are influenced by smoking but not by age and BMI.
Dynamic MRI has been used to detect early signs of diaphragmatic weakness in patients with Pompe disease [16,17,19,22] and Duchenne muscular dystrophy (DMD) [18,23]. The detailed motions of chest wall and diaphragm in different directions are helpful for us to evaluate the subtle influence of diseases on respiratory muscles. In the present study, we showed that the motion of chest wall in the anterior–posterior direction was greater than in the left–right direction in the transversal planes both in quiet and deep breathing, which is consistent with Groote et al. [7]. This suggests that the motion of the chest wall during inspiration is the greatest in the dorsal–ventral direction in bilateral lung. In addition, the chest wall motion in the anteroposterior direction between right and left sides was comparable at three transversal planes both in quiet and deep breathing, which suggests that the right and left sides of the thorax are a single function unit during breathing.
The diaphragm is the main respiratory muscle and plays an important role in ventilation [24]. Consistent with previous studies [1,25], we found that the motion of the anterior diaphragm was weaker than that of the apex and posterior diaphragm both in quiet and deep breathing. This suggested that the contribution of diaphragm apex and posterior diaphragm to ventilation was greater than that of the anterior diaphragm. Moreover, the diaphragm did not uniformly move during breathing, and it did not act as a single functional unit during active breathing. Furthermore, our study showed that the motion was no different between apex and posterior diaphragm. However, Takazakura et al. found the movement of the diaphragm in the middle was weaker than in the posterior during deep breathing [25]. Traser et al. also demonstrated that the degree of diaphragm excursion decreased significantly from posterior to middle during breathing and phonation [8]. This may be related to the different measurement points we selected.
It has been reported that the aging-related decline in skeletal muscle mass and strength begins at 30 years of age and may correlate with hospitalization and mortality due to some chronic diseases [26]. However, we found the chest wall and diaphragmatic motion were similar among subjects of different ages. This result was consistent with kondo et al. [27]. They used MRI to evaluate the motion of chest wall and diaphragm among healthy young and elder subjects. In contrast, some studies reported that the diaphragmatic function using ultrasonography is significantly weaker in individuals below 30 years when compared with those aged more than 30 years during quiet and deep breathing [28,29]. We thought that different parameters measured using ultrasonography and MRI might cause the different between those investigations. Consistent with Kabil et al. [29], for motion of chest wall and diaphragm, we did not find a significant statistical difference between males with BMI < 25 kg/m2 and BMI ≥ 25 kg/m2. Kantarci et al. [28] showed a significant difference in diaphragmatic motion between BMI groups and explained that this may be related to the difference of fat and muscle composition. It has been demonstrated that smoking has an important extrapulmonary toxicity including systemic inflammation and muscle dysfunction [30,31,32,33]. In the current study, we found the motions of chest wall and diaphragm in dorsal–ventral and cranial–caudal directions were weaker in smokers, in comparison with non-smokers, which further proved that the respiratory muscle function is also influenced by smoking, although the detailed mechanism remains unknown.
According to our initial results, we supplied the characteristics of chest wall and diaphragm motion in different directions in the normal lung function of males using D-MRI. Compared with PFTs, D-MRI can help clinicians know the regional or subtle alteration of respiratory muscle function under disease conditions, explaining some clinically relevant pathophysiological phenomena, e.g., the cranial–caudal movement of the diaphragm is reduced in patients with emphysema while the dorsal–ventral movement is reduced in patients with IPF [34], and also help to quantitatively analyze the severity of diseases. However, there are several limitations to this study. First, only a small number of male subjects with normal lung function at a single center were included in this research which indicates lack of generalizability. Second, although smoking affects the motion of chest wall and diaphragm, the effects of smoking duration and amounts and types of tobacco on the motion of the respiratory muscles are still unclear. Third, Multiplanar 2D dynamic MRI was used to quantitatively study the motion of chest wall and diaphragm which required a longer acquisition time. In the future, the 3D dynamic MRI will make it easier to assess the characteristics of chest wall and diaphragm motions simultaneously.
5. Conclusions
The motion of chest wall is prominent in the anterior–posterior direction during quiet and deep breathing. Meanwhile, the motions of diaphragm in apex and posterior diaphragm on a sagittal plane are stronger than in the anterior diaphragm both in quiet and deep breathing. Smoking affects respiratory muscle mobility. Dynamic MRI can quantitatively evaluate the motion of respiratory muscles.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm11247276/s1, Video S1–S4: Visualization of of dynamic MRI on quiet and deep breathing in a 50-year-old non-smoker (Videos S1 and S2, the coronal plane; Videos S3 and S4, the sagittal plane).
Author Contributions
Conceptualization, M.L., H.D. and C.W.; Methodology, X.Y., H.S., M.D., P.Y., R.Z. and M.L.; Resources, M.L.; Data curation, X.Y., H.S., M.D., Y.C. and C.L.; Writing–review & editing, X.Y., H.D. and C.W.; Funding acquisition, H.D. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by National Key Technologies R & D Program Precision China (No. 2021YFC2500700; 2016YFC0901101) and National Natural Science Foundation of China (No. 81870056).
Institutional Review Board Statement
The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Ethics Committee of China-Japan Friendship Hospital (2022-KY-031).
Informed Consent Statement
Informed consent was obtained from all subjects involved in the study.
Conflicts of Interest
All authors have completed the ICMJE uniform disclosure form. Pengxin Yu and Rongguo zhang are employed by the Institute of Advanced Research, Infervision Medical Technology Co., Ltd. All authors have no conflicts of interest to declare.
References
- Kondo, T.; Kobayashi, I.; Taguchi, Y.; Ohta, Y.; Yanagimachi, N. A dynamic analysis of chest wall motions with MRI in healthy young subjects. Respirology 2000, 5, 19–25. [Google Scholar] [CrossRef] [PubMed]
- Takazakura, R.; Takahashi, M.; Nitta, N.; Sawai, S.; Tezuka, N.; Fujino, S.; Murata, K. Assessment of diaphragmatic motion after lung resection using magnetic resonance imaging. Radiat. Med. 2007, 25, 155–163. [Google Scholar] [CrossRef] [PubMed]
- Abbas, A.; Embarak, S.; Walaa, M.; Lutfy, S.M. Role of diaphragmatic rapid shallow breathing index in predicting weaning outcome in patients with acute exacerbation of COPD. Int. J. Chronic Obstr. Pulm. Dis. 2018, 13, 1655–1661. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mekov, E.; Yanev, N.; Kurtelova, N.; Mihalova, T.; Tsakova, A.; Yamakova, Y.; Miravitlles, M.; Petkov, R. Diaphragmatic Movement at Rest After Exertion: ANon-Invasive Easy to Obtain Prognostic Marker in, C.O.P.D. Int. J. Chron. Obstruct. Pulmon. Dis. 2022, 17, 1041–1050. [Google Scholar] [CrossRef]
- Laveneziana, P.; Albuquerque, A.; Aliverti, A.; Babb, T.; Barreiro, E.; Dres, M.; Dubé, B.-P.; Fauroux, B.; Gea, J.; Guenette, J.A.; et al. ERS statement on respiratory muscle testing at rest and during exercise. Eur. Respir. J. 2019, 53, 1801214. [Google Scholar] [CrossRef] [Green Version]
- Gierada, D.S.; Curtin, J.J.; Erickson, S.J.; Prost, R.W.; Strandt, J.A.; Goodman, L.R. Diaphragmatic motion: Fast gradient-recalled-echo MR imaging in healthy subjects. Radiology 1995, 194, 879–884. [Google Scholar] [CrossRef]
- De Groote, A.; Wantier, M.; Cheron, G.; Estenne, M.; Paiva, M. Chest wall motion during tidal breathing. J. Appl. Physiol. 1997, 83, 1531–1537. [Google Scholar] [CrossRef] [Green Version]
- Traser, L.; Özen, A.C.; Burk, F.; Burdumy, M.; Bock, M.; Richter, B.; Echternach, M. Respiratory dynamics in phonation and breathing—A real-time MRI study. Respir. Physiol. Neurobiol. 2017, 236, 69–77. [Google Scholar] [CrossRef]
- Traser, L.; Schwab, C.; Burk, F.; Özen, A.C.; Burdumy, M.; Bock, M.; Richter, B.; Echternach, M. The influence of gravity on respiratory kinematics during phonation measured by dynamic magnetic resonance imaging. Sci. Rep. 2021, 11, 22965. [Google Scholar] [CrossRef]
- Hellebrandová, L.; Chlumský, J.; Vostatek, P.; Novák, D.; Ryznarova, Z.; Bunc, V. Airflow Limitation Is Accompanied by Diaphragm Dysfunction. Physiol. Res. 2016, 65, 469–479. [Google Scholar] [CrossRef]
- Shimada, A.; Kawata, N.; Sato, H.; Ikari, J.; Suzuki, E.; Anazawa, R.; Suzuki, M.; Masuda, Y.; Haneishi, H.; Tatsumi, K. Dynamic Quantitative Magnetic Resonance Imaging Assessment of Areas of the Lung During Free-Breathing of Patients with Chronic Obstructive Pulmonary Disease. Acad. Radiol. 2022, 29 (Suppl. 2), S215–S225. [Google Scholar] [CrossRef] [PubMed]
- Craighero, S.; Promayon, E.; Baconnier, P.; LeBas, J.F.; Coulomb, M. Dynamic echo-planar MR imaging of the diaphragm for a 3D dynamic analysis. Eur. Radiol. 2005, 15, 742–748. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kotani, T.; Minami, S.; Takahashi, K.; Isobe, K.; Nakata, Y.; Takaso, M.; Inoue, M.; Maruta, T.; Akazawa, T.; Ueda, T.; et al. An analysis of chest wall diaphragm motions in patients with idiopathic scoliosis using dynamic breathing, M.R.I. Spine 2004, 29, 298–302. [Google Scholar] [CrossRef] [PubMed]
- Chu, W.C.W.; Li, A.M.; Ng, B.K.W.; Chan, D.F.Y.; Lam, T.-P.; Lam, W.W.M.; Cheng, J.C.Y. Dynamic Magnetic Resonance Imaging in Assessing Lung Volumes, Chest Wall, and Diaphragm Motions in Adolescent Idiopathic Scoliosis Versus Normal Controls. Spine 2006, 31, 2243–2249. [Google Scholar] [CrossRef]
- Chu, W.C.W.; Ng, B.K.W.; Li, A.M.; Lam, T.-P.; Lam, W.W.M.; Cheng, J.C.Y. Dynamic magnetic resonance imaging in assessing lung function in adolescent idiopathic scoliosis: A pilot study of comparison before and after posterior spinal fusion. J. Orthop. Surg. Res. 2007, 2, 20. [Google Scholar] [CrossRef] [Green Version]
- Wens, S.C.A.; Ciet, P.; Perez-Rovira, A.; Logie, K.; Salamon, E.; Wielopolski, P.; De Bruijne, M.; Kruijshaar, M.E.; Tiddens, H.A.W.M.; Van Doorn, P.A.; et al. Lung MRI and impairment of diaphragmatic function in Pompe disease. BMC Pulm. Med. 2015, 15, 54. [Google Scholar] [CrossRef] [Green Version]
- Mogalle, K.; Perez-Rovira, A.; Ciet, P.; Wens, S.C.A.; van Doorn, P.A.; Tiddens, H.A.W.M.; van der Ploeg, A.T.; de Bruijne, M. Quantification of Diaphragm Mechanics in Pompe Disease Using Dynamic 3D MRI. PLoS ONE 2016, 11, e0158912. [Google Scholar] [CrossRef] [Green Version]
- Mankodi, A.; Kovacs, W.; Norato, G.; Hsieh, N.; Bandettini, W.P.; Bishop, C.A.; Shimellis, H.; Newbould, R.D.; Kim, E.; Fischbeck, K.H.; et al. Respiratory magnetic resonance imaging biomarkers in Duchenne muscular dystrophy. Ann. Clin. Transl. Neurol. 2017, 4, 655–662. [Google Scholar] [CrossRef] [Green Version]
- Harlaar, L.; Ciet, P.; van Tulder, G.; Pittaro, A.; Van Kooten, H.A.; Van der Beek, N.A.M.E.; Brusse, E.; Wielopolski, P.A.; De Bruijne, M.; Van der Ploeg, A.T.; et al. Chest MRI to diagnose early diaphragmatic weakness in Pompe disease. Orphanet. J. Rare Dis. 2021, 16, 21. [Google Scholar] [CrossRef]
- American Thoracic Society/European Respiratory Society. ATS/ERS Statement on respiratory muscle testing. Am. J. Respir. Crit. Care Med. 2002, 166, 518–624. [Google Scholar] [CrossRef]
- Landis, J.R.; Koch, G.G. The Measurement of Observer Agreement for Categorical Data. Biometrics 1977, 33, 159–174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Harlaar, L.; Ciet, P.; Van Tulder, G.; Brusse, E.; Timmermans, R.G.; Janssen, W.G.; De Bruijne, M.; Van der Ploeg, A.T.; Tiddens, H.A.; van Doorn, P.A.; et al. Diaphragmatic dysfunction in neuromuscular disease, an MRI study. Neuromuscul. Disord. 2022, 32, 15–24. [Google Scholar] [CrossRef] [PubMed]
- Pennati, F.; Arrigoni, F.; LoMauro, A.; Gandossini, S.; Russo, A.; D’Angelo, M.G.; Aliverti, A. Diaphragm Involvement in Duchenne Muscular Dystrophy (DMD): An MRI Study. J. Magn. Reson. Imaging 2020, 51, 461–471. [Google Scholar] [CrossRef] [PubMed]
- Dubé, B.-P.; Dres, M. Diaphragm Dysfunction: Diagnostic Approaches and Management Strategies. J. Clin. Med. 2016, 5, 113. [Google Scholar] [CrossRef]
- Takazakura, R.; Takahashi, M.; Nitta, N.; Murata, K. Diaphragmatic motion in the sitting and supine positions: Healthy subject study using a vertically open magnetic resonance system. J. Magn. Reson. Imaging 2004, 19, 605–609. [Google Scholar] [CrossRef] [PubMed]
- Sehl, M.E.; Yates, F.E. Kinetics of Human Aging: I. Rates of Senescence between Ages 30 and 70 Years in Healthy People. J. Gerontol. Ser. A Biol. Sci. Med. Sci. 2001, 56, B198–B208. [Google Scholar] [CrossRef] [Green Version]
- Kondo, T.; Kobayashi, I.; Taguchi, Y.; Hayama, N.; Tajiri, S.; Yanagimachi, N. An analysis of the chest wall motions using the dynamic MRI in healthy elder subjects. Tokai J. Exp. Clin. Med. 2005, 30, 15–20. [Google Scholar]
- Kantarci, F.; Mihmanli, I.; Demirel, M.K.; Harmanci, K.; Akman, C.; Aydogan, F.; Mihmanli, A.; Uysal, O. Normal diaphragmatic motion and the effects of body composition: Determination with M-mode sonography. J. Ultrasound Med. 2004, 23, 255–260. [Google Scholar] [CrossRef]
- Kabil, A.E.; Sobh, E.; Elsaeed, M.; Hassanin, H.E.; Yousef, I.H.; Eltrawy, H.H.; Ewis, A.M.; Aboseif, A.; Albalsha, A.M.; Elsawy, S.; et al. Diaphragmatic excursion by ultrasound: Reference values for the normal population; a cross-sectional study in Egypt. Multidiscip. Respir. Med. 2022, 17, 842. [Google Scholar] [CrossRef]
- Larsson, L.; Örlander, J. Skeletal muscle morphology, metabolism and function in smokers and non-smokers. A study on smoking-discordant monozygous twins. Acta Physiol. Scand. 1984, 120, 343–352. [Google Scholar] [CrossRef]
- Edwards, R. The problem of tobacco smoking. BMJ 2004, 328, 217–219. [Google Scholar] [CrossRef] [PubMed]
- Krüger, K.; Dischereit, G.; Seimetz, M.; Wilhelm, J.; Weissmann, N.; Mooren, F.C. Time course of cigarette smoke-induced changes of systemic inflammation and muscle structure. Am. J. Physiol. Cell. Mol. Physiol. 2015, 309, L119–L128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Thome, T.; Miguez, K.; Willms, A.J.; Burke, S.K.; Chandran, V.; de Souza, A.R.; Fitzgerald, L.F.; Baglole, C.; Anagnostou, M.; Bourbeau, J.; et al. Chronic aryl hydrocarbon receptor activity phenocopies smoking-induced skeletal muscle impairment. J. Cachex-Sarcopenia Muscle 2022, 13, 589–604. [Google Scholar] [CrossRef] [PubMed]
- Kang, J.H.; Choi, J.; Chae, K.J.; Shin, K.M.; Lee, C.-H.; Guo, J.; Lin, C.-L.; Hoffman, E.A.; Lee, C. CT-derived 3D-diaphragm motion in emphysema and IPF compared to normal subjects. Sci. Rep. 2021, 11, 14923. [Google Scholar] [CrossRef]
Figure 1.

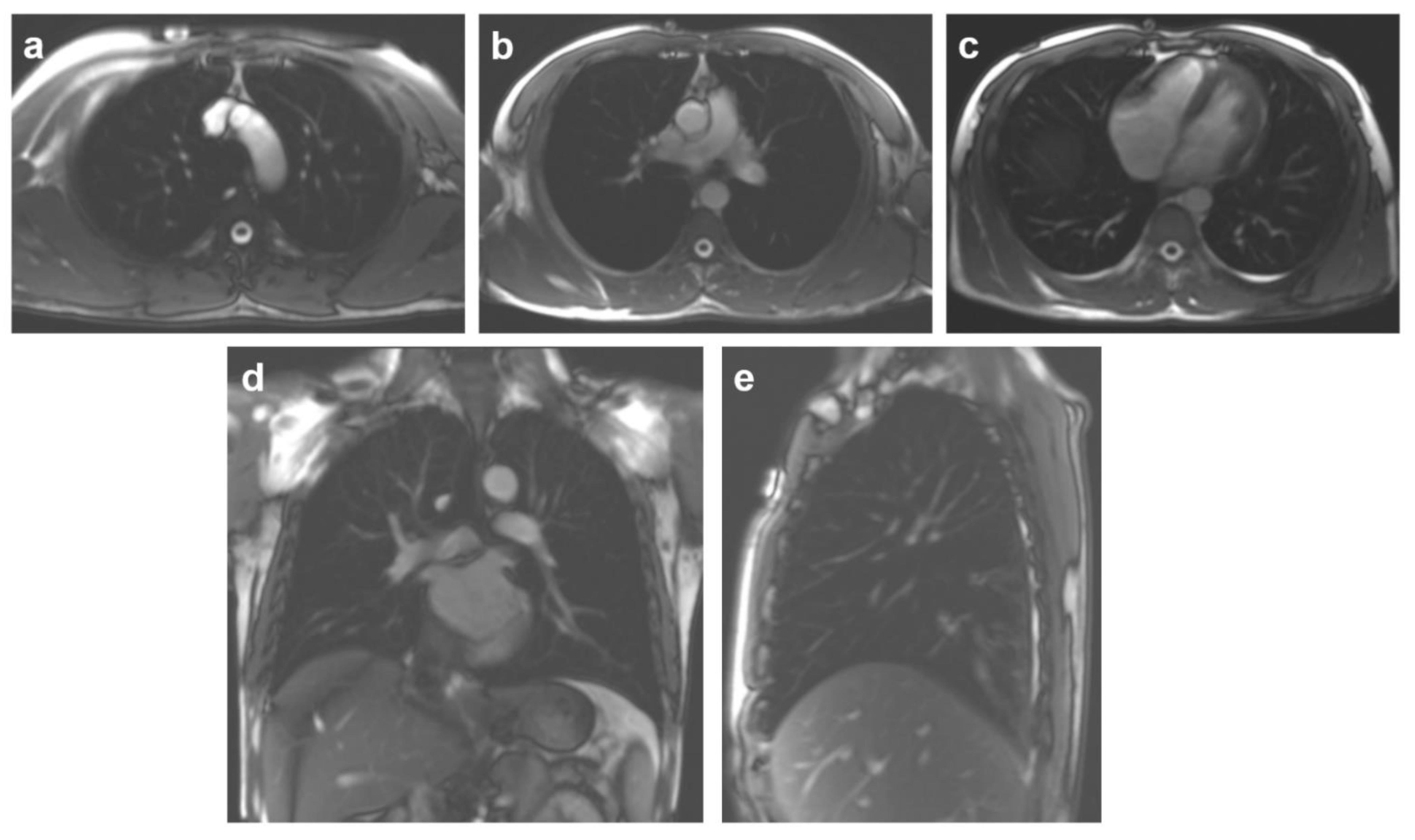

The multiplanar images were acquired on dynamic MRI. The transversal planes including the aortic arch (a), tracheal carina (b), and the liver apex levels (c), a coronal plane through tracheal bifurcation (d), and a right sagittal plane passing through the lung apex and diaphragm apex (e).
Figure 1.
The multiplanar images were acquired on dynamic MRI. The transversal planes including the aortic arch (a), tracheal carina (b), and the liver apex levels (c), a coronal plane through tracheal bifurcation (d), and a right sagittal plane passing through the lung apex and diaphragm apex (e).
Figure 2.
The flowchart of MR image processing and Measurements. MR image segmentation (a). Marking referenced points (b). Measurements extraction and definition (c,d). RAP, the anterior–posterior distance of right lung on the transversal plane; LAP, anterior–posterior (AP) distance of left lung on the transversal plane; LR, the left–right distance on the transversal plane; RCC, the cranial–caudal distance of right lung on coronal plane; LCC, the cranial–caudal distance of left lung on coronal plane; AND, the distance between the lung apex and anterior diaphragm on sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. IN, inspiration. EX, expiration.
Figure 2.
The flowchart of MR image processing and Measurements. MR image segmentation (a). Marking referenced points (b). Measurements extraction and definition (c,d). RAP, the anterior–posterior distance of right lung on the transversal plane; LAP, anterior–posterior (AP) distance of left lung on the transversal plane; LR, the left–right distance on the transversal plane; RCC, the cranial–caudal distance of right lung on coronal plane; LCC, the cranial–caudal distance of left lung on coronal plane; AND, the distance between the lung apex and anterior diaphragm on sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. IN, inspiration. EX, expiration.
Figure 3.

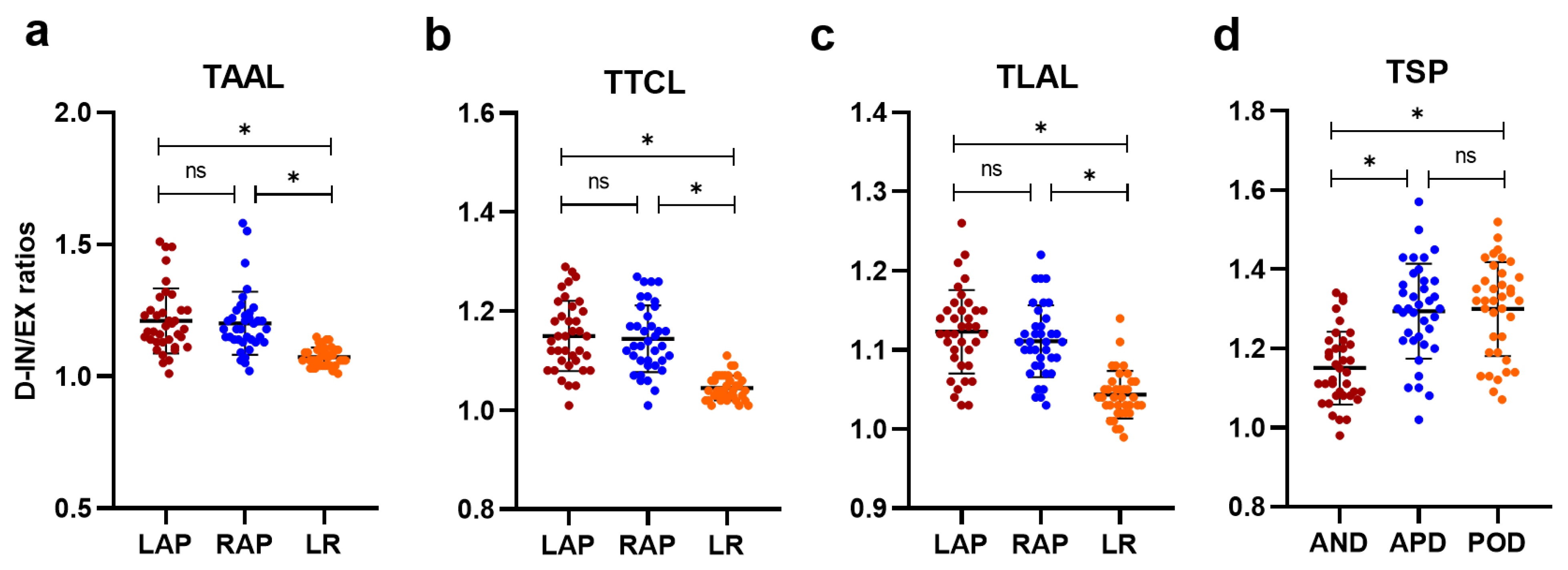

The scatter plots present the difference of ratios between different directions on each plane during quiet breathing (a–d). Q-IN/EX ratios, the ratio between end-inspiration and end-expiration in quiet breathing; TAAL, the aortic arch level; TTCL, the tracheal carina level; TLAL, the liver apex level; TSP, The right sagittal plane; LAP, the anterior-posterior distance of left thorax; RAP, the anterior-posterior distance of right thorax; LR, the left to right distance of thorax; AND, the distance between the lung apex and anterior diaphragm on sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. ns indicated p > 0.05, * indicated p < 0.05.
Figure 3.
The scatter plots present the difference of ratios between different directions on each plane during quiet breathing (a–d). Q-IN/EX ratios, the ratio between end-inspiration and end-expiration in quiet breathing; TAAL, the aortic arch level; TTCL, the tracheal carina level; TLAL, the liver apex level; TSP, The right sagittal plane; LAP, the anterior-posterior distance of left thorax; RAP, the anterior-posterior distance of right thorax; LR, the left to right distance of thorax; AND, the distance between the lung apex and anterior diaphragm on sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. ns indicated p > 0.05, * indicated p < 0.05.
Figure 4.

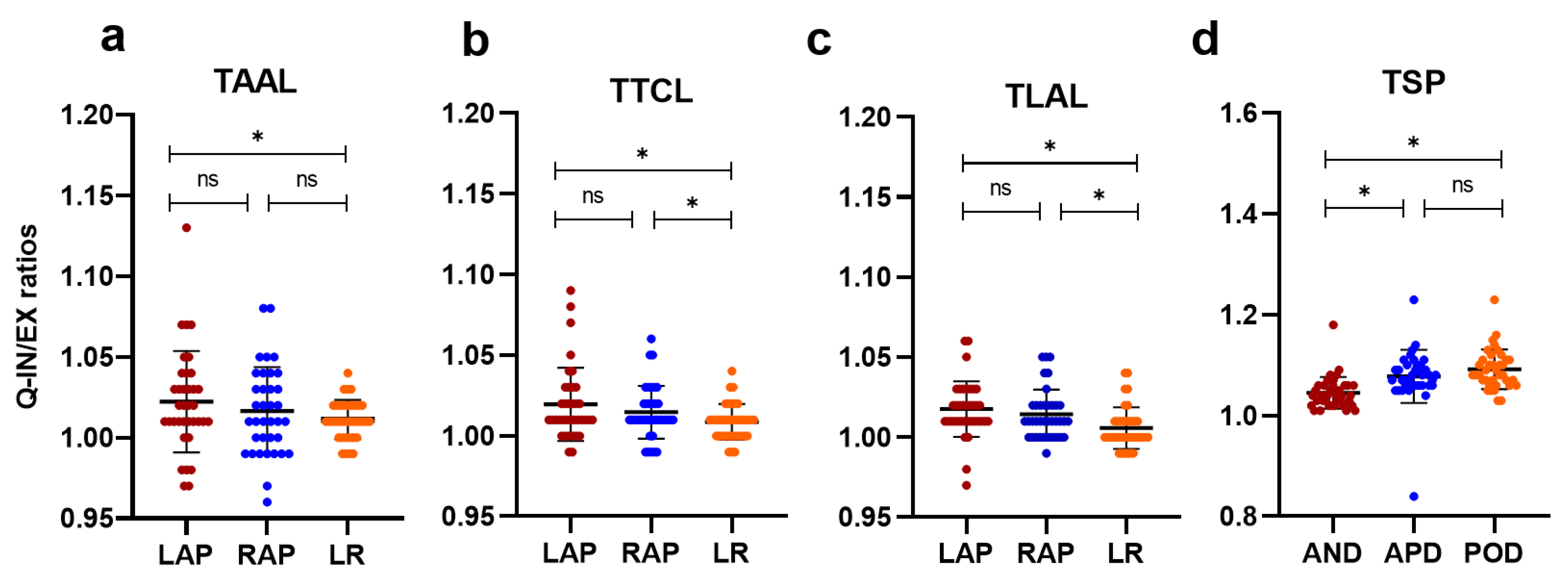

The scatter plots present the difference of ratios between different directions on each plane during deep breathing (a–d). D-IN/EX ratios, the ratio between end-inspiration and end-expiration in deep breathing; TAAL, the aortic arch level; TTCL, the tracheal carina level; TLAL, the liver apex level; TSP, the right sagittal plane; LAP, the anterior–posterior distance of left thorax; RAP, the anterior–posterior distance of right thorax; LR, the left to right distance of thorax; AND, the distance between the lung apex and anterior diaphragm on the sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. ns indicated p > 0.05, * indicated p < 0.05.
Figure 4.
The scatter plots present the difference of ratios between different directions on each plane during deep breathing (a–d). D-IN/EX ratios, the ratio between end-inspiration and end-expiration in deep breathing; TAAL, the aortic arch level; TTCL, the tracheal carina level; TLAL, the liver apex level; TSP, the right sagittal plane; LAP, the anterior–posterior distance of left thorax; RAP, the anterior–posterior distance of right thorax; LR, the left to right distance of thorax; AND, the distance between the lung apex and anterior diaphragm on the sagittal plane; APD, the distance between the lung apex and diaphragm apex on sagittal plane; POD, the distance between the lung apex and posterior diaphragm on sagittal plane. ns indicated p > 0.05, * indicated p < 0.05.
Figure 5.

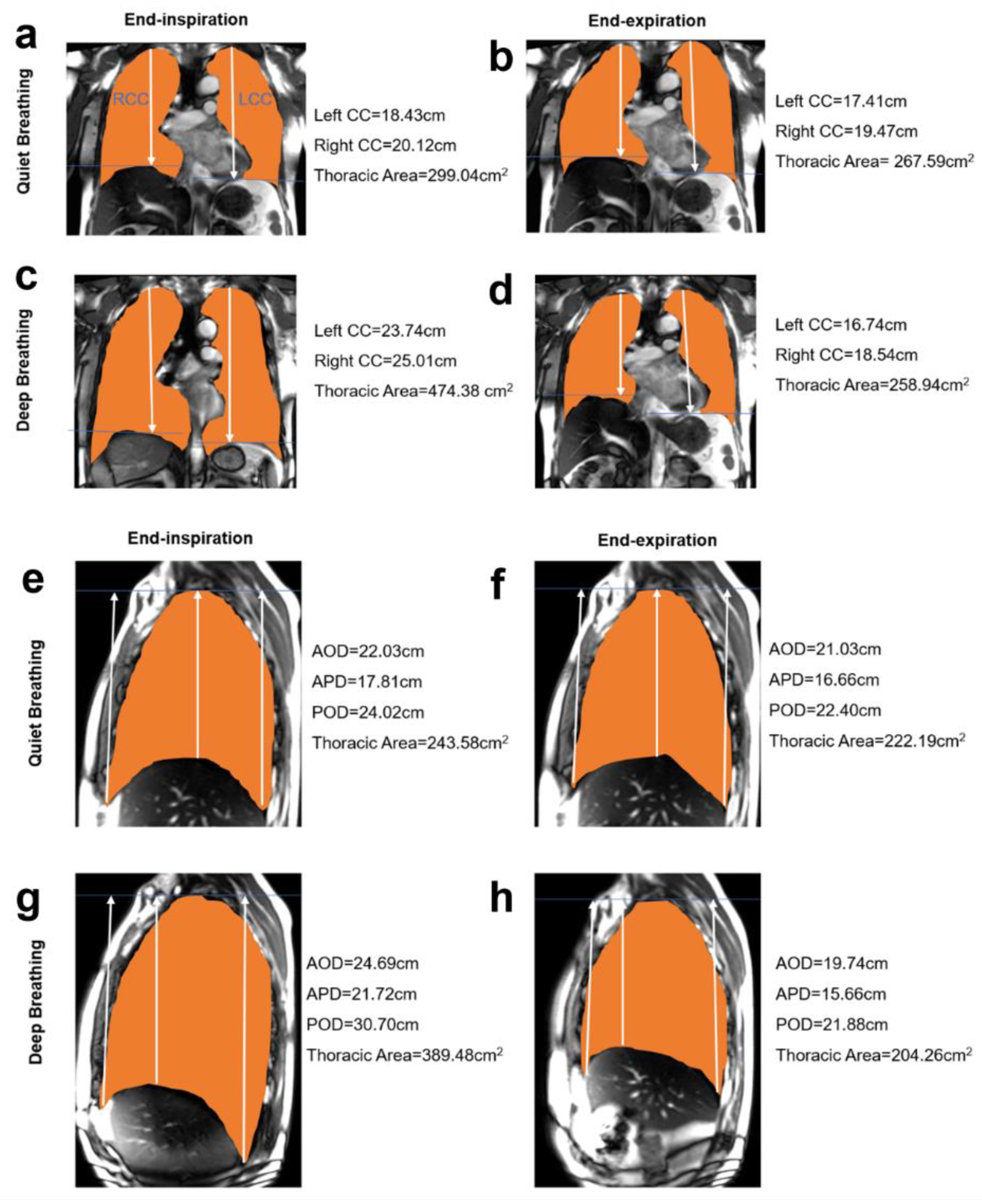

Chest wall and diaphragmatic motion metrics on the coronal plane and sagittal plane in a 50-year-old non-smoker. (a–d) The right, left CC, and thoracic area on the coronal plane in end-inspiration and end-expiration. (e–h) The AOD, APD, POD, and thoracic area on the sagittal plane in end-inspiration and end-expiration.

Figure 5.
Chest wall and diaphragmatic motion metrics on the coronal plane and sagittal plane in a 50-year-old non-smoker. (a–d) The right, left CC, and thoracic area on the coronal plane in end-inspiration and end-expiration. (e–h) The AOD, APD, POD, and thoracic area on the sagittal plane in end-inspiration and end-expiration.
Table 1.
The characteristics of included subjects.
| Subjects | Clinical Characteristics |
|---|---|
| Number | 74 |
| Gender | Male |
| Mean age (years) (range) | 37 ± 11 (22–67) |
| Height (cm) | 171 ± 5.7 |
| Weight (kg) | 70.4 ± 7.7 |
| BMI (kg/m2) | 24.2 ± 2.9 |
| Smoker, n (%) | 24 (32.4%) |
| Smoking habits (pack/years) | 4–50 |
| Duration of smoking (years) | 2–35 |
| Pulmonary Function Tests | |
| FEV1% predicted | 98.1 ± 11.0 |
| FVC % predicted | 102.6 ± 10.7 |
| FEV1/FVC % predicted | 82.9 ± 8.7 |
| TLC % predicted | 97.1 ± 8.3 |
| DLCO % predicted | 100.2 ± 14.3 |
NOTE: BMI, body mass index; FEV, forced expiratory volume; FVC, forced vital capacity; TLC, total lung capacity; DLCO, diffusing capacity of the lungs for carbon monoxide.
Table 2.
The correlation of chest wall and diaphragmatic motion with age.
| Ratios | Quiet Breathing | Deep Breathing | ||||||
|---|---|---|---|---|---|---|---|---|
| Age < 30 Years Old (n = 28) | 31–50 Years Old (n = 26) | Age > 50 Years Old (n = 20) | p | Age < 30 Years Old (n = 28) | 31–50 Years Old (n = 26) | Age > 50 Years Old (n = 20) | p | |
| The arcus aortae level | ||||||||
| Left AP | 1.02 ± 0.03 | 1.02 ± 0.03 | 1.02 ± 0.03 | 0.560 | 1.20 ± 0.14 | 1.21 ± 0.11 | 1.22 ± 0.13 | 0.720 |
| Right AP | 1.01 ± 0.02 | 1.02 ± 0.03 | 1.01 ± 0.03 | 0.504 | 1.22 ± 0.17 | 1.19 ± 0.10 | 1.18 ± 0.06 | 0.844 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 1.01 ± 0.02 | 0.124 | 1.07 ± 0.04 | 1.07 ± 0.03 | 1.08 ± 0.04 | 0.687 |
| Thoracic Area | 1.07 ± 0.05 | 1.06 ± 0.03 | 1.07 ± 0.02 | 0.330 | 1.44 ± 0.23 | 1.50 ± 0.22 | 1.51 ± 0.22 | 0.384 |
| The tracheal carina level | ||||||||
| Left AP | 1.02 ± 0.02 | 1.02 ± 0.03 | 1.02 ± 0.03 | 0.672 | 1.15 ± 0.08 | 1.15 ± 0.07 | 1.15 ± 0.07 | 0.869 |
| Right AP | 1.02 ± 0.02 | 1.01 ± 0.01 | 1.01 ± 0.02 | 0.072 | 1.14 ± 0.08 | 1.15 ± 0.07 | 1.14 ± 0.07 | 0.990 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 1.01 ± 0.01 | 0.211 | 1.04 ± 0.03 | 1.04 ± 0.02 | 1.05 ± 0.03 | 0.919 |
| Thoracic Area | 1.08 ± 0.04 | 1.07 ± 0.06 | 1.08 ± 0.05 | 0.347 | 1.43 ± 0.23 | 1.38 ± 0.12 | 1.36 ± 0.10 | 0.676 |
| The liver apex level | ||||||||
| Left AP | 1.01 ± 0.01 | 1.02 ± 0.03 | 1.02 ± 0.02 | 0.247 | 1.12 ± 0.05 | 1.13 ± 0.06 | 1.11 ± 0.03 | 0.753 |
| Right AP | 1.02 ± 0.01 | 1.01 ± 0.01 | 1.01 ± 0.02 | 0.133 | 1.12 ± 0.05 | 1.11 ± 0.05 | 1.10 ± 0.03 | 0.294 |
| LR | 1.01 ± 0.01 | 1.00 ± 0.01 | 1.01 ± 0.02 | 0.546 | 1.05 ± 0.04 | 1.04 ± 0.17 | 1.04 ± 0.02 | 0.805 |
| Thoracic Area | 1.02 ± 0.02 | 1.01 ± 0.03 | 1.05 ± 0.06 | 0.001 * | 1.18 ± 0.10 | 1.20 ± 0.11 | 1.20 ± 0.09 | 0.775 |
| The coronal plane | ||||||||
| Left CC | 1.10 ± 0.05 | 1.09 ± 0.05 | 1.10 ± 0.05 | 0.200 | 1.33 ± 0.08 | 1.39 ± 0.12 | 1.27 ± 0.15 | 0.081 |
| Right CC | 1.10 ± 0.05 | 1.11 ± 0.07 | 1.12 ± 0.07 | 0.750 | 1.41 ± 0.11 | 1.47 ± 0.13 | 1.32 ± 0.16 | 0.053 |
| Area | 1.19 ± 0.11 | 1.18 ± 0.17 | 1.21 ± 0.07 | 0.082 | 1.88 ± 0.25 | 1.92 ± 0.33 | 1.68 ± 0.33 | 0.150 |
| The right sagittal plane | ||||||||
| AOD | 1.04 ± 0.02 | 1.05 ± 0.04 | 1.05 ± 0.02 | 0.237 | 1.15 ± 0.08 | 1.14 ± 0.07 | 1.16 ± 0.14 | 0.852 |
| APD | 1.07 ± 0.02 | 1.09 ± 0.05 | 1.07 ± 0.09 | 0.140 | 1.29 ± 0.10 | 1.29 ± 0.08 | 1.30 ± 0.19 | 0.632 |
| POD | 1.09 ± 0.02 | 1.10 ± 0.05 | 1.09 ± 0.04 | 0.896 | 1.28 ± 0.14 | 1.33 ± 0.08 | 1.28 ± 0.13 | 0.281 |
| Thoracic Area | 1.12 ± 0.03 | 1.13 ± 0.06 | 1.14 ± 0.04 | 0.123 | 1.55 ± 0.19 | 1.61 ± 0.16 | 1.60 ± 0.27 | 0.562 |
NOTE: * p < 0.05. AP, anterior-posterior (AP) distance on the transversal plane; LR, left-right (LR) distance on the transversal plane; CC, the cranial–caudal distance on the coronal plane; AND, the distance between the lung apex and anterior diaphragm on the sagittal plane; APD, the distance between the lung apex and diaphragm apex on the sagittal plane; POD, the distance between the lung apex and posterior diaphragm on the sagittal plane.
Table 3.
The correlation of chest wall and diaphragmatic motion with BMI.
| Ratios | Quiet Breathing | Deep Breathing | ||||
|---|---|---|---|---|---|---|
| BMI < 25 (kg/m2) (n = 44) | BMI ≥ 25 (kg/m2) (n = 30) | p | BMI < 25 (kg/m2) (n = 44) | BMI ≥ 25 (kg/m2) (n = 30) | p | |
| The arcus aortae level | ||||||
| Left AP | 1.02 ± 0.04 | 1.02 ± 0.02 | 0.692 | 1.17 ± 0.10 | 1.26 ± 0.14 | 0.086 |
| Right AP | 1.02 ± 0.03 | 1.01 ± 0.03 | 0.481 | 1.18 ± 0.11 | 1.23 ± 0.13 | 0.160 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 0.093 | 1.07 ± 0.04 | 1.08 ± 0.03 | 0.640 |
| Thoracic Area | 1.07 ± 0.04 | 1.06 ± 0.02 | 0.895 | 1.42 ± 0.18 | 1.58 ± 0.24 | 0.061 |
| The tracheal carina level | ||||||
| Left AP | 1.02 ± 0.03 | 1.02 ± 0.02 | 0.567 | 1.15 ± 0.68 | 1.16 ± 0.08 | 0.533 |
| Right AP | 1.02 ± 0.02 | 1.01 ± 0.01 | 0.271 | 1.14 ± 0.07 | 1.14 ± 0.07 | 0.435 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 0.202 | 1.05 ± 0.03 | 1.04 ± 0.02 | 0.763 |
| Thoracic Area | 1.08 ± 0.06 | 1.07 ± 0.02 | 0.271 | 1.39 ± 0.19 | 1.40 ± 0.13 | 0.876 |
| The liver apex level | ||||||
| Left AP | 1.02 ± 0.02 | 1.04 ± 0.04 | 0.137 | 1.12 ± 0.04 | 1.13 ± 0.07 | 0.160 |
| Right AP | 1.02 ± 0.02 | 1.01 ± 0.01 | 0.146 | 1.11 ± 0.04 | 1.11 ± 0.05 | 0.533 |
| LR | 1.01 ± 0.01 | 1.00 ± 0.01 | 0.134 | 1.04 ± 0.03 | 1.05 ± 0.03 | 0.435 |
| Thoracic Area | 1.01 ± 0.01 | 1.02 ± 0.03 | 0.792 | 1.19 ± 0.10 | 1.20 ± 0.11 | 0.349 |
| The coronal plane | ||||||
| Left CC | 1.10 ± 0.05 | 1.08 ± 0.04 | 0.567 | 1.32 ± 0.12 | 1.37 ± 0.13 | 0.275 |
| Right CC | 1.11 ± 0.06 | 1.11 ± 0.06 | 0.826 | 1.39 ± 0.13 | 1.46 ± 0.15 | 0.533 |
| Thoracic Area | 1.21 ± 0.15 | 1.18 ± 0.08 | 0.660 | 1.79 ± 0.29 | 1.93 ± 0.33 | 0.533 |
| The right sagittal plane | ||||||
| AOD | 1.04 ± 0.03 | 1.05 ± 0.03 | 0.378 | 1.15 ± 0.10 | 1.15 ± 0.08 | 0.896 |
| APD | 1.08 ± 0.03 | 1.07 ± 0.07 | 0.078 | 1.29 ± 0.12 | 1.30 ± 0.12 | 0.275 |
| POD | 1.09 ± 0.04 | 1.09 ± 0.03 | 0.758 | 1.28 ± 0.12 | 1.33 ± 0.12 | 0.435 |
| Thoracic Area | 1.12 ± 0.05 | 1.13 ± 0.04 | 0.053 | 1.56 ± 0.18 | 1.61 ± 0.22 | 0.876 |
NOTE: AP, anterior–posterior (AP) distance on the transversal plane; LR, left–right (LR) distance on the transversal plane; CC, the cranial–caudal distance on the coronal plane; AND, the distance between the lung apex and anterior diaphragm on the sagittal plane; APD, the distance between the lung apex and diaphragm apex on the sagittal plane; POD, the distance between the lung apex and posterior diaphragm on the sagittal plane.
Table 4.
The correlation of chest wall and diaphragmatic motion with smoking.
| Ratios | Quiet Breathing | Deep Breathing | ||||
|---|---|---|---|---|---|---|
| Non-Smokers (n = 24) | Smokers (n = 50) | p | Non-Smokers (n = 24) | Smokers (n = 50) | p | |
| The arcus aortae level | ||||||
| Left AP | 1.02 ± 0.02 | 1.02 ± 0.03 | 0.474 | 1.23 ± 0.13 | 1.18 ± 0.10 | 0.072 |
| Right AP | 1.01 ± 0.03 | 1.02 ± 0.03 | 0.853 | 1.22 ± 0.14 | 1.19 ± 0.05 | 0.083 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 0.152 | 1.08 ± 0.03 | 1.07 ± 0.04 | 0.212 |
| Thoracic Area | 1.06 ± 0.02 | 1.06 ± 0.04 | 0.460 | 1.51 ± 0.23 | 1.44 ± 0.18 | 0.152 |
| The tracheal carina level | ||||||
| Left AP | 1.01 ± 0.01 | 1.02 ± 0.03 | 0.124 | 1.16 ± 0.08 | 1.13 ± 0.05 | 0.065 |
| Right AP | 1.01 ± 0.01 | 1.02 ± 0.02 | 0.611 | 1.16 ± 0.07 | 1.13 ± 0.04 | 0.052 |
| LR | 1.01 ± 0.01 | 1.01 ± 0.01 | 0.083 | 1.05 ± 0.02 | 1.04 ± 0.03 | 0.139 |
| Thoracic Area | 1.07 ± 0.02 | 1.08 ± 0.06 | 0.853 | 1.42 ± 0.18 | 1.33 ± 0.12 | 0.016 * |
| The liver apex level | ||||||
| Left AP | 1.04 ± 0.04 | 1.02 ± 0.03 | 0.024 * | 1.12 ± 0.06 | 1.12 ± 0.04 | 0.853 |
| Right AP | 1.01 ± 0.01 | 1.02 ± 0.02 | 0.042 * | 1.12 ± 0.05 | 1.11 ± 0.03 | 0.514 |
| LR | 1.00 ± 0.01 | 1.01 ± 0.01 | 0.127 | 1.05 ± 0.03 | 1.04 ± 0.02 | 0.432 |
| Thoracic Area | 1.03 ± 0.03 | 1.02 ± 0.05 | 0.034 * | 1.20 ± 0.11 | 1.19 ± 0.09 | 0.782 |
| The coronal plane | ||||||
| Left CC | 1.09 ± 0.03 | 1.10 ± 0.05 | 0.746 | 1.36 ± 0.11 | 1.30 ± 0.14 | 0.072 |
| Right CC | 1.12 ± 0.07 | 1.11 ± 0.06 | 0.248 | 1.38 ± 0.12 | 1.34 ± 0.17 | 0.098 |
| Thoracic Area | 1.20 ± 0.08 | 1.19 ± 0.15 | 0.180 | 1.93 ± 0.28 | 1.69 ± 0.31 | 0.003 * |
| The right sagittal plane | ||||||
| AOD | 1.04 ± 0.02 | 1.05 ± 0.03 | 0.926 | 1.15 ± 0.08 | 1.15 ± 0.12 | 0.817 |
| APD | 1.07 ± 0.08 | 1.08 ± 0.04 | 0.268 | 1.30 ± 0.09 | 1.29 ± 0.17 | 0.890 |
| POD | 1.10 ± 0.04 | 1.09 ± 0.04 | 0.432 | 1.31 ± 0.12 | 1.29 ± 0.12 | 0.548 |
| Thoracic Area | 1.13 ± 0.04 | 1.12 ± 0.05 | 0.160 | 1.59 ± 0.19 | 1.56 ± 0.23 | 0.488 |
NOTE: * p < 0.05. AP, anterior–posterior (AP) distance on the transversal plane; LR, left–right (LR) distance on the transversal plane; CC, the cranial–caudal distance on the coronal plane; AND, the distance between the lung apex and anterior diaphragm on the sagittal plane; APD, the distance between the lung apex and diaphragm apex on the sagittal plane; POD, the distance between the lung apex and posterior diaphragm on the sagittal plane.
