Complex Liver Resections for Intrahepatic Cholangiocarcinoma
by
,
Tim Reese
1,2,*
,
Gregor Pagel
2,
Bettina A. Bause
2,
York von Rittberg
2,
Kim C. Wagner
2 and
Karl J. Oldhafer
1,2
1
Asklepios Campus Hamburg, Semmelweis University of Medicine, 20099 Hamburg, Germany
2
Department of Surgery, Division of Hepatobiliary and Pancreatic Surgery, Asklepios Hospital Barmbek, Rübenkamp 220, 22291 Hamburg, Germany
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(8), 1672; https://doi.org/10.3390/jcm10081672
Submission received: 15 March 2021
/
Revised: 10 April 2021
/
Accepted: 12 April 2021
/
Published: 13 April 2021
(This article belongs to the Special Issue Management of Intrahepatic Cholangiocarcinoma)
Abstract: Background
The only curative treatment option for intrahepatic cholangiocarcinoma (iCCA) is liver resection. Due to central tumor localization and vascular invasion, complex liver resections play an important role in curative treatment. However, the long-term outcomes after complex liver resection are not known. Methods: A retrospective cohort study was conducted for all patients undergoing liver surgery for iCCA. Complex liver resections included ante situm resections, associating liver partition and portal vein ligation for staged hepatectomy (ALPPS) and major liver resection with vascular reconstructions. Results: Forty-nine patients (34%) received complex liver resection, 66 patients (46%) received conventional liver resection and 28 patients (20%) were not resectable during exploration. Preoperative characteristics were not different between the groups, except for Union for International Cancer Control (UICC) stages. The postoperative course for complex liver resections was associated with more complications and perioperative mortality. However, long-term survival was not different between complex and conventional resections. Independent risk factors for survival were R0 resections and UICC stage. Four patients underwent ante situm resection without any mortality. Conclusions: Complex liver resections are justified in selected patients and survival is comparable with conventional liver resections. Survival in iCCA is affected by UICC stage or resections margins and not by the complexity of the case.
1. Introduction
The incidence of intrahepatic cholangiocarcinoma (iCCA) has increased over recent decades [1,2,3]. This might be due to improvements in diagnostic tools or increases in metabolic disorders and obesity [4]. Advances in local therapies, targeted chemotherapies and adjuvant chemotherapy are promising [5,6,7,8]; however, liver resection remains the only potential curative therapy [9,10]. At presentation, about 50% of patients have unresectable disease and another 30% will be found unresectable during surgical exploration [11]. Therefore, the resectability rate of iCCA is described as 15–35% [11,12,13]. When the tumor is confined to the liver, complete tumor resection results in a 5-year survival rate of up to 40% [11,13,14,15]. The survival and recurrence rates are affected by nodal metastasis, tumor size, multifocal tumor growth and macrovascular invasion [12,16]. Central localization of iCCA is quite common and vascular invasion of the hepatic veins is often a limiting factor for R0-resection. Regarding these circumstances, non-conventional surgical techniques, such as ante situm procedures, offer a possibility for resection [17,18,19,20,21]. In addition, portal vein resection is often needed and complex constructions are described as safe for selected patients in high-volume centers [9,22,23].
A sufficient future liver remnant (FLR) is critical in decreasing postoperative morbidity and mortality [24,25]. Tumor size and location represent important factors for the resection strategy. Not seldom, complex liver resections such as meso-hepatectomy or trisectionectomy with reconstruction of the extrahepatic biliary duct are necessary [12,26].
In case of a non-sufficient FLR, portal vein embolization (PVE) or associating liver partition and portal vein ligation for staged hepatectomy (ALPPS) are strategies to enhance FLR [12]. Whereas PVE is considered as safe and standard technique for small FLR [9,27], the role of ALPPS is currently controversially discussed [28,29,30].
However, in liver resection for iCCA, the main focus is to accomplish R0-resection, even with the use of complex surgical techniques, such as ante situm or extended resections with or without vascular reconstructions, if necessary. The aim of this study is to analyze the role of complex liver resections for iCCA in terms of morbidity and long-term survival.
2. Methods
2.1. Patient Selection and Definitions
Consecutive patients that underwent surgery for iCCA between January 2010 and December 2020 at the Division of Hepatobiliary and Pancreatic Surgery in the Asklepios Hospital Barmbek were included in this retrospective study. Data were obtained from a prospectively collected database.
All included patients were divided into three groups:
- (a)
- Conventional liver resections: major anatomical or non-anatomical hepatectomy without vascular reconstruction and any minor anatomical or non-anatomical hepatectomy.
- (b)
- Complex liver resections: extended liver resection or major anatomical hepatectomy with vascular reconstruction, ALPPS and ante situm resection.
- (c)
- Exploration: Patients were preoperative, considered as resectable but were found to be unresectable during exploration.
Lymphadenectomy was routinely performed in all major liver resections. For minor liver resection, a lymphadenectomy was performed if there was a preoperative or intraoperative suspicion of positive lymph nodes. All complications were graded according to the Clavien–Dindo Classification [31] and summarized by the Comprehensive Complications Index (CCI) [32]. The Charlson Comorbidity Index was calculated as previously described [33]. All liver resections were defined according to the Brisbane 2000 Terminology [34]. Post-hepatectomy liver failure (PHLF) was defined according to the International Study Group of Liver Surgery (ISGLS) criteria [35].
2.2. Statistical Analysis
Data are reported as median with interquartile range (IQR), and n with percentages (%), where appropriate. Continuous variables were compared with the Mann–Whitney U and Kruskal–Wallis tests, where appropriate. Differences among proportions from categorical data were compared using the Fisher’s exact or the Pearson v2 tests, where appropriate. Survival analysis was performed using Kaplan–Meier curves. Patients lost to follow-up or follow-up time ended were censored. Differences in survival were compared using the log-rank test. All p-values in the univariate analysis were 2-sided and considered statistically significant if p ≤ 0.05. Cox regression analysis was performed to identify independent predictors of overall survival. Statistical analysis was performed using SPSS, version 27 for Windows (IBM, Armonk, NY, USA).
3. Results
3.1. Study Population
Out of 1906 liver surgeries during the study period, 143 patients underwent surgery because of iCCA. Forty-nine patients (34%) received complex liver resection, including four ante situm resections, seven ALPPS, 10 extended left and 19 extended right hepatectomies and nine major hepatectomies with vascular reconstruction (three right hemi-hepatectomies, three left hemi-hepatectomies and three other anatomical resections). Vascular reconstructions consisted of five interpositions of the inferior vena cava (IVC) with a vascular graft, two patch reconstructions of the IVC, eight resections and reconstructions of the portal vein and one patch reconstruction of the portal vein. Conventional liver resection consisted of 66 patients (46%), including 17 non-anatomical resections, 16 right hemi-hepatectomies, 9 left hemi-hepatectomies, 11 bi-segmentectomies and 13 segmentectomies. Twenty-eight patients (20%) were not resectable during exploration.
3.2. Preoperative Characteristics
No differences could be seen between the groups regarding age, gender, and comorbidities (Table 1). Union for International Cancer Control (UICC) stages were significant different between the groups. Stage IV was highest in the complex (51%) and exploration group (82%), but only 29% for conventional resections. With 64%, the early stages (Stage I and II) were most common for conventional resections, whereas it was low for complex (37%) and exploration (18%).
3.3. Operative and Resection Details
Operation time, incidence of hepaticojejunostomies, use of intraoperative transfusions and blood loss were significantly highest for the complex group (Table 2). The use of pringle maneuver was significant, but comparable between complex and conventional resections. R0-resection was achieved in 63% of patients undergoing complex resections and 86% for conventional resections.
Details of all four ante situm resections are shown in Table 3. All four patients underwent major hepatectomy and resection of the vena cava with reinsertion of the hepatic veins. Negative resection margins (R0) were detected in all four patients and only one had major postoperative complications. An example is shown in Figure 1.
3.4. Outcome and Complications
The overall complication rate and CCI were highest in the group with complex liver resections (Table 4). This applies to bile leakage, postoperative bleeding, and infections, but not to PHLF. Perioperative mortality was significantly different, but comparable between the complex (10%) and exploration group (7%). The 90-day mortality rate was highest in the exploration group (25%), compared to the complex group (14%). Perioperative and 90-day mortality was low for conventional liver resections (0% and 1%).
3.5. Survival
Overall survival for the UICC stages is shown in Figure 2. There was no significance between UICC stages II, III and IV. UICC stage I was significantly different compared to UICC stage III and stage IV. Survival for complex and conventional resections and exploration is shown in Figure 3. There was no significant difference between patients undergoing complex liver resections compared to conventional resections. Survival for non-resectable patients was significantly lower compared to complex and conventional resections. In subgroup analysis with UICC stage IV, survival was comparable and not significantly different (Figure 4).
Multivariate analysis for independent risk factors revealed resection margin and UICC stages as risk factors for overall survival (Table 5). The use of complex resections was no risk factor for long-term survival.
4. Discussion
Liver resection is the only curative treatment option for iCCA, and therefore, major efforts should be made to achieve tumor resection [9,10,12]. ICCAs are frequently centrally localized and often infiltrate portal and hepatic veins. Therefore, to achieve complete tumor removal, complex liver resections with vascular reconstructions including two-stage procedures are often necessary. In some circumstances, only ante situm resection represents the sole surgical option.
It is well-known that complex liver resections are generally associated with an increased morbidity and mortality [12,36,37]. This was clearly observed in the present study. The CCI with a median of 29.6 was significantly higher in the group after complex liver resections compared to the group after conventional liver resections with a CCI of 8.7. The documented mortality rate of 10% after complex liver resections with vascular reconstructions including ALPPS is high but lies within the published range and reflects the complexity of the procedure [22,23]. In a recent multicenter study of 270 patients with vascular resection in combination with liver resection for iCCA, Conci et al. reported a mortality rate of 6.7% for patients after portal vein resection and 12.5% after vena cava resection [23]. Reames et al. reported a 90-day mortality rate of 7% after 128 liver resections with major vascular resection for iCCA in a large multi-institutional analysis [22]. PHLF represents one main reason for postoperative morbidity and mortality. In the present study, the rate was 10% in the group after complex liver resections. Generally, a small FLR is mainly the cause for PHLF. Various hypertrophy concepts such as PVE or ALPPS are available to increase the FLR. However, the use of ALPPS for iCCA has been a matter of debate since its introduction [38]. Recently, Li et al. could show in a group of 102 patients with advanced iCCA from the ALPPS registry that the initially high rates of morbidity and mortality decreased steadily to a 29% severe complication rate and 7% 90-day mortality in the last 2 years [28]. Furthermore, Li et al. reported a high efficacy of 85% in achieving R0 resections. However, they only have seen an overall survival benefit for ALPPS in patients with a single lesion, not in patients with multiple lesions and, therefore, recommend ALPPS for this group [28].
A novel procedure to increase FLR is hepatic vein embolization in combination with PVE [39], which shows promising results for FLR hypertrophy compared to ALPPS [39,40,41]. Even for extended resection, the embolization of the right and middle hepatic vein is described [42]. The role of hepatic vein embolization for iCCA needs to be investigated, but seems to be a promising tool for future resection strategies [43].
It is noteworthy that we had a 0% mortality rate after our ante situm resections. The experience with ante situm resections for iCCA is limited; mostly case reports or case series are available [17,19,21,44,45]. Without doubt, the surgical procedure is challenging due to the use of an extracorporeal bypass, in situ cold perfusion and complex vascular reconstruction of the IVC and hepatic veins. However, ante situm resection offers a reasonable chance of good, long-term outcome. One may speculate that in some circumstances, ante situm or in situ resections after cold perfusion with the aim of parenchymal-sparing might be superior to complicated long-lasting two-stage procedures.
Patients with unresectable tumors have a poor prognosis [10]. During exploration, 30% of the patients that were preoperatively considered as resectable were found to be unresectable [11]. In our cohort, the survival of the exploration group was 50% at 12 months and 0% at 28 months. Surprisingly, a high 90-day mortality rate of 25% was observed in this group. This is most likely due to the fast tumor progression, which highlights the aggressiveness of iCCA. In addition, for large central iCCA, reconstruction of the bile duct is necessary, because of liver hilum involvement. In those patients, a differentiation between iCCA or perihilar cholangiocarcinoma is often challenging.
In the current study, we found no significant difference in overall survival between patients after complex and after conventional liver resections. Survival in our study depends more on resection margin status and UICC staging and not on the complexity of the resection. This is in accordance with the published data [9,10]. High UICC staging, large or multifocal tumors and vascular invasion are reported to be negative prognostic parameters in iCCA patients [12,16,46,47].
In conclusion, the effort of complex resections, such as ante situm, ALPPS, and extended resections with reconstructions of one or several hepatic vessels, is justified and results in favorable long-term outcome. Overall survival in iCCA seems to be affected by UICC stage and resections margins and not by the complexity of the surgical procedure.
Author Contributions
Conceptualization, T.R. and K.J.O.; methodology, T.R.; data curation, G.P. and B.A.B.; writing—original draft preparation, T.R. and K.J.O.; writing—review and editing, K.C.W. and Y.v.R.; supervision, K.J.O.; All authors have read and agreed to the published version of the manuscript.
Funding
No grants or financial support were received for this study.
Institutional Review Board Statement
The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Von Hahn, T.; Ciesek, S.; Wegener, G.; Plentz, R.R.; Weismüller, T.J.; Wedemeyer, H.; Manns, M.P.; Greten, T.F.; Malek, N.P. Epidemiological Trends in Incidence and Mortality of Hepatobiliary Cancers in Germany. Scand. J. Gastroenterol. 2011, 46, 1092–1098. [Google Scholar] [CrossRef] [PubMed]
- Khan, S.A.; Emadossadaty, S.; Ladep, N.G.; Thomas, H.C.; Elliott, P.; Taylor-Robinson, S.D.; Toledano, M.B. Rising Trends in Cholangiocarcinoma: Is the ICD Classification System Misleading Us? J. Hepatol. 2012, 56, 848–854. [Google Scholar] [CrossRef] [PubMed]
- Altekruse, S.F.; Petrick, J.L.; Rolin, A.I.; Cuccinelli, J.E.; Zou, Z.; Tatalovich, Z.; McGlynn, K.A. Geographic Variation of Intrahepatic Cholangiocarcinoma, Extrahepatic Cholangiocarcinoma, and Hepatocellular Carcinoma in the United States. PLoS ONE 2015, 10, e0120574. [Google Scholar] [CrossRef] [PubMed]
- Bertuccio, P.; Malvezzi, M.; Carioli, G.; Hashim, D.; Boffetta, P.; El-Serag, H.B.; La Vecchia, C.; Negri, E. Global Trends in Mortality from Intrahepatic and Extrahepatic Cholangiocarcinoma. J. Hepatol. 2019, 71, 104–114. [Google Scholar] [CrossRef] [PubMed]
- Fostea, R.M.; Fontana, E.; Torga, G.; Arkenau, H.-T. Recent Progress in the Systemic Treatment of Advanced/Metastatic Cholangiocarcinoma. Cancers 2020, 12, 2599. [Google Scholar] [CrossRef] [PubMed]
- Amini, N.; Ejaz, A.; Spolverato, G.; Kim, Y.; Herman, J.M.; Pawlik, T.M. Temporal Trends in Liver-Directed Therapy of Patients with Intrahepatic Cholangiocarcinoma in the United States: A Population-Based Analysis. J. Surg. Oncol. 2014, 110, 163–170. [Google Scholar] [CrossRef] [PubMed]
- Edeline, J.; Benabdelghani, M.; Bertaut, A.; Watelet, J.; Hammel, P.; Joly, J.-P.; Boudjema, K.; Fartoux, L.; Bouhier-Leporrier, K.; Jouve, J.-L.; et al. Gemcitabine and Oxaliplatin Chemotherapy or Surveillance in Resected Biliary Tract Cancer (PRODIGE 12-ACCORD 18-UNICANCER GI): A Randomized Phase III Study. J. Clin. Oncol. Off. J. Am. Soc. Clin. Oncol. 2019, 37, 658–667. [Google Scholar] [CrossRef]
- Rizzo, A.; Brandi, G. Pitfalls, Challenges, and Updates in Adjuvant Systemic Treatment for Resected Biliary Tract Cancer. Expert Rev. Gastroenterol. Hepatol. 2021, 1–8. [Google Scholar] [CrossRef]
- Beal, E.W.; Cloyd, J.M.; Pawlik, T.M. Surgical Treatment of Intrahepatic Cholangiocarcinoma: Current and Emerging Principles. J. Clin. Med. 2020, 10, 104. [Google Scholar] [CrossRef]
- Mazzaferro, V.; Gorgen, A.; Roayaie, S.; Droz dit Busset, M.; Sapisochin, G. Liver Resection and Transplantation for Intrahepatic Cholangiocarcinoma. J. Hepatol. 2020, 72, 364–377. [Google Scholar] [CrossRef] [Green Version]
- Endo, I.; Gonen, M.; Yopp, A.C.; Dalal, K.M.; Zhou, Q.; Klimstra, D.; D’Angelica, M.; DeMatteo, R.P.; Fong, Y.; Schwartz, L.; et al. Intrahepatic Cholangiocarcinoma: Rising Frequency, Improved Survival, and Determinants of Outcome After Resection. Ann. Surg. 2008, 248, 84–96. [Google Scholar] [CrossRef]
- Machairas, N.; Lang, H.; Jayant, K.; Raptis, D.A.; Sotiropoulos, G.C. Intrahepatic Cholangiocarcinoma: Limitations for Resectability, Current Surgical Concepts and Future Perspectives. Eur. J. Surg. Oncol. 2020, 46, 740–746. [Google Scholar] [CrossRef]
- Tan, J.C.C.; Coburn, N.G.; Baxter, N.N.; Kiss, A.; Law, C.H.L. Surgical Management of Intrahepatic Cholangiocarcinoma-A Population-Based Study. Ann. Surg. Oncol. 2008, 15, 600–608. [Google Scholar] [CrossRef]
- Lurje, G.; Bednarsch, J.; Roderburg, C.; Trautwein, C.; Neumann, U.P. Intrahepatic cholangiocarcinoma-current perspectives and treatment algorithm. Chir. Z. Gebiete Oper. Medizen 2018, 89, 858–864. [Google Scholar] [CrossRef]
- De Jong, M.C.; Nathan, H.; Sotiropoulos, G.C.; Paul, A.; Alexandrescu, S.; Marques, H.; Pulitano, C.; Barroso, E.; Clary, B.M.; Aldrighetti, L.; et al. Intrahepatic Cholangiocarcinoma: An International Multi-Institutional Analysis of Prognostic Factors and Lymph Node Assessment. J. Clin. Oncol. 2011, 29, 3140–3145. [Google Scholar] [CrossRef] [Green Version]
- Doussot, A.; Gonen, M.; Wiggers, J.K.; Groot-Koerkamp, B.; DeMatteo, R.P.; Fuks, D.; Allen, P.J.; Farges, O.; Kingham, T.P.; Regimbeau, J.M.; et al. Recurrence Patterns and Disease-Free Survival after Resection of Intrahepatic Cholangiocarcinoma: Preoperative and Postoperative Prognostic Models. J. Am. Coll. Surg. 2016, 223, 493–505.e2. [Google Scholar] [CrossRef] [Green Version]
- Oldhafer, F.; Ringe, K.I.; Timrott, K.; Kleine, M.; Beetz, O.; Ramackers, W.; Cammann, S.; Klempnauer, J.; Vondran, F.W.R.; Bektas, H. Modified Ante Situm Liver Resection without Use of Cold Perfusion nor Veno-Venous Bypass for Treatment of Hepatic Lesions Infiltrating the Hepatocaval Confluence. Langenbecks Arch. Surg. 2018, 403, 379–386. [Google Scholar] [CrossRef]
- Oldhafer, K.J.; Lang, H.; Malagó, M.; Testa, G.; Broelsch, C.E. Ex situ Resektion und Resektion an der in situ perfundierten Leber–Gibt es noch Indikationen? Der Chirurg 2001, 72, 131–137. [Google Scholar] [CrossRef]
- Lang, H.; Sotiropoulos, G.C.; Sgourakis, G.; Schmitz, K.J.; Paul, A.; Hilgard, P.; Zöpf, T.; Trarbach, T.; Malagó, M.; Baba, H.A.; et al. Operations for Intrahepatic Cholangiocarcinoma: Single-Institution Experience of 158 Patients. J. Am. Coll. Surg. 2009, 208, 218–228. [Google Scholar] [CrossRef]
- Fard-Aghaie, M.H.; Kantas, A.; Makridis, G.; Reese, T.; Wagner, K.C.; Oldhafer, K.J. Critical Appraisal of the Modified Ante Situm Liver Resection: Is the Original Method the Better Choice? Langenbecks Arch. Surg. 2019, 404, 647. [Google Scholar] [CrossRef] [Green Version]
- Machado, M.A.; Bacchella, T.; Makdissi, F.F.; Surjan, R.T.; Machado, M.C. Extended Left Trisectionectomy Severing All Hepatic Veins Preserving Segment 6 and Inferior Right Hepatic Vein. Eur. J. Surg. Oncol. EJSO 2008, 34, 247–251. [Google Scholar] [CrossRef]
- Reames, B.N.; Ejaz, A.; Koerkamp, B.G.; Alexandrescu, S.; Marques, H.P.; Aldrighetti, L.; Maithel, S.K.; Pulitano, C.; Bauer, T.W.; Shen, F.; et al. Impact of Major Vascular Resection on Outcomes and Survival in Patients with Intrahepatic Cholangiocarcinoma: A Multi-Institutional Analysis. J. Surg. Oncol. 2017, 116, 133–139. [Google Scholar] [CrossRef]
- Conci, S.; Viganò, L.; Ercolani, G.; Gonzalez, E.; Ruzzenente, A.; Isa, G.; Salaris, C.; Fontana, A.; Bagante, F.; Pedrazzani, C.; et al. Outcomes of Vascular Resection Associated with Curative Intent Hepatectomy for Intrahepatic Cholangiocarcinoma. Eur. J. Surg. Oncol. J. Eur. Soc. Surg. Oncol. Br. Assoc. Surg. Oncol. 2020, 46, 1727–1733. [Google Scholar] [CrossRef]
- Bartsch, F.; Tripke, V.; Baumgart, J.; Hoppe-Lotichius, M.; Heinrich, S.; Lang, H. Extended Resection of Intrahepatic Cholangiocarcinoma: A Retrospective Single-Center Cohort Study. Int. J. Surg. 2019, 67, 62–69. [Google Scholar] [CrossRef]
- Jonas, S.; Thelen, A.; Benckert, C.; Biskup, W.; Neumann, U.; Rudolph, B.; Lopez-Häänninen, E.; Neuhaus, P. Extended Liver Resection for Intrahepatic Cholangiocarcinoma: A Comparison of the Prognostic Accuracy of the Fifth and Sixth Editions of the TNM Classification. Ann. Surg. 2009, 249, 303–309. [Google Scholar] [CrossRef]
- Zhang, X.-F.; Bagante, F.; Chakedis, J.; Moris, D.; Beal, E.W.; Weiss, M.; Popescu, I.; Marques, H.P.; Aldrighetti, L.; Maithel, S.K.; et al. Perioperative and Long-Term Outcome for Intrahepatic Cholangiocarcinoma: Impact of Major Versus Minor Hepatectomy. J. Gastrointest. Surg. Off. J. Soc. Surg. Aliment. Tract 2017, 21, 1841–1850. [Google Scholar] [CrossRef]
- Nagino, M.; Kamiya, J.; Nishio, H.; Ebata, T.; Arai, T.; Nimura, Y. Two Hundred Forty Consecutive Portal Vein Embolizations Before Extended Hepatectomy for Biliary Cancer: Surgical Outcome and Long-Term Follow-Up. Ann. Surg. 2006, 243, 364–372. [Google Scholar] [CrossRef]
- Li, J.; Moustafa, M.; Linecker, M.; Lurje, G.; Capobianco, I.; Baumgart, J.; Ratti, F.; Rauchfuss, F.; Balci, D.; Fernandes, E.; et al. ALPPS for Locally Advanced Intrahepatic Cholangiocarcinoma: Did Aggressive Surgery Lead to the Oncological Benefit? An International Multi-Center Study. Ann. Surg. Oncol. 2020, 27, 1372–1384. [Google Scholar] [CrossRef] [Green Version]
- Lang, H.; de Santibañes, E.; Schlitt, H.J.; Malagó, M.; van Gulik, T.; Machado, M.A.; Jovine, E.; Heinrich, S.; Ettorre, G.M.; Chan, A.; et al. 10th Anniversary of ALPPS—Lessons Learned and Quo Vadis. Ann. Surg. 2019, 269, 114–119. [Google Scholar] [CrossRef] [Green Version]
- Linecker, M.; Björnsson, B.; Stavrou, G.A.; Oldhafer, K.J.; Lurje, G.; Neumann, U.; Adam, R.; Pruvot, F.-R.; Topp, S.A.; Li, J.; et al. Risk Adjustment in ALPPS Is Associated with a Dramatic Decrease in Early Mortality and Morbidity. Ann. Surg. 2017, 266, 779–786. [Google Scholar] [CrossRef] [Green Version]
- Clavien, P.A.; Barkun, J.; de Oliveira, M.L.; Vauthey, J.N.; Dindo, D.; Schulick, R.D.; de Santibañes, E.; Pekolj, J.; Slankamenac, K.; Bassi, C.; et al. The Clavien-Dindo Classification of Surgical Complications: Five-Year Experience. Ann. Surg. 2009, 250, 187–196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Slankamenac, K.; Graf, R.; Barkun, J.; Puhan, M.A.; Clavien, P.-A. The Comprehensive Complication Index: A Novel Continuous Scale to Measure Surgical Morbidity. Ann. Surg. 2013, 258, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Charlson, M.E.; Pompei, P.; Ales, K.L.; MacKenzie, C.R. A New Method of Classifying Prognostic Comorbidity in Longitudinal Studies: Development and Validation. J. Chronic Dis. 1987, 40, 373–383. [Google Scholar] [CrossRef]
- Strasberg, S.M.; Belghiti, J.; Clavien, P.-A.; Gadzijev, E.; Garden, J.O.; Lau, W.-Y.; Makuuchi, M.; Strong, R.W. The Brisbane 2000 Terminology of Liver Anatomy and Resections. HPB 2000, 2, 333–339. [Google Scholar] [CrossRef]
- Rahbari, N.N.; Garden, O.J.; Padbury, R.; Brooke-Smith, M.; Crawford, M.; Adam, R.; Koch, M.; Makuuchi, M.; Dematteo, R.P.; Christophi, C.; et al. Posthepatectomy Liver Failure: A Definition and Grading by the International Study Group of Liver Surgery (ISGLS). Surgery 2011, 149, 713–724. [Google Scholar] [CrossRef]
- Farid, S.G.; White, A.; Khan, N.; Toogood, G.J.; Prasad, K.R.; Lodge, J.P.A. Clinical Outcomes of Left Hepatic Trisectionectomy for Hepatobiliary Malignancy. Br. J. Surg. 2016, 103, 249–256. [Google Scholar] [CrossRef]
- Kron, P.; Kimura, N.; Farid, S.; Lodge, J.P.A. Current Role of Trisectionectomy for Hepatopancreatobiliary Malignancies. Ann. Gastroenterol. Surg. 2019, 3, 606–619. [Google Scholar] [CrossRef]
- Linecker, M.; Stavrou, G.A.; Oldhafer, K.J.; Jenner, R.M.; Seifert, B.; Lurje, G.; Bednarsch, J.; Neumann, U.; Capobianco, I.; Nadalin, S.; et al. The ALPPS Risk Score: Avoiding Futile Use of ALPPS. Ann. Surg. 2016, 264, 763–771. [Google Scholar] [CrossRef] [Green Version]
- Panaro, F.; Giannone, F.; Riviere, B.; Sgarbura, O.; Cusumano, C.; Deshayes, E.; Navarro, F.; Guiu, B.; Quenet, F. Perioperative Impact of Liver Venous Deprivation Compared with Portal Venous Embolization in Patients Undergoing Right Hepatectomy: Preliminary Results from the Pioneer Center. Hepatobiliary Surg. Nutr. 2019, 8, 329–337. [Google Scholar] [CrossRef]
- Kobayashi, K.; Yamaguchi, T.; Denys, A.; Perron, L.; Halkic, N.; Demartines, N.; Melloul, E. Liver Venous Deprivation Compared to Portal Vein Embolization to Induce Hypertrophy of the Future Liver Remnant before Major Hepatectomy: A Single Center Experience. Surgery 2020, 167, 917–923. [Google Scholar] [CrossRef]
- Deshayes, E.; Schadde, E.; Piron, L.; Quenet, F.; Guiu, B. Extended Liver Venous Deprivation Leads to a Higher Increase in Liver Function That ALPPS in Early Assessment: A Comment to Sparrelid, E. et al. Dynamic Evaluation of Liver Volume and Function in Associating Liver Partition and Portal Vein Ligation for Staged Hepatectomy. J. Gastrointest. Surg. Off. J. Soc. Surg. Aliment. Tract 2017, 21, 1754–1755. [Google Scholar] [CrossRef]
- Guiu, B.; Quenet, F.; Escal, L.; Bibeau, F.; Piron, L.; Rouanet, P.; Fabre, J.-M.; Jacquet, E.; Denys, A.; Kotzki, P.-O.; et al. Extended Liver Venous Deprivation before Major Hepatectomy Induces Marked and Very Rapid Increase in Future Liver Remnant Function. Eur. Radiol. 2017, 27, 3343–3352. [Google Scholar] [CrossRef]
- Heil, J.; Korenblik, R.; Heid, F.; Bechstein, W.O.; Bemelmans, M.; Binkert, C.; Björnsson, B.; Breitenstein, S.; Detry, O.; Dili, A.; et al. Preoperative Portal Vein or Portal and Hepatic Vein Embolization: DRAGON Collaborative Group Analysis. Br. J. Surg. 2021. [Google Scholar] [CrossRef]
- Malde, D.J.; Khan, A.; Prasad, K.R.; Toogood, G.J.; Lodge, J.P.A. Inferior Vena Cava Resection with Hepatectomy: Challenging but Justified. HPB 2011, 13, 802–810. [Google Scholar] [CrossRef] [Green Version]
- Heinrich, S.; Baumgart, J.; Mittler, J.; Lang, H. Vascular reconstruction in hepatic surgery. Chir. Z. Geb. Oper. Medizen 2016, 87, 100–107. [Google Scholar] [CrossRef]
- Spolverato, G.; Ejaz, A.; Kim, Y.; Sotiropoulos, G.C.; Pau, A.; Alexandrescu, S.; Marques, H.; Pulitano, C.; Barroso, E.; Clary, B.M.; et al. Tumor Size Predicts Vascular Invasion and Histologic Grade among Patients Undergoing Resection of Intrahepatic Cholangiocarcinoma. J. Gastrointest. Surg. Off. J. Soc. Surg. Aliment. Tract 2014, 18, 1284–1291. [Google Scholar] [CrossRef]
- Spolverato, G.; Kim, Y.; Alexandrescu, S.; Popescu, I.; Marques, H.P.; Aldrighetti, L.; Clark Gamblin, T.; Miura, J.; Maithel, S.K.; Squires, M.H.; et al. Is Hepatic Resection for Large or Multifocal Intrahepatic Cholangiocarcinoma Justified? Results from a Multi-Institutional Collaboration. Ann. Surg. Oncol. 2015, 22, 2218–2225. [Google Scholar] [CrossRef] [Green Version]
Figure 1.
A 55-year-old female patient with cholangiocarcinoma and nodular metastases (cT2 cN1 cM1 (LYM)) received neoadjuvant chemotherapy with Gemcitabine and Cisplatin. Preoperative CT scan showed a stable disease with tumor in the right liver lobe (A) and infiltration of the right and middle hepatic vein (B). To augment the future liver remnant, a portal vein embolization was carried out prior the planned major hepatectomy. We performed a trisectionectomy (Segment I, IV–VIII) combined with replacement of the inferior vena cava and reinsertion of the left hepatic vein (C), using femoral-axillary bypass and portal hypothermic liver perfusion. A R0-resection was histopathological secured.
Figure 1.
A 55-year-old female patient with cholangiocarcinoma and nodular metastases (cT2 cN1 cM1 (LYM)) received neoadjuvant chemotherapy with Gemcitabine and Cisplatin. Preoperative CT scan showed a stable disease with tumor in the right liver lobe (A) and infiltration of the right and middle hepatic vein (B). To augment the future liver remnant, a portal vein embolization was carried out prior the planned major hepatectomy. We performed a trisectionectomy (Segment I, IV–VIII) combined with replacement of the inferior vena cava and reinsertion of the left hepatic vein (C), using femoral-axillary bypass and portal hypothermic liver perfusion. A R0-resection was histopathological secured.

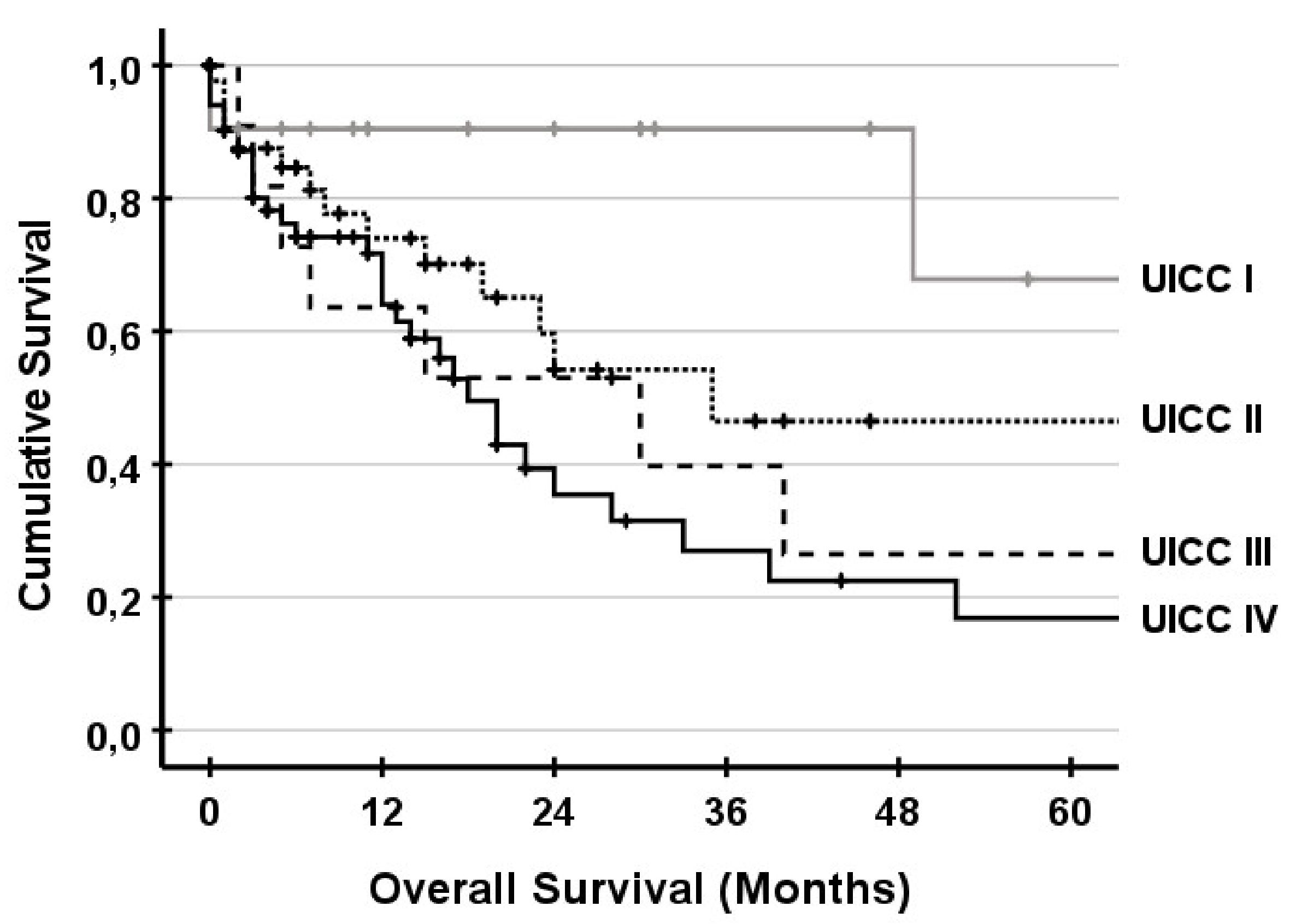

Figure 2.
Survival for UICC stages including all 143 patients. Significance was only seen for UICC stage I compared to stage III (p = 0.031) and stage IV (p = 0.002). Five-year survival for UICC stage I, stage II, stage III and stage IV was 68%, 47%, 27%, and 17%, respectively.
Figure 2.
Survival for UICC stages including all 143 patients. Significance was only seen for UICC stage I compared to stage III (p = 0.031) and stage IV (p = 0.002). Five-year survival for UICC stage I, stage II, stage III and stage IV was 68%, 47%, 27%, and 17%, respectively.

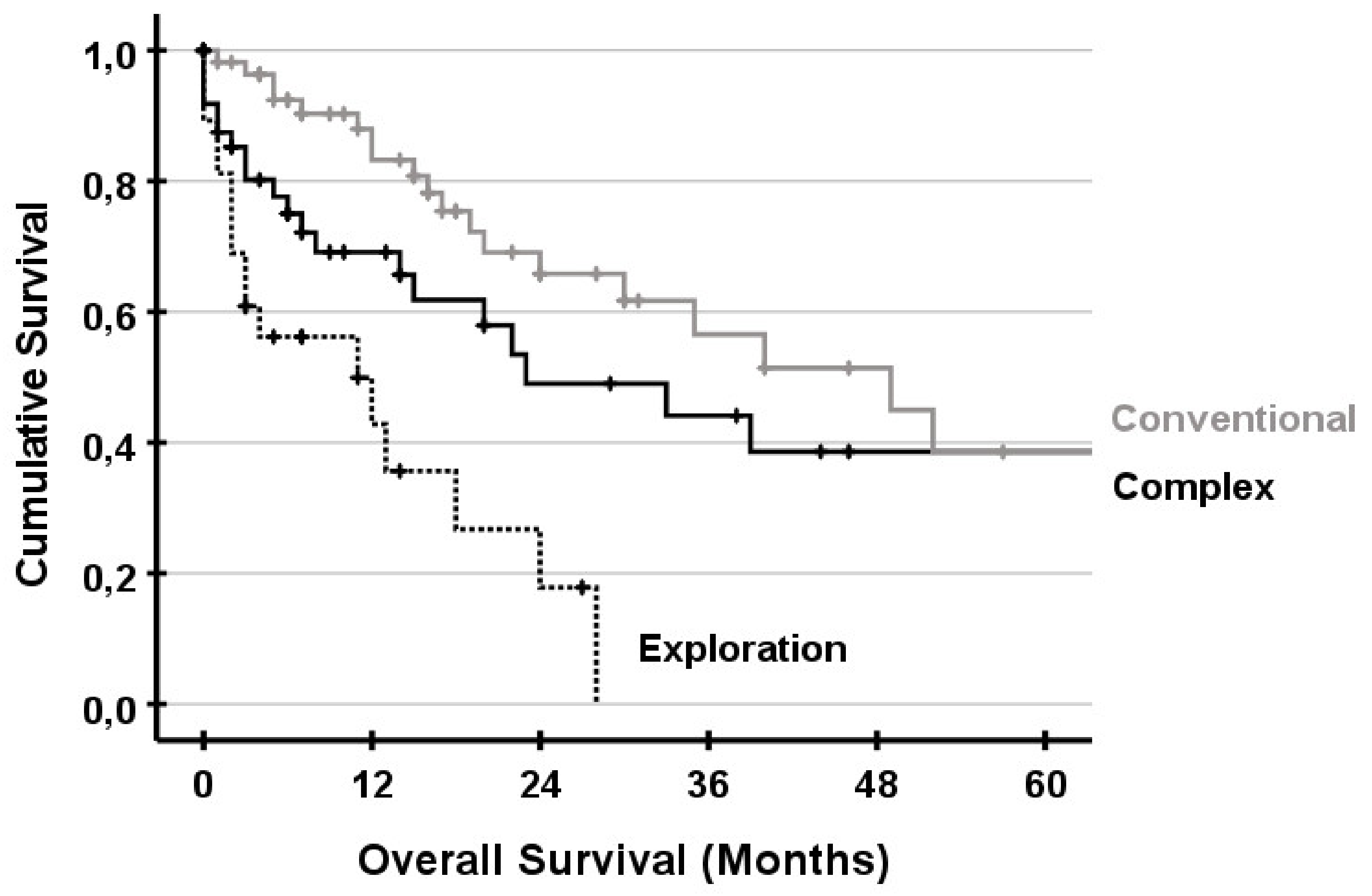

Figure 3.
Overall survival for patients undergoing complex (black) or conventional (grey) liver resection. Exploration (dashed line) indicates patients who were not resectable. For patients receiving a complex liver resection, survival was significantly different compared to the exploration group (p = 0.009), but not to the conventional group (p = 0.129). Survival was also significant (p < 0.001) between the conventional group and exploration.
Figure 3.
Overall survival for patients undergoing complex (black) or conventional (grey) liver resection. Exploration (dashed line) indicates patients who were not resectable. For patients receiving a complex liver resection, survival was significantly different compared to the exploration group (p = 0.009), but not to the conventional group (p = 0.129). Survival was also significant (p < 0.001) between the conventional group and exploration.

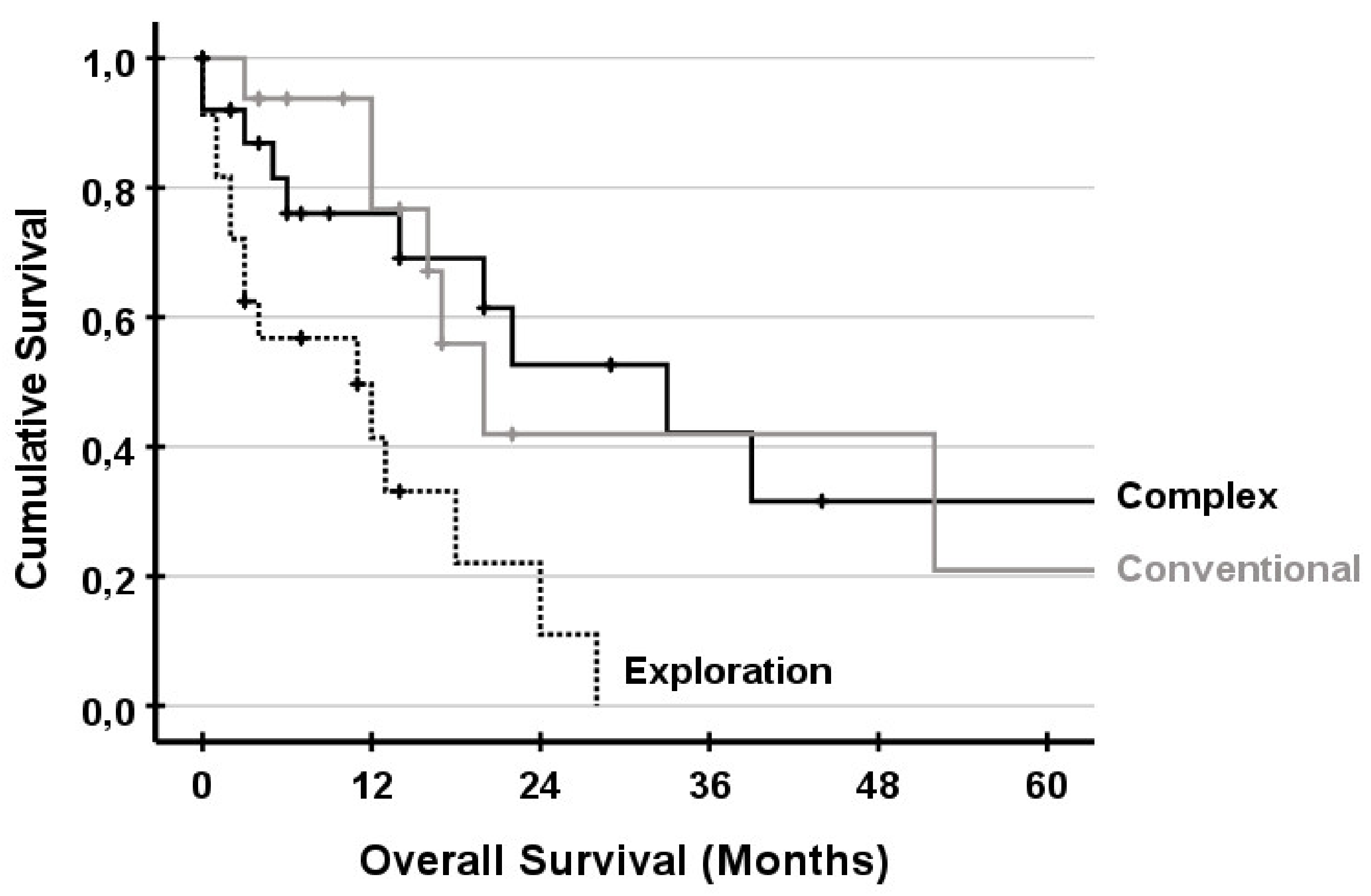

Figure 4.
Survival for patient with UICC stage IV only. No statistical difference between complex and conventional resection was observed (p = 0.771). The survival of exploration was significantly different compared to complex (p = 0.005) and conventional (p = 0.007).
Figure 4.
Survival for patient with UICC stage IV only. No statistical difference between complex and conventional resection was observed (p = 0.771). The survival of exploration was significantly different compared to complex (p = 0.005) and conventional (p = 0.007).
Table 1.
Patient Demographics.
| Complex (n = 49) | Conventional (n = 66) | Exploration (n = 28) | |||||
|---|---|---|---|---|---|---|---|
| Females, n (%) | 23 | (47) | 36 | (55) | 11 | (39) | 0.377 |
| Age, median (IQR) | 70 | (60–75) | 66 | (60–73) | 66 | (57–75) | 0.326 |
| BMI, median (IQR) | 25.9 | (22.9–29.5) | 24.8 | (22.5–28.7) | 25.7 | (23.9–29.1) | 0.931 |
| CKD, n (%) | 6 | (12) | 4 | (6) | 4 | (14) | 0.365 |
| CHD, n (%) | 3 | (6) | 3 | (5) | 4 | (14) | 0.228 |
| Hypertension, n (%) | 68 | (53) | 25 | (38) | 13 | (46) | 0.264 |
| Neoadj. Chemo, n (%) | 6 | (12) | 4 | (6) | 4 | (14) | 0.365 |
| Charlson Com. Index, median (IQR) | 5 | (4–6) | 5 | (4–6) | 7 | (4–8) | 0.582 |
| UICC, n (%) | |||||||
| Stage I | 5 | (10) | 15 | (23) | 1 | (4) | 0.031 |
| Stage II | 13 | (27) | 27 | (41) | 4 | (14) | 0.028 |
| Stage III | 6 | (12) | 5 | (8) | 0 | (0) | 0.152 |
| Stage IV | 25 | (51) | 19 | (29) | 23 | (82) | <0.001 |
Table 2.
Operative details.
| Complex (n = 49) | Conventional (n = 66) | Exploration (n = 28) | |||||
|---|---|---|---|---|---|---|---|
| Operation Time, median (IQR) | 346 | (215–429) | 210 | (161–280) | 132 | (93–165) | <0.001 |
| Hepaticojejunostomy, n (%) | 16 | (33) | 6 | (9) | 3 | (11) | 0.003 |
| Intraop. Transfusions, n (%) | 22 | (47) | 7 | (11) | 2 | (7) | <0.001 |
| Blood loss, median (IQR) | 1000 | (0–1500) | 0 | (0–500) | 0 | (0–0) | <0.001 |
| Pringle-Maneuver, n (%) | 10 | (21) | 15 | (23) | 0 | (0) | 0.022 |
| Resection Margin | |||||||
| R0 | 31 | (63) | 57 | (86) | n/a | 0.004 | |
| R1 | 18 | (37) | 9 | (14) | n/a | - | |
| Lymph Node Status | |||||||
| No lymphadenectomy | 0 | (0) | 11 | (17) | n/a | 0.011 | |
| Negative | 32 | (68) | 40 | (61) | n/a | - | |
| Positive | 15 | (32) | 15 | (23) | n/a | - | |
Table 3.
Ante situm resections for intrahepatic cholangiocarcinoma.
| No. | Age | UICC | Hepatectomy/Bypass | Type of Vascular Reconstruction | OR Time (min) | EKs (n) | Highest Complication /CCI | PHLF /LOS (days) | Resection Margin | Survival Status (Month) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 29 | IVa | Right Trisectionectomy/Femoral-Axillary Bypass/Portal Perfusion with HTK | Resection IVC and reconstruction with interposition of graft reinsertion of left hepatic vein | 624 | 8 | Grade I /8.7 | No /16 | R0 | Dead (33 Months) |
| 2 | 48 | IVa | Left Trisectionectomy/Femoral-Axillary Bypass/Portal Perfusion with HTK | Resection of IVC with Goretex graft, reconstruction of right posterior and right anterior vein with pericardial interposition portal-vein reconstruction end-to-end | 564 | 0 | Grade II /20.9 | No /27 | R0 | Alive (95 Months) |
| 3 | 60 | I | Left Hemi-hepatectomy + Seg. 1/Femoral-Axillary Bypass/Portal Perfusion with HTK | Resection of IVC with Goretex graft, reinsertion of right hepatic vein | 495 | 5 | Grade VIa /69.8 | No /69 | R0 | Alive (10 Months) |
| 4 | 55 | IVa | Right Trisectionectomy/Femoral-Axillary Bypass/Portal Perfusion with HTK (Figure 1) | Resection of IVC with Goretex graft, reinsertion of left hepatic vein, portal-vein reconstruction end-to-end | 470 | 8 | Grade I /8.7 | No /17 | R0 | Alive (8 Months) |
Abbreviations: Union internationale contre le cancer (UICC); histidine-tryptophan-ketoglutarate (HTK); inferior vena cava (IVC); Comprehensive Complication Index (CCI); length of stay (LOS).
Table 4.
Postoperative outcome and complications.
| Complex (n = 49) | Conventional (n = 66) | Exploration (n = 28) | |||||
|---|---|---|---|---|---|---|---|
| Complications, n (%) | |||||||
| None | 7 | (14) | 30 | (46) | 19 | (68) | <0.001 |
| Minor | 20 | (41) | 29 | (44) | 4 | (14) | - |
| Major | 17 | (35) | 7 | (11) | 3 | (11) | - |
| In-hospital death | 5 | (10) | 0 | (0) | 2 | (7) | 0.036 |
| CCI, median (IQR) | 29.6 | (20.9–42.6) | 8.7 | (0–24.2) | 0 | (0–20.9) | <0.001 |
| Bile Leakage, n (%) | 12 | (25) | 8 | (12) | 0 | (0) | 0.010 |
| Bleeding, n (%) | 14 | (29) | 7 | (11) | 3 | (11) | 0.025 |
| Infectious, n (%) | 11 | (22) | 12 | (18) | 0 | (0) | 0.029 |
| PHLF, n (%) | 5 | (10) | 4 | (6) | 2 | (7) | 0.707 |
| Hospital Stay, median (IQR) | 17 | (13–24) | 8 | (7–12) | 8 | (6–11) | <0.001 |
| 90-day Mortality, n (%) | 7 | (14) | 1 | (1) | 7 | (25) | 0.002 |
Table 5.
Multivariate analysis for survival.
| Parameter | HR (95% CI) | p Value |
|---|---|---|
| Gender | ||
| Male | Ref | |
| Female | 1.074 (0.618–1.868) | 0.800 |
| Neoadjuvant Chemotherapy | ||
| Yes | Ref | |
| No | 1.307 (0.567–3.011) | 0.530 |
| Resection | ||
| Conventional | Ref | |
| Complex | 1.219 (0.643–2.309) | 0.544 |
| Exploration | 1.873 (0.775–4.525) | 0.163 |
| Resection Margin | ||
| R0 | Ref | |
| No R0 | 2.964 (1.638–5.363) | <0.001 |
| UICC | ||
| Stage I | Ref | |
| Stage II | 4.160 (1.171–14.780) | 0.028 |
| Stage III | 4.335 (1.107–16.986) | 0.035 |
| Stage IV | 5.329 (1.604–17.705) | 0.006 |
