Review

Retinal Diseases Regulated by Hypoxia—Basic and Clinical Perspectives: A Comprehensive Review

by
Ari Shinojima
1,2,
Deokho Lee
1,2,
Kazuo Tsubota
2,3,
Kazuno Negishi
2 and
Toshihide Kurihara
1,2,*
1
Laboratory of Photobiology, Keio University School of Medicine, Tokyo 160-8582, Japan
2
Department of Ophthalmology, Keio University School of Medicine, Tokyo 160-8582, Japan
3
Tsubota Laboratory, Inc., Tokyo 160-0016, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(23), 5496; https://doi.org/10.3390/jcm10235496
Submission received: 26 October 2021 / Revised: 8 November 2021 / Accepted: 19 November 2021 / Published: 24 November 2021
(This article belongs to the Special Issue Management of Vitreoretinal Disease and Endophthalmitis)
Browse Figures
Versions Notes

Abstract

:
In recent years, the number of patients with age-related macular degeneration (AMD) is increasing worldwide along with increased life expectancy. Currently, the standard treatment for wet-AMD is intravitreal injection of anti-vascular endothelial growth factor (VEGF) drugs. The upstream of VEGF is hypoxia-inducible factor (HIF), a master regulator of hypoxia-responsive genes responsive to acute and chronic hypoxia. HIF activation induces various pathological pro-angiogenic gene expressions including VEGF under retinal hypoxia, ultimately leading to the development of ocular ischemic neovascular diseases. In this regard, HIF is considered as a promising therapeutic target in ocular ischemic diseases. In clinical ophthalmology, abnormal hypofluorescent areas have been detected in the late-phase of indocyanine green angiography, which are thought to be lipid deposits at the level of Bruch’s membrane to choriocapillaris in vitreoretinal diseases. These deposits may interfere with the oxygen and nutrients that should be supplied to the retinal pigment epithelium, and that HIF/VEGF is highly suspected to be expressed in the hypoxic retinal pigment epithelium, leading to neovascularization. In this review, we comprehensively summarize pathophysiology of AMD-related ocular diseases with the HIF/VEGF pathway from basic and clinic researches with recent findings.

1. Introduction

Most living things on earth use oxygen to carry out their life activities. Animals have two major systems that supply oxygen systemically. One is the system of hematopoiesis, which produces the red blood cells which carry oxygen, and the other is the vascular system, which serves as its pathway. The mechanism that protects cells and individuals from the disruption of these systems, i.e., anemia and/or ischemia, is the hypoxic response [1].
When cells are hypoxic, they use the hypoxic response to increase the number of red blood cells that transport oxygen, i.e., hematopoiesis, and the number of blood vessels, i.e., angiogenesis. In addition, they switch energy metabolism to anaerobic metabolism that does not use mitochondria, i.e., metabolic conversion [1].
In 1992, a molecule that is required for cells to increase the hematopoietic factor erythropoietin under hypoxic conditions was discovered and named hypoxia-inducible factor 1 (HIF-1) [2]. It was later discovered that HIF is a master regulator of hypoxia response, controlling not only erythropoietin but also hundreds of genes involved in angiogenesis and metabolic conversion, such as vascular endothelial growth factor (VEGF) [3].
However, abnormalities in the hypoxic response have been found to be a potential factor in a variety of disease formations. In the first part of this review, we introduce the VHL protein (pVHL) encoded by the VHL tumor suppressor gene, which is part of the ubiquitin ligase complex that is essential for the specific degradation of HIF, in the context of the actual clinical findings of Von Hippel-Lindau (VHL) disease [4]. The following chapters describe the types and roles of HIFs and the expressions of HIF and VEGF in the eye, especially in the retina.
The number of patients with age-related macular degeneration (AMD) has been increasing worldwide due to the recent increase in life expectancy [5]. The standard treatment for patients with exudative AMD is intraocular injection of anti-VEGF drugs [6,7]. Upstream of VEGF is HIF, and activation of HIF induces expression of various pathological angiogenic genes, including VEGF, in the hypoxic retina, ultimately leading to the development of ocular ischemic neovascular diseases [1]. Since HIF is a promising therapeutic target for ocular ischemic diseases, this manuscript includes a chapter on the potential of HIF inhibitors.
In clinical ophthalmology, abnormal hypofluorescent areas are detected in the late phase of indocyanine green angiography in vitreoretinal disease such as AMD [8] or central serous chorioretinopathy (CSC) [9], which are thought to be lipid deposits at the level of Bruch’s membrane to choriocapillaris [9]. These deposits may interfere with the oxygen and nutrients that should be supplied to the retinal pigment epithelium (RPE), and it is strongly suspected that HIF/VEGF is expressed in hypoxic RPE, leading to the formation of neovascularization. Therefore, the actual clinical findings of AMD and CSC will also be presented. The later part of the review also describes pachychoroid neovasculopathy, summarizes the relationship between VEGF and the choroid, and presents actual clinical findings on the background of neovascularization.
Although the underlying causes of choroidal neovascularization (CNV) are complex and multifactorial [10], this review provides a comprehensive description of the pathogenesis of AMD-related ocular diseases involving the HIF/VEGF pathway, including the latest findings from basic and clinical studies. In this review, Pubmed, Japan Medical Abstracts Society, and Google were used to search references.

2. Hypoxia-Inducible Factors (HIFs) and Von Hippel-Lindau Disease

VHL disease is a familial cancer syndrome that is dominantly autosomal inherited. The VHL gene was elucidated as VHL tumor suppressor gene by Latif et al. in 1993 [11]. Hemangioblastomas are the most frequent manifestation of VHL disease. Seventy percent of patients with VHL disease have retinal angiomas, and ocular lesions often precede the development of central nervous system and visceral lesions [12]. Mutations of VHL tumor suppressor gene are responsible for the development of a variety of tumors including clear cell renal cell carcinoma (RCC), pheochromocytomas, endolymphatic sac tumors, and pancreatic cysts [13], even though only loss of VHL tumor suppressor gene is not enough to induce RCC [14].
Under normal oxygen tension, HIF-1α is negatively regulated by proteasomal degradation and ubiquitination in a pathway involving VHL protein (pVHL) encoded by VHL gene with one of the recognized components of an E3 ubiquitin protein ligase [4]. As HIF-1α has various roles (metabolisms, angiogenesis, and anti- and pro-apoptosis), dysfunction of VHL can induce severe damages in tissues including the eye. The complications of ocular symptoms of dysfunction of VHL are subretinal and intravitreal hemorrhage, and progressive fibrovascular proliferation results in tractional detachment [12]. Figure 1 shows the anterior segment of the eye of VHL disease with retinal detachment.

3. Types and Roles of HIFs

In 1992, Dr. Semenza and Dr. Wang at Johns Hopkins University discovered a molecule that is necessary for the transcriptional activation of the erythropoietin (EPO) gene under hypoxic conditions in a liver cancer cell line (Hep3B), and named it HIF-1 [2,15]. After that, HIFs have become a master regulator of the hypoxic response, controlling not only EPO but also hundreds of genes involved in angiogenesis and metabolic conversions, such as VEGF, glucose transporter-1 (GLUT-1), pyruvate dehydrogenase kinase-1 (PDK1), BCL2/adenovirus E1B 19kDa interacting protein-3 (BNIP3), and carbonic anhydrase IX (CA9) [3]. In mammals, in addition to HIF-1α, HIF-2α and HIF-3α are known to exist. These HIFs also have basic helix-loop-helix DNA binding proteins of the PER-ARNT-SIM family (bHLH-PAS) [16]. HIF-2α shares 48 percent sequence identity with HIF-1α [17]. Figure 2 shows structure of HIF-1α and HIF-1β.
HIF-2α mRNA is abundantly expressed in organs such as the lungs, heart, and liver under normoxic conditions, while HIF-1α mRNA is ubiquitously expressed albeit at a much lower level [18]. Under normoxic conditions, HIF-αs subunits are continuously transcribed and translated. However, when sufficient oxygen concentration is available, the HIF-αs subunits are degraded by the proteasome. A family of prolyl 1-4 hydroxylases (PHD1-4), most prominently PHD2, hydroxylates the oxygen-sensitive α-subunits [19,20,21,22].
Under hypoxic conditions, HIF-αs subunits are no longer polyubiquitylated as functions of PHD and VHL proteins are suppressed by a lack of oxygen. As a result, stabilization of HIF-αs occurs, and stabilized HIF-αs go into nucleus, dimerizes with HIF-1β, and activates hypoxia-responsive gene expressions including VEGF, PDK1, BNIP3, EPO, GLUT-1, and CA9. Lots of genes are involved in pathological angiogenesis, pro- and anti-apoptosis, and metabolic regulations (Figure 3).
In the eye, HIF-1α/SDF-1 pathway and HIF-1α/VEGF pathway have been nominated to induce CNV caused by ocular hypoxia [23]. The relationship between HIF-αs, VEGF and CNV will be discussed in detail in another section.

4. Expressions of HIF and VEGF in the Retina

HIFs are not degraded under hypoxia, and HIFs regulate angiogenesis with promoting VEGF and EPO expressions [24,25]. Flamme et al. reported that the upregulation of HIF-2α mRNA in hemangioblastoma, a highly vascularized tumor of the central nervous system, highly correlates with the expression of VEGF in the stromal cells of these tumors [26]. HIFs also regulate the expression of more than 800 genes that are necessary for cells and tissues to survive under hypoxia, including cell proliferation, metabolism, and immunity [27].
The mouse retina is often used to study physiological neovascularization because, unlike the human retina, retinal blood vessels begin to expand after birth. Based on in situ hybridization data on the expression of Vegf in the inner layer of the mouse retina, its expression was strongly observed in vascular-free areas and the reduced expression was seen in areas covered by blood vessels [28,29]. We previously generated mice with a retinal neuron specific Hif-1α knock-out using the Cre-loxP system, and found that the number of tip cells located at the tip of the stretched blood vessels in the inner retinal layer and the number of filopodia stretched by tip cells were reduced, resulting in a delay in the stretching of retinal blood vessels [30,31]. Furthermore, knock-out of Hif-1α specifically in neurons (amacrine cells and horizontal cells) in the mid-retina has been found to result in a sparse vascular bed in the mid-retinal region [32]. On the other hand, astrocyte (a type of glial cell) specific knock-out of Vegf, Hif-1α and Hif-2α, which line blood vessels in the inner retinal layer, did not change the development of retinal blood vessels [33]. Therefore, the induction of VEGF expression properly in vascular-free areas via HIF, mainly by hypoxic response in neurons, is important in the process of physiological retinal vascular development.
Retinal blood vessels radiate from the optic nerve disc are distributed along the axons of retinal ganglion cells. During the process of building up our body, the blood vessels spread from the proximal end towards the hypoxic area at the distal end. In the premature fundus of low-birth-weight infant, we can observe the process of retinal blood vessel extension in the direction of the vascular-free field at the periphery of the retina. This also shows that the HIFs/VEGF pathway plays an important role in this physiological process of retinal vessel development.

5. Retinal Diseases and Anti-VEGF Drugs

As of 2021, in Japan, anti-VEGF drugs are administered intravitreally for AMD with subcentral foveal CNV, macular edema associated with retinal vein occlusion, CNV in pathologic myopia, neovascular glaucoma, and retinopathy of prematurity.
Anti-VEGF drug therapy is the current standard of care in the treatment of neovascular AMD associated with CNV. The injection dose for AMD with subcentral CNV is 0.5 mg (0.05 mL) of ranibizumab (recombinant) or 2 mg (0.05 mL) of aflibercept (recombinant) administered intravitreally every month for 3 consecutive months (induction phase). In the maintenance phase, the interval between doses may be adjusted according to the symptoms, but the interval should be at least one month. Aflibercept is usually administered intravitreally once every two months in the maintenance phase [6,7]. For macular edema associated with retinal vein occlusion or diabetes or CNV in pathologic myopia, ranibizumab at a dose of 0.5 mg (0.05 mL) or aflibercept at a dose of 2 mg (0.05 mL) per dose should be administered intravitreally, with an interval of at least 1 month. In the case of aflibercept injection for diabetic macular edema, 2 mg (0.05 mL) should be administered intravitreally five times consecutively every month, and thereafter, once every two months, with an interval of at least one month depending on symptoms. Ranibizumab, on the other hand, should be administered every month until vision is stabilized. For neovascular glaucoma, a single 2 mg (0.05 mL) dose of aflibercept has been approved for intravitreal administration and, if necessary, re-administration after an interval of at least one month. For retinopathy of prematurity, ranibizumab is administered intravitreally at a dose of 0.2 mg (0.02 mL) once, and may be re-administered, if necessary, but with an interval of at least one month. As shown above, the dosage and the type of anti-VEGF drugs vary slightly depending on the target disease.

6. Potential for HIF Inhibitors

We previously reported that an abnormal increase in HIF expression in retinal tissues can promote pathological angiogenesis and exacerbate these diseases in preclinical experiments [34,35].
As previously mentioned in Chapter 4, anti-VEGF drugs are currently the mainstay of treatment for ocular neovascularization. While patients with neovascular AMD undergoing anti-VEGF therapy have been shown to have worsening geographic atrophy [36], this has not been conclusively shown to be an effect of the treatment itself and may be due to underlying disease progression.
Fallah et al. summarized phase II/III clinical trials of HIF inhibitors in cancer treatment [37]. However, there have been no clinical trials of HIF inhibitors for retinal diseases. HIF inhibitors in natural foods themselves are being studied as follows.
Ibuki et al., discovered several HIF inhibitors through extensive screenings of food ingredients, and found that a diet containing these ingredients was effective in reducing the risk of laser-induced CNV in mice [38,39,40]. Furthermore, treatment of these ingredients/compounds reduced Vegf mRNA expression as well as HIF activation under CoCl2-induced pseudo hypoxic conditions [38,39,40]. Otherwise, Lee et al. found that resveratrol significantly reduced the expression of HIF-1α and VEGF-A in human ARPE19 cells and CNV mouse models by inhibiting the PI3K/AKT/mTOR signaling pathway, which promotes proteasome-mediated degradation of HIF-1α. As a result, CNV volume was found to be reduced [41]. Shoda et al. found that some of 82 water-soluble extracts from marine products inhibited HIF expression and significantly suppressed pathological angiogenesis in the retina by about 65% in a mouse model of oxygen-induced retinopathy, which mimics diabetic retinopathy and retinopathy of prematurity [42]. In addition, angiogenic factors such as Vegf and Epo, which are target genes of HIFs, were also significantly suppressed by the administration of water-soluble fish extracts [42].
Foods or food extracts that inhibit HIF, which shows a significant decrease in the amount of CNV in mice when administered orally are shown in Table 1.
As a non-pharmacological approach, Koo et al., used therapeutic gene editing in a mouse model of CNV to intravitreally inject the CRISPR RNA-induced endonuclease LbCpf1 (from Lachnospiraceae bacterium ND2006) targeting Hif-1α or Vegfa. This reduced the volume of CNV with the same efficiency as aflibercept [43].
Not only marine products, but also mushroom products can significantly inhibit HIF activation. Lee et al., demonstrated that 2-azahypoxanthine (AHX), a fairy chemical from the fungus Lepista sordida [44,45], had an inhibitory effect on HIF activation in retinal cells and suppressed Vegf mRNA upregulation under CoCl2-induced pseudo hypoxic conditions [46]. Moreover, Kunimi et al., reported inhibition of the Hif-1α/Bnip3 pathway has a retinal neuroprotective effect [47,48,49]. Although the clinical study using HIF-inhibitors has not been started, a HIF inhibitor becomes available in the future, it would have the advantage of inhibiting VEGF in addition to retinal protection. Future studies will need to test these hypotheses.

7. Age-Related Macular Degeneration (AMD)

The number of patients with AMD has been on the rise worldwide in recent years as life expectancy increases [5]. The standard treatment for patients with exudative AMD is intraocular injection of anti-VEGF drugs, while HIF is upstream of VEGF. In this section, the relationship between VEGF and HIF will be discussed from actual cases.
The characteristics of dry AMD is the atrophy typically involving the choriocapillaris, RPE, and photoreceptor elements (rods and cones), and it does not involve leakage of the blood or serum. On the other hand, wet AMD characterized by exudative changes including serous or hemorrhagic detachment of RPE and CNV, which lead to leakage and fibrovascular scarring [50]. Rim et al., reported a prospective link between cigarette smoking and subsequent risk of neovascular AMD among Asian men and concluded that a dose-dependent relationship exists between the duration and intensity of smoking and risk of neovascular AMD [51].
Large drusen (>63 μm) are often a precursor of late AMD [52], but eyes without large drusen can also develop CNV [53]. In our actual cases, drusen was seen in both eyes, but CNV appeared only in one eye, causing hemorrhage and exudation, and retinal edema (Figure 4 and Figure 5).

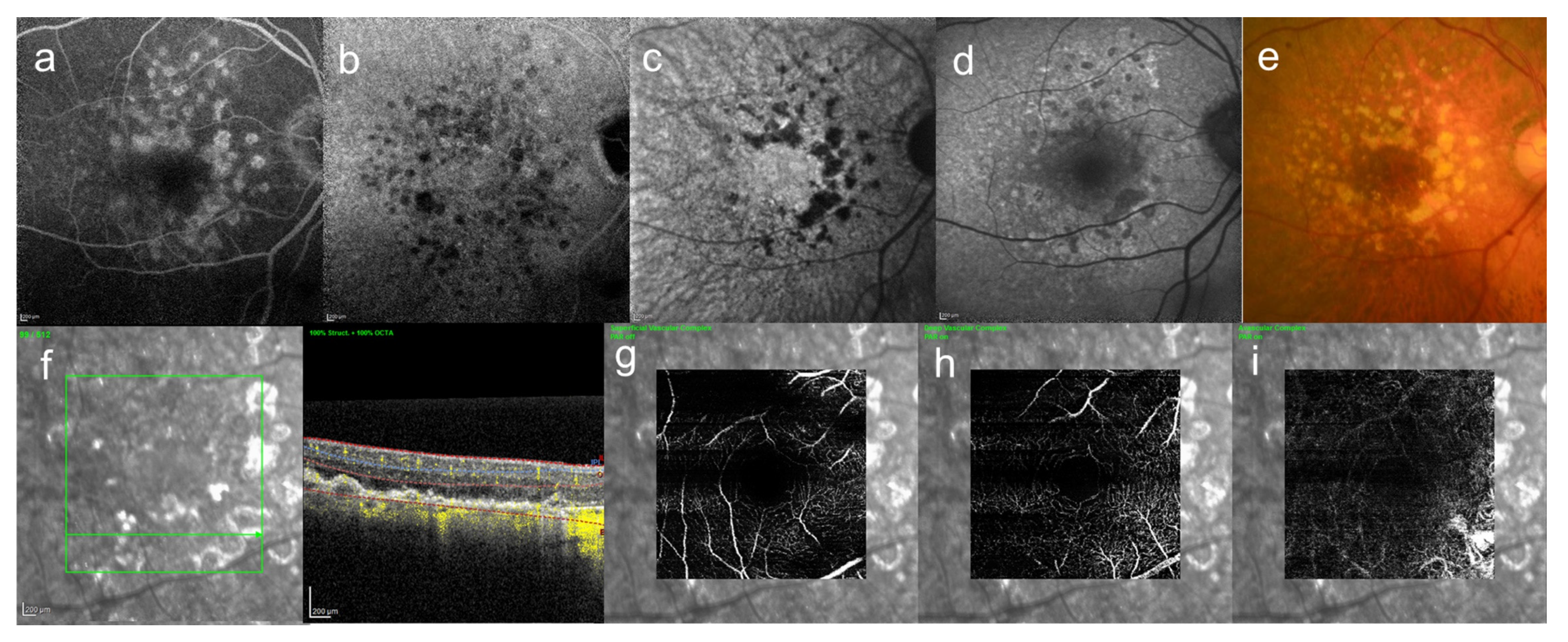

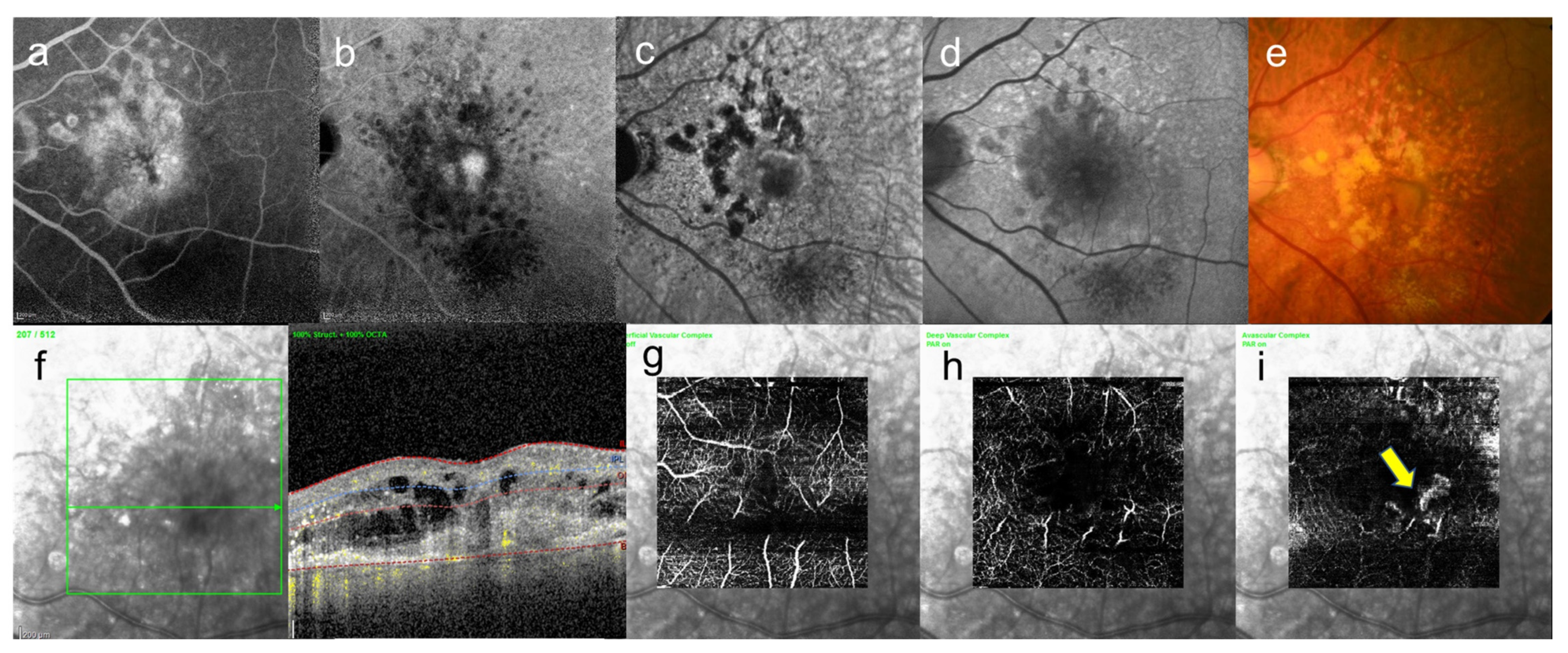

As shown in Figure 4 and Figure 5, drusen are scattered throughout the macula, but there is a significant difference in visual acuity depending on whether neovascularization is present and where it is located.
In 2010, the results of two independent genome-wide association studies (GWASs) identified several new genes associated with advanced AMD status [52,54]. Chen et al. identified a susceptibility locus near TIMP3 (tissue inhibitor of metalloproteinase 3), which is a metalloproteinase involved in degradation of the extracellular matrix and previously implicated in early-onset maculopathy [54]. These studies implicated genes associated with lipid metabolism, specifically the HDL pathway, ABCA1, LIPC, CETP, and LPL [54,55]. Lorés-Motta et al. showed localization of complement-factor-H-related (CFHR) genes in the choriocapillaris and in drusen. Thus, CFHR proteins are key proteins in the AMD disease mechanism. Therapies that modulate CFHR proteins might be effective for treating or preventing progression of AMD. Therefore, not only HIF-targeting therapies, such therapies could target specific individuals with AMD based on their genotypes at the CFH locus [56]. Anti-VEGF therapy is known to effectively improve and maintain vision in most cases of advanced wet AMD [57,58,59], however repeated anti-VEGF injections may increase the risk of ocular and systemic complications [60,61]. Those with extensive intermediate size drusen, at least 1 large drusen, noncentral geographic atrophy in 1 or both eyes, or advanced AMD (photocoagulation or other treatment for CNV, or GA involving the center of the macula, non-drusenoid RPE detachment, serous or hemorrhagic retinal detachment, hemorrhage under the retina or the RPE, and/or subretinal fibrosis) or vision loss due to AMD in 1 eye, and without contraindications such as smoking, should consider taking a supplement of antioxidants plus such as that used in AREDS study [62]. Clinically, it was known that abnormal hypofluorescent lesions are identified in late ICGA findings of AMD [8]. However, AMD can be associated with complex findings such as hemorrhage and neovascularization that block fluorescence. In 2016, Shinojima et al. used Enface OCT to determine where in the fundus the abnormal hypofluorescent areas identified in late ICGA of CSC were localized [9], and found that they were at the level of the Bruch’s membrane to choriocapillaris, and thought to be related to lipid deposition. Lipid deposition from Bruch’s membrane to choriocapillaris suggests that the lesions are hypoxic. The products of lipid peroxidation can accumulate lipofuscin which is a heterogenous protein-lipid-carbohydrate aggregate [63], and reduce activity of RPE autophagy [64].
When the supply of oxygen and nutrients from the choroidal side to the retinal side is inhibited, hypoxia-inducible factors such as HIF-1α appear and generate cytokines such as VEGF, which could cause CNV. Otherwise, it has been speculated that a complex combination of pathological excessiveness of reactive oxygen species and oxidative stress and dysfunctional (insufficient) autophagy pathways in the aged AMD RPE cells results in CNV [10].

8. Central Serous Chorioretinopathy

CSC is characterized by the presence of a serous retinal detachment associated with leakage, RPE alterations and increased choroidal thickness [65,66] The onset of CSC is generally in the 30s–50s and sometimes unilateral, sometimes bilateral [67,68]. Acute CSC is unilateral in most cases. Indeed, at initial presentation, bilateral CSC has been reported in only 5% to 18% of cases [69,70].
Imamura et al. reported that the choroidal thickness in CSC is significantly greater than that in normal eyes using enhanced depth imaging (EDI) of spectral-domain optical coherence tomography (OCT) [71]. Even in many sample sizes, subfoveal choroidal thickness is significantly greater than that in healthy eyes in both acute and chronic CSC [72]. Scleral thickening [73] and asymmetric vortex veins [74] have been reported in recent years as causes of choroidal thickening. Spaide et al. suggested the venous outflow from the choroid may be modulated according to the passage of the vortex veins through the sclera to form a Starling resistor [75].
In clinical practice, it is necessary to speculate the pathology of fundus diseases based on images obtained by autofluorescence, fluorescence angiography (FA) and OCT to consider treatment. As mentioned earlier, in 2016, Shinojima et al. used Enface OCT to determine where the abnormal hypofluorescent areas identified in late-phase ICGA of CSC were localized in the fundus [9]. We found that the areas showing abnormal hypofluorescence in late-phase ICGA correlated with abnormal hyperreflective areas at the level of the choriocapillaris to Bruch’s membrane under the RPE in Enface OCT, and we thought that they were related to lipid deposition. We also confirmed that all CSC and some of their contralateral eyes showed abnormal hypofluorescent areas in late-phase ICGA, and some of the contralateral eyes showed serous retinal detachment during follow-up [76]. Thus, the abnormal hypofluorescent areas seen in late-phase ICGA cannot be ignored in considering the pathogenesis of CSC. We present a representative case in Figure 6.
It is important to note that hypofluorescent area can be seen in late ICGA without necessarily having drusen like AMD, as shown in the color photo in Figure 6.
We hypothesize that lipid deposition at the level of the choriocapillaris to the Bruch’s membrane under the RPE inhibits the supply of oxygen and nutrients from the choroidal side to the retinal side, causing the appearance of hypoxia-inducible factors such as HIF-1α and the generation of cytokines such as VEGF, leading to abnormal morphology of the choriocapillaris [77], which in turn leads to thickening of the choroid in CSC.
The choroid is around 500 µm in some normal healthy eyes [78]. Even if the choroid is thickened, leakage will not occur if the RPE barrier has not been disrupted. Photocoagulation therapy works by sealing the disrupted RPE [79]. About 90% of CSC eyes had complete resolution of the SRD at 12 months after the half-dose verteporfin photodynamic therapy [80]. We reported that when we observed the local abnormal hypofluorescent area over time in the late-phase ICGA, the area expanded with time [81], and that the area decreased after photodynamic therapy [82]. Based on these reports, we believe that improvement of this presumed lipid deposition will improve the pathology. However, CSC is multifactorial. We have recently reported that near-infrared autofluorescence correlates well with the hypofluorescent area of late-phase ICGA [83], and we believe that multimodal imaging will allow us to speculate the pathogenesis in more detail and lead to better treatment.

9. Pachychoroid Neovasculopathy

The term “pachychoroid” means “thickened choroid” [84]. CSC is one of the spectrums of pachychoroid disease. The presence of hypertrophic or congested vessels in the choroid (pachyvessels), under an area of reduced or absent choriocapillaris in the posterior pole, appears to be the typical feature of pachychoroid. As other features, there are ICGA hyperfluorescence, blood-flow signal attenuation within the choriocapillaris and inner choroid by OCT angiography, RPE layer alterations and thinning of the outer nuclear layer, and the presence of pachydrusen [84]. The clinical spectrum of pachychoroid disease may be subdivided as follows: “disorders with exudative changes”, “disorders with neovascularization” and “disorders with atrophic changes” [84].

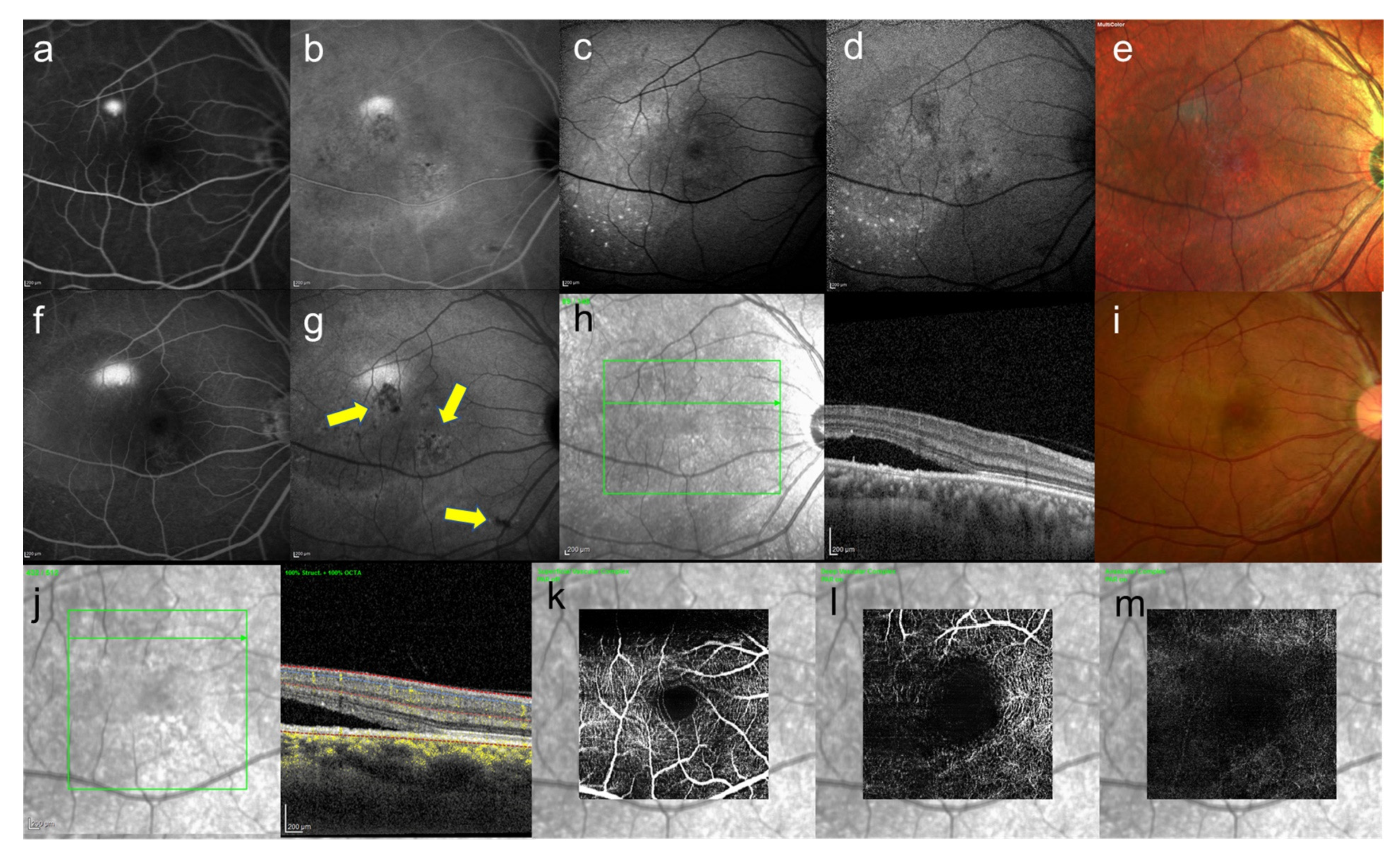

Here, we introduce one case of pachychoroid neovasculopathy which is one of the spectrums pachychoroid disease (Figure 7). In this case, one eye had been followed up as CSC for almost 20 years and the contralateral eye had never appeared serous retinal detachment and had been followed up, hypofluorescent foci in late-phase ICGA (Figure 7b), where there were slight abnormal blood vessels in the area of hypofluorescence of ICGA were confirmed by OCT angiography (Figure 7i).
This is a case in which abnormal blood vessels were not detected by FA or ICGGA, but were detected by OCTA. Although cases of CSC with development of CNV have been reported in the past [85,86], such cases are likely to increase in the future as life expectancy increases.

10. VEGF and the Choroid

VEGF is physiologically secreted from the RPE to maintain choroidal homeostasis [87,88]. Shinojima et al., reported that lipid deposition at the level of the Bruch’s membrane to choriocapillaris can be detected clinically from en-face OCT and ICGA imaging [9,77]. It has been suggested that the thickening of Bruch’s membrane may interfere with this RPE and choriocapillaris paracrine relationship and prevent the passage of VEGF-A partially from the RPE to the choriocapillaris during hypoxia and aging [87,89,90]. This could result in a VEGF imbalance, which could trigger the disease. In autopsies of normal eyes, it was found that the diameter of the choriocapillaris and the thickness of the choroid decreased from 10 to 100 years of age, while the thickness of Bruch’s membrane increased with age [91].
In RPE-specific Vhl knock-out mice, atrophy of photoreceptor and RPE cells and abnormal dilatation of choriocapillaris have been observed [92]. On the other hand, astrocyte- and RPE-specific knock-out of Hif-2α has been found to inhibit pathological angiogenesis in the retina and choroid, respectively, to the same extent as Vegf knock-out [33,34]. Surprisingly, RPE-specific Vegf knock-out mice show atrophy and loss of function in choriocapillaris and cone cells within a few days after gene deletion, whereas both Hif-1α and Hif-2α knock-out mice show no physiological abnormalities [34]. This means that Vegf expression in the steady state is necessary not only for the maintenance of existing blood vessels but also for neuronal activity. If VEGF is suppressed too much, ocular homeostasis balance is collapsed. In fact, during large-scale clinical trials, it has been reported that atrophy of the RPE and photoreceptor cells can be observed after long-term treatment with anti-VEGF therapy [36]. On the other hand, abundant VEGF can cause ocular homeostasis imbalance, which can cause macular neovascularization. Therefore, physiological balance is needed for our healthy ocular homeostasis (Figure 8).
HIF-α is a protein that is degraded under normal oxygen and does not exist after the developmental period, which means that it is not required for retinal homeostasis in the steady state [1]. We assume that HIF may be a more ideal therapeutic target to control pathophysiological hypoxic responses.

11. Conclusions

In this review, we described that HIFs may induce pathological pro-angiogenic gene expressions including VEGF under retinal hypoxia, ultimately leading to the development of ocular ischemic neovascular diseases. If HIFs inhibitors become available in the future, they may have the advantage of inhibiting VEGF in addition to protecting the retina. We also suggested that the HIF/VEGF pathway may need to be considered when looking at pachychoroid spectrum diseases associated with neovascularization. We hope that this review will serve as a bridge between clinical and basic research.

Author Contributions

Conceptualization, A.S. and T.K.; validation, A.S., D.L., K.T., K.N. and T.K.; investigation, A.S., D.L. and T.K.; data curation, A.S. and D.L.; writing—original draft preparation, A.S.; writing—review and editing, A.S., D.L. and T.K.; supervision, K.T., K.N. and T.K.; project administration, K.N. and T.K.; funding acquisition, T.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by Grants-in-Aid for Scientific Research (KAKENHI, number 15K10881, and 18K09424) from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) to T.K.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Ethics Committee of the Keio University School of Medicine (Approval number 20190085/UMIN000038063, 30 September 2019).

Informed Consent Statement

Written informed consent has been obtained from the patients to publish this paper.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to patients’ privacy.

Conflicts of Interest

Outside the submitted work, Kazuo Tsubota reports his position as CEO of Tsubota Laboratory, Inc., Tokyo, Japan, a company producing myopia-related devices. Other authors (A.S., D.L., K.N. and T.K.) declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Kurihara, T. The retina regulated by hypoxia response—The development to the pathophysiology. Ganka Ophthalmol. 2015, 57, 1027–1036. (In Japanese) [Google Scholar]
  2. Semenza, G.L.; Wang, G.L. A nuclear factor induced by hypoxia via de novo protein synthesis binds to the human erythropoietin gene enhancer at a site required for transcriptional activation. Mol. Cell. Biol. 1992, 12, 5447–5454. [Google Scholar] [CrossRef]
  3. Pawlus, M.R.; Hu, C.-J. Enhanceosomes as integrators of hypoxia inducible factor (HIF) and other transcription factors in the hypoxic transcriptional response. Cell Signal. 2013, 25, 1895–1903. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Iwai, K.; Yamanaka, K.; Kamura, T.; Minato, N.; Conaway, R.C.; Conaway, J.; Klausner, R.D.; Pause, A. Identification of the von Hippel-Lindau tumor-suppressor protein as part of an active E3 ubiquitin ligase complex. Proc. Natl. Acad. Sci. USA 1999, 96, 12436–12441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Wong, W.L.; Su, X.; Li, X.; Cheung, C.M.G.; Klein, R.; Cheng, C.Y.; Wong, T.Y. Global prevalence of age-related macular degeneration and disease burden projection for 2020 and 2040: A systematic review and meta-analysis. Lancet Glob. Health 2014, 2, e106–e116. [Google Scholar] [CrossRef] [Green Version]
  6. LUCENTIS® Solution for Intravitreal Injection 10 mg/mL Package Insert. 2019. Ver. 11. Available online: https://www.novartis.co.jp/ (accessed on 26 October 2021).
  7. EYLEA Solution for IVT Inj. 40 mg/mL Package Insert. 2020. Ver. 1. Available online: https://pharma-navi.bayer.jp/eylea/basic-docs (accessed on 26 October 2021).
  8. Mori, K.; Gehlbach, P.L.; Nishiyama, Y.; Deguchi, T.; Yoneya, S. The ultra-late phase of indocyanine green angiography for healthy subjects and patients with age-related macular degeneration. Retina 2002, 22, 309–316. [Google Scholar] [CrossRef]
  9. Shinojima, A.; Fujita, K.; Mori, R.; Kawamura, A.; Yuzawa, M.; Yasukawa, T. Investigation of the Etiology of Central Serous Chorioretinopathy Using En-Face Optical Coherence Tomography and Indocyanine Green Angiography. Ophthalmologica 2016, 236, 100–107. [Google Scholar] [CrossRef]
  10. Nita, M.; Grzybowski, A. Interplay between reactive oxygen species and autophagy in the course of age-related macular degeneration. EXCLI J. 2020, 19, 1353–1371. [Google Scholar] [CrossRef]
  11. Latif, F.; Tory, K.; Gnarra, J.; Yao, M.; Duh, F.-M.; Orcutt, M.L.; Stackhouse, T.; Kuzmin, I.; Modi, W.; Geil, L.; et al. Identification of the von Hippel-Lindau Disease Tumor Suppressor Gene. Science 1993, 260, 1317–1320. [Google Scholar] [CrossRef]
  12. Gorin, M.B. Von Hippel-Lindau Disease: Clinical Considerations and the Use of Fluorescein-Potentiated Argon Laser Therapy for Treatment of Retinal Angiomas. Semin. Ophthalmol. 1992, 7, 182–191. [Google Scholar] [CrossRef] [PubMed]
  13. Neumann, H.P.; Lips, C.J.; Hsia, Y.E.; Zbar, B. Von Hippel-Lindau Syndrome. Brain Pathol. 1995, 5, 181–193. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, S.-S.; Gu, Y.-F.; Wolff, N.; Stefanius, K.; Christie, A.; Dey, A.; Hammer, R.E.; Xie, X.-J.; Rakheja, D.; Pedrosa, I.; et al. Bap1is essential for kidney function and cooperates withVhlin renal tumorigenesis. Proc. Natl. Acad. Sci. USA 2014, 111, 16538–16543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Wang, G.L.; Jiang, B.-H.; Rue, E.A.; Semenza, G.L. Hypoxia-inducible factor 1 is a basic-helix-loop-helix-PAS heterodimer regulated by cellular O2 tension. Proc. Natl. Acad. Sci. USA 1995, 92, 5510–5514. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Dengler, V.L.; Galbraith, M.; Espinosa, J.M. Transcriptional regulation by hypoxia inducible factors. Crit. Rev. Biochem. Mol. Biol. 2014, 49, 1–15. [Google Scholar] [CrossRef] [Green Version]
  17. Tian, H.; McKnight, S.L.; Russell, D. Endothelial PAS domain protein 1 (EPAS1), a transcription factor selectively expressed in endothelial cells. Genes Dev. 1997, 11, 72–82. [Google Scholar] [CrossRef] [Green Version]
  18. Ema, M.; Taya, S.; Yokotani, N.; Sogawa, K.; Matsuda, Y.; Fujii-Kuriyama, Y. A novel bHLH-PAS factor with close sequence similarity to hypoxia-inducible factor 1 regulates the VEGF expression and is potentially involved in lung and vascular development. Proc. Natl. Acad. Sci. USA 1997, 94, 4273–4278. [Google Scholar] [CrossRef] [Green Version]
  19. Berra, E.; Benizri, E.; Ginouvès, A.; Volmat, V.; Roux, D.; Pouysségur, J. HIF prolyl-hydroxylase 2 is the key oxygen sensor setting low steady-state levels of HIF-1 in normoxia. EMBO J. 2003, 22, 4082–4090. [Google Scholar] [CrossRef] [Green Version]
  20. Appelhoff, R.J.; Tian, Y.-M.; Raval, R.R.; Turley, H.; Harris, A.; Pugh, C.; Ratcliffe, P.; Gleadle, J. Differential Function of the Prolyl Hydroxylases PHD1, PHD2, and PHD3 in the Regulation of Hypoxia-inducible Factor. J. Biol. Chem. 2004, 279, 38458–38465. [Google Scholar] [CrossRef] [Green Version]
  21. Landázuri, M.O.; Vara-Vega, A.; Vitón, M.; Cuevas, Y.; del Peso, L. Analysis of HIF-prolyl hydroxylases binding to substrates. Biochem. Biophys. Res. Commun. 2006, 351, 313–320. [Google Scholar] [CrossRef]
  22. Koivunen, P.; Tiainen, P.; Hyvärinen, J.; Williams, K.E.; Sormunen, R.; Klaus, S.J.; Kivirikko, K.I.; Myllyharju, J. An Endoplasmic Reticulum Transmembrane Prolyl 4-Hydroxylase Is Induced by Hypoxia and Acts on Hypoxia-inducible Factor α. J. Biol. Chem. 2007, 282, 30544–30552. [Google Scholar] [CrossRef] [Green Version]
  23. Sehnal, D.; Bittrich, S.; Deshpande, M.; Svobodová, R.; Berka, K.; Bazgier, V.; Velankar, S.; Burley, S.K.; Koča, J.; Rose, A.S. Mol* Viewer: Modern web app for 3D visualization and analysis of large biomolecular structures. Nucleic Acids Res. 2021, 49, W431–W437. [Google Scholar] [CrossRef]
  24. Forsythe, J.A.; Jiang, B.H.; Iyer, N.V.; Agani, F.; Leung, S.W.; Koos, R.D.; Semenza, G.L. Activation of vascular endothelial growth factor gene transcription by hypoxia-inducible factor 1. Mol. Cell. Biol. 1996, 16, 4604–4613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kurihara, T.; Westenskow, P.D.; Friedlander, M. Hypoxia-Inducible Factor (HIF)/Vascular Endothelial Growth Factor (VEGF) Signaling in the Retina. Adv. Exp. Med. Biol. 2014, 801, 275–281. [Google Scholar] [CrossRef] [PubMed]
  26. Flamme, I.; Krieg, M.; Plate, K.H. Up-Regulation of Vascular Endothelial Growth Factor in Stromal Cells of Hemangioblastomas Is Correlated with Up-Regulation of the Transcription Factor HRF/HIF-2α. Am. J. Pathol. 1998, 153, 25–29. [Google Scholar] [CrossRef]
  27. Schödel, J.; Oikonomopoulos, S.; Ragoussis, J.; Pugh, C.W.; Ratcliffe, P.J.; Mole, D.R. High-resolution genome-wide mapping of HIF-binding sites by ChIP-seq. Blood 2011, 117, e207–e217. [Google Scholar] [CrossRef] [Green Version]
  28. Kurihara, T.; Kubota, Y.; Ozawa, Y.; Takubo, K.; Noda, K.; Simon, M.C.; Johnson, R.; Suematsu, M.; Tsubota, K.; Ishida, S.; et al. von Hippel-Lindau protein regulates transition from the fetal to the adult circulatory system in retina. Development 2010, 137, 1563–1571. [Google Scholar] [CrossRef] [Green Version]
  29. Kubota, Y.; Hirashima, M.; Kishi, K.; Stewart, C.L.; Suda, T. Leukemia inhibitory factor regulates microvessel density by modulating oxygen-dependent VEGF expression in mice. J. Clin. Investig. 2008, 118, 2393–2403. [Google Scholar] [CrossRef] [Green Version]
  30. Lang, R.; Lustig, M.; Francois, F.; Sellinger, M.; Plesken, H. Apoptosis during macrophage-dependent ocular tissue remodelling. Development 1994, 120, 3395–3403. [Google Scholar] [CrossRef]
  31. Nakamura-Ishizu, A.; Kurihara, T.; Okuno, Y.; Ozawa, Y.; Kishi, K.; Goda, N.; Tsubota, K.; Okano, H.; Suda, T.; Kubota, Y. The formation of an angiogenic astrocyte template is regulated by the neuroretina in a HIF-1-dependent manner. Dev. Biol. 2012, 363, 106–114. [Google Scholar] [CrossRef] [Green Version]
  32. Usui, Y.; Westenskow, P.; Kurihara, T.; Aguilar, E.; Sakimoto, S.; Paris, L.; Wittgrove, C.; Feitelberg, D.; Friedlander, M.; Moreno, S.K.; et al. Neurovascular crosstalk between interneurons and capillaries is required for vision. J. Clin. Investig. 2015, 125, 2335–2346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Weidemann, A.; Krohne, T.U.; Aguilar, E.; Kurihara, T.; Takeda, N.; Dorrell, M.I.; Simon, M.C.; Haase, V.H.; Friedlander, M.; Johnson, R.S. Astrocyte hypoxic response is essential for pathological but not developmental angiogenesis of the retina. Glia 2010, 58, 1177–1185. [Google Scholar] [CrossRef] [Green Version]
  34. Kurihara, T.; Westenskow, P.; Bravo, S.; Aguilar, E.; Friedlander, M. Targeted deletion of Vegfa in adult mice induces vision loss. J. Clin. Investig. 2012, 122, 4213–4217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Miwa, Y.; Hoshino, Y.; Shoda, C.; Jiang, X.; Tsubota, K.; Kurihara, T. Pharmacological HIF inhibition prevents retinal neovascularization with improved visual function in a murine oxygen-induced retinopathy model. Neurochem. Int. 2019, 128, 21–31. [Google Scholar] [CrossRef]
  36. Rofagha, S.; Bhisitkul, R.B.; Boyer, D.S.; Sadda, S.R.; Zhang, K.; SEVEN-UP Study Group. Seven-Year Outcomes in Ranibizumab-Treated Patients in ANCHOR, MARINA, and HORIZON: A multicenter cohort study (SEVEN-UP). Ophthalmology 2013, 120, 2292–2299. [Google Scholar] [CrossRef]
  37. Fallah, J.; Rini, B.I. HIF Inhibitors: Status of Current Clinical Development. Curr. Oncol. Rep. 2019, 21, 6. [Google Scholar] [CrossRef] [PubMed]
  38. Ibuki, M.; Shoda, C.; Miwa, Y.; Ishida, A.; Tsubota, K.; Kurihara, T. Therapeutic Effect of Garcinia cambogia Extract and Hydroxycitric Acid Inhibiting Hypoxia-Inducible Factor in a Murine Model of Age-Related Macular Degeneration. Int. J. Mol. Sci. 2019, 20, 5049. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Ibuki, M.; Shoda, C.; Miwa, Y.; Ishida, A.; Tsubota, K.; Kurihara, T. Lactoferrin Has a Therapeutic Effect via HIF Inhibition in a Murine Model of Choroidal Neovascularization. Front. Pharmacol. 2020, 11, 174. [Google Scholar] [CrossRef] [Green Version]
  40. Ibuki, M.; Lee, D.; Shinojima, A.; Miwa, Y.; Tsubota, K.; Kurihara, T. Rice Bran and Vitamin B6 Suppress Pathological Neovascularization in a Murine Model of Age-Related Macular Degeneration as Novel HIF Inhibitors. Int. J. Mol. Sci. 2020, 21, 8940. [Google Scholar] [CrossRef]
  41. Lee, C.S.; Choi, E.Y.; Lee, S.C.; Koh, H.J.; Lee, J.H.; Chung, J.H. Resveratrol Inhibits Hypoxia-Induced Vascular Endothelial Growth Factor Expression and Pathological Neovascularization. Yonsei Med. J. 2015, 56, 1678–1685. [Google Scholar] [CrossRef] [Green Version]
  42. Shoda, C.; Miwa, Y.; Nimura, K.; Okamoto, K.; Yamagami, S.; Tsubota, K.; Kurihara, T. Hypoxia-Inducible Factor Inhibitors Derived from Marine Products Suppress a Murine Model of Neovascular Retinopathy. Nutrients 2020, 12, 1055. [Google Scholar] [CrossRef] [Green Version]
  43. Koo, T.; Park, S.W.; Jo, D.H.; Kim, D.; Kim, J.H.; Cho, H.-Y.; Kim, J.; Kim, J.H.; Kim, J.-S. CRISPR-LbCpf1 prevents choroidal neovascularization in a mouse model of age-related macular degeneration. Nat. Commun. 2018, 9, 1855. [Google Scholar] [CrossRef]
  44. Kawagishi, H. Are fairy chemicals a new family of plant hormones? Proc. Jpn. Acad. Ser. B 2019, 95, 29–38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Mitchinson, A. Fairy chemicals. Nat. Cell Biol. 2014, 505, 298. [Google Scholar] [CrossRef]
  46. Lee, D.; Miwa, Y.; Wu, J.; Shoda, C.; Jeong, H.; Kawagishi, H.; Tsubota, K.; Kurihara, T. A fairy chemical suppresses retinal angiogenesis as a HIF inhibitor. Biomolecules 2020, 10, 1405. [Google Scholar] [CrossRef] [PubMed]
  47. Kunimi, H.; Miwa, Y.; Inoue, H.; Tsubota, K.; Kurihara, T. A Novel HIF Inhibitor Halofuginone Prevents Neurodegeneration in a Murine Model of Retinal Ischemia-Reperfusion. Int. J. Mol. Sci. 2019, 20, 3171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Kunimi, H.; Miwa, Y.; Katada, Y.; Tsubota, K.; Kurihara, T. HIF inhibitor topotecan has a neuroprotective effect in a murine retinal ischemia-reperfusion model. PeerJ 2019, 7, e7849. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Kunimi, H.; Lee, D.; Ibuki, M.; Katada, Y.; Negishi, K.; Tsubota, K.; Kurihara, T. Inhibition of the HIF-1α/BNIP3 pathway has a retinal neuroprotective effect. FASEB J. 2021, 35, e21829. [Google Scholar] [CrossRef] [PubMed]
  50. Fine, S.L.; Berger, J.W.; Maguire, M.G.; Ho, A.C. Age-related macular degeneration. N. Engl. J. Med. 2000, 342, 483–492. [Google Scholar] [CrossRef]
  51. Rim, T.H.; Cheng, C.-Y.; Kim, D.W.; Kim, S.S.; Wong, T.Y. A nationwide cohort study of cigarette smoking and risk of neovascular age-related macular degeneration in East Asian men. Br. J. Ophthalmol. 2017, 101, 1367–1373. [Google Scholar] [CrossRef]
  52. Klein, R.; Klein, B.E.; Jensen, S.C.; Meuer, S.M. The Five-year Incidence and Progression of Age-related Maculopathy. Ophthalmology 1997, 104, 7–21. [Google Scholar] [CrossRef]
  53. Balaratnasingam, C.; Cherepanoff, S.; Dolz-Marco, R.; Killingsworth, M.; Chen, F.; Mendis, R.; Mrejen, S.; Too, L.K.; Gal-Or, O.; Curcio, C.A.; et al. Cuticular Drusen. Ophthalmology 2018, 125, 100–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Chen, W.; Stambolian, D.; Edwards, A.O.; Branham, K.; Othman, M.; Jakobsdottir, J.; Tosakulwong, N.; Pericak-Vance, M.A.; Campochiaro, P.A.; Klein, M.L.; et al. Genetic variants near TIMP3 and high-density lipoprotein-associated loci influence susceptibility to age-related macular degeneration. Proc. Natl. Acad. Sci. USA 2010, 107, 7401–7406. [Google Scholar] [CrossRef] [Green Version]
  55. Neale, B.M.; Fagerness, J.; Reynolds, R.; Sobrin, L.; Parker, M.; Raychaudhuri, S.; Tan, P.L.; Oh, E.C.; Merriam, J.E.; Souied, E.; et al. Genome-wide association study of advanced age-related macular degeneration identifies a role of the hepatic lipase gene (LIPC). Proc. Natl. Acad. Sci. USA 2010, 107, 7395–7400. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lorés-Motta, L.; van Beek, A.E.; Willems, E.; Zandstra, J.; van Mierlo, G.; Einhaus, A.; Mary, J.-L.; Stucki, C.; Bakker, B.; Hoyng, C.B.; et al. Common haplotypes at the CFH locus and low-frequency variants in CFHR2 and CFHR5 associate with systemic FHR concentrations and age-related macular degeneration. Am. J. Hum. Genet. 2021, 108, 1367–1384. [Google Scholar] [CrossRef] [PubMed]
  57. Rosenfeld, P.J.; Brown, D.M.; Heier, J.S.; Boyer, D.S.; Kaiser, P.; Chung, C.Y.; Kim, R.Y. Ranibizumab for Neovascular Age-Related Macular Degeneration. N. Engl. J. Med. 2006, 355, 1419–1431. [Google Scholar] [CrossRef] [Green Version]
  58. Heier, J.S.; Brown, D.M.; Chong, V.; Korobelnik, J.-F.; Kaiser, P.; Nguyen, Q.D.; Kirchhof, B.; Ho, A.; Ogura, Y.; Yancopoulos, G.D.; et al. Intravitreal Aflibercept (VEGF Trap-Eye) in Wet Age-related Macular Degeneration. Ophthalmology 2012, 119, 2537–2548. [Google Scholar] [CrossRef] [PubMed]
  59. Dugel, P.U.; Koh, A.; Ogura, Y.; Jaffe, G.J.; Schmidt-Erfurth, U.; Brown, D.M.; Gomes, A.V.; Warburton, J.; Weichselberger, A.; Holz, F.G. HAWK and HARRIER: Phase 3, Multicenter, Randomized, Double-Masked Trials of Brolucizumab for Neovascular Age-Related Macular Degeneration. Ophthalmology 2020, 127, 72–84. [Google Scholar] [CrossRef]
  60. Bressler, N.M.; Boyer, D.S.; Williams, D.F.; Butler, S.; Francom, S.F.; Brown, B.; Di Nucci, F.; Cramm, T.; Tuomi, L.L.; Ianchulev, T.; et al. Cerebrovascular accidents in patients treated for choroidal neovascularization with ranibizumab in randomized controlled trials. Retina 2012, 32, 1821–1828. [Google Scholar] [CrossRef]
  61. Avery, R.L.; Castellarin, A.A.; Steinle, N.C.; Dhoot, D.S.; Pieramici, D.J.; See, R.; Couvillion, S.; Nasir, M.A.; Rabena, M.D.; Maia, M.; et al. Systemic pharmacokinetics and pharmacodynamics of intravitreal aflibercept, bevacizumab, and ranibizumab. Retina 2017, 37, 1847–1858. [Google Scholar] [CrossRef] [Green Version]
  62. Age-Related Eye Disease Study Research Group. A randomized, placebo-controlled, clinical trial of high-dose supplementation with vitamins c and e, beta carotene, and zinc for age-related macular degeneration and vision loss. Arch. Ophthalmol. 2001, 119, 1417–1436. [Google Scholar] [CrossRef] [Green Version]
  63. Vives-Bauza, C.; Anand, M.; Shiraz, A.K.; Magrane, J.; Gao, J.; Vollmer-Snarr, H.R.; Manfredi, G.; Finnemann, S.C. The age lipid A2E and mitochondrial dysfunction synergistically impair phagocytosis by retinal pigment epithelial cells. J. Biol. Chem. 2008, 36, 24770–24780. [Google Scholar] [CrossRef] [Green Version]
  64. Zhang, J.; Bai, Y.; Huang, L.; Qi, Y.; Zhang, Q.; Li, S.; Wu, Y.; Li, X. Protective effect of autophagy on human retinal pigment epithelial cells against lipofuscin fluorophore A2E: Implications for age-related macular degeneration. Cell Death Dis. 2015, 11, e1972. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Gass, J.D. Pathogenesis of disciform detachment of the neuroepithelium. Am. J. Ophthalmol. 1967, 63, 6019308. [Google Scholar]
  66. Ross, A.; Ross, A.H.; Mohamed, Q. Review and update of central serous chorioretinopathy. Curr. Opin. Ophthalmol. 2011, 22, 166–173. [Google Scholar] [CrossRef]
  67. Fong, A.H.; Lai, T.Y. Central serous chorioretinopathy. In Spectral Domain Optical Coherence Tomography in Macular Diseases; Meyer, C.H., Sandeep, S., Sadda, S.R., Eds.; Springer: New Delhi, India, 2017; Chapter 18. [Google Scholar]
  68. Daruich, A.; Matet, A.; Dirani, A.; Bousquet, E.; Zhao, M.; Farman, N.; Jaisser, F.; Behar-Cohen, F. Central serous chorioretinopathy: Recent findings and new physiopathology hypothesis. Prog. Retin. Eye Res. 2015, 48, 82–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Gilbert, C.M.; Owens, S.L.; Smith, P.D.; Fine, S.L. Long-term follow-up of central serous chorioretinopathy. Br. J. Ophthalmol. 1984, 68, 815–820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Bujarborua, D.; Chatterjee, S.; Choudhury, A.; Bori, G.; Sarma, A.K. Fluorescein angiographic features of asymptomatic eyes in central serous chorioretinopathy. Retina 2005, 25, 422–429. [Google Scholar] [CrossRef] [PubMed]
  71. Imamura, Y.; Fujiwara, T.; Margolis, R.; Spaide, R.F. Enhanced depth imaging optical coherence tomography of the choroid in central serous chorioretinopathy. Retina 2009, 29, 1469–1473. [Google Scholar] [CrossRef] [PubMed]
  72. Chhablani, J.; Hanumunthadu, D.; Van Dijk, E.H.C.; Dumpala, S.; Rajesh, B.; Jabeen, A.; Jabeen, A.; Ansari, M.; Mehta, P.; Shah, S.; et al. Evaluation of choroidal layer thickness in central serous chorioretinopathy. J. Ophthalmic Vis. Res. 2019, 14, 164–170. [Google Scholar] [CrossRef] [PubMed]
  73. Imanaga, N.; Terao, N.; Nakamine, S.; Tamashiro, T.; Wakugawa, S.; Sawaguchi, K.; Koizumi, H. Scleral Thickness in Central Serous Chorioretinopathy. Ophthalmol. Retin. 2021, 5, 285–291. [Google Scholar] [CrossRef] [PubMed]
  74. Kishi, S.; Matsumoto, H.; Sonoda, S.; Hiroe, T.; Sakamoto, T.; Akiyama, H. Geographic filling delay of the choriocapillaris in the region of dilated asymmetric vortex veins in central serous chorioretinopathy. PLoS ONE 2018, 13, e0206646. [Google Scholar] [CrossRef] [Green Version]
  75. Spaide, R.F.; Gemmy Cheung, C.M.; Matsumoto, H.; Kishi, S.; Boon, C.J.F.; van Dijk, E.H.C.; Mauget-Faysse, M.; Behar-Cohen, F.; Hartnett, M.E.; Sivaprasad, S.; et al. Venous overload choroidopathy: A hypothetical framework for central serous chorioretinopathy and allied disorders. Prog. Retin Eye Res. 2021, 100973. [Google Scholar] [CrossRef] [PubMed]
  76. Shinojima, A.; Mehanna, C.; Lavia, C.A.; Gaudric, A.; Tadayoni, R.; Bousquet, E. Central serous chorioretinopathy: Risk factors for serous retinal detachment in fellow eyes. Br. J. Ophthalmol. 2020, 6, 852–856. [Google Scholar] [CrossRef]
  77. Shinojima, A.; Kawamura, A.; Mori, R.; Fujita, K.; Yuzawa, M. Findings of Optical Coherence Tomographic Angiography at the Choriocapillaris Level in Central Serous Chorioretinopathy. Ophthalmologica 2016, 236, 108–113. [Google Scholar] [CrossRef] [PubMed]
  78. Wakatsuki, Y.; Shinojima, A.; Kawamura, A.; Yuzawa, M. Correlation of Aging and Segmental Choroidal Thickness Measurement using Swept Source Optical Coherence Tomography in Healthy Eyes. PLoS ONE 2015, 12, e0144156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Battaglia Parodi, M.; Arrigo, A.; Iacono, P.; Falcomatà, B.; Bandello, F. Central Serous Chorioretinopathy: Treatment with Laser. Pharmaceuticals 2020, 11, 359. [Google Scholar] [CrossRef] [PubMed]
  80. Fujita, K.; Imamura, Y.; Shinoda, K.; Matsumoto, C.S.; Mizutani, Y.; Hashizume, K.; Mizota, A.; Yuzawa, M. One-year outcomes with half-dose verteporfin photodynamic therapy for chronic central serous chorioretinopathy. Ophthalmology 2015, 3, 555–561. [Google Scholar] [CrossRef]
  81. Shinojima, A.; Bousquet, E.; Lavia, C.; Gaudric, A.; Tadayoni, R. Natural course of late-phase hypofluorescent areas on in-docyanine green angiography in patients with central serous chorioretinopathy. In Proceedings of the 18th EURETINA, Vienna, Austria, 20–23 September 2018. [Google Scholar]
  82. Shinojima, A.; Bousquet, E.; Lavia, C.; Gaudric, A.; Tadayoni, R. The course of ultra-late-phase hypofluorescent foci on indo-cyanine green angiography in patients with central serous chorioretinopathy before and after photodynamic therapy. In Proceedings of the 19th EURETINA, Paris, France, 5–8 September 2019. [Google Scholar]
  83. Shinojima, A.; Ozawa, Y.; Uchida, A.; Nagai, N.; Shinoda, H.; Kurihara, T.; Suzuki, M.; Minami, S.; Negishi, K.; Tsubota, K. Assessment of Hypofluorescent Foci on Late-Phase Indocyanine Green Angiography in Central Serous Chorioretinopathy. J. Clin. Med. 2021, 10, 2178. [Google Scholar] [CrossRef]
  84. Castro-Navarro, V.; Behar-Cohen, F.; Chang, W.; Joussen, A.M.; Lai, T.Y.Y.; Navarro, R.; Pearce, I.; Yanagi, Y.; Okada, A.A. Pachychoroid: Current concepts on clinical features and pathogenesis. Graefe’s Arch. Clin. Exp. Ophthalmol. 2021, 259, 1385–1400. [Google Scholar] [CrossRef] [PubMed]
  85. Hage, R.; Mrejen, S.; Krivosic, V.; Quentel, G.; Tadayoni, R.; Gaudric, A. Flat Irregular Retinal Pigment Epithelium Detachments in Chronic Central Serous Chorioretinopathy and Choroidal Neovascularization. Am. J. Ophthalmol. 2015, 159, 890–903. [Google Scholar] [CrossRef]
  86. Fung, A.T.; Yannuzzi, L.A.; Freund, K. Type 1 (sub-retinal pigment epithelial) neovascularization in central serous chorioretinopathy masquerading as neovascular age-related macular degeneration. Retina 2012, 32, 1829–1837. [Google Scholar] [CrossRef]
  87. Blaauwgeers, H.G.; Holtkamp, G.M.; Rutten, H.; Witmer, A.N.; Koolwijk, P.; Partanen, T.A.; Alitalo, K.; Kroon, M.; Kijlstra, A.; van Hinsbergh, V.W.; et al. Polarized Vascular Endothelial Growth Factor Secretion by Human Retinal Pigment Epithelium and Localization of Vascular Endothelial Growth Factor Receptors on the Inner Choriocapillaris: Evidence for a Trophic Paracrine Relation. Am. J. Pathol. 1999, 155, 421–428. [Google Scholar] [CrossRef]
  88. Marneros, A.G.; Fan, J.; Yokoyama, Y.; Gerber, H.P.; Ferrara, N.; Crouch, R.K.; Olsen, B.R. Vascular Endothelial Growth Factor Expression in the Retinal Pigment Epithelium Is Essential for Choriocapillaris Development and Visual Function. Am. J. Pathol. 2005, 167, 1451–1459. [Google Scholar] [CrossRef] [Green Version]
  89. Schlingemann, R.O. Role of growth factors and the wound healing response in age-related macular degeneration. Graefe’s Arch. Clin. Exp. Ophthalmol. 2003, 242, 91–101. [Google Scholar] [CrossRef] [PubMed]
  90. Bird, A.C. Towards an understanding of age-related macular disease. Eye 2003, 17, 457–466. [Google Scholar] [CrossRef] [Green Version]
  91. Ramrattan, R.S.; van der Schaft, T.L.; Mooy, C.M.; de Bruijn, W.C.; Mulder, P.G.; de Jong, P.T. Morphometric analysis of Bruch’s membrane, the choriocapillaris, and the choroid in aging. Investig. Ophthalmol. Vis. Sci. 1994, 35, 2857–2864. [Google Scholar]
  92. Kurihara, T.; Westenskow, P.; Gantner, M.L.; Usui, Y.; Schultz, A.; Bravo, S.; Aguilar, E.; Wittgrove, C.; Friedlander, M.; Paris, L.; et al. Hypoxia-induced metabolic stress in retinal pigment epithelial cells is sufficient to induce photoreceptor degeneration. eLife 2016, 5, e14319. [Google Scholar] [CrossRef] [PubMed]
Jcm 10 05496 g001 550
Figure 1. Slit lamp photograph showing retinal detachment in VHL disease. Credit: National Eye Institute, National Institutes of Health Ref#: EDA08 (This image is a work from the National Institutes of Health, a part of the United States Department of Health and Human Services, taken or made as part of an employee’s official duties. As a work of the U.S. federal government, the image is in the public domain).
Figure 1. Slit lamp photograph showing retinal detachment in VHL disease. Credit: National Eye Institute, National Institutes of Health Ref#: EDA08 (This image is a work from the National Institutes of Health, a part of the United States Department of Health and Human Services, taken or made as part of an employee’s official duties. As a work of the U.S. federal government, the image is in the public domain).
Jcm 10 05496 g001
Jcm 10 05496 g002 550
Figure 2. Structure of HIF-1α and HIF-1β. This image is a crystal structure of the heterodimeric HIF-1α and HIF-1β complex. Light yellow color indicates HIF-1α, light purple color indicates HIF-1β, and orange color indicates DNA. Modified from PDB ID: 4ZPR [23].
Figure 2. Structure of HIF-1α and HIF-1β. This image is a crystal structure of the heterodimeric HIF-1α and HIF-1β complex. Light yellow color indicates HIF-1α, light purple color indicates HIF-1β, and orange color indicates DNA. Modified from PDB ID: 4ZPR [23].
Jcm 10 05496 g002
Jcm 10 05496 g003 550

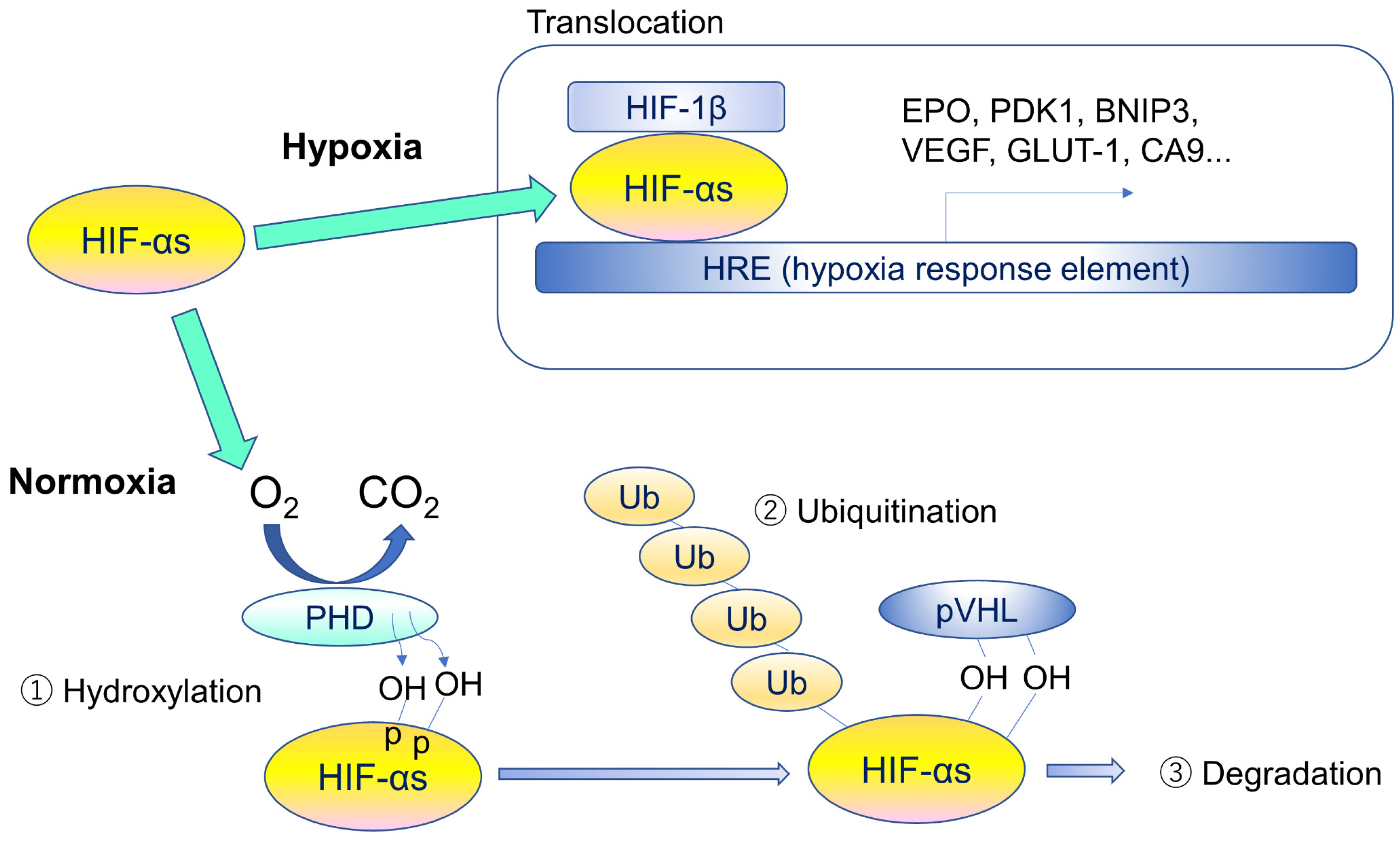

Figure 3. Regulatory mechanism of hypoxia-inducible factors. Under hypoxia, HIF-αs translocate into the nucleus, form heterodimers with β-subunits, and promote transcription of HIF target genes by binding to hypoxia response element (HRE). Under normoxia, specific proline residues of HIF-αs are hydroxylated by prolyl hydroxylase (PHD) (1), and the hydroxylated HIF-αs are ubiquitinated by ubiquitin ligase containing pVHL (2) and degraded by proteasome (3). HIF-αs stands for different forms or multiple α subunits.
Figure 3. Regulatory mechanism of hypoxia-inducible factors. Under hypoxia, HIF-αs translocate into the nucleus, form heterodimers with β-subunits, and promote transcription of HIF target genes by binding to hypoxia response element (HRE). Under normoxia, specific proline residues of HIF-αs are hydroxylated by prolyl hydroxylase (PHD) (1), and the hydroxylated HIF-αs are ubiquitinated by ubiquitin ligase containing pVHL (2) and degraded by proteasome (3). HIF-αs stands for different forms or multiple α subunits.
Jcm 10 05496 g003
Jcm 10 05496 g004 550
Figure 4. An 85-year-old woman with AMD. These images are the right eye with 20/16. This patient came to the hospital with a complaint of contralateral gradual loss of vision 4 months ago. No other systemic diseases. (a) FA image acquired at 16 min, increasing fluorescence throughout the angiogram but the margins remain distinct, (b) ICGA image, abnormal hypofluorescence contrast became clearer acquired at 26 min, (c) near-infrared autofluorescence image, abnormal hypofluorescence can be seen broadly which corresponds to the hypofluorescent area of ICGA images, (d) short-wavelength fundus autofluorescence image, abnormal hyperfluorescence and confluent hypofluorescence can be seen broadly, (e) color fundus photograph, drusen and geographic atrophy can be seen broadly, (f) infrared + OCT angiography (horizontal section) through the drusen, (g) Superficial vascular segment OCT angiography, (h) Deep vascular segment OCT angiography, (i) Avascular segment OCT angiography, (g–i) where there is no macular neovascularization, but enlarged choroidal vessels (i).
Figure 4. An 85-year-old woman with AMD. These images are the right eye with 20/16. This patient came to the hospital with a complaint of contralateral gradual loss of vision 4 months ago. No other systemic diseases. (a) FA image acquired at 16 min, increasing fluorescence throughout the angiogram but the margins remain distinct, (b) ICGA image, abnormal hypofluorescence contrast became clearer acquired at 26 min, (c) near-infrared autofluorescence image, abnormal hypofluorescence can be seen broadly which corresponds to the hypofluorescent area of ICGA images, (d) short-wavelength fundus autofluorescence image, abnormal hyperfluorescence and confluent hypofluorescence can be seen broadly, (e) color fundus photograph, drusen and geographic atrophy can be seen broadly, (f) infrared + OCT angiography (horizontal section) through the drusen, (g) Superficial vascular segment OCT angiography, (h) Deep vascular segment OCT angiography, (i) Avascular segment OCT angiography, (g–i) where there is no macular neovascularization, but enlarged choroidal vessels (i).
Jcm 10 05496 g004
Jcm 10 05496 g005 550
Figure 5. Same case as Figure 4. These images are left eye with 20/250. This eye is contralateral eye of above figures. (a) leakage became enlarged gradually on FA image acquired at 15 min, and (b) abnormal hypofluorescence and leakage became enlarged on ICGA image acquired at 25 min, and leakage can be seen around the fovea, (c) near-infrared autofluorescence image, abnormal hypofluorescence can be seen broadly which corresponds to the hypofluorescent area of ICGA images, (d) short-wavelength fundus autofluorescence image, abnormal hyperfluorescence and hypofluorescence can be seen broadly, (e) color fundus photograph, drusen and geographic atrophy can be seen broadly, (f) infrared + OCT angiography (horizontal section) through the fovea, (g) superficial vascular segment OCT angiography, (h) deep vascular segment OCT angiography, (i) avascular segment OCT angiography, where there is macular neovascularization (arrow).
Figure 5. Same case as Figure 4. These images are left eye with 20/250. This eye is contralateral eye of above figures. (a) leakage became enlarged gradually on FA image acquired at 15 min, and (b) abnormal hypofluorescence and leakage became enlarged on ICGA image acquired at 25 min, and leakage can be seen around the fovea, (c) near-infrared autofluorescence image, abnormal hypofluorescence can be seen broadly which corresponds to the hypofluorescent area of ICGA images, (d) short-wavelength fundus autofluorescence image, abnormal hyperfluorescence and hypofluorescence can be seen broadly, (e) color fundus photograph, drusen and geographic atrophy can be seen broadly, (f) infrared + OCT angiography (horizontal section) through the fovea, (g) superficial vascular segment OCT angiography, (h) deep vascular segment OCT angiography, (i) avascular segment OCT angiography, where there is macular neovascularization (arrow).
Jcm 10 05496 g005
Jcm 10 05496 g006 550
Figure 6. 39-year-old man with unilateral CSC. These images are images of CSC. This patient came to the hospital because of difficulty in vision of his right eye from a month ago. The symptoms disappeared spontaneously four months after the first visit, but recurred five months later. (a) FA image acquired at 4 min, smokestack pattern leakage can be seen and (b) ICGA image acquired at 12 min, leakage and hypofluorescent area can be seen (c) short-wavelength fundus autofluorescence image, (d) near-infrared autofluorescence image, partial hyper- and hypofluorescent area can be seen, (c,d) discrete small dots with hyperautofluorescence can be seen, (e) multi-color fundus photograph, the color tone of the leaking area is different from others, (f) FA image acquired at 18 min, smokestack pattern leakage enlarged and (g) ICGA image acquired at 26 min, abnormal hypofluorescence can be seen (arrows) (h) infrared + OCT (horizontal section) through the serous retinal detachment, (i) color fundus photograph, serous retinal detachment with fibrinous contents were observed, (j) infrared + OCT angiography (horizontal section) through the serous retinal detachment, (k) superficial vascular segment OCT angiography, (l) deep vascular segment OCT angiography, (m) avascular segment OCT angiography, (k,l) there is no macular neovascularization.
Figure 6. 39-year-old man with unilateral CSC. These images are images of CSC. This patient came to the hospital because of difficulty in vision of his right eye from a month ago. The symptoms disappeared spontaneously four months after the first visit, but recurred five months later. (a) FA image acquired at 4 min, smokestack pattern leakage can be seen and (b) ICGA image acquired at 12 min, leakage and hypofluorescent area can be seen (c) short-wavelength fundus autofluorescence image, (d) near-infrared autofluorescence image, partial hyper- and hypofluorescent area can be seen, (c,d) discrete small dots with hyperautofluorescence can be seen, (e) multi-color fundus photograph, the color tone of the leaking area is different from others, (f) FA image acquired at 18 min, smokestack pattern leakage enlarged and (g) ICGA image acquired at 26 min, abnormal hypofluorescence can be seen (arrows) (h) infrared + OCT (horizontal section) through the serous retinal detachment, (i) color fundus photograph, serous retinal detachment with fibrinous contents were observed, (j) infrared + OCT angiography (horizontal section) through the serous retinal detachment, (k) superficial vascular segment OCT angiography, (l) deep vascular segment OCT angiography, (m) avascular segment OCT angiography, (k,l) there is no macular neovascularization.
Jcm 10 05496 g006
Jcm 10 05496 g007 550

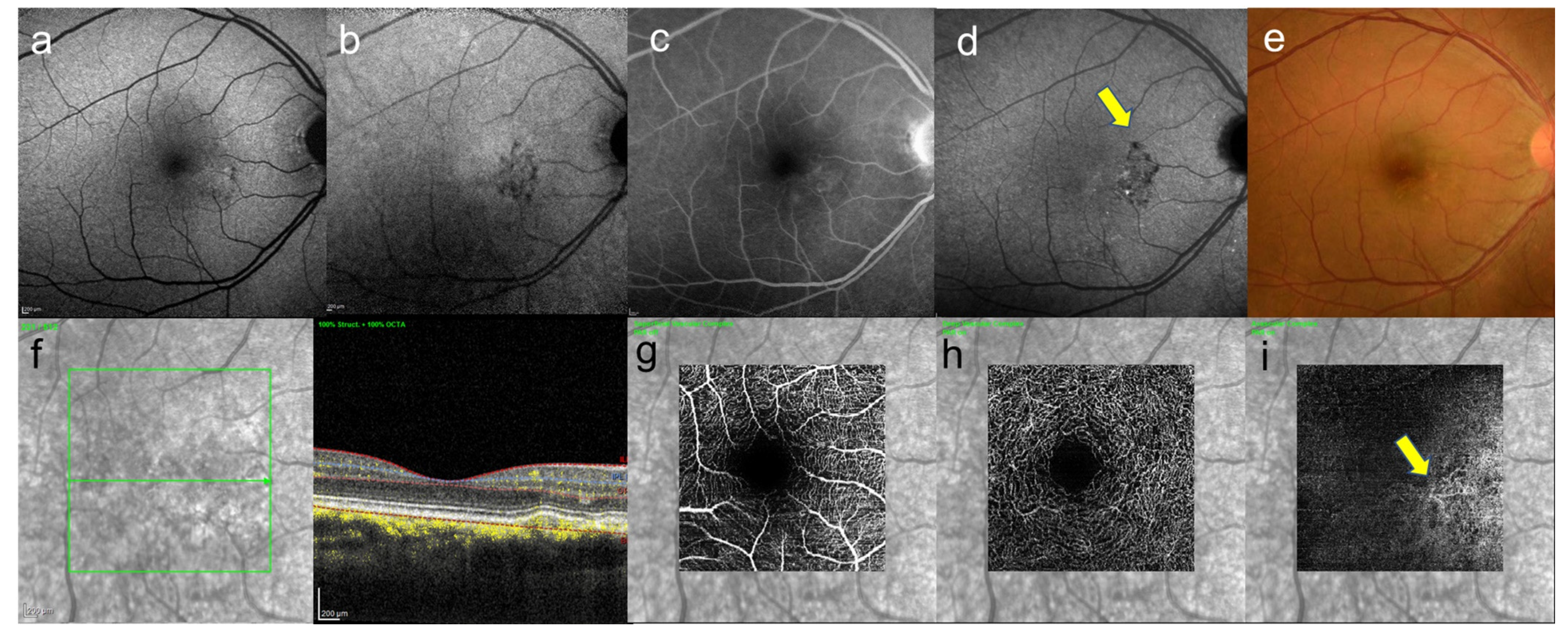

Figure 7. A 46-year-old man with unilateral CSC. These images are the eye without serous retinal detachment, contralateral eye. (a) short-wavelength fundus autofluorescence image, hyperautofluorescence and hypoautofluorescence near the fovea can be seen, (b) near-infrared autofluorescence image, hypoautofluorescence near the fovea can be seen, (c) FA image acquired at 22 min, slight staining was observed and (d) ICGA image acquired at 27 min, abnormal hypofluorescence can be seen (arrows) which corresponds to the hypofluorescent foci in near-infrared autofluorescence image, (e) color fundus photograph, pigmentation irregularity can be seen, (f) infrared + OCT (horizontal section) through the fovea. There is no serous retinal detachment but flat irregular RPE is found, (g) superficial vascular segment OCT angiography, (h) deep vascular segment OCT angiography, (g,h) there is no macular neovascularization, (i) avascular segment OCT angiography, where there is macular neovascularization (arrow).
Figure 7. A 46-year-old man with unilateral CSC. These images are the eye without serous retinal detachment, contralateral eye. (a) short-wavelength fundus autofluorescence image, hyperautofluorescence and hypoautofluorescence near the fovea can be seen, (b) near-infrared autofluorescence image, hypoautofluorescence near the fovea can be seen, (c) FA image acquired at 22 min, slight staining was observed and (d) ICGA image acquired at 27 min, abnormal hypofluorescence can be seen (arrows) which corresponds to the hypofluorescent foci in near-infrared autofluorescence image, (e) color fundus photograph, pigmentation irregularity can be seen, (f) infrared + OCT (horizontal section) through the fovea. There is no serous retinal detachment but flat irregular RPE is found, (g) superficial vascular segment OCT angiography, (h) deep vascular segment OCT angiography, (g,h) there is no macular neovascularization, (i) avascular segment OCT angiography, where there is macular neovascularization (arrow).
Jcm 10 05496 g007
Jcm 10 05496 g008 550

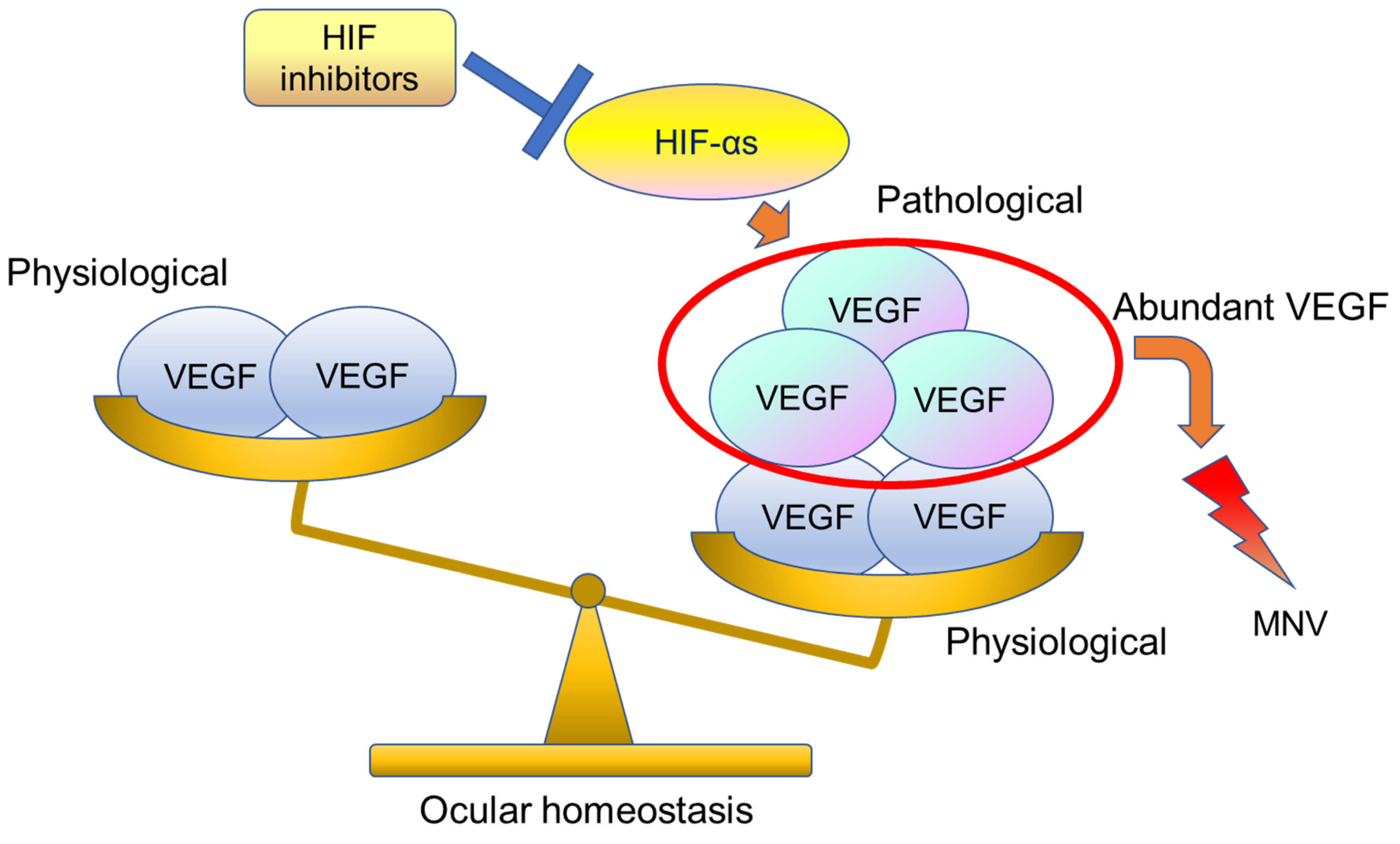

Figure 8. This image shows ocular homeostasis. Usually, physiologically VEGF-A is secreted by the RPE and exerts a trophic influence on the choriocapillaris. However, abundant HIF-αs can cause induction of pathological levels of VEGF and lead to macular neovascularization (MNV). HIF inhibitors can suppress abundant VEGF. HIF-αs stands for different forms or multiple α subunits.
Figure 8. This image shows ocular homeostasis. Usually, physiologically VEGF-A is secreted by the RPE and exerts a trophic influence on the choriocapillaris. However, abundant HIF-αs can cause induction of pathological levels of VEGF and lead to macular neovascularization (MNV). HIF inhibitors can suppress abundant VEGF. HIF-αs stands for different forms or multiple α subunits.
Jcm 10 05496 g008
Table
Table 1. The list of foods or extracts that inhibit HIF showing a significant decrease in the amount of CNV in mice.
Table 1. The list of foods or extracts that inhibit HIF showing a significant decrease in the amount of CNV in mice.
Representative HIF InhibitorsReferences
Garcinia cambogia extractIbuki, et al. [38]
Hydroxycitric acidIbuki, et al. [38]
LactoferrinIbuki, et al. [39]
Rice branIbuki, et al. [40]
Vitamin B6 (pyridoxine hydrochloride)Ibuki, et al. [40]
ResveratrolLee, et al. [41]
Selar crumenophthalmusShoda, et al. [42]
Seriola dumeriliShoda, et al. [42]
Spratelloides gracilisShoda, et al. [42]
Decapterus macarellusShoda, et al. [42]
Decapterus tablShoda, et al. [42]
Decapterus muroadsiShoda, et al. [42]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shinojima, A.; Lee, D.; Tsubota, K.; Negishi, K.; Kurihara, T. Retinal Diseases Regulated by Hypoxia—Basic and Clinical Perspectives: A Comprehensive Review. J. Clin. Med. 2021, 10, 5496. https://doi.org/10.3390/jcm10235496

AMA Style

Shinojima A, Lee D, Tsubota K, Negishi K, Kurihara T. Retinal Diseases Regulated by Hypoxia—Basic and Clinical Perspectives: A Comprehensive Review. Journal of Clinical Medicine. 2021; 10(23):5496. https://doi.org/10.3390/jcm10235496

Chicago/Turabian Style

Shinojima, Ari, Deokho Lee, Kazuo Tsubota, Kazuno Negishi, and Toshihide Kurihara. 2021. "Retinal Diseases Regulated by Hypoxia—Basic and Clinical Perspectives: A Comprehensive Review" Journal of Clinical Medicine 10, no. 23: 5496. https://doi.org/10.3390/jcm10235496

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
