Article

Comparison of Implant Stability between Regenerated and Non-Regenerated Bone. A Prospective Cohort Study

by
Marta Vallecillo-Rivas
1,2,
Candela Reyes-Botella
1,
Cristina Vallecillo
1,2,
María Jesús Lisbona-González
1,2,
Manuel Vallecillo-Capilla
1,3,* and
María Victoria Olmedo-Gaya
1
1
Department of Oral Surgery and Implantology, Faculty of Dentistry, University of Granada, Colegio Máximo de Cartuja s/n, 18071 Granada, Spain
2
Medicina Clínica y Salud Pública PhD Programme, Faculty of Dentistry, University of Granada, 18071 Granada, Spain
3
Department of Oral and Maxillofacial Surgery, Faculty of Dentistry, University of Granada, 18071 Granada, Spain
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2021, 10(15), 3220; https://doi.org/10.3390/jcm10153220
Submission received: 14 June 2021 / Revised: 16 July 2021 / Accepted: 19 July 2021 / Published: 21 July 2021
(This article belongs to the Topic Advances in Dental Biomaterials and Oral Tissues Engineering)
Browse Figures
Versions Notes

Abstract

:
Implant stability is one of the main indicators of successful osseointegration. Although it has been measured in numerous studies, there has been little research on implant stability in regenerated bone. The study compares primary and secondary stability between implants placed in regenerated versus native bone and evaluates the influence of bone quality on the results. Sixty implants were placed in 31 patients: 30 implants inserted in native bone (non-regenerated) after a healing period of at least 6 months post-exodontia and 30 inserted in regenerated bone at 6 months after grafting with xenograft. Resonance frequency analysis (RFA) was used to obtain implant stability quotient (ISQ) values at baseline (implant placement), 8 weeks, and 12 weeks. Statistically significant differences were found between implants placed in regenerated bone and those placed in native bone at all measurement time points (p < 0.05). ISQ values were significantly influenced by bone quality at baseline (p < 0.05) but not at 8 or 12 weeks. Greater stability was obtained in implants placed in native bone; however, those placed in regenerated bone showed adequate primary and secondary stability for prosthetic loading. Bone quality influences the primary but not secondary stability of the implants in both native and regenerated bone.

1. Introduction

Osseointegration was first defined by Brånemark in 1976 [1] as the direct and long-lasting anchorage between patient bone and the implant surface. Albrektsson recently described osseointegration as the formation of new bone from a defense reaction against a foreign body [2,3]. Osseointegration is clinically and histologically determined by the stability of the implant, i.e., the absence of movement [4]. An important differentiation is made between primary and secondary stability. Primary stability, or the mechanical connection between bone and implant [5], is the stability immediately after implant placement and depends on the bone quality, macroscopic implant design, and surgical procedure [6,7]. Subsequent maturation of the bone in direct contact with the implant surface gives rise to secondary or biological stability [8,9], which depends on the microscopic implant design and its physical properties [3].
Over the past few years, resonance frequency analysis (RFA) has been used to determine implant stability [10,11]. This non-invasive diagnostic technique yields a quantitative estimation of implant stability by applying magnetic impulses on a metallic transducer (peg) previously screwed to the implant and transforming them into an electromagnetic response, measured in KHz [12]. This response is expressed as the implant stability quotient (ISQ) value, which runs from 1 to 100 units [13,14,15], and where higher values indicate greater stability [16].
The main objectives of implantology research have long been to determine reasons for implant failure and to design novel techniques that improve primary stability and increase the quantity and quality of available bone [5,17]. Thanks to the development of new bone regeneration techniques and biomaterials, clinicians can now place implants in patients with bone deficits who would not previously have been candidates for this treatment [5,18]. Autogenous bone is the gold-standard bone graft due to its osteoconductive, osteogenic, and osteoinductive properties. However, it requires a second surgical field, with the associated morbidity, and a sufficient amount is not always available, leading to the utilization of other biomaterials as substitutes [19]. For instance, xenogeneic graft has proven to be a valid and safe alternative that obtains a similar bone gain to that achieved with autogenous bone [17]. Nonetheless, it is important to determine if this regenerated bone presents similar characteristics to native bone for implant rehabilitations. After the healing period, regenerated bone is expected to provide enough bone density and bone availability to obtain an adequate primary stability and its maintenance over time. A large number of studies have described ISQ values in non-regenerated bone, but there have been relatively few clinical studies on the primary and secondary stability of implants placed in bone regenerated with xenografts [12].
With this background, the objectives of this study were to compare primary and secondary stability values, using RFA, between dental implants placed in regenerated bone and those placed in non-regenerated bone, and to assess the influence of bone quality at the implant site on stability values. The null hypotheses were: (i) there is no difference in the stability of implants between those placed in regenerated bone and those placed in native bone of patients; and (ii) implant site bone quality affects primary and secondary stability in both native and regenerated bone.

2. Materials and Methods

2.1. Study Design

This study was designed as a prospective cohort study in accordance with the STROBE declaration for observational studies [20].

2.2. Patient Selection

The study population comprised consecutive patients receiving implant treatment for some degree of edentulism at the Masters of Oral Surgery and Implant Dentistry at the University of Granada between January 2018 and February 2019. Inclusion criteria were: age between 25 and 75 years; good oral and periodontal health; native bone with minimum healing period of 6 months post-exodontia or bone regenerated with xenograft 6 months earlier; sufficient bone availability for implants with length of 10 mm and diameter of 3.7 or 4.1 mm; and implants placed with a final insertion torque (IT) of 40 Ncm. Exclusion criteria were the presence of systemic disease, treatment with drugs that could compromise implant osseointegration, pregnancy, smoking habit of >10 cigarettes/day, poor oral hygiene, and the presence of periodontal disease (full-mouth plaque score and full-mouth bleeding score >20%).

2.3. Sample Size

The sample size was estimated for a confidence interval of 95% and statistical power of 90%, calculating a total sample size of 60 implants. Patients were assigned to two groups: 30 implants placed in native/non-regenerated bone ≥6 months post-exodontia (Group 1) and 30 implants placed in bone regenerated 6 months earlier with a xenograft (Group 2).

2.4. Pre-Surgery Phase

All patients gave their informed consent to participate after a detailed explanation of the aims of the study, the surgical procedure, and the follow-up period. Patients receiving the implants underwent a detailed clinical examination and exhaustive radiological study. Patients with implants in regenerated bone (Group 1) received a mineralized particulate bovine bone (Zimmer Biomet, Warsaw, IN, USA) and a resorbable collagen membrane (Zimmer Biomet, Warsaw, IN, USA) 6 months earlier in order to regenerate post-extraction sockets or any type of bone defects. The quantity and quality of bone at the implant site were evaluated using the classification of Lekholm and Zarb [21]. This classification is based on a radiographic assessment where higher density (D1–D2) is associated with a thick and homogeneous layer of cortical bone which surrounds a dense trabecular bone. Likewise, lower density (D3–D4) is associated with a thin layer of cortical bone surrounding a low-density trabecular bone [22]. The implant diameter was 3.7 or 4.1 mm in all patients according to their bone availability.

2.5. Surgical Phase

All implants were placed by the same surgeon (M.V.-R.), who always followed the same surgical procedure. Immediately before the surgery, patients performed a 2 min mouth wash with 10 mL 0.12% chlorhexidine and then received local anesthesia (4% articaine with 1:100.000 epinephrine). A full-thickness flap was raised by making a supracrestal incision extending towards adjacent teeth. The bone bed was then drilled in strict accordance with the instructions of the implant manufacturer about bone quality. After the drilling, Zimmer TSV implants (Zimmer Biomet, Warsaw, IN, USA) were placed at a final insertion torque of 40 Ncm, considered adequate to ensure primary stability and to prevent bone stresses [23]. The first stability measurement was then performed, followed by flap closure with Vicryl sutures (Ethicon, Inc., a Johnson & Johnson Company, Somerville, NJ, USA).

2.6. Stability Measurements

Implant stability was evaluated by RFA, using Osstell IDx (Osstell, Gothenburg, Sweden) to measure ISQ values. Two measurements (mesiodistal and bucco-lingual/palatal) were conducted per implant at baseline (implant placement), 8 weeks post-placement (second surgical phase), and 12 weeks (before prosthetic loading). All stability measurements were performed by the same operator (C.V.).

2.7. Statistical Analysis

IBM SPSS version 24.0 (SPSS Inc., Chicago, IL, USA) was used for the statistical analysis. In a descriptive analysis, means, standard deviations, standard errors, and median, minimum, and maximum values were calculated. The Shapiro–Wilk test was applied to check the normality of variable distribution and Levene’s test to assess the homoscedasticity. Student’s t-test was used to compare results for variables among the different factors, setting the level of significance at 0.05.

3. Results

3.1. Descriptive Analysis

Sixty implants were placed in 31 patients, 28 in males and 32 in females. The diameter was 3.7 mm for 24 implants and 4.1 mm for 36. The most frequent sites were posterior mandible (32 implants), and the least frequent sites were anterior maxilla (6 implants). The bone quality was D1–D2 for 36 implants and D3–D4 for 24 implants (Table 1).

3.2. Clinical Parameters

3.2.1. Bone Type (Native vs. Regenerated)

The ISQ was 75.40 ± 12.80 in native bone and 67.17 ± 11.47 in regenerated bone at baseline, 70.43 ± 6.93 in native bone and 64.23 ± 11.27 in regenerated bone at 8 weeks post-placement, and 75.33 ± 6.82 in native bone and 66.10 ± 8.72 in regenerated bone at 12 weeks (Table 2), when it reached similar values in both groups to those at baseline (Figure 1). The ISQ was significantly higher in native bone (always >70) than in regenerated bone (always >60) at all time-points, with p-values of 0.011 at baseline, 0.013 at 8 weeks, and <0.001 at 12 weeks (Table 2).

3.2.2. Bone Quality (D1–D2 vs. D3–D4)

At baseline, ISQ values were higher (p = 0.031) for implants placed in higher-density D1–D2 bone (74.17 ± 11.10) versus lower-density D3–D4 bone (66.96 ± 14.02). For implants placed in D1–D2 bone, ISQ values were lower at 8 weeks (66.83 ± 9.75) than at baseline but almost reached baseline levels at 12 weeks (72.00 ± 10.18). For those placed in D3–D4 bone, ISQ values remained stable at 8 weeks and reached a maximum at 12 weeks (68.79 ± 8.63) (Table 3) (Figure 2). Differences in ISQ values as a function of bone quality (D1–D2 vs. D3–D4) were not statistically significant at either 8 or 12 weeks after implant placement (Table 3).

4. Discussion

To the best of our knowledge, few published studies have compared implant stability between implants placed in native and regenerated bone. Greater primary and secondary implant stability were found in implants placed in native bone than those placed in regenerated bone. D1–D2 bone attained greater ISQ values, supporting the influence of implant site bone quality in primary implant stability.
Significantly higher ISQ values were observed for implants placed in native versus regenerated bone at baseline (p = 0.011), 8 weeks (p = 0.013), and 12 weeks (p < 0.001); therefore, the first null hypothesis of this study was not met. Nevertheless, both the primary stability (ISQ > 55) and secondary stability (ISQ > 65) of the implants in regenerated bone, measured at baseline and 12 weeks, respectively, were always above levels considered acceptable [16]. In both types of bone, the stability at 12 weeks was adequate for prosthetic loading [16]. Likewise, Zita et al. 2017 [24] obtained higher ISQ values at all measurement time-points (baseline and after 15, 30, 45, and 60 days) for implants placed in native versus regenerated bone, and also found that the values in regenerated bone were adequate for prosthetic loading. In contrast, in the study by Degidi et al. 2007 [25], although high RFA values were reported in both regenerated and non-regenerated bone, stability measures were higher in bone regenerated 6 months earlier with a xenogeneic graft at insertion time; however, there was a large difference in the sample size between those placed in regenerated (n = 63) and those placed in native bone (n = 17), which included four implants inserted immediately post-extraction. Moreover, Deli et al. 2014 [26] obtained higher ISQ values for implants placed in regenerated versus non-regenerated bone, but only when the regenerated bone had undergone a healing period of at least 12 months. When they compared implants inserted in native bone versus those placed in regenerated bone with a healing period of 6 months, ISQ values were lower in implants inserted in regenerated bone than for implants inserted in native bone, but were sufficient to start prosthetic loading, in line with the present findings of our study [26]. In general terms, with our results added to the literature reviewed, it can be concluded that xenogeneic grafts are valid alternatives in patients with bone deficit and a doubtful prognosis regardless of its comparison with native bone. Implants placed in the regenerated bone are sufficiently stable for successful prosthetic loading [19].
This result can only be expected when all implants in regenerated bone are inserted at six months after grafting. In our study, bone grafting was performed using mineralized particulate bone of bovine origin with a resorbable collagen membrane, known to promote bone regeneration and soft-tissue stabilization, and to preserve pre-extraction alveolar crest dimensions when grafted in post-extraction sockets [27,28,29,30,31]. No consensus has been established on the ideal healing time for regenerated bone before implant placement. A 6-month healing period was selected in order to reduce the waiting time before prosthetic loading and based on the results published by Degidi et al. 2007 [25] and Di Lallo et al. 2014 [32], who concluded that 6 months was sufficient to ensure adequate graft maturation and primary implant stability. Nevertheless, the selection of a single healing period was a study limitation, preventing comparisons with the stability of implants inserted after a longer time (e.g., 9 or 12 months post-grafting). All implants in native bone were inserted after a healing period of at least six months post-exodontia, previously described in the literature as an adequate time interval before implant placement [33].
It is known that implant stability is affected by many other parameters; however, the most relevant and determinant has been shown to be the bone quality [34]. In the present study, primary stability was significantly higher (p = 0.031) in D1–D2 versus D3–D4 bone. Nevertheless, the bone quality did not significantly influence the secondary stability at 8 or 12 weeks post-placement. In accordance with our findings, Sim et al. 2010 [35] reported that D3–D4 bone obtained lower ISQ values, but implant stability in this group increased significantly after 8–12 weeks, reaching ISQ values of over 70 and similar to the D1–D2 group. Moreover, O’Sullivan et al. 2004 [36], Yoon et al. 2011 [37], and Deli et al. 2014 [26], based on their investigations, all reported that bone quality was an important factor that influenced the primary stability of implants. In contrast, Farré-Pagès et al. 2011 [38] found no statistical significance between implant primary stability and bone quality, but it was analyzed in terms of insertion torque. When they measured primary stability using RFA, they found statistical significance and concluded that primary stability depends on bone quality and implant location. Different conclusions were obtained by Herekar et al. 2014 [39], where they found that bone quality was correlated with secondary stability but not with primary stability. These findings could be due to the fact that secondary stability was measured 4 weeks post-placement. Huang et al. 2020 [11] reported that the reason for these controversial views in the literature may be the subjective and inaccurate method used to determine bone quality; thus, the classification of bone quality in investigations remains variable [40].

Strengths and Limitations of the Study

RFA is widely used in the assessment of implant stability. Most of the research reviewed demonstrates the influence of other factors in primary stability, such as IT [5,41,42,43]. One advantage of this study was the standardization of the surgical protocol, in order to avoid the effect of different IT in our results. The IT was always 40 Ncm, following numerous reports in the literature recommending this level of torque to achieve adequate primary stability [11,44,45,46,47]. Likewise, the implant length was always 10 mm, and it is well documented that implants ≥10 mm provide good stability outcomes [48,49,50,51,52] and allow immediate loading with satisfactory results [53,54,55]. The same brand and type of implant was placed in all patients in order to avoid differences attributable to variations in thread design, body shape, or implant surface [3,56,57]. The main limitation of this study was the relatively small sample size, although it proved adequate for yielding statistically significant results. There was only one healing period in regenerated bones; however, 6 months has been proven to be enough time to obtain adequate primary stability [33]. Finally, the authors encourage future researchers to perform more clinical trials on the main objectives of this study to result in more conclusive statements.

5. Conclusions

Based on these findings, it can be affirmed that higher ISQ values are obtained in implants placed in native bone than in bone regenerated with xenograft but are always >60 in the latter, considered to indicate adequate implant stability. In both types of bone, the primary stability of implants was superior in denser bone (D1–D2 versus D3–D4), but the secondary stability was not significantly affected by bone quality at the implant site.

Author Contributions

Conceptualization, M.V.-R., C.R.-B., M.V.-C. and M.V.O.-G.; Formal Analysis, M.V.-R., C.R.-B., C.V., M.J.L.-G., M.V.-C. and M.V.O.-G.; Investigation, M.V.-R., C.R.-B., C.V., M.J.L.-G., M.V.-C. and M.V.O.-G., Methodology, M.V.-R., C.R.-B., C.V., M.J.L.-G., M.V.-C. and M.V.O.-G.; Project Administration, M.V.-R. and M.V.O.-G.; Supervision, C.R.-B., M.V.-C. and M.V.O.-G.; Validation, M.V.-R., C.R.-B., C.V., M.J.L.-G., M.V.-C. and M.V.O.-G.; Visualization; M.V.-R., M.V.-C. and M.V.O.-G.; Writing—Original Draft, M.V.-R., C.V., M.V.-C. and M.V.O.-G.; Writing—Review and Editing, M.V.-R., C.R.-B., C.V., M.J.L.-G., M.V.-C. and M.V.O.-G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Human Research Ethics Committee of the University of Granada (nº 939/CEIH/2019).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brånemark, P.I.; Hansson, B.O.; Adell, R.; Breine, U.; Lindström, J.; Hallén, O.; Ohman, A. Osseointegrated implants in the treatment of the edentulous jaw. Experience from a 10-Year Period. Scand. J. Plast Reconstr. Surg. Suppl. 1977, 16, 1–132. [Google Scholar]
  2. Trindade, R.; Albrektsson, T.; Galli, S.; Prgomet, Z.; Tengvall, P.; Wennerberg, A. Osseointegration and foreign body reaction: Titanium implants activate the immune system and suppress bone resorption during the first 4 weeks after implantation. Clin. Implant. Dent. Relat. Res. 2018, 20, 82–91. [Google Scholar] [CrossRef]
  3. Albrektsson, T.; Wennerberg, A. On osseointegration in relation to implant surfaces. Clin. Implant. Dent. Relat. Res. 2019, 21 (Suppl. 1), 4–7. [Google Scholar] [CrossRef] [Green Version]
  4. Meredith, N. Assessment of Implant stability as a prognostic determinant. Int. J. Prosthodont. 1998, 11, 491–501. [Google Scholar]
  5. Inchingolo, A.D.; Inchingolo, A.M.; Bordea, I.R.; Xhajanka, E.; Romeo, D.M.; Romeo, M.; Zappone, C.M.F.; Malcangi, G.; Scarano, A.; Lorusso, F.; et al. The effectiveness of osseodensification drilling protocol for implant site osteotomy: A systematic review of the literature and meta-analysis. Materials 2021, 14, 1147. [Google Scholar] [CrossRef] [PubMed]
  6. Adell, R.; Eriksson, B.; Lekholm, U.; Brånemark, P.I.; Jemt, T. Long-term follow-up study of osseointegrated implants in the treatment of totally edentulous jaws. Int. J. Oral Maxillofac. Implant. 1990, 5, 347–359. [Google Scholar]
  7. Quesada-García, M.-P.; Prados-Sánchez, E.; Olmedo-Gaya, M.-V.; Muñoz-Soto, E.; González-Rodríguez, M.-P.; Valllecillo-Capilla, M. Measurement of dental implant stability by resonance frequency analysis: A review of the literature. Med. Oral Patol. Oral Cir. Bucal 2009, 14, e538–e546. [Google Scholar] [CrossRef] [Green Version]
  8. Guo, C.Y.; Matinlinna, J.P.; Tang, A.T.H. Effects of surface charges on dental implants: Past, present, and future. Int. J. Biomater. 2012, 2012, 381535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Javed, F.; Ahmed, H.B.; Crespi, R.; Romanos, G.E. Role of primary stability for successful osseointegration of dental implants: Factors of influence and evaluation. Interv. Med. Appl. Sci. 2013, 5, 162–167. [Google Scholar] [CrossRef]
  10. Lozano-Carrascal, N.; Salomó-Coll, O.; Gilabert-Cerdà, M.; Farré-Pagés, N.; Gargallo-Albiol, J.; Hernández-Alfaro, F. Effect of implant macro-design on primary stability: A prospective clinical study. Med. Oral Patol. Oral Cir. Bucal 2016, 21, e214–e221. [Google Scholar] [CrossRef] [PubMed]
  11. Huang, H.; Wu, G.; Hunziker, E. The clinical significance of Implant Stability Quotient (ISQ) measurements: A literature review. J. Oral Biol. Craniofac. Res. 2020, 10, 629–638. [Google Scholar] [CrossRef]
  12. Daher, F.I.; Abi-Aad, H.L.; Dimassi, H.I.; Baba, N.Z.; Majzoub, Z.A. Factors affecting implant stability quotients at immediately and conventionally loaded implants in the posterior maxilla: A split-mouth randomized controlled trial. J. Prosthodont. 2020. [Google Scholar] [CrossRef]
  13. Rozé, J.; Babu, S.; Saffarzadeh, A.; Gayet-Delacroix, M.; Hoornaert, A.; Layrolle, P. Correlating Implant stability to bone structure. Clin. Oral Implant. Res. 2009, 20, 1140–1145. [Google Scholar] [CrossRef] [PubMed]
  14. Manzano-Moreno, F.J.; Herrera-Briones, F.J.; Bassam, T.; Vallecillo-Capilla, M.F.; Reyes-Botella, C. Factors affecting dental implant stability measured using the ostell mentor device: A systematic review. Implant. Dent. 2015, 24, 565–577. [Google Scholar] [CrossRef] [PubMed]
  15. Kim, J.-H.; Lim, Y.-J.; Kim, B.; Lee, J. How Do Parameters of implant primary stability correspond with CT-evaluated bone quality in the posterior maxilla? A correlation analysis. Materials 2021, 14, 270. [Google Scholar] [CrossRef]
  16. Sennerby, L.; Meredith, N. Implant Stability Measurements Using Resonance Frequency Analysis: Biological and Biomechanical Aspects and Clinical Implications. Periodontol. 2020 2008, 47, 51–66. [Google Scholar] [CrossRef]
  17. Esposito, M.; Grusovin, M.G.; Coulthard, P.; Worthington, H.V. The efficacy of various bone augmentation procedures for dental implants: A cochrane systematic review of randomized controlled clinical trials. Int. J. Oral Maxillofac. Implant. 2006, 21, 696–710. [Google Scholar]
  18. Kola, M.Z.; Shah, A.H.; Khalil, H.S.; Rabah, A.M.; Harby, N.M.H.; Sabra, S.A.; Raghav, D. Surgical templates for dental implant positioning; current knowledge and clinical perspectives. Niger. J. Surg. 2015, 21, 1–5. [Google Scholar] [CrossRef] [Green Version]
  19. Dos Anjos, T.L.M.R.; de Molon, R.S.; Paim, P.R.F.; Marcantonio, E.; Marcantonio, E.; Faeda, R.S. Implant stability after sinus floor augmentation with deproteinized bovine bone mineral particles of different sizes: A prospective, randomized and controlled split-mouth clinical trial. Int. J. Oral Maxillofac. Surg. 2016, 45, 1556–1563. [Google Scholar] [CrossRef] [Green Version]
  20. von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gøtzsche, P.C.; Vandenbroucke, J.P. STROBE initiative the strengthening the reporting of observational studies in epidemiology (strobe) statement: Guidelines for reporting observational studies. PLoS Med. 2007, 4, e296. [Google Scholar] [CrossRef] [Green Version]
  21. Brånemark, P.-I.; Zarb, G.A.; Albrektsson, T. Tissue-Integrated Prostheses: Osseointegration in Clinical Dentistry; Quintessence: Chicago, IL, USA, 1985; ISBN 978-0-86715-129-9. [Google Scholar]
  22. Alghamdi, H.S. Methods to improve osseointegration of dental implants in low quality (Type-IV) bone: An overview. J. Funct. Biomater. 2018, 9, 7. [Google Scholar] [CrossRef] [Green Version]
  23. Atieh, M.A.; Baqain, Z.H.; Tawse-Smith, A.; Ma, S.; Almoselli, M.; Lin, L.; Alsabeeha, N.H.M. The influence of insertion torque values on the failure and complication rates of dental implants: A systematic review and meta-analysis. Clin. Implant. Dent. Relat. Res. 2021, 23, 341–360. [Google Scholar] [CrossRef] [PubMed]
  24. Zita Gomes, R.; de Vasconcelos, M.R.; Lopes Guerra, I.M.; de Almeida, R.A.B.; de Campos Felino, A.C. Implant stability in the posterior maxilla: A Controlled clinical trial. BioMed Res. Int. 2017, 2017, 6825213. [Google Scholar] [CrossRef] [PubMed]
  25. Degidi, M.; Daprile, G.; Piattelli, A.; Carinci, F. Evaluation of factors influencing resonance frequency analysis values, at insertion surgery, of implants placed in sinus-augmented and nongrafted sites. Clin. Implant. Dent. Relat. Res. 2007, 9, 144–149. [Google Scholar] [CrossRef] [PubMed]
  26. Deli, G.; Petrone, V.; De Risi, V.; Tadic, D.; Zafiropoulos, G.-G. Longitudinal implant stability measurements based on resonance frequency analysis after placement in healed or regenerated bone. J. Oral Implant. 2014, 40, 438–447. [Google Scholar] [CrossRef]
  27. Araújo, M.G.; Lindhe, J. Ridge Alterations following tooth extraction with and without flap elevation: An experimental study in the dog. Clin. Oral Implant. Res. 2009, 20, 545–549. [Google Scholar] [CrossRef]
  28. Artzi, Z.; Tal, H.; Dayan, D. Porous bovine bone mineral in healing of human extraction sockets. Part 1: Histomorphometric evaluations at 9 months. J. Periodontol. 2000, 71, 1015–1023. [Google Scholar] [CrossRef]
  29. Carmagnola, D.; Adriaens, P.; Berglundh, T. Healing of human extraction sockets filled with Bio-Oss. Clin. Oral Implant. Res. 2003, 14, 137–143. [Google Scholar] [CrossRef]
  30. Heinemann, F.; Hasan, I.; Bourauel, C.; Biffar, R.; Mundt, T. Bone stability around dental implants: Treatment related factors. Ann. Anat. 2015, 199, 3–8. [Google Scholar] [CrossRef]
  31. Sbricoli, L.; Guazzo, R.; Annunziata, M.; Gobbato, L.; Bressan, E.; Nastri, L. Selection of collagen membranes for bone regeneration: A literature review. Materials 2020, 13, 786. [Google Scholar] [CrossRef] [Green Version]
  32. Di Lallo, S.; Ricci, L.; Orecchioni, S.; Piattelli, A.; Iezzi, G.; Perrotti, V. Resonance frequency analysis assessment of implants placed with a simultaneous or a delayed approach in grafted and nongrafted sinus sites: A 12-month clinical study. Clin. Implant. Dent. Relat. Res. 2014, 16, 394–400. [Google Scholar] [CrossRef]
  33. Beck, T.M.; Mealey, B.L. Histologic analysis of healing after tooth extraction with ridge preservation using mineralized human bone allograft. J. Periodontol. 2010, 81, 1765–1772. [Google Scholar] [CrossRef] [Green Version]
  34. Monje, A.; Suarez, F.; Garaicoa, C.A.; Monje, F.; Galindo-Moreno, P.; García-Nogales, A.; Wang, H.-L. Effect of location on primary stability and healing of dental implants. Implant. Dent. 2014, 23, 69–73. [Google Scholar] [CrossRef] [Green Version]
  35. Sim, C.P.C.; Lang, N.P. Factors influencing resonance frequency analysis assessed by osstell mentor during implant tissue integration: I. instrument positioning, bone structure, implant length. Clin. Oral Implant. Res. 2010, 21, 598–604. [Google Scholar] [CrossRef]
  36. O’Sullivan, D.; Sennerby, L.; Jagger, D.; Meredith, N. A comparison of two methods of enhancing implant primary stability. Clin. Implant. Dent. Relat. Res. 2004, 6, 48–57. [Google Scholar] [CrossRef] [PubMed]
  37. Yoon, H.-G.; Heo, S.-J.; Koak, J.-Y.; Kim, S.-K.; Lee, S.-Y. Effect of bone quality and implant surgical technique on Implant Stability Quotient (ISQ) value. J. Adv. Prosthodont. 2011, 3, 10–15. [Google Scholar] [CrossRef] [PubMed]
  38. Farré-Pagés, N.; Augé-Castro, M.L.; Alaejos-Algarra, F.; Mareque-Bueno, J.; Ferrés-Padró, E.; Hernández-Alfaro, F. Relation between bone density and primary implant stability. Med. Oral Patol. Oral Cir. Bucal 2011, 16, e62–e67. [Google Scholar] [CrossRef] [Green Version]
  39. Herekar, M.; Sethi, M.; Ahmad, T.; Fernandes, A.S.; Patil, V.; Kulkarni, H. A Correlation between Bone (B), Insertion Torque (IT), and Implant Stability (S): BITS Score. J. Prosthet. Dent. 2014, 112, 805–810. [Google Scholar] [CrossRef]
  40. Valiyaparambil, J.V.; Yamany, I.; Ortiz, D.; Shafer, D.M.; Pendrys, D.; Freilich, M.; Mallya, S.M. Bone quality evaluation: Comparison of cone beam computed tomography and subjective surgical assessment. Int. J. Oral Maxillofac. Implant. 2012, 27, 1271–1277. [Google Scholar]
  41. Fanali, S.; Tumedei, M.; Pignatelli, P.; Inchingolo, F.; Pennacchietti, P.; Pace, G.; Piattelli, A. Implant primary stability with an osteocondensation drilling protocol in different density polyurethane blocks. Comput. Methods Biomech. Biomed. Eng. 2020, 14–20. [Google Scholar] [CrossRef]
  42. Comuzzi, L.; Tumedei, M.; Pontes, A.E.; Piattelli, A.; Iezzi, G. Primary stability of dental implants in low-density (10 and 20 pcf) polyurethane foam blocks: Conical vs. cylindrical implants. Int. J. Environ. Res. Public Health 2020, 17, 2617. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Tumedei, M.; Piattelli, A.; Degidi, M.; Mangano, C.; Iezzi, G. A 30-Year (1988–2018) Retrospective Microscopical Evaluation of Dental Implants Retrieved for Different Causes: A Narrative Review. Int. J. Periodontics Restor. Dent. 2020, 40, e211–e227. [Google Scholar] [CrossRef]
  44. Degidi, M.; Daprile, G.; Piattelli, A. Primary Stability determination by means of insertion torque and RFA in a sample of 4135 implants. Clin. Implant. Dent. Relat. Res. 2012, 14, 501–507. [Google Scholar] [CrossRef] [PubMed]
  45. Shin, S.-Y.; Shin, S.-I.; Kye, S.-B.; Chang, S.-W.; Hong, J.; Paeng, J.-Y.; Yang, S.-M. Bone Cement grafting increases implant primary stability in circumferential cortical bone defects. J. Periodontal. Implant. Sci. 2015, 45, 30–35. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Tsolaki, I.N.; Tonsekar, P.P.; Najafi, B.; Drew, H.J.; Sullivan, A.J.; Petrov, S.D. Comparison of osteotome and conventional drilling techniques for primary implant stability: An in vitro study. J. Oral Implant. 2016, 42, 321–325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Barone, A.; Marconcini, S.; Giammarinaro, E.; Mijiritsky, E.; Gelpi, F.; Covani, U. Clinical outcomes of implants placed in extraction sockets and immediately restored: A 7-year single-cohort prospective study. Clin. Implant. Dent. Relat. Res. 2016, 18, 1103–1112. [Google Scholar] [CrossRef]
  48. Buser, D.A.; Schroeder, A.; Sutter, F.; Lang, N.P. The new concept of iti hollow-cylinder and hollow-screw implants: Part 2. clinical aspects, indications, and early clinical results. Int. J. Oral Maxillofac. Implant. 1988, 3, 173–181. [Google Scholar]
  49. Lefkove, M.D.; Beals, R.P. Immediate loading of cylinder implants with overdentures in the mandibular symphysis: The Titanium Plasma-Sprayed Screw Technique. J. Oral Implant. 1990, 16, 265–271. [Google Scholar]
  50. Tarnow, D.P.; Emtiaz, S.; Classi, A. Immediate loading of threaded implants at stage 1 surgery in edentulous arches: Ten consecutive case reports with 1- to 5-year data. Int. J. Oral Maxillofac. Implant. 1997, 12, 319–324. [Google Scholar]
  51. Horiuchi, K.; Uchida, H.; Yamamoto, K.; Sugimura, M. Immediate loading of brånemark system implants following placement in edentulous patients: A clinical report. Int. J. Oral Maxillofac. Implant. 2000, 15, 824–830. [Google Scholar]
  52. Gapski, R.; Wang, H.-L.; Mascarenhas, P.; Lang, N.P. Critical review of immediate implant loading. Clin. Oral Implant. Res. 2003, 14, 515–527. [Google Scholar] [CrossRef] [PubMed]
  53. Chiapasco, M.; Gatti, C.; Rossi, E.; Haefliger, W.; Markwalder, T.H. Implant-retained mandibular overdentures with immediate loading. a retrospective multicenter study on 226 consecutive cases. Clin. Oral Implant. Res. 1997, 8, 48–57. [Google Scholar] [CrossRef] [PubMed]
  54. Ericsson, I.; Nilson, H.; Lindh, T.; Nilner, K.; Randow, K. Immediate Functional loading of brånemark single tooth implants. an 18 months’ clinical pilot follow-up study. Clin. Oral Implant. Res. 2000, 11, 26–33. [Google Scholar] [CrossRef]
  55. Maló, P.; Rangert, B.; Dvärsäter, L. Immediate function of brånemark implants in the esthetic zone: A retrospective clinical study with 6 months to 4 years of follow-up. Clin. Implant. Dent. Relat. Res. 2000, 2, 138–146. [Google Scholar] [CrossRef]
  56. Park, K.-J.; Kwon, J.-Y.; Kim, S.-K.; Heo, S.-J.; Koak, J.-Y.; Lee, J.-H.; Lee, S.-J.; Kim, T.-H.; Kim, M.-J. The Relationship between implant stability quotient values and implant insertion variables: A clinical study. J. Oral Rehabil. 2012, 39, 151–159. [Google Scholar] [CrossRef]
  57. Gehrke, S.A.; da Silva, U.T.; Del Fabbro, M. Does implant design affect implant primary stability? A resonance frequency analysis-based randomized split-mouth clinical trial. J. Oral Implant. 2015, 41, e281–e286. [Google Scholar] [CrossRef] [PubMed]
Jcm 10 03220 g001 550

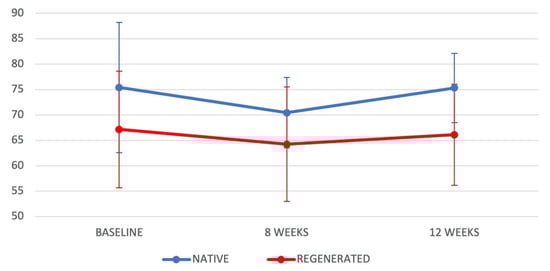

Figure 1. Evolution of ISQ values (mean ± standard errors) in Groups 1 and 2 at baseline, after 8 weeks, and after 12 weeks.
Figure 1. Evolution of ISQ values (mean ± standard errors) in Groups 1 and 2 at baseline, after 8 weeks, and after 12 weeks.
Jcm 10 03220 g001
Jcm 10 03220 g002 550
Figure 2. Evolution of ISQ values (mean ± standard errors) in bone D1–D2 and D3–D4 at baseline, after 8 weeks, and after 12 weeks.
Figure 2. Evolution of ISQ values (mean ± standard errors) in bone D1–D2 and D3–D4 at baseline, after 8 weeks, and after 12 weeks.
Jcm 10 03220 g002
Table
Table 1. Data on patient sex, implant diameter, implant distribution, and bone quality.
Table 1. Data on patient sex, implant diameter, implant distribution, and bone quality.
Implants
(n)(%)
SexMale2846.7
Female3253.3
Implant diameter3.72440
4.13660
Implant siteMaxillary anterior610
Maxillary posterior1728.3
Mandibular anterior58.3
Mandibular posterior3253.3
Bone quality *D1–D23660
D3–D42440
* Lekholm and Zarb classification.
Table
Table 2. Between-group comparison of ISQ values at baseline, 8 weeks, and 12 weeks.
Table 2. Between-group comparison of ISQ values at baseline, 8 weeks, and 12 weeks.
Bone Type
n (Mean ± SD)Standard ErrorMedianMinimumMaximump-Value
ISQ
Baseline		Native30 (75.40 ± 12.80)2.3476.5025.0091.000.011 *
Regenerated30 (67.17 ± 11.47)2.0964.5047.0085.00
ISQ
8 weeks		Native30 (70.43 ± 6.93)1.2671.0057.0083.000.013 *
Regenerated30 (64.23 ± 11.27)2.0662.5044.0088.00
ISQ
12 weeks		Native30 (75.33 ± 6.82)1.2575.5063.0087.000.000 *
Regenerated30 (66.10 ± 9.93)1.8167.0049.0085.00
SD = standard deviation. * Student’s t-test.
Table
Table 3. ISQ values as a function of bone quality at baseline, 8 weeks, and 12 weeks.
Table 3. ISQ values as a function of bone quality at baseline, 8 weeks, and 12 weeks.
Bone Quality
n (Mean ± SD)Standard ErrorMedianMinimumMaximump-Value
ISQ
Baseline		D1–D236 (74.17 ± 11.10)1.8573.5049.0091.000.031 *
D3–D424 (66.96 ± 14.02)2.8670.0025.0084.00
ISQ
8 weeks		D1–D236 (67.67 ± 9.93)1.6670.0044.0087.000.750 *
D3–D424 (66.83 ± 9.75)1.9967.5050.0088.00
ISQ
12 weeks		D1–D236 (72.00 ± 10.18)1.7073.5050.0087.000.209 *
D3–D424 (68.79 ± 8.63)1.7670.5049.0081.00
SD = standard deviation. * Student’s t-test.
