Next Article in Journal
Review of Recent Nuclear Magnetic Resonance Studies of Ion Transport in Polymer Electrolytes
Previous Article in Journal
Process Simulation and Cost Evaluation of Carbon Membranes for CO2 Removal from High-Pressure Natural Gas
Article Menu

Export Article

Open AccessArticle
Membranes 2018, 8(4), 119;

Synthesis and Optimization of Chitosan Ceramic-Supported Membranes in Pervaporation Ethanol Dehydration

Section of Chemical Engineering, Department of Chemistry and Bioscience, Aalborg University, 6700 Esbjerg, Denmark
Research Center for Membrane Separation Processes, Faculty of Chemical Engineering, Iran University of Science and Technology, Tehran 1684613114, Iran
School of Chemical Engineering, College of Engineering, University of Tehran, Tehran 1417614418, Iran
Author to whom correspondence should be addressed.
Received: 15 October 2018 / Revised: 26 November 2018 / Accepted: 27 November 2018 / Published: 30 November 2018
Full-Text   |   PDF [2747 KB, uploaded 30 November 2018]   |

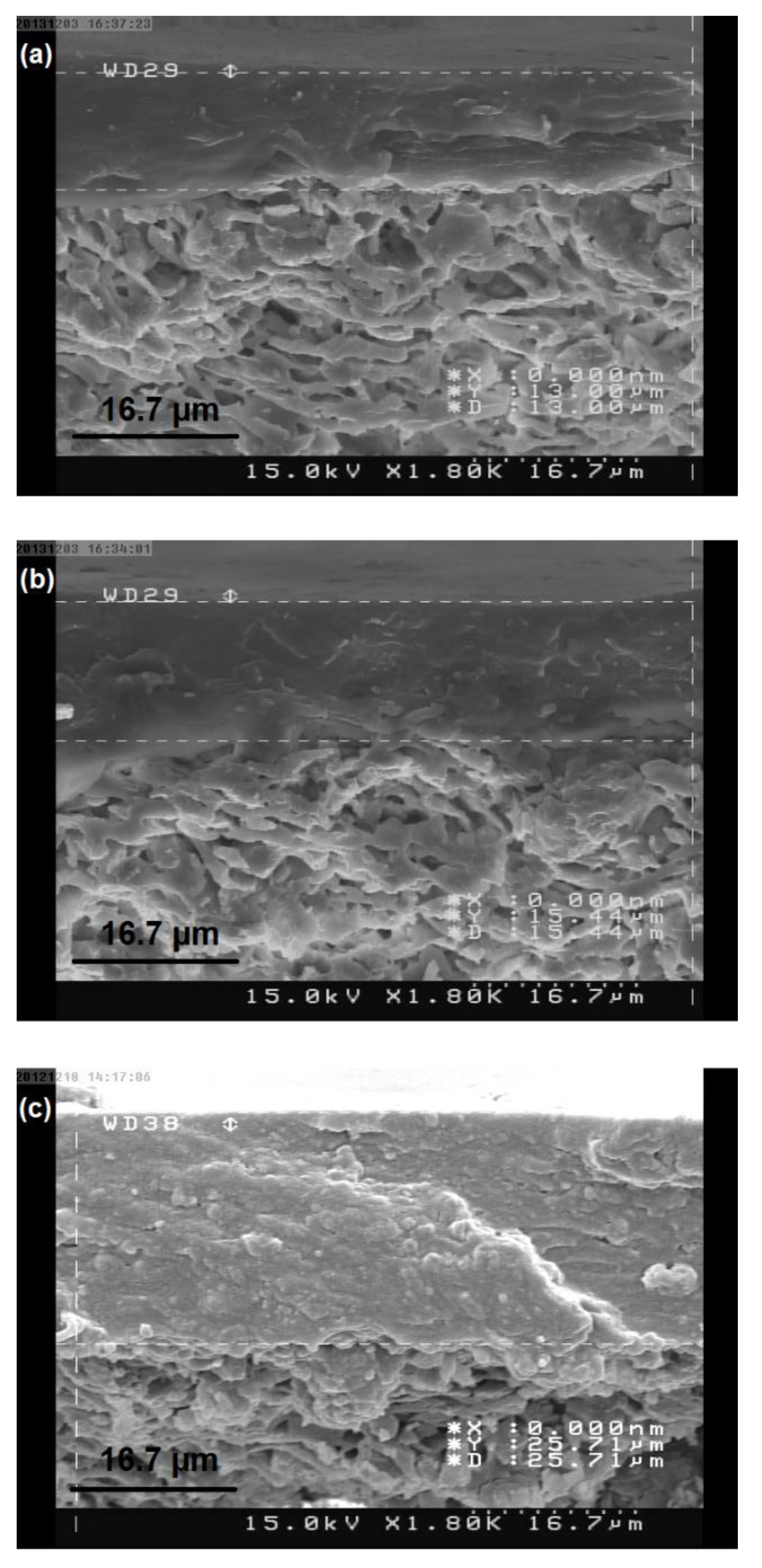

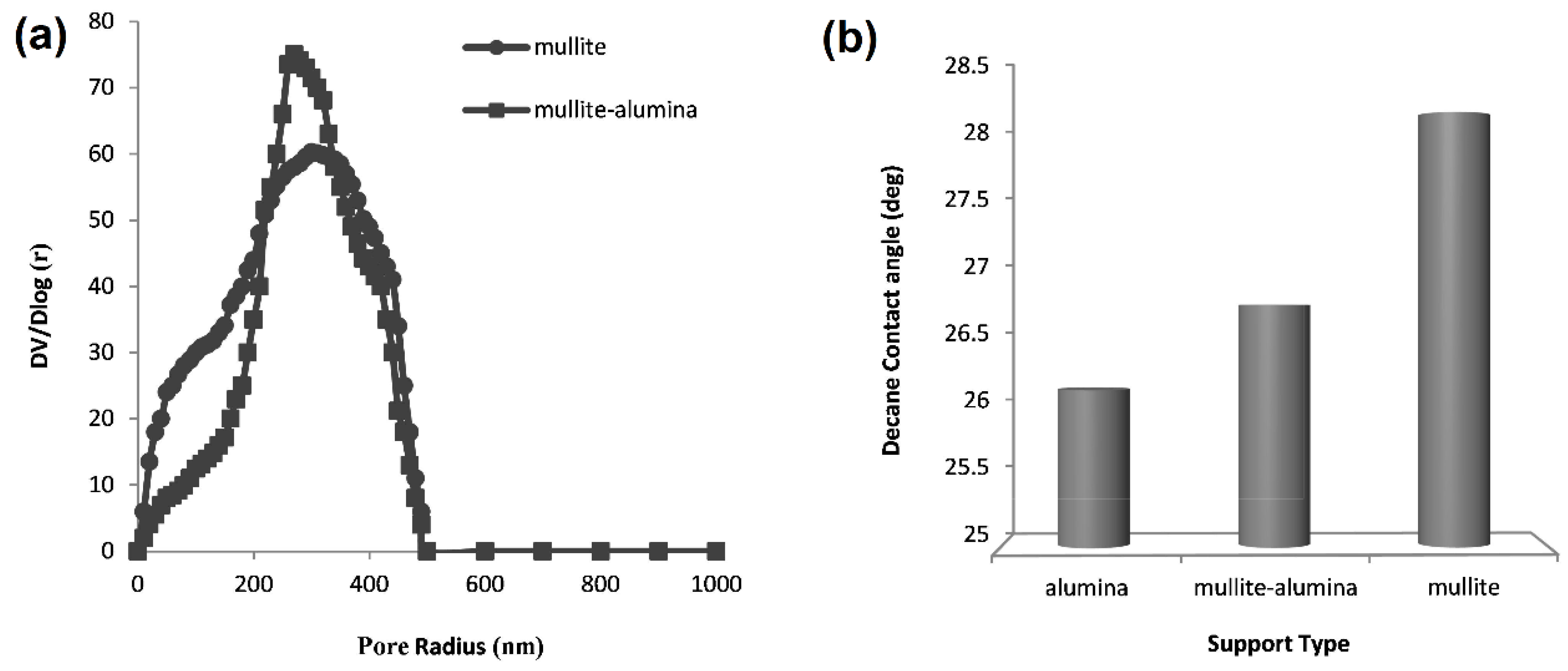

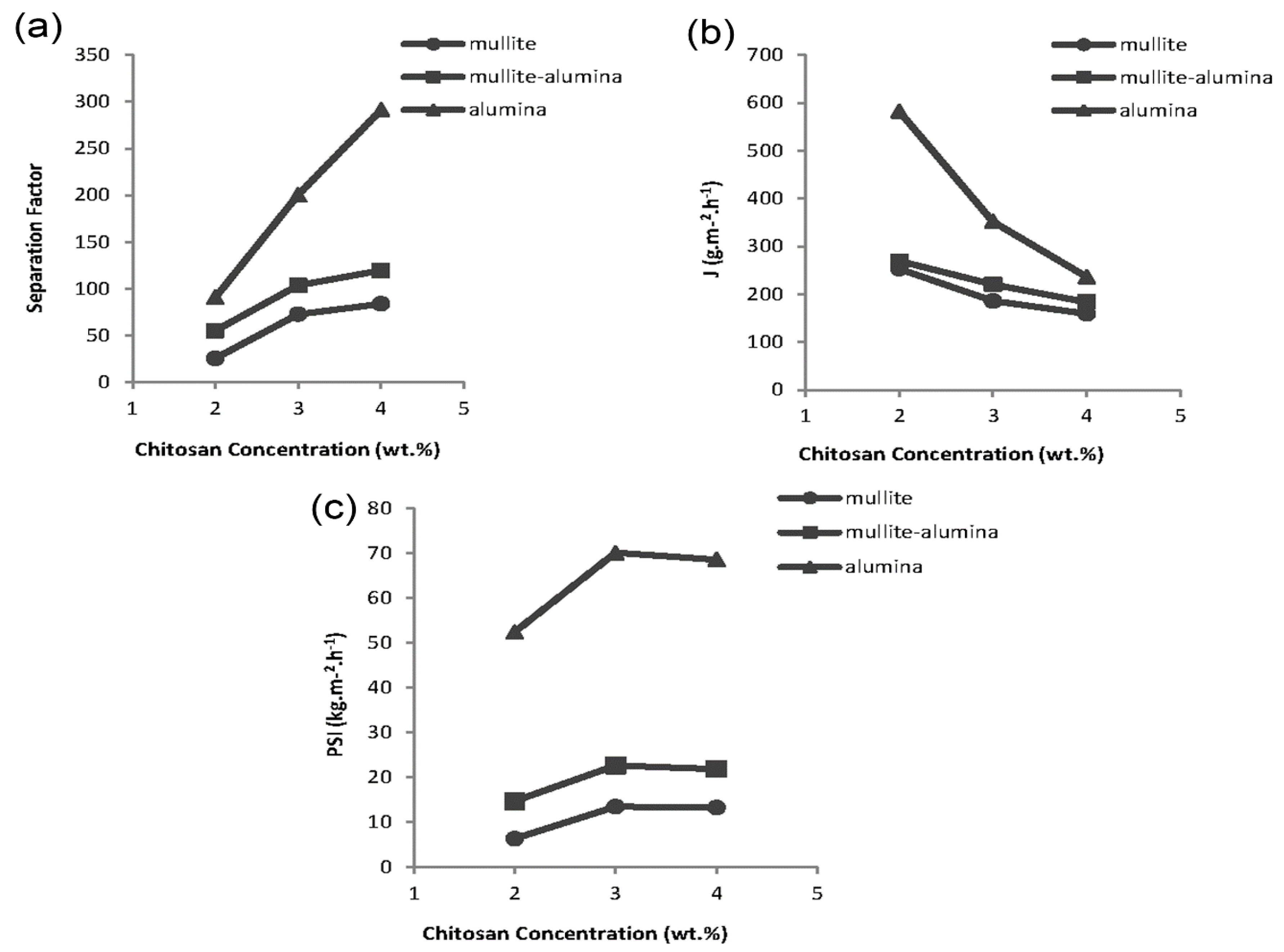

In the present work, ceramic-supported chitosan hybrid membranes were prepared for the pervaporation dehydration of ethanol. Mullite and combined mullite-alumina (50% alumina content) tubular low-cost ceramic supports were fabricated, and their influence on membrane performance was compared to a commercial α-alumina support. The membrane preparation parameters were different ceramic supports and the concentration of chitosan solution (varying from 2 wt.% to 4 wt.%). The supports and hybrid membranes were characterized by field emission scanning electron microscopy (FE-SEM) and contact angle measurements. The results show, with increasing chitosan concentration, the permeability decreases, and selectivity increases. It was also found that the separation factor decreases with increasing feed temperature and feed water content, while the permeation flux increases. The membrane that was coated on α-alumina support with a 3 wt.% chitosan concentration exhibited the best pervaporation performance, leading to a permeation flux and separation factor of 352 g·m−2·h−1 and 200 for 90 wt.% ethanol in feed at 60 °C, respectively. View Full-Text
Keywords: chitosan; hybrid membrane; ceramic supports; pervaporation; ethanol dehydration chitosan; hybrid membrane; ceramic supports; pervaporation; ethanol dehydration

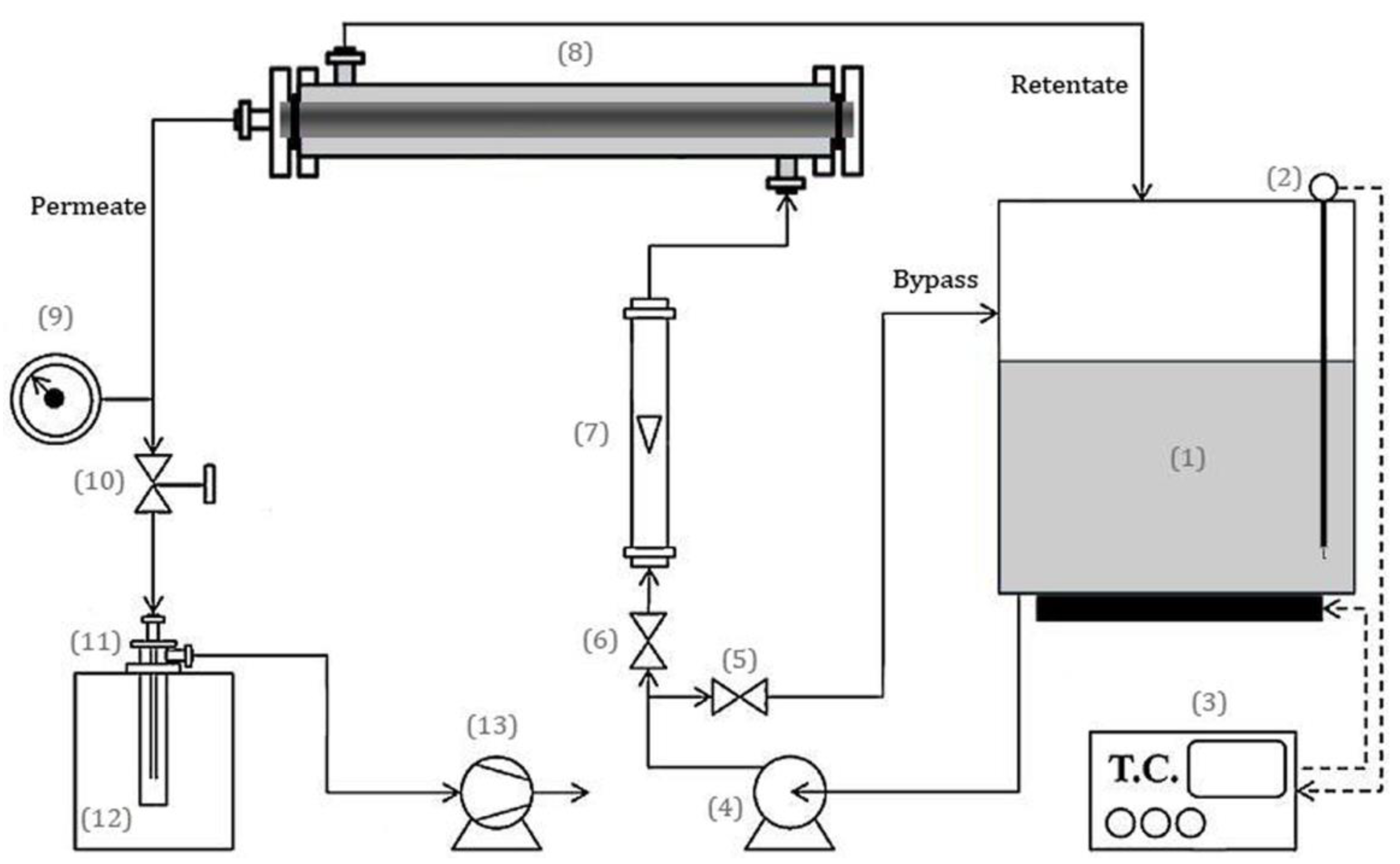

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Nikbakht Fini, M.; Soroush, S.; Montazer-Rahmati, M.M. Synthesis and Optimization of Chitosan Ceramic-Supported Membranes in Pervaporation Ethanol Dehydration. Membranes 2018, 8, 119.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Membranes EISSN 2077-0375 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
