Pilot–Scale Production of Carbon Hollow Fiber Membranes from Regenerated Cellulose Precursor-Part I: Optimal Conditions for Precursor Preparation

Department of Chemical Engineering, Norwegian University of Science and Technology (NTNU), 7491 Trondheim, Norway
*
Author to whom correspondence should be addressed.
Received: 17 September 2018 / Revised: 25 October 2018 / Accepted: 8 November 2018 / Published: 13 November 2018
(This article belongs to the Section Membrane Preparation and Characterization)
Full-Text   |   PDF [13480 KB, uploaded 13 November 2018]   |

Abstract

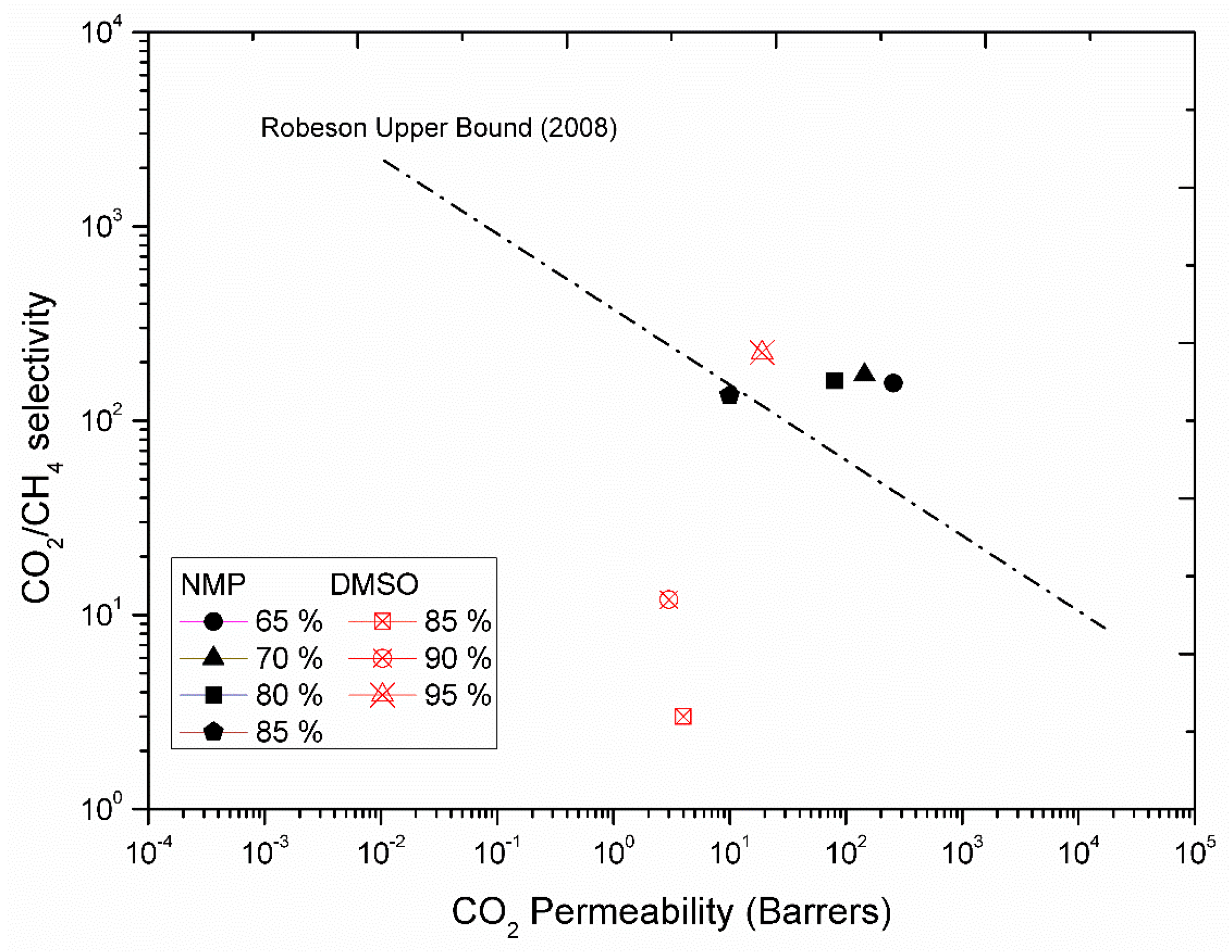

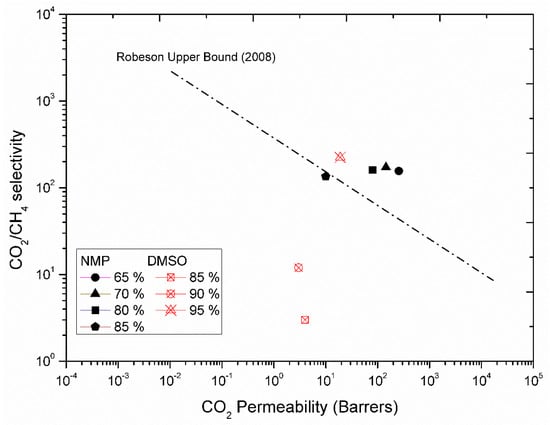

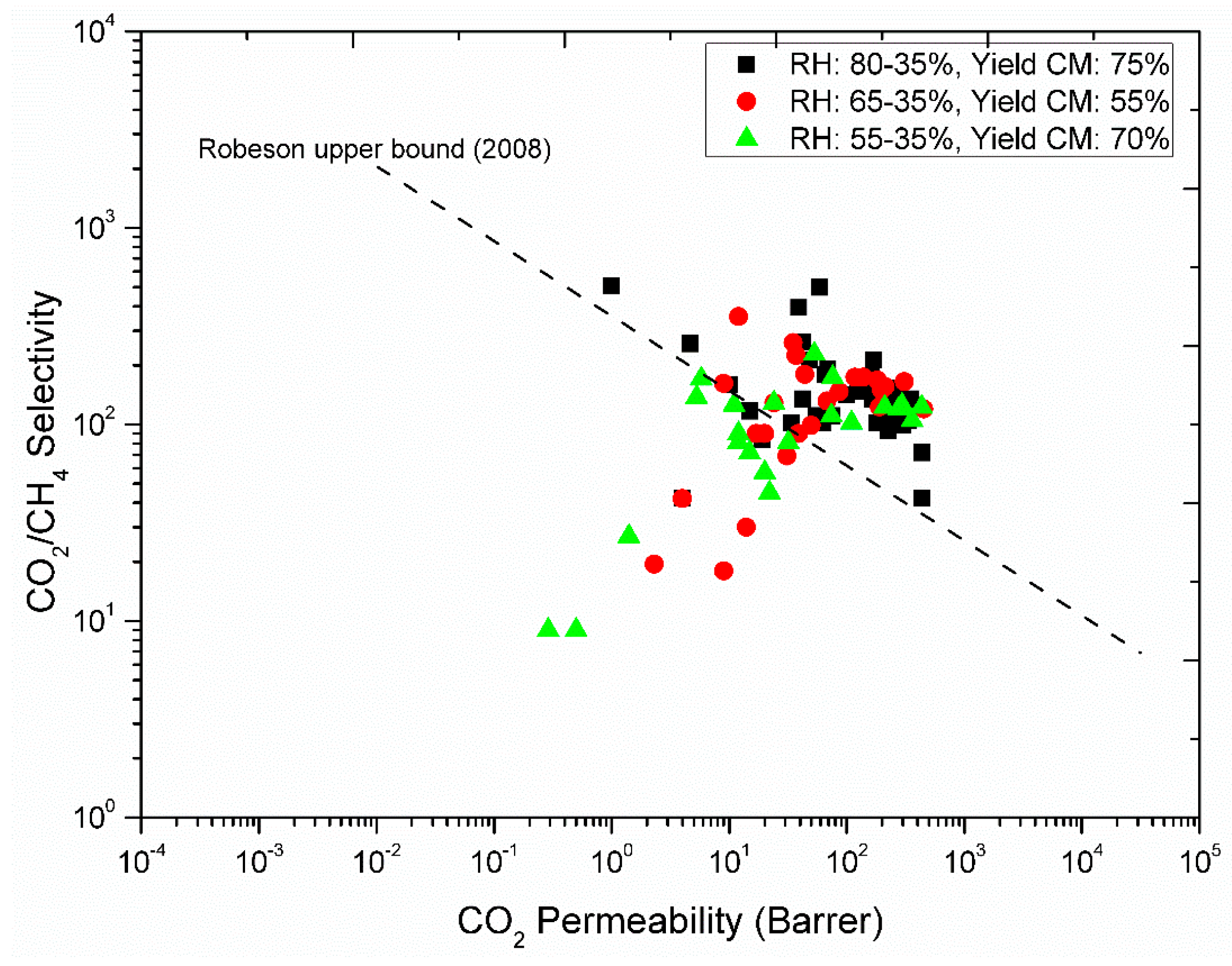

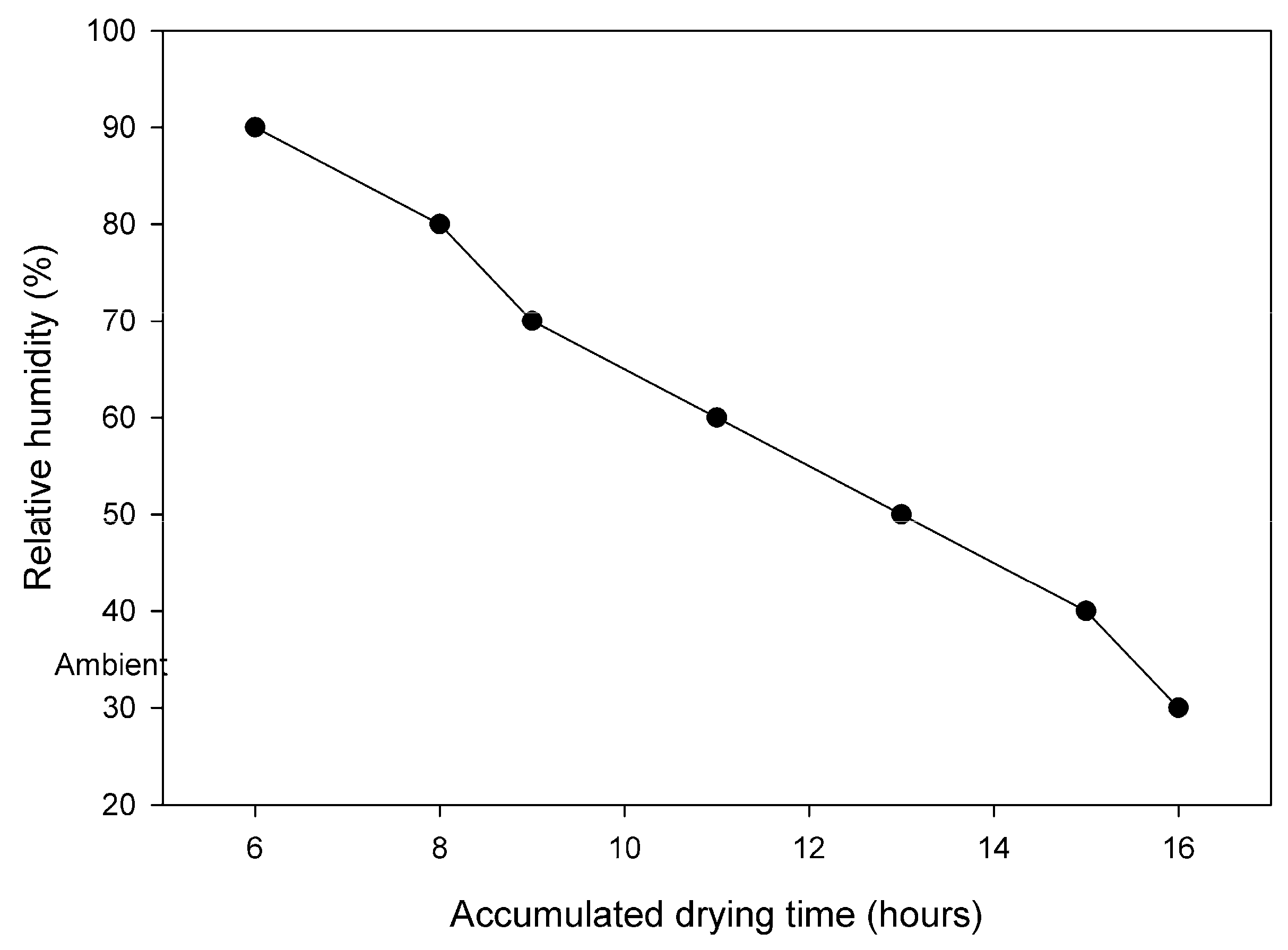

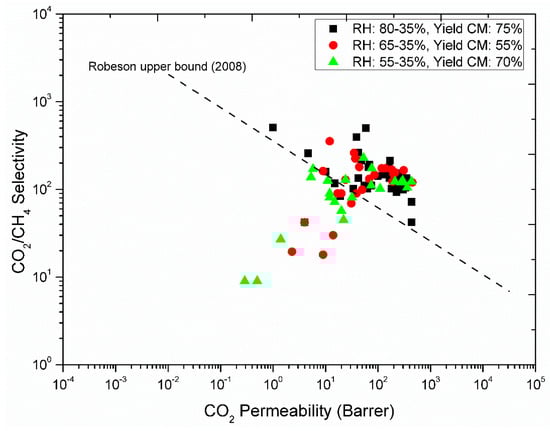

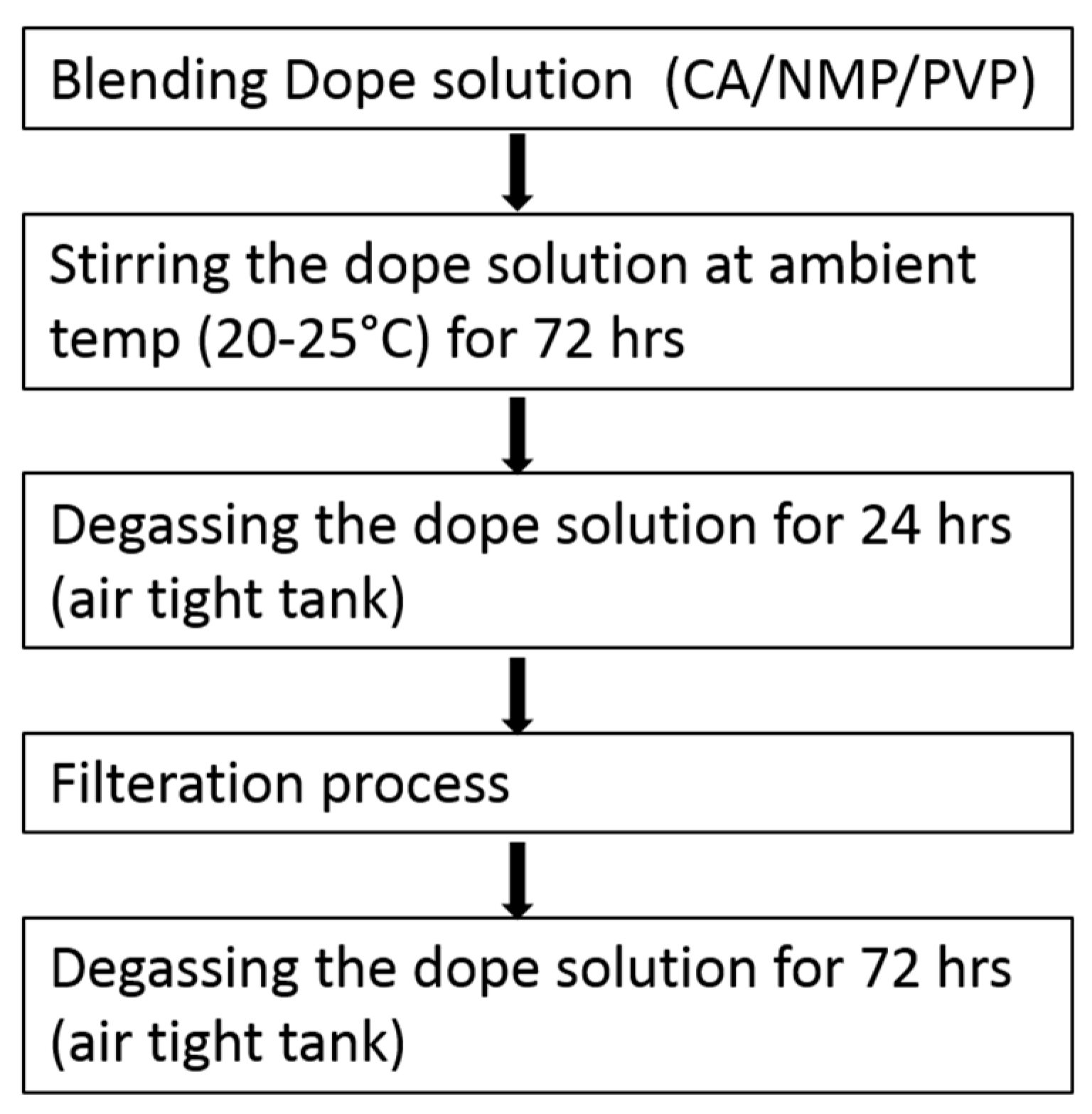

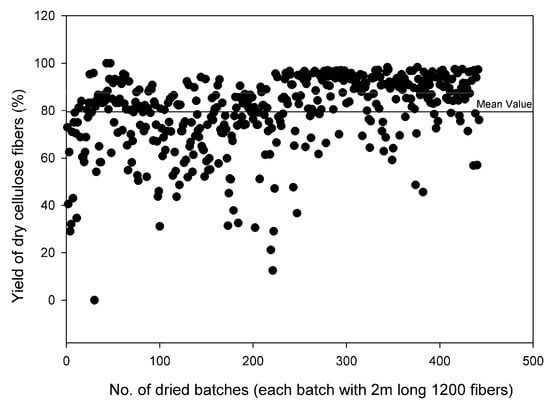

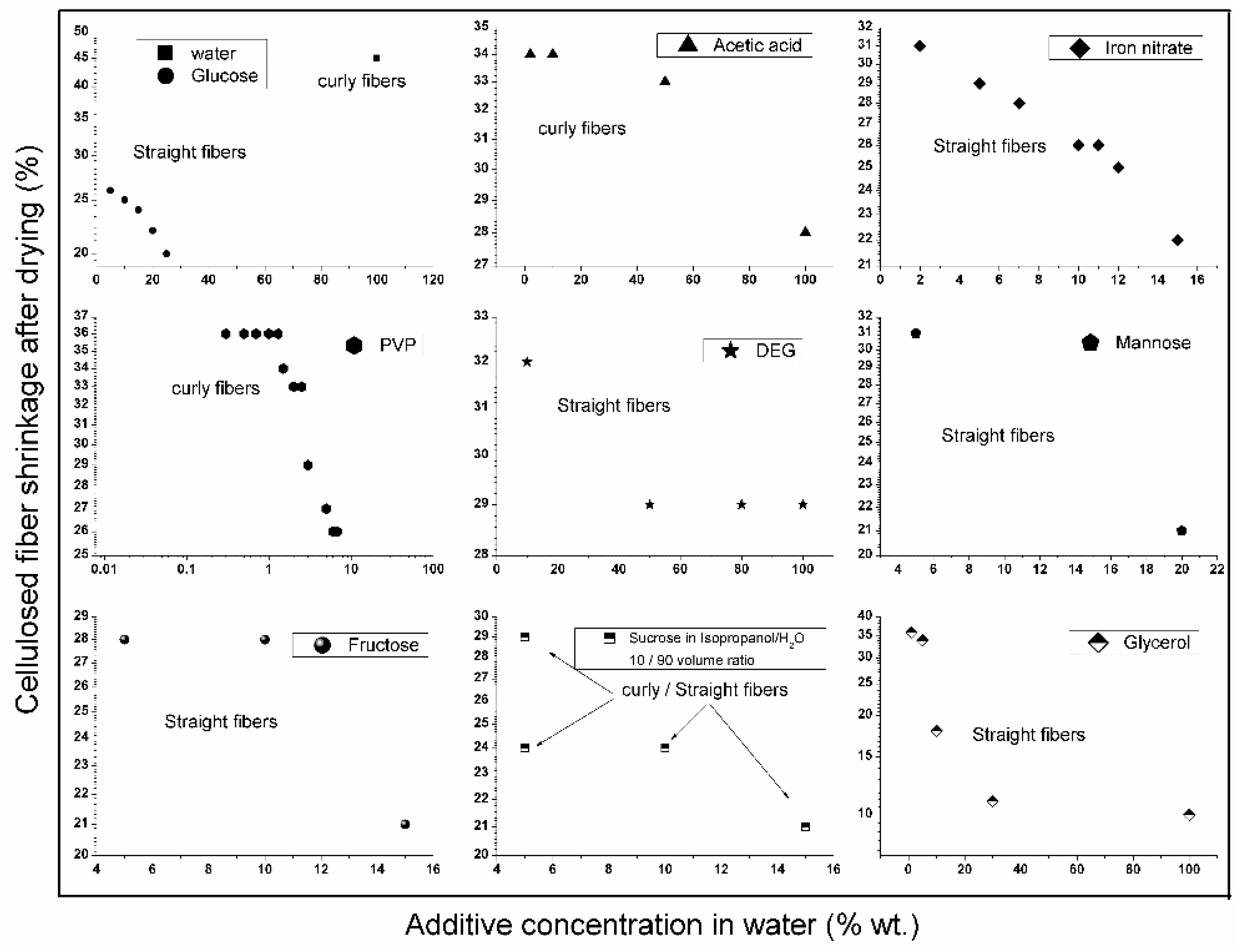

Industrial scale production of carbon membrane is very challenging due to expensive precursor materials and a multi-step process with several variables to deal with. The optimization of these variables is essential to gain a competent carbon membrane (CM) with high performance and good mechanical properties. In this paper, a pilot scale system is reported that was developed to produce CM from regenerated cellulose precursor with the annual production capacity 700 m2 of CM. The process was optimized to achieve maximum yield (>95%) of high quality precursor fibers and carbonized fibers. A dope solution of cellulose acetate (CA)/Polyvinylpyrrolidone (PVP)/N-methyl-2-pyrrolidone (NMP) and bore fluid of NMP/H2O were used in 460 spinning-sessions of the fibers using a well-known dry/wet spinning process. Optimized deacetylation of spun-CA hollow fibers (CAHF) was achieved by using 90 vol% 0.075 M NaOH aqueous solution diluted with 10 vol% isopropanol for 2.5 h at ambient temperature. Cellulose hollow fibers (CHF) dried at room temperature and under RH (80% → ambient) overnight gave maximum yield for both dried CHF, as well as carbon fibers. The gas permeation properties of carbon fibers were also high (CO2 permeability: 50–450 Barrer (1 Barrer = 2.736 × 10−9 m3 (STP) m/m2 bar h), and CO2/CH4 selectivity acceptable (50–500). View Full-Text
Keywords: pilot scale process; carbon membrane precursor; dry/wet spinning; deacetylation; regenerated cellulose; drying conditions pilot scale process; carbon membrane precursor; dry/wet spinning; deacetylation; regenerated cellulose; drying conditions
Figures

Figure 1
