Communication

An AFM Approach Applied in a Study of α-Crystallin Membrane Association: New Insights into Lens Hardening and Presbyopia Development

by
Nawal K. Khadka
1,
Raju Timsina
1 and
Laxman Mainali
1,2,*
1
Department of Physics, Boise State University, Boise, ID 83725, USA
2
Biomolecular Sciences Graduate Program, Boise State University, Boise, ID 83725, USA
*
Author to whom correspondence should be addressed.
Membranes 2022, 12(5), 522; https://doi.org/10.3390/membranes12050522
Submission received: 28 April 2022 / Revised: 12 May 2022 / Accepted: 13 May 2022 / Published: 14 May 2022
(This article belongs to the Special Issue Advances in Model Membrane Systems)
Browse Figures
Versions Notes

Abstract

:
The lens of the eye loses elasticity with age, while α-crystallin association with the lens membrane increases with age. It is unclear whether there is any correlation between α-crystallin association with the lens membrane and loss in lens elasticity. This research investigated α-crystallin membrane association using atomic force microscopy (AFM) for the first time to study topographical images and mechanical properties (breakthrough force and membrane area compressibility modulus (KA), as measures of elasticity) of the membrane. α-Crystallin extracted from the bovine lens cortex was incubated with a supported lipid membrane (SLM) prepared on a flat mica surface. The AFM images showed the time-dependent interaction of α-crystallin with the SLM. Force spectroscopy revealed the presence of breakthrough events in the force curves obtained in the membrane regions where no α-crystallin was associated, which suggests that the membrane’s elasticity was maintained. The force curves in the α-crystallin submerged region and the close vicinity of the α-crystallin associated region in the membrane showed no breakthrough event within the defined peak force threshold, indicating loss of membrane elasticity. Our results showed that the association of α-crystallin with the membrane deteriorates membrane elasticity, providing new insights into understanding the molecular basis of lens hardening and presbyopia.

1. Introduction

Human lenses are the avascular tissues that provide the geometrical and physiological arrangement for focusing light on the retina. Lens fiber cells containing a very high concentration of protein, mostly crystallin [1], are meticulously arranged in the lens to provide a lifelong mechanism for light refraction. As eye lens cells are generated continuously throughout life, older cells become elongated and constricted at the center, forming a nucleus, and the newly grown cortical fiber cells form a layer over the nucleus [2]. Presbyopia—the loss of the lens’ accommodative ability to focus on nearby objects—begins in most humans around and beyond the age of 40, regardless of any prior vision condition. Several factors are proposed to explain the underlying cause of presbyopia, including lens hardening [3,4,5,6,7], lens growth [8], aging of the ciliary muscle [9], lens capsule [10], and vitreous [11]. Recent discoveries suggest that age-related loss in lens elasticity is the preeminent factor for presbyopia [3,4,6,12,13,14]. Both ex vivo [15] and in vivo [16] experiments on the mechanical properties of the human lens have indicated that the tissues in the central nuclear region are stiffer than the tissues in the peripheral region of the lens [3,17]. Similarly, the nuclear cells are much stiffer than the cells in the cortical region [18]. The dramatic loss of lens elasticity (i.e., increased lens stiffness) occurs most prominently in the fourth to fifth decade of life [3,4,5,19,20]. Cataractous lenses follow a similar trend, with older cataractous lenses being stiffer than younger ones [21]. However, cataractous lenses are substantially stiffer than clear lenses in the same age group [21]. As the lens loses elasticity with age, α-crystallin concentration decreases in the lens cytoplasm, where α-crystallin associates with other crystallins, forming a higher molecular weight complex (HMWC) [4,5,22,23,24,25,26,27]. The HMWC further associates with the fiber cell plasma membrane [25,26,28,29]. It has also been reported that mild thermal stress in the young human lens causes a large-scale association of α-crystallin with the lens membrane [30]. It is likely that the association of α-crystallin and HMWC with the fiber cell plasma membrane reduces the ability of individual fiber cells to change shape and that this is accompanied by lens hardening and presbyopia development. Some researchers have also pointed out that presbyopia might be an early symptom of nuclear cataracts [31].
Several studies have investigated the interaction of α-crystallin with the lens membranes [32,33,34,35,36,37,38] and lipid vesicles [32,34,39,40,41,42,43,44]. Intrinsic phospholipids in membranes serve as primary association sites for α-crystallin [32,33,41]. Multiple studies have suggested that α-crystallin associates with the membrane via hydrophobic interaction [45,46,47,48], modulating the physical properties of the membrane [26,32,39,40,48,49,50]. The membrane insertion ability of αA-crystallin correlates with its oligomeric size, suggesting that oligomeric size may be the structural basis for the localized association of αA-crystallin with the membrane [47]. Our electron paramagnetic resonance (EPR) studies demonstrated that the association of α-crystallin with lipids and cholesterol-containing lipid membranes changes the physical properties (mobility parameter, maximum splitting, and hydrophobicity) of membranes [39,40,48,49,50], that lipid composition strongly modulates the association of α-crystallin with membranes [26,40,48], and that an increase in cholesterol (Chol) content, with the formation of cholesterol bilayer domains (CBDs), within the Chol/lipid membranes inhibits the association of α-crystallin with the membranes [48,49]. Atomic force microscopy (AFM) was used previously to measure the stiffness of the lens cell [18], capsule [51], and whole lens [52]. AFM is a versatile instrument for analyzing various aspects of proteins, providing new understandings of molecular mechanisms and making significant contributions to protein biology [53]. A recent publication [53] reviewed the versatility of AFM from a variety of viewpoints, including single particle force spectroscopy, morphological imaging, mechanical unfolding processes, and high-speed imaging of single proteins. Recently, we developed the AFM approach and measured the elasticity of the high cholesterol-containing membrane relevant to the eye lens membrane [54]. However, the interaction of α-crystallin with the supported lipid membrane (SLM) using the AFM approach has not been investigated. In this study, we used the AFM approach for the first time to study the topographical image and mechanical properties (breakthrough (BT) force and elasticity) of the membrane after α-crystallin association and provide new insights through an elucidation of the molecular basis of lens hardening and presbyopia development.

2. Materials and Methods

2.1. Materials

Bovine eye lenses were purchased from Pel-Freez Biologicals (Rogers, AR, USA) and stored at −80 °C immediately upon receipt, and 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphatidylcholine (POPC) lipid dissolved in chloroform was purchased from Avanti polar lipids (Birmingham, AL, USA). POPC was chosen as a model lipid because phosphatidylcholine is dominant in the lens membrane of short-life span animals [55]. Analytical grade NaN3, CaCl2, MgCl2, HEPES, and NaCl were purchased from Sigma-Aldrich (St. Louis, MO, USA), and Tris base was purchased from Fisher bioreagents. The elution buffer contained 1 mM NaN3, 20 mM Tris-HCl, and 150 mM NaCl and had a pH of 7.9. Buffer A contained 10 mM HEPES and 150 mM NaCl, with a pH 7.4, while buffer B contained 10 mM HEPES and 150 mM NaCl, pH 7.4, with 5 mM CaCl2 or 10 mM MgCl2. All SLMs were prepared on buffer B containing 5 mM CaCl2 unless specified otherwise. Approximately 5 mL of divalent salt-free buffer (buffer A) was used for flushing out unfused vesicles before imaging, as described previously [54].

2.2. α-Crystallin Extraction and Purification

A single bovine lens was separated into the cortical and nuclear regions based on tissue consistency after decapsulation. Soluble proteins were extracted from the cortex using a previously described protocol [56]. Briefly, after homogenizing cortical tissues in the elution buffer, cell debris was pelleted by centrifuging at 18,000× g for 15 min at 4 °C (Beckman Coulter, Brea, CA, USA). The supernatant containing all soluble proteins was filtered using a syringe filter containing 0.22 µm pores. Then, 5 mL of filtered supernatant was loaded in a Hiload 16/600 Superose 6 pg gel filtration column connected to an AKTA go protein purification system for size exclusion chromatography. The solution was eluted at a 1 mL/min flow rate, and protein fractionations were monitored at 280 nm absorbance. α-Crystallin collected in the rotatory fraction collector was concentrated using Amicon Ultra-15 filters by centrifuging at 3024× g at 4 °C, dialyzed in buffer A, and stored at 4 °C until further use. The purity of isolated α-crystallin was confirmed by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE). The concentration of α-crystallin was estimated using an average extinction coefficient (ε) of 14,325 M−1 cm−1 and an average molecular weight of the single subunit of 19.85 KDa, where average extinction coefficient and molecular weight were estimated using αA:αB = 3:1 (for adult bovine lens [57]) from the values (αA = 19.79 kDa, αB = 20.04 kDa, εA = 14,440 M−1 cm−1, εB = 13,980 M−1 cm−1) obtained using the ProtParam tool [58].

2.3. AFM Experiment

SLM made of POPC was prepared using a procedure described in our recent paper [54]. After the initial imaging and force curve acquisition on the SLM, ~300 µL of 0.1 mg/mL α-crystallin solution in buffer A was passed through the inlet of the fluid cell (fluid cell well volume was ~75 µL) in SLM and incubated for ~30 min. Images and force curves were taken at different time intervals to study the interaction of α-crystallin with the membrane. Around 10 µL of 0.025 mg/mL α-crystallin was deposited on a freshly cleaved mica disk, dried in the open air, subsequently washed with ~500 µL water ten times, re-dried, and scanned using AFM to observe the distribution and structure of α-crystallin in the absence of membrane. All experiments were performed at room temperature.
We used a Bruker Multimode VIII (Santa Barbara, CA, USA) AFM equipped with an E-scanner and controlled by a nanoscope V controller to image and capture force curves. Commercially available DNP-S probes with an estimated tip-end radius of 9 nm to 22 nm (nominal radius 10 nm) and a spring constant of 0.4 N/m to 0.6 N/m (nominal 0.35 N/m) were used in a fluid cell or standard air probe holder. The tip-end radiuses of all probes used in the experiment were estimated by analyzing height images of a titanium characterizer (Model PFQNM-SMPKIT-12M) with many sharp grain features, which were imaged before the experiments were performed and analyzed using the tip-quantification function provided in Nanoscope analysis 1.9 (Bruker, Santa Barbara, CA, USA) software. After calibrating the deflection sensitivity, the spring constant was calibrated using the embedded thermal noise tool before each experiment. Five cantilevers in total were used in our experimental process, each of which was tuned before each experiment. The images were acquired with 384 × 384 samples per line at a 1 Hz scan rate and 2560 data points in each force curve. At least 400 force curves, with adjacent curves laterally offset by at least 100 nm, were acquired in each SLM image. Images were flattened in first or second order in Nanoscope analysis 1.9 software and further processed with a homemade script using Matlab R2018b, MathWorks (Natick, MA, USA).

3. Results

3.1. Topographical Images of Time-Dependent α-Crystallin Membrane Interaction

We investigated the time-dependent association of α-crystallin with the SLM by capturing topographical images using AFM. After confirming the defect-free complete SLM, as shown in Figure 1A, α-crystallin in buffer A was deposited on the SLM to investigate the time-dependent association, as shown in Figure 1B–E. Surprisingly, α-crystallin oligomers did not uniformly associate with the membrane; instead, they clustered together as an aggregate (Figure 1B). With a longer incubation time, surprisingly, α-crystallin oligomers associated deeper in the membrane, forming α-crystallin–membrane complexes, as visualized by the intermediate color (light brown) shown in Figure 1C. The size of such complexes increased with increased incubation time, as shown in Figure 1C–E. The time-dependent association of α-crystallin with POPC small unilamellar vesicles was observed in our previous study using the EPR method [39]. Cobb and Petrash et al. [45] also reported the time-dependent association of αA- and αB-crystallins, as well as an αA:αB = 3:1 heteromeric complex, with native bovine lens membranes using the fluorescence method. We believe that the α-crystallin–membrane complex is formed by the strong interaction of α-crystallin with the phospholipid membrane, which is observed only around the pre-existing aggregate of α-crystallin oligomers and not on its own. This being the case, a possible mode of interaction of α-crystallin with the membrane is hydrophobic interaction between the hydrophobic core of the membrane and hydrophobic residues of α-crystallin oligomers, implying that some part of the α-crystallin oligomer is inserted into the membrane, as suggested by Bloemendal et al. [59]., To the best of our knowledge, our study is the first to visualize α-crystallin membrane interaction using AFM. How much of the α-crystallin oligomer inserts into the membrane is unclear and needs further investigation. Numerous studies [45,46,47,48] have reported the hydrophobic interaction of α-crystallin with membranes. Previously, we suggested that the hydrophobic regions exposed on the outer surface of α-crystallin oligomers are inserted into the lipid and Chol/lipid membranes [27,41,50]. It has also been reported that denatured α-crystallin associates deep into the membrane [29,46,60].

3.2. Mechanical Properties of Membranes with α-Crystallin Association

We collected force curves for the α-crystallin membrane interaction-free region and the α-crystallin submerged region in the membrane, as shown by the green and blue squares, respectively, in Figure 2A, to investigate the modulation of the mechanical properties of the membrane after α-crystallin association. Figure 2B shows the topographical image of a closer view of the membrane, indicated by the green square in Figure 2A. Figure 2C shows the corresponding force curves collected in the membrane region shown in Figure 2B. The force curves shown in Figure 2C are the typical force curves of the membrane, displaying rupture events with an average BT force of 5.20 ± 0.21 nN, as observed previously [54]. The clear rupture events imply that the elastic nature of the membrane is maintained. The inset in Figure 2C displays a representative complete force curve collected in the membrane region shown in Figure 2B, with the solid green and dotted green curves representing the approach and the retract sections of the complete force curves, respectively. Figure 2D shows the topographical image of a closer view of the α-crystallin submerged membrane region indicated by the blue square in Figure 2A. We speculate that the slightly raised bumps in the image shown in Figure 2D correspond to the α-crystallin oligomers. Figure 2E shows the corresponding force curves collected in the α-crystallin submerged region in the membrane shown in Figure 2D. The inset in Figure 2E displays representative complete force curves collected in the membrane region shown in Figure 2D, with the solid blue and dotted blue curves representing the approach and the retract sections of the complete force curves, respectively. The force curves obtained in the α-crystallin submerged membrane region did not display rupture events or typical membrane force curves, as shown in Figure 2E, suggesting a loss of elastic properties in the membrane. Unless otherwise stated, all the force curves displayed in this manuscript are the approach sections of complete force curves.
The top and bottom rows in Figure 3 show the results based on the SLM prepared with buffer B containing 5 mM CaCl2 and 10 mM MgCl2, respectively. Figure 3B,F show the topographical images obtained after the incubation of α-crystallin with the SLM shown in Figure 3A,E, respectively, for about 40 min. The colored arrow/arrowheads in Figure 3B,F show the approximate representative positions for the corresponding colored force curves shown in Figure 3C,D,G,H, whereas the insets (black) in Figure 3C,G correspond to the force curves obtained from the membranes (without α-crystallin) shown in Figure 3A,E, respectively. The average BT forces for the green curves and black inset curves in Figure 3C were 5.20 ± 0.21 nN and 5.30 ± 0.26 nN, respectively. The green curves shown in Figure 3C were obtained from the membrane region away from the α-crystallin associated region indicated by green arrowheads in Figure 3B. Atypical force curves with no rupture events, as seen in Figure 3D, were obtained near the vicinity of the α-crystallin associated membrane region, as indicated by purple arrows in Figure 3B, suggesting a loss of membrane elasticity. Similar properties were obtained in the SLM prepared with MgCl2 in buffer B (Figure 3G,H). The representative force curves in the control membrane (Figure 3E) and the membrane indicated by the blue arrowhead in Figure 3F are shown in Figure 3G as the black curves (inset) and blue curves, possessing an average BT force of 3.98 ± 0.24 nN and 3.84 ± 0.29 nN, respectively. The force curves in the vicinity of the α-crystallin associated membrane region, represented by red arrows in Figure 3F, displayed atypical membrane force curves with no actual rupture events, as shown in Figure 3H, suggesting loss of membrane elasticity. Although a slightly lower BT force was detected for the SLM prepared with Mg2+ ions compared to that prepared with Ca2+ ions (Figure 3C,G), the effects of α-crystallin membrane association on membrane mechanical properties were identical.
We calculated the area compressibility modulus (KA) of the membrane to obtain further information about the mechanical properties of the SLM. Assuming a spherical tip-end and a free-standing SLM, the tip force in the elastic regime of the force curve can be fitted quadratically with the tip–mica separation distance given by the following equation [54,61]:
F = π K A R ( D − s s ) 2
where D is the thickness of the SLM, including the water layer residing between mica and the SLM [54,62], s is the tip–mica separation distance, and R is the tip-end radius of the AFM tip. Thus, using Equation (1), we fitted the elastic regime of the approach curves by taking the approach section of the force curves after the AFM tip touched the membrane surface until it first reached 80% of the BT force of the membrane and estimated the KA, which is the measure of membrane elasticity [54]. Since the validity of Equation (1) is only within the elastic limit, we fitted 80% of the elastic region in the force curve, starting from the point of contact. A representative fit of this Equation (1) is shown in Figure 4A, where a representative force curve is taken from the membrane region indicated by green arrowheads in Figure 3B. By fitting the representative force curves shown in the Figure 3C inset (black curves), the average KA for the membrane before adding α-crystallin was estimated to be 268.05 ± 66.1 mN/m. A similar average value for the KA, 274.89 ± 58.4 mN/m, was obtained by fitting the force curves shown in Figure 2C for the SLM region where α-crystallin was not associated. Furthermore, the force curves in the membrane obtained with AFM can be described by a modified Hertz model [62,63]:
F = 16 9 E R 1 / 2 δ 3 / 2 ( 1 + 0.884 ρ + 0.781 ρ 2 + 0.386 ρ 3 + 0.0048 ρ 4 )
where E is the Young’s modulus—a measure of membrane elasticity; δ is indentation depth, defined by D − s; and ρ is a dimensionless parameter defined by R δ / h . Here, h is the membrane thickness and is defined as h = D − tw, with D being the distance between the mica to the initial point of contact by the AFM tip and tw being the water layer thickness, which is assumed to be 2 nm [64]. R is the tip-end radius of the AFM tip, and s is the tip–mica separation distance. To ensure the fit only in the elastic regime, we fitted a region in the force curve (i.e., an approach curve until 80% of BT force) similar to that used for the KA calculation above. An example of the fit for Equation (2) is shown in Figure 4B.
We also estimated the KA and E values for the membrane before and after adding α-crystallin. The estimated values of KA and E for the membrane before adding α-crystallin, as shown in Figure 3A, were 268.05 ± 66.1 mN/m and 27.9 ± 5.8 MPa, respectively. The KA and E values after the addition of α-crystallin in the membrane region far away from the vicinity, as indicated by the green arrowhead in Figure 3B, were estimated to be 291.2 ± 69.2 mN/m and 29.4 ± 6.2 MPa, respectively. Similar KA and E values were obtained for the membrane shown in Figure 3A and the membrane region indicated by green arrowheads in Figure 3B. Similarly, KA and E values before the addition of α-crystallin in the membrane, as shown in Figure 3E, were estimated as 271.7 ± 77 mN/m and 27.3 ± 7.4 MPa, respectively. In addition, KA and E values after the addition of α-crystallin in the membrane, as shown in Figure 3F (the membrane region indicated by the blue arrowheads), were estimated to be 281.2 ± 87.9 mN/m and 31.4 ± 8.3 MPa, respectively. Similar KA and E values were obtained for the membrane shown in Figure 3E and the membrane region indicated by blue arrowheads in Figure 3F. The estimated KA and E values for the membrane agree well with the values reported in the literature [54,62,64]. However, the force curves shown in Figure 2E that were obtained for the α-crystallin submerged membrane region shown in Figure 2D did not exhibit typical elastic natures and puncture events (within the set force threshold limit), suggesting a loss of membrane elastic behavior. Similarly, the force curves shown in Figure 3D,H obtained in the vicinity of the α-crystallin associated membrane regions indicated by purple arrows in Figure 3B and red arrows in Figure 3F, respectively, did not exhibit typical elastic natures and puncture events (within the set force threshold limit), suggesting a loss of membrane elastic behavior. Thus, for the regions indicated by the purple and red arrows in Figure 3B,F, respectively, and the region shown in Figure 2D, KA and E could not be estimated based on the obtained force curves.

3.3. Distribution of α-Crystallin Oligomers

Figure 5A,B are the height and peak force error images of electrostatically associated α-crystallin on a mica surface acquired with AFM. As expected, polydisperse α-crystallin oligomers and a close association of such oligomers are seen. Interestingly, a comparable image of negatively stained bovine lens α-crystallin was reported previously using an electron microscope [65]. The present paper reports AFM imaging of α-crystallin oligomers (Figure 5) for the first time. Bovine lens α-crystallin exists as oligomers of 300–900 kDa [37,57] with large hydrophobic regions, allowing for the possibility of self-interaction [66]. Although we did not use any staining, the size of α-crystallin oligomers as determined by AFM might have been affected by the tip radius, setpoint force, pixel size, and ambient conditions. Since the purpose of our study was to determine how α-crystallin association with the membrane modulated the mechanical properties of the membrane, we did not report the actual size of the α-crystallin oligomers. However, we displayed the overall distribution of α-crystallins used in our experiment. The distributions of α-crystallin oligomers interacting with the membrane, as shown in Figure 1, Figure 2 and Figure 3, and on the mica surface, as shown in Figure 5, were significantly different.

4. Discussion

Interaction of α-crystallin with the plasma membrane in the lens of the human eye around the fourth to fifth decade of life has been believed to progress cataract formation and increase lens stiffness [3] which is the likely cause of the failure of proper accommodation known as presbyopia. Although several experiments had been performed regarding α-crystallin membrane association [26,32,33,37,48], a detailed study investigating the link between the membrane’s mechanical properties and α-crystallin association at the molecular level was lacking. In this study, we investigated the modulation of the mechanical properties of the SLM with α-crystallin association using AFM—for the first time, to the best of our knowledge.
The association of α-crystallin on the lipid membrane increased with an increase in time scale. Simultaneously, α-crystallin oligomeric units were submerged inside the membrane in a process which probably is initiated by hydrophobic interaction. Note that such deep interactions are only found at the edge of the surface interaction, but they do not stand alone. A possible explanation for this might be that the surface-interacting α-crystallin aggregates depress the local bilayer, exposing the hydrophobic core of adjacent lipids, providing an opportunity for the association of α-crystallin oligomers. Once an oligomer is submerged in the SLM, it could expose the hydrophobic region of an adjacent lipid and create a binding opportunity for other α-crystallin oligomers; as a result, the α-crystallin membrane complex size would increase with incubation time. However, as reported previously, such α-crystallin submergence leads to a degree of insertion into the membrane core [59] but not membrane penetration [67]. In this study, we used the POPC membrane to prepare SLMs at room temperature (~21 °C). Since the phase transition temperature of POPC is approximately −2.5 °C [68], the SLM we investigated in this study was in the fluid phase, this being a biologically relevant phase [69]. However, earlier studies reported that the association of α-crystallin with the lens membrane is temperature-dependent [37,45]. Cobb and Petrash conjugated α-crystallin with a fluorescence tag and found that α-crystallin association with the plasma membrane increased with an increase in temperature from 25 °C to 35 °C [45]. Similarly, Mulders et al. labeled α-crystallin with [35S] methionine and found that α-crystallin association with the membrane increased with an increase in temperature from ~22 °C to 37 °C [37]. Based on these earlier observations [37,45], we predict that the association of α-crystallin would increase if we were to perform AFM experiments at physiological temperature (37 °C).
It has been reported that a CaCl2 concentration above 4 mM is capable of aggregating α-crystallin while MgCl2 is not capable of aggregating α-crystallin [70]. Previous studies on the α-crystallin membrane association reported that divalent cations (Ca2+ and Mg2+) do not influence α-crystallin membrane association [37]. Although our SLM preparation incorporated 5 mM CaCl2 in buffer B, buffer A, i.e., buffer without CaCl2, was used for flushing out, with the buffer being replaced before imaging. We believe that this process removed the CaCl2 in the solution; however, Ca2+ ions bound to the lipid’s headgroups (phosphate groups) [71] cannot be removed. We performed similar experiments replacing the CaCl2 in buffer B with 10 mM MgCl2 while preparing the SLM and observed a similar effect on α-crystallin membrane association (Figure 3). We believe the results presented here are not the effects of divalent cations but solely the effects of α-crystallin membrane interaction.
The α-crystallin membrane association studies reported in this paper show that SLMs prepared with CaCl2 and MgCl2 have similar topographical images and mechanical properties. Most importantly, the interaction of α-crystallin with the membrane remarkably changed the membrane’s mechanical properties. As observed by the nature of the force curves, no rupture events were seen in the deep insertion region and the close vicinity of the surface interaction region. This indicates the loss of membrane elasticity with α-crystallin association, likely making SLMs stiffer. Such an absence of rupture events in the phase-separated membranes within the maximum payload is seen in the rigid solid ordered (so) phase [72] but not in the elastic liquid disordered (ld) region. Thus, to the best of our knowledge, our AFM results, for the first time, provide support for the idea that increased lens stiffness, as seen in aged human lenses, is due to the association of α-crystallin with the lens membrane. Nevertheless, the mechanical properties of SLMs in the region away from α-crystallin membrane association (both surface and deep) remain similar to the mechanical properties of SLMs before α-crystallin incubation. This observation suggests that α-crystallin association likely stiffens the membrane locally and plays a role in the overall stiffening of the lens that leads to presbyopia. Previously, it has been suggested that large-scale α-crystallin association with the lens membrane could lead to lens stiffening [30]; however, the mechanism is unclear. The association of α-crystallin with the membrane followed by the membrane’s loss of elastic properties provides new insights into understanding the molecular basis of lens hardening and presbyopia development.

Author Contributions

Conceptualization, L.M. and N.K.K.; investigation, N.K.K., R.T. and L.M.; formal analysis, N.K.K., R.T. and L.M.; writing—original draft preparation, N.K.K., R.T. and L.M.; writing—review and editing, N.K.K., R.T. and L.M.; visualization, N.K.K., R.T. and L.M.; supervision, L.M.; project administration, L.M.; funding acquisition, L.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Institutes of Health (USA) under grant R01 EY030067.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data will be available from the corresponding author upon reasonable request.

Acknowledgments

We thank the surface science laboratory (SSL), Boise State University, Boise, ID for providing the AFM facility.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Horwitz, J.; Bova, M.P.; Ding, L.L.; Haley, D.A.; Stewart, P.L. Lens Alpha-Crystallin: Function and Structure. Eye Lond. Engl. 1999, 13 Pt 3b, 403–408. [Google Scholar] [CrossRef] [Green Version]
  2. Hejtmancik, J.F.; Shiels, A. Overview of the Lens. Prog. Mol. Biol. Transl. Sci. 2015, 134, 119–127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Heys, K.R.; Cram, S.L.; Truscott, R.J. Massive Increase in the Stiffness of the Human Lens Nucleus with Age: The Basis for Presbyopia? Mol. Vis. 2004, 10, 956–963. [Google Scholar] [PubMed]
  4. Truscott, R.J. Presbyopia. Emerging from a Blur towards an Understanding of the Molecular Basis for This Most Common Eye Condition. Exp. Eye Res. 2009, 88, 241–247. [Google Scholar] [CrossRef]
  5. Heys, K.R.; Friedrich, M.G.; Truscott, R.J.W. Presbyopia and Heat: Changes Associated with Aging of the Human Lens Suggest a Functional Role for the Small Heat Shock Protein, Alpha-Crystallin, in Maintaining Lens Flexibility. Aging Cell 2007, 6, 807–815. [Google Scholar] [CrossRef]
  6. Nandi, S.K.; Nahomi, R.B.; Rankenberg, J.; Glomb, M.A.; Nagaraj, R.H. Glycation-Mediated Inter-Protein Cross-Linking Is Promoted by Chaperone-Client Complexes of α-Crystallin: Implications for Lens Aging and Presbyopia. J. Biol. Chem. 2020, 295, 5701–5716. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Nandi, S.K.; Rankenberg, J.; Glomb, M.A.; Nagaraj, R.H. Transient Elevation of Temperature Promotes Cross-Linking of α-Crystallin-Client Proteins through Formation of Advanced Glycation Endproducts: A Potential Role in Presbyopia and Cataracts. Biochem. Biophys. Res. Commun. 2020, 533, 1352–1358. [Google Scholar] [CrossRef] [PubMed]
  8. Strenk, S.A.; Strenk, L.M.; Koretz, J.F. The Mechanism of Presbyopia. Prog. Retin. Eye Res. 2005, 24, 379–393. [Google Scholar] [CrossRef] [PubMed]
  9. Eskridge, J.B. Review of Ciliary Muscle Effort in Presbyopia. Am. J. Optom. Physiol. Opt. 1984, 61, 133–138. [Google Scholar] [CrossRef]
  10. Krag, S.; Olsen, T.; Andreassen, T.T. Biomechanical Characteristics of the Human Anterior Lens Capsule in Relation to Age. Investig. Ophthalmol. Vis. Sci. 1997, 38, 357–363. [Google Scholar]
  11. Coleman, D.J. Unified Model for Accommodative Mechanism. Am. J. Ophthalmol. 1970, 69, 1063–1079. [Google Scholar] [CrossRef]
  12. Katz, J.A.; Karpecki, P.M.; Dorca, A.; Chiva-Razavi, S.; Floyd, H.; Barnes, E.; Wuttke, M.; Donnenfeld, E. Presbyopia—A Review of Current Treatment Options and Emerging Therapies. Clin. Ophthalmol. Auckl. N. Z. 2021, 15, 2167–2178. [Google Scholar] [CrossRef] [PubMed]
  13. Garner, W.H.; Garner, M.H. Protein Disulfide Levels and Lens Elasticity Modulation: Applications for Presbyopia. Investig. Ophthalmol. Vis. Sci. 2016, 57, 2851–2863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Glasser, A.; Campbell, M.C. Biometric, Optical and Physical Changes in the Isolated Human Crystalline Lens with Age in Relation to Presbyopia. Vision Res. 1999, 39, 1991–2015. [Google Scholar] [CrossRef] [Green Version]
  15. Fisher, R.F. Elastic Properties of the Human Lens. Exp. Eye Res. 1971, 11, 143. [Google Scholar] [CrossRef]
  16. Scarcelli, G.; Kim, P.; Yun, S.H. In Vivo Measurement of Age-Related Stiffening in the Crystalline Lens by Brillouin Optical Microscopy. Biophys. J. 2011, 101, 1539–1545. [Google Scholar] [CrossRef] [Green Version]
  17. Weeber, H.A.; Eckert, G.; Pechhold, W.; van der Heijde, R.G. Stiffness Gradient in the Crystalline Lens. Graefes Arch. Clin. Exp. Ophthalmol. 2007, 245, 1357–1366. [Google Scholar] [CrossRef] [Green Version]
  18. Hozic, A.; Rico, F.; Colom, A.; Buzhynskyy, N.; Scheuring, S. Nanomechanical Characterization of the Stiffness of Eye Lens Cells: A Pilot Study. Investig. Ophthalmol. Vis. Sci. 2012, 53, 2151–2156. [Google Scholar] [CrossRef] [Green Version]
  19. Weeber, H.A.; Eckert, G.; Soergel, F.; Meyer, C.H.; Pechhold, W.; van der Heijde, R.G.L. Dynamic Mechanical Properties of Human Lenses. Exp. Eye Res. 2005, 80, 425–434. [Google Scholar] [CrossRef]
  20. Wilkes, R.P.; Reilly, M.A. A Pre-Tensioned Finite Element Model of Ocular Accommodation and Presbyopia. Int. J. Adv. Eng. Sci. Appl. Math. 2016, 1, 25–38. [Google Scholar] [CrossRef]
  21. Heys, K.R.; Truscott, R.J.W. The Stiffness of Human Cataract Lenses Is a Function of Both Age and the Type of Cataract. Exp. Eye Res. 2008, 86, 701–703. [Google Scholar] [CrossRef] [PubMed]
  22. Rao, P.V.; Huang, Q.; Horwitz, J.; Zigler, J.S. Evidence That α-Crystallin Prevents Non-Specific Protein Aggregation in the Intact Eye Lens. Biochim. Biophys. Acta BBA—Gen. Subj. 1995, 1245, 439–447. [Google Scholar] [CrossRef]
  23. Srivastava, O.; Srivastava, K.; Joseph, R.; Wilson, L. Increased Association of Deamidated AA-N101D with Lens Membrane of Transgenic AAN101D vs. Wild Type AA Mice: Potential Effects on Intracellular Ionic Imbalance and Membrane Disorganization. BMC Ophthalmol. 2020, 20, 484. [Google Scholar] [CrossRef] [PubMed]
  24. Bova, M.P.; Mchaourab, H.S.; Han, Y.; Fung, B.K.-K. Subunit Exchange of Small Heat Shock Proteins analysis of oligomer formation of αa-crystallin and hsp27 by fluorescence resonance energy transfer and site-directed truncations. J. Biol. Chem. 2000, 275, 1035–1042. [Google Scholar] [CrossRef] [Green Version]
  25. Friedrich, M.G.; Truscott, R.J.W. Membrane Association of Proteins in the Aging Human Lens: Profound Changes Take Place in the Fifth Decade of Life. Investig. Ophthalmol. Vis. Sci. 2009, 50, 4786–4793. [Google Scholar] [CrossRef] [Green Version]
  26. Timsina, R.; Mainali, L. Association of Alpha-Crystallin with Fiber Cell Plasma Membrane of the Eye Lens Accompanied by Light Scattering and Cataract Formation. Membranes 2021, 11, 447. [Google Scholar] [CrossRef]
  27. Srivastava, K.; Chaves, J.M.; Srivastava, O.P.; Kirk, M. Multi-Crystallin Complexes Exist in the Water-Soluble High Molecular Weight Protein Fractions of Aging Normal and Cataractous Human Lenses. Exp. Eye Res. 2008, 87, 356–366. [Google Scholar] [CrossRef]
  28. Chandrasekher, G.; Cenedella, R.J. Protein Associated with Human Lens “native” Membrane during Aging and Cataract Formation. Exp. Eye Res. 1995, 60, 707–717. [Google Scholar] [CrossRef]
  29. Cobb, B.A.; Petrash, J.M. Alpha-Crystallin Chaperone-like Activity and Membrane Binding in Age-Related Cataracts. Biochemistry 2002, 41, 483–490. [Google Scholar] [CrossRef]
  30. Friedrich, M.G.; Truscott, R.J.W. Large-Scale Binding of α-Crystallin to Cell Membranes of Aged Normal Human Lenses: A Phenomenon That Can Be Induced by Mild Thermal Stress. Investig. Ophthalmol. Vis. Sci. 2010, 51, 5145–5152. [Google Scholar] [CrossRef] [Green Version]
  31. McGinty, S.J.; Truscott, R.J.W. Presbyopia: The First Stage of Nuclear Cataract? Ophthalmic Res. 2006, 38, 137–148. [Google Scholar] [CrossRef] [PubMed]
  32. Borchman, D.; Tang, D. Binding Capacity of Alpha-Crystallin to Bovine Lens Lipids. Exp. Eye Res. 1996, 63, 407–410. [Google Scholar] [CrossRef] [PubMed]
  33. Chandrasekher, G.; Cenedella, R.J. Properties of α-Crystallin Bound to Lens Membrane: Probing Organization at the Membrane Surface. Exp. Eye Res. 1997, 64, 423–430. [Google Scholar] [CrossRef] [PubMed]
  34. Ifeanyi, F.; Takemoto, L. Differential Binding of Alpha-Crystallins to Bovine Lens Membrane. Exp. Eye Res. 1989, 49, 143–147. [Google Scholar] [CrossRef]
  35. Ifeanyi, F.; Takemoto, L. Specificity of Alpha Crystallin Binding to the Lens Membrane. Curr. Eye Res. 1990, 9, 259–265. [Google Scholar] [CrossRef]
  36. Ifeanyi, F.; Takemoto, L. Alpha Crystallin from Human Cataractous vs. Normal Lenses: Change in Binding to Lens Membrane. Exp. Eye Res. 1990, 50, 113–116. [Google Scholar] [CrossRef]
  37. Mulders, J.W.; Stokkermans, J.; Leunissen, J.A.; Benedetti, E.L.; Bloemendal, H.; de Jong, W.W. Interaction of Alpha-Crystallin with Lens Plasma Membranes. Affinity for MP26. Eur. J. Biochem. 1985, 152, 721–728. [Google Scholar] [CrossRef]
  38. Zhang, W.Z.; Augusteyn, R.C. On the Interaction of Alpha-Crystallin with Membranes. Curr. Eye Res. 1994, 13, 225–230. [Google Scholar] [CrossRef]
  39. Mainali, L.; O’Brien, W.J.; Timsina, R. Interaction of Alpha-Crystallin with Phospholipid Membranes. Curr. Eye Res. 2021, 46, 185–194. [Google Scholar] [CrossRef]
  40. Timsina, R.; Khadka, N.K.; Maldonado, D.; Mainali, L. Interaction of Alpha-Crystallin with Four Major Phospholipids of Eye Lens Membranes. Exp. Eye Res. 2021, 202, 108337. [Google Scholar] [CrossRef]
  41. Ifeanyi, F.; Takemoto, L. Interaction of Lens Crystallins with Lipid Vesicles. Exp. Eye Res. 1991, 52, 535–538. [Google Scholar] [CrossRef]
  42. Cobb, B.A.; Petrash, J.M. Factors Influencing α-Crystallin Association with Phospholipid Vesicles. Mol. Vis. 2002, 8, 85–93. [Google Scholar] [PubMed]
  43. Tang, D.; Borchman, D. Temperature Induced Structural Changes of Beta-Crystallin and Sphingomyelin Binding. Exp. Eye Res. 1998, 67, 113–118. [Google Scholar] [CrossRef] [PubMed]
  44. Tang, D.; Borchman, D.; Yappert, M.C.; Cenedella, R.J. Influence of Cholesterol on the Interaction of Alpha-Crystallin with Phospholipids. Exp. Eye Res. 1998, 66, 559–567. [Google Scholar] [CrossRef] [PubMed]
  45. Cobb, B.A.; Petrash, J.M. Characterization of α-Crystallin-Plasma Membrane Binding. J. Biol. Chem. 2000, 275, 6664–6672. [Google Scholar] [CrossRef] [Green Version]
  46. Tang, D.; Borchman, D.; Yappert, M.C. Alpha-Crystallin/Lens Lipid Interactions Using Resonance Energy Transfer. Ophthalmic Res. 1999, 31, 452–462. [Google Scholar] [CrossRef]
  47. Tjondro, H.C.; Xi, Y.-B.; Chen, X.-J.; Su, J.-T.; Yan, Y.-B. Membrane Insertion of AA-Crystallin Is Oligomer-Size Dependent. Biochem. Biophys. Res. Commun. 2016, 473, 1–7. [Google Scholar] [CrossRef]
  48. Timsina, R.; Trossi-Torres, G.; Thieme, J.; O’Dell, M.; Khadka, N.K.; Mainali, L. Alpha-Crystallin Association with the Model of Human and Animal Eye Lens-Lipid Membranes Is Modulated by Surface Hydrophobicity of Membranes. Curr. Eye Res. 2022, 1–19. [Google Scholar] [CrossRef]
  49. Timsina, R.; Trossi-Torres, G.; O’Dell, M.; Khadka, N.K.; Mainali, L. Cholesterol and Cholesterol Bilayer Domains Inhibit Binding of Alpha-Crystallin to the Membranes Made of the Major Phospholipids of Eye Lens Fiber Cell Plasma Membranes. Exp. Eye Res. 2021, 206, 108544. [Google Scholar] [CrossRef]
  50. Trossi-Torres, G.; Timsina, R.; Mainali, L. Alpha-Crystallin-Membrane Association Modulated by Phospholipid Acyl Chain Length and Degree of Unsaturation. Membranes 2022, 12, 455. [Google Scholar] [CrossRef]
  51. Choi, S.; Lee, H.-J.; Cheong, Y.; Shin, J.-H.; Jin, K.-H.; Park, H.-K.; Park, Y.-G. AFM Study for Morphological Characteristics and Biomechanical Properties of Human Cataract Anterior Lens Capsules. Scanning 2012, 34, 247–256. [Google Scholar] [CrossRef] [PubMed]
  52. Ziebarth, N.M.; Wojcikiewicz, E.P.; Manns, F.; Moy, V.T.; Parel, J.M. Atomic Force Microscopy Measurements of Lens Elasticity in Monkey Eyes. Mol. Vis. 2007, 13, 504–510. [Google Scholar] [PubMed]
  53. Li, M.; Xi, N.; Wang, Y.; Liu, L. Atomic Force Microscopy as a Powerful Multifunctional Tool for Probing the Behaviors of Single Proteins. IEEE Trans. NanoBiosci. 2020, 19, 78–99. [Google Scholar] [CrossRef] [PubMed]
  54. Khadka, N.K.; Timsina, R.; Rowe, E.; O’Dell, M.; Mainali, L. Mechanical Properties of the High Cholesterol-Containing Membrane: An AFM Study. Biochim. Biophys. Acta BBA—Biomembr. 2021, 1863, 183625. [Google Scholar] [CrossRef]
  55. Deeley, J.M.; Mitchell, T.W.; Wei, X.; Korth, J.; Nealon, J.R.; Blanksby, S.J.; Truscott, R.J.W. Human Lens Lipids Differ Markedly from Those of Commonly Used Experimental Animals. Biochim. Biophys. Acta BBA—Mol. Cell Biol. Lipids 2008, 1781, 288–298. [Google Scholar] [CrossRef] [Green Version]
  56. Horwitz, J.; Huang, Q.-L.; Ding, L.; Bova, M.P. [30] Lens α-Crystallin: Chaperone-like Properties. In Methods in Enzymology; Molecular Chaperones; Academic Press: Cambridge, MA, USA, 1998; Volume 290, pp. 365–383. [Google Scholar]
  57. Ryazantsev, S.N.; Poliansky, N.B.; Chebotareva, N.A.; Muranov, K.O. 3D Structure of the Native α-Crystallin from Bovine Eye Lens. Int. J. Biol. Macromol. 2018, 117, 1289–1298. [Google Scholar] [CrossRef]
  58. Gasteiger, E.; Hoogland, C.; Gattiker, A.; Duvaud, S.; Wilkins, M.R.; Appel, R.D.; Bairoch, A. Protein Identification and Analysis Tools on the ExPASy Server. In The Proteomics Protocols Handbook; Walker, J.M., Ed.; Humana Press: Totowa, NJ, USA, 2005. [Google Scholar]
  59. Bloemendal, H.; Hermsen, T.; Dunia, I.; Benedetti, E.L. Association of Crystallins with the Plasma Membrane. Exp. Eye Res. 1982, 35, 61–67. [Google Scholar] [CrossRef]
  60. Borchman, D.; Yappert, M.C. Lipids and the Ocular Lens. J. Lipid Res. 2010, 51, 2473–2488. [Google Scholar] [CrossRef] [Green Version]
  61. Das, C.; Sheikh, K.H.; Olmsted, P.D.; Connell, S.D. Nanoscale Mechanical Probing of Supported Lipid Bilayers with Atomic Force Microscopy. Phys. Rev. E 2010, 82, 041920. [Google Scholar] [CrossRef] [Green Version]
  62. Stetter, F.W.S.; Hugel, T. The Nanomechanical Properties of Lipid Membranes Are Significantly Influenced by the Presence of Ethanol. Biophys. J. 2013, 104, 1049–1055. [Google Scholar] [CrossRef] [Green Version]
  63. Dimitriadis, E.K.; Horkay, F.; Maresca, J.; Kachar, B.; Chadwick, R.S. Determination of Elastic Moduli of Thin Layers of Soft Material Using the Atomic Force Microscope. Biophys. J. 2002, 82, 2798–2810. [Google Scholar] [CrossRef] [Green Version]
  64. Pan, J.J.; Sahoo, P.K.; Dalzini, A.; Hayati, Z.; Aryal, C.M.; Teng, P.; Cai, J.F.; Gutierrez, H.R.; Song, L.K. Membrane Disruption Mechanism of a Prion Peptide (106–126) Investigated by Atomic Force Microscopy, Raman and Electron Paramagnetic Resonance Spectroscopy. J. Phys. Chem. B 2017, 121, 5058–5071. [Google Scholar] [CrossRef] [Green Version]
  65. Selivanova, O.M.; Galzitskaya, O.V. Structural and Functional Peculiarities of α-Crystallin. Biology 2020, 9, 85. [Google Scholar] [CrossRef] [PubMed]
  66. Liang, J.N.; Li, X.-Y. Interaction and Aggregation of Lens Crystallins. Exp. Eye Res. 1991, 53, 61–66. [Google Scholar] [CrossRef]
  67. Mulders, J.W.; Wajcik, E.; Bloemendal, H.; de Jong, W.W. Loss of High-Affinity Membrane Binding of Bovine Nuclear Alpha-Crystallin. Exp. Eye Res. 1989, 49, 149–152. [Google Scholar] [CrossRef]
  68. Koynova, R.; Caffrey, M. Phases and Phase Transitions of the Phosphatidylcholines. Biochim. Biophys. Acta BBA—Rev. Biomembr. 1998, 1376, 91–145. [Google Scholar] [CrossRef]
  69. Nicolson, G.L. The Fluid-Mosaic Model of Membrane Structure: Still Relevant to Understanding the Structure, Function and Dynamics of Biological Membranes after More than 40 Years. Biochim Biophys Acta 2014, 1838, 1451–1466. [Google Scholar] [CrossRef] [Green Version]
  70. Jedziniak, J.A.; Kinoshita, J.H.; Yates, E.M.; Hocker, L.O.; Benedek, G.B. Calcium-Induced Aggregation of Bovine Lens Alpha Crystallins. Investig. Ophthalmol. Vis. Sci. 1972, 11, 905–915. [Google Scholar]
  71. Inoue, M.; In, Y.; Ishida, T. Calcium Binding to Phospholipid: Structural Study of Calcium Glycerophosphate. J. Lipid Res. 1992, 33, 985–994. [Google Scholar] [CrossRef]
  72. Domingues, M.M.; Gomes, B.; Hollmann, A.; Santos, N.C. 25-Hydroxycholesterol Effect on Membrane Structure and Mechanical Properties. Int. J. Mol. Sci. 2021, 22, 2574. [Google Scholar] [CrossRef]
Membranes 12 00522 g001 550

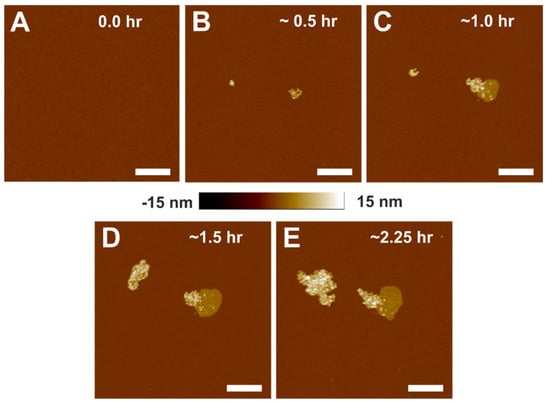

Figure 1. Topographical images of the interaction of α-crystallin with SLM with increasing incubation time. (A) The membrane before adding α-crystallin. (B–E) The membrane after adding α-crystallin, showing how the size of α-crystallin aggregates increases with time. As shown in (C–E), the intermediate complex formed, as represented by the intermediate height color, suggests a strong interaction of α-crystallin with the membrane. Image scale: 1 µm.
Figure 1. Topographical images of the interaction of α-crystallin with SLM with increasing incubation time. (A) The membrane before adding α-crystallin. (B–E) The membrane after adding α-crystallin, showing how the size of α-crystallin aggregates increases with time. As shown in (C–E), the intermediate complex formed, as represented by the intermediate height color, suggests a strong interaction of α-crystallin with the membrane. Image scale: 1 µm.
Membranes 12 00522 g001
Membranes 12 00522 g002 550

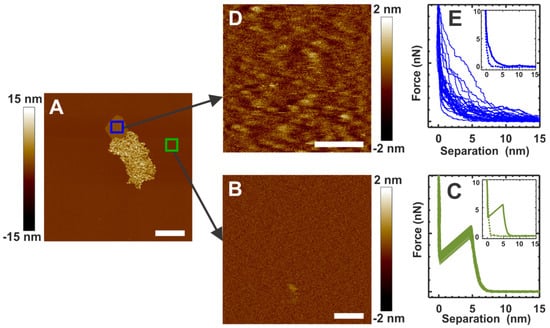

Figure 2. (A) α-Crystallin interacting with the SLM at around 1 h incubation time. (B) AFM image of the α-crystallin-free membrane region, identified by the green square in (A). (C) Representative force curves in the membrane region, as shown in (B). (D) The AFM image collected in the blue square region in (A) shows a closer view of the structural details of the α-crystallin membrane region with strong α-crystallin membrane interaction and the submersion of α-crystallin into the membrane. Bumps in (D) suggest α-crystallin oligomers submerged in the membrane. (E) Representative force curves for the membrane region of (D). Representative complete force curves are shown in (C,E) insets, with solid and dotted curves representing approach and retract curves, respectively. Image scales: 1 µm for (A); 0.1 µm for (B,D).
Figure 2. (A) α-Crystallin interacting with the SLM at around 1 h incubation time. (B) AFM image of the α-crystallin-free membrane region, identified by the green square in (A). (C) Representative force curves in the membrane region, as shown in (B). (D) The AFM image collected in the blue square region in (A) shows a closer view of the structural details of the α-crystallin membrane region with strong α-crystallin membrane interaction and the submersion of α-crystallin into the membrane. Bumps in (D) suggest α-crystallin oligomers submerged in the membrane. (E) Representative force curves for the membrane region of (D). Representative complete force curves are shown in (C,E) insets, with solid and dotted curves representing approach and retract curves, respectively. Image scales: 1 µm for (A); 0.1 µm for (B,D).
Membranes 12 00522 g002
Membranes 12 00522 g003 550

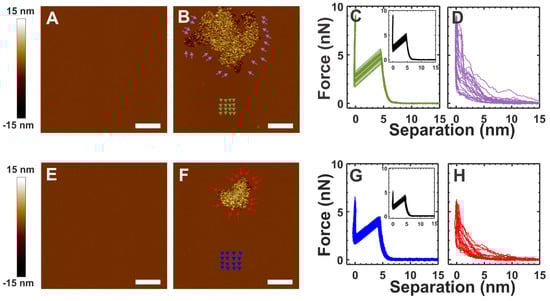

Figure 3. α-Crystallin interacting with the SLMs prepared with different buffers. The top and bottom rows correspond to images and force curves of the membrane prepared using buffer B with 5 mM CaCl2 and 10 mM MgCl2, respectively, though ~5 mL of divalent salt-free buffer (buffer A) was used for flushing out unfused vesicles before imaging, as described previously [54]. (A,E) The SLM without α-crystallin. (B,F) α-Crystallin in buffer A incubated with SLM for ~40 min. (C) Force curves (green curves) were obtained for the membrane region around the green arrowheads in (B), while the inset force curves (black curves) were obtained for the control membrane shown in (A). (D) Force curves (purple curves) were obtained around the α-crystallin associated membrane region, as shown by the purple arrows in (B). (G) Force curves (blue curves) were obtained for the membrane region around the blue arrowheads in (F), while the inset force curves (black curves) were obtained in the control membrane shown in (E). (H) Force curves (red curves) were obtained around the α-crystallin associated membrane region, as shown by the red arrows in (F). The arrows/arrowheads in the membrane show the approximate representative positions of the force curves taken. The complete force curves of (C,G) are similar to those in the Figure 2C inset, while the complete force curves of (D,H) are similar to those in the Figure 2E inset. Image scale: 1 µm.
Figure 3. α-Crystallin interacting with the SLMs prepared with different buffers. The top and bottom rows correspond to images and force curves of the membrane prepared using buffer B with 5 mM CaCl2 and 10 mM MgCl2, respectively, though ~5 mL of divalent salt-free buffer (buffer A) was used for flushing out unfused vesicles before imaging, as described previously [54]. (A,E) The SLM without α-crystallin. (B,F) α-Crystallin in buffer A incubated with SLM for ~40 min. (C) Force curves (green curves) were obtained for the membrane region around the green arrowheads in (B), while the inset force curves (black curves) were obtained for the control membrane shown in (A). (D) Force curves (purple curves) were obtained around the α-crystallin associated membrane region, as shown by the purple arrows in (B). (G) Force curves (blue curves) were obtained for the membrane region around the blue arrowheads in (F), while the inset force curves (black curves) were obtained in the control membrane shown in (E). (H) Force curves (red curves) were obtained around the α-crystallin associated membrane region, as shown by the red arrows in (F). The arrows/arrowheads in the membrane show the approximate representative positions of the force curves taken. The complete force curves of (C,G) are similar to those in the Figure 2C inset, while the complete force curves of (D,H) are similar to those in the Figure 2E inset. Image scale: 1 µm.
Membranes 12 00522 g003
Membranes 12 00522 g004 550

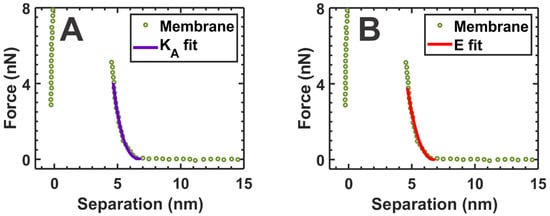

Figure 4. (A) Representative fit of Equation (1) with the force curve to calculate the membrane’s area compressibility modulus (KA), where KA is a measure of membrane elasticity [54]. (B) Representative fit of Equation (2) with the force curve to calculate the Young’s modulus (E), where E is a measure of membrane elasticity [64]. The representative force curve is taken from the membrane region indicated by the green arrowheads in Figure 3B.
Figure 4. (A) Representative fit of Equation (1) with the force curve to calculate the membrane’s area compressibility modulus (KA), where KA is a measure of membrane elasticity [54]. (B) Representative fit of Equation (2) with the force curve to calculate the Young’s modulus (E), where E is a measure of membrane elasticity [64]. The representative force curve is taken from the membrane region indicated by the green arrowheads in Figure 3B.
Membranes 12 00522 g004
Membranes 12 00522 g005 550

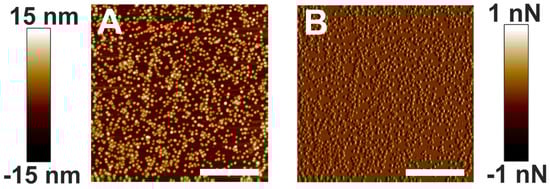

Figure 5. α-Crystallin adsorbed in mica. (A) Height image of the α-crystallin oligomers adsorbed in the mica disk. (B) Corresponding peak force error image. Image scale: 1 µm.
