Article

A Simulation Model for the Non-Electrogenic Uniport Carrier-Assisted Transport of Ions across Lipid Membranes

by
Mariano Andrea Scorciapino
1,*,
Giacomo Picci
1,
Roberto Quesada
2,
Vito Lippolis
1 and
Claudia Caltagirone
1
1
Department of Chemical and Geological Sciences, Cittadella Universitaria di Monserrato, University of Cagliari–S.P. 8 km 0,700, I-09042 Monserrato, Italy
2
Departmento de Quìmica, Universidad de Burgos, 09001 Burgos, Spain
*
Author to whom correspondence should be addressed.
Membranes 2022, 12(3), 292; https://doi.org/10.3390/membranes12030292
Submission received: 6 February 2022 / Revised: 24 February 2022 / Accepted: 1 March 2022 / Published: 3 March 2022
(This article belongs to the Section Membrane Physics and Theory)

Abstract

:
Impressive work has been completed in recent decades on the transmembrane anion transport capability of small synthetic transporters from many different structural classes. However, very few predicting models have been proposed for the fast screening of compound libraries before spending time and resources on the laboratory bench for their synthesis. In this work, a new approach is presented which aims at describing the transport process by taking all the steps into explicit consideration, and includes all possible experiment-derived parameters. The algorithm is able to simulate the macroscopic experiments performed with lipid vesicles to assess the ion-transport ability of the synthetic transporters following a non-electrogenic uniport mechanism. While keeping calculation time affordable, the final goal is the curve-fitting of real experimental data—so, to obtain both an analysis and a predictive tool. The role and the relative weight of the different parameters is discussed and the agreement with the literature is shown by using the simulations of a virtual benchmark case. The fitting of real experimental curves is also shown for two transporters of different structural type.

Graphical Abstract

1. Introduction

Since the pioneering work on chelating Lewis acids [1] and ammonium-based cryptand halide receptors [2] in the late 1960s, the anion receptor chemistry has become one of the most popular topics in the realm of supramolecular chemistry [3,4,5,6,7,8]. Impressive work has been completed, covering different aspects such as anion recognition, sensing, extraction, crystal engineering, self-assembling, catalysis, and transmembrane anion transport. The latter has lately attracted considerable attention, as transmembrane anion transport is crucial to several biological processes [9,10,11,12,13,14,15]. Failure in maintaining chloride homeostasis in cells is related to various diseases [16] such as cystic fibrosis, in which a malfunctioning of the cystic fibrosis transmembrane conductance regulator (CFTR) gene causes defective chloride transport [17]. The development of artificial chloride transmembrane transporters, as substitutes for such defective anion channels, has been tackled during the last two decades [18].
When designing an artificial chloride transporter, with the aim of eventually testing it in vivo and using it as a drug for patience treatment, the optimization of ADME (absorption, diffusion, metabolism and excretion) properties is clearly crucial [19]. This can be achieved by using small molecules (low molecular mass) properly functionalized to obtain suitable logP values (i.e., the log of the octanol–water partitioning coefficient). The interaction between the chloride ion and the transporter is often established via the formation of hydrogen bonds. Indeed, ureas and thioureas, as well as squaramides and sulfonamides, have been proven to be potent chloride transmembrane transporters. When studying the potential ability of a class of receptors as chloride transmembrane artificial transporters, after evaluating important parameters such as the chloride affinity in solution (often in organic solvents such as DMSO or chloroform) and the lipophilicity, a series of transport assays with ad-hoc-prepared vesicles dispersions, such as the Cl/NO3 antiport assay, are conducted to elucidate and compare the transport ability of each transporter. This approach is time- and money-consuming. Very often, only a few receptors from a vast library show good transmembrane transport activity. In order to save time and to reduce costs, the development of a reliable and simple numerical model, and an efficient computer-based method able to predict the transport abilities on the basis of the physical and chemical parameters of the species of interest, would be highly relevant to the scientific community.
Very few predicting models have been proposed in the literature so far. In 2013, Berezin proposed an interesting application of the Goldman–Hodgkin–Katz (GHK) theory and kinetic modelling to study the function of the anion transporters in liposomes [20,21]. However, certain assumptions, which have the advantage of keeping the approach simple and fast, represent a reduction in flexibility when different scenarios need to be considered and the relative weight of the different physico-chemical parameters need to be unveiled. For instance, to assume a high partition for the transporter from the water to the lipid phase is not always adequate, since many efficient synthetic transporters do exist with a relatively low logP [9,22]. As another example, diffusivity of all the species of interest should be taken into explicit account, especially when the net charge of the carrier and the chloro-complex is different, in order to have a flexible model where either the carrier or the complex diffusion through the lipid membrane can be the rate limiting step, but that is also able to describe intermediate situations.
To take the available experimental data into account is extremely important and, in the same year, quantitative structure–activity relationship (QSAR) analysis on a family of thioureas highlighted that the transport activity mostly depends on the partitioning of the transporter into the membrane and, to a less but significant extent, on the diffusion of the carrier through the membrane and its anion-binding ability [23]. QSAR studies seek the development of mathematical models to relate descriptors, which can be both experimental physico-chemical properties and theoretically calculated parameters from sets of molecules, with activities or properties, in order to predict the response of new chemicals [24]. Although these models have proven to be potentially useful to predict the transmembrane chloride transport activity of artificial receptors, they are based on very few parameters, whose relative weights and, especially their inter-relationship, are impossible to be clearly deciphered. On the other hand, molecular dynamics simulations and DFT-level calculations have been successfully applied to several synthetic transporters and proven to be extremely useful to separately investigate different steps of the overall transport process at atomic-level detail [25,26,27,28], such as anion-binding or the carrier/complex migration through the lipids. However, such a level of accuracy does not come without a cost. The simulation of the experimental transport curves with such methods is not practically feasible, due to the current limitations of computers performance that restrict the investigations both on a size and time scale.
In this work, we present a different approach, which aims at describing the overall transport process by taking all the relevant steps into explicit consideration, and by including all the possible experiment-derived parameters, while keeping calculation time affordable with the clear goal of fitting real experimental data. We recently proposed an embryonal numerical model to fit and analyze the experimental data of the chloride transporter 3,4-bis((1H-indol-7-yl)amino)cyclobut-3-ene-1,2-dione [22]. We discuss here the development of that idea in detail. We quantitatively describe the partition of the carrier and the complex from the water to the lipid phase by taking into account the macroscopic quantities characterizing the vesicles dispersion used during the experiments. We find the equations to describe all the chemical equilibria pertaining to the model of interest and we solve them either analytically or numerically to calculate the concentration of all the species involved. We apply Fick’s law to the diffusion of both the carrier and the complex through the lipid membrane, and we iteratively execute these calculations at regular time-steps, so as to simulate the macroscopic experiments and reconstruct the curves of chloride release. We finally apply a Monte Carlo approach to perform the curve-fitting of real data. In the present work, we focused on the simplest mechanism, the uniport, which involves the carrier-mediated transport of a single type of ion. We suggest further development towards more complex and general mechanisms, although several improvements have already been put forward.

2. Methods

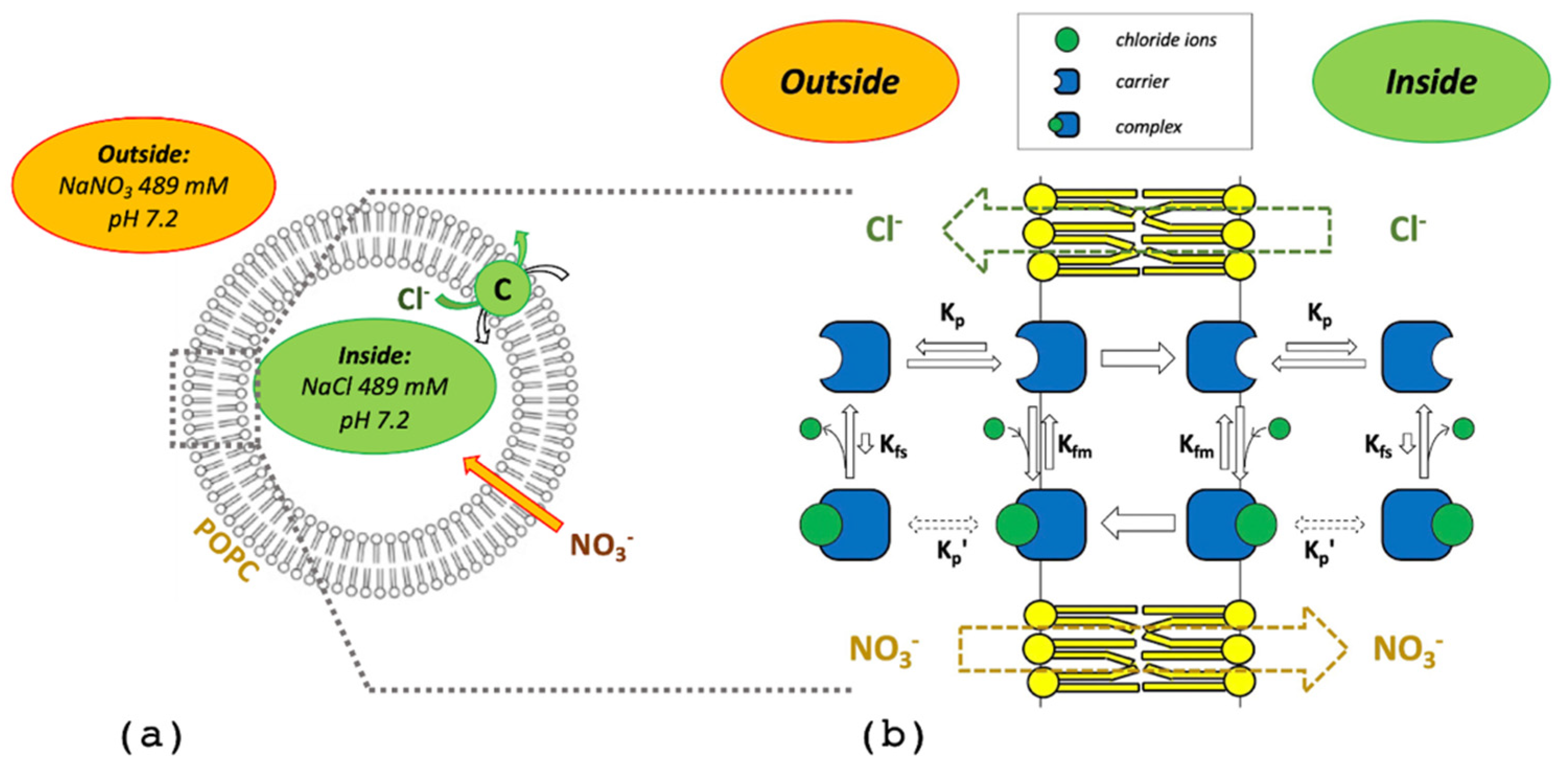

In this work, we focused on the simplest carrier-assisted transport mechanism of ions across artificial lipid membranes, i.e., the non-electrogenic uniport. We selected, as an experimental benchmark, the case of the squaramide 3,4-bis((1H-indol-7-yl)amino)cyclobut-3-ene-1,2-dione carrier, recently published [22], and the chloride anion. The typical experimental conditions are schematically illustrated in Figure 1. A dispersion of 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine (POPC) vesicles with an average diameter of 200 nm was prepared. The extra-vesicular (EV) solution contained 489 mM NaNO3 and 10 mM phosphate buffer at pH 7.2. The intra-vesicular (IV) solution contained 489 mM NaCl and the same buffer at the same pH. Then, a given amount of carrier, typically reported as %mol with respect to total lipid, was added to the external solution to initiate the transport process. The latter was monitored over time by a chloride-specific electrode in the EV solution under continuous gentle stirring. The carrier had zero net charge and a marked affinity for the lipid membrane, as indicated by the logP value of 2.83 [29,30], where P was the partition coefficient. According to the host–guest equilibrium H + G HG , where the host H is the carrier and the guest G is the chloride ion, the carrier had a good affinity for chloride ions in a low polar environment, as indicated by the formation equilibrium constant of 1.2 × 10 3   M 1 which was determined through 1H-NMR in DMSO/0.5% water [22]. However, carrier affinity for chloride dramatically dropped when the amount of water increased, with an observed formation equilibrium constant of 1.1 × 10 2   M 1 and 2.1 × 10 1   M 1 in DMSO/10% water and DMSO/25% water, respectively. On the other hand, carrier affinity for nitrate ions is negligible [22]. Thus, for the sake of simplicity, in this work, nitrate ions were considered not as the rate limiting step of the transport process but to cross the POPC bilayer (either by direct or carrier-assisted diffusion) keeping the charge across the membrane balanced. It should be noted that such a chloride/nitrate exchange mechanism has been described for both the carriers considered in the following (L1 and L2 in Section 3.9) and it is consistent with the larger lipophilicity of nitrate when compared to chloride.

2.1. Chemical Equilibria

On both sides of the membrane, four reversible equilibria were considered (Figure 1b). The chemical equation and the corresponding equilibrium constant for the complex formation in the lipid (Equation (1)) and in the water phase (Equation (2)) were:
H m + G HG m ;   K fm = [ HG ] m [ H ] m [ G ]
H s + G HG s ;   K fs   = [ HG ] s [ H ] s [ G ]
where m and s subscript indicate the membrane and the solution, respectively. H (host) is the carrier, G (guest) is the chloride ion, and HG is the complex. Kfm is the formation equilibrium constant in the membrane. Kfs is the formation equilibrium constant in solution. Square brackets are used to indicate molar concentration.
The above-mentioned experimental data of 1H-NMR titration in DMSO-d6 with increasing amounts of water could be fitted with the following exponential function:
K f = a · e - b · w % ,   with   a = 1480   ±   26   and   b = 0 . 26   ±   0 . 02 ,
where w% is the water amount in volume percentage. Thus, the value of a (in units of M−1) was taken as the Kfm, while the Kfs was obtained by setting w% at 100. The latter resulted to be as low as 8.34 × 10−9 M−1. Although this is negligible, we decided to include Equation (2) in our model anyway, in order to keep it general.
The association among molecules, and among molecules and ions, is typically described in terms of chemical equilibria according to a specific stoichiometry. Solvent concentration can be considered constant and included in the equilibrium constant. For the same reason, solvent is omitted from chemical equations. While this is quite valid for host–guest association in diluted solution, or even between the guest and the membrane-bound host, it cannot be applied to partition equilibria of species between the water and the lipid phase [31]. In this case, water and lipid cannot be omitted and must be explicitly considered. The chemical equation and the corresponding equilibrium constant for the partition between the water and the lipid phase of the free carrier (Equation (4)) and the complex (Equation (5)) are:
H s + L H m + W ;   K p = [ H ] m [ W ] [ H ] s [ L ]
HG s + L HG m + W ;   K p = [ HG ] m [ W ] [ HG ] s [ L ]
where L and W indicate lipid and water molecules, respectively. Kp and K′p are the thermodynamic partition equilibrium constants of the free carrier and the complex, respectively. The thermodynamic constant can be difficult to experimentally determine, so the partition coefficient P is typically used to compare the lipophilicity of different compounds [31]. This is a more convenient parameter which is usually determined as the ratio between the concentration of the species of interest in the octan-1-ol and in the water phase in a separatory funnel. Many databases, webservers and software products are also available to estimate the p value [29,32,33,34]. A suitable relation between the thermodynamic Kp and the empirical P is presented in the literature [35,36], allowing a proper and convenient description of the partition equilibrium:
P = n m V L n s V W = K p γ W γ L
where n is the number of moles of the species of interest in the membrane or in the solution, V is the volume occupied by the lipid or the water phase, and γ is the molar volume of the water or the lipid molecules. This relation was successfully applied to describe the partition of peptides between the water solution and the lipid membrane of unilamellar vesicles [31,35,36,37] (as in the present case). Thus, by starting from Equation (4) and by using Equation (6), it is possible to write [H]m as a function of [H]s as:
[ H ] m = K p [ H ] s [ L ] [ W ] = P γ L [ H ] s [ L ] γ W [ W ] = P γ L [ H ] s [ L ]
where the last simplification is possible by noting that V W V tot . Then, by starting from Equation (1) and by substituting Equation (7), it is possible to write [HG]m as a function of [H]s as:
[ HG ] m = K fm [ H ] m [ G ] = P γ L [ H ] s [ L ] K fm [ G ]
Finally, Equation (2) is simply rearranged as:
[ HG ] s = K fs [ H ] s [ G ]
On the right-hand side of Equations (8) and (9), the only other variable is [G], which can be expressed as function of [H]s as:
[ G ] = [ G ] tot - [ HG ] m - [ HG ] s = [ G ] tot - P γ L [ H ] s [ L ] K fm [ G ] - K fs [ H ] s [ G ]
by substituting Equations (8) and (9). Then, Equation (10) can be rearranged as:
[ G ] = [ G ] tot ( 1 + P γ L [ H ] s [ L ] K fm + K fs [ H ] s )
Similarly, we can write an expression for the total carrier concentration:
[ H ] tot = [ H ] s + [ HG ] s + [ H ] m + [ HG ] m
which, after substitution with Equations (7)–(9) and (11), can be rearranged as:
[ H ] s 2 ( P 2 γ L 2 [ L ] 2 K fm + P γ L [ L ] K fm + P γ L [ L ] K fs + K fs ) + [ H ] s ( 1 + K fs [ G ] tot + P γ L [ L ] + + P γ L [ L ] K fm [ G ] tot - P γ L [ L ] K fm [ H ] tot - K fs [ H ] tot ) - [ H ] tot = 0
This is a second-order equation that can be analytically solved to find [H]s at equilibrium for the given P, total lipid concentration [L], Kfm, Kfs, total carrier and chloride concentration. The molar volume of the employed lipids is needed. In the case of the POPC considered in this work, the value 0.762 L mol−1 was applied [38]. After [H]s is calculated, it can be substituted back into Equation (11), and then in Equations (7)–(9), to calculate [G], [H]m, [HG]m and [HG]s, respectively.
From a practical viewpoint, it is important to note that the complex partition constant K′p, is not needed and, thus, is not to be experimentally determined (it is dashed in Figure 1). The K′p results to be determined by the other 3 equilibrium constants as:
K p = K p K fm K fs
It is straightforward to move from concentration to the number of moles by multiplying with the volume. However, in the present context, we need to distinguish the EV from the IV solution and to resolve the equilibrium Equations separately for the two compartments.

2.2. Vesicles Description

In order to determine the EV volume and IV volume, Vout and Vin, respectively, we applied a numerical approach already reported in the literature [20,37,39].
Briefly, unilamellar spherical vesicles with identical diameter, d, were assumed. The diameter was taken as 200 nm from the pore size of the polycarbonate filter used during the extrusion stage of vesicles preparation [22]. The number of lipid molecules in one vesicle was calculated (by neglecting the difference between the area of the external and internal leaflet of the lipid bilayer) by simply doubling the vesicle area and then multiplying the result with the lipid surface density, σ L . The value of 1.3 nm−2 was determined through surface tension measurements of the POPC monolayer at the air/water interface [37] and it was in agreement with the value reported by other authors [40,41]. Then, at a given total lipid concentration, the number of vesicles present (nv) in the whole sample, the total (single side) vesicles’ area (Av) and the total internal volume (Vin) could be calculated:
n v = [ L ] V tot N A 8 π ( d 2 ) 2 σ L
A v = [ L ] V tot N A 2 σ L
V in = [ L ] V tot N A d 12 σ L · 1000
where NA is the Avogadro’s number and the 1000 multiplication in Equation (17) is needed to change from m3 to L units. Vout is obtained by difference with Vtot.
In a successive version of the algorithm, the difference between the area of the external and internal leaflet of the lipid bilayer was considered. The value of d 2 was kept as the external radius, while d 2 w was used as the internal diameter. Accordingly, the external and internal areas per vesicle were different, resulting in a corrected value for nv and, in turn, for Vin (but not for Vout). Instead of a single side Av used for both the compartments, two distinct values of total area were used, Av,out and Av,in, for the EV and the IV compartment, respectively.

2.3. Transport Stage and Iteration

After concentrations and corresponding moles were obtained on both sides of the membrane, flux density was calculated for both the membrane-bound carrier (J) and complex (J’) through Fick’s law:
J = D w ( [ H ] m , out - [ H ] m , in ) · 1000
J = D c w ( [ HG ] m , out - [ HG ] m , in ) · 1000
where w is the membrane hydrophobic thickness, D and Dc are the carrier and the complex diffusion coefficient through the membrane, respectively, and multiplication by 1000 is needed to change from mol L−1 to mol m−3 and, thus, to have the flux density expressed in mol m−2 s−1 units. It is important to note that in the present model, D and Dc are explicitly and separately taken into account. The value of D and Dc, at least in principle, might be estimated through the Stokes–Einstein relation. However, an isotropic medium and an almost spherical shape are assumed by the latter, which might lead to very large errors [42]. In addition, when the carrier and the complex are compared, although size can sometimes be considered comparable, the conformational plasticity as well as the charge usually change. These have a tremendous impact on permeability, with a difference from neutral to charged species of orders of magnitude [42,43,44]. In the present work, selected values of D and Dc were applied just to investigate their weight on the overall transport process and, in the case of experimental data curve-fitting (see below), we used them as the fitting parameters. As far as the hydrophobic thickness of the POPC bilayer is concerned, the value of 2.85 × 10 9   m was considered [43,45].
Finally, the flux of both the membrane-bound carrier and complex from one side of the membrane to the other one can be easily calculated by multiplying the flux density with both Av and a suitable time-step, ts. The new values of the moles for both the membrane-bound carrier and the membrane-bound complex are summed to the carrier and the complex in solution in order to obtain an updated value of total host and total guest on either side of the membrane. Basically, in the present model, equilibria were assumed to be much faster than the permeation through the membrane, so that as soon as species amount was updated, all the above-mentioned equilibria were instantaneously reestablished. This means, new concentration gradients were evaluated, thus, creating new flux densities. Again, the latter were multiplied by Av and ts to obtain the mole flux during a further time-step, and the iteration was repeated up to the total simulation time (a typical experiment lasted for 300 s).
At each time-step, the algorithm also checks for the total amount of host and guest in the entire system. Moreover, vesicles surface coverage is monitored, by providing an estimated value for the area occupied by a single molecule of carrier and complex. Guest release in the EV solution is calculated as ratio between [G]s,out and [G]tot. The initial release rate, kini, is obtained from the first point of the output files divided by the corresponding simulated time (typically 5 s). The half maximal effective concentration, EC50 (i.e., the carrier concentration needed to reach 50% of maximal release at 270 s [9,23]) was directly obtained by changing the carrier concentration and by checking the release at 270 s.

2.4. From Fixed to Variable Time-Step

The time-step has to be suitably short, in order to avoid simulation instability and physically unacceptable numbers. If the time-step is too long, mole flux will be too large, leading to a considerable amount of the species leaving one of the compartments and possibly resulting in negative concentrations. On the other hand, if the time-step is too short, the simulation will certainly be stable, but it will take too long to be completed.
As a rule-of-thumb, the time-step should be set in order to have a reduction in the species leaving a given compartment up to a maximum of 10%. In the typical conditions pertaining to the present work, 1 μs was found to be a suitable choice. For the sake of completeness, it has to be mentioned that also time-steps as short as 1 ns were checked, leading to identical results.
In cases analogous to the selected benchmark, the maximum density flux was observed at the beginning of the simulation, when the concentration of the carrier outside was at the maximum and inside the vesicles was zero, and chloride concentration inside the vesicles was at the maximum and zero outside. Concentration gradients fade along the simulation, and so does the flux density, accordingly, which means that a longer time-step could be progressively applied without affecting simulation results, shortening the time for simulation completion significantly. Thus, in a successive version of the algorithm, the fixed pre-selected time-step was replaced by a variable time-step approach.
For every given number of the time-steps (usually selected to be equal to the experimental dwell time of 5 s), the maximum flux density is selected (absolute value) to check whether the time-step can be increased. At each iteration, on each membrane leaflet,
n i , t = n i , ( t - 1 )   ±   J · A v · t s
where ni,t and ni,(t−1) are the number of moles of the i-th species at time t and t−1 (in ts units), respectively. The sign of J (or J’) depends on the sign of the concentration gradients (Equations (18) and (19)). We need to ensure that the right-hand side of Equation (20) is >0. As mentioned, a suitable condition is that reduction in the number of moles is 10% at the maximum, which is:
| J | A v t s   0 . 1 n i , ( t - 1 )
Thus, the following condition must be met:
t s n i , ( t - 1 ) 10 | J | A v
Close to final equilibrium, J→0, so it is mandatory to set a limit on the maximum ts, which was typically selected as 1 ms.

2.5. Reversible Aggregation: From Analytical to Numerical Roots

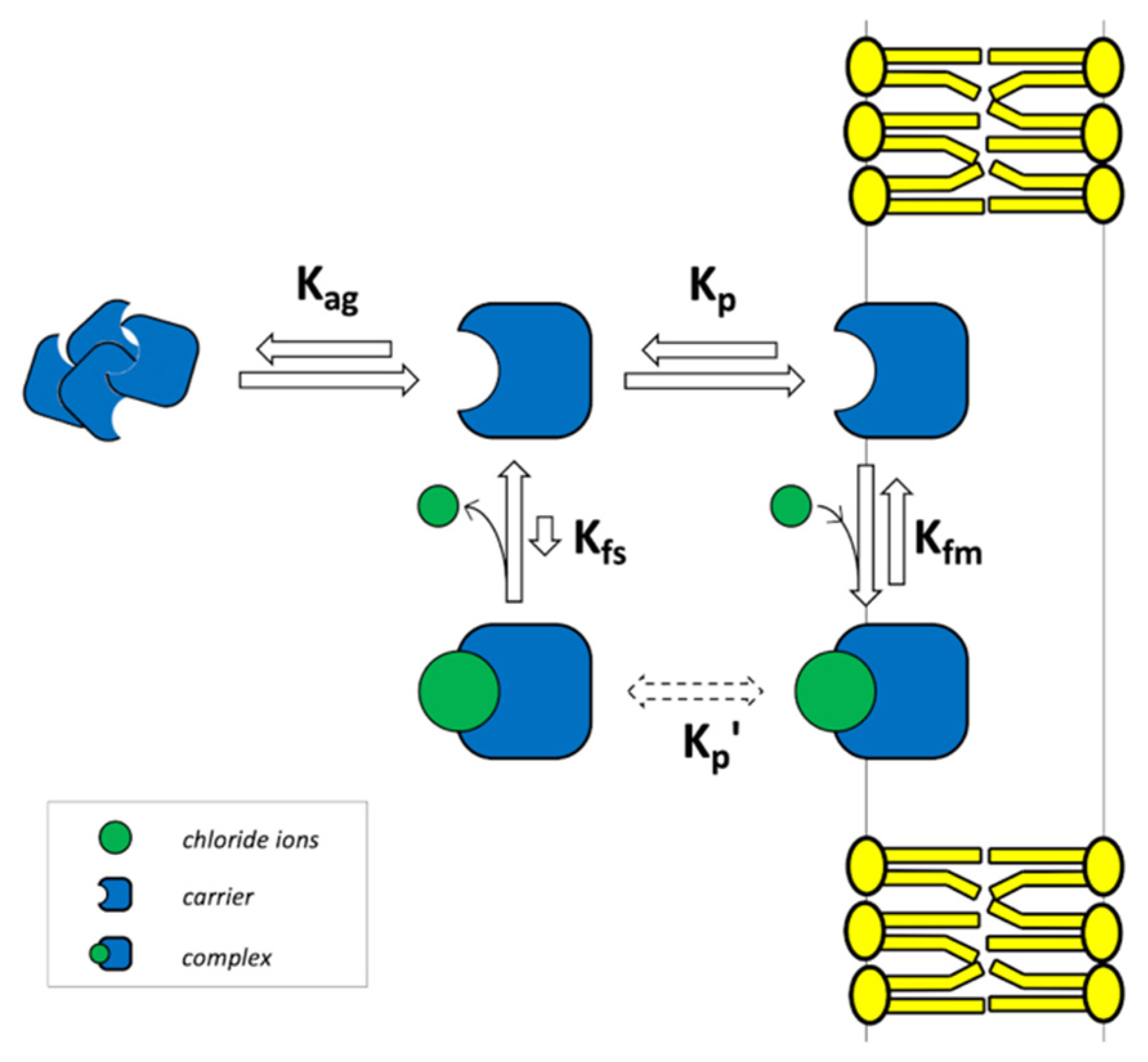

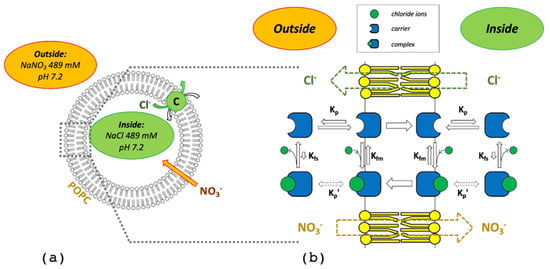

The model shown in Figure 1 was extended to take into account the possible aggregation of the carrier in solution. The modified scheme is shown in Figure 2.

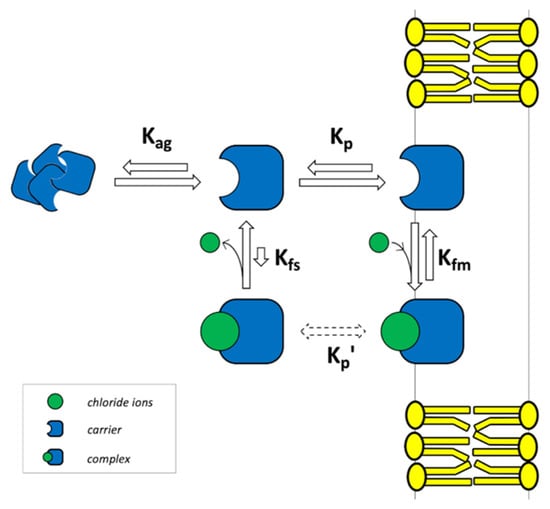

Reversible aggregation is expressed by the following chemical equation:
zH H z ;   K ag = [ H z ] [ H ] z
which provides a microscopic description of the carrier aggregation by taking stoichiometry into explicit account [46] where z is the aggregation number, i.e., the number of monomers present in each aggregate. By following the same procedure as in Section 2.1, and noting that now, instead of Equation (12), we have:
[ H ] tot = [ H ] s + [ HG ] s + [ H ] m + [ HG ] m + z [ H z ]
the final equation for [H]s is not of the second but of the (z + 1)-th order:
[ H ] s z + 1 ( zK ag K fs + zK ag K fm P γ L [ L ] ) + [ H ] s z ( z · K ag ) + [ H ] s 2 ( P 2 γ L 2 [ L ] 2 K fm + P γ L [ L ] K fm + P γ L [ L ] K fs + K fs ) + [ H ] s ( 1 + K fs [ G ] tot + P γ L [ L ] + P γ L [ L ] K fm [ G ] tot - P γ L [ L ] K fm [ H ] tot K fs [ H ] tot ) - [ H ] tot = 0
The analytical solution for equations of orders larger than 4 are not available as far as we are aware. In addition, to make the algorithm general and ready for even more complex models, we decided to move from the analytical to the numerical root search. We opted for the well-known Newton–Raphson method. The initial guess of the root is the total concentration of the carrier in the given compartment. The algorithm will find the closest positive real root lower than the initial guess, which is the desired one.

2.6. Curve-Fitting of Experimental Data

A Monte Carlo scheme was used to minimize the sum of square differences between the experimental and the calculated data points by using the diffusion coefficient of both the carrier and the complex through the lipid bilayer as fitting parameters. The algorithm can be easily extended to a larger number of fitting parameters.
At each iteration, one of the fitting parameters is randomly selected and randomly varied between ± var % of its current value (typically 10%), and the entire simulation from 0 to 300 s is performed from scratch. Only the moves resulting in a decrease in the sum of square differences between the experimental and the calculated data points are accepted, otherwise the last move is rejected. All the datasets pertaining to different carrier concentrations are fitted independently. The random number generator is automatically seeded with respect to the system clock.
Such a minimization method may suffer from the starting conditions and may converge rather slowly. Thus, by taking advantage of the speed gained through the variable time-step approach (Section 2.4), a specific module was inserted in the algorithm to search for good starting values of the fitting parameters. Basically, by deciding a maximum and a minimum value for the parameters, as well as a sampling interval, a screening is performed by comparing the sum of square difference from the experimental data of the simulated curves. The initial screening should be carefully set, since the number of simulations to be performed is given by i N i , where N is the number of different values to be screened for each of the i fitting parameters.

3. Results and Discussion

All the numerical tests described here were performed by changing one parameter at a time with respect to a reference set, which is reported in Appendix A, unless differently indicated. Values for these parameters were chosen on the basis of our own experimental data, from the literature or estimated as explained in the Methods. In particular, given all the other parameters, the diffusion coefficient of the free carrier (D) and the complex (Dc) were set identical, and the value was selected in order to reach the final equilibrium during the last 50 s of the simulation.

3.1. Simulation Output

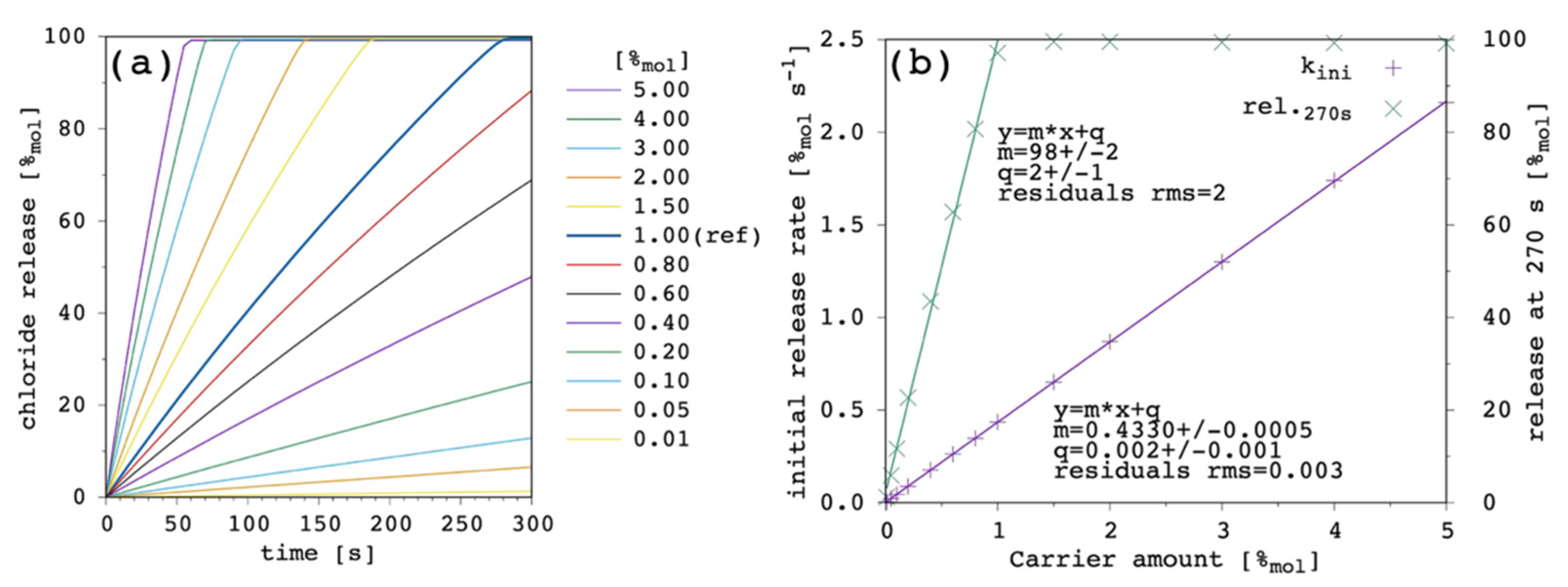

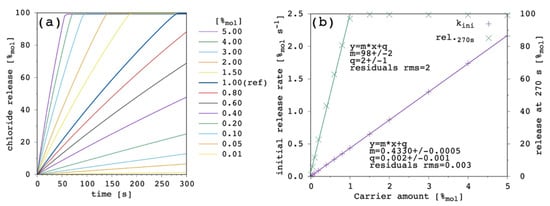

The most important result of the presented simulation model is certainly the release curve, i.e., the amount of chloride ions released in the EV solution as a function of time. This is the curve to be compared with the typical experimental data from release assays and which is analyzed to characterize and compare the transporter efficacy in terms of the initial release rate, kini [9,23]. One series of release curves, obtained by varying the carrier amount, are further analyzed to determine the carrier concentration facilitating 50% efflux of encapsulated chloride in the chosen timeframe (270 s), EC50 [9,23]. Figure 3 shows the effect of changing the carrier concentration within the present model.
Transport rate increases with increasing the amount of carrier in the system as one can expect. The initial release rate, kini, linearly increases. Release curves at all the tested carrier concentrations showed an almost linear trend up to the final equilibrium (or to the end of the simulation), corresponding to virtually 100%mol of chloride ions being released to the EV solution. For each of the simulated release curves, the ordinate at 270 s was extracted and reported vs. the carrier amount in Figure 3b. Moreover, the release at 270 s showed a linear dependence on the carrier concentration, from which an EC50 of 0.49%mol was obtained. Such a linear trend of the release at 270 s vs. the carrier amount is hardly observed in real systems, for which an hyperbolic/sigmoid trend is typical and data can be fitted with the Hill’s model [9,23]. This point will be discussed later (Section 3.6) but, nevertheless, the following results and considerations are shown to be consistent with the literature.

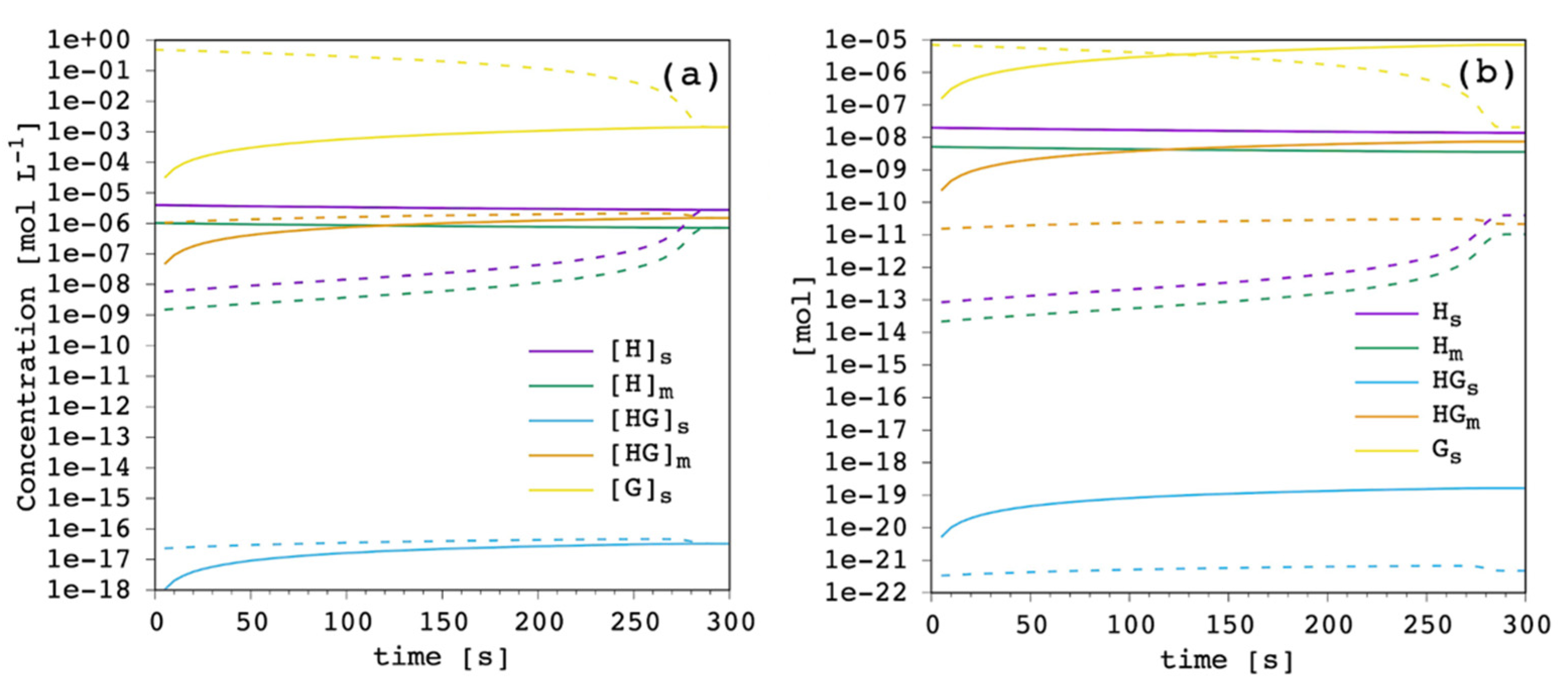

For each simulation, the concentration of each species and the moles can be monitored as a function of time in both compartments, the EV and IV solution. The results for the reference case with carrier amount equal to 1%mol to total lipid are shown in Figure 4.
The free carrier in the EV solution (purple in Figure 4) showed an almost constant concentration throughout the simulation, meaning that it works as an effective reservoir. The concentration of free carrier in the IV solution slowly increased along the simulation up to the equilibrium when the concentration in the IV solution reached that of the EV compartment. The trend of the free membrane-bound carrier (green in Figure 4) was identical, both in the EV and IV compartments, to the free unbound carrier. Their molar ratio was constant, simply reflecting the value of the carrier’s partition coefficient. As it was expected from the extremely low value of the complex formation equilibrium constant in solution, the concentration of this species (cyan in Figure 4) was quite negligible throughout the simulation, both in the EV and the IV solution. However, it is important to stress that this equilibrium is explicitly included in our model, making it flexible and applicable to a wider range of carriers. The membrane-bound complex showed the same trend, although with significant concentration, reflecting the complex partition coefficient and the large formation constant in the membrane-bound state. The trend of the free chloride ions was coherently the same.
At the beginning of the simulation, chloride concentration was maximum in the IV solution, shifting all the equilibria towards complex formation. Progressively, chloride ions were released in the EV solution thanks to the extremely low complex formation constant in solution and the almost 350 times larger EV volume compared to the IV one. Thus, chloride ion concentration in the IV solution decreased along the simulation, and correspondingly increased in the EV solution. At the equilibrium, concentration in the EV and IV solution was the same for each species, with the molar ratio simply reflecting the corresponding equilibrium constants. Finally, Figure 4b shows how, besides free chloride ions, the most abundant species are always the ones in the EV solution (but the complex in solution), while the amount of all the species in the IV solution is less by orders of magnitude. This is directly related to the EV/IV volume ratio.

3.2. Carrier’s Partition Coefficient

A larger partition coefficient of the carrier, P, means that the latter is more lipophilic (or less hydrophilic). As a result, the amount of membrane bound species increases, both for the free carrier and the complex. This should, in turn, increase the concentration gradients across the lipid bilayer, providing a faster chloride release overall. Figure 5 shows the results of our simulations.

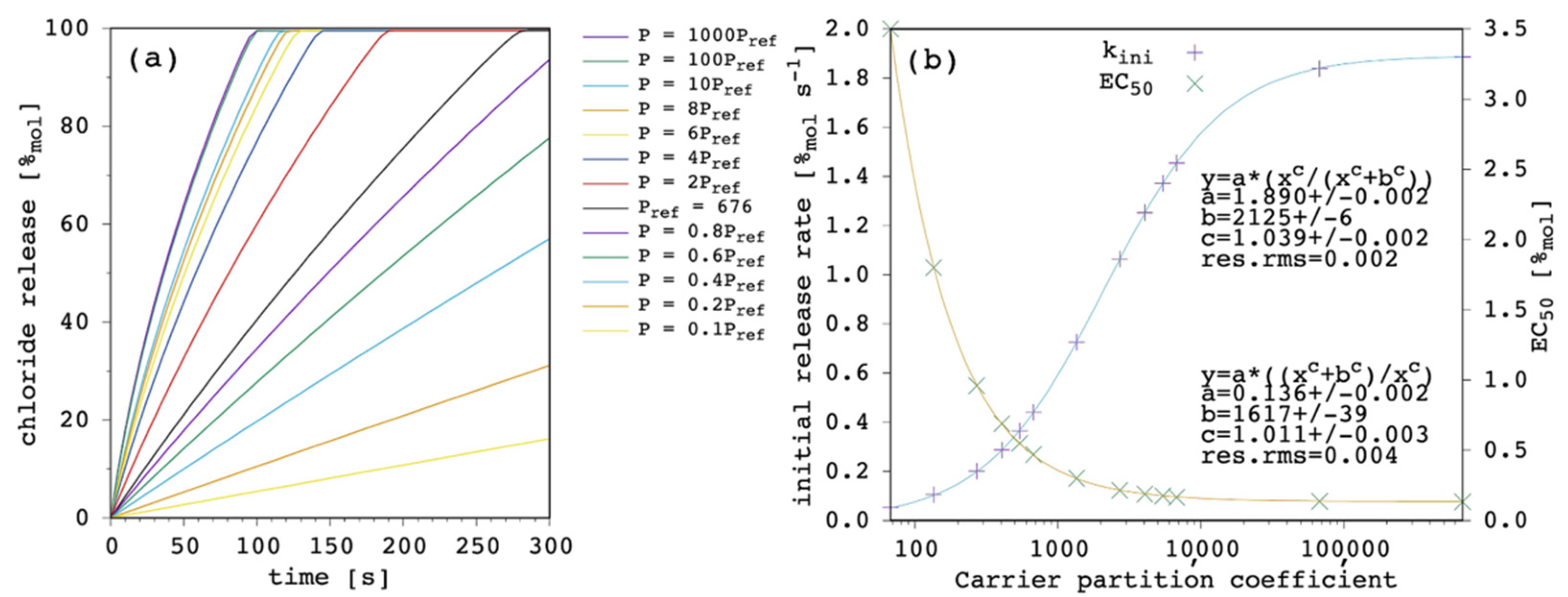

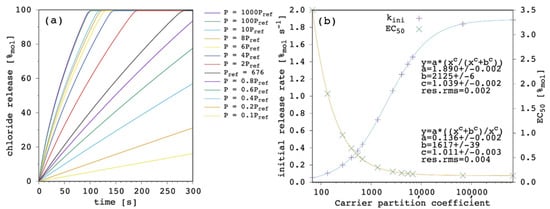

The effect of changing P is large. At high values of P, release curves also show a slight deviation from linearity with small positive curvature. The kini increases according to a hyperbolic curve as a function of P and EC50 decreases according to a reciprocal hyperbolic curve.
Membrane permeability to a given species is not only dependent on the diffusivity of the species through the membrane components but also on its lipid/water partition coefficient [42,44,47]. In turn, the net flux of the species across the membrane depends on the partition, in addition to the hydrophobic thickness of the latter. Although the importance of carrier partition on transport efficacy has been widely recognized [9,23,43,48], some models do not take it into explicit account and/or focus the application to cases with very high partition, so that free carrier in solution can be neglected [20,21]. An extensive Quantitative Structure–Activity Relationship (QSAR) investigation performed on a large dataset from the literature [23] clearly showed the important weight of the partition. The proposed QSAR models are the linear combination of four terms: the first term describes lipophilicity and has a positive coefficient; the second term describes anion-binding affinity and has a positive coefficient as well; the third term describes the molecular size and has a negative coefficient; the fourth term is a negative constant. Although coefficients were obtained using the absolute value of the observables of interest and cannot be compared to each other to evaluate the relative weight of lipophilicity, anion binding and molecular size, the authors also proposed a scaled analysis and concluded that “variation in anion transport ability […] is dominated by lipophilicity with smaller, yet significant, contributions from anion binding and diffusion” [23].
The present model does not only agree with the literature in predicting the increase in transport efficacy with increasing P [49], but it takes the latter into explicit account. This makes the quantitative direct estimation of the weight of P accessible by selecting the binding affinity and the diffusion coefficient of interest. In addition, the present model reveals that a saturation is finally reached, as shown in Figure 5b. This is reasonable since, in fact, the amount of the membrane-bound species increases with increasing P and so do the net fluxes across the membrane but, eventually, the diffusion through the membrane itself becomes rate limiting, and no further significant improvement is observed for transport efficacy (this point will be shown and discussed later in further details; Section 3.6). This has a very practical consequence because in some instances, i.e., depending on the other parameters, the increase in carrier lipophilicity might exhibit only moderate advantages, while significantly increasing the risk of gaining aggregation and solubility problems. It should be noted, in fact, that experimental evidence generally points at optimal transport activity for a P range, while a decrease in activity is found at lower and, more interestingly, at larger p values [49], suggesting that transport efficacy can diminish as a consequence of the derived aggregation and solubility problems of the carrier.

3.3. Complex Formation Equilibrium Constant in the Membrane

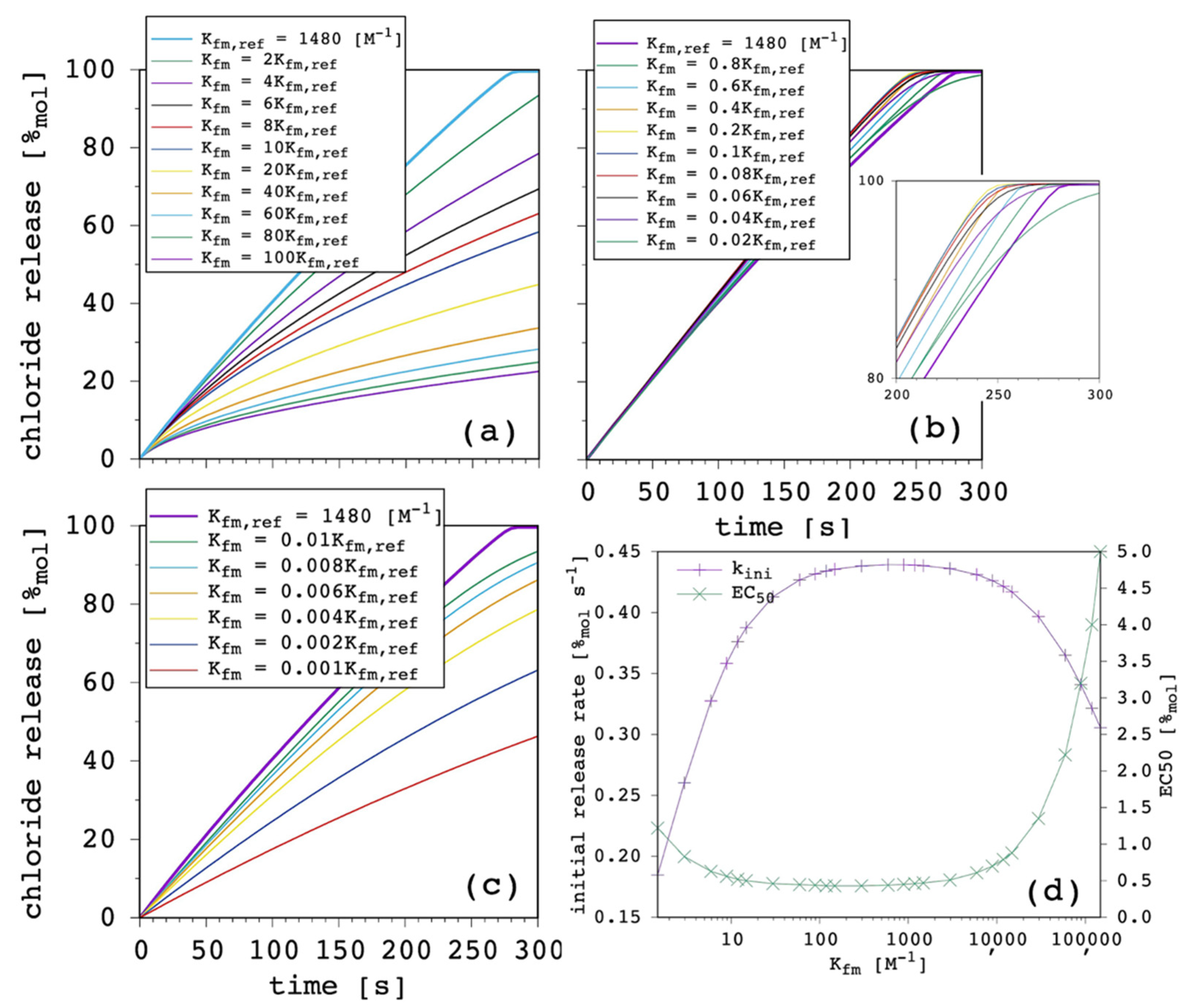

The results obtained by varying the formation equilibrium constant of the complex in the membrane Kfm are less straightforward and are shown in Figure 6.
It is quite counterintuitive to see in Figure 6a that transport efficiency decreases with increasing Kfm, which means by increasing the anion-binding affinity of the carrier. Figure 6b shows that, in this specific condition (i.e., given the value of all the other parameters) it is a decrease in Kfm that produces an improvement of the transport. The maximum was reached with Kfm = 0.2 × Kfm,ref. Below this threshold (Figure 6c), transport efficiency was found to progressively decrease with further decreasing levels of Kfm. This trend is due to the interrelationship between Kfm and P. Of course, guest-binding affinity has to be large enough to have a significant amount of membrane-bound complex and, thus, a sufficient concentration gradient of the latter to drive its net flux towards the EV solution. However, a too large Kfm together with a large p value means that the final equilibrium will be less shifted towards the release of the guest, but towards the membrane-bound complex instead, thus, being detrimental for transport efficiency. Figure 6d clearly shows that Kfm should be neither too small nor too large and a wide acceptable range exists in between.
This is only in partial agreement with previous QSAR conclusions [23], on which bases a simple positive correlation was put forward between transport efficiency and anion-binding affinity. Another important observation is that significant transport activity is predicted for as small as 0.001 × Kfm,ref. Such low affinity cannot be measured by 1H-NMR titration in solution and, thus, our results can explain how carriers with no detectable binding affinity for nitrate in DMSO-d6 solution can effectively transport this anion across phospholipid membranes.
Most importantly, whether increasing Kfm is an advantage is strictly case dependent. Figure 7 shows the results obtained when P was either increased or decreased by one order of magnitude.

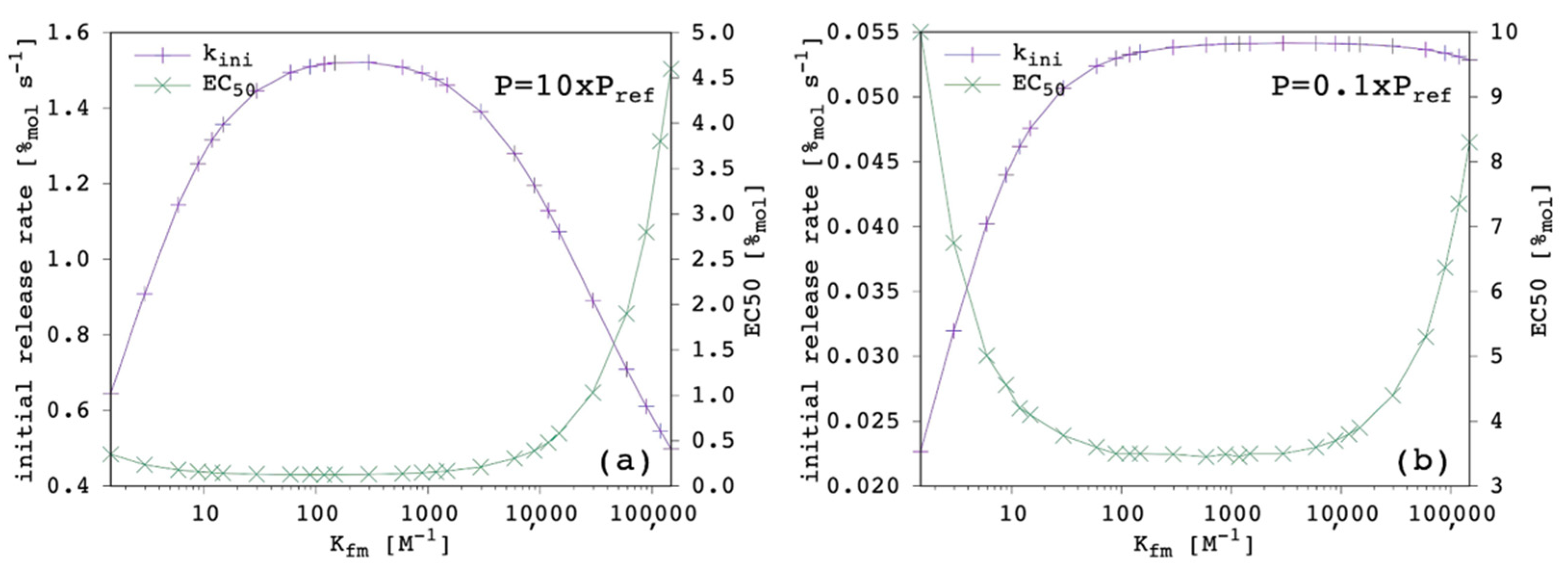

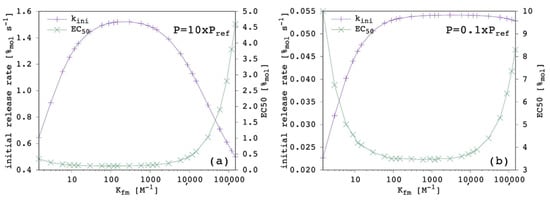

When P was increased, kini was larger and EC50 was correspondingly smaller, as expected (Section 3.2). The kini appeared to be more sensitive to Kfm variation, i.e., the optimal range was narrower. In addition, the center of this optimal range was shifted to a lower value. The EC50 showed to be less sensitive on the low-end side of Figure 7a, which indicates that a larger lipophilicity allows the carrier to be a good one, even with a lower chloride affinity.
Conversely, when P was decreased, kini was smaller and EC50 was correspondingly larger, as expected (Section 3.2). The kini appeared to be less sensitive to Kfm variation when the latter was large, simply because the transport efficiency was poor, no matter how large the chloride affinity was. The EC50 was more sensitive on the low-end side of Figure 7b, which indicates that a reduced lipophilicity needs to be compensated by a large chloride affinity for the carrier to be effective.
Overall, our results show that P had the largest weight on transport efficiency, although Kfm was important too and the optimum was obtained through a balance between Kfm and P, in agreement with previous investigations [23,28]. We conclude that potential candidates with relatively low Kfm should not be discarded during first screenings. They might be good transporters, provided that P is large enough, as can be seen in the data reported in the literature [9,23,27,50]. Finally, for the sake of completeness, we found that Kfm affected the curvature of release curves more than P did, according to the present model.

3.4. Carrier Diffusion Coefficient through the Membrane

The third fundamental parameter is the carrier diffusion coefficient, D. Figure 8 shows the results obtained by varying the latter while keeping all the other parameters fixed.

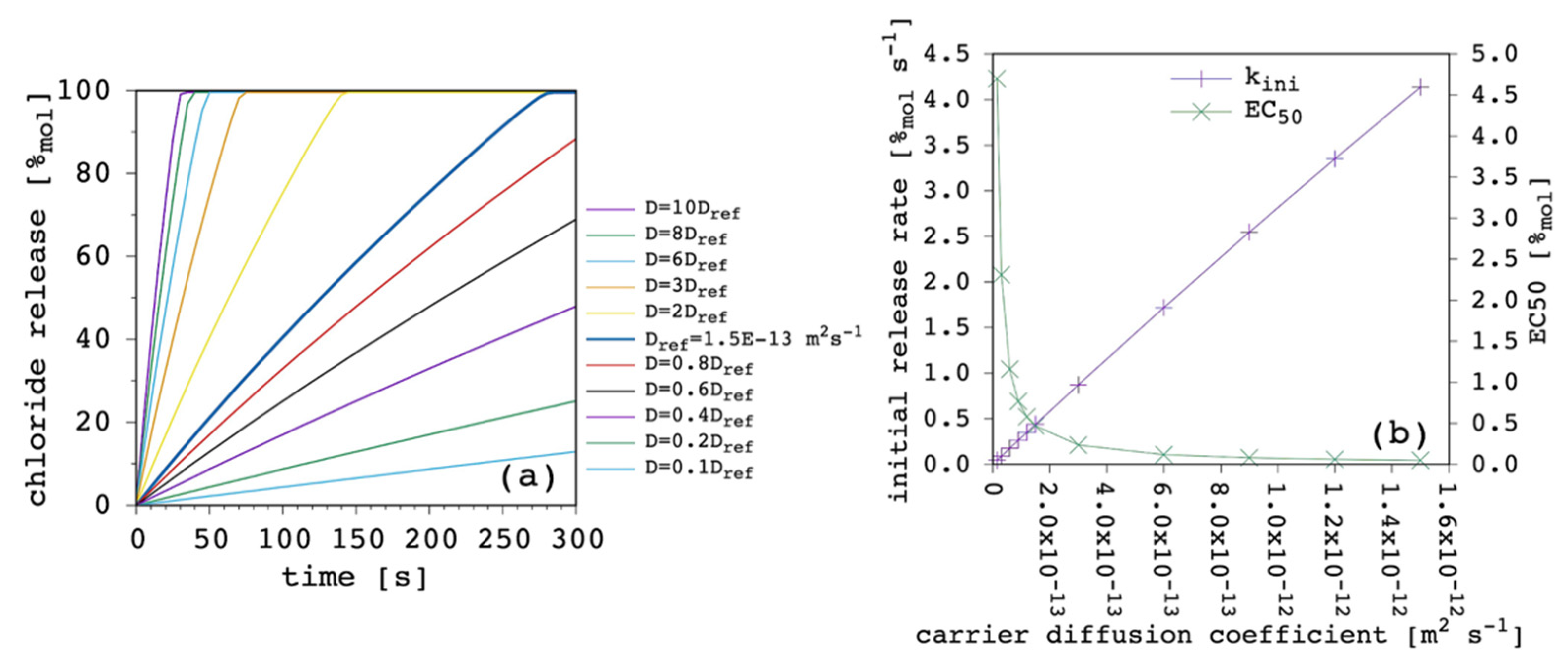

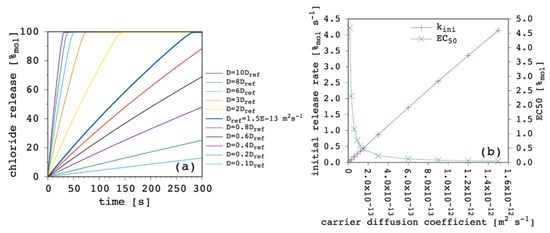

The weight of this parameter over the transport process was huge. By changing only one order of magnitude we moved from extremely efficient to dramatically inefficient. Since the free carrier in the EV solution works as a reservoir (Section 3.1), its ability to cross the lipid bilayer, entering the IV solution and restoring the amount of the carrier that is leaving the vesicles in the form of complex is crucial to the overall transport rate. It is interesting to note how the curvature of release curves was not affected at all by D variations. In fact, kini was linearly dependent from D. The EC50 showed great changes when D was lower than the complex diffusion coefficient, but it tended to a plateau when it was larger. The D dominated transport efficiency, but no matter how fast new free carrier entered the vesicles, the diffusion of the complex became the limiting factor of the overall transport rate. For the sake of completeness, we also performed the same simulations with a larger value of the complex diffusion coefficient (6 × 10−13 m2 s−1) but the curves obtained were almost identical to those shown in Figure 8a,b.

3.5. Complex Diffusion Coefficient through the Membrane

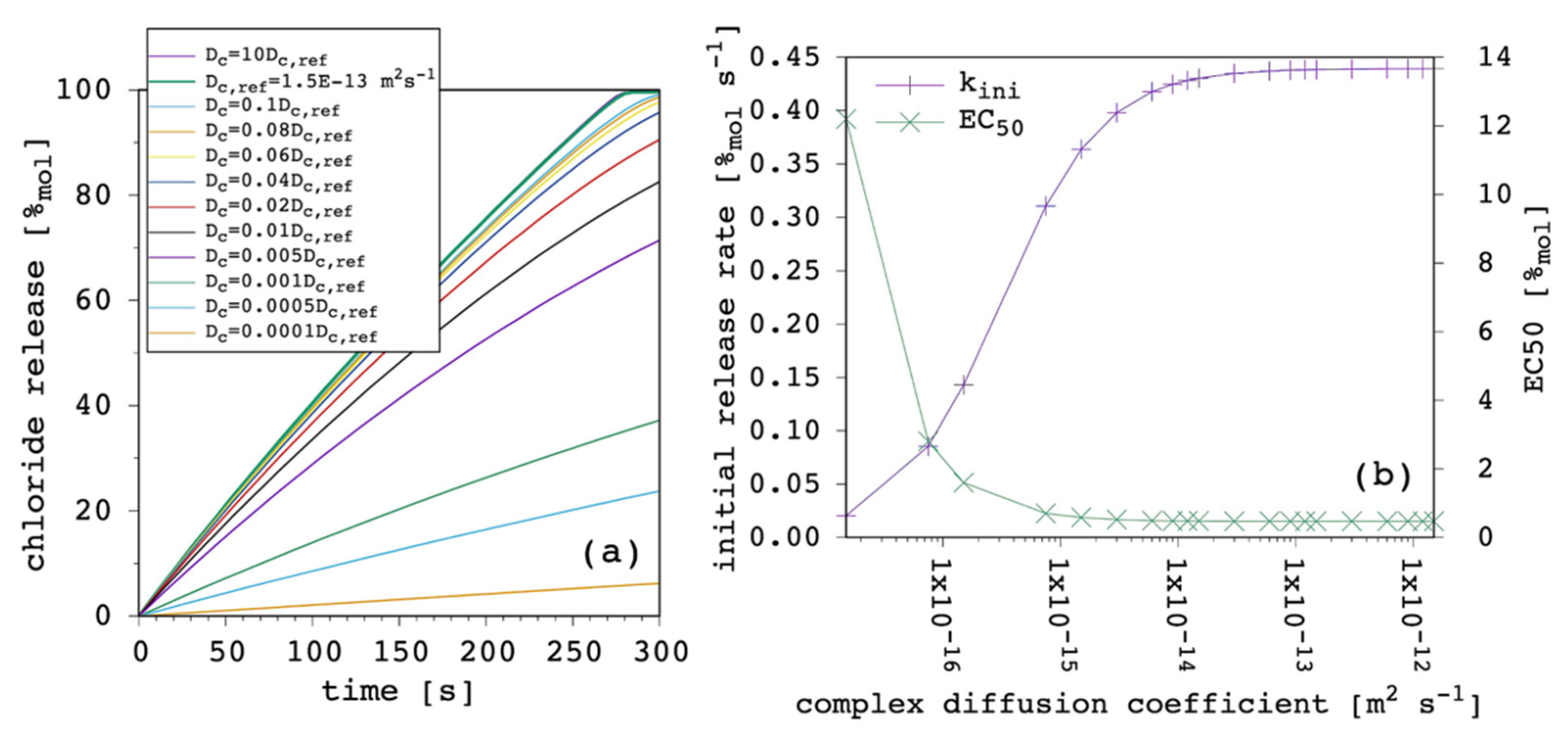

Our model has the interesting feature of taking the diffusion coefficient of the free carrier and the complex as explicitly distinct, so that it is possible to investigate their individual weight over the transport process. Figure 9 shows the results obtained by varying the complex diffusion coefficient, Dc, while keeping all the other parameters fixed.
Even if Dc was larger than D, the latter dominated the transport process (Section 3.4). The weight of Dc could be seen only when it is significantly smaller than D, so that it became predominant as the rate limiting factor of the overall transport process. Although the free carrier was characterized by large diffusivity through the membrane, if the complex was not, the latter rapidly accumulated in the IV leaflet of the lipid bilayer and also inhibited the flux of the free carrier coming from the EV solution. We believe that this situation is not so uncommon in real cases, since it is not only the size that affects the diffusion coefficient [23], but also the net charge or, more generally, the charge distribution [42,43,44]. For example, in the case we took as the benchmark [22] (see the Methods), the carrier was uncharged while the chloride complex was negatively charged with a similar size, so it was plausible to expect that Dc < D.
At this point of the discussion, it is interesting to note how Dc, not D, is able to affect the curvature of the release curves. The impact, of course, depends on the ratio between the two diffusion coefficients, as is shown in Figure 10.

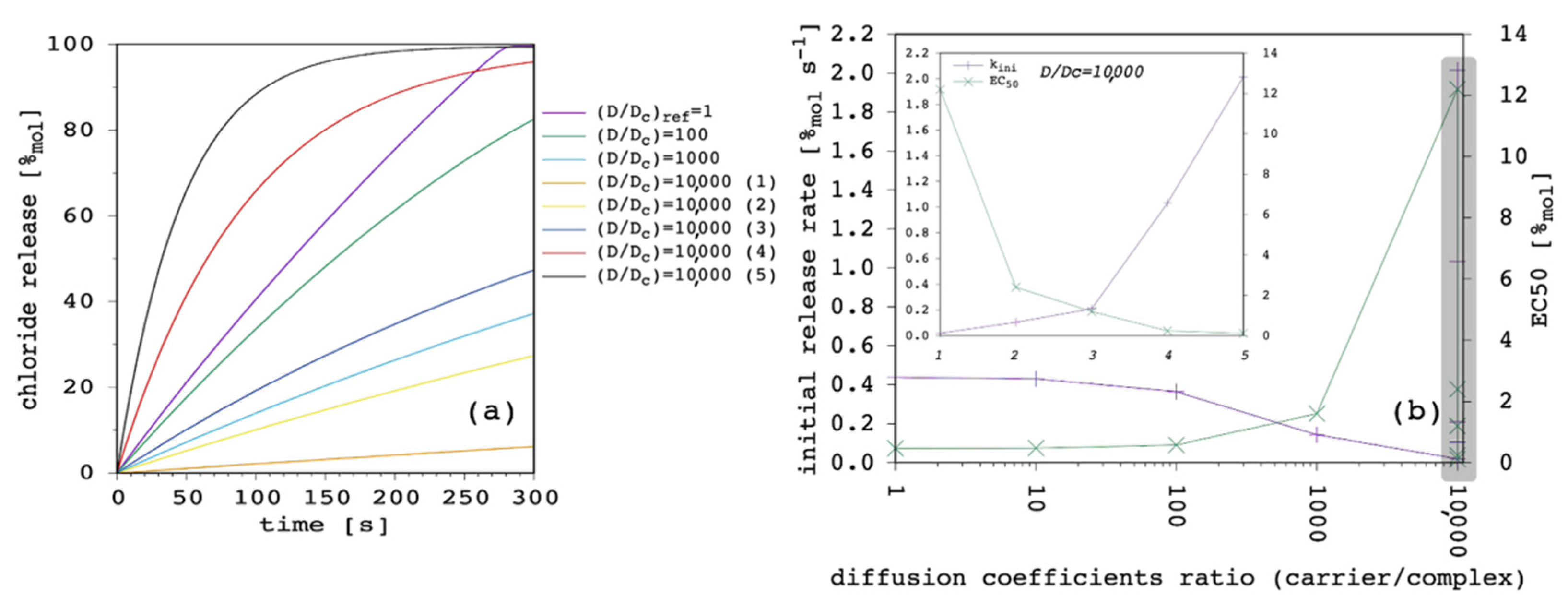

Starting from D = Dc = 1.5 × 10−13 m2 s−1 (Appendix A), we performed a first series of simulations by reducing Dc by one order of magnitude in each case, in order to progressively increase the D/Dc ratio from 1 to 10,000. Then, we kept the latter fixed and we performed another series of simulations by increasing both D and Dc by a half order of magnitude in each case. These are labelled from (1) to (5) in Figure 10.
As far as the first series of simulations was concerned, it was clear that by reducing Dc but keeping D constant (and larger) transport efficiency progressively reduced until it was eventually negligible. The second series was even more interesting. Although the ratio between D and Dc was remarkably large, it was possible to move from extremely inefficient (dataset 10,000 (1) in Figure 10) to quite efficient transport (dataset 10,000 (5) in Figure 10). These simulations show that, according to the present model, D/Dc is extremely important to determine efficacy of the transport system, but also the absolute value of the two diffusion coefficients are fundamental and can make a great difference. In particular, D is the dominant parameter over kini, while a smaller and smaller Dc increases the curvature of the release curve, thus, affecting the release at longer time.
Release curves reported in the literature are not straight lines up to 100%mol, but typically show a marked curvature, especially at large carrier concentrations [9,28,51]. Thus, we selected the case with D/Dc = 10,000 (4) reported in Figure 10 to perform further simulations.

3.6. High Carrier to Complex Diffusion Coefficient Ratio

As motivated in the previous section, we set the diffusion coefficient of the carrier through the membrane D = 7.5 × 10−12 m2 s−1, and that of the complex Dc = 7.5 × 10−16 m2 s−1, in order to have a ratio of 10,000 and a marked curvature of the release curve (red curve in Figure 10).

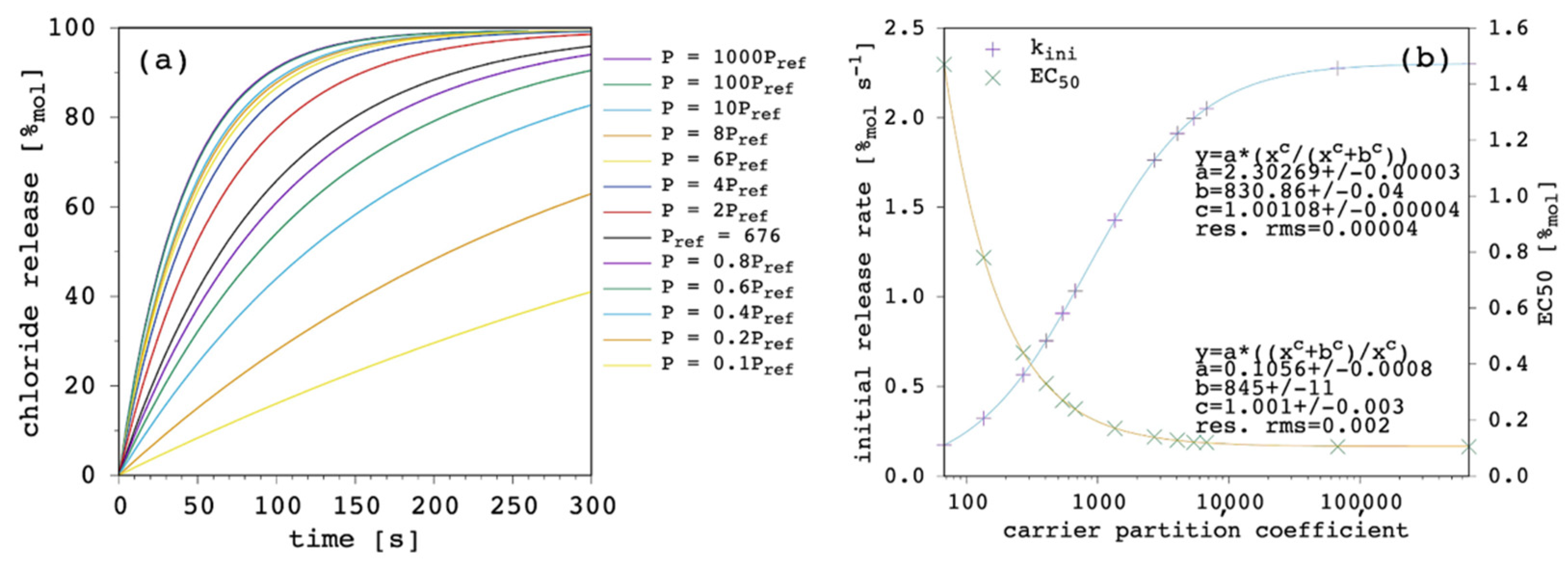

First, we investigated the variation of the free carrier partition coefficient, P, as shown in Figure 11.
Despite the high D/Dc ratio and the curvature induced to the release curves, when Figure 11 is compared with Figure 5 (Section 3.2), it is clear that P affected the overall transport process in the same way. The kini increased according to a hyperbolic curve as a function of P, and EC50 decreased according to a reciprocal hyperbolic curve. We motivated this behavior by the increase in the amount of the membrane-bound species with increasing P and the consequent increase in its net flux, while the diffusion through the membrane eventually became rate limiting. The simulations presented in this section bolster that conclusion. In fact, the inspection of the curve fittings reported in Figure 11b and the comparison with Figure 5b reveal that values of kini were larger in the last simulations (and EC50 values were smaller), which was basically due to the larger D value applied (7.5 × 10−12 vs. 1.5 × 10−13 m2 s−1). Most importantly, kini reached the final plateau at a lower P, as demonstrated by the lower b parameters in the curve fittings equations, representing the p value at which half-maximum kini was obtained. This was clearly due to the lower Dc value applied in the last simulations (7.5 × 10−16 vs. 1.5 × 10−13 m2 s−1), thus, being already rate limiting over the entire transport process at lower p values.

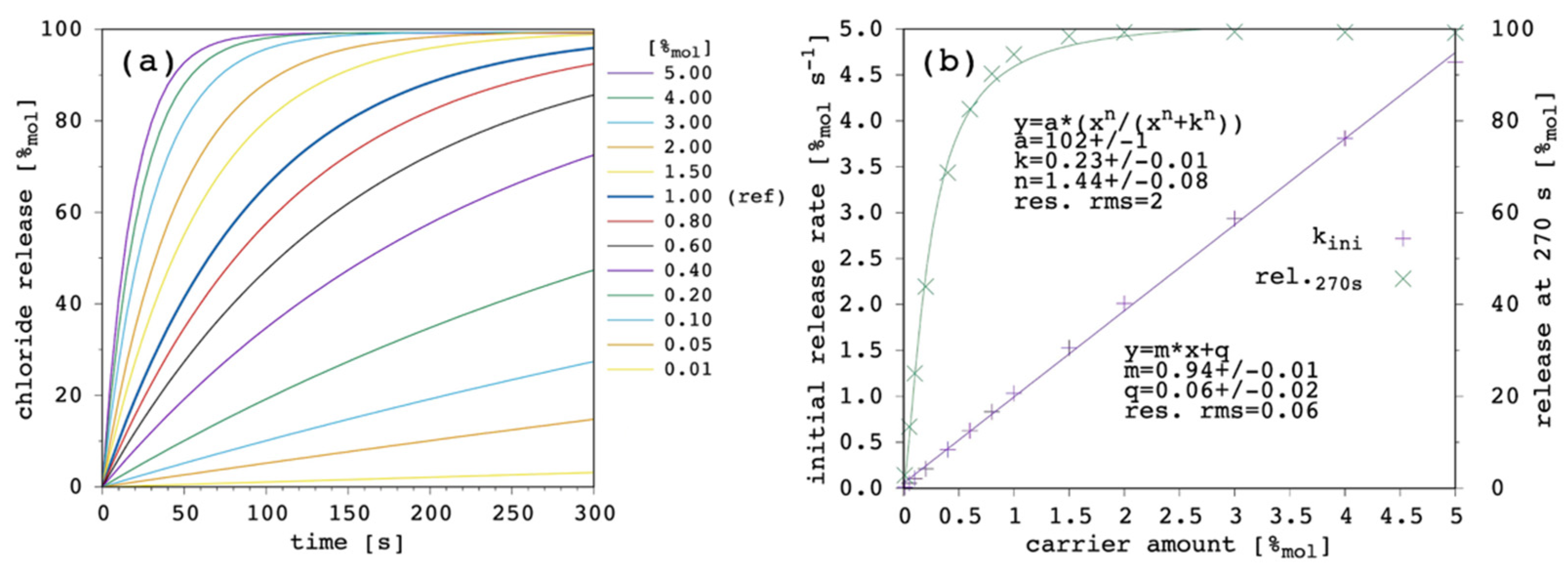

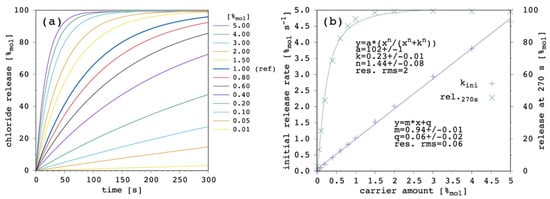

Figure 12 shows the results obtained as a function of the total carrier amount.
When these results were compared with Figure 3 (Section 3.1), given the larger value of D applied in the last simulations, kini values were larger and, of course, EC50 values were smaller. While kini still showed linear dependence on carrier amount, EC50 lacked the linearity we obtained when D = Dc, and this was the most interesting result from these last simulations. Indeed, EC50 data now appear more compatible with the trends shown in the literature [23], showing a sigmoidal dependence on carrier amount (n parameter of the curve fitting > 1). This is due to the marked curvature acquired by the release curves, especially at a large carrier amount, which is ultimately due to the fact that Dc ≪ D.

3.7. Carrier Aggregation in Solution

Our present model is in agreement with the literature, showing that the carrier partition coefficient is one of the most important parameters affecting the transport performance [9,23,43,48]. At the end of Section 3.2, we concluded that, in some instances, increasing the carrier lipophilicity might provide only moderate advantages, while the risk of aggregation in solution becomes progressively more important. For this reason, we included reversible carrier aggregation in solution to open the possibility of taking this into explicit consideration when analyzing experimental data. Figure 13 shows the effect of changing the aggregation equilibrium constant, Kag.

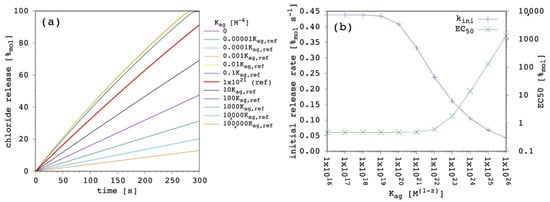

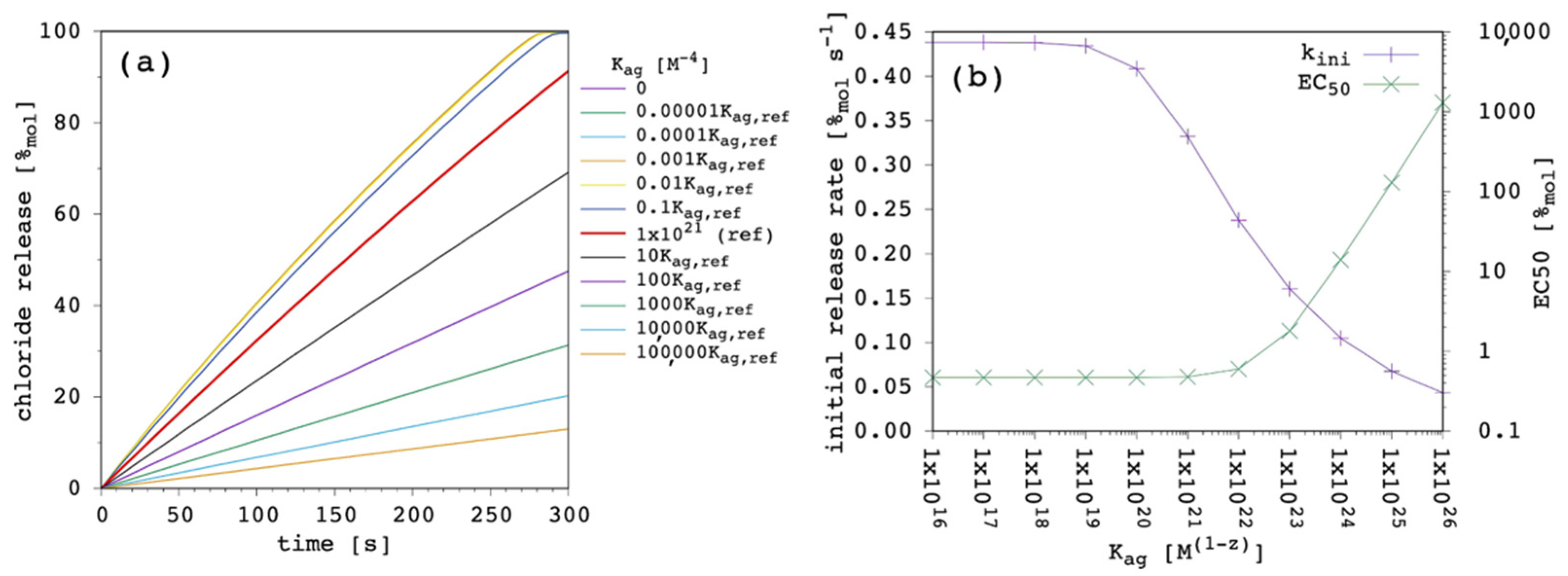

The specific reference values of 1 × 1021 M−4 and 5 for the Kag and aggregation number, respectively, were selected to have 25%mol of the carrier in the aggregated form at the beginning of the simulation (red curve in Figure 13a). The results showed, as expected, that by increasing the aggregation of the carrier in solution, lesser and lesser carrier was available for transport, causing the kini to decrease. On the other hand, by decreasing the Kag below a certain threshold, the transport efficacy (and the release curves) became virtually identical to the one obtained in the absence of aggregation. Overall, in the present conditions, release curves appeared not to be very sensitive to changes of Kag, as the latter need to be changed by orders of magnitude to observe significant differences. However, the effect on the EC50 was huge, as it can be observed in Figure 13b.

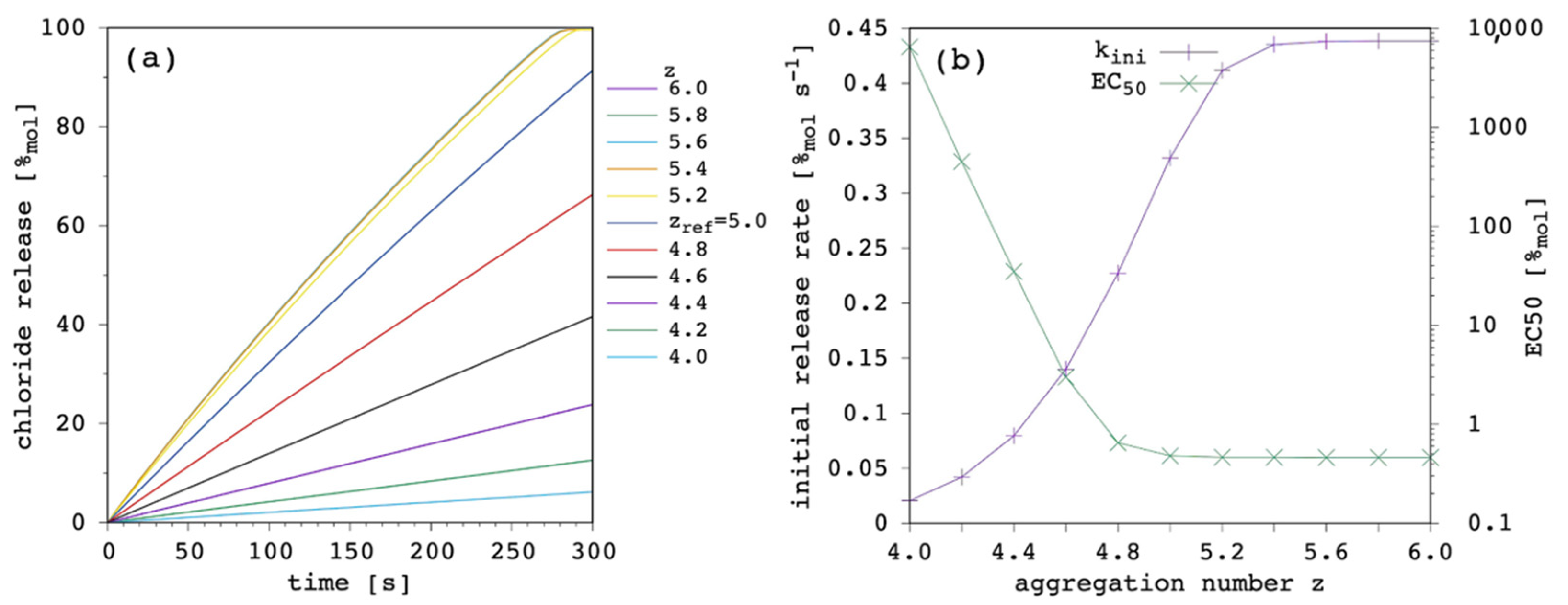

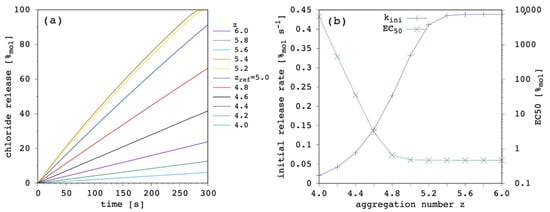

The effect of changing the aggregation number, z, was opposite with respect to the variation of Kag. This is due to the fact that at constant Kag, by increasing z, a larger number of monomers are needed to form a single aggregate. In turn, aggregation is less probable (or, a larger Kag would be needed to reach the same number of monomers involved in aggregates). Aggregation decreases with increasing z, and above a certain threshold the transport efficacy (and the release curves) become virtually identical to the one obtained in the absence of aggregation (Figure 14a). Again, the effect on the EC50 is huge, as it can be observed in Figure 14b. When the effect of changing Kag and z are compared, it appears that the release curve is much more sensitive to z variations.
The opposite dependence of transport efficacy on Kag and z poses a serious limitation when this model is used for the curve fitting of experimental release data. In fact, such opposite dependance means that the same release curve can be obtained by many different combinations of Kag and z values. For instance, we obtained almost perfectly superimposed curves with the following three combinations of Kag, z: (i) 1 × 1022, 5.2; 1 × 1021, 5.0; 1 × 1020, 4.8. This means that one of the two parameters, at least, should be experimentally determined. However, the value of Kag basically depends on z. Determination of the aggregation number is tricky as far as we know, with techniques that have been specifically developed for micelles [52,53] and that possibly need to be adapted to the specific carrier of interest. In conclusion, although we opted for a rigorous microscopical description of the aggregation equilibrium in this first version of our model, aiming at capturing the potential impact on the transport process, we plan to move to a more empirical and macroscopical description in future versions.

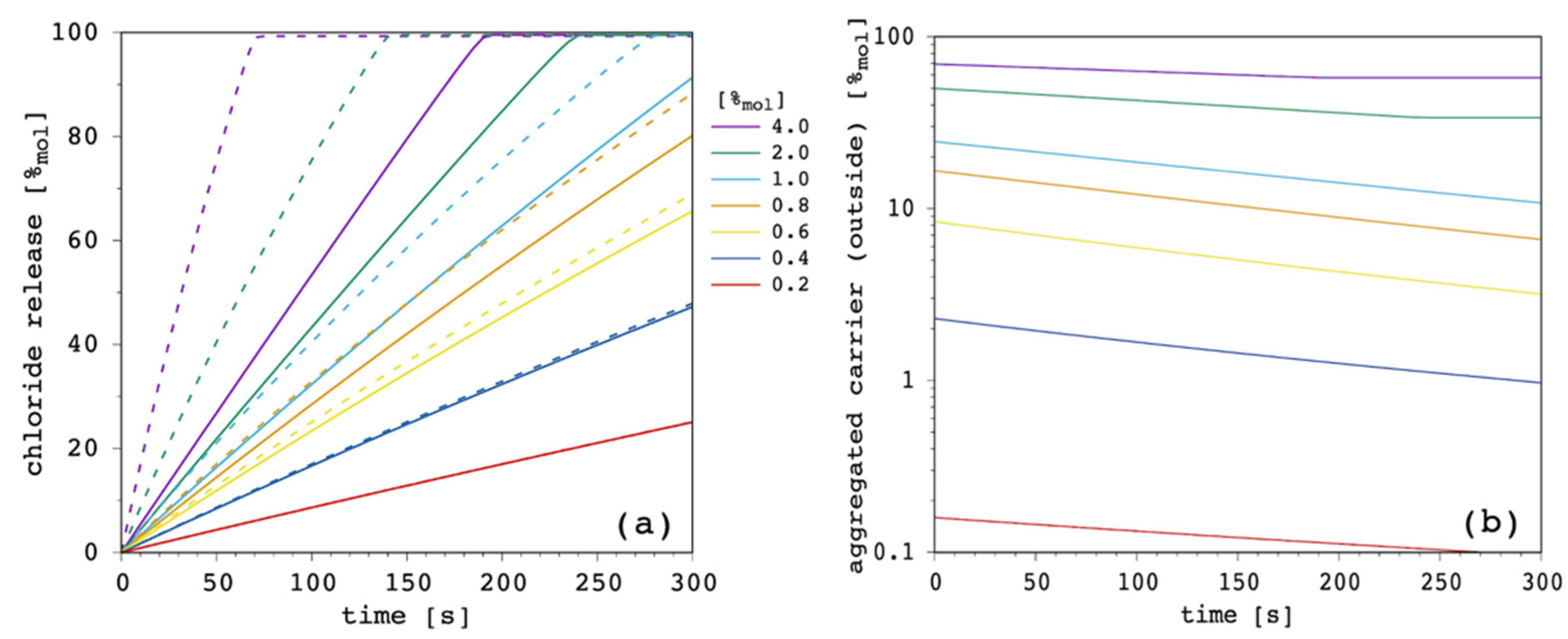

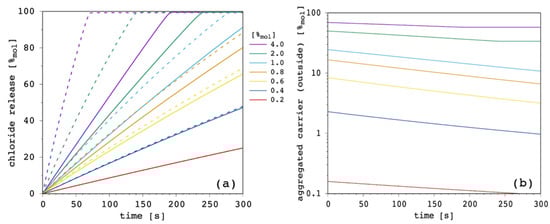

Finally, Figure 15 shows the effect of aggregation as a function of carrier total amount.

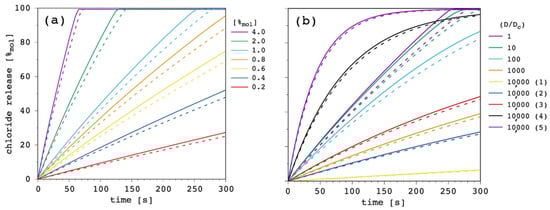

When the release curves with and without aggregation are compared (Figure 15a), we can clearly see that the weight of aggregation is very important at large carrier concentrations, while this becomes progressively negligible with decreasing amounts of the latter. In addition, Figure 15b shows that the amount of unavailable carrier in the form of aggregates decreases as a function of time, since the carrier total concentration in the EV solution slightly decreases along the simulation (Section 3.1).

3.8. Vesicles Curvature

In the first version of our model, for the sake of simplicity we decided to neglect vesicles curvature by using the same radius for both the outer and the inner surface. However, in order to assess the weight of the outer/inner radius difference, which is also related to the lipid bilayer thickness, we wrote a successive version to include this (see the Methods), in agreement with other models from the literature [20]. By taking different values for the outer and inner radii, different values for both the outer and inner area as well as for the inner volume were found, with respect to the first version of the model.

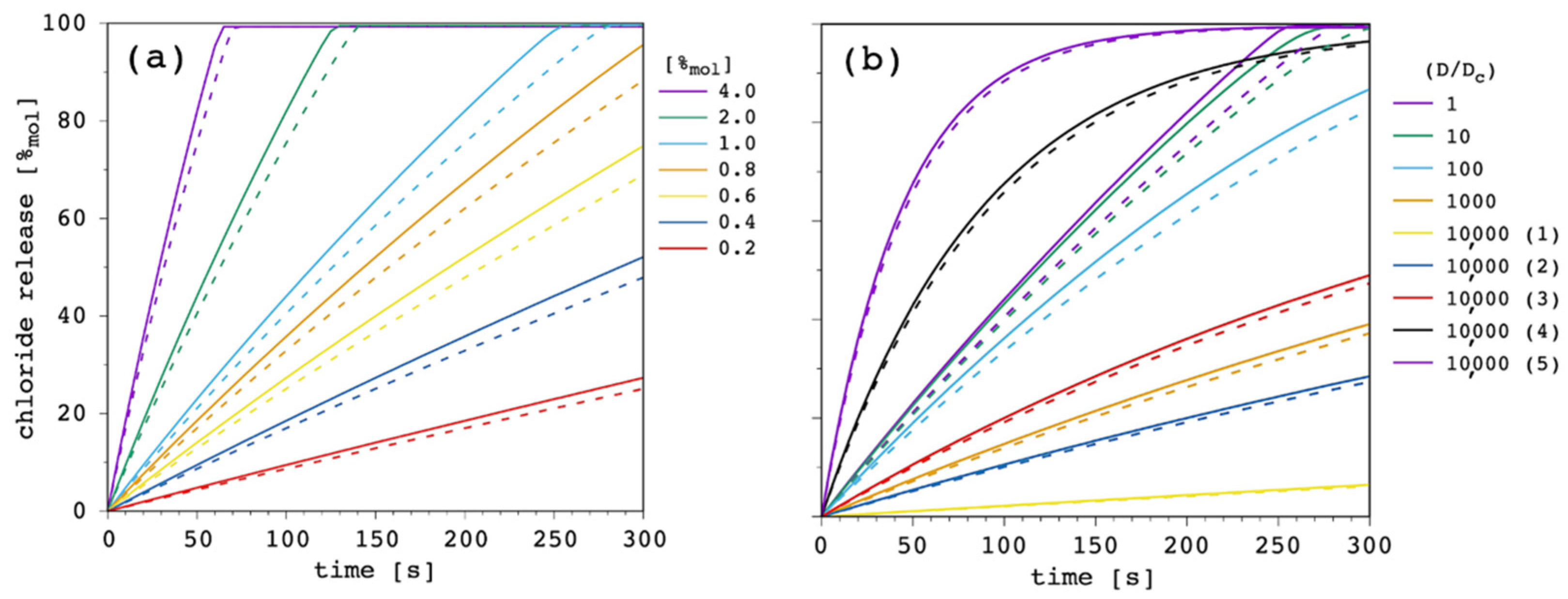

For any given carrier concentration, we found better transport with almost constant difference from the first version of the model up to the final equilibrium (Figure 16a). This is due to the inner volume contraction, which generates larger concentrations and, thus, larger outgoing flux for the same amount of incoming moles. However, if a larger and larger ratio between the carrier and the complex diffusion coefficient through the membrane was considered (Figure 16b), the weight of a different outer/inner radius became negligible in the present conditions.
Nevertheless, by including this detail we made the model more general—as we cannot rule out its importance when lipids are changed—to vary the membrane thickness, and/or consider when the average size of the vesicles is changed.

3.9. Curve Fitting of Experimental Data

In the present version of the algorithm, the curve-fitting of each single experimental dataset is individually performed. The only fitting parameters are the two diffusion coefficients through the membrane, D and Dc. All the other parameters are specified as input to the code, as provided by experiments or predicted from established informatic tools (see the Methods).

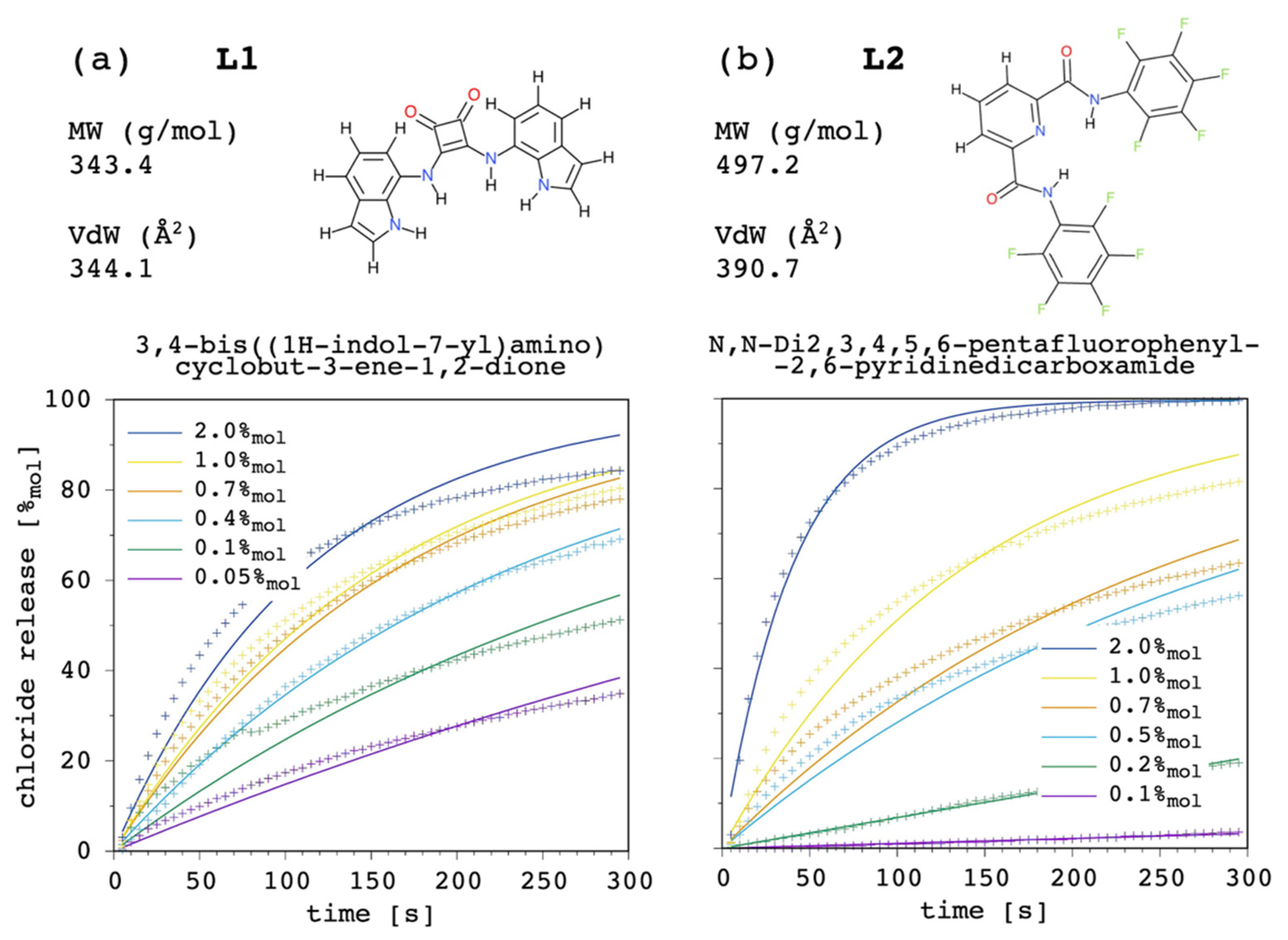

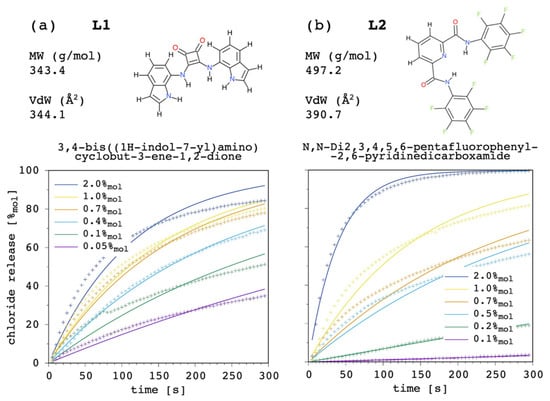

As examples, we selected the above-mentioned squaramide [22] (3,4-bis((1H-indol-7-yl)amino)cyclobut-3-ene-1,2-dione), L1, with P = 6.76   ×   10 2 and K fm = 1.48   ×   10 3   M - 1 , and a recently reported [54,55] dipicolineamide (N,N-Di2,3,4,5,6-pentafluorophenyl-2,6-pyridinedicarboxamide), L2, with P = 1 . 62 × 10 4 and K fm = 4 . 70   ×   10 1   M - 1 . These two chloride carriers were selected because of their different P as well as Kfm value. Namely, L2 has a larger membrane affinity ( P L 2 P L 1 = 24 ) , whereas L1 has a larger chloride affinity ( K fm , L 1 K fm , L 2 = 31 ) . In both cases, carrier aggregation in solution was switched off by setting Kag = 0. Figure 17 shows the results.
Although the present model can certainly be improved (see Section 3.10), and the experimental determination of the input parameters could be obtained with more accurate approaches, curve fittings were rather satisfactory overall, showing how the present simulation model can be applied to quite different systems. The results bolster what has been emphasized throughout the discussion. If we compared the curves at 1.0%mol only, a comparable transport efficacy would be deduced for these two carriers. Although L1 does not have a dramatic affinity for the lipid bilayer, its four NH donors provide the carrier with a very good chloride affinity. On the other hand, although L2 does not have a remarkable affinity for the guest, perfluorination of the pendants was successful in providing the carrier with a very good membrane affinity. However, the analysis cannot rely on one single curve, as these fundamental differences appear reflected by the release curves of L1 being far less affected by changes in the carrier amount, when compared to those obtained for L2 (EC50 was experimentally estimated as 0.11%mol with respect to total lipid, or 0.55 μM, [22] and 0.44%mol, or 2.20 μM [54], respectively). In addition, the weight of possibly different diffusion coefficients through the membrane cannot be ruled out.
Our curve fittings showed that, on average, the diffusion coefficient of the free carrier was 2 × 10−10 and 1 × 10−11 m2 s−1 for L1 and L2, respectively. This difference correlates with L2 having both molecular mass and a Van der Waals surface larger than L1 (Figure 17). The diffusion coefficient of the complex was found to be several orders of magnitude lower than that of the corresponding free carrier, as expected. In particular, D/Dc was found to be ca. 3 × 105 and 3 × 103 for L1 and L2, respectively. Then, on the contrary, with respect to the free carrier, the diffusion coefficient of the complex formed by L1 was the smallest, with value of 7 × 10−16 and 3 × 10−15 m2 s−1 for L1 and L2, respectively.
Such a big difference in Dc falling among L1 and L2 cannot be correlated to the different size of the complex. It is plausible to hypothesize that the weight of charge distribution and polarizability, in addition to polar/unpolar surface ratio and conformational flexibility of the complex, has been underrated in the literature. Even the simplest transport mechanism modelled here appears to be highly multi-variate, with a deep interplay among the parameters, which is hard to fully understand without proper and detailed models and simulation methods.

3.10. Technical Remarks

The introduction of the reversible aggregation of the carrier in solution led us to move from the analytical to the numerical solution of the equation needed to calculate the concentration of the free carrier in solution at each time-step. This modification caused a dramatic reduction in the algorithm performance. Just to give an idea, on an AMD Opteron 6174 with 2.2 GHz clockspeed, it takes about 20–30 s to simulate 300 s at 1 × 10−6 s time-step with the analytical solution. With the numerical approach, the same simulation takes as long as ca. 15 min. This is not a problem if one only wants to simulate and compare the curves for different values of the parameters, but if the goal is the curve fitting of experimental data, with our Monte Carlo approach, the same simulation has to be performed from hundreds to few thousands of times. With the analytical solution, the curve fitting of one single dataset was accomplished in about 6 h. With the numerical approach, the same goal was achieved in 10 days, which is clearly unacceptable.
Thus, we moved from the fixed to the variable time-step approach, which practically means that every 5 s of simulated time (i.e., the dwell time of experimental data), fluxes are checked, and the time-step is possibly increased (see the Methods). This approach proved to generate virtually identical output with enormous gain in performance. We basically moved back to the speed obtained with the analytical solution or even faster, such that the curve-fitting of one single experimental dataset took a few hours.
This goal was a milestone to us, since now the algorithm is not limited to very simple models whose equations are analytically solvable, but it can be extended to more complex scenarios. We are going to include the charge gradients, which are completely neglected at the moment, meaning that we will also be able to simulate electrogenic transports. We are also going to take the counter-diffusing ion into explicit account with its own permeability. The pH and the buffer need to be explicitly included in order to open our approach to protonophores.

4. Conclusions

The presented model (and the algorithm) for the carrier-assisted transport of chloride across lipid membranes allow a detailed study of the impact of several important parameters on the transport efficiency of the anionophore. Despite its apparent simplicity, the present method was able to confirm, and sometimes to extend, the current comprehension of the complicated interplay of the parameters accounting for the uniport mechanism. Besides the strong role of the carrier’s partition into the membrane, the interplay with the complex formation equilibrium constant showed the optimal range for the latter, including potentially good transporters with low anion affinity. In addition, the weight of the diffusivity of the carrier and its complex through the membrane were treated separately, and differently from other methods reported in the literature. We think that the present approach also gives satisfactory results in terms of the experimental data fitting and, therefore, it is worthy of being developed, improved, and extended to cover more complex and general scenarios, including the exploration of anion transport selectivity. Likewise, the experimental determination of the parameters can certainly be improved and, although we have applied experimental determinations typical in the field, new methods or more accurate determinations might certainly be involved in the future. Overall, the presented strategy represents a potent tool to unveil important quantitative details of the anion transport mechanisms across lipid membranes by artificial receptors that can only be monitored by means of detailed numerical simulations. These hints could be most useful to guide the design of and to identify new highly efficient anion carriers.

Author Contributions

Conceptualization, M.A.S., G.P. and C.C.; methodology and algorithm, M.A.S.; validation, M.A.S. and G.P.; synthesis, G.P. and C.C.; experiments, G.P., R.Q. and C.C.; writing—original draft preparation, M.A.S., V.L., G.P. and C.C.; writing—review and editing, M.A.S., V.L., G.P., R.Q. and C.C.; funding acquisition, V.L. and C.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Cagliari (FIR 2020). Financial support from MIUR (PRIN 2017 project 2017EKCS35), Fondazione di Sardegna (FdS Progetti Biennali di Ateneo, annualità 2018 and 2020) is also gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. New datasets with different values for the parameters and experimental data curve-fitting can be provided upon request by the corresponding author. The algorithm will be made available through a public repository as soon as the planned developments and extensions will be included by the authors.

Acknowledgments

Part of the computational work was performed using the resources of the computational chemistry laboratory (Chemistry Degree Course) of the University of Cagliari, realized with funding from the Sardinia Regional Government (P.O.R FESR 2007–2013, obiettivo competitività regionale e occupazione, asse I, società dell’informazione—linea di attività 1.2.2.c).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. Input parameters used to generate the reference data for all the numerical tests reported in the manuscript.
Table A1. Input parameters used to generate the reference data for all the numerical tests reported in the manuscript.
DescriptionUnitValue
Total lipid concentration mol   L 1 5   ×   10 - 4
Total solution volume L 5   ×   10 - 3
Average vesicles diameter m 2   ×   10 - 7
(Hydrophobic) Thickness of the lipid bilayer m 2 . 85   ×   10 - 9
Lipid surface density m 2 1 . 3   ×   10 18
Starting amount of carrier in the external solution
(with respect to total lipid)
% mol 1.0   ×   10 0
Starting amount of carrier in the internal solution mol 0.0
Starting guest concentration in the internal solution mol   L 1 4 . 89   ×   10 - 1
Starting guest concentration in the external solution mol   L 1 0 . 0
Carrier membrane/water partition coefficient 6 . 76   ×   10 2
Complex formation equilibrium constant on membrane ( mol   L 1 ) 1 1 . 48   ×   10 3
Complex formation equilibrium constant in solution ( mol   L 1 ) 1 8 . 34   ×   10 - 9
Carrier aggregation equilibrium constant
(with aggregation number z)
( mol   L 1 ) z + 1 0 . 0
Carrier aggregation number 1 . 0
Lipid molar volume L   mol 1 7 . 62   ×   10 - 1
Membrane surface occupied by one carrier molecule m 2 1 . 11   ×   10 - 18
Membrane surface occupied by one complex molecule m 2 1 . 11   ×   10 - 18
Carrier diffusion coefficient through the membrane m 2 s 1 1 . 5   ×   10 - 13
Complex diffusion coefficient through the membrane m 2 s 1 1 . 5   ×   10 - 13
Simulation time s 2 . 95   ×   10 2
Initial simulation time-step s 1 . 0   ×   10 - 6
Maximum simulation time-step s 1 . 0   ×   10 - 3
Output files writing frequency step 5 . 0   ×   10 6
Maximum number of iterations (during curve-fitting) 1 . 0   ×   10 3
Experimental data recording dwell-time s 5 . 0   ×   10 0

References

  1. Shriver, D.F.; Biallas, M.J. Observation of the Chelate Effect with a Bidentate Lewis Acid, F2BCH2CH2BF2. J. Am. Chem. Soc. 1967, 89, 1078–1081. [Google Scholar] [CrossRef]
  2. Park, C.H.; Simmons, H.E. Macrobicyclic Amines. III. Encapsulation of Halide Ions by in,in-1,(k + 2)-Diazabicyclo[k.l.m.]Alkane Ammonium Ions. J. Am. Chem. Soc. 1968, 90, 2431–2432. [Google Scholar] [CrossRef]
  3. Chen, L.; Berry, S.N.; Wu, X.; Howe, E.N.W.; Gale, P.A. Advances in Anion Receptor Chemistry. Chem 2020, 6, 61–141. [Google Scholar] [CrossRef]
  4. He, Q.; Vargas-Zúñiga, G.I.; Kim, S.H.; Kim, S.K.; Sessler, J.L. Macrocycles as Ion Pair Receptors. Chem. Rev. 2019, 119, 9753–9835. [Google Scholar] [CrossRef] [PubMed]
  5. Lai, Z.; Zhao, T.; Sessler, J.L.; He, Q. Bis–Calix[4]Pyrroles: Preparation, Structure, Complexation Properties and Beyond. Coord. Chem. Rev. 2020, 425, 213528. [Google Scholar] [CrossRef]
  6. McConnell, A.J.; Docker, A.; Beer, P.D. From Heteroditopic to Multitopic Receptors for Ion-Pair Recognition: Advances in Receptor Design and Applications. ChemPlusChem 2020, 85, 1824–1841. [Google Scholar] [CrossRef]
  7. Pancholi, J.; Beer, P.D. Halogen Bonding Motifs for Anion Recognition. Coord. Chem. Rev. 2020, 416, 213281. [Google Scholar] [CrossRef]
  8. Wu, X.; Macreadie, L.K.; Gale, P.A. Anion Binding in Metal-Organic Frameworks. Coord. Chem. Rev. 2021, 432, 213708. [Google Scholar] [CrossRef]
  9. Gale, P.A.; Davis, J.T.; Quesada, R. Anion Transport and Supramolecular Medicinal Chemistry. Chem. Soc. Rev. 2017, 46, 2497–2519. [Google Scholar] [CrossRef] [Green Version]
  10. Jowett, L.A.; Gale, P.A. Supramolecular Methods: The Chloride/Nitrate Transmembrane Exchange Assay. Supramol. Chem. 2019, 31, 297–312. [Google Scholar] [CrossRef]
  11. Martínez-Crespo, L.; Hewitt, S.H.; De Simone, N.A.; Šindelář, V.; Davis, A.P.; Butler, S.; Valkenier, H. Transmembrane Transport of Bicarbonate Unravelled. Chem.—Eur. J. 2021, 27, 7367–7375. [Google Scholar] [CrossRef] [PubMed]
  12. Valkenier, H.; Akrawi, O.; Jurček, P.; Sleziaková, K.; Lízal, T.; Bartik, K.; Šindelář, V. Fluorinated Bambusurils as Highly Effective and Selective Transmembrane Cl/HCO3 Antiporters. Chem 2019, 5, 429–444. [Google Scholar] [CrossRef] [Green Version]
  13. Wu, X.; Gilchrist, A.M.; Gale, P.A. Prospects and Challenges in Anion Recognition and Transport. Chem 2020, 6, 1296–1309. [Google Scholar] [CrossRef]
  14. Wu, X.; Howe, E.N.W.; Gale, P.A. Supramolecular Transmembrane Anion Transport: New Assays and Insights. Acc. Chem. Res. 2018, 51, 1870–1879. [Google Scholar] [CrossRef]
  15. Wu, X.; Small, J.R.; Cataldo, A.; Withecombe, A.M.; Turner, P.; Gale, P.A. Voltage-Switchable HCl Transport Enabled by Lipid Headgroup–Transporter Interactions. Angew. Chem. Int. Ed. 2019, 58, 15142–15147. [Google Scholar] [CrossRef]
  16. Yang, J.; Yu, G.; Sessler, J.L.; Shin, I.; Gale, P.A.; Huang, F. Artificial Transmembrane Ion Transporters as Potential Therapeutics. Chem 2021, 7, 3256–3291. [Google Scholar] [CrossRef]
  17. Gadsby, D.C.; Vergani, P.; Csanády, L. The ABC Protein Turned Chloride Channel Whose Failure Causes Cystic Fibrosis. Nature 2006, 440, 477–483. [Google Scholar] [CrossRef]
  18. Davis, J.T.; Gale, P.A.; Quesada, R. Advances in Anion Transport and Supramolecular Medicinal Chemistry. Chem. Soc. Rev. 2020, 49, 6056–6086. [Google Scholar] [CrossRef]
  19. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and Computational Approaches to Estimate Solubility and Permeability in Drug Discovery and Development Settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  20. Berezin, S.K. Theoretical Modelling of Anion Transport in Liposomes: Electrogenic Anion Exchange as a New Paradigm in Supramolecular Chemistry. Supramol. Chem. 2013, 25, 323–334. [Google Scholar] [CrossRef]
  21. Berezin, S.K. Valinomycin as a Classical Anionophore: Mechanism and Ion Selectivity. J. Membr. Biol. 2015, 248, 713–726. [Google Scholar] [CrossRef] [PubMed]
  22. Picci, G.; Kubicki, M.; Garau, A.; Lippolis, V.; Mocci, R.; Porcheddu, A.; Quesada, R.; Carlo Ricci, P.; Andrea Scorciapino, M.; Caltagirone, C. Simple Squaramide Receptors for Highly Efficient Anion Binding in Aqueous Media and Transmembrane Transport. Chem. Commun. 2020, 56, 11066–11069. [Google Scholar] [CrossRef] [PubMed]
  23. Busschaert, N.; Bradberry, S.J.; Wenzel, M.; Haynes, C.J.E.; Hiscock, J.R.; Kirby, I.L.; Karagiannidis, L.E.; Moore, S.J.; Wells, N.J.; Herniman, J.; et al. Towards Predictable Transmembrane Transport: QSAR Analysis of Anion Binding and Transport. Chem. Sci. 2013, 4, 3036–3045. [Google Scholar] [CrossRef] [Green Version]
  24. Roy, K.; Kar, S.; Das, R.N. QSAR/QSPR Modeling: Introduction. In A Primer on QSAR/QSPR Modeling: Fundamental Concepts; SpringerBriefs in Molecular Science; Springer International Publishing: Cham, Switzerland, 2015; pp. 1–36. ISBN 978-3-319-17281-1. [Google Scholar]
  25. Marques, I.; Colaço, A.R.; Costa, P.J.; Busschaert, N.; Gale, P.A.; Félix, V. Tris–Thiourea Tripodal-Based Molecules as Chloride Transmembrane Transporters: Insights from Molecular Dynamics Simulations. Soft Matter 2014, 10, 3608–3621. [Google Scholar] [CrossRef]
  26. Valkenier, H.; Judd, L.W.; Li, H.; Hussain, S.; Sheppard, D.N.; Davis, A.P. Preorganized Bis-Thioureas as Powerful Anion Carriers: Chloride Transport by Single Molecules in Large Unilamellar Vesicles. J. Am. Chem. Soc. 2014, 136, 12507–12512. [Google Scholar] [CrossRef] [PubMed]
  27. Marques, I.; Costa, P.M.R.; Miranda, M.Q.; Busschaert, N.; Howe, E.N.W.; Clarke, H.J.; Haynes, C.J.E.; Kirby, I.L.; Rodilla, A.M.; Pérez-Tomás, R.; et al. Full Elucidation of the Transmembrane Anion Transport Mechanism of Squaramides Using in Silico Investigations. Phys. Chem. Chem. Phys. 2018, 20, 20796–20811. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Spooner, M.J.; Li, H.; Marques, I.; Costa, P.M.R.; Wu, X.; Howe, E.N.W.; Busschaert, N.; Moore, S.J.; Light, M.E.; Sheppard, D.N.; et al. Fluorinated Synthetic Anion Carriers: Experimental and Computational Insights into Transmembrane Chloride Transport. Chem. Sci. 2019, 10, 1976–1985. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. VCCLAB. Virtual Computational Chemistry Laboratory. 2005. Available online: http://www.vcclab.org (accessed on 21 July 2020).
  30. Tetko, I.V.; Gasteiger, J.; Todeschini, R.; Mauri, A.; Livingstone, D.; Ertl, P.; Palyulin, V.A.; Radchenko, E.V.; Zefirov, N.S.; Makarenko, A.S.; et al. Virtual Computational Chemistry Laboratory--Design and Description. J. Comput.-Aided Mol. Des. 2005, 19, 453–463. [Google Scholar] [CrossRef]
  31. White, S.H.; Wimley, W.C.; Ladokhin, A.S.; Hristova, K. Protein Folding in Membranes: Determining Energetics of Peptide-Bilayer Interactions. Meth. Enzymol. 1998, 295, 62–87. [Google Scholar]
  32. ChemAxon. MarvinSketch v.21.20; ChemAxon: Budapest, Hungary, 2021. [Google Scholar]
  33. ACD/LogP Software. Available online: https://www.acdlabs.com/products/percepta/predictors/logp/index.php (accessed on 15 December 2021).
  34. LogP—Octanol-Water Partition Coefficient Calculation. 2020. Available online: https://www.molinspiration.com/services/logp.html (accessed on 15 December 2021).
  35. Loura, L.M.S.; de Almeida, R.F.M.; Coutinho, A.; Prieto, M. Interaction of Peptides with Binary Phospholipid Membranes: Application of Fluorescence Methodologies. Chem. Phys. Lipids 2003, 122, 77–96. [Google Scholar] [CrossRef]
  36. Matos, P.M.; Franquelim, H.G.; Castanho, M.A.R.B.; Santos, N.C. Quantitative Assessment of Peptide–Lipid Interactions.: Ubiquitous Fluorescence Methodologies. Biochim. Biophys. Acta (BBA)—Biomembr. 2010, 1798, 1999–2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Manzo, G.; Serra, I.; Pira, A.; Pintus, M.; Ceccarelli, M.; Casu, M.; Rinaldi, A.C.; Scorciapino, M.A. The Singular Behavior of a β-Type Semi-Synthetic Two Branched Polypeptide: Three-Dimensional Structure and Mode of Action. Phys. Chem. Chem. Phys. 2016, 18, 30998–31011. [Google Scholar] [CrossRef] [PubMed]
  38. Santos, N.C.; Prieto, M.; Castanho, M.A. Interaction of the Major Epitope Region of HIV Protein Gp41 with Membrane Model Systems. A Fluorescence Spectroscopy Study. Biochemistry 1998, 37, 8674–8682. [Google Scholar] [CrossRef]
  39. Benachir, T.; Lafleur, M. Study of Vesicle Leakage Induced by Melittin. Biochim. Biophys. Acta 1995, 1235, 452–460. [Google Scholar] [CrossRef] [Green Version]
  40. Melo, M.N.; Ferre, R.; Feliu, L.; Bardají, E.; Planas, M.; Castanho, M.A.R.B. Prediction of Antibacterial Activity from Physicochemical Properties of Antimicrobial Peptides. PLoS ONE 2011, 6, e28549. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Maget-Dana, R. The Monolayer Technique: A Potent Tool for Studying the Interfacial Properties of Antimicrobial and Membrane-Lytic Peptides and Their Interactions with Lipid Membranes. Biochim. Biophys. Acta—Biomembr. 1999, 1462, 109–140. [Google Scholar] [CrossRef] [Green Version]
  42. Ebert, A.; Hannesschlaeger, C.; Goss, K.-U.; Pohl, P. Passive Permeability of Planar Lipid Bilayers to Organic Anions. Biophys. J. 2018, 115, 1931–1941. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Paula, S.; Volkov, A.G.; Van Hoek, A.N.; Haines, T.H.; Deamer, D.W. Permeation of Protons, Potassium Ions, and Small Polar Molecules through Phospholipid Bilayers as a Function of Membrane Thickness. Biophys. J. 1996, 70, 339–348. [Google Scholar] [CrossRef] [Green Version]
  44. Lomize, A.L.; Pogozheva, I.D. Physics-Based Method for Modeling Passive Membrane Permeability and Translocation Pathways of Bioactive Molecules. J. Chem. Inf. Model. 2019, 59, 3198–3213. [Google Scholar] [CrossRef] [PubMed]
  45. Hills, R.D.; McGlinchey, N. Model Parameters for Simulation of Physiological Lipids. J. Comput. Chem. 2016, 37, 1112–1118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Rosenholm, J.B.; Burchfield, T.E.; Hepler, L.G. Thermodynamics of Micelle Formation: Standard States, Temperature Dependence of the Critical Micelle Concentration, and Thermal Expansion of the Solvent. J. Colloid Interface Sci. 1980, 78, 191–194. [Google Scholar] [CrossRef]
  47. Brocke, S.A.; Degen, A.; MacKerell, A.D.; Dutagaci, B.; Feig, M. Prediction of Membrane Permeation of Drug Molecules by Combining an Implicit Membrane Model with Machine Learning. J. Chem. Inf. Model. 2019, 59, 1147–1162. [Google Scholar] [CrossRef] [PubMed]
  48. Berezin, S.K.; Davis, J.T. Catechols as Membrane Anion Transporters. J. Am. Chem. Soc. 2009, 131, 2458–2459. [Google Scholar] [CrossRef] [Green Version]
  49. Knight, N.J.; Hernando, E.; Haynes, C.J.E.; Busschaert, N.; Clarke, H.J.; Takimoto, K.; García-Valverde, M.; Frey, J.G.; Quesada, R.; Gale, P.A. QSAR Analysis of Substituent Effects on Tambjamine Anion Transporters. Chem. Sci. 2016, 7, 1600–1608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Andrews, N.J.; Haynes, C.J.E.; Light, M.E.; Moore, S.J.; Tong, C.C.; Davis, J.T.; Harrell, W.A., Jr.; Gale, P.A. Structurally Simple Lipid Bilayer Transport Agents for Chloride and Bicarbonate. Chem. Sci. 2011, 2, 256–260. [Google Scholar] [CrossRef] [Green Version]
  51. Wu, X.; Judd, L.W.; Howe, E.N.W.; Withecombe, A.M.; Soto-Cerrato, V.; Li, H.; Busschaert, N.; Valkenier, H.; Pérez-Tomás, R.; Sheppard, D.N.; et al. Nonprotonophoric Electrogenic Cl− Transport Mediated by Valinomycin-like Carriers. Chem 2016, 1, 127–146. [Google Scholar] [CrossRef] [Green Version]
  52. Tummino, P.J.; Gafni, A. Determination of the Aggregation Number of Detergent Micelles Using Steady-State Fluorescence Quenching. Biophys. J. 1993, 64, 1580–1587. [Google Scholar] [CrossRef] [Green Version]
  53. Pisárčik, M.; Devínsky, F.; Pupák, M. Determination of Micelle Aggregation Numbers of Alkyltrimethylammonium Bromide and Sodium Dodecyl Sulfate Surfactants Using Time-Resolved Fluorescence Quenching. Open Chem. 2015, 13, 922–931. [Google Scholar] [CrossRef]
  54. Picci, G.; Carreira-Barral, I.; Alonso-Carrillo, D.; Sanz-González, D.; Fernández-López, P.; García-Valverde, M.; Caltagirone, C.; Quesada, R. Simple Isophthalamides/Dipicolineamides as Active Transmembrane Anion Transporters. Supramol. Chem. 2020, 32, 112–118. [Google Scholar] [CrossRef] [Green Version]
  55. Picci, G.; Bazzicalupi, C.; Coles, S.J.; Gratteri, P.; Isaia, F.; Lippolis, V.; Montis, R.; Murgia, S.; Nocentini, A.; Orton, J.B.; et al. Halogenated Isophthalamides and Dipicolineamides: The Role of the Halogen Substituents in the Anion Binding Properties. Dalton Trans. 2020, 49, 9231–9238. [Google Scholar] [CrossRef]
  56. Avogadro: An Open-Source Molecular Builder and Visualization Tool. Version 1.2.0. 2016. Available online: http://avogadro.cc/ (accessed on 20 November 2020).
  57. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An Advanced Semantic Chemical Editor, Visualization, and Analysis Platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. The PyMOL Molecular Graphics System, Version 2.5, 2021, Schrödinger, LLC. Available online: https://pymol.org/2/ (accessed on 15 January 2022).
Figure 1. Non-electrogenic uniport model: (a) Typical experimental condition; (b) the four reversible equilibria considered in the model on both sides of the lipid membrane, together with the labels of the corresponding equilibrium constants: Kp, the free carrier partition between the water and the lipid phase; Kfm, the complex formation in the lipid phase; Kfs, the complex formation in the water phase; K′p, the complex partition between the water and the lipid phase. The dashed–green and orange arrows indicate the net flux of chloride and nitrate ions, respectively.
Figure 1. Non-electrogenic uniport model: (a) Typical experimental condition; (b) the four reversible equilibria considered in the model on both sides of the lipid membrane, together with the labels of the corresponding equilibrium constants: Kp, the free carrier partition between the water and the lipid phase; Kfm, the complex formation in the lipid phase; Kfs, the complex formation in the water phase; K′p, the complex partition between the water and the lipid phase. The dashed–green and orange arrows indicate the net flux of chloride and nitrate ions, respectively.
Membranes 12 00292 g001
Figure 2. Non-electrogenic uniport model including carrier aggregation. The four reversible equilibria considered in the model on both sides of the lipid membrane, together with the labels of the corresponding equilibrium constants: Kp, the free carrier partition between the water and the lipid phase; Kfm, the complex formation in the lipid phase; Kfs, the complex formation in the water phase; K′p, the complex partition between the water and the lipid phase; Kag, the carrier aggregation in solution.
Figure 2. Non-electrogenic uniport model including carrier aggregation. The four reversible equilibria considered in the model on both sides of the lipid membrane, together with the labels of the corresponding equilibrium constants: Kp, the free carrier partition between the water and the lipid phase; Kfm, the complex formation in the lipid phase; Kfs, the complex formation in the water phase; K′p, the complex partition between the water and the lipid phase; Kag, the carrier aggregation in solution.
Membranes 12 00292 g002
Figure 3. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the amount of carrier: (a) release curves; (b) the corresponding initial rate and the release at 270 s are shown as a function of the carrier amount. The least-square linear curve fittings are also shown.
Figure 3. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the amount of carrier: (a) release curves; (b) the corresponding initial rate and the release at 270 s are shown as a function of the carrier amount. The least-square linear curve fittings are also shown.
Membranes 12 00292 g003
Figure 4. Simulated chloride transport according to the reference parameter set (Appendix A): (a) concentration of all the species in both the extra-vesicular (EV) solution (solid lines) and the intra-vesicular (IV) solution (dashed lines); (b) the corresponding amount of moles.
Figure 4. Simulated chloride transport according to the reference parameter set (Appendix A): (a) concentration of all the species in both the extra-vesicular (EV) solution (solid lines) and the intra-vesicular (IV) solution (dashed lines); (b) the corresponding amount of moles.
Membranes 12 00292 g004
Figure 5. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the carrier’s partition coefficient: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier’s partition coefficient. The least-square curve fittings are also shown.
Figure 5. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the carrier’s partition coefficient: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier’s partition coefficient. The least-square curve fittings are also shown.
Membranes 12 00292 g005
Figure 6. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex formation equilibrium constant in the membrane: release curves with Kfm varying from (a) 1× to 100× the reference Kfm; (b) 1× to 0.02× the reference Kfm; (c) 0.01× to 0.001× the reference Kfm; (d) the corresponding initial rate and the EC50 are shown as a function of the Kfm, where the solid lines are not curve fittings but just a guide to the eye.
Figure 6. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex formation equilibrium constant in the membrane: release curves with Kfm varying from (a) 1× to 100× the reference Kfm; (b) 1× to 0.02× the reference Kfm; (c) 0.01× to 0.001× the reference Kfm; (d) the corresponding initial rate and the EC50 are shown as a function of the Kfm, where the solid lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g006
Figure 7. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex formation equilibrium constant in the membrane: (a) P = 10 × Pref; (b) P = 0.1 × Pref. The initial rate and the EC50 are shown as a function of the Kfm, where the solid lines are not curve fittings but just a guide to the eye.
Figure 7. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex formation equilibrium constant in the membrane: (a) P = 10 × Pref; (b) P = 0.1 × Pref. The initial rate and the EC50 are shown as a function of the Kfm, where the solid lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g007
Figure 8. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the carrier diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier diffusion coefficient. The lines are not curve fittings but just a guide to the eye.
Figure 8. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the carrier diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier diffusion coefficient. The lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g008
Figure 9. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the complex diffusion coefficient. The lines are not curve fittings but just a guide to the eye.
Figure 9. Simulated chloride transport according to the reference parameter set (Appendix A) by changing the complex diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the complex diffusion coefficient. The lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g009
Figure 10. Simulated chloride transport according to the reference parameter set (Appendix A) by changing both the carrier and the complex diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier to complex diffusion coefficient ratio. The lines are not curve fittings but just a guide to the eye. The inset is the expansion of the gray-shaded region of the plot, where the five simulations with D/Dc = 10,000 and labeled from 1 to 5 are shown from the left to the right, respectively.
Figure 10. Simulated chloride transport according to the reference parameter set (Appendix A) by changing both the carrier and the complex diffusion coefficient through the membrane: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier to complex diffusion coefficient ratio. The lines are not curve fittings but just a guide to the eye. The inset is the expansion of the gray-shaded region of the plot, where the five simulations with D/Dc = 10,000 and labeled from 1 to 5 are shown from the left to the right, respectively.
Membranes 12 00292 g010
Figure 11. Simulated chloride transport according to the reference parameter set (Appendix A; D = 7.5 × 10−12 m2 s−1; Dc = 7.5 × 10−16 m2 s−1) by changing the carrier’s partition coefficient: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier’s partition coefficient. The least-square curve fittings are also shown.
Figure 11. Simulated chloride transport according to the reference parameter set (Appendix A; D = 7.5 × 10−12 m2 s−1; Dc = 7.5 × 10−16 m2 s−1) by changing the carrier’s partition coefficient: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the carrier’s partition coefficient. The least-square curve fittings are also shown.
Membranes 12 00292 g011
Figure 12. Simulated chloride transport according to the reference parameter set (Appendix A; D = 7.5 × 10−12 m2 s−1; Dc = 7.5 × 10−16 m2 s−1) by changing the amount of carrier: (a) release curves; (b) the corresponding initial rate and the release at 270 s are shown as a function of the carrier amount. The least-square linear curve fittings are also shown.
Figure 12. Simulated chloride transport according to the reference parameter set (Appendix A; D = 7.5 × 10−12 m2 s−1; Dc = 7.5 × 10−16 m2 s−1) by changing the amount of carrier: (a) release curves; (b) the corresponding initial rate and the release at 270 s are shown as a function of the carrier amount. The least-square linear curve fittings are also shown.
Membranes 12 00292 g012
Figure 13. Simulated chloride transport according to the reference parameter set (Appendix A; aggregation number z = 5) by changing the aggregation equilibrium constant of the carrier in solution: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the aggregation equilibrium constant. The lines are not curve fittings but just a guide to the eye.
Figure 13. Simulated chloride transport according to the reference parameter set (Appendix A; aggregation number z = 5) by changing the aggregation equilibrium constant of the carrier in solution: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the aggregation equilibrium constant. The lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g013
Figure 14. Simulated chloride transport according to the reference parameter set (Appendix A; Kag = 1 × 1021 M−4) by changing the aggregation number of the carrier in solution: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the aggregation number. The lines are not curve fittings but just a guide to the eye.
Figure 14. Simulated chloride transport according to the reference parameter set (Appendix A; Kag = 1 × 1021 M−4) by changing the aggregation number of the carrier in solution: (a) release curves; (b) the corresponding initial rate and the EC50 are shown as a function of the aggregation number. The lines are not curve fittings but just a guide to the eye.
Membranes 12 00292 g014
Figure 15. Simulated chloride transport according to the reference parameter set (Appendix A; Kag = 1 × 1021 M−4; z = 5) by changing the amount of carrier: (a) release curves (solid lines) together with the corresponding results in the absence of aggregation (dashed lines); (b) amount of carrier in the aggregated form (not available for transport) in the EV solution as a function of time.
Figure 15. Simulated chloride transport according to the reference parameter set (Appendix A; Kag = 1 × 1021 M−4; z = 5) by changing the amount of carrier: (a) release curves (solid lines) together with the corresponding results in the absence of aggregation (dashed lines); (b) amount of carrier in the aggregated form (not available for transport) in the EV solution as a function of time.
Membranes 12 00292 g015
Figure 16. Simulated chloride transport according to the reference parameter set (Appendix A). Release curves obtained with (solid lines) and without (dashed lines) vesicles outer/inner different radius are shown: (a) by changing the amount of carrier; (b) by changing both the carrier and the complex diffusion coefficient through the membrane (same ratios as in Figure 10).
Figure 16. Simulated chloride transport according to the reference parameter set (Appendix A). Release curves obtained with (solid lines) and without (dashed lines) vesicles outer/inner different radius are shown: (a) by changing the amount of carrier; (b) by changing both the carrier and the complex diffusion coefficient through the membrane (same ratios as in Figure 10).
Membranes 12 00292 g016
Figure 17. Curve-fitting (solid lines) of experimental chloride transport data (points) for two carriers of different type at different concentrations: (a) L1, 3,4-bis((1H-indol-7-yl)amino)cyclobut-3-ene-1,2-dione), and (b) L2, N,N-Di2,3,4,5,6-pentafluorophenyl-2,6-pyridinedicarboxamide. Molecular weight (MW) was calculated with Avogadro [56,57]. The Van der Waals surface (VdW) was calculated with PyMOL [58].
Figure 17. Curve-fitting (solid lines) of experimental chloride transport data (points) for two carriers of different type at different concentrations: (a) L1, 3,4-bis((1H-indol-7-yl)amino)cyclobut-3-ene-1,2-dione), and (b) L2, N,N-Di2,3,4,5,6-pentafluorophenyl-2,6-pyridinedicarboxamide. Molecular weight (MW) was calculated with Avogadro [56,57]. The Van der Waals surface (VdW) was calculated with PyMOL [58].
Membranes 12 00292 g017
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Scorciapino, M.A.; Picci, G.; Quesada, R.; Lippolis, V.; Caltagirone, C. A Simulation Model for the Non-Electrogenic Uniport Carrier-Assisted Transport of Ions across Lipid Membranes. Membranes 2022, 12, 292. https://doi.org/10.3390/membranes12030292

AMA Style

Scorciapino MA, Picci G, Quesada R, Lippolis V, Caltagirone C. A Simulation Model for the Non-Electrogenic Uniport Carrier-Assisted Transport of Ions across Lipid Membranes. Membranes. 2022; 12(3):292. https://doi.org/10.3390/membranes12030292

Chicago/Turabian Style

Scorciapino, Mariano Andrea, Giacomo Picci, Roberto Quesada, Vito Lippolis, and Claudia Caltagirone. 2022. "A Simulation Model for the Non-Electrogenic Uniport Carrier-Assisted Transport of Ions across Lipid Membranes" Membranes 12, no. 3: 292. https://doi.org/10.3390/membranes12030292

APA Style

Scorciapino, M. A., Picci, G., Quesada, R., Lippolis, V., & Caltagirone, C. (2022). A Simulation Model for the Non-Electrogenic Uniport Carrier-Assisted Transport of Ions across Lipid Membranes. Membranes, 12(3), 292. https://doi.org/10.3390/membranes12030292

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
