Article

Synthesis of Porous BPPO-Based Anion Exchange Membranes for Acid Recovery via Diffusion Dialysis

by
Muhammad Imran Khan
1,
Abdallah Shanableh
1,
Majeda Khraisheh
2,* and
Fares AlMomani
2
1
Research Institute of Sciences and Engineering (RISE), University of Sharjah, Sharjah 27272, United Arab Emirates
2
Department of Chemical Engineering, College of Engineering, Qatar University, Doha P.O. Box 2713, Qatar
*
Author to whom correspondence should be addressed.
Membranes 2022, 12(1), 95; https://doi.org/10.3390/membranes12010095
Submission received: 28 December 2021 / Revised: 11 January 2022 / Accepted: 12 January 2022 / Published: 16 January 2022
(This article belongs to the Special Issue Electro-Driven Membranes)
Browse Figures
Versions Notes

Abstract

:
Diffusion dialysis (DD) is an anion exchange membrane-based functional separation process used for acid recovery. TMA (trimethylamine) and BPPO (brominated poly(2,6-dimethyl-1,4-phenylene oxide) were utilized in this manuscript to formulate AEMs (anion exchange membranes) for DD (diffusion dialysis) using the phase-inversion technique. FTIR (Fourier transfer infrared) analysis, proton NMR spectroscopy, morphology, IEC (ion exchange capacity), LER (linear expansion ratio), CR (fixed group concentration), WR (water uptake/adsorption), water contact angle, chemical, and thermal stability, were all used to evaluate the prepared membranes. The effect of TMA content within the membrane matrix on acid recovery was also briefly discussed. It was reported that porous AEMs have a WR of 149.6% to 233.8%, IEC (ion exchange capacity) of 0.71 to 1.43 mmol/g, CR (fixed group concentration) that ranged from 0.0046 mol/L to 0.0056 mol/L, LER of 3.88% to 9.23%, and a water contact angle of 33.10° to 78.58°. The UH (acid dialysis coefficients) for designed porous membranes were found to be 0.0043 to 0.012 m/h, with separation factors (S) ranging from 13.14 to 32.87 at the temperature of 25 °C. These observations are comparable to those found in the DF-120B commercial membrane with UH of 0.004 m/h and S of 24.3 m/h at the same temperature (25 °C). This porous membranes proposed in this paper are excellent choices for acid recovery through the diffusion dialysis process.

Graphical Abstract

1. Introduction

Metal etching, pickling, and stripling processes generate a lot of waste solutions containing inorganic acids [1,2,3,4,5], whereas organic acid-containing waste solutions are created by fermentation, food, leather, and pharmaceutical corporations [1,2,6,7,8]. Different processes, such as neutralization [9,10,11], coagulation and flocculation [12], extraction [13], and the ion exchange process [14,15,16,17,18,19], can be used to recover the acids. In the chemical and biochemical sectors, ion exchange membranes (IEMs) play an integral role [20]. Ion exchange membranes (IEMs) that are delicate films (usually very thin) composed of immobile positively or negatively charged functional groups and counter ions are gaining popularity since they make separation processes simpler, more productive, and less expensive. AEMs (anion exchange membranes) and CEMs (cation exchange membranes) are two major categories of IEMs. AEMs have lately attracted considerable attention because they can effectively retrieve acid wastes from various industries such as mining, metal manufacturing, painting, and agriculture [21,22,23,24].
The DD (diffusion dialysis) process is a versatile strategy that utilizes (AEMs) anion exchange membranes for the extraction and recovery of acids [25,26,27,28,29,30,31]. To be more specific, the diffusion dialysis process depends on a concentration gradient for removing and purifying the acid or alkali waste solutions using the ion-exchange membrane separation method [8,23]. High energy savings [32,33], environmental safety [17], and continuous operation [34] are all advantages of the DD process. When producing chemicals, the acids can be recycled and reused, whereas the waste solution’s residual products, such as metal ions, can be eliminated immediately [8]. The diffusion dialysis mechanism is shown in Figure 1 by the separation of HCl from its inlet solution.
A concentration gradient exists between the feed and outlet sides, as seen in Figure 1. As a result, both the hydrogen ions (cations) and the chloride ions (anions) diffuse across the anion exchange membrane. Although being positively charged, hydrogen ions are capable of passing across the AEM due to their compact size, high mobility, and lower valence state. Metals in the feed solution do not pass through the AEM, so they are rejected. From the outlet side, the HCl is extracted. As a result, the acid is successfully extracted from the inlet solution. The use of AEM to recover acid through diffusion dialysis has been extensively proposed and applied around the world. The number of publications per year in this area are shown below in Figure 2.
There is a general upward trend in the number of publications each year, as seen in Figure 2. This demonstrates that acid recovery through the diffusion dialysis process using an AEM has received a lot of attention in the last decade.
Because of their prominence in DD, anion exchange membranes have received considerable attraction [23,26,27,28,31,35]. Polymers such as PS (Polystyrene), PSf (Polysulfone), and BPPO (brominated poly(2,6-dimethyl 1,4-phenylene oxide)) make up the bulk of homogenous acid recovery AEMs [8]. Presently, the dense membranes make up the plurality of AEMs used in acid recovery via diffusion dialysis [36]. Direct evaporation is used to typically manufacture the polymers’ solution (homogeneous membrane) such as poly(p-phenylene oxide), polystyrene, and polysulfone [8], or the copolymerization of monomer units within the pores of a porous membrane surface that has already been formed (heterogeneous membrane) [37,38,39,40]. They are, however, often thick and compact (several tens or hundreds of micrometers), which can obstruct the transportation of ions into the membrane [8]. The acid dialysis coefficient (UH) of the BPPO-based commercial membrane DF-120B, for instance, is indeed just 0.004 m/h at 25 °C [41]. Due to poor permeation concerns, this study centered on incorporating a new feature into the membrane matrix. The starting material was chosen to be polymers that are hydrophilic in nature, typically polyvinyl alcohol (PVA), and the assistant functional groups of –Si–OH and –C–OH were integrated onto it [42,43]. At 20 °C, the membranes enhanced their UH values from 0.007 m/h to 0.015 m/h. [43]; however, the key disadvantage of the membranes based on PVA was that they swelled a lot in the water, making their long-term stability a concern. To address these difficulties, tiny alkoxy silanes such as tetraethoxysilane (TEOS) or multi silicon copolymer forming groups were used to functionalize and cross link the PVA main chains [43,44]. When we switched from dense membrane to porous membrane processing, we had to change our strategy to solve these issues.
BPPO was chosen as the polymer matrix since the feasibility of making a porous membrane out of a hydrophobic polymer could be established. Figure 3 below depict the three-dimensional structure of the BPPO:
We recognize that the porous structure lowers ion transport resistance, whereas the polymer increases membrane durability. Apart from DD, porous membranes are frequently used in several different methods. These membranes, for example, are typically used in membrane processes that depend on pressure gradients such as ultrafiltration and nanofiltration. Moreover, for desalination purposes, to fabricate porous composite ion-exchange membranes, other research teams employed a two-step approach of phase-inversion [45,46]. Despite the fact that these micropores do not penetrate through the entire membrane, they can help HCl diffusion greatly [47].
This paper describes the phase-inversion process used to formulate and characterize BPPO-based porous anion exchange membranes in ethanol medium using the reaction of BPPO and TMA. By varying the concentration for TMA (Figure 4) into the membrane matrix, the porous AEMs have been developed with different physicochemical characterizations. In batch mode, they were compared to the commercial DF-120B membrane for acid recovery through the DD process.

2. Experimental

2.1. Materials

Tianwei Membrane Co. Ltd., Shandong, China, provided brominated poly(2,6-dimethyl-1,4-phenylene oxide) (BPPO) and an anion exchange membrane that is commercially available; DF-120B (part of the DF-120 series). DF-120B is composed primarily of quaternized poly(2,6-dimethyl-1,4-phenylene oxide) (QPPO) and polyester as a substrate. Typical characteristics of this membrane include water uptake of 74.2% with IEC of 0.83 mmol/g. Trimethylamine (TMA), ethanol, hydrochloric acid (HCl), ferrous chloride (FeCl2·4H2O), sodium chloride, potassium permanganate (KMnO4), and sodium carbonate (Na2CO3) were obtained from Sinopharm Chemical Reagent Co. Ltd., China. The rest of the reagents used in the experiments were of analytical grade and commercially available from domestic chemical reagent manufacturers. These reagents were used without further purification. In addition, throughout the experiment, deionized water (DI water) was used.

2.2. Preparation of Porous Membranes Based on BPPO

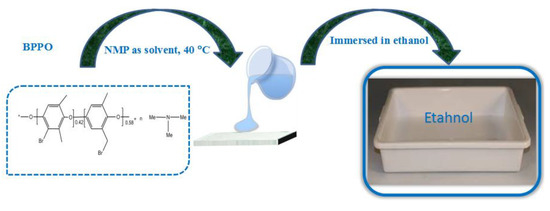

The procedure of phase-inversion was used for the fabrication of the porous AEMs, as mentioned previously in our studies [41,48]. Firstly, 3 g of BPPO (brominated poly(2,6-dimethyl-1,4-phenylene oxide)) was dissolved into NMP (N-Methyl-2-pyrrolidone) solvent at ambient temperature in a typical procedure. To obtain porous AEMs with different physicochemical properties, different amounts of trimethylamine (TMA) varying from 0.15 to 0.30 g were applied to the casting solution according to Table 1. The reaction mixture was stirred overnight at 40 °C to accelerate the reaction between BPPO and trimethylamine. The solution was subsequently poured onto a glass plate and immediately immersed in an ethanol medium (Figure 5). The membranes were cleaned by infusing them in water for two days straight, consecutively. The membranes were given the labels M1, M2, M3, and M4 according to the quantity of amine utilized. The formulated BPPO-based membrane’s chemical composition is also shown in Figure 6.

2.3. Characterizations

2.3.1. Instrumentations

Using an FTIR spectrometer (Vector 22, Bruker, Billerica, MA, USA) with a resolution of 2 cm−1 and a total spectral range of 4000–400 cm−1, the attenuated total reflectance (ATR) technique was used to record the FTIR spectra for the dry membranes. The chemical structures of the BPPO and prepared membranes were also identified using a proton NMR (DMX 300 NMR spectrometer operating at 300 MHZ). With a Shimadzu TGA-50H analyzer, TGA was conducted on the developed membranes in the range of temperatures from 25 °C to 700 °C under nitrogen flow and a heating rate of 10 °C/min. The structure or morphology of the membrane was examined using a field emission scanning electron microscope (FE-SEM, Sirion200, FEI Company, Hillsboro, OR, USA). Dry membranes were analyzed with their surface and cross-sectional views. As representative cases, SEM illustrations of various porous BPPO-based membranes were displayed. For ease of handling, the formed membranes’ water contact angle was calculated at room temperature. A sessile drop method was used to obtain contact angle values from a one-contact-angle goniometer (SL200B, Shanghai, China) configured with video capture. In total, 40 μL of water was sprayed onto a membrane that was dried using a micro-syringe in a concentrated water vapor environment.

2.3.2. Ion Exchange Capacity

The ion exchange capacity (IEC) of AEMs is indeed a significant parameter that determines how well they function in diffusion dialysis. In reality, AEM should prioritize high ion exchange capacity to improve ion transport sites [23]. IEC is a membrane permeability parameter that is dependent on the functional groups in the membrane matrix [49,50]. It is the amount of exchangeable ionic groups (equivalents) available per dry membrane weight. The traditional Mohr approach was used to measure it [12,51]. To ensure that all charge sites were transitioned to the Cl− form, the samples of the membrane were stabilized in 1.0 (M) NaCl solution for 2 days. To remove any remaining NaCl, the membranes were then cleaned thoroughly with deionized water. After that, the membranes were stabilized for two days with Na2SO4 solution with a concentration of 0.5 (M). Titration was carried out with a concentration of 0.05 (M) AgNO3 and K2CrO4 as an indicator which was used to predict the quantity of Cl− ions that were released. Furthermore, the membrane’s IEC (ion-exchange capacity; mmol/g) was determined using the formula, IEC = VC/m, where m, V, and C signify the membrane’s dry weight, titre volume during titration, and AgNO3 solution concentration, respectively.

2.3.3. Water Uptake, Linear Expansion Ratio, and Fixed Group Concentration

WR (Water uptake) measurements were utilized to explore the membrane’s hydrophilic nature. To validate the dry weight for the samples of the membrane, they were heated and dried in an oven and weighed precisely. After that, for 72 h, these membranes were submerged in water at a temperature of 25 °C, and their wet weight was recorded accordingly after the water from the surface of these membranes was removed using tissue paper. The WR values were then determined using the mass difference before and after the membranes were entirely dried [41,52] using the following Equation (1) below; as the relative weight gained per gram for the dried sample:
W R = W W E T − W D R Y W D R Y × 100 %
where WDRY and WWET denote the weights of dry and wet membranes, respectively.
The dry and wet length data of membranes at room temperature were used to calculate the linear expansion ratio (LER). The following equation was used to determine the LER of prepared AEMs [53,54].
L E R = L w − L d L d × 100 %
where the dry and wet membrane lengths, accordingly, are denoted by Ld and Lw.
According to our prior studies, the fixed group concentration in the membrane was determined using (WR) water uptake and (IEC) ion exchange capacity [41,48].

2.3.4. Diffusion Dialysis for the Mixture of HCl/FeCl2

Diffusion dialysis was performed by utilizing the framework discussed in our prior research studies [53,55,56,57,58]. The following is a representation of the typical experimental setup. The tests for the DD were conducted in a two-compartment cell that was segregated via a membrane that had an effective area of about 5.7 cm2. All membranes were cautiously stabilized in the feed solution (1 M HCl + 0.25 M FeCl2) for two hours prior to the test, which stimulated the waste acid solution generated in industrial processes, for example, metallurgical processes or related products. During the analysis, one compartment of the cell was loaded with 100 mL feed solution and another one with 100 mL distilled water. In an effort to minimize the concentration polarization, both sides were intensely agitated. One hour of diffusion was permitted. Following that, all the solutions, feed, and permeate were extracted from their respective compartments. Titration carried out using Na2CO3 aqueous solution with a concentration of 0.05 mol/L determined the HCl concentrations on both sides, while titration was performed with KMnO4 aqueous solution with a concentration of 0.002 mol/L determined the FeCl2 concentration. All of the tests were carried out at a temperature of 25 °C. Using the formula below, the dialysis coefficients (U) can be determined [41,48,57]:
U = M A t Δ C
where M refers to the quantity of the component transferred in (mol) whereas A specifies the effective area of the membrane in (m2), t refers to the time (h), and ∆C defines the logarithm mean concentration in between the two chambers in (mol/m3). ∆C is calculated as below [41,48,57]:
Δ C = C f 0 − ( C f t − C d t ) ln [ C f 0 / ( C f t − C d t ) ]
where C f 0 and C f t indicate the feed concentrations at time 0 and t, respectively, and C d t is the dialysate concentration at time t.
The dialysis coefficients UH and UFe can be evaluated using Equations (3) and (4). The separation factor (S) is calculated as the ratio of the dialysis coefficients (U) of the two species present in the solution represented in Equation (5) below [41,48,57]:
S = U H U F e

3. Results and Discussion

3.1. FTIR and Proton NMR Tests

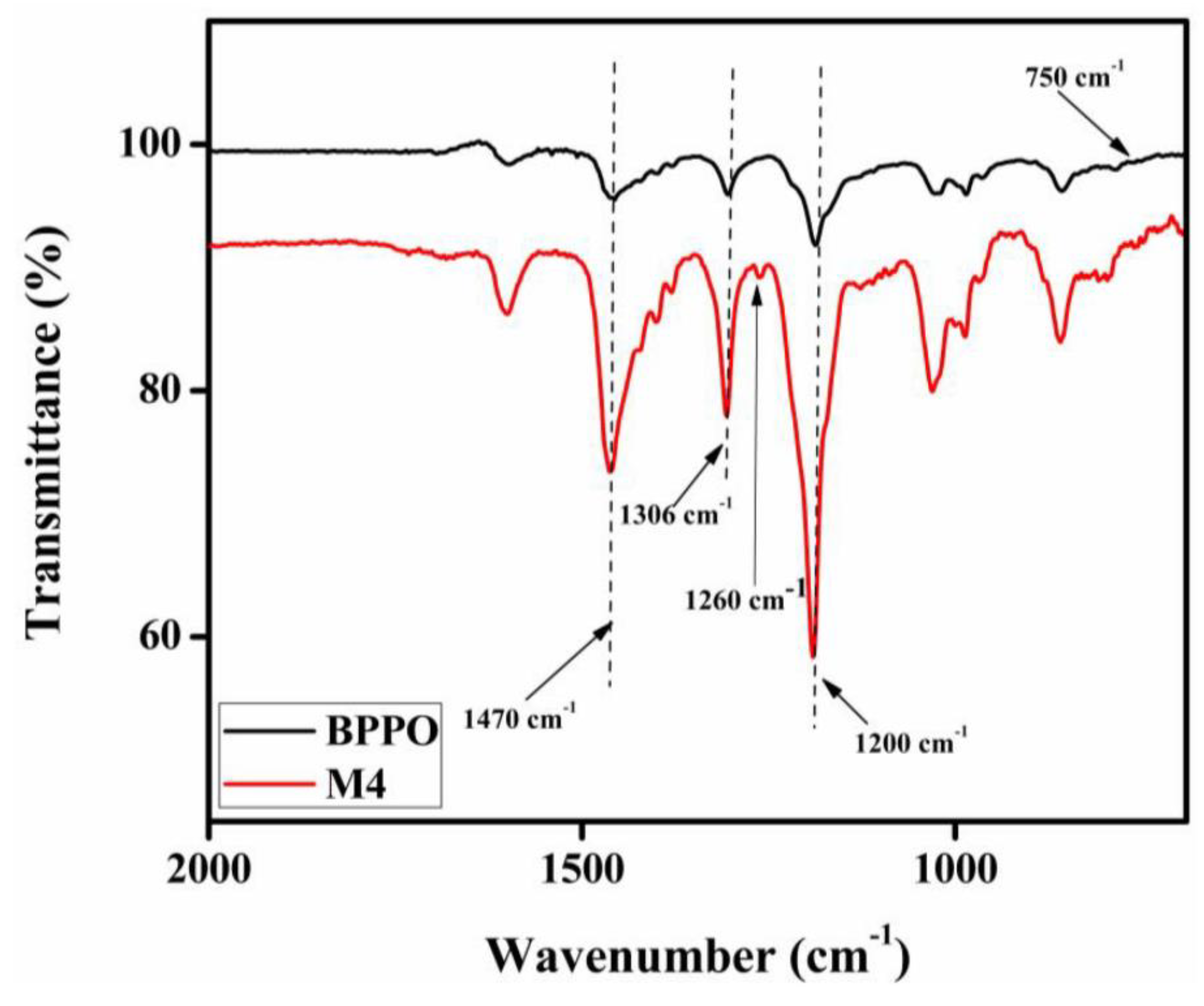

The successful formation for TMA functionalized BPPO-based porous membranes is validated through FTIR spectrum analysis. Figure 7 illustrates the FTIR spectra for pristine BPPO as well as the prepared anion exchange membrane. The stretching vibration of –CH groups (V and δ) existing inside the pristine BPPO and also the prepared anion exchange membrane generated the reference band in the range of 1446 cm−1 [41,43,52,57]. The symmetrical and asymmetrical stretching vibrations of C-O have adsorption peaks of 1200 cm−1 and 1306 cm−1, respectively, whilst phenyl groups have peaks of 1470 cm−1 and 1600 cm−1. The sharp peak observed in the prepared AEM at 1260 cm−1 reflects the C-N stretching vibrations, which are missing in the membrane of pristine BPPO. The vibration for C=C stretching present in the phenyl groups is responsible for the band at 1608 cm−1, while C-O-C stretching is responsible for the peak at 1190 cm−1. [59]. The bands occurring at 1446 cm−1 are generated by stretching of –CH groups (V and δ) [43]. The stretching of C-Br in the BPPO membrane caused the band to appear at 750 cm−1 [54,60]. This band did not show up in the ATR-FTIR spectra of prepared AEMs after the reaction with TMA. These findings strongly indicate that the prepared AEMs were successfully synthesized.

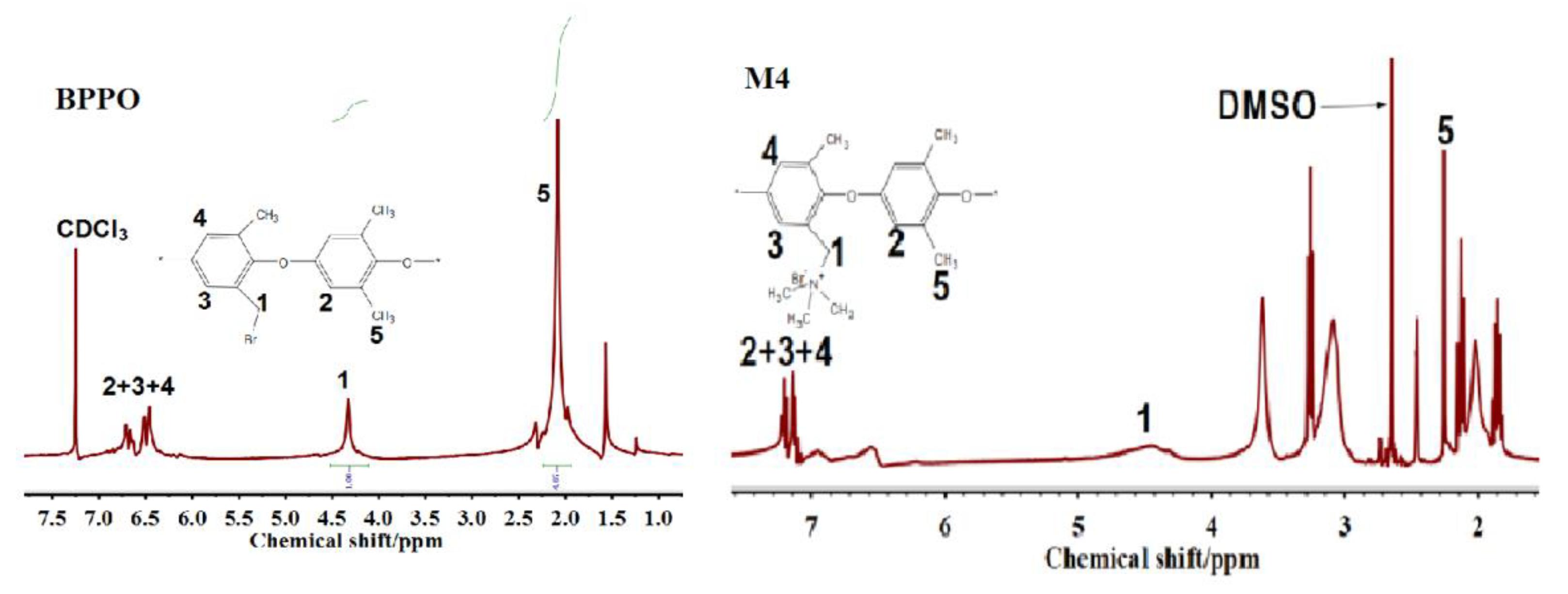

Moreover, proton NMR spectroscopy was also used to confirm the successful fabrication of anion exchange membranes. Figure 8 depict the proton NMR spectrums of the pure BPPO and fabricated anion exchange membrane M4. After the reaction with trimethylamine, a new peak was observed at 4.5 ppm, which was absent in the proton NMR spectrum of the pure BPPO. This peak is associated with the -CH2-N bond into the prepared anion exchange membrane M4, which shows the successful quaternization reaction between BPPO and trimethylamine.

3.2. Morphology

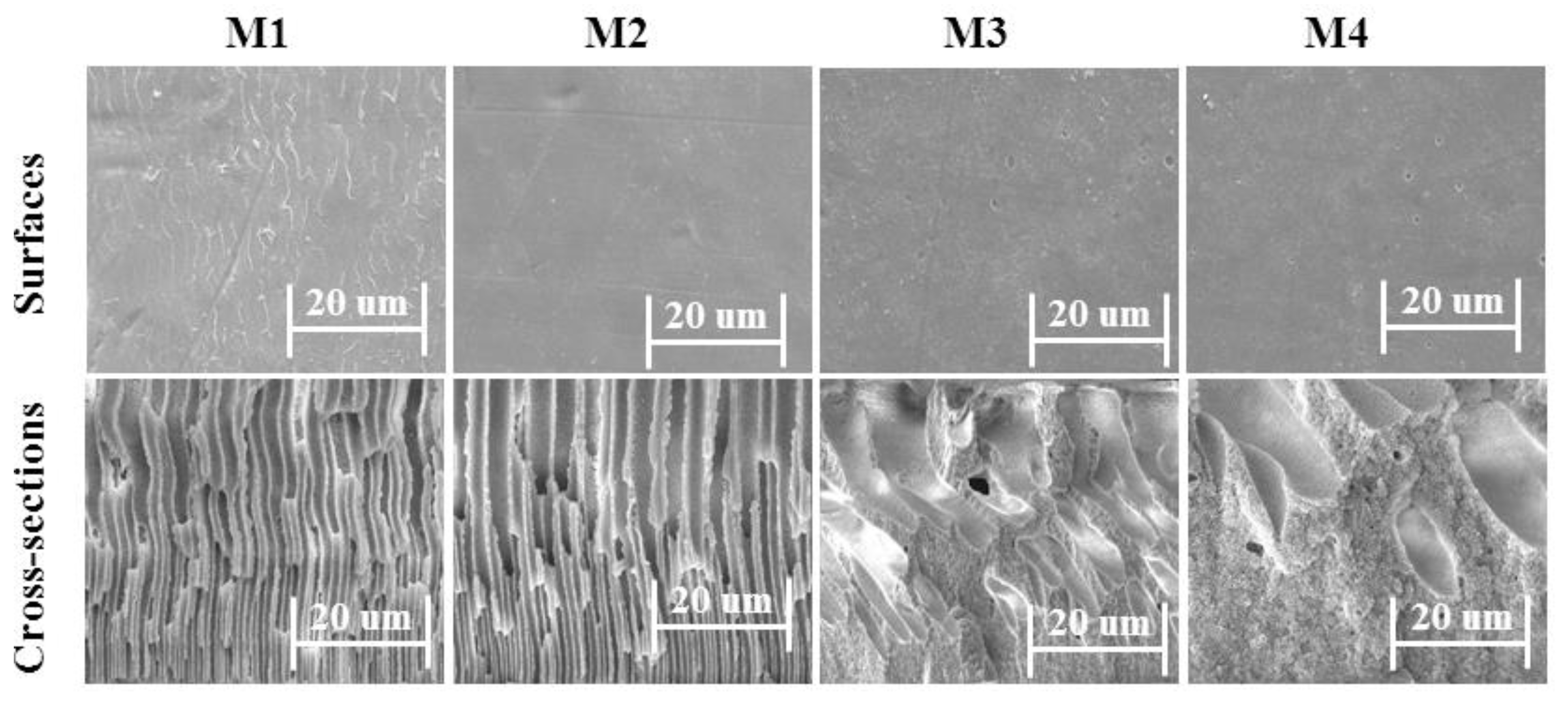

The morphology of the designed membranes was evaluated using scanning electron microscopy (SEM). Figure 9 present the SEM micrograph of the designed membranes’ surface layers and cross-sections. All of the membranes examined were reported to possess a porous morphology. Membrane morphology was determined by the concentration of TMA found in the polymer matrix. The pore size of membranes M1 to M4 increases from 16 μm to 44 μm as the ion exchange group concentration in the polymer matrix increases. Figure 9 show the changes in morphologies of the prepared membranes as the amount of TMA in the membrane matrix was enhanced. In the cross-sectional micrographs of the membranes, pores that have finger-like morphology can be observed. Moreover, Figure 9 clearly show that the presence of finger-like structures in membranes M1 to M4 were increased with the content of amine, which is consistent with our previous findings [41,61]. This can lower the resistance of ions as they pass within the membranes, making it useful for the separation of mixtures. As a result, these porous morphologies may be ideal for acid recovery using the DD process.

3.3. Thermal Decomposition and Chemical Stability of the Prepared Membranes

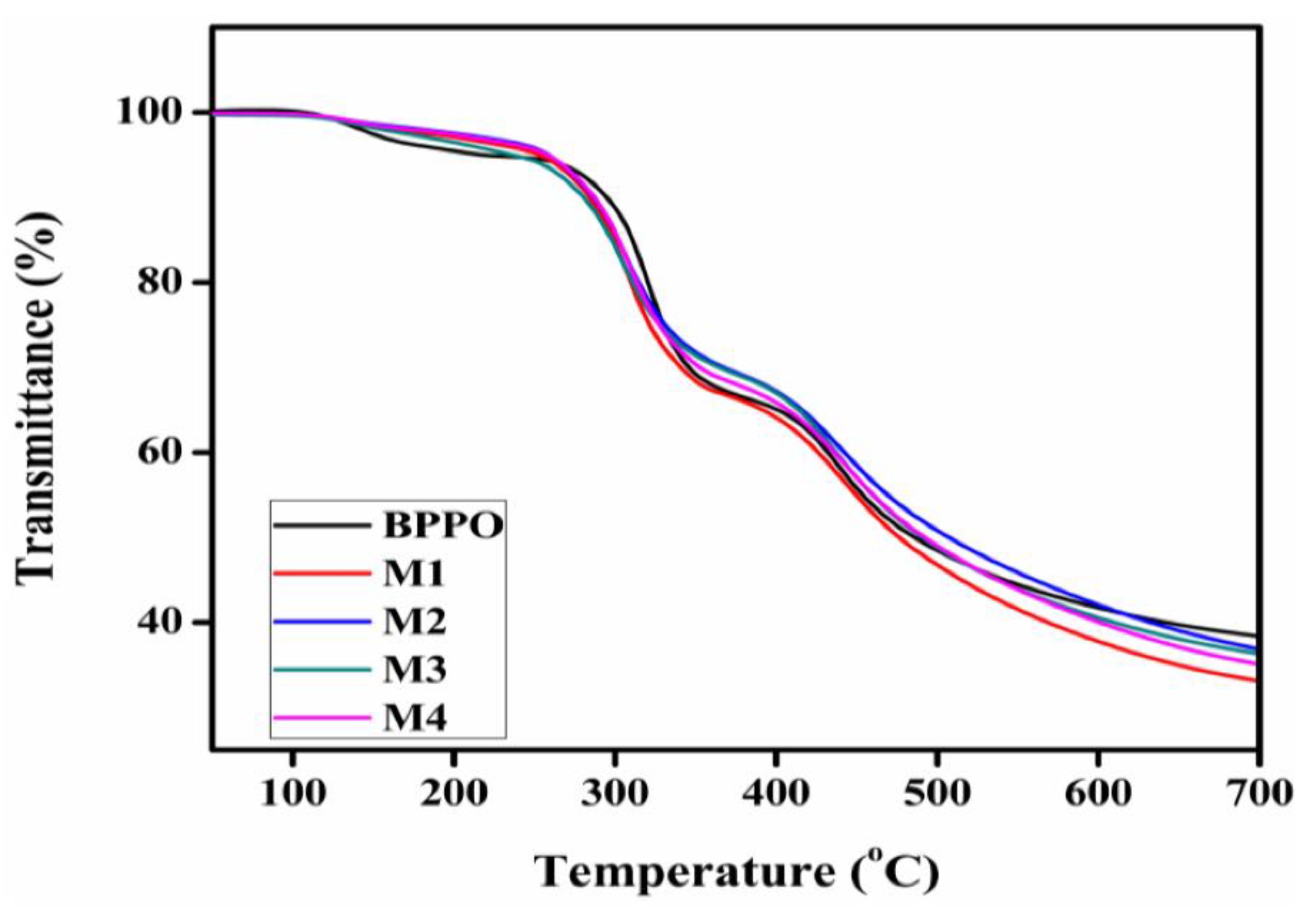

The thermal decomposition behavior for the formulated membranes M1 to M4 is evaluated by TGA, as seen in Figure 10. At medium temperatures, the designed AEMs demonstrate good thermal stability and can withstand temperatures of up to 200 °C. The thermal desorption of water, thermal deamination, and thermal oxidation of the membrane polymer were the three key stages in the weight loss property of the membranes. The vaporization of water from the polymer matrix caused all of the membranes to lose weight between 90–140 °C during the first step. At 250 °C, the quaternary ammonium group deteriorated, culminating in the second weight loss stage [54]. The cleavage of the main polymer matrix is responsible for the final stage of weight loss, which occurred at 420 °C.

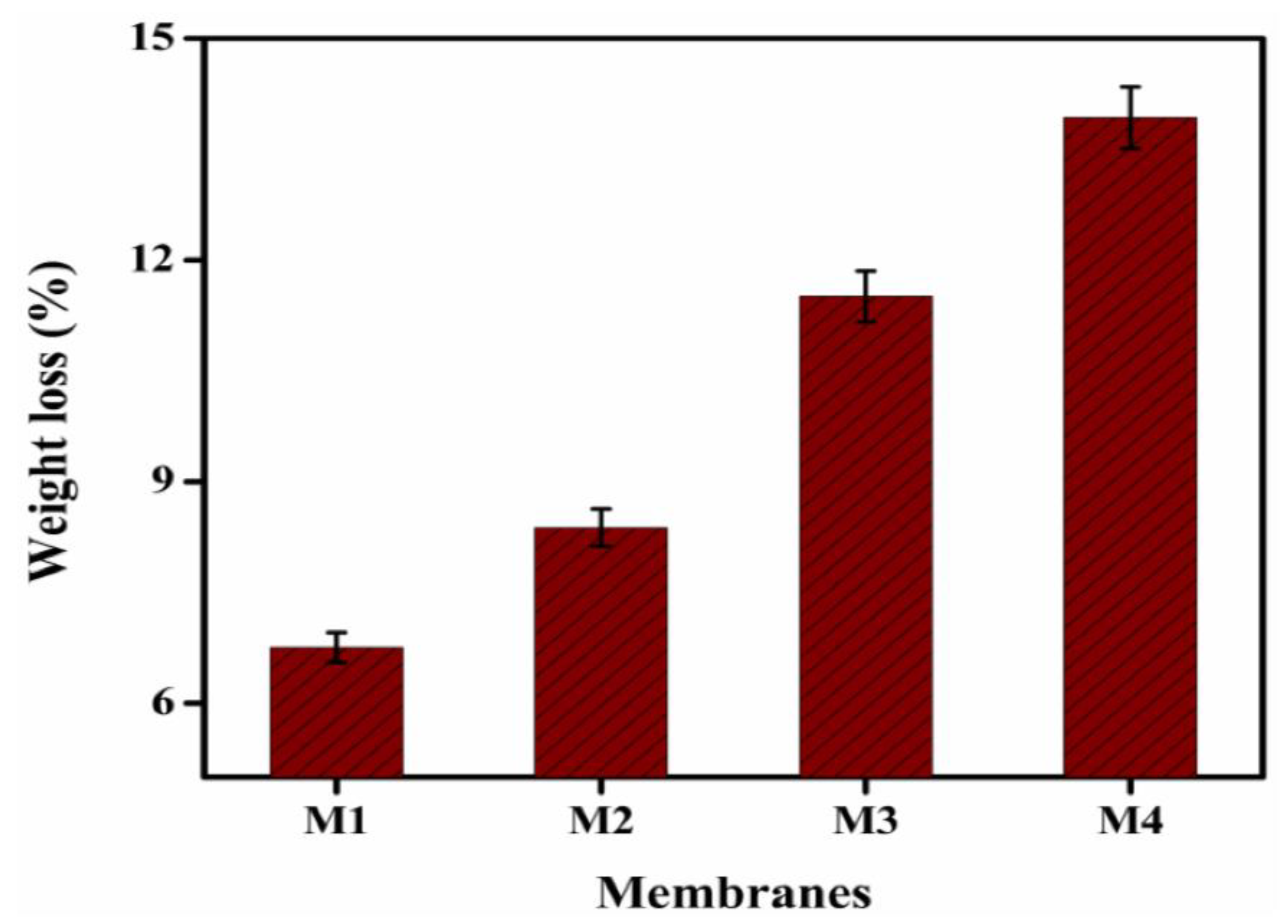

Figure 11 demonstrate the chemical stability of the designed AEMs after two weeks at ambient temperature immersion in 2 M concentration of HCl. Here, the weight loss of the membrane after immersion in a 2 M HCl solution at room temperature is referred to as chemical stability. After two weeks of immersion in the 2 M HCl solution, all of the prepared membranes demonstrated good chemical stability, while their color remained unchanged. The weight loss (%) of the prepared membranes ranged from 11.90% to 15.38%, with membranes comprising the most TMA indicated the maximum weight loss. Furthermore, by increasing the amount of TMA in the polymer matrix, weight loss was increased substantially from M1 to M4. Thus, with a two-week immersion, the maximum weight loss was just around 15.38%. This indicated that the AEMs that have been prepared are incredibly effective in terms of DD application for acid recovery.

3.4. Ion Exchange Capacity (IEC) and Fixed Group Concentration (CR)

A critical variable of AEMs used for the DD process is the ion exchange capacity they have. Hence, this variable was measured by the classical Mohr’s method and depicted in Table 1. The value of IEC was reported in the range of 0.71 mmol/g to 1.43 mmol/g. In other words, it was observed that as the concentration of TMA in the polymer matrix increased, the IEC also enhanced from 0.71 mmol/g to 1.43 mmol/g.
Fixed group concentration (CR) was typically determined by dividing the IEC (ion exchange capacity) with the WR (water uptake). According to previous researchers, it is an essential parameter of AEMs, and variations in CR values can have a significant impact on the DD performance of the membrane [41,48]. At ambient temperature, the CR (fixed group concentration) of the formulated membranes was evaluated, and the results obtained are presented in Table 1. It was discovered that as the concentration of TMA in the polymer matrix increased, the fixed group concentration (CR) also surged from 0.0047 mol/L to 0.0056 mol/L.

3.5. Water Uptake and Linear Expansion Ratio

IEM’s water uptake (WR) is a useful tool that has a measurable impact on the phenomena of separation, as well as the dimensional and mechanical characteristics [41,52,62,63,64]. Water molecules existing in the membrane matrix will facilitate the separation of charged functional groups, which is essential for ion transport [52,64]. As presented in Table 1, the WR (water uptake) of the prepared membranes enhanced from 149.60% to 233.80% as the concentration of TMA in the membrane matrix increased. Capillary tension is primarily responsible for its association with the porous structure. From this perspective, the porous AEMs should possess marginally greater water uptake than dense AEMs whenever the ion exchange capacities are equivalent [41].
IEMs have a significant factor called the linear expansion ratio (LER). Membranes with a high LER exhibited poor durability and mechanical stability, thereby reducing membrane performance. Table 1 show the findings of the investigation performed at room temperature. It was discovered that increasing the concentration of TMA in the polymer matrix increased the (LER) ratio from 3.88% to 9.23%. Furthermore, both water uptake and swelling behavior were influenced by the hydrophilic nature of the membrane matrix as well as the degree of plasticization [65]. The durability of the polymeric matrix ensures an increase in swelling ratio as well as the water uptake at a lower degree of plasticization (i.e., the inclusion of high hydrophilic sites), which is aimed at improving the acid recovery performance [66,67].

3.6. Water Contact Angle

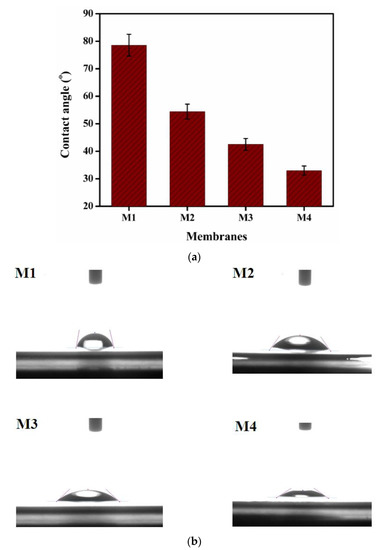

One of the essential features of ion-exchange membranes is the water contact angle which is used to determine their hydrophilicity. At ambient temperature, the water contact angle of prepared membranes M1 to M4 was determined, and the results are shown in Figure 12a,b. The water contact angle for the formulated membranes was observed to be lowered from membranes M1 to M4 as the concentration of TMA in the membrane matrix increases, as per these figures. This is related to the enhancement in the hydrophilic nature of membranes as the ion exchange contents in the polymer matrix increased. For DD applications, the increased hydrophilicity of prepared membranes is favorable.

3.7. DD for HCl/FeCl2 Solution

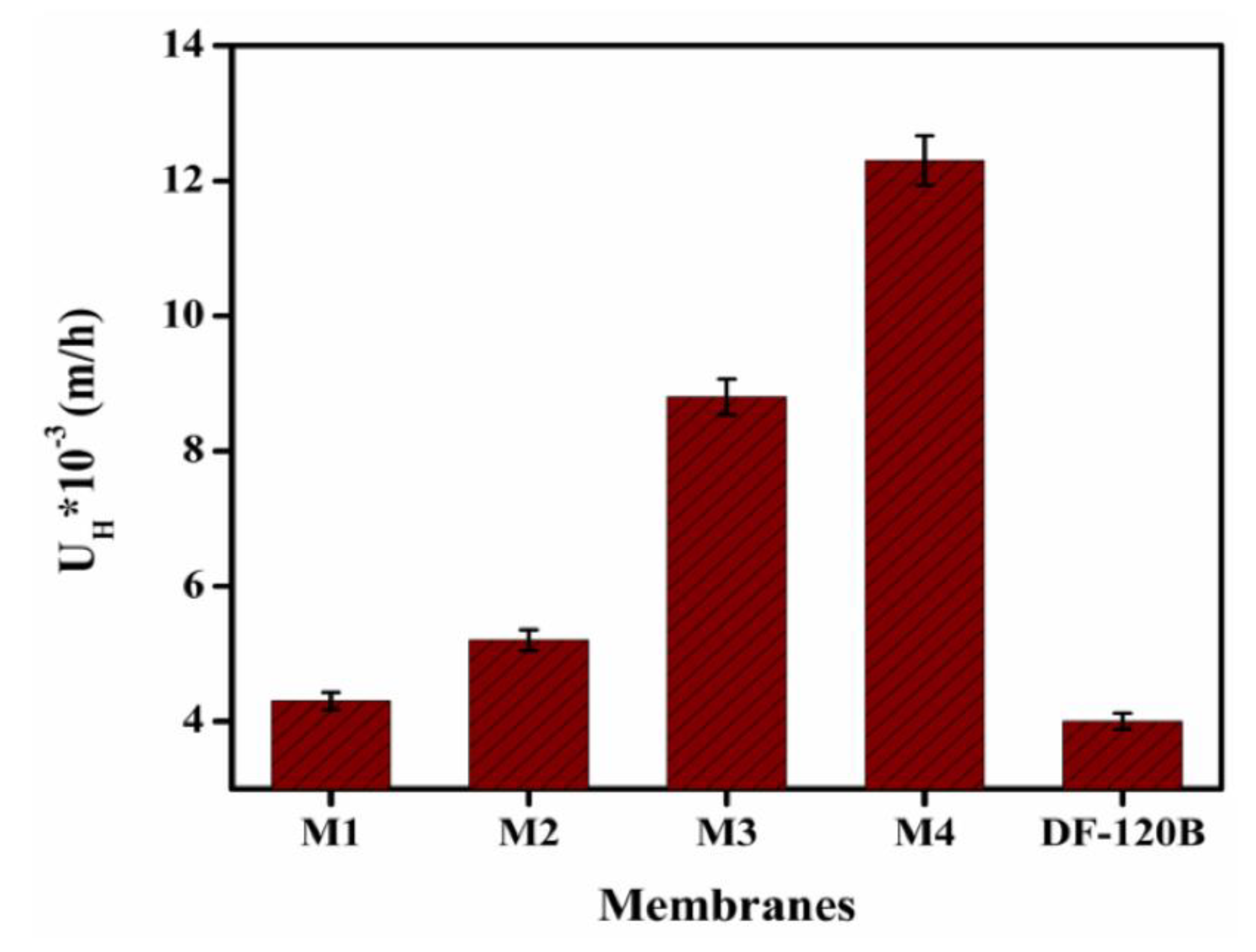

The acid dialysis coefficient (UH) and acid/salt separation factor (S) of AEMs are employed to directly assess the ability of recovery and purity for the acid that is recovered; these are the essential factors to evaluate DD efficiency. Nevertheless, certain commercial AEMs have low acid recovery ability during the DD process, which restricts their use in acid recovery applications. Due to the extreme practical implementation of AEMs in DD, the developed AEMs with better acid dialysis coefficients must be designed based on the structure–performance relationship of membrane materials [23].
After the in-depth analysis and comprehensive characterizations of the prepared porous membranes, an experiment was conducted in this study using an HCl + FeCl2 mixture with concentrations of 0.1 M HCl and 0.25 M FeCl2 for exploring possible applications for the membrane applications in acid recovery through diffusion dialysis process. According to the obtained DD results, it was found that the dialysis coefficient of HCl (UH) for the prepared membranes ranges from 0.0043 m/h to 0.012 m/h at room temperature, as presented in Figure 13. It was also discovered that as the concentration of TMA in the polymer matrix increased, the values of UH gradually increased from membranes M1 to M4. As a result, based on the aforementioned findings, two separate references may be obtained. Primarily, the recorded UH values are relatively larger than those of commercial DF-120B membrane with UH value of 0.004 m/h. Secondly, these values are nearly identical to our formerly published membranes with UH around 0.010 m/h at a temperature of 25 °C [41]. The porous structure and growth in the ion-exchange group inside the membrane matrix may indeed be primarily responsible for the steady increase in UH values. The active zone, also known as the ion-exchange party, is present in all the prepared porous membranes and is responsible for ion transfer across the membrane. As the amount of TMA in the polymer matrix was gradually increased from membrane M1 to M4, the IEC and WR of the membranes also increased, resulting in enhanced hydrophilicity of membranes and higher UH values of the prepared membranes. The presence of the –N+(CH3)3Br− group in the membranes significantly enabled Cl− ions to move through them. H+ ions can also pass across the membranes with Cl− to achieve electrical neutrality [68]. Fe-related components such as Fe2+ and FeCl+, on the other hand, are less likely to move through the membrane due to their greater size and reduced mobility [67,68].

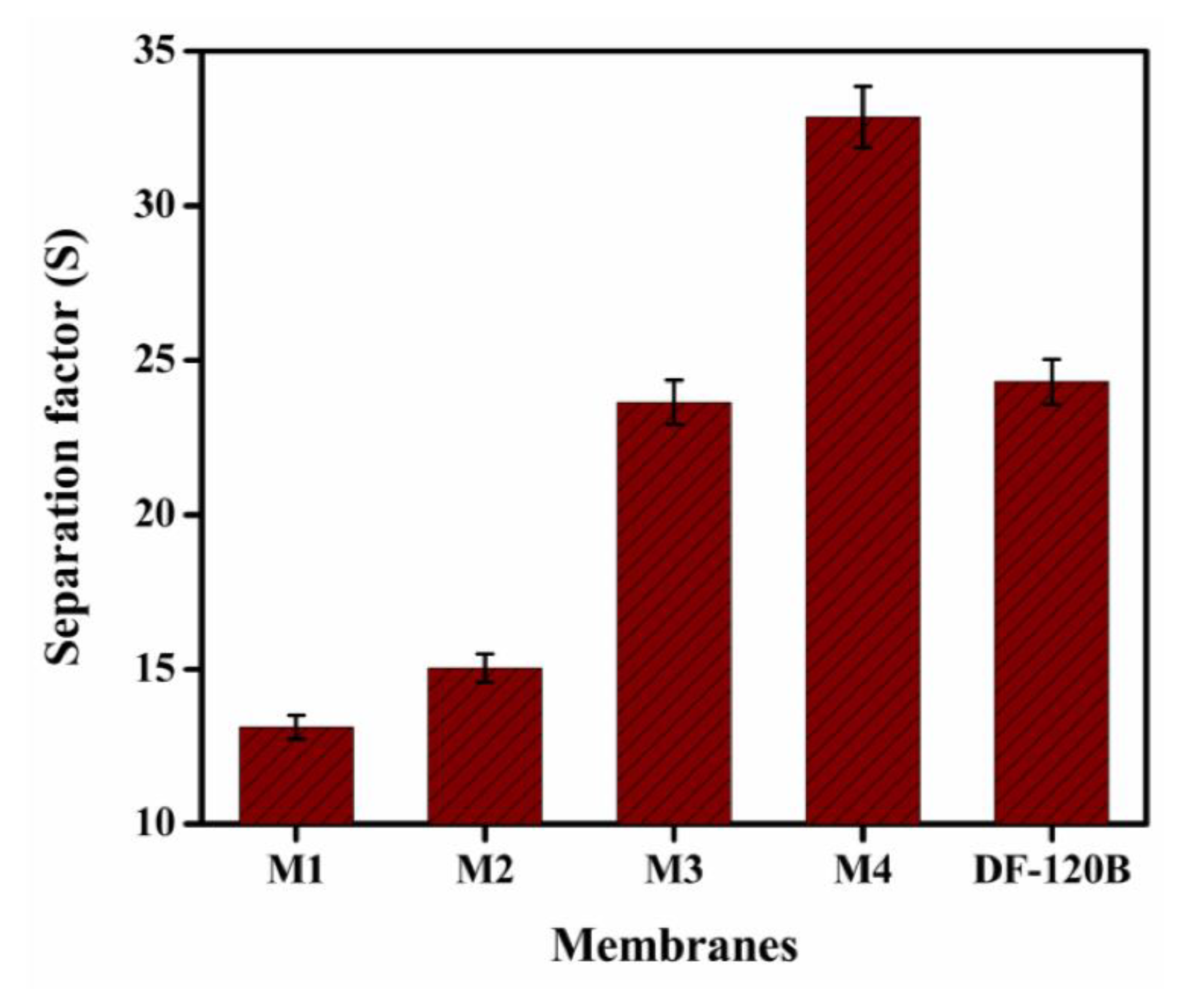

Figure 14 depict the values of separation factor (S) as a ratio of UH to UFe. The S values acquired for the prepared membrane M1 to M4 range from 13.14 to 32.87, implying that the S value for the prepared membrane M4 is almost identical to that of PVA-based hybrid membranes (22–39) at 25 °C [63], (12.1–35.7) at 25 °C [43], and (18.5–21) at 25 °C [69]. Previous studies have indicated that the separation factor is influenced by the structure of the membrane and its functional groups. This study indicated that as the amount of TMA in the prepared membranes M1 to M4 increases, the IEC values gradually increase and that this increased IEC is effective in finding a high S value. Furthermore, as shown by the SEM micrographs in Figure 9, the prepared membranes M1 to M4 contain porous morphologies. During the ion transport process, the resistance was reduced by the porous morphology. Because the membrane structure is porous, H+ ions can transfer easily, increasing the UH value; however, smaller pore sizes can greatly impede the transport of FeCl2, increasing the S values. Hence, from the prepared membranes M1 to M4, we see a rising trend in S values. The prepared porous membranes M1 to M4 can be effectively used for acid recovery through diffusion dialysis process from the perspective of acid dialysis coefficient and separation factor.

4. Conclusions

Porous BPPO-based AEMs were developed using a phase-inversion technique in ethanol medium in this manuscript. The trimethylammonium group in the prepared AEMs was responsible for Cl− transfer within the polymer matrix. FTIR and proton NMR tests verified the reaction between BPPO and TMA. The thermal and acid stability of the prepared membranes were exceptional. Additionally, the prepared membranes were proven to have a higher WR (water uptake), IEC (ion exchange capacity), and CR (fixed group concentration). The increased hydrophilicity of the developed membranes was demonstrated by the water contact angle. The DD process for the recovery of acid was used to investigate the separation efficiency of the prepared membranes at ambient temperature. The observations led to a higher dialysis coefficient of acid (HCl) (0.0034–0.012 m/h) and a higher separation factor (S) (13.14–32.87). Therefore, diffusion dialysis can be potentially applied to recover acid using these formulated porous BPPO-based anion exchange membranes.

Author Contributions

Conceptualization, M.I.K., M.K., A.S. and F.A.; methodology, M.I.K. and M.K.; software, F.A.; validation, all authors.; formal analysis, M.I.K. writing—original draft preparation M.I.K. and M.K. writing—review and editing, F.A. All authors have read and agreed to the published version of the manuscript.

Funding

Qatar University grant QUCG-CENG-21/22-4.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The contents herein are solely the responsibility of the authors. In addition, the work was made possible by an Internal Qatar University grant QUCG-CENG-21/22-4.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AEMAnion exchange membrane
BPPOBrominated poly(2,6-dimethyl-1,4-phenylene oxide)
CRFixed group concentration
DDDiffusion dialysis
IECIon exchange capacity
IEMIon exchange membrane
NMPN-Methyl-2-pyrrolidone
SEMScanning electron microscopy
SSeparation factor
TGAThermogravimetric analysis
TMATrimethylamine
UHDiffusion dialysis coefficient of HCl
UFeDiffusion dialysis coefficient of FeCl2
WRWater uptake

References

  1. Xu, T.; Yang, W. Industrial recovery of mixed acid (HF+HNO3) from the titanium spent leaching solutions by diffusion dialysis with a new series of anion exchange membranes. J. Membr. Sci. 2003, 220, 89–95. [Google Scholar] [CrossRef]
  2. Agrawal, A.; Sahu, K.K. An overview of the recovery of acid from spent acidic solutions from steel and electroplating industries. J. Hazard. Mater. 2009, 171, 61–75. [Google Scholar] [CrossRef] [PubMed]
  3. Gueccia, R.; Randazzo, S.; Chillura Martino, D.; Cipollina, A.; Micale, G. Experimental investigation and modeling of diffusion dialysis for hcl recovery from waste pickling solution. J. Environ. Manag. 2019, 235, 202–212. [Google Scholar] [CrossRef]
  4. Wang, Y.; Chen, F.; Ma, X.; Zhang, G. Recovery of nitric and acetic acids from etching waste solutions using a synergistic system consisting of n235 and trpo in cyclohexane. Hydrometallurgy 2019, 185, 23–29. [Google Scholar] [CrossRef]
  5. Chen, F.; Wang, X.; Liu, W.; Liang, B.; Yue, H.; Li, C. Selective extraction of nitric and acetic acids from etching waste acid using n235 and mibk mixtures. Sep. Purif. Technol. 2016, 169, 50–58. [Google Scholar] [CrossRef]
  6. Narěbska, A.; Staniszewski, M. Separation of fermentation products by membrane techniques. I. Separation of lactic acid/lactates by diffusion dialysis. Sep. Sci. Technol. 1997, 32, 1669–1682. [Google Scholar] [CrossRef]
  7. Palatý, Z.; Stoček, P.; Bendová, H.; Prchal, P. Continuous dialysis of carboxylic acids: Solubility and diffusivity in neosepta-amh membranes. Desalination 2009, 243, 65–73. [Google Scholar] [CrossRef]
  8. Luo, J.; Wu, C.; Xu, T.; Wu, Y. Diffusion dialysis-concept, principle and applications. J. Membr. Sci. 2011, 366, 1–16. [Google Scholar] [CrossRef]
  9. Lie, H.; Ming, C.; Xiong-jiao, Z. Acid waste water comprehensive treatment rebuilding engineering practice. Metal Products 2009, 1, 020. [Google Scholar]
  10. Lei, Q.; He, D.; Zhou, K.; Zhang, X.; Peng, C.; Chen, W. Separation and recovery of scandium and titanium from red mud leaching liquor through a neutralization precipitation-acid leaching approach. J. Rare Earths 2020, 39, 1126–1132. [Google Scholar] [CrossRef]
  11. Ni, C.; Wu, X.; Dan, J.; Du, D. Facile recovery of acetic acid from waste acids of electronic industry via a partial neutralization pretreatment (pnp)–distillation strategy. Sep. Purif. Technol. 2014, 132, 23–26. [Google Scholar] [CrossRef]
  12. Khan, M.I.; Shanableh, A.; Elboughdiri, N.; Kriaa, K.; Ghernaout, D.; Ghareba, S.; Khraisheh, M.; Lashari, M.H. Higher acid recovery efficiency of novel functionalized inorganic/organic composite anion exchange membranes from acidic wastewater. Membranes 2021, 11, 133. [Google Scholar] [CrossRef]
  13. Shin, C.-H.; Kim, J.-Y.; Kim, J.-Y.; Kim, H.-S.; Lee, H.-S.; Mohapatra, D.; Ahn, J.-W.; Ahn, J.-G.; Bae, W. Recovery of nitric acid from waste etching solution using solvent extraction. J. Hazard. Mater. 2009, 163, 729–734. [Google Scholar] [CrossRef]
  14. Ahmad, A.; Othman, I.; Taher, H.; Banat, F. Lactic acid recovery from date pulp waste fermentation broth by ions exchange resins. Environ. Technol. Innov. 2021, 22, 101438. [Google Scholar] [CrossRef]
  15. Yan, R.; Luo, D.; Fu, C.; Wang, Y.; Zhang, H.; Wu, P.; Jiang, W. Harmless treatment and selective recovery of acidic Cu(II)-Cr(VI) hybrid wastewater via coupled photo-reduction and ion exchange. Sep. Purif. Technol. 2020, 234, 116130. [Google Scholar] [CrossRef]
  16. Chen, K.; Hao, S.; Lyu, H.; Luo, G.; Zhang, S.; Chen, J. Ion exchange separation for recovery of monosaccharides, organic acids and phenolic compounds from hydrolysates of lignocellulosic biomass. Sep. Purif. Technol. 2017, 172, 100–106. [Google Scholar] [CrossRef]
  17. Zhang, K.; Yang, S.-T. In situ recovery of fumaric acid by intermittent adsorption with ira-900 ion exchange resin for enhanced fumaric acid production by rhizopus oryzae. Biochem. Eng. J. 2015, 96, 38–45. [Google Scholar] [CrossRef]
  18. Lin, S.H.; Kiang, C.D. Chromic acid recovery from waste acid solution by an ion exchange process: Equilibrium and column ion exchange modeling. Chem. Eng. J. 2003, 92, 193–199. [Google Scholar] [CrossRef]
  19. Choi, J.-H.; Kim, S.-H.; Moon, S.-H. Recovery of lactic acid from sodium lactate by ion substitution using ion-exchange membrane. Sep. Purif. Technol. 2002, 28, 69–79. [Google Scholar] [CrossRef]
  20. Khan, M.I.; Khraisheh, M. Synthesis and characterization of stable anion exchange membranes for desalination applications. Desalin. Water Treat. 2018, 113, 36–44. [Google Scholar] [CrossRef]
  21. Xu, T. Ion exchange membranes: State of their development and perspective. J. Membr. Sci. 2005, 263, 1–29. [Google Scholar] [CrossRef]
  22. Afsar, N.U.; Erigene, B.; Irfan, M.; Wu, B.; Xu, T.; Ji, W.; Emmanuel, K.; Ge, L.; Xu, T. High performance anion exchange membrane with proton transport pathways for diffusion dialysis. Sep. Purif. Technol. 2018, 193, 11–20. [Google Scholar] [CrossRef]
  23. Lin, J.; Huang, J.; Wang, J.; Yu, J.; You, X.; Lin, X.; Van der Bruggen, B.; Zhao, S. High-performance porous anion exchange membranes for efficient acid recovery from acidic wastewater by diffusion dialysis. J. Membr. Sci. 2021, 624, 119116. [Google Scholar] [CrossRef]
  24. Merkel, A.; Čopák, L.; Dvořák, L.; Golubenko, D.; Šeda, L. Recovery of spent sulphuric acid by diffusion dialysis using a spiral wound module. Int. J. Mol. Sci. 2021, 22, 11819. [Google Scholar] [CrossRef] [PubMed]
  25. Wei, C.; Li, X.; Deng, Z.; Fan, G.; Li, M.; Li, C. Recovery of H2SO4 from an acid leach solution by diffusion dialysis. J. Hazard. Mater. 2010, 176, 226–230. [Google Scholar] [CrossRef]
  26. Emmanuel, K.; Cheng, C.; Mondal, A.N.; Erigene, B.; Hossain, M.M.; Afsar, N.U.; Khan, M.I.; Wu, L.; Xu, T. Covalently cross-linked pyridinium based aems with aromatic pendant groups for acid recovery via diffusion dialysis. Sep. Purif. Technol. 2016, 164, 125–131. [Google Scholar] [CrossRef]
  27. Sharma, J.; Misra, S.K.; Kulshrestha, V. Internally cross-linked poly(2,6-dimethyl-1,4-phenylene ether) based anion exchange membrane for recovery of different acids by diffusion dialysis. Chem. Eng. J. 2021, 414, 128776. [Google Scholar] [CrossRef]
  28. Yadav, V.; Raj, S.K.; Rathod, N.H.; Kulshrestha, V. Polysulfone/graphene quantum dots composite anion exchange membrane for acid recovery by diffusion dialysis. J. Membr. Sci. 2020, 611, 118331. [Google Scholar] [CrossRef]
  29. Irfan, M.; Afsar, N.U.; Wang, Y.; Xu, T. Investigation of key process parameters in acid recovery for diffusion dialysis using novel (MDMH-QPPO) anion exchange membranes. J. Taiwan Inst. Chem. Eng. 2018, 93, 405–413. [Google Scholar] [CrossRef]
  30. Irfan, M.; Bakangura, E.; Afsar, N.U.; Xu, T. Augmenting acid recovery from different systems by novel q-dan anion exchange membranes via diffusion dialysis. Sep. Purif. Technol. 2018, 201, 336–345. [Google Scholar] [CrossRef]
  31. Mondal, A.N.; Cheng, C.; Khan, M.I.; Hossain, M.M.; Emmanuel, K.; Ge, L.; Wu, B.; He, Y.; Ran, J.; Ge, X.; et al. Improved acid recovery performance by novel poly(dmaem-co-γ-mps) anion exchange membrane via diffusion dialysis. J. Membr. Sci. 2017, 525, 163–174. [Google Scholar] [CrossRef]
  32. Zhang, C.; Zhang, W.; Wang, Y. Diffusion dialysis for acid recovery from acidic waste solutions: Anion exchange membranes and technology integration. Membranes 2020, 10, 169. [Google Scholar] [CrossRef] [PubMed]
  33. Xue, S.; Wu, C.; Wu, Y.; Zhang, C. An optimized process for treating sodium acetate waste residue: Coupling of diffusion dialysis or electrodialysis with bipolar membrane electrodialysis. Chem. Eng. Res. Des. 2018, 129, 237–247. [Google Scholar] [CrossRef]
  34. Ruiz-Aguirre, A.; Lopez, J.; Gueccia, R.; Randazzo, S.; Cipollina, A.; Cortina, J.L.; Micale, G. Diffusion dialysis for the treatment of H2SO4-CuSO4 solutions from electroplating plants: Ions membrane transport characterization and modelling. Sep. Purif. Technol. 2021, 266, 118215. [Google Scholar] [CrossRef]
  35. Wang, L.; Zhang, F.; Li, Z.; Liao, J.; Huang, Y.; Lei, Y.; Li, N. Mixed-charge poly(2,6-dimethyl-phenylene oxide) anion exchange membrane for diffusion dialysis in acid recovery. J. Membr. Sci. 2018, 549, 543–549. [Google Scholar] [CrossRef]
  36. Lin, X.; Shamsaei, E.; Kong, B.; Liu, J.Z.; Hu, Y.; Xu, T.; Wang, H. Porous diffusion dialysis membranes for rapid acid recovery. J. Membr. Sci. 2016, 502, 76–83. [Google Scholar] [CrossRef]
  37. Stachera, D.M.; Childs, R.F. Tuning the acid recovery performance of poly(4-vinylpyridine)-filled membranes by the introduction of hydrophobic groups. J. Membr. Sci. 2001, 187, 213–225. [Google Scholar] [CrossRef]
  38. Pandey, A.K.; Childs, R.F.; West, M.; Lott, J.N.; McCarry, B.E.; Dickson, J.M. Formation of pore-filled ion-exchange membranes with in situ crosslinking: Poly (vinylbenzyl ammonium salt)-filled membranes. J. Polym. Sci. Part A Polym. Chem. 2001, 39, 807–820. [Google Scholar] [CrossRef]
  39. Stachera, D.M.; Childs, R.F.; Mika, A.M.; Dickson, J.M. Acid recovery using diffusion dialysis with poly(4-vinylpyridine)-filled microporous membranes. J. Membr. Sci. 1998, 148, 119–127. [Google Scholar] [CrossRef]
  40. Kim, D.-H.; Park, J.-H.; Seo, S.-J.; Park, J.-S.; Jung, S.; Kang, Y.S.; Choi, J.-H.; Kang, M.-S. Development of thin anion-exchange pore-filled membranes for high diffusion dialysis performance. J. Membr. Sci. 2013, 447, 80–86. [Google Scholar] [CrossRef]
  41. Khan, M.I.; Mondal, A.N.; Cheng, C.; Pan, C.; Emmanuel, K.; Wu, L.; Xu, T. Porous BPPO-based membranes modified by aromatic amine for acid recovery. Sep. Purif. Technol. 2016, 157, 27–34. [Google Scholar] [CrossRef]
  42. Wu, Y.; Luo, J.; Wu, C.; Xu, T.; Fu, Y. Bionic multisilicon copolymers used as novel cross-linking agents for preparing anion exchange hybrid membranes. J. Phys. Chem. B 2011, 115, 6474–6483. [Google Scholar] [CrossRef] [PubMed]
  43. Wu, C.; Wu, Y.; Luo, J.; Xu, T.; Fu, Y. Anion exchange hybrid membranes from pva and multi-alkoxy silicon copolymer tailored for diffusion dialysis process. J. Membr. Sci. 2010, 356, 96–104. [Google Scholar] [CrossRef]
  44. Wu, Y.; Wu, C.; Li, Y.; Xu, T.; Fu, Y. PVA–silica anion-exchange hybrid membranes prepared through a copolymer crosslinking agent. J. Membr. Sci. 2010, 350, 322–332. [Google Scholar] [CrossRef]
  45. Klaysom, C.; Moon, S.-H.; Ladewig, B.P.; Lu, G.Q.M.; Wang, L. Preparation of porous ion-exchange membranes (iems) and their characterizations. J. Membr. Sci. 2011, 371, 37–44. [Google Scholar] [CrossRef]
  46. Klaysom, C.; Marschall, R.; Moon, S.-H.; Ladewig, B.P.; Lu, G.Q.M.; Wang, L. Preparation of porous composite ion-exchange membranes for desalination application. J. Mater. Chem. 2011, 21, 7401–7409. [Google Scholar] [CrossRef]
  47. Sun, F.; Wu, C.; Wu, Y.; Xu, T. Porous BPPO-based membranes modified by multisilicon copolymer for application in diffusion dialysis. J. Membr. Sci. 2014, 450, 103–110. [Google Scholar] [CrossRef]
  48. Khan, M.I.; Wu, L.; Hossain, M.M.; Pan, J.; Ran, J.; Mondal, A.N.; Xu, T. Preparation of diffusion dialysis membrane for acid recovery via a phase-inversion method. Membr. Water Treat. 2015, 6, 365–378. [Google Scholar] [CrossRef]
  49. Zhang, Z.; Wu, L.; Varcoe, J.; Li, C.; Ong, A.L.; Poynton, S.; Xu, T. Aromatic polyelectrolytes via polyacylation of pre-quaternized monomers for alkaline fuel cells. J. Mater. Chem. A 2013, 1, 2595–2601. [Google Scholar] [CrossRef] [Green Version]
  50. Yue, X.; Wu, W.; Chen, G.; Yang, C.; Liao, S.; Li, X. Influence of 2,2′,6,6′-tetramethyl biphenol-based anion-exchange membranes on the diffusion dialysis of hydrochloride acid. J. Appl. Polym. Sci. 2017, 134, 45333. [Google Scholar] [CrossRef]
  51. Khan, M.I.; Li, X.; Fernandez-Garcia, J.; Lashari, M.H.; Rehman, A.; Elboughdiri, N.; Kolsi, L.; Ghernaout, D. Effect of different quaternary ammonium groups on the hydroxide conductivity and stability of anion exchange membranes. ACS Omega 2021, 6, 7994–8001. [Google Scholar] [CrossRef] [PubMed]
  52. Khan, M.I.; Mondal, A.N.; Tong, B.; Jiang, C.; Emmanuel, K.; Yang, Z.; Wu, L.; Xu, T. Development of BPPO-based anion exchange membranes for electrodialysis desalination applications. Desalination 2016, 391, 61–68. [Google Scholar] [CrossRef] [Green Version]
  53. Khan, M.I.; Su, J.; Guo, L. Preparation and characterization of high-performance anion exchange membranes for acid recovery. Desal. Water Treat. 2021, 209, 144–154. [Google Scholar] [CrossRef]
  54. Khan, M.I.; Zheng, C.; Mondal, A.N.; Hossain, M.M.; Wu, B.; Emmanuel, K.; Wu, L.; Xu, T. Preparation of anion exchange membranes from bppo and dimethylethanolamine for electrodialysis. Desalination 2017, 402, 10–18. [Google Scholar] [CrossRef] [Green Version]
  55. Khan, M.I.; Luque, R.; Prinsen, P.; Rehman, A.; Anjum, S.; Nawaz, M.; Shaheen, A.; Zafar, S.; Mustaqeem, M. BPPO-based anion exchange membranes for acid recovery via diffusion dialysis. Materials 2017, 10, 266. [Google Scholar] [CrossRef]
  56. Khan, M.I.; Su, J.; Lichtfouse, E.; Guo, L. Higher efficiency of triethanolamine-grafted anion exchange membranes for acidic wastewater treatment. Desal. Water Treat. 2020, 197, 41–51. [Google Scholar] [CrossRef]
  57. Khan, M.I.; Mondal, A.N.; Emmanuel, K.; Hossain, M.M.; Afsar, N.U.; Wu, L.; Xu, T. Preparation of pyrrolidinium-based anion-exchange membranes for acid recovery via diffusion dialysis. Sep. Sci. Technol. 2016, 51, 1881–1890. [Google Scholar] [CrossRef]
  58. Khan, M.I.; Khraisheh, M.; Almomani, F. Fabrication and characterization of pyridinium functionalized anion exchange membranes for acid recovery. Sci. Total Environ. 2019, 686, 90–96. [Google Scholar] [CrossRef]
  59. Yang, W.; Wu, C.; Gong, M.; Xu, T. New anion exchanger organic–inorganic hybrids and membranes from a copolymer of glycidylmethacrylate and -methacryloxypropyl trimethoxy silane. J. Appl. Polym. Sci. 2006, 102, 3580–3589. [Google Scholar]
  60. Arges, C.G.; Wang, L.; Jung, M.-S.; Ramani, V. Mechanically stable poly(arylene ether) anion exchange membranes prepared from commercially available polymers for alkaline electrochemical devices. J. Electrochem. Soc. 2015, 162, F686–F693. [Google Scholar] [CrossRef] [Green Version]
  61. Tang, B.; Xu, T.; Gong, M.; Yang, W. A novel positively charged asymmetry membranes from poly(2,6-dimethyl-1,4-phenylene oxide) by benzyl bromination and in situ amination: Membrane preparation and characterization. J. Membr. Sci. 2005, 248, 119–125. [Google Scholar] [CrossRef]
  62. Spry, D.B.; Goun, A.; Glusac, K.; Moilanen, D.E.; Fayer, M.D. Proton transport and the water environment in nafion fuel cell membranes and aot reverse micelles. J. Am. Chem. Soc. 2007, 129, 8122–8130. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, C.; Wu, C.; Wu, Y.; Gu, J.; Xu, T. Polyelectrolyte complex/PVA membranes for diffusion dialysis. J. Hazard. Mater. 2013, 261, 114–122. [Google Scholar] [CrossRef]
  64. Chakrabarty, T.; Singh, A.K.; Shahi, V.K. Zwitterionic silica copolymer based crosslinked organic-inorganic hybrid polymer electrolyte membranes for fuel cell applications. RSC Adv. 2012, 2, 1949–1961. [Google Scholar] [CrossRef]
  65. Mangiagli, P.; Ewing, C.; Xu, K.; Wang, Q.; Hickner, M. Dynamic water uptake of flexible ion-containing polymer networks. Fuel Cells 2009, 9, 432–438. [Google Scholar] [CrossRef]
  66. Naik, N.S.; Padaki, M.; Déon, S.; Murthy, D.H. Novel poly(ionic liquid)-based anion exchange membranes for efficient and rapid acid recovery from industrial waste. Chem. Eng. J. 2020, 401, 126148. [Google Scholar] [CrossRef]
  67. Mondal, R.; Pal, S.; Chatterjee, U. Alkylated imidazole moieties in a cross-linked anion exchange membrane facilitate acid recovery with high purity. ACS Appl. Polym. Mater. 2021, 3, 1544–1554. [Google Scholar] [CrossRef]
  68. Palatý, Z.; Bendová, H. Separation of HCl+FeCl2 mixture by anion-exchange membrane. Sep. Purif. Technol. 2009, 66, 45–50. [Google Scholar] [CrossRef]
  69. Cheng, C.; Yang, Z.; Pan, J.; Tong, B.; Xu, T. Facile and cost effective pva based hybrid membrane fabrication for acid recovery. Sep. Purif. Technol. 2014, 136, 250–257. [Google Scholar] [CrossRef]
Membranes 12 00095 g001 550

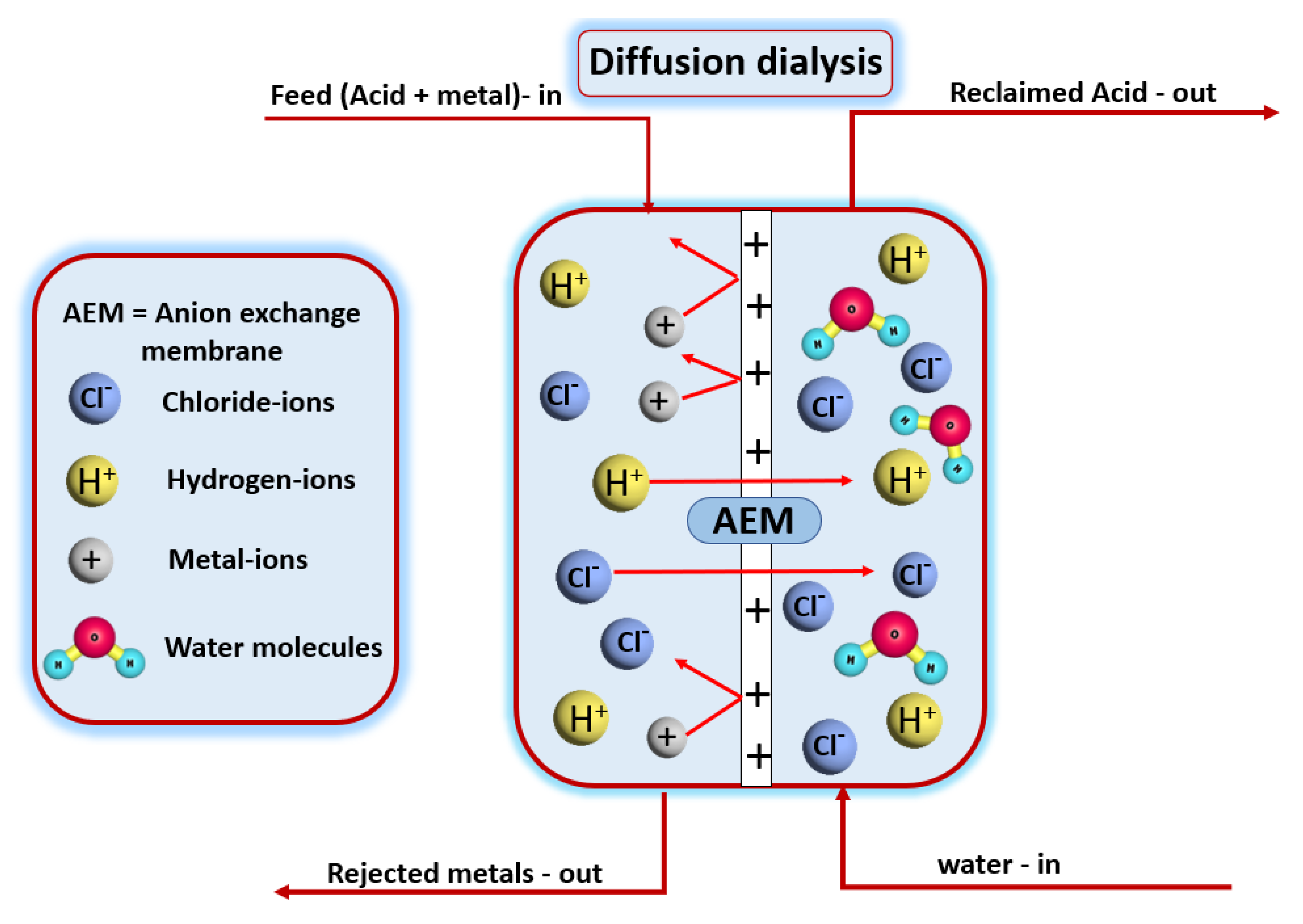

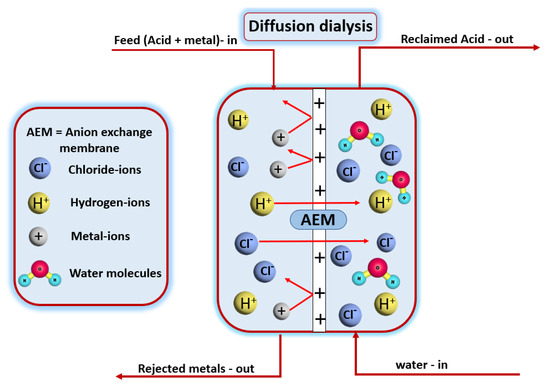

Figure 1. Graphical representation of the diffusion dialysis process through the anion exchange membrane separation process of HCl from its inlet feed solution.
Figure 1. Graphical representation of the diffusion dialysis process through the anion exchange membrane separation process of HCl from its inlet feed solution.
Membranes 12 00095 g001
Membranes 12 00095 g002 550

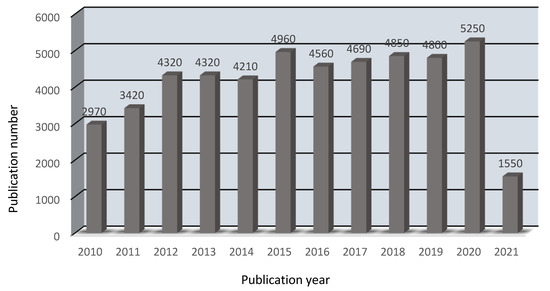

Figure 2. A brief post-2010 timeline depicting the number of associated academic publications for the acid retrieved through diffusion dialysis process with anion exchange membranes (Available online: Google Scholar (12 December 2021).
Figure 2. A brief post-2010 timeline depicting the number of associated academic publications for the acid retrieved through diffusion dialysis process with anion exchange membranes (Available online: Google Scholar (12 December 2021).
Membranes 12 00095 g002
Membranes 12 00095 g003 550

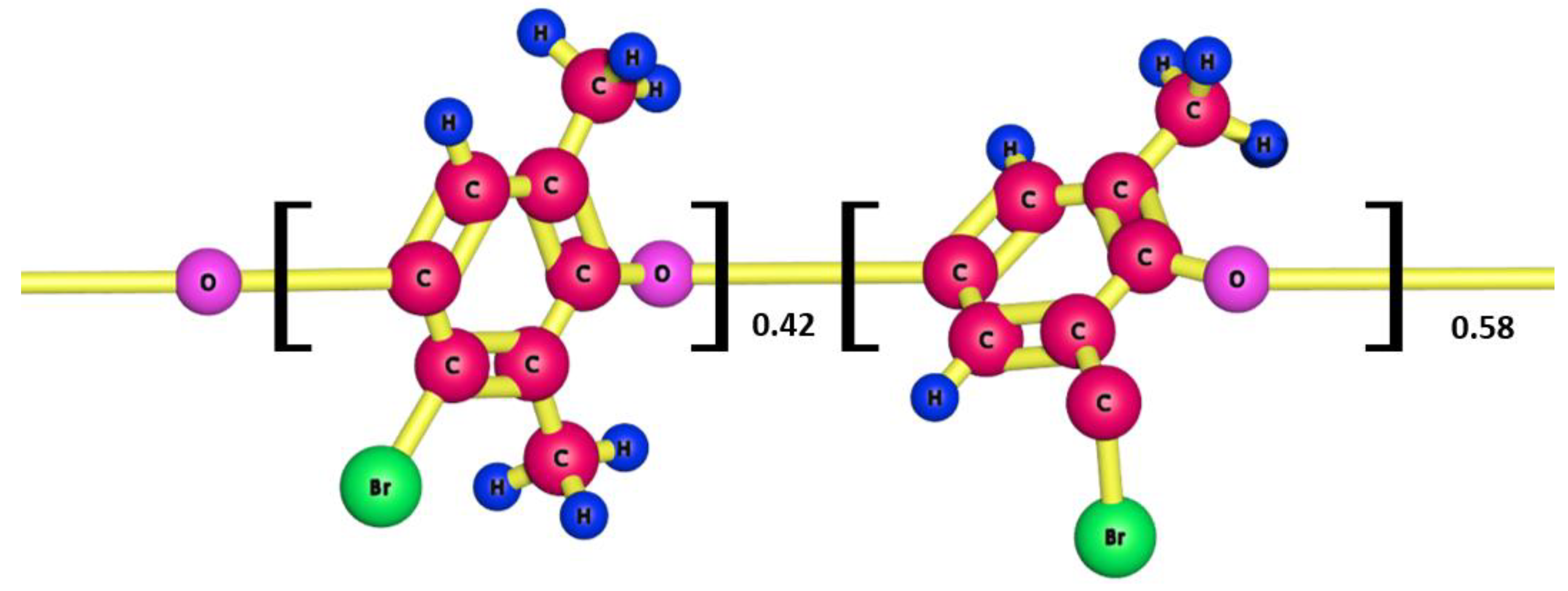

Figure 3. A three dimensional (3D) structure of brominated poly(2,6-dimethyl 1,4-phenylene oxide) (BPPO).
Figure 3. A three dimensional (3D) structure of brominated poly(2,6-dimethyl 1,4-phenylene oxide) (BPPO).
Membranes 12 00095 g003
Membranes 12 00095 g004 550

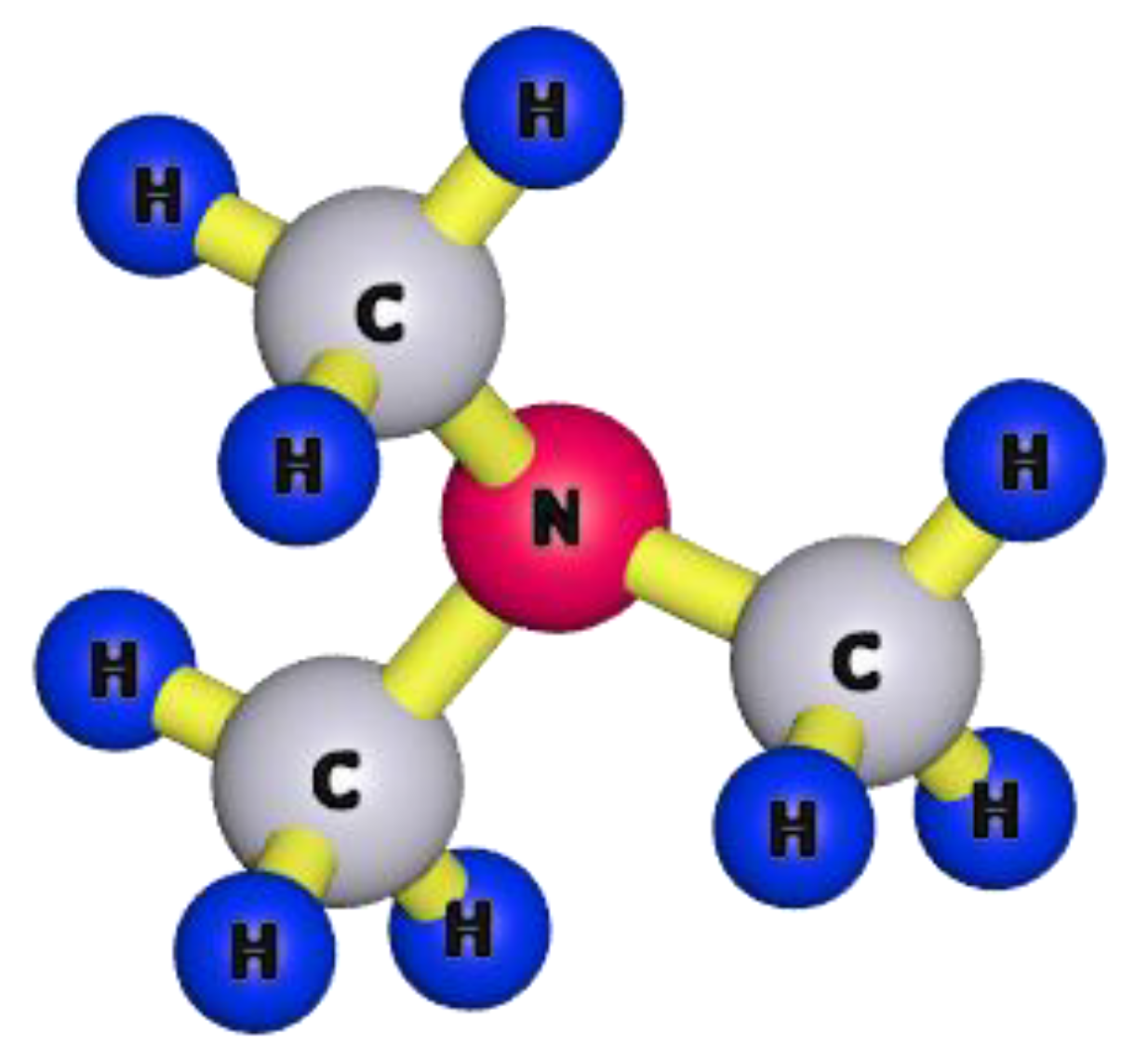

Figure 4. Three dimensional (3D) structure of Trimethylamine (TMA).
Figure 4. Three dimensional (3D) structure of Trimethylamine (TMA).
Membranes 12 00095 g004
Membranes 12 00095 g005 550
Figure 5. Illustration of phase-inversion method for the fabrication of anion exchange membrane.
Figure 5. Illustration of phase-inversion method for the fabrication of anion exchange membrane.
Membranes 12 00095 g005
Membranes 12 00095 g006 550

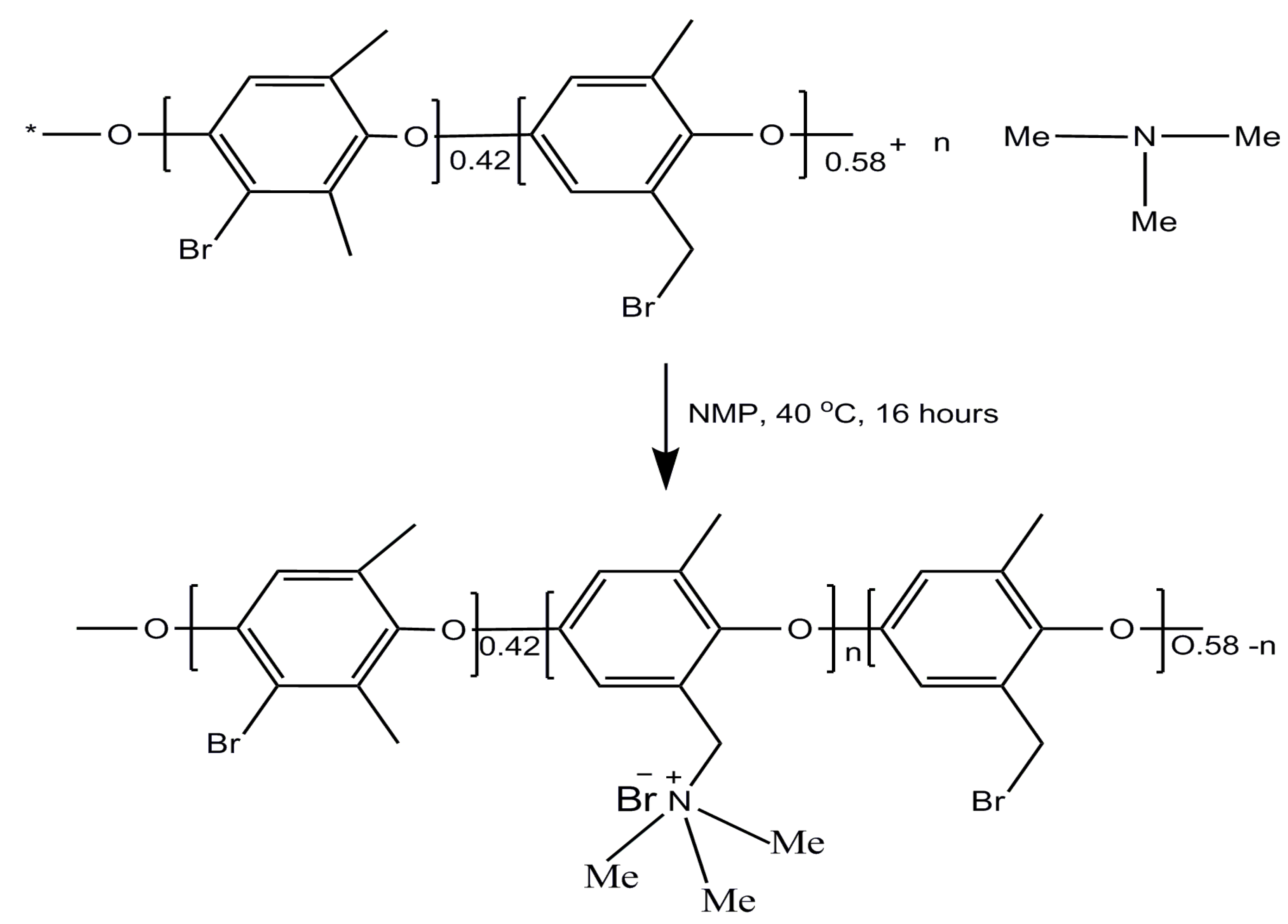

Figure 6. Designing of anion exchange membranes based on BPPO.
Figure 6. Designing of anion exchange membranes based on BPPO.
Membranes 12 00095 g006
Membranes 12 00095 g007 550
Figure 7. The infrared (IR) spectrum of pristine BPPO and M4 membranes.
Figure 7. The infrared (IR) spectrum of pristine BPPO and M4 membranes.
Membranes 12 00095 g007
Membranes 12 00095 g008 550
Figure 8. Proton NMR spectrums of BPPO and prepared anion exchange membrane M4.
Figure 8. Proton NMR spectrums of BPPO and prepared anion exchange membrane M4.
Membranes 12 00095 g008
Membranes 12 00095 g009 550
Figure 9. SEM micrographs of surface (top) and cross-section (bottom) of the prepared porous membranes.
Figure 9. SEM micrographs of surface (top) and cross-section (bottom) of the prepared porous membranes.
Membranes 12 00095 g009
Membranes 12 00095 g010 550
Figure 10. Thermal gravimetric analysis (TGA) thermograms for various porous BPPO-based membranes.
Figure 10. Thermal gravimetric analysis (TGA) thermograms for various porous BPPO-based membranes.
Membranes 12 00095 g010
Membranes 12 00095 g011 550
Figure 11. Chemical stability of membrane M1 to M4 after immersion in 2 M HCl for two weeks at room temperature.
Figure 11. Chemical stability of membrane M1 to M4 after immersion in 2 M HCl for two weeks at room temperature.
Membranes 12 00095 g011
Membranes 12 00095 g012 550
Figure 12. (a): water contact angle of membranes M1 to M4; (b): Water contact images of membranes M1 to M4.
Figure 12. (a): water contact angle of membranes M1 to M4; (b): Water contact images of membranes M1 to M4.
Membranes 12 00095 g012
Membranes 12 00095 g013 550
Figure 13. Acid dialysis coefficient (UH) at 25 °C for different representative porous BPPO-based membranes.
Figure 13. Acid dialysis coefficient (UH) at 25 °C for different representative porous BPPO-based membranes.
Membranes 12 00095 g013
Membranes 12 00095 g014 550
Figure 14. Separation Factor at 25 °C for multiple representatives for porous BPPO-based membranes.
Figure 14. Separation Factor at 25 °C for multiple representatives for porous BPPO-based membranes.
Membranes 12 00095 g014
Table
Table 1. Composition, ion exchange capacity, fixed group concentration, water uptake, and membranes swelling of membranes M1 to M4.
Table 1. Composition, ion exchange capacity, fixed group concentration, water uptake, and membranes swelling of membranes M1 to M4.
Sr. NoBPPO (g)TMA (g)IEC (mmol/g)WR (%)LER (%)C × 10−3 (mol/L)
M130.150.71149.603.884.74
M230.200.98170.455.05.75
M330.251.20196.425.986.10
M430.301.43233.809.236.12
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Khan, M.I.; Shanableh, A.; Khraisheh, M.; AlMomani, F. Synthesis of Porous BPPO-Based Anion Exchange Membranes for Acid Recovery via Diffusion Dialysis. Membranes 2022, 12, 95. https://doi.org/10.3390/membranes12010095

AMA Style

Khan MI, Shanableh A, Khraisheh M, AlMomani F. Synthesis of Porous BPPO-Based Anion Exchange Membranes for Acid Recovery via Diffusion Dialysis. Membranes. 2022; 12(1):95. https://doi.org/10.3390/membranes12010095

Chicago/Turabian Style

Khan, Muhammad Imran, Abdallah Shanableh, Majeda Khraisheh, and Fares AlMomani. 2022. "Synthesis of Porous BPPO-Based Anion Exchange Membranes for Acid Recovery via Diffusion Dialysis" Membranes 12, no. 1: 95. https://doi.org/10.3390/membranes12010095

APA Style

Khan, M. I., Shanableh, A., Khraisheh, M., & AlMomani, F. (2022). Synthesis of Porous BPPO-Based Anion Exchange Membranes for Acid Recovery via Diffusion Dialysis. Membranes, 12(1), 95. https://doi.org/10.3390/membranes12010095

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
