Organic Nanobowls Modified Thin Film Composite Membrane for Enhanced Purification Performance toward Different Water Resources

by
Changjin Ou
1,
Sisi Li
1,
Zhongyi Wang
1,
Juan Qin
1,
Qian Wang
2,
Zhipeng Liao
1,3,* and
Jiansheng Li
3,*
1
Nantong Key Laboratory of Intelligent and New Energy Materials, School of Chemistry and Chemical Engineering, Nantong University, Nantong 222100, China
2
School of Materials Science and Chemical Engineering, Xi’an Technological University, Xi’an 710021, China
3
Key Laboratory of New Membrane Materials, Ministry of Industry and Information Technology, School of Environment and Biological Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
*
Authors to whom correspondence should be addressed.
Membranes 2021, 11(5), 350; https://doi.org/10.3390/membranes11050350
Submission received: 19 April 2021 / Revised: 4 May 2021 / Accepted: 5 May 2021 / Published: 10 May 2021
(This article belongs to the Special Issue Membrane Processes for Liquid and Gas Separations: Opportunities and Challenges)
Browse Figures
Review Reports Versions Notes

Abstract

:
The structure and composition of nanofillers have a significant influence on polyamide nanofiltration (NF) membranes. In this work, an asymmetric organic nanobowl containing a concave cavity was synthesized and incorporated into a polyamide layer to prepare thin film nanocomposite (TFN) membranes via an interfacial polymerization process. Benefiting from the hydrophilicity, hollow cavity and charge property of the compatible organic nanobowls, the separation performance of the developed TFN membrane was significantly improved. The corresponding water fluxes increased to 119.44 ± 5.56, 141.82 ± 3.24 and 130.27 ± 2.05 L/(m2·h) toward Na2SO4, MgCl2 and NaCl solutions, respectively, with higher rejections, compared with the control thin film composite (TFC) and commercial (CM) membranes. Besides this, the modified TFN membrane presented a satisfying purification performance toward tap water, municipal effluent and heavy metal wastewater. More importantly, a better antifouling property of the TFN membrane than TFC and CM membranes was achieved with the assistance of organic nanobowls. These results indicate that the separation performance of the TFN membrane can be elevated by the incorporation of organic nanobowls.

1. Introduction

Water scarcity is pushing the revolution of efficient purification technologies. Membrane separation, including reverse osmosis [1,2], nanofiltration (NF) [3,4,5,6], ultrafiltration [7,8,9], distillation [10,11,12] and forward osmosis [13,14], has been considered as one of the most reliable technologies for water purification [15,16,17,18]. Among these, NF has prevailed in seawater desalination, wastewater treatment and advanced water purification, due to its high selectivity and moderate cost of operation. However, its broader application is stunted by the typical trade-off between permeability and selectivity [19]. Therefore, simultaneously improving the permeability and selectivity of NF membranes to break the trade–off phenomenon is a formidable challenge.
Introducing inorganic nanofillers into the polyamide (PA)–selective layer to prepare the thin film nanocomposite (TFN) membrane is an efficient strategy to achieve this end. The embedded inorganic nanofillers (e.g., carbon, silica and metal-based nanomaterials) are able to regulate membrane properties such as charge, hydrophilicity and PA layer thickness to reach a more favorable state, for the purpose of simultaneously elevating the membrane permeability and selectivity [20,21,22,23]. Nevertheless, these traditional inorganic nanofillers are poorly compatible with the polymeric membrane matrix or PA layer, which probably results in unselective interfacial defects, thus impairing membrane selectivity [24,25,26,27]. Besides this, the suitable dimension of nanofillers is basically determined by the thickness of the membrane PA layer, which generally ranges from 50 to 200 nm [15]. Larger nanofillers might not be beneficial in the modification of membranes, because the oversized nanofillers are likely to cause interfacial defects and leaching risk under the dynamic filtration process [28]. In addition, it has been proven that the internal cavity of nanofillers is conducive to supplying more free volumes to the PA layer, which can reduce the transport resistance of the water molecules and enhance membrane permeability [29,30,31]. For these reasons, organic nanofillers with good compatibility, suitable effective size and internal cavity are highly desired for the development of TFN membranes.
In this study, compatible organic nanobowls with an internal concave cavity and asymmetric structure (lower height–diameter ratio) were synthesized through a modified Stöber method and then embedded into the PA layer via interfacial polymerization for fabricating a novel TFN NF membrane. The basic characteristics of the synthesized organic nanobowls and composite membranes were investigated. Except for the simulated saline, the novelty of this work focuses on the evaluation of separation performances of the TFN membrane using real water resources, including seawater, tap water, municipal effluent and heavy metal wastewater, and a performance comparison with those of the control thin film composite (TFC) and commercial (CM) NF membranes. The effects of developed TFN membrane parameters, such as surface charge, pore size and hydrophilicity, on the separation performance were also discussed. These explorations aimed to indicate that organic nanobowl-modified TFN membranes are superior to TFC and CM NF membranes in purifying different water resources.

2. Materials and Methods

2.1. Reagents

Polysulfone membrane substrate (PSf, MWCO = 20 kDa) was supplied by RisingSun Membrane Technology Co., Ltd. (Beijing, China) and was applied to the fabrication of NF membranes. NF270 was purchased from Dow Filmtech (Orlando, FL, USA) as CM NF membrane. Piperazine (PIP), ethylenediamine (EDA), formaldehyde, sodium chloride (NaCl), sodium sulfate (Na2SO4), magnesium chloride (MgCl2), tetraethylorthosilicate (TEOS), resorcinol, hydrofluoric acid (HF) and n-hexane were provided by Sinopharm Chemical Reagent Co., Ltd. (Nanjing, China). Trimesoyl chloride (TMC) was obtained from Aladdin Co., Ltd. (Shanghai, China). Deionized (DI) water was used in each experimental step and was produced by a Millipore water purification system. The chemicals are analytical grade and used without further purification.

2.2. Synthesis of Organic Nanobowls and Composite Membranes

The organic nanobowls were synthesized using a modified Stöber method [32]. First, 1.0 mL EDA was added into a mixed solution of 53.4 mL ethanol and 26.6 mL DI water. After stirring for 30 min, 2.8 mL TEOS was dropped into the above solution and then 0.4 mL resorcinol was added. Subsequently, 0.56 mL formaldehyde was added into the mixed solution before stirring for another 24 h. The centrifugation was further etched with HF (to remove silicons for the formation of the bowl shape of nanobowls) and water-washed until reaching a neutral pH. The obtained orange powder was dried at 80 °C overnight before use.
The control TFC membrane was fabricated on the PSf substrate via interfacial polymerization. Briefly, an aqueous solution containing 0.35 wt% PIP was poured onto the membrane surface and kept for 2 min before the removal of excess solution. Then, the membrane was immersed into an organic solution containing 0.1 wt% TMC for 1 min. Finally, the obtained TFC membrane was heat-treated at 60 °C for 15 min and stored in DI water. For the TFN membrane, the preparation process is the same as that of the TFC membrane, except the aqueous solution was replaced with a solution containing 0.35 wt% PIP and 0.12 wt% organic nanobowls.

2.3. Characterization

The surface morphologies of nanobowls and composite membranes were characterized by scanning electron microscope (SEM, JEOL 7800, JEOL, Tokyo, Japan). The structure of nanobowls was confirmed by transmission electron microscope (TEM, T20, FEI, Hillsborough, OR, USA). The surface roughness of composite membranes (5 μm × 5 μm) was measured by atomic force microscopy (AFM, Bruker MultiMode 8, Bruker AXS, Billerica, MA, USA). The surface hydrophilicity and charge property of composite membranes were inspected by a contact angle tester (WCA, DSA30, Krüss, Hamburg, Germany) and a zeta potentiometer (SurPASS 3, Anton Paar, Graz, Austria), respectively. The results were averaged from 3 repeats. The surface element ratios of composite membranes were investigated by X-ray photo electron spectroscopy (XPS, PHI Quantera II, Chigasaki, Japan).

2.4. Membrane Performance Test

The separation performances of composite membranes were examined by a lab-assembled cross-flow apparatus. The experiments were carried out using a membrane piece with an effective area of 12.56 cm2 at 6.0 bar. The basic separation performances (flux (J) and salt rejection (R)) of the composite membrane were investigated with 1 g/L salt solutions. The corresponding equations were listed as follows
J = V S × t
R = 1 − C p C f × 100 %
where V is the permeation volume (L), S is the effective filtration area of membranes (m2), t is the separation time (h). Cp and Cf (g/L) correspond to the solute concentrations in the permeation and feeding, respectively. The concentrations of salts in the feed and permeate solutions were tested by a conductivity meter (DDSJ 308A, Leici, Shanghai, China).
The seawater was collected from the coast in Qingdao, Shandong Province, China (location from Google maps: 36°09′27.6″ N 120°21′08.8″ E). The tap water was obtained from the pipeline networks of the water supply system. The municipal effluent and heavy metal wastewater were acquired from the East City sewage plant and industrial park of Nanjing, respectively. In the experiment, the concentrations of cations, such as Na+, K+, Mg2+ and Ca2+, in the different water resources, were investigated by inductively coupled plasma spectrometry (ICP-OES, PerkinElmer Optima 7000 DV, Waltham, Massachusetts, USA). The concentrations of anions, such as Cl− and SO42−, were analyzed by ion chromatography (Aquion ics-2100, Waltham, MA, USA). The concentration of NO3- was recorded using an UV-vis spectrophotometer (Lambda 25, PerkinElmer, Waltham, MA, USA) at a wavelength of 220 nm. The content of organic components in the water samples was surveyed by a total organic carbon (TOC) analyzer (TOC-VCSH, Shimadzu, Tokyo, Japan). Viscosity of the feed and permeated water were tested by a viscometer (DV-II+ Pro, Brookfield, Middleboro, MA, USA) and the speed was set at 20 rpm. The pH values of the feed and permeated water were measured by a pocket pH tester (pH scan 30, Bante, Shanghai, China). Before separating different real water resources, the pH values were adjusted to the suitable range of 5.0–8.0 of NF membranes. After this, the water resources were pre-treated with 0.45 μm polypropylene microfiltration membrane to remove the suspensions and precipitates. In the experiment, the separation performances of all membranes were obtained from three repetitions.

3. Results and Discussions

3.1. Characterizations of Organic Nanobowls and Composite Membranes

The morphology of organic nanobowls was investigated and presented in Figure 1. It can be observed that the asymmetrical organic nanobowls are uniformly shaped with a concave cavity (Figure 1a). Once organic nanobowls are successfully introduced into the membrane, this internal cavity, providing more free volumes to the PA layer, is beneficial in decreasing the transport resistance of water molecules. Additionally, the pure organic feature is conducive to the absence of unselective interfacial defects between nanofillers and the membrane matrix. Based on the image of dispersion in the aqueous solution (inset of Figure 1a), the good dispersibility of organic nanobowls was ensured by the typical “Tyndall effect”, which is highly desired for its ability to help avoid the agglomeration of nanofillers in PA layer. In addition, the size of the organic nanobowls was 220–350 nm (Figure 1b), indicating a height of about 110–175 nm, which matches the thickness of the PA layer (50–200 nm) [33].
The morphologies of composite membranes were revealed by SEM and AFM. It can be seen from Figure 2a that the control TFC membrane presents as a smooth surface similar to the CM membrane except for some protuberances (Figure 2a,c). Distinctively, owing to the sufficient decoration of organic nanobowls, the TFN membrane is highly rugged (Figure 2b), which can be further proven by the corresponding AFM results (Figure 2e). The rougher surface of the TFN membrane is able to supply more contact sites between feeding water and the selective layer, favoring an enhanced permeability [34,35,36].
Apart from the surface morphology, charge property is another crucial factor that affects the separation performance of membranes, because the charge-based Donnan effect dominates the selectivity of the NF membrane [37]. As presented in Figure 3a, although the entire surface charge of membranes decreases with the increase in pH value, the potential of the TFN membrane is higher than those of the TFC and CM membranes along the test range. These results indicate the higher positive charge of the TFN membrane after the incorporation of organic nanobowls. In addition to the charge property, the pore size of the membrane selective layer is also important for the separation performance. The pore size of the NF membrane can be mirrored by its surface elemental composition. Generally, higher O/N and C/N ratios represent a lower crosslinking degree or larger pore size of the membrane [38,39]. It can be observed from Figure 3b and Table 1 that the O/N and C/N ratios of the TFN membrane are the highest among the three membranes, which demonstrates that the TFN membrane has the largest pores. This result is induced by the changed IP process due to the interference of organic nanobowls. It can also be observed from Figure 3b that the peak corresponding to silicon is absent, which is ascribed to the removal of etching by HF. The membrane hydrophilicity is also presented in Table 1. The water contact angle of the TFN membrane is lower than that of the TFC membrane, which demonstrates the better hydrophilicity of the TFN membrane. The enhanced hydrophilicity of the TFN membrane mainly owes to the exposure of the hydrophilic organic nanobowls of the PA layer.

3.2. Membrane Performance Evaluation

The basic nanofiltration performances of developed membranes were investigated using 1 g/L Na2SO4, MgCl2 and NaCl solutions. As shown in Figure 4a, the rejection of the TFN membrane toward Na2SO4 is comparable to those of the TFC and CM membranes, which indicates the avoidance of unselective interfacial defects thanks to the good compatibility of organic nanobowls. In comparison, the MgCl2 rejection of the TFN membrane is 5.97% and 2.16% higher than those of the TFC and CM membranes, respectively. This difference is mainly due to the weaker negative charge of the TFN membrane, which reduces the electrostatic adsorption force between the negatively charged membrane surface and positively charged salts [40]. However, it can also be observed from Figure 4a that the NaCl rejection of TFN membrane was the lowest among the three membranes. This result is explained by the largest pore size of the PA layer of TFN membrane (as demonstrated by the XPS results), which allows the facile passage of electroneutral NaCl. The water fluxes of the composite membranes are presented in Figure 4b. Obviously, owing to the better hydrophilicity (favoring the membrane wettability), rougher surface (providing more effective contact sites) and more free volumes (induced by the organic nanobowls, decreasing mass transport resistance), the TFN membrane shows the highest water flux of 119.44 ± 5.56, 141.82 ± 3.24 and 130.27 ± 2.05 (L/(m2·h)) LHM toward Na2SO4, MgCl2 and NaCl solutions, respectively, compared with the TFC and CM membranes.
To further investigate the separation performance of the composite membranes, various water resources, e.g., seawater, tap water, municipal effluent and heavy metal wastewater, were applied. The corresponding water fluxes of TFC, TFN and CM membranes toward seawater are 69.89 ± 2.72, 102.68 ± 4.39 and 44.36 ± 1.66 LHM, respectively. Clearly, the TFN membrane presented the highest flux, which was ascribed to its elevated hydrophilicity, effective contact sites and free volumes of the selective PA layer. As shown in Figure 5 and Table S1, all composite membranes are able to effectively remove ions and organic species from seawater. Notably, the rejections of SO42− and TOC of all membranes are around 80%. However, compared with the TFC and CM membranes, the TFN membrane shows higher rejection rates for Mg2+ and Ca2+ cations. These results are induced by the dominant Donnan effect of the TFN membrane based on the absence of unselective interfacial defects [41]. The relatively lower negative charge of the TFN membrane is beneficial for weakening the electrostatic adsorption between the membrane surface and the cations, leading to elevated cation rejection. Besides, the rejection of the TFN membrane toward monovalent ions with smaller size and weaker charge property is lower than those of the TFC and CM membranes, which is due to its looser selective PA layer, reducing the mass transport resistance. In addition, the looser structure of the TFN membrane also causes the slightly decreased removal of organic species, as demonstrated by the TOC results in Table S1.
Except for desalination, the NF membranes are also qualified for advanced water treatment [42,43]. In this study, tap water and municipal effluent were applied to explore the membranes’ separation performance. It can be observed from Figure 6a that the fluxes of the membranes toward tap water are higher than that toward the municipal effluent. This might be owing to fouling of the membrane caused by the municipal effluent having more ions and organic components compared with the tap water. In spite of this, the TFN membrane presents a higher water flux toward both of the tap water and municipal effluent than the TFC and CM membranes. From Figure 6b,c, Tables S1 and S2, it can easily be seen that the TFN membrane is more competent in Ca2+ and Mg2+ removal. Meanwhile, the comparable TOC removal (~85%) of tap water and municipal effluent also supports the satisfactory water purification capacity of the TFN membrane.
Further, the NF membranes prevailed in treating industrial wastewater including heavy metal wastewater [44,45,46,47,48]. Before separation, the pH of the heavy metal wastewater was adjusted to a suitable working condition for the NF membrane followed by pre-filtration with a microfiltration membrane. It can be seen in Figure 7a that the fluxes in all membranes are in the order of Ni2+ > Zn2+ > Cr3+. This was caused by the higher concentration of ions (Ni2 +< Zn2+ < Cr3+) (Tables S4–S6), which resulted in higher osmotic pressure across the membrane, leading to a decreased water flux. However, the fluxes in the TFN membranes are superior to the other membranes thanks to their better hydrophilicity, higher number of separation sites and free volumes, as discussed above.
The removal capacity against various heavy metal ions of developed membranes is displayed in Figure 7. Apparently, all membranes possess a high rejection of more than 90% toward three kinds of heavy metals. Besides this, among the selected heavy metals, due to their larger size and stronger charge, the rejections of all membranes toward Cr3+ are higher than those of the Ni2+ and Zn2+. Specifically, the rejections of TFC, TFN and CM toward Cr3+ are 98.62 ± 0.19%, 99.35 ± 0.24% and 99.13 ± 0.13%, respectively. These satisfying results also can be mirrored by the color change of their permeation (Figure S1). Despite this, the TFN membrane is preferred to the TFC and CM membranes, because the rejections of the three heavy metals were the highest at more than 98.50%. The satisfying rejection of the TFN membrane is supported by the good compatibility between the organic nanobowls and polymeric matrix, which avoids the presence of interfacial defects [49,50,51]. Fundamentally, since the selectivity of the NF membrane is significantly influenced by the Donnan effect, the achieved distinctive performance of the TFN membrane can mainly be attributed to the ameliorated surface charge property.
Similar to the above results, except for the heavy metals, the TFN membrane also presents a higher rejection to Ca2+, Mg2+ and Cl- and a comparable rejection to the SO42- in the heavy wastewater. In addition, the pH values of the different water resources are slightly increased, which might be due to the changes in the dissolved ions in the solutions. Meanwhile, the TFN membranes are able to effectively remove organic species. Taking Zn2+ heavy metal wastewater as an example, the TOC values decreased from 37.1 ± 1.28 to 6.21 ± 1.70 mg/L, realizing an 83.25% removal rate. More importantly, benefiting from the stronger hydrophilia and weaker negative charge, the fouling extent of the TFN membrane is much better than the TFC and CM membranes (Figure S2), which is highly desired for the purification of practical water resources.
Despite the excellent performance of the TFN membrane, the concentrations of heavy metals of Ni2+ (9.08 ± 3.82 mg/L), Cr3+ (8.23 ± 3.04 mg/L) and Zn2+ (14.91 ± 3.93 mg/L) in the permeation are still higher than the National Emission Standards GB8978-1996 and GB25466-2010 (Ni2+ of 1.00 mg/L, Cr3+ of 1.50 mg/L and Zn2+ of 1.50 mg/L), due to the excessive concentrations of the feed solutions. Therefore, second-stage treatment with NF membranes was carried out for further purification. As measured, the concentrations of Ni2+ and Zn2+ in the secondary permeation decreased to 0.27 ± 0.09 and 0.30 ± 0.04 mg/L, respectively, while the concentration of Cr3+ was lower than the detection limit, which indicates the qualified treatment of heavy metal wastewater by the TFN membrane.

4. Conclusions

In this work, organic nanobowls were synthesized and used as nanofillers for preparing high-performing TFN nanofiltration membranes. The compatible organic nanobowls modified TFN membrane, which proved superior to the control TFC and CM membranes due to its higher flux and salt rejection due to enhanced surface hydrophilia and more effective separation sites and free volumes, as well as the ameliorated charge property of the selective PA layer. Besides this, the TFN membrane is capable of effectively removing dissolved cations and organic species in different real-water resources. More importantly, the TFN membrane presented higher permeability and selectivity toward selected heavy metal wastewater resources than those of the TFC and CM membranes. Meanwhile, a lower fouling extent of the TFN membrane surface was obtained during separation. In brief, this work provides a new strategy to prepare adaptive TFN nanofiltration membranes for the purification of different water resources.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/membranes11050350/s1, Table S1. Comparisons of removal performances of various composite membranes toward seawater; Table S2. Comparisons of removal performances of various composite membranes toward tap water; Table S3. Comparisons of removal performances of various composite membranes toward municipal effluent; Table S4. Comparisons of removal performances of various composite membranes toward Ni2+ wastewater; Table S5. Comparisons of removal performances of various composite membranes toward Cr3+ wastewater; Table S6. Comparisons of removal performances of various composite membranes toward Zn2+ wastewater; Figure S1. Comparisons of the photograph of Cr3+ wastewater before and after treatment: ① origin wastewater, ② after pH adjustment; effluent of ③ TFC, ④TFN and ⑤ CM membranes; Figure S2. Photograph of fouling extent of composite membranes of separating Zn2+ wastewater.

Author Contributions

Conceptualization, J.L. and Z.L.; methodology, C.O.; software, J.Q.; validation, S.L. and Z.W.; formal analysis, C.O.; investigation, C.O.; resources, C.O.; data curation, C.O.; writing—original draft preparation, C.O.; writing—review and editing, J.L. and Z.L.; visualization, Q.W.; supervision, J.L. and Z.L.; project administration, Z.L., C.O., J.Q. and Q.W.; funding acquisition, Z.L., C.O., J.Q. and Q.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research is financed by National Natural Science Foundation of China (No. 51708302 and 51802162), Natural Science Foundation of Jiangsu Province (No. BK20180955), Natural Science Foundation of Jiangsu higher Education Institution of China (No. 17KJB610008) and Natural Science Basic Research Plan in Shaanxi Province of China (Grant No. 2021JM-423).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

Authors declare no conflict of interest.

References

  1. Zhao, S.; Liao, Z.; Fane, A.; Li, J.; Tang, C.; Zheng, C.; Lin, J.; Kong, L. Engineering antifouling reverse osmosis membranes: A review. Desalination 2021, 499, 114857. [Google Scholar] [CrossRef]
  2. Liao, Z.; Fang, X.; Li, J.; Li, X.; Zhang, W.; Sun, X.; Shen, J.; Han, W.; Zhao, S.; Wang, L. Incorporating organic nanospheres into the polyamide layer to prepare thin film composite membrane with enhanced biocidal activity and chlorine resistance. Sep. Purif. Technol. 2018, 207, 222–230. [Google Scholar] [CrossRef]
  3. Zhang, R.; Tian, J.; Gao, S.; Van der Bruggen, B. How to coordinate the trade-off between water permeability and salt rejection in nanofiltration? J. Mater. Chem. A 2020, 8, 8831–8847. [Google Scholar] [CrossRef]
  4. Liao, Z.; Fang, X.; Xie, J.; Li, Q.; Wang, D.; Sun, X.; Wang, L.; Li, J. Hydrophilic Hollow Nanocube-Functionalized Thin Film Nanocomposite Membrane with Enhanced Nanofiltration Performance. ACS Appl. Mater. Interfaces 2019, 11, 5344–5352. [Google Scholar] [CrossRef] [PubMed]
  5. Li, J.; Li, X.; Bruggen, B.V.D. An MXene-based membrane for molecular separation. Environ. Sci. Nano 2020, 7, 1289–1304. [Google Scholar] [CrossRef]
  6. Li, X.; Xu, Y.; Goh, K.; Chong, T.H.; Wang, R. Layer-by-layer assembly based low pressure biocatalytic nanofiltration membranes for micropollutants removal. J. Membr. Sci. 2020, 615, 118514. [Google Scholar] [CrossRef]
  7. Li, X.; Sotto, A.; Li, J.; Van der Bruggen, B. Progress and perspectives for synthesis of sustainable antifouling composite membranes containing in situ generated nanoparticles. J. Membr. Sci. 2017, 524, 502–528. [Google Scholar] [CrossRef]
  8. Xie, J.; Liao, Z.; Zhang, M.; Ni, L.; Qi, J.; Wang, C.; Sun, X.; Wang, L.; Wang, S.; Li, J. Sequential Ultrafiltration-Catalysis Membrane for Excellent Removal of Multiple Pollutants in Water. Environ. Sci. Technol. 2021, 55, 2652–2661. [Google Scholar] [CrossRef] [PubMed]
  9. Liao, Z.; Minh Nhat, N.; Wan, G.; Xie, J.; Ni, L.; Qi, J.; Li, J.; Schaefer, A.I. Low pressure operated ultrafiltration membrane with integration of hollow mesoporous carbon nanospheres for effective removal of micropollutants. J. Hazard. Mater. 2020, 397, 122779. [Google Scholar] [CrossRef]
  10. Zhu, Z.; Wang, W.; Zhang, Q.; Chen, X. Insight into the feed/permeate flow velocity on the trade-off of water flux and scaling resistance of superhydrophobic and welding-pore fibrous membrane in membrane distillation. J. Membr. Sci. 2021, 620, 118883. [Google Scholar] [CrossRef]
  11. Zhu, Z.; Xu, Y.; Luo, Y.; Wang, W.; Chen, X. Porous evaporators with special wettability for low-grade heat-driven water desalination. J. Mater. Chem. A 2021, 9, 702–726. [Google Scholar] [CrossRef]
  12. Zhu, Z.; Zhong, L.; Horseman, T.; Liu, Z.; Wang, W. Superhydrophobic-omniphobic membrane with anti-deformable pores for membrane distillation with excellent wetting resistance. J. Membr. Sci. 2020, 620, 118768. [Google Scholar] [CrossRef]
  13. Li, X.; Liu, Y.; Wang, J.; Gascon, J.; Li, J.; Van der Bruggen, B. Metal–organic frameworks based membranes for liquid separation. Chem. Soc. Rev. 2017, 46, 7124–7144. [Google Scholar] [CrossRef]
  14. Ding, L.; Gao, J.; Chung, T.-S. Schiff base reaction assisted one-step self-assembly method for efficient gravity-driven oil-water emulsion separation. Sep. Purif. Technol. 2019, 213, 437–446. [Google Scholar] [CrossRef]
  15. Liao, Z.; Fang, X.; Li, Q.; Xie, J.; Ni, L.; Wang, D.; Sun, X.; Wang, L.; Li, J. Resorcinol-formaldehyde nanobowls modified thin film nanocomposite membrane with enhanced nanofiltration performance. J. Membr. Sci. 2020, 594, 117468. [Google Scholar] [CrossRef]
  16. Guo, Y.Y.; Liu, N.; Sun, T.; Cui, H.-H.; Wang, J.; Wang, M.; Wang, M.; Tang, Y. Rational structural design of ZnOHF nanotube-assembled microsphere adsorbents for high-efficient Pb2+ removal. CrystEngComm 2020, 22, 7543–7548. [Google Scholar] [CrossRef]
  17. Li, Q.; Liao, Z.; Xie, J.; Ni, L.; Wang, C.; Qi, J.; Sun, X.; Wang, L.; Li, J. Enhancing nanofiltration performance by incorporating tannic acid modified metal-organic frameworks into thin-film nanocomposite membrane. Environ. Res. 2020, 191, 110215. [Google Scholar] [CrossRef] [PubMed]
  18. Yao, Y.; Sun, Y.; Yu, H.; Chen, W.; Dai, H.; Shi, Y. A pillar 5 arene based gel from a low-molecular-weight gelator for sustained dye release in water. Dalton Trans. 2017, 46, 16802–16806. [Google Scholar] [CrossRef] [PubMed]
  19. Liao, Z.; Zhu, J.; Li, X.; Van der Bruggen, B. Regulating composition and structure of nanofillers in thin film nanocomposite (TFN) membranes for enhanced separation performance: A critical review. Sep. Purif. Technol. 2021, 266, 118567. [Google Scholar] [CrossRef]
  20. Wang, Z.; Guo, S.; Zhang, B.; Zhu, L. Hydrophilic polymers of intrinsic microporosity as water transport nanochannels of highly permeable thin-film nanocomposite membranes used for antibiotic desalination. J. Membr. Sci. 2019, 592, 117375. [Google Scholar] [CrossRef]
  21. Sun, N.; Zhu, Z.; Zeng, G. Bioinspired superwetting fibrous skin with hierarchical roughness for efficient oily water separation. Sci. Total Environ. 2020, 744, 140822. [Google Scholar] [CrossRef] [PubMed]
  22. Zhu, Z.; Zhong, L.; Chen, X.; Zheng, W.; Zuo, J.; Zeng, G.; Wang, W. Monolithic and self-roughened Janus fibrous membrane with superhydrophilic/omniphobic surface for robust antifouling and antiwetting membrane distillation. J. Membr. Sci. 2020, 615, 118499. [Google Scholar] [CrossRef]
  23. Guo, X.-Q.; Wang, M.; Meng, F.; Tang, Y.-F.; Tian, S.; Yang, H.-L.; Jiang, G.-Q.; Zhu, J.-L. Rational design and synthesis of an amino-functionalized hydrogen-bonded network with an ACO zeolite-like topology for gas storage. CrystEngComm 2016, 18, 5616–5619. [Google Scholar] [CrossRef]
  24. Zhao, D.L.; Japip, S.; Zhang, Y.; Weber, M.; Chung, T.S. Emerging thin-film nanocomposite (TFN) membranes for reverse osmosis: A review. Water Res. 2020, 173, 115557. [Google Scholar] [CrossRef]
  25. Wang, C.; Li, Z.; Chen, J.; Zhong, Y.; Yin, Y.; Cao, L.; Wu, H. Zwitterionic functionalized “cage-like” porous organic frameworks for nanofiltration membrane with high efficiency water transport channels and anti-fouling property. J. Membr. Sci. 2018, 548, 194–202. [Google Scholar] [CrossRef]
  26. Zhao, Q.; Ge, C.; Cai, Y.; Qiao, Q.; Jia, X. Silsesquioxane stabilized platinum-palladium alloy nanoparticles with morphology evolution and enhanced electrocatalytic oxidation of formic acid. J. Colloid Interface Sci. 2018, 514, 425–432. [Google Scholar] [CrossRef]
  27. Ding, J.; Liu, X.; Wan, M.; Liu, Q.; Sun, T.; Jiang, G.; Tang, Y. Controlled synthesis of CeVO4 hierarchical hollow microspheres with tunable hollowness and their efficient photocatalytic activity. CrystEngComm 2018, 20, 4499–4505. [Google Scholar] [CrossRef]
  28. Song, X.; Wang, Y.; Jiao, C.; Huang, M.; Wang, G.-H.; Jiang, H. Microstructure regulation of polyamide nanocomposite membrane by functional mesoporous polymer for high-efficiency desalination. J. Membr. Sci. 2020, 597, 117783. [Google Scholar] [CrossRef]
  29. Ang, M.B.M.Y.; Pereira, J.M.; Trilles, C.A.; Aquino, R.R.; Huang, S.-H.; Lee, K.-R.; Lai, J.-Y. Performance and antifouling behavior of thin-film nanocomposite nanofiltration membranes with embedded silica spheres. Sep. Purif. Technol. 2019, 210, 521–529. [Google Scholar] [CrossRef]
  30. Sun, Z.; Wu, Q.; Ye, C.; Wang, W.; Zheng, L.; Dong, F.; Yi, Z.; Xue, L.; Gao, C. Nanovoid Membranes Embedded with Hollow Zwitterionic Nanocapsules for a Superior Desalination Performance. Nano Lett. 2019, 19, 2953–2959. [Google Scholar] [CrossRef]
  31. Guo, X.; Wang, M.; Gu, X.; Zhu, J.; Tang, Y.; Jiang, G.; Bai, J. Synthesis, structures, and luminescence of two 2-D microporous metal-organic frameworks in the zinc (cadmium)-dicarboxylate-imidazolate system. J. Coord. Chem. 2016, 69, 1819–1827. [Google Scholar] [CrossRef]
  32. Wickramaratne, N.P.; Xu, J.; Wang, M.; Zhu, L.; Dai, L.; Jaroniec, M. Nitrogen enriched porous carbon spheres: Attractive materials for supercapacitor electrodes and CO2 adsorption. Chem. Mater. 2014, 26, 2820–2828. [Google Scholar] [CrossRef]
  33. Kadhom, M.; Hu, W.; Deng, B. Thin Film Nanocomposite Membrane Filled with Metal-Organic Frameworks UiO-66 and MIL-125 Nanoparticles for Water Desalination. Membranes 2017, 7, 31. [Google Scholar] [CrossRef] [PubMed]
  34. Tan, Z.; Chen, S.; Peng, X.; Zhang, L.; Gao, C. Polyamide membranes with nanoscale Turing structures for water purification. Science 2018, 360, 518–521. [Google Scholar] [CrossRef] [Green Version]
  35. Wang, Z.; Wang, Z.; Lin, S.; Jin, H.; Gao, S.; Zhu, Y.; Jin, J. Nanoparticle-templated nanofiltration membranes for ultrahigh performance desalination. Nat. Commun. 2018, 9, 2004. [Google Scholar] [CrossRef]
  36. Gui, L.; Dong, J.; Fang, W.; Zhang, S.; Zhou, K.; Zhu, Y.; Zhang, Y.; Jin, J. Ultrafast Ion Sieving from Honeycomb-like Polyamide Membranes Formed Using Porous Protein Assemblies. Nano Lett. 2020, 20, 5821–5829. [Google Scholar] [CrossRef] [PubMed]
  37. Epsztein, R.; Shaulsky, E.; Dizge, N.; Warsinger, D.M.; Elimelech, M. Role of Ionic Charge Density in Donnan Exclusion of Monovalent Anions by Nanofiltration. Environ. Sci. Technol. 2018, 52, 4108–4116. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, Y.; Wang, X.; Gao, X.; Zheng, J.; Wang, J.; Volodin, A.; Xie, Y.F.; Huang, X.; Van der Bruggen, B.; Zhu, J. High-performance thin film nanocomposite membranes enabled by nanomaterials with different dimensions for nanofiltration. J. Membr. Sci. 2020, 596, 117717. [Google Scholar] [CrossRef]
  39. Wang, Y.; Zhang, H.; Song, C.; Gao, C.; Zhu, G. Effect of aminophend/formaldehyde resin polymeric nanospheres as nanofiller on polyamide thin film nanocomposite membranes for reverse osmosis application. J. Membr. Sci. 2020, 614, 118496. [Google Scholar] [CrossRef]
  40. Jia, L.; Zhang, X.; Zhu, J.; Cong, S.; Wang, J.; Liu, J.; Zhang, Y. Polyvinyl alcohol-assisted high-flux thin film nanocomposite membranes incorporated with halloysite nanotubes for nanofiltration. Environ. Sci. Water Res. Technol. 2019, 5, 1412–1422. [Google Scholar] [CrossRef]
  41. Kong, X.; Zhang, Y.; Zeng, S.-Y.; Zhu, B.-K.; Zhu, L.-P.; Fang, L.-F.; Matsuyama, H. Incorporating hyperbranched polyester into cross-linked polyamide layer to enhance both permeability and selectivity of nanofiltration membrane. J. Membr. Sci. 2016, 518, 141–149. [Google Scholar] [CrossRef]
  42. Shepsko, C.S.; Dong, H.; Sengupta, A.K. Treated Municipal Wastewater Reuse: A Holistic Approach Using Hybrid Ion Exchange (HIX) with Concurrent Nutrient Recovery and CO2 Sequestration. ACS Sustain. Chem. Eng. 2019, 7, 9671–9679. [Google Scholar] [CrossRef]
  43. Epsztein, R.; Cheng, W.; Shaulsky, E.; Dizge, N.; Elimelech, M. Elucidating the mechanisms underlying the difference between chloride and nitrate rejection in nanofiltration. J. Membr. Sci. 2018, 548, 694–701. [Google Scholar] [CrossRef]
  44. He, Y.; Liu, J.; Han, G.; Chung, T.-S. Novel thin-film composite nanofiltration membranes consisting of a zwitterionic co-polymer for selenium and arsenic removal. J. Membr. Sci. 2018, 555, 299–306. [Google Scholar] [CrossRef]
  45. Jia, T.-Z.; Lu, J.-P.; Cheng, X.-Y.; Xia, Q.-C.; Cao, X.-L.; Wang, Y.; Xing, W.; Sun, S.-P. Surface enriched sulfonated polyarylene ether benzonitrile (SPEB) that enhances heavy metal removal from polyacrylonitrile (PAN) thin-film composite nanofiltration membranes. J. Membr. Sci. 2019, 580, 214–223. [Google Scholar] [CrossRef]
  46. Shen, Y.; Wang, Y.; Shi, J.; Tan, D.; Jing, X.; Xu, Q. Modeling and optimization of the electric flocculation of wastewater containing Cr6+ using response surface methodology. Sep. Sci. Technol. 2017, 1–12. [Google Scholar] [CrossRef]
  47. Guo, H.; Zhang, R.; Han, Y.; Wang, J.; Yan, C. A p-tert-Butyldihomooxacalix[4]arene Based Soft Gel for Sustained Drug Release in Water. Front. Chem. 2020, 8, 33. [Google Scholar] [CrossRef] [Green Version]
  48. Shen, Y.; Han, S.; Xu, Q.; Wang, Y.; Xu, Z.; Zhao, B.; Zhang, R. Optimizing degradation of Reactive Yellow 176 by dielectric barrier discharge plasma combined with TiO2 nano-particles prepared using response surface methodology. J. Taiwan Inst. Chem. Eng. 2016, 60, 302–312. [Google Scholar] [CrossRef]
  49. Chen, J.; Wang, Y.; Wang, C.; Long, R.; Chen, T.; Yao, Y. Functionalization of inorganic nanomaterials with pillar n arenes. Chem. Commun. 2019, 55, 6817–6826. [Google Scholar] [CrossRef]
  50. Li, Q.; Zhu, H.; Tang, Y.; Zhu, P.; Ma, H.; Ge, C.; Yan, F. Chemically grafting nanoscale UIO-66 onto polypyrrole nanotubes for long-life lithium-sulfur batteries. Chem. Commun. 2019, 55, 12108–12111. [Google Scholar] [CrossRef]
  51. Wang, Y.; Wang, C.; Long, R.; Cao, Y.; Fan, D.; Cen, M.; Cao, L.; Chen, Y.; Yao, Y. Synthesis and controllable self-assembly of 3D amphiphilic organoplatinum(ii) metallacages in water. Chem. Commun. 2019, 55, 5167–5170. [Google Scholar] [CrossRef]
Membranes 11 00350 g001 550
Figure 1. (a) SEM and (b) TEM images of organic nanobowls. The inset is a photo of organic nanobowl solution.
Figure 1. (a) SEM and (b) TEM images of organic nanobowls. The inset is a photo of organic nanobowl solution.
Membranes 11 00350 g001
Membranes 11 00350 g002 550
Figure 2. (a–c) and (d–f) are the SEM and 2D AFM images of TFC, TFN and CM membranes, respectively.
Figure 2. (a–c) and (d–f) are the SEM and 2D AFM images of TFC, TFN and CM membranes, respectively.
Membranes 11 00350 g002
Membranes 11 00350 g003 550

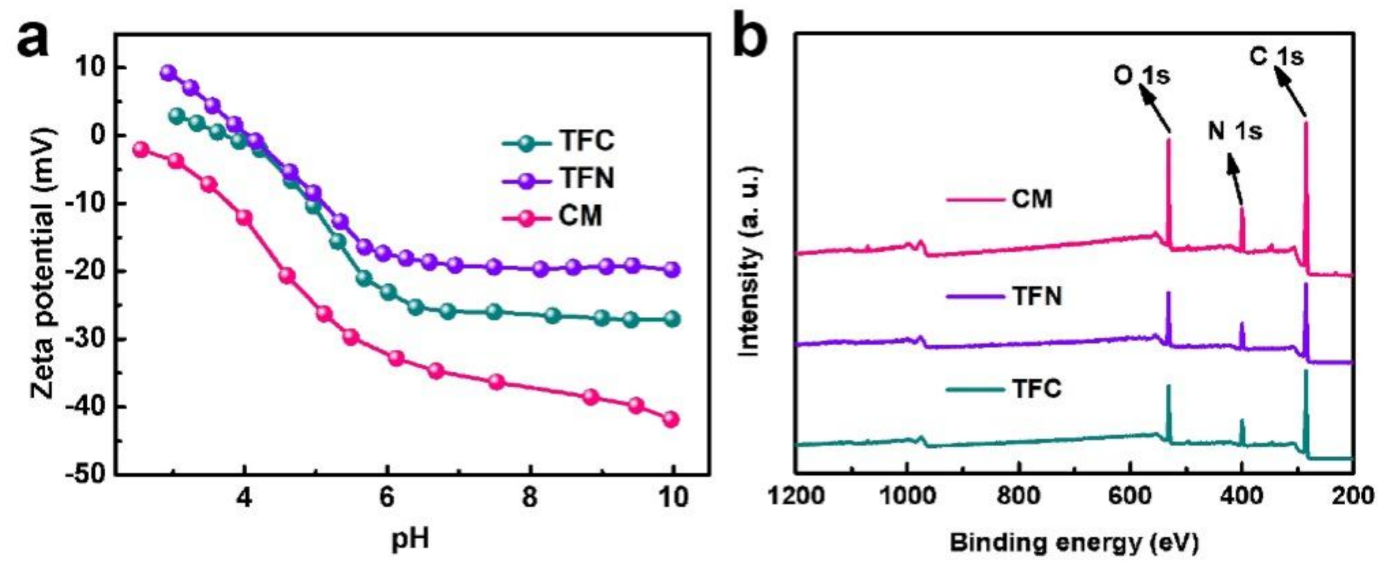

Figure 3. (a) Zeta potentials and (b) XPS results of the composite membranes.
Figure 3. (a) Zeta potentials and (b) XPS results of the composite membranes.
Membranes 11 00350 g003
Membranes 11 00350 g004 550

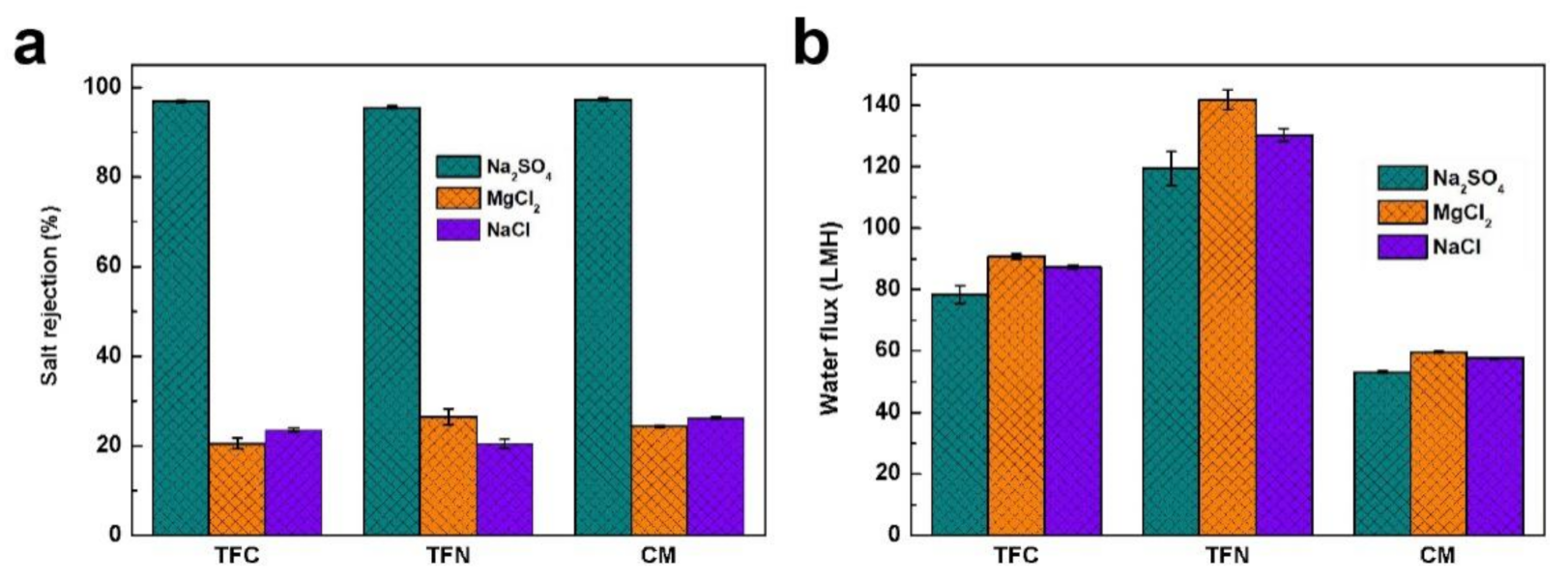

Figure 4. (a) Salt rejections and (b) water fluxes of the composite membranes.
Figure 4. (a) Salt rejections and (b) water fluxes of the composite membranes.
Membranes 11 00350 g004
Membranes 11 00350 g005 550

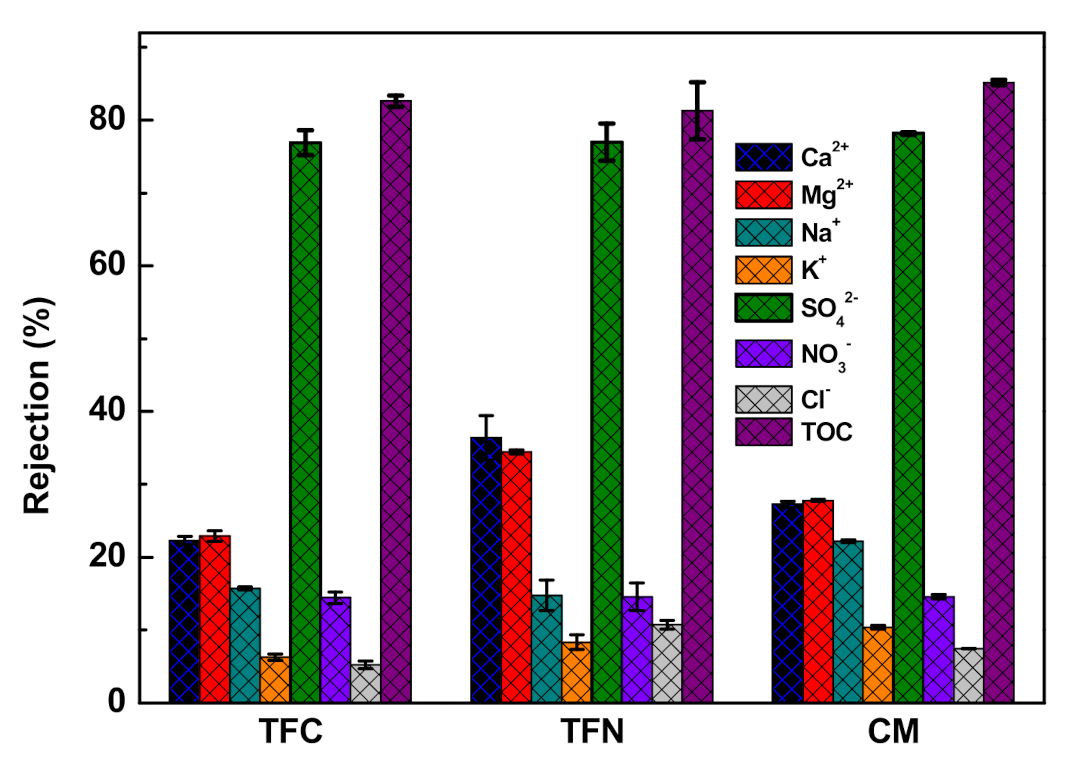

Figure 5. Rejections of the composite membranes toward seawater.
Figure 5. Rejections of the composite membranes toward seawater.
Membranes 11 00350 g005
Membranes 11 00350 g006 550

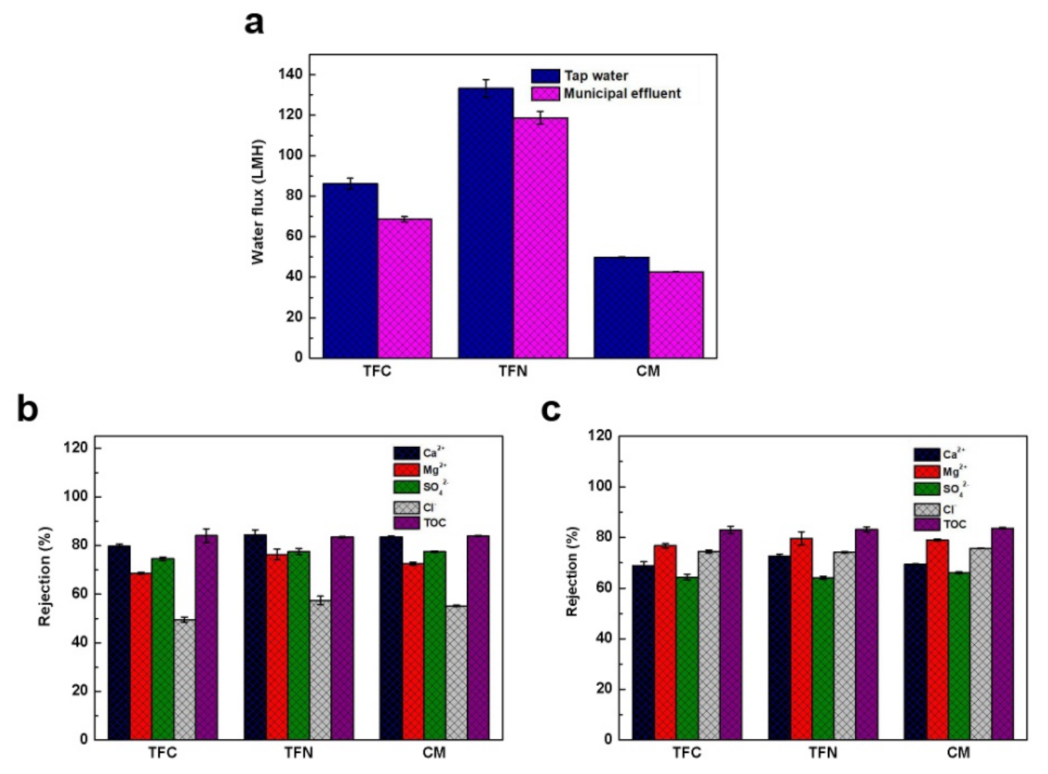

Figure 6. (a) Water fluxes of the composite membranes toward tap water and municipal effluent. Rejections of the composite membranes toward (b) tap water (c) municipal effluent.
Figure 6. (a) Water fluxes of the composite membranes toward tap water and municipal effluent. Rejections of the composite membranes toward (b) tap water (c) municipal effluent.
Membranes 11 00350 g006
Membranes 11 00350 g007 550
Figure 7. (a) Water fluxes of the composite membranes toward heavy metal wastewater. Rejections of the composite membranes toward (b) Ni2+, (c) Cr3+ and (d) Zn2+ wastewater.
Figure 7. (a) Water fluxes of the composite membranes toward heavy metal wastewater. Rejections of the composite membranes toward (b) Ni2+, (c) Cr3+ and (d) Zn2+ wastewater.
Membranes 11 00350 g007
Table
Table 1. Surface elemental composition of the composite membranes.
Table 1. Surface elemental composition of the composite membranes.
Membrane TypeC (%)N (%)O (%)C/NO/NWCA (°)
TFC70.9410.8718.196.521.6755.2 ± 2.7
TFN70.2811.0218.706.381.7042.3 ± 4.6
CM71.0811.3817.556.241.5428.5 ± 0.7
