Article

The Immunogenicity of Capsid-Like Particle Vaccines in Combination with Different Adjuvants Using Different Routes of Administration

by
Christoph M. Janitzek
1,2,
Philip H. R. Carlsen
1,2,
Susan Thrane
1,2,
Vijansh M. Khanna
1,2,
Virginie Jakob
3,
Christophe Barnier-Quer
4,
Nicolas Collin
4,
Thor G. Theander
1,2,
Ali Salanti
1,2,
Morten A. Nielsen
1,2 and
Adam F. Sander
1,2,*
1
Centre for Medical Parasitology, Department of Immunology and Microbiology, University of Copenhagen, 1165 København, Denmark
2
Department of Infectious Diseases, Copenhagen University Hospital, 2100 Copenhagen, Denmark
3
Vaccine Formulation Institute, Plan-Les-Ouates, 1228 Geneva, Switzerland
4
Vaccine Formulation Laboratory, University of Lausanne, 1015 Lausanne, Switzerland
*
Author to whom correspondence should be addressed.
Vaccines 2021, 9(2), 131; https://doi.org/10.3390/vaccines9020131
Submission received: 7 January 2021 / Revised: 27 January 2021 / Accepted: 1 February 2021 / Published: 6 February 2021
(This article belongs to the Special Issue Development of Vaccines Based on Virus-Like Particles)
Browse Figures
Versions Notes

Abstract

:
Capsid-like particle (CLP) displays can be used to enhance the immunogenicity of vaccine antigens, but a better understanding of how CLP vaccines are best formulated and delivered is needed. This study compared the humoral immune responses in mice elicited against two different vaccine antigens (a bacterial protein and a viral peptide) delivered on an AP205 CLP platform using six different adjuvant formulations. In comparison to antibody responses obtained after immunization with the unadjuvanted CLP vaccine, three of the adjuvant systems (neutral liposomes/monophosphoryl lipid A/quillaja saponaria 21, squalene-in-water emulsion, and monophosphoryl lipid A) caused significantly increased antibody levels, whereas formulation with the three other adjuvants (aluminum hydroxide, cationic liposomes, and cationic microparticles) resulted in similar or even decreased antibody responses. When delivering the soluble bacterial protein in a squalene-in-water emulsion, 4-log lower IgG levels were obtained compared to when the protein was delivered on CLPs without the adjuvant. The AP205 CLP platform promoted induction of both IgG1 and IgG2 subclasses, which could be skewed towards a higher production of IgG1 (aluminum hydroxide). Compared to other routes, intramuscular administration elicited the highest IgG levels. These results indicate that the effect of the external adjuvant does not always synergize with the adjuvant effect of the CLP display, which underscores the need for empirical testing of different extrinsic adjuvants.

1. Introduction

Recombinant protein expression holds promise in enabling the production of effective vaccines against many diseases [1], yet soluble proteins often fail to produce sufficient immune protection due to intrinsic low immunogenicity [1,2]. To overcome suboptimal immunogenicity of subunit vaccines, a number of novel adjuvant systems have been developed to boost or modulate immune responses induced by vaccine antigens [3]. Capsid-like particles (CLPs) are promising tools for vaccine development. CLPs are highly immunogenic due to their structural resemblance to live viruses, particularly their size (20 nm–200 nm) allows for direct drainage into lymph nodes [4,5]. In addition, the repetitive surface structure promotes uptake and cross presentation by antigen-presenting cells [6,7,8] and facilitates efficient B cell receptor crosslinking [9,10]. CLPs can be used as scaffolds for the presentation of unrelated antigens. CLP display technologies exploit the delivery of an antigen in a particulate, multivalent, and repetitive format increasing the immune-stimulatory activity of the antigen. In fact, many modular CLP-based vaccine platforms have emerged [11,12,13,14,15,16,17,18] and make it possible to employ a common CLP backbone for delivery of a vast variety of vaccine antigens [19,20,21,22,23].
Our group previously developed a modular CLP-based vaccine platform using the AP205 bacteriophage CLP as a backbone for covalently attaching diverse antigens on their surface through a tag/catcher split-protein interaction [14]. As this CLP platform is becoming a generic tool for vaccine development, we sought to explore whether formulating the CLP in extrinsic adjuvants [24,25] affects the humeral immune response to the vaccine and whether a particular immunization route is preferable for vaccine administration.
These factors might be dependent on the specific antigen being presented on the CLP. Nonetheless, in this study, we used the SpyCatcher-AP205-L2 vaccine [19] as a prototype AP205 CLP vaccine displaying both a vaccine peptide (Human Papilloma Virus (HPV) 16 L2 RG1 epitope) and a poorly immunogenic bacterial protein (SpyCatcher). This dual-antigen CLP vaccine provided the basis for evaluating the humoral immune response in mice obtained by using different extrinsic adjuvant formulations that are either comparable to adjuvants already used in humans (neutral liposomes/monophosphoryl lipid A/quillaja saponaria 21 (LMQ), squalene-in-water emulsion (SWE), monophosphoryl lipid A (MPL), and aluminum hydroxide (AlOH)) or are promising experimental adjuvants (cationic liposomes (CL) and cationic microparticles (MP)) (Table 1). Lastly, we compared the immunogenicity of the CLP vaccine when using different immunization routes.

2. Materials and Methods

2.1. Design, Expression, and Purification of SpyCatcher-AP205-L2

SpyCatcher-AP205-L2 was designed, recombinantly expressed, and purified as described in [19]. Briefly, the RG1 epitope of the minor capsid protein (L2) of Human Papilloma Virus (HPV) 16 (QLYKTCKQAGTCPPDIIPKVEG) was attached by PCR amplification to the 3′ end of the SpyCatcher-AP205 construct [14]. The SpyCatcher-AP205-L2 construct was inserted into a pet-15b vector, expressed in One Shot® BL21 Star™ (DE3) cells (Thermo Scientific), and purified on Optiprep™ (Sigma-Aldrich, Denmark) step gradients, as previously described [14,19,22]. Throughout this article, the above described SpyCatcher-AP205-L2 CLP vaccine is referred to as the “CLP vaccine”.

2.2. Design, Expression, and Purification of SpyCatcher and HPV16 L2 Control Antigens

To produce the recombinant SpyCatcher control antigen, a flexible Glycine-Glycine-Serine (GGS) linker, followed by a hexahistidine (6xHis)-tag was added to the C-terminus of SpyCatcher. SpyCatcher was produced in One Shot® BL21 Star™ (DE3) cells (Thermo Scientific) and purified using ion metal affinity chromatography as well as ion exchange chromatography. This protein was used as the coat for anti-SpyCatcher IgG ELISA and as the control antigen in mouse immunizations (described below)
The RG1 epitope of HPV16 (QLYKTCKQAGTCPPDIIPKVEG) was attached by overlap extension PCR to the 5′ end of a biologically irrelevant carrier protein (accession number WP_057363222, amino acid 44-338). The HPV peptide/protein fusion was expressed in One Shot® BL21 Star™ (DE3) (Thermo Scientific) and purified using ion metal affinity chromatography as well as size exclusion chromatography (HiLoad Superdex 75pg, GE Healthcare). This protein was used for coat protein in the anti-HPV peptide ELISAs.

2.3. Design, Expression, and Purification of SpyTag-MS2 and Preparation of SpyCatcher-MS2

To raise the antibody titers against SpyCatcher and SpyTag in mice, a different CLP backbone than AP205 was required. For this reason, the MS2 CLP was used to make SpyTag and SpyCatcher presenting MS2. SpyTag-MS2 was designed to include the SpyTag (AHIVMVDAYKPTK) at the N-terminus of the MS2-CLP gene (PDB 1U1Y). This gene was subcloned into a pet-15b vector and transformed into One Shot® BL21 Star™ (DE3) cells (Thermo Scientific) for expression. The assembled SpyTag-MS2 CLP was purified on Optiprep™ (Sigma) step gradients, as described for AP205.
SpyCatcher-MS2 CLP were created by incubating SpyTag-MS2 CLPs with SpyCatcher-ggs-His control antigen (production described above) at a 1 to 5 molar ratio for 16 h at 4 °C. Excess SpyCatcher was removed by dialyzing against 1 × phosphate buffered saline (PBS) using 1000 kDa molecular weight cut-off (MWCO) tubing (SpectraPor).

2.4. Removal of Endotoxins

Triton X-114 was used in order to remove endotoxins from the CLP vaccines (prototype AP205 CLP vaccine and the MS2 CLP vaccines used to raise preexisting antibodies) as well as control antigens, as described in [51].

2.5. Vaccine Formulation

The CLP vaccine was diluted to 0.1 µg/µL and formulated under sterile conditions 1 h prior to immunization in the following extrinsic adjuvant formulations: aluminum hydroxide (alhydrogel/AlOH), squalene water emulsion (SWE), a mix of neutral liposomes (DOPC–cholesterol)/monophosphoryl lipid-A/quillaja saponin 21 (QS21) (together called LMQ), cationic microparticles (MP), cationic liposomes (CL), or monophosphoryl lipid-A (MPL), as indicated in Table 2. The amount of each compound included in the different adjuvant formulations is shown (per dose of 50 µl) in Table 3. Control vaccines consisting of soluble SpyCatcher formulated in either LMQ or SWE were administered using a similar antigen dose (i.e., similar copy number of SpyCatcher) to that used for immunizations with the SpyCatcher CLP vaccines. The neutral liposomes, SWE, CL, and MP were manufactured at the Vaccine Formulation Laboratory. QS21 and MPL-A (via sonication in aqueous buffer) solutions were resuspended at the Vaccine Formulation Laboratory (1 mg/mL). LMQ adjuvants were mixed immediately prior to formulating with the CLP or the control antigen.

2.6. Mouse Immunization Studies

Adjuvant formulation study: In one study, female, 8-week-old BALB/c mice (Janvier Labs, France) were immunized twice (week 1 and 3) with 2 µg of CLP vaccine formulated in extrinsic adjuvants (as described above and in Table 2, n = 6 per adjuvants group) or without (n = 6). Mice were immunized intramuscularly (IM) in the thigh muscle (50 µL per dose). The IgG ELISA determination included n = 6 mice for the LMQ, SWE, MPL, and CL groups; n = 5 for the no adjuvant group and MP groups; and n = 4 or n = 5 for the AlOH group (anti-SpyCatcher or anti-HPV respectively).

Route of Immunization Study

In another study, female BALB/C mice (8 weeks of age) were also immunized with 2 µg of CLP vaccine formulated without extrinsic adjuvants and using alternative routes of injection (n = 6 per immunization route). Mice received 30 µL per dose using intradermal injections (ID, on the back, shaved prior to injection), subcutaneous injections (SC, in the neck fold), intramuscularly (in the thigh muscle), and intra nasally (IN). For immunizations into the peritoneal cavity (IP), 100 µL injection volume was used. Mice receiving intradermal, subcutaneous, and intranasal immunizations were briefly anesthetized using isoflurane.
For both abovementioned studies, blood samples were collected on week 8. Serum purified from these blood samples was used for antigen-specific IgG ELISA and IgG isotype subtyping.

2.7. Antigen-Specific Serum Immunoglobulin Levels

In order to detect the level of anti-SpyCatcher and anti-L2 (HPV16 RG1 epitope) IgG, following the immunization of mice with the CLP vaccine, a standard enzyme-linked immunosorbent assay (ELISA) was employed as described previously [19]. Briefly, to detect SpyCatcher-specific IgG titers, 96-well microtiter plates (Nunc MaxiSorp were incubated with 0.1 µg per well SpyCatcher-ggs-His or HPV16 L2 RG1 antigen; 1 × PBS buffer was used for all serum dilutions, and 1 × PBS + 0.5% skim milk powder (w/v) was used for blocking the plates. Secondary goat anti-mouse IgG-horseradish peroxidase (Novex) was used along with 3,3′,5,5′-Tetramethylbenzidine (TMB) as a substrate for developing the plates. The reaction was stopped with 0.2 M H2SO4, and the color signal was measured at O.D. 450 nm. A control sample containing high levels of antigen-specific IgG was used across all ELISA plates for normalization. The antibody titers were measured as area under the curve values for both SpyCatcher or HPV16 L2 IgG using an y-axis cutoff calculated as follows: mean (O.D. 450 nm of background wells) + 3× standard deviation (O.D. 450 nm of background wells).

2.8. Serum IgG Subclass Profiling by ELISA

The relative proportions of mouse IgG isotypes following immunization with the CLP vaccine formulated in different extrinsic adjuvants (or without) was determined by ELISA as described previously [14]. First, the IgG was normalized by dilution, according to a predetermined O.D. 450 nm value (i.e., obtained by a serum dilution in a standard ELISA described above). Hereafter, secondary HRP-conjugated antibodies targeting mouse total IgG (Novex), IgG1 (Invitrogen), IgG2a (Invitrogen), IgG2b (Thermo Fischer), or IgG3 (Thermo Fischer) were used for detection of the different subpopulations of antibody isotypes. Each serum sample was measured in triplicate and developed for 7 min with o-phenylenediamine substrate. The enzymatic reaction was stopped by adding of 2 M H2SO4. Optical density was measured at 490 nm. To determine the % IgG subclass of total IgG, the obtained O.D. 490 nm value measured following incubation with the antibodies targeting different IgG subclass was divided by the O.D. 490 nm value obtained by mouse total, SpyCatcher-specific, IgG (Novex). For the no adjuvant group and MP, n = 3; for the remaining groups, n = 6.

3. Results

The CLP-based vaccine, SpyCatcher-AP205-L2, was employed. This vaccine is based on recombinant expression in E. coli of an AP205 capsid protein containing an N-terminal SpyCatcher protein and a C-terminal tail of 23 peptides corresponding to the RG1 epitope of the L2 protein of Human Papilloma Virus (HPV) 16. These genetically modified structural AP205 proteins spontaneously form CLP, presenting the SpyCatcher protein and the HPV peptide on protrusion from their surface [19]. In this study, the SpyCatcher protein serves as a model vaccine antigen, although the intended function is to spontaneously form a covalent bond with a recombinant protein carrying a SpyTag. This allows for a simple conjugation reaction resulting in the formation of a covalent bond between two components, i.e., a protein vaccine antigen and the AP205 particle [19]. Groups of six mice were vaccinated twice, three weeks apart, with the CLP vaccine in phosphate buffered saline or in the presence of one of six adjuvants (see Figure 1 for an overview and Table 1 for details). As a control, two groups of mice were vaccinated with recombinant soluble SpyCatcher not displayed on CLP but formulated in LMQ or SWE.

3.1. Comparison of Humoral Responses Induced by Prototype CLP Vaccine Formulated with Different Extrinsic Adjuvants

The responses were compared by measuring SpyCatcher protein or HPV peptide-specific immunoglobulin G (IgG) levels, measured as the area under the curve (AUC) in serum collected five weeks after the last immunization (Figure 1). The control vaccines (SpyCatcher without CLP display) adjuvanted with LMQ or SWE elicited limited or no anti-SpyCatcher IgG (Figure 2a). By contrast, displaying the antigen on the surface of the CLP and formulating in the same adjuvants resulted in significantly higher levels of anti-SpyCatcher IgG (7-fold log increase and 6-fold log increase for LMQ (p = 0.0095) and SWE (p = 0.0043), respectively), in all vaccinated animals. Administering the CLP vaccine with LMQ, SWE, or MPL significantly boosted anti-SpyCatcher IgG levels (p = 0.009, p = 0.02 and p = 0.03 for LMQ, SWE, and MPL, respectively) compared to the non-adjuvanted CLP vaccine (corresponding to about 1–1.5 log increase in endpoint titers, Supplementary Figure S1). Mice receiving the CLP vaccine with CL, AlOH, or MP had similar (CL and AlOH) or lower (MP, p = 0.02) antibody levels compared to mice receiving the CLP-based vaccine without adjuvant (this corresponds to a one-log drop in endpoint titer for MP, Supplementary Figure S1).
When comparing yjr IgG responses to the HPV peptide, similar results to that for the SpyCatcher CLP were seen (Figure 2b). Mice receiving the CLP vaccine adjuvanted with LMQ, SWE, or MPL had higher IgG AUC levels (corresponding to approximately one log higher endpoint titers, Supplementary Figure S1) against the HPV peptide compared to mice receiving the CLP vaccine without adjuvant. However, this trend was only significant for LMQ and MPL (p = 0.009 and 0.004 for LMQ and MPL, respectively). Likewise, for the anti-HPV peptide response, the mice receiving the CLP vaccine adjuvanted with CL, AlOH, or MP had similar antibody levels compared to mice receiving the CLP without adjuvant.

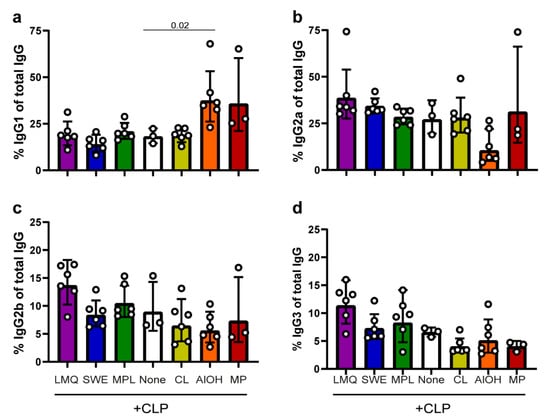

3.2. Induction of IgG Subtype Profiles by CLP in Different Adjuvant Formulations

To further evaluate how the extrinsic adjuvants modify the immune response generated by the CLPs, the serum levels of (anti-SpyCatcher) IgG subclasses were measured eight weeks after the first immunization. Figure 3 shows the relative amount of IgG subclasses produced (i.e., normalized against the total level of anti-SpyCatcher IgG). Mice vaccinated with the CLP vaccine produce high relative levels of both IgG1 (Figure 3a) and IgG2a (Figure 3b) and to a lesser extent IgG2b (Figure 3c) and IgG3 (Figure 3d) (geometric means of 18%, 27%, 9%, and 6.5%, respectively). Administering the CLP in LMQ, SWE, MPL, CL, or MP does not alter the overall IgG subclass distribution produced by the CLP alone. However, mice vaccinated with CLP formulated in LMQ, SWE, or MPL had produced higher overall IgG levels and, therefore, in absolute measures, produced higher levels of each of the respective IgG subclasses. Also, mice receiving CLP formulated with MP produced higher proportions of IgG1 (nonsignificant trend). Mice receiving the CLP vaccine with AlOH produced distinctly higher IgG1 levels (Figure 3a, p = 0.02 compared to no adjuvant) as well as a markedly lower IgG2a levels (nonsignificant trend) in comparison to the unadjuvanted CLP group.

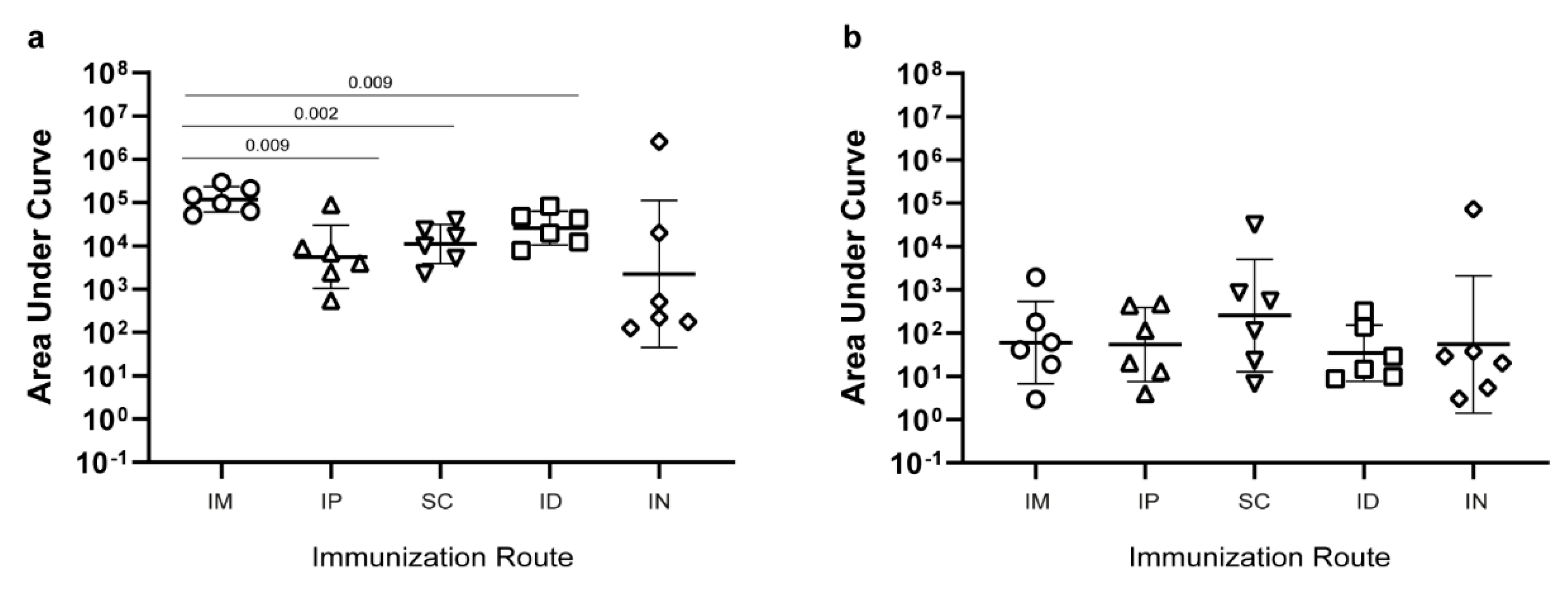

3.3. Comparison of IgG Responses Induced by Prototype CLP Vaccine Delivered via Different Routes of Immunization

To investigate the immunogenicity after delivering the un-adjuvanted prototype CLP vaccines using different routes. A total of 2 µg of the CLP vaccine was immunized intramuscularly (IM), subcutaneously (SC), intradermally (ID), or intranasally (IN) in 30 µL volume as well as 100 µL intraperitoneally (IP). IM vaccination elicited the highest geometric mean IgG levels (measured as the area under the curve (AUC), corresponding to 1–2 log higher endpoint IgG titers (Supplementary Figure S3). However, robust anti-SpyCatcher IgG levels were also found in mice vaccinated by the other routes (Figure 4a). In all animals, the levels of anti-HPV peptide IgG levels were markedly lower following all routes of immunization (Figure 4b), and the previously observed advantage of IM immunization was no longer apparent.

4. Discussion

The ultimate goal of vaccination against infectious diseases is to raise long-lived, protective immune responses with as few administrations and side-effects as possible. CLPs have gained increasing interest as vaccine vehicles as they share many characteristics with live-attenuated vaccines that are capable of inducing long-lived protective immunity after a single immunization [52]. The modular approach for covalent attachment of antigens to AP205 CLP using split-protein technology has established itself as a potent and versatile vaccine platform [14]. To further characterize the platform, this study measured humoral responses to a prototype AP205 CLP vaccine (displaying a protein and a peptide antigen) with different extrinsic adjuvants and immunization routes.
An important confirmation was that CLP display could dramatically improve the immunogenicity of a protein antigen (SpyCatcher), whereas formulation of the same antigen with extrinsic adjuvants alone had minimal effects. Similar results were previously reported for other antigens (e.g., the malaria protein Pfs25 [14]) showing that CLP display can activate different or additional immune mechanisms compared to the tested extrinsic adjuvants.
Interestingly, formulation of the prototype AP205 CLP vaccine with different extrinsic adjuvants was capable of either increasing or decreasing the immunogenicity of the CLP-displayed antigens. Specifically, formulation with LMQ, SWE, and MPL increased antibody responses, whereas formulation with CL, AlOH, and MP resulted in similar (AIOH/CL) or decreased (MP) antibody levels compared to immunization with AP205 CLP alone.
A particle size range of 20–200 nm allows for draining to secondary lymphoid organs [4,5]. By contrast, large micron-sized particles are dependent on dendritic cells (DCs) for transport to the draining lymph node and typically remain at the site of injection [53]. It is possible that lymph node drainage of the AP205 CLP was prevented by adsorption on MP, which offers an explanation for the reduced endpoint antibody responses of the AP205 CLP/MP vaccine formulation. The LMQ and MPL adjuvants increased the IgG elicited by the CLP vaccine. Both adjuvants include a TLR-4 agonist (corresponding to monophosphoryl lipid A [28]); a possible explanation could be that auxiliary immune stimulation of the B cell, through engagement of TLR4 together with rigid, high-density, and oriented antigen display could cause the observed synergistic increase in antigen-specific antibody levels. The question remains whether this observation can be translated to the clinic, since TLR4 is constitutively expressed on murine B cells but not in human [54]. However, clinical studies comparing the immunogenicity of different HPV CLP formulations, containing either AlOH or AlOH plus the TLR4 agonist, revealed that the latter formulation elicited higher levels of neutralizing antibodies as well as a higher frequency of memory B cells [55,56]. Comparable results have also been reported for the enveloped Hepatitis B surface Ag virus-like particle (VLP) vaccine [57]. Recombinant AP205 CLPs (and other bacteriophage CLPs) contain encapsulated host RNA from their production in E. coli. The bacterial RNA significantly boosts the immunogenicity of the CLP via TLR7/8 activation [58]. Furthermore, multiple studies have demonstrated that co-delivery of TLR4 and TLR7/8 agonists potently and synergistically enhances antigen-specific immune responses [59,60,61]. This is evidenced by increased cytokine secretion leading to intensified germinal center formation, including antibody class switching [59,60,61]. Accordingly, the increased immunogenicity observed by formulation of the prototype AP205 CLP vaccine with LMQ or MPL alone is likely caused by the described synergistic interplay between the TLR-4 and TLR7/8 activation pathways. A related example of adjuvants working in synergy is documented by studies on AS01, which shares similar immune potentiators as those included in the LMQ adjuvant (MPL-A and QS21) [26,62]. These studies showed that a novel IFNgamma-related pathway was engaged only when both immune-modulating components were present and that this pathway appears crucial for optimal activation of DCs as well as Th1 response induction [26,62]. However, since immunizing with SWE also increases the overall immunogenicity, the observation could also simply be an additive adjuvant effect. Future experiments could decipher TLR involvement by immunizing TLR knockout mice.
The relative production of IgG antibody subclasses after vaccination can act as an indication of the type of elicited immune response. In mice, production of the IgG1 subclass is correlated with having more engaged Th2 type responses whereas the production of IgG2a, IgG2b, and IgG3 is more indicative of a Th1 bias [63,64,65].
For many vaccines (e.g., against intracellular pathogens), it would be necessary to induce cellular immune responses [66]. The intrinsic features of CLP make them very efficient at raising both humoral and cellular immunity [67,68]. Host RNA encapsulated in the lumen of E. coli-produced bacteriophage CLPs further promotes cellular immunity through Th1-type responses (evidenced by antibody class switching to IgG2 and IgG3 subclass in mice) via TLR7/8 activation [69,70].
This study shows the AP205 CLP vaccine platform produces both IgG1 and IgG2 subclass antibodies, suggestive of a mixed Th1 and Th2-type response, which confirms previous findings using this platform [22]. Overall, adding extrinsic adjuvants to the CLP vaccine platform does not appear to affect the relative proportions of IgG subclasses. While extrinsic adjuvants such as LMQ, SWE, and MPL did not affect the overall proportions of IgG subclasses, it is important to emphasize that these adjuvants were capable of raising the overall immunogenicity of the antigen and thus amplifying the production of the IgG1 and IgG2 subclasses in terms of absolute antibody amounts.
AlOH (and to some extent MP) stand out, since they can skew the antibody production towards increased proportions of IgG1 and, with respect to AlOH, lower proportions of IgG2a, indicative of an increase in Th2-type responses. This result may be expected as AlOH is known to elicit Th2-type responses characterized by an increased production of Th2 cytokines (IL-4 and IL-13) and transcription factors, which leads to the attenuation of Th1-type responses and Ig class switch to IgG1 and IgE [71,72]. In general, caution needs to be taken when interpreting the IgG subclass results, as vaccine-induced responses are partly species- and even mouse strain-specific [73]. In line with this, the mouse strain used in this study, Balb/c, is known to have an intrinsic Th2 polarized immune response [73]. Additionally, this study looks exclusively at the humoral immune response induced after immunization. While the ratio of IgG subclasses can be used as surrogate markers, future studies should look further into how the CLP vaccines activate the cellular arm of the immune system and how this may be affected by the use of different adjuvants.
When comparing the elicited IgG responses to the CLP vaccine administered without an adjuvant, we found that IM immunizations resulted in the highest levels of anti-SpyCatcher IgG whereas the IgG response against the HPV L2 peptide was similar across the different immunization routes. In general, systematic studies investigating the immunological effects of using different immunization routes is lacking. Today, most vaccines used in humans, including the licensed VLP-based vaccines, are administered IM. However, the preference for IM over SC is not based on clinical data showing improved immune responses after IM delivery [74]. Similarly, mouse studies testing different immunization routes for VLP vaccines show no clear immunological advantage of using IM over SC delivery. A specific study using simian-human immunodeficiency virus-like particles provided evidence to suggest that intradermal vaccination may be superior to other routes of immunization [5], but it is unclear to what extent the presented data was antigen-specific. Finally, a previous study testing SC versus IN delivery of another bacteriophage-derived CLP (Qbeta) showed that delivery via the IN route resulted in induction of the mucosal IgA and IgG whereas SC immunization could only elicit mucosal IgG. Therefore, in cases were a mucosal IgA response is essential, there may be an actual need for the mucosal immunization route [75].

5. Conclusions

The results highlight that the AP205 CLP platform by itself is efficient at inducing high antibody levels with an IgG subclass distribution that is sought after in many indications. Certain routes of immunization and extrinsic adjuvants can further boost immunogenicity either through synergistic interplay or an additive adjuvant effect. Further work is needed to elucidate and optimize CLP vaccine-induced cellular immune responses. Finally, it is of utmost importance to test if modular CLP vaccines can generate high, fast, durable, and immune-tolerance breaking antibody responses in humans, as seen in preclinical studies.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-393X/9/2/131/s1, Figure S1: Immunogenicity of antigens on CLP in extrinsic adjuvant formulations, Figure S2: Statistical comparisons, and Figure S3: Route of Immunization.

Author Contributions

Conceptualization, A.F.S.; methodology, C.M.J., P.H.R.C., S.T., V.M.K., V.J., C.B.-Q., and N.C.; validation, A.F.S.; formal analysis, C.M.J., S.T., T.G.T., A.S., M.A.N., and A.F.S.; investigation, C.M.J., P.H.R.C., S.T., V.M.K., V.J., C.B.-Q., N.C., T.G.T., A.S., M.A.N., and A.F.S.; project administration, A.F.S.; supervision, A.F.S.; writing—original draft, C.M.J. and A.F.S.; writing—review and editing, C.M.J., P.H.R.C., S.T., V.M.K., V.J., C.B.-Q., N.C., T.G.T., A.S., M.A.N., and A.F.S.; funding acquisition, T.G.T., A.S., and M.A.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Independent Research Fund Denmark, grant number 6110-00177B, and by Eurostars, funded by the European commission and Innovation fund Denmark, grant number E11019.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Danish Animal Experiments Inspectorate (approval number: 2013-15-2934-00902/BES).

Informed Consent Statement

Not applicable.

Data Availability Statement

All relevant data are accessible within the manuscript and its Supplementary Materials.

Acknowledgments

The authors would like to express their gratitude to Anne Corfitz and Nahla Chehabi for their technical assistance during the completion of this study.

Conflicts of Interest

C.M.J., S.T., T.G.T., A.S., M.A.N., and A.F.S. are listed as coinventors on a patent application covering the AP205 CLP vaccine platform technology (WO2016112921 A1) licensed to AdaptVac. A.F.S. is currently partially employed by AdaptVac. P.H.R.C, V.M.K., V.J., C.B.-Q., and N.C. declare no conflict of interest.

References

  1. Moyle, P.M.; Toth, I. Modern subunit vaccines: Development, components, and research opportunities. Chem. Med. Chem. 2013, 8, 360–376. [Google Scholar] [CrossRef]
  2. Vartak, A.; Sucheck, S.J. Recent Advances in Subunit Vaccine Carriers. Vaccines 2016, 4, 12. [Google Scholar] [CrossRef] [Green Version]
  3. Christensen, D. Vaccine adjuvants: Why and how. Hum. Vaccines Immunother. 2016, 12, 2709–2711. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Bachmann, M.F.; Jennings, G.T. Vaccine delivery: A matter of size, geometry, kinetics and molecular patterns. Nat. Rev. Immunol. 2010, 10, 787–796. [Google Scholar] [CrossRef] [PubMed]
  5. Cubas, R.; Zhang, S.; Kwon, S.; Sevick-Muraca, E.M.; Li, M.; Chen, C.; Yao, Q. Virus-like particle (VLP) lymphatic trafficking and immune response generation after immunization by different routes. J. Immunother. 2009, 32, 118–128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Win, S.J.; Ward, V.K.; Dunbar, P.R.; Young, S.L.; Baird, M.A. Cross-presentation of epitopes on virus-like particles via the MHC I receptor recycling pathway. Immunol. Cell Biol. 2011, 89, 681–688. [Google Scholar] [CrossRef] [PubMed]
  7. Makarkov, A.I.; Golizeh, M.; Lancheros, E.R.; Gopal, A.A.; Cancelas, I.N.C.; Chierzi, S.; Pillet, S.; Charland, N.; Landry, N.; Rouiller, I.; et al. Plant-derived virus-like particle vaccines drive cross-presentation of influenza A hemagglutinin peptides by human monocyte-derived macrophages. NPJ Vaccines 2019, 4, 17. [Google Scholar] [CrossRef] [PubMed]
  8. Fausch, S.C.; da Silva, D.M.; Kast, W.M. Differential uptake and cross-presentation of human papillomavirus virus-like particles by dendritic cells and Langerhans cells. Cancer Res. 2003, 63, 3478–3482. [Google Scholar]
  9. Dintzis, H.M.; Dintzis, R.Z.; Vogelstein, B. Molecular determinants of immunogenicity: The immunon model of immune response. Proc. Natl. Acad. Sci. USA 1976, 73, 3671–3675. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Chackerian, B. Virus-like particle based vaccines for Alzheimer disease. Hum. Vaccines 2010, 6, 926–930. [Google Scholar] [CrossRef]
  11. Brune, K.D.; Leneghan, D.B.; Brian, I.J.; Ishizuka, A.S.; Bachmann, M.F.; Draper, S.J.; Biswas, S.; Howarth, M. Plug-and-Display: Decoration of Virus-Like Particles via isopeptide bonds for modular immunization. Sci. Rep. 2016, 6, 19234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Teemu, T.K.; Ihalainen, O.; Stark, M.; Kerttula, H.U. His-tagged norovirus-like particles: A versatile platform for cellular delivery and surface display. Eur. J. Pharm. Biopharm. 2015, 96, 22–31. [Google Scholar]
  13. Thrane, S.; Janitzek, C.M.; Agerbæk, M.Ø.; Ditlev, S.B.; Resende, M.; Nielsen, M.A.; Theander, T.G.; Salanti, A.; Sander, A.F. A Novel Virus-Like Particle Based Vaccine Platform Displaying the Placental Malaria Antigen VAR2CSA. PLoS ONE 2015, 10, e0143071. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Thrane, S.; Janitzek, C.M.; Matondo, S.; Resende, M.; Gustavsson, T.; de Jongh, W.A.; Clemmensen, S.; Roeffen, W.; Bolmer, M.v.; jan van Gemert, G.; et al. Bacterial superglue enables easy development of efficient virus-like particle based vaccines. J. Nanobiotechnol. 2016, 14, 30. [Google Scholar] [CrossRef] [Green Version]
  15. Schoonen, L.; Pille, J.; Borrmann, A.; Nolte, R.J.; van Hest, J.C. Sortase A-Mediated N-Terminal Modification of Cowpea Chlorotic Mottle Virus for Highly Efficient Cargo Loading. Bioconjug. Chem. 2015, 26, 2429–2434. [Google Scholar] [CrossRef]
  16. Wu, Z.; Chen, K.; Yildiz, I.; Dirksen, A.; Fischer, R.; Dawsond, P.E.; Steinmetz, N.F. Development of viral nanoparticles for efficient intracellular delivery. Nanoscale 2012, 4, 3567–3576. [Google Scholar] [CrossRef] [PubMed]
  17. Patel, K.G.; Swartz, J.R. Surface functionalization of virus-like particles by direct conjugation using azide-alkyne click chemistry. Bioconjug. Chem. 2011, 22, 376–387. [Google Scholar] [CrossRef] [Green Version]
  18. O’Rourke, J.P.; Peabody, D.S.; Chackerian, B. Affinity selection of epitope-based vaccines using a bacteriophage virus-like particle platform. Curr. Opin. Virol. 2015, 11, 76–82. [Google Scholar] [CrossRef] [Green Version]
  19. Janitzek, C.M.; Peabody, J.; Thrane, S.; Carlsen, P.H.R.; Theander, T.G.; Salanti, A.; Chackerian, B.; Nielsen, M.A.; Sander, A.F. A proof-of-concept study for the design of a VLP-based combinatorial HPV and placental malaria vaccine. Sci. Rep. 2019, 9, 5260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Palladini, A.; Thrane, S.; Janitzek, C.M.; Pihl, J.; Clemmensen, S.B.; de Jongh, W.A.; Clausen, T.M.; Nicoletti, G.; Landuzzi, L.; Penichet, M.L.; et al. Virus-like particle display of HER2 induces potent anti-cancer responses. Oncoimmunology 2018, 7, e1408749. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Singh, S.K.; Thrane, S.; Janitzek, C.M.; Nielsen, M.A.; Theander, T.G.; Theisen, M.; Salanti, A.; Sander, A.F. Improving the malaria transmission-blocking activity of a Plasmodium falciparum 48/45 based vaccine antigen by SpyTag/SpyCatcher mediated virus-like display. Vaccine 2017, 35, 3726–3732. [Google Scholar] [CrossRef] [PubMed]
  22. Janitzek, C.M.; Matondo, S.; Thrane, S.; Nielsen, M.A.; Kavishe, R.; Mwakalinga, S.B.; Theander, T.G.; Salanti, A.; Sander, A.F. Bacterial superglue generates a full-length circumsporozoite protein virus-like particle vaccine capable of inducing high and durable antibody responses. Malar. J. 2016, 15, 545. [Google Scholar] [CrossRef] [Green Version]
  23. Maphis, N.M.; Peabody, J.; Crossey, E.; Jiang, S.; Ahmad, F.A.J.; Alvarez, M.; Mansoor, S.K.; Yaney, A.; Yang, Y.; Sillerud, L.O.; et al. Qß Virus-like particle-based vaccine induces robust immunity and protects against tauopathy. NPJ Vaccines 2019, 4, 26. [Google Scholar] [CrossRef]
  24. Guy, B. The perfect mix: Recent progress in adjuvant research. Nat. Rev. Microbiol. 2007, 5, 396–397. [Google Scholar] [CrossRef]
  25. Bonam, S.R.; Partidos, C.D.; Halmuthur, S.K.M.; Muller, S. An overview of novel adjuvants designed for improving vaccine efficacy. Trends Pharmacol. Sci. 2017, 38, 771–793. [Google Scholar] [CrossRef]
  26. Coccia, M.; Collignon, C.; Hervé, C.; Chalon, A.; Welsby, I.; Detienne, S.; van Helden, M.J.; Dutta, S.; Genito, C.J.; Waters, N.C.; et al. Cellular and molecular synergy in AS01-adjuvanted vaccines results in an early IFNgamma response promoting vaccine immunogenicity. NPJ Vaccines 2017, 2, 25. [Google Scholar] [CrossRef] [PubMed]
  27. Moore, A.; McCarthy, L.; Mills, K.H. The adjuvant combination monophosphoryl lipid A and QS21 switches T cell responses induced with a soluble recombinant HIV protein from Th2 to Th1. Vaccine 1999, 17, 2517–2527. [Google Scholar] [CrossRef]
  28. Haro, V.M.; Cekic, C.; Martin, M.; Chilton, P.M.; Casella, C.R.; Mitchell, T.C. The vaccine adjuvant monophosphoryl lipid A as a TRIF-biased agonist of TLR4. Science 2007, 316, 1628–1632. [Google Scholar] [CrossRef] [PubMed]
  29. Didierlaurent, A.M.; Laupeze, B.; di Pasquale, A.; Hergli, N.; Collignon, C.; Garcon, N. Adjuvant system AS01: Helping to overcome the challenges of modern vaccines. Expert Rev. Vaccines 2017, 16, 55–63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Roix, R.M.; Vladimer, G.I.; Pouliot, K.; Weng, D.; Corbett, R.B.; West, K.; MacMicking, J.D.; Chee, J.D.; Wang, S.; Lu, S.; et al. Identification of QS-21 as an Inflammasome-activating Molecular Component of Saponin Adjuvants. J. Biol. Chem. 2016, 291, 1123–1136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Ott, G.; Barchfeld, G.L.; Chernoff, D.; Radhakrishnan, R.; van Hoogevest, P.; van Nest, G. MF59. Design and evaluation of a safe and potent adjuvant for human vaccines. Pharm. Biotechnol. 1995, 6, 277–296. [Google Scholar]
  32. Calabro, S.; Tortoli, M.; Baudner, B.C.; Pacitto, A.; Cortese, M.; O’Hagan, D.T.; de Gregorio, E.; Seubert, A.; Wack, A. Vaccine adjuvants alum and MF59 induce rapid recruitment of neutrophils and monocytes that participate in antigen transport to draining lymph nodes. Vaccine 2011, 29, 1812–1823. [Google Scholar] [CrossRef] [PubMed]
  33. Vono, M.; Taccone, M.; Caccin, P.; Gallotta, M.; Donvito, G.; Falzoni, S.; Palmieri, E.; Pallaoro, M.; Rappuoli, R.; di Virgilio, F.; et al. The adjuvant MF59 induces ATP release from muscle that potentiates response to vaccination. Proc. Natl. Acad. Sci. USA 2013, 110, 21095–21100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Kouzaki, H.; Iijima, K.; Kobayashi, T.; O’Grady, S.M.; Kita, H. The danger signal, extracellular ATP, is a sensor for an airborne allergen and triggers IL-33 release and innate Th2-type responses. J. Immunol. 2011, 186, 4375–4387. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Seubert, A.; Calabro, S.; Santini, L.; Galli, B.; Genovese, A.; Valentini, S.; Aprea, S.; Colaprico, A.; D’Oro, U.; Giuliani, M.M.; et al. Adjuvanticity of the oil-in-water emulsion MF59 is independent of Nlrp3 inflammasome but requires the adaptor protein MyD88. Proc. Natl. Acad. Sci. USA 2011, 108, 11169–11174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Puggioni, F.; Durham, S.R.; Francis, J.N. Monophosphoryl lipid A (MPL) promotes allergen-induced immune deviation in favour of Th1 responses. Allergy 2005, 60, 678–684. [Google Scholar] [CrossRef] [PubMed]
  37. Lacey, M.H.; Devitt, A.; Perrie, Y. The vesicle size of DDA: TDB liposomal adjuvants plays a role in the cell-mediated immune response but has no significant effect on antibody production. J. Control. Release 2011, 154, 131–137. [Google Scholar] [CrossRef] [PubMed]
  38. Kaur, R.; Bramwell, V.W.; Kirby, D.J.; Perrie, Y. Pegylation of DDA: TDB liposomal adjuvants reduces the vaccine depot effect and alters the Th1/Th2 immune responses. J. Control. Release 2012, 158, 72–77. [Google Scholar] [CrossRef] [PubMed]
  39. Christensen, D.; Lacey, M.H.; Kamath, A.T.; Lindenstrøm, T.; Korsholm, K.S.; Christensen, J.; Rochat, A.F.; Lambert, P.H.; Andersen, P.; Siegrist, C.A. A cationic vaccine adjuvant based on a saturated quaternary ammonium lipid have different in vivo distribution kinetics and display a distinct CD4 T cell-inducing capacity compared to its unsaturated analog. J. Control. Release 2012, 160, 468–476. [Google Scholar] [CrossRef] [PubMed]
  40. Lacey, M.H.; Christensen, D.; Bramwell, V.W.; Lindenstrøm, T.; Agger, E.M.; Andersen, P.; Perrie, Y. Liposomal cationic charge and antigen adsorption are important properties for the efficient deposition of antigen at the injection site and ability of the vaccine to induce a CMI response. J. Control. Release 2010, 145, 102–108. [Google Scholar] [CrossRef] [PubMed]
  41. Christensen, D.; Korsholm, K.S.; Andersen, P.; Agger, E.M. Cationic liposomes as vaccine adjuvants. Expert Rev. Vaccines 2011, 10, 513–521. [Google Scholar] [CrossRef]
  42. Brewer, J.M.; Conacher, M.; Hunter, C.A.; Mohrs, M.; Brombacher, F.; Alexander, J. Aluminium hydroxide adjuvant initiates strong antigen-specific Th2 responses in the absence of IL-4- or IL-13-mediated signaling. J. Immunol. 1999, 163, 6448–6454. [Google Scholar] [PubMed]
  43. Ghimire, T.R.; Benson, R.A.; Garside, P.; Brewer, J.M. Alum increases antigen uptake, reduces antigen degradation and sustains antigen presentation by DCs in vitro. Immunol. Lett. 2012, 147, 55–62. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. McKee, A.S.; Munks, M.W.; MacLeod, M.K.L.; Fleenor, C.J.; van Rooijen, N.; Kappler, J.W.; Marrack, P. Alum induces innate immune responses through macrophage and mast cell sensors, but these sensors are not required for alum to act as an adjuvant for specific immunity. J. Immunol. 2009, 183, 4403–4414. [Google Scholar] [CrossRef] [Green Version]
  45. Kool, M.; Soullié, T.; van Nimwegen, M.; Willart, M.A.M.; Muskens, F.; Jung, S.; Hoogsteden, H.C.; Hammad, H.; Lambrecht, B.N. Alum adjuvant boosts adaptive immunity by inducing uric acid and activating inflammatory dendritic cells. J. Exp. Med. 2008, 205, 869–882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Marichal, T.; Ohata, K.; Bedoret, D.; Mesnil, C.; Sabatel, C.; Kobiyama, K.; Lekeux, P.; Coban, C.; Akira, S.; Ishii, K.J.; et al. DNA released from dying host cells mediates aluminum adjuvant activity. Nat. Med. 2011, 17, 996–1002. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, Y.; Rahman, D.; Lehner, T. A comparative study of stress-mediated immunological functions with the adjuvanticity of alum. J. Biol. Chem. 2012, 287, 17152–17160. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Kool, M.; Pétrilli, V.; de Smedt, T.; Rolaz, A.; Hammad, H.; van Nimwegen, M.; Bergen, I.M.; Castillo, R.; Lambrecht, B.N.; Tschopp, J. Cutting edge: Alum adjuvant stimulates inflammatory dendritic cells through activation of the NALP3 inflammasome. J. Immunol. 2008, 181, 3755–3759. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Silva, A.L.; Soema, P.C.; Slutter, B.; Ossendorp, F.; Jiskoot, W. PLGA particulate delivery systems for subunit vaccines: Linking particle properties to immunogenicity. Hum. Vaccines Immunother. 2016, 12, 1056–1069. [Google Scholar] [CrossRef]
  50. Hamdy, S.; Haddadi, A.; Hung, R.W.; Lavasanifar, A. Targeting dendritic cells with nano-particulate PLGA cancer vaccine formulations. Adv. Drug Deliv. Rev. 2011, 63, 943–955. [Google Scholar] [CrossRef] [PubMed]
  51. Aida, Y.; Pabst, M.J. Removal of endotoxin from protein solutions by phase separation using triton X-114. J. Immunol. Methods 1990, 132, 191–195. [Google Scholar] [CrossRef]
  52. Kreimer, A.R.; Struyf, F.; Raymundo, M.R.d.; Hildesheim, A.; Skinner, S.R.; Wacholder, S.; Garland, S.M.; Herrero, R.; David, M.P.; Wheeler, C.M.; et al. Efficacy of fewer than three doses of an HPV-16/18 AS04-adjuvanted vaccine: Combined analysis of data from the Costa Rica Vaccine and PATRICIA Trials. Lancet Oncol. 2015, 16, 775–786. [Google Scholar] [CrossRef] [Green Version]
  53. Manolova, V.; Flace, A.; Bauer, M.; Schwarz, K.; Saudan, P.; Bachmann, M.F. Nanoparticles target distinct dendritic cell populations according to their size. Eur. J. Immunol. 2008, 38, 1404–1413. [Google Scholar] [CrossRef] [PubMed]
  54. Ding, I.B.; Jego, G. Toll-like receptors—Sentries in the B-cell response. Immunology 2009, 128, 311–323. [Google Scholar] [CrossRef] [PubMed]
  55. Einstein, M.H.; Baron, M.; Levin, M.J.; Chatterjee, A.; Edwards, R.P.; Zepp, F.; Carletti, I.; Dessy, F.J.; Trofa, A.F.; Schuind, A.; et al. Comparison of the immunogenicity and safety of Cervarix and Gardasil human papillomavirus (HPV) cervical cancer vaccines in healthy women aged 18–45 years. Hum. Vaccines 2009, 5, 705–719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Einstein, M.H.; Takacs, P.; Chatterjee, A.; Sperling, R.S.; Chakhtoura, N.; Blatter, M.M.; Lalezari, J.; David, M.P.; Lin, L.; Struyf, F.; et al. Comparison of long-term immunogenicity and safety of human papillomavirus (HPV)-16/18 AS04-adjuvanted vaccine and HPV-6/11/16/18 vaccine in healthy women aged 18–45 years: End-of-study analysis of a Phase III randomized trial. Hum. Vaccines Immunother. 2014, 10, 3435–3445. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Roels, G.L.; Marchant, A.; Levy, J.; van Damme, P.; Schwarz, T.F.; Horsmans, Y.; Jilg, W.; Kremsner, P.G.; Haelterman, E.; Clément, F.; et al. Impact of adjuvants on CD4 (+) T cell and B cell responses to a protein antigen vaccine: Results from a phase II, randomized, multicenter trial. Clin. Immunol. 2016, 169, 16–27. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Gomes, A.C.; Roesti, E.S.; El-Turabi, A.; Bachmann, M.F. Type of RNA Packed in VLPs Impacts IgG Class Switching-Implications for an Influenza Vaccine Design. Vaccines 2019, 7, 47. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Shirazi, M.N.; Tamjidi, S.; Nourishirazi, E.; Guinet, E. TLR8 combined withTLR3 or TLR4 agonists enhances DC-NK driven effector Tc1 cells. Immunol. Lett. 2018, 193, 58–66. [Google Scholar] [CrossRef]
  60. Kasturi, S.P.; Skountzou, I.; Albrecht, R.A.; Koutsonanos, D.; Hua, T.; Nakaya, H.I.; Ravindran, R.; Stewart, S.; Alam, M.; Kwissa, M.; et al. Programming the magnitude and persistence of antibody responses with innate immunity. Nature 2011, 470, 543–547. [Google Scholar] [CrossRef] [PubMed]
  61. Wiley, S.R.; Raman, V.S.; Desbien, A.; Bailor, H.R.; Bhardwaj, R.; Shakri, A.R.; Reed, S.G.; Chitnis, C.E.; Carter, D. Targeting TLRs expands the antibody repertoire in response to a malaria vaccine. Sci. Transl. Med. 2011, 3, 93ra69. [Google Scholar] [CrossRef]
  62. Del Giudice, G.; Rappuoli, R.; Didierlaurent, A.M. Correlates of adjuvanticity: A review on adjuvants in licensed vaccines. Semin. Immunol. 2018, 39, 14–21. [Google Scholar] [CrossRef] [PubMed]
  63. Mosmann, T.R.; Coffman, R.L. Heterogeneity of cytokine secretion patterns and functions of helper T cells. Adv. Immunol. 1989, 46, 111–147. [Google Scholar] [PubMed]
  64. Stevens, T.L.; Bossie, A.; Sanders, V.M.; Botran, R.F.; Coffman, R.L.; Mosmann, T.R.; Vitetta, E.S. Regulation of antibody isotype secretion by subsets of antigen-specific helper T cells. Nature 1988, 334, 255–258. [Google Scholar] [CrossRef] [PubMed]
  65. Germann, T.; Bongartz, M.; Dlugonska, H.; Hess, H.; Schmitt, E.; Kolbe, L.; Kölsch, E.; Podlaski, F.J.; Gately, M.K.; Rüde, E. Interleukin-12 profoundly up-regulates the synthesis of antigen-specific complement-fixing IgG2a, IgG2b and IgG3 antibody subclasses in vivo. Eur. J. Immunol. 1995, 25, 823–829. [Google Scholar] [CrossRef] [PubMed]
  66. Panagioti, E.; Klenerman, P.; Lee, L.N.; van der Burg, S.H.; Arens, R. Features of Effective T Cell-Inducing Vaccines against Chronic Viral Infections. Front. Immunol. 2018, 9, 276. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Mohsen, M.O.; Gomes, A.C.; Vogel, M.; Bachmann, M.F. Interaction of Viral Capsid-Derived Virus-Like Particles (VLPs) with the Innate Immune System. Vaccines 2018, 6, 37. [Google Scholar] [CrossRef] [Green Version]
  68. Mohsen, M.O.; Speiser, D.E.; Knuth, A.; Bachmann, M.F. Virus-like particles for vaccination against cancer. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2020, 12, e1579. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Jegerlehner, A.; Maurer, P.; Bessa, J.; Hinton, H.J.; Kopf, M.; Bachmann, M.F. TLR9 signaling in B cells determines class switch recombination to IgG2a. J. Immunol. 2007, 178, 2415–2420. [Google Scholar] [CrossRef]
  70. Hou, B.; Saudan, P.; Ott, G.; Wheeler, M.L.; Ji, M.; Kuzmich, L.; Lee, L.M.; Coffman, R.L.; Bachmann, M.F.; de Franco, A.L. Selective utilization of Toll-like receptor and MyD88 signaling in B cells for enhancement of the antiviral germinal center response. Immunity 2011, 34, 375–384. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Singh, S.K.; Thrane, S.; Chourasia, B.K.; Teelen, K.; Graumans, W.; Stoter, R.; van Gemert, G.; Bolmer, M.G.V.; Nielsen, M.A.; Salanti, A.; et al. Pfs230 and Pfs48/45 Fusion Proteins Elicit Strong Transmission-Blocking Antibody Responses Against Plasmodium falciparum. Front. Immunol. 2019, 10, 1256. [Google Scholar] [CrossRef] [PubMed]
  72. Rts SCTP. Efficacy and safety of RTS,S/AS01 malaria vaccine with or without a booster dose in infants and children in Africa: Final results of a phase 3, individually randomised, controlled trial. Lancet 2015, 386, 31–45. [Google Scholar] [CrossRef] [Green Version]
  73. Watanabe, H.; Numata, K.; Ito, T.; Takagi, K.; Matsukawa, A. Innate immune response in Th1- and Th2-dominant mouse strains. Shock 2004, 22, 460–466. [Google Scholar] [CrossRef] [PubMed]
  74. Cook, I.F. Evidence based route of administration of vaccines. Hum. Vaccines 2008, 4, 67–73. [Google Scholar] [CrossRef] [PubMed]
  75. Bessa, J.; Jegerlehner, A.; Hinton, H.J.; Pumpens, P.; Saudan, P.; Schneider, P.; Bachmann, M.F. Alveolar Macrophages and Lung Dendritic Cells Sense RNA and Drive Mucosal IgA Responses. J. Immunol. 2009, 183, 3788–3799. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Vaccines 09 00131 g001 550

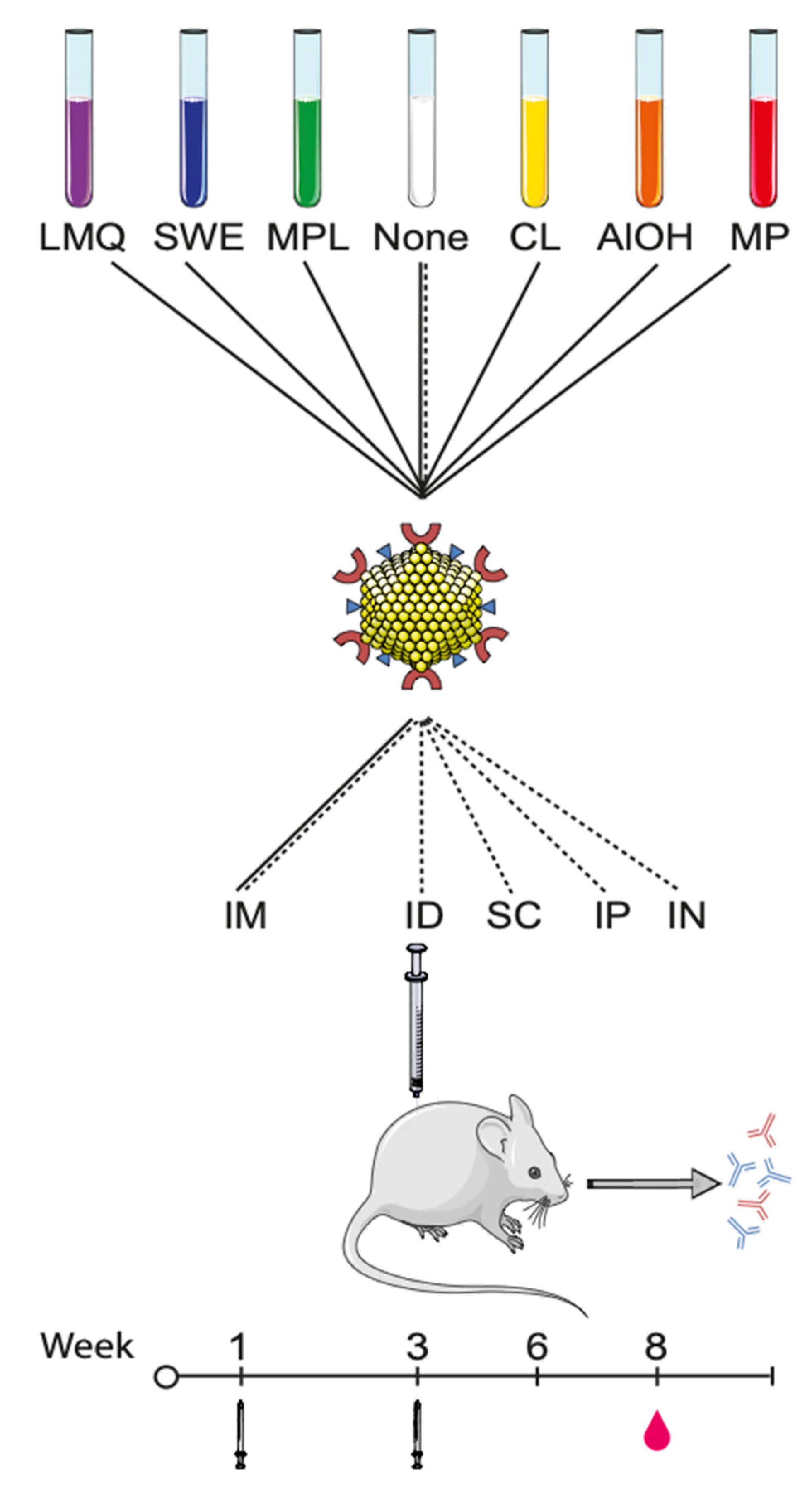

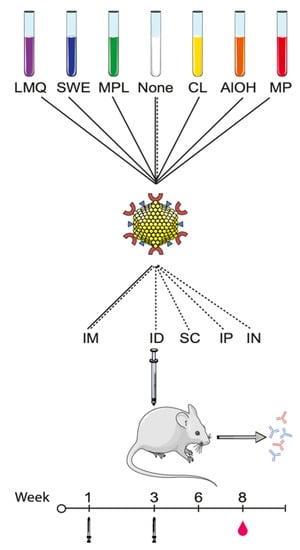

Figure 1. Schematic overview of the adjuvant formulations, vaccination routes, and timepoints employed: SpyCatcher-AP205-L2 CLP (SpyCatcher—red “C” shapes, L2 RG-1 peptide epitope—blue triangles, and CLP structural proteins—yellow spheres) were formulated in six extrinsic adjuvants, including liposomes/MPL/QS21 (LMQ, purple), squalene water emulsion (SWE, blue), monophosphoryl lipid A (MPL, green), cationic liposomes (CL, yellow), aluminum hydroxide (AlOH, orange), or Microparticles (MP, red) or without extrinsic adjuvants (none, white). The mice were immunized intramuscularly (IM) with all CLP formulations in a prime-boost regimen at weeks 1 and 3. Blood was drawn on week 8 (i.e., 5 weeks after last immunization). In a separate study, SpyCatcher-AP205-L2 was formulated without adjuvants (none) and immunized in a prime boost regiment via different routes of injections, specifically IM, intraperitoneally (IP), subcutaneously (SC), intradermally (ID), and intranasally (IN). The graphics of the mouse, the CLP, and reagent tubes have been modified from Servier Medical ART under a creative commons license (https://creativecommons.org/licenses/by/3.0/legalcode (accessed on 6 February 2021)).
Figure 1. Schematic overview of the adjuvant formulations, vaccination routes, and timepoints employed: SpyCatcher-AP205-L2 CLP (SpyCatcher—red “C” shapes, L2 RG-1 peptide epitope—blue triangles, and CLP structural proteins—yellow spheres) were formulated in six extrinsic adjuvants, including liposomes/MPL/QS21 (LMQ, purple), squalene water emulsion (SWE, blue), monophosphoryl lipid A (MPL, green), cationic liposomes (CL, yellow), aluminum hydroxide (AlOH, orange), or Microparticles (MP, red) or without extrinsic adjuvants (none, white). The mice were immunized intramuscularly (IM) with all CLP formulations in a prime-boost regimen at weeks 1 and 3. Blood was drawn on week 8 (i.e., 5 weeks after last immunization). In a separate study, SpyCatcher-AP205-L2 was formulated without adjuvants (none) and immunized in a prime boost regiment via different routes of injections, specifically IM, intraperitoneally (IP), subcutaneously (SC), intradermally (ID), and intranasally (IN). The graphics of the mouse, the CLP, and reagent tubes have been modified from Servier Medical ART under a creative commons license (https://creativecommons.org/licenses/by/3.0/legalcode (accessed on 6 February 2021)).
Vaccines 09 00131 g001
Vaccines 09 00131 g002 550

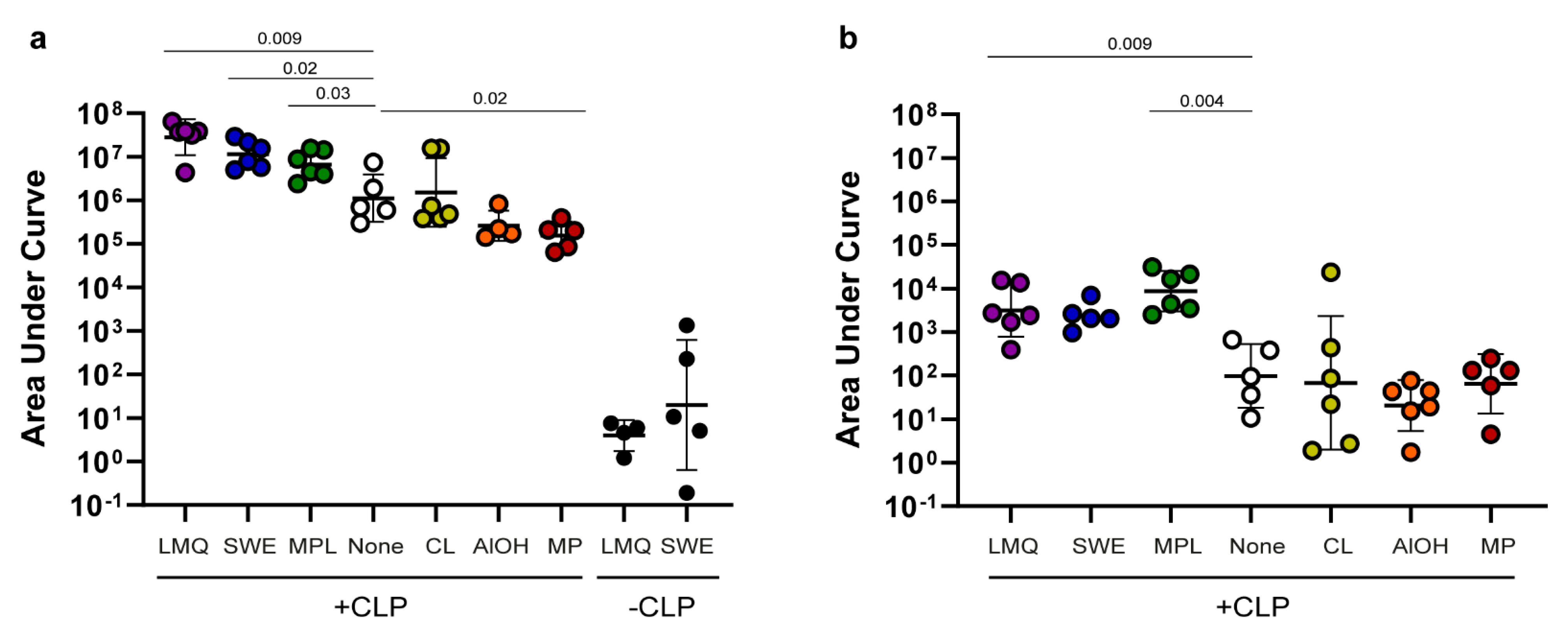

Figure 2. Immunogenicity of antigens on CLP in extrinsic adjuvant formulations: (a) SpyCatcher and (b) HPV peptide-specific IgG levels measured as the area under the curve (AUC) (AUC = the optical density (O.D.) at 450 nm multiplied by the dilution factor) following immunization with the SpyCatcher-AP205-L2 (+CLP) vaccine formulated in different adjuvants. Specifically, mice were immunized with liposomes/MPL/QS21 (LMQ, purple, n = 6), squalene water emulsion (SWE, blue, n = 6), monophosphoryl lipid A (MPL, green, n = 6), no adjuvants (none, white, n = 5), cationic liposomes (CL, yellow, n = 6), aluminum hydroxide (AlOH, orange, n = 4) or microparticles (MP, red, n = 5). The control groups were immunized with soluble SpyCatcher protein formulated in either LMQ or SWE (−CLP, black, n = 6 for both groups) using a similar antigen dose (i.e., similar copy number of SpyCatcher) to that used for the SpyCatcher CLP vaccine. Each circle represents the AUC antibody levels obtained in a single mouse in one representative ELISA assay measurement at an O.D. 450 nm cutoff of 0.1. The geometric mean is shown together with the geometric standard deviation. The Kruskal–Wallis test determined that there was a statistic significant difference between two or more groups ((a) SpyCatcher p < 0.0001 and (b) HPV peptide p = 0.0011). For SpyCatcher, Mann–Whitney nonparametric tests were used to compare the LMQ and SWE control vaccines (−CLP) with their respective LMQ and SWE (+CLP) test vaccines and found significantly increased levels (LMQ p = 0.0095 and SWE p = 0.0043). Hereafter, for both SpyCatcher and the HPV peptide, uncorrected, pairwise Mann–Whitney tests were used to compare the different +CLP adjuvant groups with the un-adjuvanted CLP. Only significant p-values in comparison to the non-adjuvanted group are presented in the graph. See Supplementary Figure S2 for all p-value calculations.
Figure 2. Immunogenicity of antigens on CLP in extrinsic adjuvant formulations: (a) SpyCatcher and (b) HPV peptide-specific IgG levels measured as the area under the curve (AUC) (AUC = the optical density (O.D.) at 450 nm multiplied by the dilution factor) following immunization with the SpyCatcher-AP205-L2 (+CLP) vaccine formulated in different adjuvants. Specifically, mice were immunized with liposomes/MPL/QS21 (LMQ, purple, n = 6), squalene water emulsion (SWE, blue, n = 6), monophosphoryl lipid A (MPL, green, n = 6), no adjuvants (none, white, n = 5), cationic liposomes (CL, yellow, n = 6), aluminum hydroxide (AlOH, orange, n = 4) or microparticles (MP, red, n = 5). The control groups were immunized with soluble SpyCatcher protein formulated in either LMQ or SWE (−CLP, black, n = 6 for both groups) using a similar antigen dose (i.e., similar copy number of SpyCatcher) to that used for the SpyCatcher CLP vaccine. Each circle represents the AUC antibody levels obtained in a single mouse in one representative ELISA assay measurement at an O.D. 450 nm cutoff of 0.1. The geometric mean is shown together with the geometric standard deviation. The Kruskal–Wallis test determined that there was a statistic significant difference between two or more groups ((a) SpyCatcher p < 0.0001 and (b) HPV peptide p = 0.0011). For SpyCatcher, Mann–Whitney nonparametric tests were used to compare the LMQ and SWE control vaccines (−CLP) with their respective LMQ and SWE (+CLP) test vaccines and found significantly increased levels (LMQ p = 0.0095 and SWE p = 0.0043). Hereafter, for both SpyCatcher and the HPV peptide, uncorrected, pairwise Mann–Whitney tests were used to compare the different +CLP adjuvant groups with the un-adjuvanted CLP. Only significant p-values in comparison to the non-adjuvanted group are presented in the graph. See Supplementary Figure S2 for all p-value calculations.
Vaccines 09 00131 g002
Vaccines 09 00131 g003 550
Figure 3. Characterization of vaccine-induced IgG subclasses. To characterize the IgG responses induced by the SpyCatcher-AP205-L2 vaccine formulated in the different extrinsic adjuvants, the relative proportions of IgG subclasses were normalized against the total vaccine-induced IgG. The four panels show the relative amounts of IgG1 (a), IgG2a (b), IgG2b (c) and IgG3 (d). The geometric mean is displayed along with the geometric standard deviation (SD). Kruskal–Wallis test showed that there was significant differences between two or more groups ((a) p = 0.0016, (b) p = 0.0085, (c) p = 0.0380, and (d) p = 0.0052). Hereafter, uncorrected, pairwise Mann–Whitney analysis was conducted to assess statistically significant differences between each of the different adjuvant groups and the un-adjuvanted group (none). Significant differences are indicated in the graph.
Figure 3. Characterization of vaccine-induced IgG subclasses. To characterize the IgG responses induced by the SpyCatcher-AP205-L2 vaccine formulated in the different extrinsic adjuvants, the relative proportions of IgG subclasses were normalized against the total vaccine-induced IgG. The four panels show the relative amounts of IgG1 (a), IgG2a (b), IgG2b (c) and IgG3 (d). The geometric mean is displayed along with the geometric standard deviation (SD). Kruskal–Wallis test showed that there was significant differences between two or more groups ((a) p = 0.0016, (b) p = 0.0085, (c) p = 0.0380, and (d) p = 0.0052). Hereafter, uncorrected, pairwise Mann–Whitney analysis was conducted to assess statistically significant differences between each of the different adjuvant groups and the un-adjuvanted group (none). Significant differences are indicated in the graph.
Vaccines 09 00131 g003
Vaccines 09 00131 g004 550
Figure 4. Immunogenicity of the SpyCatcher-AP205-L2 CLP vaccine using different immunization routes. Anti-SpyCatcher IgG (a) and anti-HPV L2 peptide IgG (b) levels were measured as the area under the curve (AUC) (i.e. optical density (O.D.) at 450 nm multiplied by the dilution factor). Groups of mice (n = 6) were immunized with an equal dose of the unadjuvanted SpyCatcher-AP205-L2 CLP vaccine administered via different immunization routes: intramuscular (IM), intradermal (ID), subcutaneous (SC), intraperitoneal (IP), and intranasal (IN). Kruskal–Wallis test showed that there was a statistically significant difference between two or more groups for SpyCatcher, p = 0.01 (panel (a)), but not for HPV peptide, p = 0.68 (panel (b)). For SpyCatcher, uncorrected, pairwise Mann–Whitney nonparametric tests were used to compare the IM immunized groups with the other routes of immunization. Significant differences are indicated in the graph.
Figure 4. Immunogenicity of the SpyCatcher-AP205-L2 CLP vaccine using different immunization routes. Anti-SpyCatcher IgG (a) and anti-HPV L2 peptide IgG (b) levels were measured as the area under the curve (AUC) (i.e. optical density (O.D.) at 450 nm multiplied by the dilution factor). Groups of mice (n = 6) were immunized with an equal dose of the unadjuvanted SpyCatcher-AP205-L2 CLP vaccine administered via different immunization routes: intramuscular (IM), intradermal (ID), subcutaneous (SC), intraperitoneal (IP), and intranasal (IN). Kruskal–Wallis test showed that there was a statistically significant difference between two or more groups for SpyCatcher, p = 0.01 (panel (a)), but not for HPV peptide, p = 0.68 (panel (b)). For SpyCatcher, uncorrected, pairwise Mann–Whitney nonparametric tests were used to compare the IM immunized groups with the other routes of immunization. Significant differences are indicated in the graph.
Vaccines 09 00131 g004
Table
Table 1. Overview of the extrinsic adjuvants used in present study.
Table 1. Overview of the extrinsic adjuvants used in present study.
Adjuvant Full Name Composition Proposed Th1 /Th2 Phenotype Expected Mode of Action
(Based on Comparable Adjuvant Systems)
LMQLiposomesLiposomes containing DOPC/cholesterol with TLR4 ligand and QS21 saponinTh1 [26,27]TLR4 signaling [28]
TLR4 ligandimmune cell recruitment, activation, and priming [29]
saponinInflammasome activation and antigen cross presentation (QS21) [30]
SWESqualene-in-waterOil-in-water emulsion containing squalene, Tween 80, and Span 85Th1 and Th2 [31]Immune cell recruitment [32]
emulsionInduction of ATP release [33] causing NALP3 inflammasome-independent release of IL33 [34] and triggering Myd88-dependent signaling [35]
MPLMonophosphorylMonophosphorylTh1 [36]TLR4 signaling [28]
lipid Alipid A
CLCationicDPPC (1,2-dipalmitoyl-sn-glycero-3-phosphocholine)/DC-cholesterol (3ß-[N-(N’,N’-dimethylaminoethane)-carbamoyl]cholesterol hydrochloride)Dependent on size [37], charge [38], and rigidity [39]Antigen delivery and retention [40]
liposomesStimulation/activation of antigen presenting- and epithelial cells [41]
AlOHAluminum
hydroxide		AluminumTh2 [42]Antigen delivery and uptake [43];
immune cell recruitment [44]
Uric acid [45], DNA [46], and heat-shock protein 70 [47]
hydroxide
NALP3 inflammasome induction [48]
MPCationic microparticlesPLGA (poly (DL-lactide-co-glycolide)/CTAB (cetyl trimethylammonium bromide)Th1 and Th2 [49]Antigen delivery [49], retention, and uptake [50]
Table
Table 2. Formulation protocol for the capsid-like particle (CLP) vaccine in adjuvants.
Table 2. Formulation protocol for the capsid-like particle (CLP) vaccine in adjuvants.
NameAdjuvant SuspensionAntigen SolutionInjection Volume
AdjuvantPBS (µL)(µL)(µL)
SWE175 µL Squalene Water Emulsion3514050
AlOH61.8 µL Alhydrogel148.214050
LMQ70 µL Liposomes 14050
70 µL MPL-A
70 µL QS21
CL70 µL Cationic Liposomes14014050
MP175 µL Microparticles3514050
MPL70 µL MPL-A14014050
Table
Table 3. Amount of compounds used in the extrinsic adjuvant formulations.
Table 3. Amount of compounds used in the extrinsic adjuvant formulations.
Formulationµg per Dose of 50 µL
SWEsqualene 1000 µg
AlOHAlOH 90 µg
LMQMPL: 10 µg
QS21: 10 µg
CLDPPC: 46 µg
DC-Chol: 34 µg
MicroparticlesPLGA: 250 µg
Dextran: 125 µg
TLR4 bacterial sourceMPL: 10 µg
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Janitzek, C.M.; Carlsen, P.H.R.; Thrane, S.; Khanna, V.M.; Jakob, V.; Barnier-Quer, C.; Collin, N.; Theander, T.G.; Salanti, A.; Nielsen, M.A.; et al. The Immunogenicity of Capsid-Like Particle Vaccines in Combination with Different Adjuvants Using Different Routes of Administration. Vaccines 2021, 9, 131. https://doi.org/10.3390/vaccines9020131

AMA Style

Janitzek CM, Carlsen PHR, Thrane S, Khanna VM, Jakob V, Barnier-Quer C, Collin N, Theander TG, Salanti A, Nielsen MA, et al. The Immunogenicity of Capsid-Like Particle Vaccines in Combination with Different Adjuvants Using Different Routes of Administration. Vaccines. 2021; 9(2):131. https://doi.org/10.3390/vaccines9020131

Chicago/Turabian Style

Janitzek, Christoph M., Philip H. R. Carlsen, Susan Thrane, Vijansh M. Khanna, Virginie Jakob, Christophe Barnier-Quer, Nicolas Collin, Thor G. Theander, Ali Salanti, Morten A. Nielsen, and et al. 2021. "The Immunogenicity of Capsid-Like Particle Vaccines in Combination with Different Adjuvants Using Different Routes of Administration" Vaccines 9, no. 2: 131. https://doi.org/10.3390/vaccines9020131

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
