Porcine epidemic diarrhea virus (PEDV), a member of the genus Alphacoronavirus
in the family Coronaviridae
of the order Nidovirales
, induces acute gastrointestinal symptoms characterized by dehydration, vomiting, diarrhea, and high mortality in newborn and suckling piglets [1
]. PEDV was first identified in England and Belgium in the 1970s and has since been geographically restricted and problematic in Europe and Asia over the last three decades [2
]. However, PEDV first emerged in the United States in 2013 and rapidly spread to adjacent North and South American countries, causing significant financial losses to their swine industries [4
]. Then, the US prototype-like highly virulent G2b PEDV strains almost simultaneously invaded Asian countries, including South Korea, Taiwan, and Japan, resulting in the recurrence of a massive nationwide porcine epidemic diarrhea (PED) epidemic [6
]. PEDV is now one of the most devastating porcine viruses that has emerged or re-emerged, presenting a significant threat to the worldwide pork industry [4
G1a PEDV vaccines have been widely used in some Asian countries, including South Korea, China, Japan, and Thailand. Since 1999, three CV777-based inactivated and live-attenuated bivalent or trivalent vaccines have been used in China and a genotype 2a-based attenuated bivalent vaccine was introduced in 2015 [9
]. The cell-adapted 83P-5 strain has been used as a live-attenuated vaccine (P-5V) in Japan [10
]. The three cell-adapted PEDV strains, KPEDV-9, SM98, and DR-13 were used in Korea. The SM98 strain has been used intramuscularly as a live or killed vaccine, while DR-13 is available as a live oral vaccine [11
]. However, some studies have raised questions about the efficacy of the vaccine since the highly virulent G2b PEDV emerged in the United States in 2013 and rapidly spread to its neighboring countries and Asian nations, causing considerable economic losses to their swine industries [4
]. Owing to the prevalence of G2b PEDV throughout the world, some animal vaccine manufacturers and researchers are making efforts to develop G2b-based PEDV vaccines, considering the vaccine type (live or killed), the route of administration (intramuscular or oral), or antigen type (whole virus or recombinant protein). Accordingly, G2b whole-virus killed vaccines have been developed and used in the pig farms since 2014 in the US and 2015 in Korea, and a G2b live oral vaccine which was produced by Korean isolate, KNU-141113 S-DEL5/ORF3 strain has been approved in Korea and used in farms from 2020.
The process of systematic review has been accepted as a straightforward and replicable tool for synthesizing and analyzing the available data on the efficacy of interventions [14
]. Meta-analysis is a research approach that statistically incorporates and objectively analyzes independent individual research findings on the same subject [15
]. Meta-analysis has the advantage of increasing the number of research subjects by integrating the results of each research study into a weighted average summary calculation, increasing statistical power and precision, and overcoming the limitations of individual studies to obtain general, systematic and objective results [16
A standard test model to evaluate the efficacy of the vaccine is crucial in developing an effective vaccine. However, there has not been a standard evaluation model for PED to date, and researchers typically use their own evaluation model based on previous studies. This research study is therefore intended to confirm the efficacy of the vaccine by systematically reviewing the efficacy evaluation model used in the PEDV vaccine studies published to date.
2. Materials and Methods
2.1. Eligibility Criteria for Study
The criteria for the key question of this study were specified by the PICO (Population, Intervention, Comparison, Outcome) standard [14
]. The population was the pigs that were administered PEDV vaccine. Intervention included the studies that conducted the efficacy test through challenge with a virulent PEDV after vaccination. For comparison, an unvaccinated control group was used. For outcome, fecal consistency score and survival rate after challenge were used.
2.2. Literature Search
According to mutual agreement on the inclusion criteria, the literature was searched using electric databases by two researchers. The literature was searched for studies investigating the effect of vaccines against PED on 30 April in 2020. The studies were written in either English or Korean, and they were identified using PubMed (http://www.ncbi.nlm.nih.org/pubmed/
) and Web of Science (http://apps.webofknowledge.com/
) for English studies and Research Information Sharing Service (RISS, http://www.riss.kr/index.do
) for literature written in Korean. Medical subject headings (MeSH) were used to increase the sensitivity and specificity of the search. The keywords used for the search string in the database in English and translated into Korean are as follows:
“Porcine epidemic diarrhea” AND vaccine
All identified studies were reviewed to obtain information on PEDV vaccine type, vaccination age (i.e., sow, piglet), vaccination route (i.e., intramuscularly, per oral), and efficacy measures. We contacted the corresponding authors to obtain the raw data if we could not obtain the data even though the study met all eligibility criteria. In this meta-analysis, the term “study” was used to define published research, and the term “trial” was used to define the target animal testing with a challenge test conducted within a study.
2.3. Data Extraction
The fecal status after challenge was scored on a 4-point scale from 0 to 3 (0; normal and no diarrhea, 1; mild and fluidic feces, 2; moderate watery diarrhea, 3; severe watery and projectile diarrhea) in 10 of the 12 trials, and a score of 4 given in some papers was irrelevant to scoring fecal status as it was given when pigs died. One of the other two papers classified it into 3 stages [17
], and the other into 6 stages from 1 to 6 points [18
]. In most papers, the fecal score data were presented up until 1 to 2 weeks after challenge, but in some papers, they were presented until Day 5 or 21 after challenge. Since the most severe diarrhea was usually observed on Day 3 after PED challenge and most papers provided data for Days 3 to 6 after challenge, the data on Day 5 after challenge were collected and analyzed. If there were no data on Day 5, the data on the nearest date were used instead. Because the conditions of challenge (pig age on challenge day, type and pathogenicity of the challenge virus, virus dose, etc.) were different, it was deemed that collecting data on the same date for all studies was not truly meaningful. On the other hand, data on the survival rate at the end date of the experiment presented in each paper were used for the analysis, as was the value, although the observation period varied from 4 to 21 days.
2.4. Statistical Analysis

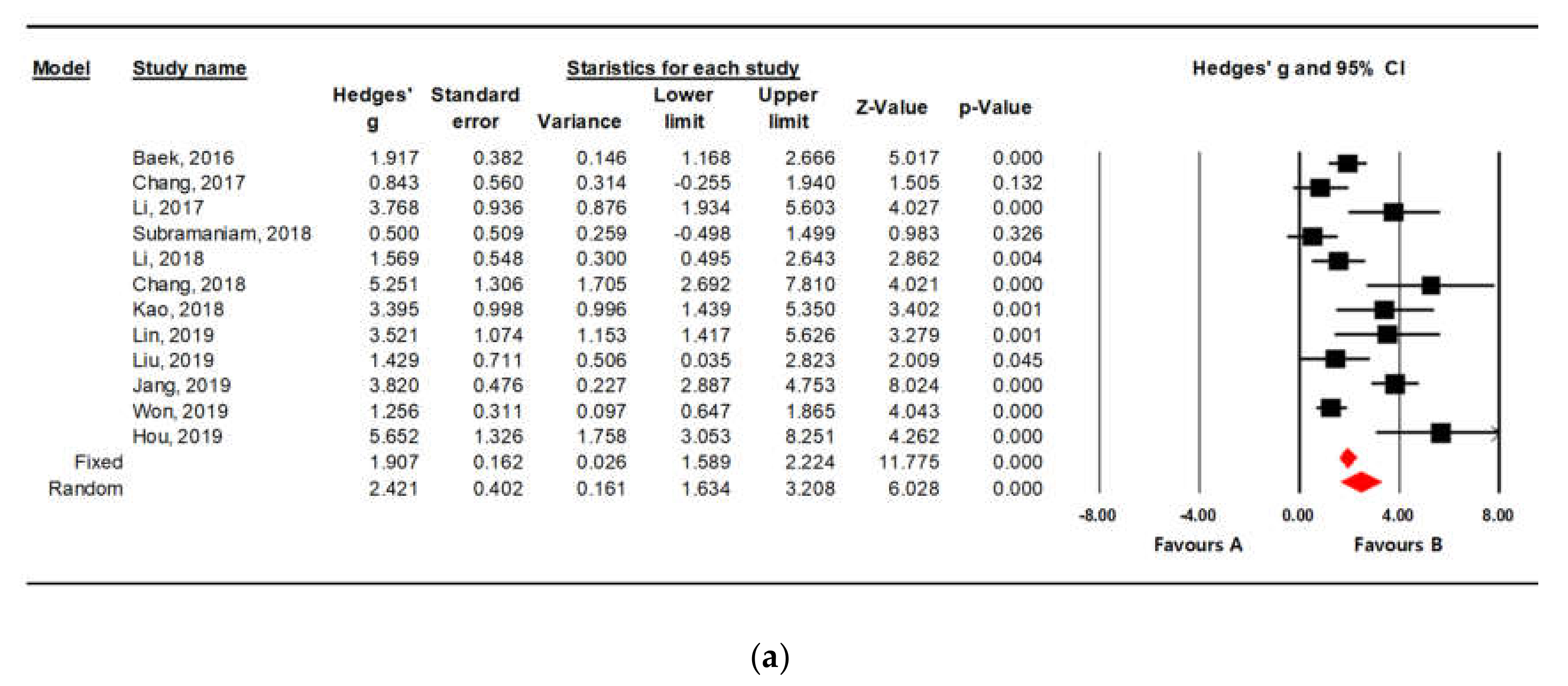

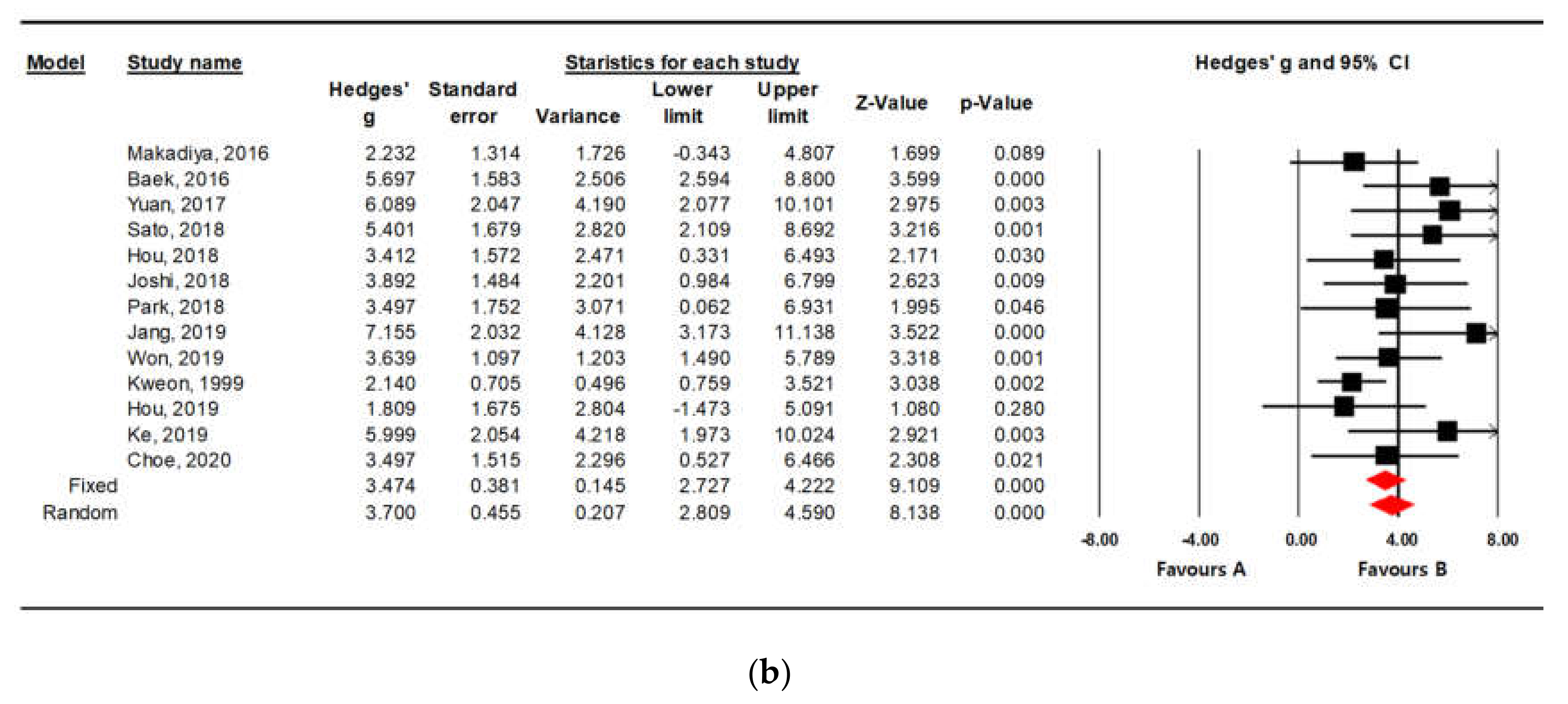

Meta-analysis models are divided into the fixed effects model, which assumes that the effect size for all groups is identical, and the random effects model, which assumes that the effect size of the population varies by study. In this study, the difference in effect sizes was investigated using both models, and the effect size was converted into Hedges’ g for interpretation. In general, the effect size is classified into small effect size (<0.3), medium effect size (0.3 to 0.8), and large effect size (≥0.8).
The effect size can vary among different studies, which is called heterogeneity, and a heterogeneity test was performed to check for heterogeneity. The I2
statistic, which evaluates the degree of heterogeneity, was used along with Q values. Generally, heterogeneity is low for I2
values of ≤25%, moderate for up to 50%, and high for up to 75% [14

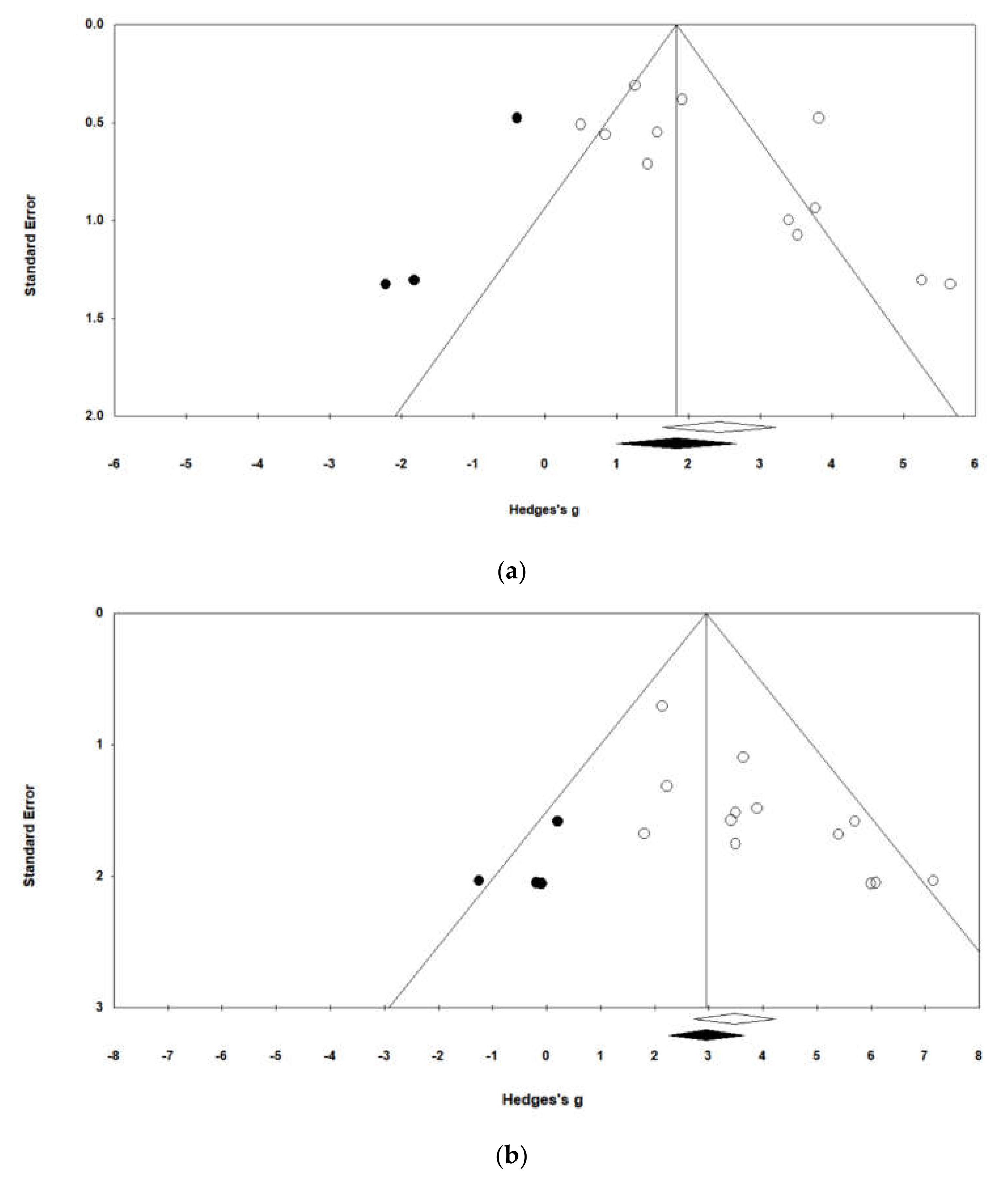

We analyzed the potential publication bias of the target study using a funnel plot [20
]. A funnel plot is a tool used to present the likelihood of error, not to prove error, and the X
-axis and the Y
-axis display effect size and standard error, respectively. In general, studies with large sample sizes show a concentrated distribution around the mean at the top of the graph, while studies with small sample sizes show a relatively dispersed distribution at the bottom of the graph due to their large standard error [21
]. When there was asymmetry in the funnel plot, Egger’s regression test was performed to calculate the exact figure, and a further analysis was performed using the trim-and-fill method to correct the asymmetry and estimate any change in the adjusted overall effect [22
All calculations and analyses of this study were performed using Comprehensive Meta-Analysis Software version 2.0 (Biostat Inc., Englewood, NJ, USA).
Effective vaccines against recently prevalent G2b PEDV are actively under development around the world. However, since there is no definite target animal testing model to prove the efficacy of the vaccines, researchers have been conducting research on vaccine development by setting their own criteria for various efficacy assessments, such as fecal consistency and clinical symptoms, virus output, survival rates, and PED antibodies (IgA, IgG, and VN) in serum or colostrum after challenge. Thus, a meta-analysis was performed using papers published to date to determine whether PEDV vaccines are effective and which vaccine (live or killed vaccine and PO or IM) is more effective in preventing PEDV infection based on the various assessment items used in studies on PEDV vaccine development reported to date. A meta-analysis can generalize a number of existing studies that individually reported the effectiveness of the study through quantitative integration and is useful in that it provides a reasonable basis for clinical decision making [52

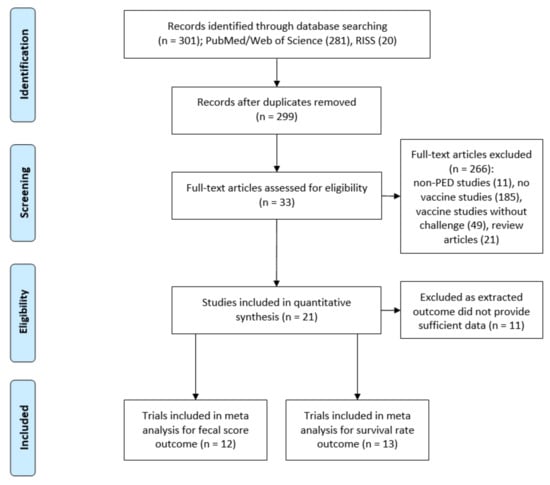

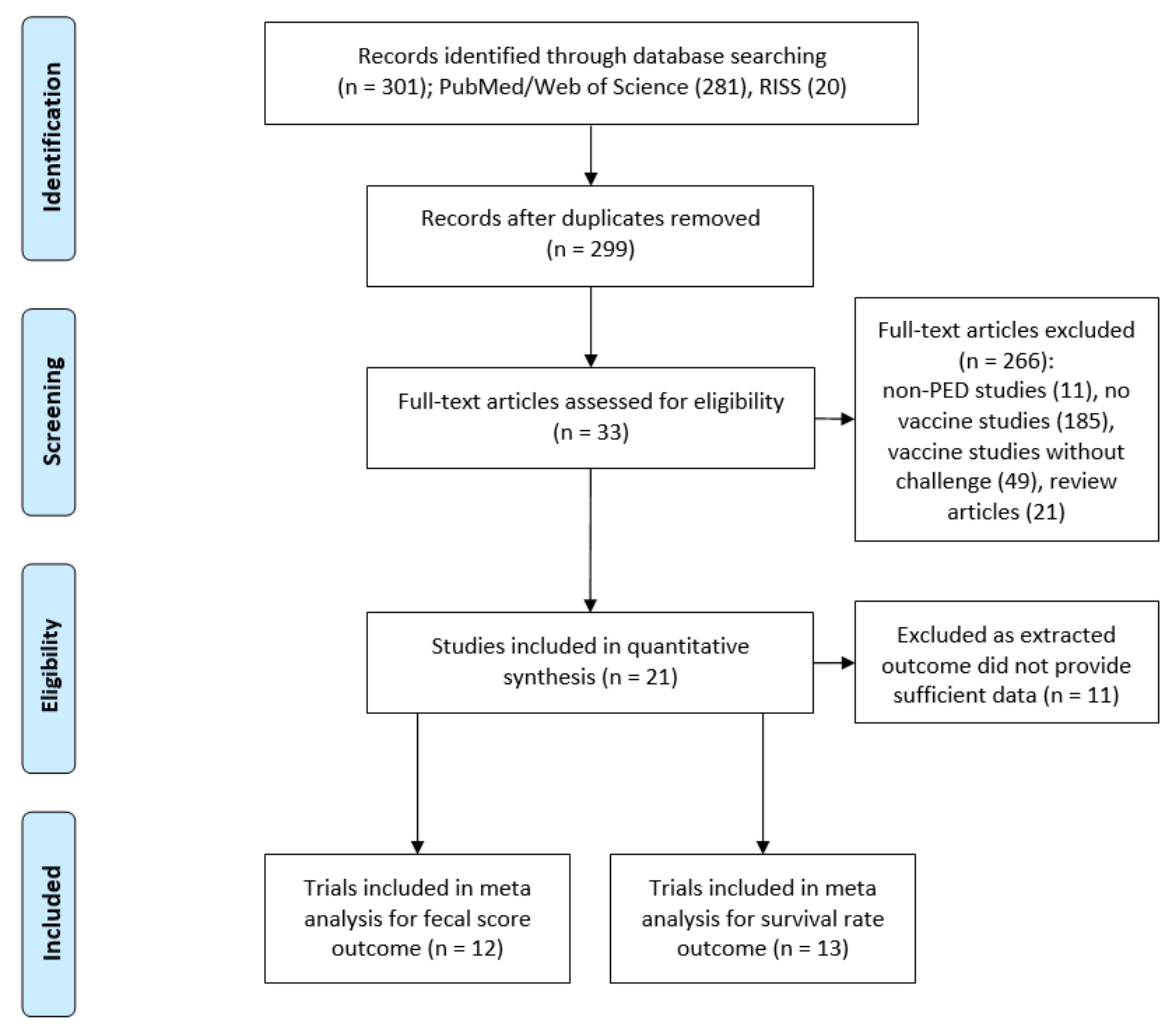

For the literature search, “porcine epidemic diarrhea” and “vaccine” were set as the keywords, and English papers were searched using PubMed and Korean papers using RISS. As a result, 281 and 20 papers were found, respectively. After studies unrelated to a vaccine test, review articles, and papers where the vaccine test was conducted in pigs but a challenge was not performed were excluded, 21 papers were finally selected for this meta-analysis.
In the selected papers, the efficacy of PEDV vaccines was investigated by scoring fecal status and comparing survival rates and virus output with nonvaccinated control groups after challenge or by measuring IgA, IgG, neutralizing antibodies, etc., in the serum or colostrum of pigs. However, the analysis of real-time PCR data on the dose of virus for challenge excreted in feces or serum test results, which were used as a common evaluation index in many research papers on PEDV vaccines, could not be used in this meta-analysis since the numbers in the studies were too different to integrate the results of each study and there was a limit to collecting the information needed for the meta-analysis. In this study, the efficacy of PEDV vaccines was analyzed using data on fecal scores and survival rates of pigs after challenge.
In 10 out of the 13 trials that identified the survival rates of pigs after challenge, sows were vaccinated, and challenge was performed on their piglets. In two trials, 1-day-old and 4-day-old piglets were vaccinated and challenged. In a paper published by Yuan X et al. [44
], 4-week-old minipigs were vaccinated, and they were challenged. Observation of the survival rates of the pigs after challenge was monitored for at least 4 days and up to 21 days depending on the paper. In this meta-analysis, survival rate analysis was performed using the final survival rate results presented after the end of the survival rate observation period for each study.
The results of the heterogeneity analysis confirmed that there was severe heterogeneity when using the fecal scores for analysis. The reasons for the severe heterogeneity were speculated to be due to different time intervals of challenge after vaccination, different ages of pigs on the challenge day, different pathogenicity of the challenge virus, and various concentrations and doses of the virus for challenge. In contrast, there was low heterogeneity when it was analyzed using the survival rate data after challenge. It was thought that the difference in the results of each study was relatively small because each study identified the dose of challenge virus that could induce death of pigs in the control group that were not vaccinated before the trial and then perform challenge relative to the virus dose. In fact, among the 13 trials that analyzed the survival rate of pigs after challenge, the survival rate of the control group was 0% to 20% in 10 trials, and in the other 3 studies, the survival rate of the control group was 42.9% to 66.7%.
An analysis of publication bias was conducted on the papers analyzed in this study. Publication bias refers to the bias where the results of a meta-analysis are distorted because positive studies are more likely to be published as journal editors prefer positive studies that show statistically significant differences to negative studies, and as a result, positive studies are found more often [53
]. In this study, publication bias was evaluated using funnel plots and Egger’s regression test, and publication bias was confirmed in the results of the meta-analysis using data on fecal scores and survival rates. To overcome such errors, gray literature that has not been formally published should be used in a meta-analysis.
Since our study analyzed papers that were written and published in English and Korean, excluding research papers published in languages other than English and Korean from this analysis can be considered a limitation. In addition, using only the fecal scores and survival rates for the analysis as well as failing to analyze the virus output and antibody titers in the serum after challenge were other limitations.
To analyze the difference in the efficacy of PEDV vaccines based on vaccine type or vaccination route, vaccines were classified into killed vaccine and live vaccine and IM and PO, respectively, for analysis of their efficacy. In both cases, statistically significant differences were not found. Thus, differences in the efficacy of the vaccines based on vaccine type or vaccination route were not accepted. In some recent papers, it was reported that the efficacy of PEDV vaccines is questionable [8
], but this is because cross-protection between different genotypes did not work due to the mutations in PEDV, and other researchers have already confirmed and reported that cross-protection of the PEDV G1a and G2b types partially works [23
Immunization of pregnant sows is important for controlling the PED epidemic and reducing the number of deaths in suckling piglets [5
]. Several live and killed PED vaccines that can be administered to sows are already commercially available on the market [9
]. Our study suggests that the use of developed or commercially available PED vaccines could be a useful method of control and prevention of PED, regardless of the type of vaccine and route of administration.
