Multiple Genome Wide Association Mapping Models Identify Quantitative Trait Nucleotides for Brown Planthopper (Nilaparvata lugens) Resistance in MAGIC Indica Population of Rice

Institute of Biotechnology, Professor Jayashankar Telangana State Agricultural University, Rajendranagar, Hyderabad 500030, India
Entomology, Pathology and Plant breeding Division, Indian Institute of Rice Research (ICAR-IIRR), Rajendranagar, Hyderabad 500030, India
Plant Breeding Division, International Rice Research Institute (IRRI)-South Asia Hub (SAH), Patancheru, Hyderabad 502324, India
Plant Breeding Division, International Rice Research Institute (IRRI), Metro Manila 1226, Philippines
Program Leader and Principal Scientist (Plant Breeding), Crop Diversification and Genetics, International Center for Biosaline Agriculture, Academic City, Dubai 14660, UAE
Department of Agriculture, Plant Biotechnology Center, Shwe Nanthar, Mingalardon Township, Yangon 11021, Myanmar
Department of Biotechnology Engineering, Ben-Gurion University of the Negev, Beer Sheva 84105, Israel
Agriculture Statistics Division, International Crops Research for the Semi-Arid Tropics (ICRISAT), Patancheru, Hyderabad 502324, India
MFPI-Quality Control Lab, Professor Jayashankar Telangana State Agricultural University, Rajendranagar, Hyderabad 500030, India
Plant Breeding Division, Indian Institute of Millets Research (ICAR-IIMR), Rajendranagar, Hyderabad 500030, India
Author to whom correspondence should be addressed.
Vaccines 2020, 8(4), 608;
Received: 17 September 2020 / Revised: 7 October 2020 / Accepted: 8 October 2020 / Published: 14 October 2020
(This article belongs to the Special Issue Immune Mechanisms in Plants)


Brown planthopper (BPH), one of the most important pests of the rice (Oryza sativa) crop, becomes catastrophic under severe infestations and causes up to 60% yield loss. The highly disastrous BPH biotype in the Indian sub-continent is Biotype 4, which also known as the South Asian Biotype. Though many resistance genes were mapped until now, the utility of the resistance genes in the breeding programs is limited due to the breakdown of resistance and emergence of new biotypes. Hence, to identify the resistance genes for this economically important pest, we have used a multi-parent advanced generation intercross (MAGIC) panel consisting of 391 lines developed from eight indica founder parents. The panel was phenotyped at the controlled conditions for two consecutive years. A set of 27,041 cured polymorphic single nucleotide polymorphism (SNPs) and across-year phenotypic data were used for the identification of marker–trait associations. Genome-wide association analysis was performed to find out consistent associations by employing four single and two multi-locus models. Sixty-one SNPs were consistently detected by all six models. A set of 190 significant marker-associations identified by fixed and random model circulating probability unification (FarmCPU) were considered for searching resistance candidate genes. The highest number of annotated genes were found in chromosome 6 followed by 5 and 1. Ninety-two annotated genes identified across chromosomes of which 13 genes are associated BPH resistance including NB-ARC (nucleotide binding in APAF-1, R gene products, and CED-4) domain-containing protein, NHL repeat-containing protein, LRR containing protein, and WRKY70. The significant SNPs and resistant lines identified from our study could be used for an accelerated breeding program to develop new BPH resistant cultivars.

1. Introduction

Brown planthopper (BPH) (Nilaparvata lugens (Stål)), an outbreak-prone insect pest, causes heavy yield loss in rice (Oryza sativa) production ecologies. It has become a serious economic threat to rice production in several parts of Asia including India due to the rampant use of nitrogenous fertilizers and prophylactic insecticide applications. The famine death of one million people due to a severe attack of BPH was reported in Japan during 1732 [1]. The first and most severe outbreak of BPH with considerable economic damage in India was observed during 1973–1974, which had resulted in damage of almost 50,000 ha of rice crop [2,3]. Outbreaks of BPH were continued thereafter up to 1983 in different states and it attained number one pest status from 2007–2008 onwards due to its widespread outbreaks in India [4].
BPH is a monophagous pest. The mode of damage is a combination of two ways: 1. by laying egg masses in the midrib of the leaf sheath and blade thus blocking the xylem and phloem, and 2. continuously sucking sap from the phloem so that leaves become completely dry. This kind of symptom is commonly known as “hopper burn” since it visually creates a burning effect in the field but leads to total crop failure. All life forms—nymphs and adults—are capable of damaging the plant in all growth stages [5]. The infested plants are prone to secondary infection by sooty mold due to the excretion of honeydew by BPH. It is the carrier of grassy stunt and ragged stunt viral diseases [6].
Resistant rice cultivars with different stress tolerance systems reveal distinct resistant phenotypic characters to BPH, and consequently, its succession diversifies BPH populations [7]. So far, four known BPH biotypes were found [8,9] in rice ecologies. Biotype 1 belongs to East and Southeast Asia; Biotype 2, a dominant one, originated in Indonesia and Vietnam; Biotype 3 originated in the International Rice Research Institute (IRRI) laboratory [10]; and Biotype 4 is exclusive to the Indian subcontinent [11]. To date, about 38 Bph, 14 White-backed brown planthopper (WBph), 34 Small brown planthopper (SBph) resistance genes and about 100 quantitative trait locus (QTLs) were identified from indica sps., and other wild species of rice [11,12,13,14,15,16]. Though resistant cultivars have been developed and released for BPH such as IR26, IR36 and IR50, the evolution of new biotypes and breakdown of resistance are quite common in the improved cultivars. Resistance could be broken down when the resistance is governed by a single gene [17]. The heavy application of pesticides in rice cultivation also leads to pest resurgence, thus causing serious crop damage as well as the hazardous effects of pesticides on the grains. All these factors urged researchers to search for new resistant genetic and genomic resources for BPH.
Multi-parent advanced generation intercross (MAGIC) is developed by several generations of inter-mating of multiple founder parents [18]. Increased recombination events in the MAGIC developmental process result in increased mapping resolution and eliminate the effects of population sub-structures [19]. MAGIC has been successfully used to map QTLs in rice [20]. In rice, IRRI developed four MAGIC populations using sub-species-specific founders or a combination of founders, namely, MAGIC indica, japonica MAGIC, MAGIC indica plus, and Global MAGIC [21,22] to map multiple traits.
So far, no previous report is available for BPH resistance through the genome-wide association mapping (GWAS) approach in rice using high-density single nucleotide polymorphisms (SNPs). Here, we used a MAGIC indica population to identify the marker–trait associations through multiple GWAS models for BPH resistance using high-resolution SNP data. Six GWAS models were employed for the identification of significant SNPs and the results of the models were compared. The GWAS approach identified quantitative trait nucleotides (QTNs) associated with resistance genes and the results are discussed with reference to their utility in the rice breeding programmes.

2. Materials and Methods

2.1. Plant Material

The MAGIC indica population, hereafter called the RiMi panel, used in this study was developed at IRRI, Manila, Philippines [21]. The population development was initiated by crossing 8 elite indica founders, namely, Fedearroz 50, SANHUANGZHAN-2, IR64633-87-2-2-3-3 (PSBRc82), IR4630-22-2-5-1-3, IR45427-2B-2-2B-1-1, Samba Mahsuri +Sub1, IR77298-14-1-2-10 and IR77186-122-2-2-3 (PSBRc 158) in a half-diallel mating design. A set of 28 F1s were selected to develop 210 4-way crosses by avoiding duplicate crosses. The 4-way crosses were intermated two times and further selfed continuously until the S11 stage (Figure 1). A set of 1361 MAGIC lines were finally derived from the selfed population [22]. Of these, a sub-set of 391 randomly selected lines was used in the present experiment (Table S1).

2.2. Phenotyping, Scoring and Data Analysis

The Standard Seed box Screening Technique (SSST) [23] was used to screen the RiMi panel for BPH resistance in the glass-house facility at ICAR—the Indian Institute of Rice Research, Hyderabad, during the rainy seasons of 2016 and 2017 in an augmented complete block design. SSST is a rapid and efficient method to screen a large set of rice genotypes for the identification of field-resistant cultivars in the greenhouse [24,25]. A commonly used susceptible line, Taichung Native 1 (TN1), was used for the mass rearing of insects [10,23]. Adults were initially collected from the rice fields and the pure colony was maintained in the greenhouse at 30 °C ± 50 °C temperature, and 60 ± 5% relative humidity, which was congenial for the mass multiplication of BPH. The females were released on the 60-day-old potted plants placed in 70 × 75 cm oviposition cages. Plants with egg masses were selected and kept in different cages for nymphal emergence and the second to third instar nymphs were collected for infestation on the RiMi panel.
Around 15 sprouted seeds in each of the 391 RiMi panel lines were seeded in a standard seed tray with a size of 60L × 45W × 10H cm, which was filled with fertilizer-enriched puddled soil. In each tray, 20 MAGIC lines were sown by keeping two genotypes per row with an inter-line spacing of 3 cm. Susceptible check TN1 was covered in the borders and the resistant checks PTB33 and RP2068 were used in the middle rows of the seed tray. The trays with three-day-old seedlings were placed in big plastic trays containing water of 5 cm depth. The phenotyping was started by introducing six to eight second to third instar nymphs into 12 days-old seedlings [25]. The infestation was scored on a 0 to 9 scale [26] when 90% of the TN1 seedlings were succumbed. The augmented block design was conducted with two replications in 10 blocks containing 40 RiMi lines in all the blocks except in one with 31 RiMi lines per replication. Data on three checks (Two resistant and one susceptible) was recorded from every second tray considering the genotypes planted in two trays as one block. The material was evaluated in the augmented block design. The recorded data was subjected to analysis of variance using the R package “augmented RCBD” [27,28].

2.3. Genotyping and SNP Calling in GBS Pipeline

The MAGIC panel was genotyped by the Genotyping-By-Sequencing (GBS) approach [29] through Illumina HiSeq. The raw GBS data files (raw genotype files are available at were curated by GBS pipeline using Tassel 3.0.169 [30] by filtering at <30% missing and 0.05 minor allele frequency (MAF) [22]. A set of 27,041 SNPs identified in the subset of the 391 RiMi lines were considered for the present experiment.

2.4. Genome-Wide Association Analysis

The curated 27,041 SNPs and BPH phenotypic data of the RiMi panel were used for GWAS analysis using genetic association and prediction integrated tools (GAPIT) developed by [31]. GWAS was performed excluding founders, considering the MAGIC lines as unrelated individuals, since MAGIC population has a negligible population structure [21,32]. Four single-locus models such as the general linear model (GLM) [33], mixed linear model (MLM) [34,35], compressed mixed linear model (CMLM) [36] and settlement of MLM under progressively exclusive relationship (SUPER) [37], and two multi-locus models such as the multi locus mixed model (MLMM) [38] and fixed and random model circulating probability unification (FarmCPU) [36], were engaged to identify the marker–trait association. Bonferroni correction was applied to modify the threshold value and to control the false positive rate (FDR) in four single-locus GWAS. The results from all six models were compared to find out the consistency and repeatability of the associations. SNPs obtained by FarmCPU were considered for the candidate gene search for BPH resistance.

3. Results and Discussion

Plants are challenged by numerous herbivorous insects invade their natural environment. In consequence, they express diverse substantial and induced defense mechanisms, safeguarding themselves from herbivore attacks [39]. The first BPH resistant rice cultivar is IR26, followed by IR36 and IR50, which are improved by the IRRI. A number of QTNs against BPH in rice have been reported in this study. BPH is the most destructive monophagous, phloem sap-sucking insect, throughout Asia, causing significant yield losses to the rice crop [40,41]. BPH causes an annual estimated economic loss of more than 300 million USD in rice production ecologies of Asia [41,42].
So far, around 38 genes were mapped for BPH by several experiments through biparental mapping approaches. Almost 80% of the resistance genes were mapped in four major clusters on the rice genome using the mapping populations of indica and other wild species. Chromosome 4 has 12 genes that are clustered in three regions (Bph30 and Bph33 in a 0.91–0.97 Mb region between markers H99 and H101; Bph3/17, Bph12, Bph15, Bph20(t), and bph22(t) in a 4.1–8.9 Mb region between markers RM8212 and B44; and Bph6, bph18(t), Bph27, Bph27(t), and Bph34 in a 19.1–25.0 Mb region between markers RM16846 and RM6506), chromosome 12 L has eight genes (Bph1, bph2, bph7, Bph9, Bph10, Bph18, Bph21 and Bph26) that are clustered together in a 19.1–24.4 Mb region between markers RM7102 and B122, five genes are on chromosome 6S (Bph3/ Bph32bph4, Bph22, Bph25 and bph29 ) in a 0.2–1.7 Mb region between markers S00310 and RM8101, and chromosome 3 has five genes (Bph13 and bph19(t) on 3S [37], and Bph11, Bph14, and Bph31 3 L) [43,44,45,46,47,48].
Controlling the pest becomes ineffective since surface spray of pesticides could not reach the base of the infestation point. The rampant use of chemicals results in the development of resistance against many insecticides and the evolution of new biotypes. Recently, [41] reported that the excessive use of nitrogen fertilizers in the agricultural fields has an adverse impact on the environment, is valuable, and can advance the pest herbivores. The development of durable resistant varieties is not only an efficient measure to manage the pests, but also to conserve the ecological balance and safety. The BPH population in India, referred to as the South Asian biotype (Biotype 4), is more virulent than those in Southeast Asia (Biotype 2 and 3) [49,50]. Resistance genes identified for the Indian biotype are very few and are unable to offer broad-spectrum resistance. Here, a high-density SNP genotyped MAGIC population was used to improve the resolution of the trait association as well as to find the causal genes for resistance.

3.1. Response to Infestation

Screening at the seedling stage is an effective high-throughput method for the rapid and efficient screening of large germplasms as field screening offers inconsistent results due to improper control over the experimentation. A major difficulty in the screening of rice genotypes for BPH tolerance under field conditions is the lack of efficient screening techniques, problems associated with biotype selection, and environmental factors on the uniform density of the insect population. In SSST-based screening, a reliable phenotyping technique, phenotyping was done when all the TN1 (susceptible check) seedlings were dead. The infestation of the RiMI lines was scored on a 0 to 9 scale [26]. The scale of 0 to 3, 3 to 5, 5 to 7 and 7 to 9 were scored as resistant, moderately resistant, moderately susceptible, and susceptible, respectively. The results of the analysis of variance are shown in Table 1. The RiMi panel exhibited a broader variation for a phenotypic score in both the years. The ANOVA revealed a significant mean sum of squares for different sources of variation except for block (eliminating treatments). Frequency distribution-based adjusted mean values are represented in Figure 2. There was a significant skewness towards susceptibility, since the majority of the lines in the panel recorded a 7 to 9 score. This could be attributed to the fact that most of the RiMi lines were segregated for susceptibility. Twenty-three lines recorded a <5.0 score consistently in both of the seasons. TN1 showed complete susceptibility (9 score) whereas resistant checks PTB33 and RP2068 showed scores of less than two and three, respectively.
BPH resistance scores in both the years revealed a significant variation available for insect response in the RiMi panel (Table S2). Lines MIB_4393, MIB_3693, MIB_4077 and MIB_4570 were identified as the best lines for BPH resistance, since the score was less than two, which was equivalent to best check PTB33. Eight RiMi lines, MIB_4370, MIB_3850, MIB_4208, MIB_4241, MIB_4619, MIB_3409, MIB_4134 and MIB_4286, showed a similar response as that of the resistant check RP 2068. Eleven lines were found to be moderately resistant to BPH with the score of <5.0. Moderate susceptibility was recorded by 84 lines. A total of 191 and 93 RiMi lines showed susceptible (score 7) and highly susceptible (score 9) reaction towards BPH incidence.
Though 38 genes were reported for Biotype 4 from landraces and wild species [44,49,51], resistance was very low and donors were inferior in agronomic and quality traits. The popular BPH resistance sources, PTB33 (Bph2 and Bph3 donor) and Rathu Heenati (Bph3 and Bph17 donor), are agronomically inferior, hence identification of superior segregants with farmers’ preferred slender grain in the recombinant programme is always a challenge.
The 391 RiMi lines used in the study were selected for superior agronomic and grain quality traits with BPH resistance. Better combinations of segregants for these traits were achieved in the resultant population since MAGIC provides more rounds of recombination by its design and makes it possible to break genetic drag and leads to novel genetic rearrangements with greater genetic diversity [32,52,53].
Among the RiMi lines, the identified MIB_4393, MIB_3693, MIB_4077, and MIB_4570, which are similar to PTB33 in resistance, could be used as new sources of resistance for developing varieties without genetic drag in the breeding programmes.

3.2. Marker and Covariates

A total of 27,041 polymorphic SNPs developed in the RiMi panel were used in this experiment. The SNP set with the MAF = 0.05 and with <30% missing data, was distributed across 12 chromosomes, with an average of 2253 SNPs per chromosome. The highest number of SNPs was detected on chromosome 1 (3495 SNPs) and the lowest on chromosome 9 (1386 SNPs). The grouping pattern of the RiMi panel was inferred using principal component analysis (PCA). The RiMi panel explained the uniform distribution of alleles without any population structure (Figure 3). Principal components that explained up to 50% of the total variation were included in the GWAS models to correct any uneven allele frequencies. Kinship matrices built in the respective association mapping models were used for the additional correction of false positives.

3.3. Identification of SNPs

MAGIC populations developed in several crops including rice serve as potential genetic resources for the identification of QTLs. In the global MAGIC population of rice, 38 and 34 QTLs for yield and grain quality traits were identified through GWAS and interval mapping, respectively [20]. GWAS analysis was conducted using mixed linear models in the MAGIC indica plus population of rice, and 57 significant genomic regions for agronomic and bio-fortification traits were detected [54].
Here, we conducted the GWAS analysis in the MAGIC population using four single-locus models (GLM, MLM, CMLM and SUPER) and two multi-locus models (MLMM and Farm CPU) to identify the common SNPs associated with BPH resistance (Figure S1). Each model has its own characteristics in terms of statistical power, selection of covariates, grouping of markers, computational power, ability to control false positives and the ability to include true associations, and so on [55]. Considering these factors and the trait complexity, we wanted to engage all these models to find out the marker–trait association, and the results from the different models are compared.
We considered the p value <10−3 to identify significant SNPs across models and, using this threshold, a total of 248 associated SNPs that were significant for BPH resistance were detected for the mean BPH data. These SNPs were distributed on chromosomes 1, 2, 4, 5, 6, 7, 10, 11, and 12. The order of SNPs detected by various models is as follows: GLM (213), Farm CPU (190), MLMM (167), SUPER (162), MLM (91) and CMLM (80) (Table S3).
We have identified a maximum of 213 SNPs by employing the GLM model mapped on chromosomes 1, 2, 4, 5, 6, 7, 10 and 12. GLM detected the highest number of associations since it is the less stringent model among all, and hence, it is prone to detect more false positives. Both the MLM and CMLM methods identified the lowest number of SNPs (91 and 80, respectively) compared to other models. CMLM is an improvised MLM procedure by way of grouping the markers while a generating kinship relationship that could have reduced SNP associations over MLM. Among the single locus models used in this study, SUPER was the only method that could identify the marker–trait associations on chromosome 11 in addition to chromosomes 1, 2, 4, 5, 6, 7, 10, and 12. SUPER uses a subset of markers to compute the kinship, hence the statistical power is improved over MLM [37].
The MLMM is one of the multi-locus models, and it uses forward selection and backward elimination of SNPs based on heritable variance. This method identified 167 marker-trait associations that are distributed over chromosomes 1, 2, 4, 5, 6, and 10. Farm CPU is an improvised approach by combining the advantages of MLLM and SUPER to achieve better statistical power and computational efficiency [55]. A total of 190 SNPs were identified through FarmCPU, of which 190, 78, 69, 138, and 136 were co-mapped with GLM, MLM, CMLM, MLMM, and SUPER, respectively. In total, 58 common SNPs on chromosome 1 (7 SNPs), 2 (1 SNPs), 4 (1 SNPs), 5 (11 SNPs), 6 (36 SNPs) and 10 (2 SNPs) were mapped across models (Table 2).
Since FarmCPU is the comprehensive model among all, we considered the results obtained by FarmCPU for identification of resistance genes associated with the SNPs. The identified 190 significant SNP loci located on chromosomes 1 (20 SNPs), 2 (20 SNPs), 4 (11 SNPs), 5 (39 SNPs), 6 (88 SNPs), 7 (5 SNPs) and 10 (7 SNPs) were used for searching genes in their vicinity (Figure 4). The Manhattan plots and QQ plots for BPH resistance during 2016, 2017 and for the mean over years from FarmCPU are presented in Figure 5. Manhattan plots and QQ plots of GWAS for the other five models are submitted as Supplementary Figure S2.
Four important SNP clusters were identified on chromosome 1 and 2, where 20 SNPs were distributed in these regions (Table S3). One cluster was located in the 12 to 14.5 Mb region on the short arm of chromosome 1 and three clusters were located in the 1 to 2 Mb, 7.5 to 8.5 Mb and 34 to 35.5 Mb regions on both the short and long arms of chromosome 2. Significant SNPs identified on a long arm of chromosome 2 were mapped near (approximately 2 Mb regions away from) the Bph13 (t) gene reported in O. eichingeri [56] (Figure 4).
Eleven significant SNPs that were identified at the 3 to 5.5 Mb region on the short arm of the chromosome 4 were also co-localized with Qbph4, Bph17 [57] and Bph12 [58]. Co-localization of the significant SNPs in the vicinity of the identified resistance gene locations such as Bph13 explained the fact that the founder lines are directly or indirectly descended from any one of those wild species [59].
Two regions with 39 SNPs spanning a region 0.7 to 1.1 Mb (short arm) and 23.0 to 24.0 Mb (long arm) were identified on chromosome 5. It is to be noted that the long arm of chromosome 5 was earlier mapped for Qbph5 [60], indicating the importance of this region for searching resistance gene(s).
Chromosome 6 showed one major cluster of SNPs on short arm from 6.0 to 9.0 Mb with 86 SNPs. Bph32 was identified and located 4 Mb away from this region [61]. Five SNPs were clustered on chromosome 7 at a physical distance from 10 to 19.5 Mb and seven closely located SNPs mapped on the short arm of chromosome 10 from the 18 to 19 Mb region. Qbph7 [62] mapped on the long arm of chromosome 7 was found within the identified SNP cluster.

3.4. Identification for Candidate Genes for Resistance Based on SNPs

The genes associated with BPH resistance were extracted from the annotated gene search in the Rice Genome Annotation Project (Michigan State University Rice Genome Annotation Project (MSU-RAP) database (Osa1) Release 7), to identify the novel candidate genes. The results are given in Table S4. The search produced 92 annotated genes associated with 189 Quantitative Trait Nucleotides (QTNs). Chromosome 6 mapped the greatest number of genes (39) followed by chromosome 5 (18 genes) and chromosome 1 (12 genes). Among the 39 genes on chromosome 6, nine were found to have a defense-related functional mechanism (Table 3). Genes LOC_Os06g11010, LOC_Os06g12160, LOC_Os06g12360, LOC_Os06g12610, LOC_Os06g12870, LOC_Os06g13600, LOC_Os06g14510, LOC_Os06g15750 and LOC_Os06g15820 represent stress responsive proteins, eukaryotic aspartyl protease domain containing protein, AAA-type ATPase family protein, pentatricopeptide, auxin efflux carrier component, leaf senescence related protein, HEAT repeat family protein, glucose-6-phosphate isomerase, NB-ARC domain containing protein, and NHL repeat-containing protein, respectively. Twenty-one casual QTNs (S6_5759360, S6_6513819, S6_6514012, S6_6697070, S6_6869009, S6_7045328, S6_7045355, S6_7531094, S6_7531433, S6_7531437, S6_7538495, S6_8153078, S6_8932488, S6_8977107, S6_8977116, S6_8977156, S6_8977190, S6_8977712, S6_8977949, S6_8977972, and S6_8982135) were associated with these genes. A gene LOC_Os06g18600 associated with S7_10995384 was also found to encode a stress responsive gene OsFBL37-F-box domain and LRR containing protein. Bph9, Bph18 and Bph26 on chromosome 12 [63,64,65] and Bph14 on chromosome 3 [43] were identified to encode proteins, namely, coiled-coil, nucleotide-binding-site and leucine-rich repeat (CC-NBS-LRR).
On chromosome 5, eight significant QTNs, S5_23249078, S5_23249119, S5_23249125, S5_23249237, S5_23249605, S5_23310970, S5_23312204 and S5_23314218 are mapped in the genic locations of LOC_Os05g39590 and LOC_Os05g39720 encoding AP2 domain containing protein and WRKY70. These two transcription factors are involved in a stress tolerant mechanism that could contribute to BPH resistance. The AP2 (APETALA2)/EREBP (Ethylene-Responsive Element-Binding Protein) family has an important regulatory function in environmental stress tolerance, that regulates diverse processes of plant development and metabolism. It mainly regulates ABA dependent or ABA independent stress responsive pathways and is also known to be involved in biotic stress response through the Jasmonic acid pathway and in abiotic stress response through the ABA biosynthetic pathway [66]. WRKY, a class of TF, is involved in plant stress responses including biotic stresses [67]. A class of WRKY, known as OsWRKY13, mediated the gene regulation through Salicylate and Jasmonate-dependent signaling pathways in rice disease resistance [68]. The Bph14 resistance gene is associated with WRKY46 and WRKY72 by protecting them from degradation, thus providing resistance [69]. The above-mentioned WRKY TFs provide BPF resistance by over-expressing the RLCK281 and callose synthase genes.
A gene LOC_Os01g24690 is associated with QTN S1_13898444 among 12 annotated genes identified on chromosome 1, encoding 60S ribosomal protein L23A. Ribosomal proteins have multiple functions and differentially regulate at the time of stress conditions [70]. The higher expression of ribosomal proteins is important for the proper functioning of several house-keeping genes during the stress conditions [71] and the QTN associated with such proteins could be useful for BPH resistance.
Allelic status of the significant QTNs that contribute to resistance in the agronomically superior RiMi lines (MIB_4393, MIB_3693, MIB_4077 and MIB_4570) are presented in Table 4. These lines could be used as new sources of resistance in the breeding programs as well as to explore downstream genes in genetic studies.

4. Conclusions

Over the past few years, substantial developments have been made in rice molecular breeding for high yield, biotic and abiotic stress tolerance, and grain quality, etc. Molecular breeding for BPH pest resistance in rice was, however, constrained because of the complexity of interrelatedness among BPH and rice. BPH is one of the most economically important insect pests of rice. Severe infestation in high-input rice ecologies results in major yield loss in susceptible varieties. Host-plant resistance is the best way to protect the environment and preserve the ecological balance of rice growing areas. The MAGIC panel identified 59 common SNPs on different rice chromosomes through six association mapping models. The gene search associated with QTNs revealed 13 stress tolerance genes that would play a significant role in BPH resistance. The 31 significant QTNs associated with the resistance genes could be used in accelerated marker-assisted breeding to develop BPH resistant varieties. Identified BPH resistant lines could be directly used in varietal release programs based on their agronomic performance and used as donors for BPH resistance to develop new resistant cultivars.

Supplementary Materials

The following are available online at, Figure S1: Graphic representation of physical locations of the common SNPs for BPH resistance identified using single and multi-locus models on all chromosomes, Figure S2: Manhattan plots and Quantile–quantile (QQ) plots of different models for the two test years and across years, Table S1: Pedigree details of 391 R-MI population, Table S2: BPH resistance scores of 391 R-MI population across years, Table S3: SNP trait associations identified by different single and multi-locus GWAS models, Table S4: List of candidate genes (defense related genes) identified in the associated QTN regions.

Author Contributions

V.S., J.L.V., planned and designed the research; V.S., J.L.V., S.P.M., D.S.J. and I.L.V.G. conducted the experiments; A.K., R.K.S., H.Z. and M.L.J. contributed material and G.B.S. data; N.T., V.S., L.S., A.R., A.F.R., H.Z. and A.C. analyzed the data; V.S. prepared the original draft; N.T., V.S., S.M., R.K.S., and L.S. critically reviewed and edited the manuscript; and N.T. provided overall guidance for the manuscript preparation.


This research received no external funding.


We are grateful to R K Singh and Arvind Kumar for sharing MAGIC material and GBS data. The authors would also like to acknowledge Jayashankar Telangana of State Agriculture University, Hyderabad for the financial support to conduct the experiment.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest. The authors declare no conflict of interest.


  1. Suenaga, H.; Nakatsuka, K. Studies on forecasting of the occurrence of leafhoppers in the paddy field. In The First Special Research Report on the Disease and Insect Forecasting; Promotion Office, Ministry of Agriculture and Forestry: Tokyo, Japan, 1958; p. 468. [Google Scholar]
  2. Koya, V.K.M. Brown hopper, the destructive pest. Kurukshetra 1974, 22, 13. [Google Scholar]
  3. Nalinakumari, T.; Mammen, K.V. Biology of the brown planthopper Nilaparvata lugens (Stål.) (Delphacidae, Hemiptera). Agric. Res. J. Kerala 1975, 13, 53–54. [Google Scholar]
  4. Jena, M.; Adak, T.; Sahu, R.K.; Somnath, S.; Pokhare; Berliner, J. Integrated management of Brown PlantHopper (BPH). Published by The Director, for the Central Rice Research Institute, Cuttak, India. CRRI Technol. Bull. 2015, 111. [Google Scholar]
  5. Catindig, J.L.A.; Arida, G.S.; Baehaki, S.E.; Bentur, J.S.; Cuong, L.Q.; Norowi, M. Situation of planthoppers in Asia. In Planthoppers: New Threats to the Sustainability of Intensive Rice Production Systems in Asia; Heong, K.L., Hardy, B., Eds.; International Rice Research Institute: Los Baños, CA, USA, 2009; pp. 191–220. [Google Scholar]
  6. Cabauatan, P.Q.; Cabunagan, R.C.; Ryong Choi, I. Rice viruses transmitted by the brown planthopper Nilaparvata lugens Stål. In Planthoppers: New Threats to the Sustainability of Intensive Rice Production Systems in Asia; Heong, K.L., Hardy, B., Eds.; International Rice Research Institute: Los Baños, Philippines, 2009; pp. 357–368. [Google Scholar]
  7. Pan, Y.; Huang, L.; Song, S.; Hu, M.; Chang, S.; Lv, Q.; Li, Y.; Wang, T.; Ouyang, X.; Fu, X. Identification of brown planthopper resistance gene Bph32 in the progeny of a rice dominant genic male sterile recurrent population using genome-wide association study and RNA-seq analysis. Mol. Breed. 2019, 39, 72. [Google Scholar] [CrossRef]
  8. Khush, G.S.; Karim, A.N.; Angeles, E.R. Genetics of resistance of rice cultivar ARC 10550 to Bangladesh brown planthopper biotype. J. Genet. 1985, 64, 121–125. [Google Scholar] [CrossRef]
  9. Brar, D.S.; Virk, P.S.; Jena, K.K.; Khush, G.S. Breeding for resistance to planthoppers in rice. In Planthoppers: New Threats to the Sustainability of Intensive Rice Production Systems in Asia; Heong, K.L., Hardy, B., Eds.; International Rice Research Institute: Los Baños, Philippines, 2009; pp. 401–428. [Google Scholar]
  10. Pathak, M.D.; Khush, G.S. Studies of varietal resistance in Rice to the Brown planthopper at the International Rice Research Institute. In Brown Planthopper: Threat to Rice Production in Asia; International Rice Research Institute: Manila, Philippines, 1979; pp. 285–301. [Google Scholar]
  11. Prahalada, G.D.; Shivakumar, N.; Lohithaswa, H.C.; Sidde Gowda, D.K.; Ramkumar, G.; Kim, S.R.; Ramachandra, C.; Hittalmani, S.; Mohapatra, T.; Jena, K.K. Identification and fine mapping of a new gene, BPH31 conferring resistance to brown planthopper biotype 4 of India to improve rice, Oryza sativa L. Rice 2017, 10, 41. [Google Scholar] [CrossRef][Green Version]
  12. Balachiranjeevi, C.H.; Prahalada, G.D.; Mahender, A.; Jamaloddin, M.D.; Sevilla, M.A.L.; Marfori-Nazarea, C.M. Identification of a novel locus, BPH38(t), conferring resistance to brown planthopper (Nilaparvata lugens Stal.) using early backcross population in rice (Oryza sativa L.). Euphytica 2019, 215. [Google Scholar] [CrossRef][Green Version]
  13. Yang, M.; Cheng, L.; Yan, L. Mapping and characterization of a quantitative trait locus resistance to the brown planthopper in the rice variety IR64. Hereditas 2019, 156, 22. [Google Scholar] [CrossRef][Green Version]
  14. Kumar, K.; Sarao, P.S.; Bhatia, D.; Neelam, K.; Kaur, A.; Mangat, G.S. High-resolution genetic mapping of a novel brown planthopper resistance locus, Bph34 in Oryza sativa L X Oryza nivara (Sharma & Shastry) derived inter-specific F2 population. Theor. Appl. Genet. 2018, 131, 1163–1171. [Google Scholar] [CrossRef]
  15. Naik, S.B.; Divya, D.; Sahu, N.; Sundaram, R.M.; Sarao, P.S.; Singh, K. A new gene Bph33(t) conferring resistance to brown planthopper (BPH), Nilaparvata lugens (Stal) in rice line RP2068-18-3-5. Euphytica 2018, 214, 53. [Google Scholar] [CrossRef]
  16. Guo, J.P.; Xu, C.X.; Wu, D.; Zhao, Y.; Qiu, Y.; Wang, X. Bph6 encodes an exocyst localized protein and confers broad resistance to planthoppers in rice. Nat. Genet. 2018, 50, 297–306. [Google Scholar] [CrossRef]
  17. Jena, K.K.; Kim, S.M. Current status of brown planthopper (BPH) resistance and genetics. Rice 2010, 3, 161–171. [Google Scholar] [CrossRef][Green Version]
  18. Kover, P.X.; Valdar, W.; Trakalo, J.; Scarcelli, N.; Ehrenreich, I.M.; Purugganan, M.D. A multi parent advanced generation inter-cross to fine-map quantitative traits in Arabidopsis thaliana. PLoS Genet. 2009, 5, e1000551. [Google Scholar] [CrossRef][Green Version]
  19. Huang, B.E.; Verbyla, K.L.; Verbyla, A.P.; Raghavan, C.; Singh, V.K.; Gaur, P. MAGIC populations in crops: Current status and future prospects. Theor. Appl. Genet. 2015, 128, 999–1017. [Google Scholar] [CrossRef]
  20. Zaw, H.; Raghavan, C.; Pocsedio, A.; Swamy, B.P.M.; Jubay, M.L.; Singh, R.K. Exploring genetic architecture of grain yield and quality traits in a 16-way indica by japonica rice MAGIC global population. Sci. Rep. 2019, 9, 19605. [Google Scholar] [CrossRef]
  21. Bandillo, N.; Raghavan, C.; Muyco, P.A.; Sevilla, M.A.L.; Lobina, I.T.; Ermita, C.J.D. Multi-parent advanced generation inter-cross (MAGIC) populations in rice: Progress and potential for genetics research and breeding. Rice 2013, 6, 1–15. [Google Scholar] [CrossRef][Green Version]
  22. Raghavan, C.; Mauleon, R.; Lacorte, V.; Jubay, M.; Zaw, H.; Bonifacio, J. Approaches in Characterizing Genetic Structure and Mapping in a Rice Multi parental Population. G3 Bethesda 2017, 7, 1721–1730. [Google Scholar] [CrossRef][Green Version]
  23. Heinrichs, E.A.; Medrano, F.G.; Rapusas, H.R. Genetic Evaluation for Insect Resistance in Rice; IRRI: Los Baños, Philippines, 1985. [Google Scholar]
  24. Velusamy, R.; Heinrichs, E.A.; Medrano, F.G. Greenhouse techniques to identify field resistance to the brown plant hopper, Nilaparvata lugens (Stål) (Homoptera: Delphacidae), in rice cultivars. Crop Prot. 1986, 5, 328–333. [Google Scholar] [CrossRef]
  25. Horgan, F.G. Mechanisms of resistance: A major gap in understanding planthopper-rice interactions. In Planthoppers: New Threats to the Sustainability of Intensive Rice Production Systems in Asia; Heong, K.L., Hardy, B., Eds.; International Rice Research Institute: Los Baños, Philippines, 2009; pp. 281–302. [Google Scholar]
  26. IRRI. Standard Evaluation System (SES) for Rice, 5th ed.; International Rice Research Institute: Manila, Philipines, 2013; pp. 38–39. [Google Scholar]
  27. Federer, W.T. Augmented designs with one-way elimination of heterogeneity. Biometrics 1961, 17, 447–473. [Google Scholar] [CrossRef]
  28. Aravind, J.; MukeshSankar, S.; Wankhede, D.P.; Kaur, V. Augmented RCBD: Analysis of Augmented Randomised Complete Block Designs. R Package Version 2020. Available online: (accessed on 3 December 2019).
  29. Elshire, R.J.; Glaubitz, J.C.; Sun, Q.; Poland, J.A.; Kawamoto, K.; Buckler, E.S. A robust, simple genotyping-by-sequencing (GBS) approach for high diversity species. PLoS ONE 2011, 6, e19379. [Google Scholar] [CrossRef][Green Version]
  30. Glaubitz, J.C.; Casstevens, T.M.; Lu, F.; Harriman, J.; Elshire, R.J.; Sun, Q. TASSEL-GBS: A high capacity genotyping by sequencing analysis pipeline. PLoS ONE 2014, 9, e90346. [Google Scholar] [CrossRef]
  31. Lipka, A.E.; Tian, F.; Wang, Q.S.; Peiffer, J.; Li, M.; Bradbury, P.J. GAPIT: Genome association and prediction integrated tool. Bioinformatics 2012, 28, 2397–2399. [Google Scholar] [CrossRef][Green Version]
  32. Bossa-Castro, A.M.; Tekete, C.; Raghavan, C.; Delorean, E.E.; Dereeper, A.; Dagno, K. Allelic variation for broad-spectrum resistance and susceptibility to bacterial pathogens identified in a rice MAGIC population. Plant Biotechnol. J. 2016, 16, 1559–1568. [Google Scholar] [CrossRef][Green Version]
  33. Price, A.L.; Patterson, N.J.; Plenge, R.M.; Weinblatt, M.E.; Shadick, N.A.; Reich, D. Principal components analysis corrects for stratification in genome-wide association studies. Nat. Genet. 2006, 38, 904–909. [Google Scholar] [CrossRef]
  34. Zhang, Y.M.; Mao, Y.; Xie, C.; Smith, H.; Luo, L.; Xu, S. Mapping quantitative trait loci using naturally occurring genetic variance among commercial inbred lines of maize (Zea mays L.). Genetics 2005, 169, 2267–2275. [Google Scholar] [CrossRef][Green Version]
  35. Yu, J.M.; Pressoir, G.; Briggs, W.H.; Bi, I.V.; Yamasaki, M.; Doebley, J.F. A unified mixed-model method for association mapping that accounts for multiple levels of relatedness. Nat. Genet. 2006, 38, 203–208. [Google Scholar] [CrossRef]
  36. Zhang, Z.W.; Ersoz, E.; Lai, C.Q.; Todhunter, R.J.; Tiwari, H.K.; Gore, M.A. Mixed linear model approach adapted for genome-wide association studies. Nat. Genet. 2010, 42, 355–360. [Google Scholar] [CrossRef][Green Version]
  37. Wang, Q.; Tian, F.; Pan, Y.; Buckler, E.S.; Zhang, Z. A super powerful method for genome wide association study. PLoS ONE 2014, 9, e107684. [Google Scholar] [CrossRef]
  38. Segura, V.; Vilhjalmsson, B.J.; Platt, A.; Korte, A.; Seren, U.; Long, Q. An efficient multi-locus mixed-model approach for genome-wide association studies in structured populations. Nat. Genet. 2012, 44, 825–830. [Google Scholar] [CrossRef][Green Version]
  39. Tan, G.X.; Weng, Q.M.; Ren, X.; Huang, Z.; Zhu, L.L.; He, G.C. Two white backed planthopper resistance genes in rice share the same loci with those for brown planthopper resistance. Heredity 2004, 92, 212–217. [Google Scholar] [CrossRef]
  40. Zhang, X.; Mao, K.; Liao, X.; He, B.; Jin, R.; Tang, T.; Wan, H.; Li, J. Fitness cost of nitenpyram resistance in the brown planthopper Nilaparvata Lugens. J. Pest Sci. 2018, 91, 1145–1151. [Google Scholar] [CrossRef]
  41. Zhu, P.; Zheng, X.; Xu, H.; Johnson, A.C.; Heong, K.L.; Gurr, G.M.; Lu, Z. Nitrogen fertilization of rice plants improves ecological fitness of an entomophagous predator but dampens its impact on prey, the rice brown planthopper, Nilaparvata lugens. J. Pest Sci. 2020, 93, 747–755. [Google Scholar] [CrossRef]
  42. Wu, S.F.; Zeng, B.; Zheng, C.; Mu, X.C.; Zhang, Y.; Hu, J. The evolution of insecticide resistance in the brown planthopper (Nilaparvata lugens Stål) of China in the period 2012–2016. Sci. Rep. 2018, 8, 4586. [Google Scholar] [CrossRef]
  43. Du, B.; Zhang, W.L.; Liu, B.F.; Hu, J.; Wei, Z.; Shi, Z.Y. Identification and characterization of Bph14, a gene conferring resistance to brown planthopper in rice. Proc Natl Acad. Sci. USA 2009, 106, 22163–22168. [Google Scholar] [CrossRef][Green Version]
  44. Du, B.; Chen, R.; Guo, J.; He, G. Current understanding of the genomic, genetic, and molecular control of insect resistance in rice. Mol. Breed. 2020, 40, 24. [Google Scholar] [CrossRef][Green Version]
  45. Fujita, D.; Kohli, A.; Horgan, F.G. Rice resistance to planthoppers and leaf hoppers. Crit. Rev. Plant Sci. 2013, 32, 162–191. [Google Scholar] [CrossRef]
  46. Hu, J.; Xiao, C.; He, Y.Q. Recent progress on the genetics and molecular breeding of brown planthopper resistance in rice. Rice 2016, 9, 30. [Google Scholar] [CrossRef][Green Version]
  47. Jing, S.; Zhao, Y.; Du, B.; Chen, R.; Zhu, L.; He, G. Genomics of interaction between the brown planthopper and rice. Cur. Opin. Insect Sci. 2017, 19, 82–87. [Google Scholar] [CrossRef]
  48. Jiang, H.C.; Hu, J.; Li, Z.; Liu, J.; Gao, G.J.; Zhang, Q.L. Evaluation and breeding application of six brown planthopper resistance genes in rice maintainer line Jin 23B. Rice 2018, 11, 22. [Google Scholar] [CrossRef]
  49. Horgan, F.G.; Ramal, A.F.; Bentur, J.S.; Kumar, R.; Bhanu, K.V.; Sarao, P.S. Virulence of brown planthopper (Nilaparvata lugens) populations from South and South East Asia against resistant rice varieties. Crop. Prot. 2015, 78, 222–231. [Google Scholar] [CrossRef][Green Version]
  50. Sogawa, K. Planthopper outbreaks in different paddy ecosystems in Asia: Man-made hopper plagues that threatened the green revolution in rice. In Rice Planthoppers: Ecology, Management, Socioeconomics and Policy; Heong, K.L., Ed.; Zhejiang University Press: Hangzhou, China; Hangzhou and Springer Science: Hangzhou, China; Business Media Dordrecht: Berlin, Germany, 2015. [Google Scholar] [CrossRef]
  51. Deen, R.; Ramesh, K.; Gautam, S.K.; Rao, Y.K.; Lakshmi, V.J.; Viraktamath, B.C. Identification of new gene for BPH resistance introgressed from O. rufipogon. Rice Genet. Newsl. 2010, 25, 70–72. [Google Scholar]
  52. Leung, H.; Raghavan, C.; Zhou, B.; Oliva, R.; Choi, I.R.; Lacorte, V. Allele mining and enhanced genetic recombination for rice breeding. Rice 2015, 8, 34. [Google Scholar] [CrossRef][Green Version]
  53. Scott, M.F.; Ladejobi, O.; Amer, S.; Bentley, A.R.; Biernaskie, J. Multi-parent populations in crops: A toolbox integrating genomics and genetic mapping with breeding. Heredity 2020. [Google Scholar] [CrossRef]
  54. Descalsota, G.I.L.; Swamy, M.; Zaw, H.; Asilo, M.A.I.; Amparado, A. Genome-wide association mapping in a rice magic plus population detects QTLS and genes useful for biofortification. Front. Plant Sci. 2018, 9, 1347. [Google Scholar] [CrossRef]
  55. Liu, X.; Huang, M.; Fan, B.; Buckler, E.S.; Zhang, Z. Iterative usage of fixed and random effect models for powerful and efficient genome-wide association studies. PLoS Genet. 2016, 12, e1005767. [Google Scholar] [CrossRef]
  56. Liu, G.Q.; Yan, H.H.; Fu, Q.; Qian, Q.; Zhang, Z.T.; Zhai, W.X. Mapping of a new gene for brown planthopper resistance in cultivated rice introgressed from Oryza eichingeri. Chin. Sci. Bull. 2001, 46, 738–742. [Google Scholar]
  57. Sun, L.; Su, C.; Wang, C.; Zai, H.; Wan, J. Mapping of a major resistance gene to brown plant hopper in the rice cultivar RathuHeenati. Breed. Sci. 2005, 55, 391–396. [Google Scholar]
  58. Qiu, Y.; Guo, J.; Jing, S.; Zhu, L.; He, G. Development and characterization of japonica rice lines carrying the brown plant hopper-resistance genes BPH12 and BPH6. Theor Appl. Genet. 2012, 124, 485–494. [Google Scholar] [CrossRef]
  59. Khush, G.S.; Virk, P.S. IR Varieties and Their Impact; International Rice Research Institute: Manila, Philipines, 2005. [Google Scholar]
  60. Myint, K.K.M.; Fujita, D.; Matsumura, M.; Sonoda, T.; Yoshimura, A.; Yasui, H. Mapping and pyramiding of two major genes for resistance to the brown planthopper (Nilaparvata lugens [Stål]) in the rice cultivar ADR52. Theor. Appl. Genet. 2012, 124, 495–504. [Google Scholar] [CrossRef][Green Version]
  61. Ren, J.; Gao, F.; Wu, X.; Lu, X.; Zeng, L.; Lv, J. Bph32, a novel gene encoding an unknown SCR domain-containing protein, confers resistance against the brown planthopper in rice. Sci. Rep. 2016, 6, 1–14. [Google Scholar] [CrossRef]
  62. Huang, D.R.; Chen, J.; Lai, F.X.; Liu, G.J.; Zhuang, J.Y. Analysis of quantitative trait loci for resistance to brown planthopper in Dongxiang wild rice (Oryza rufipogon Griff.). Acta Agron. Sin. 2012, 38, 210–214. [Google Scholar] [CrossRef]
  63. Zhao, Y.; Huang, J.; Wang, Z.Z.; Jing, S.L.; Wang, Y.; Ouyang, Y.D. Allelic diversity in an NLR gene BPH9 enables rice to combat plant hopper variation. Proc. Natl. Acad. Sci. USA 2016, 113, 12850–12855. [Google Scholar] [CrossRef][Green Version]
  64. Ji, H.; Kim, S.R.; Kim, Y.H.; Suh, J.P.; Park, H.M.; Sreenivasulu, N. Map-based cloning and characterization of the BPH18 gene from wild rice conferring resistance to brown planthopper (BPH) insect pest. Sci. Rep. 2016, 6, 34376. [Google Scholar] [CrossRef]
  65. Tamura, Y.; Hattori, M.; Yoshioka, H.; Yoshioka, M.; Takahashi, A.; Wu, J.Z. Map-based cloning and characterization of a brown plant hopper resistance gene BPH 26 from Oryza sativa L. ssp. indica cultivar ADR52. Sci. Rep. 2014, 4, 5872. [Google Scholar] [CrossRef][Green Version]
  66. Khong, G.N.; Richaud, F.; Coudert, Y.; Pati, P.K.; Santi, C.; Périn, C. Modulating rice stress tolerance by transcription factors. Biotech. Gen. Eng. Rev. 2008, 25, 381–404. [Google Scholar] [CrossRef][Green Version]
  67. Eulgem, T.; Somssich, I.E. Networks of WRKY transcription factors in defense signaling. Curr. Opin. Plant Biol. 2007, 10, 366–371. [Google Scholar] [CrossRef][Green Version]
  68. Qiu, D.; Xiao, J.; Ding, X.; Xiong, M.; Cai, M.; Cao, Y. OsWRKY13 mediates rice disease resistance by regulating defense-related genes in salicylate- and jasmonate-dependent signaling. Mol. Plant. Microbe Interact. 2007, 20, 492–499. [Google Scholar] [CrossRef][Green Version]
  69. Hu, L.; Wu, Y.; Wu, D.; Rao, W.; Guo, J.; Ma, Y. The coiled-coil and nucleotide binding domains of brown planthopper resistance 14 function in signaling and resistance against planthopper in rice. Plant Cell 2017, 29, 3157–3185. [Google Scholar] [CrossRef][Green Version]
  70. Fromont-Racine, M.; Senger, B.; Saveanu, C.; Fasiolo, F. Ribosome assembly in eukaryotes. Gene 2003, 313, 17–42. [Google Scholar] [CrossRef]
  71. Ferreira-Cerca, S.; Hurt, E. Cell biology: Arrest by ribosome. Nature 2009, 459, 46–47. [Google Scholar] [CrossRef]

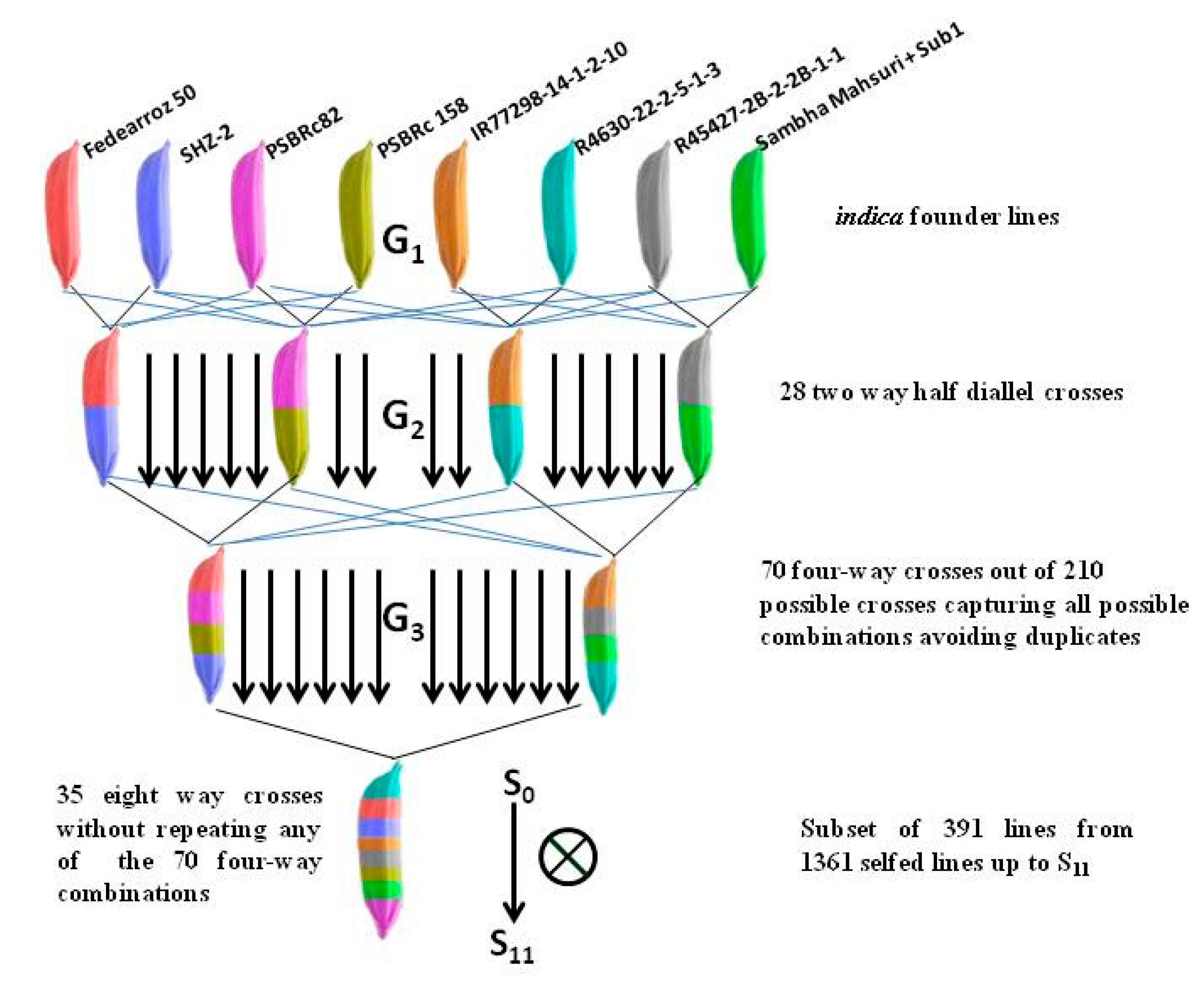

Figure 1. Development of the multi-parent advanced generation intercross indica (RiMi) population using eight indica founder lines.
Figure 1. Development of the multi-parent advanced generation intercross indica (RiMi) population using eight indica founder lines.
Vaccines 08 00608 g001

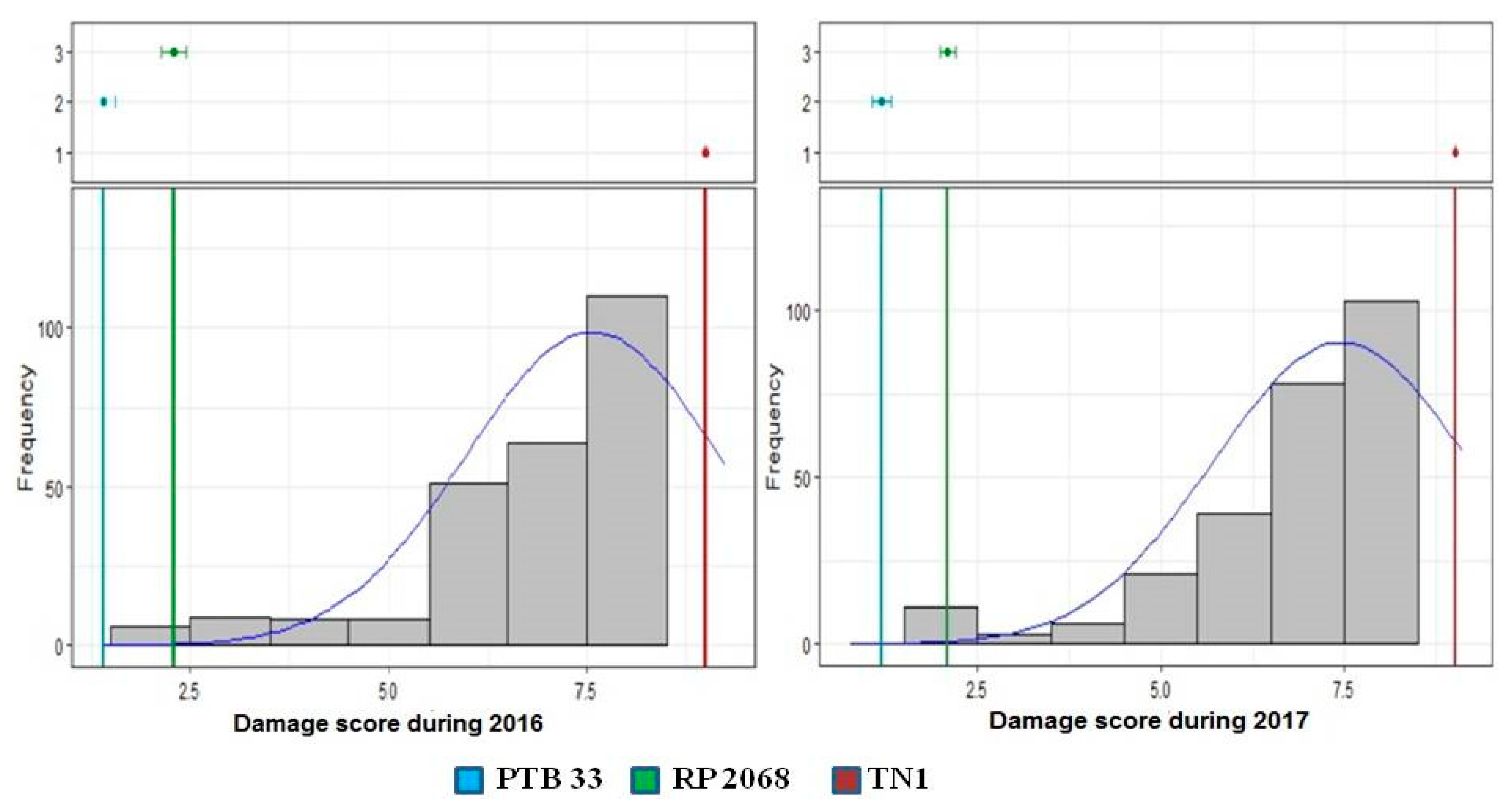

Figure 2. Histogram representation of frequency distribution of adjusted BPH scoring values of the RiMi panel. Top panel showing the performance of the checks as coloured lines in the histogram.
Figure 2. Histogram representation of frequency distribution of adjusted BPH scoring values of the RiMi panel. Top panel showing the performance of the checks as coloured lines in the histogram.
Vaccines 08 00608 g002

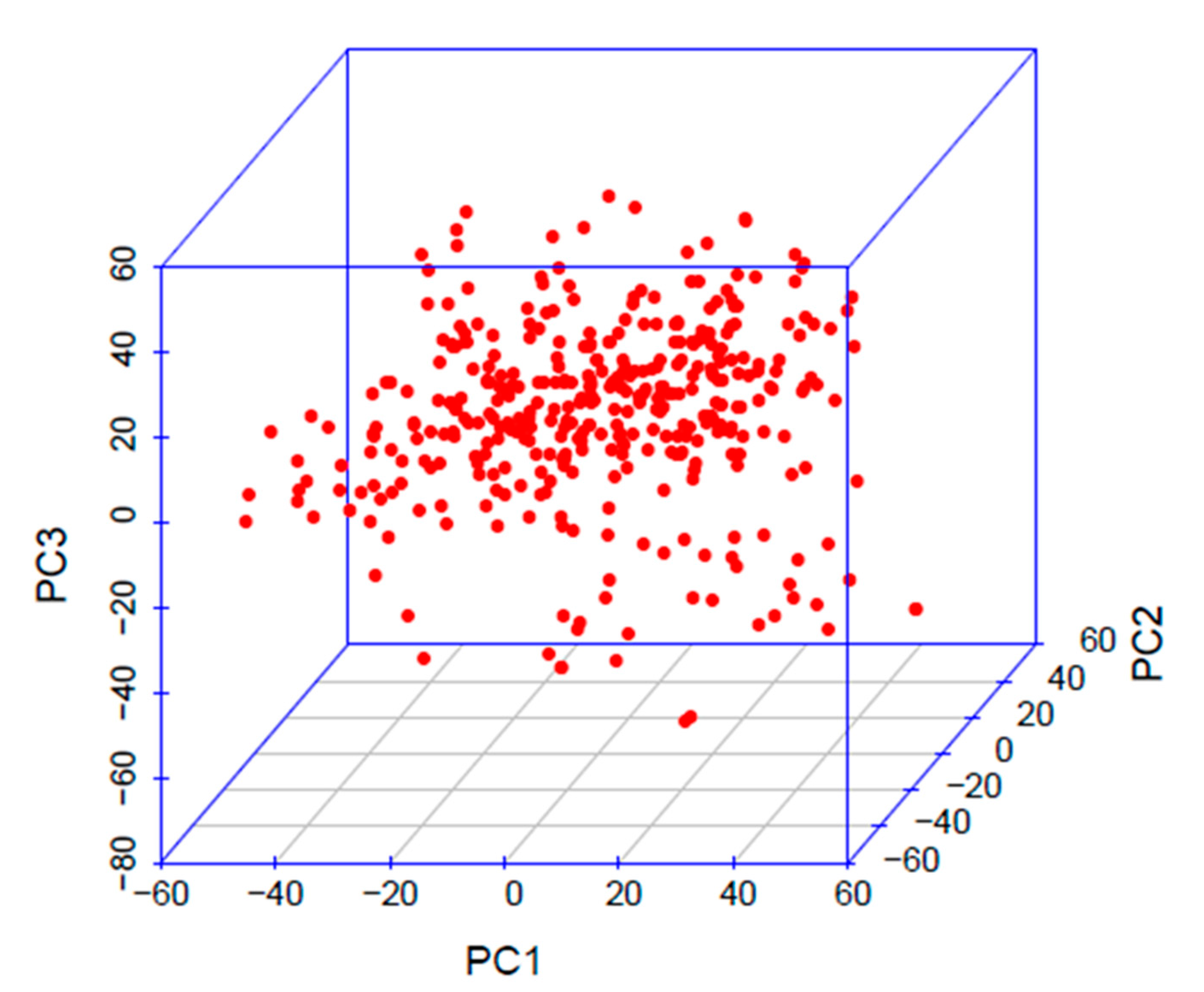

Figure 3. 3D scatter plot of principal component analysis for single nucleotide polymorphisms data of the RiMi panel.
Figure 3. 3D scatter plot of principal component analysis for single nucleotide polymorphisms data of the RiMi panel.
Vaccines 08 00608 g003

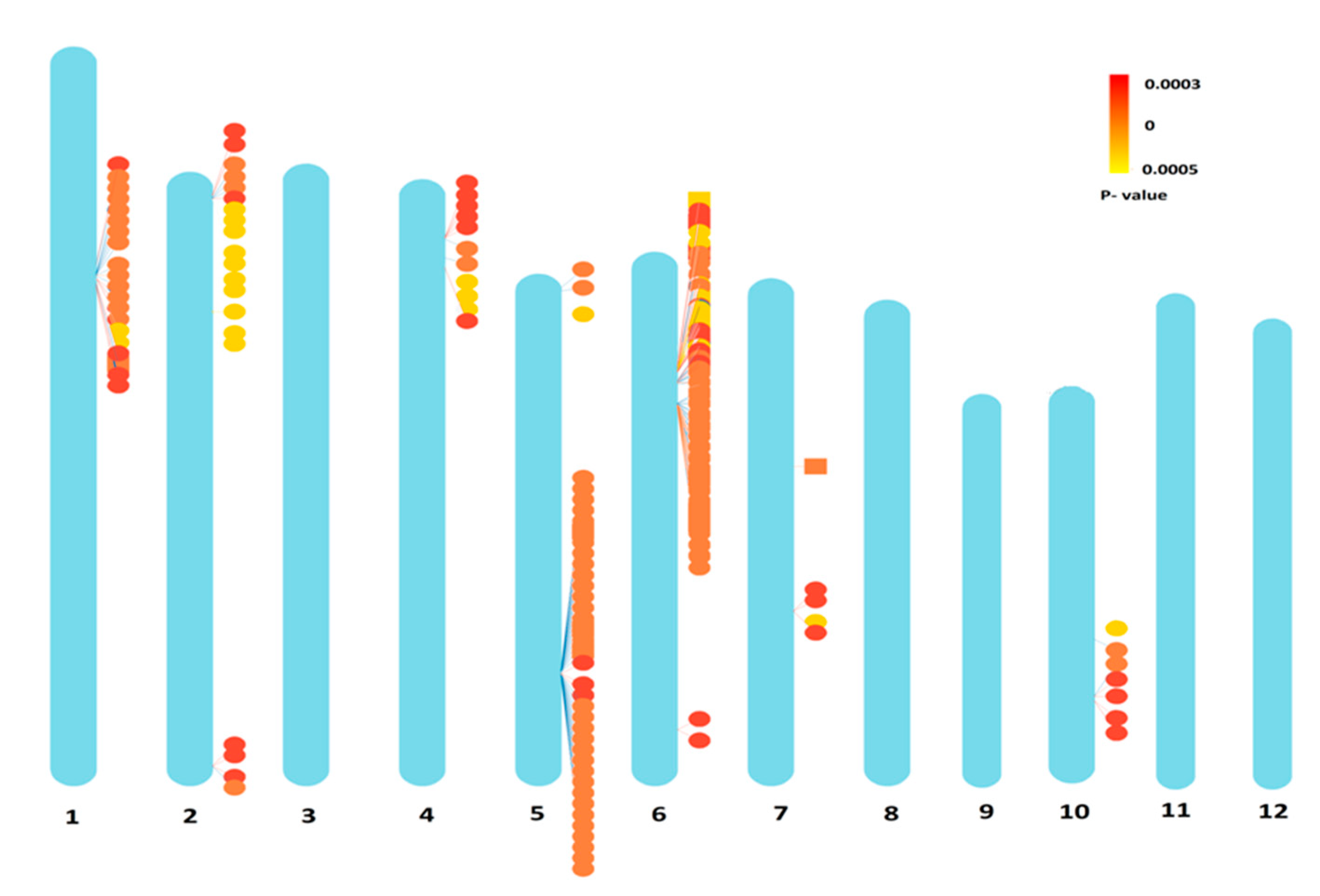

Figure 4. Distribution of significant SNPs on 12 rice chromosomes identified by FarmCPU.
Figure 4. Distribution of significant SNPs on 12 rice chromosomes identified by FarmCPU.
Vaccines 08 00608 g004

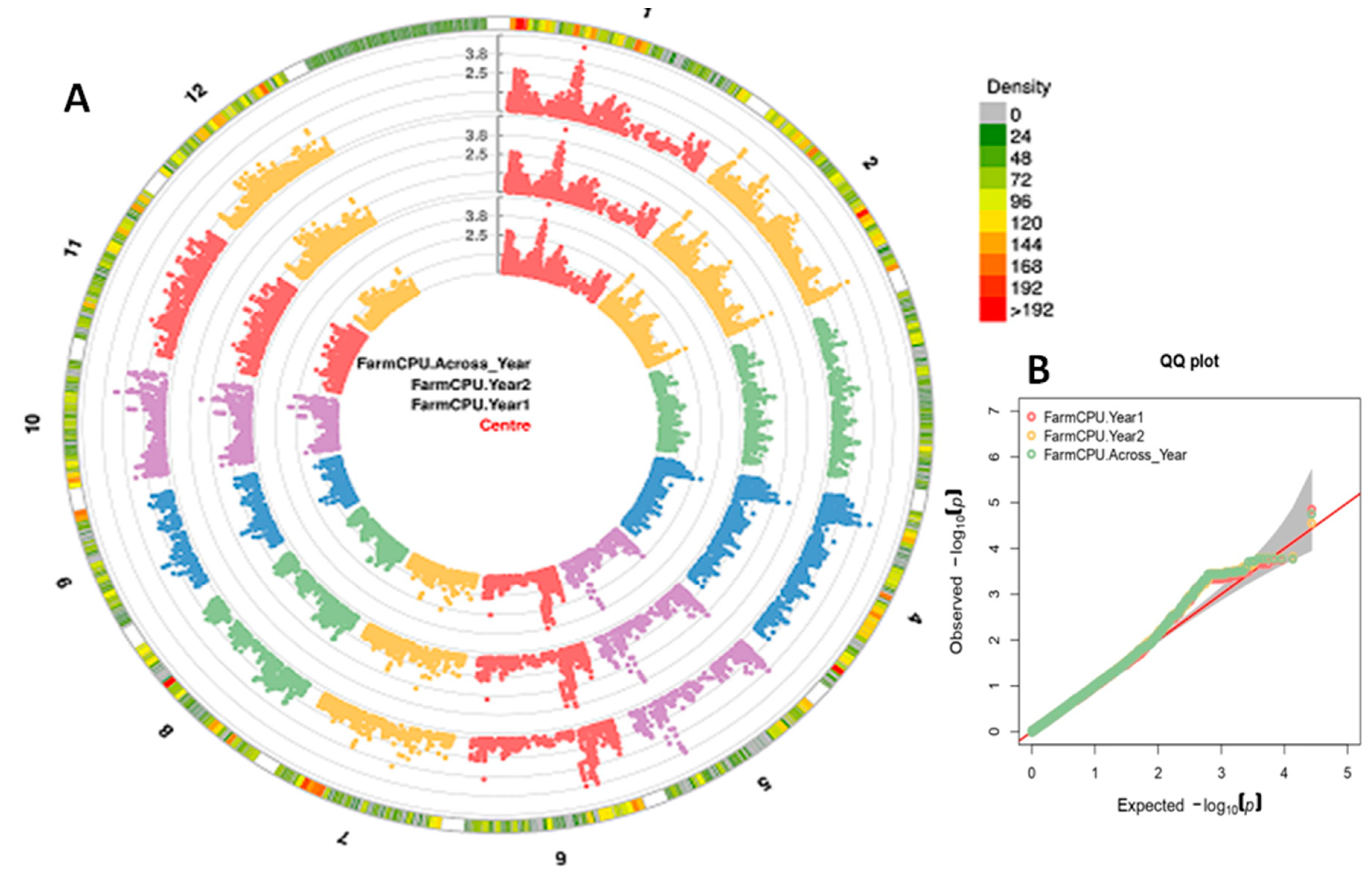

Figure 5. (A) Circular-Manhattan plot; (B) Quantile–quantile (QQ) plots of Farm CPU showing the significant SNP associations (p < 0.001) with BPH resistance for the two test years and across years. In the panel A, 1–12 indicate chromosome numbers.
Figure 5. (A) Circular-Manhattan plot; (B) Quantile–quantile (QQ) plots of Farm CPU showing the significant SNP associations (p < 0.001) with BPH resistance for the two test years and across years. In the panel A, 1–12 indicate chromosome numbers.
Vaccines 08 00608 g005
Table 1. Analysis of variance and mean sum of squares of augmented block design for brown planthopper scoring of the 391RiMi panel.
Table 1. Analysis of variance and mean sum of squares of augmented block design for brown planthopper scoring of the 391RiMi panel.
Sourcedf20162017Mean Over Years
Treatment (ignoring blocks)3934.07 **4.47 **4.30 **
Treatment: Check2172.43 **182.1 **178.53 **
Treatment: Test vs. Check1313.6 0 **318.46 **318.45 **
Treatment: Test3902.42 **2.76 **2.60 **
Block (eliminating treatments)90.08 ns0.08 ns0.09 ns
** Significance at 1% probability level (p value = 0.001). df: degrees of freedom.
Table 2. Total number and Common Single Nucleotide Polymorphisms mapped across Genome-Wide Association Mapping models.
Table 2. Total number and Common Single Nucleotide Polymorphisms mapped across Genome-Wide Association Mapping models.
128128302026S1_12742211, S1_13273091, S1_13274423, S1_13365703, S1_13374131, S1_13374151, S1_13424589
5401414393940S5_23256042, S5_23257107, S5_23257108, S5_23279024, S5_23279042, S5_23287785, S5_23303726, S5_2330752, S5_23310970, S5_23312204, S5_23314218
6904940608861S6_6769492, S6_6769526, S6_6769533, S6_7646336, S6_8850552, S6_8851568, S6_8870236, S6_8876540, S6_8876586, S6_8876606, S6_8876610, S6_8886408, S6_8886434, S6_8914643, S6_8914650, S6_8914651, S6_8914671, S6_8914769, S6_8917185, S6_8917933, S6_8917936, S6_8917962, S6_8921200, S6_8921201, S6_8932488, S6_8956202, S6_8962742, S6_8962796, S6_8975500, S6_8977107, S6_8977116, S6_8977156, S6_8977190, S6_9003844, S6_9003866, S6_9004225
108982719S10_18127881, S10_18145180
Table 3. Quantitative Trait Nucleotides (QTNs) and associated genes identified with defense-responsive mechanisms.
Table 3. Quantitative Trait Nucleotides (QTNs) and associated genes identified with defense-responsive mechanisms.
S. No.Gene locus IDChromosomeQTNsPutative Function
1LOC_Os01g246901S1_1389844460S ribosomal protein L23A, putative, expressed, response to abiotic stimulus, response to stress
2LOC_Os05g395905S5_23249078, S5_23249119, S5_23249125, S5_23249237, S5_23249605AP2 domain containing protein, expressed
3LOC_Os05g397205S5_23310970, S5_23312204, S5_23314218WRKY70, expressed
4LOC_Os06g110106S6_5759360Eukaryotic aspartyl protease domain containing protein, expressed
5LOC_Os06g12160.16S6_6513819, S6_6514012AAA-type ATPase family protein, putative, expressed
6LOC_Os06g12360.16S6_6697070Pentatricopeptide, putative, expressed
7LOC_Os06g12610.16S6_6869009Auxin efflux carrier component, putative, expressed
8LOC_Os06g12870.16S6_7045328, S6_7045355Leaf senescence related protein, putative, expressed
9LOC_Os06g13600.16S6_7531094, S6_7531433, S6_7531437, S6_7538495HEAT repeat family protein, putative, expressed
10LOC_Os06g14510.36S6_8153078Glucose-6-phosphate isomerase, putative, expressed
11LOC_Os06g157506S6_8932488NB-ARC domain containing protein, expressed
12LOC_Os06g15820.16S6_8977107, S6_8977116, S6_8977156, S6_8977190, S6_8977712, S6_8977949, S6_8977972, S6_8982135NHL repeat-containing protein, putative, expressed
13LOC_Os07g186007S7_10995384OsFBL37-F-box domain and LRR containing protein, expressed
Table 4. Allelic status of the significant QTNs that are contributing to resistance in the agronomically superior RiMi lines (MIB_4393, MIB_3693, MIB_4077 and MIB_4570).
Table 4. Allelic status of the significant QTNs that are contributing to resistance in the agronomically superior RiMi lines (MIB_4393, MIB_3693, MIB_4077 and MIB_4570).
S. NoChromosome SNP PositionAllelic StatusPutative Function
1523249125CAP2 domain containing protein, expressed
265759360TEukaryotic aspartyl protease domain containing protein, expressed
366513819TAAA-type ATPase family protein,
putative, expressed
566697070TPentatricopeptide, putative, expressed
666869009Gauxin efflux carrier component,
putative, expressed
767045328CLeaf senescence related protein,
putative, expressed
967531094CHEAT repeat family protein,
putative, expressed
1168153078GGlucose-6-phosphate isomerase,
putative, expressed
12710995384COsFBL37 - F-box domain and LRR containing protein, expressed
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Satturu, V.; Vattikuti, J.L.; J, D.S.; Kumar, A.; Singh, R.K.; M, S.P.; Zaw, H.; Jubay, M.L.; Satish, L.; Rathore, A.; et al. Multiple Genome Wide Association Mapping Models Identify Quantitative Trait Nucleotides for Brown Planthopper (Nilaparvata lugens) Resistance in MAGIC Indica Population of Rice. Vaccines 2020, 8, 608.

AMA Style

Satturu V, Vattikuti JL, J DS, Kumar A, Singh RK, M SP, Zaw H, Jubay ML, Satish L, Rathore A, et al. Multiple Genome Wide Association Mapping Models Identify Quantitative Trait Nucleotides for Brown Planthopper (Nilaparvata lugens) Resistance in MAGIC Indica Population of Rice. Vaccines. 2020; 8(4):608.

Chicago/Turabian Style

Satturu, Vanisri, Jhansi Lakshmi Vattikuti, Durga Sai J, Arvind Kumar, Rakesh Kumar Singh, Srinivas Prasad M, Hein Zaw, Mona Liza Jubay, Lakkakula Satish, Abhishek Rathore, and et al. 2020. "Multiple Genome Wide Association Mapping Models Identify Quantitative Trait Nucleotides for Brown Planthopper (Nilaparvata lugens) Resistance in MAGIC Indica Population of Rice" Vaccines 8, no. 4: 608.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
