Article

Influenza A (N1-N9) and Influenza B (B/Victoria and B/Yamagata) Neuraminidase Pseudotypes as Tools for Pandemic Preparedness and Improved Influenza Vaccine Design

by
Kelly A. S. da Costa
1,†,
Joanne Marie M. Del Rosario
1,2,†,
Matteo Ferrari
2,
Sneha Vishwanath
3,
Benedikt Asbach
4,
Rebecca Kinsley
2,3,
Ralf Wagner
4,5,
Jonathan L. Heeney
2,3,
George W. Carnell
3 and
Nigel J. Temperton
1,*
1
Viral Pseudotype Unit, Medway School of Pharmacy, The Universities of Greenwich and Kent at Medway, Chatham ME4 4BF, UK
2
DIOSynVax, Cambridge CB3 0ES, UK
3
Department of Veterinary Medicine, University of Cambridge, Cambridge CB3 0ES, UK
4
Institute of Medical Microbiology and Hygiene, University of Regensburg, 93053 Regensburg, Germany
5
Institute of Clinical Microbiology and Hygiene, University Hospital Regensburg, 93053 Regensburg, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Vaccines 2022, 10(9), 1520; https://doi.org/10.3390/vaccines10091520
Submission received: 10 August 2022 / Revised: 5 September 2022 / Accepted: 6 September 2022 / Published: 14 September 2022
(This article belongs to the Special Issue Advances in Influenza Virus Vaccines)

Abstract

:
To better understand how inhibition of the influenza neuraminidase (NA) protein contributes to protection against influenza, we produced lentiviral vectors pseudotyped with an avian H11 hemagglutinin (HA) and the NA of all influenza A (N1–N9) subtypes and influenza B (B/Victoria and B/Yamagata). These NA viral pseudotypes (PV) possess stable NA activity and can be utilized as target antigens in in vitro assays to assess vaccine immunogenicity. Employing these NA PV, we developed an enzyme-linked lectin assay (pELLA) for routine serology to measure neuraminidase inhibition (NI) titers of reference antisera, monoclonal antibodies and post-vaccination sera with various influenza antigens. We also show that the pELLA is more sensitive than the commercially available NA-Fluor™ in detecting NA inhibition in these samples. Our studies may lead to establishing the protective NA titer that contributes to NA-based immunity. This will aid in the design of superior, longer lasting and more broadly protective vaccines that can be employed together with HA-targeted vaccines in a pre-pandemic approach.

1. Introduction

Influenza virions display two major surface glycoproteins, hemagglutinin (HA) and neuraminidase (NA), that play crucial roles in influenza infection and immunity. HA is involved in viral entry and NA in viral release [1,2,3]. Currently available influenza A (IAV) and influenza B (IBV) vaccines mainly target HA; however, HA is subject to constant antigenic drift at distinct epitopes in its exposed globular head domain [4,5,6]. As a result, seasonal influenza vaccines are reformulated annually to provide up-to-date protection.
Neuraminidase is a tetramer formed of separate subunits consisting of a head and stalk region, similar to HA [7]. NA has known enzymatic activity which enables it to cleave sialic acid from cellular and viral glycoproteins expressed in infected cells [7]. Sialic acids (SAs) are typically found at the terminal regions of oligosaccharides on gangliosides and glycoproteins. SAs are mainly linked to galactose residues by α-2,3 linkages, most commonly found in avian species, or α-2,6-linkages, mainly found in humans and other mammals [8]. NA cleaves α-2,3-linked sialic acids more efficiently than α-2,6 sialic acids, indicating that influenza NA is more specialized to avian infection [9,10]. However, studies have shown that α-2,6 activity increases over time [11], which in combination with changes to HA may allow avian influenza strains to “species jump” and potentially cause a pandemic in humans [12]. Aside from its enzymatic activity, NA is vital in preventing aggregation of viral progeny [13], enables penetration of human mucus by freeing virus from sialylated host mucins [2] and facilitates viral budding [14]. Neuraminidase (NA) is also subject to antigenic changes, although at a lower rate than HA [15,16,17].
Neuraminidase has been a successful target for antiviral drugs and is currently being studied as an alternative or adjunct to HA as a viable vaccine candidate with the potential to be employed as part of a “universal” or “cross-subtype” influenza vaccine [18,19,20]. The ultimate goal of a universal vaccine is to protect against infection from novel influenza viruses bearing combinations of H1-H18 and N1-N11. However, this is a highly ambitious undertaking, and consensus within the field is that influenza vaccines with approximately 75% protection against influenza A and B viruses that can protect for at least 12 months across a range of age groups and socio-economic backgrounds are an achievable interim aim [21]. There are 144 possible combinations of NA and HA subtypes for non-bat IAV, and 120 combinations have been observed in nature [22,23]. Studies have shown that anti-NA antibodies raised following immunization with N1 (H1 subtype) can inhibit homologous and heterosubtypic influenza A viruses (e.g., H5N1, H3N2 and H7N9) [24] and are successful in controlling influenza infection in vivo [25]. Currently licensed inactivated influenza vaccines contain NA, but the quality and stability of NA in these preparations have not been fully investigated [26]. Currently, there is no neuraminidase standard that can be employed to allow for comparison and harmonization of various serological assays that can determine anti-neuraminidase levels needed for efficacious vaccines and therapeutics. It is known that the anti-NA seroconversion rate of individuals immunized with inactivated trivalent vaccine is variable [27,28,29], and this could potentially be increased by considering NA as an immunogen during vaccine formulation.
Antibodies directed to NA do not block viral entry and are therefore not classified as classically neutralizing [30]. Traditionally, the inhibition of NA enzymatic activity has been measured using a MUNANA substrate-based assay [31,32]; however, this assay utilizes hazardous chemicals, making it unsuitable for high throughput serological testing. Therefore, alternatives assays such as the enzyme-linked lectin assay (ELLA) [33,34,35,36] and fluorescence-linked MUNANA-based assays (e.g., NA-Star/NA Fluor™) have been developed to quantify NA enzymatic activity as a measure of antibody mediated inhibition of viral egress from infected cells [37]. These methods make the study of NA activity more accessible for the design of next generation influenza vaccines. Additionally, the pseudotype virus (PV) can also be used as a substitute to the wild type virus in these assays. Neuraminidase pseudotyped viruses have already been successfully used in place of reassortant viruses and Triton-X-treated wild type viruses in the ELLA assay for N1 and N2 subtypes [38,39] As NA has the potential to be included in a more broadly protective vaccine approach, a toolbox of assays capable of assessing NA inhibition will be required. To this end, we produced an NA PV library encompassing IAV N1-N11 and IBV from the Victoria-like (B/Vic) and Yamagata-like (B/Yam) lineages for use in a pseudotype ELLA (pELLA) assay and potentially the NA-Fluor™ assay. We demonstrate that these PV can be effectively employed in the pELLA to assess NA inhibition of reference anti-NA antisera, monoclonal antibodies (mAb) and anti-NA antibodies generated through vaccination, without the requirement for containment higher than BSL 2.

2. Materials and Methods

2.1. Production and Transformation of Plasmids

Neuraminidase genes from IAV subtypes N1-N9 and IBV, B/Vic and B/Yam were gene-optimized and adapted to human codon use via the GeneOptimizer algorithm [40]. These NA genes were cloned into pEVAC (GeneArt, Regensburg, Germany) via restriction digestion. Plasmids were transformed via heat shock in chemically induced competent E. coli DH5α cells (Invitrogen 18265-017). Plasmid DNA was extracted from transformed bacterial cultures via the Plasmid Mini Kit (Qiagen 12125, Manchester, UK). All plasmids were quantified using UV spectrophotometry (NanoDrop™, Thermo Scientific, Paisley, UK).

2.2. Production of Influenza H11-NA(X) Pseudotypes

For production of H11-NA(X) PV, human embryonic kidney 293T/17 (HEK293T/17, ATCC: CRL-11268ª) was maintained in complete medium (Dulbecco’s modified essential medium (DMEM), PANBiotech P04-04510, Wimborne, UK) with high glucose and GlutaMAX supplemented with 10% (v/v) heat-inactivated fetal bovine serum (PANBiotech P30-8500) and 1% (v/v) penicillin–streptomycin (PenStrep) (Sigma P4333, Dorset, UK) at 37 °C and 5% CO2. Transfection was performed as previously described [41]. On the day prior to transfection, 4 × 105 HEK293T/17 cells in complete DMEM were seeded per well of a 6-well plate. The next day, the medium was replaced, and cells were transfected using FuGENE® HD Transfection Reagent (Promega E2312, Madison, WI, USA) in Opti-MEM™ (Thermo Fisher Scientific 31985062, Paisley, UK) with the following plasmids: 10 ng NA encoding plasmid in pEVAC, 10 ng H11 encoding plasmid (A/red shoveler/Chile/C14653/2016 (H11) in pEVAC, 5 ng transmembrane serine protease 4 (TMPRSS4) encoding plasmid, 375 ng luciferase vector plasmid (pCSFLW) and 250 ng p8.91 gag-pol (gag-pol expression plasmid). For the H5 release assay, 10 ng A/Indonesia/5/2005(H5) (pI.18) was included in the plasmid DNA mixture replacing H11 (pEVAC), and TMPRSS4 was not utilized. All plasmid DNA was combined in 100 µL OptiMEM™, and FuGENE® HD (3 µL per µg plasmid DNA) was added dropwise followed by incubation for 15 min. The plasmid DNA-OptiMEM™ mixture was then added to the cells with constant swirling. Plates were incubated at 37 °C and 5% CO2 for 48 h. Supernatants were then collected, passed through a 0.45 μm filter and stored at −80 °C.

2.3. H5 Release Assay

The ability of different NA to release H5 HA PV from producer cells was assessed by titration of the H5-NA(X) pseudotyped viruses produced as above in HEK293T/17 cells. Titration experiments were performed in Nunc F96 MicroWell white opaque polystyrene plates (Thermo Fisher Scientific 136101). Briefly, 50 µL of viral supernatant was serially diluted two-fold down columns of a 96-well plate in duplicate before adding 50 μL of 1 × 104 HEK293T/17 cells to each well. No PV/cell only negative controls were included on each plate as an indirect cell viability measurement. Plates were then incubated at 37 °C and 5% CO2 for 48 h. The medium was then removed, and 25 µL Bright-Glo® luciferase assay substrate was added to each well. Titration plates were then read using the GloMax® Navigator (Promega) and the Promega GloMax® Luminescence Quick-Read protocol. Viral pseudotype titer was then determined as relative luminescence units/mL (RLU/mL).

2.4. Reference Antisera, Monoclonal Antibodies and Serum Samples

Reference antisera to assess the inhibition sensitivity of representative IAV, anti-N1 A/California/7/2009 (NIBSC 10/218), anti-N1 A/turkey/Turkey/1/2005 (N1) (NIBSC 08/126), anti-N2 A/Victoria/361/2011 (NIBSC 14/144) and anti-N2 A/South Australia/34/2019 (NIBSC 19/320) antisera, IBV NA antiserum prepared from B/Malaysia/2506/2004 (NIBSC 05/252) and NA antiserum prepared from B/Florida/4/2006 (09/316) were obtained from the National Institute for Biological Standards and Control (NIBSC) (full details of antisera preparation can be found at https://www.nibsc.org/products/brm_product_catalogue/influenza_reagents.aspx, accessed on 21 February 2022). Monoclonal antibodies against N1, 3A2, 1H5, 4E9 and 3H10 [42] as well as CD6 [43] and CR9114 [44] were also utilized in neuraminidase inhibition assays. Post-vaccination mouse sera were obtained from the University of Cambridge as part of an ongoing influenza vaccination study. For these studies, 6–8-week-old female BALB/c mice were obtained from Charles River Laboratories and housed at University Biomedical Services, University of Cambridge. Mice were divided into groups of six for each individual vaccination antigen. On day 0, mice were injected subcutaneously (SC) on the rear flank with a 50 μL volume of 50 µg pEVAC NA (DNA), produced using the EndoFree Plasmid Mega Kit (Qiagen), or PBS for negative control groups. Immunizations were repeated on weeks 2, 4 and 6. Mice were weighed daily and monitored for any signs of disease or distress. All mice were culled at 70 days post-immunization, and terminal bleeds were collected. Collected blood was left to clot for 1 h at room temperature, and serum was separated via centrifugation at 2000× g for 10 min at 4 °C and stored at −20 °C. Serum samples were employed to determine responses of different NA antigens used for vaccination against corresponding H11_NA(X) pseudotypes.

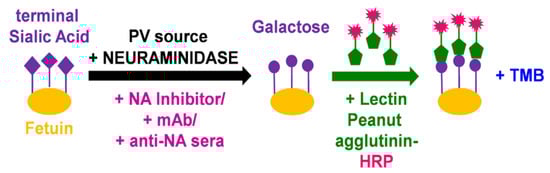

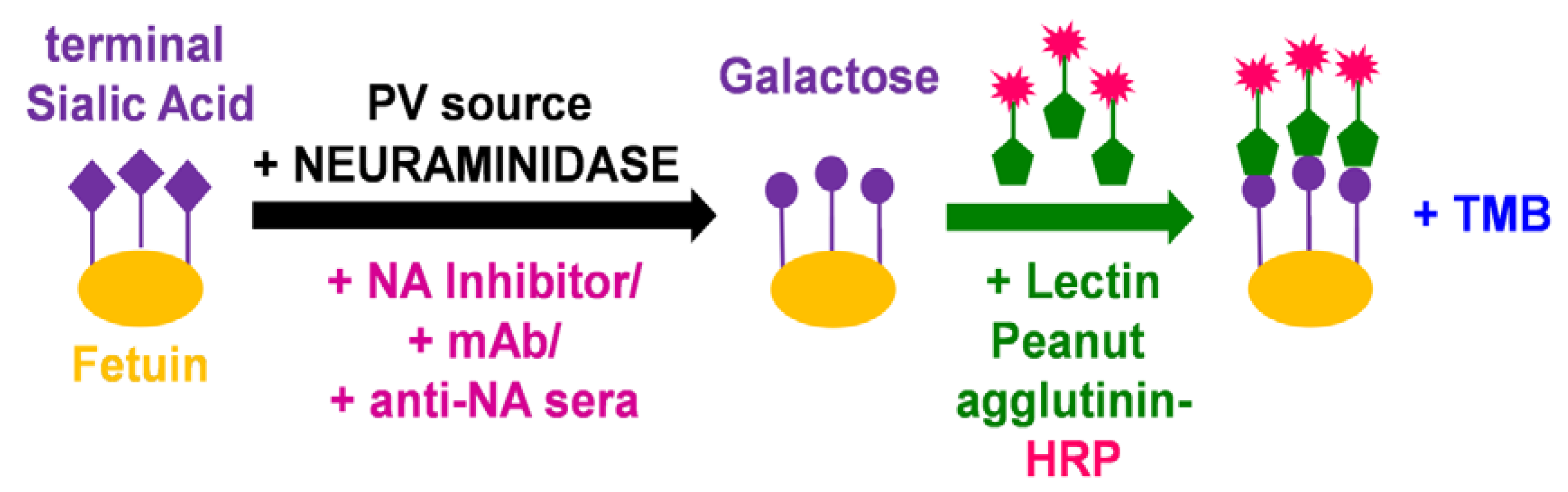

2.5. Titration of NA PV via Enzyme-Linked Lectin Assay (pELLA)

Clear Nunc Maxisorp™ flat-bottom 96-well plates (Thermo Fisher 44-2404-21, Paisley, UK) were coated overnight at 4 °C with 100 µL per well of 25 µg/mL fetuin (Sigma F3385, Dorset, UK) in 1X KPL coating buffer (Sera Care 50-84-00, MA, USA) to assess H11_NA(X) PV neuraminidase activity via the pELLA (Figure 1). The next day, plates were washed three times with wash buffer (WB) (0.5% (v/v) Tween-20 in PBS). A total of 240 µL of the H11_NA(X) PV was serially diluted two-fold from neat to 1:2048 with sample diluent (SD) (1% (v/v) Bovine Serum Albumin (BSA), 0.5% (v/v) Tween-20 in PBS) across a row of a 96-well mixing plate. Fifty µL of the PV dilutions was then transferred to two rows until column 10 of the fetuin-coated 96-well plate, with columns 11 and 12 containing only SD (no PV control). Fifty µL of SD was then added to all wells. Plates were incubated overnight at 37 °C. The next day, plates were washed 6 times with WB. One hundred µL of conjugate (1 µg/mL lectin from Arachis hypogaea (peanut) peroxidase conjugate (Sigma L7759, Dorset, UK) in conjugate diluent (1% (v/v) BSA in PBS)) was added to all wells, and plates were incubated at room temperature for 2 h with shaking (225 rpm). Plates were then washed 3 times with WB before adding 100 µL 1-Step™ Ultra TMB-ELISA Substrate Solution (Thermo Fisher 34029) followed by incubation in the dark at room temperature with shaking (225 rpm) for 10 min. Reaction was stopped by addition of 100 µL 0.1 M H2SO4 per well. Optical density at 450 nm (OD450) was determined using the Tecan Sunrise™ microplate reader with Magellan™ data analysis software. Readings were normalized to 100% and 0% OD450, and the dilution that resulted in 90% OD450 was selected as the PV dilution input for inhibition assays.

2.6. Inhibition of NA PV by Antisera and Monoclonal Antibodies

The inhibition of neuraminidase activity by standard reference antisera, monoclonal antibodies (mAb) and serum samples from animal studies was evaluated via the pELLA. Reference antisera were initially diluted 1:10 and then serially diluted five-fold; monoclonal antibody concentrations used were in the range of 32 µg/mL to 0.5 ng/mL. Serum samples from animal immunization studies were initially diluted 1:20 and then serially diluted two-fold in 50 µL SD. Dilutions were carried out in duplicate across two rows of a 96-well mixing plate. Fifty microliters of these dilutions were then transferred to fetuin-coated plates as described (Section 2.5), up to column 10. Fifty µL of the H11_NA(X) PV that resulted in 90% OD450 as determined in the above section was then transferred to all wells of the fetuin-coated plate except for column 11, which served as the PV only control (0% inhibition), and column 12 contained SD only (100% inhibition). An additional 50 and 100 µL of SD was added to columns 11 and 12, respectively. All other steps were followed as per NA PV titration via the pELLA. The IC50 was calculated as the inverse dilution of serum or antibody concentration that resulted in 50% inhibition of NA activity as determined via GraphPad Prism 9.0.

2.7. Flow Cytometry Binding Assay

HEK293T/17 cells were transfected with pEVAC encoding representative NA sequences of N1, N2, N3, N4, N8 and N9, as per PV production. Forty-eight hours post-transfection, cells (50,000 cells/well) were transferred into V-bottom 96-well plates. Cells were then incubated with mouse sera (diluted 1:50 in PBS) for 30 min, washed with fluorescence-activated cell sorting (FACS) buffer (PBS, 1% (v/v) FBS, 0.02% (v/v) Tween 20) and stained with goat anti-mouse IgG (H+L) Alexa Fluor 647 Secondary Antibody (Thermo Fisher A-21235, Paisley, UK) diluted at 20 µg/mL in FACS buffer for 30 min in the dark. Cells were washed with FACS buffer, and samples were run on the Attune NxT Flow Cytometer (Invitrogen) with a high throughput autosampler. Dead cells were excluded from the analysis by staining cells with 7-aminoactinomycin D (7-AAD) and gating 7-AAD negative cells.

2.8. NA-Fluor™ Influenza Neuraminidase Assay

The NA activity of the H11-NA(X) PV was determined via the NA-Fluor™ Influenza Neuraminidase Assay (Life Technologies 4457091, Paisley, UK) kit. First, the linear range of fluorescence versus concentration of the Tecan Infinite 200Pro was determined by comparing relative fluorescence units (RFU) obtained from the NA activity assay of the PV to a standard curve of 4-methylumbelliferone sodium salt 4-MU(SS) (Sigma M1508, Dorset, UK). NA activity is based on the production of 4-MU over time (60 min at 37 °C for the standard assay). The NA activity assay was then performed according to manufacturer’s protocol. Briefly, the H11-NA(X) PV was diluted 2-fold from neat in NA-Fluor 2X assay buffer in a black 96-well plate and incubated for 1 h at 37 °C with the NA-Fluor substrate. After adding the stop solution, the plate was read at excitation and emission wavelengths of 355 and 460 nm, respectively, with an optimal gain of 55 using the Tecan Infinite 200Pro fluorescence plate reader. The RFU range for normalizing the PV according to NA activity that is unique to every H11-NA(X) PV was then determined as well as the optimum H11-NA(X) PV dilution for the neuraminidase inhibition assay.
For the NA-Fluor™ Inhibition assay, the dilutions and concentrations for standard reference antisera, monoclonal antibodies (mAb) and serum samples from animal studies that were employed in the pELLA assay were likewise utilized (Section 2.6). The predetermined amount of H11-NA(X) PV to test for inhibition of NA activity was then added. IC50 values were determined from dose–response data using sigmoidal curve-fitting generated by GraphPad Prism Software 9.0.

2.9. Statistical Analysis

Descriptive statistical analysis (mean and standard deviation median and interquartile range) was performed with GraphPad Prism 9 for Windows (GraphPad Software).

2.10. Bioinformatic Analysis

NA sequences were downloaded from the Influenza Virus Resource database (IVRD) (fludb.org). The phylogenetic tree was generated using the Cyber-Infrastructure for Phylogenetic Research (CIPRES) Gateway [45]. The resulting tree file was then visualized using the Archaeopteryx tree viewer in the Influenza Resource Database (IRD) [46].

3. Results

3.1. NA PV Production and Functionality

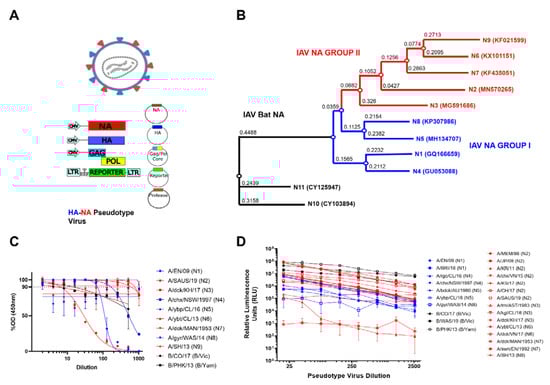

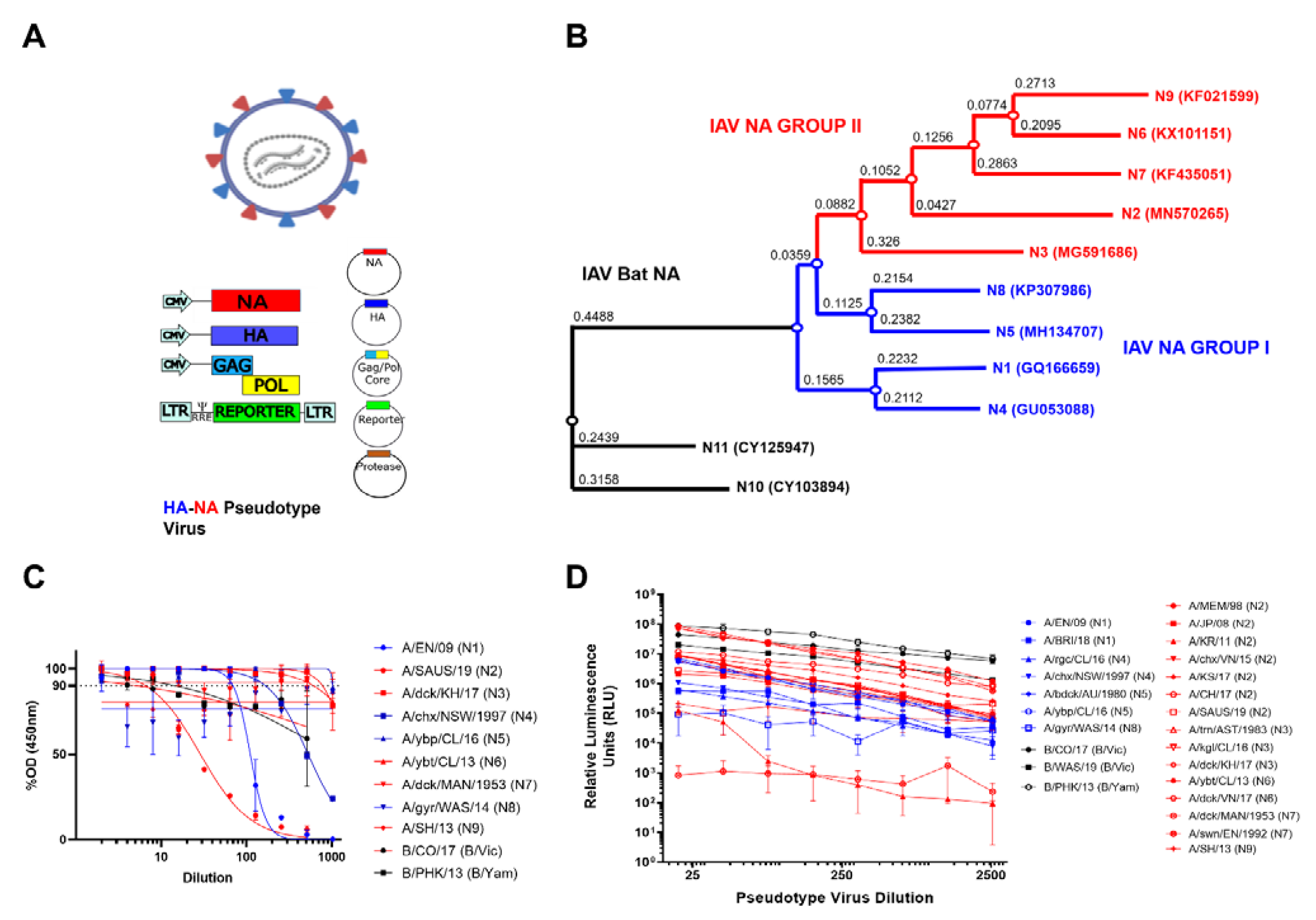

Our NA PV library was constructed using the 4-plasmid transfection method as described previously [47] and encompasses NA IAV 1-11 and NA IBV from both B/Vic and B/Yam lineages (Figure 2, Table S1). Similar to our HA PV library [47], p8.91 [48,49], a plasmid expressing the packaging genes (gag-pol) from a lentivirus (HIV), was used as the PV backbone. A pEVAC plasmid expressing the NA of the selected strain of IAV/IBV, pEVAC plasmid expressing hemagglutinin (HA) from A/red shoveler/Chile/C14653/2016 (H11) and a protease (transmembrane serine protease 4 (TMPRSS4)) to cleave HA were also included (Figure 2A). Employing this protocol, we successfully produced representative H11-NA(X) pseudotyped virus for all IAV subtypes and both IBV lineages (Figure 2B–C).
We then assessed the neuraminidase enzymatic activity of the pseudotypes we produced via our optimized PV enzyme-linked lectin assay (pELLA) protocol (Figure 1). ELLA pseudotype titrations were performed to determine the dilutions of the PV required for pELLA inhibition assays. The PV was diluted two-fold from a starting dilution of 1:2 to 1:1024, and optical density at 450 nm was read (Figure 2C). All values were normalized against the highest PV value obtained (100% OD450) and the sample diluent only control (0% OD450). Traditionally, 90% activity is optimal for use in the inhibition assay [33,39]; however, we also set the additional criteria of a minimum OD450 of 2.0 for use in pELLA inhibition. All human and avian PV produced demonstrated NA enzymatic activity and met the additional criteria we set for use in pELLA inhibition (Figure 2C) apart from bat N10 and N11. These bat NA have been reported to not demonstrate any “classic” neuraminidase activity in these assays [50,51,52,53,54]. We then utilized this PV library to test for anti-NA activity in post-vaccination mouse sera.
To assess the ability of our NA to release HA, we produced PV with IAV H5, IAV NA (N1–N9) and IBV NA (B/Vic and B/Yam) in place of exogenous NA and titrated the PV via a luciferase reporter assay [41]. N10 and N11 have previously been shown to not be required for HA release [41,55] and were therefore not tested. All the NA PV tested were capable of releasing H5 as evidenced by the titers observed (Figure 2D). H5 HA was selected as it is a highly pathogenic IAV subtype harboring a functional polybasic cleavage site that does not require an exogenous protease for HA release [56,57]. Even though H5 has not been observed in vivo in combination with all NA subtypes utilized here, all PV produced RLU titers of 105 and higher except for A/duck/MAN/1953 (N7), which does not release H5 as efficiently as suggested by the data of the present study (Figure 2D). Interestingly, one of the N2 PV constructs (A/Korea/KUMC_GR570/2011) only achieved a titer of 105, and the reasons for these discrepancies are not clear.

3.2. In Vitro Inhibition of NA Pseudotypes by Antisera and Monoclonal Antibodies

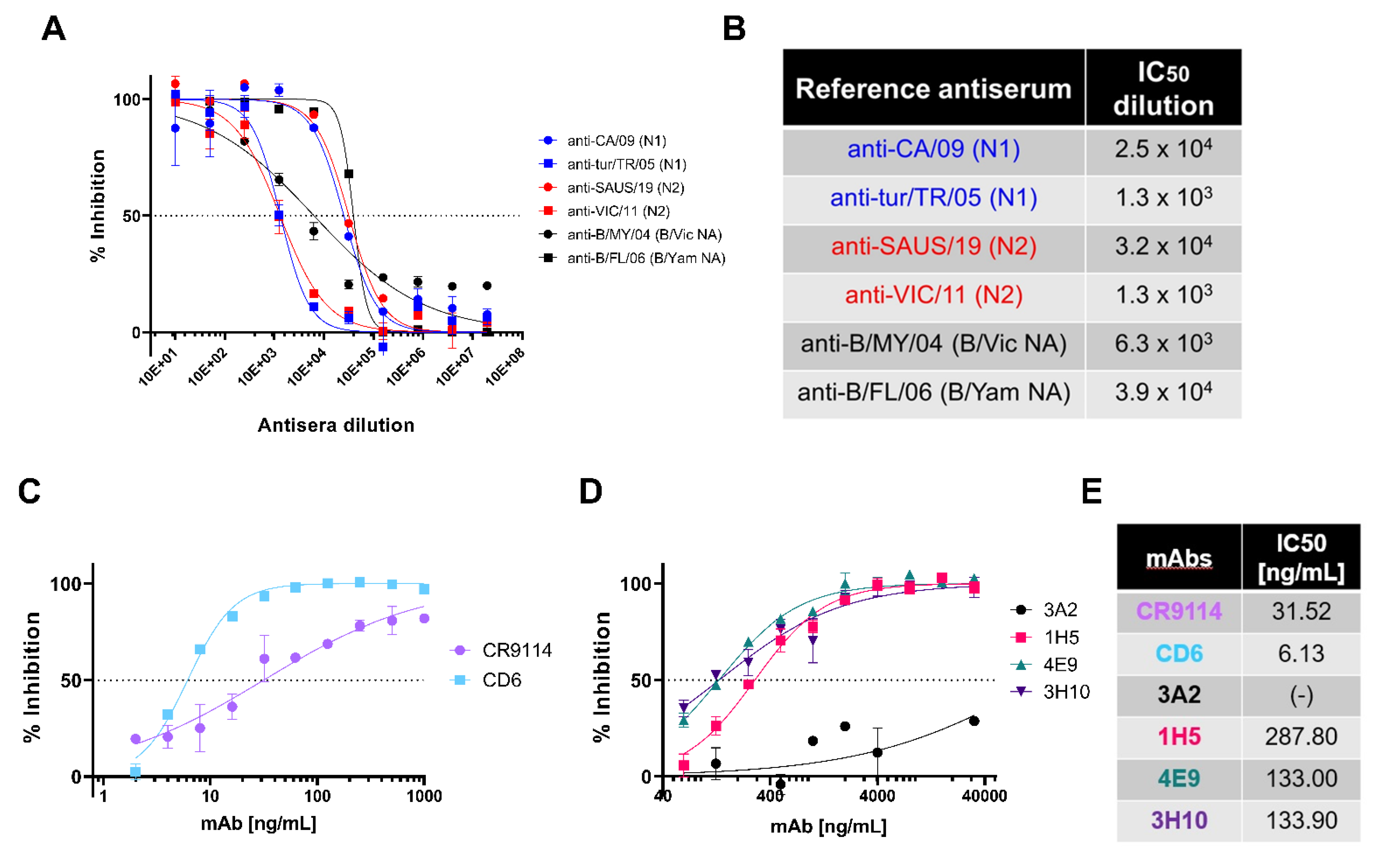

The inhibition susceptibility of representative NA PV generated to available NA subtype-specific reference antisera was tested. We show dose response curves for PV which have previously infected humans: N1 (A/England/195/2009), N2 (A/South Australia/34/2019), B/Vic lineage NA (B/Colorado/6/2017) and B/Yam lineage NA (B/Phuket/3073/2013) (Figure 3A). All reference antisera were able to inhibit the PV they were tested against (Figure 3A,B) including both anti-N1 2009 pandemic antisera, A/California/7/09(H1N1) and antisera A/turkey/Turkey/05, originally from A/turkey/Turkey/1/05 (H5N1), with IC50 dilution values of ~25,000 and ~1300, respectively. Both N2 PV were inhibited by anti-N2 antisera, with IC50 dilution values of ~32000 and ~1300. Similarly, IBV lineage PV were inhibited by anti-sera tested with IC50 dilution values of ~6300 for B/Vic-like and ~39,000 for B/Yam-like antisera.
IAV H1N1 has caused pandemic influenza in humans, most recently in 2009 [58,59]. Taking this into account, we tested representative N1 PV (A/England/195/2009) inhibition sensitivity to a variety of monoclonal antibodies (mAb) in pELLA inhibition. As the PV created express H11, we tested the ability of HA stem-directed mAb CR9114 [44], which was previously shown to neutralize IAV and IBV HA PV [41], to inhibit NA enzymatic activity in a traditional ELLA [60]. CR9114 inhibited the N1 PV tested (Figure 3C) with half-maximal inhibitory concentration IC50 of 31.52 ng/mL (Figure 3E) as determined by non-linear regression. This is expected as CR9114 inhibits the action of NA via steric hindrance. We also investigated the inhibitory action of anti-N1 directed antibodies. We tested CD6, a mAb raised against the H1N1 2009 pandemic strain of IAV that binds to an N1 conserved epitope which spans the lateral face of the NA dimer [43]. We show here that our N1 PV (A/England/195/2009) was inhibited by CD6 (Figure 3C), with IC50 determined to be 6.13 ng/mL, more potent than CR9114. We also explored inhibition of our 2009 pandemic N1 PV with anti-N1 mAbs generated against A/Brisbane/59/2007 [42]. Monoclonal antibodies 1H5, 4E9 and 3H10 (Figure 3D) had IC50 values of 287.80, 133 and 133.90 ng/mL, respectively (Figure 3E). However, mAb 3A2 did not achieve 50% inhibition (Figure 3D,E). Reasons for this and the high concentrations of mAb required, compared to CD6, may be the PV utilized being a 2009 pandemic H1N1 strain. The mAb 3A2 was raised against a pre-pandemic strain, suggesting that the 3A2-specific epitope may have been affected by the antigenic shift seen in 2009.

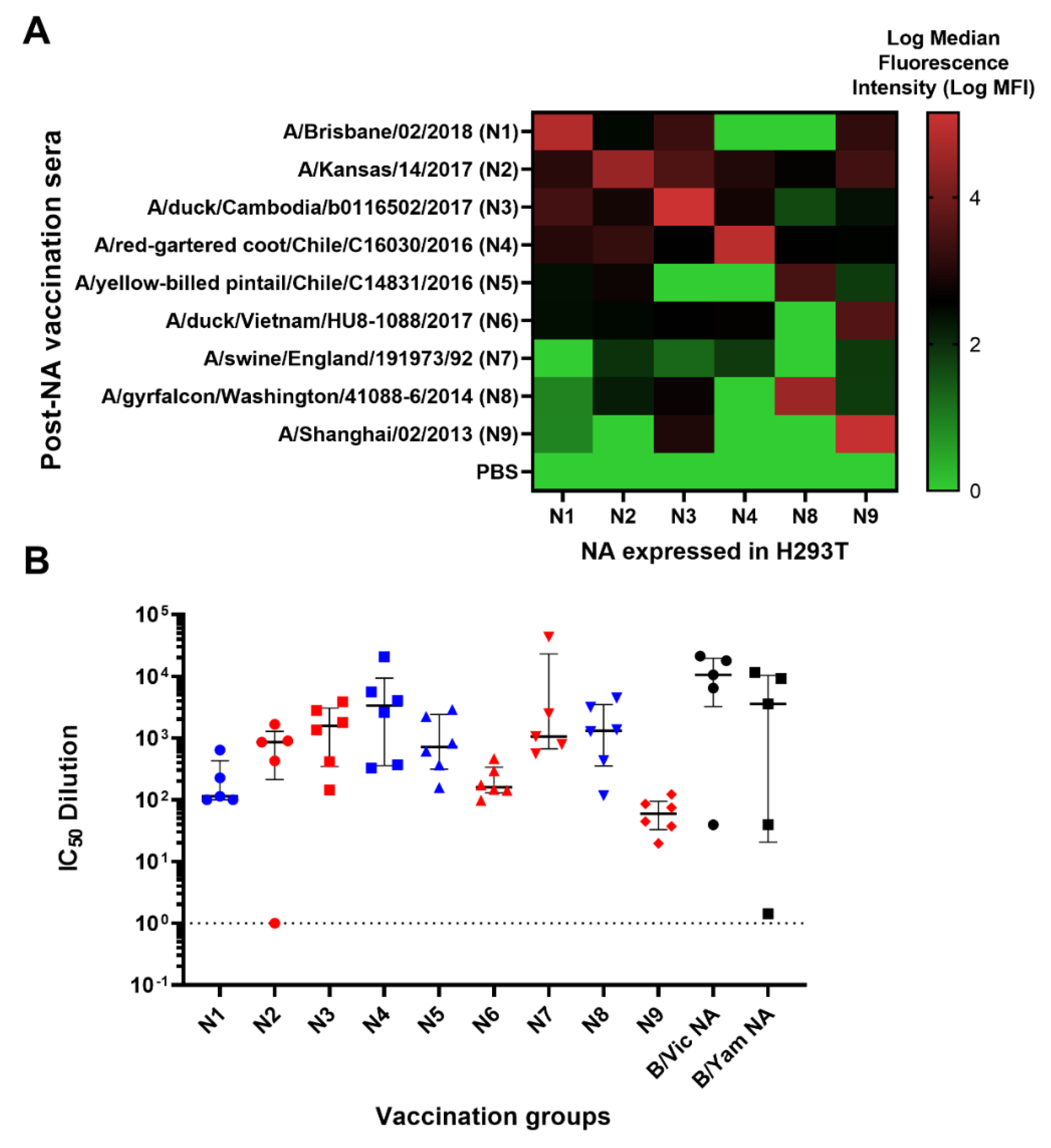

3.3. Inhibition of Neuraminidase Activity by post-NA Vaccination Mouse Sera

We obtained mouse sera from preclinical influenza vaccination studies in mice at the University of Cambridge and tested the ability of these mouse sera to bind and neutralize H11-NA(X) PV from our library representing all IAV subtypes and IBV lineages. Naïve mice were vaccinated with NA (IAV N1-N9 and IBV B/Vic and B/Yam) to elicit an immune response against influenza neuraminidase (Figure 4). Mouse terminal bleeds were obtained and were assessed via FACS for the capacity to bind to HEK293T/17 cells transfected with pEVAC encoding the homologous IAV NA subtype. As expected, high binding activity of post-vaccination sera to HEK293T/17 cells expressing the homologous NA was observed with log median fluorescence intensity (MFI) values shown to be ≥4 (red in the heat map) (Figure 4A). Interestingly, sera from mice vaccinated with N2 and N4 bound to all NA expressed in HEK cells with log MFI values ranging from ~3 to 4 (Figure 4A). Sera from mice vaccinated with N5, N6 and N7, displayed little to no binding to all the NA tested, while sera from mice vaccinated with N8 and N9 only had strong binding activity against homologous NA expressed in HEK cells (Figure 4A). Surprisingly, all sera from vaccinated mice showed modest cross-binding activity with N9 in HEK cells regardless of NA subtype they were vaccinated with.
We then performed pELLA inhibition employing these post-vaccination mouse sera against NA PV from our library to assess NA vaccine immunogenicity. All post-vaccination sera neutralized the homologous NA subtype (IAV)/lineage (IBV) pseudotype they were tested against with IC50 dilution values ranging from ~100 to ~10,000 (Figure 4B). As negative controls, we also tested mice vaccinated with PBS for their inhibition activity against the PV as indicated in Figure 4B (Figure S1). These results indicate that post-vaccination immune responses for all IAV subtypes and IBV lineages tested can be effectively evaluated using our optimized pELLA.

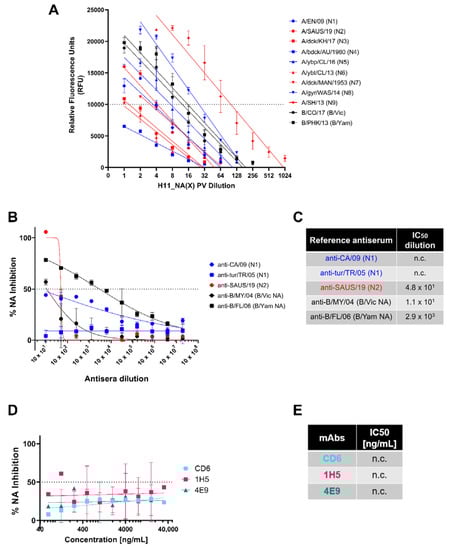

3.4. Comparison of pELLA with NA-Fluor™ to Evaluate NA Activity and Inhibition

We then compared the results of NA activity and inhibition as determined by the pELLA to that obtained via the NA-Fluor™ assay, a commercially available fluorescence-linked MUNANA-based assay routinely used to monitor neuraminidase inhibitor (NI) drug sensitivity.
First, we determined the linear range of fluorescence versus concentration of fluorescent 4-methylumbelliferone (4-MU) of the instrument, the Tecan Infinite 200Pro. 4-MU(SS) is the end product when the substrate, 20-(4-methylumbelliferyl)-a-D-N-acetylneuraminic acid (MUNANA), is cleaved by NA [31,61,62,63]. We then selected an RFU value within the linear range of fluorescence detection of the instrument for normalizing PV according to NA activity (Figure S2). From these findings (Figure S2), we then chose 10,000 RFU (shown via broken line) as the fluorescence signal output for NA activity normalization (Figure 5A). For each PV, we then selected the dilution factor that yielded 10,000 RFU as identified in the 4-MU(SS) standard curves. Our results show that we successfully produced H11-NA(X) PV with neuraminidase activity that is within the linear dynamic range of detection of the NA-Fluor™ assay that we utilized (Figure 5A). These results corroborate the NA activity of our PV library as determined via the pELLA (Figure 2C).
We then attempted to demonstrate NA inhibition of our representative NA PV with the same reference antisera and monoclonal antibodies we tested previously in the pELLA (Figure 3). Despite employing the same reference antisera dilutions (Figure 5B,C) and mAb concentrations (Figure 5D,E), we did not observe the same inhibition activity against the PV tested in the NA-Fluor™ assay. For the reference antisera, only the anti-B/FL/06 (B/Yam NA) showed appreciable neutralizing activity against the representative B/Yam NA PV (Figure 5B); however, the IC50 dilution value determined here (Figure 5C) was a log lower from that observed in the pELLA (Figure 5B). The rest of the reference antisera tested did not seem to strongly inhibit their PV counterparts (Figure 5B,C). Similar to the reference antisera, the mAbs specific against N1 that were tested did not inhibit A/England/195/2009 (N1) PV (Figure 5D,E), with the data generated insufficient to calculate IC50 values (n.c.).

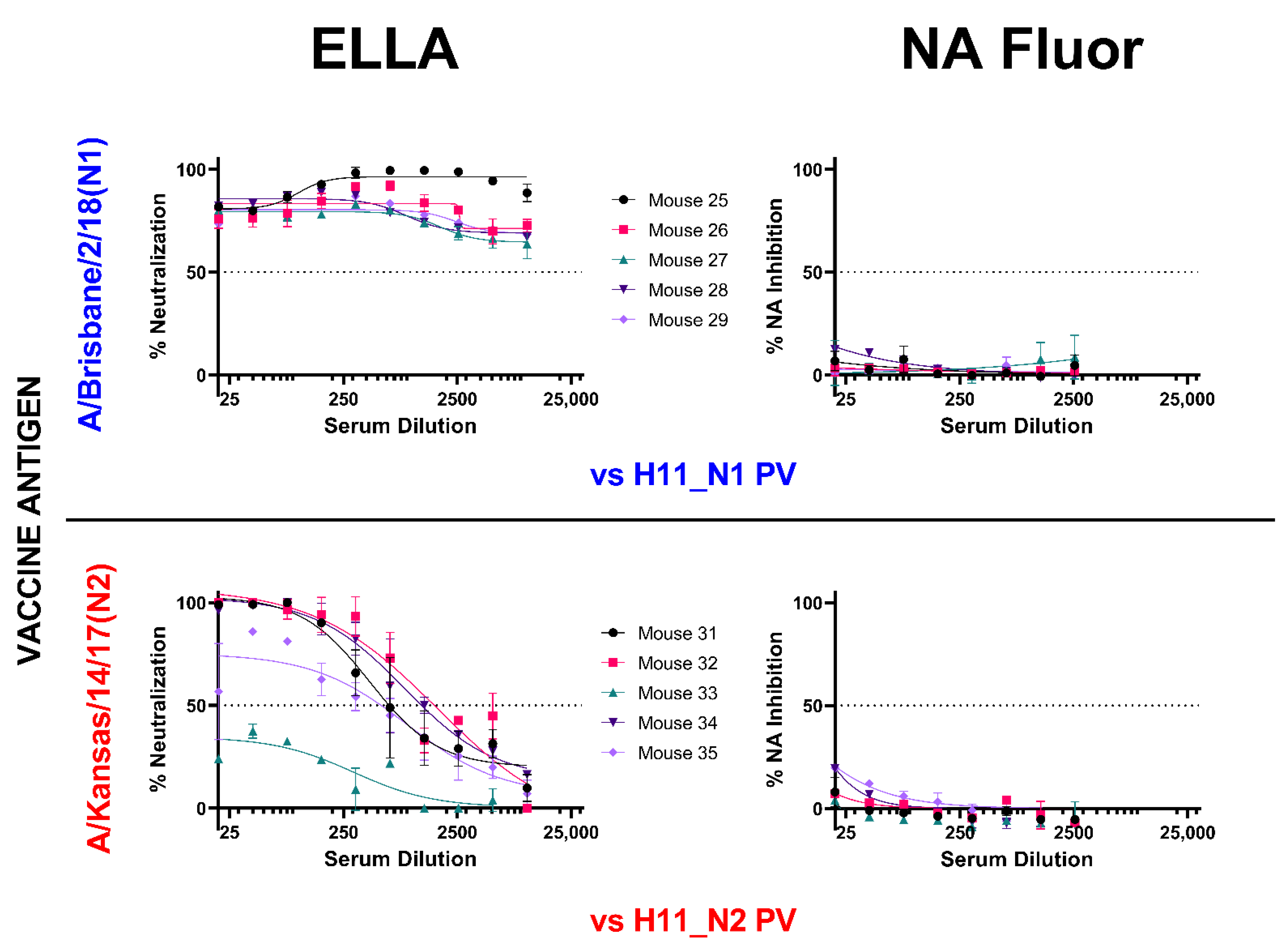

We then compared NA inhibition via pELLA and NA-Fluor™ with post-NA vaccination mouse sera (Figure 6). We employed the same post-vaccination serum samples and tested using the same PV, yielding contrasting results. NA neutralization of the N1 and N2 PV employed was successfully demonstrated using the pELLA for all tests subjects, while there was no inhibition observed using the NA-Fluor™ (Figure 6).

4. Discussion

Development of a universal influenza vaccine relies heavily on the determination of specific immune responses and other correlates of protection that prevent illness due to influenza infection [26,64,65]. Seasonal influenza vaccination targets the influenza HA head which has been shown in the past to be the most immunodominant influenza antigen, with NA, the second most abundant influenza surface glycoprotein, being overlooked until recently [65]. Neuraminidase performs multiple functions in the influenza infection cycle which gives rise to the many possible avenues where antibodies against NA can be exploited to provide protection against influenza. Similar to HA, antibodies specific to the conserved regions of NA have shown excellent breadth and are able to inhibit divergent influenza viruses [60,66].
Although limited, knowledge of immunity based on inhibition of NA activity has been building up. Several clinical studies have successfully shown that strong anti-NA inhibition titers (either vaccination-induced or pre-existing through natural infection) decrease the frequency of influenza infection and illness [67,68,69]. These NA inhibition titers (NAIs) were found to be independent of hemagglutination inhibition (HAI) titers, both of which can be used in conjunction to determine influenza sero-protection [67]. These findings warrant further studies on anti-NA immunity with similar methods that allow us to study anti-HA responses, solidifying NA’s important role in influenza prevention and control.
The function of NA and interactions in vivo with HA are increasingly being explored especially in relation to the design and efficacy of novel vaccine or drug candidates. The NA PV library we constructed can be utilized to this end in a similar fashion to the HA PV library we previously described [41]. Our comprehensive library has representative strains of IAV N1-11 and IBV B/Vic NA and B/Yam NA (Table S1), and the methods used to produce these PV can easily be employed to include additional NA strains as required. The PV library could be applied to research for human disease with emphasis on the zoonotic potential of strains such as H10N3 reported recently in China [70] that may have pandemic potential. We produced NA PV pseudotyped with an HA (in this case, H11) although it was possible to produce the NA PV on its own (Figure 2A), as we found that when testing inhibition capacity of mouse sera, an HA plasmid was required to maintain stability of the PV as observed previously [71] and reduced background for use in the pELLA [34,38]. Additionally, this arrangement mirrors the influenza wild type virus surface that contains both HA and NA, potentially providing a more accurate model for interactions between these surface glycoproteins that can then be probed at lower containment.
All IAV PV (N1-N9) and both lineages of IBV (Victoria-like and Yamagata-like lineages) showed NA enzymatic activity in our optimized pELLA (Figure 2C), suggesting that the PV produced in this study have functional NA sialidase activity. We also showed that most of the NA we tested was able to release the H5-NA(X) PV (Figure 2D). However, we report an unusual case, where A/duck/MAN/1953 (N7) that had a lower H5 release capacity compared to the other NA tested (Figure 2D) has demonstrated strong neuraminidase activity (Figure 2C). This may be because this particular H5 from A/Indonesia/5/2005 has not been shown to combine in nature with all the NA subtypes tested. It is known that the length of the NA stalk region may possibly influence the overall enzymatic activity of the virus by affecting its access to cellular sialic acid receptors [72,73]. This in turn may also depend on the ratio of HA to NA molecules on virions [73]. This could possibly explain the discrepancies we observed. Furthermore, our data imply that the role NA plays in HA release (Figure 2D) and NA enzymatic activity, as measured via the pELLA (Figure 2C), may be more complex than a direct correlation between enzymatic activity and HA release capacity, warranting further investigation [74].
There is a limited number of subtype-specific anti-NA antisera available for testing as there are very few NA subtypes that have infected humans in the past; nonetheless, we demonstrated that the antisera we obtained could inhibit homologous subtype NA activity in the pELLA (Figure 3A,B). For mAbs, we utilized CR9114, a broadly-neutralizing anti-HA stem antibody that binds in a structurally similar manner to the HA stem region across HA subtypes 1–16, blocking the HA pH-induced conformational changes associated with membrane fusion [44]. HA-stem-specific antibodies such as CR9114 inhibit NA activity via steric hindrance [60], and detection of this activity may be critical for the advancement of universal vaccines which utilize similar targets [24,75,76,77]. The data we presented (Figure 3C) show CR9114 inhibiting the NA enzymatic activity of H11-N1 PV, affirming that the pELLA can also be employed to detect this activity, similar to traditional ELLA assays [60]. Additionally, we demonstrated that the inhibiting activity of mAbs which directly targets epitopes of NA can also be assessed via this assay (Figure 3C,D). Although we only had access to a limited selection of anti-NA N1 mAbs, we demonstrated that our H1N1 pandemic strain (A/England/195/09) was preferentially inhibited by CD6, a mAb raised against H1N1 2009 pandemic strain (A/California/7/09) compared to mAbs raised against the seasonal influenza strain (A/Brisbane/59/07) (Figure 3C,D). These findings concur with previous experiments conducted with traditional pELLA assays by Wan et al. [43].
A broadly protective vaccine directed at NA epitopes is becoming an increasingly plausible option. Previous studies have established that NAI antibody activity is an independent correlate of protection in humans [68,69]. The breadth of immunity due to NA has not been fully elucidated; however, a pertinent example of NA-based immunity can be gleaned from the 1968 H3N2 pandemic. The H3N2 pandemic virus of 1968 replaced the previous pandemic H2N2 subtype, as the H2 and PB1 gene segments were replaced by reassortment with an avian-like H3 HA and PB1, with its NA remaining the same [78]. This pandemic H3N2’s sporadic nature and milder impact in terms of morbidity and mortality compared to its ancestors in different regions of the world is hypothesized to be mediated by N2 immunity from the previous pandemic in all age groups and to the HA antigen in the elderly [17,79,80]. Similarly, NA-mediated immunity between H1N1 and H5N1 viruses has also been observed, and this is due to conserved N1 epitopes between these viruses [24,25,43,66,81]. Furthermore, mAbs isolated from H3N2 infected donors which bind directly to the NA active site have demonstrated exceptional breadth against NA from IAV and IBV and are broadly protective in vivo [82]. This indicates a molecular basis for protection, and that these conserved protective epitopes can be ideal targets for a broadly protective vaccine.
We further studied NA-based protection by immunizing groups of mice with different NA subtypes (N1-N9) and looking for any cross-reactivity that may be present within subtypes. Results were interesting, as antibodies in post-vaccination mouse sera were able to bind to heterologous NA subtypes (Figure 4A), alluding to the probable presence of conserved epitopes among these subtypes, especially in mice vaccinated with N1 and N4, which are the closest relatives in the NA Group I phylogenetic tree (Figure 2B). Surprisingly, mouse post-vaccination sera bound to H293T cells expressing N2 and N9 (Figure 4A). Employing the pELLA, we were able to successfully quantify NA inhibition in post-vaccination mouse sera, an indirect measure of antibodies against NA (Figure 4B). These findings are the first steps in identifying conserved regions or epitopes hidden in NA, followed by elucidating the mechanisms by which these NA antibodies contribute to protection and how these NAI antibody titers may be considered protective.
We then compared the results we obtained from the pELLA with the NA-Fluor™ Influenza Neuraminidase Assay Kit. The NA-Fluor™ assay is a fluorescence-based assay, which quantifies the fluorogenic end product 4-methylumbelliferone released from the non-fluorescent substrate 2′-(4-methylumbelliferyl)-α-D-N-acetylneuraminic acid (MUNANA) by the enzymatic activity of neuraminidase. The amount of fluorescence directly relates to the amount of enzyme activity. This assay is widely accepted for monitoring of the effect of NA inhibitors on NA activity or monitoring NI sensitivity in cell-based virus growth or inhibition assays [26]. Employing the NA-Fluor™, we showed that we produced H11-NA(X) PV with neuraminidase activity (Figure 5A) that can be used in NA-Fluor™ inhibition assays.
It is known that NA activity can be inhibited by antibodies binding directly to epitopes within the enzyme active site or through steric hindrance when antibodies bind proximal to the active site. However, NI through steric hindrance can only be observed when larger substrates, such as fetuin, are used, as in ELLA [82,83,84,85], and this may not be the case when smaller molecules are used as the substrate as in the NA-Fluor™. As such, antibodies that do not bind directly to the active site might not inhibit NA activity. We were also unable to show any NA inhibition activity in post-NA vaccination mouse sera (Figure 6), even if they all strongly inhibited NA as seen via the pELLA (Figure 4B). These results are somewhat disappointing as we could not find any correlation between the two methods and will require further investigation in the future.
Nonetheless, for the first time to our knowledge, we demonstrated the utility of our optimized PV enzyme-linked lectin assay (pELLA) employing neuraminidase pseudotyped viruses to evaluate serologic responses to vaccination with IAV NA1-NA9 and IBV B/Victoria-like and B/Yamagata-like lineage NA. The pELLA was also useful in determining anti-NA directed monoclonal antibody and anti-NA reference antisera activity. The assay as shown here is more accessible to laboratories without high containment facilities, and low-resource environments, than traditional MUNANA assays. The pELLA was also able to detect NA inhibition by a variety of samples more effectively than the commercially available NA-Fluor™.
Neuraminidase is an important protein which is now recognized to have multiple functions beyond its key role in viral budding during influenza infection [14], including preventing aggregation of viral progeny [13] and neutralizing protective effects of human mucus [2], and is capable of replacing functions of HA involved in viral entry [86,87,88]. In the case of bat IAV, HA uses the major histocompatibility complex (MHC) for entry [55], and therefore it follows that N10 and N11 have not demonstrated sialidase activity [50,51,52,53]. Recent data have shown that N11 is capable of downregulating cell surface expression of MHC-II molecules; the exact mechanism for this has not yet been elucidated [54]. Currently there are several licensed drugs and small molecules which target NA [89], such as neuraminidase inhibitors (NAIs) [90], strongly suggesting that a vaccine capable of eliciting anti-NA responses would be beneficial to preventing disease from influenza. Additionally, observations from natural immunity, including the broadly protective mAbs recently described [82], and a growing number of recombinant NA-based vaccines demonstrating protection in animal models [24,83,91,92] strengthen the need for further studies of NA as a viable vaccine target. In order to properly assess the immunity provided by anti-NA vaccines, a toolbox of assays will be required to predict in vivo protective efficacy and establish correlates of protection. We propose that the pELLA system described herein can form an important part of this new generation of in vitro vaccine assessment options. The flexibility of the PV production process ensures that immunity to a range of subtypes and strains can be tested against heterologous NA in a format that displays surface glycoproteins in their native conformation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/vaccines10091520/s1, Figure S1: Anti-NA activity of mouse sera vaccinated with PBS (negative control) as tested against NA pseudotypes. Figure S2: Standard Curve of 4-Methylumbelliferone sodium salt (4-MU(SS)). Table S1: List of influenza neuraminidase pseudotypes (PV) available at the Viral Pseudotype Unit, University of Kent.

Author Contributions

Conceived and designed experiments—K.A.S.d.C., J.M.M.D.R., G.W.C., M.F. and N.J.T.; Performed experiments—K.A.S.d.C., J.M.M.D.R., M.F. and G.W.C.; Plasmid construction; S.V., B.A. and R.W.; Analyzed the data—K.A.S.d.C., J.M.M.D.R., M.F., G.W.C. and N.J.T.; Reagent provision, R.K., N.J.T. and J.L.H.; Wrote the paper—K.A.S.d.C. and J.M.M.D.R.; Revised the paper—G.W.C., J.L.H., R.W. and N.J.T., K.A.S.d.C. and J.M.M.D.R. have contributed equally to this work. All authors have read and agreed to the published version of the manuscript.

Funding

N.J.T., K.A.S.d.C., G.W.C. and J.L.H. received funding from the Bill and Melinda Gates Foundation: Grand Challenges Universal Influenza Vaccines Award: Ref: G101404. N.J.T. and J.M.M.D.R. received funding from Innovate UK, UK Research and Innovation (UKRI), for the project: Digital Immune Optimized and Selected Pan-Influenza Vaccine Antigens (DIOS-PIVa) Award Ref: 105078. R.W. received funding from EC FETopen (Virofight, Grant 899619).

Institutional Review Board Statement

Mouse studies were approved by the AnimalWelfare Ethical Review Body, University of Cambridge (Project license P8143424B).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to thank Jerry Weir of the U.S. Food and Drug Administration (10903 New Hampshire Avenue, Silver Spring, MD 20993, USA) for the anti-N1 monoclonal antibodies we used in this study.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
